LG 27UD69P User Guide
Owner's Manual
LED LCD MONITOR
(LED MONITOR*)
*LG LED Monitors are LCD Monitors with LED Backlighting.
Please read the safety information carefully before using the product.
LED LCD Monitor (LED Monitor) Model List
27UD69P
www.lg.com
2
Contents
ENGLISH
ENG
CONTENTS
3 LICENSE
4 ASSEMBLING AND PREPARING
4 Product Components
5 Supported Drivers and Software
6 Component and Button Description
6 - How to Use the Joystick Button
7 Input Connector
8 Moving and Lifting the Monitor
9 Installing the Monitor
9 - Assembling the stand base
11 - Using the cable holder
11 - Installing onto a table
12 - Adjusting the stand height
12 - Adjusting the angle
13 - Pivot Feature
14 - Using the Kensington lock
14 - Installing the wall mount plate

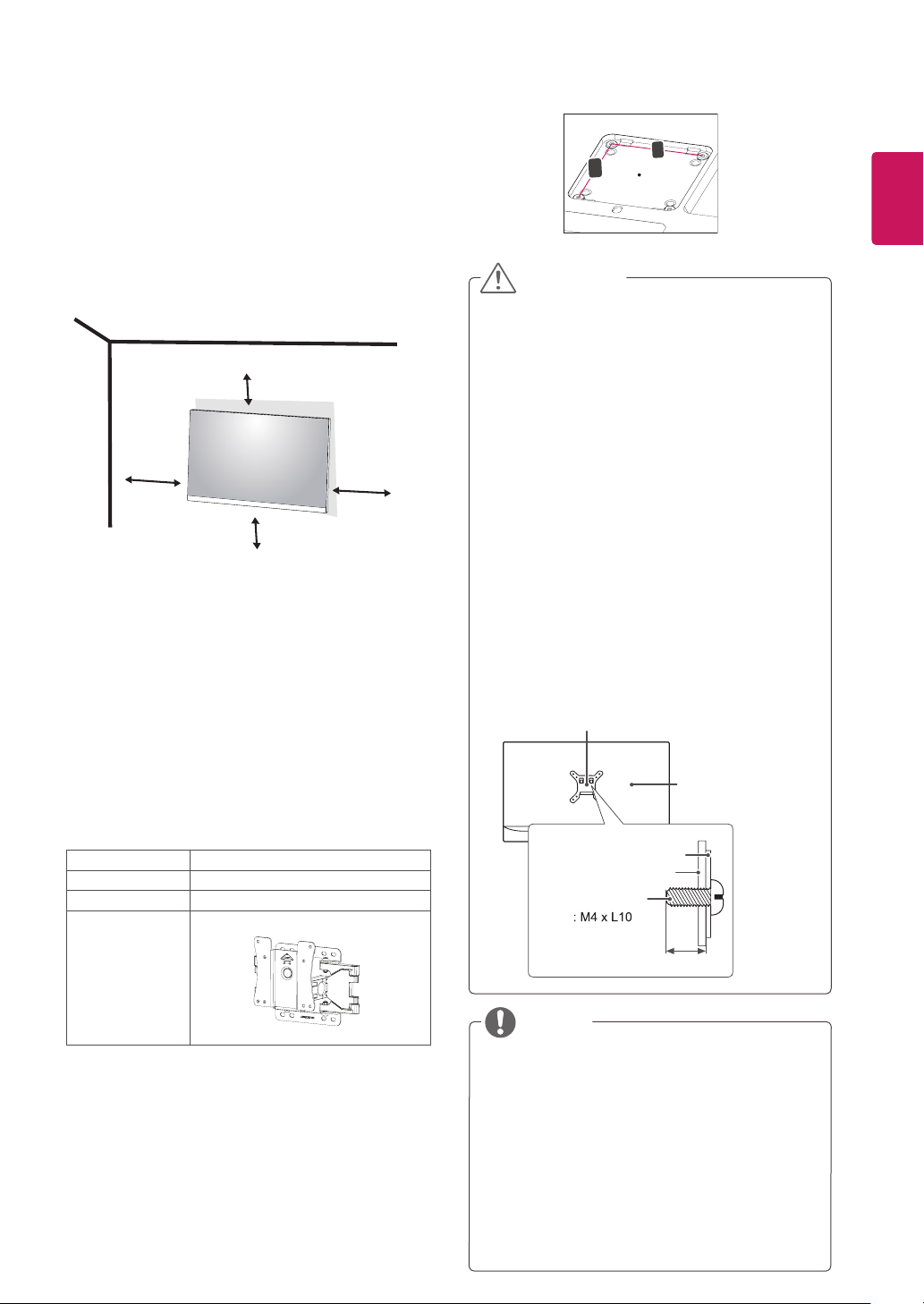

15 - Installing to a wall
18 USER SETTINGS
18 Activating the Main Menu
18 - Main Menu Features
19 User Settings
19 - Menu Settings
23 TROUBLESHOOTING
25 SPECIFICATIONS
25 27UD69P
26 Factory Support Mode (Preset Mode, PC)
26 HDMI
26 DisplayPort
27 HDMI Timing (Video)
27 Power LED
16 USING THE MONITOR

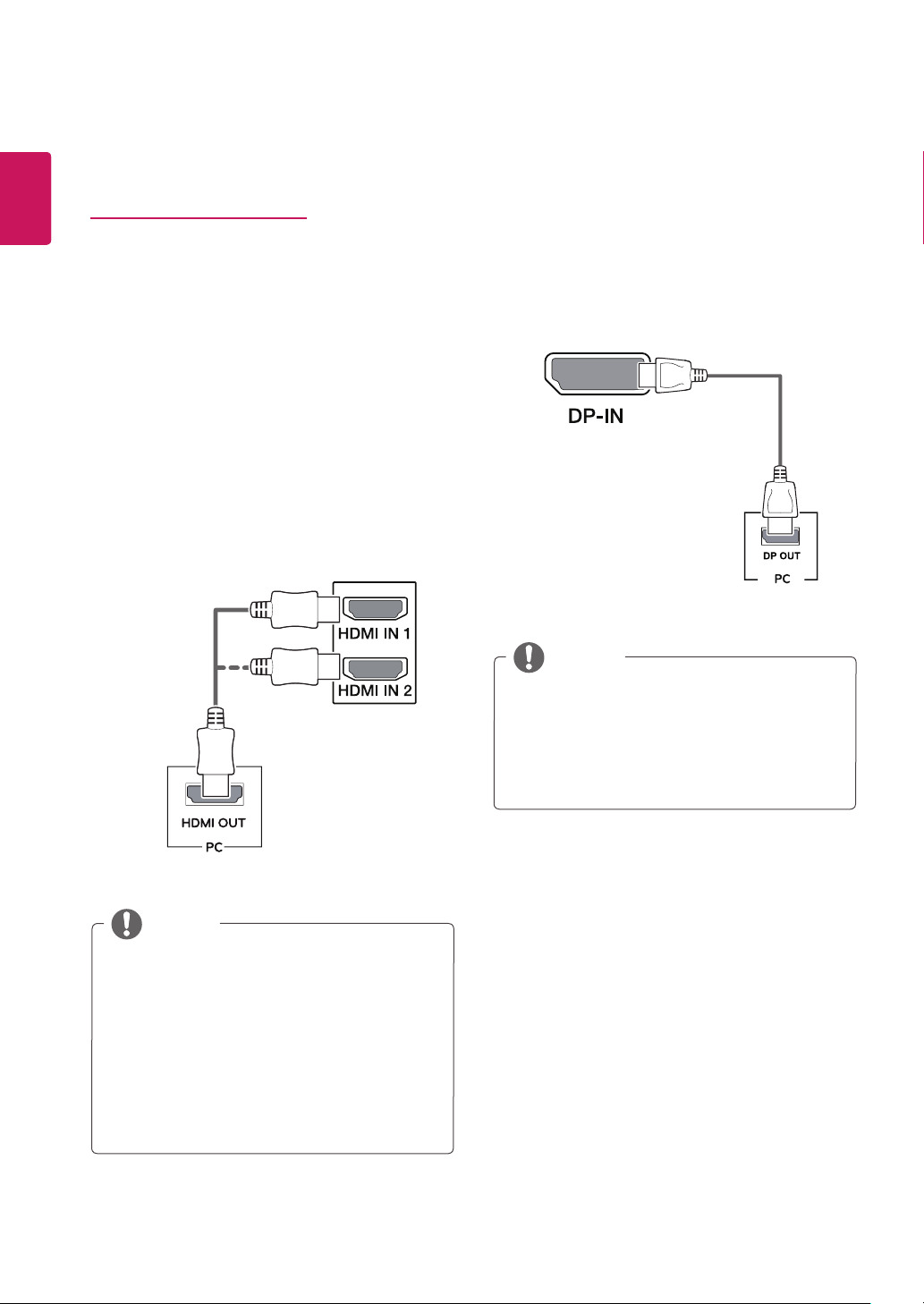

16 Connecting to a PC
16 - HDMI connection
16 - DisplayPort connection

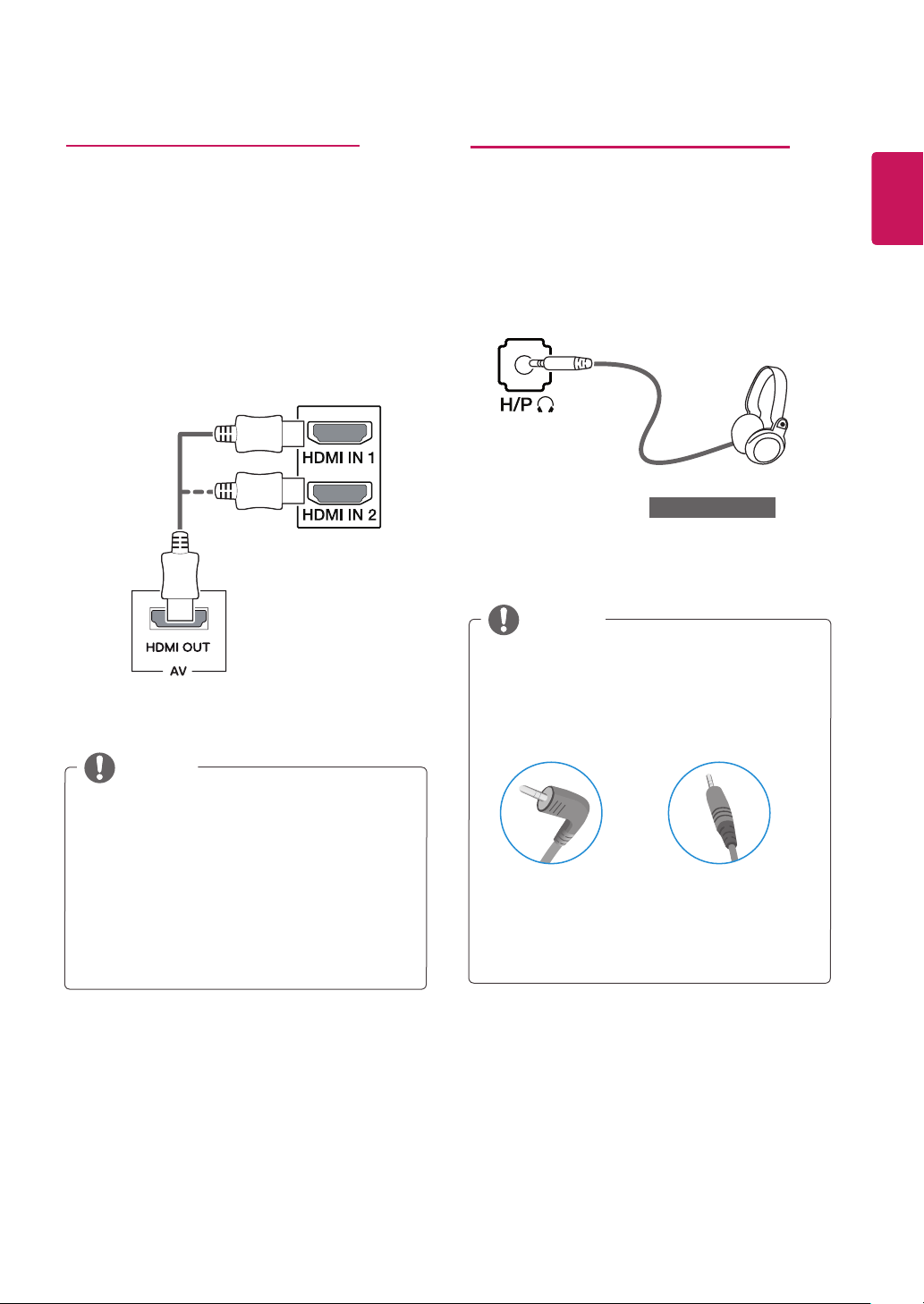

17 Connecting to AV Devices
17 - HDMI connection
17 Connecting to External Devices
17 - Connecting Headphones
3
LICENSE
Each model has different licenses. Visit www.lg.com for more information on the license.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo
are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the
United States and other countries.
ENGLISH
ENG
The following content is only applied to the monitor which is sold in Europe market and which needs to meet the ErP
Directive:
* This monitor is set to be turned off automatically after 4 hours when you turn on the display and there is are no adjustments made to the display.
* To make this setting be disabled, change the option to ‘Off’ in OSD menu of “Automatic Standby”.
ENGLISH
ENG
4
ASSEMBLING AND PREPARING
Product Components
Please check whether all the components are included in the box before using the product. If there are missing components, contact the retail store where you purchased the product. Note that the product and components may look
different from those shown here.
or
CD / Card
HDMI Cable
(This cable is not included
in all countries.)
CAUTION
Power Cord
(Depending on the country)
DisplayPort Cable
(This cable is not included in
all countries.)
Stand BaseStand Body
AC-DC Adapter
Cable Holder
AC-DC Adapter
(Depending on the country)
Always use genuine components to ensure safety and product performance.
y
The product warranty will not cover damage or injury caused by the use of counterfeit components.
y
It is recommend that use the supplied components.
y
If you use generic cables not certified by LG, the screen may not display or there may be image noises.
y
NOTE
Note that the components may look different from those shown here.
y
Without prior notice, all information and specifications in this manual are subject to change to improve the
y
performance of the product.
To purchase optional accessories, visit an electronics store or online shopping site or contact the retail store
y
where you purchased the product.
Supported Drivers and Software
You can download and install the latest version from the LGE website (www.lg.com).
Drivers and Software Installation Priority 27UD69P
Monitor Driver Recommended O
OnScreen Control Recommended O
Dual Controller Optional O
5
ENGLISH
ENG
ENGLISH
ENG
6
Component and Button Description
Joystick Button
Power LED
On: power is on
y
Off: power is off
y

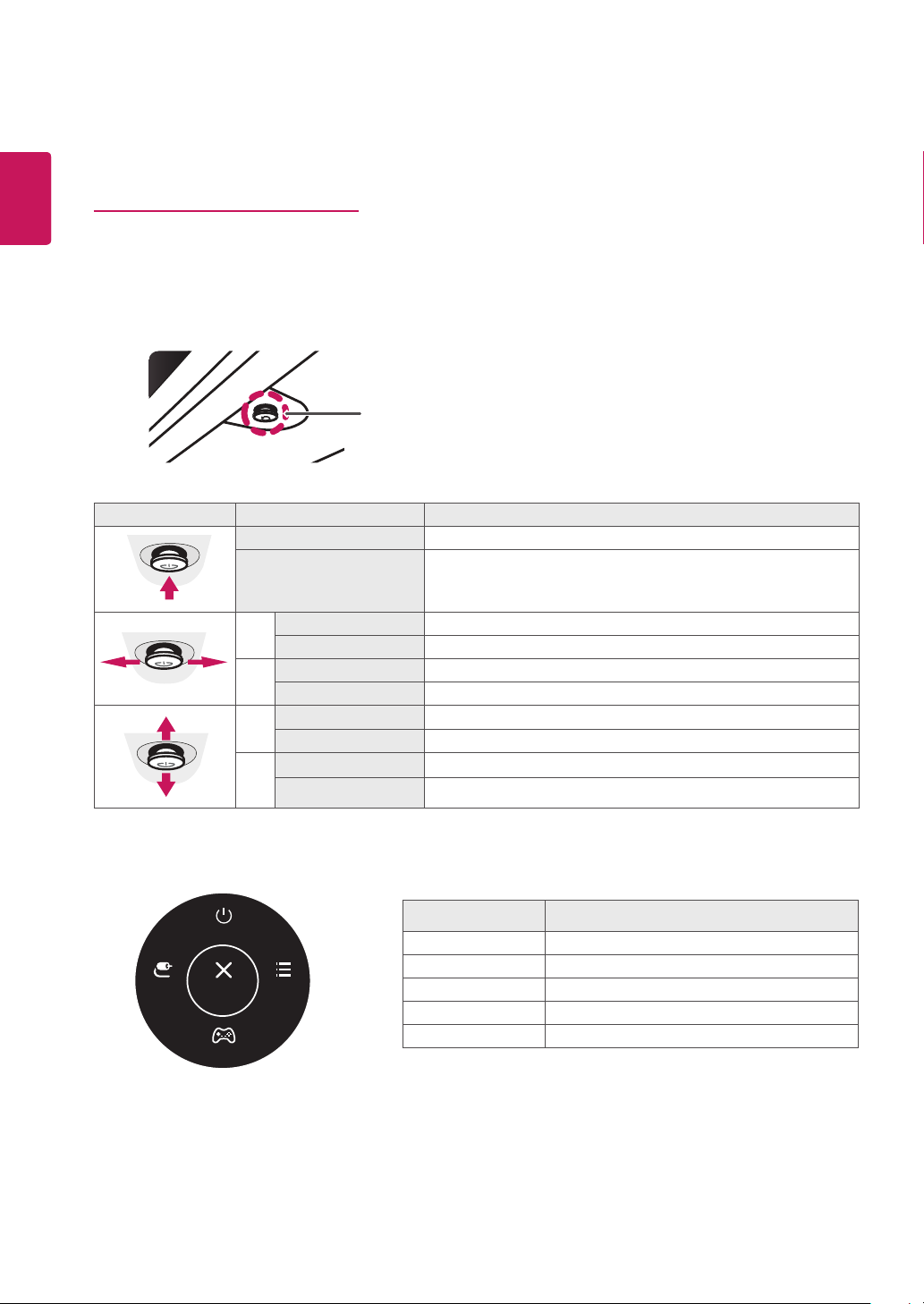

How to Use the Joystick Button
You can easily control the functions of the monitor by pressing the joystick button or moving it left/right with your
finger.
Basic Functions
Press the joystick button once with your finger to turn on the
monitor.
Press and hold the joystick button once with your finger to turn off the
monitor.
You can control the volume by moving the joystick button left/right.
◄/►
Power on
Power off
Volume
Control
NOTE
The joystick button is located at the bottom of the monitor.
y
Input Connector
7
ENGLISH
ENG
8
ENGLISH
ENG
Moving and Lifting the Monitor
When moving or lifting the monitor, follow these instructions to prevent the monitor from being scratched
or damaged and to ensure safe transportation regardless of its shape or size.
It is advisable to place the monitor in the original
y
box or packing material before attempting to
move it.
Before moving or lifting the monitor, disconnect
y
the power cord and all cables.
Hold the top and bottom of the monitor frame
y
firmly. Do not hold the panel itself.
CAUTION
As far as possible, avoid touching the monitor
y
screen. This may result in damage to the screen or
some of the pixels used to create images.
If you use the monitor panel without the stand
y
base, its joystick button may cause the monitor to
become unstable and fall, resulting in damage to
the monitor or human injury. In addition, this may
cause the joystick button to malfunction.
When holding the monitor, the screen should face
y
away from you to prevent it being scratched.
When moving the monitor, avoid any strong shock
y
or vibrations to the product.
When moving the monitor, keep it upright, never
y
turn the monitor on its side or tilt it sideways.
9
Installing the Monitor

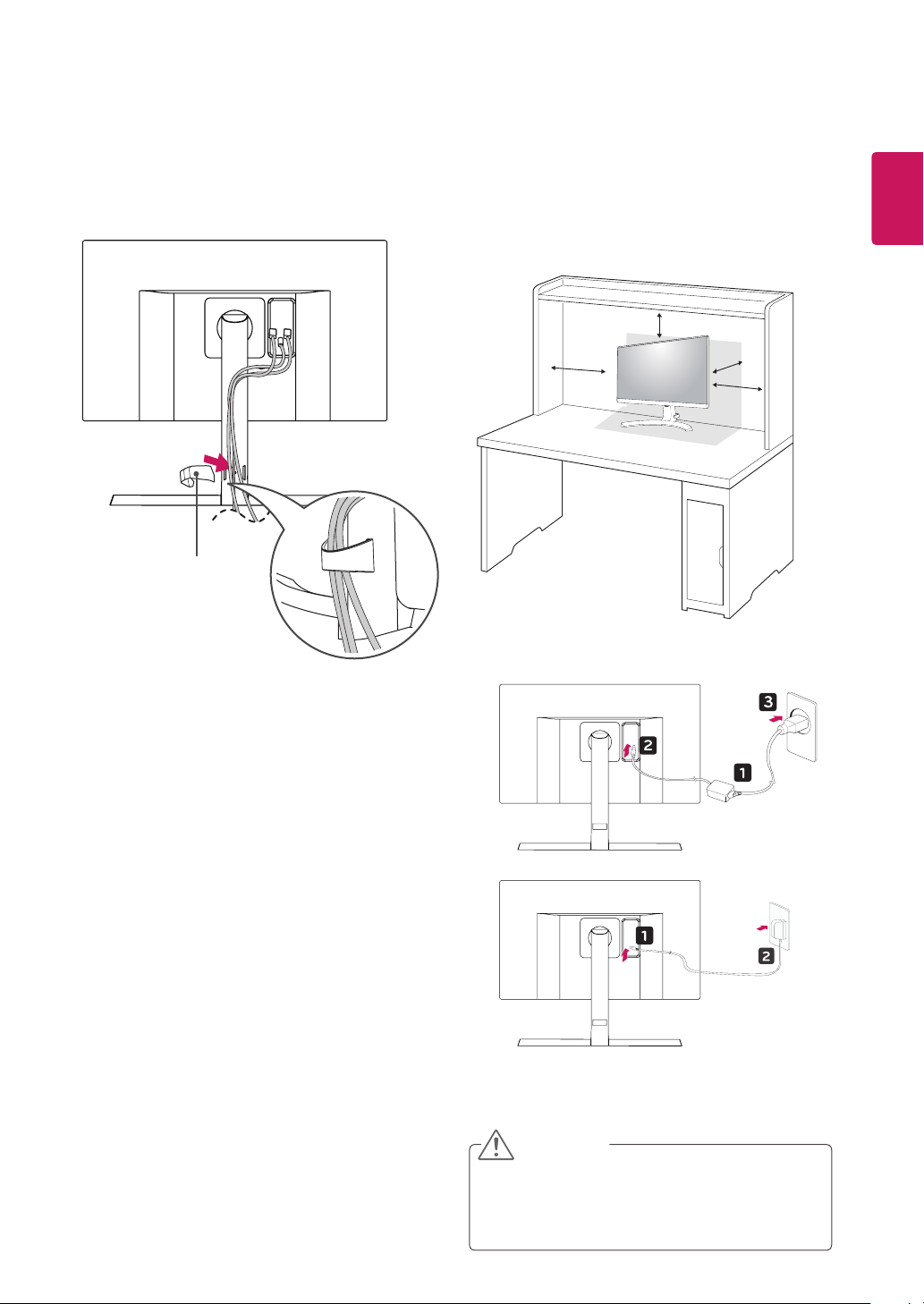

Assembling the stand base
1
CAUTION
To protect the screen from scratches, cover the
y
surface with a soft cloth.
2
4
ENGLISH
ENG
Stand Body
5
Stand Body
Stand Base
3
or
