Owner's Manual
IPS LED MONITOR (LED MONITOR*)
*LG LED Monitors are LCD Monitors with LED Backlighting.
Please read this manual carefully before operating your set and retain it for future reference.
IPS LED MONITOR MODEL
24MP59HT
27MP59HT
www.lg.com
<![endif]>ENGLISH
2
CONTENTS
LICENSE----------------------------- |
3 |
ASSEMBLING AND PREPARING-- |
4 |
--Product Components--------------------------- |
4 |
--Supported Drivers and Software--------------- |
5 |
--Component and Button Description----------- |
6 |
How to Use the Joystick Button |
|
Input Connector |
|
--Moving and Lifting the Monitor---------------- |
8 |
--Setting up the Monitor set -------------------- |
9 |

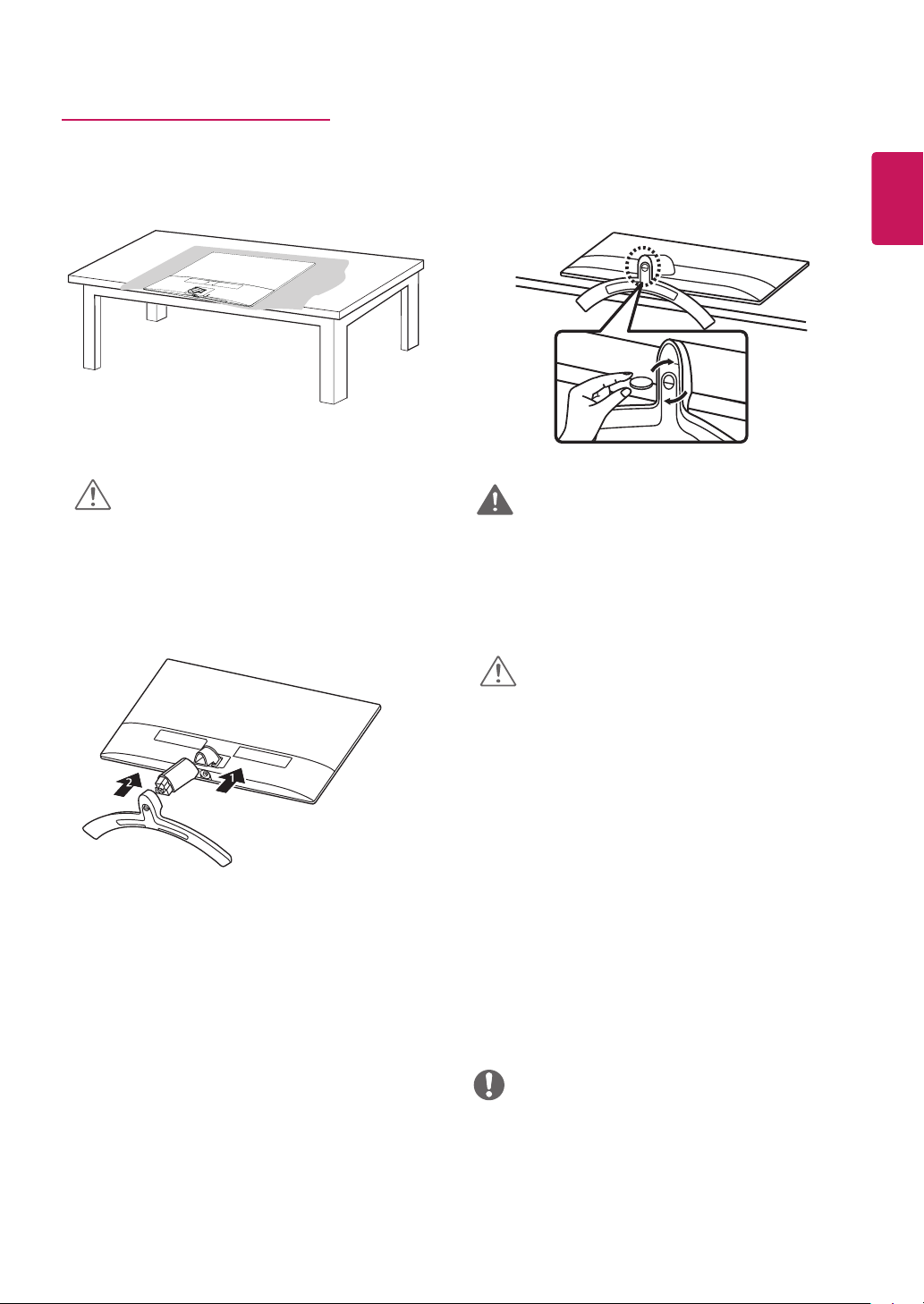

Attaching the Stand Base |
|
Mounting on a table |
|
Using the cable holder |
|
USING THE MONITOR SET------ |
12 |
--Connecting to a PC---------------------------- |
12 |
D-SUB connection |
|
HDMI connection |
|

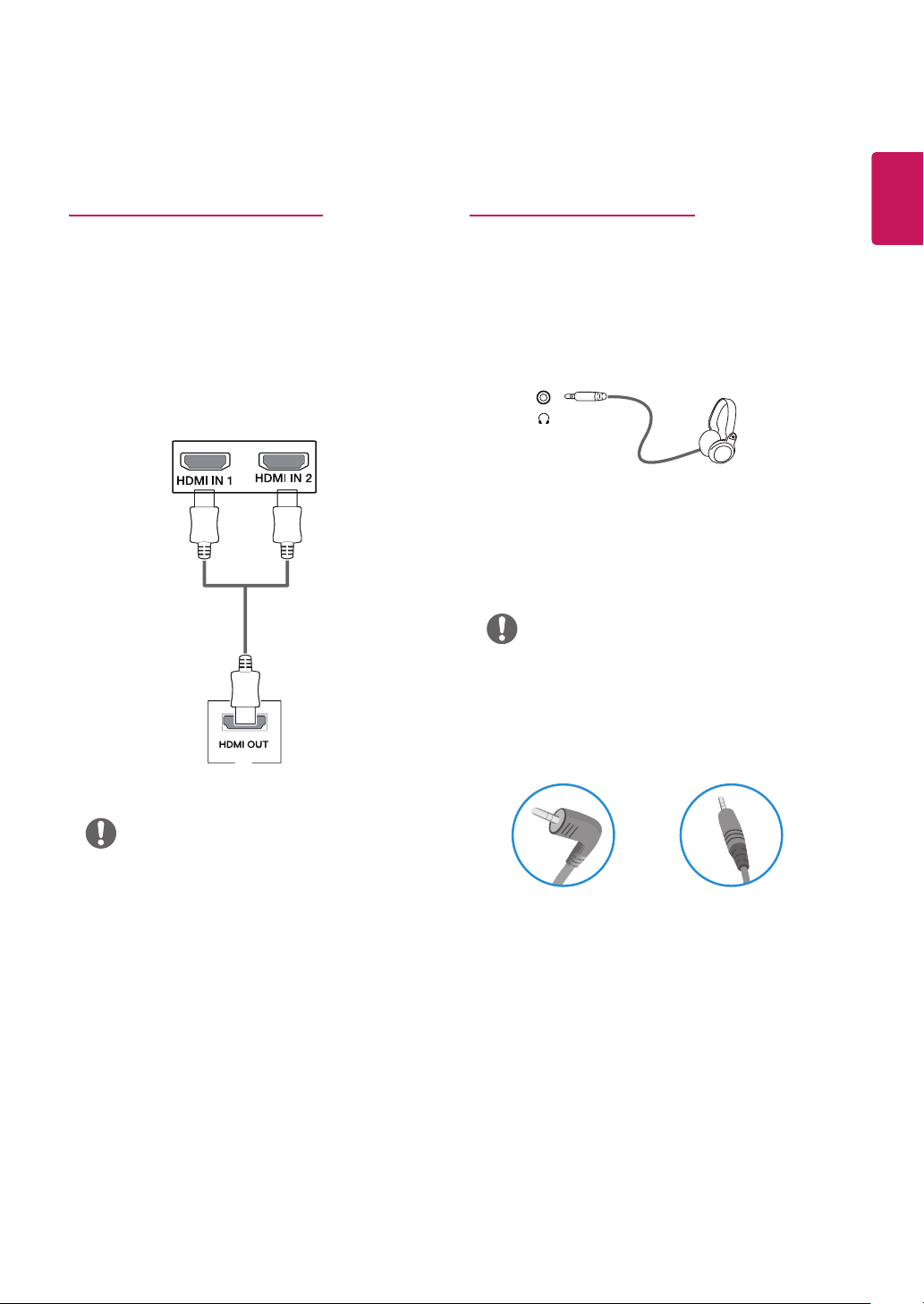

--Connecting to AV Devices--------------------- |
13 |
HDMI connection |
|
--Connecting Peripherals------------------------ |
13 |
Connecting Headphones |
|
CUSTOMIZING SETTINGS------- |
14 |
TROUBLESHOOTING------------- |
20 |
SPECIFICATIONS ----------------- |
21 |
--Preset Modes (Resolution)-------------------- |
23 |
--Indicator--------------------------------------- |
23 |
3
Each model has different licenses. Visit www.lg.com for more information on the license.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
The following content is only applied to the monitor which is sold in Europe market and which needs to meet the ErP Directive:
*This monitor is set to be turned off automatically in 4 hours after you turned on display if there is no adjustment to display.
*To make this setting be disabled, change the option to ‘Off’ in OSD menu of “Automatic Standby”.
<![endif]>ENGLISH
<![endif]>ENGLISH
4

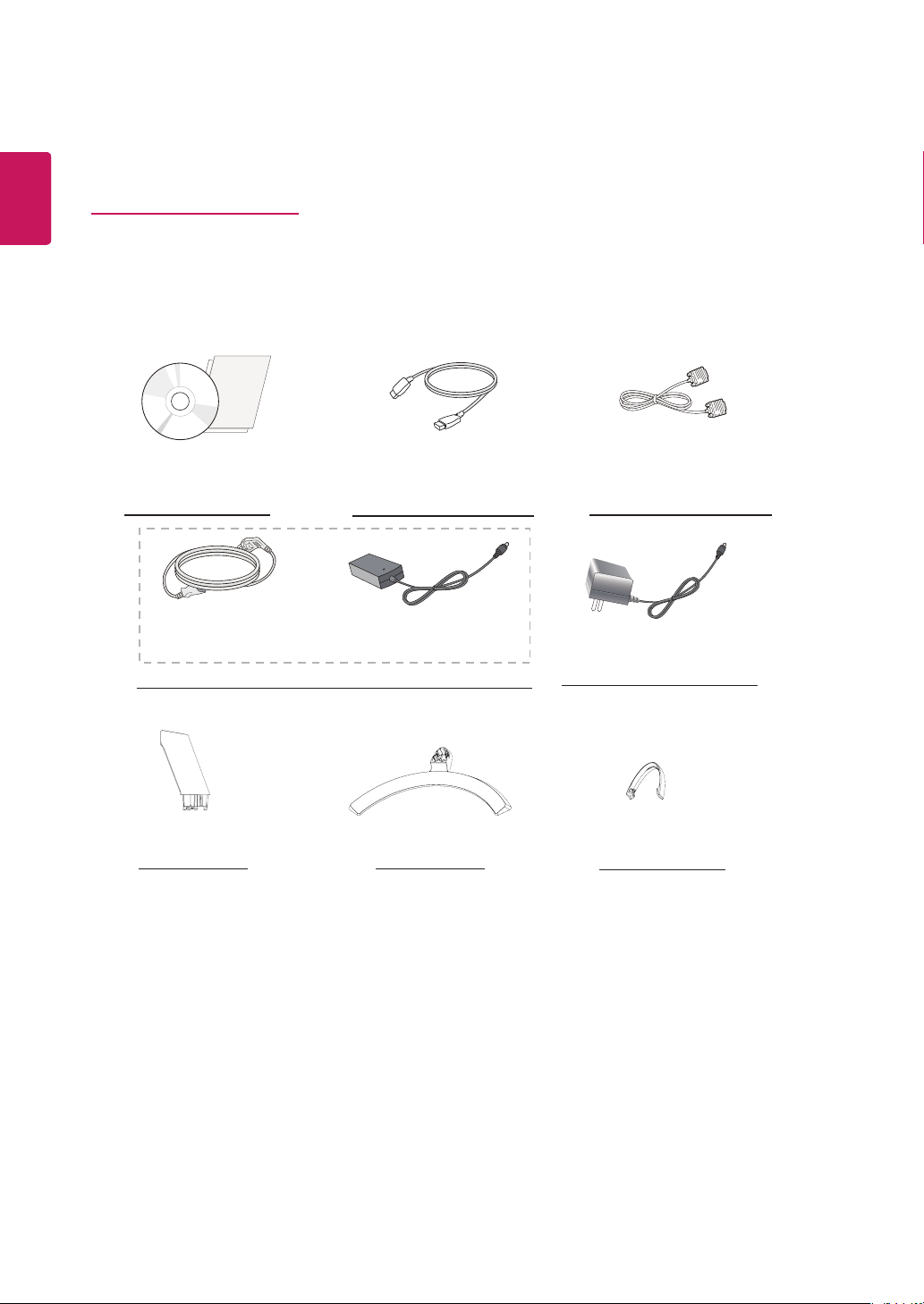

Please check whether all the components are included in the box before using the product. If there are missing components, contact the retail store where you purchased the product. Note that the product and components may look different from those shown here.
CD(Owner's Manual) / |
|
HDMI Cable |
|||
( This cable is not included in all |
|||||
Card |
|||||
|
countries. ) |
||||
|
|
|
|||
|
|
|
|
|
or
Power Cord |
AC-DC Adapter |
( Depending on the country )
D-SUB Cable
( This cable is not included in all countries. )
AC-DC Adapter
( Depending on the country )
Stand Body |
|
Stand Base |
|
Cable Holder |
5
CAUTION
yyAlways use genuine components to ensure safety and product performance.
yyThe product warranty will not cover damage or injury caused by the use of counterfeit components. yyIt is recommend that use the supplied components.
yyIf you use generic cables not certified by LG, the screen may not display or there may be image noises.
NOTE
yyNote that the components may look different from those shown here.
yyWithout prior notice, all information and specifications in this manual are subject to change to improve the performance of the product.
yyTo purchase optional accessories, visit an electronics store or online shopping site or contact the retail store where you purchased the product.
You can download and install the latest version from the LGE website (www.lg.com).
Drivers and Software |
Installation Priority |
24MP59HT |
|
27MP59HT |
|||
|
|
||
|
|
|
|
Monitor Driver |
Recommended |
O |
|
|
|
|
|
OnScreen Control |
Recommended |
O |
|
|
|
|
<![endif]>ENGLISH
6
<![endif]>ENGLISH
Joystick Button/
Power Indicator
yyOn: power is on
yyOff: power is off

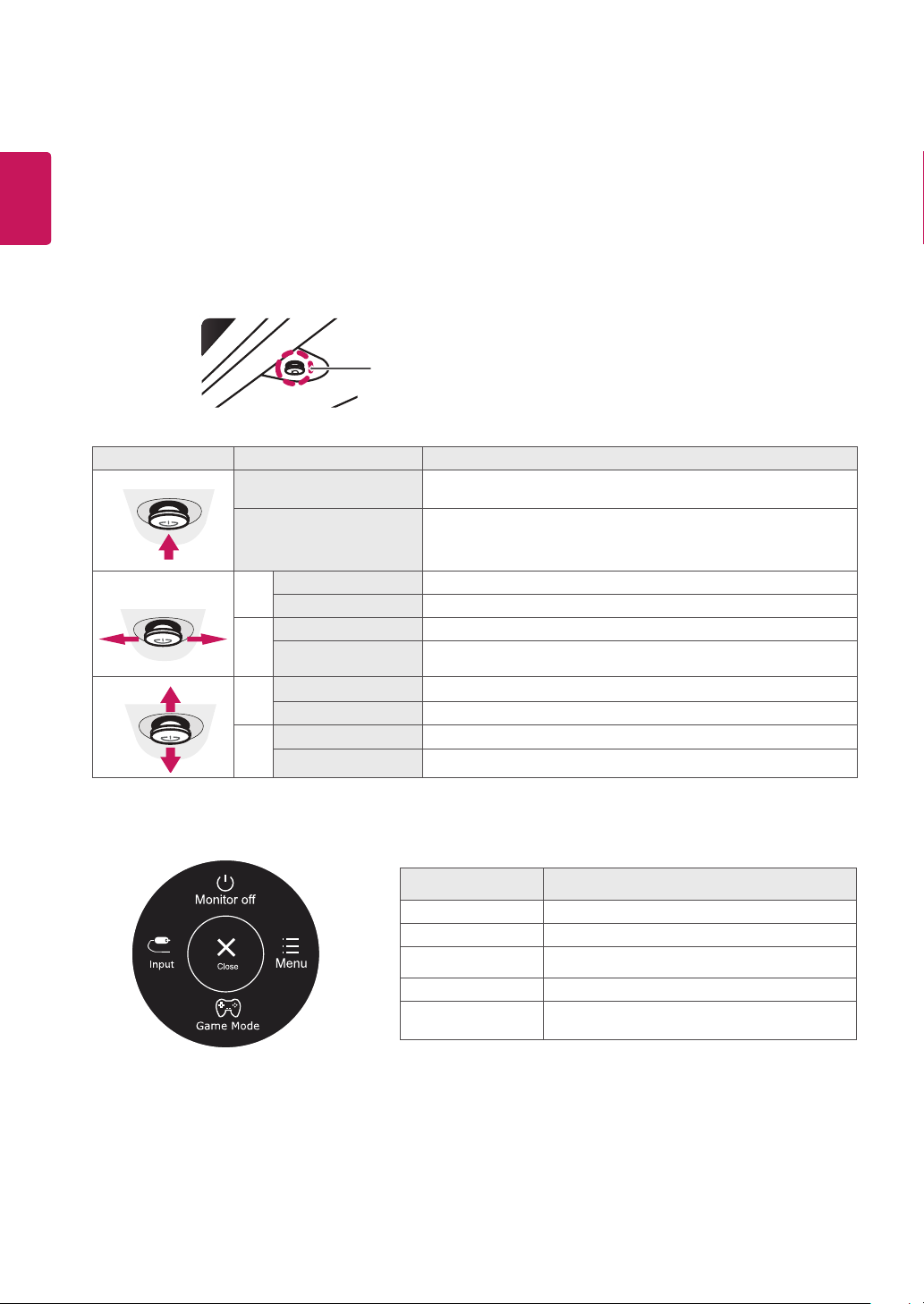

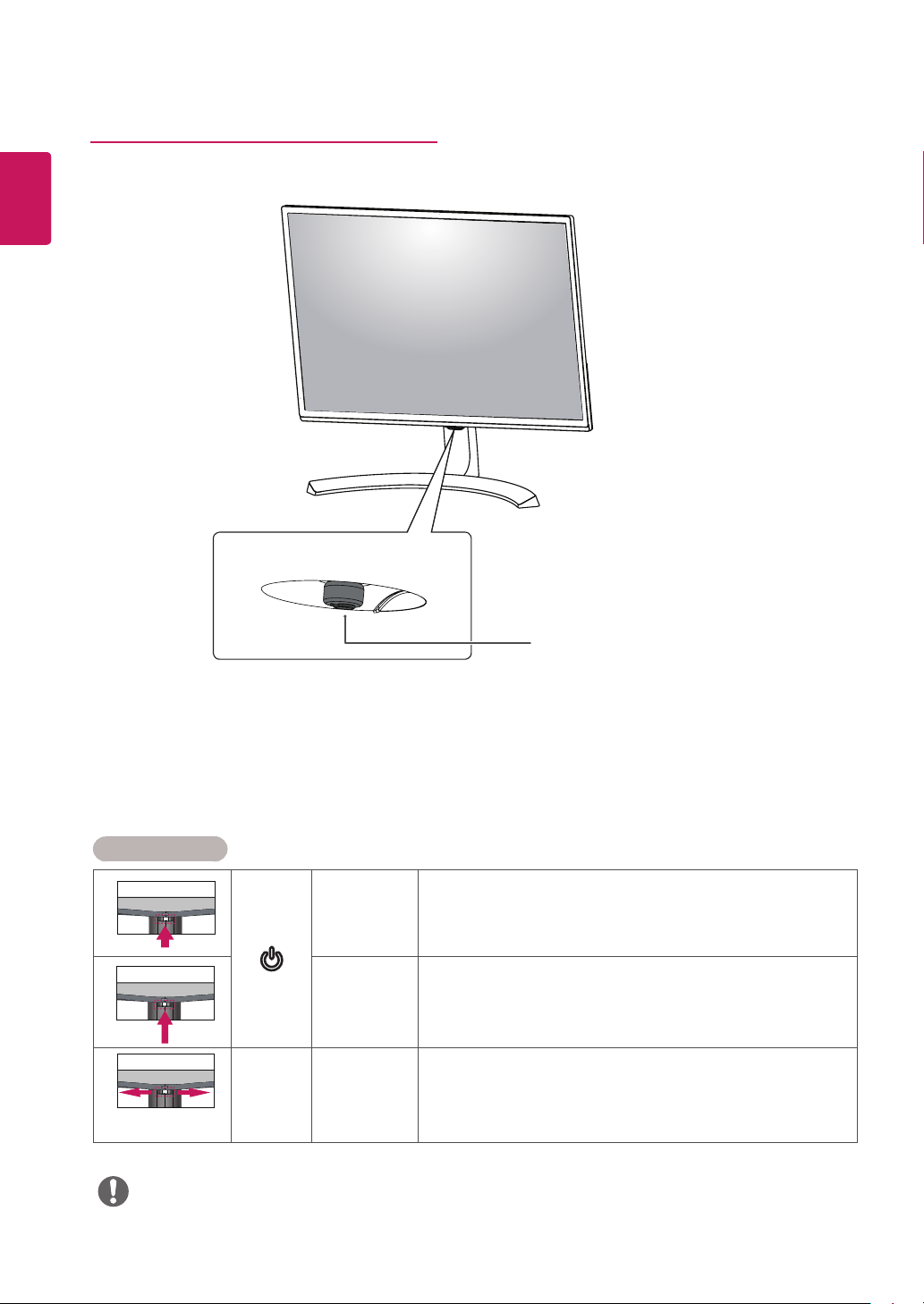

You can easily control the functions of the monitor by pressing the joystick button or moving it left/right with your finger.
Basic Functions
|
|
|
|
|
|
|
Power on |
Press the joystick button once with your finger to turn on the |
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
monitor. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Power off |
Press and hold the joystick button once with your finger to turn off |
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
the monitor. |
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
◄/► |
Volume |
You can control the volume by moving the joystick button left/right. |
|
|
|
|
|
|
|||
|
|
|
|
|
|
Control |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
NOTE
yyThe joystick button is located at the bottom of the monitor.
7
<![endif]>ENGLISH
24MP59HT 27MP59HT
1 |
2 |

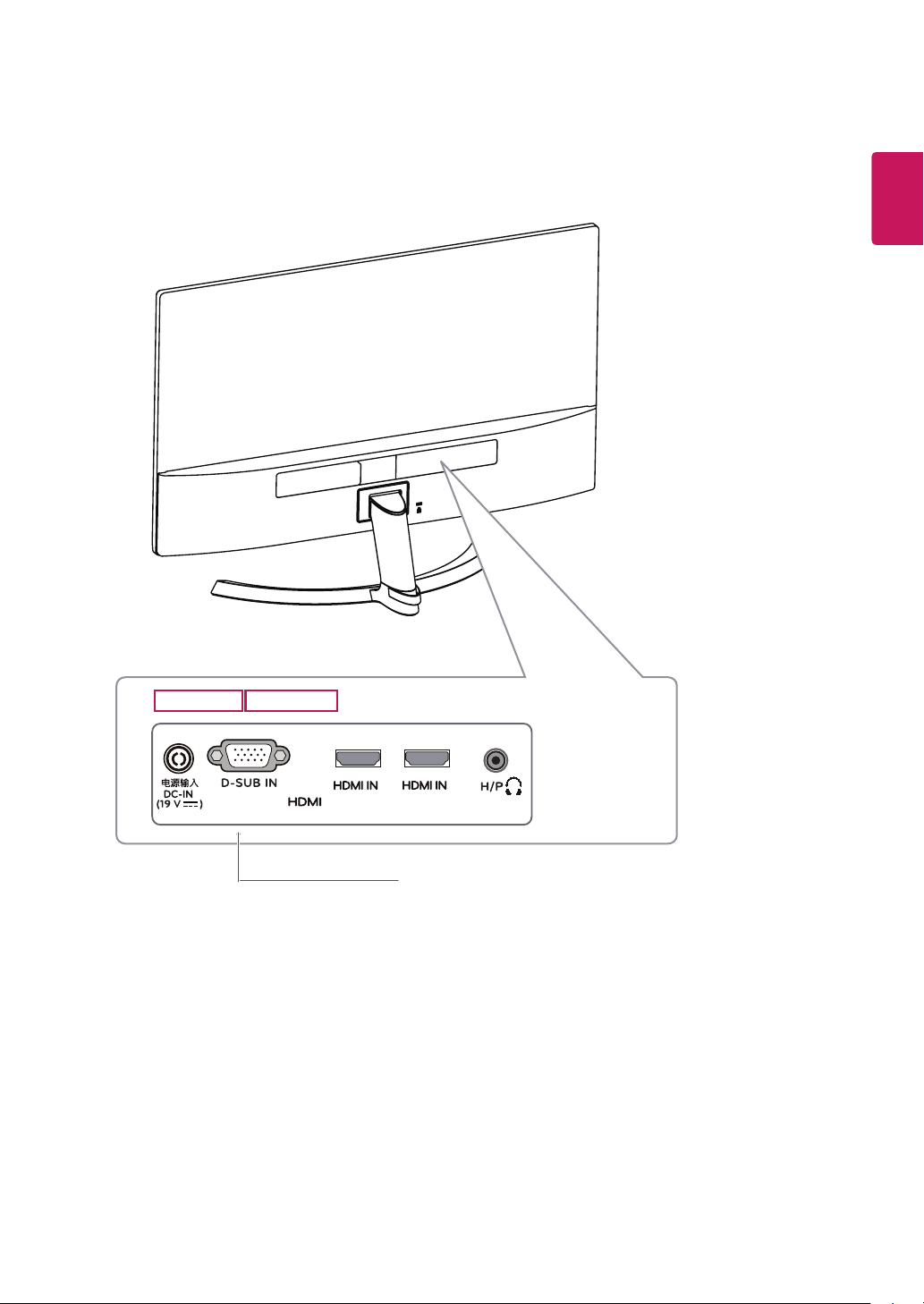

Connection panel (See p.12~13)
<![endif]>ENGLISH
8

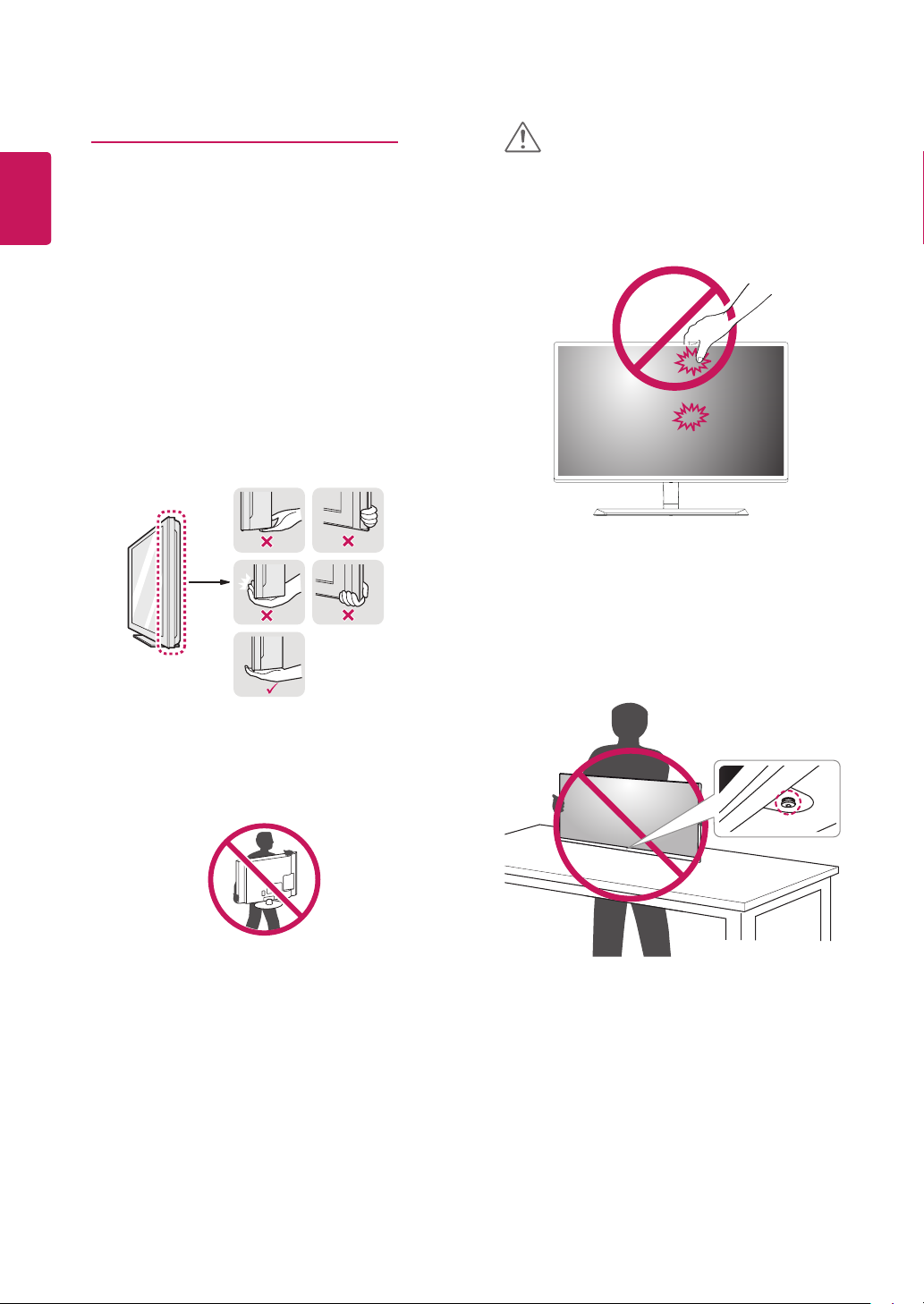

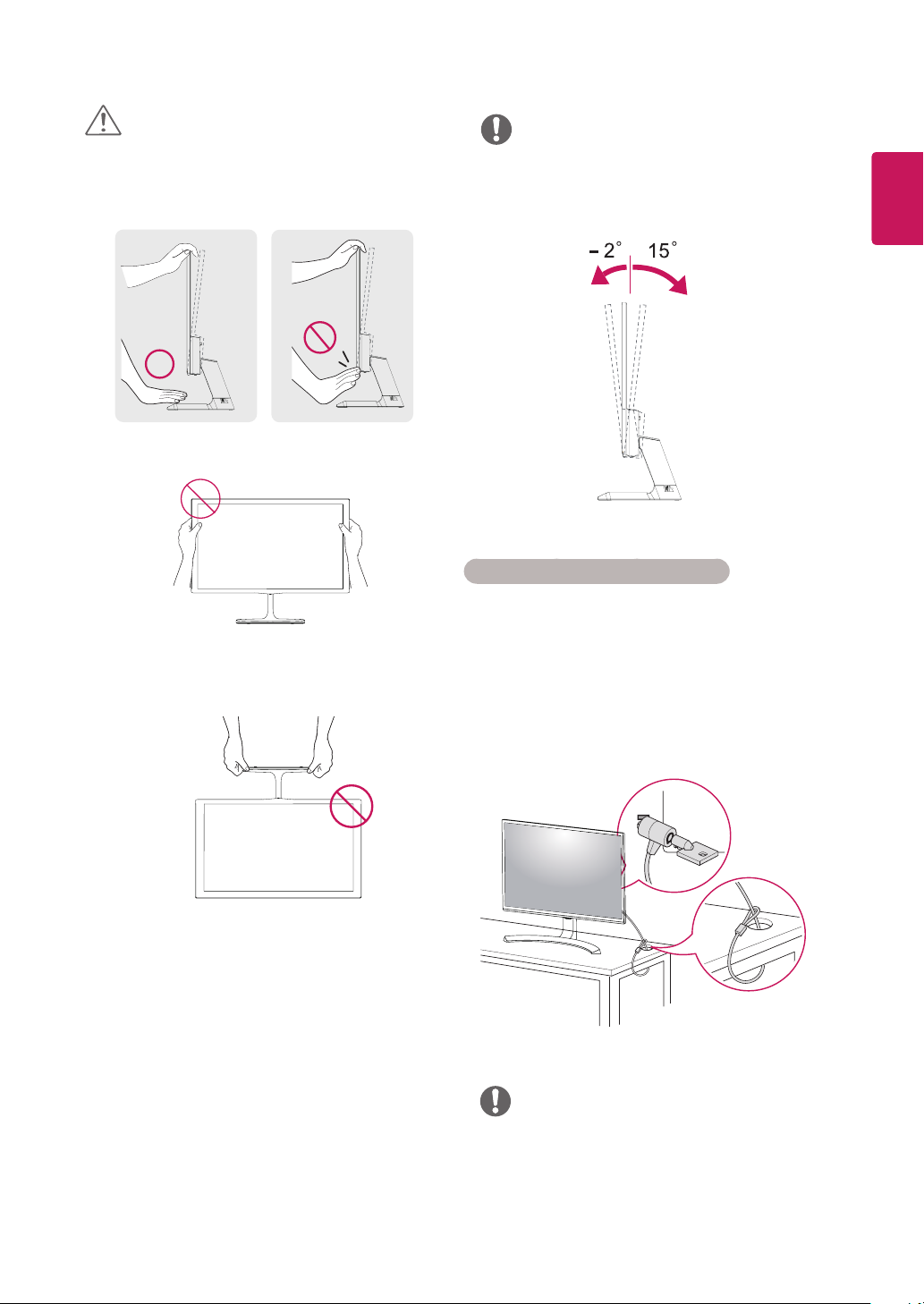

When moving or lifting the monitor, follow these instructions to prevent the monitor from being scratched or damaged and to ensure safe transportation regardless of its shape or size.
yyIt is advisable to place the monitor in the original box or packing material before attempting to move it. yyBefore moving or lifting the monitor, disconnect the
power cord and all cables.
yyHold the top and bottom of the monitor frame firmly. Do not hold the panel itself.
yyWhen holding the monitor, the screen should face away from you to prevent it being scratched.
yyWhen moving the monitor, avoid any strong shock or vibrations to the product.
yyWhen moving the monitor, keep it upright, never turn the monitor on its side or tilt it sideways.
CAUTION
yyAs far as possible, avoid touching the monitor screen. This may result in damage to the screen or some of the pixels used to create images.
yyIf you use the monitor panel without the stand base, its joystick button may cause the monitor to become unstable and fall, resulting in damage to the monitor or human injury. In addition, this may cause the joystick button to malfunction.
