LG 27GL63T User Guide
* LG LED Monitor applies LCD screen with LED
OWNER’S MANUAL
backlights.
Please read this manual carefully before operating
(LED Monitor*)
your set and retain it for future reference.
27GL63T
www.lg.com
Copyright © 2019 LG Electronics Inc. All Rights Reserved.
2
2
TABLE OF CONTENTS
ENGLISH
LICENSE .......................................3
ASSEMBLING AND PREPARING 4
- Supported Drivers and Software ......................... 4
- Product and Button Description...........................5
How to Use the Joystick Button
- Moving and Lifting the Monitor............................ 6
Installing on a Table
Adjusting the Stand Height
Adjusting the Angle
Pivot Feature
Tidying up Cables
Using the Kensington Lock
Installing the Wall Mount Plate
Installing on the Wall
USING THE MONITOR .............. 15
- Connecting to a PC................................................... 15
HDMI Connection
DisplayPort Connection
- Connecting AV Devices ...........................................16
HDMI Connection
- Connecting Peripherals...........................................17
Connecting Headphones
USER SETTINGS ....................... 18
- Activating the Main Menu .................................... 18
Main Menu Features
- User Settings ............................................................... 20
Menu Settings
TROUBLESHOOTING ................ 31
PRODUCT SPECIFICATION ...... 34
- Factory Support Mode............................................ 36
- HDMI Timing (Video) ................................................37
- Power LED ..................................................................... 37
3
LICENSE
Each model has different licenses. Visit www.lg.com for more information on the license.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of
HDMI Licensing Administrator, Inc.
ENGLISH
4
ASSEMBLING AND PREPARING
ENGLISH
CAUTION
• Always use genuine LG components to ensure safety and product performance.
• The product warranty will not cover damage or injury caused by the use of
unauthorized components.
• It is recommended that use the supplied components.
• If you use generic cables not certified by LG, the screen may not display or there
may be image noises.
• Illustrations in this document represent typical procedures, so they may look
different from the actual product.
• Do not apply foreign substances (oils, lubricants, etc.) to the screw parts when
assembling the product. (Doing so may damage the product.)
• Applying excessive force when tightening screws may cause damage to the
monitor. Damage caused in this way will not be covered by the product warranty.
• Do not carry the monitor upside down by just holding the base. This may cause the
monitor to fall off the stand and could result in personal injury.
• When lifting or moving the monitor, do not touch the monitor screen. The force
applied to the monitor screen may cause damage to it.
• For wave pattern on appearance, unlike the general method of coating, it’s applied
to added glittering material in raw material.With no peeled-off appearance, it has
good durability. Please use it with confidence because there is no problem in using
the product at all.
NOTE
• The components may look different from those illustrated here.
• Without prior notice, all product information and specifications contained in this
manual are subject to change to improve the performance of the product.
• To purchase optional accessories, visit an electronics store or an online shopping
site, or contact the retailer from which you purchased the product.
• The power cord provided may differ depending upon the region.
Supported Drivers and Software
You can download and install the latest version from the LGE website (
Drivers and Software Installation Priority
Monitor Driver Recommended
Recommended
www.lg.com
).
5
Product and Button Description
Joystick Button / Power LED
• On: Power on
• Off: Power off

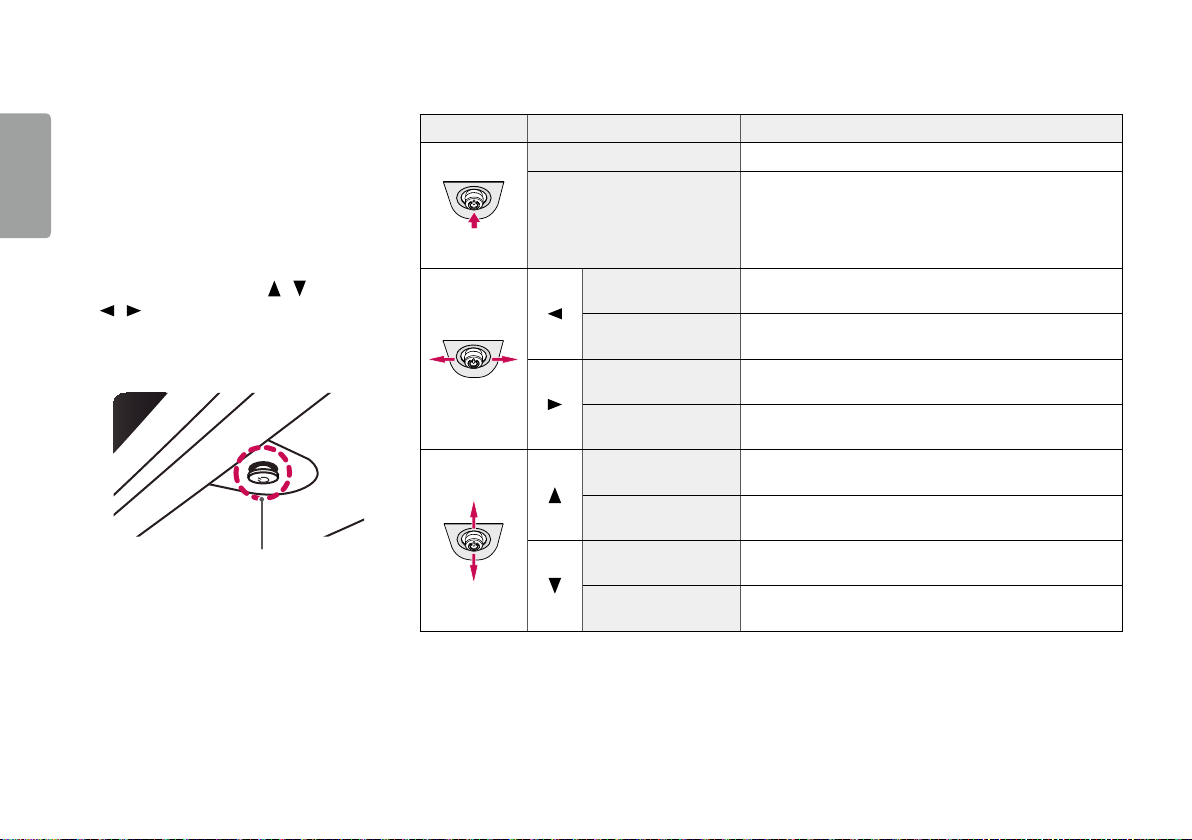

How to Use the Joystick Button
You can easily control the functions of the monitor by pressing the joystick button or
moving it left/right with your finger.
Basic Functions
Press the joystick button once with
your finger to turn on the monitor.
Press and hold the joystick button
once with your finger to turn off the
monitor.
You can control the volume by moving
the joystick button left/right.
You can control the screen’s brightness
by moving the joystick button up/down.
/
/
Power on
Power off
Volume
control
Controls
screen
brightness
NOTE
• The joystick button is located at the bottom of the monitor.
ENGLISH
6
Moving and Lifting the Monitor
ENGLISH
When moving or lifting the monitor, follow these instructions to prevent the
monitor from being scratched or damaged and to ensure safe transportation,
regardless of its shape or size.
• Place the monitor in the original box or packing material before attempting to
move it.
• Before moving or lifting the monitor, disconnect the power cord and all other
cables.
• Hold the bottom and side of the monitor frame firmly. Do not hold the panel
itself.
• When holding the monitor, the screen should face away from you to prevent it
from being scratched.
• When transporting the monitor, do not expose the monitor to shock or excessive
vibration.
• When moving the monitor, keep it upright and never turn the monitor on its side or
tilt it sideways.
CAUTION
• Avoid touching the monitor screen as much as possible.
- This may result in damage to the screen or some of the pixels used to create
images.
• If you use the monitor panel without the stand base, its joystick button may cause
the monitor to become unstable and fall, resulting in damage to the monitor or
human injury. In addition, this may cause the joystick button to malfunction.
7
ENGLISH
8
Installing on a Table
ENGLISH
Lift the monitor and place it on the table in an upright position. Place the monitor at
least 100mm away from the wall to ensure sufficient ventilation.
100 mm
100 mm
100 mm
100 mm
Adjusting the Stand Height
1 Place the monitor mounted on the stand base in an upright position.
2 Handle the monitor with both hands for safety.
Max. 110.0 mm
WARNING
• When adjusting the screen height, do not place your hand on
the stand body to avoid injury to your fingers.
9
Adjusting the Angle
1 Place the monitor mounted on the stand base in an upright position.
2 Adjust the angle of the screen.
The angle of the screen can be adjusted forward or backward from -5° to 15° for a
comfortable viewing experience.
Rear
Front
WARNING
• To avoid injury to the fingers when adjusting the screen, do not hold the lower part
of the monitor’s frame as illustrated below.
• Be careful not to touch or press the screen area when adjusting the angle of the
monitor.
ENGLISH
10
Pivot Feature
ENGLISH
The pivot feature allows the monitor to rotate 90° clockwise.
Head
Stand
WARNING
• To avoid scratching the stand base, make sure that when rotating the monitor
using the pivot feature, the stand does not make contact with the monitor.
1 Raise the monitor to the maximum height.
2 Adjust the angle of the monitor in the direction of the arrow as shown in the
figure.
3 Rotate the monitor clockwise as shown in the figure.
11
4 Complete the installation by rotating the monitor 90° as shown below.
NOTE
• Auto Pivot feature of the display is not supported.
• The screen can be rotated easily using the screen pivot shortcut key provided
with your Windows operating system. Note that some Windows versions and
some graphics card drivers may use different settings for the screen pivot key or
may not support the pivot key at all.
Tidying up Cables
Arrange the cables using the cable holder as shown in the illustration.
Mouse Holder
ENGLISH
Cable Holder
12
Using the Kensington Lock
ENGLISH
The connector for the Kensington security system is located at the bottom of the
monitor.
For more information on installation and usage, refer to the Kensington lock owner’s
manual or visit the website at http://www.kensington.com.
Connect the monitor to a table using the Kensington security system cable.
NOTE
• The Kensington security system is optional. You can obtain optional accessories
from most electronics stores.

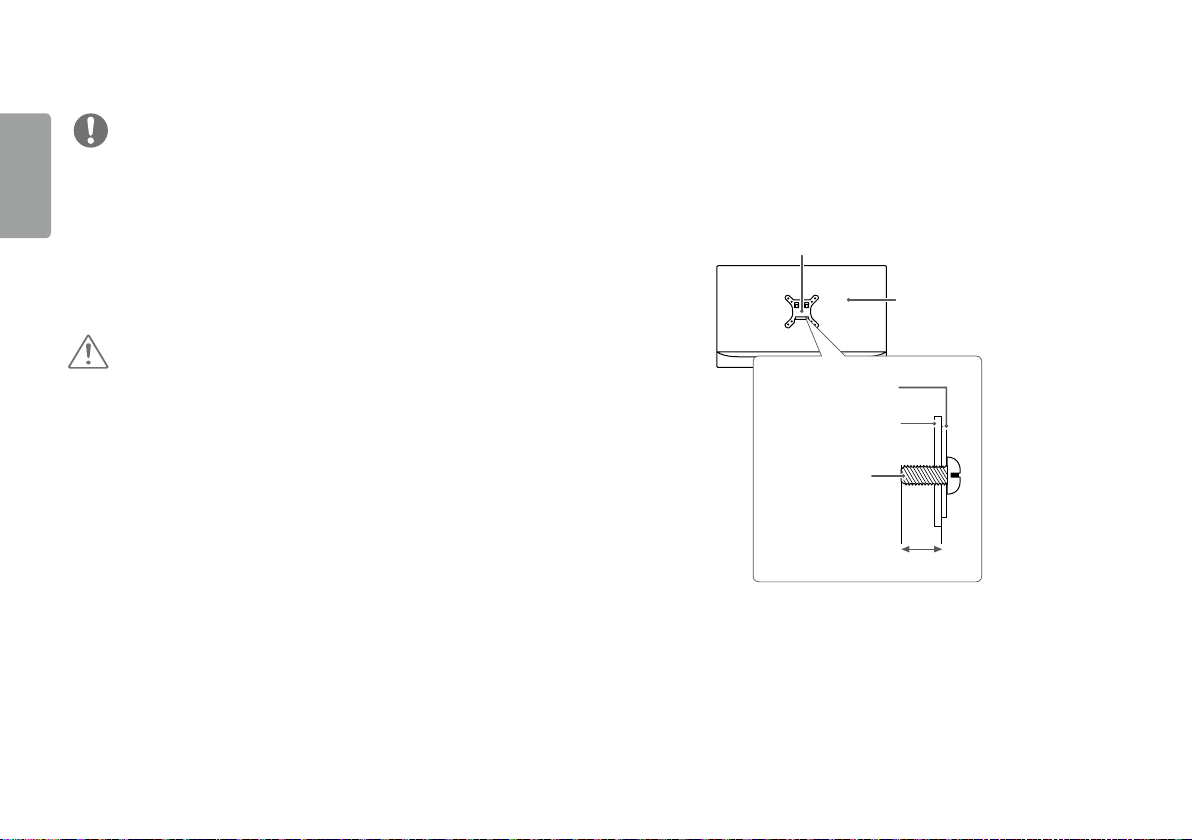

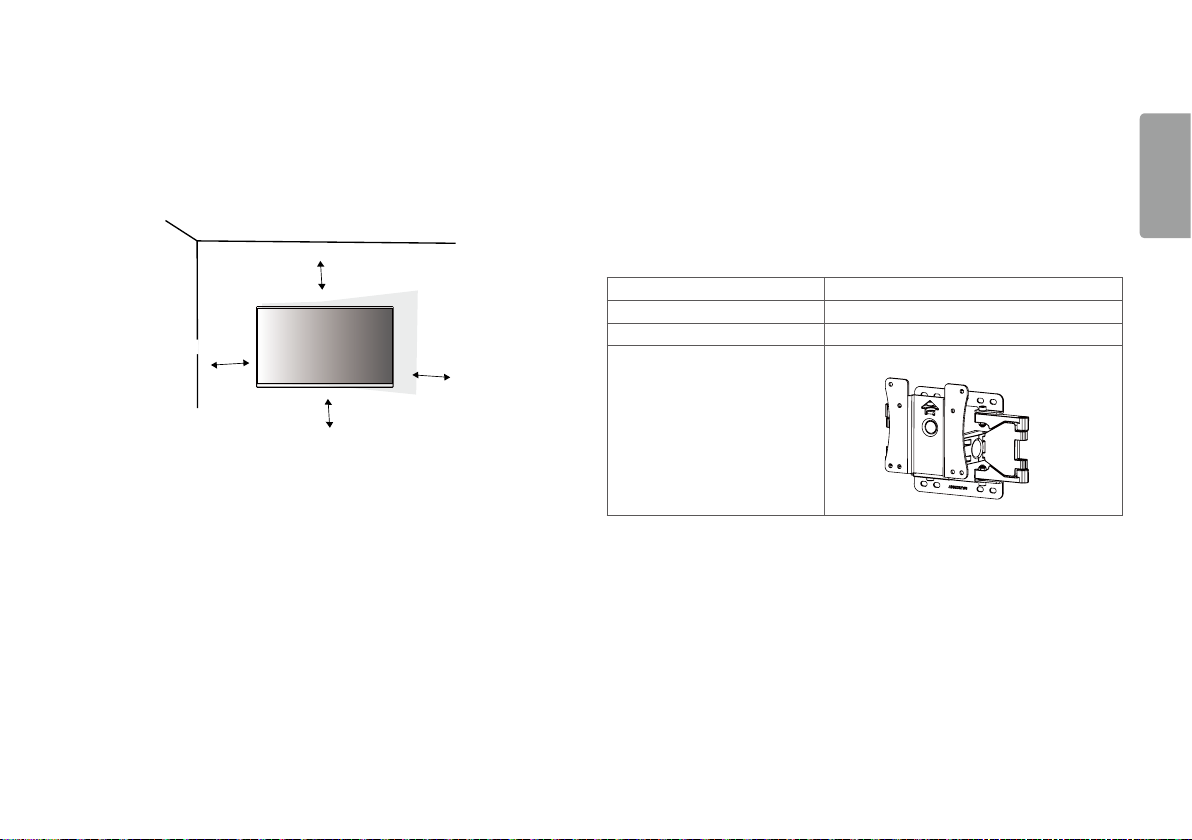

Installing the Wall Mount Plate
This monitor meets the specifications for the wall mount plate or other compatible
devices.
1 Place the screen face down. To protect the monitor panel (screen), cover the
surface with a soft cloth or the monitor protection pad included in the product
package.
2 Remove the four screws tightened on the back of the monitor.
3 Place the wall mount plate onto the monitor and align it with the screw holes.
4 Tighten the four screws using a screwdriver to fix the plate to the monitor.
NOTE
• The wall mount plate is sold separately.
• For more information on installation, refer to the wall mount plate’s installation
guide.
• Be careful not to apply too much force while mounting the wall mount plate as it
may cause damage to the screen.
