LG 26LU50FD Schematic

LCD TV

SERVICE MANUAL

CAUTION

BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

CHASSIS : LC91M

MODEL : 26LU50FD

26LU50FD-CA

North/Latin America http://aic.lgservice.com
Europe/Africa http://eic.lgservice.com
Asia/Oceania http://biz.lgservice.com

Internal Use Only

Printed in KoreaP/NO : MFL60021635 (0908-REV00)

LGE Internal Use OnlyCopyright ©2009 LG Electronics. Inc. All right reserved.

Only for training and service purposes

- 2 -

CONTENTS

CONTENTS .............................................................................................. 2

PRODUCT SAFETY ..................................................................................3

SPECIFICATION ........................................................................................6

ADJUSTMENT INSTRUCTION .................................................................9

TROUBLE SHOOTING ............................................................................13

BLOCK DIAGRAM...................................................................................16

EXPLODED VIEW .................................................................................. 17

SVC. SHEET ...............................................................................................

LGE Internal Use OnlyCopyright ©2009 LG Electronics. Inc. All right reserved.

Only for training and service purposes

- 3 -

SAFETY PRECAUTIONS

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the
Schematic Diagram and Exploded View.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent
Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.

General Guidance

An isolation Transformer should always be used during the
servicing of a receiver whose chassis is not isolated from the AC
power line. Use a transformer of adequate power rating as this
protects the technician from accidents resulting in personal injury
from electrical shocks.

It will also protect the receiver and it's components from being
damaged by accidental shorts of the circuitry that may be
inadvertently introduced during the service operation.

If any fuse (or Fusible Resistor) in this TV receiver is blown,
replace it with the specified.

When replacing a high wattage resistor (Oxide Metal Film Resistor,
over 1W), keep the resistor 10mm away from PCB.

Keep wires away from high voltage or high temperature parts.

Before returning the receiver to the customer,

always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc., to
be sure the set is safe to operate without damage of electrical
shock.

Leakage Current Cold Check(Antenna Cold Check)

With the instrument AC plug removed from AC source, connect an
electrical jumper across the two AC plug prongs. Place the AC
switch in the on position, connect one lead of ohm-meter to the AC
plug prongs tied together and touch other ohm-meter lead in turn to
each exposed metallic parts such as antenna terminals, phone
jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1MΩ and 5.2MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.

Leakage Current Hot Check (See below Figure)

Plug the AC cord directly into the AC outlet.

Do not use a line Isolation Transformer during this check.

Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter
with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC voltage
measurements for each exposed metallic part. Any voltage
measured must not exceed 0.75 volt RMS which is corresponds to

0.5mA.
In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
repaired before it is returned to the customer.

Leakage Current Hot Check circuit

1.5 Kohm/10W

To Instrument's
exposed
METALLIC PARTS

Good Earth Ground
such as WATER PIPE,
CONDUIT etc.

AC Volt-meter

When 25A is impressed between Earth and 2nd Ground
for 1 second, Resistance must be less than 0.1

*Base on Adjustment standard

IMPORTANT SAFETY NOTICE

0.15uF

Ω

LGE Internal Use OnlyCopyright ©2009 LG Electronics. Inc. All right reserved.

Only for training and service purposes

- 4 -

CAUTION: Before servicing receivers covered by this service
manual and its supplements and addenda, read and follow the

SAFETY PRECAUTIONS on page 3 of this publication.
NOTE: If unforeseen circumstances create conflict between the

following servicing precautions and any of the safety precautions on
page 3 of this publication, always follow the safety precautions.
Remember: Safety First.

General Servicing Precautions

1. Always unplug the receiver AC power cord from the AC power
source before;
a. Removing or reinstalling any component, circuit board

module or any other receiver assembly.

b. Disconnecting or reconnecting any receiver electrical plug or

other electrical connection.

c. Connecting a test substitute in parallel with an electrolytic

capacitor in the receiver.
CAUTION: A wrong part substitution or incorrect polarity
installation of electrolytic capacitors may result in an
explosion hazard.

2. Test high voltage only by measuring it with an appropriate high
voltage meter or other voltage measuring device (DVM,
FETVOM, etc) equipped with a suitable high voltage probe.
Do not test high voltage by "drawing an arc".

3. Do not spray chemicals on or near this receiver or any of its
assemblies.

4. Unless specified otherwise in this service manual, clean
electrical contacts only by applying the following mixture to the
contacts with a pipe cleaner, cotton-tipped stick or comparable
non-abrasive applicator; 10% (by volume) Acetone and 90% (by
volume) isopropyl alcohol (90%-99% strength)
CAUTION: This is a flammable mixture.
Unless specified otherwise in this service manual, lubrication of
contacts in not required.

5. Do not defeat any plug/socket B+ voltage interlocks with which
receivers covered by this service manual might be equipped.

6. Do not apply AC power to this instrument and/or any of its
electrical assemblies unless all solid-state device heat sinks are
correctly installed.

7. Always connect the test receiver ground lead to the receiver
chassis ground before connecting the test receiver positive
lead.
Always remove the test receiver ground lead last.

8. Use with this receiver only the test fixtures specified in this

service manual.

CAUTION: Do not connect the test fixture ground strap to any
heat sink in this receiver.

Electrostatically Sensitive (ES) Devices

Some semiconductor (solid-state) devices can be damaged easily
by static electricity. Such components commonly are called
Electrostatically Sensitive (ES) Devices. Examples of typical ES
devices are integrated circuits and some field-effect transistors and
semiconductor "chip" components. The following techniques
should be used to help reduce the incidence of component
damage caused by static by static electricity.

1. Immediately before handling any semiconductor component or
semiconductor-equipped assembly, drain off any electrostatic
charge on your body by touching a known earth ground.
Alternatively, obtain and wear a commercially available
discharging wrist strap device, which should be removed to
prevent potential shock reasons prior to applying power to the

unit under test.

2. After removing an electrical assembly equipped with ES
devices, place the assembly on a conductive surface such as
aluminum foil, to prevent electrostatic charge buildup or
exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES
devices.

4. Use only an anti-static type solder removal device. Some solder
removal devices not classified as "anti-static" can generate
electrical charges sufficient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate
electrical charges sufficient to damage ES devices.

6. Do not remove a replacement ES device from its protective
package until immediately before you are ready to install it.
(Most replacement ES devices are packaged with leads
electrically shorted together by conductive foam, aluminum foil
or comparable conductive material).

7. Immediately before removing the protective material from the
leads of a replacement ES device, touch the protective material
to the chassis or circuit assembly into which the device will be
installed.
CAUTION: Be sure no power is applied to the chassis or circuit,
and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged
replacement ES devices. (Otherwise harmless motion such as
the brushing together of your clothes fabric or the lifting of your
foot from a carpeted floor can generate static electricity
sufficient to damage an ES device.)

General Soldering Guidelines

1. Use a grounded-tip, low-wattage soldering iron and appropriate
tip size and shape that will maintain tip temperature within the
range or 500

°F to 600°F.

2. Use an appropriate gauge of RMA resin-core solder composed
of 60 parts tin/40 parts lead.

3. Keep the soldering iron tip clean and well tinned.

4. Thoroughly clean the surfaces to be soldered. Use a mall wire­bristle (0.5 inch, or 1.25cm) brush with a metal handle.
Do not use freon-propelled spray-on cleaners.

5. Use the following unsoldering technique
a. Allow the soldering iron tip to reach normal temperature.

(500

°F to 600°F)

b. Heat the component lead until the solder melts.
c. Quickly draw the melted solder with an anti-static, suction-

type solder removal device or with solder braid.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.

6. Use the following soldering technique.
a. Allow the soldering iron tip to reach a normal temperature

(500

°F to 600°F)

b. First, hold the soldering iron tip and solder the strand against

the component lead until the solder melts.

c. Quickly move the soldering iron tip to the junction of the

component lead and the printed circuit foil, and hold it there
only until the solder flows onto and around both the
component lead and the foil.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.

d. Closely inspect the solder area and remove any excess or

splashed solder with a small wire-bristle brush.

SERVICING PRECAUTIONS

LGE Internal Use OnlyCopyright ©2009 LG Electronics. Inc. All right reserved.

Only for training and service purposes

- 5 -

IC Remove/Replacement

Some chassis circuit boards have slotted holes (oblong) through
which the IC leads are inserted and then bent flat against the
circuit foil. When holes are the slotted type, the following technique
should be used to remove and replace the IC. When working with
boards using the familiar round hole, use the standard technique
as outlined in paragraphs 5 and 6 above.

Removal

1. Desolder and straighten each IC lead in one operation by gently
prying up on the lead with the soldering iron tip as the solder
melts.

2. Draw away the melted solder with an anti-static suction-type
solder removal device (or with solder braid) before removing the
IC.

Replacement

1. Carefully insert the replacement IC in the circuit board.

2. Carefully bend each IC lead against the circuit foil pad and
solder it.

3. Clean the soldered areas with a small wire-bristle brush.
(It is not necessary to reapply acrylic coating to the areas).

"Small-Signal" Discrete Transistor
Removal/Replacement

1. Remove the defective transistor by clipping its leads as close as
possible to the component body.

2. Bend into a "U" shape the end of each of three leads remaining
on the circuit board.

3. Bend into a "U" shape the replacement transistor leads.

4. Connect the replacement transistor leads to the corresponding
leads extending from the circuit board and crimp the "U" with
long nose pliers to insure metal to metal contact then solder
each connection.

Power Output, Transistor Device
Removal/Replacement

1. Heat and remove all solder from around the transistor leads.

2. Remove the heat sink mounting screw (if so equipped).

3. Carefully remove the transistor from the heat sink of the circuit
board.

4. Insert new transistor in the circuit board.

5. Solder each transistor lead, and clip off excess lead.

6. Replace heat sink.

Diode Removal/Replacement

1. Remove defective diode by clipping its leads as close as
possible to diode body.

2. Bend the two remaining leads perpendicular y to the circuit
board.

3. Observing diode polarity, wrap each lead of the new diode
around the corresponding lead on the circuit board.

4. Securely crimp each connection and solder it.

5. Inspect (on the circuit board copper side) the solder joints of
the two "original" leads. If they are not shiny, reheat them and if
necessary, apply additional solder.

Fuse and Conventional Resistor
Removal/Replacement

1. Clip each fuse or resistor lead at top of the circuit board hollow
stake.

2. Securely crimp the leads of replacement component around
notch at stake top.

3. Solder the connections.
CAUTION: Maintain original spacing between the replaced
component and adjacent components and the circuit board to
prevent excessive component temperatures.

Circuit Board Foil Repair

Excessive heat applied to the copper foil of any printed circuit
board will weaken the adhesive that bonds the foil to the circuit
board causing the foil to separate from or "lift-off" the board. The
following guidelines and procedures should be followed whenever
this condition is encountered.

At IC Connections

To repair a defective copper pattern at IC connections use the
following procedure to install a jumper wire on the copper pattern
side of the circuit board. (Use this technique only on IC
connections).

1. Carefully remove the damaged copper pattern with a sharp
knife. (Remove only as much copper as absolutely necessary).

2. carefully scratch away the solder resist and acrylic coating (if
used) from the end of the remaining copper pattern.

3. Bend a small "U" in one end of a small gauge jumper wire and
carefully crimp it around the IC pin. Solder the IC connection.

4. Route the jumper wire along the path of the out-away copper
pattern and let it overlap the previously scraped end of the good
copper pattern. Solder the overlapped area and clip off any
excess jumper wire.

At Other Connections

Use the following technique to repair the defective copper pattern
at connections other than IC Pins. This technique involves the
installation of a jumper wire on the component side of the circuit
board.

1. Remove the defective copper pattern with a sharp knife.
Remove at least 1/4 inch of copper, to ensure that a hazardous
condition will not exist if the jumper wire opens.

2. Trace along the copper pattern from both sides of the pattern
break and locate the nearest component that is directly
connected to the affected copper pattern.

3. Connect insulated 20-gauge jumper wire from the lead of the
nearest component on one side of the pattern break to the lead
of the nearest component on the other side.
Carefully crimp and solder the connections.
CAUTION: Be sure the insulated jumper wire is dressed so the
it does not touch components or sharp edges.

LGE Internal Use OnlyCopyright ©2009 LG Electronics. Inc. All right reserved.

Only for training and service purposes

- 6 -

SPECIFICATION

NOTE : Specifications and others are subject to change without notice for improvement

.

4. Electrical specification

- Module General Specification

1. Application range

This specification is applied to the LCD TV used LC91M
chassis.

2. Requirement for Test

Each part is tested as below without special appointment.

1) Temperature : 25±5ºC (77±9ºF), CST : 40±5ºC

2) Relative Humidity : 65±10%

3) Power Voltage : Standard input voltage (100-240V@50/60Hz)
* Standard Voltage of each products is marked by models.

4) Specification and performance of each parts are followed

each drawing and specification by part number in
accordance with BOM.

5) The receiver must be operated for about 5 minutes prior to

the adjustment.

3. Test method

1) Performance: LGE TV test method followed

2) Demanded other specification

- Safety: CE, IEC specification

- EMC:CE, IEC

No. Item Specification Remark

1 Display Screen Device 26” wide Color Display module LCD

2 Aspect Ratio 16:9

3 LCD Module 26” TFT LCD FHD LGD

4 Storage Environment Temp.:-20 ~ 60 deg

Humidity : 10 ~ 90 %

5 Input Voltage AC100-240V~, 50/60Hz

6 Power Consumption Power on (Blue) LCD(Module) + Backlight(Lamp)

Typ : 80.6, Max : 94.1

7 Module Size 626.0 (H) x 373.0 (V) x 47.1 (D) With inverter

8 Pixel Pitch 0.3mm x 0.3mm

9 Back Light EEFL

10 Display Colors 1.06Billion

11 Coating 3H, AG

No. Item Specification Min. Typ. Max. Remark

1. Viewing Angle<CR>10> Right/Left/Up/Down 89 Degree

2. Luminance Luminance (cd/m

2

) 320 400

Variation 1.3 MAX /MIN

3. Contrast Ratio CR 700 1000

4. CIE Color Coordinates White Wx 0.279

Wy 0.292 Typ

RED Rx 0.637 ±0.03

Ry 0.335

Green Gx 0.288

Gy 0.608

Blue Bx 0.145

By 0.063

- 7 -

LGE Internal Use OnlyCopyright ©2009 LG Electronics. Inc. All right reserved.

Only for training and service purposes

5. Chroma& Brightness

- Module optical specification

1) Standard Test Condition (The unit has been ‘ON’)

2) Stable for approximately 30 minutes in a dark environment at 25±2°C

3) The values specified are at approximate distance 50Cm from the LCD surface.

4) Ta=25±2ºC, V

LCD

=12.0V, fV=60Hz, D

clk

=74.25MHz, VBR_A=1.6A, EXTV

BR_B

=100%

6. Component Video Input (Y, C

B

/PB, CR/PR)

No

Specification

Remark

Resolution H-freq(kHz) V-freq(Hz)

1. 720x480 15.73 60.00 SDTV,DVD 480i

2. 720x480 15.63 59.94 SDTV,DVD 480i

3. 720x480 31.47 59.94 480p

4. 720x480 31.50 60.00 480p

5. 720x576 15.625 50.00 SDTV,DVD 625 Line

6. 720x576 31.25 50.00 HDTV 576p

7. 1280x720 45.00 50.00 HDTV 720p

8. 1280x720 44.96 59.94 HDTV 720p

9. 1280x720 45.00 60.00 HDTV 720p

10. 1920x1080 31.25 50.00 HDTV 1080i

11. 1920x1080 33.75 60.00 HDTV 1080i

12. 1920x1080 33.72 59.94 HDTV 1080i

13. 1920x1080 56.250 50 HDTV 1080p

14. 1920x1080 67.43/67.5 59.94/60 HDTV 1080p

- 8 -

LGE Internal Use OnlyCopyright ©2009 LG Electronics. Inc. All right reserved.

Only for training and service purposes

No

Specification

Proposed Remark

Resolution H-freq(kHz) V-freq(Hz) Pixel Clock(MHz)

1. 720*400 31.468 70.08 28.321 For only DOS mode

2. 640*480 31.469 59.94 25.17 VESA

Input 848*480

60Hz, 852*480 60Hz

-> 640*480 60Hz Display

3. 800*600 37.879 60.31 40.00 VESA

4. 1024*768 48.363 60.00 65.00 VESA(XGA)

5. 1280*768 47.78 59.87 79.5 WXGA

6. 1360*768 47.72 59.8 84.75 WXGA

7. 1280*1024 63.595 60.0 108.875 SXGA FHD model

8. 1920*1080 66.587 59.93 138.5 WUXGA FHD model

7. RGB (PC)

8. HDMI Input (PC/DTV)

(1) DTV Mode

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed Remark

1. 720*400 31.468 70.08 28.321 HDCP

2. 640*480 31.469 59.94 25.17 VESA HDCP

3. 800*600 37.879 60.31 40.00 VESA HDCP

4. 1024*768 48.363 60.00 65.00 VESA(XGA) HDCP

5. 1280*768 47.78 59.87 79.5 WXGA HDCP

6. 1360*768 47.72 59.8 84.75 WXGA HDCP

7. 1280*1024 63.595 60.0 108.875 SXGA HDCP

8. 1920*1080 67.5 60 148.5 WUXGA HDCP

(2) PC Mode

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed Remark

1. 720*480 31.469 /31.5 59.94 /60 27.00/27.03 SDTV 480P

2. 720*576 31.25 50 54 SDTV 576P

3. 1280*720 37.500 50 74.25 HDTV 720P

4. 1280*720 44.96 /45 59.94 /60 74.17/74.25 HDTV 720P

5. 1920*1080 33.72 /33.75 59.94 /60 74.17/74.25 HDTV 1080I

6. 1920*1080 28.125 50.00 74.25 HDTV 1080I

7. 1920*1080 26.97 /27 23.97 /24 74.17/74.25 HDTV 1080P

8. 1920*1080 33.716 /33.75 29.976 /30.00 74.25 HDTV 1080P

9. 1920*1080 56.250 50 148.5 HDTV 1080P

10. 1920*1080 67.43 /67.5 59.94 /60 148.35/148.50 HDTV 1080P

LGE Internal Use OnlyCopyright ©2009 LG Electronics. Inc. All right reserved.

Only for training and service purposes

- 9 -

ADJUSTMENT INSTRUCTION

1. Application Range

This specification sheet is applied to all of the LCD TV with
LC91M chassis.

2. Designation

1) The adjustment is according to the order which is

designated and which must be followed, according to the
plan which can be changed only on agreeing.

2) Power Adjustment: Free Voltage

3) Magnetic Field Condition: Nil.

4) Input signal Unit: Product Specification Standard

5) Reserve after operation: Above 5 Minutes (Heat Run)
Temperature : at 25±5ºC
Relative humidity : 65±10%
Input voltage : 220V, 60Hz

6) Adjustment equipments: Color Analyzer (CA-210 or CA-

110), Pattern Generator(MSPG-925L or Equivalent), DDC
Adjustment Jig equipment, SVC remote control.

7) Push The “IN STOP KEY” - For memory initialization.

3. Main PCB check process

* APC - After Manual-Insert, executing APC

* Boot file Download

(1) Execute ISP program “Mstar ISP Utility” and then click

“Config” tab.

(2) Set as below, and then click “Auto Detect” and check “OK”

message.
If “Error” is displayed, Check connection between
computer, jig, and set.

(3) Click “Read” tab, and then load download file (XXXX.bin)

by clicking “Read”.

(4) Click “Connect” tab. If “Can’t” is displayed, check

connection between computer, jig, and set.
(5) Click “Auto” tab and set as below
(6) Click “Run”.
(7) After downloading, check “OK” message.

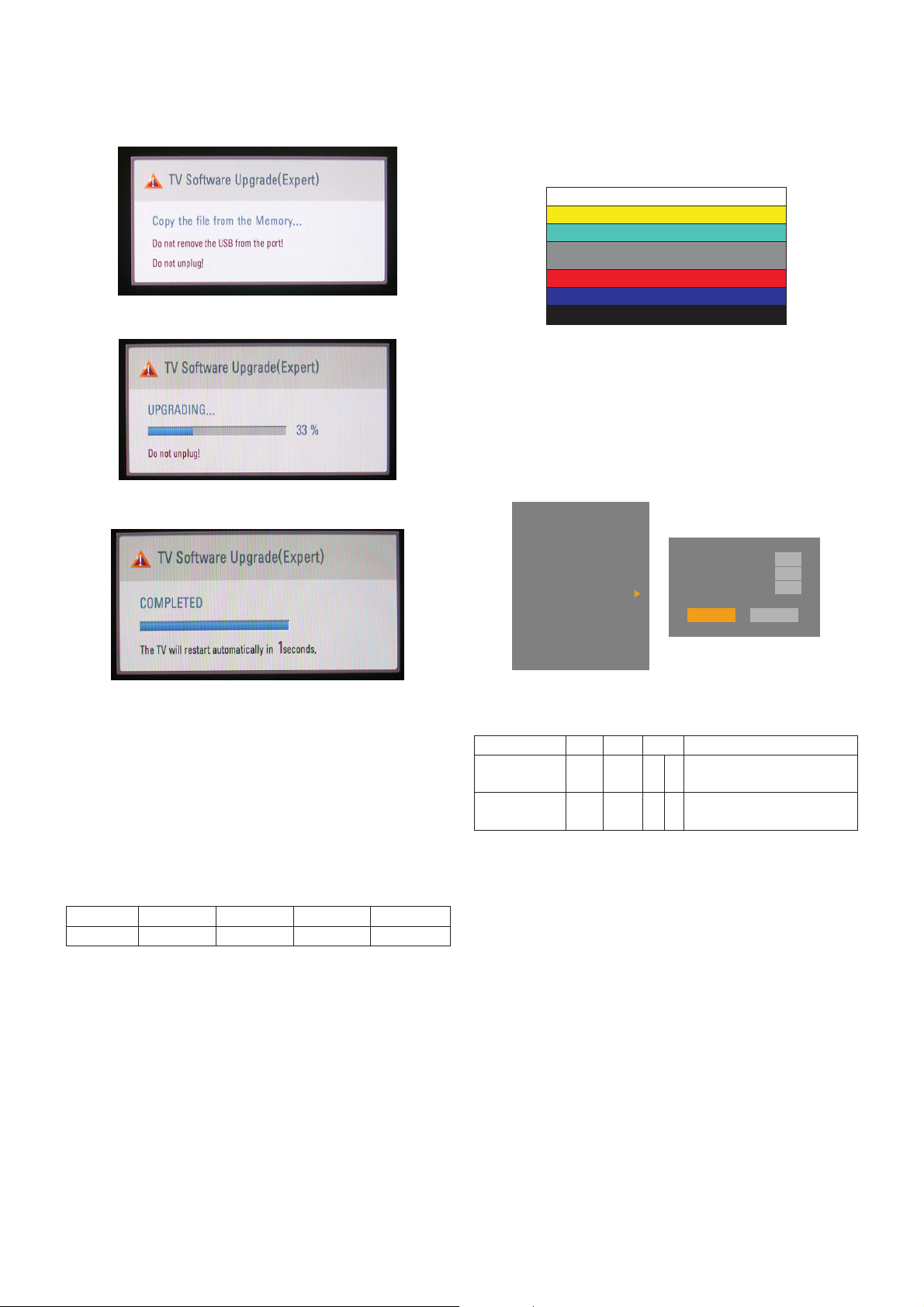

* USB DOWNLOAD(*.epk file download)

(1) Put the USB Stick to the USB socket.
(2) Automatically detecting update file in USB Stick.

- If version of update file in USB Stick is Lower, it didn’t
work. But version of update file is Higher, USB data is
automatically detecting

filexxx.bin

(7) .........OK

(6)

(5)

(1)

Please Check the Speed : To use speed between
from 200KHz to 400KHz

(2)

filexxx.bin

(3) (4)

Case1 : Software version up

1. After downloading S/W by USB, TV set will reboot
automatically

2. Push “In-stop” key

3. Push “Power on” key

4. Function inspection

5. After function inspection, Push “I n-stop” key.

Case2 : Function check at the assembly line

1. When TV set is entering on the assembly line, Push
“In-stop” key at first.

2. Push “Power on” key for turning it on.

-> If you push “Power on” key, TV set will recover
channel information by itself.

3. After function inspection, Push “In-stop” key.

(3) Show the message “Copying files from memory”

(4) Updating is staring.

(5) After updating is complete, the TV will restart automatically.

(6) If TV turns on, check your updated version and Tool

option. (refer to the next page about tool option)

* If downloading version is higher than your TV have, TV

can lost all channel data. In this case, you have to
channel recover. If all channel data is cleared, you didn’t
have a DTV/ATV test on production line.

* After downloading, have to adjust Tool Option again.

(1) Enter ‘EZ ADJUST’ mode by pushing ‘ADJ’ key.
(2) Select each ‘Tool Option(1~4)’ and push ‘OK’ or ‘

G’ key.

(3) Correct the number. (Each model has their number.)

(4) Correction Tool option is complete.

3.1. ADC Process

• Input signal : Component 480i

• Signal equipment displays.

- Component 480I
MODEL: 209 in Pattern Generator(480i Mode)
PATTERN : 65 in Pattern Generator(MSPG-925 SERIES)

* You need not connecting RGB(D-sub) cable. Because

ADC in RGB PC mode uses TV internal pattern.

• Enter ‘EZ ADJUST’ mode by pushing ‘ADJ’ key,

• Enter ‘ADC Calibration’ mode by pushing ‘OK’ or “

G” key

after selecting “5. ADC Calibration”.

<Caution> Turn on Tv by pushing ‘POWER ON’ or ‘P-ONLY’ key.
* ADC Calibration Protocol (RS232)

Adjust Sequence

• aa 00 00 [Enter Adjust Mode]

• xb 00 40 [Component1 Input (480i)]

• ad 00 10 [Adjust 480i Comp1]

• xb 00 60 [RGB Input (1024*768)]

• ad 00 10 [Adjust 1024*768 RGB]

• aa 00 90 End Adjust mode
* Required equipment : factory Service Remote control

3.2. Function Check

(1) Check display and sound

- Check Input and Signal items. (cf. work instructions)

1) TV

2) AV 1/2

3) COMPONENT1/2 (480i)

4) RGB (PC : 1024 x 768 @ 60hz)

5) HDMI 1/2/3

6) PC Audio In

* Display and Sound check is executed by remote control.

- 10 -

LGE Internal Use OnlyCopyright ©2009 LG Electronics. Inc. All right reserved.

Only for training and service purposes

Model Tool option1 Tool option2 Tool option3 Tool option4

26LU50FD 9281 2616 672 2688

Item CMD1 CMD2 Data0

Adjust A A 0 0 When transfer the ‘Mode In’,

‘Mode In’ Carry the command.

ADC Adjust A D 1 0 Automatically adjustment

(The use of a internal pattern)

Adjustment pattern

ADC Calibration

ADC Comp 480i

NG

ADC Comp 1080p

NG

ADC RGB

NG

Start Reset

EZ ADJUST

0. Tool Option1

1. Tool Opti on2

2. Tool Option3

3. Tool Option4

4. Country Group

5. ADC Calibration

6. White Balance

7. Test Pattern

8. EDID D/L

9. Sub B/C

4. Total Assembly line process

4.1. Adjustment Preparation

· W/B Equipment condition
CA210 : CH 9, Test signal : Inner pattern (85IRE)

· Above 5 minutes H/run in the inner pattern. (“power on” key

of adjust remote control)

* Connecting picture of the measuring instrument

(On Automatic control)
Inside PATTERN is used when W/B is controlled. Connect to
auto controller or push Adjustment R/C POWER ON -> Enter
the mode of White-Balance, the pattern will come out

* Auto-control interface and directions

1) Adjust in the place where the influx of light like floodlight

around is blocked. (illumination is less than 10ux).

2) Adhere closely the Color Analyzer (CA210) to the module

less than 10cm distance, keep it with the surface of the
Module and Color Analyzer’s Prove vertically.(80~100°).

3) Aging time

- After aging start, keep the power on (no suspension of
power supply) and heat-run over 15minutes.

- Using ‘no signal’ or ‘full white pattern’ or the others, check
the back light on.

• Auto adjustment Map(RS-232C)

** Caution **

Color Temperature : COOL, Medium, Warm.
One of R Gain/G Gain/ B Gain should be kept on 0xC0, and
adjust other two lower than C0.
(when R/G/B Gain are all C0, it is the FULL Dynamic Range
of Module)

* Manual W/B process using adjusts Remote control.

• Enter ‘EZ ADJUST’ mode by pushing “ADJ” key,

• Enter White Balance by pushing “

G

” key at “6.White Balance”.

- After all adjustments, press “IN START” key and compare
Tool option value with its BOM, if it is correctly same then
unplug the AC cable.
If it is not same, then correct it same with BOM and unplug AC
cable.
For correct it to the model’s module from factory JIG model.

- Push ‘IN STOP’ key after completing the function inspection.

4.2. DDC EDID Write (RGB 128Byte )

• Connect D-sub Signal Cable to D-sub Jack.

• Write EDID Data to EEPROM(24C02) by using DDC2B

protocol.

• Check whether written EDID data is correct or not.
* For SVC main Assembly, EDID have to be downloaded to

Insert Process in advance.

4.3. DDC EDID Write (HDMI 256Byte)

• Connect HDMI Signal Cable to HDMI Jack.

• Write EDID Data to EEPROM(24C02) by using DDC2B

protocol.

• Check whether written EDID data is correct or not.
* For SVC main Assembly, EDID have to be downloaded to

Insert Process in advance.

- 11 -

LGE Internal Use OnlyCopyright ©2009 LG Electronics. Inc. All right reserved.

Only for training and service purposes

Cool 11,000k ºK X=0.276(±0.002)

Y=0.283(±0.002) <Test Signal>

Medium 9,300k ºK X=0.285(±0.002) Inner pattern

Y=0.293(±0.002) (216gray,85IRE)

Warm 6,500k ºK X=0.313(±0.002)

Y=0.329(±0.002)

Full White Pattern

COLOR
ANALYZER
TYPE: CA-210

RS-232C Communication

CA-210

RS-232C COMMAND MIN CENTER MAX

[CMD ID DATA] (DEFAULT)

Cool Mid Warm Cool Mid Warm

R Gain jg Ja jd 00 172 192 192 255

G Gain jh Jb je 00 172 192 192 255

B Gain ji Jc jf 00 192 192 172 255

R Cut 64 64 64 128

G Cut 64 64 64 128

B Cut 64 64 64 128

Index Equipment -> Wireless unit Wireless unit -> Set

CMD1 CMD2 Set ID Data CMD1 CMD2 CMD3 CMD4

Start w b 0 00 1F 04 00 00

Gain start w b 0 10 1F 04 00 10

Gain End w b 0 1F 1F 04 00 1F

Offset Start w b 0 20 1F 04 00 20

Offset End w b 0 2F 1F 04 00 2F

End w b 0 FF 1F 04 00 FF

White Balance

Color Temp.

Cool

R-Gain

172

G-Gain

172

B-Gain

192

R-Cut

64

G-Cut

64

B-Cut

64

Test-Pattern

ON

Reset

To Set

EZ ADJUST

0. Tool Option1

1. Tool Option2

2. Tool Option3

3. Tool Option4

4. Country Group

5. ADC Calibration

6. White Balance

7. Test Pattern

8. EDID D/L

9. Sub B/C

4.4. EDID DATA

1) All Data : HEXA Value

2) Changeable Data :
*: Serial No : Controlled / Data:01
**: Month : Controlled / Data:00
***:Year : Controlled
****:Check sum

- Auto Download

• Enter ‘EZ ADJUST’ mode by pushing ‘ADJ’ key,

• Enter EDID D/L mode.

• Enter ‘START’ by pushing ‘OK’ key.
*Caution : Never connect HDMI & D-sub cable when auto

download

* 22LU50FD-CA doesn’t support HDMI3

* EDID data and Model option download (RS232)

- Manual Download

* Caution

1) Use the proper signal cable for EDID Download

- Analog EDID : Pin3 exists

- Digital EDID : Pin3 exists

2) Nerver connect HDMI & D-sub Cable at the same time.

3) Use the proper cables below for EDID Writing.

4) Download HDMI1, HDMI2, HDMI3 separately because
each data is different.

(1) RGB EDID data : 128 byte

(2) HDMI EDID data : 256 byte

* Detail EDID Options are below

ⓐ Product ID

ⓑ Serial No: Controlled on production line.
ⓒ Week, Year:Fixed as S/W released day(same as MES data)

ex) Week : 0x02(2), Year 0x13(2009)

ⓓ Model Name(Hex):

ⓔ Checksum: Changeable by total EDID data.

ⓕ Vendor Specific(HDMI)

MODEL RGB HDMI1 HDMI2 HDMI3 Remark

22/26 0x1C 0x03, 0x5F 0x03, 0x4F 0x03, 0x3F HDMI3:only 26”

012 3 4 5 67 8 9ABCD EF

00 00 FF FF FF FF FF FF 00 1E 6D ⓐⓑ
10 ⓒ 01 03 68 73 41 78 0A CF 74 A3 57 4C B0 23

20 09 48 4C A1 08 00 81 80 61 40 45 40 31 40 01 01

30 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C

40 45 00 7E 8A 42 00 00 1E 01 1D 00 72 51 D0 1E 20

50 6E 28 55 00 7E 8A 42 00 00 1E 00 00 00 FD 00 3A
60 3E 1E 53 10 00 0A 20 20 20 20 20 20 ⓓ
70 ⓓ 00 ⓔ

LGE Internal Use OnlyCopyright ©2009 LG Electronics. Inc. All right reserved.

Only for training and service purposes

- 12 -

EZ ADJUST

0. Tool Option1

1. Tool Option2

2. Tool Option3

3. Tool Option4

4. Country Group

5. ADC Calibration

6. White Balance

7. Test Pattern

8. EDID D/L

9. Sub B/C

HDMI1 NG

HDMI2 NG

HDMI3 NG

RGB NG

Start Reset

EDID D/L

HDMI1 OK

HDMI2 OK

HDMI3 OK

RGB OK

Start Reset

EDID D/L

MODEL HEX EDID Table DDC Fuction

26LU50FD 0002 02 00 Analog/Digital

MODEL Model name(HX)

All 00 00 00 FC 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20

INPUT MODEL NAME(HEX) Remark

HDMI1 65 03 0C 00 10 00

HDMI2 65 03 0C 00 20 00

HDMI3 65 03 0C 00 30 00 Except 22”

Item CMD1 CMD2 Data0

Download A A 0 0 When transfer the ‘Mode In’,

‘Mode In’ Carry the command.

Download A E 00 10 Automatically Download

(The use of a internal pattern)

D-sub to D-sub DVI-D to HDMI or HDMI to HDMI

For HDMI EDIDFor Analog EDID

012 3 4 5 67 8 9ABCD EF

00 00 FF FF FF FF FF FF 00 1E 6D ⓐⓑ
10 ⓒ 01 03 80 73 41 78 0A CF 74 A3 57 4C B0 23

20 09 48 4C A1 08 00 81 80 61 40 45 40 31 40 01 01

30 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C

40 45 00 7E 8A 42 00 00 1E 01 1D 00 72 51 D0 1E 20

50 6E 28 55 00 7E 8A 42 00 00 1E 00 00 00 FD 00 3A
60 3E 1E 53 10 00 0A 20 20 20 20 20 20 ⓓ
70 ⓓ 01 ⓔ

80 02 03 20 F1 4E 10 1F 84 13 05 14 03 02 12 20 21
90 22 15 01 26 15 07 50 09 57 07 ⓕ

A0 01 1D 80 18 71 1C 16 20 58 2C 25 00 7E 8A 42 00

B0 00 9E 01 1D 00 80 51 D0 0C 20 40 80 35 00 7E 8A

C0 42 00 00 1E 8C 0A D0 8A 20 E0 2D 10 10 3E 96 00

D0 7E 8A 42 00 00 18 02 3A 80 18 71 38 2D 40 58 2C

E0 45 00 7E 8A 42 00 00 1E 66 21 50 B0 51 00 1B 30
F0 40 70 36 00 7E 8A 42 00 00 1E 00 00 00 00 00 ⓔ

Item

Manufacturer ID

Version

Revision

Condition

GSM

Digital : 1

Digital : 3

Data(Hex)

1E6D

01

03

LGE Internal Use OnlyCopyright ©2009 LG Electronics. Inc. All right reserved.

Only for training and service purposes

- 13 -

1. TV/CATV doesn’t display

TROUBLESHOOTING

2. DTV doesn’t display

Check the output data of TU1702 Pin 20,21,22

Can you see the normal signal?

NO

Could you measure voltage of TU1702 &

IIC lines?

Are they all normal?

NO

You should check power line

& IIC lines.

YES

You should replace Main Board.

YES

Check the output of Main IC(IC100).

Especially you should check

The H,V sync and clock.

Can you see the normal waveform?

YES

NO

After checking the Power of Main IC(IC100) you

should decide to replace Main IC or not.

This board has big problem because Main

IC(IC100) have some troubles.

After checking thoroughly all path once again,

You should decide to replace Main Board or not.

Could you measure voltage of IC1701 & IIC

lines?

Are they all normal?

NO

You should check power line

& IIC lines.

YES

Check TU1702.

Can you see the normal signal?

Check the output of TR(Q1703).

Can you see the normal waveform?

Check the output of Main IC(IC100).

Especially you should check

The H,V sync and clock.

Can you see the normal waveform?

YES

YES

NO

Could you measure voltage of TU1702 &

IIC lines?

Are they all normal?

YES

NO

You should check power line

& IIC lines.

YES

You should replace Main Board.

NO

You should decide to replace TR (Q1703) or not.

NO

After checking the Power of Main IC(IC100) you

should decide to replace Main IC or not.

This board has big problem because Main

IC(IC100) have some troubles.

After checking thoroughly all path once again,

You should decide to replace Main Board or not.

LGE Internal Use OnlyCopyright ©2009 LG Electronics. Inc. All right reserved.

Only for training and service purposes

- 14 -

3. Component1, AV1/2, S-Video doesn’t display

Check JK1402, JK1404, JK1405.
Can you see the normal waveform?

NO

JK1402, JK1404,JK1405 may have problem.

Replace this Jack.

Check the output of Main IC(IC100).

Especially you should check

The H,V sync and clock.

Can you see the normal waveform?

YES

NO

After checking the Power of Main IC(IC100),

you should decide to replace Main IC or not.

This board has big problem because Main

IC(IC100) have some troubles.

After checking thoroughly all path once again,

You should decide to replace Main Board or not.

YES

4. RGB PC doesn’t display

Check JK1407,

Can you see the normal waveform?

NO

JK1407 may have problem.

Replace this Jack.

Check the output of Main IC(IC100).

Especially you should check

The H,V sync and clock.

Can you see the normal waveform?

YES

NO

After checking the Power of Main IC(IC100),
you should decide to replace Main IC or not.

This board has big problem because Main

IC(IC100) have some troubles.

After checking thoroughly all path once again,

You should decide to replace Main Board or not.

YES

LGE Internal Use OnlyCopyright ©2009 LG Electronics. Inc. All right reserved.

Only for training and service purposes

- 15 -

5. HDMI doesn’t display

Check input connect JK600, JK601, JK602.

Can you see the normal waveform?

Check DDC communication lines

(IC600,IC601,IC602)

YES

NO

JK600, JK601, JK602 may have problem.

Replace this Jack.

NO

After checking the Power of this chip, you

should decide to replace this or not.

YES

Check HDCP communication lines(IC107)

NO

After checking the Power of this chip, you

should decide to replace this or not.

Check the output of Main IC(IC100).

Especially you should check

The H,V sync and clock.

Can you see the normal waveform?

YES

NO

After checking the Power of Main IC(IC100) you

should decide to replace Main IC or not.

This board has big problem because Main

IC(IC100) have some troubles.

After checking thoroughly all path once again,

You should decide to replace Main Board or not.

YES

LGE Internal Use OnlyCopyright ©2009 LG Electronics. Inc. All right reserved.

Only for training and service purposes

- 16 -

BLOCK DIAGRAM

Saturn6Saturn6

LGE3369ALGE3369A

(IC100)(IC100)

Serial FLASH for boot

(32M, IC103)

5 : SPI, Flash_WP_1

EEPROM

(512K, IC105)

2 : EEPROM_SCL, SDA

HDCP EEPROM

(8K, IC107)

2 : EEPROM_SCL, SDA

NAND FLASH

(512M, IC102)

14 : PCM_A[0:7],---

DDR2

(512M, IC301)

45 : DDR2_D[0:15], ---

DDR2DDR2

(1G, IC300)(1G, IC300)

45 : DDR2_D[0:15], ---

Audio AMP

(NTP3100, IC701)

6 : I2S, MCLK, ---¶

2 : SCL, SDA_SUB/AMP

LCD module

(FHD 60Hz)

28 : LVDS data, PWM_DIM, LVDS/BIT_SEL, OPC_EN

1 : OPC_OUT1 (except 22inch)

Demodulator

(LG3900, IC1701)

SDRAM

(64M, IC1707)

4 : TS_SERIAL, ---

2 : FE_DEMOD_

SCL/SDA

2 : TU_IF_OUT+/-

1 : FE_MAIN(CVBS)

1 : FE_SIF

Comp 1

Comp 2

AV 1

AV 2(SIDE)

RGB

Comp 1

Comp 2

AV 1

AV 2(SIDE)

HDMI 1

HDMI 2

HDMI 3

(Only 26")

(Only 26")

(SIDE)

Digital Audio (Optic)

Phone (for RGB)

USB

RS-232C :

Ctrl& SVC

(Only S/W update)

EEPROM

(2K, IC600)

EEPROM

(2K, IC602)

EEPROM

(2K, IC601)

EEPROM

(2K, IC1401)

1 : EDID_WP

12 : DATA+/-X3, CLK+/-, HPD1, V_HDMI1, DDC_SCL1/SDA1

2 : DDC_SCL1/SDA1

1 : EDID_WP

12 : DATA+/-X3, CLK+/-, HPD2, 5V_HDMI2, DDC_SCL2/SDA2

2 : DDC_SCL2/SDA2

1 : EDID_WP

12 : DATA+/-X3, CLK+/-, HPD3, 5V_HDMI3 DDC_SCL3/SDA3

2 : DDC_SCL3/SDA3

TUNER

(TDFR-Z751D,

TU1702)

2 : CVBS, DET

5 : S_Y, S_C, S_DET, CVBS, DET

4 : Y, Pb, Pr, DET

4 : Y, Pb, Pr, DET

1 : EDID_WP

8 : R, G, B, H/VSYNC, DET, ISP_RXD/TXD

2 : ISP_RXD/TXD

2 : L/R

2 : L/R

2 : L/R

2 : L/R

2 : L/R

1 : SPDIF_OUT

OCP

(MP6211,IC1403)

MAX3232CDR

(IC1400)

2 : DBG_

RX/TX

2 : SIDE_USB_DM/DP

2 : DBG_

RX/TX

1 : 5V_USB

2 : USB_CTL,

USB_OCD

Sub

(IR/LED, Control)

1 : LED_ON

2 : SCL, SDA_SUB/AMP

3 : IR, KEY1/2

- 17 -

LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.

Only for training and service purposes

300

200

200T

200N

500

122

801

803

804

805

802

806

320

551

310

510

511

550

530

540

521

400

LV1

A2

A9

900

910

920

120

A10

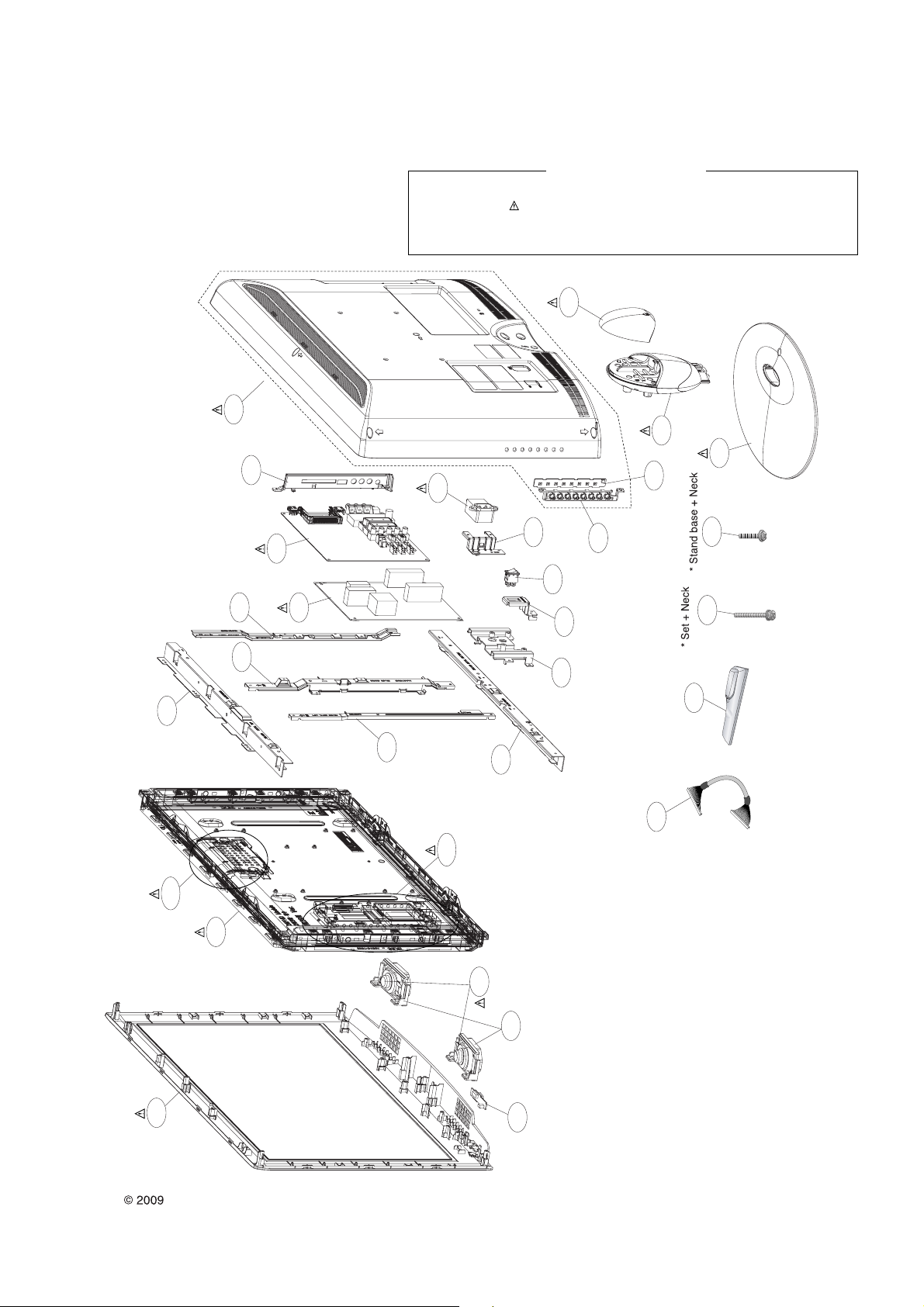

EXPLODED VIEW

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These
parts are identified by in the Schematic Diagram and EXPLODED VIEW.
It is essential that these special safety parts should be replaced with the same components as
recommended in this manual to prevent X-RADIATION, Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.

IMPORTANT SAFETY NOTICE

NAND FLASH MEMORY

Copyright ©2009 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

/PF_CE0
H : Serial Flash
L : NAND Flash
/PF_CE1
H : 16 bit
L : 8 bit

/F_RB

/PF_CE0

+3.3V

10K

R103

0

C

R151

OPT

Q100

B

R101

R102

R1509

OPT

KRC103S

Q101

+3.3V

0

B

0

OPT

0

R104

10K

KRC103S
OPT

E

SPI_CS

SPI_DO

C

E

PF_WP

Serial FLASH MEMORY
for BOOT

Flash_WP_1

HDCP EEPROM

IC107

R158

4.7K

CAT24WC08W-T

A0

1

A1

2

A2

3

VSS

4

I2C

FE_DEMOD_SDA009:H25
FE_DEMOD_SCL009:H27

SDA_SUB/AMP006:K12
SCL_SUB/AMP006:K12

8

7

6

5

/PF_CE1

PF_ALE

/PF_WE

VCC

WP

SCL

SDA

+3.3V

+3.3V

OPT

R105
1K

R1533

R1530

33

C114

0.1uF

4.7K

1K

R1540

R112 1K

R1539

1K

W25X32VSSIG

CS

1

DO

2

WP

3

GND

4

R1549

4.7K

R161

R171 22

R122 0
R123 0

R128 0
R129 0

R111 3.9K

OPT

C103

IC103

download

22

+3.3V

NC_1

1

NC_2

2

NC_3

3

NC_4

4

NC_5

5

NC_6

6

R/B

7

RE

8

CE

9

NC_7

10

NC_8

11

VCC_1

0.1uF

8

7

6

5

VSS_1

NC_9

NC_10

NC_11

NC_12

NC_13

NC_14

NC_15

VCC

HOLD

CLK

DIO

12

13

14

15

CLE

16

ALE

17

WE

18

WP

19

20

21

22

23

24

+3.3V

L102

Addr:10101--

001:J20;001:O13;001:Y13

EEPROM_SCL

EEPROM_SDA

001:J20;001:O13;001:Y14

+3.3V

R1506

4.7K

R1507

4.7K

R1503

2.2K

IC102

HY27US08121B-TPCB

download

0.1uF
C104

SPI_CK

SPI_DI

R124

4.7K

2.2K

R125

R1502

+3.3V

NC_28

48

NC_27

47

NC_26

46

NC_25

45

I/O7

44

I/O6

43

I/O5

42

I/O4

41

NC_24

40

NC_23

PRE

VCC_2

VSS_2

NC_22

NC_21

NC_20

I/O3

I/O2

I/O1

I/O0

NC_19

NC_18

NC_17

NC_16

C105

10uF 6.3V

C106 0.1uF

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

EEPROM

M24512-WMW6G(REV.B)

E0

E1

E2

R100

0

VSS

MCU BOOT STRAP

10 : BOOT 51
11 : BOOT RISC

OPT

R199 1K

OPT

R1500

1K

4.7K
EEPROM_SDA 001:F17;001:O13;001:Y14

EEPROM_SCL 001:F17;001:O13;001:Y13

SDA0 001:Y14
SCL0 001:Y14

SDA1 001:AJ12
SCL1 001:AJ12

AR102

AR103

IC105

Rev B

1

2

3

4

R198 1K

R1501 1K

22

22

+3.3V

PCM_A[7]

PCM_A[6]

PCM_A[5]

PCM_A[4]/PF_OE

PCM_A[3]

PCM_A[2]

PCM_A[1]

PCM_A[0]

IC105: EAN43352801(ATMEL SHRINK)

EAN43349001(ST Rev.A)

+3.3V

VCC

8

WC

7

SCL

6

SDA

5

PWM0

PWM1

C115
8pF
50V
OPT

C100

0.1uF

C116
8pF
50V
OPT

R118 22

R119 22

IC105-*1

M24512-WMW6

Rev A

E0

VCC

1

8

WC

E1

7

2

SCL

E2

6

3

SDA

VSS

5

4

EEPROM_SCL

001:F17;001:J20;001:Y13

EEPROM_SDA

001:F17;001:J20;001:Y14

*Mstar reset:Active high reset

VOLTAGE DETECTOR

LC91M(22/26LU50FD-CA)

+3.3V_ST

12

R107

470

VCC

C101

0.022uF
16V

A_DIM007:E22

PWM_DIM008:K8;007:L22

C109

2.2uF
OPT

SW100

TMSV153BRA

*replacement:6600R00004C

4 3

C102

10uF 16V

3216
IC101

KIA7427F

3

1

2

GND

/PF_CE0001:D5
/PF_CE1001:E7

/PF_OE001:D4

001:E7

/PF_WE
PF_ALE001:E7

R144

R149 100

C120

1uF

OPT

SB_MUTE006:Y12

NTP_MUTE006:Y13

OUT

PF_WP001:B8
/F_RB001:D4

R115
10K

100

+3.3V_ST

R1561
10K

+3.3V

R1563
10K
OPT

R1160

+3.3V

R108 10K
R109 10K

PCM_A[0]
PCM_A[1]
PCM_A[2]
PCM_A[3]
PCM_A[4]
PCM_A[5]
PCM_A[6]
PCM_A[7]

+3.3V

R106 1K

R113

R1510 33 OPT

10K

OPT

+5V_GENERAL

AR100

AR101

22

EEPROM_SCL001:F17;001:J20;001:O13
EEPROM_SDA001:F17;001:J20;001:O13

SDA0001:J21
SCL0001:J21

ISP_RXD004:Z18
ISP_TXD001:AN11;004:Z18

DBG_RX001:AJ11;004:F17
DBG_TX001:AN10;004:F16

PWM0

PWM2

22

PWM0001:M16;001:X16
PWM1001:M17
PWM2001:X17

KEY1008:Z12
KEY2008:Z12

LED_R008:AD16

IR008:Z14

MODEL_OPT_4001:AB26

AMP_RST006:K6
MODEL_OPT_1001:AB25
MODEL_OPT_2001:AB25

ERROR_OUT007:L21

MODEL_OPT_0001:AB24
(COMP2_DET)

DSUB_DET004:Z23

R1511 33 OPT
R1512 33

JTDO

R1513 33 OPT
R1514 10K
R1515 10K
R1516 33 OPT
R1517 33 OPT
R1518 33 OPT
R1519 33 OPT

R162 0
R163 0
R164
R165 0

R140
R141 22
R142 22
R143 22

R150 22

R1522 0

R1521 100

R146 0

R117 0

R156
R157
R189 0
R168 0
R160
R166 100

R126 0

R148 10K

R147 100

22

LGE3368A (Saturn6 No-DivX)

D4

HWRESET

AC16

PCMD0/CI_D0

AA15

PCMD1/CI_D1

AA16

PCMD2/CI_D2

AC6

PCMD3/CI_D3

Y10

PCMD4/CI_D4

Y11

/JTRST

PCMD5/CI_D5

Y12

/RST

PCMD6/CI_D6

Y13

PCMD7/CI_D7

AB16

PCM_A0/CI_A0

AC15

PCM_A1/CI_A1

AC14

PCM_A2/CI_A2

AB14

PCM_A3/CI_A3

AC12

PCM_A4/CI_A4

AB8

PCM_A5/CI_A5

AC13

PCM_A6/CI_A6

AA9

PCM_A7/CI_A7

AB5

PCM_A8/CI_A8

AA4

PCM_A9/CI_A9

V4

PCM_A10/CI_A10

Y4

JTINT

PCM_A11/CI_A11

AB9

PCM_A12/CI_A12

AA7

PCM_A13/CI_A13

AD6

PCM_A14/CI_A14

AA14

PCM_RST/CI_RST

AB18

PCM_CD/CI_CD

Y5

/PCM_OE

AB15

PCM_REG/CI_CLK

AA10

PCM_WAIT/CI_WACK

AC8

/PCM_IRQA

AC7

/PCM_WE

AA5

PCM_IOWR/CI_WR

W4

PCM_IOR/CI_RD

T4

/PCM_CE

AE6

/PF_CE0

AF6

/PF_CE1

AA12

/PF_OE

AA11

/PF_WE

AC9

PF_ALE

Y14

PF_AD15

AB11

F_RBZ

F8

UART2_TX/SCKM

D11

UART2_RX/SDAM

AB21

0

DDCR_DA

AC21

DDCR_CK

J1

DDCA_CLK

J2

DDCA_DA

W5

UART_RX2

V5

UART_TX2

AB13

PWM0

AB12

PWM1

AD12

PWM2

AA13

PWM3

A4

SAR0

B4

SAR1

F4

SAR2

E4

SAR3

C4

IRIN

AC11

GPIO44

D9

100 OPT
100

100

GPIO96

D10

GPIO88

D7

GPIO90/I2S_OUT_MUTE

E11

GPIO91

E8

GPIO97

E10

GPIO98

D6

GPIO99

D5

GPIO103/I2S_OUT_SD3

C5

GPIO102

IC100

SYMBOL:C

TESTPIN/GND

/SPI_CS

USB_DP_1
USB_DM_1
USB_DM_2
USB_DP_2

GPIO_PM0/GPIO134
GPIO_PM1/GPIO135
GPIO_PM2/GPIO136
GPIO_PM3/GPIO137

GPIO_PM4/GPIO138
GPIO_PM5/INT1/GPIO139
GPIO_PM6/INT2/GPIO140

GPIO131/LDE/SPI_WPn1

GPIO130/LCK

GPIO132/LHSYNC/SPI_WPn

GPIO60/PCM2_RESET/RX1

GPIO62/PCM2_CD_N/TX1

LHSYNC2/I2S_OUT_MUTE/RX1

LVSYNC/GPIO133

GPIO79/LVSYNC2/TX1

UART2_RX/GPIO84
UART2_TX/GPIO85
UART1_RX/GPIO86
UART1_TX/GPIO87

GPIO42/PCM2_CE_N

GPIO43/PCM2_IRQA_N

TS0_SYNC

TS0_VLD
TS0_CLK

TS1_SYNC

TS1_VLD
TS1_CLK

ET_TXD0
ET_TXD1

ET_TX_CLK

ET_RXD0
ET_RXD1

ET_TX_EN

ET_MDIO

XOUT

SPI_DI
SPI_DO

SPI_CK

TS0_D0
TS0_D1
TS0_D2
TS0_D3
TS0_D4
TS0_D5
TS0_D6
TS0_D7

TS1_D0

ET_MDC

ET_COL

XIN

B3
A3

R172 0

E6

R173 0

AE11

R1524 33
AF12
AE12

R1525 33
AD11

R1526 33

B5

R174 0

A5

R175 0

AC10

R178 0 OPT

AB10

R179 0 OPT

E5

R181 0
F5
G5

R184
H5

R185
F6

R186 100
G6
H6
AC17

R188 100 OPT
AB17

R167 100
AF11

R159
AA18

R1535 0

AA17

R1536 0

E7

R1537 22 OPT

AC18

R1534 100

C6

R1538 22 OPT
F9
F10

R176

A6

R169

B6

R170

AF5

R120 100 OPT

AF10

R127 100

AA8
Y8
Y9
AB7
AA6
AB6
U4
AC5
AC4
AD5
AB4

AB19
AA20
AC19
AA19

R1564

C10

R154 100 26inch
R177 100

B11
A9

R183 100 OPT
C11
C9

R1614 10K

B10

R190 100

A10

R191 100 OPT

B9

R114 0

A11

R153 100

100
100
100

R193
1M

+3.3V_ST

100
100

100

OPT

BUF_TS_DATA[0]
BUF_TS_SYN
BUF_TS_VAL_ERR
BUF_TS_CLK

22inch

10K

X100

C111

12MHz

20pF

C112

20pF

SPI_DI 001:H13
SPI_DO 001:D12
SPI_CS 001:D12
SPI_CK 001:H13

REAR_USB_DP 004:AK16
REAR_USB_DM 004:AK16

R132

R133
15K

15K

OPT

OPT

R195
10K

(FE_TUNER_SCL)

(FE_TUNER_SDA)

(USB_OCD)

PM GPIO Assignment Recommended by MStar

LED_W 008:AD15

INV_CTL

007:L19
PANEL_CTL 007:AE6
POWER_ON/OFF1

DBG_RX 001:Y15;004:F17

LVDS_SEL 008:L6
FE_BOOSTER_CTL 009:Z15
Flash_WP_1 001:B12
SDA1 001:J22
SCL1 001:J22

OPC_EN 008:K11

5V_HDMI_1 005:E3;005:H13
5V_HDMI_2 005:S3;005:V13

AV1_DET 004:E8

BUF_TS_DATA[0]

BUF_TS_SYN

BUF_TS_CLK

AV2_DET 004:AM22
S_DET

(HP_DET)
EDID_WP 004:Z17;005:I15;005:W15;005:AL15
BIT_SEL 008:K14
MODEL_OPT_3 001:AB26
COMP1_DET 004:W5

REAR_USB(SVC)

R182 100OPT

R1523 100

R1541 100

R187 100

Interrupt for ISP Wake up in STB Mode

AR515

33

004:AK5

001:H25;001:AN11

POWER_DET
DBG_TX

001:Y15;004:F16

OPT

POWER_DET

001:H25;001:AN10

ISP_TXD

001:Y15;004:Z18

FE_TS_SERIAL 009:T21
FE_TS_SYN 009:T22
FE_TS_VAL_ERR 009:T21BUF_TS_VAL_ERR
FE_TS_DATA_CLK 009:T22

POWER DETECT

+24V/+15V

+3.3V_ST

R1558
10K

POWER_DET

001:AN10;001:AN11

R1552

1.8K

22inch

R1551

3.9K

R1552-*1
1K
26inch

I

1

IC1500

KIA7042AF

2

G

O

3

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

+3.3V

FHD

R1605

FRC

R1609

R1607

BLINKING_LED

R1610

R1608

NO FRC

MOVING_LED

LCD

PDP

MODEL_OPT_0

001:AA22

MODEL_OPT_1

001:AA21

MODEL_OPT_2

001:AA21

MODEL_OPT_3

001:AJ20

MODEL_OPT_4

001:AA20

A7

GPIO67
GPIO68

R192 100

B8

R155 100

EAX61023402

MAIN_1

OPT

(USB_CTL)

OPT

2009.04.28
1 9

OPT

R1612

R1603

009:C14

009:H24

R1601 100

R1602 100

R1613

OPT

R1604HDR1606

[ MODEL OPTION ]

OPT_0

H

LCD

L

PDP

OPT_1

FHD HD/SMALL

FRC

LVDS_CH_B

NO FRC

LVDS_CH_A

OPT_2 OPT_3

BLINKING_LED

MOVING_LED

RF_SWITCH_SEL

/FE_RESET

FHD

HD

+1.26V_VDDC

Copyright ©2009 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

LC91M(22/26LU50FD-CA)

005:I7
005:I6
005:I8
005:I7
005:I9
005:I8

005:I10

005:I9
005:I17;005:I5
005:I16;005:I6

005:I4

005:X7

005:X6

005:X8

005:X7

005:X9

005:X8

005:X10

005:X9
005:W17;005:X5
005:W16;005:X6

005:X4

005:AL8
005:AL7
005:AL8
005:AL8
005:AL9

005:AL9
005:AL10
005:AL10

005:AL17;005:AL6
005:AL16;005:AL6

005:AL5

005:D23

004:Y8
004:Y4
004:Y6

004:Q21

004:Q20

004:Q25
004:Q23
004:Q22

004:AM24

004:C7

004:AM6
004:AM3

009:Z8

C243

0.1uF

C241

0.1uF

C246

0.1uF

C244

0.1uF

HDMI

COMP1_Pr_IN

COMP1_Y_IN

COMP1_Pb_IN

COMP1DSUBCVBS1/2TV

DSUB_HSYNC
DSUB_VSYNC

AV2_CVBS_IN
AV1_CVBS_IN

S-VHS

FE_VMAIN

C249

0.1uF

C247

0.1uF

CK+_HDMI1
CK-_HDMI1
D0+_HDMI1
D0-_HDMI1
D1+_HDMI1
D1-_HDMI1
D2+_HDMI1
D2-_HDMI1
DDC_SDA_1
DDC_SCL_1
HPD1

CK+_HDMI2
CK-_HDMI2
D0+_HDMI2
D0-_HDMI2
D1+_HDMI2
D1-_HDMI2
D2+_HDMI2
D2-_HDMI2
DDC_SDA_2
DDC_SCL_2
HPD2

CK+_HDMI3
CK-_HDMI3
D0+_HDMI3
D0-_HDMI3
D1+_HDMI3
D1-_HDMI3
D2+_HDMI3
D2-_HDMI3
DDC_SDA_3
DDC_SCL_3
HPD3
HDMI_CEC

DSUB_R
DSUB_G
DSUB_B

(COMP2_Pr_IN)
(COMP2_Y_IN)
(COMP2_Pb_IN)

S_Y_IN
S_C_IN

C252

0.1uF

C250

0.1uF

C257

C264

0.1uF

0.1uF

C253

C258

0.1uF

0.1uF

R207 0

R208 0
R247

R201 0
R202 0
R203

R248 0

R249 0
R200
R204

R211
R212 47
R213
R214
R215
R216 47
R217

R244

R243

10K

10K

R218
R219
R220 47
R221

R222
R223 47
R224
R225

R205 47
R206 47
R226 47
R227 47

R293 0

22inch

R285 47
R286 47

R235 47
R236 47 C2019 0.047uF

R228
R209

C275

0.1uF

C265

0.1uF

100

100

26inch
26inch

100

26inch

100

C200 0.047uF

47

C201

47

C202

470

C203
C204 0.047uF

47

C205

47

C206

R246 22

R245 22

C212

47

C207

47

C213

470

C208

C214

47

C215
C216

47
470

C209

C210 0.047uF
C211
C217 0.047uF
C218 0.047uF

C287 0.047uF
C288 0.047uF

C2024 0.047uF

100

C221 0.047uF

100

C222 0.047uF

C281

0.1uF

C276

0.1uF

0.047uF

0.047uF
1000pF

0.047uF

0.047uF

0.047uF

0.047uF

0.047uF
1000pF

0.047uF

0.047uF

0.047uF
1000pF

0.047uF

C289

0.1uF

C294

C297

0.1uF

C2004

0.1uF

C2000

0.1uF

0.1uF

L210

BLM18PG121SN1D

C2026

0.1uF

LGE3368A (Saturn6 No-DivX)

F1

RXACKP

F2

RXACKN

G2

RXA0P

G3

RXA0N

H3

RXA1P

G1

RXA1N

H1

RXA2P

H2

RXA2N

A1

DDCD_A_DA

B2

DDCD_A_CK

A2

HOTPLUG_A

C3

RXBCKP

B1

RXBCKN

C1

RXB0P

C2

RXB0N

D2

RXB1P

D3

RXB1N

E3

RXB2P

D1

RXB2N

E1

DDCD_B_DA

F3

DDCD_B_CK

E2

HOTPLUG_B

AE8

RXCCKP

AD8

RXCCKN

AD9

RXC0P

AF8

RXC0N

AF9

RXC1P

AE9

RXC1N

AE10

RXC2P

AD10

RXC2N

AE7

DDCD_C_DA

AF7

DDCD_C_CK

AD7

HOTPLUG_C

J3

CEC

N2

HSYNC0/SC1_ID

N1

VSYNC0/SC1_FB

P2

RIN0P/SC1_R

R3

GIN0P/SC1_G

R1

BIN0P/SC1_B

P3

SOGIN0/SC1_CVBS

P1

RINM

T3

BINM

R2

GINM

K3

HSYNC1/DSUB_HSYNC

K2

VSYNC1/DSUB_VSYNC

L1

RIN1P/DSUB_R

L3

GIN1P/DSUB_G

K1

BIN1P/DSUB_B

L2

SOGIN1

V1

RIN2P/COMP_PR+

V2

GIN2P/COMP_Y+

U1

BIN2P/COMP_PB+

V3

SOGIN2

J5

VSYNC2

U3

CVBS1/SC1_CVBS

U2

CVBS2/SC2_CVBS

T1

CVBS3/SIDE_CVBS

T2

VCOM1

M1

CVBS4/S-VIDEO_Y

M2

CVBS6/S-VIDEO_C

N3

CVBS5

M3

CVBS7

W1

CVBS0/RF_CVBS

Y3

VCOM0

Y2

CVBSOUT0/SC2_MNTOUT

AA2

CVBSOUT1

C2001

0.1uF

IC100

SYMBOL:A

C2003

C2005

0.1uF

0.1uF

SPDIF_OUT

AUOUTR0/HP_ROUT

AUOUTL0/HP_LOUT
AUOUTR1/SC1_ROUT
AUOUTL1/SC1_LOUT
AUOUTR2/SC2_ROUT
AUOUTL2/SC2_LOUT

I2S_OUT_MCK

I2S_OUT_WS

I2S_OUT_BCK

I2S_OUT_SD

I2S_IN_SD

LVA0P
LVA0M
LVA1P
LVA1M
LVA2P
LVA2M
LVA3P
LVA3M
LVA4P
LVA4M

LVACKP
LVACKM

LVB0P
LVB0M
LVB1P
LVB1M
LVB2P
LVB2M
LVB3P
LVB3M
LVB4P
LVB4M

LVBCKP
LVBCKM

AUR0
AUL0
AUR1
AUL1
AUR2

AUL2

AUR3
AUL3
AUR4
AUL4
AUR5
AUL5

SIF0P
SIF0M

SPDIF_IN

VCLAMP

REFP
REFM
REXT

AUCOM
AUVRM
AUVRP
AUVAG

C219

C220

0.1uF

0.1uF

AE16
AD16
AD15
AF16
AF15
AE15
AD13
AF14
AF13
AE13

AE14
AD14

AE20
AD20
AD19
AF20
AF19
AE19
AD17
AF18
AF17
AE17

AE18
AD18

AA3
Y1
AE1
AF3
AE3

AE2

AA1
AB1
AB2
AC2
AB3
AC3

W3
W2

F11
E9

AF1
AF2
AD3
AD1
AC1
AD2

A8
B7
C7
D8
C8

R274

K4

C223

H4
J4
G4

R229 390

Check
AE5
AE4
AF4
AD4

Close to IC
as close as possible

C261

0.1uF

C242

0.1uF

22
22
22
22
22
22
22
22
22

22

22

22

22
22
22
22
22
22
22
22
22

22

22

22

C229 2.2uF
C230
C2006
C2007
C2008 2.2uF
C2009
C2011 2.2uF
C2012
C2013
C2014 2.2uF
C2015 2.2uF
C2016 2.2uF

C231 0.1uF
C232 0.1uF

100

OPT

0.1uF

1%

C224 0.1uF

C225 10uF
C226 0.1uF
C227
C228 4.7uF

C268

0.1uF

C245

0.1uF

R267
R268
R269
R270
R271
R272
R273
R275
R258

26inch

R259

26inch

R260
R261

R276
R277
R278
R279
R280
R281
R282
R283
R262

26inch

R263

26inch

R264
R265

2.2uF

2.2uF

2.2uF

2.2uF

2.2uF

2.2uF

R266 100

R230 100

OPT

R250

OPT

R251

R231 22
R232 22
R233 22
R234 22

+3.3V

C233

0.1uF

6.3V

1uF

6.3V

C270

0.1uF

C248

0.1uF

R291 0 22inch
R292 0 22inch

R241

47

R242 47

26inch

100

(AUDIO_R_OUT)

100

(AUDIO_L_OUT)

C235 0.1uF

C234 0.1uF

C278

0.1uF

C251

0.1uF

C280

C282

0.1uF

0.1uF

C254

C259

0.1uF

0.1uF

LVA_0P 008:F15
LVA_0M 008:F14
LVA_1P 008:F15
LVA_1M 008:F15
LVA_2P 008:F16
LVA_2M 008:F16
LVA_3P 008:F18
LVA_3M 008:F17
LVA_4P 008:F18
LVA_4M 008:F18

LVA_CKP 008:F17
LVA_CKM 008:F17

LVB_0P 008:F10
LVB_0M 008:F10
LVB_1P 008:F11
LVB_1M 008:F10
LVB_2P 008:F11
LVB_2M 008:F11
LVB_3P 008:F13
LVB_3M 008:F13
LVB_4P 008:F14
LVB_4M 008:F13

LVB_CKP 008:F12
LVB_CKM 008:F12

COMP1_R_IN 004:Y10
COMP1_L_IN 004:Y9

AV2_R_IN 004:AM26
AV2_L_IN 004:AM25
AV1_R_IN 004:C10

AV1_L_IN 004:C9
(COMP2_R_IN)
(COMP2_L_IN)

PC_R_IN 004:L25

PC_L_IN 004:L26

FE_SIF 009:U12

5V_HDMI_3 005:AH4;005:AK13

C236

C237

22pF

22pF

OPT

OPT

C238
22pF
OPT

C290

0.1uF

C266

0.1uF

C239
22pF

OPT

C295

0.1uF

C277

0.1uF

C298

C299

0.1uF

0.1uF

C291

C283

0.1uF

0.1uF

LVDS OUT

AUDIO IN

SPDIF_OUT 004:AF10

AUDIO_MASTER_CLK 006:K6
MS_LRCK 006:K12
MS_SCK 006:K12
MS_LRCH 006:K11

C296

0.1uF

C2002
10uF

+1.8V_DDR+3.3V+3.3V_VDDP

C2028
10uF

C2027
10uF

AUDIO OUT

GND_2
GND_3
GND_4
GND_5
GND_6
GND_7
GND_8

GND_9
GND_10
GND_11
GND_12
GND_13

GND_14
GND_15
GND_16

GND_17
GND_18

GND_19
GND_20
GND_21
GND_22
GND_23
GND_24

GND_25
GND_26
GND_27
GND_28
GND_29
GND_30
GND_31
GND_32

GND_33
GND_34
GND_35
GND_36
GND_37
GND_38
GND_39

GND_40
GND_41
GND_42
GND_43
GND_44
GND_45
GND_46
GND_47

GND_48
GND_49
GND_50
GND_51
GND_52
GND_53
GND_54
GND_55

GND_56
GND_57
GND_58
GND_59
GND_60
GND_61
GND_62
GND_63

GND_64
GND_65
GND_66
GND_67
GND_68
GND_69
GND_70
GND_71
GND_72
GND_73

IC100

SYMBOL:D

AVDD_MEMPLL_1
AVDD_MEMPLL_2
AVDD_MEMPLL_3

VDDC_1
VDDC_2
VDDC_3
VDDC_4
VDDC_5
VDDC_6
VDDC_7
VDDC_8

VDDC_9
VDDC_10
VDDC_11
VDDC_12
VDDC_13
VDDC_14
VDDC_15

VDDC_16
VDDC_17
VDDC_18
VDDC_19
VDDC_20
VDDC_21
VDDC_22
VDDC_23
VDDC_24
VDDC_25
VDDC_26
VDDC_27

VDDP_1

VDDP_2

VDDP_3

VDDP_4

VDDP_5

VDDP_6

VDDP_7

VDDP_8

AVDD_AU

AVDD_DDR_1
AVDD_DDR_2
AVDD_DDR_3
AVDD_DDR_4
AVDD_DDR_5
AVDD_DDR_6
AVDD_DDR_7
AVDD_DDR_8

AVDD_DDR_9
AVDD_DDR_10
AVDD_DDR_11

AVDD_LPLL

AVDD_MPLL

AVDD_33_1
AVDD_33_2
AVDD_33_3
AVDD_33_4
AVDD_33_5

AVDD_DM

AVDD_USB

LGE3368A (Saturn6 No-DivX)

E16
E17
E18

F7

L9
L10
L11

L12
L13
L14
L15
L16
L17
L18

M9

M10
M11
M12
M13
M14
M15
M16
M17

M18

N4

N9
N10
N11
N12
N13
N14

N15
N16
N17
N18

P4

P9
P10

P11
P12
P13
P14
P15
P16
P17
P18

R4

R9
R10
R11
R12
R13
R14
R15

R16
R17
R18

T5

T9
T10
T11
T12

T13
T14
T15
T16
T17
T18

U5
W13
Y21

AA23

+1.26V_VDDC

D16
D17
D18
D19
D20
H18
H19
H20
J20
K20
L20
M20
P7
R7
T7
T22
U7
U20
U22
V7
V22
W11
W12
W19
W20
W22
Y22

+3.3V_VDDP

H9
H10
H11
H12
N20
P20
W9
W10

W7

+1.8V_DDR

G12
G13
H13
H14
H15
H16
W14
W15
W16
W17
W18

H17
T20
V20

C262

0.1uF

R20

H7

C2029

0.1uF

PI_080719

J7
K7
L7
M7
N7

W8

H8

C263

0.1uF

AVDD_OTG : 22.96mA

VDDC : 970mA

C269

0.1uF

+3.3V_AVDD_MPLL

C271

0.1uF

+3.3V_S6

C256

0.1uF

VDDP : 102.3mA

+3.3V_S6

BLM18PG121SN1D

C284

0.1uF

C273

0.1uF

C2025
10uF

6.3V

C260

C274

0.1uF

0.1uF

+3.3V

L209

+3.3V_S6

AVDD_MEMPLL : 23.77mA

+3.3V_S6

L206

BLM18PG121SN1D

C267

0.1uF

AVDD_AU : 36.11mA

C293

0.1uF

AVDD_LPLL : 4.69mA

C279

0.1uF

+3.3V_AVDD

C286

0.1uF

+3.3V_S6

AVDD_33 : 281mA

AVDD_DM : 0.03mA

C2030

0.1uF

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

EAX61023402

MAIN_2

2009.04.28
2 9

DDR2 1.8V By CAP - Place these Caps near Memory

Copyright ©2009 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

0.1uF

C321

0.1uF

+1.8V_DDR

C323

0.1uF

+1.8V_DDR

Close to DDR Power Pin Close to DDR Power Pin

C302

0.1uF
C303

10uF

C304

0.1uF

C305

0.1uF

C306

0.1uF

C307

0.1uF

C308

0.1uF

C310

0.1uF

C312

0.1uF

C313

C314

0.1uF

0.1uF

C315

0.1uF

C316

0.1uF

C317

0.1uF

C318

0.1uF

C319

0.1uF

C320

C324

10uF

C325

0.1uF

C326

0.1uF

C327

0.1uF

C328

C329

0.1uF

0.1uF

C330

0.1uF

C331

0.1uF

C332

LC91M(22/26LU50FD-CA)

C334

C336

C337

C338

C339

C340

C341

C342

0.1uF

0.1uF

0.1uF

0.1uF

0.1uF

0.1uF

0.1uF

0.1uF

0.1uF

HY5PS1G1631CFP-S6

DQ0

G8

DQ1

G2

DQ2

H7

DQ3

H3

DQ4

H1

DQ5

H9

DQ6

F1

DQ7

F9

DQ8

C8

DQ9

C2

DQ10

D7

DQ11

D3

DQ12

D1

DQ13

D9

DQ14

B1

DQ15

B9

VDD5

A1

VDD4

E1

VDD3

J9

VDD2

M9

VDD1

R1

VDDQ10

A9

VDDQ9

C1

VDDQ8

C3

VDDQ7

C7

VDDQ6

C9

VDDQ5

E9

VDDQ4

G1

VDDQ3

G3

VDDQ2

G7

VDDQ1

G9

VSS5

A3

VSS4

E3

VSS3

J3

VSS2

N1

VSS1

P9

VSSQ10

B2

VSSQ9

B8

VSSQ8

A7

VSSQ7

D2

VSSQ6

D8

VSSQ5

E7

VSSQ4

F2

VSSQ3

F8

VSSQ2

H2

VSSQ1

H8

IC300-*1

1G_HYNIX

R3431K1%

+1.8V_DDR

R3451K1%

C333

0.1uF

TDDR_A[0]
TDDR_A[1]
TDDR_A[2]TDDR_A[10]
TDDR_A[3]
TDDR_A[4]
TDDR_A[5]
TDDR_A[6]
TDDR_A[7]
TDDR_A[8]
TDDR_A[9]

TDDR_A[0-12]

TDDR_A[10]
TDDR_A[11]
TDDR_A[12]

TDDR_BA[0]
TDDR_BA[1]
TDDR_BA[2]

OPT

R344

150

/TDDR_MCLK

TDDR_CKE

OPT

R348 4.7K

OPT

R349
/TDDR_RAS
/TDDR_CAS

/TDDR_WE

TDDR_DQS0_P
TDDR_DQS1_P

TDDR_DQM0_P
TDDR_DQM1_P

TDDR_DQS0_N
TDDR_DQS1_N

+1.8V_DDR

C335

0.1uF

TDDR_MCLK

4.7K

HYB18TC512160B2F-2.5

IC301

VREF

J2

512M_QIMONDA

A0

M8

A1

M3

A2

M7

A3

N2

A4

N8

A5

N3

A6

N7

A7

P2

A8

P8

A9

P3

A10/AP

M2

A11

P7

A12

R2

BA0

L2

BA1

L3

NC4

L1

CK

J8

CK

K8

CKE

K2

0

R350

ODT

K9

CS

L8

RAS

K7

CAS

L7

WE

K3

LDQS

F7

UDQS

B7

LDM

F3

UDM

B3

LDQS

E8

UDQS

A8

NC5

R3

NC6

R7

NC1

A2

NC2

E2

NC3

R8

VSSDL

J7

VDDL

J1

IC301-*1

H5PS5162FFR-S6C

DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8
DQ9
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15

VDD5
VDD4
VDD3
VDD2
VDD1

VDDQ10
VDDQ9
VDDQ8
VDDQ7
VDDQ6
VDDQ5
VDDQ4
VDDQ3
VDDQ2
VDDQ1

VSS5
VSS4
VSS3
VSS2
VSS1

VSSQ10
VSSQ9
VSSQ8
VSSQ7
VSSQ6
VSSQ5
VSSQ4
VSSQ3
VSSQ2
VSSQ1

TDDR_D[0]
TDDR_D[1]
TDDR_D[2]
TDDR_D[3]
TDDR_D[4]
TDDR_D[5]
TDDR_D[6]
TDDR_D[7]
TDDR_D[8]

TDDR_D[9]
TDDR_D[10]
TDDR_D[11]
TDDR_D[12]
TDDR_D[13]
TDDR_D[14]
TDDR_D[15]

+1.8V_DDR

G8
G2
H7
H3
H1
H9
F1
F9
C8
C2
D7
D3
D1
D9
B1
B9

A1
E1
J9
M9
R1

A9
C1
C3
C7
C9
E9
G1
G3
G7
G9

A3
E3
J3
N1
P9

B2
B8
A7
D2
D8
E7
F2
F8
H2
H8

TDDR_D[0-15]

A10/AP

VSSDL

VREF

LDQS
UDQS

LDQS
UDQS

VDDL

A0
A1
A2
A3
A4
A5
A6
A7
A8
A9

A11
A12

BA0
BA1
NC4

CK
CK

CKE

ODT

CS
RAS
CAS

WE

LDM
UDM

NC5
NC6

NC1
NC2
NC3

J2

512M_HYNIX

M8
M3
M7
N2
N8
N3
N7
P2
P8
P3
M2
P7
R2

L2
L3
L1

J8
K8
K2

K9
L8
K7
L7
K3

F7
B7

F3
B3

E8
A8

R3
R7

A2
E2
R8

J7

J1

DQ0

G8

DQ1

G2

DQ2

H7

DQ3

H3

DQ4

H1

DQ5

H9

DQ6

F1

DQ7

F9

DQ8

C8

DQ9

C2

DQ10

D7

DQ11

D3

DQ12

D1

DQ13

D9

DQ14

B1

DQ15

B9

VDD5

A1

VDD4

E1

VDD3

J9

VDD2

M9

VDD1

R1

VDDQ10

A9

VDDQ9

C1

VDDQ8

C3

VDDQ7

C7

VDDQ6

C9

VDDQ5

E9

VDDQ4

G1

VDDQ3

G3

VDDQ2

G7

VDDQ1

G9

VSS5

A3

VSS4

E3

VSS3

J3

VSS2

N1

VSS1

P9

VSSQ10

B2

VSSQ9

B8

VSSQ8

A7

VSSQ7

D2

VSSQ6

D8

VSSQ5

E7

VSSQ4

F2

VSSQ3

F8

VSSQ2

H2

VSSQ1

H8

ADDR2_A[3]
ADDR2_A[1]

ADDR2_A[10]

ADDR2_A[9]

ADDR2_A[12]

ADDR2_A[7]
ADDR2_A[0]

ADDR2_A[2]
ADDR2_A[4]
ADDR2_A[6]
ADDR2_A[11]
ADDR2_A[8]

ADDR2_BA[0]
ADDR2_BA[1]
ADDR2_BA[2]

ADDR2_MCLK

/ADDR2_MCLK

ADDR2_ODT

/ADDR2_RAS
/ADDR2_CAS

/ADDR2_WE

ADDR2_DQS0_P
ADDR2_DQS1_P

ADDR2_DQM0_P
ADDR2_DQM1_P

ADDR2_DQS0_N
ADDR2_DQS1_N

ADDR2_D[11]
ADDR2_D[12]

ADDR2_D[9]

ADDR2_D[14]

ADDR2_D[4]
ADDR2_D[3]
ADDR2_D[1]
ADDR2_D[6]

ADDR2_D[15]

ADDR2_D[8]
ADDR2_D[10]
ADDR2_D[13]

ADDR2_D[7]

ADDR2_D[0]

ADDR2_D[2]

ADDR2_D[5]

+1.8V_DDR

R321

R322

1K 1%

0.1uF

1K 1%

C311

C309

ADDR2_A[0-12]

ADDR2_D[0-15]

SYMBOL:B

A_MVREF

A_DDR2_A0
A_DDR2_A1
A_DDR2_A2
A_DDR2_A3
A_DDR2_A4
A_DDR2_A5
A_DDR2_A6
A_DDR2_A7
A_DDR2_A8
A_DDR2_A9
A_DDR2_A10
A_DDR2_A11
A_DDR2_A12

A_DDR2_BA0
A_DDR2_BA1
A_DDR2_BA2
A_DDR2_MCLK

/A_DDR2_MCLK
A_DDR2_CKE

A_DDR2_ODT

/A_DDR2_RAS
/A_DDR2_CAS
/A_DDR2_WE

A_DDR2_DQS0
A_DDR2_DQS1

A_DDR2_DQM0
A_DDR2_DQM1

A_DDR2_DQSB0
A_DDR2_DQSB1

A_DDR2_DQ0
A_DDR2_DQ1
A_DDR2_DQ2
A_DDR2_DQ3
A_DDR2_DQ4
A_DDR2_DQ5
A_DDR2_DQ6
A_DDR2_DQ7
A_DDR2_DQ8
A_DDR2_DQ9
A_DDR2_DQ10
A_DDR2_DQ11
A_DDR2_DQ12
A_DDR2_DQ13
A_DDR2_DQ14
A_DDR2_DQ15

IC100

0.1uF

LGE3368A (Saturn6 No-DivX)

D15

C13

ADDR2_A[0]

A22

ADDR2_A[1]

B13

ADDR2_A[2]

C22

ADDR2_A[3]

A13

ADDR2_A[4]

A23

ADDR2_A[5]

C12

ADDR2_A[6]

B23

ADDR2_A[7]

B12

ADDR2_A[8]

C23

ADDR2_A[9]

B22

ADDR2_A[10]

A12

ADDR2_A[11]

A24

ADDR2_A[12]

C24
B24
D24
B14

A14
D23

D14

D13
D12
D22

B18
C17

C18
A19

A18
B17

ADDR2_D[0]
ADDR2_D[1]
ADDR2_D[2]
ADDR2_D[3]
ADDR2_D[4]
ADDR2_D[5]
ADDR2_D[6]
ADDR2_D[7]
ADDR2_D[8]
ADDR2_D[9]
ADDR2_D[10]
ADDR2_D[11]
ADDR2_D[12]
ADDR2_D[13]
ADDR2_D[14]
ADDR2_D[15]

B15
A21
A15
B21
C21
C14
C20
C15
C16
C19
B16
B20
A20
A16
B19
A17

B_DDR2_A0
B_DDR2_A1
B_DDR2_A2
B_DDR2_A3
B_DDR2_A4
B_DDR2_A5
B_DDR2_A6
B_DDR2_A7
B_DDR2_A8

B_DDR2_A9
B_DDR2_A10
B_DDR2_A11
B_DDR2_A12

B_DDR2_BA0
B_DDR2_BA1
B_DDR2_BA2

B_DDR2_MCLK

/B_DDR2_MCLK

B_DDR2_CKE

B_DDR2_ODT

/B_DDR2_RAS
/B_DDR2_CAS

/B_DDR2_WE

B_DDR2_DQS0
B_DDR2_DQS1

B_DDR2_DQM0
B_DDR2_DQM1

B_DDR2_DQSB0
B_DDR2_DQSB1

B_DDR2_DQ0
B_DDR2_DQ1
B_DDR2_DQ2
B_DDR2_DQ3
B_DDR2_DQ4
B_DDR2_DQ5
B_DDR2_DQ6
B_DDR2_DQ7
B_DDR2_DQ8
B_DDR2_DQ9

B_DDR2_DQ10
B_DDR2_DQ11
B_DDR2_DQ12
B_DDR2_DQ13
B_DDR2_DQ14
B_DDR2_DQ15

T26
AF26
T25
AF23
T24
AE23
R26
AD22
R25
AC22
AD23
R24
AE22

AC23
AC24
AB22
V25

V24
AB23

U26

U25
U24
AB24

AB26
AA26

AC25
AC26

AB25
AA25

W25
AE26
W24
AF24
AF25
V26
AE25
W26
Y26
AD25
Y25
AE24
AD26
Y24
AD24
AA24

BDDR2_A[0]
BDDR2_A[1]
BDDR2_A[2]
BDDR2_A[3]
BDDR2_A[4]
BDDR2_A[5]
BDDR2_A[6]
BDDR2_A[7]
BDDR2_A[8]

BDDR2_A[9]
BDDR2_A[10]
BDDR2_A[11]
BDDR2_A[12]

BDDR2_D[0]

BDDR2_D[1]

BDDR2_D[2]

BDDR2_D[3]

BDDR2_D[4]

BDDR2_D[5]

BDDR2_D[6]

BDDR2_D[7]

BDDR2_D[8]

BDDR2_D[9]
BDDR2_D[10]
BDDR2_D[11]
BDDR2_D[12]
BDDR2_D[13]
BDDR2_D[14]
BDDR2_D[15]

BDDR2_A[9]
BDDR2_A[3]
BDDR2_A[1]
BDDR2_A[10]

BDDR2_A[5]
BDDR2_A[12]
BDDR2_A[7] TDDR_A[7]

BDDR2_A[0]
BDDR2_A[2]
BDDR2_A[4]

BDDR2_A[0-12]

BDDR2_A[6]

BDDR2_D[0-15]

BDDR2_A[11]
BDDR2_A[8]

BDDR2_BA[0]
BDDR2_BA[1]
BDDR2_BA[2]

BDDR2_MCLK

/BDDR2_MCLK

BDDR2_CKE

BDDR2_ODT

/BDDR2_RAS
/BDDR2_CAS

/BDDR2_WE

BDDR2_DQS0_P
BDDR2_DQS1_P

BDDR2_DQM0_P
BDDR2_DQM1_P

BDDR2_DQS0_N
BDDR2_DQS1_N

BDDR2_D[11]
BDDR2_D[12]
BDDR2_D[9]
BDDR2_D[14]

BDDR2_D[4]
BDDR2_D[3]
BDDR2_D[1]
BDDR2_D[6]

BDDR2_D[15]
BDDR2_D[8]
BDDR2_D[10]
BDDR2_D[13]

BDDR2_D[7]
BDDR2_D[0]
BDDR2_D[2]
BDDR2_D[5]

R326 56

AR311

AR313

AR304

AR310

56

AR312

56

AR303

56

AR305

56

56

56

56

R327 56
R328 56
R329 56

R330 22

R331 22

R332 56

R333 56

R334 56

R335 56
R336 56

R337 56
R338 56

R339 56
R340 56

R341 56
R342 56

TDDR_D[11]
TDDR_D[12]

TDDR_D[9]

TDDR_D[14]

TDDR_D[4]
TDDR_D[3]
TDDR_D[1]
TDDR_D[6]

TDDR_D[15]

TDDR_D[8]
TDDR_D[10]
TDDR_D[13]

TDDR_D[7]

TDDR_D[0]

TDDR_D[2]

TDDR_D[5]

TDDR_A[9]
TDDR_A[3]
TDDR_A[1]

TDDR_A[5]
TDDR_A[12]

TDDR_A[0]
TDDR_A[2]
TDDR_A[4]
TDDR_A[6]
TDDR_A[11]
TDDR_A[8]

OPT

+1.8V_DDR

+1.8V_DDR

1%R302 1K 1%

1K

R301

0.1uF

SDDR_A[0]
SDDR_A[1]
SDDR_A[2]
SDDR_A[3]
SDDR_A[4]
SDDR_A[5]
SDDR_A[6]
SDDR_A[7]
SDDR_A[8]

SDDR_A[9]
SDDR_A[10]
SDDR_A[11]
SDDR_A[12]

OPT

R351

0.1uF

C301

C300

SDDR_A[5] ADDR2_A[5]
SDDR_A[3]
SDDR_A[1]
SDDR_A[10]

SDDR_A[9]
SDDR_A[12]
SDDR_A[7]

SDDR_A[0]

SDDR_A[0-12]

SDDR_A[2]
SDDR_A[4]
SDDR_A[6]
SDDR_A[11]
SDDR_A[8]

SDDR_BA[0]
SDDR_BA[1]
SDDR_BA[2]

SDDR_CK

/SDDR_CK

0

R347 4.7K

OPT

R300

150

SDDR_CKE ADDR2_CKE

OPT

R346 4.7K

OPT

/SDDR_RAS
/SDDR_CAS

SDDR_DQS0_P
SDDR_DQS1_P

SDDR_DQM0_P
SDDR_DQM1_P

SDDR_DQS0_N
SDDR_DQS1_N

+1.8V_DDR

+1.8V_DDR

SDDR_ODT

/SDDR_WE

AR300

56

AR301

AR302

56

R320 56 R325 56

R30356
R30456
R30556

R30622

R30722

R30856

R30956

R31056
R31156
R31256

R31356

R31456

R31556

R31656

R31756

R31856

SDDR_D[11]
SDDR_D[12]
SDDR_D[9]
SDDR_D[14]

SDDR_D[4]
SDDR_D[3]
SDDR_D[1]
SDDR_D[6]

SDDR_D[15]
SDDR_D[8]
SDDR_D[10]
SDDR_D[13]

SDDR_D[7]
SDDR_D[0]
SDDR_D[2]
SDDR_D[5]

AR306

AR308

R319

56

56

56
AR307

56

56

AR309

56

IC300

HYB18TC1G160C2F-2.5

VREF

J2

A0

M8

A1

M3

A2

M7

A3

N2

A4

N8

A5

N3

A6

N7

A7

P2

A8

P8

A9

P3

A10/AP

M2

A11

P7

A12

R2

BA0

L2

BA1

L3

BA2

L1

CK

J8

CK

K8

CKE

K2

ODT

K9

CS

L8

RAS

K7

CAS

L7

WE

K3

LDQS

F7

UDQS

B7

LDM

F3

UDM

B3

LDQS

E8

UDQS

A8

NC4

R3

NC5

R7

NC1

A2

NC2

E2

NC3

R8

VSSDL

J7

VDDL

J1

DQ10
DQ11
DQ12
DQ13
DQ14
DQ15

VDD5
VDD4
VDD3
VDD2
VDD1

VDDQ10

VDDQ9
VDDQ8
VDDQ7
VDDQ6
VDDQ5
VDDQ4
VDDQ3
VDDQ2
VDDQ1

VSS5
VSS4
VSS3
VSS2
VSS1

VSSQ10

VSSQ9
VSSQ8
VSSQ7
VSSQ6
VSSQ5
VSSQ4
VSSQ3
VSSQ2
VSSQ1

DQ0

G8

1G_QIMONDA

DQ1

G2

DQ2

H7

DQ3

H3

DQ4

H1

DQ5

H9

DQ6

F1

DQ7

F9

DQ8

C8

DQ9

C2
D7
D3
D1
D9
B1
B9

A1
E1
J9
M9
R1

A9
C1
C3
C7
C9
E9
G1
G3
G7
G9

A3
E3
J3
N1
P9

B2
B8
A7
D2
D8
E7
F2
F8
H2
H8

VREF

J2

A0

M8

A1

M3

A2

M7

A3

N2

A4

N8

A5

N3

A6

N7

A7

P2

A8

P8

A9

P3

A10/AP

M2

A11

P7

A12

R2

BA0

L2

BA1

L3

BA2

L1

CK

J8

CK

K8

CKE

K2

ODT

K9

CS

L8

RAS

K7

CAS

L7

WE

K3

LDQS

F7

UDQS

B7

LDM

F3

UDM

B3

LDQS

E8

UDQS

A8

NC5

R3

NC6

R7

NC1

A2

NC2

E2

NC3

R8

VSSDL

J7

VDDL

J1

SDDR_D[0]
SDDR_D[1]
SDDR_D[2]
SDDR_D[3]
SDDR_D[4]
SDDR_D[5]
SDDR_D[6]
SDDR_D[7]
SDDR_D[8]
SDDR_D[9]
SDDR_D[10]

SDDR_D[0-15]

SDDR_D[11]
SDDR_D[12]
SDDR_D[13]
SDDR_D[14]
SDDR_D[15]

+1.8V_DDR

1G

512M

QIMONDA

HYNIX

QIMONDA

HYNIX

EAN55687601 HYB18TC1G160C2F-2.5

EAN55706101 HY5PS1G1631CFP-S6

EAN54839201 HYB18TC512160B2F-2.5

EAN55705501 H5PS5162FFR-S6C

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

EAX61023402

DDR2

2009.04.28
3 9

Component and AV1(rear)

Copyright ©2009 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

R1456

C1435

100pF

C1434

100pF

R1476

50V

50V

0

+3.3V

R1458

4.7K

C1431

1K

0.1uF
16V

R14 78

470 K

R14 77

470 K

D1445

AMOTECH

D1446

AMOTECH

5.6V

D1447

AMOTECH

5.6V

D1444

AMOTECH

5.6V

30V

AV1_CVBS_IN

002:E21

AV1_L_IN

002:S15

AV1_R_IN
002:S15

C1437

47pF

50V

R1487

R1488

R14 80

AV1_DET

001:AJ15

12K

12K

75

R1483

10K

R1484

10K

5F[YL]O-SPRING-L

6F[YL]CONTACT-L

7G[WH]C-LUG-L

5H[RD]O-SPRING-L

6H[RD]CONTACT-L

JK1402

PPJ228-01

9A [GN]E-LUG

4A [GN]O-SPRING-S

3A [GN]CONTACT-S

9B [BL]E-LUG

8B [BL]C-LUG-S

9C [RD]E-LUG_1

8C [RD]C-LUG-S

9D [WH]E-LUG

8D [WH]C-LUG-S

9E [RD]E-LUG_2

4E [RD]O-SPRING-S

3E [RD]CONTACT-S

D1411
AMOTECH
30V

D1416
AMOTECH

5.6V

D1412

AMOTECH

30V

D1413
AMOTECH
30V

D1414
AMOTECH

5.6V

D1415
AMOTECH

5.6V

+3.3V

R1427

4.7K

R1433
470K

R1434

470K

R1429
1K

R1428
0

C1409
1000pF
50V

C1410
1000pF
50V

R1436
10K

R1435
10K

R1430

75

COMP1_DET

001:AJ20

R1431
75

R1432
75

R1438
12K

R1437
12K

R1439
0

R1440
0

COMP1_Y_IN

002:E16

COMP1_Pb_IN

002:E17

COMP1_Pr_IN

002:E16

COMP1_L_IN

002:S14

COMP1_R_IN

002:S14

LC91M(22/26LU50FD-CA)

S-Video(AV1,rear)

JK1405

SPDIF_OUT

002:U18

PSJ014-01

1

GND

6

5

7 SHIELD

R1415

4.7K

A

B

GND

2

3

4

IC1402

NL17SZ00DFT2G

1

2

3

C-LUG1

C-LUG2

0-SPRING

C-LUG3

C-LUG4

D1452

30V

AMOTECH

D1454

5.6V

AMOTECH

D1453

30V

AMOTECH

SPDIF OUT

+5V_GENERAL

VCC

5

Y

4

C1406

0.1uF
16V

R1417 22

+3.3V

R1424

10K

1%

R1420

0

R1422
0

R1425
1K

R1421
75

R1423
75

+5V_GENERAL

C1407

100pF

50V

OPT

C1443
47pF
50V

S_DET 001:AJ19

C1444
47pF
50V

+5V_GENERAL

R1426

1K

OPT

D1400
OPT

S_C_IN 002:E22

S_Y_IN 002:E22

C1408

0.1uF
16V

VINPUT

JK1403

JST1223-001

GND

VCC

1

2

3

Fib er Opti c

4

FIX_POLE

ROUT2

DIN2

DIN1

ROUT1

RIN1

DOUT1

C1420

0.1uF
16V

MAX3232CDR

IC1400

9

10

11

12

13

14

15

GND

16

VCC

8

RIN2

7

DOUT2

6

V-

5

C2-

4

C2+

3

C1-

2

V+

1

C1419

C1+

25V

0.047uF

C1417

16V

0.33uF

C1418
16V

0.33uF

C1414

16V

0.33uF

+5V_ST

DSUB_VSYNC

002:E18

DSUB_HSYNC

002:E18

DSUB_B
002:E19

RS232C RGB PC

JK1408

KCN-DS-1-0088

1

6

2

7

3

8

4

9

5

10

R1412

0

OPT

C1416

220pF

50V

IR_OUT008:V18

DBG_TX

001:Y15;001:AN10

DBG_RX

001:Y15;001:AJ11

C1415
220pF

50V

D1426

30V
OPT

+5V_ST

R1447

6.2K

R1453

100

R1454

100

D1425

30V
OPT

R1450

6.2K

PC AUDIO

JK1401

PEJ024-01

E_SPRING

3

T_TERMINAL1

6A

B_TERMINAL1

7A

R_SPRING

4

T_SPRING

5

B_TERMINAL2

7B

T_TERMINAL2

6B

SHIELD_PLATE

8

D1402

AMOTECH

5.6V

OPT

D1403

AMOTECH

5.6V

OPT

C1400
100pF
50V

C1401

100pF

50V

R1402
470K

R1403
470K

R1407
15K

R1408
15K

R1411

10K

R1413

10K

R1418
0

R1419
0

PC_R_IN

002:S16

PC_L_IN

002:S16

DSUB_G

002:E19

DSUB_R
002:E18

C1428
68pF

R1498
0

R1497
0

R1496
0

C1429
68pF

R1445
75

R1443
75

R1444
75

D1417

AMOTECH

30V

R1441 68

R1442 68

A0

A1

A2

VSS

C1411
OPT

C1412
OPT

C1413
OPT

IC1401

CAT24C02WI-GT3

1

2

3

4

D1419
AMOTECH
30V

D1420
AMOTECH
30V

D1421

AMOTECH

30V

8

7

6

5

VCC

WP

SCL

SDA

D1418

AMOTECH

30V

C1439

18pF

50V

C1438

0.1uF
16V

R1489

4.7K

AMOTECH

D1422

5.6V
OPT

ENKMC2838-T112

C

R1490

4.7K

C1440
18pF

50V

KCN-DS-1-0089

D1448

A1

A2

R1446
22 R1448

C1421

0.1uF

16V

1112131415

678

12345

JK1407

+5V_ST

R1491

10K

001:AJ19;005:I15;005:W15;005:AL15

22

D1423

AMOTECH

5.6V
OPT

+3.3V

R1449
0
OPT

16

9

10

R1499
100

R1451

4.7K

D1424
AMOTECH

5.6V

OPT

R1452
1K

EDID_WP

ISP_RXD

001:Y14

ISP_TXD

001:Y15;001:AN11

DSUB_DET

001:AA22

REAR_USB

JK1409

UB01123-4HHS-4F

USB DO WN S TREA M

AV2(SIDE)

JK1404

PPJ218-02

4A

5A

2A

3B

2B

4C

5C

2C

R1416 0

OPT

1234

5

[YL]O_SPRING

[YL]CONTACT

[YL]U_CAN

[WH]C_LUG

[WH]U_CAN

[RD]O_SPRING

[RD]CONTACT

[RD]U_CAN

+5V_USB_REAR

Close to JK1409

C1446

C1445

100uF

0.1uF
16V

16V

D1449

CDS3C05HDMI1

5.6V

D1451
CDS3C05HDMI1

5.6V

*only 26inch

D1442
AMOTECH

5.6V

R1455
0

R1479

D1441

75

AMOTECH

30V

R1475

D1443

470K

AMOTECH

5.6V

D1440

R1474

AMOTECH

470K

5.6V

+3.3V

R1457

4.7K

C1430

0.1uF
16V

C1436
47pF
50V

C1433

100pF

50V

C1432

100pF

50V

REAR_USB_DM 001:AL8

REAR_USB_DP 001:AL7

R1473

1K

R1481
10K

R1485

12K

R1482
10K

R1486

12K

AV2_DET
001:AJ18

AV2_CVBS_IN
002:E21

AV2_L_IN
002:S15

AV2_R_IN
002:S15

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

EAX61023402

INTERFACE

2009.04.28
4 9

LC91M(22/26LU50FD-CA)

Copyright ©2009 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

22

JK600

EAG39789402

VSS

19

18

17

16

15

14

13

12

11

CK+

10

D0-

9

D0_GND

8

D0+

7

D1-

6

D1_GND

5

D1+

4

D2-

3

D2_GND

2

D2+

1

20

21

CAT24C02WI-GT3

A0

1

A1

2

A2

3

4

5V_HDMI_1

IC600

R600
2K

8

7

6

5

5V_HDMI_2

5V_HDMI_3

C

Q601

2SC3052

C600

0.1uF

R618
0

R623 0

R621 0

C603

0.1uF

16V

R610 22

R611 22

R651
10K

OPT

R626

5V_HDMI_1

4.7K

R612

1K

VCC

WP

SCL

SDA

R615
10K

B

E

002:E10;005:I17

002:E10;005:I16

005:J23;005:X6;005:AL7

+5V_ST

A1CA2

ENKMC2838-T112
D600

001:AJ19;004:Z17;005:W15;005:AL15

R629

4.7K

EDID_WP

DDC_SCL_1
002:E10;005:I6

DDC_SDA_1
002:E10;005:I5

HPD1 002:E10

DDC_SDA_1

DDC_SCL_1

CEC_REMOTE

CK-_HDMI1
002:E8

CK+_HDMI1
002:E8

D0-_HDMI1
002:E9

D0+_HDMI1
002:E8

D1-_HDMI1
002:E9

D1+_HDMI1
002:E9

D2-_HDMI1
002:E9

D2+_HDMI1
002:E9

JK601

EAG39789402

GND

22

VSS

19

18

17

16

15

14

13

12

11

CK+

10

D0-

9

D0_GND

8

D0+

7

D1-

6

D1_GND

5

D1+

4

D2-

3

D2_GND

2

D2+

1

20

21

CAT24C02WI-GT3

A0

1

A1

2

A2

3

4

IC601

R601
2K

8

7

6

5

R613

1K

VCC

R640

WP

0

C607

SCL

SDA

0.1uF

R645 0

R642 0

2SC3052

C601

0.1uF
16V

R603 22

R604 22

R605 0R607 0

R653
10K

OPT

R646

C

Q602

5V_HDMI_2

4.7K

R616
10K

B

E

+5V_ST

A1CA2

ENKMC2838-T112
D602

001:AJ19;004:Z17;005:I15;005:AL15

R649

4.7K

HPD2 002:E12

DDC_SDA_2

002:E12;005:W17

DDC_SCL_2

002:E12;005:W16

005:I6;005:J23;005:AL7

CEC_REMOTE

CK-_HDMI2
002:E11

CK+_HDMI2
002:E10

D0-_HDMI2
002:E11

D0+_HDMI2
002:E11

D1-_HDMI2
002:E11

D1+_HDMI2
002:E11

D2-_HDMI2
002:E12

D2+_HDMI2
002:E12

EDID_WP

DDC_SCL_2
002:E12;005:X6

DDC_SDA_2
002:E12;005:X5

JACK_GND

20

JK602

EAG42463001

19

18

17

16

15

14

13

12

11

CK+

10

D0-

9

D0_GND

8

D0+

7

D1-

6

D1_GND

5

D1+

4

D2-

3

D2_GND

2

D2+

1

A0

1

A1

2

A2

3

VSS

4

IC602

CAT24C02WI-GT3

R602
2K

8

7

6

5

VCC

WP

SCL

SDA

HDMI_3(SIDE)HDMI_1(REAR) HDMI_2(REAR)
*only 26inch

C

Q603

2SC3052

C602

0.1uF
E

R619
0

R620 0

R622 0

C604

0.1uF

16V

R608 22

R606 22

R609 0

R652
10K

OPT

5V_HDMI_3

R628

4.7K

R614

1K

R617
10K

B

+5V_ST

A1CA2
ENKMC2838-T112
D601

001:AJ19;004:Z17;005:I15;005:W15

R630

4.7K

HPD3 002:E15

DDC_SDA_3

002:E14;005:AL17

DDC_SCL_3

002:E15;005:AL16

CEC_REMOTE

005:I6;005:J23;005:X6

CK-_HDMI3
002:E13

CK+_HDMI3
002:E13

D0-_HDMI3
002:E13

D0+_HDMI3
002:E13

D1-_HDMI3
002:E14

D1+_HDMI3
002:E14

D2-_HDMI3
002:E14

D2+_HDMI3
002:E14

EDID_WP

DDC_SCL_3
002:E15;005:AL6

DDC_SDA_3
002:E14;005:AL6

CEC

CEC_REMOTE

HDMI_CEC
002:E15

SOURCE1

GATE1

DRAIN2

SSM6N15FU

1

2

3

Q600

OPT

R650
0

+3.3V_ST

R624
120K

D604

MMBD301LT1G

DRAIN1

6

GATE2

5

SOURCE2

4

R632

9.1K
OPT

30V

005:I6;005:X6;005:AL7

C608

0.1uF

16V

OPT

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

EAX61023402

HDMI

2009.04.28
5 9

002:U21

Copyright ©2009 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

+1.8V_AMP

L700

BLM18PG121SN1D

C700

1uF

10V

MCLK SDATA WCK BCK TP is necessory

002:U21
002:U21
002:U21
001:D22
001:D22

R704

001:AA21

AUDIO_MASTER_CLK

AMP_RST

100

C707

1000pF

50V

R740
0

+1.8V_AMP

L701

R703

BLM18PG121SN1D

C702

0.1uF
16V

MS_LRCH
MS_LRCK

MS_SCK
SDA_SUB/AMP
SCL_SUB/AMP

C705
100pF

0

50V

C704

C706

1uF

0.1uF

10V

+3.3V

C708

C709

1000pF

0.1uF

50V

16V

R708

3.3K

16V

R722 100
R720 100
R721 100
R709 100
R710 100

Monitor0_1_2 TP is necessory

C71 3

0.1 uF
16V

+1.8V_AMP

C760
1uF
10V

C712
33pF
50V

BST1A
VDR1A
RESET

DVSS_1
VSS_IO

CLK_I

VDD_IO
DGND_PLL
AGND_PLL

AVDD_PLL
DVDD_PLL

TEST0

C714

33pF

50V

C716

22000pF

AD

LFM

C715

0.1uF
16V

50V

1
2
3
4
5
6
7
8
9
10
11
12
13
14

AMP_VCC

OUT1A_1

OUT1A_2

PGND1A_1

PGND1A_2

53

54

55

56

IC701

EAN60664001

NTP-3100L

15

16

17

18

WCK19BCK20SDA21SCL

DVDD

SDATA

DVSS_2

C733

0.1uF
50V

PVDD1B_2

PVDD1A_1

PVDD1A_2

50

51

52

C729

0.1uF
50V

PGND1B_2

OUT1B_1

OUT1B_2

PVDD1B_1

46

47

48

49

22

25

FAULT26VDR2B27BST2B

MONITOR_023MONITOR_124MONITOR_2

C721

0.1uF
16V

C72 4

0.1 uF
16V

R717

C726
22000pF
50V

C727

0.1uF
16V

VDR1B44BST1B45PGND1B_1

43

42
41
40
39
38
37
36
35
34
33
32
31
30
29

28

PGND2B_1

33K

OPT

C725
10uF
35V

C73 0

NC

0.1 uF
16V

VDR2A
BST2A
PGND2A_2
PGND2A_1
OUT2A_2
OUT2A_1
PVDD2A_2
PVDD2A_1
PVDD2B_2
PVDD2B_1
OUT2B_2
OUT2B_1
PGND2B_2

R718 100

C731
22000pF
50V

2SC3052

R724

Q701

10K

C732

22000pF 50V

C728

0.1uF
50V

+3.3V_ST

C

B

E

R729

10K

C720

0.01uF
50V

D704

1N4148W

100V

OPT

D705

1N4148W

100V

OPT

D706

1N4148W

100V

OPT

D707

1N4148W

100V

OPT

AMP_VCC

C734

C735

0.1uF

0.1uF

50V

50V

D709

ENKMC2838-T112

A1

C

A2

R725
12

C741
1000pF

50V

C742
1000pF

50V

R726
12

R727
12

C743
1000pF

50V

C744
1000pF

50V

R728
12

C736
10uF
35V

R705
12

R713
12

R716
12

R719
12

SB_MUTE

NTP_MUTE

001:X22

L704
DA-8580
EAP38319001

2S

1S 1F

L705
DA-8580
EAP38319001

2S

1S 1F

001:X19

LC91M(22/26LU50FD-CA)

SPK_L+

C749

006:AJ2

006:AJ4

006:AJ6

006:AJ8

0.1uF
50V

C750

0.1uF
50V

C751

0.1uF
50V

C752

0.1uF

50V

SPK_L+

SPK_L-

SPK_R+

SPK_R-

2F

2F

C745

0.47uF
50V

C746

0.47uF

50V

4.7K

R731

4.7K

R732

4.7K

R733

4.7K

R734

3.3

R735

3.3
C756

0.01uF
50V

C757

0.01uF
50V

R736

3.3

R737

3.3
C758

0.01uF
50V

L706

120-ohm

L707
120-ohm

L709
120-ohm

L708
120-ohm

C755

0.01uF
50V

R730

2A => 5A

006:AH14

SPEAKER_L

SPK_L-

006:AH14

SPK_R+

006:AH15

SPEAKER_R

006:AH15

SPK_R-

4 SKP_L+

3 SPK_L-

2 SPK_R+

1 SPK_R-

P700

WAFER-ANGLE

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

AMP

EAX61023402

AMP

2009.04.28
6 9

FROM LIPS & POWER B/D

Copyright ©2009 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

P806

SMAW200-11

22inch

15V

1

15V

2

GND

3

GND

4

5.2V

5

5.2V

6

GND

7

OLP

8

ON

9

BRT_ADJ

10

M/S

11

L804

CB3216UA121

PI_080719

C802

0.1uF
16V

L802

BLM18PG121SN1D

22inch

C813

0.1uF
50V

L806

CB3216UA121

L801

BLM18PG121SN1D

22inch

C885

0.1uF

+3.3V

L826

Vout=0.8*(1+R1/R2)

+24V/+15V

OPT
C821
68uF
35V

C832
68uF

35V

+5V_ST

C824

16V

220uF

16V

INV_CTL_22

PWM_DIM_22

A_DIM_22

007:H23

001:AJ11;007:M13;007:AD12

+5V_ST

BLM18PG121SN1D

POWER_ON/OFF1

R1

R2

L817

R809

10.5K
1%

R871

8.2K
1%

+3.3V_ST

R856

4.7K

C876
22uF

C878

10uF

C879

10uF

C880
22uF

2.2uH

PGND2_1

PVCC_1

PVCC_2

PVCC_3

PGND1_1

2.2uH

1

2

3

4

5

L827

SW2_2

PGND2_2

19

20

IC806

BD9150MUV

7

8

6

SW1_1

SW1_2

PGND1_2

R800
10K

R872
10K

9

EN110FB1

C889
10uF
10V

C887
1uF
10V

FB217EN218SW2_1

16

ITH2

15

AVCC

14

NC

13

AGND

12

ITH1

11

+1.8V_DDR

C877

0.1uF
16V

+1.8V_DDR

R874
75K
5%

R873
56000
5%

C882
330pF

C883
330pF

+3.3V

450 mA

+3.3V /

+3.3V_AVDD

L805

BLM18PG121SN1D

C825

0.1uF
16V

C811

0.1uF
16V

+12V/+15V

+5V_ST

L810

BLM18PG121SN1D

26inch

12V_PANEL

L809

BLM18PG121SN1D

22inch

5V_PANEL

PANEL_CTL

001:AJ10

Amp Power & +12V/+15V

+24V/+15V

LC91M(22/26LU50FD-CA)

PANEL Power

R832
10K
OPT

R833
10K

B

R837
22K

C841

0.01uF
25V

C

Q804
2SC3052

E

R842-*1

22K

R843-*1

2.7K

22inch

(5V_PANEL)

C842

0.1uF
16V

R839

22K

R842
10K

B

R843

1.8K

C847

4.7uF

26inch

(12V_PANEL)

C

Q805
2SC3052

E

C845
10uF
16V

16V

Q806

OPT

RSR025P03

S

D

G

C853

1uF

25V

PANEL_POWER

C859

0.1uF
16V

NC
GND
GND

5.2V

5.2V
GND
12V
GND
24V

NC

A_DIM

PWM_DIM2

A_DIM_22

P805

FW20020-24S

26inch

1
3
5
7
9
11
13
15
17
19
21
23

C804
1uF
10V

AP1117E33G-13

3IN1

C803

0.1uF
16V

OUT

R803

IC801

2

4.7K

2
4
6

8
10
12
14
16
18
20
22
24

A_DIM

ADJ/GND

Q801

RT1P141C-T112

R807
33K

OPT

26inch

C

B

PWR_ON
GND
GND

5.2V

5.2V

C820

0.1uF
16V

26inch

L807

CB3216UA121

26inch

GND
12V
GND
24V
INV_ON
ERROR_OUT
PWM_DIM1

001:S16

PULL_UP_INV_ON

R814
100

6V_PULL_UP

PWM_DIM_22

Stand-by +3.3V

+3.3V_ST +3.3V_AVDD_MPLL

C806
100uF

16V

C808

0.1uF
16V

+3.3V_ST+5V_ST

+5V_ST

E

26inch

R808

22inch

R817

3.3K

22inch

R815
15K

R806
0
22inch

R805

4.7K

0

+3.3V_ST

R804
10K

OPT

Q800

2SC3052

26inch

C865

0.1uF
16V
26inch

INV_CTL_22

+5V_GENERAL

R818

3.3K

26inch

Q802

2SC3052

C807

0.1uF
16V

OPT

L803

BLM18PG121SN1D

+1.8V_DDR

R854

0

26inch

C

R802
10K

B

26inch

001:AJ11;007:P8;007:AD12

E

C826
100uF
16V
26inch

+5V_ST

R816

3.3K
OPT

C

R821
10K

B

E

R841

0

22R859

OPC_DISABLE

R860 22

OPC_ENABLE

C815

0.1uF
16V

OPT
R801
0

POWER_ON/OFF1

+12V

+3.3V_ST

R822
10K

INV_CTL
001:AJ10

R823

10K

OPT

ERROR_OUT
001:AA21

PWM_DIM

001:S17;008:K8

OPC_OUT1

008:K9

+5V_ST

465 mA @85% efficiency

CIC21J501NE

L812

Placed on SMD-TOP

C837

C IN

22uF

CIC21J501NE

C809

10uF

16V

Vout=0.8*(1+R1/R2)

C838
22uF
OPT

+12V/+15V

L831

C810

0.47uF
25V

MAX 3A

R827
75K

1/8W

1%

1N4148W_DIODES

BS

IN

C812

0.1uF
SW

50V

GND

Close to IC

R1

R2

D801

100V

OPT

IC808

MP2305DS

1

2

3

4

S6 core 1.26 volt

+3.3V

R831

1/10W

10K

4.9A 0.0150OHM 34MHZ

C836
10nF
50V

C840
1uF

10V

NR8040T3R6N

R824

22K 1%

GND

FB

IN

BS

1/10W

C831

100pF 50V

OPT

IC805

MP2212DN

1

2

3

4

OPT

R830

10K

R826

10

1%

Close to IC

EN/SYNC

8

SW_2

7

SW_1

6

VCC

5

R862 47

R825

22K 1%

+5V_GENERAL/

R882
100K

C817

1000pF

OPT

C818

0.1uF
50V

C816

5600pF

R883

50V

9.1K

R885

R1

12.4K
1%

Vout=0.923*(1+R1/R2)

Placed on SMD-TOP

C829
22uF
16V
3225

R2

L832
22uH

SS

8

EN

7

COMP

6

FB

5

R884
56K
1%

C828
22uF
16V
3225

C891

0.47uF

25V

$0.07

L813

3.6uH

C OUT

C843
22uF

16V

+5V_USB

+5V_GENERAL

L833

MLB-201209-0120P-N2

C830

0.1uF
16V

1600 mA

C849

22uF
16V
OPT

Placed on SMD-TOP

C833

0.1uF
16V

+1.26V_VDDC

C856

0.1uF

+5V_USB_REAR

C834
10uF
10V

POWER_ON/OFF1

C892

0.1uF
50V
22inch

R875

10K

22inch

C893

2.2uF
22inch

R876

2.2K
22inch

B

C800
100uF
16V

C

Q807
22inch

E

+3.3V

R877
22K
22inch

C814

0.1uF
16V

S

G

D

AP1117E18G-13

IN

3

Q808
22inch

IC803

OUT

2

L818
BLM18PG121SN1D
26inch

C894

0.01uF
50V

ADJ/GND

1

AMP_VCC

50 mA

C822
100uF
16V

L819

BLM18PG121SN1D

22inch

+1.8V_AMP

C827

0.1uF
16V

+12V/+15V

BLM18PG121SN1D

C895

0.1uF
50V

+12V

L820

26inch

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

EAX61023402

POWER

2009.04.28
7 9

Module

Copyright ©2009 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

LC91M(22/26LU50FD-CA)

.

52

51

50

49

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

24

23

22

21

20

19

18

17

16

15

14

13

12

11

10

TF05-51S

P1301

[1]GND

[2]NC

[3]NC

[4]NC

[5]NC

[6]NC

[7]LVDS_SEL

[8]VBR_EXT

[9]OPC_OUT

[10]OPC_EN

[11]GND

[12]R1AN

[13]R1AP

[14]R1BN

[15]R1BP

[16]R1CN

[17]R1CP

[18]GND

[19]R1CLKN

[20]R1CLKP

[21]GND

[22]R1DN

[23]R1DP

[24]R1EN

[25]R1EP

[26]GND

[27]BIT_SEL

[28]R2AN

[29]R2AP

[30]R2BN

[31]R2BP

[32]R2CN

[33]R2CP

[34]GND

[35]R2CLKN

[36]R2CLKP

[37]GND

[38]R2DN

[39]R2DP

[40]R2EN

[41]R2EP

[42]NC

[43]NC

9

[44]GND

8

[45]GND

7

[46]GND

6

[47]NC

5

[48]VLCD

4

[49]VLCD

3

[50]VLCD

2

[51]VLCD

1

R1306 0 26inch

R1307 0 26inch

LVB_0M

LVB_0P

LVB_1M

LVB_1P

LVB_2M

LVB_2P

LVB_CKM

LVB_CKP

LVB_3M

LVB_3P

LVB_4M

LVB_4P

LVA_0M

LVA_0P

LVA_1M

LVA_1P

LVA_2M

LVA_2P

LVA_CKM

LVA_CKP

LVA_3M

LVA_3P

LVA_4M

LVA_4P

R1315

OPT
OPT

+3.3V

JEIDA

VESA

OPC ENABLE (option)

R1366 22 OPC_ENABLE

R1365 22 OPC_ENABLE

R1369 510

26inch

R1313

R1314

OPT

OPT

OPT

OPT

+3.3V

R1372

OPT

R1373

OPT

10bit

8bit

R1378

3.3K
OPT

R1367 22

R1379

0

26inch

510

0

+3.3V

R1370

3.3K
OPT

R1371

22inch

R1312

OPT
OPT

OPT

PWM_DIM 001:S17;007:L22

OPC_OUT1 007:L23

OPC_EN 001:AJ13

BIT_SEL 001:AJ20

0

C1303
220uF

16V
OPT

LVDS_SEL
001:AJ11

C1301

1000pF

PANEL_POWER

L1300

BLM18PG121SN1D

C1300

0.1uF

50V

LVDS_SEL

45 [7]

* 22inch : NC

OPC_EN

42 [10]

* 22inch : NC

BIT_SEL
25 [27]

* 22inch : GND

16V

L / NCH

JEIDA VESA

H L

DisableEnable

H / NC L

10bit(D) 8bit

004:D19

IR_OUT

R1300 22

IR_OUT

R1301

IR_OUT

Q1300

2SC3052

IR_OUT

+5V_ST

47K

C

E

B

R1302 10K

IR_OUT

R1303

IR_OUT

Q1301

2SC3052

IR_OUT

+5V_ST

47K

CONTROL

KEY1001:AA19

KEY2001:AA19

+5V_ST

IR001:AA20

C

R1304 47K

B

OPT

E

+3.3V_ST

R1319

4.7K

R1318
100

R1317
100

L1307

BLM18PG121SN1D

IR & LED

R1320

4.7K

C1314

0.1uF

LED_W001:AJ10

LED_R001:AA19

16V

BLM18PG121SN1D

BLM18PG121SN1D

Zener Diode is

close to wafer

L1308

BLM18PG121SN1D

22inch

L1309

BLM18PG121SN1D

22inch

L1301

26inch

L1303

26inch

C1315
1000pF
50V

BLM18PG121SN1D

BLM18PG121SN1D

R1305

100

L1310

L1311

C1312

0.1uF
22inch

C1307

0.1uF
26inch

ZD1307

5.6V
AMOTECH
22inch

ZD1302

5.6V
AMOTECH

26inch

C1309
100pF
50V

C1316

1000pF

C1317

1000pF

C1305

0.1uF

26inch

C1313

0.1uF
22inch

ZD1303

5.6V

AMOTECH

ZD1305

5.6V
AMOTECH

ZD1306

5.6V
AMOTECH

ZD1308

5.6V
AMOTECH
22inch

ZD1304

5.6V
AMOTECH

26inch

KEY1

KEY2

KEY1

KEY2

5V_ST

LED_W

LED_R

GND

GND

GND

IR

P1303

12507WR-03L

22inch

1

2

3

4

.

P1302

12507WS-08L

1

2

3

4

5

6

7

8

9

.

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

EAX61023402

Module & sub

2009.04.28
8 9

DEMODULATOR LGDT3900

Copyright ©2009 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

C1720

C1722

C1724

C1726

C1731

C1739

0.1uF

C1742

0.1uF

0.1uF

16V

16V

C1737

C1741

0.1uF

0.1uF

16V

16V

C1740

C1743

0.1uF

0.1uF

16V

009:P4

009:P5

TU_IF_OUT-

TU_IF_OUT+

10uF

0.1uF

0.1uF

10V

C1721

10uF

10V

0.1uF

16V

16V

16V

C1723

C1725

16V

C1714

C1713

0.1uF

C1730

0.1uF

16V

16V

0.01uF25V

0.01uF25V

0.1uF

Close to IC

C1728

C1733

0.1uF
1uF

16V

OPT

C1729

0.1uF

LOCK

R1731

4.7K
OPT

SYNCLOCK

FE_DEMOD_SCL

FE_DEMOD_SDA

/FE_RESET

R1764

200

16V

+3.3V_DTMB

BLKERR

R1734

4.7K

R1736 100
R1737 100

BLKERR

SYNCLOCK

C1734
22pF
50V

C1735
22pF
50V

C1736
22pF
50V

009:H28

009:H28

R1741
100

R1742
100

R1743
100

TU_IF_AGC

009:N7

R1720
0

009:AG7
009:AO6

+3.3V_DTMB

R1769

R1722

R1721

1K

1K

1/16W

1/16W

C1719

5%

5%

C1718

0.1uF

0.1uF
16V

16V

+3.3V_DTMB

R1729

4.7K

OPT
TU_SCL_3.3V
TU_SDA_3.3V

009:G21
009:G22

001:D21

001:D21

001:X26

A1[RD]

100

A2[GN]

D1701

SAM2333

C

D1700

SAM2333

C

LDPC ERR

A1[RD]
A2[GN]

TUNER TDFR-Z751D

16V

16V

+1.2V_DTMB

C1748

0.1uF
16V

C1744
22pF
50V

C1745
22pF
50V

C1746
22pF
50V

+3.3V_DTMB

+3.3VA_DTMB

C1749

0.1uF
16V

AVDD33_1

AVSS_1
AIFINN
AIFINP

VREFN
VREFP

AVDD33_2

AVSS_2
I2CSEL
AGCOUT
TUNSCL
TUNSDA

VSS_1

VDD_1
GPIO[5]
GPIO[4]
VDD33_1
GPIO[3]
GPIO[2]

VSS_2
GPIO[1]
GPIO[0]

nERROR

LC91M(22/26LU50FD-CA)

LGDT_SDQ[0]

LGDT_SDQ[1]

LGDT_SDQ[2]

LGDT_SDQ[3]

LGDT_SDQ[4]

LGDT_SDQ[5]

LGDT_SDQ[6]

LGDT_SDQ[7]

LGDT_SADDR[10]

LGDT_SADDR[0]

LGDT_SADDR[1]

LGDT_SADDR[2]

LGDT_SADDR[3]

+3.3V_DTMB

C1768

C1764

0.1uF

0.1uF
16V

16V

HYNIX 64MBIT

VDD1

1

DQ0

2

VDDQ1

3

DQ1

4

DQ2

5

VSSQ1

6

DQ3

7

DQ4

8

VDDQ2

9

DQ5

10

DQ6

11

VSSQ2

12

DQ7

13

VDD2

14

LDQM

15

WE

16

CAS

17

RAS

18

CS

19

BA0

20

BA1

21

A10/AP

22

A0

23

A1

24

A2

25

A3

26

VDD3

27

C1770

C1769

0.1uF

0.1uF
16V

16V

IC1707

HY57V641620FTP

C1771

0.1uF
16V

C1772

0.1uF
16V

VSS3

54

DQ15

53

VSSQ4

52

DQ14

51

DQ13

50

VDDQ4

49

DQ12

48

DQ11

47

VSSQ3

46

DQ10

45

DQ9

44

VDDQ3

43

DQ8

42

VSS2

41

NC2

40

UDQM

39

CLK

38

CKE

37

NC1

36

A11

35

A9

34

A8

33

A7

32

A6

31

A5

30

A4

29

VSS1

28

0.1uF
16V

10uF
10V

LGDT_SDQ[15]

LGDT_SDQ[14]

LGDT_SDQ[13]

LGDT_SDQ[12]

LGDT_SDQ[11]

LGDT_SDQ[10]

LGDT_SCLK

LGDT_SCKE

LGDT_SADDR[9]

LGDT_SADDR[8]

LGDT_SADDR[7]

LGDT_SADDR[6]

LGDT_SADDR[5]

LGDT_SADDR[4]

LGDT_SDQ[9]

LGDT_SDQ[8]

009:V37

009:V38

ELITE 64MBIT

IC1707-*1

M12L64164A-5TG

VDD_1

1

DQ0

2

VDDQ_1

3

DQ1

4

DQ2

5

VSSQ_1

6

DQ3

7

DQ4

8

VDDQ_2

9

DQ5

10

DQ6

11

VSSQ_2

12

DQ7

13

VDD_2

14

LDQM

15

WE

16

CAS

17

RAS

18

CS

19

A13

20

A12

21

A10/AP

22

A0

23

A1

24

A2

25

A3

26

VDD_3

27

+12V/+15V

L1800

VSS_3

54

DQ15

53

VSSQ_4

52

DQ14

51

DQ13

50

VDDQ_4

49

DQ12

48

DQ11

47

VSSQ_3

46

DQ10

45

DQ9

44

VDDQ_3

43

DQ8

42

VSS_2

41

NC_2

40

UDQM

39

CLK

38

CKE

37

NC_1

36

A11

35

A9

34

A8

33

A7

32

A6

31

A5

30

A4

29

VSS_1

28

CIC21J501NE

Close to IC

R1800
10K
1/8W
1%

C1800

C1803

22uF

OPT

Placed on SMD-TOP

FIN must be connected GND

+6V_TUNER

C1804
47uF
16V

+6V_DTMB

Tuner & Demod Power

OPT

Close to IC

EN/SYNC

SW_2

SW_1

VCC

3

5

GND

R1

4.9A 0.0150OHM 34MHZ

+3.3V

R1805

10

1/10W

1%

R1804

0

C1813
1uF
10V

OUT

4

NC

C1811

100uF

16V

C1812

0.1uF
16V

NC_1

EN

VIN

NC_2

R1806
2K

1/10W

R1807

5.1K 1%

SC4215ISTRT

R2

GND

D1800

100V

1N4148W_DIODES

C1805

0.1uF
50V

R1801

10K
1/10W

FB

1

2

IN

3

BS

4

+3.3V_DTMB

C1807

0.1uF
16V

IC1800

MP2212DN

R1802 0

VCC

2

C1810

1000pF

R1803

62K 1%

8

7

6

5

IC1801

BA50BC0WFP-E2

1

CTL

C1809
10uF
10V

+6V_FE

BLM18PG121SN1D

L1804

$0.07

L1803

3.6uH

NR8040T3R6N

C1814

0.47uF
25V

C1818
22uF
16V
3225

Vout=0.8*(1+R1/R2)

C1819

0.1uF
16V

C1822

0.1uF
16V

BLM18PG121SN1D

L1805

BLM18PG121SN1D

L1806

6V_PULL_UP

+5V_TUNER

+5V_TUNER

BLM18PG121SN1D

L1807

C1820

100uF
16V

C1823

4.7uF
10V

C1825

0.1uF
50V

5V_PULL_UP

+3.3V/+1.2V_DTMB

KIA78R033F

VIN

C1815

0.1uF
16V

1

2

3

4

C1816
100uF
16V

IC1803

GND

8

ADJ

7

VO

6

NC_3

5

VC

VOUT

NC

GND1

R1809

5.1K

R1808

10K

PULL_UP_INV_ON

PULL_UP_INV_ON

IC1804

1

2

3

6

4

5

+1.2V_DTMB

C1828

0.1uF
16V

+6V_TUNER

C1826

0.1uF
16V

+6V_DTMB

C1827

0.1uF
16V

C1830

0.1uF
16V

6V_PULL_UP

C1831

0.1uF
16V

5V_PULL_UP

GND2

C1829
22uF
16V

C1775

C1773

LGDT_SCKE

LGDT_SCLK

009:X29

009:X29
009:X28

009:X28

LGDT_SADDR[0-10]

LGDT_SDQ[0-15]

LGDT_SDQ[0-15]

LGDT_SADDR[0-10]

009:S29

009:S28

009:S28

009:S28

009:U25

009:U25

LGDT_SBA[0]
LGDT_SBA[1]

001:AM17

001:AM18

001:AM17

001:AM18

LGDT_SADDR[4]
LGDT_SADDR[5]
LGDT_SADDR[6]
LGDT_SADDR[7]
LGDT_SADDR[8]
LGDT_SADDR[9]

LGDT_SDQ[8]
LGDT_SDQ[9]

LGDT_SDQ[10]
LGDT_SDQ[11]
LGDT_SDQ[12]
LGDT_SDQ[13]

LGDT_SDQ[14]
LGDT_SDQ[15]

LGDT_SDQ[0]
LGDT_SDQ[1]
LGDT_SDQ[2]

LGDT_SDQ[3]
LGDT_SDQ[4]
LGDT_SDQ[5]

LGDT_SDQ[6]
LGDT_SDQ[7]

LGDT_SWE

LGDT_SCAS
LGDT_SRAS

LGDT_SCS

LGDT_SADDR[10]
LGDT_SADDR[0]
LGDT_SADDR[1]
LGDT_SADDR[2]
LGDT_SADDR[3]

FE_TS_SYN

FE_TS_DATA_CLK

FE_TS_SERIAL

FE_TS_VAL_ERR

470

VSS_11

100

26

SCL27SDA

30.4MHz

28

nRESET

X1700

R1755
1M

29

30

TPVALID

TPDATA[0]31TPDATA[1]

C1751
18pF

R1756
470

IC1701
LG3900

32

33

VSS_3

TPDATA[2]34TPDATA[3]35TPDATA[4]36TPDATA[5]

37

VDD_2

VDD33_2

38

39

TPDATA[6]40TPDATA[7]

41

TPCLK42TPSOP43VSS_4

R1768
0

44

48

SADDR[3]45SADDR[2]46SADDR[1]47SADDR[0]

SADDR[10]

VSS_877SDQ[9]78SDQ[8]79SCLK80SCKE81SADDR[9]82SADDR[8]83SADDR[7]84VDD33_585VSS_986SADDR[6]87SADDR[5]88VDD_589SADDR[4]90OPM[0]91OPM[1]92OPM[2]93TMOD94VSS_1095XTALI96XTALO97VDD33_698TESTSE99VDD_6

76

75
74
73
72
71
70
69
68
67
66
65
64
63
62
61
60
59
58
57
56
55
54
53
52
51

49

SBA[1]50SBA[0]

R1765 47

R1766 47

R1746 47

R1767 47

SDQ[10]
SDQ[11]
SDQ[12]
SDQ[13]
VSS_7
SDQ[14]
SDQ[15]
VDD33_4
VDD_4
SDQ[0]
SDQ[1]
SDQ[2]
VSS_6
SDQ[3]
SDQ[4]
SDQ[5]
VDD_3
SDQ[6]
SDQ[7]
nSWE
VDD33_3
nSCAS
nSRAS
VSS_5
nSCS

C1750
18pF

R1754

CMDC

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

LOCK

24
25

LGDT_SWE

LGDT_SCAS

LGDT_SRAS

LGDT_SCS

LGDT_SBA[0]

LGDT_SBA[1]

009:X28
009:X28

009:AF28

009:AF29

+5V_TUNER

R1770
0

RF_SWITCH_SEL

001:X25

R1702 47

TU1702

TDFR-Z751D

C1709

0.1uF
16V

C1704

0.1uF
16V

CTR

1

GAIN-SW

2

+B1

3

VTU

4

RF_AGC

5

+B2

6

NC_1

7

SIF

8

VIDEO

9

NC_2

10

NC_3

11

TU_IF

12

NC_4

13

GND

14

NC_5

15

NC_6

16

SDA

17

SCL

18

NC_7

19

IF_AGC

20

DIF1

21

DIF2

22

NC_8

23

24

SHIELD

0

R1704

R1705 0

Close to tuner

R1701

C1712
47pF
50V

0

L1701

MLB-201209-0120P-N2

C1706
220uF
16V

C1701

100pF 50V

R1707 47
R1708

C1708
47pF
50V

+5V_TUNER

C1702

0.1uF
16V

47

L1707

CM2012FR22KT

220nH

C1790
24pF

C1791
24pF

L1708

CM2012FR22KT

220nH

MLB-201209-0120P-N2

C1707
220uF
16V

ROUTE SYMMETRICALLY

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

L1702

L1709
CM2012FR47KT

0.47uH

+5V_TUNER

TU_SDA_5V
TU_SCL_5V

TU_IF_AGC

R1712

OPT

C1792
39pF
50V

0

R1711

4.7K

009:AG6
009:AO7
009:B32

+5V_TUNER

R1713
470

E

Q1702

ISA1530AC1

B

C

TU_IF_OUT+ 009:C35

TU_IF_OUT-

R1715

82

009:C35

R1700

E

R1771
R1772
OPT

Q1704

2SA1504S

C1777

0.01uF
25V

C1716

R1718

0

0.01uF
25V

0

B

C

C1776
100uF
16V

OPT

FE_SIF

+5V_TUNER

2.2K

2SC3875S(ALY)

R1714 0

OPT

C1715

0.1uF
16V

B

Q1705

002:S17

R1716
270

R1717
270

E

Q1703
ISA1530AC1

C

+12V/+15V

C1808

0.1uF
16V

IC1802

AP1117E33G-13

IN

OUT

ADJ/GND

L1802

C

R1773
10K

B

E

FE_BOOSTER_CTL

001:AJ11

CIC21J501NE

C1806
100uF
16V

+5V_TUNER

+3.3V_DTMB

R1753

0

R1719

C1717
220pF
50V
OPT

FE_VMAIN

R1738

4.7K

TU_SCL_3.3V009:E30

TU_SDA_5V009:N8

0

002:E23

OPT

SOURCE1

GATE1

DRAIN2

IC1708
SSM6N15FU

1

6

2

5

OPT

3

4

0TFTH80001A

R1751

0

R1752

0

DRAIN1

GATE2

SOURCE2

R1744

4.7K

TU_SCL_5V 009:N8

TU_SDA_3.3V 009:E30

+3.3VA_DTMB

+3.3VA_DTMB

C1821

C1817

4.7uF

100uF

16V

10V

C1824

0.1uF
16V

EAX61023402 2009.04.28

TUNER

9 9

Control for 22/26LU50FD-CA

Copyright ©2009 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

P1

12507WR-03L

4

KEY0

1

KEY1

2

OPT

GND

3

OPT
ZD1

5.6B

C1

0.1uF
50V

OPT

ZD2

5.6B

OPT
C2

0.1uF
50V

POWER

SW1

JTP-1127WEM

1 2

INPUT MENU

270

R1

JTP-1127WEM

1 2

43

SW2

OK

SW3

4.7K
R5

JTP-1127WEM

1 2

43

1.8K
R3

JTP-1127WEM

1 2

43

SW4

10K

R7

43

SW5

JTP-1127WEM

1 2

VOL-

SW8

PR+

10K

R8

43

270

R2

JTP-1127WEM

1 2

43

SW6

1.8K
R4

JTP-1127WEM

1 2

43

VOL+

SW7

PR-

4.7K
R6

JTP-1127WEM

1 2

43

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

19/22/26LU50 2008/12/09

CONTROL

1 1

IR/LED for 22LU50FD-CA

Copyright ©2009 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

P1

12507WR-08L

9

GND

5V_ST

NC

1

NC

2

GND

3

5V_ST

4

GND

5

IR

6

LED_W

7

LED_R

8

L1

CB3216PA501E

C1

0.1uF
16V

C2
47uF
16V

VOUT

R4
620

R5
620

1

C3

0.1uF
16V

IC1

2

GND3VCC

B

C4
100pF
50V

4

SHIELD

C

Q2
2SC3875S(ALY)

E

C

B

E

5V_ST

R1
330

R2
330

R3

1.8K

Q1
2SC3875S(ALY)

LD1

5V_ST

LD2

12

LD3

12

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

EAX58317303 2009.03.11

19/20LU5000 IR

1 1

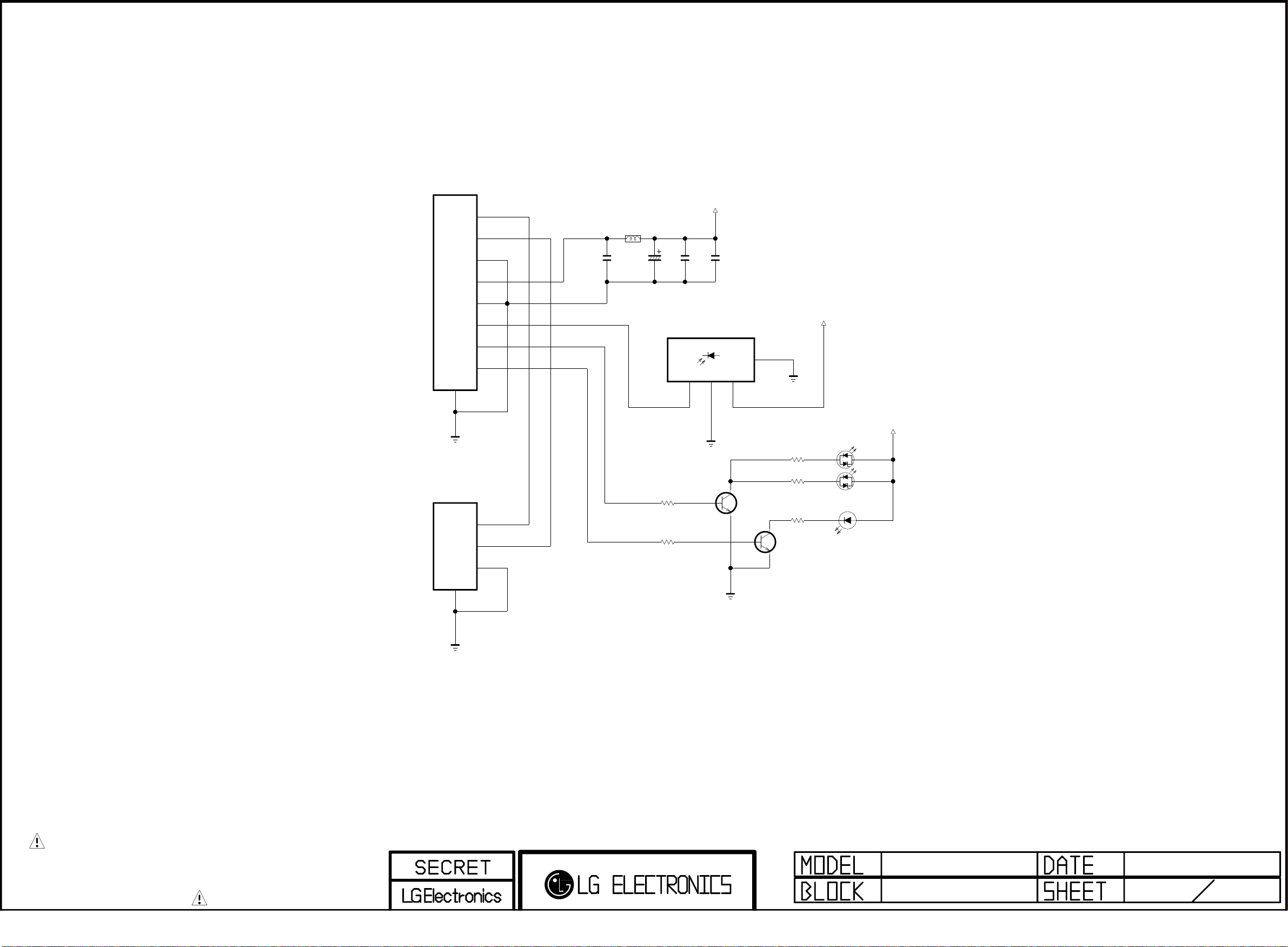

IR/LED for 26LU50FD-CA

Copyright ©2009 LG Electronics. Inc. All right reserved.
Only for training and service purposes

LGE Internal Use Only

P1

12507WR-08L

C3

0.1uF
16V

1

VOUT

5V_ST

IC1

2

GND3VCC

KEY1

1

KEY2

2

GND

3

5V_ST

4

GND

5

IR

6

LED_W

7

LED_R

8

9

GND

L1

CB3216PA501E

C1

0.1uF
16V

C2
47uF
16V

C4
100pF
50V

5V_ST

4

SHIELD

P2

12507WR-03L

4

GND

5V_ST

LD1

LD2

12

LD3

12

R1
330

R2
330

R4
620

KEY1

1

KEY2

2

GND

3

R5
620

B

C

Q2
2SC3875S(ALY)

E

B

R3

1.8K

C

Q1
2SC3875S(ALY)

E

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

EAX59336501 2009.03.13

1 126LU50 IR
