OWNER’S MANUAL
LED TV*
* LG LED TV applies LCD screen with LED backlights.
Please read this manual carefully before operating your set and retain it for future reference.
LJ62**
www.lg.com
<![endif]>ENGLISH
2TABLE OF CONTENTS
TABLE OF CONTENTS
3LICENSES
3OPEN SOURCE SOFTWARE NOTICE
4INSTALLATION PROCEDURE
4ASSEMBLING AND PREPARING
4Unpacking
7Parts and buttons
8 Lifting and moving the TV
9Setting up the TV
9- Attaching the stand
10Mounting on a table
11Mounting on a wall

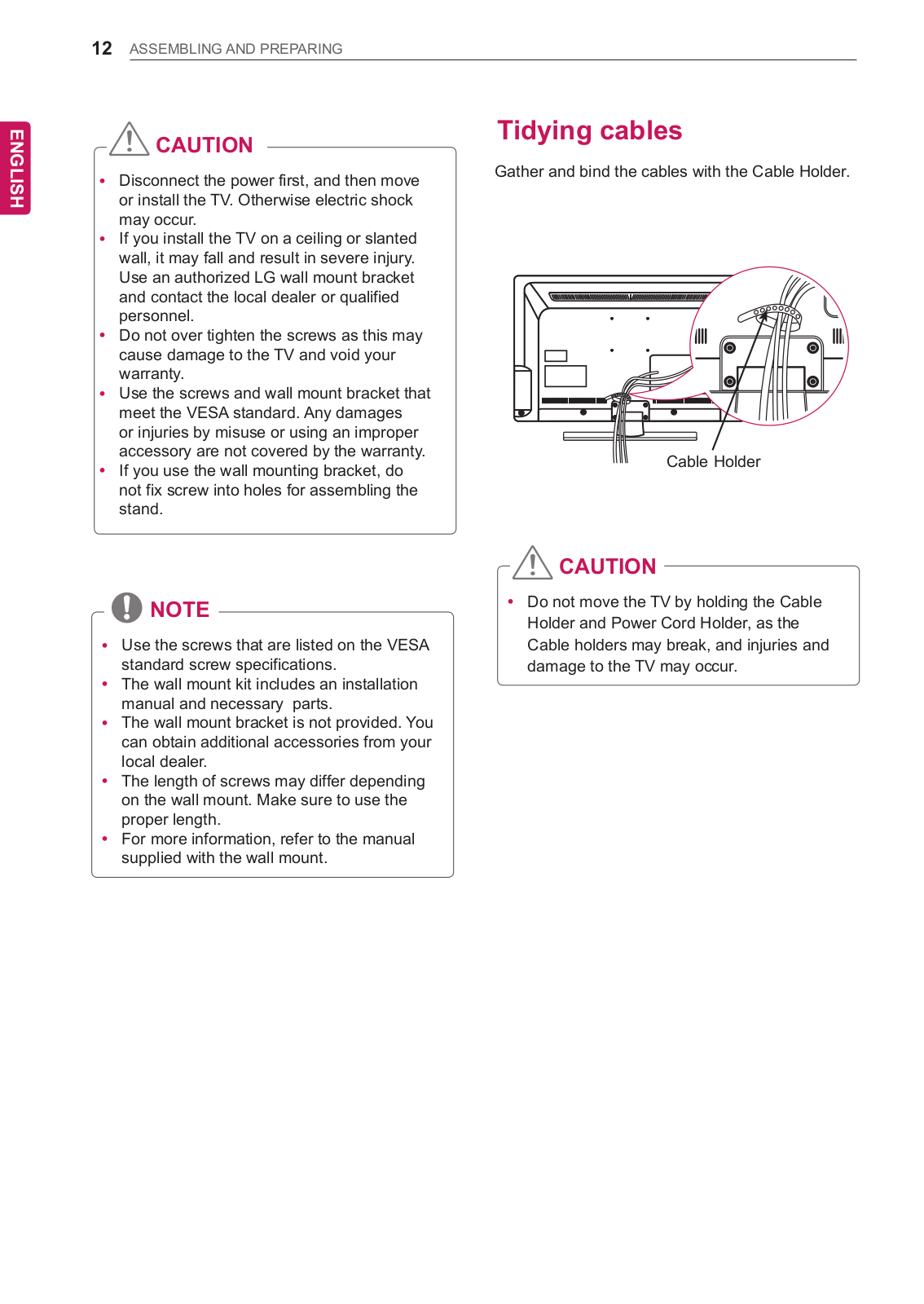

12Tidying cables
13MAKING CONNECTIONS

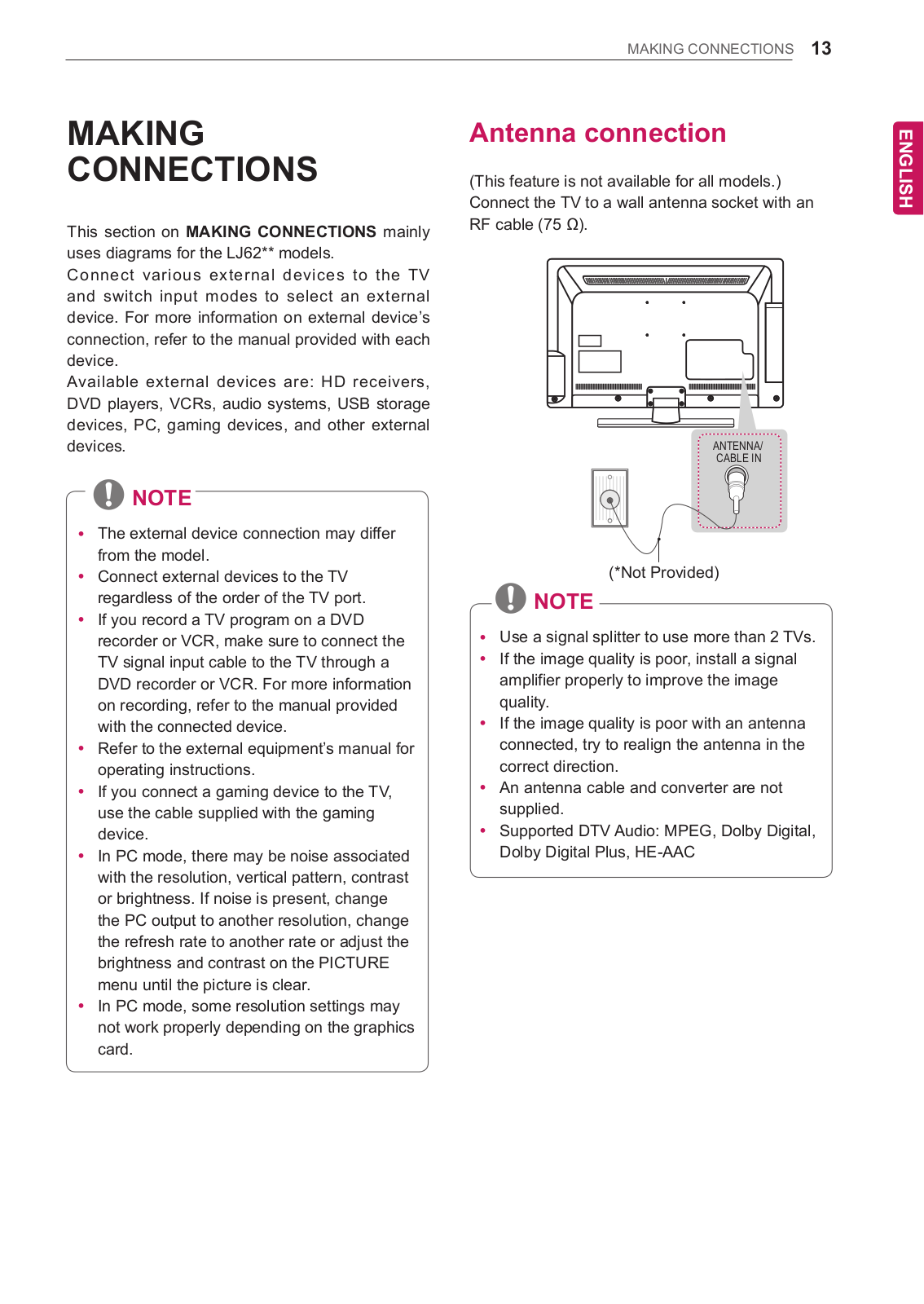

13Antenna connection

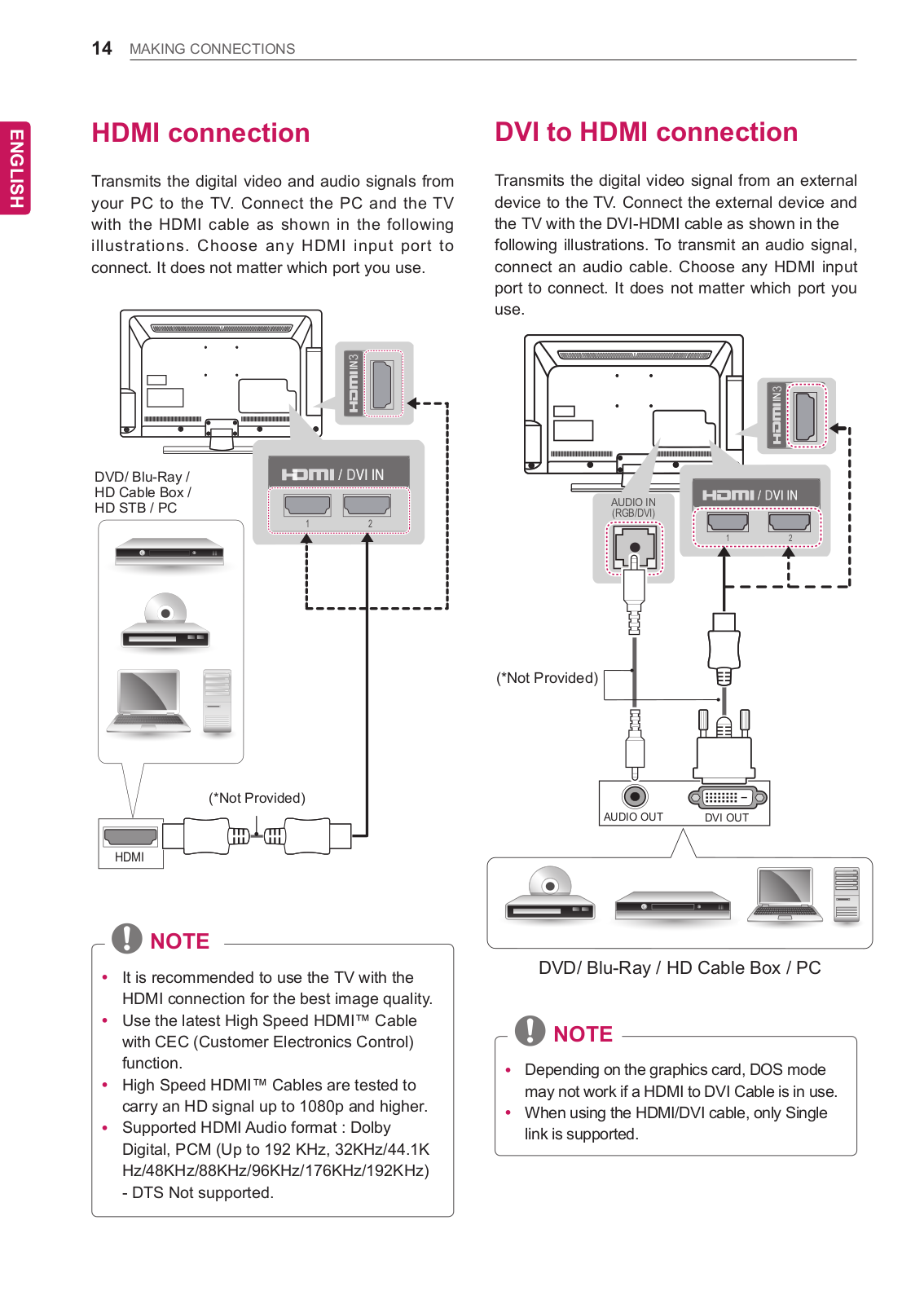

14HDMI connection
14DVI to HDMI connection
15RGB-PC connection
15Component connection

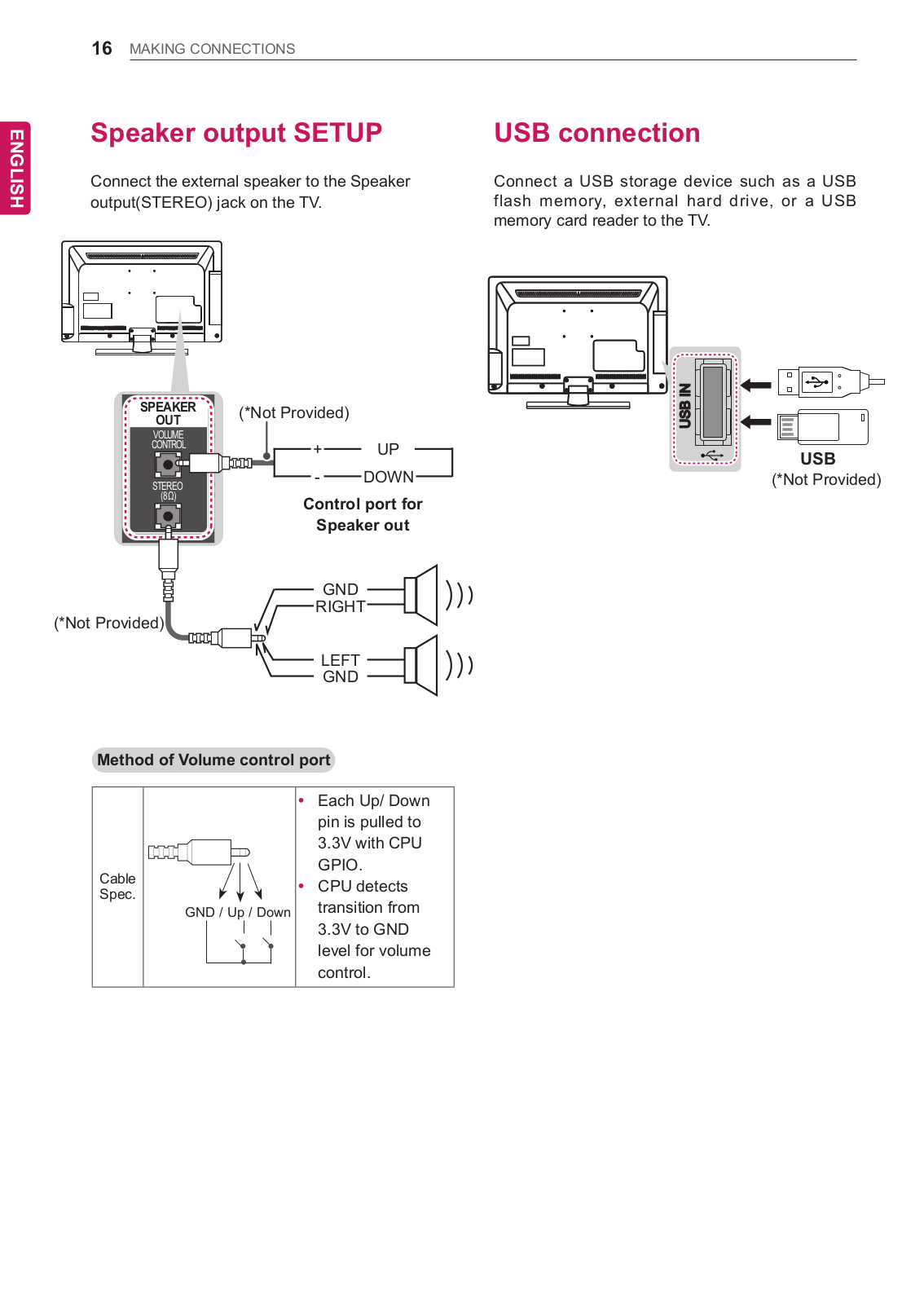

16Speaker output SETUP
16USB connection
17Headphone connection
17CI module connection

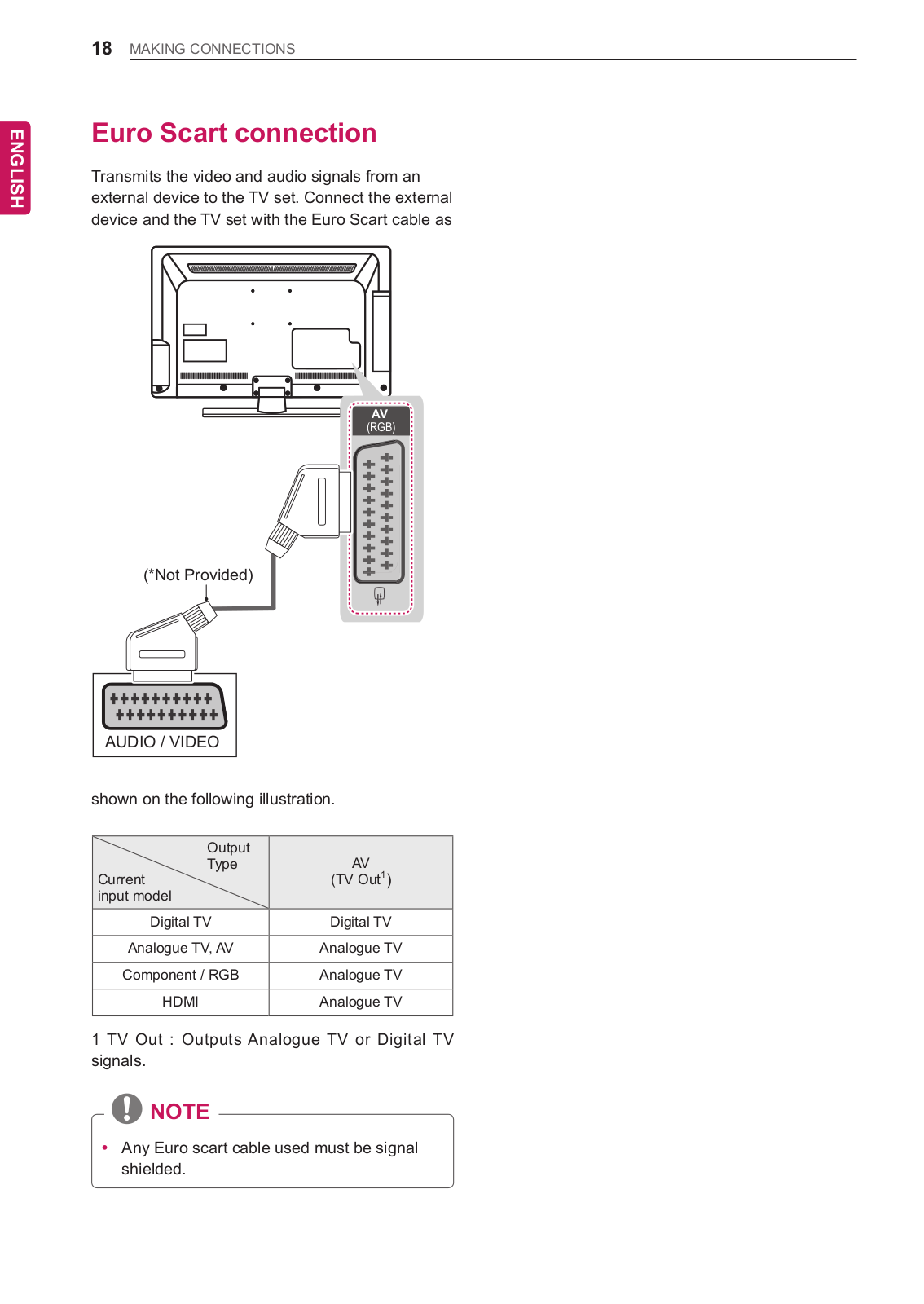

18Euro Scart connection
19REMOTE CONTROL
20MAINTENANCE

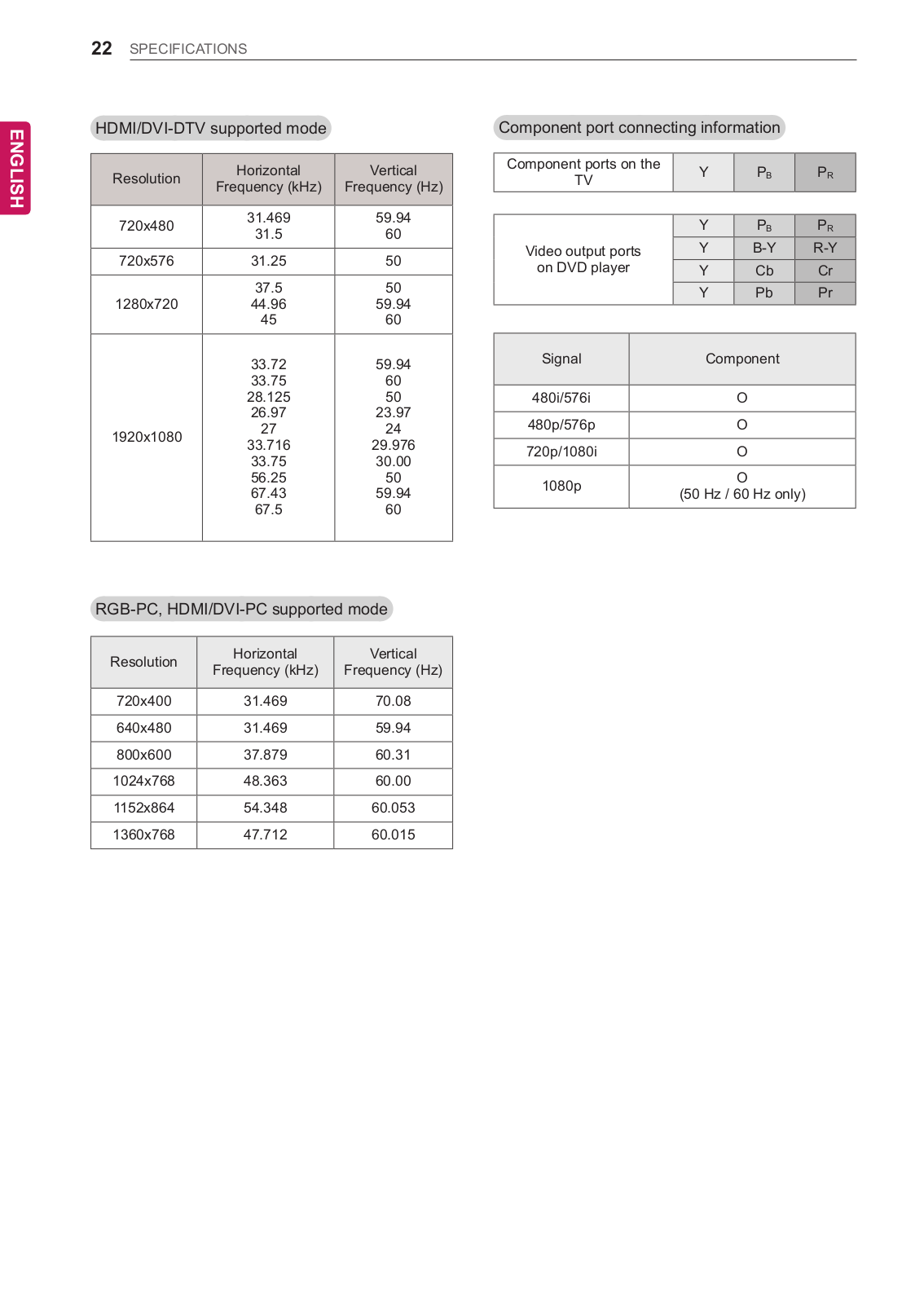

21 SPECIFICATIONS
23IR CODES
24EXTERNAL CONTROL DEVICE SETUP
24RS-232C setup
24Type of connector: D-Sub 9-Pin Male
24RS-232C configurations
25Communication parameters
25Command reference list
26Transmission / Receiving Protocol
WARNING
y yIf you ignore the warning message, you may be seriously injured or there is a possibility of accident or death.
CAUTION
y yIf you ignore the caution message, you may be slightly injured or the product may be damaged.
20 Cleaning your TV
20 - Screen, frame, cabinet and stand
20 - Power cord
20 TROUBLESHOOTING
NOTE
y yThe note helps you understand and use the product safely. Please read the note carefully before using the product.
LICENSES / OPEN SOURCE SOFTWARE NOTICE 3
LICENSES
Supported licenses may differ by model. For more information about licenses, visit www.lg.com.
Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified® device that plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX video.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod. divx.com for more information on how to complete your registration.
“DivX Certified® to play DivX® video up to HD 1080p, including premium content.”
“DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license.”
Covered by one or more of the following U.S. patents : 7,295,673; 7,460,668; 7,515,710; 7,519,274
OPEN SOURCE SOFTWARE NOTICE
To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this product, please visit http://opensource.lge.com.
In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download.
LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping and handling) upon email request to opensource@lge.com. This offer is valid for three (3) years from the date on which you purchased the product.
<![endif]>ENGLISH
<![endif]>ENGLISH
4INSTALLATION PROCEDURE / ASSEMBLING AND PREPARING
NOTE
y yImage shown may differ from your TV.
y yYour TV’s OSD (On Screen Display) may differ slightly from that shown in this manual.
y yThe available menus and options may differ from the input source or product model that you are using.
y yNew features may be added to this TV in the future.
y yThe TV can be placed in standby mode in order to reduce the power consumption. And the TV should be turned off if it will not be watched for some time, as this will reduce energy consumption.
y yThe energy consumed during use can be significantly reduced if the level of brightness of the picture is reduced, and this will reduce the overall running cost.
INSTALLATION PROCEDURE
1Open the package and make sure all the accessories are included.
2Attach the stand to the TV set.
3Connect an external device to the TV set.
ASSEMBLING AND PREPARING
Unpacking
Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your product. The illustrations in this manual may differ from the actual product and item.
CAUTION
y yDo not use any unapproved items to ensure the safety and product life span.
y yAny damages or injuries by using unapproved items are not covered by the manufacturer’s warranty. y ySome models have a thin film attached on to the screen and this must not be removed.
NOTE
y yThe items supplied with your product may vary depending on the model.
y yProduct specifications or contents of this manual may be changed without prior notice due to upgrade of product functions.
y yFor an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm thick and 18 mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory stick does not fit into your TV’s USB port.
*A
10 mm *B
18 mm
A A
ASSEMBLING AND PREPARING 5
<![if ! IE]><![endif]>ENGLISH
Remote control, |
|
Batteries (AAA) |
Owner’s manual |
(See p.19) |
|
Cable Holder |
Power cord |
(Depending on model) |
|
(See p.12) |
(Depending on model) |
Stand Screws |
Stand Screws |
4 EA, M4 x 12 |
|
2 EA, M4 x 16 |
8 EA, M4 x 12 |
(Only 22LJ62**) |
(Only 26LJ62**) |
(See p.9) |
(See p.9) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Stand body / Stand base |
or |
|
Isolator |
|||
|
|
|
(Depending on model) |
|||
|
|
|
||||
(See p.9) |
|
|
(See p.6) |
|||
|
|
|
||||
|
|
|
|
|
|
|
<![endif]>ENGLISH
6ASSEMBLING AND PREPARING
NOTE
y yAntenna Isolator Installation Guide
-- Use this to install TV in a place where there is a voltage difference between TV Set and GND of antenna signal.
»» If there is a voltage difference between TV Set and GND of antenna signal, the antenna contact might be heated and excessive heat might cause an accident.
-- You can improve the safety when watching TV by efficiently removing power voltage from TV
antenna. It is recommended to mount the isolator to the wall. If it cannot be mounted to the wall, mount it on the TV. Avoid disconnecting the antenna Isolator after installation.
- - Before starting, be sure that the TV antenna is connected.
1. Connect to TV.
Wall |
|
ANTENNA/ |
or |
|
Cable / Antenna |
Isolator |
2. Connect to Set-Top box.
Connect one end of the isolator to cable/antenna jack and the other to TV set or set-top box.
“Equipment connected to the protective earthing of the building installation through the mains connection or through other equipment with a connection to protective earthing - and to a cable distribution system using coaxial cable, may in some circumstances create a fire hazard. Connection to a cable distribution system has therefore to be provided through a device providing electrical isolation below a certain frequency range (galvanic isolator, see EN 60728-11)”
When applying the RF Isolator, a slight loss of signal sensitivity can occur.
Parts and buttons
ASSEMBLING AND PREPARING 7
<![if ! IE]><![endif]>ENGLISH
Screen
Buttons
Remote control sensor |
|
|
|
|
|
|
|
||
|
Speakers |
|||
|
|
|||
|
|
|
||
Power Indicator |
|
|
|
|
(Can be adjusted using |
|
|
|
|
the Power Indicator in the
OPTION -menu.)
Button |
Description |
|
Scrolls through the saved programmes. |
|
|
|
Adjusts the volume level. |
|
|
|
Turns the power on or off. |
|
|
<![endif]>ENGLISH
8ASSEMBLING AND PREPARING
Lifting and moving the TV
When moving or lifting the TV, read the following to prevent the TV from being scratched or damaged and for safe transportation regardless of its type and size.
y yWhen transporting a large TV, there should be at least 2 people.
y yWhen transporting the TV by hand, hold the TV as shown in the following illustration.
CAUTION
y yAvoid touching the screen at all times, as this may result in damage to the screen.
y yIt is recommended to move the TV in the box or packing material that the TV originally came in.
y yBefore moving or lifting the TV, disconnect the power cord and all cables.
y yWhen holding the TV, the screen should face away from you to avoid damage.
y yHold the top and bottom of the TV frame firmly. Make sure not to hold the transparent part, speaker, or speaker grill area.
y yWhen transporting the TV, do not expose the TV to jolts or excessive vibration.
y yWhen transporting the TV, keep the TV upright, never turn the TV on its side or tilt towards the left or right.
y yDo not apply excessive pressure to cause flexing / bending of frame chassis as it may damage screen.
ASSEMBLING AND PREPARING 9
Setting up the TV
Put your TV on a pedestal stand and mount the TV on a table or wall.
Attaching the stand
1 |
3 |
|
M4 x 12 |
||
|
||
|
(Only 22LJ62**) |
|
|
4 EA |
|
Stand Body |
|
|
|
Front |
|
Stand Base |
|
M4 x 16
2 EA
2
(Only 26LJ62**)
<![endif]>ENGLISH
M4 x 12
4 EA
<![endif]>ENGLISH
10 ASSEMBLING AND PREPARING
CAUTION |
|
Adjusting the angle of the TV to suit view |
|
|
|
|
y yWhen attaching the stand to the TV set, place the screen facing down on a
cushioned table or flat surface to protect the screen from scratches.
y yMake sure that the screws are fastened completely. (If they are not fastened securely enough, the TV may tilt forward after being installed.)
Do not fasten the screws with too much force; otherwise they may be worn out and get loosened.
Swivel 90 degrees to the left or right and adjust the angle of the
NOTE
y yRemove the stand before installing the TV on a wall mount by performing the stand attachment in reverse.
Mounting on a table
1Lift and tilt the TV into its upright position on a table.
-Leave a 10 cm (minimum) space from the wall for proper ventilation.
CAUTION
y yWhen adjusting the angle of the product, watch out for your fingers.
»» Personal injury may occur if hands or fingers are pinched. If the product is tilted too much, it may fall, causing damage or injury.
Using the Kensington security system
(This feature is not available for all models.)
The Kensington security system connector is located at the rear of the TV. For more information of installation and using, refer to the manual provided with the Kensington security system or visit http://www.kensington.com.
Connect the Kensington security system cable between the TV and a table.
2Connect the power cord to a wall outlet.
CAUTION
y yDo not place the TV near or on sources of heat, as this may result in fire or other damage.
