OWNER'S MANUAL
LED MONITOR
Please read the safety information carefully before using the product.
LED Monitor Model List
24GM77
www.lg.com
TABLE OF CONTENTS
2
ENGLISH
ENG
TABLE OF CONTENTS
3 LICENSE
4 ASSEMBLING AND
PREPARING
4 Product Composition
5 Component and Button Description
6 - How to Use the Joystick Button
7 Moving and Lifting the Monitor
8 Installing the Monitor
8 - Assembling the Stand Base
9 - Detaching the Stand Base
9 - Installing on to a Table
10 - Adjusting the Stand Height
11 - Adjusting the Angle
11 - Tidying Cables
12 - Pivot Feature
13 - Using the Kensington Lock
13 - Detaching the Stand Body
14 - Installing the Wall Mount Plate
14 - Installing on the Wall
16 USING THE MONITOR
16 Connecting to a PC
16 - HDMI Connection
17 - DisplayPort Connection
17 - D-SUB Connection
18 - DVI Connection
18 Connecting AV Devices
18 - HDMI Connection
19 Connecting Peripherals
19 - USB Cable Connection - PC
20 - Headphone Port Connection
21 USER SETTINGS
21 Activating the Main Menu
21 - Main Menu Features
22 User Settings
22 - Menu Settings
23 - Ratio
24 - Function
27 - Picture
29 - Color
30 - Display
31 - Settings
32 - Auto Configuration
33 - Reset
34 TROUBLESHOOTING
36 PRODUCT SPECIFICATION
37 Factory Support Mode
(Preset Mode, DisplayPort/D-SUB/DVI-D/
HDMI PC)
37 HDMI Timing (Video)
37 Power LED
38 PROPER POSTURE
38 Proper Posture for Using the Monitor
LICENSE
3
LICENSE
Each model has different licenses. Visit www.lg.com for more information on the license.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the
HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in
the United States and other countries.
VESA, VESA logo, Display Port Compliance Logo and Display Port
Compliance Logo for dual-mode source are all registered trademarks of the
Video Electronics Standards Association.
ENGLISH
ENG
ASSEMBLING AND PREPARING
4
ENGLISH
ENG
ASSEMBLING AND PREPARING
Product Composition
Please check whether all the components are included in the box before using the product. If there are
missing components, contact the retail store where you purchased the product. Note that the product and
components may look different from those shown here.
CD (Owner's Manual)
/ Cards
DVI-D Dual Cable D-SUB Cable A-B Type USB 3.0 Cable
Power Cord
Cable Holder /
Screw
Stand Base
or
CAUTION
yAlways use genuine components to ensure safety and product performance.
yThe product warranty will not cover damage or injury caused by the use of unauthorized components.
NOTE
yThe components may look different from those illustrated here.
yWithout prior notice, all product information and specifications contained in this manual are subject to
change to improve the performance of the product.
yTo purchase optional accessories, visit an electronics store or an online shopping site, or contact the
retailer from which you purchased the product.
yThe power cord provided may differ depending upon the region.
ASSEMBLING AND PREPARING
BLACK
ST.
GAME
MODE
DAS
MODE
5
Component and Button Description
USB 2
5 V 0.9 A
USB 1
ENGLISH
ENG
AC-IN
Joystick Button
Power LED
yOn Power on
yOff Power off
Front Side Buttons
Brightness Sensor
DP IN D-SUB IN DVI-D IN HDMI IN 1 USB UPHDMI IN 2
Input Connector
NOTE
yThe Brightness Sensor senses the amount of exterior light so that the processor can make necessary
adjustments to the brightness level to compensate.
yThe joystick button is located at the bottom of the monitor.
ENGLISH
ENG
ASSEMBLING AND PREPARING
6
How to Use the Joystick Button
You can easily control the functions of the monitor by pressing the joystick button or moving it left/right with
your finger.
Basic Functions
◀ / ▶
Power on
Power off
Volume
Control
Press the joystick button once with your finger to turn on the
monitor.
Press and hold the joystick button once with your finger to turn off
the monitor.
You can control the volume by moving the joystick button left/right.
ASSEMBLING AND PREPARING
7
Moving and Lifting the Monitor
When moving or lifting the monitor, follow these
instructions to prevent the monitor from being
scratched or damaged and to ensure safe transportation, regardless of its shape or size.
yIt is advisable to place the monitor in the
original box or packing material before
attempting to move it.
yBefore moving or lifting the monitor,
disconnect the power cord and all cables.
yHold the top and bottom of the monitor frame
firmly. Do not hold the panel itself.
CAUTION
yAvoid touching the monitor screen as much
as possible. Do not apply pressure.
- This may result in damage to the screen or
some of the pixels used to create images.
yIf you use the monitor panel without the stand
base, its joystick button may cause the monitor to become unstable and fall, resulting in
damage to the monitor or human injury. In
addition, this may cause the joystick button to
malfunction.
ENGLISH
ENG
yWhen holding the monitor, the screen should
face away from you to prevent it from being
scratched.
yWhen transporting the monitor, do not ex-
pose the monitor to jolts or excessive vibration.
yWhen moving the monitor, keep it upright and
never turn the monitor on its side or tilt it sideways.
ENGLISH
ENG
ASSEMBLING AND PREPARING
8
Installing the Monitor
Assembling the Stand Base
Place the screen face down.
1
Rotate the Stand Body 90˚ counter clockwise.
2
Head
Stand Body
Align the hole on the Stand Base with the
3
Stand Body and push it all the way up.Turn
the screws on the Stand Base to the right.
Stand Base
CAUTION
yTo protect the screen from scratches, cover
the surface with a soft cloth.
yTo avoid scratching the head, make sure that
when rotating the Stand Body, the stand
body does not make contact with the head.
CAUTION
yApplying excessive force when tightening
screws may cause damage to the monitor.
Damage caused in this way will not be covered by the product warranty.
ASSEMBLING AND PREPARING
9
Detaching the Stand Base
Place the screen face down.
1
CAUTION
yTo protect the screen from scratches, cover
the surface with a soft cloth.
BodyTurn the screws on the Stand Base to the
2
left to detach the Stand Base from the Stand
Body.
Installing on to a Table
Lift the monitor and place it on the table in an
1
upright position.
Place at least 10 cm away from the wall to
ensure sufficient ventilation.
10 cm
10 cm
10 cm
10 cm
ENGLISH
ENG
CAUTION
yThe components in the illustrations may differ
from the actual product.
yDo not carry the monitor upside down, as this
may cause it to fall off its stand and result in
damage or injury.
yTo avoid damaging the screen when lifting
or moving the monitor, only hold the stand
or the plastic cover. This avoids putting
unnecessary pressure on the screen.
Connect the Power Cord to a wall outlet.
2
Press the (Power) button on the bottom of
3
the monitor to turn it on.
CAUTION
yTo avoid the risk of electric shock, disconnect
the Power Cord before moving or installing
the monitor.
ASSEMBLING AND PREPARING
10
ENGLISH
ENG
Adjusting the Stand Height
Place the monitor mounted on the stand base
1
in an upright position.
Push the Head downward and pull out the
2
Locking Pin.
Head
Locking pin
Handle the monitor with both hands for safety.
3
CAUTION
yOnce the pin is removed, it is not necessary
to re-insert it to adjust the height.
yProblems with the height or angle adjustment
of the product caused by the attachment of
protective glass in Internet cafes specializing
in gaming will not be covered by the
warranty.
WARNING
yTo avoid injury, do not put
your fingers or hand between
the head and the base when
adjusting the screen's height.
The height can be adjusted up to 100.0 mm.
4
100.0 mm
ASSEMBLING AND PREPARING
-520
-520
11
Adjusting the Angle
Place the monitor in an upright position, mount-
1
ed on the stand base.
Adjust the angle of the screen. The angle of
2
the screen can be adjusted forwards or backwards from -5° to 20° for a comfortable viewing
experience.
-520
Rear Side
WARNING
Front Side
CAUTION
yProblems with the height or angle adjustment
of the product caused by the attachment of
protective glass in Internet cafes specializing
in gaming will not be covered by the
warranty.
Tidying Cables
Use the screw provided to attach the cable
1
holder to the stand body as illustrated.
ENGLISH
ENG
yTo avoid injury, do not put your fingers or
hand between the head and the base when
adjusting the screen's angle or height.
yBe careful not to touch or press the screen
area when adjusting the angle of the monitor.
Gather and bind the cables with the supplied
2
cable holder.
ENGLISH
ENG
ASSEMBLING AND PREPARING
12
Pivot Feature
The pivot feature allows the monitor to rotate 90°
clockwise.
Head
Stand
WARNING
yTo avoid scratching the stand base, make
sure that when rotating the monitor using
the pivot feature, the stand does not make
contact with the monitor.
Rotate the monitor clockwise as shown in the
3
figure.
Complete the installation by rotating the
4
monitor 90° as shown below.
Raise the monitor to the maximum height.
1
Adjust the angle of the monitor in the direction
2
of the arrow as shown in the figure.
NOTE
yAuto Pivot feature of the display is not
supported.
yThe screen can be rotated easily using the
screen pivot shortcut key provided with your
Windows operating system. Note that some
Windows versions may use different settings
for the screen pivot key or may not support
the pivot key at all.
ySupported Windows versions: Windows 7
and Windows 8
yWindows screen pivot shortcut keys
- 0°: Ctrl + Alt + Up arrow key (↑)
- 90°: Ctrl + Alt + Left arrow key (←)
- 180°: Ctrl + Alt + Down arrow key (↓)
- 270°: Ctrl + Alt + Right arrow key (→)
ASSEMBLING AND PREPARING
13
WARNING
yTake care when rotating the monitor if the
cable is connected.
yTo avoid injury when rotating the display, do
not place your fingers between the display
and the stand base.
Using the Kensington Lock
The Kensington security system connector is located at the back of the Monitor set.
For more information on installation and usage,
refer to the Kensington lock user manual or visit
the website at http://www.kensington.com.
Detaching the Stand Body
Place the monitor's screen face down. To
1
protect the screen from scratches, cover the
surface with a soft cloth.
Using a screwdriver, remove the four screws
2
and detach the stand from the monitor.
ENGLISH
ENG
Connect the Kensington security system cable
between the Monitor and a table.
NOTE
yThe Kensington security system is optional.
You can obtain additional accessories from
most electronics stores.
ASSEMBLING AND PREPARING
14
ENGLISH
ENG

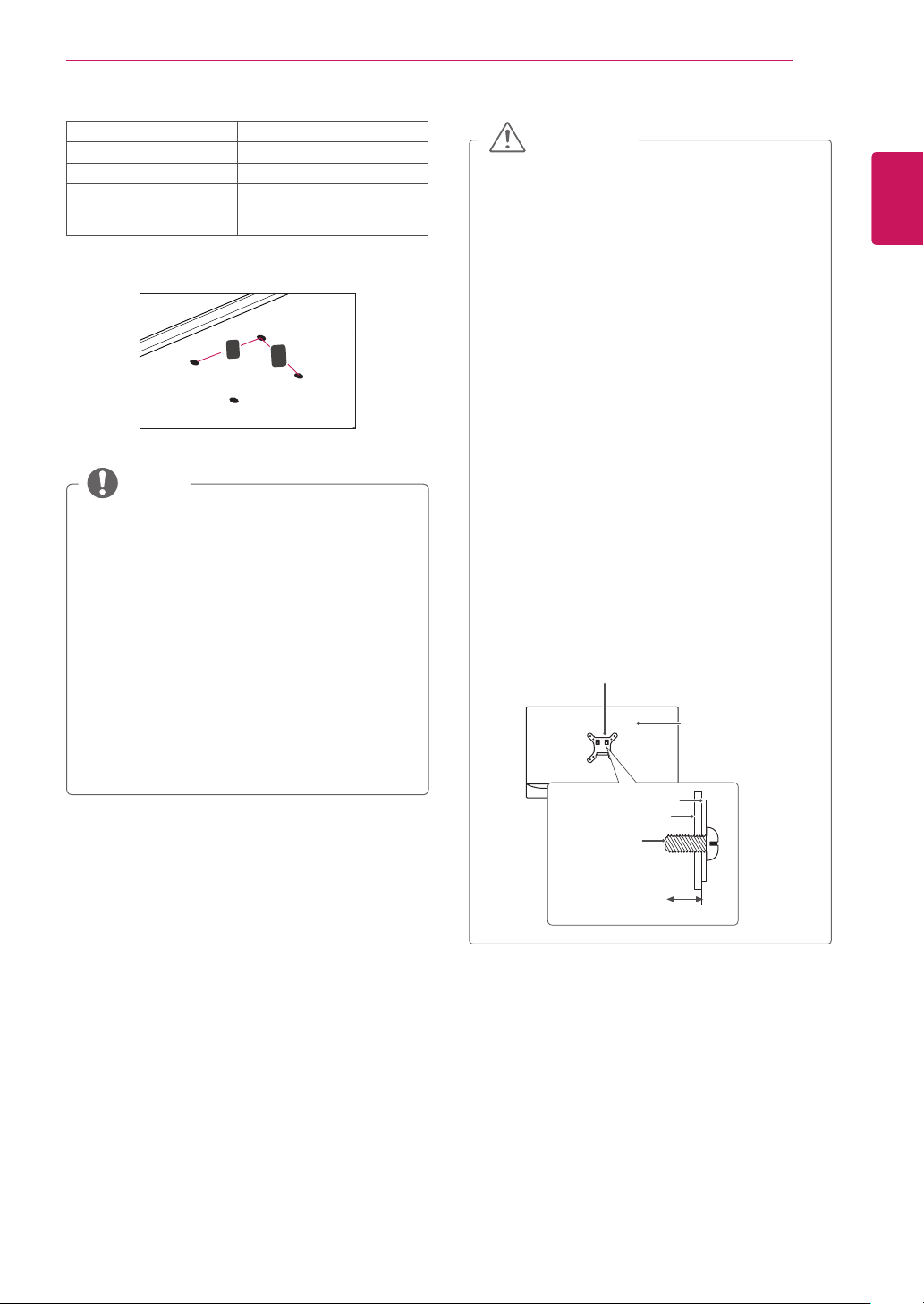

Installing the Wall Mount Plate
This monitor meets the specifications for the wall
mount plate or other compatible devices.
Place the screen face down. To protect the
1
screen from scratches, cover the surface with a
soft cloth.
Place the wall mount plate onto the monitor
2
and align it with the screw holes.
Tighten the four screws to fix the plate to the
3
monitor using a screwdriver.
Wall mount plate
Installing on the Wall
Install the monitor at least 10 cm away from the
wall and leave about 10 cm of space at each side
of the monitor to ensure sufficient ventilation.
Detailed installation instructions can be obtained
from your local retail store. Alternatively, please
refer to the manual for how to install and set up a
tilting wall mounting bracket.
10 cm
10 cm
10 cm
To install the monitor to a wall, attach a wall
mounting bracket (optional) to the back of the
monitor.
Make sure that the wall mounting bracket is
securely fixed to the monitor and to the wall.
10 cm
NOTE
yThe wall mount plate is sold separately.
yFor more information on installation, refer to
the wall mount plate's installation guide.
yBe careful not to apply too much force while
mounting the wall mount plate as it may
cause damage to the screen
If you use screws longer than the standard
1
length, it may damage the inside of the product.
A non-VESA standard screw may damage the
2
product and cause the monitor to fall.
LG Electronics is not liable for any accidents
relating to the use of non-standard screws.
ASSEMBLING AND PREPARING
A
B
15
Wall Mount (A x B)
Stand Screw
Required Screws
Wall Mount Plate
100 x 100
M4 x 10 mm
4
RW120
(Optional)
yWall Mount (A x B)
NOTE
yUse the screws specified by VESA stan-
dards.
yThe wall mount kit includes the installation
guide and all necessary parts.
yThe wall mounting bracket is optional. You
can obtain optional accessories from your
local dealer.
yThe length of the screw may differ for each
wall mounting bracket. Be sure to use the
proper length.
yFor more information, please refer to the
user manual for the wall mounting bracket.
CAUTION
yUnplug the power cord before moving or
installing the monitor to avoid electric shock.
yInstalling the monitor on the ceiling or on a
slanted wall may result in the monitor falling
off, which could lead to injury. Use an authorized LG wall mount and contact the local
dealer or qualified personnel.
yApplying excessive force when tightening
screws may cause damage to the monitor.
Damage caused in this way will not be covered by the product warranty.
yUse the wall mounting bracket and screws
that conform to VESA standards. Damage
caused by the use or misuse of inappropriate components will not be covered by the
product warranty.
yTo prevent injury, this apparatus must be
securely attached to the wall in accordance
with the instrallation instructions. (This pertains only to Australia and New Zealand.)
yWhen measured from the back of the moni-
tor, the length of each installed screw must
be 8 mm or less.
Wall Mount Plate
Back of the Monitor
ENGLISH
ENG
Wall Mount Plate
Back of the Monitor
Screw
Dimensions
: M4 x L10
Max 8 mm
USING THE MONITOR
N
1
US
UP
2
1
US
UP
2
1
USB UP
HDMI IN
2
USB UP
2
16
ENGLISH
ENG
USING THE MONITOR
CAUTION
yDo not press on the screen for a prolonged
period of time. This may cause image distortion.
yDo not display a still image on the screen for
a prolonged period of time. This may cause
image retention. Use a screensaver if possible.
NOTE
yWhen connecting the power cord to the out-
let, use a grounded (3-hole) multi-socket or a
grounded power outlet.
yThe monitor may flicker when turned on in an
area of low temperature. This is normal.
ySometimes red, green, or blue spots may ap-
pear on the screen. This is normal.
Connecting to a PC
yThis monitor supports the *Plug and Play
feature.
*Plug and Play: A feature that allows you to
add a device to your computer without having
to reconfigure anything or install any manual
drivers.
HDMI Connection
Transmits digital video and audio signals from your
PC to the monitor. Connect your PC to the monitor
using the HDMI cable as shown in the illustration
below.
HDMI IN 1
HDMI IN 2
(Sold Separately)
CAUTION
yConnecting your PC to the monitor using the
HDMI cable may cause device compatibility
issues.
yUsing a DVI to HDMI / DP(DisplayPort) to
HDMI cable may cause compatibility issues.
USING THE MONITOR
USB 2
USB 1
D-SUB I
N
-
HDMI IN
USB UPHDMI IN
DVI-D IN
HDMI IN
1
USB UP
HDMI IN
2
B
2
B 1
5 V 0.9 A
USB 2
USB 1
D-SUB I
N
-
HDMI IN
USB UPHDMI IN
DP IN
DVI-D IN
HDMI IN
1
USB UP
HDMI IN
2
DP OUT
-
HDMI IN
USB UP
HDMI IN
B
2
B 1
17
DisplayPort Connection
Transmits digital video and audio signals from your
PC to the monitor. Connect the monitor to your
PC using the display port cable as shown in the
illustration below:
DP IN
(Sold Separately)
DP OUT
NOTE
yThere may be no video or audio output
depending on the DP (DisplayPort) version of
the PC.
yWhen using a Mini DP to DP (Mini
DisplayPort to DisplayPort) cable, a cable
with DisplayPort 1.1a specifications or above
is recommended.
D-SUB Connection
Transmits the analog video signal from your PC
to the monitor. Connect the monitor to the PC
using the provided 15-pin D-Sub signal cable as
illustrated below.
AUDIO OUT
CAUTION
D-SUB IN
D-SUB OUT
PC
(Sold Separately)
ENGLISH
ENG
yConnect the input signal cable
and turn in the direction of the
arrow. To prevent disconnection
secure the cable firmly, do not
over tighten.
NOTE
yApple® Adapter
If you are using an Apple® computer, an
Apple® adapter is required. The adapter can
be purchased at an Apple® store.
USING THE MONITOR
N
DVIDIN12
US
UP
1
US
UP
2
1
USB UP
HDMI IN
2
HDMI IN 1
USB UP
HDMI IN 2
USB UP
2
DP
INNDVIDIN12
US
UP
DVI-D IN
HDMI IN
1
USB UP
HDMI IN
2
N
HDMI IN
1
USB UP
HDMI IN
2
B
2
B 1
18
ENGLISH
ENG

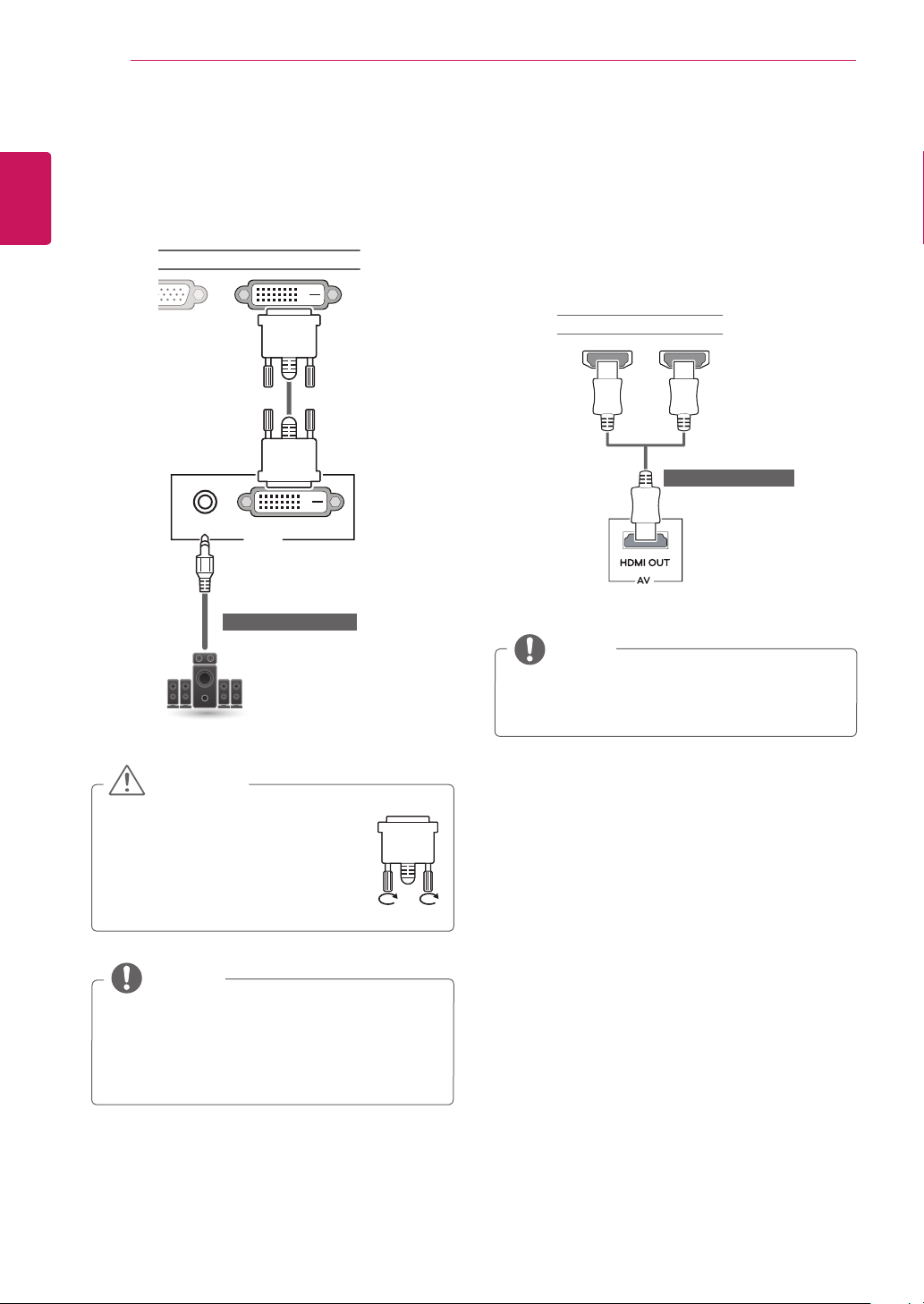

DVI Connection
Transmits digital video signals to the monitor.
Connect the monitor using the DVI cable as
illustrated below.
B I
AUDIO OUT
(Sold Separately)
DVI-D IN
DVI-I(D) OUT
PC
Connecting AV Devices
HDMI Connection
HDMI transmits digital video and audio signals
from your AV device to the monitor. Connect your
AV device to the monitor using the HDMI cable as
shown in the illustration below.
HDMI IN 1
NOTE
HDMI IN 2
(Sold Separately)
CAUTION
yConnect the input signal cable
and turn in the direction of the
arrow. To prevent disconnection
secure the cable firmly, do not
over tighten.
NOTE
yUsing a DVI to HDMI cable may cause
compatibility issues.
yIf you connect a DVI signal cable, use the
DVI-D dual cable.
yUsing a DVI to HDMI / DP(DisplayPort) to
HDMI cable may cause compatibility issues.
USING THE MONITOR
D-SUB I
N
-
HDMI IN
USB UPHDMI IN
2
19
Connecting Peripherals
USB Cable Connection - PC
The USB port on the product functions as a USB
hub.
NOTE
yMake sure to install the most recent Windows
OS service pack before using the product.
yPeripheral devices are sold separately.
yA keyboard, mouse, or USB device can be
connected to the USB port.
CAUTION
Cautions When Using a USB Device
yA USB device with an automatic recognition
program installed or that uses its own driver
may not be recognized.
ySome USB devices may not be supported or
may not work properly.
yIt is recommended to use a USB hub or hard
disk drive with an external power supply. (If
the power supply is not adequate, the USB
device may not be recognized properly.)
To use USB 3.0, connect the A-B type USB 3.0
cable of the product to the PC.
Peripheral devices connected to the USB 1, 2 port
can be controlled from the PC.
USB 2
5 V 0.9 A
USB 1
(Sold Separately)
USB UPHDMI IN
ENGLISH
ENG
ENGLISH
USB UPHDMI IN
2
2
ENG
USING THE MONITOR
20
Headphone Port Connection
Use the headphone port to connect a peripheral
device to the monitor. Connect as illustrated.
B
(Sold Separately)
NOTE
yPeripheral devices are sold separately.
yIt is difficult to connect an angle plug
earphone or a peripheral device, so please
use a straight type plug.
Angle Type Straight Type
yDepending on the audio settings of the PC
and external device, headphone and speaker
functions may be limited.
USER SETTINGS
21
USER SETTINGS
Activating the Main Menu
Press the Joystick Button on the bottom of the monitor.
1
Move the joystick up/down (▲/▼) and left/right (◄/►) to set the options.
2
Press the joystick button once more to exit the main menu.
3
BLACK
GAME
MODE
DAS
MODE
ST.
Button Menu Status Description
Main menu disabled Enables the main menu.
Exits the main menu.
Main menu enabled
Main menu disabled Adjusts the monitor volume level.
◄
Main menu enabled Enters the menu features.
(Press and hold the button to turn off the monitor: You can turn
off the monitor using this method at any time, including when the
OSD (On Screen Display) is on.)
ENGLISH
ENG
Joystick Button
Main menu disabled Adjusts the monitor volume level.
►
Main menu enabled Enters the input feature.
Main menu disabled Enables the main menu.
▲
Main menu enabled Enters the picture mode feature.
Main menu disabled Enables the main menu.
▼
Main menu enabled Turns the monitor off.
Main Menu Features
Picture Mode
Menu Input
Long Press: Monitor Off.
Exit
Monitor off
Main Menu Description
Menu Configures the screen settings.
Picture Mode Optimizes the screen for picture mode.
Input Sets input mode.
Monitor off Turns off the monitor.
Exit Exits the main menu.
USER SETTINGS
22
ENGLISH
ENG
User Settings
Menu Settings
To view the OSD menu, press the Joystick Button on the bottom of the monitor and then enter the
1
Menu.
Configure the options by moving the joystick up/down/left/right.
2
If you want to configure an upper menu or another option, move the joystick ◄ or press it ( / OK).
3
If you want to exit the OSD menu, move the joystick ◄ until you exit.
4
yWhen you enter the menu, instructions on how to use the button will appear in the bottom right corner
of the screen.
Easy control Function Screen Settings
Each option is described below.
Menu Description
Easy control Brightness Adjusts the screen brightness.
NOTE
You can turn the auto brightness adjustment on/off by moving the joystick but-
y
ton ▼ in the Brightness menu.
Auto
Configuration
Reset
Contrast
Volume Adjusts the volume level.
Adjusts the screen contrast.
NOTE
You can turn mute on/off by moving the joystick button ▼ in the Volume menu.
y
Input Selects the input mode.
Ratio Adjusts the aspect ratio of the screen.
Function Adjusts Picture Mode, Game Mode, DAS Mode, Motion 240, and SUPER ENERGY
Screen Picture Adjusts SUPER RESOLUTION+, Sharpness, Black Level, Black Stabilizer, and Re-
Color Adjusts the Gamma, Color Temp, and Color.
Display Adjusts Position, Width, and Phase of the screen.
Settings Adjusts Language, Power LED, Automatic Standby, and OSD Lock.
Auto Configuration Adjusts the Position, Width, and Phase of the screen automatically.
Reset Restores the default settings.
◄ Exit Exits the OSD menu.
SAVING.
sponse Time of the screen.
(Activated only when using a D-Sub Analog input.)
(Activated only when using a D-Sub Analog input.)
USER SETTINGS
23
Ratio
To view the OSD menu, press the Joystick Button on the
1
bottom of the monitor and then enter the Menu.
Go to Easy control > Ratio by moving the joystick.
2
Configure the options following the instructions that appear
3
in the bottom right corner.
If you want to configure an upper menu, or another option,
4
move the joystick to ◄ or press it ( / OK).
If you want to exit the OSD menu, move the joystick to ◄
5
until you exit.
Each option is described below.
Easy control
Function
Screen
Settings
Auto
Configuration
Reset
Easy control
Brightness
Contrast 70
Volume
Input DVI-D
Ratio Wide
▲ / ▼ : Move
/ ► : OK
◄ : Back
60
>
>
30
>
>
>
ENGLISH
ENG
Menu > Easy control > Ratio Description
Wide Displays the video in wide screen, regardless of the video signal input.
Original Displays the video according to the aspect ratio of the video signal input.
1:1 The aspect ratio is not adjusted from the original.
NOTE
This function is not available when the DAS mode is turned on. To use the 1:1
y
mode, you should turn the DAS mode off.
NOTE
yThe display may look the same for Wide, Original, and 1:1 options at the recommended resolution
(1920 x 1080).
yRatio is disabled with an interlaced signal.
USER SETTINGS
24
Function
ENGLISH
ENG
1
2
3
4
5
Each option is described below.
To view the OSD menu, press the Joystick Button on the
bottom of the monitor and then enter the Menu.
Go to Function by moving the joystick.
Configure the options following the instructions that appear
in the bottom right corner.
If you want to configure an upper menu, or another option,
move the joystick ◄ or press it ( / OK).
If you want to exit the OSD menu, move the joystick ◄ until
you exit.
Menu > Function Description
Picture Mode
(Move the joystick
to ▲ in the main
menu to enter
Picture Mode
directly.)
Reader 1 Optimizes the screen for browsing newspapers. You can brighten the screen in the
OSD menu.
Reader 2 Optimizes the screen for reading comics. You can brighten the screen in the OSD
menu.
Photo Optimizes the screen for photos.
Cinema Optimizes the screen for video.
Custom You can customize Screen functions.
Game Mode Gamer
1, 2, 3
Brightness, Contrast, Sharpness, Gamma, Color Temp, Black Stabilizer, Response
Time, DAS Mode, and Motion 240 functions can be customized as Gamer 1, 2, or 3.
FPS 1 Game Mode functions are optimized for FPS games.
FPS 2 The Black Stabilizer value is greater than that of FPS 1. It is suitable for very dark FPS
games.
RTS Game Mode functions are optimized for RTS games.
NOTE
Use the GAME MODE button on the front of the monitor to quickly select and switch be-
y
tween the Gamer 1/2/3, FPS 1/2, RTS, and Off options.
Easy control
Function
Screen
Settings
Auto
Configuration
Reset
Function
Picture Mode Custom
Game Mode FPS 1
DAS Mode On
Motion 240 Off
SUPER ENERGY SAVING Low
▲ / ▼: Move
/ ► : OK
◄ : Back
>
>
>
>
>
* FPS: First-Person Shooter
* RTS: Real-Time Strategy
* DAS: Dynamic Action Sync
USER SETTINGS
Menu > Function Description
DAS Mode On You can enjoy faster game ensuring your commands appear onscreen without delay.
Off Turns DAS Mode off.
(The screen flickers when turning DAS Mode on/off.)
NOTE
Use the DAS MODE button on the front of the monitor to quickly select and switch between
y
the options.
25
ENGLISH
ENG
Motion 240 On This mode minimizes motion blur in fast-moving videos. This function only works for
Off Turns Motion 240 Mode off.
frame rates (vertical frequency) of 100 Hz and 120 Hz. To take full advantage of this
function, select 1920 × 1080 @ 120 Hz for DisplayPort (DP) or DVI inputs before
enabling Motion 240.
This function is available for 100 Hz and 120 Hz only.
NOTE
To reduce motion blur, brightness is reduced with backlight control.
y
Motion 240 and DAS Mode cannot be used simultaneously. When Motion 240 is enabled,
y
DAS Mode is disabled automatically.
SUPER ENERGY
SAVING
High Saves energy using the high-efficiency Super Energy Saving feature.
Low Saves energy using the low-efficiency Super Energy Saving feature.
Off Disables the SUPER ENERGY SAVING function.
NOTE
If you set the Super Energy Saving function to high or low in the picture mode of Reader 1,
y
Reader 2, Photo, or Cinema, the picture mode will be changed to Custom.
ENGLISH
3
2
FPS
1
RTS
FPS
2
OFF
FPS
1
RTS
FPS
2
OFF
FPS
1
RTS
FPS
2
OFF
RTS
FPS
2
OFF
RTS
OFF
OFF
ENG
USER SETTINGS
26

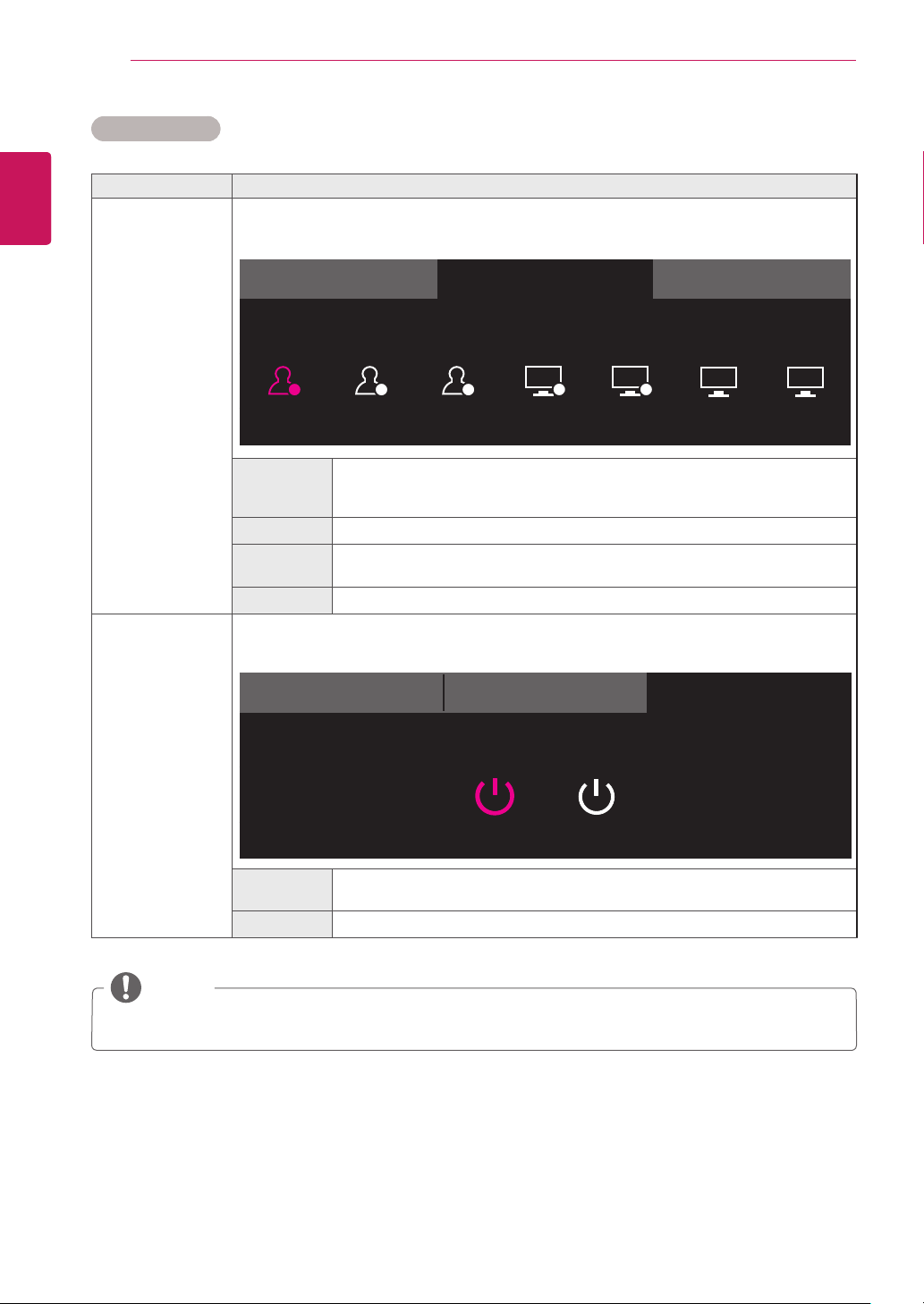

Using Hot Keys
Use the button on the front of the monitor to quickly select and switch between available options.
Menu
You can enter the OSD menu by pressing the GAME MODE button on the front of the monitor.
You can change the Game Mode settings by using the left and right(< >) buttons.
Press the GAME MODE button again to save your settings and exit the OSD menu.
Black Stabilizer Game Mode DAS Mode
You can choose the optimal screen setting among the gaming presets.
Description
GAME MODE
DAS MODE
FPS
1
2
3
1
FPS
2
RTS
OFF
Gamer 1 Gamer 2 Gamer 3 FPS 1 FPS 2 RTS Off
Gamer
1, 2, 3
Brightness, Contrast, Sharpness, Gamma, Color Temp, Black Stabilizer, Response Time, DAS Mode, and Motion 240 functions can be customized as
Gamer 1, 2, or 3.
FPS 1 Game Mode functions are optimized for FPS games.
FPS 2
The Black Stabilizer value is greater than that of FPS 1. It is suitable for very
dark FPS games.
RTS Game Mode functions are optimized for RTS games.
You can enter the OSD menu by pressing the DAS MODE button on the front of the monitor.
You can change the DAS MODE settings by using the left and right(< >) buttons.
Press the DAS MODE button again to save your settings and exit the OSD menu.
Black Stabilizer Game Mode DAS Mode
You can enjoy faster game ensuring your commands appear onscreen without delay.
On Off
On
You can enjoy faster game ensuring your commands appear onscreen without
delay. (The screen flickers when turning DAS Mode on/off.)
Off Turns DAS Mode off.
NOTE
yThe buttons on the front of the monitor are disabled in the Energy Saving mode.
USER SETTINGS
27
To view the OSD menu, press the Joystick Button on the
1
bottom of the monitor and then enter the Menu.
Go to Screen > Picture by moving the joystick.
2
Configure the options following the instructions that appear in
3
the bottom right corner.
If you want to configure an upper menu, or another option,
4
move the joystick ◄ or press it ( / OK).
If you want to exit the OSD menu, move the joystick ◄ until
5
you exit.
Each option is described below.
Easy control
Function
Screen
Settings
Auto
Configuration
Reset
Screen
Color
Display
▲ / ▼ : Move
/ ► : OK
◄ : Back
>
>
>
ENGLISH
ENG
Menu > Screen > Picture Description
SUPER RESOLUTION+ With the picture improvement technology that minimizes the degradation of the picture
quality due to enlargement (e.g. blurred focus or unsharpened edges), the resolution is not
compromised, even when the images are enlarged, which guarantees a clear image.
NOTE
Because this is a function to increase the sharpness of low resolution pictures, it
y
is not recommended to use the function for normal text or for desktop icons. Doing
so may result in unnecessarily high sharpness.
Sharpness Adjusts the sharpness of the screen.
Black Level Sets the offset level (for HDMI only).
yOffset: as a reference for the video signal, this is the darkest color the monitor can
display.
High The screen picture gets brighter.
Low The screen picture gets darker.
Black Stabilizer Black Stabilizer
: You can control the black contrast to have better visibility in dark scenes.
Increasing the Black Stabilizer value brightens the low gray level area on the screen. (You
can easily distinguish objects on dark game screens.)
Reducing the Black Stabilizer value darkens the low gray level area and increases the
dynamic contrast on the screen.
NOTE
Use the BLACK ST. button on the front of the monitor to quickly switch between
y
the Black Stabilizer options.
ENGLISH
ENG
Use the button on the front of the monitor to quickly switch between the BLACK ST. options.
USER SETTINGS
28
Menu > Screen > Picture Description
Response Time Sets a response time for displayed pictures based on the speed of the screen. For a normal
environment, it is recommended that you use Middle. For a fast-moving picture, it is recommended that you use High.
Setting the response time to High may cause image sticking.
High Sets the response time to High.
Middle Sets the response time to Middle.
Low Sets the response time to Low.
Off Does not use the response time improvement feature.
Using Hot Keys
Menu
You can enter the OSD menu by pressing the BLACK ST. button on the front of the monitor.
You can change the Black Stabilizer settings by using the left and right(< >) buttons.
Press the BLACK ST. button again to save your settings and exit the OSD menu.
-Increasing the Black Stabilizer value brightens the low gray level area on the screen.
(You can easily distinguish objects on dark game screens.)
- Reducing the Black Stabilizer value darkens the low gray level area and increases the dynamic contrast on the screen.
Description
BLACK ST.
Black Stabilizer Game Mode DAS Mode
You can control the black contrast to have better visibility in dark scenes.
◄
NOTE
yThe buttons on the front of the monitor are disabled in the Energy Saving mode.
► 50
USER SETTINGS
29
Function
Screen
Settings
Auto
Reset
Screen
Color
Display
▲ / ▼ : Move
/ ► : OK
◄ : Back
Color
To view the OSD menu, press the Joystick Button on the
1
bottom of the monitor and then enter the Menu.
Go to Screen > Color by moving the joystick.
2
Configure the options following the instructions that appear in
3
the bottom right corner.
If you want to configure an upper menu, or another option,
4
move the joystick ◄ or press it ( / OK).
If you want to exit the OSD menu, move the joystick ◄ until
5
you exit.
Easy control
Configuration
Each option is described below.
Menu > Screen > Color
Gamma Custom gamma settings: When using the Gamma 0, Gamma 1, and Gamma 2 monitor set-
tings, higher gamma settings mean a brighter image is displayed and vice versa.
Color Temp Warm Sets the screen color to a reddish tone.
Medium Sets the screen color between the reddish and bluish tone.
Cool Sets the screen color to a bluish tone.
Custom Selects the factory default picture color.
Red You can customize the picture color using Red, Green, and Blue colors.
Green
Blue
Six Color Meets the user's requirements for color by adjusting the hue and saturation of the six colors
(red, green, blue, cyan, magenta, and yellow) and then saving the settings.
Hue Adjusts the tone of the screen colors.
Saturation Adjusts the saturation of the screen colors. The lower the value, the less satu-
rated and brighter the colors become. The higher the value, the more saturated
and darker the colors become.
Reset Returns the colors to the default settings.
Description
>
>
>
ENGLISH
ENG
USER SETTINGS
30
ENGLISH
ENG
Function
Screen
Settings
Auto
Reset
Screen
Color
Display
▲ / ▼ : Move
/ ► : OK
◄ : Back
Display
To view the OSD menu, press the Joystick Button on the
1
bottom of the monitor and then enter the Menu.
Go to Screen > Display by moving the joystick.
2
Configure the options following the instructions that appear in
3
the bottom right corner.
If you want to configure an upper menu, or another option,
4
move the joystick ◄ or press it ( / OK).
If you want to exit the OSD menu, move the joystick ◄ until
5
you exit.
Easy control
Configuration
Each option is described below.
Menu > Screen > Display
Horizontal Used to adjust the horizontal position of the screen.
Vertical Used to adjust the vertical position of the screen.
Clock To obtain the correct width of the input signal by adjusting the frequency. Used to minimize
the vertical bars that appear because of an incorrect width.
Phase Used to optimize screen performance by adjusting the phase.
Description
>
>
>
NOTE
This function is activated only when using D-Sub analog input.
y
(When using analog signals, this function is required because the position and focus of the video
varies slightly according to graphic cards, cables, resolution settings, etc. This function is not required when using digital signals.)
Use the Menu > Auto Configuration ( ) function to automatically obtain the optimal position and
y
focus.
USER SETTINGS

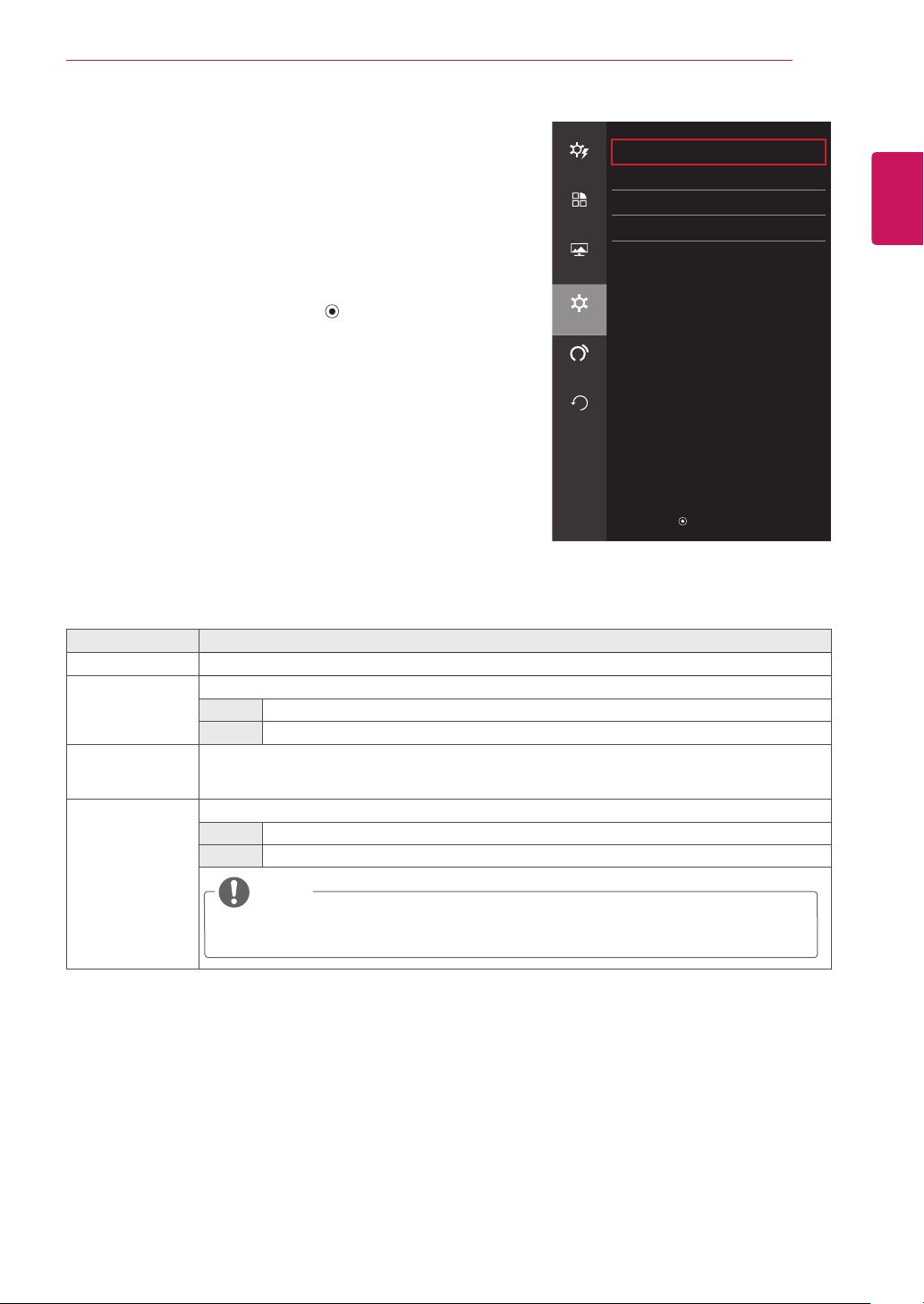

31
Settings
To view the OSD menu, press the Joystick Button on the
1
bottom of the monitor and then enter the Menu.
Go to Settings by moving the joystick.
2
Configure the options following the instructions that appear in
3
the bottom right corner.
If you want to configure an upper menu, or another option,
4
move the joystick ◄ or press it ( / OK).
If you want to exit the OSD menu, move the joystick ◄ until
5
you exit.
Each option is described below.
Menu > Settings Description
Language Sets the menu screen to the desired language.
Power LED Turns the Power LED on the front of the monitor on or off.
On The power LED turns on automatically.
Off The power LED turns off.
Automatic
Standby
OSD Lock Prevents incorrect key input.
Turns the monitor off automatically when there is no movement on the screen for a set period of
time.
You can set timer for the auto-off function. (Off, 4H, 6H, and 8H)
On Disables the key input feature.
Off Enables the key input feature.
NOTE
All of the features are disabled, except for Brightness, Contrast, Volume, Input, OSD
y
Lock in Settings, and the Exit button.
Easy control
Function
Screen
Settings
Auto
Configuration
Reset
Settings
Language English
Power LED Off
Automatic Standby Off
OSD Lock Off
▲ / ▼ : Move
/ ► : OK
◄ : Back
>
>
>
>
ENGLISH
ENG
USER SETTINGS
32
Auto Configuration
ENGLISH
ENG
1
2
3
4
5
Each option is described below.
To view the OSD menu, press the Joystick Button on the
bottom of the monitor and then enter the Menu.
Go to Auto Configuration by moving the joystick.
Configure the options following the instructions that appear in
the bottom right corner.
If you want to configure an upper menu, or another option,
move the joystick ◄ or press it ( / OK).
If you want to exit the OSD menu, move the joystick ◄ until
you exit.
Easy control
Function
Screen
Settings
Auto
Configuration
Reset
Auto Configuration
Do you want to Auto Configuration?
Yes
Cancel
▲ / ▼ : Move
/ ► : OK
◄ : Back
Menu > Auto Configuration Description
Do you want to Auto Configuration?
Yes Adjusts the Position, Width, and Phase of the screen automatically.
(Activated only when using a D-Sub Analog input.)
Cancel Cancels the Auto Configuration.
USER SETTINGS
33
Reset
To view the OSD menu, press the Joystick Button on the
1
bottom of the monitor and then enter the Menu.
Go to Reset by moving the joystick.
2
Configure the options following the instructions that appear in
3
the bottom right corner.
If you want to configure an upper menu, or another option,
4
move the joystick ◄ or press it ( / OK).
If you want to exit the OSD menu, move the joystick ◄ until
5
you exit.
Each option is described below.
Easy control
Function
Screen
Settings
Auto
Configuration
Reset
Reset
Do you want to reset your settings?
Reset
Cancel
▲ / ▼ : Move
/ ► : OK
ENGLISH
ENG
◄ : Back
Menu > Reset
Do you want to reset your settings?
Reset Restores the default settings.
Cancel Cancels the Reset.
Description
TROUBLESHOOTING
34
ENGLISH
ENG
TROUBLESHOOTING
Nothing is displayed on the screen.
Is the monitor's power cord plugged
in?
Is the power LED on?
Is the power on and the power LED
displaying white?
Is the power LED blinking?
Is the OUT OF RANGE message
being displayed?
Is the No Signal message being
displayed?
The OSD Lock message is being displayed.
Are some functions not available
when you press the Menu button?
yCheck if the power cord is correctly plugged in to the power outlet.
yConfirm there is power available at the AC plug by plugging in a lamp
or another electrical device.
yCheck the power cable connection and press the power button..
yCheck that the connected input is enabled (Menu - Input).
yIf the monitor is in power-saving mode, move the mouse or press
any key on the keyboard to switch the display on.
yCheck if the computer is turned on.
yThis occurs when signals transferred from the PC (video card) are
out of the horizontal or vertical frequency range of the monitor.
Please see the Product Specification section of this manual to set
the appropriate frequency.
yThis is displayed when the signal cable between the PC and the
monitor is missing or disconnected. Check the cable and reconnect.
yThe OSD is locked. Go to Menu > Settings and set OSD Lock to Off.
The screen retains an image.
Does image sticking occur even
when the monitor is turned off?
Screen display is unstable and shaky / Images displayed on the monitor leave shadow trails.
Did you select the appropriate resolution?
yDisplaying a still image for a prolonged time may cause damage to
the screen, resulting in the retention of the image.
yTo extend the lifetime of the monitor, use a screensaver.
yIf the selected resolution is HDMI 1080i 60/50 Hz (interlaced), the
screen may be flickering. Change the resolution to 1080P or the
recommended resolution.
NOTE
yVertical Frequency: In order to display an image, the screen must be refreshed dozens of times per
second like a fluorescent lamp.
The number of times the screen is refreshed per second is called vertical frequency or refresh rate
and is represented by Hz.
yHorizontal Frequency: The time it takes to display one horizontal line is called the horizontal cycle.
The number of horizontal lines displayed in one second can be calculated by dividing one by the
horizontal cycle. This is called horizontal frequency and is represented by kHz.
TROUBLESHOOTING
35
NOTE
yCheck if the video card's resolution or frequency is within the range allowed by the monitor and set to
the recommended (optimal) resolution in Control Panel > Display > Settings.
yFailing to set the video card to the recommended (optimal) resolution may result in blurred text, a
dimmed screen, a truncated display area or misalignment of the display.
yThe configuration procedure may differ depending on your computer and/or operating system. Also,
some video cards may not support certain resolutions. If this is the case, contact the manufacturer of
the computer or video card for assistance.
ySome video cards may not support 1920 x 1080 resolution.
If the resolution cannot be displayed, contact the manufacturer of your video card.
The display color is abnormal.
Does the display appear discolored
(16 color)?
Does the display color appear unstable or in monochrome?
Are there spots on the screen?
ySet the color to 24 bit (true color) or higher. In Windows, go to Control
Panel > Display > Settings > Color Quality.
yCheck if the signal cable is connected properly. Reconnect the cable
or reinsert the PC's video card.
yWhen using the monitor, pixilated spots (red, green, blue, white, or
black) may appear on the screen. This is normal for the LCD screen.
It is not an error nor is it related to the monitor's performance.
ENGLISH
ENG
No sound from the headphone port.
Are the D-Sub and DVI connected?
Are images displayed using DP
(DisplayPort) or HDMI input without
sound?
yD-Sub and DVI do not support audio.
yAudio may not be supported, depending on the type of cable you use.
yMake sure that the headphone port connections are made properly.
yTry increasing the volume with the joystick.
ySet the audio output of the PC to the monitor you are using: On
Microsoft Windows, go to Control Panel > Hardware and Sound >
Sound > set the monitor as default device.
PRODUCT SPECIFICATION
36
ENGLISH
ENG
PRODUCT SPECIFICATION
LCD Screen Type 61 cm TFT (Thin Film Transistor)
LCD (Liquid Crystal Display) Screen
Diagonal length of the screen: 61 cm
Pixel Pitch 0.27675 mm x 0.27675 mm
Resolution Maximum Resolution Analog, HDMI 1920 x 1080 @ 60 Hz
DVI-D, DisplayPort 1920 x 1080 @ 144 Hz
Recommended Resolution 1920 x 1080 @ 60 Hz
Video Signal Horizontal Frequency Analog, HDMI 30 kHz to 135 kHz
DVI-D, DisplayPort 30 kHz to 160 kHz
Vertical Frequency Analog, HDMI 56 Hz to 120 Hz
DVI-D, DisplayPort 56 Hz to 144 Hz
Synchronization Separate Sync.
Input Connector USB 1, 2, USB UP, DP(DisplayPort) IN, D-SUB IN, DVI-D IN, HDMI IN 1, 2, HP OUT
Power Voltage AC 100-240 V~ 50 / 60 Hz 0.8 A
Power consumption (Typ.) On Mode ≤ 23 W
Power Saving Mode ≤ 1.2 W
Off Mode ≤ 0.3 W
Stand Angle Forward/Backward: -5° to 20° (Head)
Environmental
Conditions
Dimension Monitor Size (Width x Height x Depth)
Weight (Without
Packaging)
Operating Condition Temperature: 10°C to 35°C; Humidity: 10% to 80%
Storing Condition Temperature: -20°C to 60°C; Humidity: 5% to 90%
With stand 567.6 mm x 401.2 mm x 248 mm
Without Stand 567.6 mm x 353.9 mm x 57.3 mm
With stand 5.43 kg
Without Stand 3.83 kg
The specifications are subject to change without notice.
PRODUCT SPECIFICATION
37
Factory Support Mode (Preset Mode, DisplayPort/D-SUB/DVI-D/HDMI PC)
Preset Mode, PC Horizontal Frequency (kHz) Vertical Frequency (Hz) Polarity (H/V) Remarks
720 x 400 31.468 70.08 -/+
640 x 480 31.469 59.94 -/-
640 x 480 37.5 75 -/-
800 x 600 37.879 60.317 +/+
800 x 600 46.875 75 +/+
800 x 600 76.302 119.972 +/-
1024 x 768 48.363 60 -/-
1024 x 768 60.123 75.029 +/+
1024 x 768 97.551 119.989 +/-
1280 x 1024 63.981 60.02 +/+
1280 x 1024 79.976 75.025 +/+
1280 x 1024 * 130.035 119.958 +/-
1920 x 1080 67.5 60 +/-
1920 x 1080 ** 137.26 119.98 +/-
1920 x 1080 ** 158.11 144 +/-
* 1280 x 1024 @ 120 Hz: HDMI not supported.
** 1920 x 1080 @ 120 Hz/144 Hz: HDMI/D-Sub not supported.
ENGLISH
ENG
HDMI Timing (Video)
Preset Mode, PC Horizontal Frequency (kHz) Vertical Frequency (Hz) Remarks
480P 31.5 60
720P 45 60
1080P 67.5 60
Power LED
Mode LED Color
On Mode White
Power Saving Mode Blinking in white
Off Mode Off
PROPER POSTURE
38
ENGLISH
ENG
PROPER POSTURE
Proper Posture for Using the Monitor
Adjust the screen so that you can comfortably look at it at a slight downward angle from your natural eye
level.
yTake a break for approximately 10 minutes every hour to reduce any fatigue caused by long-time
usage.
yThe stand of the touch monitor allows the product to be used in the optimum position.
Adjust the stand angle from -5° to 20° to obtain the best view of the screen.
You should be looking
slightly down at the
screen.
Adjust the angle
-5° to 20°
So that there is no
reflection or glare from
the screen.
Place your hands gently
on the keyboard,
keeping your arms bent
at the elbows
and extended
horizontally in front of
you.
This device meets the EMC requirements
for home appliances (Class B) and is in-
tended for home usage. This device can
be used in all regions. Read the owner's
manual (CD) carefully and keep it at
hand. Please note that the label attached
to the product provides information for
technical support.
Model
Serial No.
ENERGY STAR is a set of power-saving
guidelines issued by the U.S.Environmental
Protection Agency(EPA).
As an ENERGY STAR Partner LGE
U. S. A., Inc. has determined that
this product meets the ENERGY
STAR guidelines for energy
efficiency.
Refer to ENERGY STAR.gov for more information on the ENERGY STAR program.
Loading...
