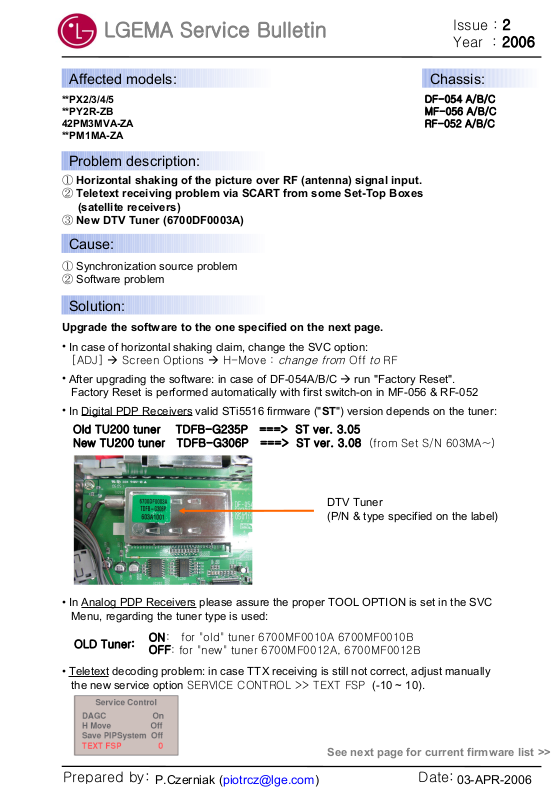

Page 1
LGEMA Service Bulletin
Issue : 2
Year : 2006
Affected models:
**PX2/3/4/5
**PY2R-ZB
42PM3MVA-ZA
**PM1MA-ZA
Problem description:
① Horizontal shaking of the picture over RF (antenna) signal input.
② Teletext receiving problem via SCART from some Set-Top Boxes
(satellite receivers)
③ New DTV Tuner (6700DF0003A)
Cause:
① Synchronization source problem
② Software problem
Solution:
Upgrade the software to the one specified on the next page.
•
In case of horizontal shaking claim, change the SVC option:
[ADJ] Screen Options H-Move :
change from
Off
to
RF
Chassis:
DF-054 A/B/C
MF-056 A/B/C
RF-052 A/B/C
•
After upgrading the software: in case of DF-054A/B/C run "Factory Reset".
Factory Reset is performed automatically with first switch-on in MF-056 & RF-052
•
In Digital PDP Receivers valid STi5516 firmware ("ST") version depends on the tuner:
Old TU200 tuner TDFB-G235P ===> ST ver. 3.05
New TU200 tuner TDFB-G306P ===> ST ver. 3.08 (from Set S/N 603MA~)
DTV Tuner
(P/N & type specified on the label)
•
In Analog PDP Receivers please assure the proper TOOL OPTION is set in the SVC
Menu, regarding the tuner type is used:
OLD Tuner:
•
Teletext decoding problem: in case TTX receiving is still not correct, adjust manually
the new service option SERVICE CONTROL >> TEXT FSP (-10 ~ 10).
ON: for "old" tuner 6700MF0010A 6700MF0010B
OFF: for "new" tuner 6700MF0012A, 6700MF0012B
See next page for current firmware list >>
Prepared by: Date:
03-APR-2006P.Czerniak ([email protected])
Page 2
LGEMA Service Bulletin
Mode l IC Cu r re n t S/ W Modu le Rea s on Sta tu s
CORTEZ 3.66 (9ABB) 42V7 ARC, T XT NEW
HUDSON 3.24 (B369) 42V7
CORTEZ 3.67 (2D40) 42V7 ARC, T XT NEW
42P X4DV-EA
CORTEZ 3.11 (3C9B) 42V7
HUDSON 3.24 (B0BD) 42V7
ST i 5516
3.08 (DDF9) All Ne w TUNER ( 306P )
3.05 (865F) All
42P M3MVA-Z A CORTEZ 3.15 ( 95B2) 42V7 ARC, T XT NEW
CORTEZ
3.14 (828B ) 42X2 AR C, TXT NEW
3.23 (E1F5) 42X3 ARC, T XT NEW
HUDSON
3.04 (ACFC) 42X2
3.11 (9BD7) 42X3
1.43 (22E1) All
50P X4R -Z B
CORTEZ 3.14 (B 0F4) 50X3 ARC, T XT NEW
HUDSON 3.05 (99A2) 50X3
EP F 1.43 (22E1) All
42P X4DVA-Z C
CORTEZ 3.06 (9143) 42V7
HUDSON 3.25 (B0CB) 42V7
ST i 5516 3.04 (38BD) All
50P M1MA-Z A COR T EZ 3.14 (1D0E) 50X3 AR C, TXT NEW
50P X4D-EB
CORTEZ 3.05 (6ABD) 50X3
HUDSON 3.01 (B023) 50X3
ST i 5516
3.08 (DDF9) All Ne w TUNER ( 306P )
3.05 (865F) All
EP F 1.43 (22E1) All
42P X5D-EB
CORTEZ
3.04 (9F35) 42X2
3.05 (F967) 42X3
HUDSON
3.01 (B023) 42X2
3.02 (B0AA) 42X3
ST i 5516
3.08 (DDF9) All Ne w TUNER ( 306P )
3.05 (865F) All
EP F 1.43 (22E1) All
50P Y2R -Z B
CORTEZ 3.14 (8B3B) 50X3 ARC, T XT NEW
HUDSON 3.05 (99A2) 50X3
EP F 1.43 (22E1) All
42P M1MA-Z A COR T EZ
3.14 (2C2F) 42X2 ARC, T XT NEW
3.23 (CD89) 42X3 ARC, T XT NEW
42P X4R V -Z A
42P X4R V A-ZA
42P X3R V -Z A
42P X3R V B -Z A
42P X3R V A-ZC
42P X2R V A-ZC
42P X4R -Z A
42P X5R -Z B
EP F for PX5
Issue : 2
Year : 2006
(Below list also supplied in XLS file)
Notice: alternative names used for: Cortez = "IC900", Hudson = "IC703"
Prepared by: Date:
03-APR-2006P.Czerniak ([email protected])
