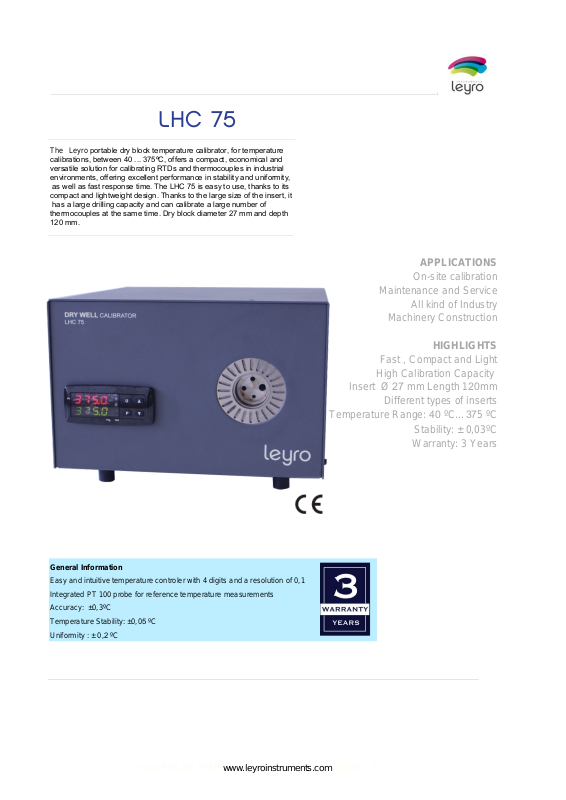

Leyro LHC 75 User Manual

LHC 75
calibrations, between 40 ... 375ºC, offers a compact, economical and versatile solution for calibrating RTDs and thermocouples in industrial environments, offering excellent performance in stability and uniformity, as well as fast response time. The LHC 75 is easy to use, thanks to its compact and lightweight design. Thanks to the large size of the insert, it has a large drilling capacity and can calibrate a large number of thermocouples at the same time. Dry block diameter 27 mm and depth 120 mm.
APPLICATIONS
On-site calibration
Maintenance and Service
All kind of Industry
Machinery Construction
HIGHLIGHTS
Fast , Compact and Light
High Calibration Capacity
Insert Ø 27 mm Length 120mm
Different types of inserts
Temperature Range: 40 ºC…375 ºC
Stability: ± 0,03ºC
Warranty: 3 Years
General Information
Easy and intuitive temperature controler with 4 digits and a resolution of 0,1 Integrated PT 100 probe for reference temperature measurements Accuracy: ±0,3ºC Temperature Stability: ±0,05 ºC Uniformity : ± 0,2 ºC
EQUIPOS DE TEMPwww.leyroinstruments.comATURA 6
0,1ºC
0.1 / 0,01/ 0,001ºC
Technical Data
Operating Temperature Range(ºC) Accuracy Stability: ± 0,05ºC Resolution Uniformity ± 0,2ºC Temperature Control Internal PT100 (3/4 wires) Calibration Volume Ø 27mm x 120 mm Heating Time From 40 to 200 ºC: 9 Minutes Cooling Time From 375 to 100 ºC 35 Minutes Housing and assembly Portable Dimensions 230 x 250 x 150 mm Weight (kg) 6 kg. Supply 100 … 234 Vac 50/60 Hz Power Consumption Max 365 W Standard insert A 1 x Ø 3,1 / 2 x Ø 4,1/ 1 x Ø 3,1 Optional Inserts B 1 x Ø 11,1 / 1 x Ø 6,5/ 1 x Ø 4,1/ 1 x Ø 3,1
40375ºC ± 0,3ºC
± 0.1ºC
C 1 x Ø 12,6 / 1 x Ø 6,5
D 1 x Ø 17,4
E Blank (without holes)
Scope of delivery
Basic Instrument LHC 75 Power Cord Standard Insert: A 1 x Ø 3,1 / 2 x Ø 4,1/ 1 x Ø 3,1 Manufacturing Traceable Calibration Certificate 5 Points Instruction Manual 3 Years Warranty against factory defects
Optional
Transport bag. ISO 17025 Calibration Certificate (ENAC). Optional Inserts:
B 1 x Ø 11,1 / 1 x Ø 6,5/ 1 x Ø 4,1/ 1 x Ø 3,1
C 1 x Ø 12,6 / 1 x Ø 6,5
D 1 x Ø 17,4
E Blank (without holes)
i n f o @ l e y r o . n e t
