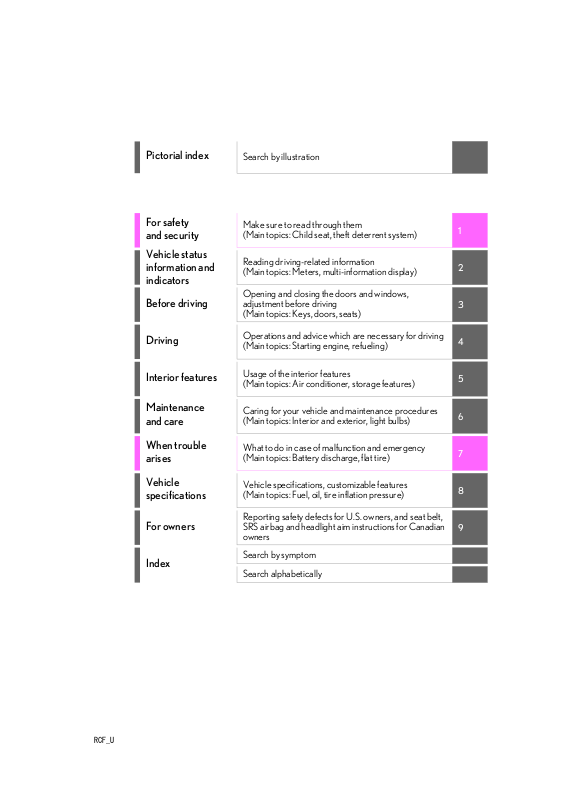

Page 1
Pictorial index
Search by illustration
For safety
and security
Vehicle status
information and
indicators
Before driving
Driving
Interior features
Maintenance
and care
When trouble
arises
Vehicle
specifications
Make sure to read through them
(Main topics: Child seat, theft deterrent system)
Reading driving-related information
(Main topics: Meters, multi-information display)
Opening and closing the doors and windows,
adjustment before driving
(Main topics: Keys, doors, seats)
Operations and advice which are necessary for driving
(Main topics: Starting engine, refueling)
Usage of the interior features
(Main topics: Air conditioner, storage features)
Caring for your vehicle and maintenance procedures
(Main topics: Interior and exterior, light bulbs)
What to do in case of malfunction and emergency
(Main topics: Battery discharge, flat tire)
Vehicle specifications, customizable features
(Main topics: Fuel, oil, tire inflation pressure)
1
2
3
4
5
6
7
8
RCF_U
For owners
Index
Reporting safety defects for U.S. owners, and seat belt,
SRS airbag and headlight aim instructions for Canadian
owners
Search by symptom
Search alphabetically
9
Page 2
2
TABLE OF CONTENTS
For your information ......................................6
Reading this manual.................................... 10
How to search .................................................11
Pictorial index .................................................12
1
For safety and security
1-1. For safe use
Before driving....................................22
For safe driving..................................23
Seat belts .............................................24
SRS airbags ....................................... 28
Front passenger occupant classifi-
cation system ................................. 36
Exhaust gas precautions ................41
1-2. Child safety
Riding with children.........................42
Child restraint systems ..................42
1-3. LEXUS Enform
Lexus Enform Safety Connect .. 53
1-4. Theft deterrent system
Engine immobilizer system......... 57
Alarm.................................................... 58
Theft prevention labels (U.S.A.)
.............................................................. 60
3
Before driving
3-1. Key information
Keys...................................................... 88
3-2. Opening, closing and locking the
doors and trunk
Doors ....................................................92
Trunk .....................................................95
Smart access system with push-but-
ton start ............................................ 98
3-3. Adjusting the seats
Front seats........................................ 103
Power easy access system/driving
position memory/memory recall
function........................................... 105
3-4. Adjusting the steering wheel and
mirrors
Steering wheel ...............................108
Inside rear view mirror ............... 109
Outside rear view mirrors.......... 110
3-5. Opening, closing the windows and
moon roof
Power windows ...............................112
Moon roof..........................................114
Vehicle status information and
2
indicators
2-1. Instrument cluster
Warning lights and indicators.....62
Gauges and meters ....................... 66
Multi-information display............. 73
Fuel consumption information... 83
4
Driving
4-1. Before driving
Driving the vehicle......................... 118
Cargo and luggage.......................124
Vehicle load limits..........................126
Trailer towing...................................127
Dinghy towing.................................127
4-2. Driving procedures
Engine (ignition) switch.............. 128
Page 3
TABLE OF CONTENTS
3
Automatic transmission.............. 132
Turn signal lever............................. 136
Parking brake ................................. 137
ASC (Active Sound Control).. 137
4-3. Operating the lights and wipers
Headlight switch............................138
AHB (Automatic High Beam)
............................................................ 140
Windshield wipers and washer
............................................................ 143
4-4. Refueling
Opening the fuel tank cap.........150
4-5. Using the driving support systems
Lexus Safety System + ................153
PCS (Pre-Collision System)..... 157
LDA (Lane Departure Alert with
steering control) .........................164
Dynamic radar cruise control... 171
BSM (Blind Spot Monitor) ........179
Intuitive parking assist .................187
Driving mode select switch....... 192
Launch control ...............................194
Active rear wing ............................195

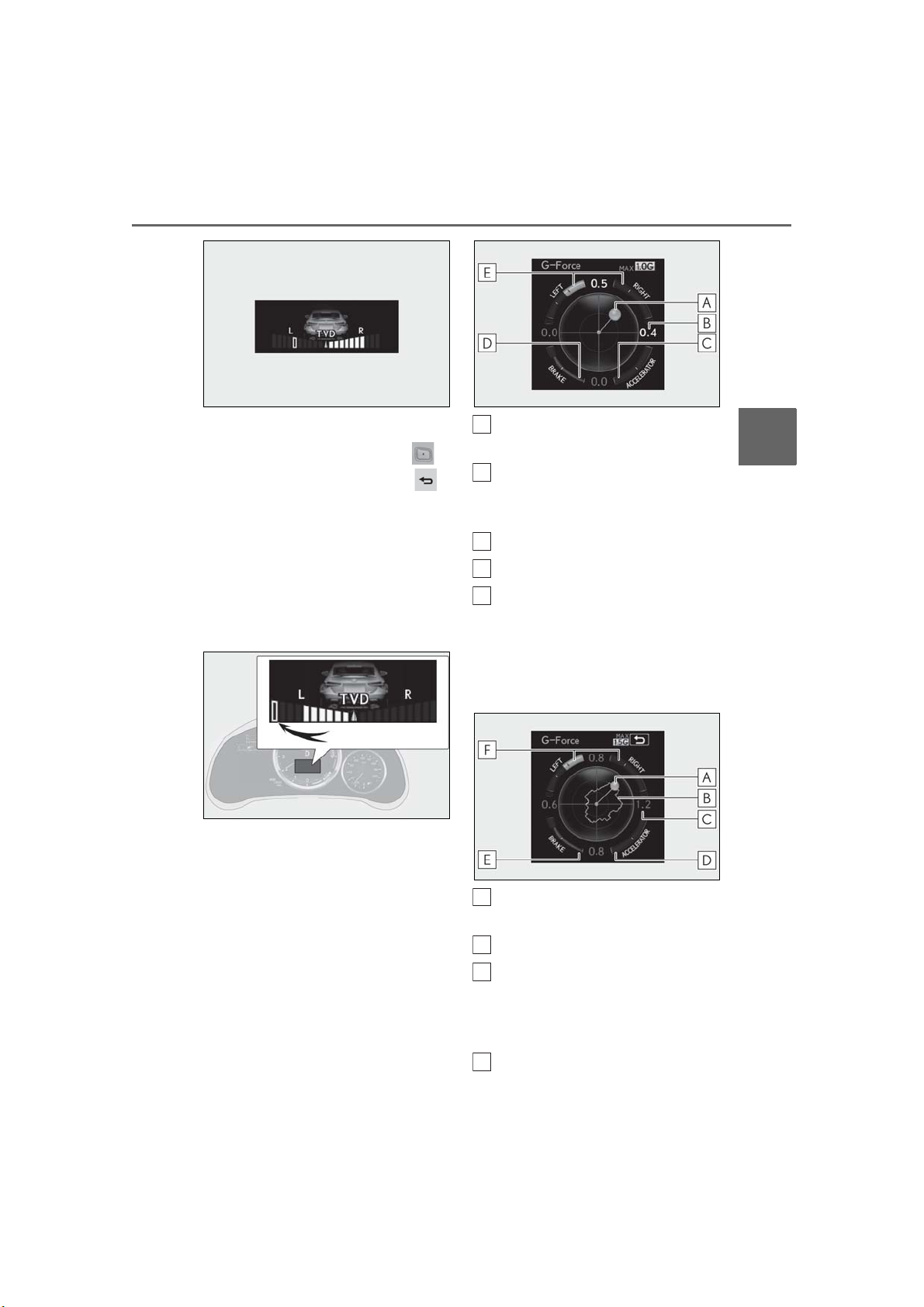

TVD (Torque Vectoring Differen-
tial).................................................... 198
Driving assist systems.................. 199
4-6. Driving tips
Winter driving tips .......................204
5
Interior features
5-1. Remote Touch/Display
Remote Touch...............................208
Center Display............................... 210
5-2. Using the air conditioning system
Automatic air conditioning system
............................................................213
Heated steering wheel/seat heat-
ers/seat ventilators.....................221
5-3. Using the interior lights
Interior lights list ............................223
5-4. Using the storage features
List of storage features ...............225
Trunk features ................................227
5-5. Using the other interior features
Other interior features ..............228
Garage door opener ...................231
Compass ......................................... 236
6
Maintenance and care
6-1. Maintenance and care
Cleaning and protecting the vehi-
cle exterior................................... 240
Cleaning and protecting the vehi-
cle interior.................................... 245
6-2. Matte paint care guide (if
equipped)
Basic knowledge about matte clear
coat ................................................. 248
Washing your vehicle ................252
Frequently Asked Questions
.......................................................... 254
6-3. Maintenance
Maintenance requirements..... 257
General maintenance................ 258
Emission inspection and mainte-
nance (I/M) programs..............261
6-4.
Do-
it-yourself maintenance
Do-it-yourself service precautions
...........................................................262
1
2
3
4
5
6
7
8
9
Page 4
4
TABLE OF CONTENTS
Hood.................................................. 264
Positioning a floor jack............... 265
Engine compartment.................. 267
Tires ................................................... 273
Tire inflation pressure................. 279
Wheels............................................... 281
Air conditioning filter.................. 282
Electronic key battery................ 283
Checking and replacing fuses
........................................................... 285
Headlight aim.................................287
Light bulbs.......................................288
7
When trouble arises
7-1. Essential information
Emergency flashers..................... 294
If your vehicle has to be stopped in
an emergency............................. 294
If the vehicle is trapped in rising
water............................................... 295
7-2. Steps to take in an emergency
If your vehicle needs to be towed
........................................................... 297
If you think something is wrong
...........................................................300
Fuel pump shut off system .........301
If a warning light turns on or a warn-
ing buzzer sounds.....................302
If a warning message is displayed
............................................................ 310
If you have a flat tire (vehicles with a
spare tire) ...................................... 313
If you have a flat tire (vehicles with
an emergency tire puncture
repair kit) ....................................... 319
If the engine will not start .......... 329
If you lose your keys..................... 331
If the fuel filler door cannot be
opened ........................................... 331
If the electronic key does not oper-
ate properly................................. 332
If the vehicle battery is discharged
.......................................................... 334
If your vehicle overheats........... 337
If the vehicle becomes stuck ... 339
8
Vehicle specifications
8-1. Specifications
Maintenance data (fuel, oil level,
etc.) ................................................. 342
Fuel information............................ 349
Tire information ............................. 351
8-2. Customization
Customizable features ..............360
8-3. Items to initialize
Items to initialize........................... 369
8-4. Certifications
Certifications .................................370
9
For owners
9-1. For owners
Reporting safety defects for U.S.
owners........................................... 380
Seat belt instructions for Canadian
owners (in French) ...................380
SRS airbag instructions for Cana-
dian owners (in French) ......... 382
Headlight aim instructions for
Canadian owners (in French)
...
................................................ 388
.......
Page 5
Index
What to do if... (Troubleshooting)
...........................................................390
Alphabetical Index....................... 393
TABLE OF CONTENTS
5
1
2
3
4
5
6
7
8
9
Page 6
6
For your information
Main Owner’s Manual
Please note that this manual applies to
all models and explains all equipment,
including options. Therefore, you may
find some explanations for equipment
not installed on your vehicle.
All specifications provided in this manual are current at the time of printing.
However, because of the Lexus policy
of continual product improvement, we
reserve the right to make changes at
any time without notice.
Depending on specifications, the vehicle shown in the illustrations may differ
from your vehicle in terms of color and
equipment.
Noise from under vehicle after
turning off the engine
Approximately five hours after the
engine is turned off, you may hear
sound coming from under the vehicle
for several minutes. This is the sound of
a fuel evaporation leakage check and,
it does not indicate a malfunction.
repair, or replacement, or for any damage they may cause to, or adverse
effect they may have on, your Lexus
vehicle.
This vehicle should not be modified
with non-genuine Lexus products.
Modification with non-genuine Lexus
products could affect its performance,
safety or durability, and may even violate governmental regulations. In addition, damage or performance
problems resulting from the modification may not be covered under warranty.
Installation of a mobile two-way
radio system
The installation of a mobile two-way
radio system in your vehicle could
affect electronic systems such as:
Multiport fuel injection sys-
tem/sequential multiport fuel injection system
Lexus Safety System +
Anti-lock brake system
Vehicle dynamics integrated man-
agement
SRS airbag system
Accessories, spare parts and
modification of your Lexus
A wide variety of non-genuine spare
parts and accessories for Lexus vehicles are currently available in the market. You should know that Toyota does
not warrant these products and is not
responsible for their performance,
Seat belt pretensioner system
Be sure to check with your Lexus
dealer for precautionary measures or
special instructions regarding installation of a mobile two-way radio system.
Vehicle data recording
The vehicle is equipped with sophisti-
Page 7
7
cated computers that will record certain data, such as:
• Engine speed / Electric motor
speed (traction motor speed)
• Accelerator status
•Brake status
• Vehicle speed
• Operation status of the driving
assist systems
• Images from the cameras
Your vehicle is equipped with cameras.
Contact your Lexus dealer for the location
of recording cameras.
The recorded data varies according to
the vehicle grade level and options
with which it is equipped.
These computers do not record conversations or sounds, and only record
images outside of the vehicle in certain
situations.
Data Transmission
Your vehicle may transmit the data
recorded in these computers to Lexus
without notification to you.
Data usage
Lexus may use the data recorded in this
computer to diagnose malfunctions, conduct research and development, and
improve quality.
Lexus will not disclose the recorded data to
a third party except:
• With the consent of the vehicle owner or
with the consent of the lessee if the vehicle is leased
• In response to an official request by the
police, a court of law or a government
agency
• For use by Lexus in a lawsuit
• For research purposes where the data is
not tied to a specific vehicle or vehicle
owner
Recorded image information can be
erased by your Lexus dealer.
The image recording function can be disabled. However, if the function is disabled,
data from when the pre-collision system
operates will not be available.
To learn more about the vehicle data
collected, used and shared by
Lexus, please visit
www.lexus.com/privacyvts/
.
Usage of data collected through
Lexus Enform (U.S. mainland only)
If your Lexus has Lexus Enform and if
you have subscribed to those services,
please refer to the Lexus Enform
Telematics Subscription Service
Agreement for information on data
collected and its usage.
To learn more about the vehicle data
collected, used and shared by Lexus,
please visit
www.lexus.com/privacyvts/
.
Event data recorder
This vehicle is equipped with an event
data recorder (EDR). The main purpose of an EDR is to record, in certain
crash or near crash-like situations, such
as an air bag deployment or hitting a
road obstacle, data that will assist in
understanding how a vehicle’s systems
performed. The EDR is designed to
record data related to vehicle dynamics and safety systems for a short
Page 8
8
period of time, typically 30 seconds or
less.
The EDR in this vehicle is designed to
record such data as:
• How various systems in your vehicle
were operating;
• Whether or not the driver and passenger safety belts were buckled/fastened;
• How far (if at all) the driver was
depressing the accelerator and/or
brake pedal; and,
• How fast the vehicle was traveling.
These data can help provide a better
understanding of the circumstances in
which crashes and injuries occur.
NOTE: EDR data are recorded by your
vehicle only if a non-trivial crash situation occurs; no data are recorded by
the EDR under normal driving conditions and no personal data (e.g., name,
gender, age, and crash location) are
recorded. However, other parties, such
as law enforcement, could combine the
EDR data with the type of personally
identifying data routinely acquired
during a crash investigation.
• An agreement from the vehicle’s owner
(or the lessee for a leased vehicle) is
obtained
• In response to an official request by the
police, a court of law or a government
agency
• For use by Lexus in a lawsuit
However, if necessary, Lexus may:
• Use the data for research on vehicle
safety performance
• Disclose the data to a third party for
research purposes without disclosing
information about the specific vehicle or
vehicle owner
Scrapping of your Lexus
The SRS airbag and seat belt pretensioner devices in your Lexus contain
explosive chemicals. If the vehicle is
scrapped with the airbags and seat belt
pretensioners left as they are, this may
cause an accident such as fire. Be sure
to have the systems of the SRS airbag
and seat belt pretensioner removed
and disposed of by a qualified service
shop or by your Lexus dealer before
you scrap your vehicle.
To read data recorded by an EDR, special equipment is required, and access
to the vehicle or the EDR is needed. In
addition to the vehicle manufacturer,
other parties, such as law enforcement,
that have the special equipment, can
read the information if they have
access to the vehicle or the EDR.
Disclosure of the EDR data
Lexus will not disclose the data recorded in
an EDR to a third party except when:
Perchlorate Material
Special handling may apply, See
www.dtsc.ca.gov/hazardouswaste/perchlorate.
Your vehicle has components that may
contain perchlorate. These components may include airbag, seat belt pretensioners, and wireless remote
control batteries.
Page 9
WARNING
■ General precautions while driving
Driving under the influence: Never drive
your vehicle when under the influence of
alcohol or drugs that have impaired your
ability to operate your vehicle. Alcohol
and certain drugs delay reaction time,
impair judgment and reduce coordination, which could lead to an accident that
could result in death or serious injury.
Defensive driving: Always drive defensively. Anticipate mistakes that other
drivers or pedestrians might make and
be ready to avoid accidents.
Driver distraction: Always give your full
attention to driving. Anything that distracts the driver, such as adjusting controls, talking on a cellular phone or
reading can result in a collision with
resulting death or serious injury to you,
your occupants or others.
■ General precaution regarding chil-
dren’s safety
Never leave children unattended in the
vehicle, and never allow children to have
or use the key.
Children may be able to start the vehicle
or shift the vehicle into neutral. There is
also a danger that children may injure
themselves by playing with the windows,
the moon roof, or other features of the
vehicle. In addition, heat build-up or
extremely cold temperatures inside the
vehicle can be fatal to children.
9
Page 10
10
Reading this manual
Explains symbols used in this manual.
Symbols in this manual
Symbols Meanings
WARNING:
Explains something that,
if not obeyed, could
cause death or serious
injury to people.
NOTICE:
Explains something that,
if not obeyed, could
cause damage to or a
malfunction in the vehicle or its equipment.
Indicates operating or
working procedures. Follow the steps in numerical order.
Symbols in illustrations
Symbols Meanings
Indicates the action
(pushing, turning, etc.)
used to operate switches
and other devices.
Indicates the outcome of
an operation (e.g. a lid
opens).
Symbols Meanings
Indicates the component
or position being
explained.
Means Do not, Do not do
this, or Do not let this
happen.
Page 11
How to search
■ Searching by name
Alphabetical index: P.393
■ Searching by installation position
Pictorial index: P.12
11
■ Searching by symptom or sound
What to do if... (Troubleshooting):
P.390
■ Searching by title
Table of contents: P.2
Page 12
12
Pictorial index
Pictorial index
■Exterior
The shape of the headlights may differ depending on the grade, etc.
Doors ............................................................................................................................P.92
A
Locking/unlocking..............................................................................................................P.92
Opening/closing the side windows.............................................................................P.112
Locking/unlocking by using the mechanical key................................................P.332
Warning lights/warning messages .................................................................P.302, 310
Trunk .............................................................................................................................P.95
B
Opening from inside the cabin ......................................................................................P.96
Opening from outside .......................................................................................................P.96
Opening by using the mechanical key ....................................................................P.332
Warning lights/warning messages .................................................................P.302, 310
Outside rear view mirrors ..................................................................................... P.110
C
Adjusting the mirror angle...............................................................................................P.110
Folding the mirrors............................................................................................................... P.111
Driving position memory
Defogging the mirrors......................................................................................................P.217
*
..............................................................................................P.105
Page 13
Pictorial index
Windshield wipers ..................................................................................................P.143
D
Precautions for winter season.....................................................................................P.204
To prevent freezing (windshield wiper de-icer)
*
...................................................P.217
Precautions against car wash ......................................................................................P.242
Fuel filler door .......................................................................................................... P.150
E
Refueling method ..............................................................................................................P.150
Fuel type/fuel tank capacity .........................................................................................P.343
Tires............................................................................................................................ P.273
F
Tire size/inflation pressure ...........................................................................................P.347
Winter tires..........................................................................................................................P.204
Checking/rotation/tire pressure warning system..............................................P.273
Coping with flat tires...............................................................................................P.313, 319
Hood .......................................................................................................................... P.264
G
Opening ...............................................................................................................................P.264
Engine oil..............................................................................................................................P.343
Coping with overheating...............................................................................................P.337
Warning messages ...........................................................................................................P.310
Active rear wing
H
*
.................................................................................................... P.195
13
Light bulbs of the exterior lights for driving(Replacing method: P.288, Watts: P.348)
Headlights .................................................................................................................P.138
I
Parking lights/daytime running lights...............................................................P.138
J
Turn signal lights ...................................................................................................... P.136
K
Side marker lights ...................................................................................................P.138
L
Tail lights ....................................................................................................................P.138
M
Stop lights
License plate lights .................................................................................................P.138
N
Back up lights
O
Shifting the shift lever to R..............................................................................................P.133
*
:If equipped
Page 14
14
Pictorial index
■Instrument panel
Engine switch ...........................................................................................................P.128
A
Starting the engine/changing the mode..................................................................P.128
Emergency stop of the engine ....................................................................................P.294
When the engine will not start.....................................................................................P.329
Warning messages ...........................................................................................................P.310
Shift lever................................................................................................................... P.132
B
Changing the shift position............................................................................................ P.133
Precautions for towing ................................................................................................... P.297
When the shift lever does not move .......................................................................... P.133
Meters ..........................................................................................................................P.66
C
Reading the meters/adjusting the instrument panel lights.................................P.66
Warning lights/indicator lights ...................................................................................... P.62
When a warning light comes on.................................................................................P.302
Multi-information display ....................................................................................... P.73
D
Display......................................................................................................................................P.73
When the warning messages are displayed...........................................................P.310
Page 15
Pictorial index
K
N
Parking brake........................................................................................................... P.137
E
Applying/releasing ............................................................................................................P.137
Precautions for winter season.....................................................................................P.205
Warning buzzer/message.............................................................................................P.310
Headlight switch .....................................................................................................P.138
F
Turn signal lever ...................................................................................................... P.136
Headlights/parking lights/tail lights/license plate lights/daytime running lights
...................................................................................................................................................P.138
Windshield wiper and washer switch ................................................................ P.143
G
Usage...................................................................................................................................... P.143
Adding washer fluid......................................................................................................... P.272
Warning messages ...........................................................................................................P.310
Headlight cleaners
Emergency flasher switch ................................................................................... P.294
H
Trunk opener switch................................................................................................. P.96
I
Hood lock release lever ....................................................................................... P.264
J
*1
......................................................................................................... P.143
15
Tilt and telescopic steering control switch*1.................................................. P.108
Adjustment ...........................................................................................................................P.108
Driving position memory
Tilt and telescopic steering lock release lever
L
Air conditioning system ........................................................................................P.213
M
*1
.............................................................................................P.105
*1
........................................... P.108
Usage.......................................................................................................................................P.213
Rear window defogger.....................................................................................................P.217
Audio system
Trunk opener main switch ..................................................................................... P.98
O
*1
: If equipped
*2
: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
*2
Page 16
16
B
■Switches
A
C
D
E
F
G
*
:If equipped
Pictorial index
Automatic High Beam switch..............................................................................P.140
Windshield wiper de-icer switch
Active rear wing switch
*
*
...................................................................... P.217
....................................................................................... P.195
Odometer/trip meter/trip meter reset button ............................................... P.72
Instrument panel light control switches .............................................................P.73
Intuitive parking assist switch
BSM (Blind Spot Monitor) main switch
*
............................................................................ P.187
*
.......................................................... P.179
Driving position memory buttons
A
*
..................................................................... P.105
Page 17
Outside rear view mirror switches ..................................................................... P.110
D
C
D
B
Door lock switches ...................................................................................................P.94
C
Power window switches ......................................................................................... P.112
Window lock switch ................................................................................................ P.113
E
Tire pressure warning reset switch................................................................... P.277
F
*
:If equipped
Pictorial index
17
Audio remote control switches
A
Paddle shift switches .................................................................................... P.134, 135
B
*
Meter control switches ........................................................................................... P.74
Vehicle-to-vehicle distance switch ................................................................... P.175
Cruise control switch.............................................................................................. P.171
E
LDA (Lane Departure Alert with steering control) switch ........................ P.164
F
Talk switch
G
Telephone switches
H
*
: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
*
*
Page 18
18
F
H
Pictorial index
Seat heater switches*1........................................................................................... P.221
A
Seat ventilator switches
B
Heated steering wheel switch
C
Driving mode select switch .................................................................................. P.192
D
VSC OFF switch.................................................................................................... P.200
E
*1
....................................................................................P.222
*1
..........................................................................P.221
“LAUNCH” switch ................................................................................................. P.194
*1
“TVD” switch
G
Remote Touch
*1
: If equipped
*2
: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
.........................................................................................................P.198
*2
.................................................................................................... P.208
Page 19
■Interior
F
SRS airbags................................................................................................................ P.28
A
Floor mats ....................................................................................................................P.22
B
Front seats .................................................................................................................P.103
C
Seat belts .....................................................................................................................P.24
D
Console box............................................................................................................. P.227
E
Inside lock buttons .................................................................................................... P.94
Cup holders
G
Assist grips ...............................................................................................................P.229
H
Coat hooks ...............................................................................................................P.229
I
*
:If equipped
Pictorial index
*
............................................................................................................P.226
19
Page 20
20
E
■Ceiling
A
B
C
D
F
G
*
:If equipped
Pictorial index
Inside rear view mirror .......................................................................................... P.109
Sun visors................................................................................................................. P.230
Vanity mirrors ........................................................................................................ P.230
Interior light ............................................................................................................ P.223
Personal lights.........................................................................................................P.224
*
Moon roof switches
“SOS” button
............................................................................................... P.114
*
........................................................................................................... P.53
Garage door opener buttons ..............................................................................P.231
Page 21
21
For safety and security
.
1-1. For safe use
Before driving.................................22
For safe driving.............................. 23
Seat belts ..........................................24
SRS airbags .................................... 28
Front passenger occupant classifi-
cation system .............................. 36
Exhaust gas precautions .............41
1-2. Child safety
Riding with children......................42
Child restraint systems ...............42
1-3. LEXUS Enform
Lexus Enform Safety Connect
........................................................... 53
1-4. Theft deterrent system
Engine immobilizer system...... 57
Alarm................................................. 58
Theft prevention labels (U.S.A.)
........................................................... 60
1
1
For safety and security
Page 22
22
A
WARNING
1-1.For safe use
1-1. For safe use
Before driving
Observe the following before starting off in the vehicle to ensure
safety of driving.
Installing floor mats
Use only floor mats designed specifically for vehicles of the same model
and model year as your vehicle. Fix
them securely in place onto the carpet.
1 Insert the retaining hooks (clips)
into the floor mat eyelets.
Observe the following precautions.
Failure to do so may cause the driver’s
floor mat to slip, possibly interfering with
the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle. This
could lead to an accident, resulting in
death or serious injury.
■ When installing the driver’s floor mat
● Do not use floor mats designed for
other models or different model year
vehicles, even if they are Lexus Genuine floor mats.
● Only use floor mats designed for the
driver’s seat.
● Always install the floor mat securely
using the retaining hooks (clips) provided.
● Do not use two or more floor mats on
top of each other.
● Do not place the floor mat bot-
tom-side up or upside-down.
2 Turn the upper knob of each retain-
ing hook (clip) to secure the floor
mats in place.
Always align the marks.
The shape of the retaining hooks (clips)
may differ from that shown in the illustration.
■ Before driving
● Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this
check after cleaning the floor.
● With the engine stopped and the shift
lever in P, fully depress each pedal to
the floor to make sure it does not interfere with the floor mat.
Page 23
1-1. For safe use
WARNING
A
B
C
23
For safe driving
For safe driving, adjust the seat and
mirror to an appropriate position
before driving.
Correct driving posture
Adjust the angle of the seatback so
that you are sitting straight up and
so that you do not have to lean forward to steer. (P.103)
Adjust the seat so that you can
depress the pedals fully and so that
your arms bend slightly at the
elbow when gripping the steering
wheel. (P.103)
Wear the seat belt correctly.
(P.24)
● Do not place a cushion between the
driver or passenger and the seatback.
A cushion may prevent correct posture from being achieved, and reduce
the effectiveness of the seat belt and
head restraint.
● Do not place anything under the front
seats.
Objects placed under the front seats
may become jammed in the seat
tracks and stop the seat from locking in
place. This may lead to an accident
and the adjustment mechanism may
also be damaged.
● Always observe the legal speed limit
when driving on public roads.
● When driving over long distances, take
regular breaks before you start to feel
tired.
Also, if you feel tired or sleepy while
driving, do not force yourself to continue driving and take a break immediately.
Correct use of the seat belts
Make sure that all occupants are wearing their seat belts before driving the
vehicle. (P.24)
Use a child restraint system appropriate for the child until the child becomes
large enough to properly wear the
vehicle’s seat belt. (P.42)
1
For safety and security
■ For safe driving
Observe the following precautions.
Failure to do so may result in death or
serious injury.
● Do not adjust the position of the
driver’s seat while driving.
Doing so could cause the driver to lose
control of the vehicle.
Adjusting the mirrors
Make sure that you can see backward
clearly by adjusting the inside and outside rear view mirrors properly.
(P.109, 110)
Page 24
24
WARNING
1-1. For safe use
Seat belts
Make sure that all occupants are
wearing their seat belts before driving the vehicle.
Observe the following precautions to
reduce the risk of injury in the event of
sudden braking, sudden swerving or an
accident.
Failure to do so may cause death or serious injury.
■ Wearing a seat belt
● Ensure that all passengers wear a seat
belt.
● Always wear a seat belt properly.
● Each seat belt should be used by one
person only. Do not use a seat belt for
more than one person at once, including children.
● Lexus recommends that children be
seated in the rear seat and always use
a seat belt and/or an appropriate child
restraint system.
● To achieve a proper seating position,
do not recline the seat more than necessary. The seat belt is most effective
when the occupants are sitting up
straight and well back in the seats.
■ Pregnant women
Obtain medical advice and wear the seat
belt in the proper way. (
Women who are pregnant should position the lap belt as low as possible over
the hips in the same manner as other
occupants, extending the shoulder belt
completely over the shoulder and avoiding belt contact with the rounding of the
abdominal area.
If the seat belt is not worn properly, not
only the pregnant woman, but also the
fetus could suffer death or serious injury
as a result of sudden braking or a collision.
■ People suffering illness
Obtain medical advice and wear the seat
belt in the proper way. (
P.25)
P.25)
● Do not wear the shoulder belt under
your arm.
● Always wear your seat belt low and
snug across your hips.
■ When children are in the vehicle
P.49
■ Seat belt damage and wear
● Do not damage the seat belts by allow-
ing the belt, plate, or buckle to be
jammed in the door.
● Inspect the seat belt system periodi-
cally. Check for cuts, fraying, and loose
parts. Do not use a damaged seat belt
until it is replaced. Damaged seat belts
cannot protect an occupant from
death or serious injury.
Page 25
WARNING
● Ensure that the belt and plate are
WARNING
A
B
locked and the belt is not twisted.
If the seat belt does not function correctly, immediately contact your Lexus
dealer.
1-1. For safe use
25
● Replace the seat assembly, including
the belts, if your vehicle has been
involved in a serious accident, even if
there is no obvious damage.
● Do not attempt to install, remove,
modify, disassemble or dispose of the
seat belts. Have any necessary repairs
carried out by your Lexus dealer. Inappropriate handling may lead to incorrect operation.
Correct use of the seat belts
Extend the shoulder belt so that it
comes fully over the shoulder, but
does not come into contact with the
neck or slide off the shoulder.
1
For safety and security
Not twisted
Twisted
■ Child seat belt usage
The seat belts of your vehicle were principally designed for persons of adult size.
● Use a child restraint system appropriate
for the child, until the child becomes large
enough to properly wear the vehicle’s
seat belt. (P.42)
● When the child becomes large enough to
properly wear the vehicle’s seat belt, follow the instructions regarding seat belt
usage. (P.24)
■ Seat belt extender
If your seat belts cannot be fastened
securely because they are not long enough,
a personalized seat belt extender is available from your Lexus dealer free of charge.
Position the lap belt as low as possi-
ble over the hips.
Adjust the position of the seatback.
Sit up straight and well back in the
seat.
Do not twist the seat belt.
■ Using a seat belt extender
● Do not wear the seat belt extender if
you can fasten the seat belt without the
extender.
Page 26
26
WARNING
NOTICE
WARNING
● Do not use the seat belt extender
● The personalized extender may not be
■ When using a seat belt extender
When releasing the seat belt, press on
the buckle release button on the
extender, not on the seat belt.
This helps prevent damage to the vehicle
interior and the extender itself.
1-1. For safe use
when installing a child restraint system
because the belt will not securely hold
the child restraint system, increasing
the risk of death or serious injury in the
event of an accident.
safe on another vehicle, when used by
another person, or at a different seating position other than the one originally intended.
motion will allow the belt to extend so that
you can move around fully.
■ Automatic locking retractor (ALR)
When a passenger’s shoulder belt is completely extended and then retracted even
slightly, the belt is locked in that position and
cannot be extended. This feature is used to
hold a child restraint system ( CRS) firmly. To
free the belt again, fully retract the belt and
then pull the belt out once more. (P.42)
Seat belt guide
Fastening and releasing the seat
belt
1 To fasten the seat belt, push the
plate into the buckle until a click
sound is heard.
2 To release the seat belt, press the
release button .
■ Emergency locking retractor (ELR)
The retractor will lock the belt during a sudden stop o r on impa ct. It ma y also lock if y ou
lean forward too quickly. A slow, easy
A
When fastening a front seat belt,
ensure that it is passed through the seat
belt guide. Passing the seat belt
through the guide enables the seat belt
to be easily extended.
When you get into or out of the rear seats,
release the seat belt from the seat belt
guide.
■ When using the seat belt guide
● Always make sure that the belt is not
twisted, and runs freely through the
guide.
● Regardless of whether the guide is
used or not, always secure the seat belt
guide button.
● Do not hang from or pull the guide
forcefully.
Page 27
1-1. For safe use
WARNING
27
Seat belt pretensioners
The pretensioners help the seat belts to
quickly restrain the occupants by
retracting the seat belts when the vehicle is subjected to certain types of
severe frontal collision or a vehicle rollover.
The front seat belt pretensioners also activate when the vehicle is subjected to certain types of severe side collision.
The pretensioners do not activate in the
event of a minor frontal impact, a minor
side impact or a rear impact.
● If the pretensioner has activated, the
SRS warning light will come on. In that
case, the seat belt cannot be used
again and must be replaced at your
Lexus dealer.
1
For safety and security
■ Replacing the belt after the preten-
sioner has been activated
If the vehicle is involved in multiple collisions, the pretensioner will activate for the
first collision, but will not activate for the
second or subsequent collisions.
■ Seat belt pretensioners
● Do not place anything, such as a cush-
ion, on the front passenger’s seat.
Doing so will disperse the passenger’s
weight, which prevents the sensor
from detecting the passenger’s weight
properly. As a result, the seat belt pretensioner for the front passenger’s seat
may not activate in the event of a collision.
Page 28
28
A
B
C
D
1-1. For safe use
SRS airbags
The SRS airbags inflate when the vehicle is subjected to certain types of severe
impacts that may cause significant injury to the occupants. They work together
with the seat belts to help reduce the risk of death or serious injury.
SRS airbag system
■ Location of the SRS airbags
SRS front airbags
SRS driver airbag/front passenger airbag
Can help protect the head and chest of the driver and front passenger from impact with
interior components
SRS knee airbags
Can help provide driver and front passenger protection
SRS side and curtain shield airbags
SRS side airbags
Can help protect the torso of the front seat occupants
SRS curtain shield airbags
• Can help protect primarily the head of occupants in the outer seats
• Can help prevent the occupants from being thrown from the vehicle in the event of vehi-
Page 29
1-1. For safe use
A
B
C
D
E
F
G
H
I
J
K
L
M
N
OPQ
cle rollover
■ SRS airbag system components
Front passenger occupant classification system (ECU and sensors)
Side impact sensors (front door)
Knee airbags
Front passenger airbag
29
1
For safety and security
Curtain shield airbags
“AIR BAG ON” and “AIR BAG OFF” indicator lights
Seat belt pretensioners and force limiters
Side impact sensors (front)
Front side airbags
SRS warning light
Driver airbag
Side impact sensors (rear)
Driver’s seat position sensor
Driver’s seat belt buckle switch
Airbag sensor assembly
Front passenger’s seat belt buckle switch
Front impact sensors
Your vehicle is equipped with ADVANCED AIRBAGS designed based on the US
motor vehicle safety standards (FMVSS208). The airbag sensor assembly (ECU)
controls airbag deployment based on information obtained from the sensors etc.
Page 30
30
1-1. For safe use
shown in the system components diagram above. This information includes crash
severity and occupant information. As the airbags deploy, a chemical reaction in
the inflators quickly fills the airbags with non-toxic gas to help restrain the motion of
the occupants.
■ If the SRS airbags deploy (inflate)
● Slight abrasions, burns, bruising etc., may
be sustained from SRS airbags, due to the
extremely high speed deployment (inflation) by hot gases.
● A loud noise and white powder will be
emitted.
● Parts of the airbag module (steering
wheel hub, airbag cover and inflator) as
well as the front seats, parts of the front
and rear pillars, and roof side rails, may
be hot for several minutes. The airbag
itself may also be hot.
● The windshield may crack.
● For Lexus Enform Safety Connect sub-
scribers, if the SRS airbags deploy or in
the event of a severe rear-end collision,
the system is designed to send an emergency call to the response center, notifying them of the vehicle’s location (without
needing to push the “SOS” button) and
an agent will attempt to speak with the
occupants to ascertain the level of emergency and assistance required. If the
occupants are unable to communicate,
the agent automatically treats the call as
an emergency and helps to dispatch the
necessary emergency services. (P.53)
■ SRS airbag deployment conditions (SRS
front airbags)
● The SRS front airbags will deploy in the
event of an impact that exceeds the set
threshold level (the level of force corresponding to an approximately 12 - 18
mph [20 - 30 km/h] frontal collision with
a fixed wall that does not move or
deform).
However, this threshold velocity will be
considerably higher in the following situations:
• If the vehicle strikes an object, such as a
parked vehicle or sign pole, which can
move or deform on impact
• If the vehicle is involved in an underride
collision, such as a collision in which the
front of the vehicle “underrides”, or goes
under, the bed of a truck
● Depending on the type of collision, it is
possible that only the seat belt pretensioners will activate.
● The SRS front airbags for the front pas-
senger will not activate if there is no passenger sitting in the front passenger seat.
However, the SRS front airbags for the
front passenger may deploy if luggage is
put in the seat, even if the seat is unoccupied.
■ SRS airbag deployment conditions (SRS
side and curtain shield airbags)
● The SRS side and curtain shield airbags
will deploy in the event of an impact that
exceeds the set threshold level (the level
of force corresponding to the impact
force produced by an approximately
3300 lb. [1500 kg] vehicle colliding with
the vehicle cabin from a direction perpendicular to the vehicle orientation at an
approximate speed of 12 - 18 mph [20 30 km/h]).
● The SRS curtain shield airbags will deploy
in the event of vehicle rollover.
● The SRS side and curtain shield airbags
will deploy in the event of a severe frontal
collision.
■ Conditions under which the SRS air-
bags may deploy (inflate), other than a
collision
The SRS front airbags and SRS side and
curtain shield airbags may also deploy if a
serious impact occurs to the underside of
your vehicle. Some examples are shown in
the illustration.
● Hitting a curb, edge of pavement or hard
surface
● Falling into or jumping over a deep hole
● Landing hard or falling
Page 31
1-1. For safe use
or a collision to the side of the vehicle body
other than the passenger compartment.
● Collision from the side to the vehicle
body other than the passenger compartment
● Collision from the side at an angle
31
The SRS curtain shield airbags may also
deploy under the situations shown in the
illustration.
● The angle of vehicle tip-up is marginal.
● The vehicle skids and hits a curb stone.
■ Types of collisions that may not deploy
the SRS airbags (SRS front airbags)
The SRS front airbags do not generally
inflate if the vehicle is involved in a side or
rear collision, if it rolls over, or if it is involved
in a low-speed frontal collision. But, whenever a collision of any type causes sufficient
forward deceleration of the vehicle, deployment of the SRS front airbags may occur.
● Collision from the side
● Collision from the rear
● Vehicle rollover
1
For safety and security
The SRS side airbags do not generally
inflate if the vehicle is involved in a rear collision, if it rolls over, or if it is involved in a
low-speed side or low-speed frontal collision.
● Collision from the rear
● Vehicle rollover
The SRS curtain shield airbags do not generally inflate if the vehicle is involved in a
rear collision, if it pitches end over end, or if
it is involved in a low-speed side or
low-speed frontal collision.
● Collision from the rear
● Pitching end over end
■ Types of collisions that may not deploy
the SRS airbags (SRS side and curtain
shield airbags)
The SRS side and curtain shield airbags
may not activate if the vehicle is subjected
to a collision from the side at certain angles,
■ When to contact your Lexus dealer
In the following cases, the vehicle will
Page 32
32
WARNING
1-1. For safe use
require inspection and/or repair. Contact
your Lexus dealer as soon as possible.
● Any of the SRS airbags have been
inflated.
● The front of the vehicle is damaged or
deformed, or was involved in an accident
that was not severe enough to cause the
SRS front airbags to inflate.
● A portion of a door or its surrounding
area is damaged or deformed, or the
vehicle was involved in an accident that
was not severe enough to cause the SRS
side and curtain shield airbags to inflate.
● The portion of the front pillars, rear pillars
or roof side rail garnishes (padding) containing the SRS curtain shield airbags
inside is scratched, cracked, or otherwise
damaged.
■ SRS airbag precautions
Observe the following precautions
regarding the SRS airbags. Failure to do
so may cause death or serious injury.
● The pad section of the steering wheel,
dashboard near the front passenger airbag or lower portion of the instrument
panel is scratched, cracked, or otherwise
damaged.
● The surface of the seats with the SRS side
airbag is scratched, cracked, or otherwise damaged.
● The driver and all passengers in the
vehicle must wear their seat belts
properly.
The SRS airbags are supplemental
devices to be used with the seat belts.
Page 33
WARNING
● The SRS driver airbag deploys with
considerable force, and can cause
death or serious injury especially if the
driver is very close to the airbag. The
National Highway Traffic Safety
Administration (NHTSA) advises:
Since the risk zone for the driver’s airbag is the first 2 - 3 in. (50 - 75 mm) of
inflation, placing yourself 10 in. (250
mm) from your driver airbag provides
you with a clear margin of safety. This
distance is measured from the center
of the steering wheel to your breastbone. If you sit less than 10 in. (250
mm) away now, you can change your
driving position in several ways:
• Move your seat to the rear as far as
you can while still reaching the pedals
comfortably.
• Slightly recline the back of the seat.
Although vehicle designs vary, many
drivers can achieve the 10 in. (250
mm) distance, even with the driver seat
all the way forward, simply by reclining
the back of the seat somewhat. If
reclining the back of your seat makes it
hard to see the road, raise yourself by
using a firm, non-slippery cushion, or
raise the seat if your vehicle has that
feature.
• If your steering wheel is adjustable, tilt
it downward. This points the airbag
toward your chest instead of your head
and neck.
The seat should be adjusted as recommended by NHTSA above, while still
maintaining control of the foot pedals,
steering wheel, and your view of the
instrument panel controls.
1-1. For safe use
● If the seat belt extender has been con-
nected to the front seat belt buckles
but the seat belt extender has not also
been fastened to the latch plate of the
seat belt, the SRS front airbags will
judge that the driver and front passenger are wearing the seat belt even
though the seat belt has not been connected. In this case, the SRS front airbags may not activate correctly in a
collision, resulting in death or serious
injury in the event of a collision. Be
sure to wear the seat belt with the seat
belt extender.
● The SRS front passenger airbag also
deploys with considerable force, and
can cause death or serious injury
especially if the front passenger is very
close to the airbag. The front passenger seat should be as far from the airbag as possible with the seatback
adjusted, so the front passenger sits
upright.
● Improperly seated and/or restrained
infants and children can be killed or
seriously injured by a deploying airbag.
An infant or child who is too small to
use a seat belt should be properly
secured using a child restraint system.
Lexus strongly recommends that all
infants and children be placed in the
rear seats of the vehicle and properly
restrained. The rear seats are safer for
infants and children than the front passenger seat. (
P.42)
33
1
For safety and security
Page 34
34
WARNING
● Do not sit on the edge of the seat or
1-1. For safe use
lean against the dashboard.
● Do not allow anyone to kneel on the
passenger seats toward the door or
put their head or hands outside the
vehicle.
● Do not allow a child to stand in front of
the SRS front passenger airbag unit or
sit on the knees of a front passenger.
● Do not allow the front seat occupants
to hold items on their knees.
● Do not lean against the door, the roof
side rail or the front, side and rear pillars.
● Do not attach anything to or lean any-
thing against areas such as the dashboard, steering wheel pad and lower
portion of the instrument panel.
These items can become projectiles
when the SRS driver, front passenger
and knee airbags deploy.
● Do not attach anything to areas such
as a door, windshield, side windshield,
front or rear pillar, roof side rail and
assist grip.
(Except for the speed limit sticker
P.321)
● Do not hang coat hangers or hard
objects on the coat hooks. All of these
items could become projectiles and
may cause death or serious injury,
should the SRS curtain shield airbags
deploy.
Page 35
WARNING
● If a vinyl cover is put on the area where
the SRS knee airbag will deploy, be
sure to remove it.
● Do not use seat accessories which
cover the parts where the SRS side airbags inflate as they may interfere with
inflation of the airbags. Such accessories may prevent the side airbags from
activating correctly, disable the system
or cause the side airbags to inflate
accidentally, resulting in death or serious injury.
● Do not strike or apply significant levels
of force to the area of the SRS airbag
components.
Doing so can cause the SRS airbags to
malfunction.
● Do not touch any of the component
parts immediately after the SRS airbags have deployed (inflated) as they
may be hot.
● If breathing becomes difficult after the
SRS airbags have deployed, open a
door or window to allow fresh air in, or
leave the vehicle if it is safe to do so.
Wash off any residue as soon as possible to prevent skin irritation.
● If the areas where the SRS airbags are
stored, such as the steering wheel pad
and front and rear pillar garnishes, are
damaged or cracked, have them
replaced by your Lexus dealer.
1-1. For safe use
■ Modification and disposal of SRS air-
bag system components
Do not dispose of your vehicle or perform any of the following modifications
without consulting your Lexus dealer.
The SRS airbags may malfunction or
deploy (inflate) accidentally, causing
death or serious injury.
● Installation, removal, disassembly and
repair of the SRS airbags
● Repairs, modifications, removal or
replacement of the steering wheel,
instrument panel, dashboard, seats or
seat upholstery, front, side and rear pillars or roof side rails
● Repairs or modifications of the front
fender, front bumper, or side of the
occupant compartment
● Installation of a grille guard (bull bars,
kangaroo bar, etc.), snow plows,
winches or roof luggage carrier
● Modifications to the vehicle’s suspen-
sion system
● Installation of electronic devices such
as mobile two-way radios and CD
players
● Modifications to your vehicle for a per-
son with a physical disability
35
1
For safety and security
● Do not place anything, such as a cush-
ion, on the front passenger’s seat.
Doing so will disperse the passenger’s
weight, which prevents the sensor
from detecting the passenger’s weight
properly. As a result, the SRS front airbags for the front passenger may not
deploy in the event of a collision.
Page 36
36
A
B
C
D
E
F
WARNING
1-1. For safe use
Front passenger occupant classification system
Your vehicle is equipped with a front passenger occupant classification system.
This system detects the conditions of the front passenger seat and activates or
deactivates the devices for the front passenger.
System components
Driver’s and front passenger’s seat belt reminder light
SRS warning light
For the U.S.A.
“AIR BAG OFF” indicator light
“AIR BAG ON” indicator light
For Canada
“AIR BAG OFF” indicator light
“AIR BAG ON” indicator light
● Wear the seat belt properly.
■ Front passenger occupant classifica-
tion system precautions
Observe the following precautions
regarding the front passenger occupant
classification system.
Failure to do so may cause death or serious injury.
● Make sure the front passenger’s seat
belt plate has not been left inserted
into the buckle before someone sits in
the front passenger seat.
Page 37
WARNING
● Make sure the “AIR BAG OFF” indica-
tor light is not illuminated when using
the seat belt extender for the front passenger seat. If the “AIR BAG OFF”
indicator light is illuminated, disconnect the extender tongue from the seat
belt buckle, and reconnect the seat
belt. Reconnect the seat belt extender
after making sure the “AIR BAG ON”
indicator light is illuminated. If you use
the seat belt extender while the “AIR
BAG OFF” indicator light is illuminated, the SRS airbags for the front
passenger may not activate, which
could cause death or serious injury in
the event of a collision.
● Do not apply a heavy load to the front
passenger seat or equipment (e.g.
seatback pocket).
1-1. For safe use
● If an adult sits in the front passenger
seat, the “AIR BAG ON” indicator light
is illuminated. If the “AIR BAG OFF”
indicator is illuminated, ask the passenger to sit up straight, well back in the
seat, feet on the floor, and with the seat
belt worn correctly. If the “AIR BAG
OFF” indicator still remains illuminated, either ask the passenger to
move to the rear seat, or if that is not
possible, move the front passenger
seat fully rearward.
● When it is unavoidable to install a for-
ward-facing child restraint system on
the front passenger seat, install the
child restraint system on the front passenger seat in the proper order.
(
P.43)
● Do not modify or remove the front
seats.
37
1
For safety and security
● Do not put weight on the front passen-
ger seat by putting your hands or feet
on the front passenger seat seatback
from the rear passenger seat.
● Do not let a rear passenger lift the
front passenger seat with their feet or
press on the seatback with their legs.
● Do not put objects under the front pas-
senger seat.
● Do not recline the front passenger
seatback so far that it touches a rear
seat. This may cause the “AIR BAG
OFF” indicator light to be illuminated,
which indicates that the SRS airbags
for the front passenger will not activate
in the event of a severe accident. If the
seatback touches the rear seat, return
the seatback to a position where it
does not touch the rear seat. Keep the
front passenger seatback as upright as
possible when the vehicle is moving.
Reclining the seatback excessively
may lessen the effectiveness of the
seat belt system.
● Do not kick the front passenger seat or
subject it to severe impact. Otherwise,
the SRS warning light may come on to
indicate a malfunction of the front passenger occupant classification system.
In this case, contact your Lexus dealer
immediately.
● Child restraint systems installed on the
rear seat should not contact the front
seatbacks.
● Do not use a seat accessory, such as a
cushion and seat cover, that covers the
seat cushion surface.
● Do not modify or replace the uphol-
stery of the front seat.
● Do not place anything between the
console box and front passenger seat.
Otherwise, the system may not detect
the front passenger properly, leading
to improper operation of the airbags.
● Adjust the front passenger seat so that
the head restraint does not touch the
ceiling. If the head restraint is left in
contact with the ceiling, the system
may not detect the front passenger
properly, leading to improper operation of the airbags.
Page 38
38
1-1. For safe use
Condition and operation in the front passenger occupant classification
system
■ Adult
*1
Indicator/warning light
Devices
■ Child
*4
Indicator/warning light
“AIR BAG ON” and “AIR BAG OFF” indi-
cator lights
SRS warning light Off
Driver’s and front passenger’s seat belt
reminder light
Front passenger airbag
Side airbag on the front passenger seat
Curtain shield airbag in the front passen-
ger side
Front passenger knee airbag
Front passenger’s seat belt pretensioner
“AIR BAG ON” and “AIR BAG OFF” indi-
cator lights
SRS warning light Off
Driver’s and front passenger’s seat belt
reminder light
“AIR BAG ON”
Off*2 or flashing
*3
Activated
“AIR BAG OFF” or
“AIR BAG ON”
Off*2 or flashing
*4
*3
Devices
Front passenger airbag
Deactivated or acti-
*4
vated
Side airbag on the front passenger seat
Curtain shield airbag in the front passen-
Activated
ger side
Front passenger knee airbag
Deactivated or acti-
*4
vated
Front passenger’s seat belt pretensioner Activated
Page 39
1-1. For safe use
39
■ Child restraint system with infant
“AIR BAG ON” and “AIR BAG OFF” indi-
Indicator/warning light
SRS warning light Off
Driver’s and front passenger’s seat belt
Front passenger airbag Deactivated
Side airbag on the front passenger seat
Devices
Curtain shield airbag in the front passen-
Front passenger knee airbag Deactivated
Front passenger’s seat belt pretensioner Activated
■ Unoccupied
“AIR BAG ON” and “AIR BAG OFF” indi-
Indicator/warning light
SRS warning light
Driver’s and front passenger’s seat belt
*5
cator lights
reminder light
ger side
cator lights
reminder light
“AIR BAG OFF”
Off*2 or flashing
Activated
“AIR BAG OFF”
Off
*6
*3
1
For safety and security
Front passenger airbag Deactivated
Side airbag on the front passenger seat
Devices
Curtain shield airbag in the front passen-
Front passenger knee airbag Deactivated
Front passenger’s seat belt pretensioner Activated
■ There is a malfunction in the system
“AIR BAG ON” and “AIR BAG OFF” indi-
cator lights
Indicator/warning light
SRS warning light
Driver’s and front passenger’s seat belt
reminder light
Activated
ger side
“AIR BAG OFF”
On
Page 40
40
1-1. For safe use
Front passenger airbag Deactivated
Side airbag on the front passenger seat
Devices
Curtain shield airbag in the front passen-
ger side
Activated
Front passenger knee airbag Deactivated
Front passenger’s seat belt pretensioner Activated
*1
: The system judges a person of adult size as an adult. When a smaller adult sits in the
front passenger seat, the system may not recognize him/her as an adult depending on
his/her physique and posture.
*2
: In the event the front passenger is wearing a seat belt.
*3
: In the event the front passenger does not wear a seat belt.
*4
: For some children, child in seat, child in booster seat or child in convertible seat, the sys-
tem may not recognize him/her as a child. Factors which may affect this can be the physique or posture.
*5
: Never install a rear-facing child restraint system on the front passenger seat. A for-
ward-facing child restraint system should only be installed on the front passenger seat
when it is unavoidable. (P.42)
*6
: In case the indicator light is not illuminated, consult this manual on how to install the child
restraint system properly. (P.43)
Page 41
1-1. For safe use
WARNING
41
Exhaust gas precautions
Harmful substance to the human
body is included in exhaust gases if
inhaled.
Exhaust gases include harmful carbon
monoxide (CO), which is colorless and
odorless. Observe the following precautions.
Failure to do so may cause exhaust gases
enter the vehicle and may lead to an
accident caused by light-headedness, or
may lead to death or a serious health
hazard.
■ Important points while driving
● Keep the trunk lid closed.
● If you smell exhaust gases in the vehi-
cle even when the trunk lid is closed,
open the windows and have the vehicle inspected at your Lexus dealer as
soon as possible.
■ When parking
● If the vehicle is in a poorly ventilated
area or a closed area, such as a
garage, stop the engine.
■ Exhaust pipe
The exhaust system needs to be checked
periodically. If there is a hole or crack
caused by corrosion, damage to a joint
or abnormal exhaust noise, be sure to
have the vehicle inspected and repaired
by your Lexus dealer.
1
For safety and security
● Do not leave the vehicle with the
engine on for a long time.
If such a situation cannot be avoided,
park the vehicle in an open space and
ensure that exhaust fumes do not enter
the vehicle interior.
● Do not leave the engine running in an
area with snow build-up, or where it is
snowing. If snowbanks build up around
the vehicle while the engine is running,
exhaust gases may collect and enter
the vehicle.
Page 42
42
WARNING
1-2.Child safety
1-2. Child safety
Riding with children
Child restraint systems
Observe the following precautions
when children are in the vehicle.
Use a child restraint system appropriate for the child, until the child
becomes large enough to properly
wear the vehicle’s seat belt.
It is recommended that children
sit in the rear seats to avoid accidental contact with the shift lever,
wiper switch, etc.
Use the window lock switch to
avoid children operating the
power window accidentally.
(P.113)
Do not let small children operate
equipment which may catch or
pinch body parts, such as the
power window, hood, trunk, seats,
etc.
■ When children are in the vehicle
Never leave children unattended in the
vehicle, and never allow children to have
or use the key.
Children may be able to start the vehicle
or shift the vehicle into neutral. There is
also a danger that children may injure
themselves by playing with the windows
or other features of the vehicle. In addition, heat build-up or extremely cold
temperatures inside the vehicle can be
fatal to children.
Before installing a child restraint
system in the vehicle, there are precautions that need to be observed,
different types of child restraint systems, as well as installation methods, etc., written in this manual.
Use a child restraint system when
riding with a small child that cannot
properly use a seat belt. For the
child’s safety, install the child
restraint system to a rear seat. Be
sure to follow the installation
method that is in the operation
manual enclosed with the restraint
system.
Table of contents
Points to remember: P.42
Child restraint system: P.43
When using a child restraint system:
P.44
Child restraint system installation
method
• Fixed with a seat belt: P.46
• Fixed with a child restraint LATCH
anchor: P.49
• Using an anchor bracket (for top
tether strap): P.51
Points to remember
The laws of all 50 states of the U.S.A.
as well as Canada now require the use
of child restraint systems.
Prioritize and observe the warn-
Page 43
1-2. Child safety
WARNING
43
ings, as well as the laws and regulations for child restraint systems.
Use a child restraint system until the
child becomes large enough to
properly wear the vehicle’s seat belt.
Choose a child restraint system that
suits your vehicle and is appropriate
to the age and size of the child.
■ When a child is riding
Observe the following precautions.
Failure to do so may result in death or
serious injury.
● For effective protection in automobile
accidents and sudden stops, a child
must be properly restrained, using a
seat belt or child restraint system
which is correctly installed. For installation details, refer to the operation manual enclosed with the child restraint
system. General installation instruction
is provided in this manual.
● Lexus strongly urges the use of a
proper child restraint system that conforms to the weight and size of the
child, installed on the rear seat.
According to accident statistics, the
child is safer when properly restrained
in the rear seat than in the front seat.
● Holding a child in your or someone
else’s arms is not a substitute for a child
restraint system. In an accident, the
child can be crushed against the windshield or between the holder and the
interior of the vehicle.
■ Handling the child restraint system
If the child restraint system is not properly fixed in place, the child or other passengers may be seriously injured or even
killed in the event of sudden braking, sudden swerving, or an accident.
● If the vehicle were to receive a strong
impact from an accident, etc., it is possible that the child restraint system has
damage that is not readily visible. In
such cases, do not reuse the restraint
system.
● Make sure you have complied with all
installation instructions provided with
the child restraint system manufacturer and that the system is properly
secured.
● Keep the child restraint system prop-
erly secured on the seat even if it is not
in use. Do not store the child restraint
system unsecured in the passenger
compartment.
● If it is necessary to detach the child
restraint system, remove it from the
vehicle or store it securely in the trunk.
1
For safety and security
Child restraint system
■ Types of child restraint system installation methods
Confirm with the operation manual enclosed with the child restraint system about
the installation of the child restraint system.
Page 44
44
Seat belt attachment P.46
1-2. Child safety
Installation method Page
Child restraint LATCH
anchors attachment
Anchor brackets (for top
tether strap) attachment
When using a child restraint system
■ When installing a child restraint
system to a front passenger seat
For the safety of a child, install child
restraint systems to a rear seat. When
installing child restraint system to a
front passenger seat is unavoidable,
adjust the passenger seat as follows
and install the child restraint system.
P.49
P.51
Move the front seat fully rearward.
Adjust the seat height to the upper
most position.
Page 45
1-2. Child safety
WARNING
45
Adjust the seatback angle to the
most upright position.
■ When installing a child restraint sys-
tem
Observe the following precautions.
Failure to do so may result in death or
serious injury.
● Never install a rear-facing child
restraint system on the front passenger
seat even if the “AIR BAG OFF” indicator light is illuminated. In the event of
an accident, the force of the rapid inflation of the front passenger airbag can
cause death or serious injury to the
child if the rear-facing child restraint
system is installed on the front passenger seat.
● A forward-facing child restraint system
may be installed on the front passenger seat only when it is unavoidable. A
child restraint system that requires a
top tether strap should not be used in
the front passenger seat since there is
no top tether strap anchor for the front
passenger seat.
● A forward-facing child restraint system
may be installed on the front passenger seat only when it is unavoidable.
When installing a forward-facing child
restraint system on the front passenger
seat, move the front seat fully rearward, adjust the seat height to the
upper most position, and adjust the
seatback angle to the most upright
position, even if the “AIR BAG OFF”
indicator light is illuminated.
● Do not allow the child to lean his/her
head or any part of his/her body
against the door or the area of the seat,
front pillars or roof side rails from
which the SRS side airbags or SRS
curtain shield airbags deploy even if
the child is seated in the child restraint
system. It is dangerous if the SRS side
and curtain shield airbags inflate, and
the impact could cause death or serious injury to the child.
● When a booster seat is installed,
always ensure that the shoulder belt is
positioned across the center of the
child’s shoulder. The belt should be
kept away from the child’s neck, but
not so that it could fall off the child’s
shoulder.
● Use child restraint system suitable to
the age and size of the child and install
it to the rear seat.
● If the driver’s seat interferes with the
child restraint system and prevents it
from being attached correctly, attach
the child restraint system to the
right-hand rear seat.
1
For safety and security
● Adjust the front passenger seat so that
it does not interfere with the child
restraint system.
Page 46
46
1-2. Child safety
Child restraint system fixed with
a seat belt
A child restraint system for a small
child or baby must itself be properly
restrained on the seat with the lap portion of the lap/shoulder belt.
■ Installing child restraint system
using a seat belt (child restraint
lock function belt)
Install the child restraint system in
accordance to the operation manual
enclosed with the child restraint system.
■ Rear-facingInfant seat/convert-
ible seat
1 Place the child restraint system on
the rear seat facing the rear of the
vehicle.
into the buckle. Make sure that the
belt is not twisted.
3 Fully extend the shoulder belt and
allow it to retract to put it in lock
mode. In lock mode, the belt cannot
be extended.
2 Run the seat belt through the child
restraint system and insert the plate
4 While pushing the child restraint
system down into the rear seat,
allow the shoulder belt to retract
until the child restraint system is
securely in place.
After the shoulder belt has retracted to a
point where there is no slack in the belt,
pull the belt to check that it cannot be
extended.
Page 47
1-2. Child safety
47
5 After installing the child restraint
system, rock it back and forth to
ensure that it is installed securely.
(P.49)
■ Forward-facingConvertible
seat
1 When using the front passenger
seat: Adjust the seat
If installing the child restraint system to the
front passenger seat is unavoidable, refer
to P.44for front passenger seat adjustment.
2 Place the child restraint system on
the seat facing the front of the vehicle.
mode. In lock mode, the belt cannot
be extended.
1
For safety and security
5 While pushing the child restraint
system into the rear seat, allow the
shoulder belt to retract until the
child restraint system is securely in
place.
After the shoulder belt has retracted to a
point where there is no slack in the belt,
pull the belt to check that it cannot be
extended.
3 Run the seat belt through the child
restraint system and insert the plate
into the buckle. Make sure that the
belt is not twisted.
4 Fully extend the shoulder belt and
allow it to retract to put it in lock
6 If the child restraint has a top tether
strap, follow the child restraint manufacturer’s operation manual
regarding the installation, using the
top tether strap to latch onto the
top tether strap anchor. (P.51)
7 After installing the child restraint
system, rock it back and forth to
ensure that it is installed securely.
(P.49)
Page 48
48
WARNING
1-2. Child safety
■ Booster seat
1 If installing the child restraint sys-
tem to the front passenger seat is
unavoidable, refer to P.44for front
passenger seat adjustment.
2 Place the child restraint system on
the seat facing the front of the vehicle.
Booster type
High back type
(P.24)
■ Removing a child restraint system
installed with a seat belt
Press the buckle release button and
fully retract the seat belt.
When releasing the buckle, the child
restraint system may spring up due to the
rebound of the seat cushion. Release the
buckle while holding down the child
restraint system.
Since the seat belt automatically reels itself,
slowly return it to the stowing position.
3 Sit the child in the child restraint
system. Fit the seat belt to the child
restraint system according to the
manufacturer’s instructions and
insert the plate into the buckle.
Make sure that the belt is not
twisted.
Check that the shoulder belt is correctly
positioned over the child’s shoulder and
that the lap belt is as low as possible.
■ When installing a child restraint sys-
tem
Observe the following precautions.
Failure to do so may result in death or
serious injury.
Page 49
WARNING
● Do not allow children to play with the
seat belt. If the seat belt becomes
twisted around a child’s neck, it may
lead to choking or other serious injuries that could result in death.
If this occurs and the buckle cannot be
unfastened, scissors should be used to
cut the belt.
● Ensure that the belt and plate are
securely locked and the seat belt is not
twisted.
● Shake the child restraint system left
and right, and forward and backward
to ensure that it has been securely
installed.
● After securing a child restraint system,
never adjust the seat.
● When a booster seat is installed,
always ensure that the shoulder belt is
positioned across the center of the
child’s shoulder. The belt should be
kept away from the child’s neck, but
not so that it could fall off the child’s
shoulder.
When a junior seat (booster seat) is
installed, always ensure that the shoulder
belt is positioned across the center of the
child’s shoulder. The belt should be kept
away from the child’s neck, but not so that
it could fall off the child’s shoulder.
● Follow all installation instructions pro-
vided by the child restraint system
manufacturer.
■ When installing a booster seat
To prevent the belt from going into ALR
lock mode, do not fully extend the shoulder belt. ALR mode causes the belt to
tighten only. This could cause injury or
discomfort to the child. (
P.26)
1-2. Child safety
■ Do not use a seat belt extender
If a seat belt extender is used when
installing a child restraint system, the seat
belt will not securely hold the child
restraint system, which could cause
death or serious injury to the child or
other passengers in the event of sudden
braking, sudden swerving or an accident.
Child restraint system fixed with
a child restraint LATCH anchor
■ Child restraint LATCH anchors
LATCH anchors are provided for the
each rear seats. (Mark displaying the
location of the anchors are attached to
the seats.)
■ When installing in the each rear
seats
Install the child restraint system in
accordance to the operation manual
enclosed with the child restraint system.
With flexible lowerattachments
1 Latch the hooks of the lower
attachments onto the LATCH
anchors.
For owners in Canada:
The symbol on a child restraint sys-
49
1
For safety and security
Page 50
50
A
A
1-2. Child safety
tem indicates the presence of a
lower connector system.
Canada only
With rigid lower attachments
1 Latch the buckles onto the LATCH
anchors.
For owners in Canada:
The symbol on a child restraint sys-
tem indicates the presence of a
lower connector system.
Canada only
2 If the child restraint has a top tether
strap, follow the child restraint manufacturer’s operation manual
regarding the installation, using the
top tether strap to latch onto the
top tether strap anchor. (P.51)
3 After installing the child restraint
system, rock it back and forth to
ensure that it is installed securely.
(P.49)
■ Laws and regulations pertaining to
anchorages
The LATCH system conforms to
FMVSS225 or CMVSS210.2.
Child restraint systems conforming to
FMVSS213 or CMVSS213 specifications
can be used.
This vehicle is designed to conform to the
SAE J1819.
Page 51
WARNING
■ When installing a child restraint sys-
A
B
WARNING
A
B
tem
Observe the following precautions.
Failure to do so may result in death or
serious injury.
● When using the LATCH anchors, be
sure that there are no foreign objects
around the anchors and that the seat
belt is not caught behind the child
restraint system.
● Follow all installation instructions pro-
vided by the child restraint system
manufacturer.
● If the seat is adjusted, reconfirm the
security of the child restraint system.
Using an anchor bracket (for top
tether strap)
1-2. Child safety
accordance to the operation manual
enclosed with the child restraint system.
Open the anchor bracket cover, latch
the hook onto the anchor bracket and
tighten the top tether strap.
Make sure the top tether strap is securely
latched. (P.49)
Top tether strap
51
1
For safety and security
■ Anchor brackets (for top tether
strap)
Anchor brackets are provided for the
each rear seat.
Use anchor brackets when fixing the
top tether strap.
Anchor brackets
Top tether strap
■ Fixing the top tether strap to the
anchor bracket
Install the child restraint system in
Hook
■ Laws and regulations pertaining to
anchorages
The LATCH system conforms to
FMVSS225 or CMVSS210.2.
Child restraint systems conforming to
FMVSS213 or CMVSS213 specifications
can be used.
This vehicle is designed to conform to the
SAE J1819.
■ When installing a child restraint sys-
tem
Observe the following precautions.
Failure to do so may result in death or
serious injury.
● Firmly attach the top tether strap and
make sure that the belt is not twisted.
● Do not attach the top tether strap to
anything other than the anchor
bracket.
Page 52
52
WARNING
NOTICE
● After securing a child restraint system,
● Follow all installation instructions pro-
■ Anchor brackets (for top tether
When not in use, make certain to close
the lid. If it remains open, the lid may be
damaged.
1-2. Child safety
never adjust the seat.
vided by the child restraint system
manufacturer.
strap)
Page 53
1-3.LEXUS Enform
A
B
C
Lexus Enform Safety Con-
*
nect
*
:If equipped
Safety Connect is a subscription-based telematics service that
uses Global Positioning System
(GPS) data and embedded cellular
technology to provide safety and
security features to subscribers.
Safety Connect is supported by
Lexus’ designated response center,
which operates 24 hours per day, 7
days per week.
1-3. LEXUS Enform
System components
“SOS” button
LED light indicators
Microphone
53
1
For safety and security
Safety Connect service is available
by subscription on select, telematics hardware-equipped vehicles.
By using the Safety Connect service, you are agreeing to be bound
by the Telematics Subscription Service Agreement and its Terms and
Conditions, as in effect and
amended from time to time, a current copy of which is available at
Lexus.com. All use of the Safety
Connect service is subject to such
then-applicable Terms and Conditions.
Services
Subscribers have the following Safety
Connect services available:
Automatic Collision Notification
Helps drivers receive necessary response
from emergency service providers.
(P.55)
*
: U.S. Patent No. 7,508,298 B2
Stolen Vehicle Location
Helps drivers in the event of vehicle theft.
(P.55)
Emergency Assistance Button
(“SOS”)
Connects drivers to response-center support. (P.55)
Enhanced Roadside Assistance
Provides drivers various on-road assistance. (P.55)
*
Subscription
After you have signed the Telematics
Page 54
54
1-3. LEXUS Enform
Subscription Service Agreement and
are enrolled, you can begin receiving
services.
A variety of subscription terms is available for purchase. Contact your Lexus
dealer, call the following or push the
“SOS” button in your vehicle for further subscription details.
The United States
1-800-25-LEXUS
(1-800-255-3987)
Canada
1-800-26-LEXUS
(1-800-265-3987)
Puerto Rico
1-877-539-8777
■ Safety Connect Services Information
● Phone calls using the vehicle’s Blue-
®
tooth
technology will not be possible
during Safety Connect.
● Safety Connect is available beginning Fall
2009 on select Lexus models (in the
contiguous United States only). Contact
with the Safety Connect response center
is dependent upon the telematics device
being in operative condition, cellular connection availability, and GPS satellite signal reception, which can limit the ability to
reach the response center or receive
emergency service support. Enrollment
and Telematics Subscription Service
Agreement required. A variety of subscription terms is available; charges vary
by subscription term selected and location.
● Automatic Collision Notification, Emer-
gency Assistance and Stolen Vehicle
Location will function in the United
States, including Hawaii and Alaska,
Puerto Rico and in Canada, and
Enhanced Roadside Assistance will function in the United States, Puerto Rico and
in Canada.
● Automatic Collision Notification, Emer-
gency Assistance, Stolen Vehicle and
Enhanced Road Assistance will not function in the United States Virgin Islands.
For vehicles first sold in the USVI, no
Safety Connect services will function in
and outside the United States Virgin
Islands.
● Safety Connect services are not subject
to section 255 of the Telecommunications Act and the device is not TTY compatible.
■ Languages
The Safety Connect response center will
offer support in multiple languages. The
Safety Connect system will offer voice
prompts in English, Spanish, and French.
Please indicate your language of choice
when enrolling.
■ When contacting the response center
You may be unable to contact the response
center if the network is busy.
Safety Connect LED light Indicators
When the engine switch is turned to
IGNITION ON mode, the red indicator light comes on for 2 seconds then
turns off. Afterward, the green indicator light comes on, indicating that the
service is active.
The following indicator light patterns
indicate specific system usage conditions:
Green indicator light on = Active
service
Green indicator light flashing =
Safety Connect call in process
Red indicator light (except at vehi-
cle start-up) = System malfunction
(contact your Lexus dealer)
No indicator light (off) = Safety
Page 55
1-3. LEXUS Enform
55
Connect service not active
Safety Connect services
■ Automatic Collision Notification
In case of either airbag deployment or
severe rear-end collision, the system is
designed to automatically call the
response center. The responding agent
receives the vehicle’s location and
attempts to speak with the vehicle
occupants to assess the level of emergency. If the occupants are unable to
communicate, the agent automatically
treats the call as an emergency, contacts the nearest emergency services
provider to describe the situation, and
requests that assistance be sent to the
location.
■ Stolen Vehicle Location
If your vehicle is stolen, Safety Connect
can work with local authorities to assist
them in locating and recovering the
vehicle. After filing a police report, call
the Safety Connect response center at
1-800-25-LEXUS
(1-800-255-3987) in the United
States, 1-877-539-8777 in Puerto
Rico or 1-800-265-3987 in Canada,
and follow the prompts for Safety Connect to initiate this service.
In addition to assisting law enforcement with recovery of a stolen vehicle,
Safety-Connect-equipped vehicle
location data may, under certain circumstances, be shared with third parties to locate your vehicle. Further
information is available at Lexus.com.
■ Emergency Assistance Button
(“SOS”)
In the event of an emergency on the
road, push the “SOS” button to reach
the Safety Connect response center.
The answering agent will determine
your vehicle’s location, assess the
emergency, and dispatch the necessary assistance required.
If you accidentally press the “SOS” button,
tell the response-center agent that you are
not experiencing an emergency.
■ Enhanced Roadside Assistance
Enhanced Roadside Assistance adds
GPS data to the already included warranty-based Lexus roadside service.
Subscribers can press the “SOS” button to reach a Safety Connect
response-center agent, who can help
with a wide range of needs, such as:
towing, flat tire, fuel delivery, etc. For a
description of the Roadside Assistance
services and their limitations, please
see the Safety Connect Terms and
Conditions, which are available at
Lexus.com.
Safety information for Safety
Connect
Important! Read this information about
exposure to radio frequency signals
before using Safety Connect;
The Safety Connect system installed in
your vehicle is a low-power radio transmitter and receiver. It receives and also
sends out radio frequency (RF) signals.
In August 1996, the Federal Commu-
1
For safety and security
Page 56
56
nications Commission (FCC) adopted
RF exposure guidelines with safety levels for mobile wireless phones. Those
guidelines are consistent with the
safety standards previously set by the
following U.S. and international standards bodies.
ANSI (American National Stan-
NCRP (National Council on Radia-
ICNIRP (International Commission
Those standards were based on comprehensive and periodic evaluations of
the relevant scientific literature. Over
120 scientists, engineers, and physicians from universities, and government health agencies and industries
reviewed the available body of
research to develop the ANSI Standard (C95.1).
1-3. LEXUS Enform
dards Institute) C95.1 [1992]
tion Protection and Measurement)
Report 86 [1986]
on Non-Ionizing Radiation Protection) [1996]
The design of Safety Connect complies with the FCC guidelines in addition to those standards.
Page 57
1-4.Theft deterrent system
NOTICE
Engine immobilizer system
The vehicle’s keys have built-in transponder chips that prevent the
engine from starting if a key has not
been previously registered in the
vehicle’s on-board computer.
1-4. Theft deterrent system
■ Conditions that may cause the system to
malfunction
● If the grip portion of the key is in contact
with a metallic object
● If the key is in close proximity to or touch-
ing a key registered to the security system (key with a built-in transponder chip)
of another vehicle
57
1
Never leave the keys inside the
vehicle when you leave the vehicle.
This system is designed to help prevent vehicle theft but does not
guarantee absolute security
against all vehicle thefts.
Operating the system
The indicator light flashes after the
engine switch has been turned off to
indicate that the system is operating.
The indicator light stops flashing after
the engine switch has been turned to
ACCESSORY or IGNITION ON
mode to indicate that the system has
been canceled.
For safety and security
■ To ensure the system operates cor-
rectly
Do not modify or remove the system. If
modified or removed, the proper operation of the system cannot be guaranteed.
■ System maintenance
The vehicle has a maintenance-free type
engine immobilizer system.
Page 58
58
1-4. Theft deterrent system
Alarm
The alarm uses light and sound to
give an alert when an intrusion is
detected.
The alarm is triggered in the following situations when the alarm is set:
Except for Canada: A locked
door is unlocked or opened in any
way other than using the entry
function, wireless remote control
or mechanical key. (The doors will
lock again automatically.)
For Canada: A locked door is
unlocked or opened in any way
other than using the entry function or wireless remote control.
(The doors will lock again automatically.)
The trunk is opened in any way
other than using the entry function or wireless remote control.
The hood is opened.
Setting/deactivating/stopping
the alarm system
items are left in the vehicle.
■ Setting
Close the doors, trunk and hood, and
lock both side doors. The system will
be set automatically after 30 seconds.
The indicator light changes from being on
to flashing when the system is set.
■ Deactivating or stopping
Do one of the following to deactivate
or stop the alarms:
Unlock the doors.
Open the trunk using the entry
function or wireless remote control.
Turn the engine switch to ACCES-
SORY or IGNITION ON mode, or
start the engine. (The alarm will be
deactivated or stopped after a few
seconds.)
■ Items to check before locking the
vehicle
To prevent unexpected triggering of
the alarm and vehicle theft, make sure
of the following:
Nobody is in the vehicle.
The windows and moon roof (if
equipped) are closed before the
alarm is set.
No valuables or other personal
■ System maintenance
The vehicle has a maintenance-free type
alarm system.
■ Triggering of the alarm
The alarm may be triggered in the following
situations:
(Stopping the alarm deactivates the alarm
system.)
● For Canada: The doors are unlocked
using the mechanical key.
Page 59
● The trunk is opened using the mechanical
NOTICE
key.
● A person inside the vehicle opens a door,
the trunk or hood, or unlocks the vehicle
using an inside lock button.
1-4. Theft deterrent system
remaining in the vehicle unlocks the door.
● When recharging or replacing the bat-
tery
■ To ensure the system operates cor-
rectly
Do not modify or remove the system. If
modified or removed, the proper operation of the system cannot be guaranteed.
59
1
For safety and security
● The battery is recharged or replaced
when the vehicle is locked. (P.336)
■ Alarm-operated door lock
In the following cases, depending on the situation, the door may automatically lock to
prevent improper entry into the vehicle:
● When a person remaining in the vehicle
unlocks the door and the alarm is activated.
● While the alarm is activated, a person
Page 60
60
1-4. Theft deterrent system
Theft prevention labels
(U.S.A.)
These labels are attached to the
vehicle to reduce vehicle theft by
facilitating the tracing and recovery of parts from stolen vehicles.
Do not remove under penalty of
law.
Page 61
61
Vehicle status information
and indicators
.
2-1. Instrument cluster
Warning lights and indicators
........................................................... 62
Gauges and meters .................... 66
Multi-information display.......... 73
Fuel consumption information
........................................................... 83
2
2
Vehicle status information and indicators
Page 62
62
2-1.Instrument cluster
2-1. Instrument cluster
Warning lights and indicators
The warning lights and indicators on the instrument cluster, center panel and
outside rear view mirrors inform the driver of the status of the vehicle’s various
systems.
Warning lights and indicators displayed on the instrument cluster
For the purpose of explanation, the following illustrations display all warning lights
and indicators illuminated.
The units used on the meters and some indicators may differ depending on the target
region.
Warning lights
Warning lights inform the driver of malfunctions in the indicated vehicle systems.
Brake system warning light*1
(U.S.A.)
(Canada)
(P.302)
Brake system warning light*1
(P.302)
(U.S.A.)
(Canada)
Charging system warning
*1, 2
(P.302)
light
Low engine oil pressure warn-
*2
ing light
(P.303)
Malfunction indicator lamp*1
(P.303)
Malfunction indicator lamp*1
(P.303)
*1
SRS warning light
(P.303)
High coolant temperature
*2
warning light
(P.302)
Page 63
ABS warning light*1 (P.303)
WARNING
(U.S.A.)
ABS warning light*1 (P.303)
(Canada)
Brake Override System warning light/Drive-Start Control
warning light
*2
(P.304)
Parking brake warning light
(U.S.A.)
(P.304)
Parking brake warning light
(Canada)
(P.304)
Electric power steering system
*1
warning light
(P.304)
LDA (Lane Departure Alert)
(orange)
(flashes or
illuminates)
indicator (P.305)
PCS warning light*1 (P.305)
*1
Slip indicator
(P.305)
Automatic headlight leveling
system warning light (P.306)
Open door warning light
(P.306)
Low fuel level warning light
(P.306)
Driver’s and front passenger’s
seat belt reminder light
(P.306)
Rear passenger’s seat belt
*3
reminder lights
Master warning light
(P.307)
*1
(P.307)
Tire pressure warning light
(P.307)
*1
: These lights turn on when the engine
2-1. Instrument cluster
63
switch is turned to IGNITION ON
mode to indicate that a system check is
being performed. They will turn off after
the engine is started, or after a few seconds. There may be a malfunction in a
system if a light does not come on, or
turn off. Have the vehicle inspected by
your Lexus dealer.
*2
: This light illuminates on the multi-infor-
mation display.
*3
: This light illuminates on the center
panel.
■ If a safety system warning light does
2
Vehicle status information and indicators
not come on
Should a safety system light such as the
ABS and SRS warning light not come on
when you start the engine, this could
mean that these systems are not available
to help protect you in an accident, which
could result in death or serious injury.
Have the vehicle inspected by your
Lexus dealer immediately if this occurs.
Indicators
The indicators inform the driver of the
operating state of the vehicle’s various
systems.
Turn signal indicator (P.136)
Headlight indicator (P.138)
(U.S.A.)
Tail light indicator (P.138)
(Canada)
Headlight high beam indicator
(P.139)
*1
Automatic High Beam indica-
*1
(P.140)
tor
Page 64
64
2-1. Instrument cluster
(white)
(green)
(orange)
(flashes)
(flashes)
(U.S.A.)
PCS warning light
*1, 2
(P.159)
Cruise control indicator
(P.171)
Dynamic radar cruise control
indicator (P.171)
Cruise control “SET” indicator
(P.171)
LDA (Lane Departure Alert)
indicator (P.166)
LDA (Lane Departure Alert)
indicator (P.166)
LDA (Lane Departure Alert)
indicator (P.166)
BSM (Blind Spot Monitor) outside rear view mirror indica-
*3, 4
(if equipped) (P.179)
tors
Intuitive parking assist indicator
(if equipped) (P.187)
Slip indicator*1 (P.200)
*1, 2
VSC OFF indicator
(P.200)
*1, 2
TRAC OFF indicator
(P.200)
Smart access system with
*5
push-button start indicator
(P.128)
*6
Security indicator
(P.57,
58)
Low outside temperature indi-
*5, 7
cator
Eco Driving Indicator Light
(P.62)
*1
(P.76)
“AIR BAG ON/OFF”
*1, 6
indicator
(P.36)
“AIR BAG ON/OFF”
*1, 6
(Canada)
indicator
(P.36)
“EXPERT” indicator (P.201)
“LAUNCH” indicator (P.194)
Drive mode indicators
“NORMAL” indicator (P.192)
Eco drive mode indicator
(P.192)
“SPORT S” indicator (P.192)
“SPORT S+” indicator
(P.192)
“COSTOM” indicator (P.192)
TVD (Torque Vectoring Differential)
control mode indicators
“STANDARD” indicator (if
equipped) (P.198)
“SLALOM” indicator (if
equipped) (P.198)
“TRACK” indicator (if
equipped) (P.198)
*1
: These lights turn on when the engine
switch is turned to IGNITION ON
mode to indicate that a system check is
being performed. They will turn off after
the engine is started, or after a few seconds. There may be a malfunction in a
system if a light does not come on, or
turn off. Have the vehicle inspected by
your Lexus dealer.
*2
: The light comes on when the system is
turned off.
*3
: In order to confirm operation, the BSM
outside rear view mirror indicators illuminate in the following situations:
Page 65
• When the engine switch is turned to
IGNITION ON mode while the
BSM main switch is turned on.
• When the BSM main switch is
turned on while the engine switch is
in IGNITION ON mode.
If the system is functioning correctly,
the BSM outside rear view mirror indicators will turn off after a few seconds.
If the BSM outside rear view mirror
indicators do not illuminate or do not
turn off, there may be a malfunction in
the system. If this occurs, have the vehicle inspected by your Lexus dealer.
*4
: This light illuminates on the outside rear
view mirrors.
*5
: This light illuminates on the multi-infor-
mation display.
*6
: This light illuminates on the center
panel.
*7
: When the outside temperature is
approximately 37°F (3°C) or lower, this
indicator will flash for approximately 10
seconds, then stay on.
2-1. Instrument cluster
65
2
Vehicle status information and indicators
Page 66
66
A
B
C
D
E
2-1. Instrument cluster
Gauges and meters
Meter display
■ Locations of gauges and meters
If the drive mode is changed, some of the meter displays and the gauge layout will
be changed.
The units used on the meters may differ depending on the target region.
Normal mode
Multi-information display
Presents the driver with a variety of vehicle data (P.73)
Displays warning messages in case of a malfunction (P.310)
Fuel gauge
Engine coolant temperature gauge
Displays the engine coolant temperature. If the engine coolant temperature gauge indicator ( ) enters the red zone, a buzzer will sound and the indicator will turn red and start
flashing. Also, a warning message will be displayed.
Engine oil temperature gauge
Displays the engine oil temperature. If the engine oil temperature gauge indicator ( )
enters the red zone, the indicator will turn red and start flashing.
Outside temperature
Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C). Low
outside temperature indicator comes on when the ambient temperature is 37°F (3°C) or
lower.
Page 67
Tachometer
F
G
H
I
J
A
B
C
D
E
F
Displays the engine speed in revolutions per minute
Digital speedometer
Analog speedometer
Shift position/shift range/gear position (P.132)
Odometer and trip meter display (P.72)
Eco drive mode
2-1. Instrument cluster
67
2
Vehicle status information and indicators
Multi-information display
Presents the driver with a variety of vehicle data (P.73)
Displays warning messages in case of a malfunction (P.310)
Fuel gauge
Engine coolant temperature gauge
Displays the engine coolant temperature. If the engine coolant temperature gauge indicator ( ) enters the red zone, a buzzer will sound and the indicator will turn red and start
flashing. Also, a warning message will be displayed.
Engine oil temperature gauge
Displays the engine oil temperature. If the engine oil temperature gauge indicator ( )
enters the red zone, the indicator will turn red and start flashing.
Outside temperature
Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C). Low
outside temperature indicator comes on when the ambient temperature is 37°F (3°C) or
lower.
Eco driving meter
Page 68
68
G
H
I
J
A
BCD
E
Displays the vehicle acceleration. The more rapidly the vehicle is accelerated, the lower the
number of blue segments displayed, indicating that your driving is less ecofriendly. This
meter is designed as a guideline to show the eco-friendliness of your driving.
2-1. Instrument cluster
Digital speedometer
Analog speedometer
Shift position/shift range/gear position (P.132)
Odometer and trip meter display (P.72)
SPORT S mode
The units used on the meters may differ depending on the target region.
These illustrations show the default meter display for SPORT S mode. The meter displays
for SPORT S mode can be changed on the settings display of the multi-information display.
Multi-information display
Presents the driver with a variety of vehicle data (P.73)
Displays warning messages in case of a malfunction (P.310)
Fuel gauge
Engine coolant temperature gauge
Displays the engine coolant temperature. If the engine coolant temperature gauge indicator ( ) enters the red zone, a buzzer will sound and the indicator will turn red and start
flashing. Also, a warning message will be displayed.
Engine oil temperature gauge
Displays the engine oil temperature. If the engine oil temperature gauge indicator ( )
enters the red zone, the indicator will turn red and start flashing.
Outside temperature
Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C). Low
Page 69
2-1. Instrument cluster
F
G
H
IJA
B
C
D
outside temperature indicator comes on when the ambient temperature is 37°F (3°C) or
lower.
Tachometer
Displays the engine speed in revolutions per minute
Digital speedometer
Analog speedometer
Shift position/shift range/gear position (P.132)
Odometer and trip meter display (P.72)
SPORT S+ mode
69
2
Vehicle status information and indicators
The units used on the meters may differ depending on the target region.
These illustrations show the default meter display for SPORT S+ mode. The meter displays
for SPORT S+ mode can be changed on the settings display of the multi-information display.
Multi-information display
Presents the driver with a variety of vehicle data (P.73)
Displays warning messages in case of a malfunction (P.310)
Fuel gauge
Outside temperature
Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C). Low
outside temperature indicator comes on when the ambient temperature is 37°F (3°C) or
lower.
Engine coolant temperature gauge
Displays the engine coolant temperature. If the engine coolant temperature gauge indicator ( ) enters the red zone, a buzzer will sound and the indicator will turn red and start
flashing. Also, a warning message will be displayed.
Page 70
70
E
F
G
H
I
J
A
B
2-1. Instrument cluster
Engine oil temperature gauge
Displays the engine oil temperature. If the engine oil temperature gauge indicator ( )
enters the red zone, the indicator will turn red and start flashing.
Tachometer
Displays the engine speed in revolutions per minute
Digital speedometer
Analog speedometer
Shift position/shift range/gear position (P.132)
Odometer and trip meter display (P.72)
■ Speed indicator
When the vehicle reaches the set
speed, the speed unit display will turn
yellow.
The indicators will be displayed in yellow
(corresponding to a speed set by a user) or
*
red (fixed at 100 mph [160 km/h])
This setting can be enabled on the
multi-information display.
.
The indicator may be displayed when
downshifting, depending on the engine
speed.
These illustrations show the default meter
display for SPORT S mode and SPORT S+
mode. The meter displays for SPORT S
mode and SPORT S+ mode can be
changed on the settings display of the
multi-information display.
*
: Always observe the legal speed limit
when driving on public roads.
■ Rev indicator (SPORT S
mode/SPORT S+ mode)
When the shift lever is in M, an indicator on the tachometer will be displayed
in 3 steps. When the 3rd level indicator
is displayed, the indicator will flash and
a buzzer will sound to notify you of
SPORT S mode
SPORT S+ mode
shift-up timing.
Page 71
2-1. Instrument cluster
71
■ Rev peak (Normal mode/SPORT
S mode)
The engine speed reaches or exceeds
3600 rpm, an afterimage of the
tachometer will be displayed at the
highest engine speed for approximately 1 second.
Changing the display
■ Meter display and layout
If the drive mode is changed, some of
the meter displays and the gauge layout will be changed. (P.192)
■ The meters and display illuminate when
The engine switch is in IGNITION ON
mode.
■ Welcome illumination of the analog
speedometer
● When the driver’s door is opened, the
analog speedometer will illuminate. Then,
when the driver’s door is closed, the analog speedometer will illuminate and go
off (pulsate) 3 times.
● In the following situations, the analog
speedometer will not pulsate even
though the driver’s door is opened and
closed:
• Within 60 seconds after the analog
meter pulsation completes
• Within 60 seconds of turning the engine
switch off
■ Variable red zone
To help protect the engine, the engine
speed is controlled by starting the red zone
of the tachometer at different engine
speeds ranging from 3700 rpm to 7300
rpm depending on the engine coolant temperature. Before driving under extremely
high load conditions, make sure to sufficiently warm up the engine.
2
Vehicle status information and indicators
■ Eco driving meter
● The number of blue segments displayed
on the eco driving meter
decreases/increases depending on the
vehicle acceleration. Use this meter as a
guideline when you wish to drive in an
eco-friendly manner that reduces fuel
consumption.
However, on a downward grade where
the vehicle can accelerate without the
accelerator pedal being depressed, the
eco driving meter may not display the
eco-driving state correctly.
● When the shift lever is moved to P, N or
R, the segments will turn gray and the eco
driving meter will not operate.
■ Dimming the analog speedometer light-
ing
The analog speedometer lighting will be
dimmed when the ambient light is bright,
such as during the daytime, and SPORT S
or SPORT S+ mode is selected.
■ Outside temperature display
● In the following situations, the correct
outside temperature may not be displayed, or the display may take longer
than normal to change:
• When stopped, or driving at low speeds
(less than 12 mph [20 km/h])
• When the outside temperature has
Page 72
72
WARNING
NOTICE
changed suddenly (at the entrance/exit of
a garage, tunnel, etc.)
● Whe n “_ _ ” or “ E” is disp laye d, th e sys tem
may be malfunctioning.
Take your vehicle to your Lexus dealer.
■ Pop-up display
● In some situations, such as when a switch
operation is performed, a pop-up display
will be temporarily displayed on the
multi-information display.
● Some pop-up displays can be set on/off.
(P.81)
■ Liquid crystal display
Small spots or light spots may appear on the
display. This phenomenon is characteristic
of liquid crystal displays, and there is no
problem continuing to use the display.
■ Customization
The meter display can be customized on
the multi-information display. (P.360)
■ The information display at low tem-
Allow the interior of the vehicle to warm
up before using the liquid crystal information display. At extremely low temperatures, the information display
monitor may respond slowly, and display
changes may be delayed.
For example, there is a lag between the
driver’s shifting and the new gear number
appearing on the display. This lag could
cause the driver to downshift again,
causing rapid and excessive engine braking and possibly an accident resulting in
death or injury.
2-1. Instrument cluster
peratures
■ To prevent damage to the engine and
its components
● Do not let the indicator of the tachom-
eter enter the red zone, as it represents the engine speed range which
exceeds the maximum safe engine
speed.
● In the following situations, the engine
may be overheating. In this case,
immediately stop the vehicle in a safe
place, and check the engine after it has
cooled completely. (P.337)
• The engine coolant temperature
gauge indicator ( ) is in the red
zone and flashing.
• The engine oil temperature gauge
indicator ( ) is in the red zone and
flashing.
Odometer and trip meter display
■ Display items
Odometer
Displays the total distance the vehicle has
been driven.
Trip meter A/trip meter B
Displays the distance the vehicle has been
driven since the meter was last reset. Trip
meters A and B can be used to record and
display different distances independently.
To reset, display the desired trip meter and
press and hold the odometer/trip meter
and trip meter reset button.
■ Changing the display
Each time the “ODO TRIP” switch is
pressed, the displayed item will be
changed. When the trip meter is displayed, pressing and holding the switch
Page 73
2-1. Instrument cluster
A
B
73
will reset the trip meter.
Changing the instrument panel
light brightness
The brightness of the instrument panel
lights can be adjusted.
Multi-information display
The multi-information display presents the driver with a variety of
vehicle data.
Displays and menu icons
■ Display
Content display area
By selecting menu icons on the
multi-information display, a variety of
driving-related information can be displayed. The multi-information display
can also be used to change display settings and other vehicle settings.
Warning or suggestion/advice pop-up
displays are also displayed in certain
situations.
2
Vehicle status information and indicators
Darker
Brighter
■ Instrument panel brightness adjustment
The instrument panel brightness levels
when the tail lights are on and off can be
adjusted individually. However, when the
surroundings are bright (daytime, etc.),
turning on the tail lights will not change the
instrument panel brightness. At this time,
any adjustments made to the instrument
panel brightness levels will be applied to
both settings at once.
Sub-content display area
Displays some “F” content in conjunction with the content display area.
Page 74
74
WARNING
ABC
D
E
2-1. Instrument cluster
■ Liquid crystal display
P.72
■ The information display at low tem-
peratures
P.72
■ Menu icons
The menu icons will be displayed by
pressing or of the meter con-
trol switch.
Drive information
“F” content
Navigation system-linked display (if equipped)
Audio system-linked display
Driving assist system information
Warning message display
Settings display
■ Start-up display
When the engine is started, the name of the
vehicle is displayed on the multi-information
display.
While the start-up display is being displayed, the meter display cannot be
changed even if the drive mode is changed.
When the start-up display is finished, the
meter display for the currently selected
mode will be displayed.
Changing the meter display
The multi-information display is operated using the meter control switches.
/ : Select menu icons
/ : Change displayed content, scroll up/down the screen and
move the cursor up/down
Press: Enter/Set
Press and hold: Reset
Return to the previous screen
Pressing and holding the switch will display
the first screen of the selected menu icon.
Press: Display the top screen
Press and hold: Register current
screen as the top screen
Call sending/receiving and history
display
Linked with the hands-free system, sending
or receiving call is displayed. For details
regarding the hands-free system, refer to
the “NAVIGATION AND MULTIMEDIA
Page 75
2-1. Instrument cluster
75
SYSTEM OWNER’S MANUAL”.
■ Registering a top screen
The displayed top screen can be
changed to a registered screen of your
choice.
To register a screen as the top screen,
display the desired screen and press
and hold .
A message asking to confirm if reg-
istration is desired will be displayed.
If the selected screen cannot be
registered, a registration failure
message will be displayed.
When no screen has been regis-
tered, the drive information screen
will be displayed.
■ Resetting drive information
To reset the average fuel economy
(after reset)/average vehicle speed
(after reset)/elapsed time (after reset)
that are displayed on , display the
desired item and press and hold .
If both of the displayed items are resettable, a message will be displayed asking
which item(s) to reset.
Content displayed as drive information
■ Drive information 1/Drive infor-
mation 2/Drive information 3
Select to display various drive data.
Up to 2 of the following items can be
selected for each drive information
screen:
Items displayed can be switched by
pressing or of the meter control switches to select and pressing
or .
Use the displayed values as a reference
only.
Drive information 1
• Current fuel consumption
• Average fuel economy (after reset)
Drive information 2
• Distance (driving range)
• Average vehicle speed (after reset)
Drive information 3
• Average fuel economy (after refuel)
• Elapsed time (after start)
Displayed items (listed below) can be
changed on . (P.81)
Current fuel consumption
Displays instantaneous current fuel consumption
Average fuel economy
• After reset: Displays average fuel consumption since display reset
• After start: Displays average fuel consumption since engine start
• After refuel: Displays average fuel consumption since refuel
*1, 2
*2
*2, 3
Average vehicle speed
• After reset: Displays average vehicle
speed since display reset
• After start: Displays average vehicle
speed since engine start
*1
Elapsed time
• After reset: Displays elapsed time since
the display was reset
*1
2
Vehicle status information and indicators
Page 76
76
2-1. Instrument cluster
• After start: Displays elapsed time since
engine start
Distance
• Driving range: Displays driving range
with remaining fuel
•After start: Displays drive distance since
vehicle start
*3, 4
Other
Blank: No item
*1
:Resetting: P.75
*2
: Use the displayed fuel consumption as a
reference.
*3
: When only a small amount of fuel is
added to the tank, the display may not
be updated.
When refueling, turn the engine switch
off. If the vehicle is refueled without
turning the engine switch off, the display
may not be updated.
*4
: This distance is computed based on
your average fuel consumption. As a
result, the actual distance that can be
driven may differ from that displayed.
■ Eco Driving Indicator
During Eco-friendly acceleration (Eco
driving), the Eco Driving Indicator
Light will turn on.
When the acceleration exceeds the
Zone of Eco driving, or when the vehicle is stopped, the light turns off.
Eco Driving Indicator will not operate
under the following conditions:
The shift lever is in any position
other than D.
A paddle shift switch is operated.
Neither normal mode nor Eco drive
mode is selected. (P.192)
The vehicle speed is approximately
80 mph (130 km/h) or higher.
■ Tire pressure
P.275
■ Gear positions
Displays the current gear position
when the shift lever is in D or M.
■ Vehicle sway warning
Detects the sway of the vehicle within a
lane, which is often associated with a
decrease in the driver’s attention level,
and displays the decrease in attention
using a bar display.
The shorter the bar length, the more
the driver may need to rest.
This display is a part of the LDA (Lane
Departure Alert with steering control) system. The display is enabled when the operating conditions of the vehicle sway
warning are met. (P.165)
■ Units
The units of measure used can be
changed while driving.
Unlike the units setting performed on ,
the units setting performed on can be
changed while driving.
■ Blank (No items)
Displays no drive information contents.
Page 77
■ Tire pressure
A
B
C
A
B
A
B
● It may take a few minutes to display the
tire inflation pressure after the engine
sw itc h is tu rne d to I GNI TIO N ON mod e.
It may also take a few minutes to display
the tire inflation pressure after inflation
pressure has been adjusted.
● “---” may be displayed if the tire position
information cannot be determined due to
unfavorable radio wave conditions.
● Tire inflation pressure changes with tem-
perature. The displayed values may also
be different from the values measured
using a tire pressure gauge.
“F” content
■ Lap timer
Measures and displays current lap time
and previous lap times
Reading the display
Measured lap times since the timer was
last reset are displayed as follows:
•Content display area
2-1. Instrument cluster
Current lap time
Most recent lap time
Operating the meter control
switches
Press: Start/stop lap timer
Press and hold: Reset
77
2
Vehicle status information and indicators
Total lap time
Past lap times
Fastest lap (marked with a star)
•Sub-content display area
: Mark off one lap
: Change displayed content
While a lap time is being measured, the
display can be changed to show the following content:
• Torque distribution (if equipped)
•G-force
• Tire pressure
•Rear wing position
Resetting/saving measured lap
times
After stopping the lap timer, press and hold
.
When a confirmation screen is displayed,
Page 78
78
ABA
B
2-1. Instrument cluster
select to reset/save the measured lap
times.
When saved, the lap time data will be displayed on the history screen. (P.78)
■ History (Lap timer)
Displays the saved lap times
Reading the display
• History top screen
Total lap time
Fastest lap time
•Past lap screen
press
.
Deleting history
When the history top screen is displayed,
press and hold
to display a confir-
mation screen.
To delete the history, follow the instructions
displayed on the screen.
■ Torque distribution (if equipped)
Displays the distribution of driving
torque between the left and right rear
wheels
Reading the display
• Normal display
Displays the amount of drive torque
applied to the left and right rear wheels
through bars that fluctuate in length on the
content display area.
Page
Past lap times (20 most recent lap
times)
Press / to scroll up and down the
screen.
Switching the display
To display the past lap screen, press .
To return to the history top screen,
• Advanced display
Displays the difference in torque applied to
the left and right rear wheels through displayed segments on the sub-content display area in addition to the bar display.
The greater the number of segments displayed, the greater the difference in torque
is.
Page 79
2-1. Instrument cluster
ABC
D
E
A
B
C
D
79
Switching the display
To switch to advanced display, press .
To return to normal display, press
Peak hold function (advanced dis-
play only)
If the difference in torque of 4 segments or
more is applied to the left or right rear
wheel, a yellow outline will be displayed for
the highest segment that was reached, for
a certain amount of time.
■ G-force
Displays lateral G-forces on the vehicle
Also displays, around the periphery of
the G-force display, the left and right
steering amount, accelerator pedal
input, and brake fluid pressure
Reading the display
• Normal display
Displays the following on the content display area
Acceleration G-force on the vehicle
.
Current G-force value (analyzed
value of front/rear and left/right
G-forces)
Accelerator pedal input
Brake fluid pressure
Steering amount
• Advanced display
Displays the following on the sub-content
display area and content display area
Content display area
Acceleration G-force on the vehicle
Record of the maximum G-forces
Value of the maximum G-force
since display reset (analyzed value
of front/rear and left/right
G-forces)
Accelerator pedal input
2
Vehicle status information and indicators
Page 80
80
E
F
A
B
2-1. Instrument cluster
Brake fluid pressure
Steering amount
Sub-content display area
G-force direction
Current G-force value (analyzed
value of front/rear and left/right
G-forces)
This display is intended for use as a guideline. Depending on factors such as the road
surface condition, temperature and vehicle
speed, the display may not show the actual
condition of the vehicle.
Switching the display
To switch to advanced display, press .
To return to normal display, press
Resetting the record of maximum
G-forces
With the record of maximum G-forces displayed, press and hold to reset the dis-
play.
Peak hold function (advanced dis-
play only)
If lateral G-forces of 0.5 G or greater are
generated, the G-force value displayed on
the sub-content display area will turn yellow and be held for 3 seconds.
■ Rear wing position (vehicles with
an active rear wing)
Displays the raised/retracted state of
the active rear wing
■ Using the lap timer
If the engine is stopped while a lap is being
timed, the lap timer will stop and the lap
time up to that point will be recorded.
■ Torque distribution display (if equipped)
Torque distribution may not be displayed
correctly in some cases, such as when the
vehicle passes over road expansion joints.
■ G-force display
● The G-force values may not be zero even
when the vehicle is parked, such as when
it is parked on an incline.
● The steering amount, accelerator pedal
.
input, and brake fluid pressure displays
are disabled until the engine has warmed
up (the variable red zone of the tachometer has retracted to 7300 rpm).
After the engine has warmed up, these
displays will be enabled.
● Depending on the vehicle usage condi-
tions, the brake fluid pressure display may
not reach its maximum reading even
though the brake pedal is fully depressed.
● If a battery terminal is disconnected and
reconnected, the steering amount display
may be disabled temporarily. After driving the vehicle for a while, the display will
be enabled.
Page 81
2-1. Instrument cluster
81
Navigation system-linked display (if equipped)
Select to display the following navigation system-linked information.
Route guidance to destination
Compass display (heading-up dis-
play)
Audio system-linked display
Select to enable selection of an audio
source or track on the meter using the
meter control switches.
Driving support system information display
Select to display the operational status
of the following systems:
Dynamic radar cruise control
(P.171)
LDA (Lane Departure Alert with
steering control) (P.164)
Warning message display
Select to display warning messages
and measures to be taken if a malfunction is detected. (P.310)
Settings display
■ Meter display settings that can be
changed
Language
Select to change the language on the display.
Units
Select to change the units of measure displayed.
Eco Driving Indicator Light
(P.76)
Select to enable/disable the Eco Driving
Indicator Light.
Switch settings
Displays a procedure to register a desired
screen to .
You can register 1 screen as a shortcut,
which can be displayed by pressing .
Drive information screen (P.75)
Select to select up to 2 items that will be
displayed on each Drive information
screen (Drive information 1 screen, Drive
information 2 screen, and Drive information 3 screen) respectively.
Pop-up display (P.72)
Select to enable/disable the pop-up display.
• Intersection Guidance (if equipped)
•Telephone
• Audio Feedback
• Volume Feedback
•Adjust Brightness
• TVD MODE (if equipped)
Rev indicator (P.70)
• Select to enable/disable the Rev indicator.
• Select to set the desired engine speed at
which the Rev indicator will begin to be
displayed.
Rev peak (P.71)
Select to enable/disable the Rev peak.
2
Vehicle status information and indicators
Page 82
82
WARNING
NOTICE
2-1. Instrument cluster
Gauge options
Select to change the displayed meters for
each applicable drive mode.
Default setting
Select to reset the meter display settings to
the default setting.
■ Vehicle functions and settings that
can be changed
P.360
■ Suspension of the settings display
● Some settings cannot be changed while
driving. When changing settings, park
the vehicle in a safe place.
● If a warning message is displayed, opera-
tion of the settings display will be suspended.
■ When disconnecting and reconnecting
battery terminals
The following information data will be reset:
● Drive information
● Lap timer: Measured lap times, history
● G-force: Record of the maximum
G-forces
■ Customization
Some functions can be customized.
(P.360)
■ Cautions during setting up the dis-
play
As the engine needs to be running
during setting up the display, ensure that
the vehicle is parked in a place with adequate ventilation. In a closed area such as
a garage, exhaust gases including harmful carbon monoxide (CO) may collect
and enter the vehicle. This may lead to
death or a serious health hazard.
■ While setting up the display
To prevent battery discharge, ensure that
the engine is running while setting up the
display features.
■ Caution for use while driving
● When operating the multi-information
display while driving, pay extra attention to the safety of the area around the
vehicle.
● Do not look continuously at the
multi-information display while driving
as you may fail to see pedestrians,
objects on the road, etc. ahead of the
vehicle.
Page 83
2-1. Instrument cluster
A
B
C
A
B
C
D
E
F
83
Fuel consumption information
Fuel consumption information can
be displayed on the Center Display.
Vehicles with a 10.3-inch display:
The fuel consumption information
can be displayed and operated on
the side display.
System components
menu screen, and then select “ECO”.
If a screen other than “Trip Information”
is displayed, select “Trip Information”.
2
Vehicle status information and indicators
Resetting the consumption data
Fuel consumption in the past 15
minutes
Current fuel consumption
Average vehicle speed since the
engine was started.
Elapsed time since the engine was
started.
Center Display
“MENU” button
Touchpad
Consumption
■ Trip information
Press the “MENU” button on the
Remote Touch, then select on the
Cruising range
Average fuel consumption for the past
15 minutes is divided by color into past
averages and averages attained since
the engine switch was last turned to
IGNITION ON mode. Use the displayed average fuel consumption as a
reference.
The image is an example only, and may
vary slightly from actual conditions.
■ History
Press the “MENU” button on the
Remote Touch, then select on the
menu screen, and then select “ECO”.
If a screen other than “History” is dis-
played, select “History”.
Page 84
84
A
B
C
D
E
2-1. Instrument cluster
Best recorded fuel consumption
Latest fuel consumption
Previous fuel consumption record
Resetting the history data
Updating the latest fuel consump-
tion data
The average fuel consumption history
is divided by color into past averages
and the average fuel consumption
since the last updated. Use the displayed average fuel consumption as a
reference.
The image is an example only, and may
vary slightly from actual conditions.
■ Updating the history data
Update the latest fuel consumption by
selecting “Clip” to measure the current fuel
consumption again.
■ Resetting the data
The fuel consumption data can be deleted
by selecting “Clear”.
■ Cruising range
Displays the estimated maximum distance
that can be driven with the quantity of fuel
remaining.
This distance is computed based on your
average fuel consumption.
As a result, the actual distance that can be
driven may differ from that displayed.
Using the side display (vehicles
with a 10.3-inch display)
Display the vehicle information on the
side display (P.212), and then select
or to display the desired
screen.
The image is an example only, and may
vary slightly from actual conditions.
■ Trip information (type A)
Displays the average fuel consumption
for the past 10 minutes in 1 minute
intervals, as well as the cruising range.
Use the displayed average fuel consumption as a reference.
■ Trip information (type B)
Displays the cruising range, latest fuel
consumption and the amount of time
elapsed since the engine was started.
Use the displayed average fuel consumption as a reference.
Page 85
■ History
Displays the average fuel consumption
and highest fuel consumption.
Use the displayed average fuel consumption as a reference.
2-1. Instrument cluster
85
2
Vehicle status information and indicators
Page 86
86
2-1. Instrument cluster
Page 87
87
Before driving
.
3-1. Key information
Keys ...................................................88
3-2. Opening, closing and locking the
doors and trunk
Doors................................................. 92
Trunk.................................................. 95
Smart access system with
push-button start....................... 98
3-3. Adjusting the seats
Front seats.....................................103
Power easy access system/driving
position memory/memory recall
function........................................105
3-4. Adjusting the steering wheel and
mirrors
Steering wheel.............................108
Inside rear view mirror.............109
Outside rear view mirrors.......110
3-5. Opening, closing the windows
and moon roof
Power windows............................ 112
Moon roof ...................................... 114
3
3
Before driving
Page 88
88
A
B
C
D
3-1.Key information
3-1. Key information
Keys
The keys
The following keys are provided with
the vehicle.
key does not operate properly.
● If it is difficult to take out the mechanical
key, push down the lock release button
using a pen tip etc. If it is still difficult to
pull it out, use a coin etc.
● To store the mechanical key in the card
key, insert it while pressing the lock
release button.
● If the battery cover is not installed and the
battery falls out or if the battery was
removed because the key got wet, reinstall the battery with the positive terminal
facing the Lexus emblem.
Electronic keys
• Operating the smart access system with
push-button start (P.98)
• Operating the wireless remote control
function (P.90)
Mechanical keys
Key number plate
Card key (electronic key) (if
equipped)
Operating the smart access system with
push-button start (P.98)
■ Card key (if equipped)
● The card key is not waterproof.
● The mechanical key that is stored inside
the card key should be used only if a
problem arises, such as when the card
■ When riding in an aircraft
When bringing an electronic key onto an
aircraft, make sure you do not press any
buttons on the electronic key while inside
the aircraft cabin. If you are carrying an
electronic key in your bag etc., ensure that
the buttons are not likely to be pressed accidentally. Pressing a button may cause the
electronic key to emit radio waves that
could interfere with the operation of the aircraft.
■ Electronic key battery depletion
● The standard battery life is 1 to 2 years.
(The card key battery life is about a year
and a half.)
● If the battery becomes low, an alarm will
sound in the cabin and a message will be
shown on the multi-information display
when the engine is stopped.
Page 89
3-1. Key information
NOTICE
89
● As the electronic key always receives
radio waves, the battery will become
depleted even if the electronic key is not
used. The following symptoms indicate
that the electronic key battery may be
depleted. Replace the battery when necessary.
• The smart access system with push-button start or the wireless remote control
does not operate.
• The detection area becomes smaller.
•The LED indicator on the key surface
does not turn on.
● To avoid serious deterioration, do not
leave the electronic key within 3 ft. (1 m)
of the following electrical appliances that
produce a magnetic field:
•TVs
• Personal computers
• Cellular phones, cordless phones and
battery chargers
• Recharging cellular phones or cordless
phones
• Table lamps
• Induction cookers
■ Replacing the battery
P.283
■ Confirmation of the registered key
number
The number of keys already registered to
the vehicle can be confirmed. Ask your
Lexus dealer for details.
■ To prevent key damage
● Do not drop the keys, subject them to
strong shocks or bend them.
● Do not expose the keys to high tem-
peratures for long periods of time.
● Do not get the keys wet or wash them
in an ultrasonic washer etc.
● Do not attach metallic or magnetic
materials to the keys or place the keys
close to such materials.
● Do not disassemble the keys.
● Do not attach a sticker or anything else
to the surface of the electronic key.
● Do not place the keys near objects that
produce magnetic fields, such as TVs,
audio systems and induction cookers.
■ Carrying the electronic key on your
person
Carry the electronic key 3.9 in. (10 cm)
or more away from electric appliances
that are turned on. Radio waves emitted
from electric appliances within 3.9 in. (10
cm) of the electronic key may interfere
with the key, causing the key to not function properly.
■ In case of a smart access system with
push-button start malfunction or
other key-related problems
P.332
■ When an electronic key is lost
P.331
■ Handling the card key (if equipped)
● Do not apply excess force when insert-
ing the mechanical key into the card
key. Doing so may damage the card
key.
● If the battery or card key terminals get
wet, the battery may corrode. If the key
is dropped into water, or if drinking
water etc. is spilled on the key, immediately remove the battery cover and
wipe the battery and terminals. (To
remove the battery cover, lightly grasp
and pull it.) If the battery is corroded,
have your Lexus dealer replace the
battery.
● Do not crush the battery cover or use
a screwdriver to remove the battery
cover. Forcibly removing the battery
cover may bend or damage the key.
● If the battery cover is frequently
removed, the battery cover may
become loose.
3
Before driving
Page 90
90
NOTICE
A
B
C
D
E
● When installing the battery, make sure
● The surface of the card key may be
• The card key is carried together with
• The card key is scraped with a sharp
• The surface of the card key is wiped
3-1. Key information
to check the direction of the battery.
Installing the battery in the wrong
direction may cause the battery to
deplete rapidly.
damaged, or its coating may peel off in
the following situations:
hard objects, such as coins and keys.
object, such as the tip of a mechanical
pencil.
with thinner or benzene.
Wireless remote control
The electronic keys are equipped with
the following wireless remote control:
Locks the doors (P.92)
Unlocks the doors (P.92)
■ Panic mode
When is pressed for longer than
about one second, an alarm will sound
intermittently and the vehicle lights will flash
to deter any person from trying to break
into or damage your vehicle.
To stop the alarm, press any button on the
electronic key.
Using the mechanical key
To take out the mechanical key, push
the release button and take the key out.
The mechanical key can only be inserted in
one direction, as the key only has grooves
on one side. If the key cannot be inserted in
a lock cylinder, turn it over and re-attempt
to insert it.
After using the mechanical key, store it in
the electronic key. Carry the mechanical
key together with the electronic key. If the
electronic key battery is depleted or the
entry function does not operate properly,
you will need the mechanical key.
(P.332)
Opens the windows and moon roof
(if equipped)
*
(P.92)
Opens the trunk (P.97)
Sounds the alarm
*
: This setting must be customized at your
Lexus dealer.
Page 91
■ When required to leave the vehicle’s
key with a parking attendant
Set the luggage security system (P.98)
on and lock the glove box (P.226) as circumstances demand.
Remove the mechanical key for your own
use and provide the attendant with the electronic key only.
■ If you lose your mechanical keys
P.331
■ If a wrong key is used
The key cylinder rotates freely, isolated
from the internal mechanism.
3-1. Key information
91
3
Before driving
Page 92
92
3-2.Opening, closing and locking the doors an d trunk
3-2. Opening, closing and locking the doors and trunk
Doors
Unlocking and locking the doors
from the outside
■ Smart access system with
push-button start
Carry the electronic key to enable this
function.
1 Grip the driver’s door handle to
unlock the door. Grip the passenger’s door handle to unlock both
side doors.
Make sure to touch the sensor on the back
of the handle.
The doors cannot be unlocked for 3 seconds after the doors are locked.
*
: The door unlock settings can be
changed.
2 Touch the lock sensor (indentation
on the side of the door handle) to
lock the doors.
Check that the door is securely locked.
*
■ Wireless remote control
1 Locks both side doors
Check that the door is securely locked.
2 Unlocks both side doors
Pressing the button unlocks the driver’s
door. Pressing the button again within 5
seconds unlocks the other door.
Press and hold to open the windows and
moon roof (if equipped).
*
: This setting must be customized at your
Lexus dealer.
■ Side window open/close function linked
to door operation
When a door is opened, its window opens
slightly. When a door is closed, its window
closes completely.
■ Switching the door unlock function
It is possible to set which doors the entry
function unlocks using the wireless remote
control.
1 Turn the engine switch off.
2 When the indicator light on the key sur-
face is not on, press and hold ,
or for approximately 5
seconds while pressing and holding
.
The setting changes each time an operation
is performed, as shown below. (When
changing the setting continuously, release
the buttons, wait for at least 5 seconds, and
repeat step 2.)
*
Page 93
3-2. Opening, closing and locking the doors and trunk
93
Multi-information
display/Beep
Unlocking function
Holding the driver’s
door handle unlocks
only the driver’s
door.
Exterior: Beeps 3
times
Interior: Pings once
Holding the passenger’s door handle
unlocks both side
doors.
Holding either door
Exterior: Beeps
twice
handle unlocks both
side doors.
Interior: Pings once
To prevent unintended triggering of the
alarm, unlock the doors using the wireless
remote control and open and close a door
once after the settings have been changed.
(If a door is not opened within 60 seconds
after is pressed, the doors will be
locked again and the alarm will automati-
cally be set.)
In a case that the alarm is triggered, imme-
diately stop the alarm. (P.58)
■ Impact detection door lock release sys-
tem
In the event that the vehicle is subject to a
strong impact, both side doors are
unlocked. Depending on the force of the
impact or the type of accident, however, the
system may not operate.
■ Operation signals
A buzzer sounds and the emergency flashers flash to indicate that the doors have
been locked/unlocked. (Locked: once;
Unlocked: twice)
A buzzer sounds to indicate that the windows and moon roof are operating.
■ Welcome light illumination control
The side marker, parking, tail and license
plate lights automatically turn on at night
when the doors are unlocked using the
entry function or wireless remote control if
the light switch is in the position.
■ Security feature
If a door is not opened within approximately
60 seconds after the vehicle is unlocked,
the security feature automatically locks the
vehicle again.
■ When the door cannot be locked by the
lock sensor on the surface of the door
handle
Use your palm to touch the lock sensor.
3
Before driving
■ Open door warning buzzer
If an attempt to lock the doors is made when
a door is not fully closed, a buzzer sounds
continuously for 5 seconds. Fully close the
door to stop the buzzer, and lock the vehicle once more.
■ Setting the alarm
Locking the doors will set the alarm system.
(P.58)
■ Conditions affecting the operation of
the smart access system with push-button start or wireless remote control
P.100
■ If the smart access system with
push-button start or the wireless remote
control does not operate properly
Use the mechanical key and/or inside lock
buttons to lock and unlock the doors.
(P.332)
Replace the key battery with a new one if it
is depleted. (P.283)
■ Customization
Some functions can be customized.
(P.360)
Page 94
94
WARNING
■ To prevent an accident
Observe the following precautions while
driving the vehicle.
Failure to do so may result in a door
opening and an occupant being thrown
out of the vehicle, resulting in death or
serious injury.
● Ensure that both side doors are prop-
3-2. Opening, closing and locking the doors and trunk
erly closed and locked.
■ Inside lock buttons (to lock/unlock)
● Do not pull the inside handle of the
doors while driving.
The doors may be opened even if the
inside lock buttons are in locked position.
■ Side window open/close function
linked to door operation
Do not hold the upper edge of the side
window when you close the door. Otherwise, your fingers or hand may be caught
in the window.
Unlocking and locking the doors
from the inside
■ Door lock switches (to
lock/unlock)
1 Locks the door
2 Unlocks the door
Both side doors can be opened by pulling
the inside handle even if the lock buttons
are in the lock position.
■ Locking the doors from the outside with-
out a key
1 Move the inside lock button to the lock
position.
2 Close the door.
The door cannot be locked if the engine
switch is in ACCESSORY or IGNITION
ON mode, or the electronic key is left
inside the vehicle. However, the key may not
be detected correctly and the door may be
locked.
■ If a symbol indicating one or more of the
doors open is shown on the multi-information display
The hood, one or more of the doors, or
trunk is not fully closed. If the vehicle
reaches a speed of 3 mph (5 km/h), the
master warning light flashes and a buzzer
sounds to indicate that the door(s) are not
fully closed. Make sure to close hood, all
doors and trunk.
1 Locks both side doors
2 Unlocks both side doors
Automatic door locking and
unlocking systems
The following functions can be set or
canceled:
For instructions on customizing, refer to
Page 95
3-2. Opening, closing and locking the doors and trunk
WARNING
95
P.360
Function Operation
Both side doors are
Speed linked
door locking
function
Shift position
linked door locking function
Shift position
linked door
unlocking function
Driver’s door
linked door
unlocking function
automatically locked
when vehicle speed is
approximately 12 mph
(20 km/h) or higher.
Both side doors are
automatically locked
when the shift lever is
shifted to a position
other than P.
Both side doors are
automatically unlocked
when the shift lever is
shifted to P.
Both side doors are
automatically unlocked
when driver’s door is
opened.
Trunk
The trunk can be opened using the
trunk opener switch, entry function
or wireless remote control.
Observe the following precautions.
Failure to do so may result in death or
serious injury.
■ Before driving
● Make sure that the trunk lid is fully
closed. If the trunk lid is not fully
closed, it may open unexpectedly
while driving and hit near-by objects or
luggage in the trunk may be thrown
out, causing an accident.
● Do not allow children to play in the
trunk.
If a child is accidentally locked in the
trunk, they could suffer from heat
exhaustion, suffocation or other injuries.
3
Before driving
● Do not allow a child to open or close
the trunk lid.
Doing so may cause the trunk lid to
open unexpectedly, or cause the
child’s hands, head, or neck to be
caught by the closing trunk lid.
■ Important points while driving
Never let anyone sit in the trunk. In the
event of sudden braking or a collision,
they are susceptible to death or serious
injury.
■ Using the trunk
Observe the following precautions.
Failure to do so may cause parts of the
body to be caught, resulting in serious
injury.
● Remove any heavy lo ads, such as snow
and ice, from the trunk lid before
opening it. Failure to do so may cause
the trunk lid to suddenly shut again
after it is opened.
Page 96
96
WARNING
● When opening or closing the trunk lid,
● If anyone is in the vicinity, make sure
3-2. Opening, closing and locking the doors and trunk
thoroughly check to make sure the
surrounding area is safe.
they are safe and let them know that
the trunk is about to open or close.
● Do not attach any accessories other
than genuine Lexus parts to the trunk
lid. Such additional weight on the trunk
lid may cause the lid to suddenly shut
again after it is opened.
Opening/closing the trunk
● Use caution when opening or closing
the trunk lid in windy weather as it may
move abruptly in strong wind.
● On an incline it is more difficult to
open or close the trunk lid than on a
level surface, so beware of the trunk lid
unexpectedly opening or closing by
itself. Make sure that the trunk lid is
fully open and secure before using the
trunk.
● When opening the trunk lid, take care
so that it does not hit anyone in the
face or any other part of the body.
● When closing the trunk lid, take extra
care to prevent your fingers etc. from
being caught.
■ Trunk opener switch
Press the trunk opener switch.
■ Smart access system with
push-button start
While carrying the electronic key,
press the button on the trunk lid.
When both side doors are unlocked
using one of the following methods, the
trunk can be opened without the electronic key:
Entry function
Wireless remote control
Door lock switches
Automatic door unlocking system
Mechanical key
● When closing the trunk lid, make sure
to press it lightly on its outer surface. If
the trunk handle is used to fully close
the trunk lid, it may result in hands or
arms being caught.
Page 97
3-2. Opening, closing and locking the doors and trunk
■ Wireless remote control
Press and hold the switch.
A buzzer sounds.
■ Trunk grip
Using the trunk grip, lower the trunk
without applying force to the side and
push the trunk down from the outside
to close it.
97
automatically after 20 minutes.
■ Function to prevent the trunk being
locked with the electronic key inside
● When both side doors are locked, closing
the trunk lid with the electronic key left
inside the trunk will sound an alarm.
In this case, the trunk lid can be opened
by pressing the trunk release button on
the trunk lid.
● If the spare electronic key is put in the
trunk with both side doors locked, the key
confinement prevention function is activated so the trunk can be opened. In
order to prevent theft, take all electronic
keys with you when leaving the vehicle.
● If the electronic key is put in the trunk with
both side doors locked, the key may not
be detected depending on the location of
the key and the surrounding radio wave
conditions. In this case, the key confinement prevention function cannot be activated, causing the doors to lock when the
trunk is closed. Make sure to check
where the key is before closing the trunk.
● The key confinement prevention function
cannot be activated if either door is
unlocked. In this case, open the trunk
using the trunk opener.
■ Internal trunk release lever
The trunk lid can be opened by pulling the
glow-in-the-dark lever located on the inside
of the trunk lid upward.
The lever will continue to glow for some
time after the trunk lid is closed.
3
Before driving
■ Trunk light
● The trunk light turns on when the trunk is
opened.
● If the trunk light is left on when the engine
switch is turned off, the light will go off
■ Using the mechanical key
The trunk can be also opened using the
mechanical key. (P.332)
Page 98
98
A
B
A
B
C
D
3-2. Opening, closing and locking the doors and trunk
■ If the smart access system with
push-button start or the wireless remote
control does not operate properly
Use the mechanical key to unlock the trunk.
(P.332)
Replace the key battery with a new one if it
is depleted. (P.283)
■ If a symbol indicating the trunk opens is
shown on the multi-information display
P.94
■ Customization
Some functions can be customized.
(P.360)
Luggage security system
To protect luggage stored in the trunk
against theft, the luggage security system can be set to on.
1 Close the inside trunk door. (if
equipped) (P.228)
2 To disable the trunk opener, turn
the main switch in the glove box off.
Smart access system with
push-button start
The following operations can be
performed simply by carrying the
electronic key (including the card
key) on your person, for example in
your pocket. The driver should
always carry the electronic key.
Locks and unlocks the doors
(P.92)
Opens the trunk (P.96)
Starts the engine (P.128)
■ Antenna location
Antennas outside the cabin
On
Off
When the main switch is off, the trunk lid
cannot be opened even with the wireless
remote control or entry function.
■ When leaving a key to the vehicle with a
parking attendant
P.91
Antennas inside the cabin
Antenna inside the trunk
Antenna outside the trunk
Page 99
3-2. Opening, closing and locking the doors and trunk
ABC
99
■ Effective range (areas within which the
electronic key is detected)
When locking or unlocking the doors
The system can be operated when the
electronic key is within about 2.3 ft. (0.7 m)
of an outside door handle. (Only the doors
detecting the key can be operated.)
When opening the trunk
The system can be operated when the
electronic key is within about 2.3 ft. (0.7 m)
of the trunk release button.
When starting the engine or changing
engine switch modes
The system can be operated when the
electronic key is inside the vehicle.
■ Alarms and warning messages
An alarm sounds and warning messages
are displayed on the multi-information display to protect against unexpected accidents or theft of the vehicle resulting from
erroneous operation. When a warning message is displayed, take appropriate measures based on the displayed message.
(P.310)
When only an alarm sounds, circumstances
and correction procedures are as follows.
● When an exterior alarm sounds once for
5 seconds
Situation
The trunk was closed
while the electronic key
was still inside the trunk
and both side doors were
locked.
An attempt was made to
lock the vehicle while a
door was open.
● When an interior alarm sounds continu-
Correction
procedure
Retrieve the
electronic key
from the trunk
and close the
trunk lid.
Close both
side doors and
lock the doors
again.
ously
Situation
Correction
procedure
The engine switch was
turned to ACCESSORY
mode while the driver’s
door was open (or the
driver’s door was opened
while the engine switch
Turn the engine
switch off and
close the
driver’s door.
was in ACCESSORY
mode).
The engine switch was
turned off while the
driver’s door was open.
■ Battery-saving function
Close the
driver’s door.
The battery-saving function will be activated in order to prevent the electronic key
battery and the vehicle battery from being
discharged while the vehicle is not in operation for a long time.
● In the following situations, the smart
access system with push-button start may
take some time to unlock the doors.
• The electronic key has been left within
approximately 6 ft. (2 m) of the outside of
the vehicle for 10 minutes or longer.
• The smart access system with push-button start has not been used for 5 days or
longer.
● If the smart access system with push-but-
ton start has not been used for 14 days or
3
Before driving
Page 100
100
3-2. Opening, closing and locking the doors and trunk
longer, the doors cannot be unlocked at
the passenger door. In this case, take hold
of the driver’s door handle, or use the
wireless remote control or mechanical
key, to unlock the doors.
■ Electronic Key Battery-Saving Function
When battery-saving mode is set, battery
depletion is minimized by stopping the electronic key from receiving radio waves.
Press twice while pressing and holding
. Confirm that the electronic key indica-
tor flashes 4 times.
While the battery-saving mode is set, the
smart access system with push-button start
cannot be used. To cancel the function,
press any of the electronic key buttons.
■ Conditions affecting operation
The smart access system with push-button
start uses weak radio waves. In the following
situations, the communication between the
electronic key and the vehicle may be
affected, preventing the smart access system with push-button start, wireless remote
control and engine immobilizer system
from operating properly.
(Ways of coping: P.332)
● When the electronic key battery is
depleted
● Near a TV tower, electric power plant,
gas station, radio station, large display,
airport or other facility that generates
strong radio waves or electrical noise
● When carrying a portable radio, cellular
phone, cordless phone or other wireless
communication device
● When the electronic key is in contact
with, or is covered by the following metallic objects
• Cards to which aluminum foil is attached
• Cigarette boxes that have aluminum foil
inside
• Metallic wallets or bags
•Coins
• Hand warmers made of metal
• Media such as CDs and DVDs
● When other wireless keys (that emit radio
waves) are being used nearby
● When carrying the electronic key
together with the following devices that
emit radio waves
• Another vehicle’s electronic key or a
wireless key that emits radio waves
• Personal computers or personal digital
assistants (PDAs)
• Digital audio players
• Portable game systems
● If window tint with a metallic content or
metallic objects are attached to the rear
window
● When the electronic key is placed near a
battery charger or electronic devices
■ Note for the entry function
● Even when the electronic key is within the
effective range (detection areas), the system may not operate properly in the following cases:
• The electronic key is too close to the window or outside door handle, near the
ground, or in a high place when the doors
are locked or unlocked.
• The electronic key is near the ground or
in a high place, or too close to the rear
bumper center when the trunk is opened.
• The electronic key is on the instrument
panel, rear package tray or floor, or in the
door pockets or glove box when the
engine is started or engine switch modes
are changed.
● Do not leave the electronic key on top of
the instrument panel or near the door
pockets when exiting the vehicle.
Depending on the radio wave reception
conditions, it may be detected by the
antenna outside the cabin and the doors
will become lockable from the outside,
possibly trapping the electronic key
inside the vehicle.
● As long as the electronic key is within the
effective range, the doors may be locked
or unlocked by anyone. However, only
Loading...
