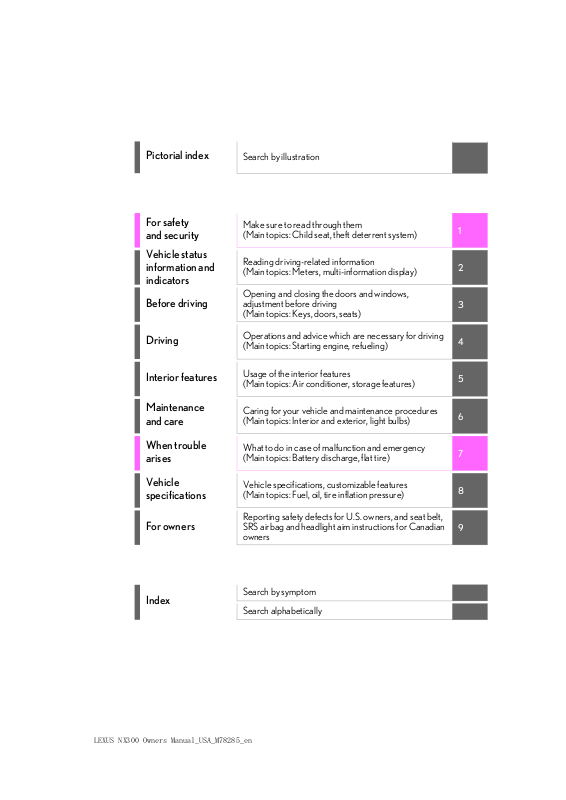

Pictorial index
Search by illustration
For safety
and security
Vehicle status
information and
indicators
Before driving
Driving
Interior features
Maintenance
and care
When trouble
arises
Vehicle
specifications
Make sure to read through them
(Main topics: Child seat, theft deterrent system)
Reading driving-related information
(Main topics: Meters, multi-information display)
Opening and closing the doors and windows,
adjustment before driving
(Main topics: Keys, doors, seats)
Operations and advice which are necessary for driving
(Main topics: Starting engine, refueling)
Usage of the interior features
(Main topics: Air conditioner, storage features)
Caring for your vehicle and maintenance procedures
(Main topics: Interior and exterior, light bulbs)
What to do in case of malfunction and emergency
(Main topics: Battery discharge, flat tire)
Vehicle specifications, customizable features
(Main topics: Fuel, oil, tire inflation pressure)
1
2
3
4
5
6
7
8
For owners
Reporting safety defects for U.S. owners, and seat belt,
SRS airbag and headlight aim instructions for Canadian
owners
Search by symptom
Index
Search alphabetically
LEXUS NX300 Owners Manual_USA_M78285_en
9
Page 2
2
TABLE OF CONTENTS
For your information ......................................6
Reading this manual.................................... 10
How to search .................................................11
Pictorial index .................................................12
1
For safety and security
1-1. For safe use
Before driving....................................22
For safe driving..................................23
Seat belts .............................................24
SRS airbags ....................................... 30
Front passenger occupant classifi-
cation system ................................. 38
Safety information for children.. 43
Child restraint systems ................. 44
Exhaust gas precautions .............. 57
1-2. Theft deterrent system
Engine immobilizer system......... 58
Alarm.................................................... 60
3-2. Opening, closing and locking the
doors
Side doors.......................................... 90
Back door............................................94
Smart access system with push-but-
ton start .......................................... 106
3-3. Adjusting the seats
Front seats..........................................112
Rear seats...........................................113
Driving position memory............ 118
Head restraints ................................121
3-4. Adjusting the steering wheel and
mirrors
Steering wheel ................................123
Inside rear view mirror ................124
Outside rear view mirrors..........126
3-5. Opening, closing the windows and
moon roof
Power windows ............................. 128
Moon roof........................................ 130
Vehicle status information and
2
indicators
2-1. Instrument cluster
Warning lights and indicators.... 64
Gauges and meters ....................... 69
Multi-information display..............72
Head-up display ...............................77
Fuel consumption information... 82
3
Before driving
3-1. Key information
Keys ...................................................... 86
4
Driving
4-1. Before driving
Driving the vehicle........................ 136
Cargo and luggage.......................142
Vehicle load limits..........................144
Trailer towing (vehicles with towing
package)........................................ 145
Trailer towing (vehicles without
towing package)......................... 153
Dinghy towing................................ 154
LEXUS NX300 Owners Manual_USA_M78285_en
Page 3
4-2. Driving procedures
Engine (ignition) switch ..............155
Automatic transmission.............. 158
Turn signal lever............................. 162
Parking brake ................................. 162
Brake Hold....................................... 165
ASC (Active Sound Control).. 167
4-3. Operating the lights and wipers
Headlight switch............................168
Automatic High Beam................. 171
Fog light switch .............................. 174
Windshield wipers and washer174
Rear window wiper and washer
............................................................ 179
4-4. Refueling
Opening the fuel tank cap.......... 181
4-5. Using the driving support systems
Lexus Safety System+ .................183
PCS (Pre-Collision System).....188
LDA (Lane Departure Alert with
steering control) .........................195
Dynamic radar cruise control with
full-speed range.........................203
PKSA (Parking Support Alert) 212
Intuitive parking assist ................. 213
Parking Support Brake function (for
static objects)............................... 218
BSM (Blind Spot Monitor) ....... 227
Driving mode select switch...... 234
Driving assist systems................. 236
All-wheel drive lock switch (AWD
models)..........................................240
4-6. Driving tips
Winter driving tips .......................242
Utility vehicle precautions........ 244
TABLE OF CONTENTS
5
Interior features
5-1. Remote Touch
Remote Touch............................... 248
5-2. Using the air conditioning system
and defogger
Automatic air conditioning system
...........................................................252
Heated steering wheel/seat heat-
ers/seat ventilators................... 259
5-3. Using the interior lights
Interior lights list ............................262
5-4. Using the storage features
List of storage features .............. 265
Luggage compartment features
.......................................................... 268
5-5. Using the other interior features
Other interior features ...............272
Garage door opener ................. 282
Compass ......................................... 287
Lexus Enform Safety Connect290
Lexus Enform Remote............... 295
Lexus Enform Service Connect
.......................................................... 296
6
Maintenance and care
6-1. Maintenance and care
Cleaning and protecting the vehi-
cle exterior................................... 298
Cleaning and protecting the vehi-
cle interior..................................... 30
3
1
2
3
4
5
6
7
8
9
1
LEXUS NX300 Owners Manual_USA_M78285_en
Page 4
4
TABLE OF CONTENTS
6-2. Maintenance
Maintenance requirements .....303
General maintenance................304
Emission inspection and mainte-
nance (I/M) programs ............307
6-3. Do-it-yourself maintenance
Do-it-yourself service precautions
...........................................................308
Hood................................................... 310
Positioning a floor jack................ 310
Engine compartment................... 312
Tires ...................................................320
Tire inflation pressure.................328
Wheels.............................................. 329
Air conditioning filter................... 331
Electronic key battery................ 332
Checking and replacing fuses 334
Headlight aim................................. 336
Light bulbs....................................... 337
7
When trouble arises
7-1. Essential information
Emergency flashers..................... 342
If your vehicle has to be stopped in
an emergency............................. 342
7-2. Steps to take in an emergency
If your vehicle needs to be towed
.......................................................... 344
If you think something is wrong
.......................................................... 348
Fuel pump shut off system........ 349
If a warning light turns on or a warn-
ing buzzer sounds..................... 350
If a warning message is displayed
.......................................................... 359
If you have a flat tire ..................... 361
If the engine will not start.......... 369
If you lose your keys.................... 370
If the fuel filler door cannot be
opened ............................................371
If the electronic key does not oper-
ate properly...................................371
If the vehicle battery is discharged
.......................................................... 374
If your vehicle overheats........... 377
If the vehicle becomes stuck ...380
8
Vehicle specifications
8-1. Specifications
Maintenance data (fuel, oil level,
etc.) ................................................. 382
Fuel information............................ 390
Tire information ............................ 392
8-2. Customization
Customizable features ...............401
8-3. Initialization
Items to initialize..............................411
LEXUS NX300 Owners Manual_USA_M78285_en
Page 5
9
For owners
9-1. For owners
Reporting safety defects for U.S.
owners ............................................ 414
Seat belt instructions for Canadian
owners (in French)..................... 414
SRS airbag instructions for Cana-
dian owners (in French)........... 416
Headlight aim instructions for
Canadian owners (in French)423
Index
TABLE OF CONTENTS
5
1
2
3
What to do if... (Troubleshooting)
........................................................... 426
Alphabetical Index....................... 429
4
5
6
7
8
9
LEXUS NX300 Owners Manual_USA_M78285_en
Page 6
6
For your information
Main Owner’s Manual
Please note that this manual applies to
all models and explains all equipment,
including options. Therefore, you may
find some explanations for equipment
not installed on your vehicle.
All specifications provided in this manual are current at the time of printing.
However, because of the Lexus policy
of continual product improvement, we
reserve the right to make changes at
any time without notice.
Depending on specifications, the vehicle shown in the illustrations may differ
from your vehicle in terms of color and
equipment.
Noise from under vehicle after turning off the engine
Approximately five hours after the
engine is turned off, you may hear
sound coming from under the vehicle
for several minutes. This is the sound of
a fuel evaporation leakage check and,
it does not indicate a malfunction.
Accessories, spare parts and modification of your Lexus
A wide variety of non-genuine spare
parts and accessories for Lexus vehicles are currently available in the market. You should know that Toyota does
not warrant these products and is not
responsible for their performance,
repair, or replacement, or for any dam-
age they may cause to, or adverse
effect they may have on, your Lexus
vehicle.
This vehicle should not be modified
with non-genuine Lexus products.
Modification with non-genuine Lexus
products could affect its performance,
safety or durability, and may even violate governmental regulations. In addition, damage or performance
problems resulting from the modification may not be covered under warranty.
Installation of a mobile two-way radio
system
The installation of a mobile two-way
radio system in your vehicle could
affect electronic systems such as:
Multiport fuel injection system/
sequential multiport fuel injection
system
Lexus Safety System+
Anti-lock brake system
SRS airbag system
Seat belt pretensioner system
Be sure to check with your Lexus
dealer for precautionary measures or
special instructions regarding installation of a mobile two-way radio system.
Vehicle data recordings
Your Lexus is equipped with several
sophisticated computers that will
record certain data, such as:
• Engine speed
• Accelerator status
LEXUS NX300 Owners Manual_USA_M78285_en
Page 7
7
•Brake status
• Vehicle speed
•Shift position
The recorded data varies according to
the vehicle grade level and options
with which it is equipped. These computers do not record conversations or
sounds, and only record images outside of the vehicle in certain situations.
Data Transmission
Your vehicle may transmit the data
recorded in these computers to Lexus
without notification to you.
Data usage
Lexus may use the data recorded in these
computers to diagnose malfunctions, conduct research and development, and
improve quality.
Lexus will not disclose the recorded data to
a third party except:
• With the consent of the vehicle owner or
with the consent of the lessee if the vehicle is leased
• In response to an official request by the
police, a court of law or a government
agency
• For use by Lexus in a lawsuit
• For research purposes where the data is
not tied to a specific vehicle or vehicle
owner
Usage of data collected through
Lexus Enform (U.S. mainland only)
If your Lexus has Lexus Enform and if you
have subscribed to those services, please
refer to the Lexus Enform Telematics Subscription Service Agreement for information on data collected and its usage.
To learn more about the vehicle data
collected, used and shared by
Lexus, please visit
www.lexus.com/privacyvts/
Event data recorder
.
This vehicle is equipped with an event
data recorder (EDR). The main purpose of an EDR is to record, in certain
crash or near crash-like situations, such
as an air bag deployment or hitting a
road obstacle, data that will assist in
understanding how a vehicle’s systems
performed. The EDR is designed to
record data related to vehicle dynamics and safety systems for a short
period of time, typically 30 seconds or
less.
The EDR in this vehicle is designed to
record such data as:
• How various systems in your vehicle
were operating;
• Whether or not the driver and passenger safety belts were buckled/
fastened;
• How far (if at all) the driver was
depressing the accelerator and/or
brake pedal; and,
• How fast the vehicle was traveling.
These data can help provide a better
understanding of the circumstances in
which crashes and injuries occur.
NOTE: EDR data are recorded by your
vehicle only if a non-trivial crash situation occurs; no data are recorded by
the EDR under normal driving conditions and no personal data (e.g., name,
gender, age, and crash location) are
recorded. However, other parties, such
as law enforcement, could combine the
LEXUS NX300 Owners Manual_USA_M78285_en
Page 8
8
WARNING
EDR data with the type of personally
identifying data routinely acquired
during a crash investigation.
To read data recorded by an EDR, special equipment is required, and access
to the vehicle or the EDR is needed. In
addition to the vehicle manufacturer,
other parties, such as law enforcement,
that have the special equipment, can
read the information if they have
access to the vehicle or the EDR.
Disclosure of the EDR data
Lexus will not disclose the data recorded in
an EDR to a third party except when:
• An agreement from the vehicle’s owner
(or the lessee for a leased vehicle) is
obtained
• In response to an official request by the
police, a court of law or a government
agency
• For use by Lexus in a lawsuit
However, if necessary, Lexus may:
• Use the data for research on vehicle
safety performance
• Disclose the data to a third party for
research purposes without disclosing
information about the specific vehicle or
vehicle owner
Scrapping of your Lexus
The SRS airbag and seat belt pretensioner devices in your Lexus contain
explosive chemicals. If the vehicle is
scrapped with the airbags and seat belt
pretensioners left as they are, this may
cause an accident such as fire. Be sure
to have the systems of the SRS airbag
and seat belt pretensioner removed
and disposed of by a qualified service
shop or by your Lexus dealer before
you scrap your vehicle.
Perchlorate Material
Special handling may apply, See
www.dtsc.ca.gov/hazardouswaste/
perchlorate.
Your vehicle has components that may
contain perchlorate. These components may include airbag, seat belt pretensioners, and wireless remote
control batteries.
■ General precautions while driving
Driving under the influence: Never drive
your vehicle when under the influence of
alcohol or drugs that have impaired your
ability to operate your vehicle. Alcohol
and certain drugs delay reaction time,
impair judgment and reduce coordination, which could lead to an accident that
could result in death or serious injury.
Defensive driving: Always drive defensively. Anticipate mistakes that other
drivers or pedestrians might make and
be ready to avoid accidents.
Driver distraction: Always give your full
attention to driving. Anything that distracts the driver, such as adjusting controls, talking on a cellular phone or
reading can result in a collision with
resulting death or serious injury to you,
your occupants or others.
LEXUS NX300 Owners Manual_USA_M78285_en
Page 9
WARNING
■ General precaution regarding chil-
dren’s safety
Never leave children unattended in the
vehicle, and never allow children to have
or use the key.
Children may be able to start the vehicle
or shift the vehicle into neutral. There is
also a danger that children may injure
themselves by playing with the windows,
the moon roof, or other features of the
vehicle. In addition, heat build-up or
extremely cold temperatures inside the
vehicle can be fatal to children.
9
LEXUS NX300 Owners Manual_USA_M78285_en
Page 10
10
Reading this manual
Explains symbols used in this manual
Symbols in this manual
Symbols Meanings
WARNING:
Explains something that, if
not obeyed, could cause
death or serious injury to
people.
NOTICE:
Explains something that, if
not obeyed, could cause
damage to or a malfunction
in the vehicle or its equipment.
Indicates operating or working procedures. Follow the
steps in numerical order.
Symbols in illustrations
Symbols Meanings
Indicates the action (pushing, turning, etc.) used to
operate switches and other
devices.
Indicates the outcome of an
operation (e.g. a lid opens).
Symbols Meanings
Indicates the component or
position being explained.
Means Do not, Do not do
this, or Do not let this happen.
LEXUS NX300 Owners Manual_USA_M78285_en
Page 11
How to search
■ Searching by name
Alphabetical index: P.429
■ Searching by installation position
Pictorial index: P.12
11
■ Searching by symptom or sound
What to do if... (Troubleshooting):
P.426
■ Searching by title
Table of contents: P.2
LEXUS NX300 Owners Manual_USA_M78285_en
Page 12
12
Pictorial index
Pictorial index
■Exterior
The shape of the headlights may differ depending on the grade, etc.
Side doors................................................................................................................... P.90
A
Locking/unlocking..............................................................................................................P.90
Opening/closing the side windows...........................................................................P.128
Locking/unlocking by using the mechanical key.................................................P. 371
Warning messages ..........................................................................................................P.359
Back door ....................................................................................................................P.94
B
Opening from inside the cabin* .................................................................................... P.97
Opening from outside ...............................................................................................P.95, 97
Warning messages ..........................................................................................................P.359
Outside rear view mirrors .................................................................................... P.126
C
Adjusting the mirror angle..............................................................................................P.126
Folding the mirrors.............................................................................................................P.127
Driving position memory*................................................................................................P.118
Defogging the mirrors....................................................................................................P.253
Windshield wipers ......................................................................................... P.174, 179
D
Page 13
Pictorial index
E
G
J
M
Precautions against winter season............................................................................P.242
To prevent freezing (windshield wiper de-icer)*................................................P.257
Precautions against car wash ......................................................................................P.299
Fuel filler door ........................................................................................................... P.181
Refueling method ................................................................................................................P.181
Fuel type/fuel tank capacity .........................................................................................P.383
Tires...........................................................................................................................P.320
F
Tire size/inflation pressure ...........................................................................................P.387
Winter tires/tire chain .................................................................................................... P.242
Checking/rotation/tire pressure warning system..............................................P.320
Coping with flat tires......................................................................................................... P.361
Hood ...........................................................................................................................P.310
Opening ................................................................................................................................P.310
Engine compartment cover ..........................................................................................P.313
Engine oil..............................................................................................................................P.384
Coping with overheat ..................................................................................................... P.377
Warning messages ..........................................................................................................P.359
13
Light bulbs of the exterior lights for driving
(Replacing method: P.337, Watts: P.389)
Headlights .................................................................................................................P.168
H
Parking lights/daytime running lights...............................................................P.168
I
Fog lights.................................................................................................................... P.174
Cornering lights* ...............................................................................................................P.170
Turn signal lights ...................................................................................................... P.162
K
Tail lights .................................................................................................................... P.168
L
License plate lights ................................................................................................. P.168
Back-up light
N
Shifting the shift lever to R..............................................................................................P.158
Side marker lights ................................................................................................... P.168
O
*
:If equipped
LEXUS NX300 Owners Manual_USA_M78285_en
Page 14
14
Pictorial index
■Instrument panel
Engine switch ...........................................................................................................P.155
A
Starting the engine/changing the modes......................................................P.155, 156
Emergency stop of the engine ....................................................................................P.342
When the engine will not start.....................................................................................P.369
Warning messages ..........................................................................................................P.359
Shift lever...................................................................................................................P.158
B
Changing the shift position............................................................................................P.158
Precautions against towing...........................................................................................P.344
When the shift lever does not move ..........................................................................P.159
Meters ..........................................................................................................................P.69
C
Reading the meters/adjusting the instrument panel light.............................P.69, 71
Warning lights/indicator lights ...................................................................................... P.64
When the warning lights come on.............................................................................P.350
Multi-information display ....................................................................................... P.72
D
Display......................................................................................................................................P.72
When the warning messages are displayed..........................................................P.359
LEXUS NX300 Owners Manual_USA_M78285_en
Page 15
Pictorial index
G
L
Turn signal lever ...................................................................................................... P.162
E
Headlight switch...................................................................................................... P.168
Headlights/parking lights/tail lights/license plate lights/
daytime running lights...................................................................................................... P.168
Fog lights ................................................................................................................................P.174
Windshield wiper and washer switch ....................................................... P.174, 179
F
Usage.............................................................................................................................P.174, 179
Adding washer fluid.......................................................................................................... P.319
Warning messages ..........................................................................................................P.359
Emergency flasher switch ...................................................................................P.342
Hood lock release lever ........................................................................................P.310
H
Tilt and telescopic steering control switch
I
*1
...................................................P.123
Adjustment ............................................................................................................................P.123
Driving position memory
Tilt and telescopic steering lock release lever
J
*1
...............................................................................................P.118
*1
............................................ P.123
Adjustment ............................................................................................................................P.123
15
Air conditioning system .......................................................................................P.252
K
Usage.....................................................................................................................................P.252
Rear window defogger...................................................................................................P.253
Audio system
*1
: If equipped
*2
: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
*2
LEXUS NX300 Owners Manual_USA_M78285_en
Page 16
16
C
■Switches
A
B
D
Pictorial index
Instrument panel light control switches .............................................................. P.71
Odometer/trip meter and trip meter reset button ......................................... P.71
Front seat heater switches
Seat ventilator switches
*1
...............................................................................P.260
*1
..................................................................................... P.261
Automatic High Beam switch............................................................................... P.171
E
BSM (Blind Spot Monitor) main switch
F
Power back door switch
G
Heated steering wheel switch
H
Camera switch
I
All-wheel drive lock switch*1............................................................................. P.240
J
Rear seat operation switches
K
*1
: If equipped
*2
: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
*1, 2
*1
....................................................................................... P.97
*1
*1
*1
........................................................ P.227
.........................................................................P.260
............................................................................ P.114
LEXUS NX300 Owners Manual_USA_M78285_en
Page 17
Power window switches ........................................................................................P.128
G
B
A
Window lock switch ............................................................................................... P.129
B
Outside rear view mirror switches .................................................................... P.126
C
Door lock switch........................................................................................................ P.92
D
Driving position memory switches
E
HUD (Head-up display) switches
F
ASC (Active Sound Control) dial
*
:If equipped
Pictorial index
*
.................................................................... P.118
*
....................................................................... P.77
*
..................................................................... P.167
17
Audio remote control switches
A
*
Paddle shift switches .............................................................................................. P.160
LEXUS NX300 Owners Manual_USA_M78285_en
Page 18
18
D
H
C
Pictorial index
C
Meter control switches ........................................................................................... P.72
Vehicle-to-vehicle distance switch ..................................................................P.207
E
Cruise control switch
Dynamic radar cruise control with full-speed range .........................................P.203
F
LDA (Lane Departure Alert with steering control) switch ........................ P.197
G
Talk switch
Telephone switches
*
: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
*
*
A
Driving mode select switch .................................................................................P.234
B
VSC off switch........................................................................................................ P.238
Parking brake switches ......................................................................................... P.162
Applying/releasing ............................................................................................................P.162
Precautions against winter season............................................................................P.243
Warning buzzer/message..................................................................................P.164, 359
D
Brake hold switch .................................................................................................... P.165
E
Remote Touch........................................................................................................ P.248
F
Rear seat heater switches
*
:If equipped
*
..................................................................................P.260
LEXUS NX300 Owners Manual_USA_M78285_en
Page 19
■Interior
D
F
Pictorial index
19
SRS airbags................................................................................................................ P.30
A
Floor mats ....................................................................................................................P.22
B
Front seats .................................................................................................................. P.112
C
Rear seats ................................................................................................................... P.113
Head restraints ......................................................................................................... P.121
E
Seat belts .....................................................................................................................P.24
Console box............................................................................................................. P.266
G
Inside lock buttons ....................................................................................................P.93
H
Cup holders ............................................................................................................. P.266
I
Assist grips ................................................................................................................P.281
J
LEXUS NX300 Owners Manual_USA_M78285_en
Page 20
20
Pictorial index
■Ceiling
Inside rear view mirror .......................................................................................... P.124
A
Sun visors.................................................................................................................. P.272
B
Vanity mirrors ......................................................................................................... P.272
C
Interior light
D
Personal lights.........................................................................................................P.263
Moon roof switches
E
“SOS” button
F
Garage door opener switches
G
*1
: If equipped
*2
: The illustration shows the front, but they are also equipped in the rear.
*2
.........................................................................................................P.263
*1
.............................................................................................P.130
*1
....................................................................................................... P.290
*1
....................................................................... P.282
LEXUS NX300 Owners Manual_USA_M78285_en
Page 21
21
For safety and security
1-1. For safe use
Before driving.................................22
For safe driving.............................. 23
Seat belts ..........................................24
SRS airbags .................................... 30
Front passenger occupant classifi-
cation system .............................. 38
Safety information for children43
Child restraint systems .............. 44
Exhaust gas precautions ........... 57
1-2. Theft deterrent system
Engine immobilizer system...... 58
Alarm................................................. 60
1
1
For safety and security
LEXUS NX300 Owners Manual_USA_M78285_en
Page 22
22
A
WARNING
1-1.For safe use
1-1. For safe use
Before driving
Observe the following before starting off in the vehicle to ensure
safety of driving.
Installing floor mats
Use only floor mats designed specifically for vehicles of the same model
and model year as your vehicle. Fix
them securely in place onto the carpet.
1 Insert the retaining hooks (clips)
into the floor mat eyelets.
Observe the following precautions.
Failure to do so may cause the driver’s
floor mat to slip, possibly interfering with
the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle. This
could lead to an accident, resulting in
death or serious injury.
■ When installing the driver’s floor mat
● Do not use floor mats designed for
other models or different model year
vehicles, even if they are Lexus Genuine floor mats.
● Only use floor mats designed for the
driver’s seat.
● Always install the floor mat securely
using the retaining hooks (clips) provided.
● Do not use two or more floor mats on
top of each other.
● Do not place the floor mat bottom-
side up or upside-down.
2 Turn the upper knob of each retain-
ing hook (clip) to secure the floor
mats in place.
Always align the marks.
The shape of the retaining hooks (clips)
may differ from that shown in the illustration.
■ Before driving
● Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this
check after cleaning the floor.
● With the engine stopped and the shift
lever in P, fully depress each pedal to
the floor to make sure it does not interfere with the floor mat.
LEXUS NX300 Owners Manual_USA_M78285_en
Page 23
1-1. For safe use
WARNING
A
B
C
D
23
For safe driving
For safe driving, adjust the seat and
mirror to an appropriate position
before driving.
Correct driving posture
Adjust the angle of the seatback so
that you are sitting straight up and
so that you do not have to lean forward to steer. (P.112)
Adjust the seat so that you can
depress the pedals fully and so that
your arms bend slightly at the
elbow when gripping the steering
wheel. (P.112, 123)
Lock the head restraint in place
with the center of the head restraint
closest to the top of your ears.
(P.121)
Wear the seat belt correctly.
(P.25)
● Do not adjust the position of the
driver’s seat while driving.
Doing so could cause the driver to lose
control of the vehicle.
● Do not place a cushion between the
driver or passenger and the seatback.
A cushion may prevent correct posture from being achieved, and reduce
the effectiveness of the seat belt and
head restraint.
● Do not place anything under the front
seats.
Objects placed under the front seats
may become jammed in the seat
tracks and stop the seat from locking in
place. This may lead to an accident
and the adjustment mechanism may
also be damaged.
● Always observe the legal speed limit
when driving on public roads.
● When driving over long distances, take
regular breaks before you start to feel
tired. Also, if you feel tired or sleepy
while driving, do not force yourself to
continue driving and take a break
immediately.
Correct use of the seat belts
Make sure that all occupants are wearing their seat belts before driving the
vehicle. (P.25)
Use a child restraint system appropriate for the child until the child becomes
large enough to properly wear the
vehicle’s seat belt. (P.44)
1
For safety and security
Observe the following precautions.
Failure to do so may result in death or
serious injury.
LEXUS NX300 Owners Manual_USA_M78285_en
Adjusting the mirrors
Make sure that you can see the rear of
the vehicle clearly, by adjusting the
inside and outside rear view mirrors
properly. (P.124, 126)
Page 24
24
WARNING
1-1. For safe use
Seat belts
Make sure that all occupants are
wearing their seat belts before driving the vehicle.
Observe the following precautions to
reduce the risk of injury in the event of
sudden braking, sudden swerving or an
accident.
Failure to do so may cause death or serious injury.
■ Wearing a seat belt
● Ensure that all passengers wear a seat
belt.
● Always wear a seat belt properly.
● Each seat belt should be used by one
person only. Do not use a seat belt for
more than one person at once, including children.
● Lexus recommends that children be
seated in the rear seat and always use
a seat belt and/or an appropriate child
restraint system.
■ Pregnant women
Obtain medical advice and wear the seat
belt in the proper way. (P.25)
Women who are pregnant should position the lap belt as low as possible over
the hips in the same manner as other
occupants, extending the shoulder belt
completely over the shoulder and avoiding belt contact with the rounding of the
abdominal area.
If the seat belt is not worn properly, not
only the pregnant woman, but also the
fetus could suffer death or serious injury
as a result of sudden braking or a collision.
● To achieve a proper seating position,
do not recline the seat more than necessary. The seat belt is most effective
when the occupants are sitting up
straight and well back in the seats.
● Do not wear the shoulder belt under
your arm.
● Always wear your seat belt low and
snug across your hips.
LEXUS NX300 Owners Manual_USA_M78285_en
■ People suffering illness
Obtain medical advice and wear the seat
belt in the proper way. (P.25)
■ When children are in the vehicle
Do not allow children to play with the
seat belt. If the seat belt becomes twisted
around a child’s neck, it may lead to
choking or other serious injuries that
could result in death. If this occurs and
the buckle cannot be unfastened, scissors should be used to cut the belt.
■ Seat belt damage and wear
● Do not damage the seat belts by allow-
ing the belt, plate, or buckle to be
jammed in the door.
Page 25
1-1. For safe use
WARNING
WARNING
Do not twist the seat belt.
25
● Inspect the seat belt system periodi-
cally. Check for cuts, fraying, and loose
parts. Do not use a damaged seat belt
until it is replaced. Damaged seat belts
cannot protect an occupant from
death or serious injury.
● Ensure that the belt and plate are
locked and the belt is not twisted.
If the seat belt does not function correctly, immediately contact your Lexus
dealer.
● Replace the seat assembly, including
the belts, if your vehicle has been
involved in a serious accident, even if
there’s no obvious damage.
● Do not attempt to install, remove,
modify, disassemble or dispose of the
seat belts. Have any necessary repairs
carried out by your Lexus dealer. Inappropriate handling may lead to incorrect operation.
Correct use of the seat belts
■ Child seat belt usage
The seat belts of your vehicle were principally designed for persons of adult size.
● Use a child restraint system appropriate
for the child, until the child becomes large
enough to properly wear the vehicle’s
seat belt. (P.44)
● When the child becomes large enough to
properly wear the vehicle’s seat belt, follow the instructions regarding seat belt
usage. (P.24)
■ Seat belt extender
If your seat belts cannot be fastened
securely because they are not long enough,
a personalized seat belt extender is available from your Lexus dealer free of charge.
1
For safety and security
Extend the shoulder belt so that it
comes fully over the shoulder, but
does not come into contact with the
neck or slide off the shoulder.
Position the lap belt as low as possi-
ble over the hips.
Adjust the position of the seatback.
Sit up straight and well back in the
seat.
LEXUS NX300 Owners Manual_USA_M78285_en
■ Using a seat belt extender
Observe the following precautions to
reduce the risk of injury in the event of
sudden braking, sudden swerving or an
accident.
Failure to do so may cause death or serious injury.
● Do not wear the seat belt extender if
you can fasten the seat belt without the
extender.
● Do not use the seat belt extender
when installing a child restraint system
because the belt will not securely hold
the child restraint system, increasing
the risk of death or serious injury in the
event of an accident.
Page 26
26
WARNING
NOTICE
A
A
B
● The personalized extender may not be
■ When releasing a seat belt extender
Press on the buckle release button on the
extender, not on the seat belt, then,
release the extender from the seat belt
buckle.
This helps prevent damage to the vehicle
interior and the extender itself.
1-1. For safe use
safe on another vehicle, when used by
another person, or at a different seating position other than the one originally intended.
Fastening and releasing the seat
belt (except for the rear center
seat)
■ Automatic locking retractor (ALR)
When a passenger’s shoulder belt is completely extended and then retracted even
slightly, the belt is locked in that position and
cannot be extended. This feature is used to
hold the child restraint system (CRS) firmly.
To free the belt again, fully retract the belt
and then pull the belt out once more.
Fastening the seat belt (for the
rear center seat)
1 Take out the plate.
1 To fasten the seat belt, push the
plate into the buckle until a click
sound is heard.
2 To release the seat belt, press the
release button .
■ Emergency locking retractor (ELR)
The retractor will lock the belt during a sudden stop o r on impa ct. It ma y also lock if y ou
lean forward too quickly. A slow, easy
motion will allow the belt to extend so that
you can move around fully.
LEXUS NX300 Owners Manual_USA_M78285_en
Plate A
Plate B
2 When fixing the belt, in the order of
plate A and then plate B, insert the
Page 27
1-1. For safe use
WARNING
A
B
C
A
ABC
27
plate into the buckle until a clicking
sound is heard.
Plate A
Plate B
Buckle
■ When using the rear center seat belt
Do not use the rear center seat belt with
either buckle released. Fastening only
one of the buckles may result in death or
serious injury in case of sudden braking
or a collision.
Releasing and stowing the seat
belt (for the rear center seat)
1 To release the hooked buckle, push
the buckle release button .
1
For safety and security
2 Insert the mechanical key (P.86)
or plate B into the notch of buckle
and remove the belt.
Retract the belt slowly when releasing and
stowing the seat belt.
LEXUS NX300 Owners Manual_USA_M78285_en
Mechanical key
Plate B
Buckle
3 Stow in the cover in the order of
plate B and then plate A.
In order to securely fix it, firmly insert it to
Page 28
28
A
B
WARNING
1-1. For safe use
the back.
Plate A
Plate B
4 Stow the seat belt buckle in the
pockets.
cannot be extended. This feature is used to
hold the child restraint system (CRS) firmly.
To free the belt again, fully retract the belt
and then pull the belt out once more.
Adjusting the seat belt shoulder
anchor height (front seats)
1 Push the seat belt shoulder anchor
down while pressing the release
button .
2 Push the seat belt shoulder anchor
up.
Move the height adjuster up and down as
needed until you hear a click.
A
■ Emergency locking retractor (ELR)
The retractor will lock the belt during a sudden stop o r on impa ct. It ma y also lock if y ou
lean forward too quickly. A slow, easy
motion will allow the belt to extend so that
you can move around fully.
■ Automatic locking retractor (ALR)
When a passenger’s shoulder belt is completely extended and then retracted even
slightly, the belt is locked in that position and
LEXUS NX300 Owners Manual_USA_M78285_en
■ Adjustable shoulder anchor
Always make sure the shoulder belt is
positioned across the center of your
shoulder. The belt should be kept away
from your neck, but not falling off your
shoulder. Failure to do so could reduce
the amount of protection in an accident
and cause death or serious injuries in the
event of a sudden stop, sudden swerve or
accident.
Seat belt pretensioners (front
seats)
The pretensioners help the seat belts to
quickly restrain the occupants by
retracting the seat belts when the vehi-
Page 29
cle is subjected to certain types of
WARNING
severe frontal or side collision or a
vehicle rollover.
The pretensioners do not activate in the
event of a minor frontal impact, a minor
side impact or a rear impact.
■ Replacing the belt after the preten-
sioner has been activated
If the vehicle is involved in multiple collisions, the pretensioner will activate for the
first collision, but will not activate for the
second or subsequent collisions.
1-1. For safe use
29
1
For safety and security
■ Seat belt pretensioners
Observe the following precautions to
reduce the risk of injury in the event of
sudden braking, sudden swerving or an
accident.
Failure to do so may cause death or serious injury.
● Do not place anything, such as a cush-
ion, on the front passenger’s seat.
Doing so will disperse the passenger’s
weight, which prevents the sensor
from detecting the passenger’s weight
properly. As a result, the seat belt pretensioner for the front passenger’s seat
may not activate in the event of a collision.
● If the pretensioner has activated, the
SRS warning light will come on. In that
case, the seat belt cannot be used
again and must be replaced at your
Lexus dealer.
LEXUS NX300 Owners Manual_USA_M78285_en
Page 30
30
A
B
C
D
E
1-1. For safe use
SRS airbags
The SRS airbags inflate when the vehicle is subjected to certain types of
severe impacts that may cause significant injury to the occupants. They work
together with the seat belts to help reduce the risk of death or serious injury.
SRS airbag system
■ Location of the SRS airbags
SRS front airbags
SRS driver airbag/front passenger airbag
Can help protect the head and chest of the driver and front passenger from impact with
interior components
SRS knee airbag
Can help provide driver protection
SRS seat cushion airbag
Can help restrain the front passenger.
SRS side and curtain shield airbags
SRS side airbags
Can help protect the torso of the front seat occupants
SRS curtain shield airbags
LEXUS NX300 Owners Manual_USA_M78285_en
Page 31
1-1. For safe use
A
B
C
D
E
F
G
H
I
J
K
L
M
NOP
Q
R
• Can help protect primarily the head of occupants in the outer seats
• Can help prevent the occupants from being thrown from the vehicle in the event of vehicle rollover
■ SRS airbag system components
Front passenger airbag
“AIR BAG ON” and “AIR BAG OFF” indicator lights
Side airbags
31
1
For safety and security
Curtain shield airbags
Side impact sensors (rear)
SRS warning light
Front passenger occupant classification system (ECU and sensors)
Driver airbag
Side impact sensors (front door)
Driver’s seat belt pretensioner
Front passenger’s seat belt pretensioner and force limiter
Passenger seat cushion airbag
Driver’s seat position sensor
Driver knee airbag
Driver’s seat belt buckle switch
Front passenger’s seat belt buckle switch
Front impact sensors
Airbag sensor assembly
LEXUS NX300 Owners Manual_USA_M78285_en
Page 32
32
1-1. For safe use
Your vehicle is equipped with ADVANCED AIRBAGS designed based on the US
motor vehicle safety standards (FMVSS208). The airbag sensor assembly (ECU)
controls airbag deployment based on information obtained from the sensors, etc.
shown in the system components diagram above. This information includes crash
severity and occupant information. As the airbags deploy, a chemical reaction in
the inflators quickly fills the airbags with non-toxic gas to help restrain the motion of
the occupants.
■ If the SRS airbags deploy (inflate)
● Slight abrasions, burns, bruising, etc., may
be sustained from SRS airbags, due to the
extremely high speed deployment (inflation) by hot gases.
● A loud noise and white powder will be
emitted.
● Parts of the airbag module (steering
wheel hub, airbag cover and inflator) as
well as the front seats, parts of the front
and rear pillars, and roof side rails, may
be hot for several minutes. The airbag
itself may also be hot.
● The windshield may crack.
● For Lexus Enform Safety Connect sub-
scribers, if the SRS airbags deploy or in
the event of a severe rear-end collision,
the system is designed to send an emergency call to the response center, notifying them of the vehicle’s location (without
needing to push the “SOS” button) and
an agent will attempt to speak with the
occupants to ascertain the level of emergency and assistance required. If the
occupants are unable to communicate,
the agent automatically treats the call as
an emergency and helps to dispatch the
necessary emergency services.
(P.290)
■ SRS airbag deployment conditions (SRS
front airbags)
● The SRS front airbags will deploy in the
event of an impact that exceeds the set
threshold level (the level of force corresponding to an approximately 12-18 mph
[20-30 km/h] frontal collision with a
fixed wall that does not move or deform).
However, this threshold velocity will be considerably higher in the following situations:
• If the vehicle strikes an object, such as a
parked vehicle or sign pole, which can
move or deform on impact
• If the vehicle is involved in an underride
collision, such as a collision in which the
front of the vehicle underrides, or goes
under, the bed of a truck
● Depending on the type of collision, it is
possible that only the seat belt pretensioners will activate.
● The SRS front airbags for the front pas-
senger will not activate if there is no passenger sitting in the front passenger seat.
However, the SRS front airbags for the
front passenger may deploy if luggage is
put in the seat, even if the seat is unoccupied. (P.38)
● The SRS seat cushion airbag on the front
passenger seat will not operate if the
occupant is not wearing a seat belt.
■ SRS airbag deployment conditions (SRS
side and curtain shield airbags)
● The SRS side and curtain shield airbags
will deploy in the event of an impact that
exceeds the set threshold level (the level
of force corresponding to the impact
force produced by an approximately
3300 lb. [1500 kg] vehicle colliding with
the vehicle cabin from a direction perpendicular to the vehicle orientation at an
approximate speed of 12 -18 mph [20 30 km/h]).
● The SRS curtain shield airbags will deploy
in the event of vehicle rollover.
● The SRS side and curtain shield airbags
may also deploy in the event of a severe
frontal collision.
■ Conditions under which the SRS air-
bags may deploy (inflate), other than a
collision
The SRS front airbags and SRS side and
LEXUS NX300 Owners Manual_USA_M78285_en
Page 33
curtain shield airbags may also deploy if a
serious impact occurs to the underside of
your vehicle. Some examples are shown in
the illustration.
● Hitting a curb, edge of pavement or hard
surface
● Falling into or jumping over a deep hole
● Landing hard or falling
The SRS curtain shield airbags may also
deploy under the situations shown in the
illustration.
● The angle of vehicle tip-up is marginal.
● The vehicle skids and hits a curb stone.
1-1. For safe use
■ Types of collisions that may not deploy
33
the SRS airbags (SRS side and curtain
shield airbags)
The SRS side and curtain shield airbags
may not activate if the vehicle is subjected
to a collision from the side at certain angles,
or a collision to the side of the vehicle body
other than the passenger compartment.
● Collision from the side to the vehicle
body other than the passenger compartment
● Collision from the side at an angle
1
For safety and security
■ Types of collisions that may not deploy
the SRS airbags (SRS front airbags)
The SRS front airbags do not generally
inflate if the vehicle is involved in a side or
rear collision, if it rolls over, or if it is involved
in a low-speed frontal collision. But, whenever a collision of any type causes sufficient
forward deceleration of the vehicle, deployment of the SRS front airbags may occur.
● Collision from the side
● Collision from the rear
● Vehicle rollover
The SRS side airbags do not generally
inflate if the vehicle is involved in a rear collision, if it rolls over, or if it is involved in a lowspeed side or low-speed frontal collision.
● Collision from the rear
● Vehicle rollover
The SRS curtain shield airbags do not generally inflate if the vehicle is involved in a
rear collision, if it pitches end over end, or if
it is involved in a low-speed side or lowspeed frontal collision.
LEXUS NX300 Owners Manual_USA_M78285_en
Page 34
34
● Collision from the rear
● Pitching end over end
■ When to contact your Lexus dealer
1-1. For safe use
In the following cases, the vehicle will
require inspection and/or repair. Contact
your Lexus dealer as soon as possible.
● Any of the SRS airbags have been
inflated.
● The front of the vehicle is damaged or
deformed, or was involved in an accident
that was not severe enough to cause the
SRS front airbags to inflate.
● The front passenger’s seat cushion sur-
face is scratched, cracked, or otherwise
damaged.
● The surface of the seats with the side air-
bag is scratched, cracked, or otherwise
damaged.
● A portion of a door or its surrounding
area is damaged or deformed, or the
vehicle was involved in an accident that
was not severe enough to cause the SRS
side and curtain shield airbags to inflate.
● The pad section of the steering wheel,
dashboard near the front passenger airbag or lower portion of the instrument
panel is scratched, cracked, or otherwise
damaged.
LEXUS NX300 Owners Manual_USA_M78285_en
● The portion of the front pillars, rear pillars
or roof side rail garnishes (padding) containing the curtain shield airbags inside is
scratched, cracked, or otherwise damaged.
Page 35
WARNING
■ SRS airbag precautions
Observe the following precautions
regarding the SRS airbags.
Failure to do so may cause death or serious injury.
● The driver and all passengers in the
vehicle must wear their seat belts
properly.
The SRS airbags are supplemental
devices to be used with the seat belts.
● The SRS driver airbag deploys with
considerable force, and can cause
death or serious injury especially if the
driver is very close to the airbag. The
National Highway Traffic Safety
Administration (NHTSA) advises:
Since the risk zone for the driver’s airbag is the first 2 - 3 in. (50 - 75 mm) of
inflation, placing yourself 10 in. (250
mm) from your driver airbag provides
you with a clear margin of safety. This
distance is measured from the center
of the steering wheel to your breastbone. If you sit less than 10 in. (250
mm) away now, you can change your
driving position in several ways:
• Move your seat to the rear as far as
you can while still reaching the pedals
comfortably.
• Slightly recline the back of the seat.
Although vehicle designs vary, many
drivers can achieve the 10 in. (250
mm) distance, even with the driver seat
all the way forward, simply by reclining
the back of the seat somewhat. If
reclining the back of your seat makes it
hard to see the road, raise yourself by
using a firm, non-slippery cushion, or
raise the seat if your vehicle has that
feature.
• If your steering wheel is adjustable, tilt
it downward. This points the airbag
toward your chest instead of your head
and neck.
1-1. For safe use
The seat should be adjusted as recommended by NHTSA above, while still
maintaining control of the foot pedals,
steering wheel, and your view of the
instrument panel controls.
● If the seat belt extender has been con-
nected to the front seat belt buckles
but the seat belt extender has not also
been fastened to the latch plate of the
seat belt, the SRS front airbags will
judge that the driver and front passenger are wearing the seat belt even
though the seat belt has not been connected. In this case, the SRS front airbags may not activate correctly in a
collision, resulting in death or serious
injury in the event of a collision. Be
sure to wear the seat belt with the seat
belt extender.
● The SRS front passenger airbag also
deploys with considerable force, and
can cause death or serious injury
especially if the front passenger is very
close to the airbag. The front passenger seat should be as far from the airbag as possible with the seatback
adjusted, so the front passenger sits
upright.
● Improperly seated and/or restrained
infants and children can be killed or
seriously injured by a deploying airbag.
An infant or child who is too small to
use a seat belt should be properly
secured using a child restraint system.
Lexus strongly recommends that all
infants and children be placed in the
rear seats of the vehicle and properly
restrained. The rear seats are safer for
infants and children than the front passenger seat. (P.44)
35
1
For safety and security
LEXUS NX300 Owners Manual_USA_M78285_en
Page 36
36
WARNING
● Do not sit on the edge of the seat or
1-1. For safe use
lean against the dashboard.
● Do not allow anyone to kneel on the
passenger seat toward the door or put
their head or hands outside the vehicle.
● Do not allow a child to stand in front of
the SRS front passenger airbag unit or
sit on the knees of a front passenger.
● Do not allow the front seat occupants
to hold items on their knees.
● Do not lean against the door, the roof
side rail or the front, side and rear pillars.
● Do not attach anything to or lean any-
thing against areas such as the dashboard, steering wheel pad and lower
portion of the instrument panel.
These items can become projectiles
when the SRS driver, front passenger
and knee airbags deploy.
● Do not attach anything to areas such
as a door, windshield glass, side door
glass, front or rear pillar, roof side rail
and assist grip.
● Do not hang coat hangers or other
hard objects on the coat hooks. All of
these items could become projectiles
and may cause death or serious injury,
should the SRS curtain shield airbags
deploy.
LEXUS NX300 Owners Manual_USA_M78285_en
Page 37
WARNING
● If a vinyl cover is put on the area where
the SRS knee airbag will deploy, be
sure to remove it.
● Do not use seat accessories which
cover the parts where the SRS side airbags and SRS seat cushion airbag
inflate as they may interfere with inflation of the SRS airbags. Such accessories may prevent the side airbags and
SRS seat cushion airbag from activating correctly, disable the system or
cause the side airbags and SRS seat
cushion airbag to inflate accidentally,
resulting in death or serious injury.
1-1. For safe use
■ Modification and disposal of SRS air-
bag system components
Do not dispose of your vehicle or perform any of the following modifications
without consulting your Lexus dealer.
The SRS airbags may malfunction or
deploy (inflate) accidentally, causing
death or serious injury.
● Installation, removal, disassembly and
repair of the SRS airbags
● Repairs, modifications, removal or
replacement of the steering wheel,
instrument panel, dashboard, seats or
seat upholstery, front, side and rear pillars or roof side rails
37
1
For safety and security
● Do not strike or apply significant levels
of force to the area of the SRS airbag
components.
Doing so can cause the SRS airbags to
malfunction.
● Do not touch any of the component
parts immediately after the SRS airbags have deployed (inflated) as they
may be hot.
● If breathing becomes difficult after the
SRS airbags have deployed, open a
door or window to allow fresh air in, or
leave the vehicle if it is safe to do so.
Wash off any residue as soon as possible to prevent skin irritation.
● If the areas where the SRS airbags are
stored, such as the steering wheel pad
and front and rear pillar garnishes, are
damaged or cracked, have them
replaced by your Lexus dealer.
● Do not place anything, such as a cush-
ion, on the front passenger’s seat.
Doing so will disperse the passenger’s
weight, which prevents the sensor
from detecting the passenger’s weight
properly. As a result, the SRS front airbags for the front passenger may not
deploy in the event of a collision.
● Repairs or modifications of the front
fender, front bumper, or side of the
occupant compartment
● Installation of a grille guard (bull bars,
kangaroo bar, etc.), snow plows,
winches or roof luggage carrier
● Modifications to the vehicle’s suspen-
sion system
● Installation of electronic devices such
as mobile two-way radios and CD
players
● Modifications to your vehicle for a per-
son with a physical disability
LEXUS NX300 Owners Manual_USA_M78285_en
Page 38
38
A
BCD
E
F
1-1. For safe use
Front passenger occupant classification system
Your vehicle is equipped with a front passenger occupant classification system. This system detects the conditions of the front passenger seat and activates or deactivates the devices for the front passenger.
System components
SRS warning light
Front passenger’s seat belt reminder light
For the U.S.A.
“AIR BAG OFF” indicator light
“AIR BAG ON” indicator light
For Canada
“AIR BAG OFF” indicator light
“AIR BAG ON” indicator light
LEXUS NX300 Owners Manual_USA_M78285_en
Page 39
1-1. For safe use
Condition and operation in the front passenger occupant classification
system
39
■ Adult
*1
Indicator/warning
light
Devices
■ Child
*4
Indicator/warning
light
“AIR BAG ON” and “AIR BAG OFF” indica-
tor lights
SRS warning light Off
Front passenger’s seat belt reminder light
Front passenger airbag
Side airbag on the front passenger seat
Curtain shield airbag in the front passenger
side
Seat cushion airbag in the front passenger
side
Front passenger’s seat belt pretensioner and
force limiter
“AIR BAG ON” and “AIR BAG OFF” indica-
tor lights
SRS warning light Off
Front passenger’s seat belt reminder light
“AIR BAG ON”
Off*2 or flashing
*3
Activated
Activated *2 or deac-
*3
tivated
Activated
“AIR BAG OFF” or
“AIR BAG ON”
Off*2 or flashing
*4
*3
1
For safety and security
Front passenger airbag
Side airbag on the front passenger seat
Curtain shield airbag in the front passenger
Devices
Seat cushion airbag in the front passenger
Front passenger’s seat belt pretensioner and
LEXUS NX300 Owners Manual_USA_M78285_en
side
side
force limiter
Deactivated or acti-
*4
vated
Activated
Deactivated or acti-
*2, 4
vated
Activated
Page 40
40
1-1. For safe use
■ Child restraint system with infant
“AIR BAG ON” and “AIR BAG OFF” indica-
Indicator/warning
light
SRS warning light Off
Front passenger’s seat belt reminder light
Front passenger airbag Deactivated
Side airbag on the front passenger seat
Curtain shield airbag in the front passenger
Devices
Seat cushion airbag in the front passenger
Front passenger’s seat belt pretensioner and
■ Unoccupied
“AIR BAG ON” and “AIR BAG OFF” indica-
Indicator/warning
light
SRS warning light
Front passenger’s seat belt reminder light
*5
tor lights
side
side
force limiter
tor lights
“AIR BAG OFF”
Off*2 or flashing
Activated
Deactivated
Activated
“AIR BAG OFF”
Off
*6
*3
Devices
Front passenger airbag Deactivated
Side airbag on the front passenger seat
Curtain shield airbag in the front passenger
side
Seat cushion airbag in the front passenger
side
Front passenger’s seat belt pretensioner and
force limiter
Activated
Deactivated
Activated
LEXUS NX300 Owners Manual_USA_M78285_en
Page 41
■ There is a malfunction in the system
1-1. For safe use
41
Indicator/warning
light
“AIR BAG ON” and “AIR BAG OFF” indica-
tor lights
SRS warning light
“AIR BAG OFF”
On
Front passenger’s seat belt reminder light
Front passenger airbag Deactivated
Side airbag on the front passenger seat
Curtain shield airbag in the front passenger
Devices
side
Seat cushion airbag in the front passenger
side
Front passenger’s seat belt pretensioner and
force limiter
*1
: The system judges a person of adult size as an adult. When a smaller adult sits in the
Activated
Deactivated
Activated
front passenger seat, the system may not recognize him/her as an adult depending on
his/her physique and posture.
*2
: In the event the front passenger is wearing a seat belt.
*3
: In the event the front passenger does not wear a seat belt.
*4
: For some children, child in seat, child in booster seat or child in convertible seat, the sys-
tem may not recognize him/her as a child. Factors which may affect this can be the physique or posture.
*5
: Never install a rear-facing child restraint system on the front passenger seat. A forward-
facing child restraint system should only be installed on the front passenger seat when it
is unavoidable. (P.47)
*6
: In case the indicator light is not illuminated, consult this manual on how to install the child
restraint system properly. (P.44)
1
For safety and security
LEXUS NX300 Owners Manual_USA_M78285_en
Page 42
42
WARNING
■ Front passenger occupant classifica-
1-1. For safe use
tion system precautions
Observe the following precautions
regarding the front passenger occupant
classification system. Failure to do so may
cause death or serious injury.
● Wear the seat belt properly.
● Make sure the front passenger’s seat
belt plate has not been left inserted
into the buckle before someone sits in
the front passenger seat.
● Make sure the “AIR BAG OFF” indi-
cator light is not illuminated when
using the seat belt extender for the
front passenger seat. If the “AIR BAG
OFF” indicator light is illuminated, disconnect the extender tongue from the
seat belt buckle, and reconnect the
seat belt. Reconnect the seat belt
extender after making sure the “AIR
BAG ON” indicator light is illuminated. If you use the seat belt extender
while the “AIR BAG OFF” indicator
light is illuminated, the SRS airbags for
the front passenger will not activate,
which could cause death or serious
injury in the event of a collision.
● Do not apply a heavy load to the front
passenger seat or equipment (e.g.
seatback pocket).
● Do not put weight on the front passen-
ger seat by putting your hands or feet
on the front passenger seat seatback
from the rear passenger seat.
● Do not let a rear passenger lift the
front passenger seat with their feet or
press on the seatback with their legs.
● Do not put objects under the front pas-
senger seat.
● Do not recline the front passenger
seatback so far that it touches a rear
seat. This may cause the “AIR BAG
OFF” indicator light to be illuminated,
which indicates that the SRS airbags
for the front passenger will not activate
in the event of a severe accident. If the
seatback touches the rear seat, return
the seatback to a position where it
does not touch the rear seat. Keep the
front passenger seatback as upright as
possible when the vehicle is moving.
Reclining the seatback excessively
may lessen the effectiveness of the
seat belt system.
● If an adult sits in the front passenger
seat, the “AIR BAG ON” indicator
light is illuminated. If the “AIR BAG
OFF” indicator is illuminated, ask the
passenger to sit up straight, well back
in the seat, feet on the floor, and with
the seat belt worn correctly. If the “AIR
BAG OFF” indicator still remains illuminated, either ask the passenger to
move to the rear seat, or if that is not
possible, move the front passenger
seat fully rearward.
● When it is unavoidable to install a for-
ward-facing child restraint system on
the front passenger seat, install the
child restraint system on the front passenger seat in the proper order.
(P.47)
● Do not modify or remove the front
seats.
● Do not kick the front passenger seat or
subject it to severe impact. Otherwise,
the SRS warning light may come on to
indicate a malfunction of the front passenger occupant classification system.
In this case, contact your Lexus dealer
immediately.
● Child restraint systems installed on the
rear seat should not contact the front
seatbacks.
● Do not use a seat accessory, such as a
cushion and seat cover, that covers the
seat cushion surface.
LEXUS NX300 Owners Manual_USA_M78285_en
Page 43
WARNING
● Do not modify or replace the uphol-
WARNING
stery of the front seat.
1-1. For safe use
Safety information for children
Observe the following precautions
when children are in the vehicle.
Use a child restraint system appropriate for the child, until the child
becomes large enough to properly
wear the vehicle’s seat belt.
It is recommended that children
sit in the rear seats to avoid accidental contact with the shift lever,
wiper switch, etc.
Use the rear door child-protector
lock or the window lock switch to
avoid children opening the door
while driving or operating the
power window accidentally.
(P.93, 129)
43
1
For safety and security
Do not let small children operate
equipment which may catch or
pinch body parts, such as the
power window, hood, back door,
seats, etc.
■ When children are in the vehicle
Never leave children unattended in the
vehicle, and never allow children to have
or use the key.
Children may be able to start the vehicle
or shift the vehicle into neutral. There is
also a danger that children may injure
themselves by playing with the windows,
the moon roof (if equipped) or other features of the vehicle. In addition, heat
build-up or extremely cold temperatures
inside the vehicle can be fatal to children.
LEXUS NX300 Owners Manual_USA_M78285_en
Page 44
44
WARNING
1-1. For safe use
Child restraint systems
Before installing a child restraint
system in the vehicle, there are precautions that need to be observed,
different types of child restraint systems, as well as installation methods, etc., written in this manual.
Use a child restraint system when
riding with a small child that cannot
properly use a seat belt. For the
child’s safety, install the child
restraint system to a rear seat. Be
sure to follow the installation
method that is in the operation
manual enclosed with the restraint
system.
Table of contents
Points to remember: P.44
Child restraint system: P.46
When using a child restraint system on
a passenger seat: P.47
When using a child restraint system on
a rear seat: P.48
Child restraint system installation
method
• Fixed with a seat belt: P.48
• Fixed with a child restraint LATCH
anchor: P.52
• Using an anchor bracket (for top
tether strap): P.54
of child restraint systems.
Prioritize and observe the warn-
ings, as well as the laws and regulations for child restraint systems.
Choose a child restraint system that
suits your vehicle and is appropriate
to the age and size of the child.
Use a child restraint system appro-
priate for the child until the child
becomes large enough to properly
wear the vehicle’s seat belt.
■ When a child is riding
Observe the following precautions. Failure to do so may result in death or serious injury.
● For effective protection in automobile
accidents and sudden stops, a child
must be properly restrained, using a
seat belt or child restraint system
depending on the age and size of the
child.
● Lexus strongly urges the use of a
proper child restraint system that conforms to the size of the child, installed
on the rear seat. According to accident statistics, the child is safer when
properly restrained in the rear seat
than in the front seat.
● Holding a child in your or someone
else’s arms is not a substitute for a child
restraint system. In an accident, the
child can be crushed against the windshield or between the holder and the
interior of the vehicle.
● Place one child to a child restraint sys-
tem and then secure the child with the
harness of the child restraint system.
Points to remember
The laws of all 50 states of the U.S.A.
as well as Canada now require the use
LEXUS NX300 Owners Manual_USA_M78285_en
Page 45
WARNING
■ Handling the child restraint system
If the child restraint system is not properly fixed in place, the child or other passengers may be seriously injured or even
killed in the event of sudden braking, sudden swerving, or an accident.
● If the vehicle were to receive a strong
impact from an accident, etc., it is possible that the child restraint system has
damage that is not readily visible. In
such cases, do not reuse the restraint
system.
● Make sure you have complied with all
installation instructions provided with
the child restraint system manufacturer and that the system is properly
secured.
● Keep the child restraint system prop-
erly secured on the seat even if it is not
in use. Do not store the child restraint
system unsecured in the passenger
compartment.
1-1. For safe use
45
1
For safety and security
● If it is necessary to detach the child
restraint system, remove it from the
vehicle or store it securely in the luggage compartment.
LEXUS NX300 Owners Manual_USA_M78285_en
Page 46
46
1-1. For safe use
Child restraint system
■ Types of child restraint system installation methods
Confirm with the operation manual enclosed with the child restraint system about
the installation of the child restraint system.
Installation method Page
Seat belt attachment P.48
Child restraint
LATCH anchors
attachment
P.52
Anchor brackets (for
top tether strap)
attachment
LEXUS NX300 Owners Manual_USA_M78285_en
P.54
Page 47
When using a child restraint sys-
WARNING
tem on a passenger seat
■ When installing a child restraint
system to a passenger seat
For the safety of a child, install child
restraint systems to a rear seats. When
installing child restraint system to a
front passenger seat is unavoidable,
adjust the passenger seat as follows
and install the child restraint system.
Raise the seatback as much as pos-
sible
Move the seat to the rearmost posi-
tion
Raise the seat to the upper most
position
If the head restraint interferes with
the child restraint system installation and the head restraint can be
removed, remove the head restraint
1-1. For safe use
■ When installing a child restraint sys-
tem
Observe the following when installing
child restraint system to the front passenger seat if it is unavoidable. The front passenger SRS air bag inflates with
considerable speed and force that if not
observed may lead to death or serious
injury to the child.
● Never install a rear-facing child
restraint system on the front passenger
seat even if the “AIR BAG OFF” indicator light is illuminated. In the event of
an accident, the force of the rapid inflation of the front passenger airbag can
cause death or serious injury to the
child if the rear-facing child restraint
system is installed on the front passenger seat.
● A forward-facing child restraint system
may be installed on the front passenger seat only when it is unavoidable. A
child restraint system that requires a
top tether strap should not be used in
the front passenger seat since there is
no top tether strap anchor for the front
passenger seat.
47
1
For safety and security
● A forward-facing child restraint system
may be installed on the front passenger seat only when it is unavoidable.
When installing a forward-facing child
restraint system on the front passenger
seat, move the seat as far back as possible, and raise the seat to the upper
most position, even if the “AIR BAG
OFF” indicator light is illuminated. If
the head restraint interferes with the
child restraint system installation and
the head restraint can be removed,
remove the head restraint.
LEXUS NX300 Owners Manual_USA_M78285_en
Page 48
48
WARNING
WARNING
● Do not allow the child to lean his/her
● When a booster seat is installed,
1-1. For safe use
head or any part of his/her body
against the door or the area of the seat,
front pillars or roof side rails from
which the SRS side airbags or SRS
curtain shield airbags deploy even if
the child is seated in the child restraint
system. It is dangerous if the SRS side
and curtain shield airbags inflate, and
the impact could cause death or serious injury to the child.
always ensure that the shoulder belt is
positioned across the center of the
child’s shoulder. The belt should be
kept away from the child’s neck, but
not so that it could fall off the child’s
shoulder.
When using a child restraint system on a rear seat
● Adjust the front passenger seat so that
it does not interfere with the child
restraint system.
● Do not allow the child to lean his/her
head or any part of his/her body
against the door or the area of the seat,
rear pillars or roof side rails from which
the SRS curtain shield airbag deploys
even if the child is seated in the child
restraint system. It is dangerous if the
SRS curtain shield airbag inflates, and
the impact could cause death or serious injury to the child.
Child restraint system fixed with
a seat belt
■ When installing a child restraint sys-
tem
Observe the following precautions. Failure to do so may result in death or serious injury.
● Use child restraint system suitable to
the age and size of the child and install
it to the rear seat.
● If the driver’s seat interferes with the
child restraint system and prevents it
from being attached correctly, attach
the child restraint system to the righthand rear seat.
A child restraint system for a small
child or baby must itself be properly
restrained on the seat with the lap portion of the lap/shoulder belt.
■ Installing child restraint system
using a seat belt (child restraint
lock function belt)
Install the child restraint system in
accordance to the operation manual
enclosed with the child restraint system.
■ Rear-facing — Infant seat/convert-
ible seat
1 Adjust the seatback
If there is a gap between the child seat and
the seatback, adjust the seatback until
good contact is achieved.
LEXUS NX300 Owners Manual_USA_M78285_en
Page 49
1-1. For safe use
49
2 Place the child restraint system on
the rear seat facing the rear of the
vehicle.
3 Run the seat belt through the child
restraint system and insert the plate
into the buckle. Make sure that the
belt is not twisted.
4 Fully extend the shoulder belt and
allow it to retract to put it in lock
mode. In lock mode, the belt cannot
be extended.
until the child restraint system is
securely in place.
After the shoulder belt has retracted to a
point where there is no slack in the belt,
pull the belt to check that it cannot be
extended.
1
For safety and security
6 After installing the child restraint
system, rock it back and forth to
ensure that it is installed securely.
■ Forward-facing — Convertible seat
1 Adjust the seatback
If there is gap between the child seat and
the seatback, adjust the seatback until
good contact is achieved.
2 If the head restraint interferes with
the child restraint system installation and the head restraint can be
removed, remove the head
restraint. (P.122)
5 While pushing the child restraint
system down into the rear seat,
allow the shoulder belt to retract
LEXUS NX300 Owners Manual_USA_M78285_en
Page 50
50
1-1. For safe use
3 Place the child restraint system on
the seat facing the front of the vehicle.
4 Run the seat belt through the child
restraint system and insert the plate
into the buckle. Make sure that the
belt is not twisted.
child restraint system is securely in
place.
After the shoulder belt has retracted to a
point where there is no slack in the belt,
pull the belt to check that it cannot be
extended.
7 If the child restraint has a top tether
strap, follow the child restraint manufacturer’s operation manual
regarding the installation, using the
top tether strap to latch onto the
top tether strap anchor. (P.54)
8 After installing the child restraint
system, rock it back and forth to
ensure that it is installed securely.
5 Fully extend the shoulder belt and
allow it to retract to put it in lock
mode. In lock mode, the belt cannot
be extended.
6 While pushing the child restraint
system into the rear seat, allow the
shoulder belt to retract until the
■ Booster seat
1 High back type: If the head restraint
interferes with your child restraint
system, and the head restraint can
be removed, remove the head
restraint. (P.122)
LEXUS NX300 Owners Manual_USA_M78285_en
Page 51
1-1. For safe use
51
2 Place the child restraint system on
the seat facing the front of the vehicle.
Booster type
High back type
(P.25)
1
For safety and security
■ Removing a child restraint system
installed with a seat belt
Press the buckle release button and
fully retract the seat belt.
When releasing the buckle, the child
restraint system may spring up due to the
rebound of the seat cushion. Release the
buckle while holding down the child
restraint system.
Since the seat belt automatically reels itself,
slowly return it to the stowing position.
3 Sit the child in the child restraint
system. Fit the seat belt to the child
restraint system according to the
manufacturer’s instructions and
insert the plate into the buckle.
Make sure that the belt is not
twisted.
Check that the shoulder belt is correctly
positioned over the child’s shoulder and
that the lap belt is as low as possible.
LEXUS NX300 Owners Manual_USA_M78285_en
Page 52
52
WARNING
■ When installing a child restraint sys-
Observe the following precautions. Failure to do so may result in death or serious injury.
● Do not allow children to play with the
● Ensure that the belt and plate are
● Shake the child restraint system left
● After securing a child restraint system,
● When a booster seat is installed,
● Follow all installation instructions pro-
1-1. For safe use
tem
seat belt. If the seat belt becomes
twisted around a child’s neck, it may
lead to choking or other serious injuries that could result in death. If this
occurs and the buckle cannot be
unfastened, scissors should be used to
cut the belt.
securely locked and the seat belt is not
twisted.
and right, and forward and backward
to ensure that it has been securely
installed.
never adjust the seat.
always ensure that the shoulder belt is
positioned across the center of the
child’s shoulder. The belt should be
kept away from the child’s neck, but
not so that it could fall off the child’s
shoulder.
vided by the child restraint system
manufacturer.
● When installing a child restraint system
in the rear center seat, adjust both
seatbacks at the same angle. Otherwise, the child restraint system cannot
be securely restrained and this may
cause death or serious injuries in the
event of sudden braking, sudden
swerving or an accident.
■ When installing a booster seat
To prevent the belt from going into ALR
lock mode, do not fully extend the shoulder belt. ALR mode causes the belt to
tighten only. This could cause injury or
discomfort to the child. (P.26)
■ Do not use a seat belt extender
If a seat belt extender is used when
installing a child restraint system, the seat
belt will not securely hold the child
restraint system, which could cause
death or serious injury to the child or
other passengers in the event of sudden
braking, sudden swerving or an accident.
Child restraint system fixed with
a child restraint LATCH anchor
■ Child restraint LATCH anchors
LATCH anchors are provided for the
outboard rear seats. (Buttons displaying the location of the anchors are
attached to the seats.)
● When securing some types of child
restraint systems in rear seats, it may
not be possible to properly use the
seat belts in positions next to the child
restraint without interfering with it or
affecting seat belt effectiveness. Be
sure your seat belt fits snugly across
your shoulder and low on your hips. If it
does not, or if it interferes with the
child restraint, move to a different position. Failure to do so may result in
death or serious injury.
LEXUS NX300 Owners Manual_USA_M78285_en
■ Installation with LATCH system
Install the child restraint system in
accordance to the operation manual
Page 53
1-1. For safe use
A
53
enclosed with the child restraint system.
1 Adjust the seatback
If there is a gap between the child seat and
the seatback, adjust the seatback until
good contact is achieved.
2 If the head restraint interferes with
the child restraint system installation and the head restraint can be
removed, remove the head
restraint. (P.122)
Type A
3 Latch the hooks of the lower straps
onto the LATCH anchors.
For owners in Canada:
The symbol on a child restraint system indi-
cates the presence of a lower connec-
A
tor system.
1
For safety and security
Type B
3 Latch the buckles onto the LATCH
anchors.
For owners in Canada:
The symbol on a child restraint system indi-
cates the presence of a lower connec-
LEXUS NX300 Owners Manual_USA_M78285_en
Page 54
54
WARNING
tor system.
1-1. For safe use
4 If the child restraint has a top tether
strap, follow the child restraint manufacturer’s operation manual
regarding the installation, using the
top tether strap to latch onto the
top tether strap anchor. (P.54)
5 After installing the child restraint
system, rock it back and forth to
ensure that it is installed securely.
■ Laws and regulations pertaining to
anchors
The LATCH system conforms to
FMVSS225 or CMVSS210.2.
Child restraint systems conforming to
FMVSS213 or CMVSS213 specifications
can be used.
This vehicle is designed to conform to SAE
J1819.
■ When installing a child restraint sys-
tem
Observe the following precautions. Failure to do so may result in death or serious injury.
● Shake the child restraint system left
and right, and forward and backward
to ensure that it has been securely
installed.
● After securing a child restraint system,
never adjust the seat.
● When using the LATCH anchors, be
sure that there are no foreign objects
around the anchors and that the seat
belt is not caught behind the child
restraint system.
● Follow all installation instructions pro-
vided by the child restraint system
manufacturer.
● When securing some types of child
restraint systems in rear seats, it may
not be possible to properly use the
seat belts in positions next to the child
restraint without interfering with it or
affecting seat belt effectiveness. Be
sure your seat belt fits snugly across
your shoulder and low on your hips. If it
does not, or if it interferes with the
child restraint, move to a different position. Failure to do so may result in
death or serious injury.
Using an anchor bracket (for top
tether strap)
■ Anchor brackets (for top tether
strap)
Anchor brackets are provided for each
rear seat.
Use anchor brackets when fixing the
top tether strap.
LEXUS NX300 Owners Manual_USA_M78285_en
Page 55
1-1. For safe use
A
B
C
A
B
latched.
When installing the child restraint system
with the head restraint being raised, be
sure to have the top tether strap pass
underneath the head restraint.
55
1
Anchor bracket
Anchor bracket for rear center seat
Anchor bracket for rear outboard
seats
■ Fixing the top tether strap to the
anchor bracket
Install the child restraint system in
accordance to the operation manual
enclosed with the child restraint system.
Outboard rear seats
1 Adjust the head restraint to the
upmost position.
If the head restraint interferes with the child
restraint system installation and the head
restraint can be removed, remove the head
restraint. (P.122)
For safety and security
Top tether strap
Hook
Rear center seat
1 Adjust the head restraint to the
downmost position.
If the head restraint interferes with the child
restraint system installation and the head
restraint can be removed, remove the head
restraint. (P.122)
2 Open the anchor bracket cover,
latch the hook onto the anchor
bracket and tighten the top tether
strap.
2 Open the anchor bracket cover,
latch the hook onto the anchor
bracket and tighten the top tether
Make sure the top tether strap is securely
latched.
When installing the child restraint system
with the head restraint being lower, be sure
to have the top tether strap pass over the
strap.
Make sure the top tether strap is securely
LEXUS NX300 Owners Manual_USA_M78285_en
Page 56
56
WARNING
A
B
NOTICE
1-1. For safe use
top of the head restraint.
Top tether strap
Hook
■ Laws and regulations pertaining to
anchors
The LATCH system conforms to
FMVSS225 or CMVSS210.2.
Child restraint systems conforming to
FMVSS213 or CMVSS213 specifications
can be used.
This vehicle is designed to conform to SAE
J1819.
● Outboard rear seats: When installing
the child restraint system with the head
restraint being raised, after the head
restraint has been raised and then the
anchor bracket has been fixed, do not
lower the head restraint.
● Rear center seat: When installing the
child restraint system with the head
restraint being lowered, be sure to
have the top tether strap pass over the
top of the head restraint. If the belt
passes below the head restraint, it is
possible that the child restraint system
may not be securely fixed.
■ Anchor brackets (for top tether
strap)
When not in use, make certain to close
the lid. If it remains open, the lid may be
damaged.
■ When installing a child restraint sys-
tem
Observe the following precautions. Failure to do so may result in death or serious injury.
● Firmly attach the top tether strap and
make sure that the belt is not twisted.
● Do not attach the top tether strap to
anything other than the anchor
bracket.
● Shake the child restraint system left
and right, and forward and backward
to ensure that it has been securely
installed.
● After securing a child restraint system,
never adjust the seat.
● Follow all installation instructions pro-
vided by the child restraint system
manufacturer.
LEXUS NX300 Owners Manual_USA_M78285_en
Page 57
1-1. For safe use
WARNING
57
Exhaust gas precautions
Harmful substance to the human
body is contained in exhaust gases
if inhaled.
Exhaust gases contain harmful carbon
monoxide (CO), which is colorless and
odorless. Observe the following precautions.
Failure to do so may cause exhaust gases
to enter the vehicle and may lead to an
accident caused by light-deadness, or
may lead to death or a serious health
hazard.
■ Important points while driving
● Keep the back door closed.
● If you smell exhaust gases in the vehi-
cle even when the back door is closed,
open the windows and have the vehicle inspected at your Lexus dealer as
soon as possible.
■ When parking
● If the vehicle is in a poorly ventilated
area or a closed area, such as a
garage, stop the engine.
■ Exhaust pipe
The exhaust system needs to be checked
periodically. If there is a hole or crack
caused by corrosion, damage to a joint
or abnormal exhaust noise, be sure to
have the vehicle inspected and repaired
by your Lexus dealer.
1
For safety and security
● Do not leave the vehicle with the
engine running for a long time. If such
a situation cannot be avoided, park the
vehicle in an open space and ensure
that exhaust fumes do not enter the
vehicle interior.
● Do not leave the engine running in an
area with snow build-up, or where it is
snowing. If snowbanks build up around
the vehicle while the engine is running,
exhaust gases may collect and enter
the vehicle.
LEXUS NX300 Owners Manual_USA_M78285_en
Page 58
58
1-2.Theft deterrent system
1-2. Theft deterrent system
Engine immobilizer system
The vehicle’s keys have built-in transponder chips that prevent the
engine from starting if a key has not
been previously registered in the
vehicle’s on-board computer.
Never leave the keys inside the
vehicle when you leave the vehicle.
This system is designed to help prevent vehicle theft but does not guarantee absolute security against all
vehicle thefts.
Operating the system
The indicator light flashes after the
engine switch has been turned off to
indicate that the system is operating.
The indicator light stops flashing after
the engine switch has been turned to
■ Certification for the engine immobilizer system
For vehicles sold in the U.S.A.
ACCESSORY or IGNITION ON
mode to indicate that the system has
been canceled.
■ System maintenance
The vehicle has a maintenance-free type
engine immobilizer system.
■ Conditions that may cause the system to
malfunction
● If the grip portion of the key is in contact
with a metallic object
● If the key is in close proximity to or touch-
ing a key registered to the security system (key with a built-in transponder chip)
of another vehicle
LEXUS NX300 Owners Manual_USA_M78285_en
Page 59
For vehicles sold in Canada
WARNING
NOTICE
■ Certifications for the engine immobi-
lizer system
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
1-2. Theft deterrent system
59
1
For safety and security
■ To ensure the system operates cor-
rectly
Do not modify or remove the system. If
modified or removed, the proper operation of the system cannot be guaranteed.
LEXUS NX300 Owners Manual_USA_M78285_en
Page 60
60
1-2. Theft deterrent system
Alarm
The alarm uses light and sound to
give an alert when an intrusion is
detected.
The alarm is triggered in the following situations when the alarm is set:
A locked door is unlocked or
opened in any way other than
using the entry function, wireless
remote control or mechanical
key. (The doors will lock again
automatically.)
The hood is opened.
Setting/canceling/stopping the
alarm system
■ Items to check before locking the
vehicle
To prevent unexpected triggering of
the alarm and vehicle theft, make sure
of the following:
Nobody is in the vehicle.
The windows and moon roof (if
equipped) are closed before the
alarm is set.
■ Canceling or stopping
Do one of the following to deactivate
or stop the alarms:
Unlock the doors.
Turn the engine switch to ACCES-
SORY or IGNITION ON mode, or
start the engine. (The alarm will be
deactivated or stopped after a few
seconds.)
■ System maintenance
The vehicle has a maintenance-free type
alarm system.
■ Triggering of the alarm
The alarm may be triggered in the following
situations:
(Stopping the alarm deactivates the alarm
system.)
● A person inside the vehicle opens a door
or hood, or unlocks the vehicle using an
inside lock button.
No valuables or other personal
items are left in the vehicle.
■ Setting
Close the doors and hood, and lock all
the doors. The system will be set automatically after 30 seconds.
The indicator light changes from being on
to flashing when the system is set.
LEXUS NX300 Owners Manual_USA_M78285_en
● The battery is recharged or replaced
when the vehicle is locked. (P.376)
Page 61
1-2. Theft deterrent system
NOTICE
61
■ Alarm-operated door lock
In the following cases, depending on the situation, the door may automatically lock to
prevent improper entry into the vehicle:
● When a person remaining in the vehicle
unlocks the door and the alarm is activated.
● While the alarm is activated, a person
remaining in the vehicle unlocks the door.
● When recharging or replacing the bat-
tery.
■ To ensure the system operates cor-
rectly
Do not modify or remove the system. If
modified or removed, the proper operation of the system cannot be guaranteed.
1
For safety and security
LEXUS NX300 Owners Manual_USA_M78285_en
Page 62
62
1-2. Theft deterrent system
LEXUS NX300 Owners Manual_USA_M78285_en
Page 63
63
Vehicle status information
and indicators
2-1. Instrument cluster
Warning lights and indicators. 64
Gauges and meters .................... 69
Multi-information display...........72
Head-up display ........................... 77
Fuel consumption information 82
2
2
Vehicle status information and indicators
LEXUS NX300 Owners Manual_USA_M78285_en
Page 64
64
2-1.Instrument cluster
2-1. Instrument cluster
Warning lights and indicators
The warning lights and indicators inform the driver of the status of the vehicle’s
various systems.
Instrument cluster
For the purpose of explanation, the following illustration displays all warning lights
and indicators illuminated.
The units used on the meters and some indicators may differ depending on the target
region.
LEXUS NX300 Owners Manual_USA_M78285_en
Page 65
2-1. Instrument cluster
65
Warning lights
Warning lights inform the driver of malfunctions in any of the vehicle’s systems.
Brake system warning light*1
(U.S.A.)
(Red)
(Canada)
(Yellow)
(U.S.A.)
(Canada)
(U.S.A.)
(Canada)
(Yellow)
(P.350)
Brake system warning light*1
(P.350)
Charging system warning
*2
(P.350)
light
Low engine oil pressure warn-
*2
ing light
(P.350)
High coolant temperature
*2
warning light
(P.351)
Brake system warning light*1
(P.351)
Malfunction indicator lamp*1
(P.351)
Malfunction indicator lamp*1
(P.351)
*1
SRS warning light
(P.351)
ABS warning light*1 (P.352)
ABS warning light*1 (P.352)
Electric power steering sys-
*1
tem warning light
(P.352)
Electric power steering sys-
*1
(Red)
tem warning light
PCS warning light
(P.352)
*1
(P.352)
LDA indicator*2 (P.353)
(Orange)
*1, 3
*1
(P.353)
(if equipped)
PKSB OFF indicator
(P.353)
Slip indicator light
Brake hold operated indica-
*1, 3
tor
(P.353)
Parking brake indicator*3
(U.S.A.)
(P.354)
Parking brake indicator*3
(Canada)
(P.354)
Low fuel level warning light
(P.354)
Driver’s and front passenger’s
seat belt reminder light
(P.354)
Rear passengers’ seat belt
*4
reminder light
Master warning light
(P.355)
*1
(P.355)
Tire pressure warning light
(P.355)
Brake Override System/
Drive-Start Control warning
*2
(P.356)
light
*1
: These lights turn on when the engine
switch is turned to IGNITION ON
mode to indicate that a system check is
being performed. They will turn off after
2
Vehicle status information and indicators
*1
LEXUS NX300 Owners Manual_USA_M78285_en
Page 66
66
WARNING
2-1. Instrument cluster
the engine is started, or after a few seconds. There may be a malfunction in a
system if the lights do not turn on, or
turn off. Have the vehicle inspected by
your Lexus dealer.
*2
: This light illuminates on the multi-infor-
mation display.
*3
: The light flashes to indicate a malfunc-
tion.
*4
: This light illuminates on the center
panel.
■ If a safety system warning light does
not come on
Should a safety system light such as the
ABS and SRS airbag warning light not
come on when you start the engine, this
could mean that these systems are not
available to help protect you in an accident, which could result in death or serious injury. Have the vehicle inspected by
your Lexus dealer immediately if this
occurs.
Indicators
The indicators inform the driver of the
operating state of the vehicle’s various
systems.
Turn signal indicator (P.162)
Headlight indicator (P.168)
(U.S.A.)
Tail light indicator (P.168)
(Canada)
Headlight high beam indicator
(P.170)
Automatic High Beam indicator (P.171)
Fog light indicator (P.174)
Eco Driving Indicator Light
(P.68)
*1
(if equipped)
(if equipped)
(if equipped)
*2
“Eco” indicator
“Sport” indicator
(P.234)
*2
(P.234)
“Sport S” indicator*2
(P.234)
“Sport S+” indicator*2
(P.234)
“Custom” indicator*2
(P.234)
Dynamic radar cruise control
*2
indicator
(P.203)
Cruise control “SET” indica-
*2
(P.203)
tor
LEXUS NX300 Owners Manual_USA_M78285_en
Page 67
(White)
Cruise control indicator
*2
(P.209)
LDA indicator*2 (P.198)
2-1. Instrument cluster
(if equipped)
BSM outside rear view mirror
*6, 7
indicators
Security indicator
(P.227)
*8
(P.58,
67
60)
(Green)
(Orange)
(if equipped)
(if equipped)
(AWD mod-
els only)
(U.S.A.)
(Canada)
LDA indicator*2 (P.198)
LDA indicator
*2, 3
(P.198)
Intuitive parking assist indicator (P.213)
PKSB OFF indicator
*1, 4
(P.219)
Slip indicator light
*1, 3
(P.237)
*1, 4
VSC off indicator
(P.238)
*1, 4
PCS warning light
(P.190)
All-wheel drive lock indicator*1
(P.240)
Parking brake indicator
(P.162)
Parking brake indicator
(P.162)
Brake hold standby indicator
*1
(P.165)
Brake hold operated indica-
*1
(P.165)
tor
Low outside temperature indi-
*2, 5
cator
(P.69)
“AIR BAG ON/OFF” indi-
*8
(P.38)
(U.S.A.)
cator
“AIR BAG ON/OFF” indi-
*8
(P.38)
(Canada)
*1
: These lights turn on when the engine
cator
switch is turned to the IGNITION ON
mode to indicate that a system check is
being performed. They will turn off after
the engine is started, or after a few seconds. There may be a malfunction in a
system if the lights do not turn on, or
turn off. Have the vehicle inspected by
your Lexus dealer.
*2
: This light illuminates on the multi-infor-
mation display.
*3
: The light flashes to indicate that the sys-
tem is operating.
*4
: The light comes on when the system is
turned off.
*5
: When the outside temperature is
approximately 37°F (3°C) or lower, the
indicator will flash for approximately 10
seconds, then stay on.
*6
: In order to confirm operation, the BSM
outside rear view mirror indicators illuminate in the following situations:
When the engine switch is turned to
IGNITION ON mode while the BSM
main switch is set to ON.
When the BSM main switch is set to
ON while the engine switch is in IGNITION ON mode.
If the system is functioning correctly, the
BSM outside rear view mirror indica-
2
Vehicle status information and indicators
LEXUS NX300 Owners Manual_USA_M78285_en
Page 68
68
A
B
C
D
2-1. Instrument cluster
tors will turn off after a few seconds.
If the BSM outside rear view mirror indicators do not illuminate or do not turn
off, there may be a malfunction in the
system.
If this occurs, have the vehicle inspected
by your Lexus dealer.
*7
: This light illuminates on the outside rear
view mirrors.
*8
: This light illuminates on the center
panel.
■ Eco Driving Indicator
Driving Indicator Zone Display will illuminate.
When this happens, the Eco Driving
Indicator Light will turn off.
Zone of Eco driving
Eco Driving Indicator will not operate
under the following conditions:
● The shift lever is in any position other than
D.
● A paddle shift switch is operated.
● Neither Normal mode nor Eco mode is
selected. (P.234)
● The vehicle speed is approximately 80
mph (130 km/h) or higher.
Settings of the display and non-display of
the Eco Driving Indicator Light can be
changed. (P.76)
Eco Driving Indicator Light
During Eco-friendly acceleration (Eco
driving), the Eco Driving Indicator Light
will turn on. When the acceleration
exceeds the Zone of Eco driving, or
when the vehicle is stopped, the light
turns off.
Eco Driving Indicator Zone Display
Suggests the Zone of Eco driving with
current Eco driving ratio based on
acceleration.
Eco driving ratio based on acceleration
If the acceleration exceeds the Zone of
Eco driving, the right side of the Eco
LEXUS NX300 Owners Manual_USA_M78285_en
Page 69
2-1. Instrument cluster
ABCDE
F
Gauges and meters
The meters display various drive information.
Meter display
The units used on the meters and some indicators may differ depending on the target
region.
Engine coolant temperature gauge
Displays the engine coolant temperature
Tachometer
Displays the engine speed in revolution per minute
Outside temperature
Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C). Low
outside temperature indicator comes on when the ambient temperature is 37°F (3°C) or
lower.
Background color of driving mode
Background color changes according to the driving mode. (P.234)
•Sport mode: Red
•Eco mode: Blue
When in Normal mode/Custom mode, the background color is black.
Clock
Time displayed is linked to the analog clock on the instrument panel. (P.272)
Multi-information display
Presents the driver with a variety of vehicle data (P.72)
Displays warning messages in case of a malfunction (P.359)
69
2
Vehicle status information and indicators
LEXUS NX300 Owners Manual_USA_M78285_en
Page 70
70
G
H
I
J
2-1. Instrument cluster
Speedometer
Displays the vehicle speed
Fuel gauge
Displays the quantity of fuel remaining in the tank
Shift position and shift range
Displays the selected shift position or selected shift range (P.158)
Odometer, trip meter and maintenance required information display
Odometer:
Displays the total distance the vehicle has been driven
Trip meter:
Displays the distance the vehicle has been driven since the meter was last reset.
Trip meters “A” and “B” can be used to record and display different distances independently.
Maintenance required information:
Displays the remaining distance until the engine oil should be changed.
• Displays the maintenance required information when the engine switch is in IGNITION
ON mode.
• It can be reset on of the multi-information display. (
P.75)
■ Operating condition
The engine switch is in IGNITION ON
mode.
■ Outside temperature display
● In the following situations, the correct
outside temperature may not be displayed, or the display may take longer
than normal to change.
• When stopped, or driving at low speeds
(less than 12 mph [20 km/h])
• When the outside temperature has
changed suddenly (at the entrance/exit of
a garage, tunnel, etc.)
● When “--” or “E” is displayed, the system
may be malfunctioning.
Take your vehicle to your Lexus dealer.
■ Pop-up display
In some situations, a pop-up display will be
temporarily displayed on the multi-information display or the odometer/trip meter/
maintenance required information screen.
The pop-up display function can be set on/
off. (P.76)
■ Liquid crystal display
Small spots or light spots may appear on the
display. This phenomenon is characteristic
of liquid crystal displays, and there is no
problem continuing to use the display.
■ Customization
The meter display can be customized on
the multi-information display.
(Customizable features: P.401)
LEXUS NX300 Owners Manual_USA_M78285_en
Page 71
WARNING
■ The information display at low tem-
NOTICE
peratures
Allow the interior of the vehicle to warm
up before using the liquid crystal information display. At extremely low temperatures, the information display
monitor may respond slowly, and display
changes may be delayed.
For example, there is a lag between the
driver’s shifting and the new gear number
appearing on the display. This lag could
cause the driver to downshift again,
causing rapid and excessive engine braking and possibly an accident resulting in
personal death or injury.
■ To prevent damage to the engine and
its components
● Do not let the indicator needle of the
tachometer enter the red zone, which
indicates the maximum engine speed.
2-1. Instrument cluster
Changing the Instrument panel
light brightness
The brightness of the instrument panel
lights can be adjusted.
71
2
Vehicle status information and indicators
● The engine may be overheating if the
engine coolant temperature gauge is
in the red zone (H); or “Engine Coolant Temp High” is shown on the multiinformation display. In this case, immediately stop the vehicle in a safe place,
and check the engine after it has
cooled completely. (P.377)
Changing between the odometer, trip meter and maintenance
required information
Switches between odometer, trip
meter and maintenance required information displays. When the trip meter is
displayed, pressing and holding the
button will reset the trip meter.
1 Darker
2 Brighter
■ Instrument panel brightness adjustment
The instrument panel brightness levels
when the tail lights are on and off can be
adjusted individually. However, when the
surroundings are bright (daytime, etc.),
turning on the tail lights will not change the
instrument panel brightness. At this time,
any adjustments made to the instrument
panel brightness levels will be applied to
both settings at once.
LEXUS NX300 Owners Manual_USA_M78285_en
Page 72
72
NOTICE
A
B
C
D
2-1. Instrument cluster
Multi-information display
The multi-information display presents the driver with a variety of
vehicle data.
Display and menu icons
■ The multi-information display at low
temperatures
Allow the interior of the vehicle to warm
up before using the liquid crystal information display. At extremely low temperatures, the information display
monitor may respond slowly, and display
changes may be delayed.
■ Display
■ Menu icons
Drive information (P.73)
Navigation system-linked display (if equipped) (P.74)
Audio system-linked display (if
equipped) (P.74)
Driving assist system information (P.75)
Warning message display
(P.75)
Settings display (P.75)
■ Liquid crystal display
P.70
Changing the meter display
The multi-information display is operated using the meter control switches.
Select an item/change pages
Enter/set
Return to the previous screen
Press:
Displays the screen registered to
When no screen has been registered, the drive information screen
will be displayed.
Press and hold:
Registers the currently displayed
screen to
The registration confirmation screen is displayed. If the selected screen cannot be
registered, a registration failure message
will be shown.
LEXUS NX300 Owners Manual_USA_M78285_en
Page 73
2-1. Instrument cluster
73
Drive information
■ Content displayed as drive infor-
mation
Select to display various drive data.
Items displayed can be switched by
pressing or of the meter control switches to select and pressing
or .
Current fuel consumption
Displays the current rate of fuel consumption
Average fuel consumption (after
*2
reset
/after start/after refuel)
Displays the average fuel consumption
since the function was reset, the engine
was started, and the vehicle was refueled,
respectively
Use the displayed average fuel consumption as a reference.
Average vehicle speed (after
*2
reset
/after start)
Displays the average vehicle speed since
the function was reset and the engine was
started, respectively
Elapsed time (after reset*2/after
*1
start)
Displays the elapsed time since the function was reset and the engine was started,
respectively
Distance (driving range/after start)
Displays the estimated maximum distance
that can be driven with the quantity of fuel
remaining and the distance driven after the
engine was started respectively.
• This distance is computed based on your
*1
*1
*1
average fuel consumption. As a result,
the actual distance that can be driven
may differ from that displayed.
• When only a small amount of fuel is
added to the tank, the display may not be
updated.
When refueling, turn the engine switch
off. If the vehicle is refueled without turning the engine switch off, the display may
not be updated.
*1
: Displayed when the item is set in “Drive
Info 1”, “Drive Info 2” and “Drive Info 3”.
*2
: The function can be reset by pressing
the of the meter control switches
for longer than 1 second when the item
to reset is displayed.
If there is more than one item that can
be reset, the item selection screen will
appear.
■ Eco Driving Indicator Zone Dis-
play
P.68
■ Boost Meter/Oil Temperature
Gauge/Oil Pressure Gauge (if
equipped)
Boost Meter:
Displays the boost pressure. The display changes colors when the specified
pressure is exceeded.
Oil Temperature Gauge:
Displays the temperature of the engine
oil. The display flashes when the engine
oil exceeds 284°F (140°C).
*1
Oil Pressure Gauge:
Displays the oil pressure for the engine
interior. A buzzer sounds and warning
message is displayed when the oil
pressure gets low. (P.361)
2
Vehicle status information and indicators
LEXUS NX300 Owners Manual_USA_M78285_en
Page 74
74
2-1. Instrument cluster
Depending on the road conditions, temperature, vehicle speed, etc., the actual
vehicle condition on the display screen
may differ.
Use the display screen as a reference.
■ G monitor (if equipped)
Displays the acceleration forces of the
front, back, left and right of the vehicle.
Also displays the turning angle of the
steering wheel, brake oil pressure,
accelerator opening.
The actual vehicle conditions may
differ from those on the display
screen, depending on the road conditions, outside temperature, vehicle
speed, etc. Use the display screen
as a reference.
If a battery terminal is disconnected
and reconnected, the steering
amount display may be disabled
temporarily. After driving the vehicle for a while, the display will be
enabled.
This display is a part of the LDA (Lane
Departure Alert with steering control)
system. The display is enabled when
the operating conditions of the vehicle
sway warning are met. (P.199)
■ Display off
A blank screen is displayed.
■ Tire inflation pressure
● It may take a few minutes to display the
tire inflation pressure after the engine
sw itc h is t urn ed t o IG NITIO N ON mode.
It may also take a few minutes to display
the tire inflation pressure after inflation
pressure has been adjusted.
● “---” may be displayed if the tire informa-
tion cannot be determined due to unfavorable radio wave conditions.
● Tire inflation pressure changes with tem-
perature. The displayed values may also
be different from the values measured
using a tire pressure gauge.
■ When disconnecting and reconnecting
battery terminals
The drive information will be reset.
■ Speedometer
Displays the vehicle speed.
■ Tire inflation pressure
Displays inflation pressure of each tire.
The inflation pressure of the spare tire will
not be displayed.
■ Vehicle sway warning
Detects the sway of the vehicle within a
lane, which is often associated with a
decrease in the driver’s attention level,
and displays the decrease in attention
using a bar display.
The shorter the bar length, the more
the driver may need to rest.
LEXUS NX300 Owners Manual_USA_M78285_en
Navigation system-linked display (if equipped)
Select to display the following navigation system-linked information.
Route guidance
Compass display (heading-up dis-
play)
Audio system-linked display
Select to enable selection of an audio
source or track on the display using the
meter control switches.
Page 75
2-1. Instrument cluster
75
Driving assist system information
Select to display the operational status
of the following systems:
LDA (Lane Departure Alert with
steering control) (P.195)
Dynamic radar cruise control with
full-speed range (P.203)
The displayed icon changes depending
on the system used.
Warning message display
Select to display warning messages
and measures to be taken if a malfunction is detected. (P.359)
Settings display
The settings of the following items can
be changed using the meter control
switches.
For functions that can be enabled or
disabled, the function switches
between on and off each time is
pressed.
■ LDA (Lane Departure Alert
with steering control) (P.195)
Select to set up the following items.
Steering Assist
Select to enable/disable steering wheel
assistance.
Alert
Select to set a vibrator or buzzer as the
notification method used to warn the
driver.
Alert sensitivity
Select to set the warning sensitivity.
Sway warning
Select to enable/disable the vehicle sway
warning.
Sway sensitivity
Select to set the vehicle sway warning sensitivity.
■ PCS (Pre-Collision System)
(P.188)
Select to set up the following items.
PCS on/off
Select to enable/disable the pre-collision
system.
PCS sensitivity
Select to change the warning timing.
■ PKSA (Parking Support Alert) (if
equipped) (P.212)
Select to set up the following items.
Intuitive parking assist sensor
Select to enable/disable the intuitive parking assist sensor.
Volume
Select to set the volume of the buzzer
which sounds when the parking support
alert is operated.
■ PKSB (Parking Support
Brake System) (if equipped)
(P.218)
PKSB on/off
Select to enable/disable the parking support brake function (for static objects).
■ Clock
Select to switch between 12-hour display and 24-hour display.
2
Vehicle status information and indicators
LEXUS NX300 Owners Manual_USA_M78285_en
Page 76
76
2-1. Instrument cluster
■ Vehicle Settings
PBD (Power Back Door)
(P.94)
Select to set up the following items.
•System settings
Select to enable/disable the power back
door system.
•Volume
Select to set the volume of the buzzer
which sounds when the power back door
system.
• Kick Sensor
Select to enable/disable the kick sensor.
*1
: Vehicles with power back door
*2
: Vehicles with hands free power back
door
*1
*2
TPMS (Tire Pressure Warning Sys-
tem) (P.322)
Select to initialize the tire pressure warning
system.
Scheduled Maintenance (P.303)
Select to initialize the scheduled maintenance.
Oil maintenance (P.314)
Select to reset the engine oil maintenance
information (message indicating maintenance is required and distance until the
next oil change) after engine oil maintenance is performed.
■ Meter settings
Language
Select to change the language on the display.
Units
Select to change the unit of measure for
fuel consumption.
Eco Driving Indicator Light
(P.68)
Select to activate/deactivate the Eco Driving Indicator Light.
Switch settings (P.72)
Displays a procedure to register a desired
screen to
.
You can register 1 screen as a shortcut,
which can be displayed by pressing
.
Drive information screen (P.73)
Select to choose between 2 items that will
be displayed on each drive information
screen (“
“Drive Info 3
Drive info 1”, “Drive Info 2” and
”) respectively.
Pop-up display (P.70)
Select to set the following pop-up displays,
which may appear in some situations, on/
off.
• Intersection guidance display of the navigation system-linked system
• Incoming call display of the hands-free
phone system
• Instrument panel brightness adjustment
display
Accent color
Select to change the accent colors on the
screen, such as the cursor color.
Initialization
Select to reset the meter display settings.
■ Suspension of the settings display
In the following situations, the settings display using the meter control switches will be
suspended.
● When a warning message appears on the
multi-information display
LEXUS NX300 Owners Manual_USA_M78285_en
Page 77
2-1. Instrument cluster
WARNING
NOTICE
A
B
C
D
E
77
● When the vehicle begins to move
■ Cautions during setting up the dis-
play
As the engine needs to be running
during setting up the display, ensure that
the vehicle is parked in a place with adequate ventilation. In a closed area such as
a garage, exhaust gases including harmful carbon monoxide (CO) may collect
and enter the vehicle. This may lead to
death or a serious health hazard.
■ During setting up the display
To prevent battery discharge, ensure that
the engine is running while setting up the
display features.
Intuitive parking assist (if
equipped)
Automatically displayed when the system is used. (P.213)
Head-up display
*
: If equipped
*
The head-up display can be used to
project vehicle speed and other
information onto the windshield.
System components
2
Vehicle status information and indicators
LEXUS NX300 Owners Manual_USA_M78285_en
Head-up display
Display brightness will change automatically according to the brightness of the surrounding area.
Display position adjustment switch
Display brightness adjustment
switch
Display brightness can be adjusted to the
desired level.
“HUD” button
“DISP” button
Page 78
78
2-1. Instrument cluster
Head-up display contents Switching the head-up display
Vehicle speed
Eco Driving Indicator (P.80)
Tachometer
Shift position and shift range
Displays the selected shift position or
selected shift range (
P.158)
Audio display
Displays audio information for approximately 3 seconds when the audio system is
operated
Route guidance display (vehicles
with navigation system) (P.80)
When approaching an intersection while
the navigation system is giving route guidance, an arrow will automatically be displayed to indicate the direction of travel.
Lane departure warning display
(LDA [Lane Departure Alert with
steering control]) (P.195)
Approach warning display
(Dynamic radar cruise control with
full speed range) (P.208)
Pre-collision warning message (Pre-
Collision System) (P.188)
Speed limit display (vehicles with
navigation system) (P.80)
Parking Support Brake (for static
objects) (if equipped) (P.218)
■ “HUD” button
Pressing the button turns the head-up
display on/off and changes the vehicle
speed display units as follows:
U.S.A.
OFF ON (MPH) ON (km/h)
OFF
Canada
OFF ON (km/h) ON (MPH)
OFF
■ “DISP” button
Pressing the button changes the display items (except vehicle speed) as
A
follows:
•Off
• Eco Driving Indicator
•Tachometer
• Tachometer/Boost Meter (if
equipped)
• G monitor (if equipped)
G monitor (if equipped) (P.74)
Boost Meter (if equipped) (P.73)
LEXUS NX300 Owners Manual_USA_M78285_en
Page 79
2-1. Instrument cluster
WARNING
NOTICE
■ To prevent damage to components
● Do not place any drinks near the head-
up display projector. If the projector
gets wet, electrical malfunctions may
result.
79
2
Vehicle status information and indicators
■ Head-up display
● The head-up display may seem dark and
hard to see when viewed through sunglasses, especially polarized sunglasses.
Adjust the brightness of the head-up display or remove your sunglasses.
● When the head-up display is turned off, it
will not display anything until it is turned
on again.
■ Before using the head-up display
Check that the position and brightness of
the head-up display image does not
interfere with safe driving. Incorrect
adjustment of the image’s position or
brightness may obstruct the driver’s view
and lead to an accident, resulting in
death or serious injury.
■ Caution for changing settings of the
head-up display
As the engine needs to be running while
changing the settings of the head-up display, ensure that the vehicle is parked in a
place with adequate ventilation. In a
closed area such as a garage, exhaust
gases including harmful carbon monoxide (CO) may collect and enter the vehicle. This may lead to death or a serious
health hazard.
● Do not place anything on or put stick-
ers onto the head-up display projector.
Doing so could interrupt head-up display indications.
● Do not touch the inside of the head-up
display projector or thrust sharp edges
or the like into the projector.
Doing so could cause mechanical malfunctions.
■ When changing the settings of the
head-up display
To prevent battery discharge, ensure that
the engine is running while changing the
settings of the head-up display.
Making the display easier to see
■ Adjusting the display position
1 Higher
2 Lower
LEXUS NX300 Owners Manual_USA_M78285_en
Page 80
80
A
B
C
2-1. Instrument cluster
■ Setting the brightness
The brightness of the display is automatically adjusted in accordance with
the brightness of the surrounding environment. However, the brightness can
also be manually adjusted in 9 stages.
1 Brighter
2 Darker
Eco Driving Indicator
under the following conditions:
The shift lever is in any position
other than D.
A paddle shift switch is operated.
Neither Normal mode nor Eco
mode is selected. (P.234)
The vehicle speed is approximately
80 mph (130 km/h) or higher.
Settings of the display and non-display
of the Eco Driving Indicator Light can
be changed. (P.76)
Route guidance display (vehicles
with navigation system)
When the vehicle approaches an intersection, the direction the vehicle
should go is guided by the arrow.
When the vehicle approaches an intersection, the route guidance will start
and the distance
will also be displayed.
*
: The distance indication will disappear
when the vehicle passes through the
intersection.
*
to the intersection
Eco Driving Indicator Zone Display
Suggests the Zone of Eco driving with current Eco driving ratio based on acceleration.
Eco driving ratio based on acceleration
If the acceleration exceeds the Zone of
Eco driving, the right side of the Eco Driving Indicator Zone Display will illuminate.
Zone of Eco driving
Eco Driving Indicator will not operate
LEXUS NX300 Owners Manual_USA_M78285_en
Speed limit display (vehicles with
navigation system)
Displays the speed limit for the current
Page 81
2-1. Instrument cluster
81
road.
Display customization
Select to display/non-display the following items:
• Route guidance to destination
• Driving assist system information
• Audio system operation status
•Lane display
When customizing vehicle features,
ensure that the vehicle is parked in a
safe place with the shift lever in P and
the parking brake set.
On and off will be switched between each
time the button is pressed.
If the button is left alone without being
operated for a short time, setting will be
finished automatically.
■ When the battery is disconnected
The customize settings of the head-up display will be reset.
2
Vehicle status information and indicators
1 Until the screen changes, continue
pressing the “DISP” button, and it
will repeat until the item desired to
be changed is displayed.
Customization can be performed when
the head-up display is on.
2 Press the “DISP” button to switch
between on and off.
LEXUS NX300 Owners Manual_USA_M78285_en
Page 82
82
A
B
C
A
B
C
D
E
F
2-1. Instrument cluster
Fuel consumption information
Fuel consumption information can
be displayed on the navigation/
multimedia system display.
The fuel consumption information
can be displayed and operated on
the side display.
System components
Remote Touch, then select on the
screen.
If a screen other than “Trip Information” is
displayed, select “Trip Information”.
Resetting the consumption data
Fuel consumption in the past 15
minutes
Current fuel consumption
Average vehicle speed since the
engine was started.
Elapsed time since the engine was
started.
Navigation/multimedia system display
“MENU” button
Touchpad
Fuel consumption
■ Trip information
Press the “MENU” button on the
Cruising range (P.83)
Average fuel consumption for the past
15 minutes is divided by color into past
averages and averages attained since
the engine switch was last turned to
IGNITION ON mode. Use the displayed average fuel consumption as a
reference.
The image is an example only, and may
vary slightly from actual conditions.
■ History
Press the “MENU” button on the
Remote Touch, then select on the
screen.
If a screen other than “History” is displayed, select “History”.
LEXUS NX300 Owners Manual_USA_M78285_en
Page 83
Best recorded fuel consumption
A
B
CDE
Latest fuel consumption
Previous fuel consumption record
Resetting the history data
Updating the latest fuel consump-
tion data
The average fuel consumption history
is divided by color into past averages
and the average fuel consumption
since the last updated. Use the displayed average fuel consumption as a
reference.
The image is an example only, and may
vary slightly from actual conditions.
■ Updating the history data
Update the latest fuel consumption by
selecting “Clip” to measure the current fuel
consumption again.
■ Resetting the data
The fuel consumption data can be deleted
by selecting “Clear”.
■ Cruising range
Displays the estimated maximum distance
that can be driven with the quantity of fuel
remaining.
This distance is computed based on your
average fuel consumption.
As a result, the actual distance that can be
driven may differ from that displayed.
2-1. Instrument cluster
Using the side display (vehicles
with navigation system)
Display the vehicle information on the
side display (P.250), and then select
or to display the desired
screen.
■ Trip information (type A)
Displays the average fuel consumption
for the past 10 minutes in 1 minute
intervals, as well as the cruising range.
The image is an example only, and may
vary slightly from actual conditions.
Use the displayed average fuel consumption as a reference.
■ Trip information (type B)
Displays the cruising range, latest fuel
consumption and the amount of time
elapsed since the engine was started.
The image is an example only, and may
vary slightly from actual conditions.
83
2
Vehicle status information and indicators
LEXUS NX300 Owners Manual_USA_M78285_en
Page 84
84
Use the displayed average fuel consumption as a reference.
■ History
2-1. Instrument cluster
Displays the average fuel consumption
and highest fuel consumption.
The image is an example only, and may
vary slightly from actual conditions.
Use the displayed average fuel consumption as a reference.
LEXUS NX300 Owners Manual_USA_M78285_en
Page 85
85
Before driving
3-1. Key information
Keys ................................................... 86
3-2. Opening, closing and locking the
doors
Side doors .......................................90
Back door........................................ 94
Smart access system with push-
button start.................................106
3-3. Adjusting the seats
Front seats...................................... 112
Rear seats....................................... 113
Driving position memory .........118
Head restraints............................. 121
3-4. Adjusting the steering wheel and
mirrors
Steering wheel............................. 123
Inside rear view mirror............. 124
Outside rear view mirrors...... 126
3-5. Opening, closing the windows
and moon roof
Power windows........................... 128
Moon roof .....................................130
3
3
Before driving
LEXUS NX300 Owners Manual_USA_M78285_en
Page 86
86
A
B
C
D
3-1.Key information
3-1. Key information
Keys
Key types
The following keys are provided with
the vehicle.
Electronic keys
• Operating the smart access system with
push-button start (
• Operating the wireless remote control
function
Mechanical keys
Key number plate
Card key (electronic key) (if
equipped)
Operating the smart access system with
push-button start (P.106)
■ Card key (if equipped)
● The mechanical key that is stored inside
the card key should be used only if a
problem arises, such as when the card
key does not operate properly.
P.106)
● If the battery cover is not installed and the
battery falls out or if the battery was
removed because the key got wet, reinstall the battery with the positive terminal
facing the Lexus emblem.
● The card key is not waterproof.
■ When riding in an aircraft
When bringing an electronic key onto an
aircraft, make sure you do not press any
buttons on the electronic key while inside
the aircraft cabin. If you are carrying an
electronic key in your bag, etc., ensure that
the buttons are not likely to be pressed accidentally. Pressing a button may cause the
electronic key to emit radio waves that
could interfere with the operation of the aircraft.
■ Electronic key battery depletion
● The standard battery life is 1 to 2 years.
(The card key battery life is about a year
and a half.)
● If the battery becomes low, an alarm will
sound in the cabin when the engine stops.
● As the electronic key always receives
radio waves, the battery will become
depleted even if the electronic key is not
used. The following symptoms indicate
that the electronic key battery may be
depleted. Replace the battery when necessary.
• The smart access system with push-button start or the wireless remote control
does not operate.
• The detection area becomes smaller.
• The LED indicator on the key surface
does not turn on.
● To avoid serious deterioration, do not
leave the electronic key within 3 ft. (1 m)
of the following electrical appliances that
produce a magnetic field:
•TVs
LEXUS NX300 Owners Manual_USA_M78285_en
Page 87
3-1. Key information
NOTICE
87
• Personal computers
• Cellular phones, cordless phones and
battery chargers
• Recharging cellular phones or cordless
phones
• Induction cookers
• Table lamps
■ Replacing the battery
P.332
■ Confirmation of the registered key
number
The number of keys already registered to
the vehicle can be confirmed. Ask your
Lexus dealer for details.
■ To prevent key damage
● Do not drop the keys, subject them to
strong shocks or bend them.
● Do not expose the keys to high tem-
peratures for long periods of time.
● Do not get the keys wet or wash them
in an ultrasonic washer, etc.
● Do not attach metallic or magnetic
materials to the keys or place the keys
close to such materials.
● Do not disassemble the keys.
● Do not attach a sticker or anything else
to the surface of the electronic key.
● Do not place the keys near objects that
produce magnetic fields, such as TVs,
audio systems and induction cookers,
or medical electrical equipment, such
as low-frequency therapy equipment.
■ Carrying the electronic key on your
person
Carry the electronic key 3.9 in. (10 cm)
or more away from electric appliances
that are turned on. Radio waves emitted
from electric appliances within 3.9 in. (10
cm) of the electronic key may interfere
with the key, causing the key to not function properly.
■ In case of a smart access system with
push-button start malfunction or
other key related problems
P.371
■ When an electronic key is lost
P.370
■ Handling the card key
● If the battery or card key terminals get
wet, the battery may corrode and the
card key may stop working.
If the key is dropped into water, or if
drinking water, etc., is spilled on the
key, immediately remove the battery
cover and wipe the battery and terminals. (To remove the battery cover,
lightly grasp and pull it.) If the battery is
corroded, have your Lexus dealer
replace the battery.
● Do not crush the battery cover or use
a screwdriver to remove the battery
cover.
Forcibly removing the battery cover
may bend or damage the key.
● If the battery cover is frequently
removed, the battery cover may
become loose.
● When installing the battery, make sure
to check the direction of the battery.
Installing the battery in the wrong
direction may cause the battery to
deplete rapidly.
● The surface of the card key may be
damaged, or its coating may peel off in
the following situations:
• The card key is carried together with
hard objects, such as coins and keys.
• The card key is scraped with a sharp
object, such as the tip of a mechanical
pencil.
• The surface of the card key is wiped
with thinner or benzene.
Wireless remote control
The electronic keys are equipped with
3
Before driving
LEXUS NX300 Owners Manual_USA_M78285_en
Page 88
88
A
B
C
D
E
3-1. Key information
the following wireless remote control:
Locks all the doors (P.90)
Unlocks all the doors (P.90)
Opens the windows and moon
*1, 2
roof
(P.90)
Opens and closes the power back
*1
door
(P.97)
Sounds the alarm (P.88)
*1
: If equipped
*2
: This setting must be customized at your
Lexus dealer.
■ Theft deterrent panic mode
locking of all doors, beforehand, when the
back door is open. When the follow is done,
all the doors except the back door are
locked and then back door will also be
locked at the same time it is closed.
1 Close all doors, except the back door.
2 Push the wireless lock button during the
automatic closing operation of the back
door.
Using the mechanical key
To take out the mechanical key, push
the release button and take the key out.
The mechanical key can only be inserted in
one direction, as the key only has grooves
on one side. If the key cannot be inserted in
a lock cylinder, turn it over and re-attempt
to insert it.
After using the mechanical key, store it in
the electronic key. Carry the mechanical
key together with the electronic key. If the
electronic key battery is depleted or the
entry function does not operate properly,
you will need the mechanical key.
(P.372)
When is pressed for longer than
about 1 second, an alarm will sound inter-
mittently and the vehicle lights will flash to
deter any person from trying to break into
or damage your vehicle.
To stop the alarm, press any button on the
electronic key.
■ Back door reserve lock function (vehi-
cles with power back door)
This function is a function which reserves
LEXUS NX300 Owners Manual_USA_M78285_en
Page 89
■ When required to leave the vehicle’s
NOTICE
key with a parking attendant
Lock the glove box as circumstances
demand. (P.266)
Remove the mechanical key for your own
use and provide the attendant with the electronic key only.
■ If you lose your mechanical keys
P.370
■ If a wrong key is used
The key cylinder rotates freely to isolate
inside mechanism.
■ Card key
● If it is difficult to take out the mechanical
key, push down the release button using a
pen tip, etc. If it is still difficult to pull it out,
use a coin, etc.
● To store the mechanical key in the card
key, insert it while pressing the release
button.
3-1. Key information
89
3
Before driving
■ Handling the card key
Do not apply excess force when inserting
the mechanical key into the card key.
Doing so may damage the card key.
LEXUS NX300 Owners Manual_USA_M78285_en
Page 90
90
3-2.Opening, closing and locking the doors
3-2. Opening, closing and locking the doors
Side doors
The vehicle can be locked and
unlocked using the entry function,
wireless remote control or door
lock switch.
Unlocking and locking the doors
from the outside
■ Using the smart access system with
push-button start
Carry the electronic key to enable this
function.
■ Using the wireless remote control
1 Locks all the doors
Check that the door is securely locked.
2 Unlocks all the doors
Pressing the button unlocks the driver’s
door. Pressing the button again within 3
seconds unlocks the other doors.
Press and hold to open the windows and
moon roof
*1
: If equipped
*2
: This setting must be customized at your
*1, 2
Lexus dealer.
1 Grip the driver’s door handle to
unlock the door. Grip any passenger door handle to unlock all the
*
doors.
Make sure to touch the sensor on the back
of the handle.
The doors cannot be unlocked for 3 seconds after the doors are locked.
*
: The door unlock settings can be
changed.
2 Touch the lock sensor (the indenta-
tion on the surface of the door handle) to lock all the doors.
Check that the door is securely locked.
■ Switching the door unlock function
It is possible to set which doors the entry
function unlocks using the wireless remote
control.
1 Turn the engine switch off.
2 When the indicator light on the key sur-
face is not on, press and hold ,
or for approximately 5
seconds while pressing and holding
.
The setting changes each time an operation
is performed, as shown below. (When
changing the setting continuously, release
the buttons, wait for at least 5 seconds, and
repeat step 2.)
LEXUS NX300 Owners Manual_USA_M78285_en
Page 91
3-2. Opening, closing and locking the doors
91
Multi-information
display/Beep
Unlocking function
Holding the driver’s
door handle unlocks
only the driver’s door.
Exterior: Beeps 3
times
Interior: Pings
once
Holding any of the
passenger door han-
dles unlocks all the
doors.
Holding a door han-
Exterior: Beeps
twice
dle unlocks all the
doors.
Interior: Pings
once
For vehicles with alarm: To prevent unintended triggering of the alarm, unlock the
doors using the wireless remote control and
open and close a door once after the settings have been changed. (If a door is not
opened within 60 seconds after is
pressed, the doors will be locked again and
the alarm will automatically be set.)
In a case that the alarm is triggered, immediately stop the alarm. (P.60)
■ Locking the doors from the outside with-
out a key
1 Move the inside lock button to the lock
position.
2 Close the door.
The door cannot be locked if the engine
switch is in ACCESSORY or IGNITION
ON mode, or the electronic key is left
inside the vehicle.
The key may not be detected correctly and
the door may be locked.
■ Impact detection door lock release sys-
tem
In the event that the vehicle is subject to a
strong impact, all the doors are unlocked.
Depending on the force of the impact or the
type of accident, however, the system may
not operate.
■ Operation signals
Doors:
A buzzer sounds and the emergency flash-
ers flash to indicate that the doors have
been locked/unlocked. (Locked: Once;
Unlocked: Twice)
Windows and moon roof:
A buzzer sounds to indicate that all win-
dows and moon roof are opening.
■ Security feature
If a door is not opened within approximately
60 seconds after the vehicle is unlocked,
the security feature automatically locks the
vehicle again.
■ Open door warning buzzer
If the vehicle speed reaches 3 mph (5 km/
h), the master warning light flashes and a
buzzer sounds to indicate that door(s) or
the hood in not fully closed.
The open door(s) or hood is displayed on
the multi-information display.
■ Welcome light illumination control
The side marker, parking, tail and license
plate lights automatically turn on at night
when the doors are unlocked using the
entry function or wireless remote control if
the light switch is in the “AUTO” position.
■ When the door cannot be locked by the
lock sensor on the surface of the door
handle
When the door cannot be locked even if the
lock sensor on the surface of the door handle is touched by a finger, touch the lock
sensor with the palm.
When gloves are being worn, remove the
gloves.
3
Before driving
LEXUS NX300 Owners Manual_USA_M78285_en
Page 92
92
WARNING
3-2. Opening, closing and locking the doors
■ Door lock buzzer
If an attempt to lock the doors is made when
a door is not fully closed, a buzzer sounds
continuously for 5 seconds. Fully close the
door to stop the buzzer, and lock the vehicle once more.
■ Setting the alarm
Locking the doors will set the alarm system.
(P.60)
■ Conditions affecting the operation of
the smart access system with push-button start or wireless remote control
P.107
■ If the smart access system with push-
button start or the wireless remote control does not operate properly
● Use the mechanical key to lock and
unlock the doors. (P.372)
● Replace the key battery with a new one if
it is depleted.
■ Customization
Settings (e.g. unlocking function using a
key) can be changed. (Customizable features: P.401)
■ When opening or closing a door
Check the surroundings of the vehicle
such as whether the vehicle is on an
incline, whether there is enough space
for a door to open and whether a strong
wind is blowing. When opening or closing the door, hold the door handle tightly
to prepare for any unpredictable movement.
■ When using the wireless remote con-
trol and operating the power windows
or moon roof (if equipped)
Operate the power window or moon
roof after checking to make sure that
there is no possibility of any passenger
having any of their body parts caught in
the window or moon roof. Also do not let
a child operate window by the mechanical key. It is possible for children and
other passengers to get caught in the
power window or moon roof.
Unlocking and locking the doors
from the inside
■ Using the door lock switch
■ To prevent an accident
Observe the following precautions while
driving the vehicle.
Failure to do so may result in a door
opening and an occupant falling out,
resulting in death or serious injury.
● Ensure that all doors are properly
closed and locked.
● Do not pull the inside handle of the
doors while driving.
Be especially careful for the front
doors, as the doors may be opened
even if the inside lock buttons are in
locked position.
● Set the rear door child-protector locks
when children are seated in the rear
seats.
1 Locks all the doors
2 Unlocks all the doors
LEXUS NX300 Owners Manual_USA_M78285_en
Page 93
■ Using the inside lock buttons
3-2. Opening, closing and locking the doors
Function Operation
All doors are auto-
matically locked
Speed linked door
locking function
when vehicle speed
is approximately 12
mph (20 km/h) or
higher.
93
1 Locks the door
2 Unlocks the door
The front doors can be opened by pulling
the inside handle even if the lock buttons
are in the lock position.
■ Rear door child-protector lock
The door cannot be opened from inside the
vehicle when the lock is set.
1 Unlock
2 Lock
These locks can be set to prevent children
from opening the rear doors. Push down on
each rear door switch to lock both rear
doors.
■ Automatic door locking and unlocking
systems
The following functions can be set or canceled:
For instructions on customizing, refer to
P.402.
Shift position linked
door locking func-
tion
Shift position linked
door unlocking
function
Driver’s door linked
door unlocking
function
All doors are auto-
matically locked
when shifting the
shift lever out of P.
All doors are automatically unlocked
when shifting the
shift lever to P.
All doors are automatically unlocked
when driver’s door is
opened.
3
Before driving
LEXUS NX300 Owners Manual_USA_M78285_en
Page 94
94
WARNING
3-2. Opening, closing and locking the doors
Back door
The back door can be opened using
the back door open switch, smart
access system with push-button
start or wireless remote control.
■ Caution while driving
● Keep the back door closed while driv-
ing.
If the back door is left open, it may hit
nearby objects while driving or luggage may be unexpectedly thrown out,
causing an accident.
In addition, exhaust gases may enter
the vehicle, causing death or a serious
health hazard. Make sure to close the
back door before driving.
● Before driving the vehicle, make sure
that the back door is fully closed. If the
back door is not fully closed, it may
open unexpectedly while driving,
causing an accident.
● Never let anyone sit in the luggage
compartment. In the event of sudden
braking or a collision, they are susceptible to death or serious injury.
■ When children are in the vehicle
Observe the following precautions.
Failure to do so may result in death or
serious injury.
● Do not allow children to play in the lug-
gage compartment.
If a child is accidentally locked in the
luggage compartment, they could
have heat exhaustion or other injuries.
● Do not allow a child to open or close
the back door.
Doing so may cause the back door to
move unexpectedly, or cause the
child’s hands, head, or neck to be
caught by the closing back door.
■ Operating the back door
Observe the following precautions.
Failure to do so may cause parts of the
body to be caught, resulting in death or
serious injury.
● Remove any heavy lo ads, such as snow
and ice, from the back door before
opening it. Failure to do so may cause
the back door to suddenly shut again
after it is opened.
● When opening or closing the back
door, thoroughly check to make sure
the surrounding area is safe.
● If anyone is in the vicinity, make sure
they are safe and let them know that
the back door is about to open or
close.
● Use caution when opening or closing
the back door in windy weather as it
may move abruptly in strong wind.
● Vehicles without power back door:
The back door may suddenly shut if it is
not opened fully. It is more difficult to
open or close the back door on an
incline than on a level surface, so
beware of the back door unexpectedly
opening or closing by itself. Make sure
that the back door is fully open and
secure before using the luggage compartment.
● Vehicles with power back door: The
back door may suddenly shut if it is not
opened fully, while on a steep incline.
Make sure that the back door is
secured before using the luggage
compartment.
LEXUS NX300 Owners Manual_USA_M78285_en
Page 95
3-2. Opening, closing and locking the doors
WARNING
● When closing the back door, take
extra care to prevent your fingers, etc.,
from being caught.
● When closing the back door, make
sure to press it lightly on its outer surface. If the back door handle is used to
fully close the back door, it may result
in hands or arms being caught.
95
Unlocking and locking the back
door from the outside
■ Smart access system with push-
button start
Carry the electronic key to enable this
function.
3
Before driving
● Do not pull on the back door damper
stay (vehicles without power back
door) (P.96) or back door spindle
(vehicles with power back door)
(P.102) to close the back door, and
do not hang on the back door damper
stay (vehicles without power back
door) or back door spindle (vehicles
with power back door).
Doing so may cause hands to be
caught or the back door damper stay
(vehicles without power back door) or
back door spindle (vehicles with
power back door) to break, causing an
accident.
● If a bicycle carrier or similar heavy
object is attached to the back door, it
may suddenly shut again after being
opened, causing someone’s hands,
head or neck to be caught and injured.
When installing an accessory part to
the back door, using a genuine Lexus
part is recommended.
1 Locks all the doors
Check that the door is securely locked.
2 Unlocks all the doors
The doors cannot be unlocked for 3 seconds after the doors are locked.
■ Wireless remote control
P.87
Unlocking and locking the back
door from the inside
■ Door lock switch
P.92
Opening/closing the back door
(vehicles without power back
door)
■ Open
Raise the back door while pressing up
the back door opener switch.
LEXUS NX300 Owners Manual_USA_M78285_en
Page 96
96
NOTICE
A
■ Close
3-2. Opening, closing and locking the doors
Lower the back door using the back
door handle, and make sure to push
the back door down from the outside
to close it.
2 Move the lever.
■ Back door damper stays
The back door is equipped with damper
stays that hold the back door in place.
Observe the following precautions.
Failure to do so may cause damage to
the back door damper stay , resulting
in malfunction.
A
■ Luggage compartment light
● The luggage compartment light turns on
when the back door is opened.
● If the luggage compartment light is left on
when the engine switch is turned off, the
light will go off automatically after 20
minutes.
■ If the back door opener is inoperative
The back door can be unlocked from the
inside.
1 Remove the cover.
To protect the cover, place a rag between
the flathead screwdriver and the cover as
shown in the illustration.
● Do not attach any foreign objects, such
as stickers, plastic sheets, or adhesives
to the damper stay rod.
● Do not touch the damper stay rod with
gloves or other fabric items.
● Do not attach any accessories other
than genuine Lexus parts to the back
door.
● Do not plac e your ha nd on the damper
stay or apply lateral forces to it.
LEXUS NX300 Owners Manual_USA_M78285_en
Page 97
3-2. Opening, closing and locking the doors
97
Opening/closing the back door
(vehicles with power back door)
■ Opening/closing the back door
using the wireless remote control
Press the for 1 second.
■ Opening/closing the back door
from the inside
Press the for 1 second.
A buzzer sounds and the back door automatically opens and closes.
Pressing the while the back door is
opening/closing stops the operation.
When the is pressed again for 1 sec-
ond during the halted operation, the back
door will perform the reverse operation.
the back door opener switch.
When the back door is locked: While
carrying the electronic key on your
person, press the back door opener
switch.
A buzzer sounds and the back door automatically opens.
Pressing the switch while the back door is
opening stops the operation.
3
Before driving
Close
Pressing the .
A buzzer sounds and the back door automatically closes.
Pressing the while the back door is
closing stops the operation.
Pressing the again will reverse the
operation.
■ Opening/closing the back door
from the outside
Open
When the back door is unlocked: Press
LEXUS NX300 Owners Manual_USA_M78285_en
Close the back door and lock all
doors (close & lock function)
Press the .
Page 98
98
A
3-2. Opening, closing and locking the doors
A different buzzer than the normal one will
sound and the power back door will begin
closing automatically. When the power
back door is closed, all of the doors will
lock simultaneously and operation signals
will indicate that all of the doors have been
locked.
If the is pressed while the power
back door is closing, the operation will
stop.
Pressing the again will close the
power back door automatically.
■ Closing the back door using the
back door handle
Lower the back door using the back
door handle, then a buzzer sounds and
the back door automatically closes.
power back door by putting your foot
near the lower center part of the rear
bumper and then moving it away.
1 While carrying an electronic key,
put your foot within 3.94 in. (100
mm) of the lower center part of the
rear bumper, where the kick sensor
is located, and move it away.
When all of the doors are locked: When
the movement is detected by the kick sensor, all of the doors will be unlocked.
2 The buzzer sounds and the power
back door begins to operate.
The buzzer sounds and the power back
door automatically opens or closes.
To stop the power back door partway or
operate it again, use either the kick sensor,
the wireless remote control (P.87), or
power back door switch (P.97).
■ Opening/closing the back door
using the kick sensor (vehicles with
hands free power back door)
The power back door enables automatic opening and closing of the
LEXUS NX300 Owners Manual_USA_M78285_en
■ Luggage compartment light
● The luggage compartment light turns on
when the back door is opened.
● If the luggage compartment light is left on
when the engine switch is turned off, the
light will go off automatically after 20
minutes.
■ Power back door operating conditions
With the power back door operations set to
ON, it can automatically open and close for
the following conditions:
● When the electronic key is being carried
and the power back door switch is
*
pushed
Page 99
3-2. Opening, closing and locking the doors
99
● When the wireless remote control is
*
used
● When the engine switch is in IGNITION
ON mode, in addition to the above for
the opening operations, the back door
operates for any of the following conditions:
• Parking brake is engaged
• The brake pedal is depressed
• The shift lever is in P
*
: When configured with the customization
function so that it can be operated after
being unlocked, operate the back door
after it has been unlocked.
■ Kick sensor (vehicles with hands free
power back door)
The power back door will open/close automatically when the kick sensor operation is
enabled (P.98) and the following conditions are met:
● The power back door is fully closed/
opened.
● The electronic key is within the opera-
tional range. (P.106)
● A foot is put near the lower center part of
the rear bumper and moved away from
the rear bumper.
The power back door may also be operated
by putting a hand, an elbow, a knee, etc.
near the lower center part of the rear
bumper and moving it away from the rear
bu mp er. Mak e su re to p ut i t c los e en ou gh t o
the center part of the rear bumper.
■ Back door closer
In the event that the back door is left slightly
open, the back door closer will automatically close it to the fully closed position.
Whatever the state of the engine switch, the
back door closer operates.
■ Operation of the power back door
● A buzzer sounds and the emergency
flashers flash twice to indicate that the
back door is opening/closing.
● When the power back door operations
are OFF, the power back door does not
operate but it can be opened and closed
by hand.
● When the power back door automati-
cally opens, if an abnormality due to people or objects is detected, operation will
stop.
■ Close & lock function
When the power back door is open, this
function closes the power back door and
then locks all of the doors simultaneously.
When the following procedures are performed and there are no electronic keys for
the vehicle within the vehicle, all of the
doors will lock when the power back door is
completely closed.
1 Close all of the doors except the power
back door.
2 While carrying an electronic key, press
the switch on the lower part of
the power back door (P.95).
A different buzzer than the normal one will
sound and then the power back door will
begin closing automatically. When the
power back door is closed, all of the doors
will lock simultaneously and operation signals will indicate that all of the doors have
been locked.
■ Situations in which the close & lock
function may not operate properly
(vehicles with hands free power back
door)
In the following situations, the close & lock
function may not operate properly:
● If the switch on the lower part of
the power back door (P.95) is pressed
by a hand which is holding an electronic
key
● If the switch on the lower part of
the power back door (P.95) is pressed
when the electronic key is in a bag, etc.
that is placed on the ground
● If the switch on the lower part of
the power back door (P.95) is pressed
with the electronic key not near the vehicle.
3
Before driving
LEXUS NX300 Owners Manual_USA_M78285_en
Page 100
100
3-2. Opening, closing and locking the doors
■ Situations in which the kick sensor may
operate unintentionally (vehicles with
hands free power back door)
In the following situations, the kick sensor
may operate unintentionally.
To prevent unintentional operation, keep
the electronic key out of the operational
range or disable the kick sensor operation.
● When water is applied to the lower cen-
ter part of the rear bumper, such as in the
rain or in a car wash
● When dirt is wiped off the lower center
part of the rear bumper
● When a metal object is brought near the
lower center part of the rear bumper
● When a vehicle cover is installed or
removed
● When pets or other moving things sud-
denly enter the area below the rear
bumper
● When attempting to remove an object
from below the lower center part of the
rear bumper
● When attempting to remove snow, etc.
from below the lower center part of the
rear bumper
■ Situations in which the kick sensor does
not operate properly (vehicles with
hands free power back door)
If the kick sensor does not operate in the
following situations, use the back door
opener switch or power back door switch
or wireless remote control to open the
power back door. (P.95)
● When the rear bumper is subjected to
strong impact
● When an external radio wave source
interferes with the communication
between the vehicle and electronic key
(P.107)
● When a large amount of water is kept
applying to the lower center part of the
rear bumper, such as in heavy rain
● When the vehicle is being washed and
water is kept applying to lower center
part of the rear bumper
● When the lower center part of the rear
bumper is covered with mud, snow, ice,
etc.
● When a metal object, etc., such as a tow-
ing hitch is installed near the lower center
part of the rear bumper
● When the vehicle has been parked for a
while near objects that may move and
contact the lower center part of the rear
bumper, such as grass or trees
● When the vehicle is parked at an area
where an electric field is generated, such
as a road with an electric snow melting
system or parking meters
■ When reconnecting the battery
To enable the power back door to operate
properly, close the back door manually.
■ Jam protection function
Sensors are installed in the right and left
sides of the power back door. When the
door is automatically closing and the sensors are pushed due to an object being
clamped, etc., the jam protection function
operates.
From that position the door automatically
moves a little in the opposite direction and
then the function stops.
■ If the back door opener is inoperative
The back door can be unlocked from the
inside.
1 Remove the cover.
To protect the cover, place a rag between
the flathead screwdriver and the cover as
shown in the illustration.
LEXUS NX300 Owners Manual_USA_M78285_en
Loading...
