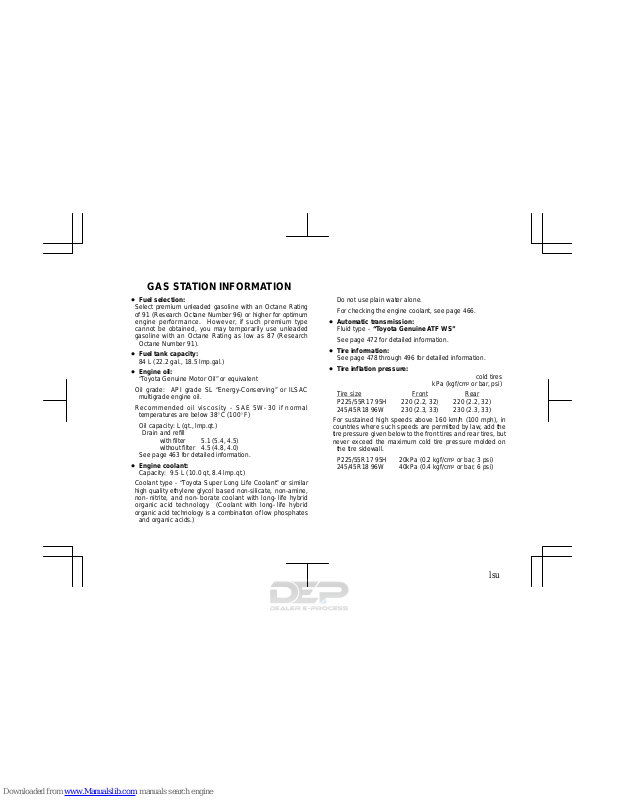

Page 1
lsu
GAS ST
ATION INFORMATION
D Fuel selection:
Select premium unleaded gasoline with an Octane Rating
of 91 (Research Octane Number 96) or higher for optimum
engine performance. However, if such premium type
cannot be obtained, you may temporarily use unleaded
gasoline with an Octane Rating as low as 87 (Research
Octane Number 91).
D Fuel tank capacity:
84 L (22.2 gal., 18.5 lmp.gal.)
D Engine oil:
“Toyota Genuine Motor Oil” or equivalent
Oil grade: API grade SL “Energy-Conserving” or ILSAC
multigrade engine oil.
Recommended oil viscosity - SAE 5W-30 if normal
temperatures are below 38_C (100_F)
Oil capacity: L (qt., lmp.qt.)
Drain and refill
with filter 5.1 (5.4, 4.5)
without filter 4.5 (4.8, 4.0)
See page 463 for detailed information.
D Engine coolant:
Capacity: 9.5 L (10.0 qt, 8.4 lmp.qt.)
Coolant type - “Toyota Super Long Life Coolant” or similar
high quality ethylene glycol based non-silicate, non-amine,
non- nitrite, and non- borate coolant with long- life hybrid
organic acid technology (Coolant with long- life hybrid
organic acid technology is a combination of low phosphates
and organic acids.)
Do not use plain water alone.
For checking the engine coolant, see page 466.
D Automatic transmission:
Fluid type - “Toyota Genuine ATF WS”
See page 472 for detailed information.
D Tire information:
See page 478 through 496 for detailed information.
D Tire inflation pressure:
cold tires
kPa (kgf/cm
2
or bar, psi)
Ti
re size Front Rear
P225/55R17 95H 220 (2.2, 32) 220 (2.2, 32)
245/45R18 96W 230 (2.3, 33) 230 (2.3, 33)
For sustained high speeds above 160 km/h (100 mph), in
countries where such speeds are permitted by law, add the
tire pressure given below to the front tires and rear tires, but
never exceed the maximum cold tire pressure molded on
the tire sidewall.
P225/55R17 95H 20kPa (0.2 kgf/cm
2
or bar, 3 psi)
245/45R18 96W 40kPa (0.4 kgf/cm2 or bar, 6 psi)
Page 2
cm-1
You should know as much about the quality and
importance of proper maintenance of your new
vehicle as the people who built it.

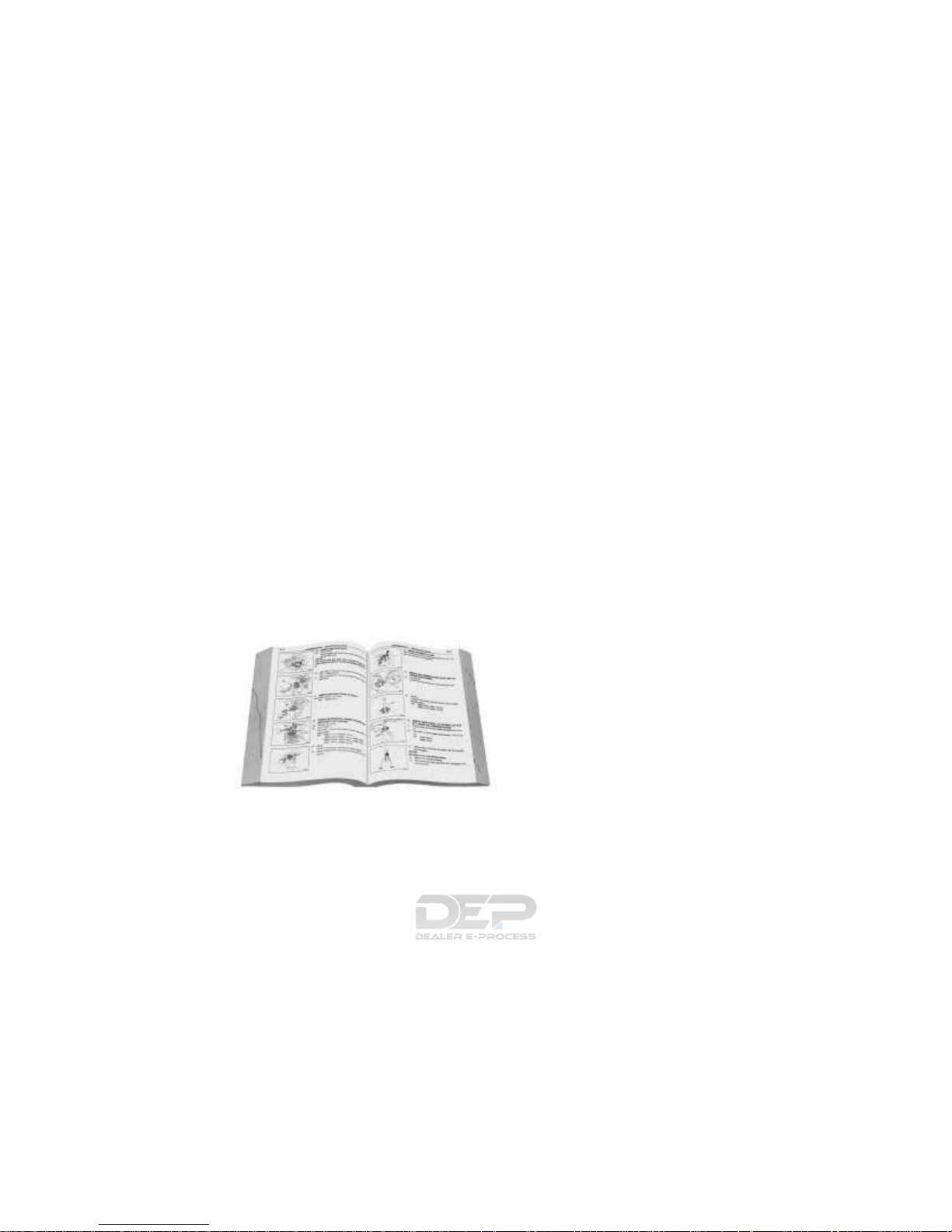

The Lexus authorized Repair Manual tells you
how to maintain your vehicle and enables you to
correctly perform your own maintenance.
The best way to keep your new vehicle in top running
order is to maintain it properly from the moment you
drive it off the showroom floor.
The Lexus authorized Repair Manual is packed with
literally everything you need to know to perform your
own maintenance in virtually every area of your new
vehicle.
Page 3
cm-2
Maintenance procedures for the engine, chassis,
body, electrical system, and more, are clearly
explained and illustrated.
Periodic maintenance and tune-up
Periodic maintenance and tune-up helps to prevent small
problems from growing into larger ones later on. The repair
manual outlines exactly what maintenance is required and
clearly explains how to do the work yourself step-by-step.
Areas covered include such things as spark plug replacement,
valve clearance adjustment and engine oil and filter
replacement.
Where to obtain the
Repair Manual
The repair manual for LS430, written in English, may be
purchased as applicable from any Lexus dealer.
Pub. Name: 2004 LS430 Repair Manual
Pub. No.: Vol.1 RM1048U1
Vol.2 RM1048U2
Page 4
FOREWORD
i
Congratulations on your selection of this Lexus. In Lexus vehicles we have invested all our engineering and design resources; all
the know-how we have gained in over 60 years of making automobiles; the highest motivation of our most talented employees; and
our tradition of incessant striving toward ever greater quality.
This Owner’s Manual explains the features of your new Lexus. Please read it and follow the instructions carefully so that you can
enjoy many years of safe motoring.
When it comes to service, remember that your Lexus dealer knows your vehicle very well and is interested in your complete
satisfaction. Your Lexus dealer will provide quality maintenance and any other assistance you may require.
If there is not a Lexus dealer near you, or you need emergency assistance for any reason, please call the following number:
U.S. OWNERS
D When traveling in the U.S. mainland or Canada:
Lexus Roadside Assistance 1-800-25-LEXUS (Toll-Free)
(1-800-255-3987)
D HAWAII:
Lexus Customer Service Assistance 1-800-25-LEXUS (Toll-Free)
(1-800-255-3987)
CANADIAN OWNERS
D When traveling in Canada or the U.S. mainland:
Lexus Roadside Assistance/Customer Service1-800-26-LEXUS (Toll-Free)
(1-800-265-3987)
Please leave this Owner’s Manual in this vehicle at the time of resale. The next owner will need this information also.
All information and specifications in this manual are current at the time of printing. However, because of the Lexus policy
of continual product improvement, we reserve the right to make changes at any time without notice.
Please note that this manual applies to all models and explains all equipment, including options. Therefore, you may find
some explanations for equipment not installed on your vehicle.
Page 5
IMPORTANT INFORMATION ABOUT YOUR LEXUS
ii
IMPORTANT INFORMATION ABOUT
YOUR LEXUS
Occupant restraint systems
Lexus encourages you and your family to take the time to read
Section 1-6 of this Owner’s Manual carefully. In terms of
helping you understand how you can receive the maximum
benefit of the occupant restraint systems this vehicle provides,
Section 1-6 of this Owner ’s Manual is the most important
section for you and your family to read.
Section 1-6 describes the function and operation concerning
seats, seat belts, SRS airbags and child restraint systems of
this vehicle and some potential hazards you should be aware
of. These systems work together along with the overall
structure of this vehicle in order to provide occupant restraint
in the event of a crash. The effect of each system is enhanced
when it is used properly and together with other systems. No
single occupant restraint system can, by itself, provide you or
your family with the equal level of restraint which these
systems can provide when used together. That is why it is
important for you and your family to understand the purpose
and proper use of each of these systems and how they relate
to each other.
The purpose of all occupant restraint systems is to help reduce
the possibility of death or serious injury in the event of a
collision. None of these systems, either individually or
together, can ensure that there is no injury in the event of
collision. However, the more you know about these systems
and how to use them properly, the greater your chances
become of surviving an accident without death or serious
injury.
Seat belts provide the primary restraint to all occupants of the
vehicle, and every occupant of the vehicle should wear seat
belts properly at all times. Children should always be secured
in child restraint systems that are appropriate for their age and
size. SRS (Supplemental Restraint System) airbags are, as
their names im p l y, designed to work with, and be supplemental
to, seat belts and are not substitutes for them. SRS airbags
can be very effective in reducing the risk of head, chest and
knee injuries by preventing contact of the head, chest and knee
with interior portions of the vehicle.
In order to be effective, the SRS airbags must deploy with
tremendous speed. The rapid deployment of the SRS airbags
makes the SRS airbags themselves potential sources of
serious injury if an occupant is too close to an airbag, or if an
object or so m e p a r t of his or her body has been placed between
the occupant and the airbag at the time of deployment. This
is just one example of how the instructions in Section 1-6 of
this Owner’s Manual will help ensure proper use of the
occupant restraint systems, and increase the safety they can
provide to you and your family in the event of an accident.
Lexus recommends you to read the provisions in Section 1-6
carefully and refer to them as needed during your time of
ownership of this vehicle.
Page 6
IMPORTANT INFORMATION ABOUT YOUR LEXUS
iii
New vehicle warranty
Your new vehicle is covered by the following Lexus limited
warranties:
D New vehicle warranty
D Emission control systems warranty
D Others
For further information, please refer to the “Owner’s Guide”,
“Owner’s Manual Supplement” or “Warranty Booklet”.
Your responsibility for maintenance
It is the owner’s responsibility to make sure the specified
maintenance is performed. Section 5 of this Owner’s Manual
gives details of these maintenance requirements. Included in
Section 6 is general maintenance. For scheduled
maintenance informat i o n , p lease refer to the “Owner’s Manual
Supplement / Scheduled Maintenance”.
Important health and safety information about your Lexus
CAUTION
D WARNING: Engine exhaust, some of its constituents,
and a wide variety of automobile components
contain or emit chemicals known to the State of
California to cause cancer and birth defects and
other reproductive harm. In addition, oils, fuels and
fluids contained in vehicles as well as waste
produced by component wear contain or emit
chemicals known to the State of California to cause
cancer and birth defects or other reproductive harm.
D Battery posts, terminals and related accessories
contain lead and lead compounds. Wash your hands
after handling. Used engine oil contains chemicals
that have caused cancer in laboratory animals.
Always protect your skin by washing thoroughly with
soap and water.
Page 7
IMPORTANT INFORMATION ABOUT YOUR LEXUS
iv
Accessories, spare parts and modification of
your Lexus
A wide variety of non-genuine spare parts and accessories for
Lexus vehicles are currently available in the market. You
should know that Toyota does not warrant these products and
is not responsible for their performance, repair, or
replacement, or for any damage they may cause to, or adverse
effect they may have on, your Lexus vehicle.
This vehicle should not be modified with non-genuine Lexus
products. Modification with non- genuine Lexus products
could affect its performance, safety or durability, and may even
violate governmental regulations. In addition, damage or
performance problems resulting from the modification may not
be covered under warranty.
Spark ignition system of your Lexus
The spark ignition system in your Lexus meets all
requirements of the Canadian Interference- Causing
Equipment Standard.
Installation of a mobile two-way radio system
As the installation of a mobile two-way radio system in your
vehicle could affect electronic systems such as the multiport
fuel injection system/sequential multiport fuel injection system,
cruise control system, dynamic radar/laser cruise control
system, anti-lock brake system, SRS airbag system and seat
belt pretensioner system, be sure to check with your Lexus
dealer for precautionary measures or special instructions
regarding installation.
Tires and loading on your Lexus
Underinflated or overinflated tire pressure and the
excess load may result in the deterioration of steering
ability and braking ability, leading to an accident. Check
the tire inflation pressure periodically and be sure to
keep the load limits given in this Owner’s Manual. For
details about tire inflation pressure and load limits, see
pages 478 and 390.
Scrapping of your Lexus
The SRS airbag and seat belt pretensioner devices in your
Lexus contain explosive chemicals. If the vehicle is scrapped
with the airbags and seat belt pretensioners left as they are,
this may cause an accident such as a fire. Be sure to have the
system of the SRS airbag and seat belt pretensioner removed
and disposed of by a qualified service shop or by your Lexus
dealer before you scrap your vehicle.
Page 8
HOW TO USE THIS MANUAL
v
HOW TO USE THIS MANUAL
The contents of this manual are explained briefly on this
page to help you make the best use of the manual. Please
read this page and the rest of the Owner’s Manual
carefully to make sure you fully understand the operation
of your vehicle.
This will help you enjoy safe and comfortable driving.
TABLE OF CONTENTS
The table of contents and the pictorial index provide easy
reference to the appropriate pages.
BASIC OPERATION - QUICK REFERENCE
Operation of basic equipment is briefly explained in an easily
understandable way for quick reference.
SECTION 1 - INSTRUMENTS AND CONTROLS
The vehicle’s equipment is divided into the 7 groups listed
below. Use of the equipment is explained, including any points
you should pay particular attention to.
1. Keys and doors
2. Switches
3. Gauges, meters and service reminder indicators
4. Interior equipment
5. Exterior equipment
6. Occupant restraint systems
7. Steering wheel and mirrors
SECTION 2 - AIR CONDITIONING AND AUDIO
The features of the vehicle’s air conditioning and audio are
explained in detail. Be sure to read this section so that you can
make full use of them.
SECTION 3 - STARTING AND DRIVING
Starting the engine, driving, stopping, operation of features
affecting vehicle handling, hints on vehicle safety and safe
driving techniques are all explained. Please read everything
in this section, and remember - drive safely!
SECTION 4 - IN CASE OF AN EMERGENCY
This section explains what to do in the event of an urgent
situation such as the engine not starting or getting a flat tire,
etc. If such a problem occurs, check the contents of this
Owner’s Manual and follow the instructions given.
SECTION 5 - MAINTENANCE
This section explains the importance of regular maintenance.
Regular and periodic inspection and maintenance of your
Lexus will help to keep your vehicle in its best condition.
SECTION 6 - SERVICE PROCEDURES AND
SPECIFICATIONS
Simple maintenance procedure and service data are provided
here for your reference should you wish to perform inspection
and maintenance yourself.
INDEX
The page number is listed for each item in the Owner’s Manual
so that you can rapidly find the item and page you are
searching for.
Page 9
HOW TO USE THIS MANUAL
vi
GAS STATION INFORMATION
The information you need to know for appropriate servicing at
the gas station is provided here.
QUICK INDEX
This is designed so that you can quickly find the needed
information when an urgent situation arises.
Safety symbol
In this manual, you will also see a circle with a slash through
it. This means ”Do not”, ”Do not do this”, or ”Do not let this
happen”.
Safety and vehicle damage warnings
In this manual you will see CAUTION and NOTICE warnings.
These are used in the following ways:
CAUTION
This is a warning against anything which may cause
injury to people if the warning is ignored. You are
informed about what you must or must not do in order
to reduce the risk of injury to yourself and others.
NOTICE
This is a warning against anything which may cause
damage to the vehicle or its equipment if the warning is
ignored. Y ou are informed about what you must or must
not do in order to avoid or reduce the risk of damage to
your Lexus and its equipment.
Your Lexus Owner’s Manual provides you with a
considerable amount of information. To use this
information most effectively, please take the time to
familiarize yourself with the contents and use of the
manual.
Page 10

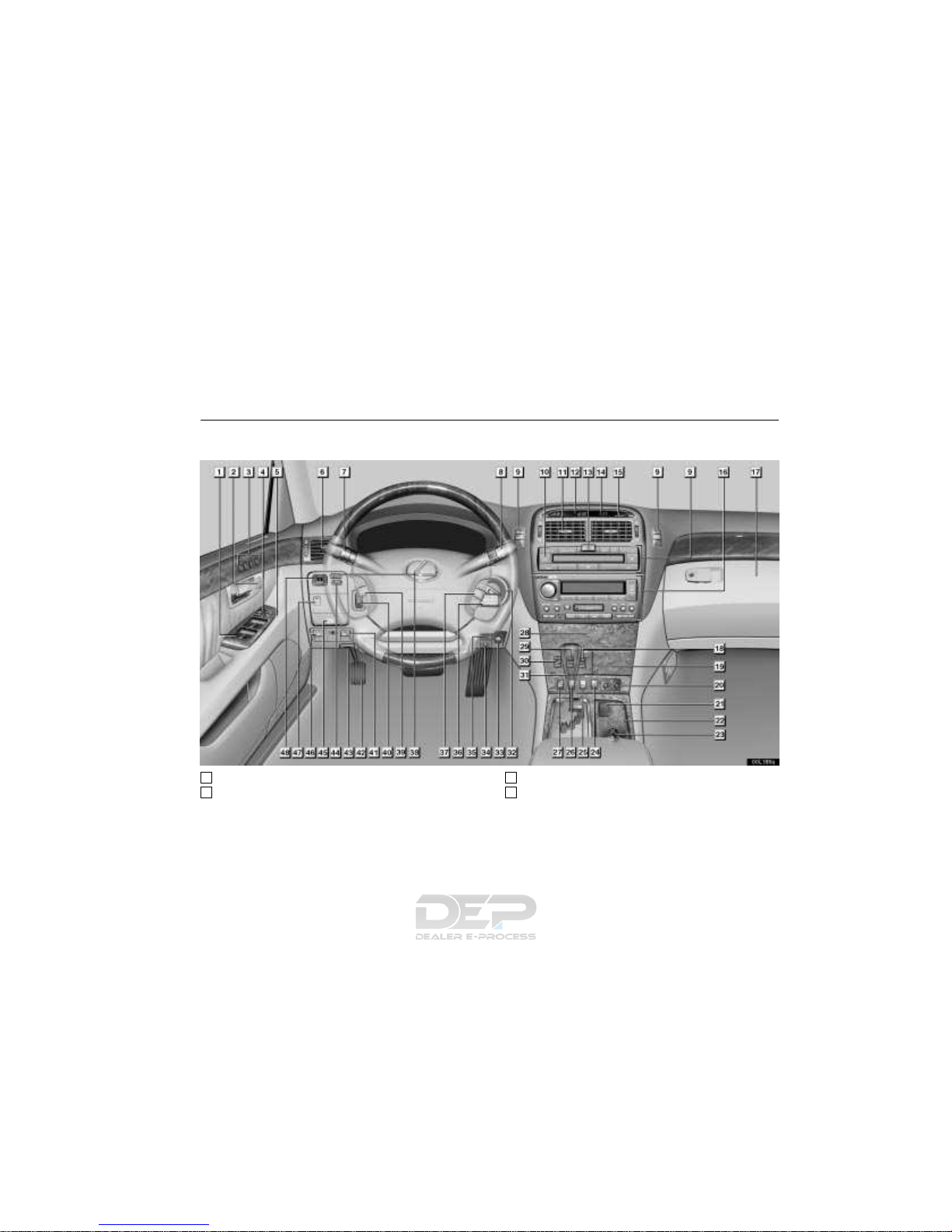

PICTORIAL INDEX
vii

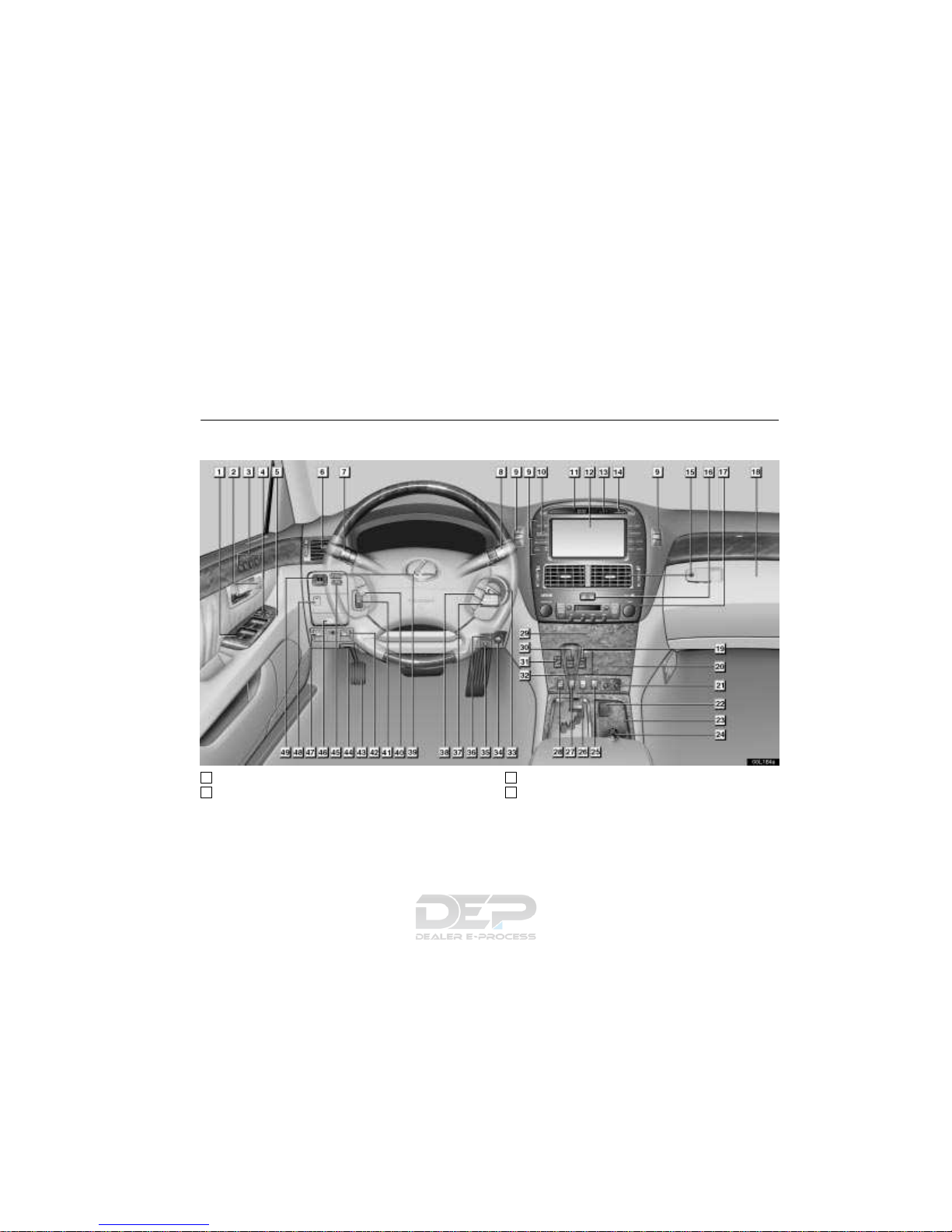

INSTRUMENT PANEL (Vehicles with navigation system)
00L184a
1
Power window switches 64. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2
Shoulder anchor control switch 170. . . . . . . . . . . . . . . . . . . . . . . . .
3

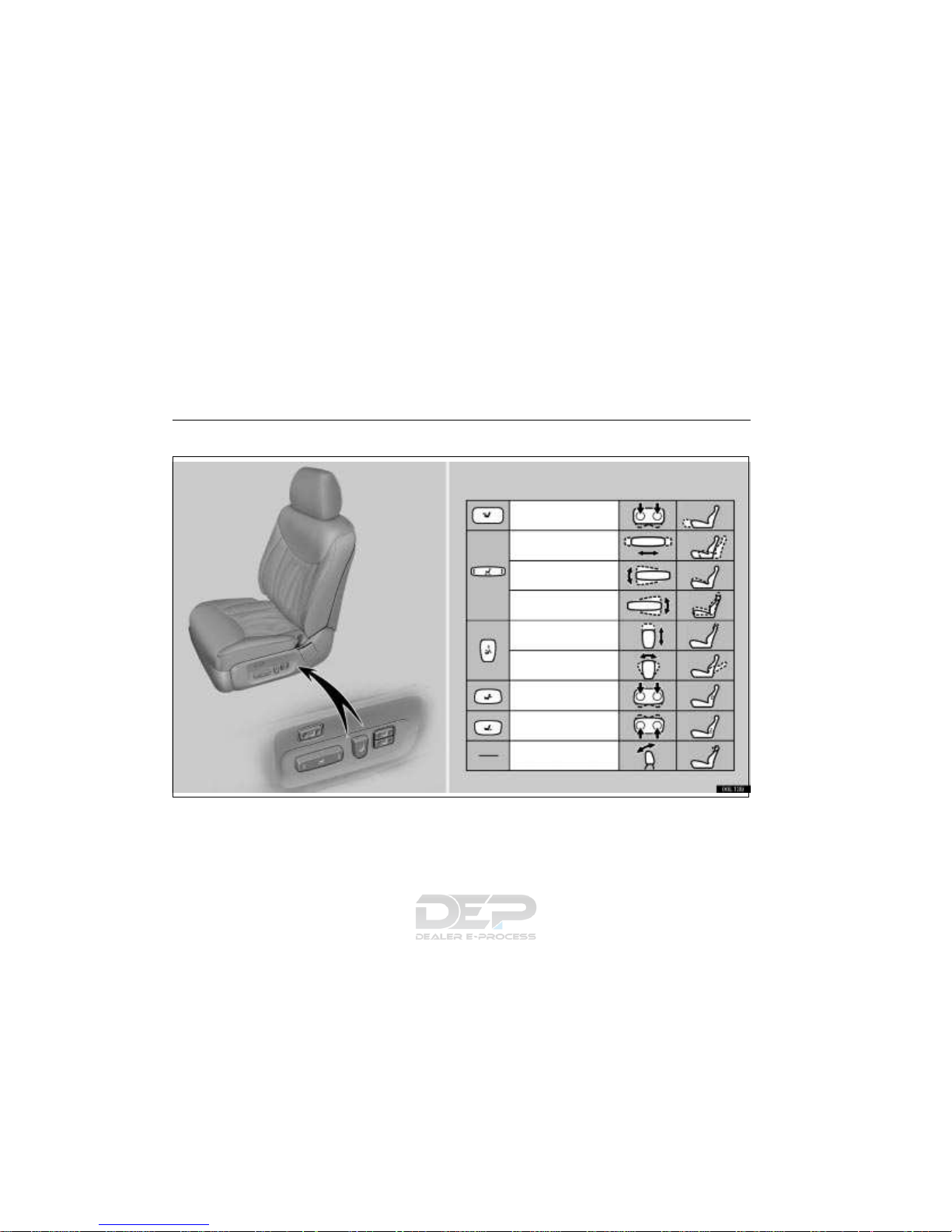

Driving position memory switch 219. . . . . . . . . . . . . . . . . . . . . . . .
4
Door lock switch 48. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Page 11
For detailed information, refer to the description given in each section.
PICTORIAL INDEX
viii
5
Window lock switch 65. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6
Side vents 252. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7
Headlight, turn signal and fog
light switches 54, 57, 58. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8
Wiper and washer switch 58. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9
Automatic air conditioning controls 237, 239. . . . . . . . . . . . . . . .
10
Rear window and outside rear view mirror defogger
switch 63. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11
Clock 115. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
12
Lexus park assist system/Rear view monitor/
Navigation system display
(See “Navigation System Owner’s Manual”) 314/320. . . . . . . . .
13
Outside temperature display 116. . . . . . . . . . . . . . . . . . . . . . . . . . . .
14
Front passenger’s seat belt reminder light 84. . . . . . . . . . . . . . . .
15
Center vents 251. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
16
Emergency flasher switch 68. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
17
Car audio 259. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
18
Glove box 121. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
19
Driving pattern selector switch 303. . . . . . . . . . . . . . . . . . . . . . . . .
20
Auxiliary box 128. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
21
Seat heater switches/
Climate control seat switches 69/71. . . . . . . . . . . . . . . . . . . . . . . . .
22
Power outlet 119. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
23
Auxiliary box if power outlet is selected/
Ashtray if cigarette lighter is selected 128/118. . . . . . . . . . . . . . .
24
Cigarette lighter 118. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
25
Headlight cleaner switch 62. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
26
Rear seat and rear head restraints
return switch 162. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
27
Traction control system off switch 360. . . . . . . . . . . . . . . . . . . . . .
28
Rear electric sunshade switch 136. . . . . . . . . . . . . . . . . . . . . . . . . .
29
CD automatic changer 281. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
30
Height control switch 357. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
31
Damping mode select switch 359. . . . . . . . . . . . . . . . . . . . . . . . . . .
32
Automatic transmission selector lever 303. . . . . . . . . . . . . . . . . .
33
Ignition switch 297, 300. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
34
Volume adjustment knob 30, 39. . . . . . . . . . . . . . . . . . . . . . . . . . . .
35
Key cancel switch 34. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
36
Tire pressure warning system reset switch 369. . . . . . . . . . . . . .
37
Cruise control switch/Dynamic radar/laser cruise
control switch 324/327. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
38
Multi-information display control switch 89. . . . . . . . . . . . . . . . .
39
Rear view mirror folding switch 231. . . . . . . . . . . . . . . . . . . . . . . . .
40
Steering pad switches 287. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
41
Adaptive front-lighting system cancel switch 56. . . . . . . . . . . . .
42
Trunk lid opener 143. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
43
Parking brake 301. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
44
Hood opener 141. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
45
Lexus park assist system switch 314. . . . . . . . . . . . . . . . . . . . . . . .
46
Parking brake release lever 301. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
47
Fuel filler door opener 145. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
48
Coin box 126. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
49
Power rear view mirror control switches 230. . . . . . . . . . . . . . . . .
Page 12
PICTORIAL INDEX
ix
INSTRUMENT PANEL (Vehicles without navigation system)
00L185a
1
Power window switches 64. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2
Shoulder anchor control switch 170. . . . . . . . . . . . . . . . . . . . . . . . .
3
Driving position memory switch 219. . . . . . . . . . . . . . . . . . . . . . . .
4
Door lock switch 48. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Page 13
For detailed information, refer to the description given in each section.
PICTORIAL INDEX
x
5
Window lock switch 65. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6
Side vents 252. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7
Headlight, turn signal and fog
light switches 54, 57, 58. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8
Wiper and washer switch 58. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9
Automatic air conditioning controls 237, 239. . . . . . . . . . . . . . . .
10
Rear window and outside rear view mirror defogger
switch 63. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11
Center vents 251. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
12
Clock 115. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
13
Emergency flasher switch 68. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
14
Outside temperature display 116. . . . . . . . . . . . . . . . . . . . . . . . . . . .
15
Front passenger’s seat belt reminder light 84. . . . . . . . . . . . . . . .
16
Car audio 259. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
17
Glove box 121. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
18
Driving pattern selector switch 303. . . . . . . . . . . . . . . . . . . . . . . . .
19
Auxiliary box 128. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
20
Seat heater switches/
Climate control seat switches 69/71. . . . . . . . . . . . . . . . . . . . . . . . .
21
Power outlet 119. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
22
Auxiliary box if power outlet is selected/
Ashtray if cigarette lighter is selected 128/118. . . . . . . . . . . . . . .
23
Cigarette lighter 118. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
24
Headlight cleaner switch 62. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
25
Rear seat and rear head restraints
return switch 162. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
26
Traction control system off switch 360. . . . . . . . . . . . . . . . . . . . . .
27
Rear electric sunshade switch 136. . . . . . . . . . . . . . . . . . . . . . . . . .
28
CD automatic changer 281. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
29
Height control switch 357. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
30
Damping mode select switch 359. . . . . . . . . . . . . . . . . . . . . . . . . . .
31
Automatic transmission selector lever 303. . . . . . . . . . . . . . . . . .
32
Ignition switch 297, 300. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
33
Volume adjustment knob 30, 39. . . . . . . . . . . . . . . . . . . . . . . . . . . .
34
Key cancel switch 34. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
35
Tire pressure warning system reset switch 369. . . . . . . . . . . . . .
36
Cruise control switch/Dynamic radar/laser cruise
control switch 324/327. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
37
Multi-information display control switch 89. . . . . . . . . . . . . . . . .
38
Rear view mirror folding switch 231. . . . . . . . . . . . . . . . . . . . . . . . .
39
Steering pad switches 287. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
40
Adaptive front-lighting system cancel switch 56. . . . . . . . . . . . .
41
Trunk lid opener 143. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
42
Parking brake 301. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
43
Hood opener 141. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
44
Lexus park assist system switch 314. . . . . . . . . . . . . . . . . . . . . . . .
45
Parking brake release lever 301. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
46
Fuel filler door opener 145. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
47
Coin box 126. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
48
Power rear view mirror control switches 230. . . . . . . . . . . . . . . . .
Page 14
PICTORIAL INDEX
xi

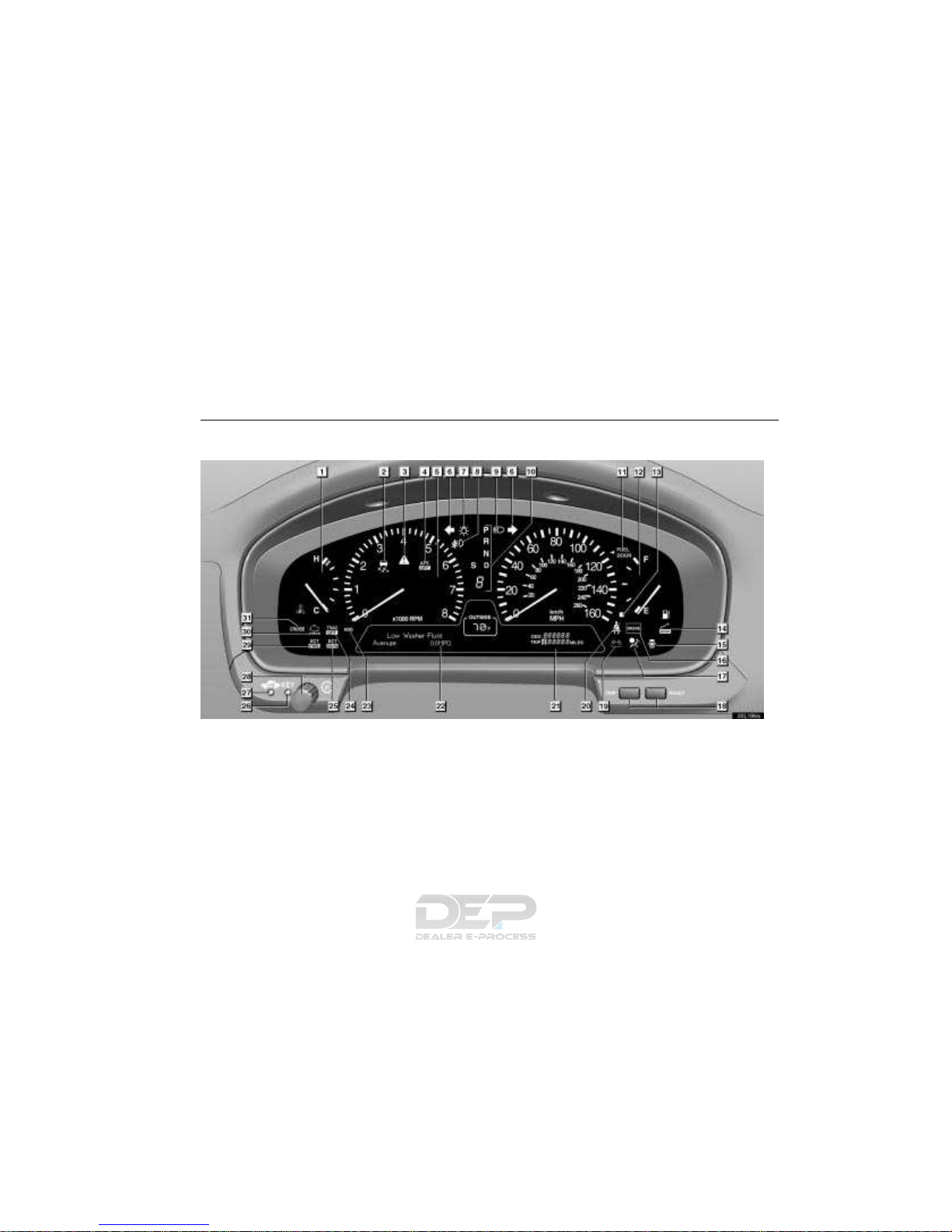

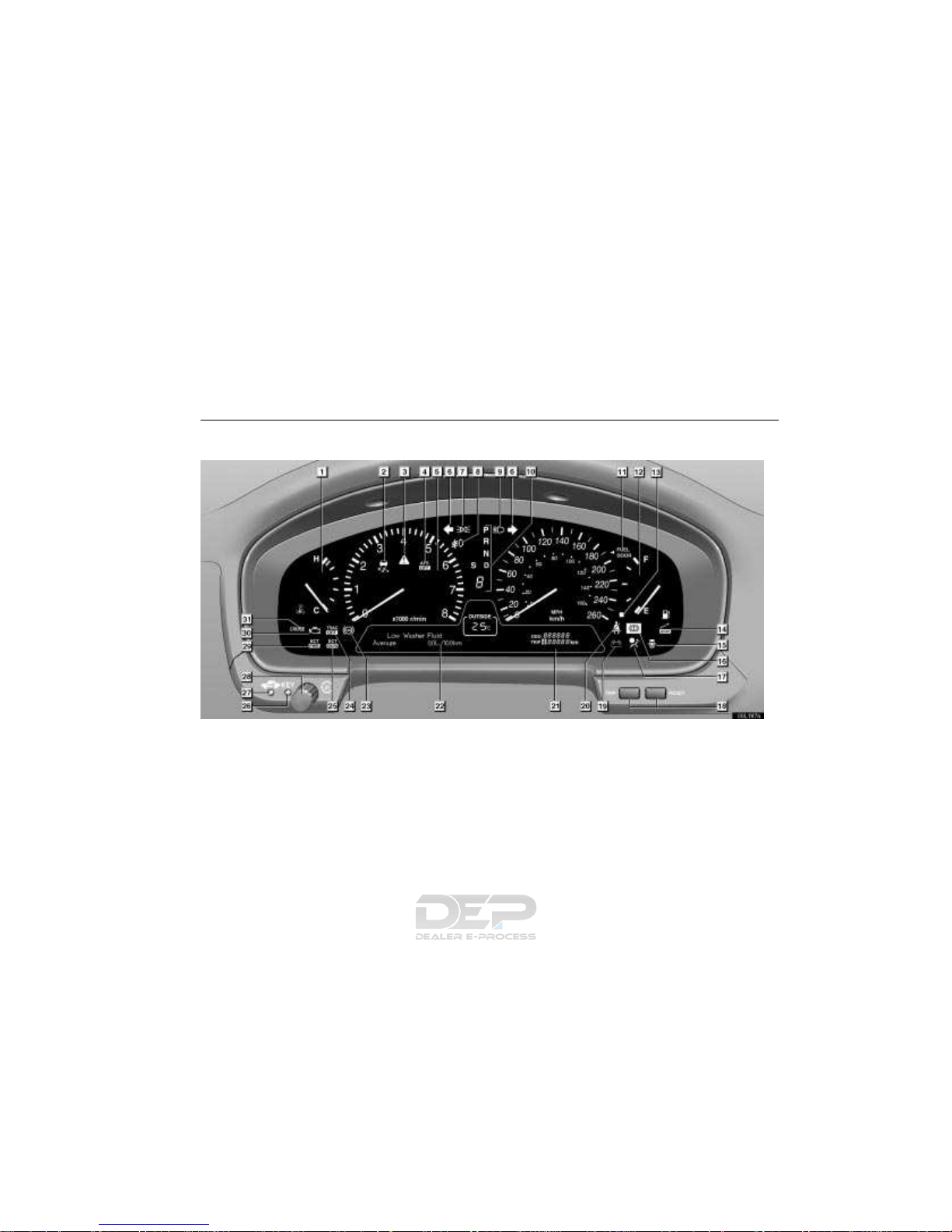

INSTRUMENT CLUSTER (Vehicles sold in U. S. A.)
00L186a
Page 15
For detailed information, refer to the description given in each section.
PICTORIAL INDEX
xii
1
Engine coolant temperature gauge 79. . . . . . . . . . . . . . . . . . . . . . .
2
Slip indicator light 360, 363. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3
Master warning light 86. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4
Adaptive front-lighting system off indicator light 56. . . . . . . . .
5
Tachometer 80. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6
Turn signal indicator light 57. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7
Headlight indicator light 54. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8
Fog light indicator light 58. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9
Headlight high beam indicator light 57. . . . . . . . . . . . . . . . . . . . . .
10
Automatic transmission indicator lights 303. . . . . . . . . . . . . . . . .
11
Fuel filler door indicator 145. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
12
Fuel gauge 79. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
13
Low fuel level warning light 87. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
14
Damping mode indicator light 359. . . . . . . . . . . . . . . . . . . . . . . . . .
15
Open door warning light 87. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
16
Brake system warning light 83. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
17
SRS warning light 84. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
18
ODO/TRIP RESET button 81. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
19
Discharge warning light 85. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
20
Driver’s seat belt reminder light 84. . . . . . . . . . . . . . . . . . . . . . . . . .
21
Odometer and trip meter 81. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
22
Multi- information display 89. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
23
Anti-lock brake system warning light 86. . . . . . . . . . . . . . . . . . . .
24
Traction control system OFF indicator light 360. . . . . . . . . . . . . .
25
Snow mode indicator light 313. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
26
Key indicator light 20, 297. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
27
Security indicator light 50. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
28
Instrument panel light control 108. . . . . . . . . . . . . . . . . . . . . . . . . .
29
Power mode indicator light 313. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
30
Malfunction indicator lamp 85. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
31
Cruise control indicator light 324. . . . . . . . . . . . . . . . . . . . . . . . . . .
Page 16
PICTORIAL INDEX
xiii
INSTRUMENT CLUSTER (Vehicles sold in Canada)
00L187a
Page 17
For detailed information, refer to the description given in each section.
PICTORIAL INDEX
xiv
1
Engine coolant temperature gauge 79. . . . . . . . . . . . . . . . . . . . . . .
2
Slip indicator light 360, 363. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3
Master warning light 86. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4
Adaptive front-lighting system off indicator light 56. . . . . . . . .
5
Tachometer 80. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6
Turn signal indicator light 57. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7
Tail indicator light 54. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8
Fog light indicator light 58. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9
Headlight high beam indicator light 57. . . . . . . . . . . . . . . . . . . . . .
10
Automatic transmission indicator lights 303. . . . . . . . . . . . . . . . .
11
Fuel filler door indicator 145. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
12
Fuel gauge 79. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
13
Low fuel level warning light 87. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
14
Damping mode indicator light 359. . . . . . . . . . . . . . . . . . . . . . . . . .
15
Open door warning light 87. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
16
Brake system warning light 83. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
17
SRS warning light 84. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
18
ODO/TRIP RESET button 81. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
19
Discharge warning light 85. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
20
Driver’s seat belt reminder light 84. . . . . . . . . . . . . . . . . . . . . . . . . .
21
Odometer and trip meter 81. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
22
Multi-information display 89. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
23
Anti-lock brake system warning light 86. . . . . . . . . . . . . . . . . . . .
24
Traction control system OFF indicator light 360. . . . . . . . . . . . . .
25
Snow mode indicator light 313. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
26
Key indicator light 20, 297. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
27
Security indicator light 50. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
28
Instrument panel light control 108. . . . . . . . . . . . . . . . . . . . . . . . . .
29
Power mode indicator light 313. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
30
Malfunction indicator lamp 85. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
31
Cruise control indicator light 324. . . . . . . . . . . . . . . . . . . . . . . . . . .
Page 18
For detailed information, refer to the description given in each section.
PICTORIAL INDEX
xv

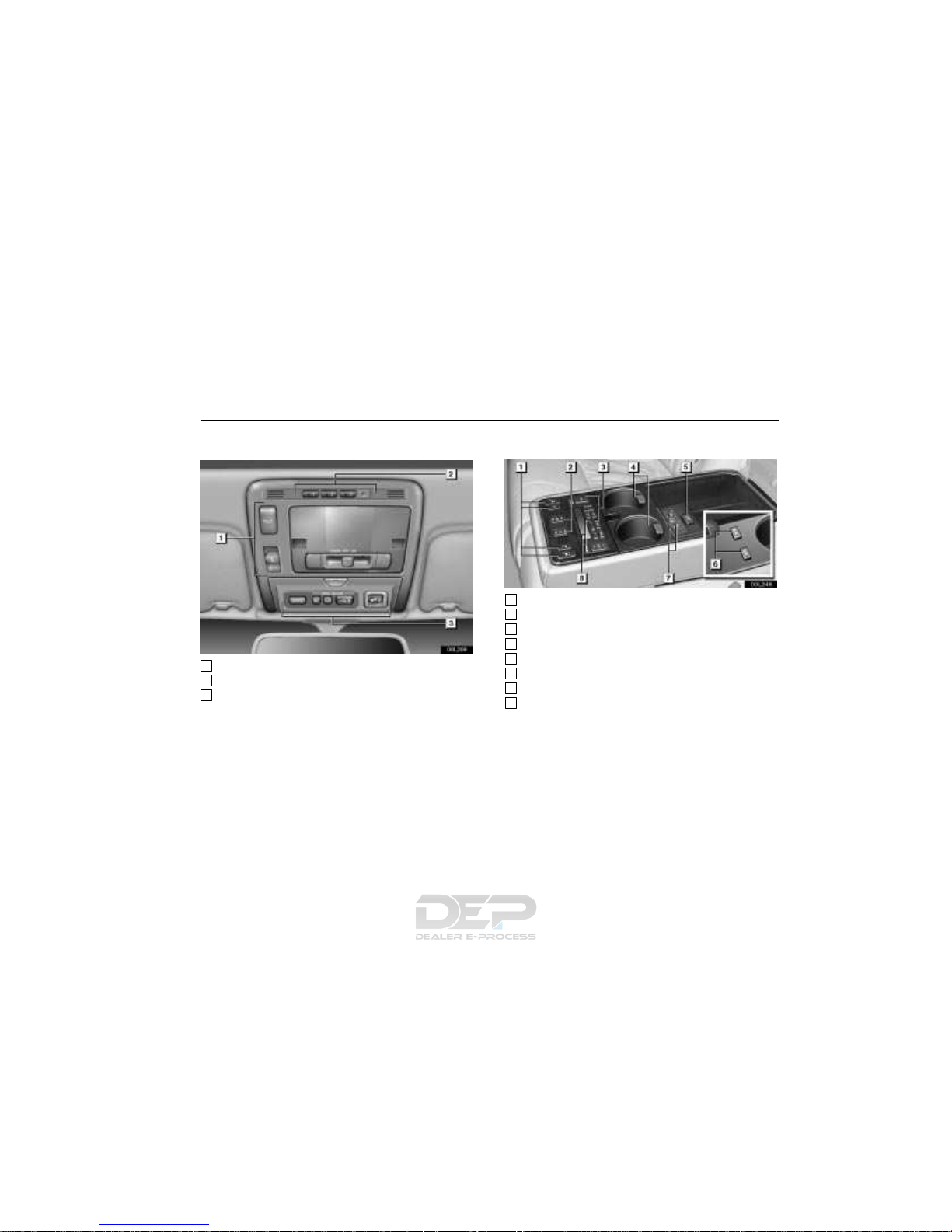

OVERHEAD CONSOLE
00L209
1
Moon roof switches 147. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2
Garage door opener switches 121. . . . . . . . . . . . . . . . . . . . . . . . . . .
3
Lexus Link System switches 421. . . . . . . . . . . . . . . . . . . . . . . . . . . .
REAR ARMREST
00L248
1
Rear seat control switches 161. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2
Refreshing rear seat switches 76. . . . . . . . . . . . . . . . . . . . . . . . . . .
3
Rear air conditioning control switches 253. . . . . . . . . . . . . . . . . .
4
Cup holders 125. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5
Rear electric sunshade switch 136. . . . . . . . . . . . . . . . . . . . . . . . . .
6
Rear seat heater switches 69. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7
Rear climate control seat switches 72. . . . . . . . . . . . . . . . . . . . . . .
8
Audio rear control switches 286. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Page 19
00L196
PICTORIAL INDEX
xvi

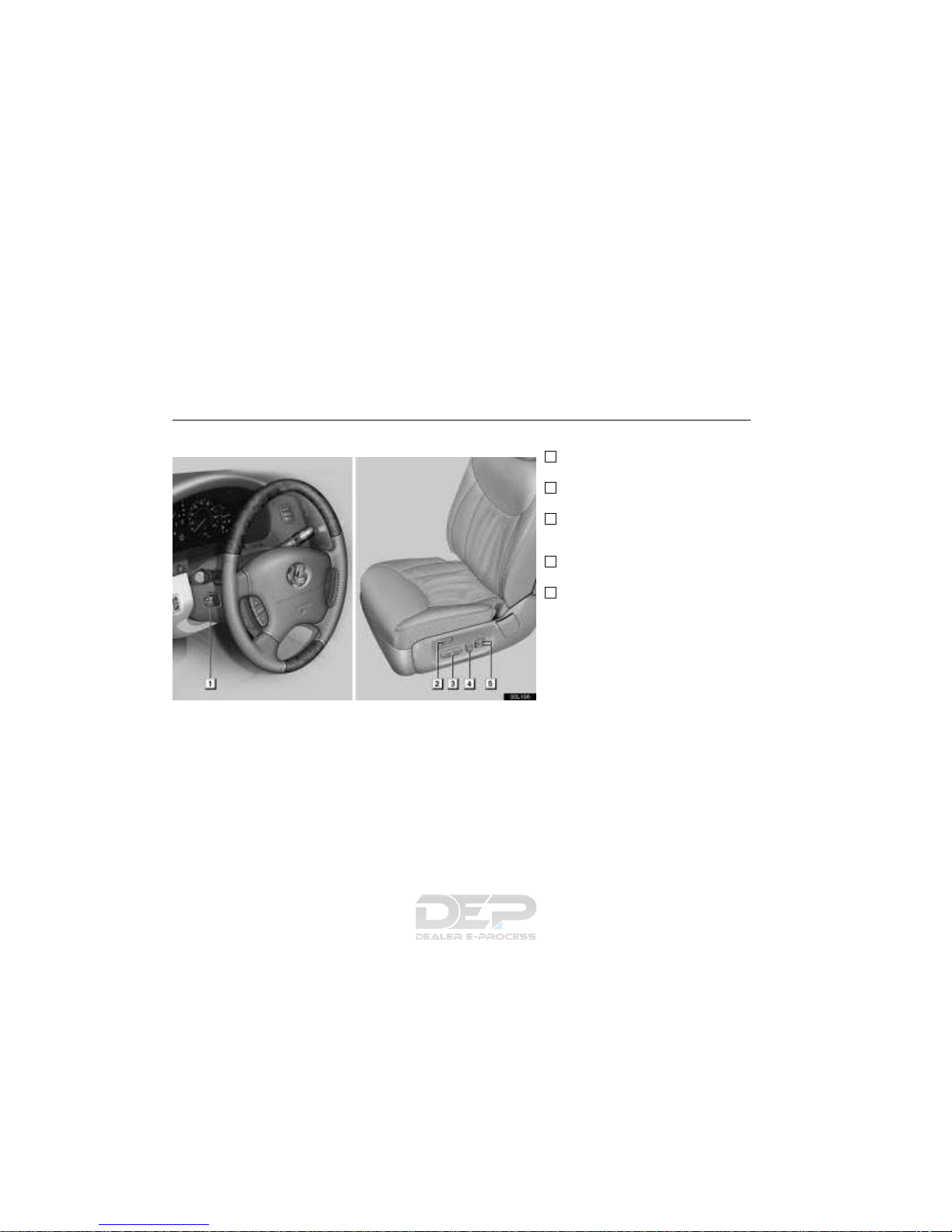

SEAT AND STEERING WHEEL
1
Tilt and telescopic steering
adjustment switch 227. . . . . . . . . . . . .
2
Seat cushion length
control switch 156. . . . . . . . . . . . . . . . .
3
Seat position, seat cushion
angle and height control
switch 156, 158. . . . . . . . . . . . . . . . . . . .
4
Seatback angle and head
restraint control switch 157, 164. . . .
5
Lumbar support control
switches 158. . . . . . . . . . . . . . . . . . . . . .
For detailed information, refer to the
description given in each section.
Page 20
00L191a
PICTORIAL INDEX
xvii

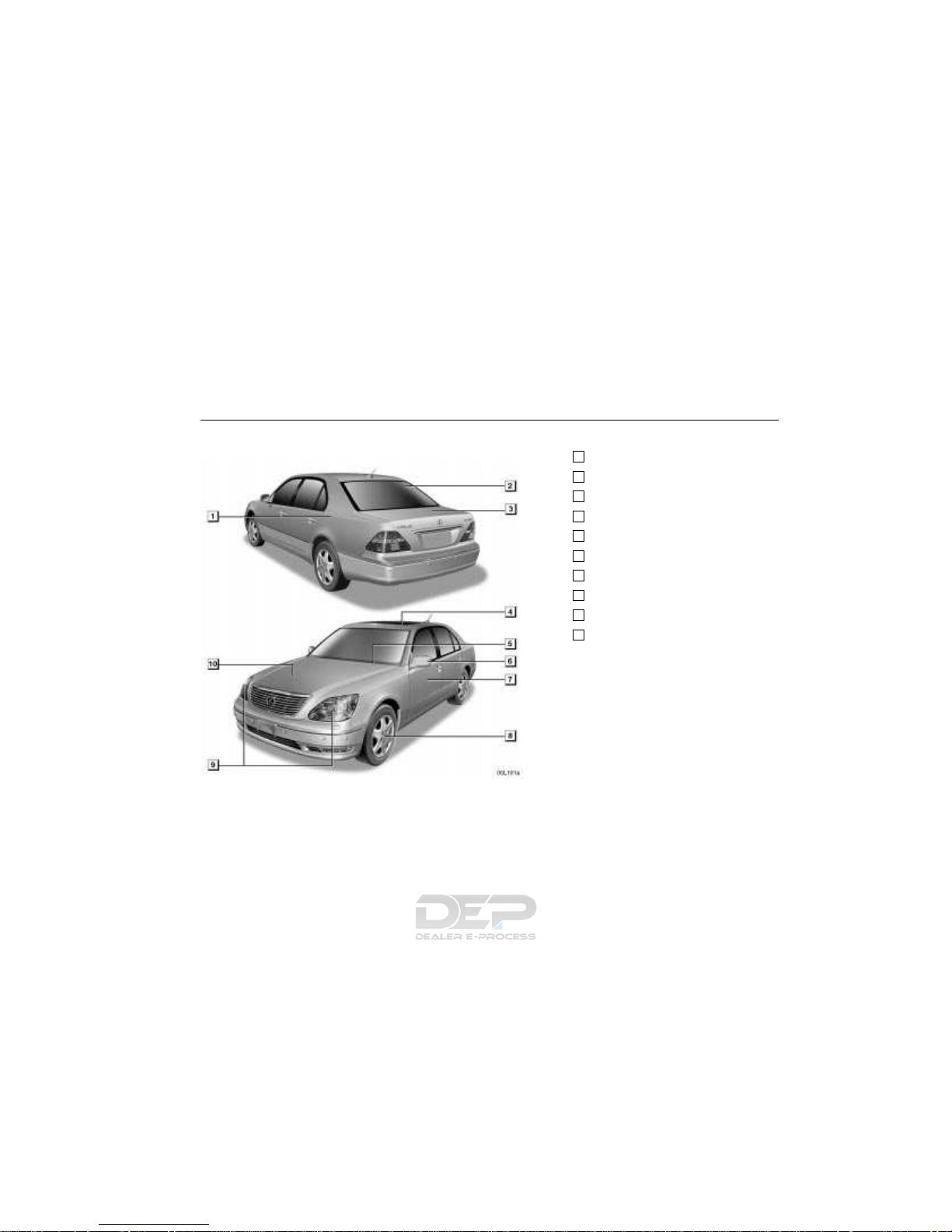

EXTERIOR VIEW
1
Fuel filler door 145. . . . . . . . . . . . . . . .
2
Rear window defogger 63. . . . . . . . . .
3
Trunk lid 142. . . . . . . . . . . . . . . . . . . . . .
4
Moon roof 147. . . . . . . . . . . . . . . . . . . .
5
Wiper and washer 58, 514. . . . . . . . . .
6
Outside rear view mirror 229. . . . . . .
7
Door 46. . . . . . . . . . . . . . . . . . . . . . . . . .
8
Tire and wheel 478. . . . . . . . . . . . . . . .
9
Headlight 54, 516. . . . . . . . . . . . . . . . . .
10
Hood 141. . . . . . . . . . . . . . . . . . . . . . . . .
For detailed information, refer to the
description given in each section.
Page 21
BASIC OPERATION
1
QUICK REFERENCE
Driver’s seat 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Steering wheel 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Automatic transmission 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Headlight and turn signal switch 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wiper switch 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Page 22
00L139
Seat adjustment
Seat
position
Seat cushion
angle
Seat cushion
height
Head restraint
height
Seatback
angle
Upper lumbar
support
Head restraint
angle
Lower lumbar
support
Seat cushion
length
QUICK REFERENCE
2
1. DRIVER’S SEAT
Page 23
QUICK REFERENCE
3

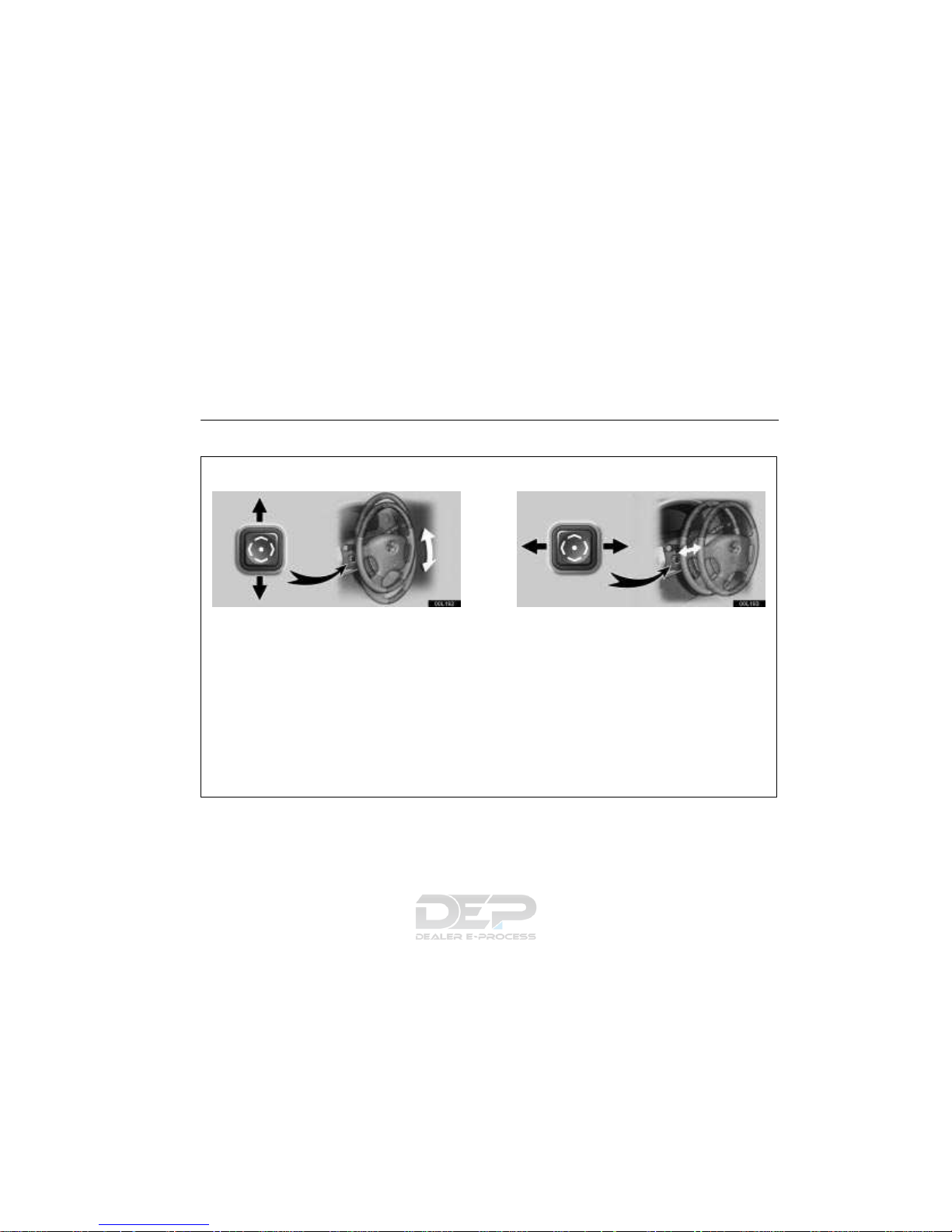

2. STEERING WHEEL
D TILT STEERING WHEEL
00L192
To tilt the steering wheel up or down to the desired angle,
push the control switch in the required direction and
release the button when the steering wheel reaches the
desired angle.
D TELESCOPIC STEERING WHEEL
00L193
T o move the steering wheel to the desired position, push
the control switch away from you or pull it toward you until
the steering wheel reaches the desired position.
Page 24
00L188
00L189
K Shift while pressing the brake pedal.
(Ignition switch must be in the “ON” position.)

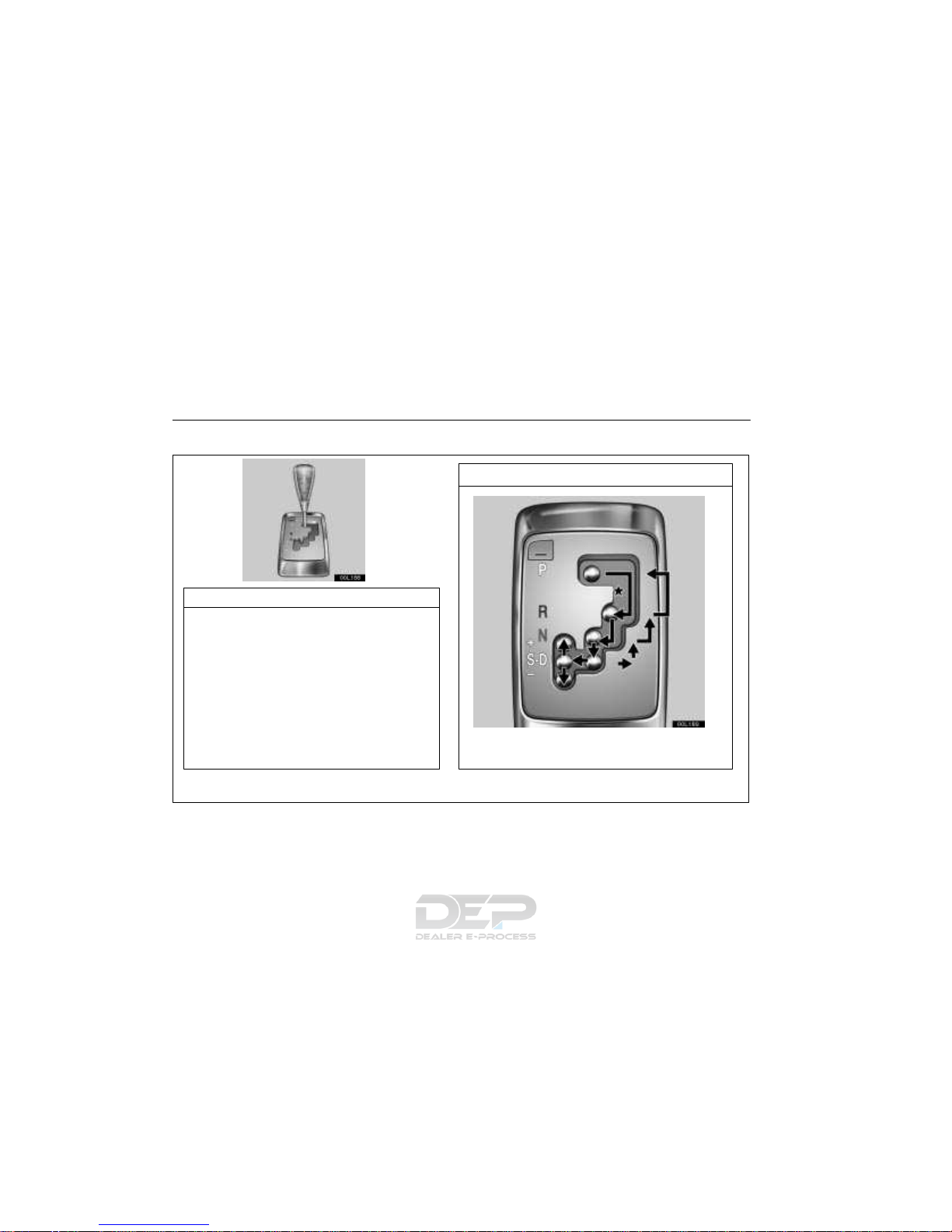

OPERATION OF SELECTOR LEVER
SELECTOR LEVER POSITION
P: Parking, engine starting and key removal
position
R: Reverse position
N: Neutral position
D: Normal driving position
(Shifting into overdrive possible)
S: “S” mode driving
+: Upshifting
–: Downshifting
QUICK REFERENCE
4
3. AUTOMATIC TRANSMISSION
Page 25
QUICK REFERENCE
5
NOTE:
Vehicles with the cruise control: When the cruise control is being used, even if you downshift from “D” or “6” (sixth range) to “5” (fifth
range), or “D” or “5” (fifth range) to “4” (fourth range), engine braking will not be enabled because the cruise control is not cancelled.
For vehicle speed reduction, see page 326. Vehicles with the dynamic radar/laser cruise control: When the cruise control is being
used in the conventional (fixed speed) cruise control mode or in the vehicle-to-vehicle distance control mode, even if you downshift
from “D” or “6” (sixth range) to “5” (fifth range) or D”, or “5” (fifth range) to “4” (fourth range), engine braking will not be enabled because
the cruise control is not cancelled. For vehicle speed reduction, see pages 356 and 341.
Page 26

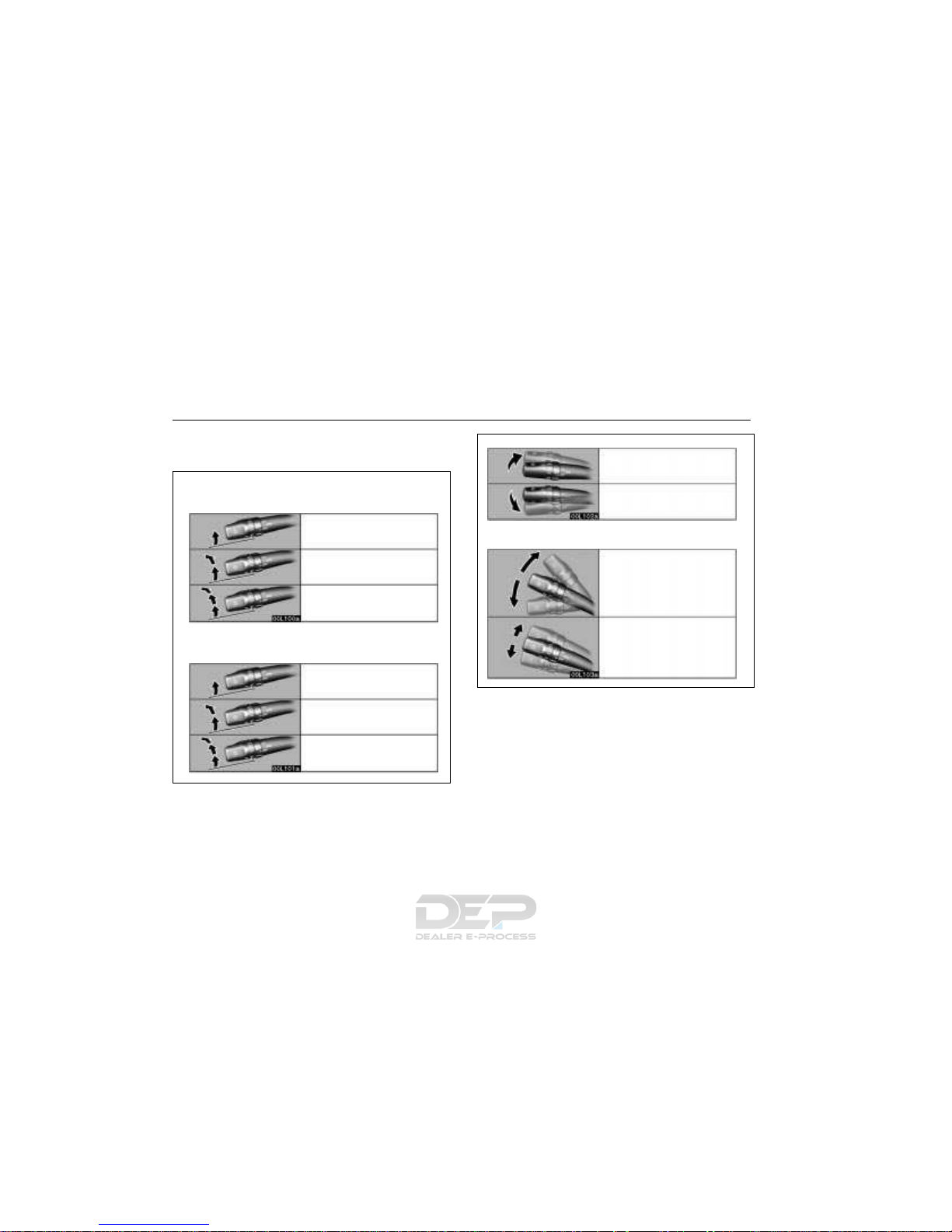

00L100a
00L101a
Parking, tail, license plate,
side marker and instrument
panel lights turn on.
Headlights also turn on
at full intensity
.
Automatic light control
Parking, tail, license plate,
side marker and instrument
panel lights turn on.
Headlights also turn on.
Automatic light control
00L103a
00L102a
Right or left turn
Lane change
(Right or left)
High beam
Headlight flasher
QUICK REFERENCE
6
4. HEADLIGHT AND TURN SIGNAL
SWITCH
D HEADLIGHT SWITCH
With the ignition OFF
With the engine started and parking brake
released
D TURN SIGNAL SWITCH
Page 27

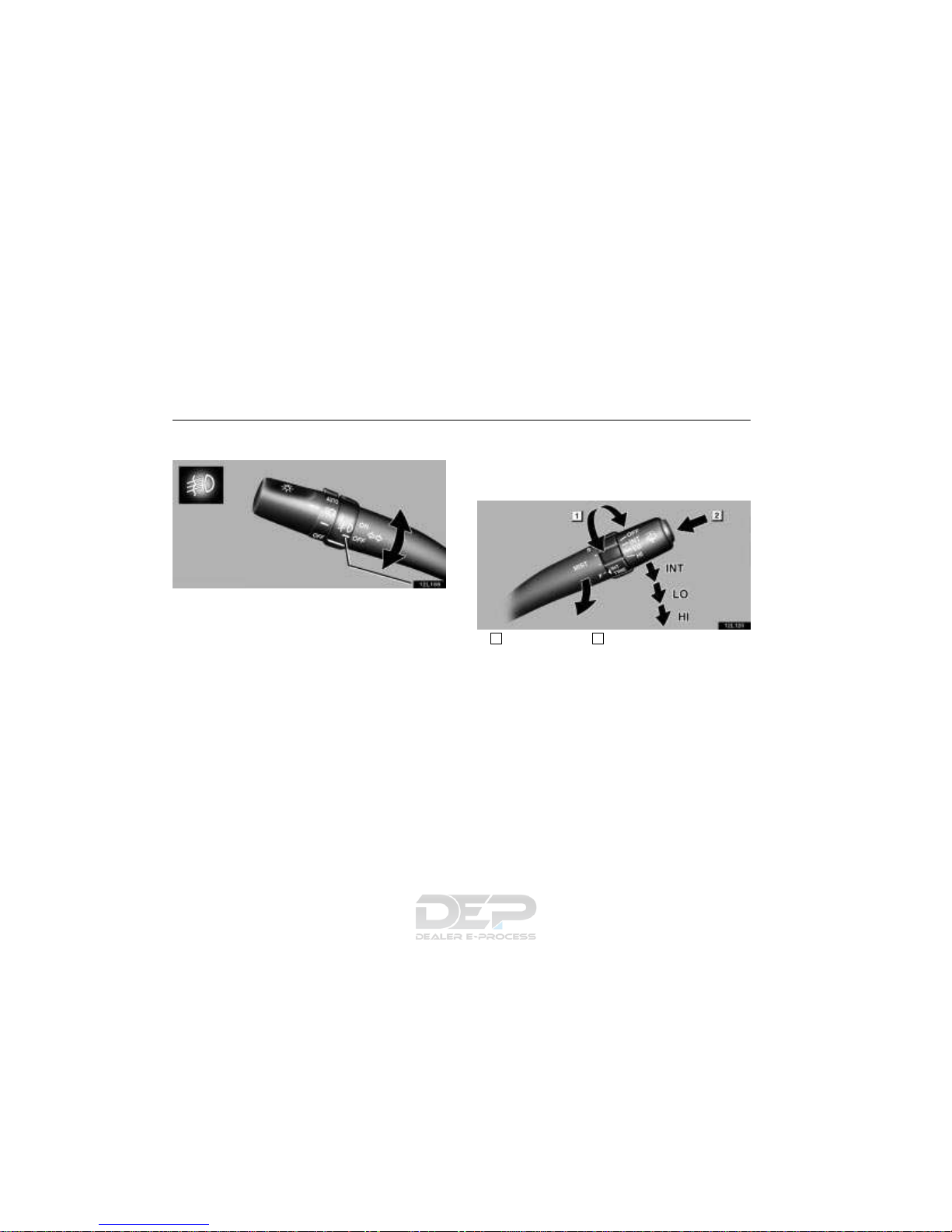

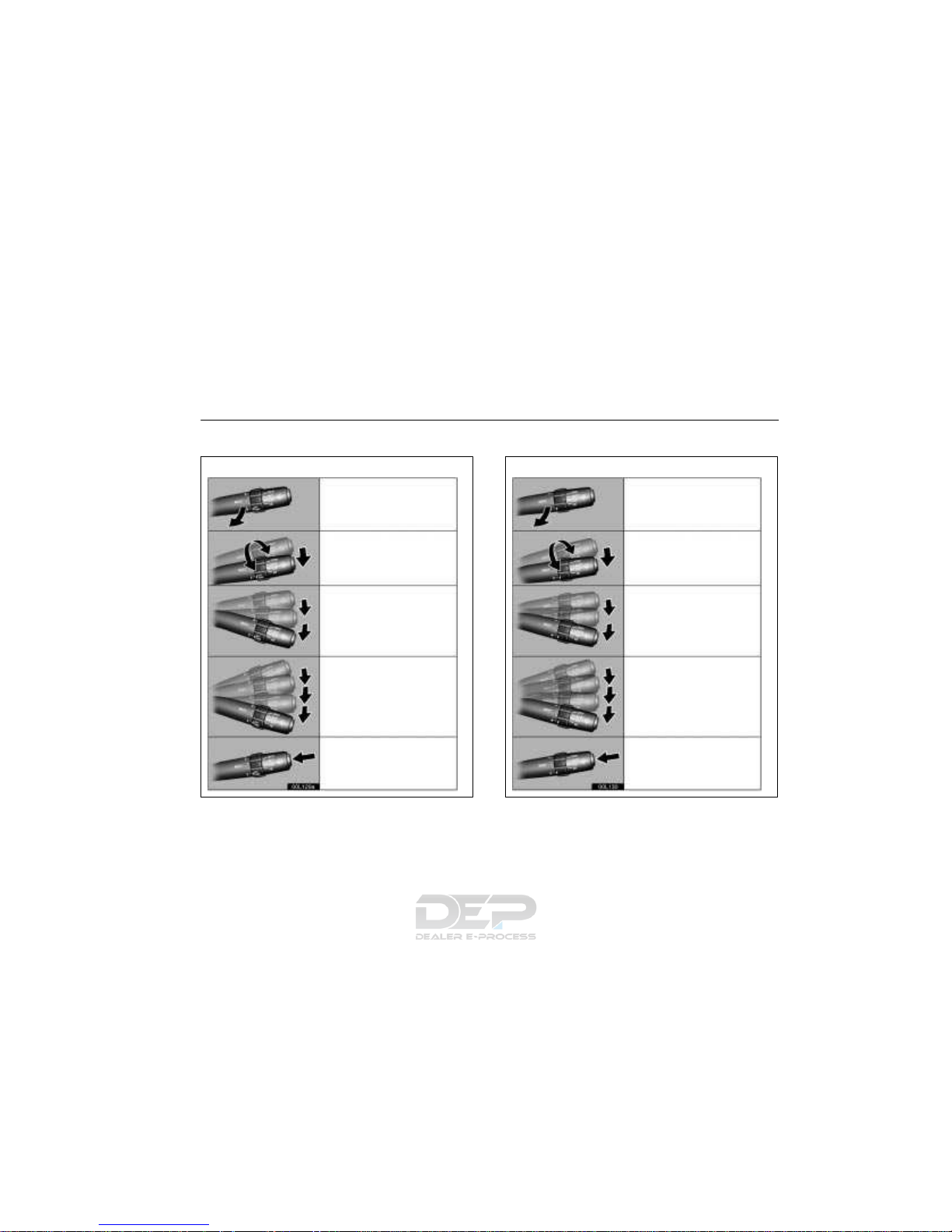

Intermittent operation type
Mist wiper operation
Intermittent operation
Low speed operation
High speed operation
Washer on
Mist wiper operation
Automatic operation
Low speed operation
High speed operation
Washer on
Raindrop detection type
QUICK REFERENCE
7

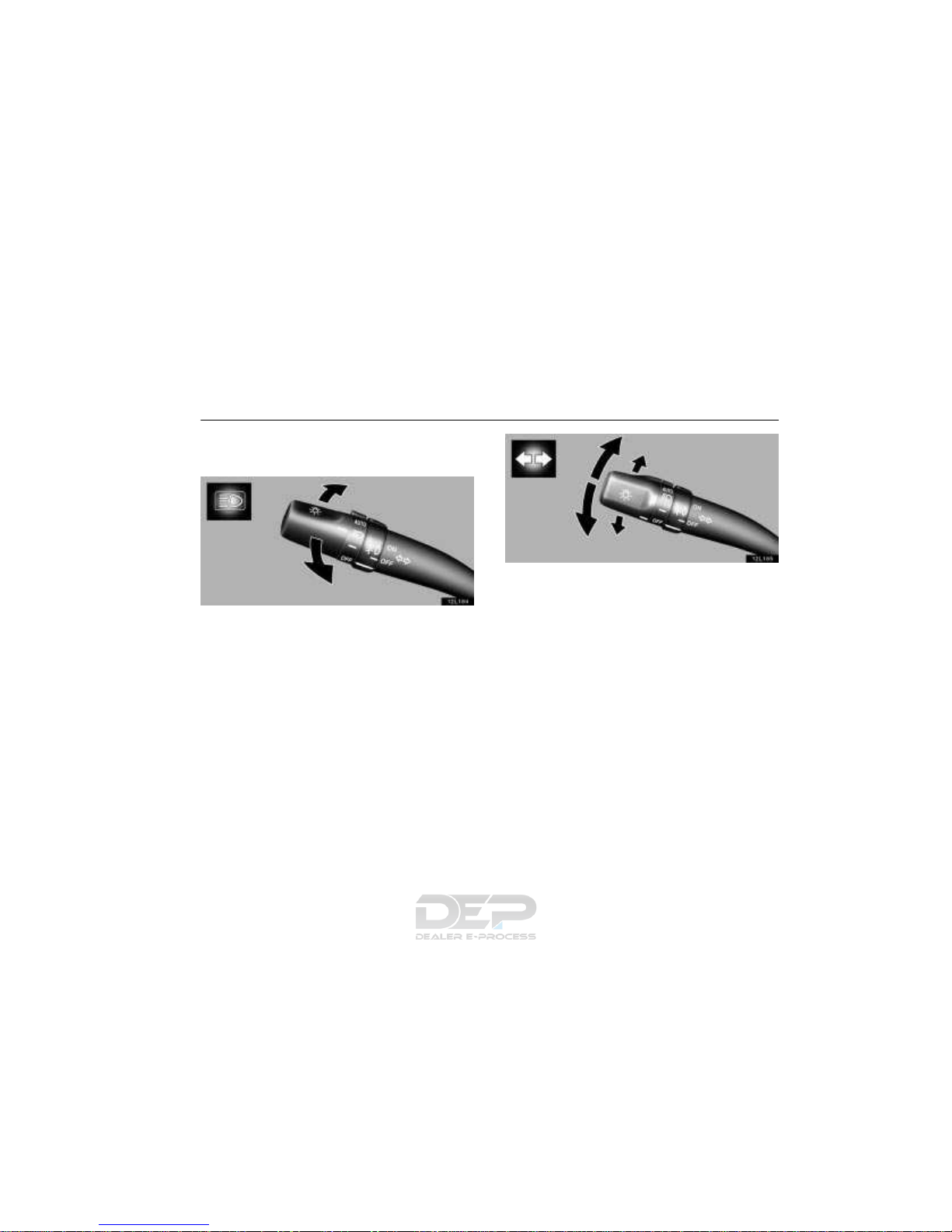

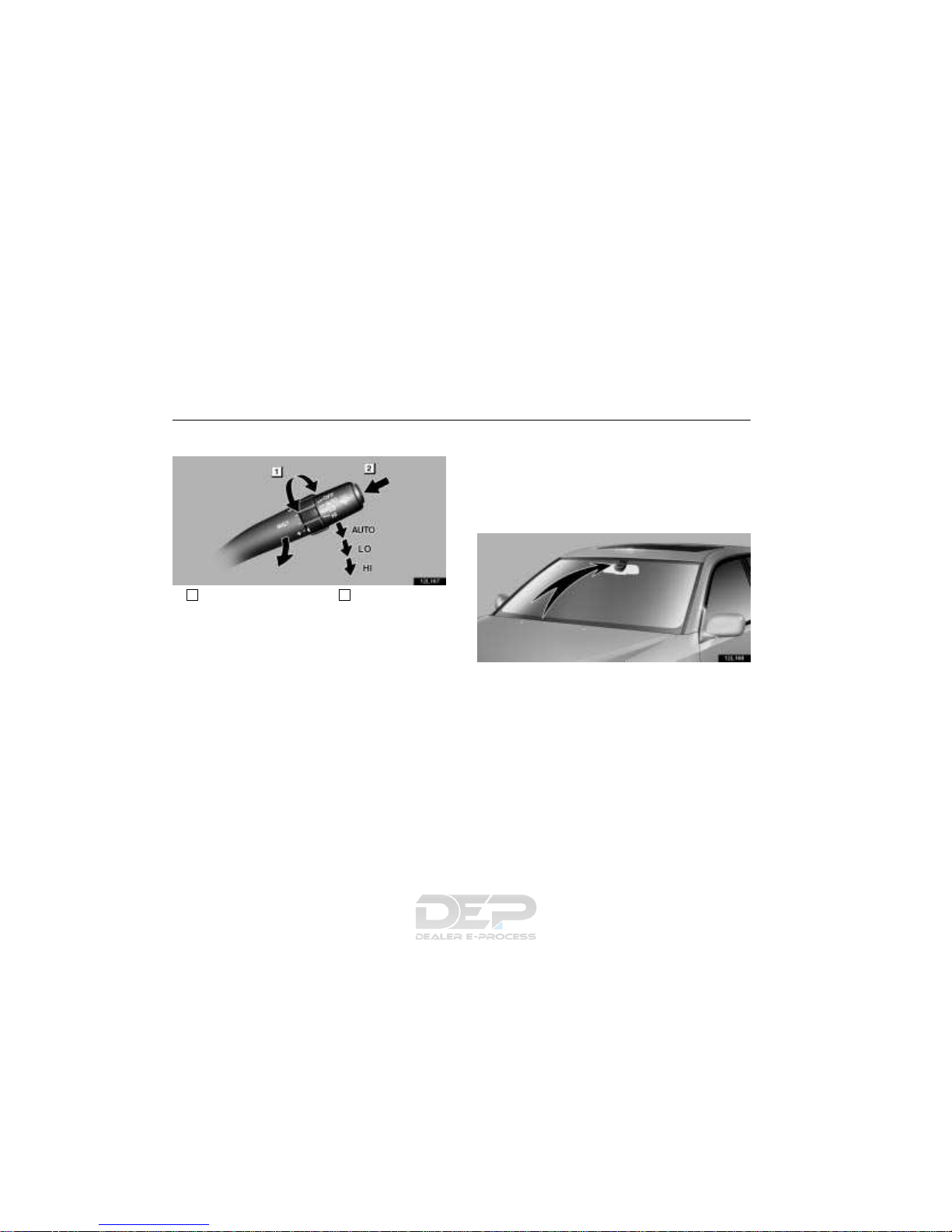

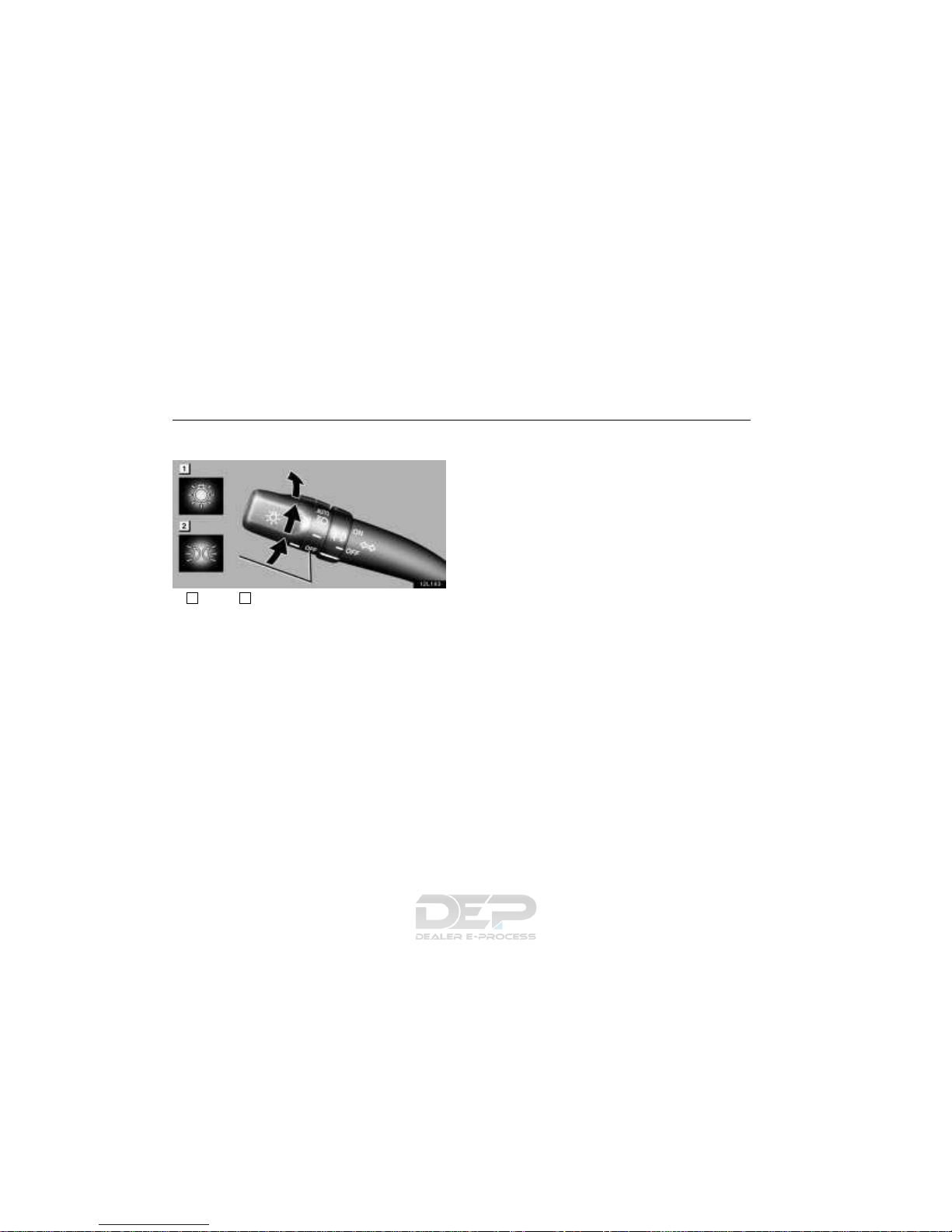

5. WIPER SWITCH
Page 28
QUICK REFERENCE
8
Page 29
SECTION 1 –
1
9
INSTRUMENTS AND CONTROLS
Keys and doors
Keys 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine immobilizer system 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Smart key system 20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wireless remote control 36. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Doors 46. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Theft deterrent system 50. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Page 30

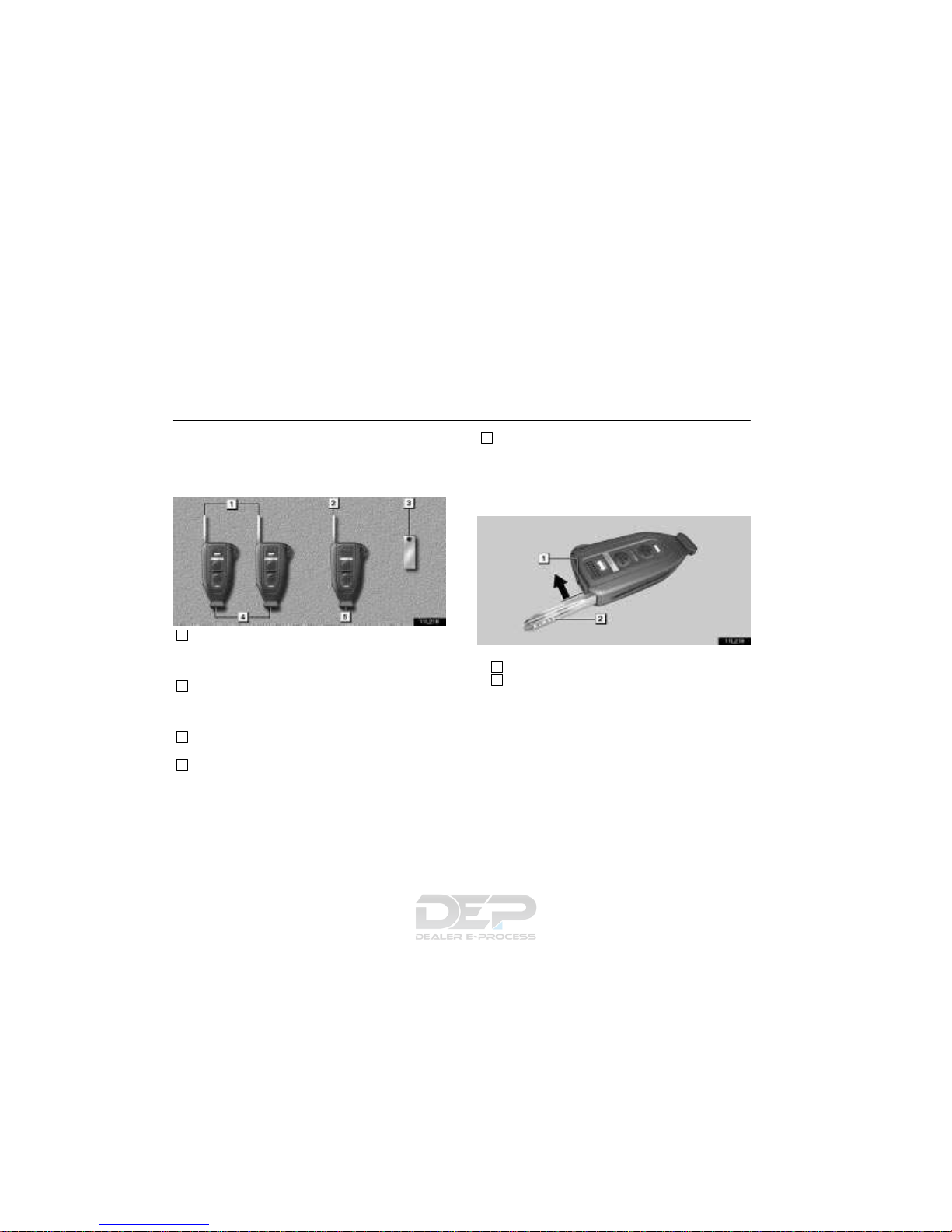

KEYS AND DOORS
10
KEYS
Vehicles equipped with smart key system
(Type A)
11L218
1
Mechanical keys (attached to the master keys) These keys work for the doors, trunk, trunk main
switch, glove box and trunk storage extension door,
but cannot start the engine.
2
Mechanical key (attached to the sub key) - This key
works for the doors, but cannot start the engine and
does not work for the trunk, trunk main switch, glove
box and trunk storage extension door.
3
Key number plate - Keep the plate in a safe place
such as your wallet, not in the vehicle.
4
Smart keys (master keys) - These keys will activate
the smart key system. They will not work for the trunk
main switch, glove box and trunk storage extension
door.
5
Smart key (sub key) - This key does not work for the
trunk, trunk main switch, glove box and trunk storage
extension
door. This key cannot activate the smart
key system.
Before you use these keys, be sure to read “Smart key system”
on page 20.
11L219
"
Using a mechanical key
1
Lock switch
2
Mechanical key
When you use the mechanical key included on the side of the
smart key, slide the lock switch in the arrow direction and pull
the key as shown. To put the key back, slide the lock switch
in the arrow direction and slide the key back. Be sure to put the
key back when not in use.
Page 31
KEYS AND DOORS
11
A transponder chip for the engine immobilizer system has
been placed in the master and sub keys. These chips are
required for the system to function correctly, so be careful not
to lose these keys. If you make your own duplicate key, you
will not be able to cancel the system or start the engine.
To protect items locked in the trunk or glove box when using
valet parking, leave the sub key with the attendant.
Since the doors and the trunk lid can be locked without a key,
you should always carry a spare master key in case you
accidentally lock your keys inside the vehicle.
If you should lose your keys or if you need additional keys,
duplicates can be made by a Lexus dealer using the key
number.
We recommend writing down the key number and storing it in
a safe place.

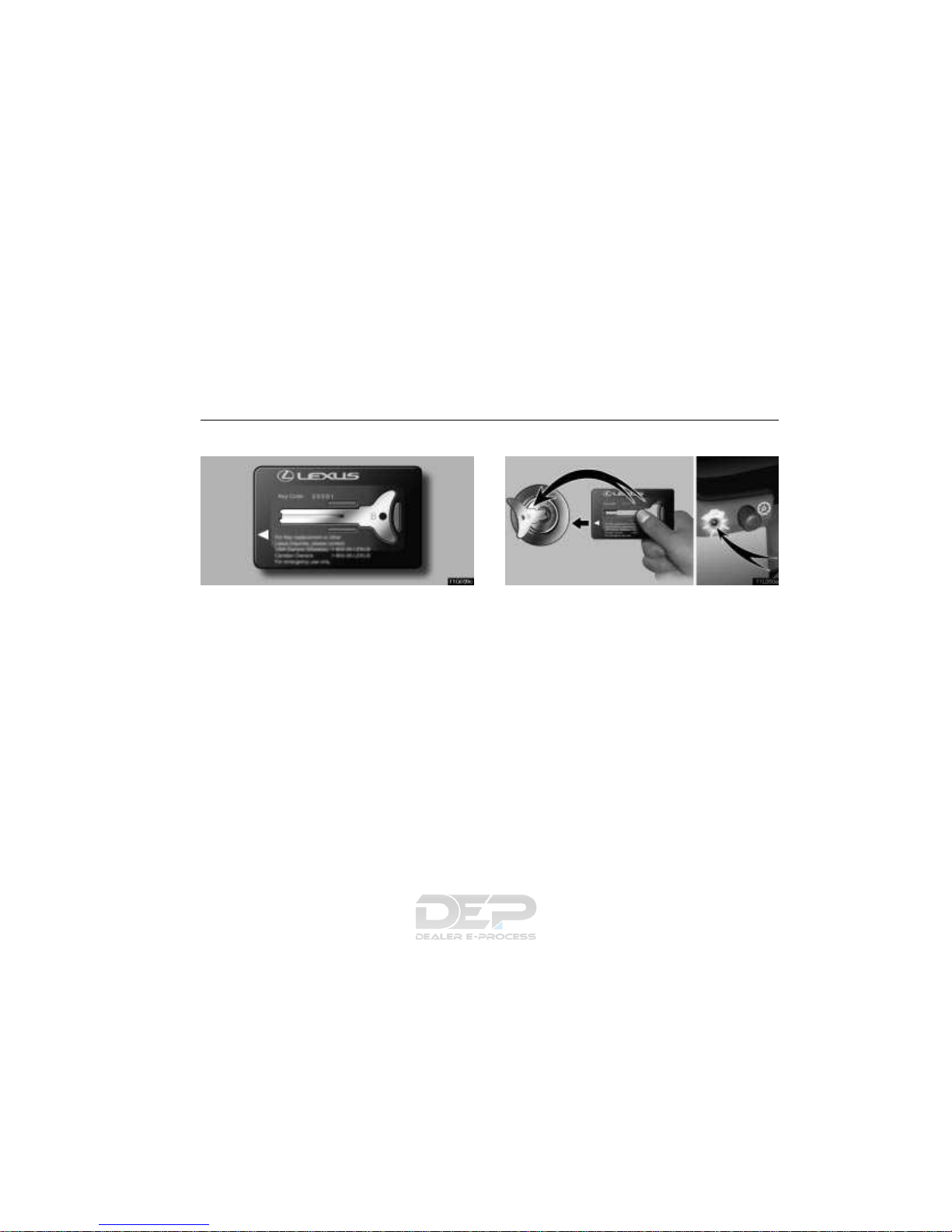

Flat keys
11L250
"
1
Mechanical flat key 2Engine start flat key
A mechanical flat key and an engine start flat key are
included in the key case. Both flat keys are not equipped
with smart key system.
The mechanical flat key works in every lock, but cannot
be used to start the engine.
As a transponder chip is built in the engine start flat key,
you can start the engine only with this key.
A transponder chip for the engine immobilizer system has
been placed in the engine start flat key. This chip is required
for the system to function correctly, so be careful not to lose this
key. If you make your own duplicate key, you will not be able
to cancel the system or start the engine.
Insert your flat key plates in its key case as shown. We
recommend that you always carry this with you for emergency
use. Do not leave it in your vehicle.
Page 32
KEYS AND DOORS
12

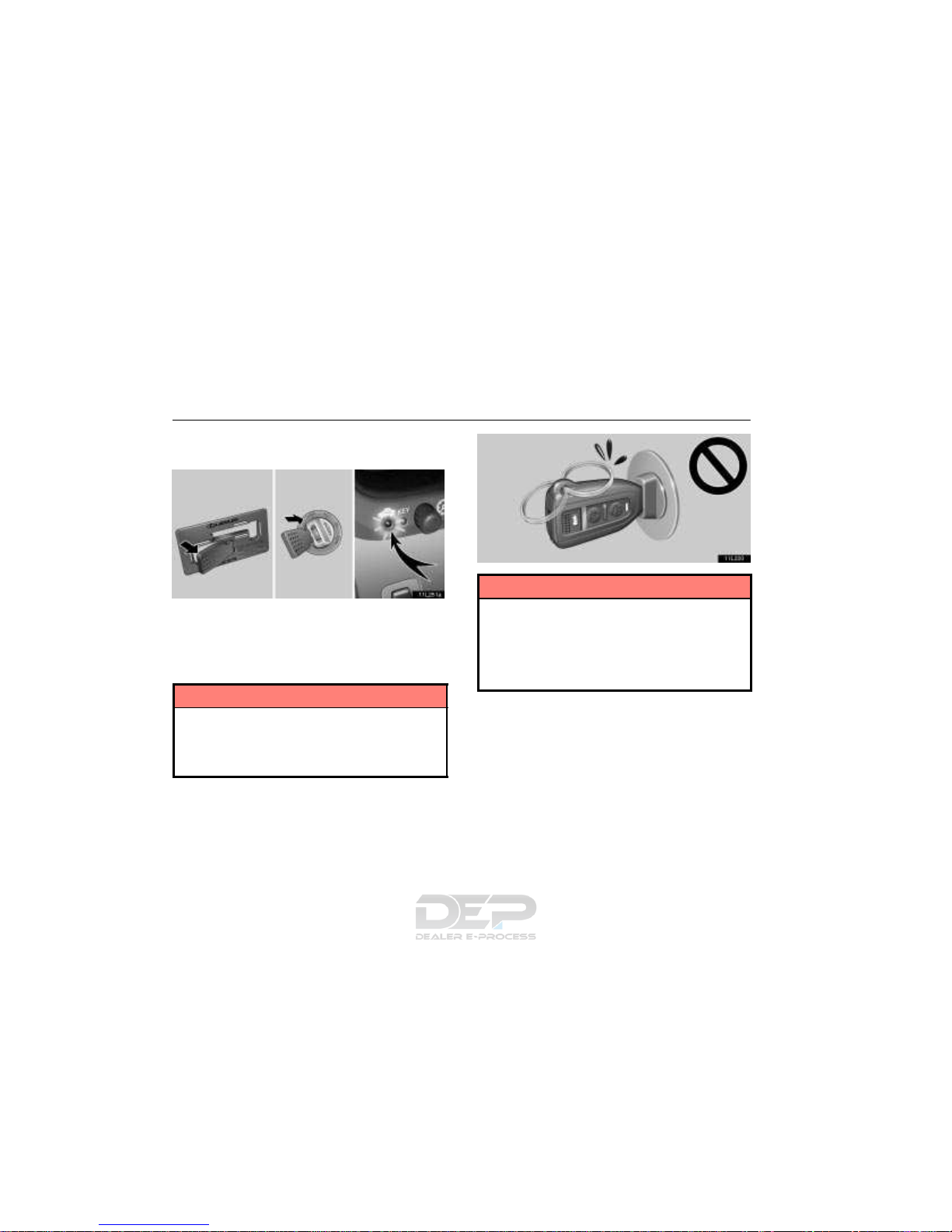

Starting the engine using an engine start flat
key
11L251a
1. Remove the engine start flat key from the key case.
2. Insert it into the ignition switch.
The flashing security indicator light goes out. This means the
engine immobilizer system is automatically canceled. (For
details, see “Engine immobilizer system” on page 17.)
NOTICE
D
Do not let the key case become bent as the flat keys
may fall out or become bent also.
D
The flat keys are designed for emergency use only, so
do not use them regularly instead of the other master
keys.
11L220

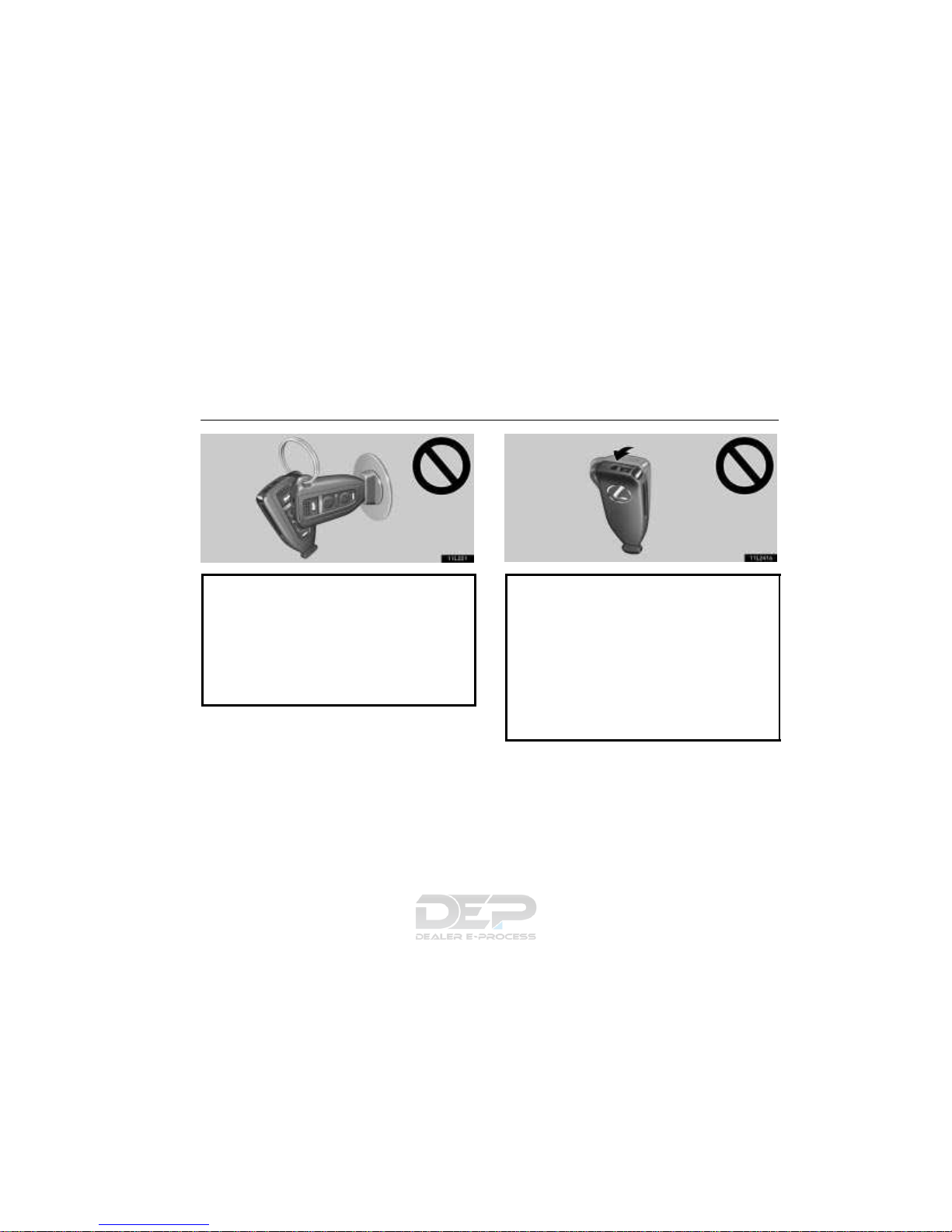

NOTICE

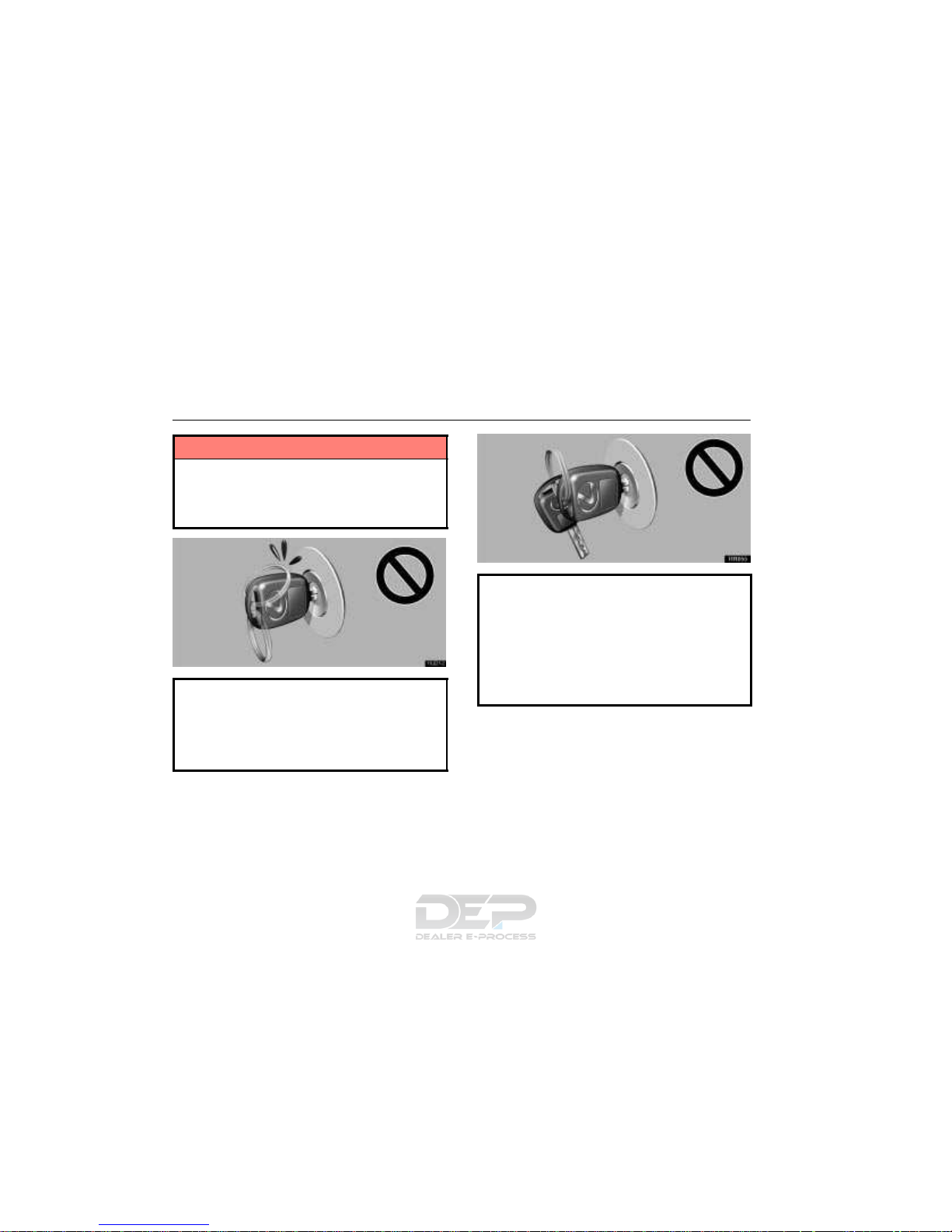

When using a key containing a transponder chip,
observe the following precautions:
D
When starting the engine, do not use the key with a
key ring resting on the key grip and do not press the
key ring against the key grip. Doing so may prevent
the engine from starting, or may cause the engine to
stop soon after it starts.
Page 33
KEYS AND DOORS
13
11L221
D
When starting the engine, do not use the key in
proximity with other transponder keys (including the
flat key and keys of other vehicles), and do not press
other key plates against the key grip. Doing so may
prevent the engine from starting, or may cause the
engine to stop soon after it starts. If this happens,
remove the key once and then insert it again after
removing other transponder keys (including the flat
key and keys of other vehicles) from the ring or while
gripping or covering them with your hand to start the
engine.
11L241a
D
Do not bend the key grip or flat keys.
D
Do not cover the key grip or engine start flat key with
any material that cuts off electromagnetic waves.
D
Do not knock the key or flat keys hard against other
objects.
D
Do not leave the key or flat keys exposed to high
temperatures for a long period, such as on the
dashboard or hood under direct sunlight.
D
Do not put the key or flat keys in water or wash it in
an ultrasonic washer.
D
Do not use the key or engine start flat key with
electromagnetic materials.
Page 34
KEYS AND DOORS
14
Vehicles not equipped with smart key system
(Type B)
11L025c
1
Master keys (black) - These keys work for every lock.
For your Lexus dealer to make a new key with a
built-in transponder chip, your dealer will need one
of them.
2
Sub key (gray) - This key will not open the trunk,
trunk main switch, the glove box and trunk storage
extension door.
3
Key number plate - Keep the plate in a safe place
such as your wallet, not in the vehicle.
A transponder chip for the engine immobilizer system has
been placed in the head of the master and sub keys. These
chips are required for the system to function correctly, so be
careful not to lose these keys. If you make your own duplicate
key, you will not be able to cancel the system or start the
engine.
To protect items locked in the trunk or glove box when using
valet parking, leave the sub key with the attendant.
Since the doors and trunk lid can be locked without a key, you
should always carry a spare master key in case you
accidentally lock your keys inside the vehicle.
If you should lose your keys or if you need additional keys,
duplicates can be made by a Lexus dealer using the key
number.
We recommend writing down the key number and storing it in
a safe place.
Page 35
KEYS AND DOORS
15

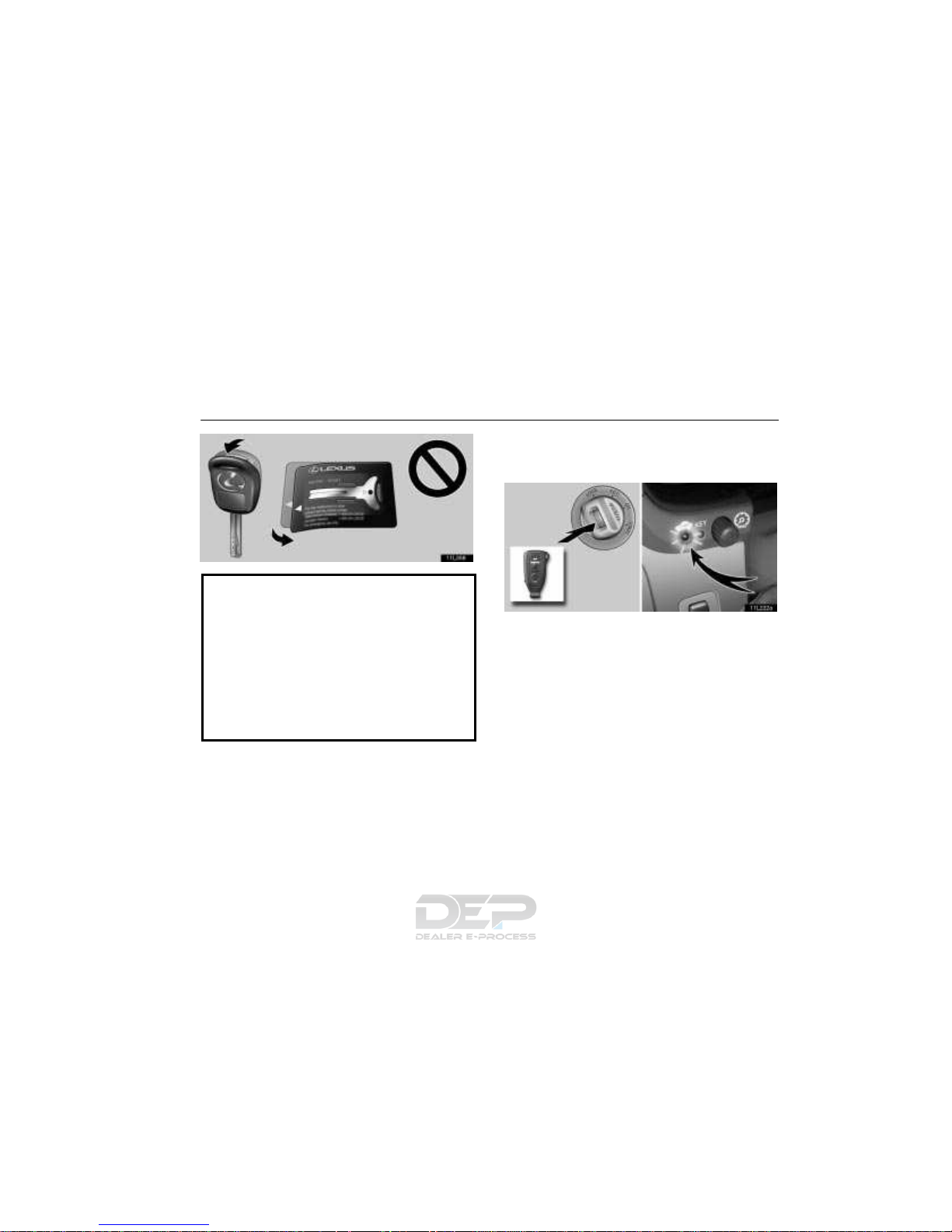

Flat key
11g039c
As a transponder chip is built in its key case, you can start
the engine with this key.
The flat key works in every lock.
A transponder chip for the engine immobilizer system has
been placed in the key case of the flat key. This chip is required
for the system to function correctly, so be careful not to lose this
key. If you make your own duplicate key, you will not be able
to cancel the system or start the engine.
Insert your flat key plate in its key case as shown. We
recommend that you always carry this with you for emergency
use. Do not leave it in your vehicle.
Starting the engine using a flat key
11L050a
1. Remove the key plate from the key case.
2. Insert the key plate into the ignition switch. The security
indicator light keeps flashing.
3. Bring the key case closer to the ignition switch within 10
seconds as indicated by the arrow head. The indicator light
goes out. This means the engine immobilizer system is
automatically canceled. (For details, see “Engine immobilizer
system” on page 17.) You can put the key case away then. You
cannot cancel the engine immobilizer system if 10 seconds
have passed after you inserted the key plate. You need to
remove the key plate from the ignition switch and try it again
from the step 2.
4. Start the engine within 20 seconds after the security
indicator light goes out. You cannot start the engine if 20
seconds have passed after the security indicator went off. You
need to remove the key plate from the ignition switch and try
it again from the step 2.
Page 36
KEYS AND DOORS
16
NOTICE
D
Do not let the key case become bent as the key plate
may fall out or become bent also.
D
The flat key is designed for emergency use only, so
do not use it regularly instead of the other master
keys.
11L021-2
When using a key containing a transponder chip,
observe the following precautions:
D
When starting the engine, do not use the key with a
key ring resting on the key grip and do not press the
key ring against the key grip. Doing so may prevent
the engine from starting, or may cause the engine to
stop soon after it starts.
11R055
D
When starting the engine, do not use the key in
proximity with other transponder keys (including the
flat key and keys of other vehicles), and do not press
other key plates against the key grip. Doing so may
prevent the engine from starting, or may cause the
engine to stop soon after it starts. If this happens,
remove the key once and then insert it again after
removing other transponder keys (including the flat
key and keys of other vehicles) from the ring or while
gripping or covering them with your hand to start the
engine.
Page 37
KEYS AND DOORS
17
11L358
D
Do not bend the key grip or flat key.
D
Do not cover the key grip or flat key with any material
that cuts off electromagnetic waves.
D
Do not knock the key or flat key hard against other
objects.
D
Do not leave the key or flat key exposed to high
temperatures for a long period, such as on the
dashboard or hood under direct sunlight.
D
Do not put the key or flat key in water or wash it in an
ultrasonic washer.
D
Do not use the key or flat key with electromagnetic
materials.
ENGINE IMMOBILIZER SYSTEM
Deactivation using the smart key system
11L222a
The engine immobilizer system is a theft prevention
system. When you enter the vehicle carrying a smart key
and push the ignition switch, the electronic code in the
key is automatically checked to determine whether it
corresponds to the registered ID code for the vehicle. If
the key indicator light comes on after the ID code
verification, you can start the engine.
This system is automatically set when the ignition switch is
turned to the “LOCK” position. At this time, the security
indicator light flashes. When you push the ignition switch, the
security indicator light goes out and the system is cancelled
automatically, which enables the engine to start.
The engine immobilizer system cannot be cancelled if the
cancel switch of the smart key system is turned on. For details,
see “Deactivating the smart key system” on page 34.
Page 38
KEYS AND DOORS
18
For your Lexus dealer to make you a new key with built-in
transponder chip, your dealer will need your key number and
master key. However, there is a limit to the number of
additional keys your Lexus dealer can make for you.
If you make your own duplicate key, you will not be able
to cancel the system or start the engine.
NOTICE
Do not modify, remove or disassemble the engine
immobilizer system. If any unauthorized changes or
modifications are made, proper operation of the system
cannot be guaranteed.

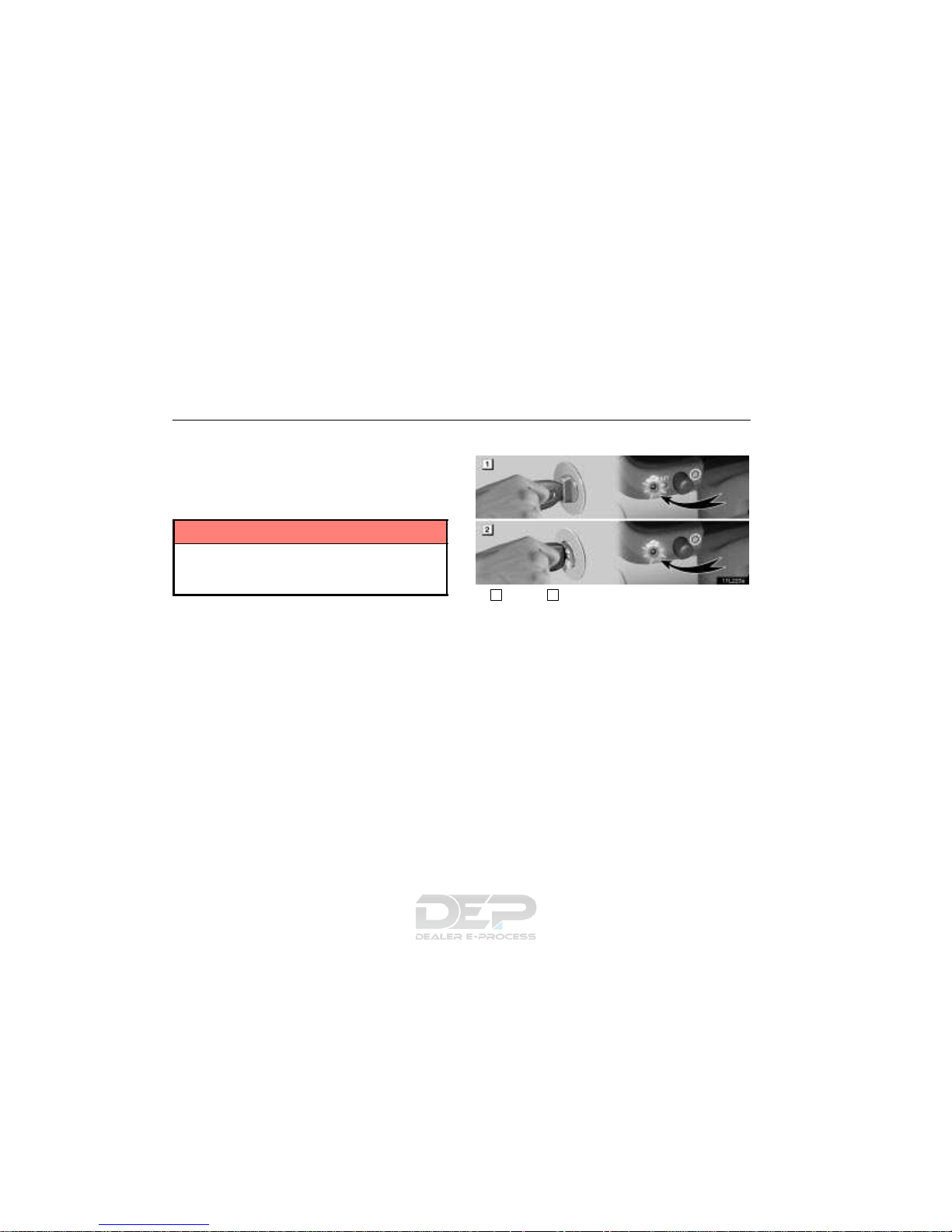

Deactivation using the key
11L223a
"
1
Type A 2Type B
The engine immobilizer system is a theft prevention
system. When you insert the key in the ignition switch, the
transponder chip in the key’s head transmits an electronic
code to the vehicle. The engine will start only when the
electronic code in the chip corresponds to the registered
ID code for the vehicle.
The system is automatically set when the key is removed from
the ignition switch. At this time, the security indicator light
flashes. When you insert the key in the ignition switch, the
security indicator light goes out and the system is canceled
automatically, which enables the engine to start.
The transponder chip of the flat key is in its key case. You can
cancel the engine immobilizer system using the flat key. (For
details, see pages 12 and 15.)
Page 39
KEYS AND DOORS
19
For your Lexus dealer to make you a new key with built-in
transponder chip, your dealer will need your key number and
master key or the flat key. However, there is a limit to the
number of additional keys your Lexus dealer can make for you.
If you make your own duplicate key, you will not be able
to cancel the system or start the engine.
For vehicles sold in U.S.A.
FCC ID: MOZRI-20BTY
MADE IN JAPAN
FCC ID: MOZRI-15HTY
MADE IN JAPAN
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference that may cause undesired operation.
CAUTION
Changes or modifications not expressly approved by
the party responsible for compliance could void the
user’s authority to operate the equipment.
For vehicles sold in Canada
This device complies with RSS- 210 of Industry
Canada.
Operation is subject to the following two conditions:
(1) This device may not cause interference, and (2)
this device must accept any interference, including
interference that may cause undesired operation of the
device.
Page 40
11L229b
KEYS AND DOORS
20
SMART KEY SYSTEM (Master keys only)
"
1
Locking and unlocking 2Unlocking the trunk lid 3Key indicator 4Starting the engine
By carrying a smart key, which is different from a conventional key that is inserted in the keyholes or ignition switch, you
can lock and unlock the doors, unlock the trunk and start the engine.
For locking the doors, see “Locking the doors with the smart key system” on page 25. For unlocking the doors, see “Unlocking the
door(s) with smart key system” on page 28. For unlocking the trunk lid, see “Unlocking the trunk lid with smart key system” on page
31. For starting the engine, see “Smart ignition system with steering lock” on page 297.
If the smart key battery is discharged, the smart key system
cannot be used. Use the mechanical key integrated into the
smart key by inserting it in the door keyhole to lock or unlock
doors and into the trunk lid keyhole to unlock the trunk lid. To
start the engine, insert the smart key. In order to activate the
smart key system, the battery should be replaced. For details,
see “Replacing the battery (Type A)” on page 42.
You can deactivate the smart key system by using the cancel
switch. In this case, all the functions in the smart key system
will be deactivated. For details, see “Deactivating the smart
key system” on page 34.
Page 41
KEYS AND DOORS
21
INFORMATION
D
Be sure to take the smart key with you.
D
In the following cases, the smart key system or
wireless remote control feature may not operate
properly. (If this happens, use a mechanical key to
lock or unlock the doors and trunk lid and a smart key
to start the engine.)
z
When facilities issuing strong electromagnetic
waves such as TV towers, electric power stations,
broadcasting stations are nearby.
z
When you are carrying a smart key together with a
mobile communications system such as a
two-way radio or cellular phone.
z
When the smart key is in contact with or covered
by a metallic object.
z
When another person is operating a wireless
remote control function on another vehicle near
your vehicle.
D
If you do not drive your vehicle, store the smart key,
keeping it at least 5 m (15 ft.) away from the vehicle.
Alarms and warning messages
Your Lexus is equipped with alarms inside and outside, as
well as warning messages in the multi- information
display, that remind you if there is a problem involving the
smart key system.
Cases which are expected to happen frequently are
shown in the illustrations and the other cases are
described in the table. If an alarm or warning message
comes on, check to see what the problem is referring to
the illustrations and table, and take the appropriate
measure.
Page 42
KEYS AND DOORS
22

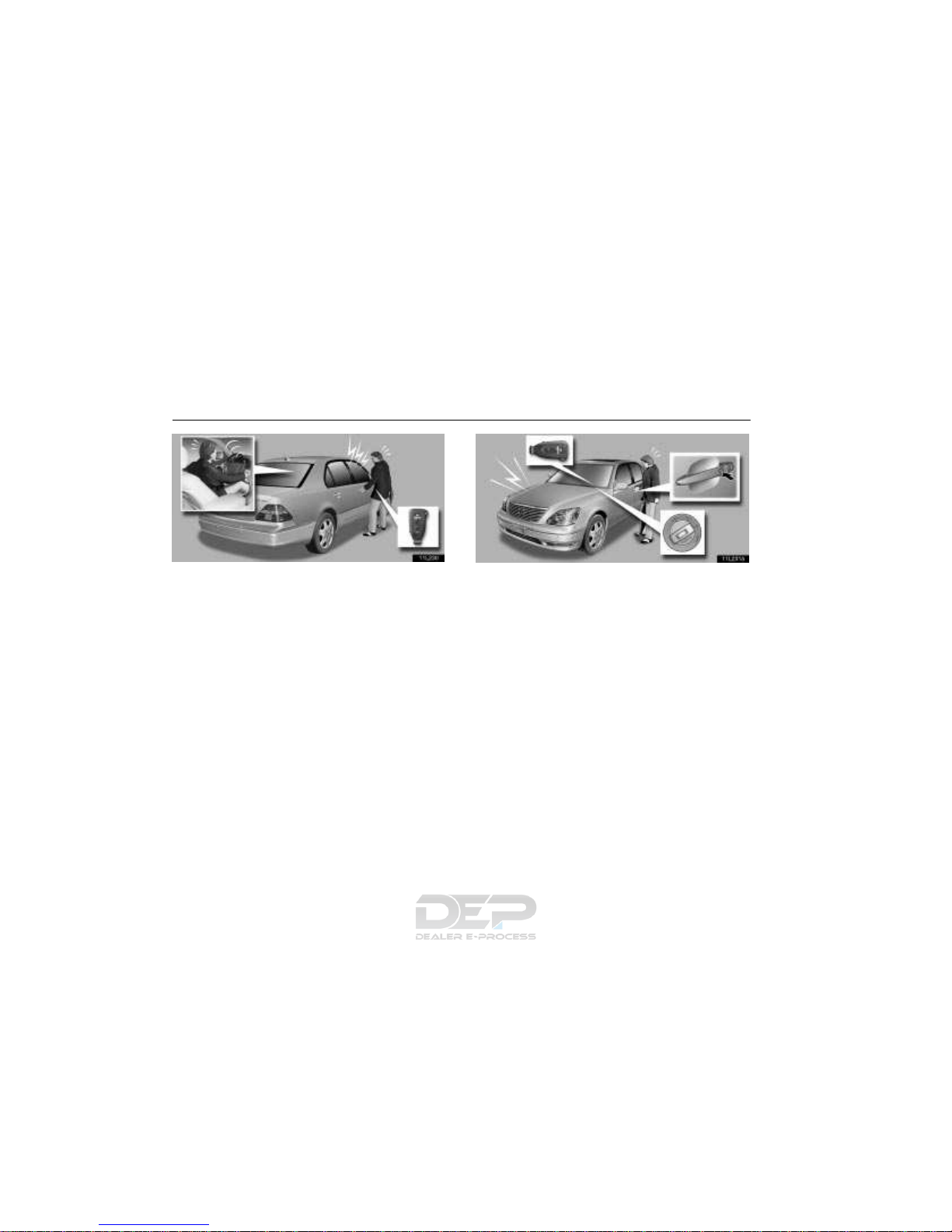

11L230
"
When a door is opened and closed with the ignition
switch in the “ACC” or “ON” position and with the
selector lever in the “P” position, and then the smart key
is carried outside of the vehicle.
Inside alarm: One chime
Outside alarm: 3 beeps
Multi-information display: “Key is not Detected”
See page 98 for details.
11L231a
"
When you attempted to lock the door(s) with the smart
key still in the vehicle or without turning off the ignition
switch.
Outside alarm: One beep (sounds for 2 seconds)
See page 26 and 27 for details.
Page 43
KEYS AND DOORS
23

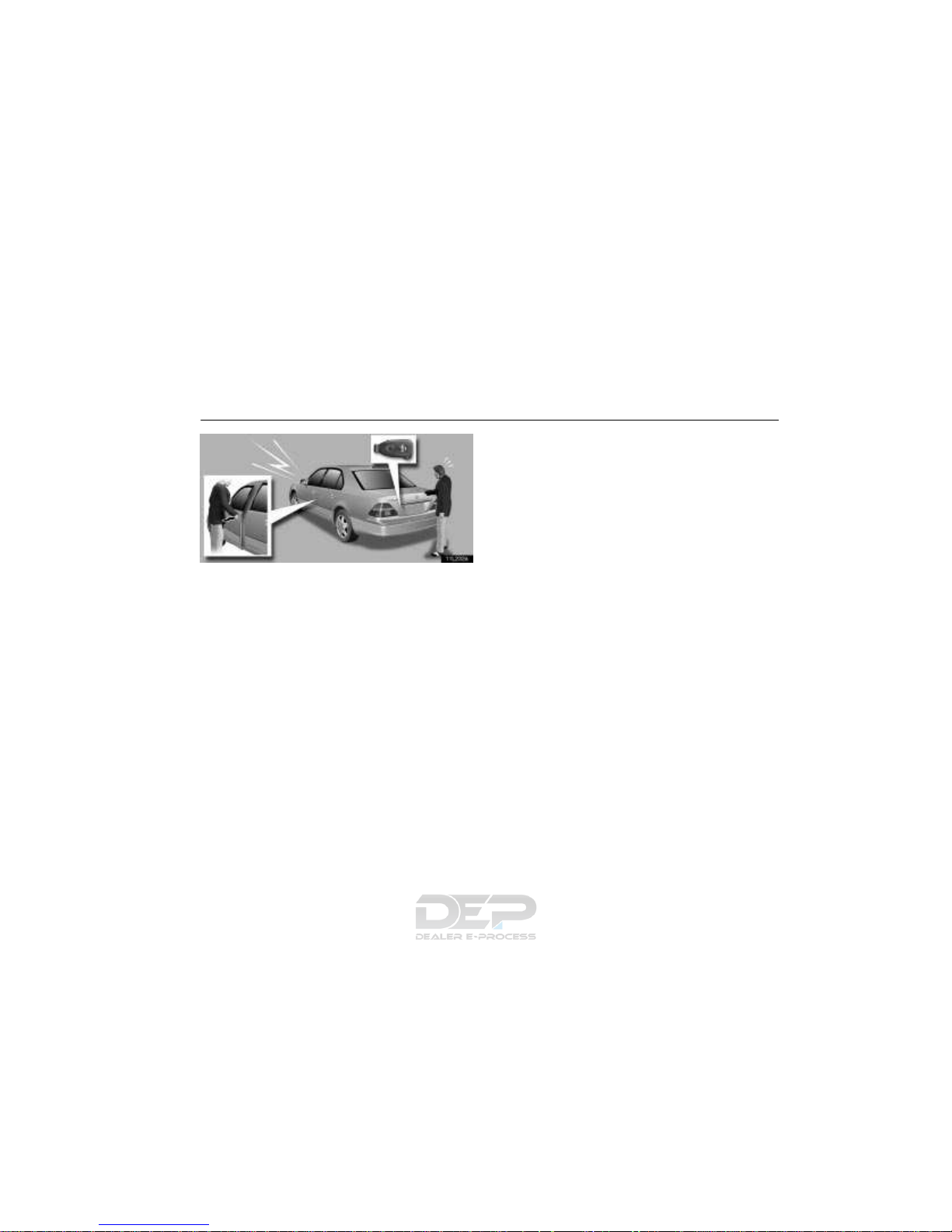

11L232a
"
When you lock the smart key in the trunk or attempt to
lock a door which is not completely closed.
Outside alarm: One beep (sounds for 10 seconds)
See page 27 and 32 for details.
Page 44
KEYS AND DOORS
24
Inside warning alarm
Outside warning
alarm
Multi-information
warning message display
Causes
Reference
page
Chimes None None You opened a door without
turning off the ignition
switch.
47
Beep None “Shift to P Range” You opened a door without
turning off the ignition switch
when the selector lever is in
a position other than “P”.
99
Beep Beep “Shift to P Range” and “Key
is not Detected” appear
alternately.
You exited and closed a
door without turning off the
ignition switch when the
selector lever is in a position
other than “P”.
98, 99
One chime None “Low Key Battery”
(shown for about 5 seconds)
Smart key battery power is
insufficient.
99
One chime None “Key is not Detected”
(shown for about 5 seconds)
The smart key was not in the
vehicle when you pushed
the ignition switch in the
“LOCK” position.
98
Page 45
KEYS AND DOORS
25

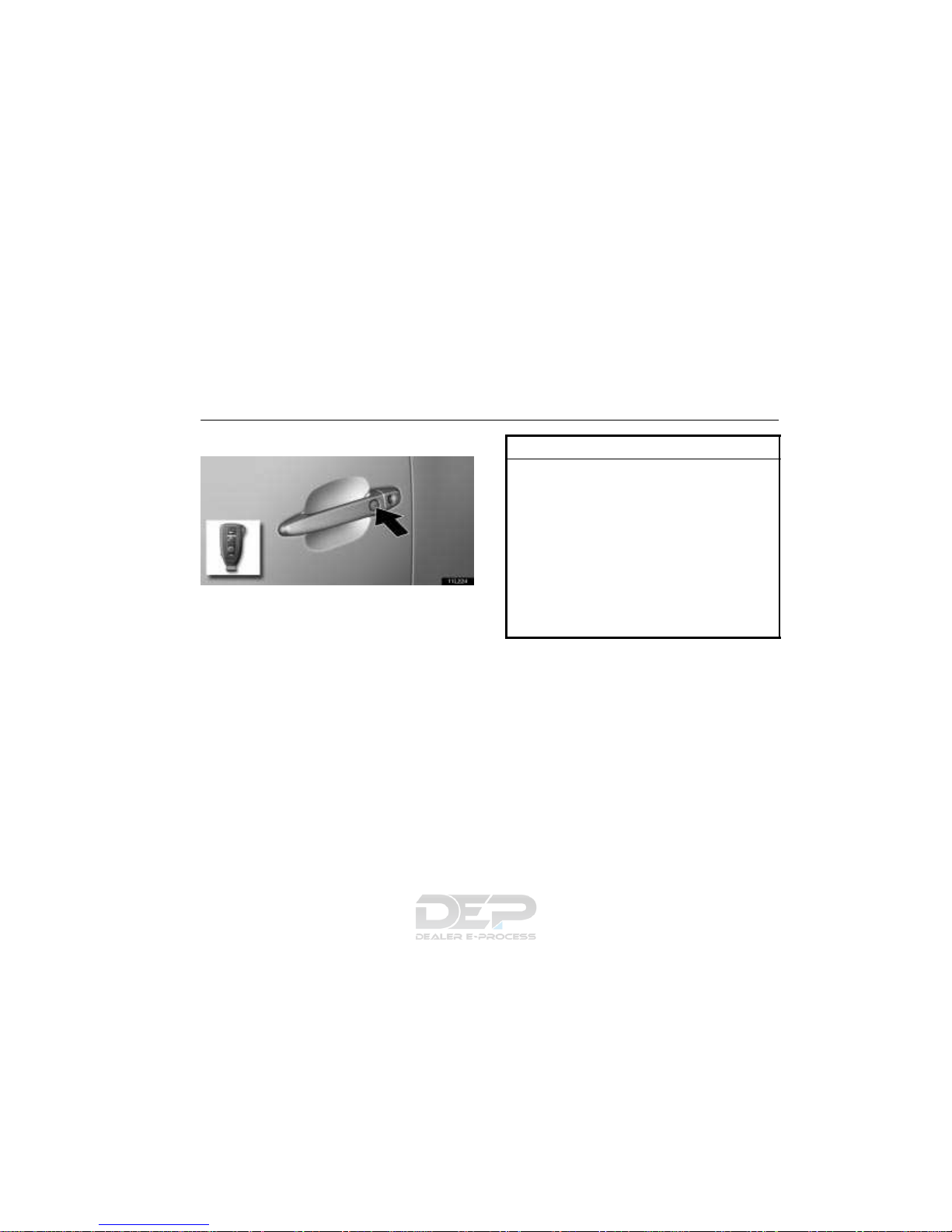

Locking the doors with smart key system
11L224
The smart key system will lock the doors without being
inserted into the door keyhole.
When you exit the vehicle carrying the smart key and push the
lock button on the outside door handle with all the doors
closed, all the doors will be locked provided that the electronic
code in the key corresponds to the registered ID code for the
vehicle.
At this time, you will hear one beep and the turn signal lights
flash once. However, when you push the lock button on the
outside door handle with any door not closed securely, a beep
sounds for 10 seconds. (For details, see page 27.)
If outer foot lights are illuminated, you can turn off the lights by
pushing the “LOCK” button on the smart key. (For details, see
“Outer foot lights” on page 232.)
INFORMATION
D
When locking the doors, be sure to push the lock
button on the outside door handle slowly and surely.
If you push the button quickly, the doors may not
lock.
D
When opening or closing a door, do not touch the
lock button on the outside door handle.
D
When a wireless key is used to lock the doors and a
smart key is left in the effective range of the smart key
system in the vehicle, the doors cannot be unlocked
using the smart key system. In this case, use the
wireless remote function to unlock the doors.
D
You cannot activate smart unlocking functions
within 3 seconds after the smart locking function is
activated.
Page 46
KEYS AND DOORS
26
The doors cannot be locked using the smart key system
in the following conditions:
11L233a
"
Key reminder alarm
If you push the lock button on the outside door handle
with a smart key left in the vehicle, an alarm sounds for 2
seconds and the doors will not lock.
Before you push the lock button, make sure you are carrying
the smart key.
INFORMATION
D
Do not put a smart key on the instrument panel, rear
package tray or floor, or in the glove box or auxiliary
box near the selector lever, which falls outside of the
effective range of the smart key system. As the alarm
does not sound when a key is left in such a place, you
might accidentally lock the doors by pushing the lock
button on the outside door handle and be locked out
of the vehicle. Be sure to take the smart key with you.
D
If you have the smart key but bring it very close to the
window or outside door handle, the alarm might
activate. In this case, keep the smart key a certain
distance away from the window or outside door
handle and then push the lock button again.
D
If the smart key is left in the vehicle, attempting to
lock the door by pushing in the button located in the
inside door handle and holding up the outside door
handle will unlock all the doors and activate the alarm
for 2 seconds.
Page 47
KEYS AND DOORS
27

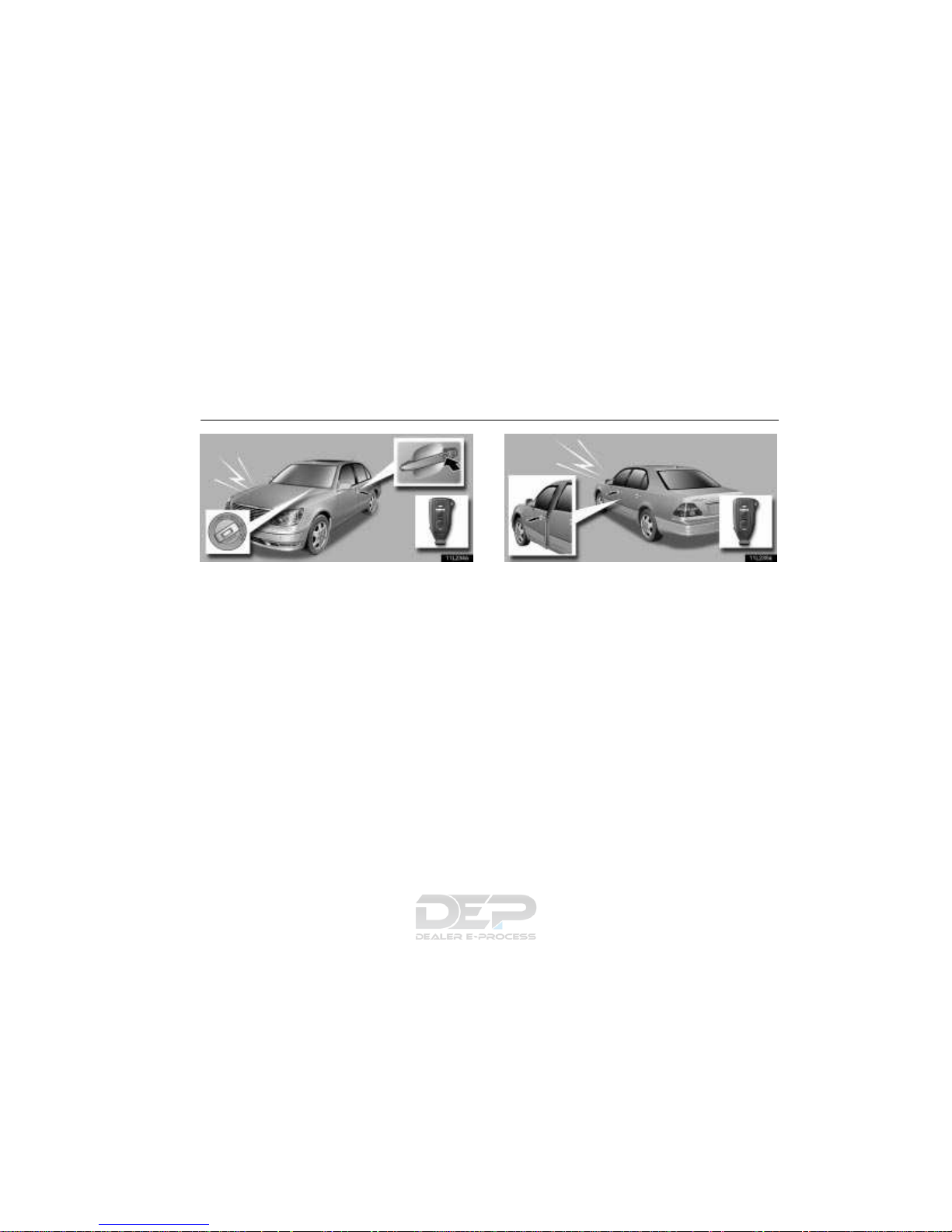

11L234a
"
Ignition on/off reminder alarm
If you push the lock button on the outside door handle
without turning off the ignition switch, an alarm sounds
for 2 seconds and the doors will not lock.
Before you push the lock button, make sure the ignition switch
is in the “LOCK” position.
11L235a
"
Open door warning
If you push the lock button on the outside door handle
while any door is not completely closed, an alarm sounds
for 10 seconds and the doors will not lock.
To stop the alarm, close all the doors securely or push the
“UNLOCK” button on the smart key.
Before you push the lock button, make sure all the doors are
securely closed.
Page 48
KEYS AND DOORS
28
Unlocking the door(s) with smart key system
11L225
The smart key system can be used to unlock the door(s)
without being inserted into the door keyhole.
When you get close to your vehicle (about 1 m (3 ft.) from each
outside door handle), and are carrying the smart key, the
electronic code emitted from the key is automatically checked
to determine if it corresponds to the registered ID code for the
vehicle. After this, the outer foot lights come on. (For outer foot
lights, see “Outer foot lights” on page 232.) When you take
hold of the back side of the outside door handle on the door
firmly, it will unlock and the key indicator light blinks. (You can
select the doors to be unlocked. For details, see “Changing the
doors to be unlocked” on page 30.)
At this time, two beeps sound and the turn signal lights flash
twice. As the door(s) is(are) unlocked, the interior light comes
on for 15 seconds if the interior light switch is in the “DOOR”
position. However, the interior lights go out when you push the
power door lock switch in the lock position or turn the ignition
switch to the “ACC” or “ON” position. For further information,
see “Interior lights” on page 111.
You have 30 seconds to open a door after operating the smart
unlocking function. If a door is not opened by then, all the doors
will be automatically locked again.
Page 49
KEYS AND DOORS
29
INFORMATION
D
When unlocking the door(s), be sure to take hold of
the back side of the outside door handle firmly as
shown in the illustration. Taking hold of the handle
with a gloved hand might cause a delay in unlocking
or may not unlock.
D
When you take hold of the handle to unlock the
door(s), be sure to confirm that the door(s) has(have)
been unlocked. If the emergency flashers flash twice,
two beeps sound outside the vehicle and the key
indicator starts blinking, the doors are unlocked. At
this time, you can pull the outside door handle to
open the door. If you quickly move closer to the
vehicle or pull the outside door handle quickly, the
doors might not unlock. If you cannot open the door
by pulling the outside door handle at this time, push
it back to the original position and then pull it out
again.
D
If you bring the smart key very close to the outside
door handle, the doors might not unlock.
D
If another person who is not carrying a smart key
takes hold of an outside door handle when you are
within the ef fective range of the smart key system, the
door(s) may not unlock.
D
If a large amount of water is applied to the outside
door handle during heavy rain or a car wash, and
someone carryi n g a s m art key is near the vehicle, the
door(s) might be unlocked. However, if the outside
door handle is not pulled out, the doors will lock
automatically after about 30 seconds.
Page 50
KEYS AND DOORS
30

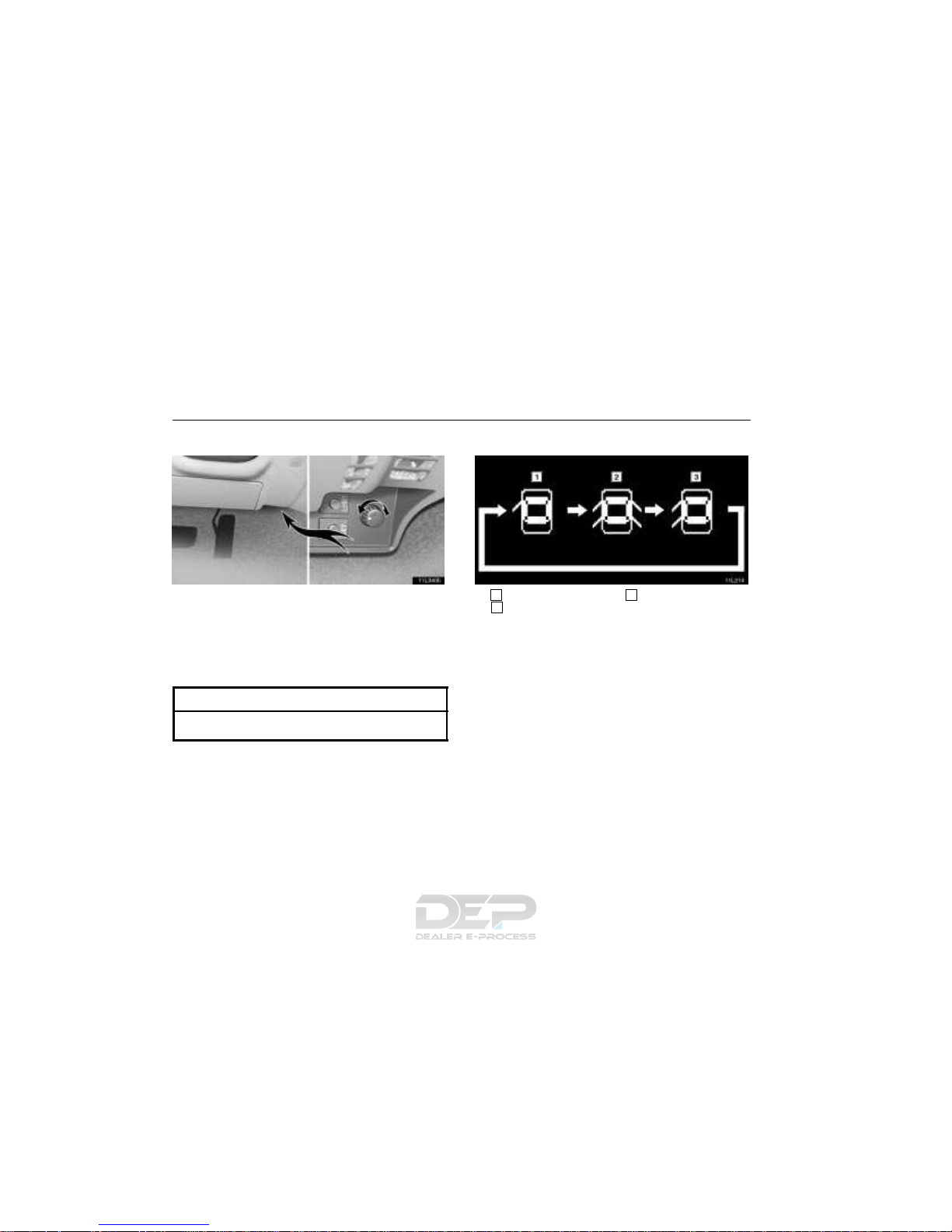

Adjusting the volume of beeps
11L340b
You can adjust the volume of the beeps which confirm the
locking or unlocking the doors or remind you when the
doors are not completely closed.
Turn the volume adjustment knob counterclockwise to
increase the volume or clockwise to decrease it. The beep
sound is completely deactivated when you turn the knob
clockwise until you hear a click.
INFORMATION
The volume of the smart key system alarm is not
adjustable.
Changing the doors to be unlocked
11L214
"
1
Unlocking a single door 2Unlocking all the doors
3
Unlocking side doors
When you push the “LOCK” button together with the
“TRUNK” button on the smart key for about 5 seconds
with the ignition switch off, you can change the settings
for door unlocking.
The settings will change from the door on which you take hold
of the outside door handle, to all the doors, to the doors on the
side closest to the smart key, and then back to the door on
which you take hold of the outside door handle.
After setting, a tone sounds and the multi-information display
shows which setting is selected. Outside the vehicle, one beep
sounds when a door is set to be unlocked, 2 beeps sound when
side doors are set, and 3 beeps sound when all the doors are
set.
Page 51
KEYS AND DOORS
31
INFORMATION
If you get in the vehicle from the driver’s door using a
smart key while the side doors or one door is set to be
unlocked, all the smart unlocking controls activated by
the smart key will be stopped for security. If you get out
of the vehicle from the driver’s door carrying the smart
key and reaches out of the effective range of the smart
key system, unlocking control by the smart key will be
possible. However, unlocking control may not be
carried out for 5 seconds after you get out from the
vehicle. In this case, perform unlocking operation again
after 5 seconds.

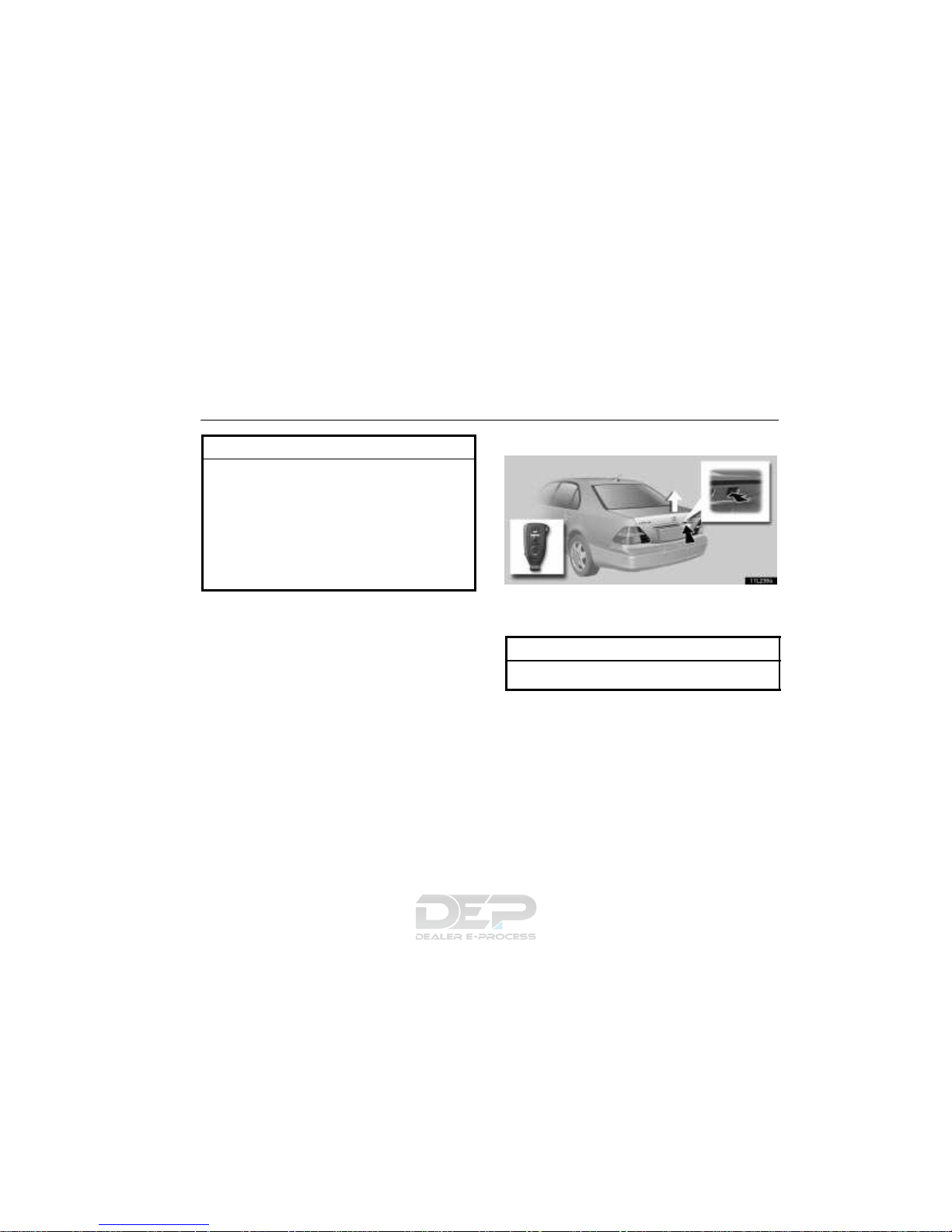

Unlocking the trunk lid with smart key system
11L236a
When you push the trunk button on the trunk lid while
carrying a smart key, the system allows you to unlock the
trunk lid without the key being inserted into the keyhole.
INFORMATION
If you bring the smart key close to the center of the
bumper, the trunk lid might not unlock.
Page 52
KEYS AND DOORS
32

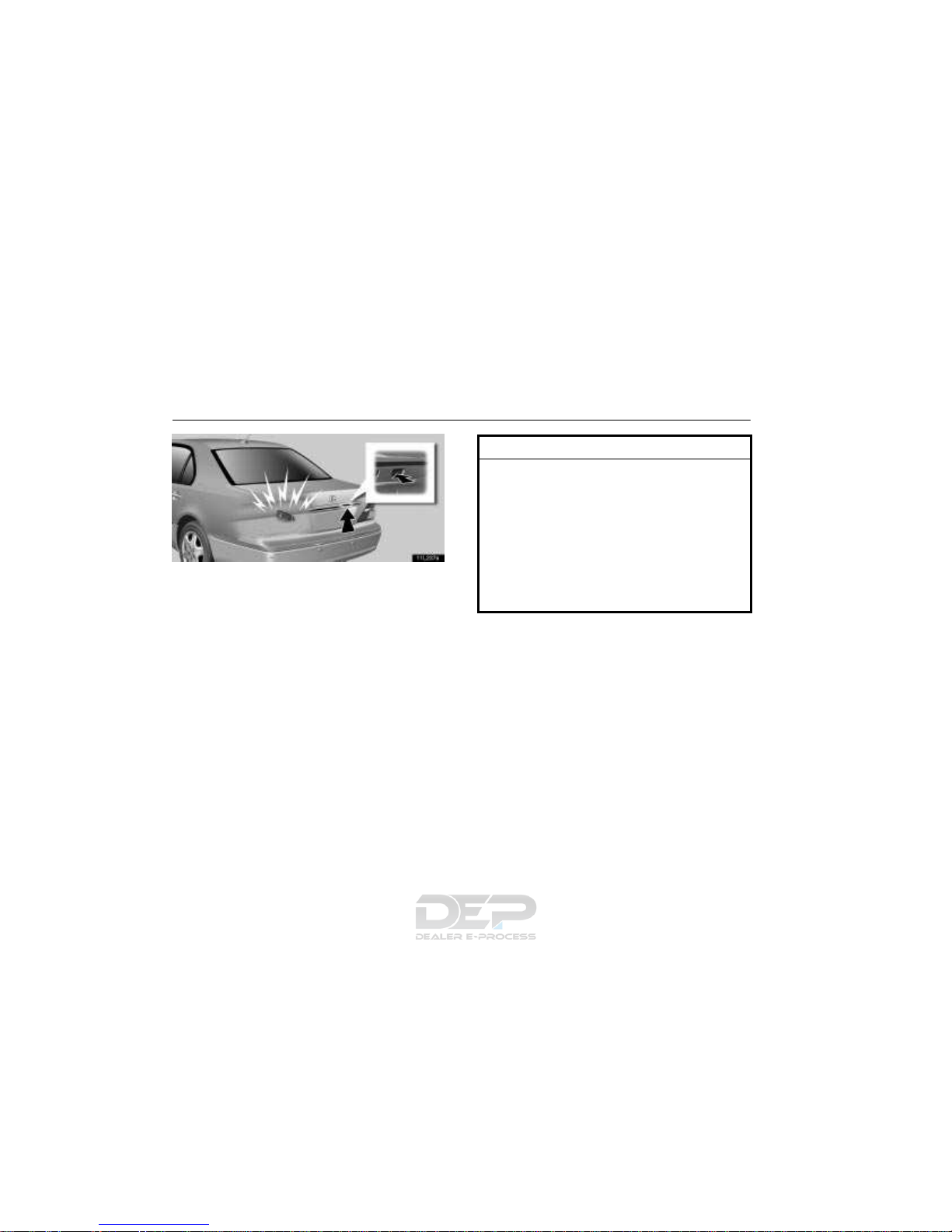

11L237a
"
Key reminder alarm
If you lock your key in the trunk, an alarm sounds for 10
seconds to remind you that the key is in the trunk.
To stop the alarm, push the trunk button. At this time, the trunk
lid is unlocked. Even after the alarm stops sounding, pushing
the trunk button will unlock the trunk lid.
INFORMATION
D
If you close the trunk lid while a smart key is left in the
trunk, an alarm should be activated. However, if the
key is placed near the spare tire or at the edge of the
trunk, or if the key is in a metallic bag, the trunk lid
might not be unlocked.
D
If you accidentally lock a smart key in the trunk, be
aware that anyone can unlock the trunk by pushing
the trunk button.
D
Even when the smart key is outside the trunk, an
alarm still might be activated if the key is near the
trunk. However, if you have the key, there is no
problem.
Page 53
KEYS AND DOORS
33
Battery power saving
When doors are locked, the smart key system transmits
electromagnetic waves to the outside of the vehicle at regular
intervals. For this reason, the vehicle battery will be
discharged if the vehicle is left for a long time. If the key is left
within the effective range of the smart key system outside of
the vehicle, the key and the vehicle transmit electromagnetic
waves periodically.
If these conditions continue for a long time, the battery in the
key and vehicle will be discharged and from the sixth day,
smart unlocking operations will become slow.
T o prevent the batteries from being discharged, the smart key
system is automatically deactivated in the following conditions:
D If there is no smart door locking operation for more than 14
days
D If the key is left within the effective range of the smart key
system outside of the vehicle for more than 10 minutes
To reactivate the smart key system properly, perform any of the
following:
(a) Press the lock button on the outside door handle while
carrying the smart key.
(b) Perform a wireless remote control operation.
(c) Insert and turn the key in the keyhole of the door.
INFORMATION
D
To maintain communication with the vehicle, smart
keys (including master keys) use built-in battery
power. The battery service life is about 1 to 3 years
on average. If battery power becomes insufficient,
replace the battery with a new one.
D
The smart key continually receives electromagnetic
waves, and if it receives strong electromagnetic
waves over a period of time, the battery can be
drastically run down. Therefore, avoid storing smart
keys near any electrical appliances.
Here is a list of electrical appliances which may have
adverse effects on the smart key performance: TVs,
personal computers, cellular phone or cordless
phone recharger units, electric light stands and
fluorescent desk lights
Note that you should always keep such electrical
appliances at least 1 m (3 ft.) away from the smart key .
Page 54
KEYS AND DOORS
34

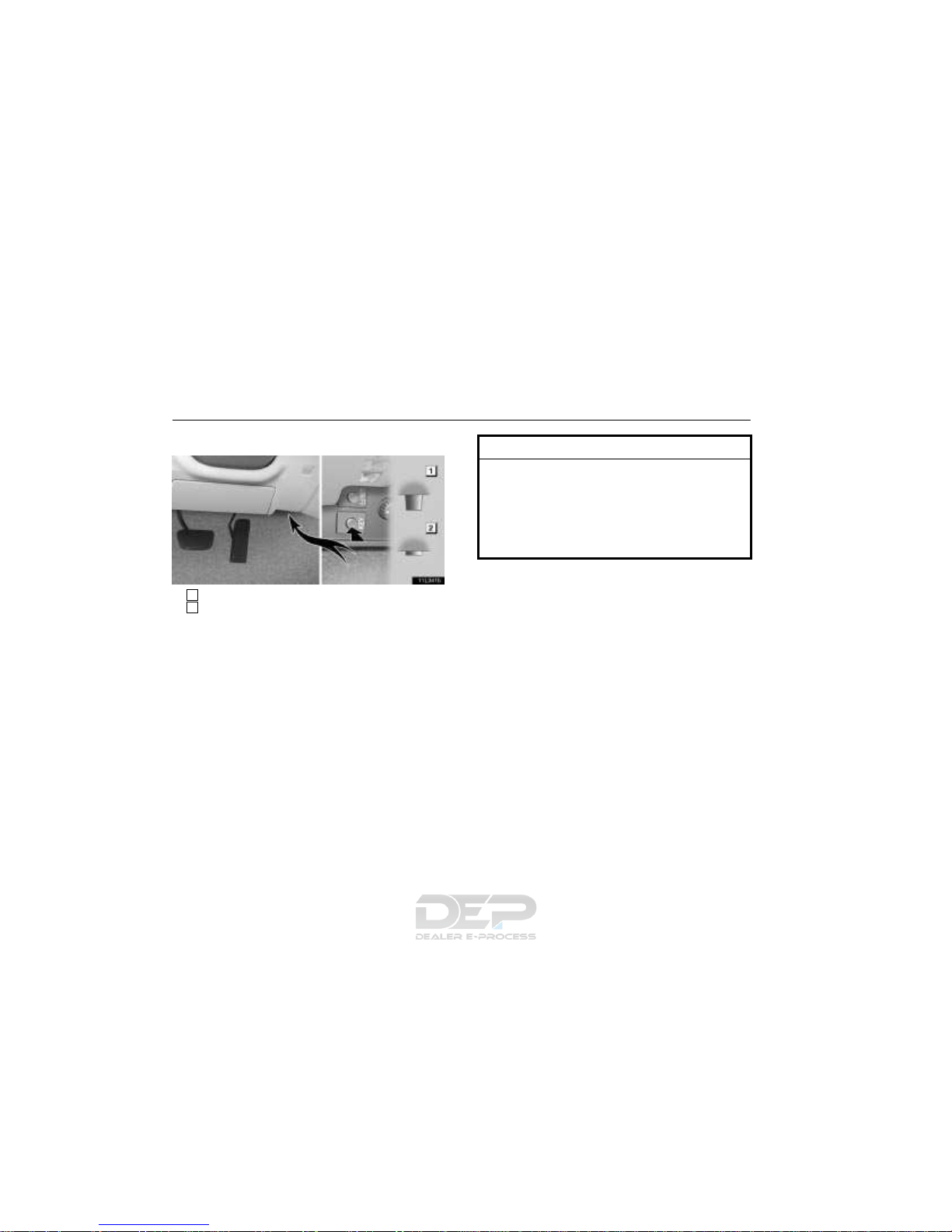

Deactivating the smart key system
11L341b
"
1
Smart key system is on.
2
Smart key system is off.
The cancel switch for this system is located at the bottom
of the instrument panel on the driver side. When you push
the button, the smart key system will be deactivated.
Pushing the button again will reactivate the system.
When the smart key system is deactivated, use a mechanical
key or wireless remote control function key to lock and unlock
the doors or unlock the trunk lid. To start the engine, insert a
smart key into the ignition switch.
If you do not intend to drive your vehicle for a long time, push
the cancel switch to deactivate the smart key system.
INFORMATION
The smart key system will be deactivated in the
following cases:
D
The key cancel switch is turned on.
D
The smart key is inserted into the ignition switch.
D
The battery of the smart key is discharged. (In this
case, the indicator on the smart key does not blink
even if you push a button on the key.)
Page 55
FCC ID: MOZRO-1TY-1
MADE IN JAPAN
FCC ID: NI4B11UE
MADE IN JAPAN
FCC ID: PENASAT1
MADE IN JAPAN
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference that may cause undesired operation.
KEYS AND DOORS
35
For vehicles sold in U.S.A.
CAUTION
Changes or modifications not expressly approved by
the party responsible for compliance could void the
user’s authority to operate the equipment.
NOTICE
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
D
Reorient or relocate the receiving antenna.
D
Increase the separation between the equipment and
receiver.
D
Connect the equipment into an outlet on a circuit
different from t h a t t o w h i c h t h e r e c eiver is connected.
D
Consult the dealer or an experienced radio/TV
technician for help.
Page 56
KEYS AND DOORS
36
For vehicles sold in Canada
This device complies with RSS- 210 of Industry
Canada.
Operation is subject to the following two conditions:
(1) This device may not cause interference, and (2)
this device must accept any interference, including
interference that may cause undesired operation of the
device.

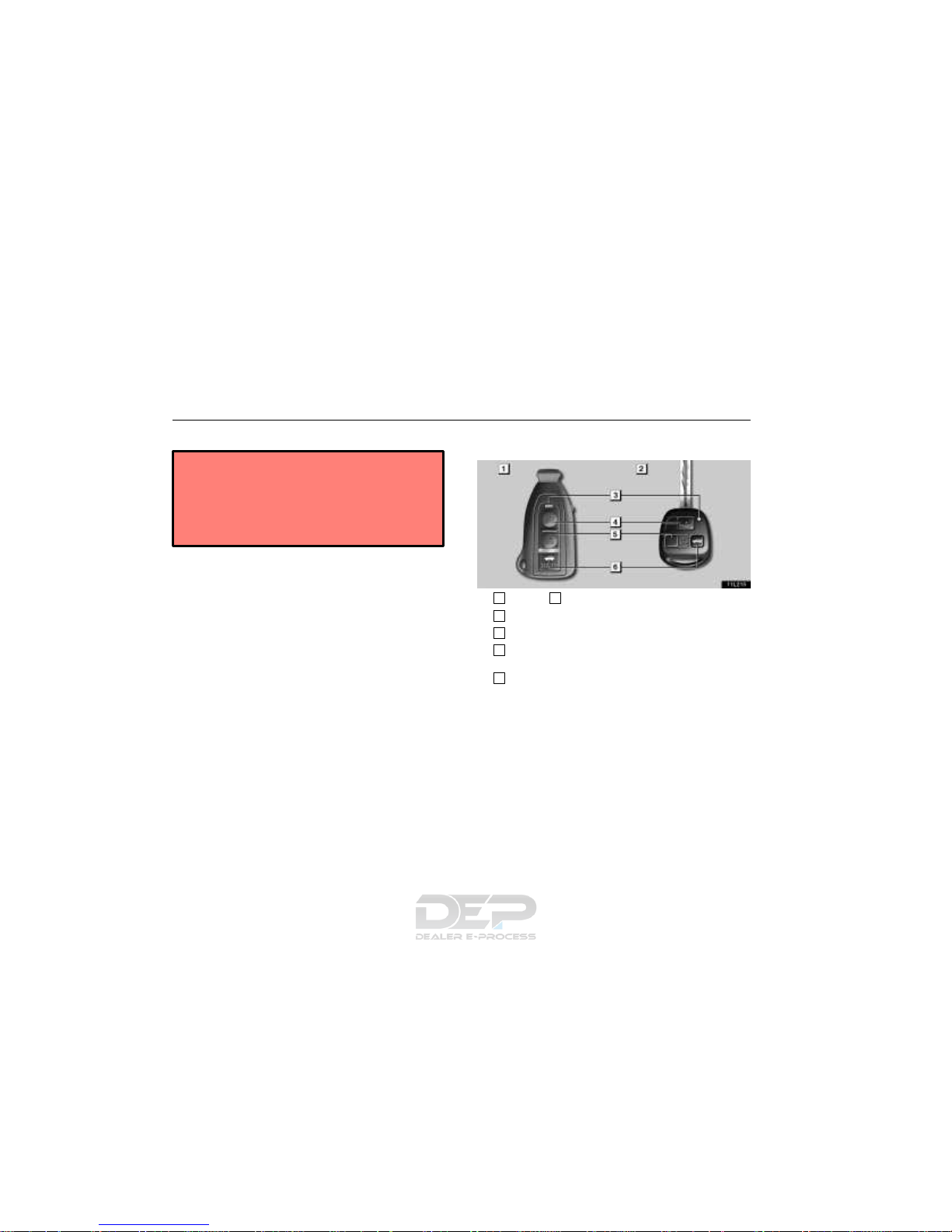

WIRELESS REMOTE CONTROL*
11L215
" 1Type A
2
Type B
3
Indicator light
4
Locking the doors and sounding an alarm
5
Unlocking the doors, and opening the windows and
moon roof
6
Unlocking the trunk lid
NOTE:
* This feature can be deactivated as vehicle theft deterrent
measure in case of the loss of the wireless remote control
function key.
Ask your Lexus dealer for details.
When you operate any button on the key, push it slowly and
surely. At this time, the indicator light on the key grip flashes
once.
Page 57
KEYS AND DOORS
37
The operational range of the wireless remote control is
approximately 1 m (3 ft.). The effective range may vary with
different conditions. To activate the wireless remote control
without fail, do it approximately 1 m (3 ft.) from your Lexus.
In the following cases, the battery in the key may be
discharged. If this is a case, replace the battery using a special
screwdriver. For the key of Type A, we recommend that you
have the battery replaced by your Lexus dealer to prevent the
key from being damaged.
D The remote control does not work.
D The operational range of wireless remote control becomes
extremely short.
D The indicator light on the key is dimmed or does not come
on.
For the replacement of the battery of the Type B key, see
“Replacing the battery” on page 44. You can also have the
battery of the key replaced by your Lexus dealer.
If you lose the wireless function key, contact your Lexus dealer
as soon as possible to avoid the possibility of theft, or an
accident. (See “If you lose your keys or lock yourself out” on
page 434.)
If your vehicle is equipped with smart key system, you can use
up to 5 master keys and 3 sub keys for the same vehicle. In
case of the vehicle not equipped with smart key system, up to
4 master keys are available. Contact your Lexus dealer for
detailed information.
The wireless remote control function key is an electronic
component. Observe the following instructions in order
not to cause damage to the key.
D Do not leave the wireless remote control function key in
places where the temperature becomes high such as on the
dashboard.
D Do not disassemble it.
D Avoid knocking it hard against other objects or dropping it.
D Avoid putting it in water.
Page 58
KEYS AND DOORS
38
Locking/Unlocking the doors
When you push the “LOCK” button on the key briefly, all
the doors can be locked from outside the vehicle.
At this time, you can hear one beep and the turn signal lights
flash once.* However, when you push the “LOCK” button with
any door not closed securely, the buzzer sounds for 10
seconds.** To stop the buzzer, close all the doors securely or
push the “UNLOCK” button. If the key is in the ignition switch,
locking cannot be done.
NOTE:
* The turn signal lights can be set not to flash.
** The buzzer can be set not to sound if a door is not closed
securely.
Ask your Lexus dealer for details.
If outer foot lights are illuminated, you can turn off the lights by
pushing the “LOCK” button on the key . (For details, see “Outer
foot lights” on page 232.)
NOTICE
Do not push the “LOCK” button any longer than 2 to 3
seconds. Pushing the button longer activates an alarm.
For details, see page 40.
When you push the “UNLOCK” button, the driver’s door
is unlocked and outer foot lights come on. Pushing the
“UNLOCK” button once again within 3 seconds from the
first push, all other doors are also unlocked.*
For outer foot lights, see “Outer foot lights” on page 232.
NOTE:
* The 2-step unlocking function can be changed.
Ask your Lexus dealer for details.
At this time, two beeps sound and the turn signal lights flash
twice.* Together with the activation of unlocking, the interior
light comes on for 15 seconds if the interior light switch is in
“DOOR” position.** However, this function does not work
when the ignition switch is in the “ACC” or “ON” position. For
further information, see “Interior lights” on page 111.
You have 30 seconds to open a door after using the wireless
remote unlock feature.*** If a door is not opened by then, all
the doors will be automatically locked again.
NOTE:
* The turn signal lights can be set not to flash.
** The interior light can be set not to come on or the duration
of lighting can be changed.
*** The time before automatic re-locking can be changed.
Ask your Lexus dealer for details.
Even if the “LOCK” or “UNLOCK” button is kept pressed in, the
locking or unlocking operation is not repeated. Release the
button and then push it again.
Page 59
KEYS AND DOORS
39

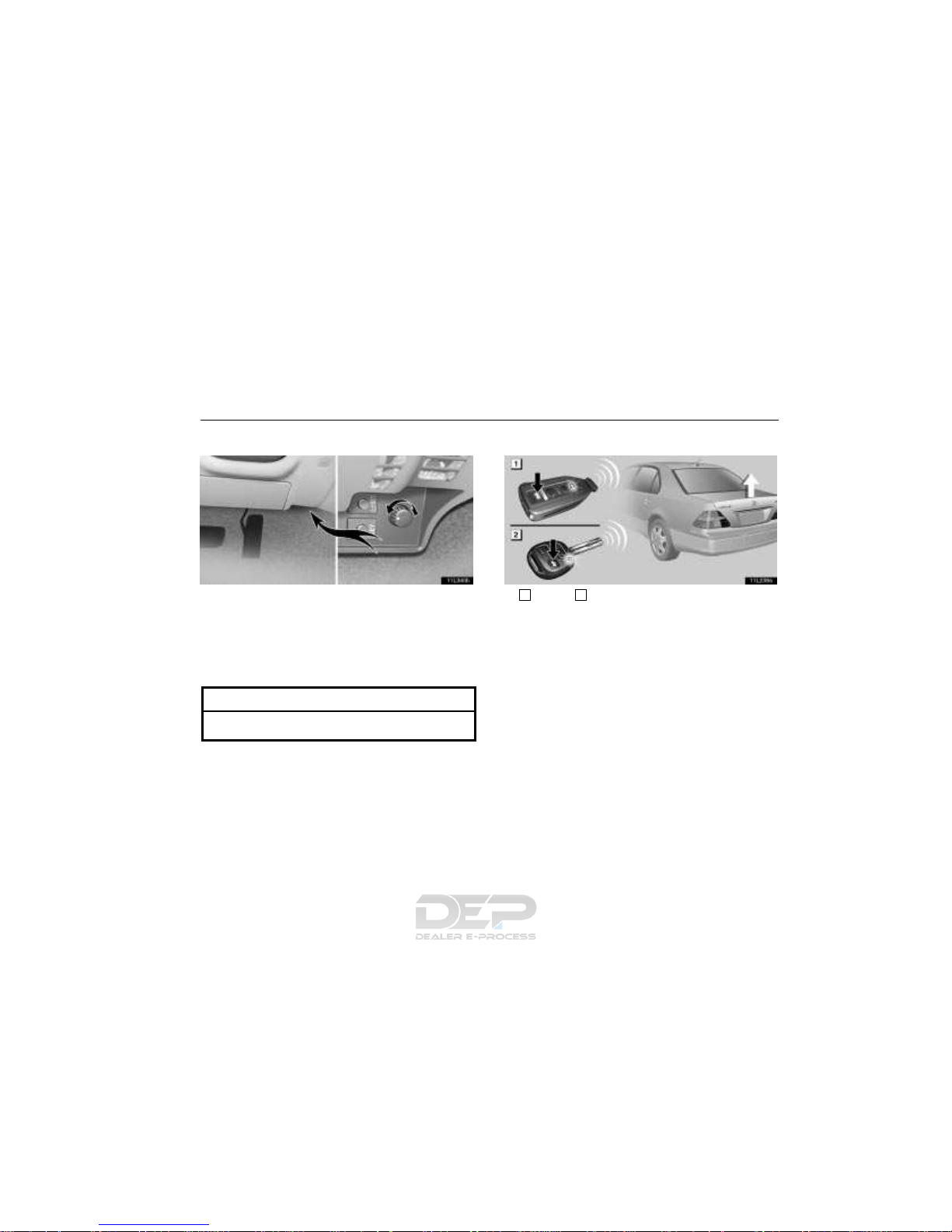

Adjusting the volume of beeps
11L340b
You can adjust the volume of the beeps which confirm the
locking or unlocking the doors or remind you when the
doors are not completely closed.
Turn the volume adjustment knob counterclockwise to
increase the volume or clockwise to decrease it. The beep
sound is completely deactivated when you turn the knob
clockwise until you hear a click.
INFORMATION
The volume of the smart key system alarm is not
adjustable.
Unlocking the trunk lid
11L238a
"
1
Type A 2Type B
When you keep the button pushed for about 1 second, you
can unlock the trunk lid.* One beep sounds.
This function does not work when the ignition switch is in the
“ON” position.
NOTE:
* The operation method can be changed.
Ask your Lexus dealer for details.
Page 60
KEYS AND DOORS
40

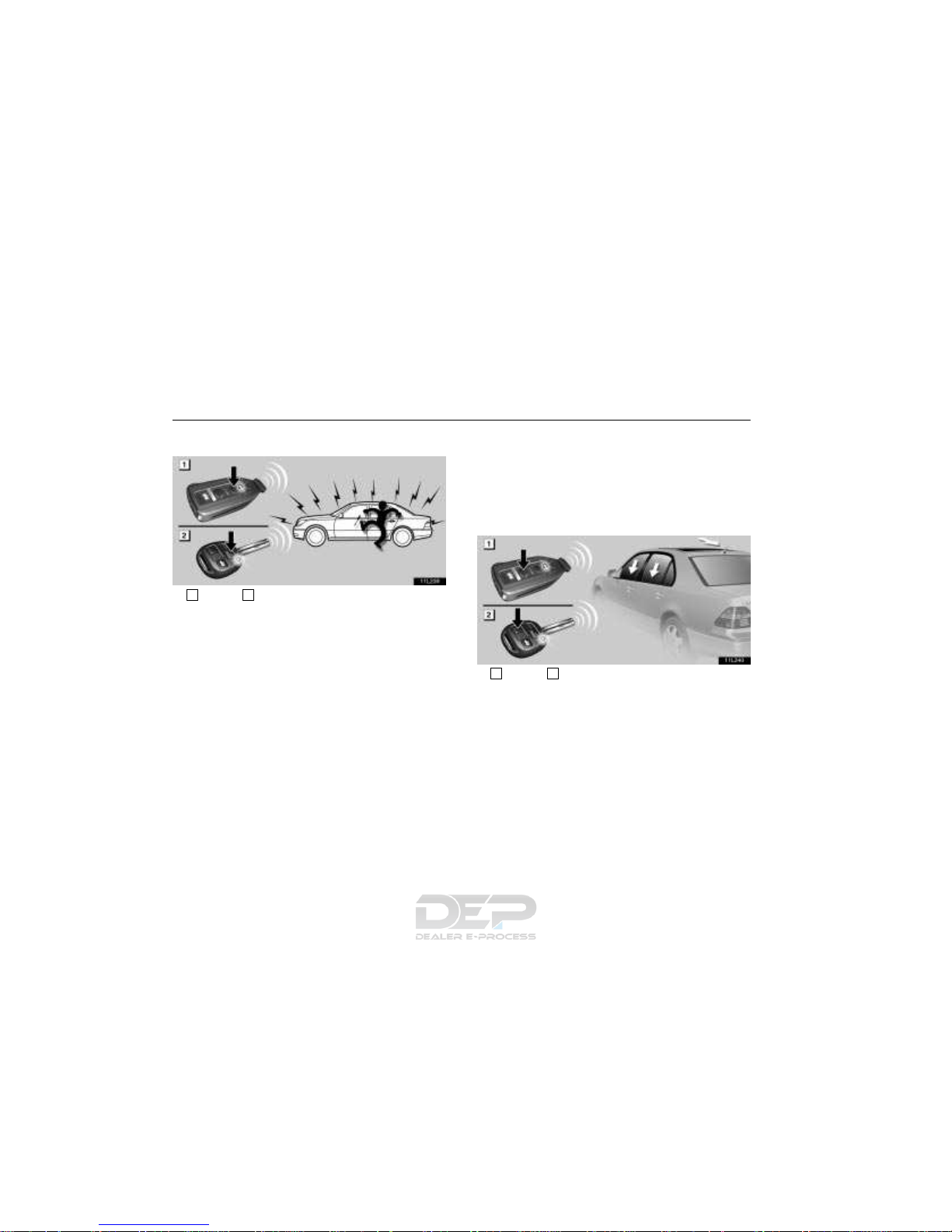

Sounding an alarm*
11L239
"
1
Type A 2Type B
When you keep the “PANIC” button pushed for about 2 to
3 seconds, an alarm sounds to deter any person trying to
break into or damage your vehicle.
If you want to stop the alarm, push any button.
This function does not work when the ignition switch is in the
“ON” position.
NOTE:
* The alarm can be set not to sound.
Ask your Lexus dealer for details.
Operating the windows and moon roof
The windows and moon roof can be operated using a
wireless remote control key from outside the vehicle.*
NOTE:
* The windows can be deactivated. The moon roof can be
set to slide open or tilt up or deactivated.
Ask your Lexus dealer for details.
11L240
"
1
Type A 2Type B
Push the “UNLOCK” button until the windows and moon roof
start to move. At this time one beep sounds. When you
release the button, the windows and moon roof stop operating.
This function will work even with the window lock switch
pressed in.
Page 61
FCC ID: HYQ12BBK
MADE IN JAPAN
FCC ID: NI4B11UE
MADE IN JAPAN
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference that may cause undesired operation.
KEYS AND DOORS
41
For vehicles sold in U.S.A.
CAUTION
Changes or modifications not expressly approved by
the party responsible for compliance could void the
user’s authority to operate the equipment.
NOTICE
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
D
Reorient or relocate the receiving antenna.
D
Increase the separation between the equipment and
receiver.
D
Connect the equipment into an outlet on a circuit
different from t h a t t o w h i c h t h e r e c eiver is connected.
D
Consult the dealer or an experienced radio/TV
technician for help.
Page 62
KEYS AND DOORS
42
For vehicles sold in Canada
This device complies with RSS- 210 of Industry
Canada.
Operation is subject to the following two conditions:
(1) This device may not cause interference, and (2)
this device must accept any interference, including
interference that may cause undesired operation of the
device.
Replacing the battery (Type A)
We recommend that you have the battery replaced by your
Lexus dealer to prevent the key from being damaged.
When you replace the battery, prepare a lithium battery
CR2032 or equivalent and a special screwdriver.
CAUTION
Special care should be taken to prevent small children
from swallowing the removed battery or components.
NOTICE
D
Replace only with the same or equivalent type
recommended by a Lexus dealer.
D
Dispose of used batteries according to the local laws.
Page 63
KEYS AND DOORS
43

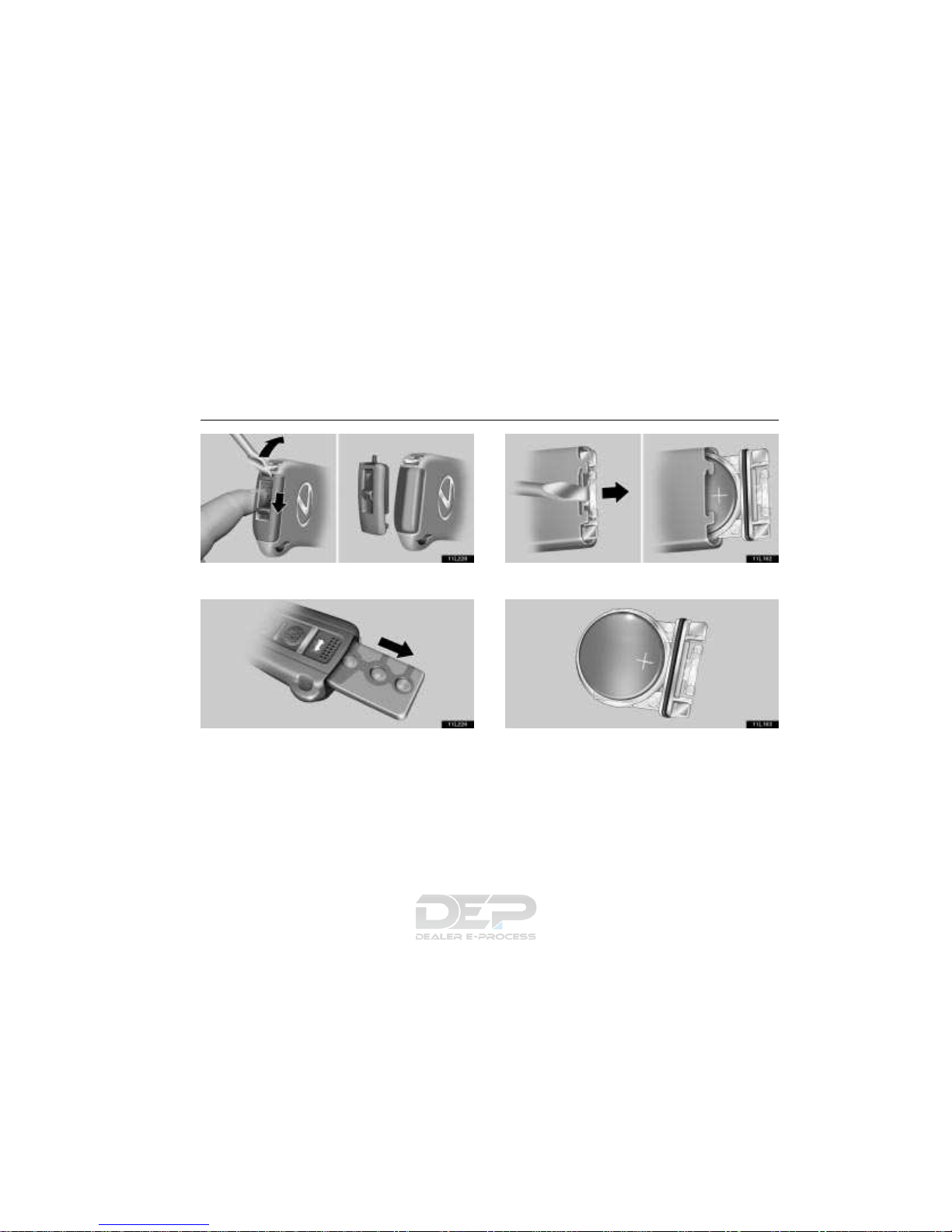

11L228
1. While sliding the lock switch using your finger, remove the
cover on the side of the key using a special screwdriver.
11L226
2. Remove the module from the main frame.
11L162
3. Pull the battery base out of the module using a special
screwdriver.
11L163
4. Remove the battery base from the module.
5. Take out the discharged battery and put a new battery with
the positive side up.
Page 64
KEYS AND DOORS
44
NOTICE
D
Make sure the positive side and negative side of the
battery are faced correctly.
D
Do not replace the battery with wet hands. Water may
cause unexpected rust.
D
Do not touch or move any components inside the
transmitter, or it may interfere with proper operation.
D
Be careful not to bend the electrode when inserting
the battery and that dust or oils do not adhere to the
inside of the module.
6. Install the battery base into the module.
NOTICE
Take care not to damage or bend the battery base when
installing.
7. Install the module into the main frame.
8. Install the cover back on the side of the key by sliding it using
your finger.
9. When pushing any switch on the wireless key, make sure
the indicator light comes on.
Replacing the battery (Type B)
When you replace the battery, prepare a lithium battery
CR1616 or equivalent and a special screwdriver.
CAUTION
Special care should be taken to prevent small children
from swallowing the removed battery or components.
NOTICE
D
When replacing the battery, be careful not to lose the
components, screws and O-ring.
D
Replace only with the same or equivalent type
recommended by a Lexus dealer.
D
Dispose of used batteries according to the local laws.

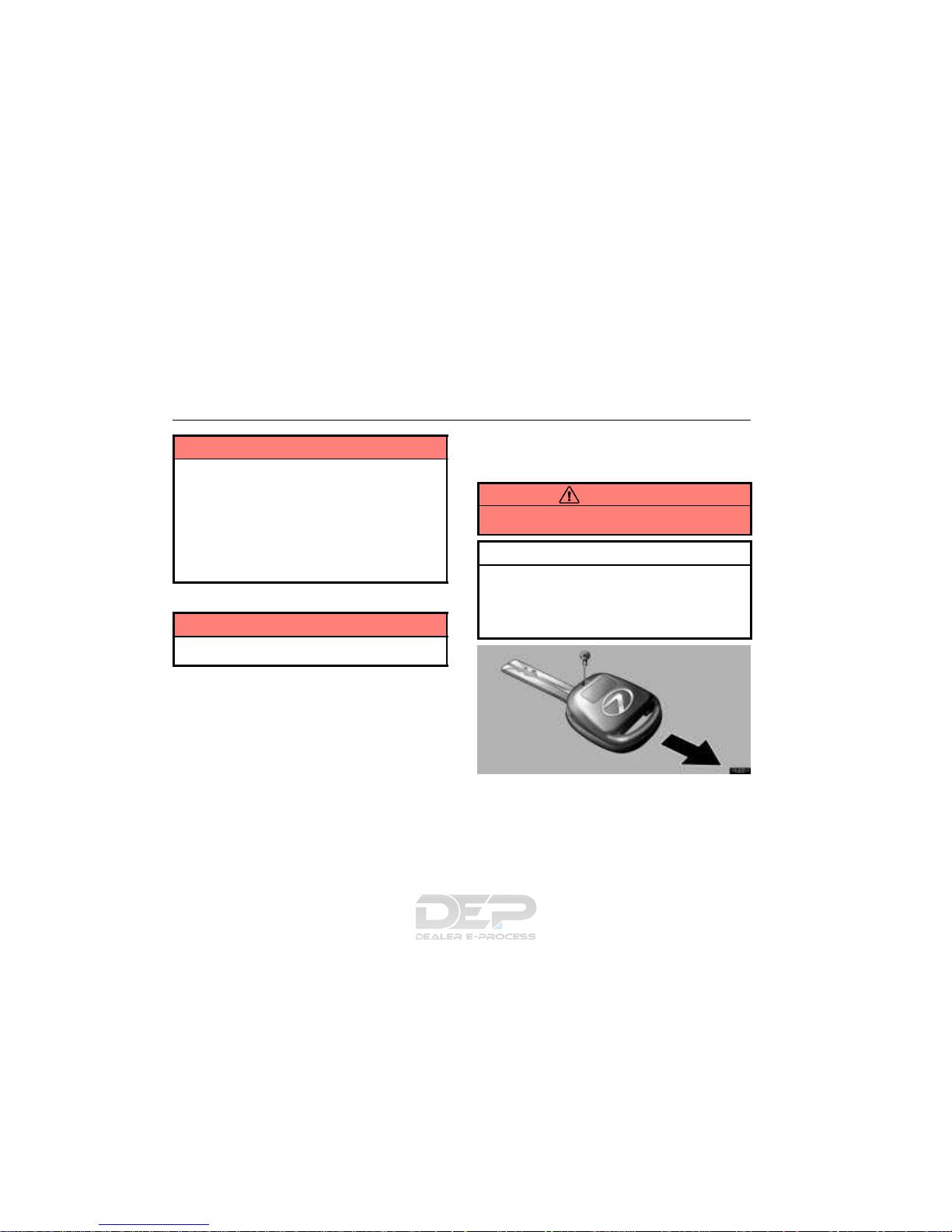

11L028-1
1. Remove the screw, and then the cover while pushing it in the
arrow direction.
Page 65
KEYS AND DOORS
45
11L029-1
2. Remove the module from the key frame.
11L030-1
3. Remove the 2 screws to take out the lid of the module.
4. Take out the discharged battery and put a new battery with
the positive side up.
NOTICE
D
Make sure the positive side and negative side of the
battery are faced correctly.
D
Do not replace the battery with wet hands. Water may
cause unexpected rust.
D
Do not touch or move any components inside the
transmitter, or it may interfere with proper operation.
D
Be careful not to bend the electrode when inserting
the battery and that dust or oils do not adhere to the
inside of the module.
D
Take care not to lose the screws and O-ring.
5. Install the lid with the 2 screws.
NOTICE
Take care not to damage or bend the O-ring when
installing.
6. Install the module into the key frame and secure the cover
with the screw.
7. When pushing any switch on the wireless key, make sure
the indicator light comes on.
Page 66
KEYS AND DOORS
46
DOORS
See page 25 for locking the doors with smart key system
and page 28 for unlocking them with smart key system.
Locking
with key
11L227
"
1
Type A 2Type B 3Lock 4Unlock
Turn the key towards the front of the vehicle to lock and
towards the back to unlock.
The doors lock and unlock simultaneously with the driver’s
door. Turning the key once will unlock the driver’s door and
twice in succession will unlock all doors simultaneously.*
NOTE:
* The 2-step unlocking function can be changed.
Ask your Lexus dealer for details.
If a wrong key is used, the key cylinder rotates freely to isolate
inside mechanism. So, door locking is protected from thieves.
The windows and moon roof can be opened and closed from
outside the vehicle using the key. For details, see “Power
window switches” on page 64 and “Moon roof” on page 147.
Page 67
KEYS AND DOORS
47
Locking with inside lock button

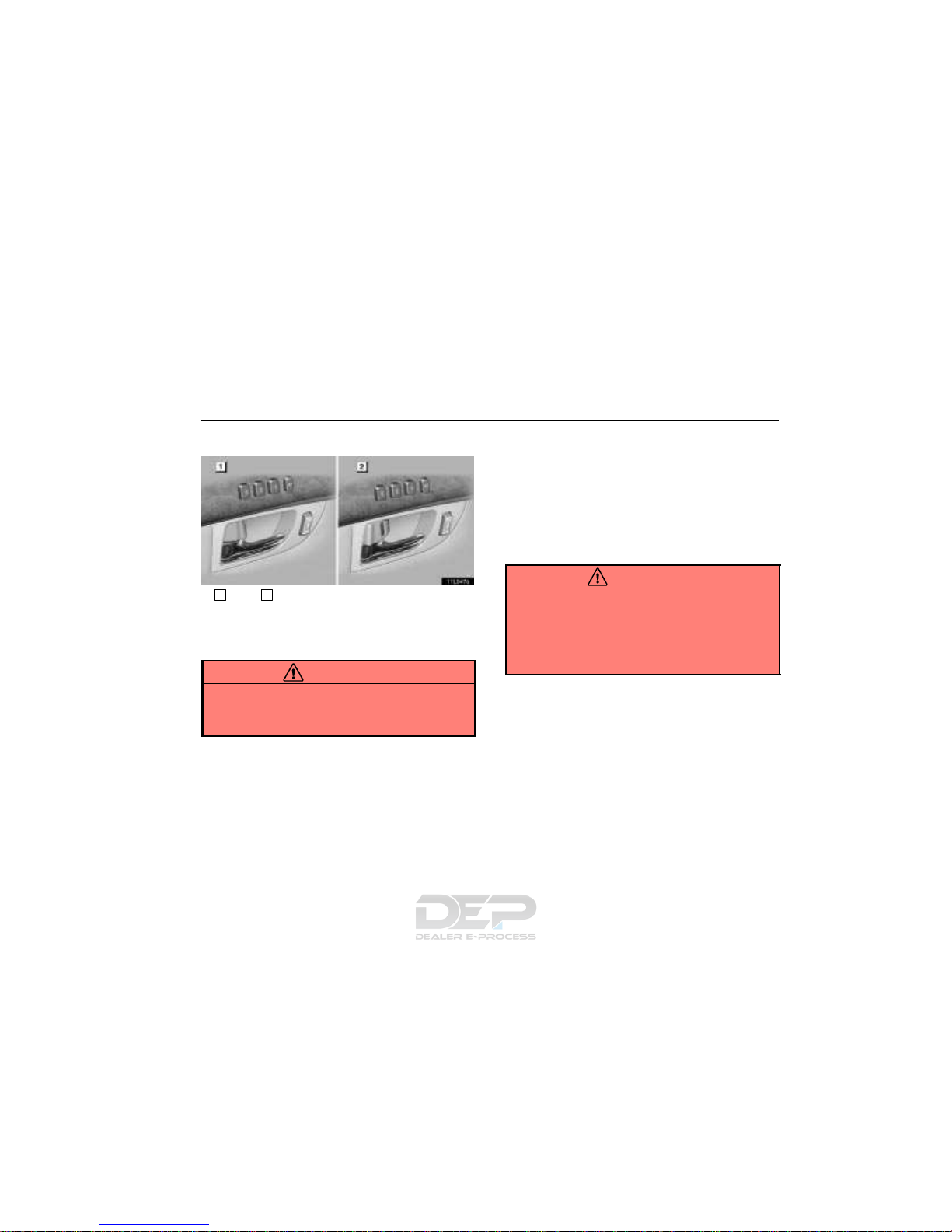

11L047a
"
1
Lock 2Unlock
Push in the lock button to lock and unlock the door.
The front doors can be opened by pulling the inside handles
even if the lock buttons are in the locked position.
CAUTION
Do not pull the inside handle of the front doors while
driving. The doors will open and an accident may occur.
Lexus strongly recommends that all children be placed
in the rear seat of the vehicle.
Closing the door with the lock button pushed in will also lock
the door. Be careful not to lock your keys in the vehicle. Doors
cannot be locked when either front door is open and the key is
in the ignition. For the vehicles equipped with the smart key
system, if you open the driver’s door to get out from the vehicle
without returning the ignition switch to the “LOCK” position,
chimes sound and the door will not lock when closing the door.
If the vehicle is subjected to a severe frontal, rear or side
impact with the ignition switch turned to the “ON” position, all
doors will unlock automatically after a few seconds.
CAUTION
Before driving, make sure the doors are closed and
locked, especially when small children are in the
vehicle. Along with the proper use of seat belts, locking
the doors helps prevent the driver and passengers from
being thrown out from the vehicle during an accident.
It also helps prevent the doors from being opened
unintentionally.
Page 68
KEYS AND DOORS
48
Locking with power door lock switch

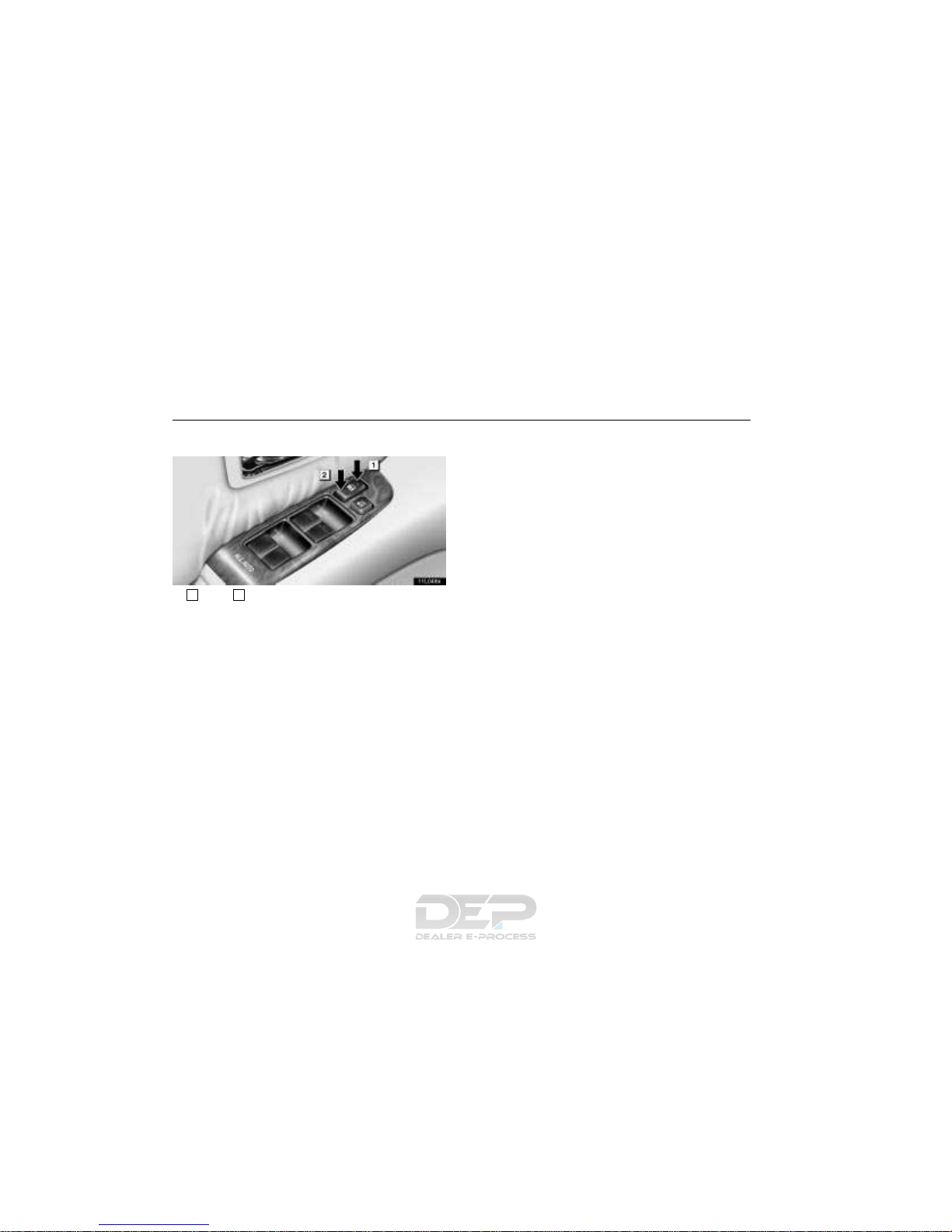

11L048a
"
1
Lock 2Unlock
To lock all the doors simultaneously, push the power door
lock switch down on the front side. Pushing down on the
rear side will unlock them.
When you push the power door lock switch on the rear side to
unlock the doors to allow a passenger to get in, the outer foot
lights come on. To turn off the lights, push the power door lock
switch on the front side. (For details, see “Outer foot lights” on
page 232.)
The same switch is also found on the front passenger’s side.
However, pushing this switch will neither turn on nor off the
outer foot lights.
Auto door locking function*: Al l the d oor s wi ll lo ck
automatically when the selector lever is moved out of “P”
position. This auto door locking function is operable if any
doors are unlocked while the ignition switch is in the “ON”
position.
NOTE:
* This setting can be changed as in the following:
S
All the doors are locked automatically at 20 km/h (12
mph) or higher vehicle speed. However, if any door is
unlocked during driving, this auto locking function does
not operate until the unlocked door is once opened.
S
When the selector lever is moved out of “P” position and
the brake pedal is held off your foot, this function is
enabled.
Ask your Lexus dealer for details.
Page 69
KEYS AND DOORS
49
Door closer (some models)
If any door is closed but does not latch shut, it
automatically closes completely. This system is equipped
on all the doors and will activate regardless of the ignition
switch position.
Pulling the door handle will cancel the door closer, allowing you
to open the door which is about to close. However, pulling the
door handle of the rear door which is locked with the child
protector will not cancel the door closer.
CAUTION
D Careful attention is needed so as not to get your
fingers trapped as the door automatically closes
when the door has not been fully closed.
D Never allow a child to operate the door.

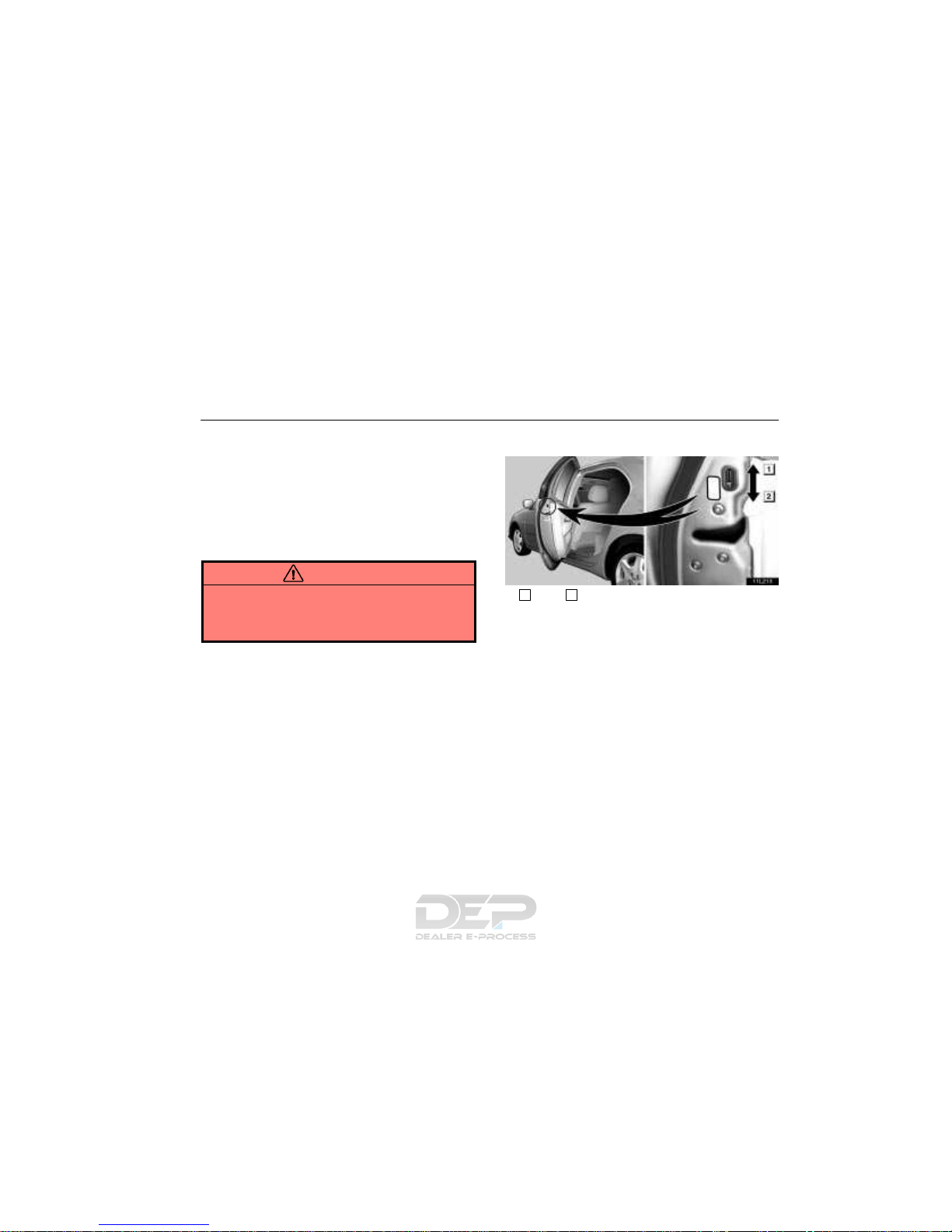

Locking with rear door child-protector
11L213
"
1
Lock 2Unlock
Whenever small children are in the vehicle, lock the rear
door so that it does not open by the inside door handle.
To do this, move the knob to the “LOCK” position as
shown and then close the door.
Page 70
KEYS AND DOORS
50
THEFT DETERRENT SYSTEM

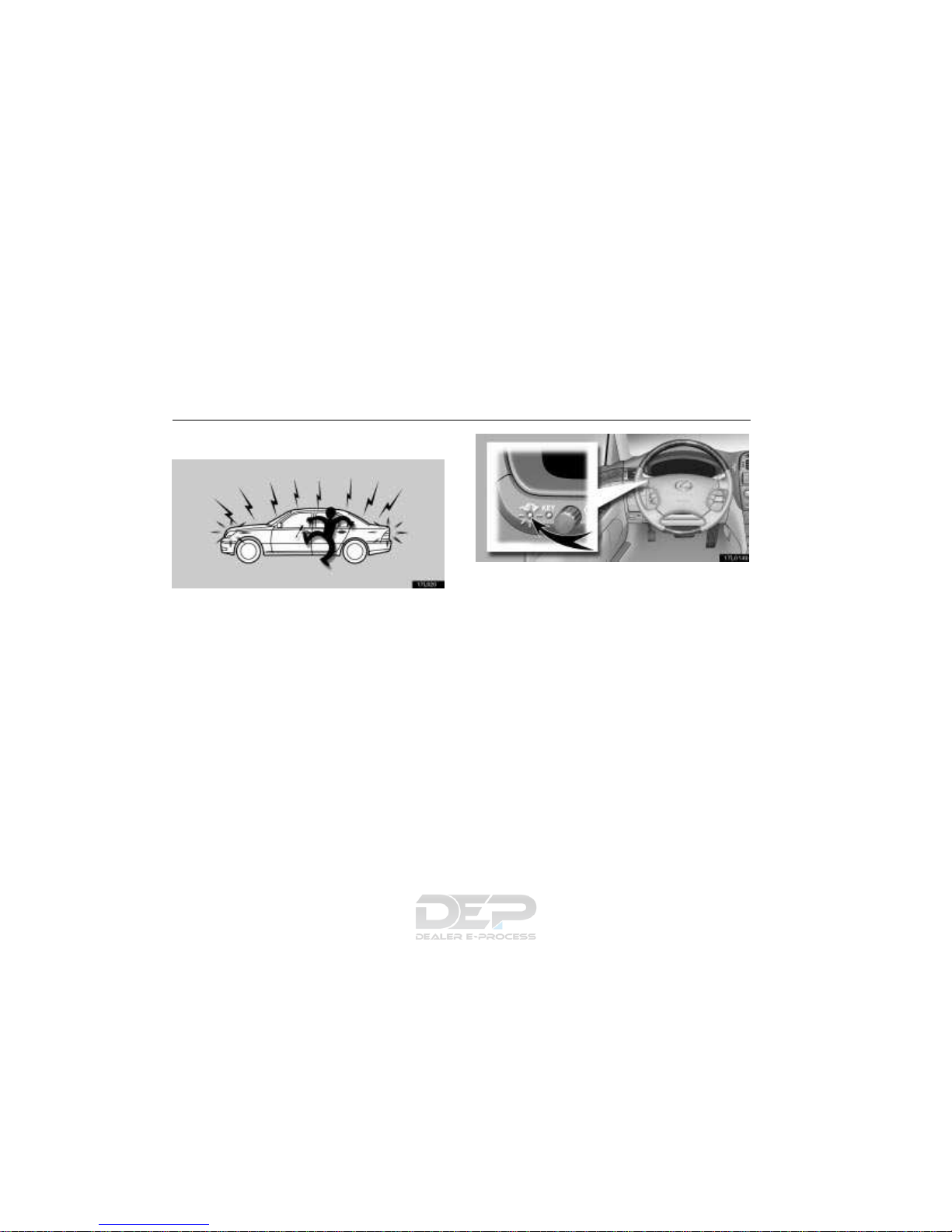

17L013
To deter theft of the vehicle, this system is designed to
sound an alarm if any of the doors, trunk or hood is
forcibly unlocked or opened or the battery terminal is
disconnected and then reconnected while the vehicle is
locked.
The alarm blows the horn intermittently, flashes the headlights,
tail lights, turn signal lights and other exterior lights. When the
interior light switch is in the “DOOR” position, the interior lights
also turn on.
After the alarm is activated, when you unlock any door or the
trunk using an ignition key or wireless remote control or smart
key system, the tail lights turn on for about 2 seconds to inform
you that the system was activated.
17L014b
"
Security indicator light
Setting the system
In the case of the smart key system:
1. Turn the ignition switch to the “LOCK” position.
The engine immobilizer system causes to the indicator light to
flash.
2. Close and lock all the doors, trunk and hood using an
ignition key or wireless remote control or smart key
system.
If you lock them with wireless remote control or smart key
system, the turn signals flash once.*
NOTE:
* The turn signals can be set not to flash.
Ask your Lexus dealer for details.
Page 71
KEYS AND DOORS
51
The flashing indicator light will stay on when all the doors, trunk
and hood are closed and locked.
3. After 30 seconds, the indicator starts flashing and the
system is set.
After the system is set, when you close the trunk which is
opened with an ignition key or wireless remote control or smart
key system, the system is set again. However, this function
operates only when the door is not unlocked during which the
trunk is opened and closed.
In case of the ignition switch with the key inserted:
1. Turn the ignition key to the “LOCK” position and
remove it.
The engine immobilizer system causes the indicator light to
flash.
2. Close and lock all the doors, trunk and hood using an
ignition key or wireless remote control or smart key
system.
If you lock them with wireless remote control or smart key
system, the turn signals flash once.*
NOTE:
* The turn signals can be set not to flash.
Ask your Lexus dealer for details.
The flashing indicator light will stay on when all the doors, trunk
and hood are closed and locked.
3. After 30 seconds, the indicator starts flashing and the
system is set.
After the system is set, when you close the trunk which is
opened with an ignition key or wireless remote control or smart
key system, the system is set again. However, this function
operates only when the door is not unlocked during which the
trunk is opened and closed.
Cancelling the system
When you unlock any door using an ignition key, wireless
remote control or smart key system, the system is
cancelled.
If you unlock any door with the wireless remote control or smart
key system, the turn signals flash twice.*
NOTE:
* The turn signals can be set not to flash.
Ask your Lexus dealer for details.
Page 72
KEYS AND DOORS
52
Activating the system
The alarm sounds for 60 seconds if any of the following are
operated:
D Unlocking any door or trunk without using an ignition key,
wireless remote control or smart key system.
D Opening the hood forcibly.
D Reconnecting the battery.
D Hot-wiring the ignition.
If any door is unlocked and the ignition key is not in the ignition
switch during the alarm sounding, its door is automatically
locked.
To stop the alarm: Use either of the following methods.
D Unlock the door or trunk using an ignition key or wireless
remote control or smart key system.
D Turn the ignition switch on.
Testing the system
1. Open all the windows.
2. Set the system as described above.
The doors should be locked with an ignition key, wireless
remote control or smart key system. Be sure to wait until the
indicator light starts flashing.
3. Unlock one of the doors from the inside through one of
the opened windows.
The system should activate the alarm.
4. Unlock any of the doors with an ignition key, wireless
remote control or smart key system to cancel the system.
5. Repeat this operation for the other doors, trunk and
hood.
When testing the hood, also check that the system is activated
when the battery terminal is disconnected and then
reconnected.
If the system does not work properly, have it checked by your
Lexus dealer.
NOTICE
When disconnecting the battery, be sure to cancel the
theft deterrent system. Otherwise, the system could
activate an alarm and lock the unlocked door(s)
automatically.
Page 73
SECTION 1 –
2
53
INSTRUMENTS AND CONTROLS
Switches
Headlight switch 54. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Headlight dimmer and turn signal switch 57. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fog light switch 58. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windshield wiper and washer switch 58. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Headlight cleaner switch 62. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear window and outside rear view mirror defogger switch 63. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power window switches 64. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emergency flasher switch 68. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Seat heater switches 69. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Climate control seat switches 71. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Refreshing rear seat switches 76. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Page 74
SWITCHES
54
HEADLIGHT SWITCH
12L163
"
1
U.S.A. 2Canada
To turn the lights on, twist the knob on the end of the lever.
FIRST CLICKSTOP: Only the parking, tail, license plate, side
marker and instrument panel lights turn on.
SECOND CLICKSTOP: Headlights also turn on.
THIRD CLICKSTOP (“AUTO”): The headlights and all other
lights automatically turn on depending on the darkness of the
surroundings.*
NOTE:
* The operating condition or sensitivity can be changed.
Ask your Lexus dealer for details.
Vehicles sold in U.S.A.: When the headlights are on, the
headlight indicator lights up in the instrument cluster.
Vehicles sold in Canada: When the tail lights are on, the tail
light indicator lights up in the instrument cluster.
With the knob in the “AUTO” position, there may be a case
that the headlights do not turn on immediately, even when
the vehicle enters a dark place such as a tunnel or parking
lot according to lighting conditions. In this case, we
recommend you to twist the knob manually to the second
clickstop to turn on the headlights immediately.
When the headlight switch is turned to the first or second
clickstop, the brightness of the instrument cluster will be
reduced slightly unless the instrument panel light control knob
is turned fully on.
However, the brightness of the instrument cluster will not be
reduced in daytime even when the headlight switch is turned
to first or second clickstop.
Page 75
SWITCHES
55

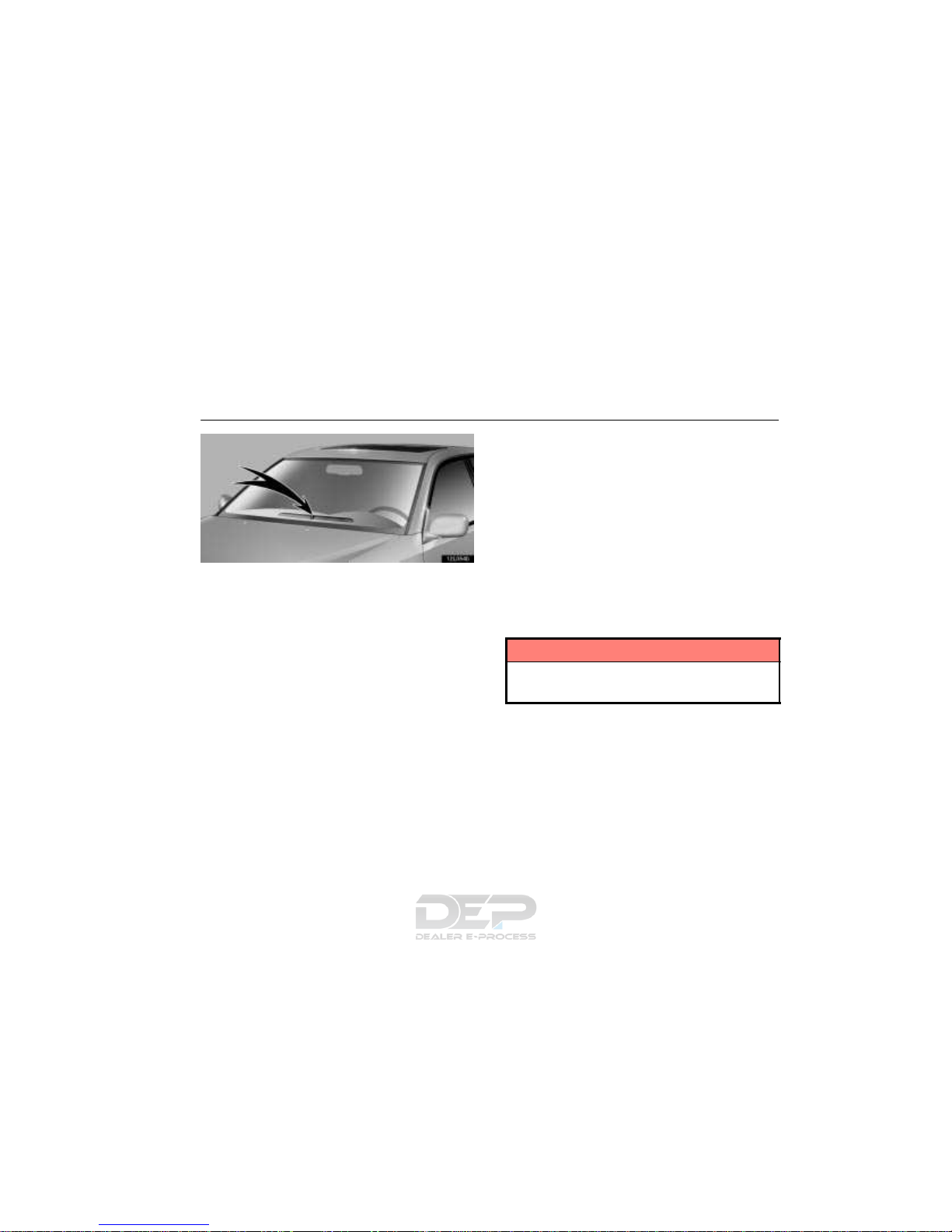

12L054b
The automatic light control sensor is on the top center of the
instrument panel.
Do not place anything on the instrument panel, and/or do not
af
fix anything on the windshield to block this sensor.
When you turn on the headlights, the lights automatically turn
off about 30 seconds after any of the doors is opened and
closed with the ignition switch turned to the “ACC” or “LOCK”
position.* To turn them on again, turn the ignition switch to the
“ON” position, or turn the headlight switch off and then twist the
knob until the first or second clickstop. If you are going to park
for over one week, make sure the headlight switch is off.
When the headlight switch is on with all the doors locked and
the trunk closed, pushing the “LOCK” button on the wireless
remote control key turns off the headlights.
NOTE:
* The time before turning off the lights can be changed.
Ask your Lexus dealer for details.
Daytime Running Light System
The headlights turn on at reduced intensity when the parking
brake is released with the engine started, even with the light
switch in the “OFF” position. They will not go off until the
ignition switch is turned off.
T o turn on the other exterior lights and instrument panel lights,
twist the knob to the first clickstop.
Twist the knob to the second clickstop to turn on the headlights
to full intensity for driving at night.
When setting the knob to the third clickstop (“AUTO”), the
headlights will automatically adjust to full intensity and/or turn
on the other lights depending on the darkness of the
surroundings. Likewise, as the surroundings become brighter,
the headlights will turn to reduced intensity, ultimately turning
off the other lights.
NOTICE
To prevent the battery from being discharged, do not
leave the lights on longer than necessary when the
engine is not running.
Page 76
SWITCHES
56
Automatic headlight leveling system
The headlight beam level is always maintained automatically
at the proper level in all loading conditions so that your
headlights do not dazzle other road users.
If the system fails, the “AFS OFF” indicator light in the
instrument cluster will flash. If this occurs, have your vehicle
checked by your Lexus dealer.
Adaptive front-lighting system
Adaptive front-lighting system (AFS) provides the proper
headlight beam level according to the current driving
conditions. This system moves the headlight beam left or right
according to the turning angle of the steering wheel. The
synergy of this system and the automatic headlight leveling
system improves visibility at the intersections and curves.
The system operates when the vehicle speed increases above
10 km/h (6 mph), and stops when the vehicle speed drops
below 10 km/h (6 mph).
The system can operate within the limited range of the steering
wheel turning angle.

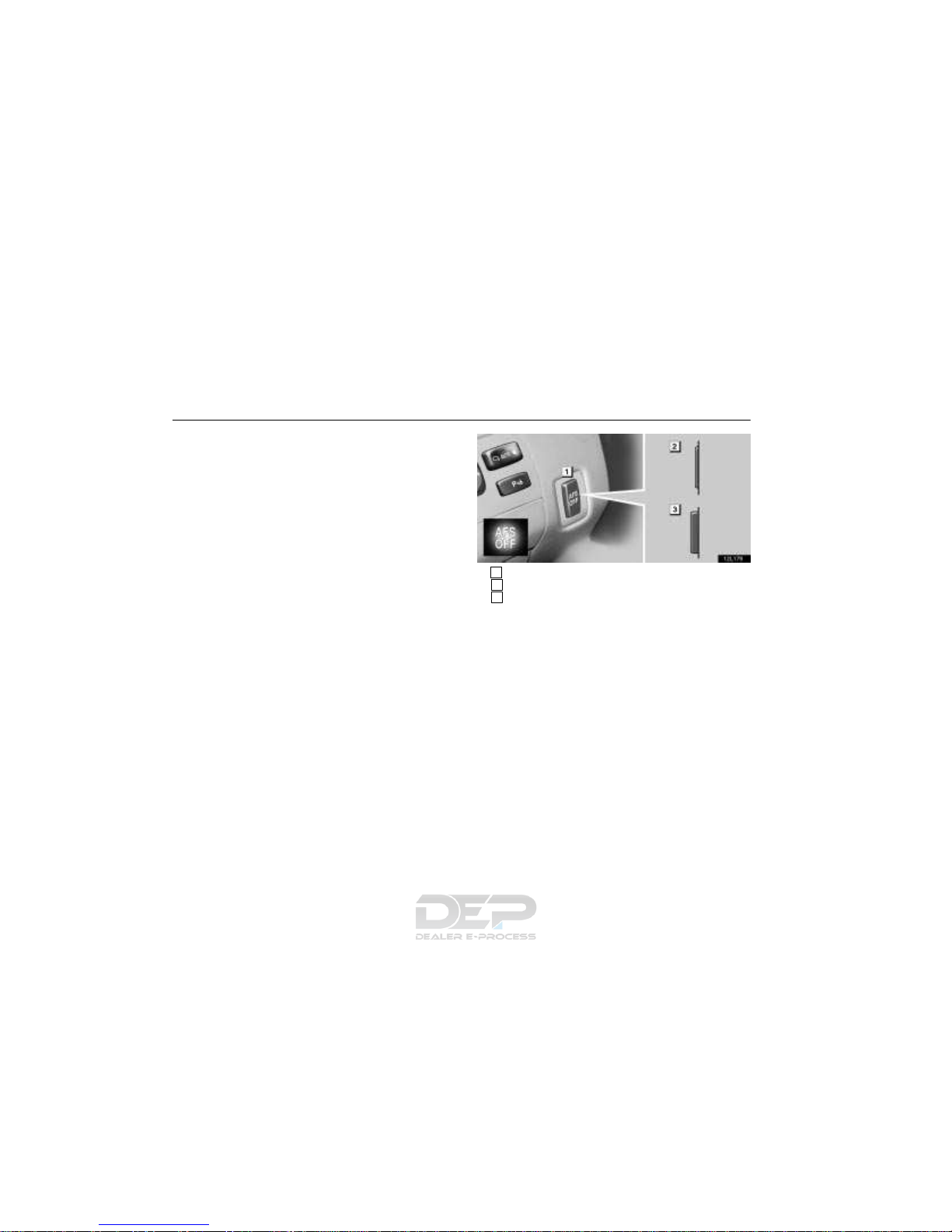

12L179
"
1
Adaptive front-lighting system cancel switch
2
Inoperative
3
Operative
If you do not want to activate the system, push in the
switch to cancel the system. To turn it on, push it again.
When the system is canceled, the “AFS OFF” indicator lights
up in the instrument cluster.
If the system fails, the indicator light in the instrument cluster
will flash. If this occurs, have your vehicle checked by your
Lexus dealer.
Page 77
SWITCHES
57
HEADLIGHT DIMMER AND TURN
SIGNAL SWITCH
12L164
For high beam, push the lever forward. Pull it back for low
beam. For the headlight flasher, pull it further back.
A blue light in the instrument cluster indicates high beam or
headlight flasher is on.
The headlight flasher works even when the headlight switch is
off.
12L165
For signaling turns, move the lever up or down in the
conventional manner.
The ignition switch must be in the “ON” position.
The turn signal is self-cancelling after a turn, but after a lane
change, you may have to cancel it by hand. You can also signal
a lane change by moving the turn signal lever partway and
holding it there.
If the green light in the instrument cluster flashes faster than
normal, it indicates that the front or rear turn signal bulb has
burned out. If this indicator light does not come on, the fuse
or the indicator light itself has probably failed.
Page 78
SWITCHES
58
FOG LIGHT SWITCH
12L166
To turn on the fog lights, twist the band of the headlight
lever to the “ON” position. They will come on only when
the headlights are on low beam.
When
the fog lights are on, the indicator lights up in the
instrument cluster.
WINDSHIELD WIPER AND WASHER
SWITCH
Intermittent operation type
12L120a
"
1
Interval adjuster 2Washer on
To turn the wipers on, move the lever down until you reach
the desired speed setting.
The ignition switch must be in the “ON” position.
There are 3 settings:
“INT” position: Intermittent operation
“LO” position: Low speed operation
“HI” position: High speed operation
Twist the interval adjuster upward to increase the wiping
time interval between sweeps, and downward to decrease
it.
Page 79
SWITCHES
59
The wiper lever must be in the “INT” position.
The time interval between sweeps is shortened when the
vehicle speed increases. When the vehicle speed reaches
more than about 20 km/h (12 mph) with the interval adjuster in
“F” position, the time interval becomes the shortest 1.5
seconds.
If you stop the vehicle with the wiper switch in the “LO” position,
the wiper speed automatically changes from low speed to
intermittent operation speed.* This function does not work
when the interval adjuster is in the “F” position.
NOTE:
* This feature can be deactivated.
Ask your Lexus dealer for details.
For mist wiper operations (a single wipe), pull the lever
toward you and release it.
To make the washer squirt, push the button on the end of
the lever.
If the wiper lever is in the “OFF” position, the wipers will
automatically make 3 wipes and then a single wipe later to
sweep the windshield completely.* The interval between the
3 wipes and the last wipe will depend on the vehicle speed.
The last sweep does not happen if the vehicle speed exceeds
about 170 km/h (106 mph).
NOTE:
* The last single wipe can be deactivated.
Ask your Lexus dealer for details.
The warning message “Low Washer Fluid” is displayed in the
multi- information display when the fluid level in the tank
becomes very low. For information on adding washer fluid, see
“Adding washer fluid” on page 514.
In cold weather, warm the windshield with the defroster before
using the washer. This will help prevent icing, which could
block your vision.
The rear window and outside rear view mirror defogger
automatically turns on when you operate the wipers.
NOTICE
Do not operate the wipers if the windshield is dry. It m ay
scratch the glass.
Page 80
SWITCHES
60
Raindrop detection type
12L167
"
1
Automatic control adjuster 2Washer on
To turn the wipers on, move the lever down until you reach
the desired speed setting.
The ignition switch must be in the “ON” position.
There are 3 settings:
“AUTO” position — Automatic operation
“LO” position — Low speed operation
“HI” position — High speed operation
Automatic operation
The wiper speed is determined by the vehicle speed and
the amount of raindrops and sunlight detected by the
automatic wiper control sensor.
Twist th e a u t omatic control adjuster in the “–” direction to
lower the sensitivity, and the “+” direction to boost the
sensitivity.
12L168
The sensor is on the inside of the windshield as shown above.
Page 81
SWITCHES
61
With the ignition switch turned off, if the windshield sensor is
touched by reason of cleaning the windshield or for any other
reason, either of the following operations may cause automatic
wiper activation.
D Turning the ignition switch on with the wiper lever in the
“AUTO” position.
D Turning the ignition switch on and move the wiper lever
down in the “AUTO” position.
Even with the wiper lever in the “AUTO” position, the system
will switch to intermittent operations if the system malfunctions.
The system will turn off if the windshield gets extremely hot (at
more than 80_C or 176_F) or cold (at less than –10_C or 14_F).
When the ignition switch is turned of f with the wiper lever in the
“AUTO” position, and then the ignition switch is turned on
again, the automatic operation may not work even if raindrops
are on the windshield.
In this case, move the lever to another position and return it to
the “AUTO” position again.
CAUTION
Be careful not to get your fingers caught between the
wipers and windshield.
When the wiper lever is in the “AUTO” position with the
ignition switch on, the wipers could operate
automatically in the following cases:
D If you touch the upper center of the windshield
adjacent to the sensor.
D If you wipe the upper center of the windshield
(adjacent to which the sensor is located) with a towel.
D If the windshield vibrates.
D If you touch the sensor.
Page 82
SWITCHES
62
For mist wiper operations (a single wipe), pull the lever
toward you and release it.
To make the washer squirt, push the button on the end of
the lever.
If the wiper lever is in the “OFF” position, the wipers will
automatically make 3 wipes and then a single wipe later to
sweep the windshield completely.* The interval between the
3 wipes and the last wipe will depend on the vehicle speed.
The last sweep does not happen if the vehicle speed exceeds
about 170 km/h (106 mph).
NOTE:
* The last single wipe can be deactivated.
Ask your Lexus dealer for details.
The warning message “Low Washer Fluid” is displayed in the
multi- information display when the fluid level in the tank
becomes very low. For information on adding washer fluid, see
“Adding washer fluid” on page 514.
In cold weather, warm the windshield with the defroster before
using the washer. This will help prevent icing, which could
block your vision.
The rear window and outside rear view mirror defogger
automatically turns on when you operate the wipers.
NOTICE
Do not operate the wipers if the windshield is dry. It m ay
scratch the glass.
HEADLIGHT CLEANER SWITCH

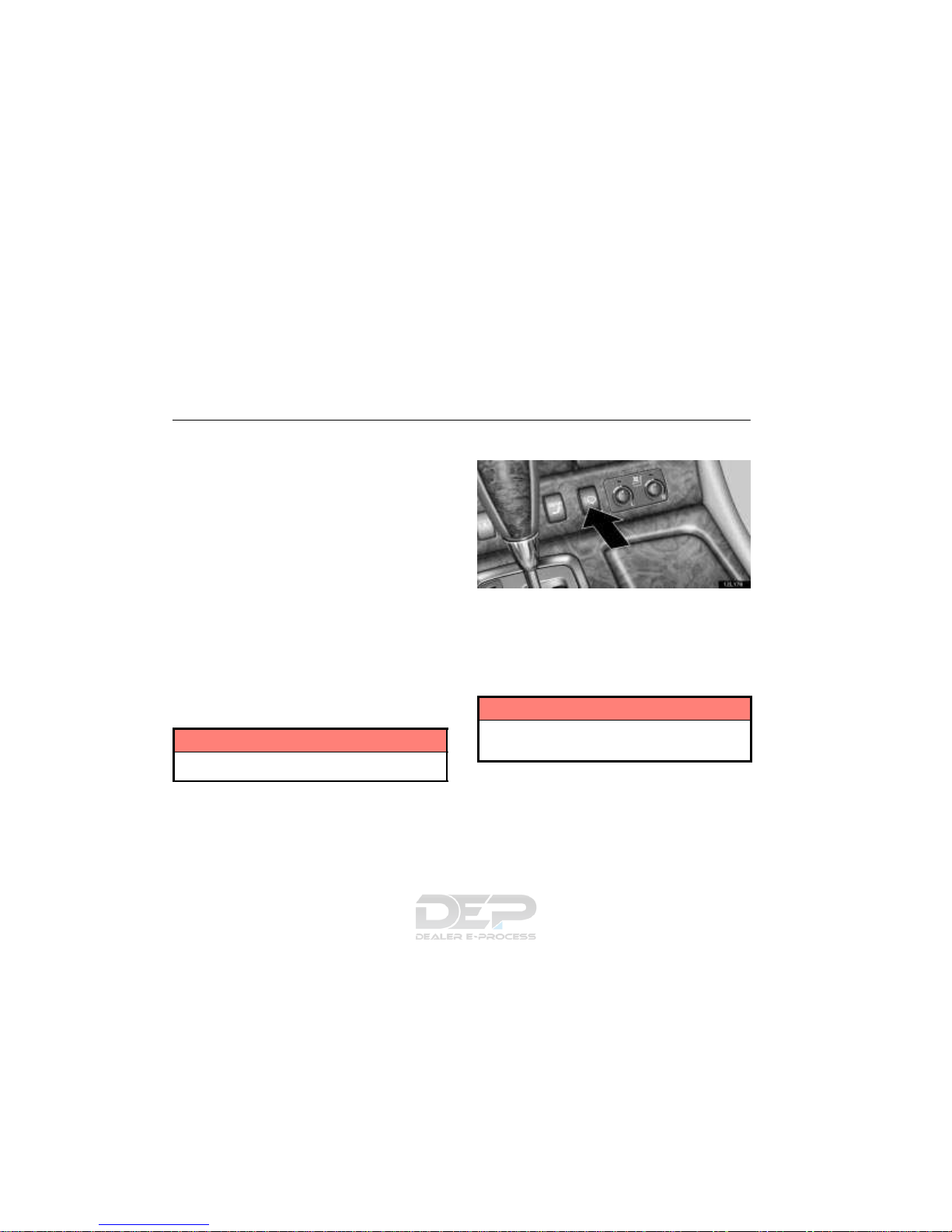

12L176
To spray fluid on the headlights, push the switch with the
headlights on.
The ignition switch must be in the “ON” position.
The warning message “Low Washer Fluid” is displayed in the
multi- information display when the fluid level in the tank
becomes very low. For information on adding washer fluid, see
“Adding washer fluid” on page 514.
NOTICE
Do not turn the headlight cleaner on with the washer
fluid tank empty. It may cause the cleaner motor to
overheat.
Page 83
SWITCHES
63
REAR WINDOW AND OUTSIDE
REAR VIEW MIRROR DEFOGGER
SWITCH

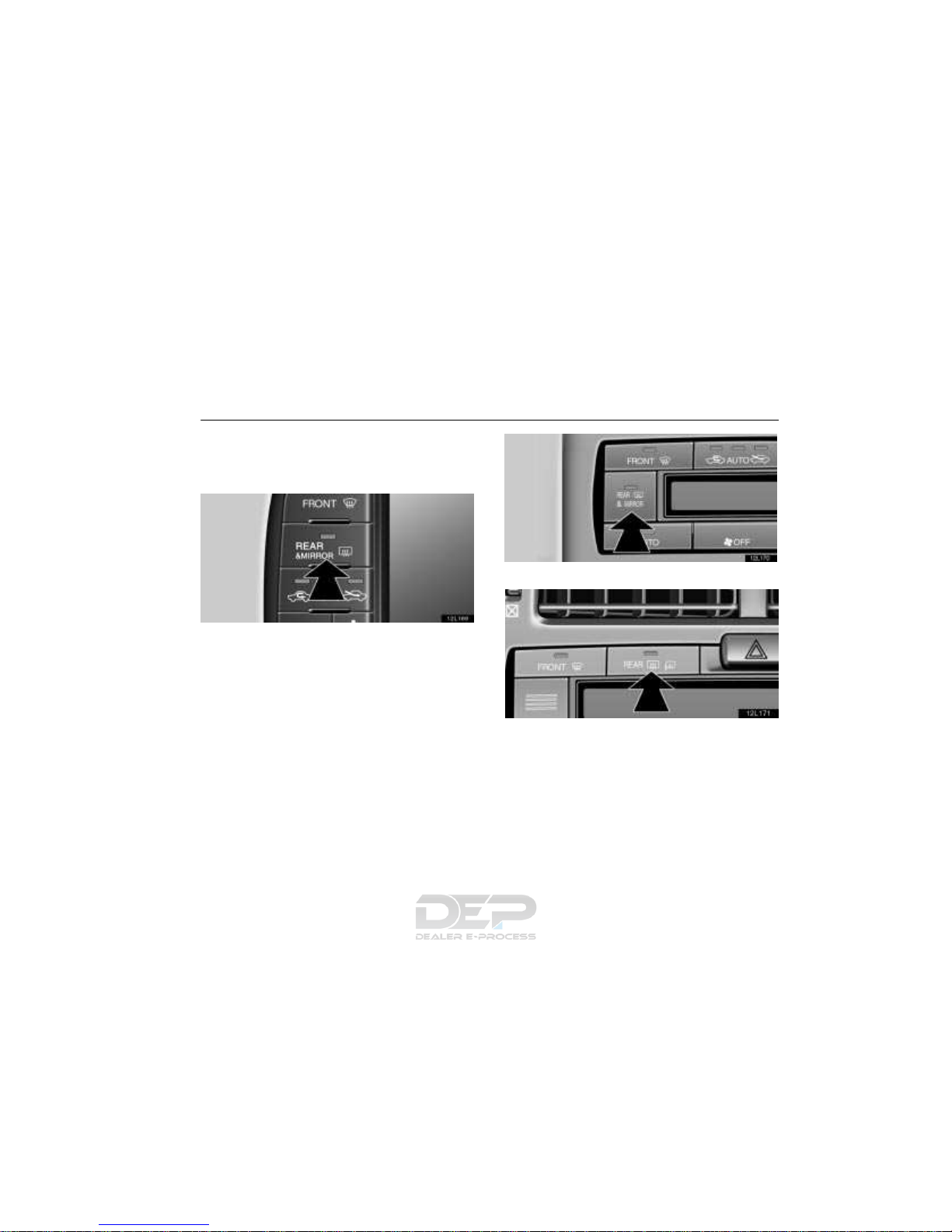

12L169
"
Vehicles with navigation system
12L170
"
Vehicles with rear air conditioning
12L171
"
Vehicles without rear air conditioning
To turn the electric rear window defogger on, push the
switch.
The ignition switch must be in the “ON” position.
Page 84
SWITCHES
64
The thin heater wires on the inside of the rear window and the
heater panels in the outside rear view mirrors will quickly clear
the surface. Keep your hands off the mirror faces when the
switch is on. An indicator light is on when the defogger is
operating.
The system will automatically shut off when the defogger has
operated about 15 minutes.
CAUTION
Since the mirror surfaces can get hot, do not touch them
when the switch is on.
If further defrosting or defogging is desired, simply actuate the
switch again. When the surface has cleared, push the switch
once again to turn the defogger off. Continuous use may cause
the battery to discharge, especially during stop- and- go
driving. The defogger is not designed to dry rain water or to
melt snow.
If the outside rear view mirrors are heavily coated with ice, use
a spray de-icer before operating the switch.
NOTICE
D
When cleaning the inside of the rear window, be
careful not to scratch or damage the heater wires or
connectors.
D
To prevent the battery from being discharged, turn
the switch off when the engine is not running.
POWER WINDOW SWITCHES

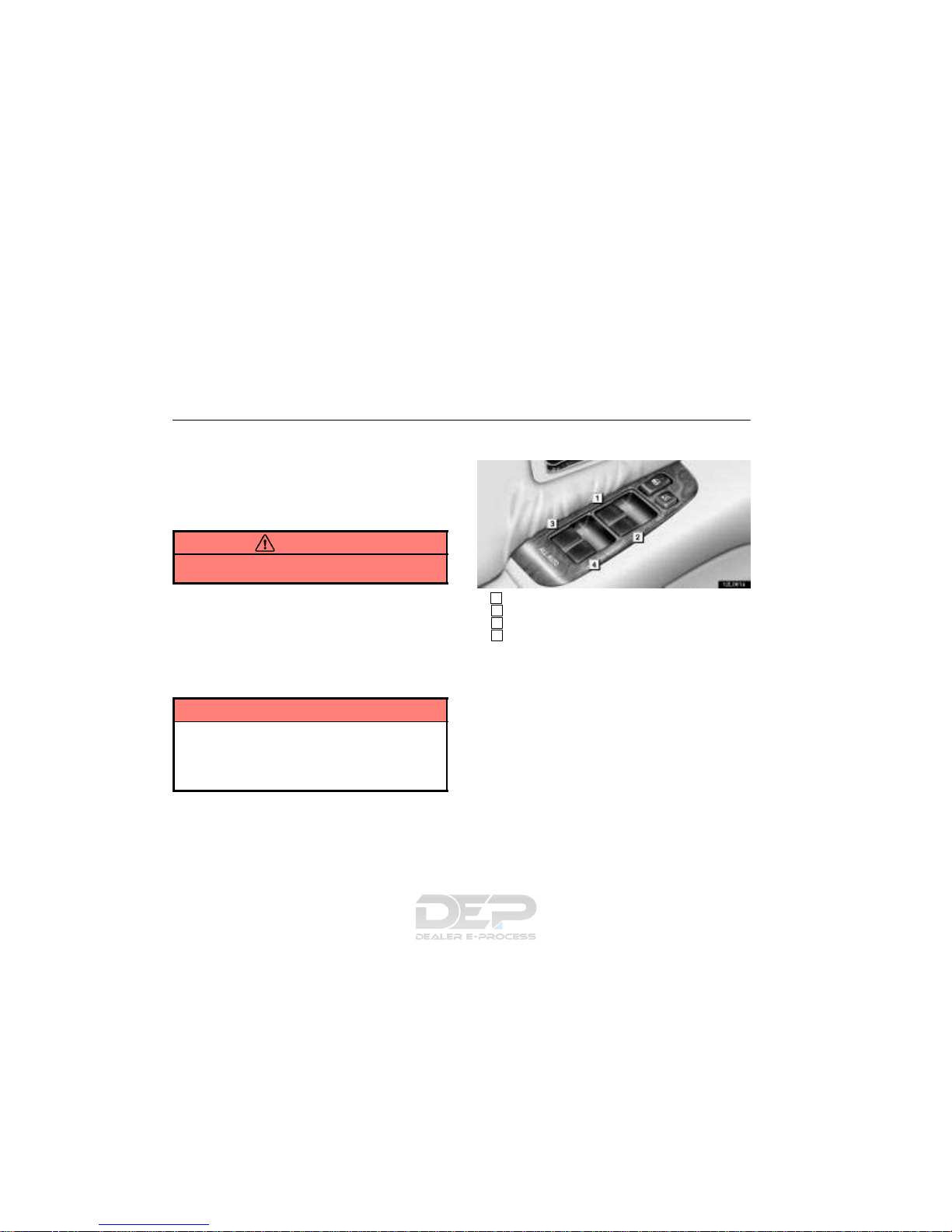

12L061a
"
1
For driver’s window
2
For front passenger’s window
3
For left rear window
4
For right rear window
To raise or lower the windows, use the switch on each
door. The passengers’ windows can also be controlled by
the switches on the driver’s door.
The power windows work when the ignition switch is in the
“ON” position.
Key off operation: Even if the ignition switch is turned to the
“ACC” or “LOCK” position with all the doors closed, the window
can be operated until any of the doors is opened (or for about
45 seconds).
Page 85
SWITCHES
65

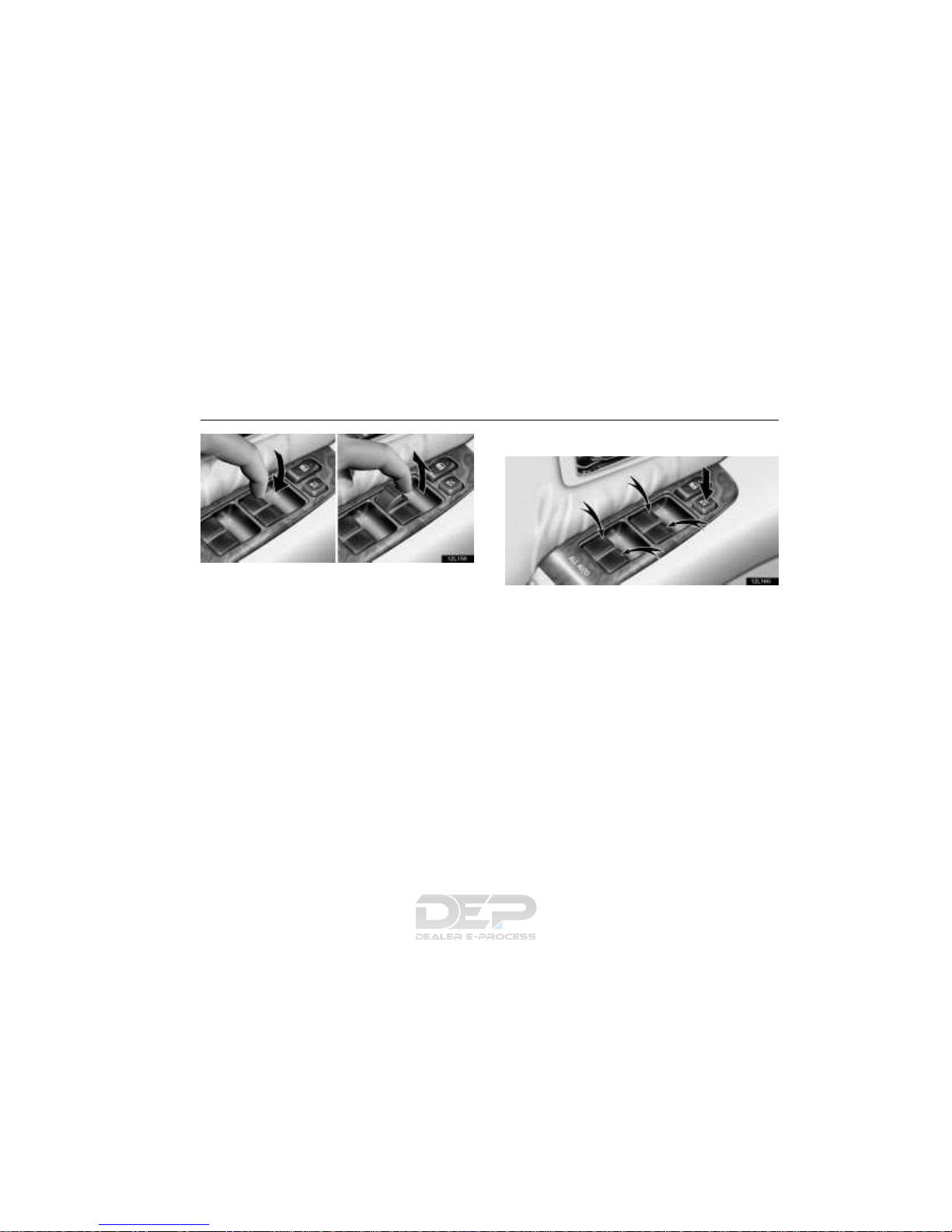

12L159
Operating the switches
To lower the window, push the switch halfway down. Pull
it up to raise the window. The window glass moves as long
as the switch is operated.
Automatic operation: To fully raise or lower the window
automatically, pull the switch fully up or push it fully down.
To stop the window partway, lightly push or pull the switch in
the opposite direction and then release it.
Operating the window lock switch
12L160
"
Indicator light
With the window lock switch pressed in, only the driver’s
window can be raised or lowered.
The indicator lights on the switches tell you which of the
switches can be operated.
Even with the window lock switch pressed in, the windows will
be opened from outside the vehicle using an ignition key or
wireless remote control.
Page 86
SWITCHES
66
Operating the windows from outside the
vehicle
The windows can be operated using the key.*
NOTE:
* This feature can be deactivated.
Ask your Lexus dealer for details.

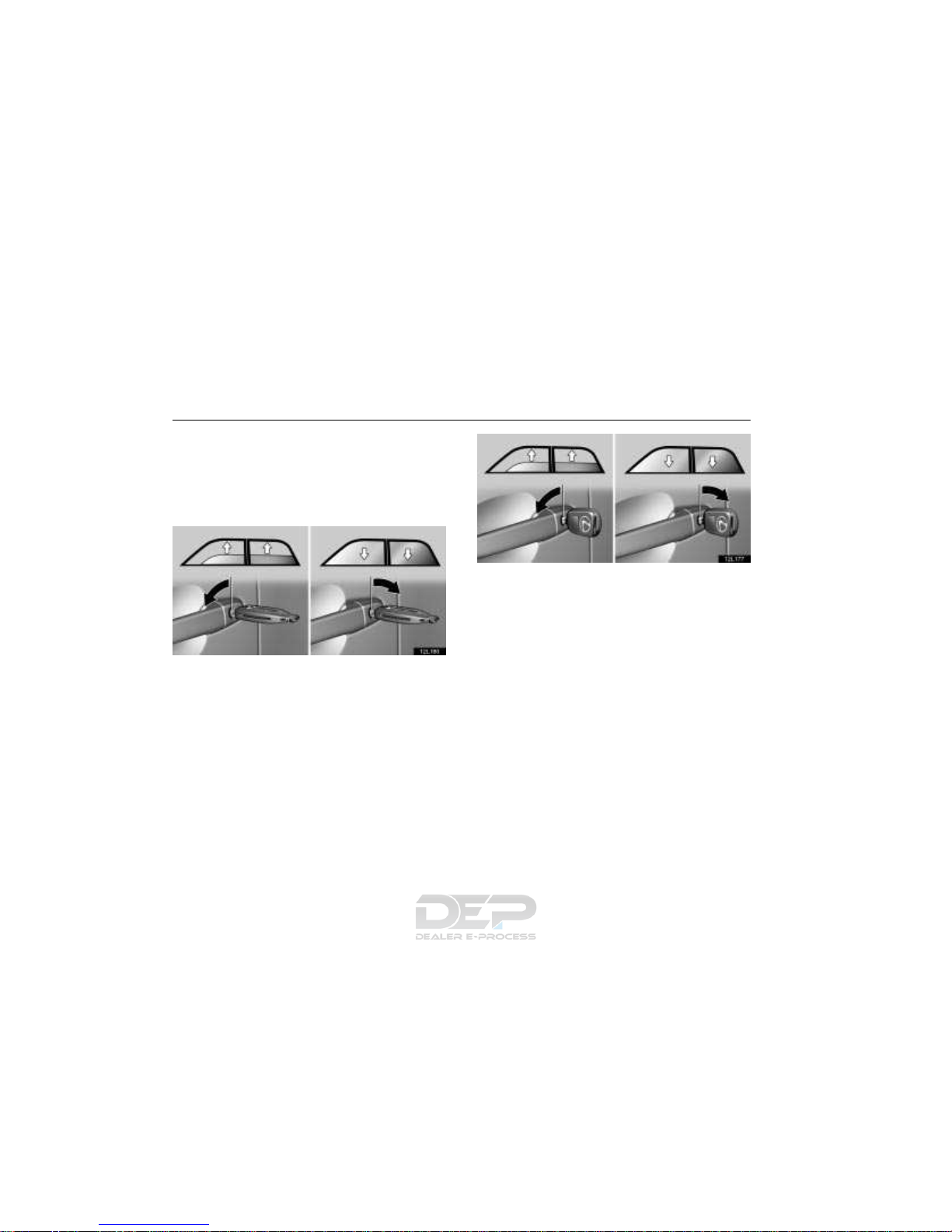

12L180
"
Type A
12L177
"
Type B
Insert the key into the keyhole on the driver’s door.
To close the windows: Turn the key in the locking direction
and hold it.
After the door is locked, the windows begin to close. To stop
in the middle, return the key.
To open the windows: T urn the key in the unlocking direction
and hold it.
After the door is unlocked, the windows begin to open. To stop
in the middle, return the key.
This function will work even with the window lock switch
pressed in.
The windows also can be opened using the wireless remote
control. For details, see page 40.
Page 87
SWITCHES
67
Jam protection function
During automatic raising operation, key off raising operation or
raising operation using the key from the outside, the window
stops and is lowered if something gets caught between the
window and window frame.
If the window receives a strong impact, this function may work
even if nothing is caught.
CAUTION
To avoid serious personal injury, you must do the
following.
D Before you close the power windows, always make
sure there is nobody around the power windows. Y
ou
must also make sure the heads, hands and other
parts of the bodies of all occupants are kept
completely inside the vehicle. If someone’s neck,
head or hands get caught in a closing window, it
could result in a serious injury. When anyone closes
the power windows, make sure he or she operates the
windows safely.
D When small children are in the vehicle, never let them
use the power window switches without supervision.
Use the window lock switch to prevent them from
making unexpected use of the switches.
D Be sure to remove the ignition key or turn the ignition
switch to the “LOCK” position when you leave your
vehicle.
D Never leave anyone (particularly a small child) alone
in your vehicle, especially with the ignition key still
inserted or with the ignition switch in a position other
than “LOCK”. Otherwise, he/she could use the power
window switches and get trapped in a window.
Unattended person (pa rticularly a small child) can be
involved in a serious accident.
D Never try jamming any part of your body to activate
the jam protection function intentionally.
D The jam protection function may not work if
something gets caught just before the window is fully
closed.
Page 88
SWITCHES
68
EMERGENCY FLASHER SWITCH

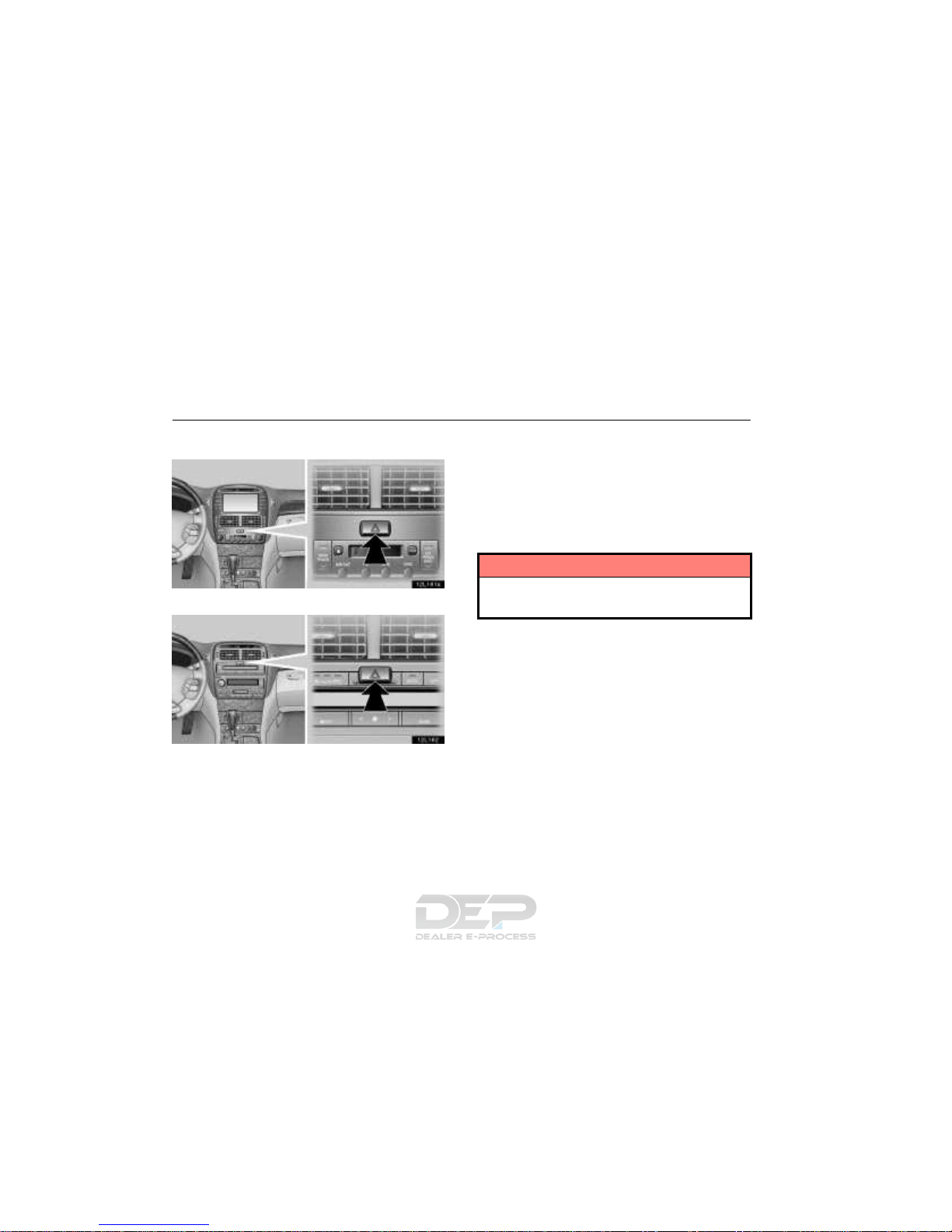

12L161a
"
Vehicles with navigation system
12L162
"
Vehicles without navigation system
To turn on the emergency flashers, push the switch. To
turn them off, push the switch again.
All the turn signal lights will flash. The emergency flashers will
work with the engine running or off and with or without the
ignition key.
Turn on the emergency flashers to warn other drivers if you
must stop your vehicle where it might be a traffic hazard.
Always pull your vehicle as far off the road as possible.
The turn signal light switch will not work when the emergency
flashers are in operation.
NOTICE
To prevent the battery from being discharged, do not
leave the switch on longer than necessary when the
engine is not running.
Page 89
SWITCHES
69
SEAT HEATER SWITCHES
Front seat heater

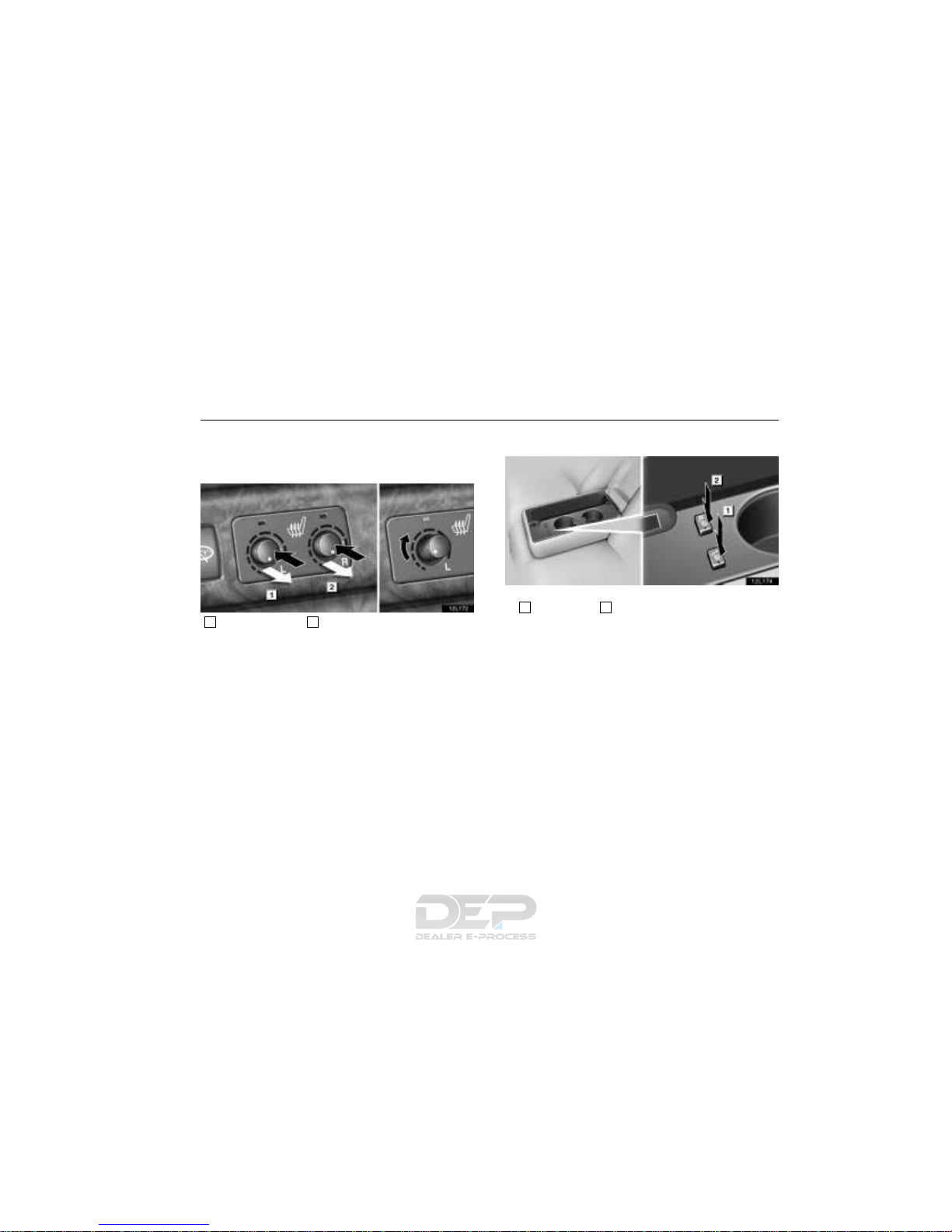

12L172
1
For driver’s seat 2For front passenger’s seat
The front seat heater has two switches: one marked “L”
(for the left seat) and the other marked “R” (for the right
seat).
The ignition switch must be in the “ON” position.
To use the seat heater:
1. Push the knob to pop it out.
2. Turn the knob clockwise. The indicator light turns on.
3. Adjust the knob to the desired temperature.
To turn off the seat heater, turn the knob counterclockwise until
it stops.
Push the knob into the recessed position when not in use.
Rear seat heater
12L174
"
Vehicles without rear power seats
1
For left seat 2For right seat
The rear seat heater has two switches: one marked “L”
(for the left seat) and the other marked “R” (for the right
seat). Push these switches to turn the respective seat
heaters on, and push the switches again to turn them off.
The ignition switch must be in the “ON” position.
The indicator light turns on when the seat heater is operating.
Page 90
SWITCHES
70
CAUTION
Occupants must use caution when operating the seat
heater because they may experience minor burns even
at low temperatures. Use extra caution for;
D Babies, small children, elderly persons, sick persons
or persons with physical disabilities
D Persons who have delicate skin
D Persons who are exhausted
D Persons who have taken alcohol or drugs which
induce sleep (sleeping drug, cold remedy, etc.).
To prevent the seat from overheating, do not use the
seat heater with a blanket, cushion, or other insulating
objects which cover the seat.
NOTICE
D
Do not put unevenly weighted objects on the seat and
do not stick sharp objects (needles, nails, etc.) into
the seat.
D
When cleaning the seats, do not use organic
substances (paint thinner, benzine, alcohol,
gasoline, etc.). They may damage the heater and seat
surface.
D
To prevent the battery from being discharged, turn
the switches off when the engine is not running.
Page 91
SWITCHES
71
CLIMATE CONTROL SEAT
SWITCHES
The climate control seat feeds air at the temperature you
desire from the seat surface, for the comfort of the
occupants.
Front climate control seats

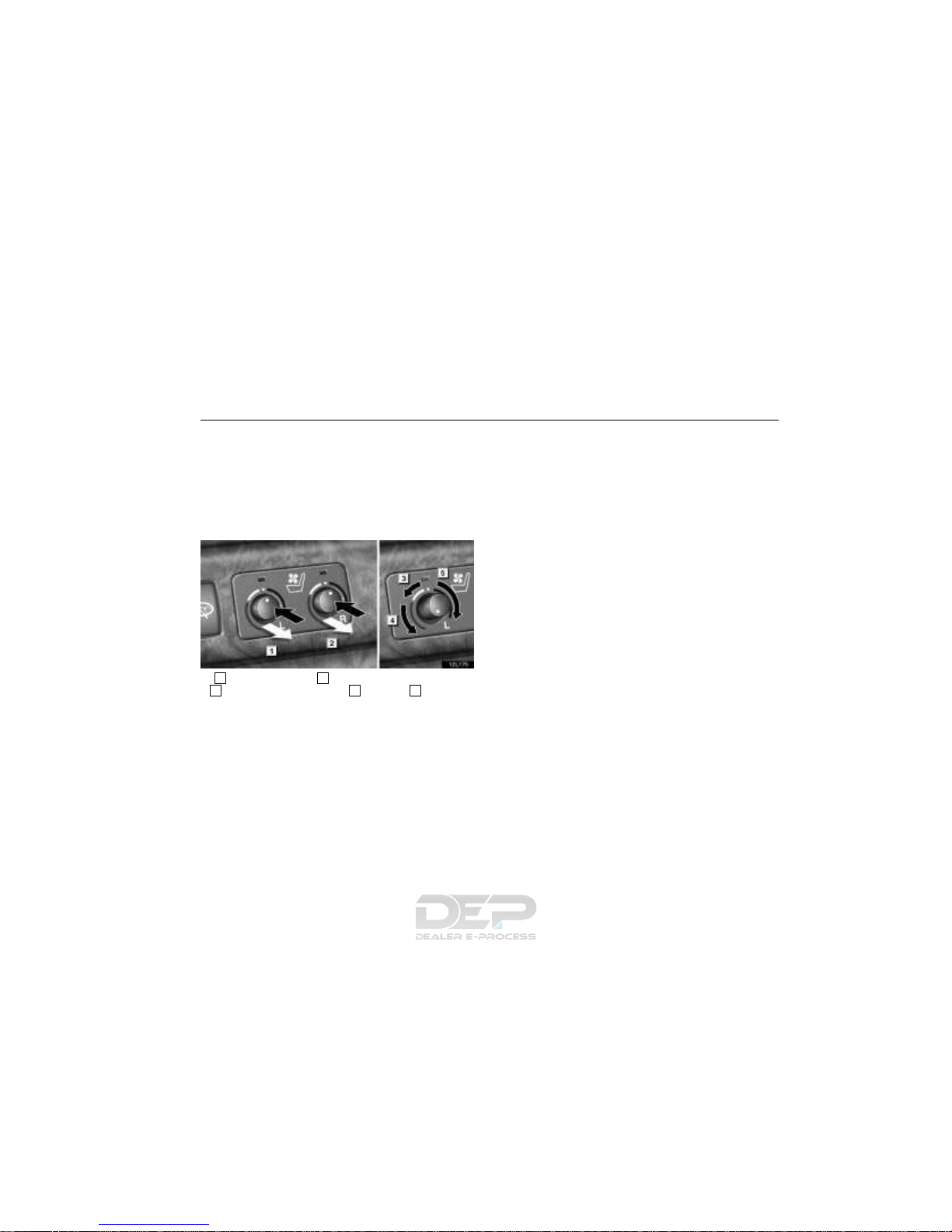

12L175
"
1
For driver’s seat 2For front passenger’s seat
3
Air at room temperature 4Cool air 5Warm air
The front climate control seat has two switches: one
marked “L” (for the front left seat) and the other marked
“R” (for the front right seat).
The ignition switch must be in the “ON” position.
The front climate control seat has three modes: air at room
temperature, cool air and warm air.
To use the front seat climate control, push the knob to pop
it out and then turn the knob. The indicator light comes
on.
To feed air at room temperature, turn the knob to the gray
zone.
To feed cool air, turn the knob counterclockwise and set the
knob in the blue zone. Three setting levels are available.
To feed warm air , turn the knob clockwise and set the knob in
the red zone. Three setting levels are available.
After the switch is turned on, it takes several minutes until you
feel warm or cool.
To disable this function, turn the knob to the center position (the
gray dot). The indicator light goes off.
Push the knob into the recessed position when not in use.
Page 92
SWITCHES
72
Rear climate control seats

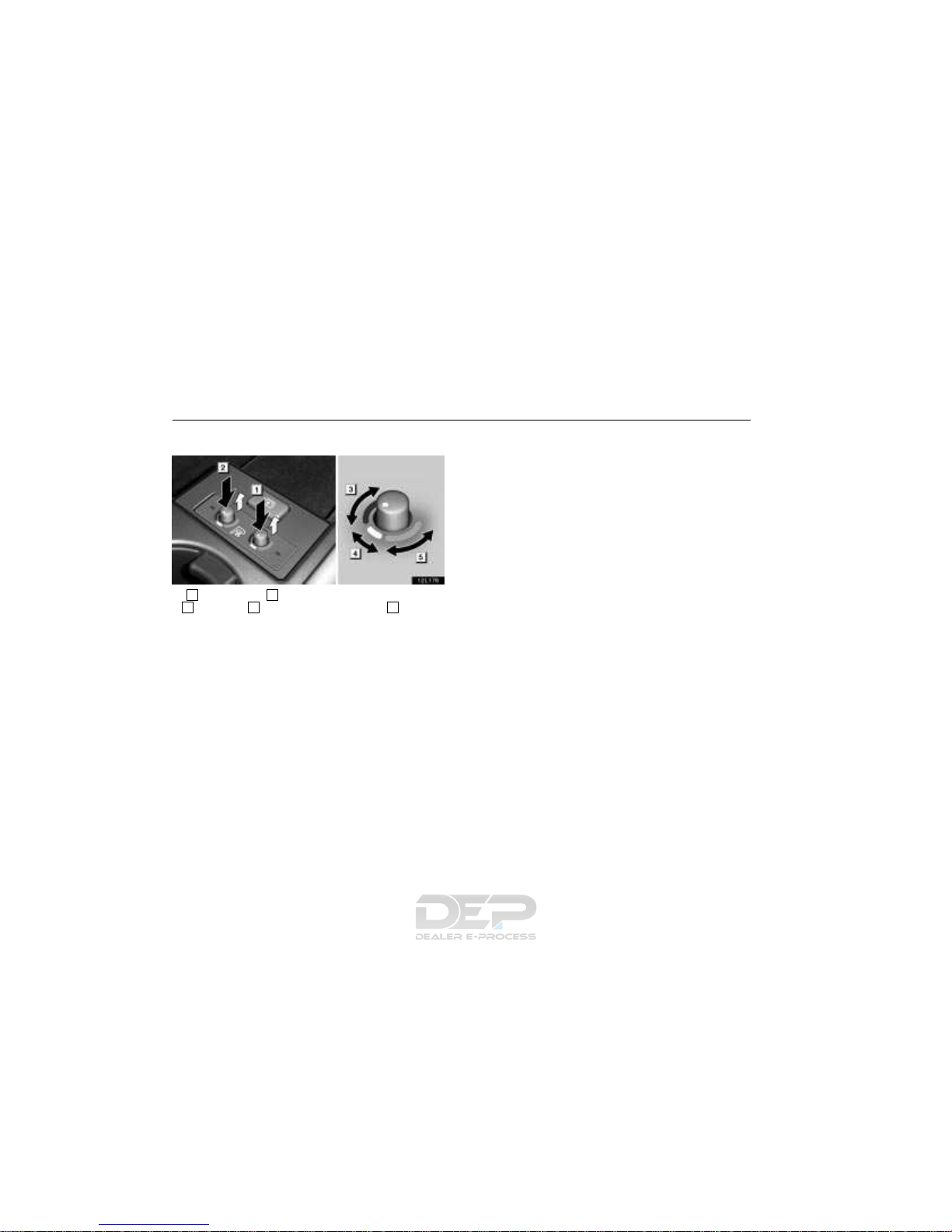

12L178
"
1
For left seat 2For right seat
3
Warm air 4Air at room temperature 5Cool air
The rear climate control switches are located in the rear
armrest.
The rear climate control seat has two switches: one
marked “L” (for the rear left seat) and the other marked
“R” (for the rear right seat).
The ignition switch must be in the “ON” position.
The rear climate control seat has three modes: air at room
temperature, cool air and warm air.
To use the rear seat climate control, push the knob and
turn the knob. The indicator light comes on.
To feed air at room temperature, turn the knob to the gray
zone.
To feed cool air, turn the knob counterclockwise and set the
knob in the blue zone. Three setting levels are available.
To feed warm air , turn the knob clockwise and set the knob in
the red zone. Three setting levels are available. When you
push and turn the knob to the red zone, the seat heater turns
on first and then the rear climate control operates to feed warm
air.
After the switch is turned on, it takes several minutes until you
feel warm or cool.
To disable this function, push the knob again. The indicator
light goes off.
If you turn off the ignition switch without turning off the rear
climate control seat, the rear climate control seat does not turn
on with the ignition on.
Page 93
SWITCHES
73
CAUTION
Use caution when operating the climate control seat.
The occupants listed below may experience minor
burns even at low temperatures from warm air.
D Babies, small children, elderly persons, sick persons
or persons with physical disabilities
D Persons who have delicate skin
D Persons who are exhausted
D Persons who have taken alcohol or drugs which
induce sleep (such as sleeping drugs or cold
remedies).
To prevent the seat from overheating, do not use the
climate control seat if a blanket, cushion, or other
insulating object covers the seat. Use also caution not
to overuse this feature, which may cool down the
occupants excessively.
NOTICE
D
Do not put unevenly weighted objects on the seat .
Do not stick sharp objects (such as needles or nails)
into the seat.
D
When cleaning the seats, do not use harsh cleaning
substances (such as paint thinner, benzine, alcohol
or gasoline). They may damage the climate control
seat and seat surface.
D
Clean the seats using a towel wrung out of water.
Entering water in the seats may cause the
malfunction of the climate control seats.
D
To prevent the battery from being discharged, turn
the switches off when the engine is not running.
Page 94
SWITCHES
74
Replacing the air filters
The air filters may clog after the long use of the climate control
seats which will reduce the air flow. However, you can inspect
the filters easily.
When you replace the air filters, be sure to turn off the fans.
Front

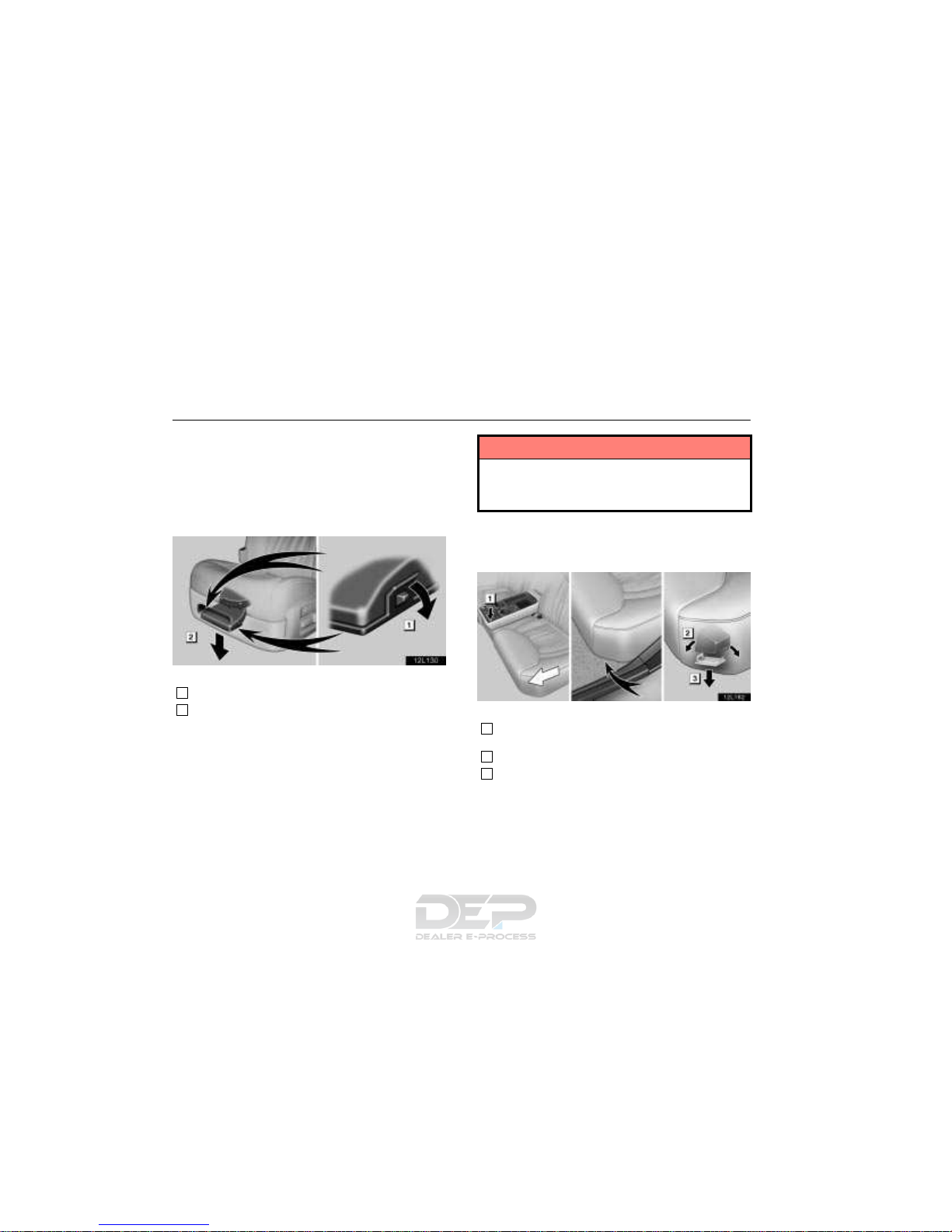

12L130
"
Under the seat
1
Remove the air filter locks.
2
Remove the air filter.
The front climate control seat filters are located under the
driver and front passenger seats.
Replace the air filter when the performance of air flow becomes
low by the deterioration of filter.
NOTICE
The air filters should be installed properly in position.
The use of front climate control seat with the air filter
removed may cause the malfunction of the front climate
control seat.
Rear
The rear climate control seat filters are located in the rear side
garnishes and under the rear outside passenger seats.
12L182
"
Under the seat
1
Push the rear seat position control button to slide the rear
seat to the foremost position.
2
Remove the air filter lock under the seat.
3
Remove the air filter.
Replace the air filter when the performance of air flow becomes
low by the deterioration of filter.
Page 95
SWITCHES
75
NOTICE
The air filters should be installed properly in position.
The use of rear climate control seat with the air filter
removed may cause the malfunction of the rear climate
control seat.

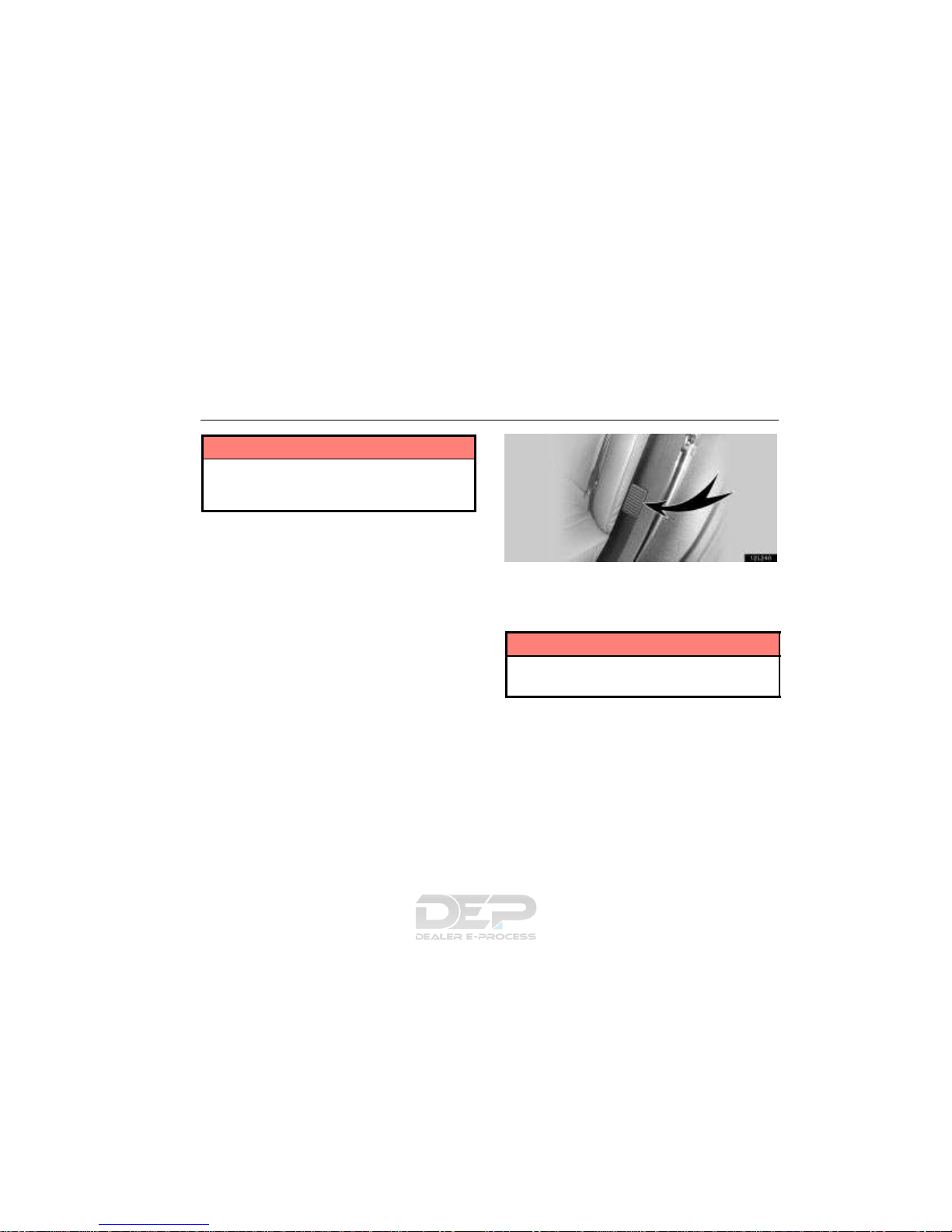

12L240
"
On the side garnish
The side garnish filters should be replaced at your Lexus
dealer. When you replace the filters under the seats, have the
side garnish filters replaced as well.
NOTICE
Do not remove the side garnish filters or clean them by
washing or air blowing. Doing so may cause the
malfunction of the rear climate control seat.
Page 96
SWITCHES
76
REFRESHING REAR SEAT
SWITCHES

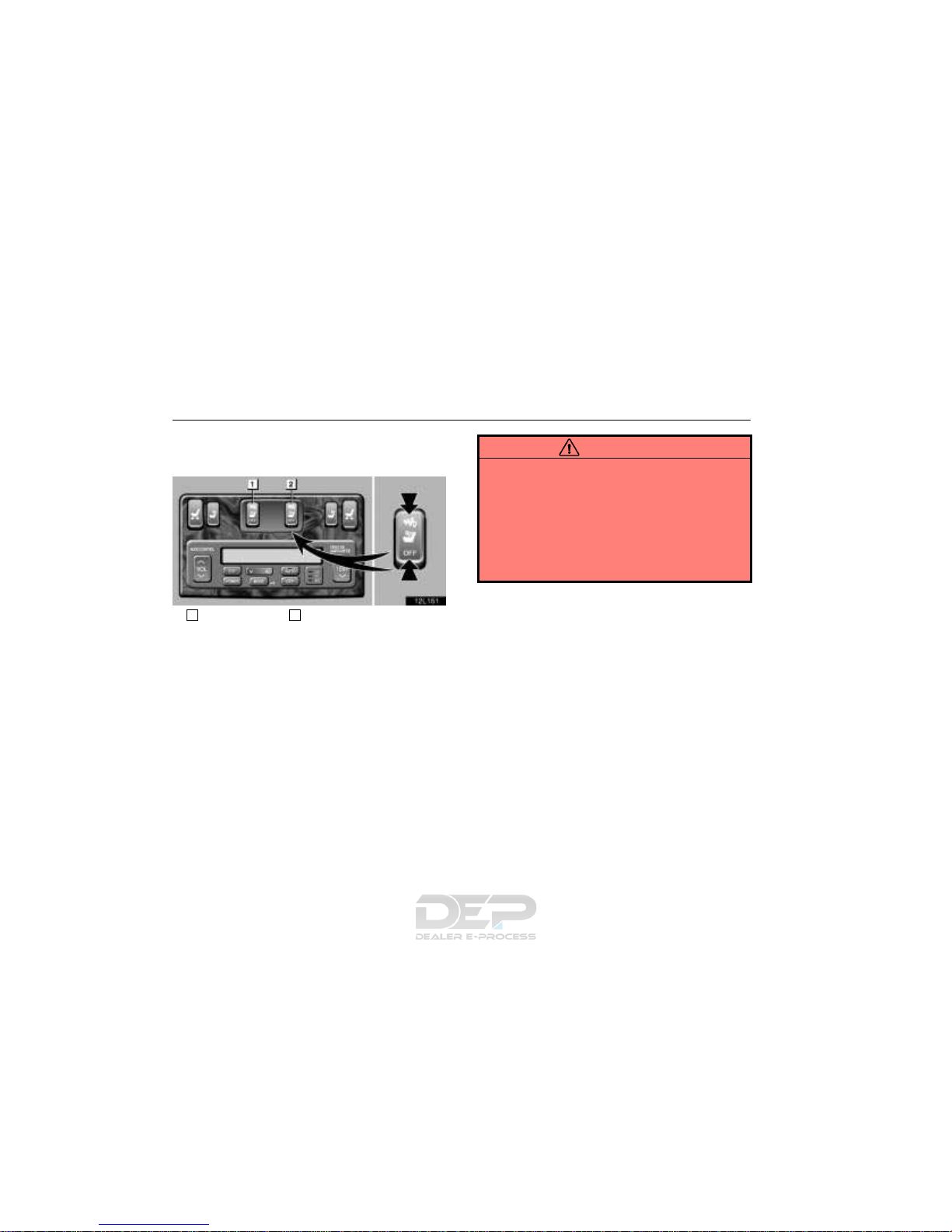

12L151
"
1
For left rear seat 2For right rear seat
The refreshing rear seat is designed to reduce lumbar
fatigue by means of a lumbar vibrator.
The ignition switch must be in the “ON” position.
To operate the lumbar vibrator, push the switch on the front
side. Keep pushing the switch down to change the vibration
speed.
To stop the vibrator, push the switch on the rear side.
CAUTION
D Those who are pregnant, have just given birth, or
suffer from heart disease and other ailments
requiring rest, should consult a doctor before using
the refreshing seat.
D Do not allow children to use the refreshing seat.
D Do not use the refreshing seat immediately after
meals or for extended periods.
D If you feel sick while using the refreshing seat,
immediately stop using it.
Page 97
SWITCHES
77
Page 98
SECTION 1 –
3
78
INSTRUMENTS AND CONTROLS
Gauges, meters and service reminder
indicators
Fuel gauge 79.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine coolant temperature gauge 79. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tachometer 80. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Odometer and trip meter 81. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service reminder indicators and warning buzzers 81. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Multi-information display 89. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Compass 104. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instrument panel light control 108. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Page 99
GAUGES, METERS AND SERVICE REMINDER INDICATORS
79
FUEL GAUGE

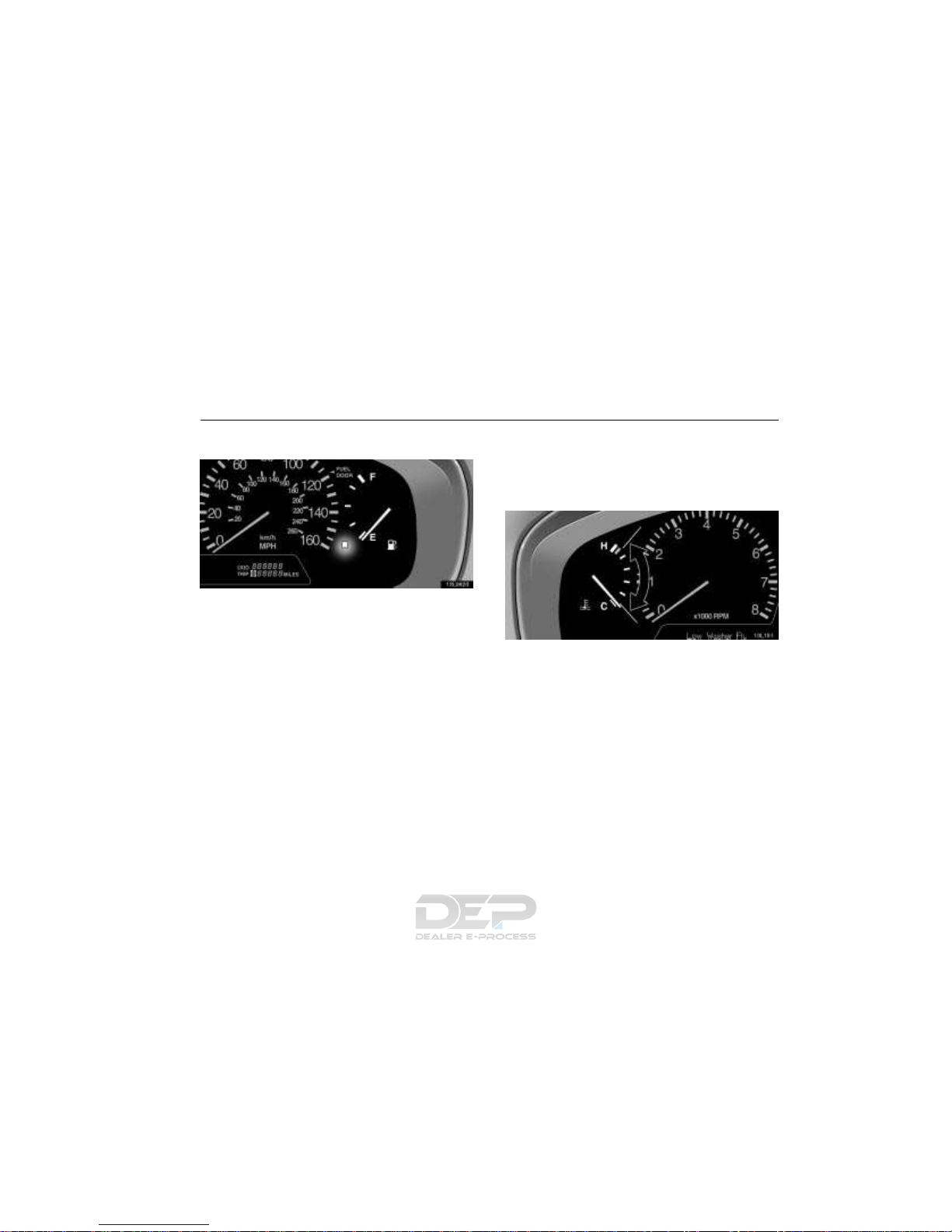

13L062d
"
Low fuel level warning light
The gauge indicates the approximate quantity of fuel
remaining in the tank when the ignition switch is on.
It is a good idea to keep the tank over 1/4 full.
If the fuel level approaches “E” or the low fuel level warning light
comes on, fill the fuel tank as soon as possible.
On inclines or curves, due to the movement of fuel in the tank,
the fuel gauge needle may fluctuate or the low fuel level
warning light may come on earlier than usual.
If the fuel tank is completely empty, the malfunction indicator
lamp comes on. Fill the fuel tank immediately.
The indicator lamp goes off after driving several times. If the
indicator lamp does not go off, contact your Lexus dealer as
soon as possible.
See the inner back cover for fuel capacity and recommended
fuel selection.
ENGINE COOLANT
TEMPERATURE GAUGE
13L151
"
Normal range
The gauge indicates the engine coolant temperature when
the ignition switch is on. The engine operating
temperature will vary with changes in weather and engine
load.
If the needle points to the red zone or higher, stop your vehicle
and allow the engine to cool.
Your vehicle may overheat during severe operating conditions,
such as:
D Driving up a long hill on a hot day.
D Reducing speed or stopping after high speed driving.
Page 100
GAUGES, METERS AND SERVICE REMINDER INDICATORS
80
D Idling for a long period with the air conditioning on in
stop-and-go traffic.
D Towing a trailer.
NOTICE
D
Do not remove the thermostat in the engine cooling
system as this may cause the engine to overheat. The
thermostat is designed to control the flow of coolant
to keep the temperature of the engine within the
specified operating range.
D
Do not continue driving with an overheated engine.
See “If your vehicle overheats” on page 401.
TACHOMETER

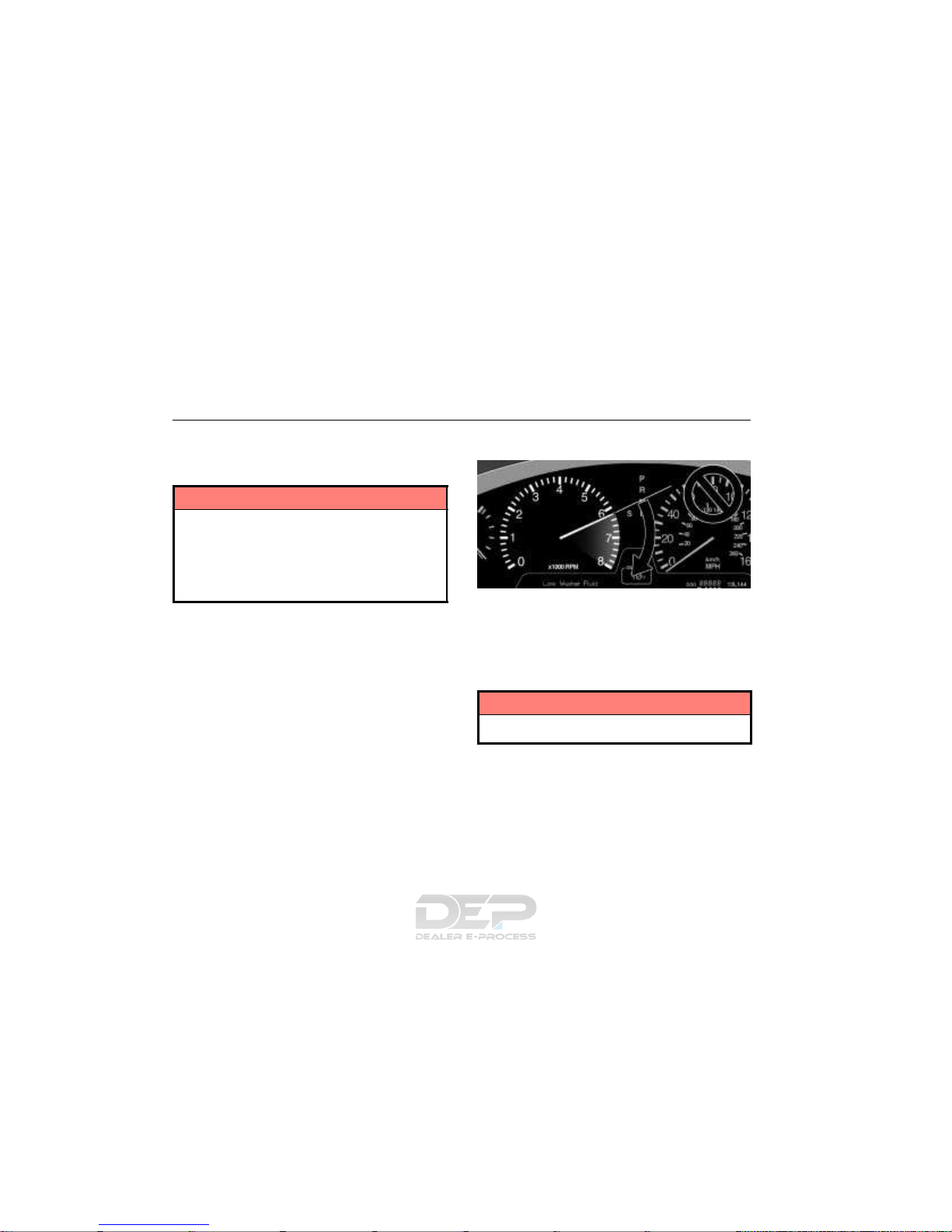

13L144
The tachometer indicates engine speed in thousands of
rpm (revolutions per minute). Use it while driving to
prevent engine over-revving.
Driving with the engine running too fast causes excessive
engine wear and poor fuel economy. Remember, in most
cases the slower the engine speed, the greater the fuel
economy.
NOTICE
Do not let the indicator needle get into the red zone. This
may cause severe engine damage.
Loading...
