Lexus 2003 SC430 Owner's Manual

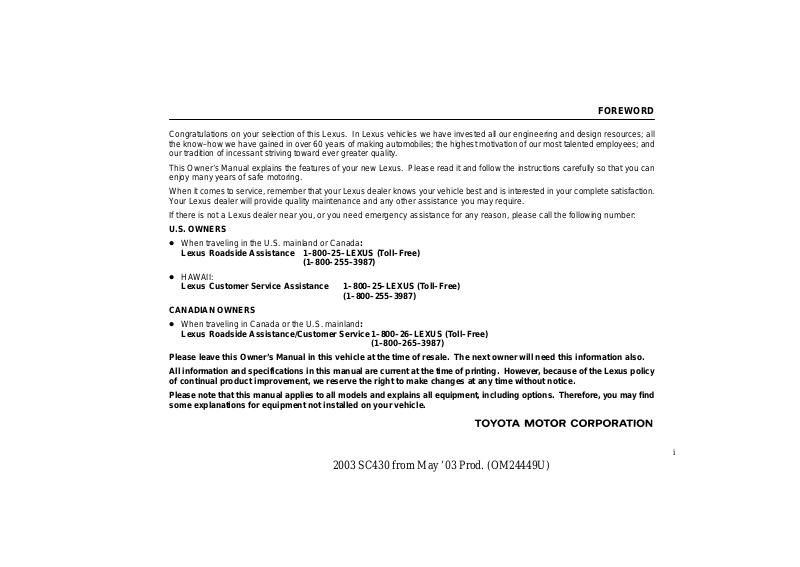

FOREWORD
Congratulations on your selection of this Lexus. In Lexus vehicles we have invested all our engineering and design resources; all
the know–how we have gained in over 60 years of making automobiles; the highest motivation of our most talented employees; and
our tradition of incessant striving toward ever greater quality.
This Owner’s Manual explains the features of your new Lexus. Please read it and follow the instructions carefully so that you can
enjoy many years of safe motoring.
When it comes to service, remember that your Lexus dealer knows your vehicle best and is interested in your complete satisfaction.
Your Lexus dealer will provide quality maintenance and any other assistance you may require.
If there is not a Lexus dealer near you, or you need emergency assistance for any reason, please call the following number:
U.S. OWNERS
When traveling in the U.S. mainland or Canada:
Lexus Roadside Assistance 1–800–25–LEXUS (Toll–Free)
HAWAII:
Lexus Customer Service Assistance 1–800–25–LEXUS (Toll–Free)
CANADIAN OWNERS
When traveling in Canada or the U.S. mainland:
Lexus Roadside Assistance/Customer Service1–800–26–LEXUS (Toll–Free)
Please leave this Owner’s Manual in this vehicle at the time of resale. The next owner will need this information also.
All information and specifications in this manual are current at the time of printing. However, because of the Lexus policy
of continual product improvement, we reserve the right to make changes at any time without notice.
Please note that this manual applies to all models and explains all equipment, including options. Therefore, you may find
some explanations for equipment not installed on your vehicle.
(1–800–255–3987)
(1–800–255–3987)
(1–800–265–3987)
2003 SC430 from May ’03 Prod. (OM24449U)
i
INTRODUCTION
New vehicle warranty
Your new vehicle is covered by the following Lexus limited
warranties:
New vehicle warranty
Emission control systems warranty
Others
For further information, please refer to the “Owner’s Guide”,
“Owner’s Manual Supplement” or “Warranty Booklet”.
Your responsibility for maintenance
It is the owner’s responsibility to make sure the specified
maintenance is performed. Section 5 of this Owner’s Manual
gives details of these maintenance requirements. Included in
Section 6 is general maintenance. For scheduled
maintenance infor m a t i o n , p l ease refer to the “Owner’s Manual
Supplement / Scheduled Maintenance”.
Accessories, spare parts and modification of
your Lexus
A wide variety of non–genuine spare parts and accessories for
Lexus vehicles are currently available in the market. You
should know that Toyota does not warrant these products and
is not responsible for their performance, repair, or
replacement, or for any damage they may cause to, or adverse
effect they may have on, your Lexus vehicle.
This vehicle should not be modified with non–genuine Lexus
products. Modification with non–genuine Lexus products
could af fect its performance, safety or durability, and may even
violate governmental regulations. In addition, damage or
performance proble m s r e sulting from the modification may not
be covered under warranty.
Spark ignition system of your Lexus
The spark ignition system in your Lexus meets all
requirements of the Canadian Interference–Causing
Equipment Standard.
Installation of a mobile two–way radio system
As the installation of a mobile two–way radio system in your
vehicle could affect electronic systems such as the multiport
fuel injection system/sequential multiport fuel injection system,
cruise control system, anti–lock brake system, SRS airbag
system and seat belt pretensioner system, be sure to check
with your Lexus dealer for precautionary measures or special
instructions regarding installation.
Scrapping of your Lexus
The SRS airbag and seat belt pretensioner devices in your
Lexus contain explosive chemicals. If the vehicle is scrapped
with the airbags and seat belt pretensioners left as they are,
this may cause an accident such as fire. Be sure to have the
systems of the SRS airbag and seat belt pretensioner removed
and disposed of by a qualified service shop or by your Lexus
dealer before you scrap your vehicle.
ii
2003 SC430 from May ’03 Prod. (OM24449U)
HOW TO USE THIS MANUAL
HOW TO USE THIS MANUAL
The contents of this manual are explained briefly on this
page to help you make the best use of the manual. Please
read this page and the rest of the Owner’s Manual
carefully to make sure you fully understand the operation
of your vehicle.
This will help you enjoy safe and comfortable driving.
TABLE OF CONTENTS
The table of contents and the pictorial index provide easy
reference to the appropriate pages.
BASIC OPERATION – QUICK REFERENCE
Operation of basic equipment is briefly explained in an easily
understandable way for quick reference.
SECTION 1 – INSTRUMENTS AND CONTROLS
The vehicle’s equipment is divided into the 7 groups listed
below. Use of the equipment is explained, including any points
you should pay particular attention to.
1. Keys and doors
2. Switches
3. Gauges, meters and service reminder indicators
4. Interior equipment
5. Exterior equipment
6. Comfort adjustment
7. Theft deterrent
SECTION 2 – AIR CONDITIONING AND AUDIO
The features of the vehicle’s air conditioning and audio are
explained in detail. Be sure to read this section so that you can
make full use of them.
SECTION 3 – STARTING AND DRIVING
Starting the engine, driving, stopping, operation of features
affecting vehicle handling, hints on vehicle safety and safe
driving techniques are all explained. Please read everything
in this section, and remember – drive safely!
SECTION 4 – IN CASE OF AN EMERGENCY
This section explains what to do in the event of an urgent
situation such as the engine not starting or getting a flat tire,
etc. If such a problem occurs, check the contents of this
Owner’s Manual and follow the instructions given.
SECTION 5 – MAINTENANCE
This section explains the importance of regular maintenance.
Regular and periodic inspection and maintenance of your
Lexus will help to keep your vehicle in its best condition.
SECTION 6 – SERVICE PROCEDURES AND
SPECIFICATIONS
Simple maintenance procedure and service data are provided
here for your reference should you wish to perform inspection
and maintenance yourself.
INDEX
The page number is listed for each item in the Owner’s Manual
so that you can rapidly find the item and page you are
searching for.
2003 SC430 from May ’03 Prod. (OM24449U)
iii
HOW TO USE THIS MANUAL
GAS STATION INFORMATION
The information you need to know for appropriate servicing at
the gas station is provided here.
QUICK INDEX
This is designed so that you can quickly find the needed
information when an urgent situation arises.
Safety symbol
In this manual, you will also see a circle with a slash through
it. This means ”Do not”, ”Do not do this”, or ”Do not let this
happen”.
Safety and vehicle damage warnings
In this manual you will see CAUTION and NOTICE warnings.
These are used in the following ways:
CAUTION
This is a warning against anything which may cause
injury to people if the warning is ignored. You are
informed about what you must or must not do in order
to reduce the risk of injury to yourself and others.
NOTICE
This is a warning against anything which may cause
damage to the vehicle or its equipment if the warning is
ignored. Y ou are informed about what you must or must
not do in order to avoid or reduce the risk of damage to
your Lexus and its equipment.
Your Lexus Owner’s Manual provides you with a
considerable amount of information. To use this
information most effectively, please take the time to
familiarize yourself with the contents and use of the
manual.
iv
PICTORIAL INDEX
INSTRUMENT PANEL
00sa13c
vi
2003 SC430 from May ’03 Prod. (OM24449U)
PICTORIAL INDEX
1
Driving position memory switch 146. . . . . . . . . . . . . .
2
Power window switches 29. . . . . . . . . . . . . . . . . . . . . .
3
Door lock switch 20. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4
Window lock switch 30. . . . . . . . . . . . . . . . . . . . . . . . . .
5
Power rear view mirror control switch 101. . . . . . . .
6
Headlight cleaner switch 27. . . . . . . . . . . . . . . . . . . . .
7
Side vents 165. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8
Security indicator light 150. . . . . . . . . . . . . . . . . . . . . .
9
Headlight, turn signal and fog
light switches 22, 24, 25. . . . . . . . . . . . . . . . . . . . . . . . .
10
Instrument panel light control 59. . . . . . . . . . . . . . . . .
11
Wiper and washer switches 26. . . . . . . . . . . . . . . . . . .
12
Center vents 165. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
13
Front passenger’s seat belt reminder light 42. . . . .
14
Automatic air conditioning controls 154. . . . . . . . . .
15
Car audio 168. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
For detailed information, refer to the description given in each Section.
Page
16
Glove box 68. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
17
Audio door control switch 170. . . . . . . . . . . . . . . . . . .
18
Ashtray/Cigarette lighter 65. . . . . . . . . . . . . . . . . . . . .
19
Cup holder 74. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
20
Coin box 75. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
21
Vehicle stability control system OFF switch 210. . .
22
Coin box door opener 75. . . . . . . . . . . . . . . . . . . . . . . .
23
Driving pattern selector switch 201. . . . . . . . . . . . . . .
24
Automatic transmission selector lever 199. . . . . . .
25
Ignition switch 196. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
26
Cruise control switch 206. . . . . . . . . . . . . . . . . . . . . . .
27
Steering pad switches 187. . . . . . . . . . . . . . . . . . . . . . .
28
Hood opener 84. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
29
Parking brake 197, 204. . . . . . . . . . . . . . . . . . . . . . . . . .
30
Trunk lid opener 85. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
31
Fuel filler door opener 88. . . . . . . . . . . . . . . . . . . . . . . .
32
Parking brake release lever 197. . . . . . . . . . . . . . . . . .
Page
2003 SC430 from May ’03 Prod. (OM24449U)
vii
PICTORIAL INDEX
INSTRUMENT CLUSTER (Vehicles with compass sold in U.S.A.)
00sa01c
viii
2003 SC430 from May ’03 Prod. (OM24449U)
PICTORIAL INDEX
1
Tachometer 37. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2
Slip indicator light 209. . . . . . . . . . . . . . . . . . . . . . . . . .
3
Snow mode indicator light 205. . . . . . . . . . . . . . . . . . .
4
Power mode indicator light 201, 205. . . . . . . . . . . . . .
5
Automatic headlight leveling
system warning light 46. . . . . . . . . . . . . . . . . . . . . . . . .
6
Low washer fluid warning light 46. . . . . . . . . . . . . . . .
7
Vehicle stability control system warning light 47. .
8
Headlight high beam indicator light 24. . . . . . . . . . .
9
Headlight indicator light 22. . . . . . . . . . . . . . . . . . . . . .
10
Compass 54. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11
Low engine oil level warning light 44. . . . . . . . . . . . .
12
Rear light failure warning light 46. . . . . . . . . . . . . . .
13
Anti–lock brake system warning light 45. . . . . . . . . .
14
Discharge warning light 43. . . . . . . . . . . . . . . . . . . . . .
15
Low engine oil pressure warning light 43. . . . . . . . .
Page
16
SRS warning light 42. . . . . . . . . . . . . . . . . . . . . . . . . . . .
17
Engine coolant temperature gauge 36. . . . . . . . . . . .
18
Automatic transmission indicator lights 199. . . . . .
19
Cruise control indicator light 206. . . . . . . . . . . . . . . .
20
Low fuel level warning light 51. . . . . . . . . . . . . . . . . . .
21
Fuel filler door indicator 88. . . . . . . . . . . . . . . . . . . . . .
22
Fuel gauge 36. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
23
Turn signal indicator lights 25. . . . . . . . . . . . . . . . . . .
24
Odometer and trip meter 38. . . . . . . . . . . . . . . . . . . . .
25
Vehicle stability control
system OFF indicator light 211. . . . . . . . . . . . . . . . . . .
26
Open door warning light 46. . . . . . . . . . . . . . . . . . . . . .
27
Malfunction indicator lamp 44. . . . . . . . . . . . . . . . . . .
28
Low tire pressure warning light 47. . . . . . . . . . . . . . .
29
Driver’s seat belt reminder light 42. . . . . . . . . . . . . . .
30
Brake system warning light 40. . . . . . . . . . . . . . . . . . .
31
ODO/TRIP, RESET button 38. . . . . . . . . . . . . . . . . . . . .
Page
For detailed information, refer to the description given in each Section.
2003 SC430 from May ’03 Prod. (OM24449U)
ix
PICTORIAL INDEX
INSTRUMENT CLUSTER (Vehicles without compass sold in U.S.A.)
00sa15a
x
2003 SC430 from May ’03 Prod. (OM24449U)
PICTORIAL INDEX
1
Tachometer 37. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2
Slip indicator light 209. . . . . . . . . . . . . . . . . . . . . . . . . .
3
Snow mode indicator light 205. . . . . . . . . . . . . . . . . . .
4
Power mode indicator light 201, 205. . . . . . . . . . . . . .
5
Automatic headlight leveling
system warning light 46. . . . . . . . . . . . . . . . . . . . . . . . .
6
Low washer fluid warning light 46. . . . . . . . . . . . . . . .
7
Vehicle stability control system warning light 47. .
8
Headlight high beam indicator light 24. . . . . . . . . . .
9
Headlight indicator light 22. . . . . . . . . . . . . . . . . . . . . .
10
Low engine oil level warning light 44. . . . . . . . . . . . .
11
Rear light failure warning light 46. . . . . . . . . . . . . . .
12
Anti–lock brake system warning light 45. . . . . . . . . .
13
Discharge warning light 43. . . . . . . . . . . . . . . . . . . . . .
14
Low engine oil pressure warning light 43. . . . . . . . .
Page
15
SRS warning light 42. . . . . . . . . . . . . . . . . . . . . . . . . . . .
16
Engine coolant temperature gauge 36. . . . . . . . . . . .
17
Automatic transmission indicator lights 199. . . . . .
18
Cruise control indicator light 206. . . . . . . . . . . . . . . .
19
Low fuel level warning light 51. . . . . . . . . . . . . . . . . . .
20
Fuel filler door indicator 88. . . . . . . . . . . . . . . . . . . . . .
21
Fuel gauge 36. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
22
Turn signal indicator lights 25. . . . . . . . . . . . . . . . . . .
23
Odometer and trip meter 38. . . . . . . . . . . . . . . . . . . . .
24
Vehicle stability control
system OFF indicator light 211. . . . . . . . . . . . . . . . . . .
25
Open door warning light 46. . . . . . . . . . . . . . . . . . . . . .
26
Malfunction indicator lamp 44. . . . . . . . . . . . . . . . . . .
27
Low tire pressure warning light 47. . . . . . . . . . . . . . .
28
Driver’s seat belt reminder light 42. . . . . . . . . . . . . . .
29
Brake system warning light 40. . . . . . . . . . . . . . . . . . .
30
ODO/TRIP, RESET button 38. . . . . . . . . . . . . . . . . . . . .
Page
For detailed information, refer to the description given in each Section.
2003 SC430 from May ’03 Prod. (OM24449U)
xi
PICTORIAL INDEX
INSTRUMENT CLUSTER (Vehicles with compass sold in Canada)
00sa14a
xii
2003 SC430 from May ’03 Prod. (OM24449U)
PICTORIAL INDEX
1
Tachometer 37. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2
Slip indicator light 209. . . . . . . . . . . . . . . . . . . . . . . . . .
3
Snow mode indicator light 205. . . . . . . . . . . . . . . . . . .
4
Power mode indicator light 201, 205. . . . . . . . . . . . . .
5
Automatic headlight leveling
system warning light 46. . . . . . . . . . . . . . . . . . . . . . . . .
6
Low washer fluid warning light 46. . . . . . . . . . . . . . . .
7
Vehicle stability control system warning light 47. .
8
Headlight high beam indicator light 24. . . . . . . . . . .
9
Tail light indicator light 22. . . . . . . . . . . . . . . . . . . . . . .
10
Compass 54. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11
Low engine oil level warning light 44. . . . . . . . . . . . .
12
Rear light failure warning light 46. . . . . . . . . . . . . . .
13
Anti–lock brake system warning light 45. . . . . . . . . .
14
Discharge warning light 43. . . . . . . . . . . . . . . . . . . . . .
15
Low engine oil pressure warning light 43. . . . . . . . .
16
SRS warning light 42. . . . . . . . . . . . . . . . . . . . . . . . . . . .
For detailed information, refer to the description given in each Section.
Page
17
Engine coolant temperature gauge 36. . . . . . . . . . . .
18
Automatic transmission indicator lights 199. . . . . .
19
Cruise control indicator light 206. . . . . . . . . . . . . . . .
20
Low fuel level warning light 51. . . . . . . . . . . . . . . . . . .
21
Fuel filler door indicator 88. . . . . . . . . . . . . . . . . . . . . .
22
Fuel gauge 36. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
23
Turn signal indicator lights 25. . . . . . . . . . . . . . . . . . .
24
Odometer and trip meter 38. . . . . . . . . . . . . . . . . . . . .
25
Vehicle stability control
system OFF indicator light 211. . . . . . . . . . . . . . . . . . .
26
Open door warning light 46. . . . . . . . . . . . . . . . . . . . . .
27
Malfunction indicator lamp 44. . . . . . . . . . . . . . . . . . .
28
Low tire pressure warning light 47. . . . . . . . . . . . . . .
29
Driver’s seat belt reminder light 42. . . . . . . . . . . . . . .
30
Brake system warning light 40. . . . . . . . . . . . . . . . . . .
31
ODO/TRIP, RESET button 38. . . . . . . . . . . . . . . . . . . . .
Page
2003 SC430 from May ’03 Prod. (OM24449U)
xiii
PICTORIAL INDEX
INSTRUMENT CLUSTER (Vehicles without compass sold in Canada)
00sa02c
xiv
2003 SC430 from May ’03 Prod. (OM24449U)
PICTORIAL INDEX
1
Tachometer 37. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2
Slip indicator light 209. . . . . . . . . . . . . . . . . . . . . . . . . .
3
Snow mode indicator light 205. . . . . . . . . . . . . . . . . . .
4
Power mode indicator light 201, 205. . . . . . . . . . . . . .
5
Automatic headlight leveling
system warning light 46. . . . . . . . . . . . . . . . . . . . . . . . .
6
Low washer fluid warning light 46. . . . . . . . . . . . . . . .
7
Vehicle stability control system warning light 47. .
8
Headlight high beam indicator light 24. . . . . . . . . . .
9
Tail light indicator light 22. . . . . . . . . . . . . . . . . . . . . . .
10
Low engine oil level warning light 44. . . . . . . . . . . . .
11
Rear light failure warning light 46. . . . . . . . . . . . . . .
12
Anti–lock brake system warning light 45. . . . . . . . . .
13
Discharge warning light 43. . . . . . . . . . . . . . . . . . . . . .
14
Low engine oil pressure warning light 43. . . . . . . . .
15
SRS warning light 42. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Page
16
Engine coolant temperature gauge 36. . . . . . . . . . . .
17
Automatic transmission indicator lights 199. . . . . .
18
Cruise control indicator light 206. . . . . . . . . . . . . . . .
19
Low fuel level warning light 51. . . . . . . . . . . . . . . . . . .
20
Fuel filler door indicator 88. . . . . . . . . . . . . . . . . . . . . .
21
Fuel gauge 36. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
22
Turn signal indicator lights 25. . . . . . . . . . . . . . . . . . .
23
Odometer and trip meter 38. . . . . . . . . . . . . . . . . . . . .
24
Vehicle stability control
system OFF indicator light 211. . . . . . . . . . . . . . . . . . .
25
Open door warning light 46. . . . . . . . . . . . . . . . . . . . . .
26
Malfunction indicator lamp 44. . . . . . . . . . . . . . . . . . .
27
Low tire pressure warning light 47. . . . . . . . . . . . . . .
28
Driver’s seat belt reminder light 42. . . . . . . . . . . . . . .
29
Brake system warning light 40. . . . . . . . . . . . . . . . . . .
30
ODO/TRIP, RESET button 38. . . . . . . . . . . . . . . . . . . . .
Page
For detailed information, refer to the description given in each Section.
2003 SC430 from May ’03 Prod. (OM24449U)
xv
PICTORIAL INDEX
SEAT AND STEERING WHEEL
00sa12a
1
Tilt and telescopic steering
adjustment switch 98. . . . . . . . . . . . . .
2
Seat position, seat cushion
angle and height control
switch 95, 96. . . . . . . . . . . . . . . . . . . . .
3
Seatback angle control switch 95. . .
4
Lumbar support control switch 96. .
5
Seatback lock release lever 97. . . . .
For detailed information, refer to the
description given in each Section.
Page
xvi
2003 SC430 from May ’03 Prod. (OM24449U)
EXTERIOR VIEW
00sa11
PICTORIAL INDEX
1
Fuel filler door 88. . . . . . . . . . . . . . . . .
2
Rear window defogger 28. . . . . . . . . .
3
Trunk lid 85. . . . . . . . . . . . . . . . . . . . . . .
4
Retractable hardtop 80. . . . . . . . . . . .
5
Wiper and washer 26, 343. . . . . . . . . .
6
Outside rear view mirror 100. . . . . . .
7
Door 19. . . . . . . . . . . . . . . . . . . . . . . . . .
8
Tire and wheel 321. . . . . . . . . . . . . . . .
9
Headlights 22, 346. . . . . . . . . . . . . . . . .
10
Hood 84. . . . . . . . . . . . . . . . . . . . . . . . .
For detailed information, refer to the
description given in each Section.
Page
2003 SC430 from May ’03 Prod. (OM24449U)
xvii
PICTORIAL INDEX
xviii
2003 SC430 from May ’03 Prod. (OM24449U)
BASIC OPERATION
QUICK REFERENCE
Driver’s seat 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Steering wheel 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Automatic transmission 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Headlight and turn signal switch 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wiper switch 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2003 SC430 from May ’03 Prod. (OM24449U)
1
QUICK REFERENCE
1. DRIVER’S SEAT 2. STEERING WHEEL
TILT STEERING WHEEL
00sa04a
Seat adjustment
Seat
position
Seat cushion
angle
Seat cushion
height
Seatback
angle
Lumbar
support
Head restraint
height
To tilt the steering wheel up or down to the desired angle,
push the control switch in the required direction and
release the button when the steering wheel reaches the
desired angle.
TELESCOPIC STEERING WHEEL
00sa05a
Head restraint
angle
2
To move the steering wheel to the desired position, push
the control switch away from you or pull it toward you until
the steering wheel reaches the desired position.
3. AUTOMATIC TRANSMISSION
00sa09a
SELECTOR LEVER POSITION
P: Parking, engine starting and key removal
position
R: Reverse position
N: Neutral position
D: Normal driving position (Shifting into
overdrive possible)
4: Position for engine braking (Shifting into
overdrive not possible)*
3, 2: Position for more powerful engine braking
L: Position for maximum engine braking
QUICK REFERENCE
OPERATION OF SELECTOR LEVER
00sa10a
Shift while pressing the brake pedal. (Ignition
switch must be in the ”ON” position.)
*When the cruise control is being used, even if you downshift from ”D” to ”4”, engine braking will not be enabled because
the cruise control is not cancelled. For the operation to decrease the vehicle speed, see page 208.
2003 SC430 from May ’03 Prod. (OM24449U)
3
QUICK REFERENCE
4. HEADLIGHT AND TURN SIGNAL
SWITCHES
HEADLIGHT SWITCH
With the ignition OFF
Parking, tail, license plate,
side marker and instrument
panel lights turn on.
00sa06b
Headlights also turn on.
Automatic light control
With the engine started and parking brake
released
Parking, tail, license plate,
side marker and instrument
00sa07b
00sa08b
With the ignition OFF or With the engine started and
parking brake released
panel lights turn on.
Headlights also turn on
at full intensity.
Automatic light control
High beam
Headlight flasher
4
QUICK REFERENCE
TURN SIGNAL SWITCH
Right or left turn
00L103a
Lane change
(Right or left)
5. WIPER SWITCH
Mist wiper operation
Intermittent operation
Low speed operation
High speed operation
Washer on
2003 SC430 from May ’03 Prod. (OM24449U)
5
QUICK REFERENCE
6
SECTION 1 –
INSTRUMENTS AND CONTROLS
Keys and doors
Keys 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine immobiliser system 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wireless remote control 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Doors 19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1
2003 SC430 from May ’03 Prod. (OM24449U)
7
KEYS AND DOORS
KEYS
11sa10a
1
Master keys – These master keys work in every lock.
For your Lexus dealer to make a new key with a
built–in transponder chip, your dealer will need one
of them.
2
Sub key – The sub key will not open the glove box and
rear console box.
3
Key number plate – Keep the plate in a safe place
such as your wallet, not in the vehicle.
A transponder chip for engine immobiliser system has been
placed in the head of the master and sub keys. These chips
are needed to enable the system to function correctly, so be
careful not to lose these keys. If you make your own duplicate
key, you will not be able to cancel the system or start the
engine.
To protect items locked in the glove box or rear console box
when using valet parking, leave the sub key with the attendant.
The trunk lid can be opened using a loop of wire in the rear
console box even with the trunk lid opener main switch in the
glove box turned off. When keeping items in the trunk, be sure
to turn off the trunk lid opener main switch and lock the glove
box and rear console box. To turn off the main switch in the
glove box, see page 86. For locking the glove box, see page
68. For locking the rear console box, see page 66.
Since the doors can be locked without a key, you should
always carry a spare master key in case you accidentally lock
your keys inside the vehicle.
If you should lose your keys or if you need additional keys,
duplicates can be made by a Lexus dealer using the key
number.
We recommend writing down the key number and storing it in
a safe place.
8
KEYS AND DOORS
Flat key
11g039c
As a transponder chip is built in its key case, you can start
the engine with this key.
The flat key works in every lock.
A transponder chip for engine immobiliser system has been
placed in the key case of the flat key. This chip is needed to
enable the system to function correctly, so be careful not to
lose this key . If you make your own duplicate key, you will not
be able to cancel the system or start the engine.
Insert your key plate in its key case as shown. We recommend
that you always carry this with you for emergency use. Do not
leave it in your vehicle.
Starting the engine using a flat key
11sa05
1. Remove the key plate from the key case.
2. Insert the key plate into the ignition switch. The indicator
light keeps flashing.
3. Bring the key case closer to the ignition switch within 10
seconds as indicated by the arrow head. The indicator light
goes out. This means the engine immobiliser system is
automatically canceled. (For details, see “Engine immobiliser
system” on page 1 1.) You can put the key case away then. You
cannot cancel the engine immobiliser system if 10 seconds
have passed after you inserted the key plate. You need to
remove the key plate from the ignition switch and try it again
from the step 2.
4. Start the engine within 20 seconds after the security
indicator light goes out. You cannot start the engine if 20
seconds have passed after the security indicator went off. You
need to remove the key plate from the ignition switch and try
it again from the step 2.
2003 SC430 from May ’03 Prod. (OM24449U)
9
KEYS AND DOORS
NOTICE
Do not let the key case become bent as the key plate
may fall out or become bent also.
The flat key is designed for emergency use only. So
do not use it regularly instead of other master keys.
11L021-2
When using a key containing a transponder chip,
observe the following precautions:
When starting the engine, do not use the key with a
key ring resting on the key grip and do not press the
key ring against the key grip. Doing so may prevent
the engine from starting, or may cause the engine to
stop soon after it starts.
11R055
When starting the engine, do not use the key in
proximity with other transponder keys (including the
flat key and keys of other vehicles), and do not press
other key plates against the key grip. Doing so may
prevent the engine from starting, or may cause the
engine to stop soon after it starts. If this happens,
remove the key once and then insert it again after
removing other transponder keys (including the flat
key and keys of other vehicles) from the ring or while
gripping or covering them with your hand to start the
engine.
10
11G035c
Do not bend the key grip or flat key.
Do not cover the key grip or flat key with any material
that cuts off electromagnetic waves.
Do not knock the key or flat key hard against other
objects.
Do not leave the key or flat key exposed to high
temperatures for a long period, such as on the
dashboard and hood under direct sunlight.
Do not put the key or flat key in water or wash it in an
ultrasonic washer.
Do not use the key or flat key with electromagnetic
materials.
KEYS AND DOORS
ENGINE IMMOBILISER SYSTEM
11sa04
The engine immobiliser system is a theft prevention
system. When you insert the key in the ignition switch, the
transponder chip in the key’s head transmits an electronic
code to the vehicle. The engine will start only when the
electronic code in the chip corresponds to the registered
ID code for the vehicle.
The system is automatically set when the key is removed from
the ignition switch. At this time, the security indicator light
flashes. When you insert the key in the ignition switch, the
security indicator light goes out and the system is canceled
automatically, which enables the engine to start.
The transponder chip of the flat key is in its key case. You can
cancel the engine immobiliser system using the flat key . (For
details, see “Flat key” on page 9.)
2003 SC430 from May ’03 Prod. (OM24449U)
11
KEYS AND DOORS
For your Lexus dealer to make you a new key with built–in
transponder chip, your dealer will need your key number and
master key. However, there is a limit to the number of
additional keys your Lexus dealer can make for you.
If you make your own duplicate key, you will not be able
to cancel the system or start the engine.
For vehicles sold in U.S.A.
FCC ID: MOZRI–4ATY–A
MADE IN JAPAN
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
CAUTION
Changes or modifications not expressly approved by
the party responsible for compliance could void the
user’s authority to operate the equipment.
For vehicles sold in Canada
This device complies with RSS–210 of Industry
Canada. Operation is subject to the following two
conditions:
(1) This device may not cause interference, and (2)
this device must accept any interference, including
interference that may cause undesired operation of the
device.
12
KEYS AND DOORS
WIRELESS REMOTE CONTROL*
11sa09a
1
Locking the doors and sounding an alarm
2
Unlocking the doors and opening the side windows
3
Indicator light
4
Unlocking the trunk lid
NOTE: *This feature can be deactivated as vehicle theft
deterrent measure in case of the loss of the wireless remote
control key. Ask your Lexus dealer for details.
When you operate any button on the key, push it slowly and
surely. At this time, the indicator light on the key grip flashes
once.
The operational range of the wireless remote control is
approximately 1 m (3 ft.). The effective range may vary with
different conditions. To activate the wireless remote control
without fail, do it approximately 1 m (3 ft.) from your Lexus.
In the following cases, the battery in the key may be
discharged. If this is the case, replace it using a special
screwdriver.
The remote control does not work.
The operational range of wireless remote control becomes
extremely short.
The indicator light on the key is dimmed or does not come
on.
For the replacement of the battery, see ”Replacing the battery”
on page 17. You can also have the battery of the key replaced
by your Lexus dealer.
If you lose the wireless key, contact your Lexus dealer as soon
as possible to avoid the possibility of theft, or an accident.
Y ou can use up to 4 wireless remote control keys for the same
vehicle. Contact your Lexus dealer for detailed information.
The wireless remote control key is an electronic
component. Observe the following instructions in order
not to cause damage to the key.
Do not leave the wireless remote control key on places
where the temperature becomes high such as on the
dashboard.
Do not disassemble it.
Avoid knocking it hard against other objects or dropping it.
Avoid putting it in water.
2003 SC430 from May ’03 Prod. (OM24449U)
13
Loading...
