Lexus 2003 LS Owner's Manual

FOREWORD

i

Congratulations on your selection of this Lexus. In Lexus vehicles we have invested all our engineering and design resources; all
the know–how we have gained in over 60 years of making automobiles; the highest motivation of our most talented employees; and
our tradition of incessant striving toward ever greater quality.

This Owner’s Manual explains the features of your new Lexus. Please read it and follow the instructions carefully so that you can
enjoy many years of safe motoring.

When it comes to service, remember that your Lexus dealer knows your vehicle best and is interested in your complete satisfaction.
Your Lexus dealer will provide quality maintenance and any other assistance you may require.

If there is not a Lexus dealer near you, or you need emergency assistance for any reason, please call the following number:

U.S. OWNERS
 When traveling in the U.S. mainland or Canada:

Lexus Roadside Assistance 1–800–25–LEXUS (Toll–Free)

(1–800–255–3987)

 HAWAII:

Lexus Customer Service Assistance 1–800–25–LEXUS (Toll–Free)

(1–800–255–3987)

CANADIAN OWNERS
 When traveling in Canada or the U.S. mainland:

Lexus Roadside Assistance/Customer Service1–800–26–LEXUS (Toll–Free)

(1–800–265–3987)
Please leave this Owner’s Manual in this vehicle at the time of resale. The next owner will need this information also.
All information and specifications in this manual are current at the time of printing. However, because of the Lexus policy

of continual product improvement, we reserve the right to make changes at any time without notice.
Please note that this manual applies to all models and explains all equipment, including options. Therefore, you may find

some explanations for equipment not installed on your vehicle.

INTRODUCTION

ii

New vehicle warranty

Your new vehicle is covered by the following Lexus limited
warranties:

 New vehicle warranty
 Emission control systems warranty
 Others

For further information, please refer to the “Owner’s Guide”,
“Owner’s Manual Supplement” or “Warranty Booklet”.

Your responsibility for maintenance

It is the owner’s responsibility to make sure the specified
maintenance is performed. Section 5 of this Owner’s Manual
gives details of these maintenance requirements. Included in
Section 6 is general maintenance. For scheduled
maintenance informa t i o n , p l ease refer to the “Owner’s Manual
Supplement / Scheduled Maintenance”.

Accessories, spare parts and modification of
your Lexus

A wide variety of non–genuine spare parts and accessories for
Lexus vehicles are currently available in the market. You
should know that Toyota does not warrant these products and
is not responsible for their performance, repair, or
replacement, or for any damage they may cause to, or adverse
effect they may have on, your Lexus vehicle.

This vehicle should not be modified with non–genuine Lexus
products. Modification with non–genuine Lexus products
could affect its performance, safety or durability, and may even
violate governmental regulations. In addition, damage or
performance problems r e sulting from the modification may not
be covered under warranty.

Spark ignition system of your Lexus

The spark ignition system in your Lexus meets all
requirements of the Canadian Interference–Causing
Equipment Standard.

Installation of a mobile two–way radio system

As the installation of a mobile two–way radio system in your
vehicle could affect electronic systems such as the multiport
fuel injection system/sequential multiport fuel injection system,
cruise control system, dynamic laser cruise control system,
anti–lock brake system, SRS airbag system and seat belt
pretensioner system, be sure to check with your Lexus dealer
for precautionary measures or special instructions regarding
installation.

Scrapping of your Lexus

The SRS airbag and seat belt pretensioner devices in your
Lexus contain explosive chemicals. If the vehicle is scrapped
with the airbags and seat belt pretensioners left as they are,
this may cause an accident such as a fire. Be sure to have the
system of the SRS airbag and seat belt pretensioner removed
and disposed of by a qualified service shop or by your Lexus
dealer before you scrap your vehicle.

HOW TO USE THIS MANUAL

iii

HOW TO USE THIS MANUAL

The contents of this manual are explained briefly on this
page to help you make the best use of the manual. Please
read this page and the rest of the Owner’s Manual
carefully to make sure you fully understand the operation
of your vehicle.

This will help you enjoy safe and comfortable driving.

TABLE OF CONTENTS

The table of contents and the pictorial index provide easy
reference to the appropriate pages.

BASIC OPERATION – QUICK REFERENCE

Operation of basic equipment is briefly explained in an easily
understandable way for quick reference.

SECTION 1 – INSTRUMENTS AND CONTROLS

The vehicle’s equipment is divided into the 7 groups listed
below. Use of the equipment is explained, including any points
you should pay particular attention to.

1. Keys and doors

2. Switches

3. Gauges, meters and service reminder indicators

4. Interior equipment

5. Exterior equipment

6. Comfort adjustment

7. Theft deterrent

SECTION 2 – AIR CONDITIONING AND AUDIO

The features of the vehicle’s air conditioning and audio are
explained in detail. Be sure to read this section so that you can
make full use of them.

SECTION 3 – STARTING AND DRIVING

Starting the engine, driving, stopping, operation of features
affecting vehicle handling, hints on vehicle safety and safe
driving techniques are all explained. Please read everything
in this section, and remember – drive safely!

SECTION 4 – IN CASE OF AN EMERGENCY

This section explains what to do in the event of an urgent
situation such as the engine not starting or getting a flat tire,
etc. If such a problem occurs, check the contents of this
Owner’s Manual and follow the instructions given.

SECTION 5 – MAINTENANCE

This section explains the importance of regular maintenance.
Regular and periodic inspection and maintenance of your
Lexus will help to keep your vehicle in its best condition.

SECTION 6 – SERVICE PROCEDURES AND
SPECIFICATIONS

Simple maintenance procedure and service data are provided
here for your reference should you wish to perform inspection
and maintenance yourself.

INDEX

The page number is listed for each item in the Owner’s Manual
so that you can rapidly find the item and page you are
searching for.

HOW TO USE THIS MANUAL

iv

GAS STATION INFORMATION

The information you need to know for appropriate servicing at
the gas station is provided here.

QUICK INDEX

This is designed so that you can quickly find the needed
information when an urgent situation arises.

Safety symbol

In this manual, you will also see a circle with a slash through
it. This means ”Do not”, ”Do not do this”, or ”Do not let this
happen”.

Safety and vehicle damage warnings

In this manual you will see CAUTION and NOTICE warnings.
These are used in the following ways:

CAUTION

This is a warning against anything which may cause
injury to people if the warning is ignored. You are
informed about what you must or must not do in order
to reduce the risk of injury to yourself and others.

NOTICE

This is a warning against anything which may cause
damage to the vehicle or its equipment if the warning is
ignored. Y ou are informed about what you must or must
not do in order to avoid or reduce the risk of damage to
your Lexus and its equipment.

Your Lexus Owner’s Manual provides you with a
considerable amount of information. To use this
information most effectively, please take the time to
familiarize yourself with the contents and use of the
manual.

PICTORIAL INDEX

v

INSTRUMENT PANEL

00L078f

For detailed information, refer to the description given in each section.

PICTORIAL INDEX

vi

Page

1

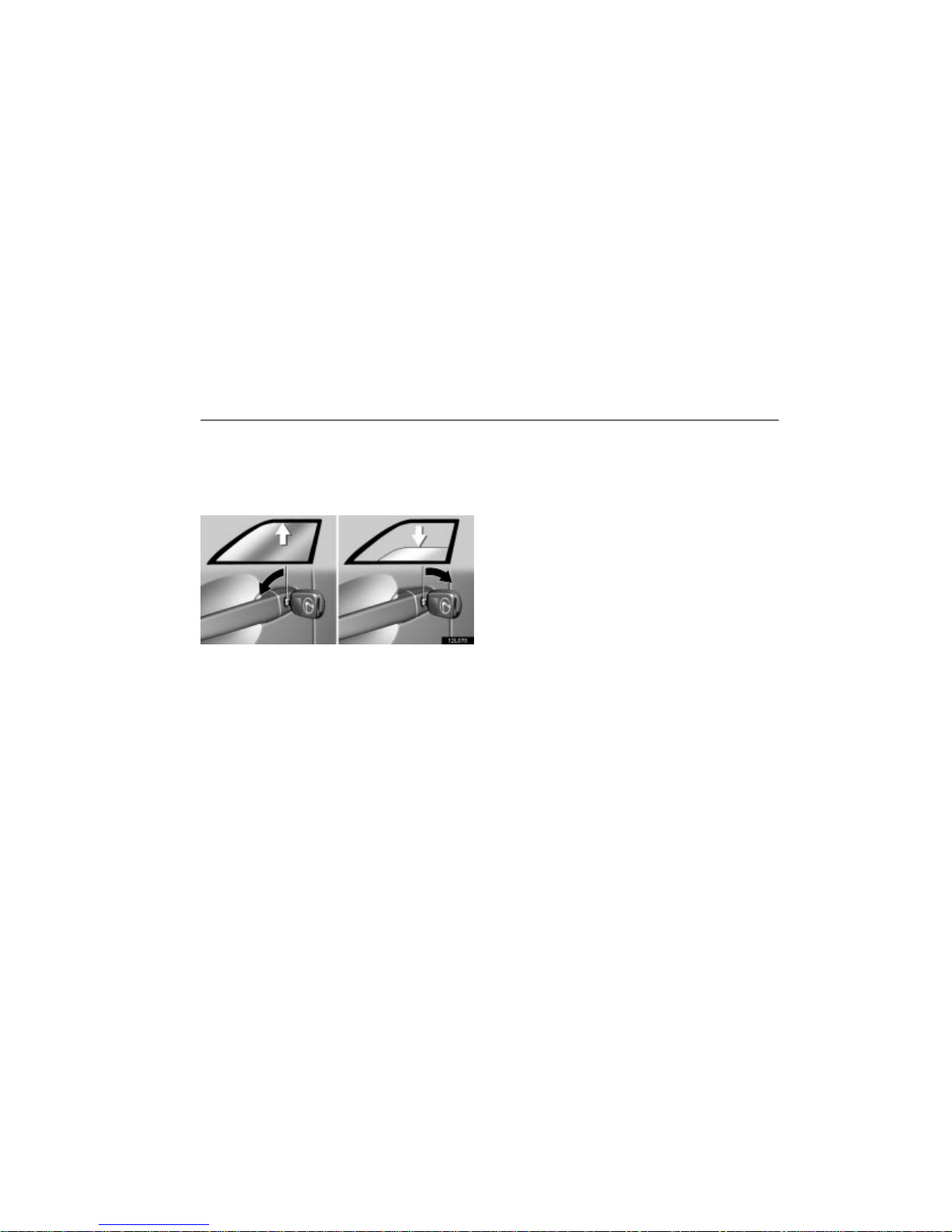

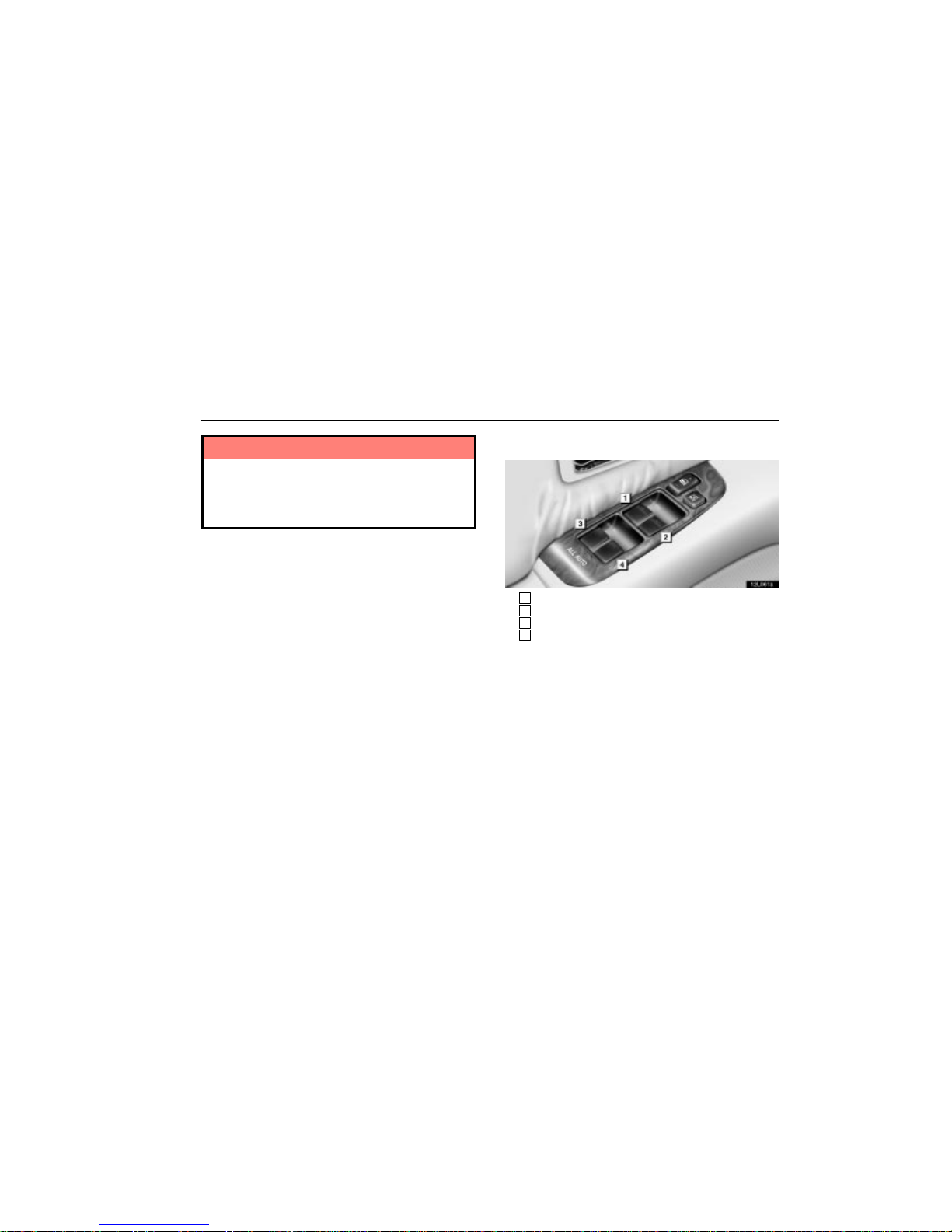

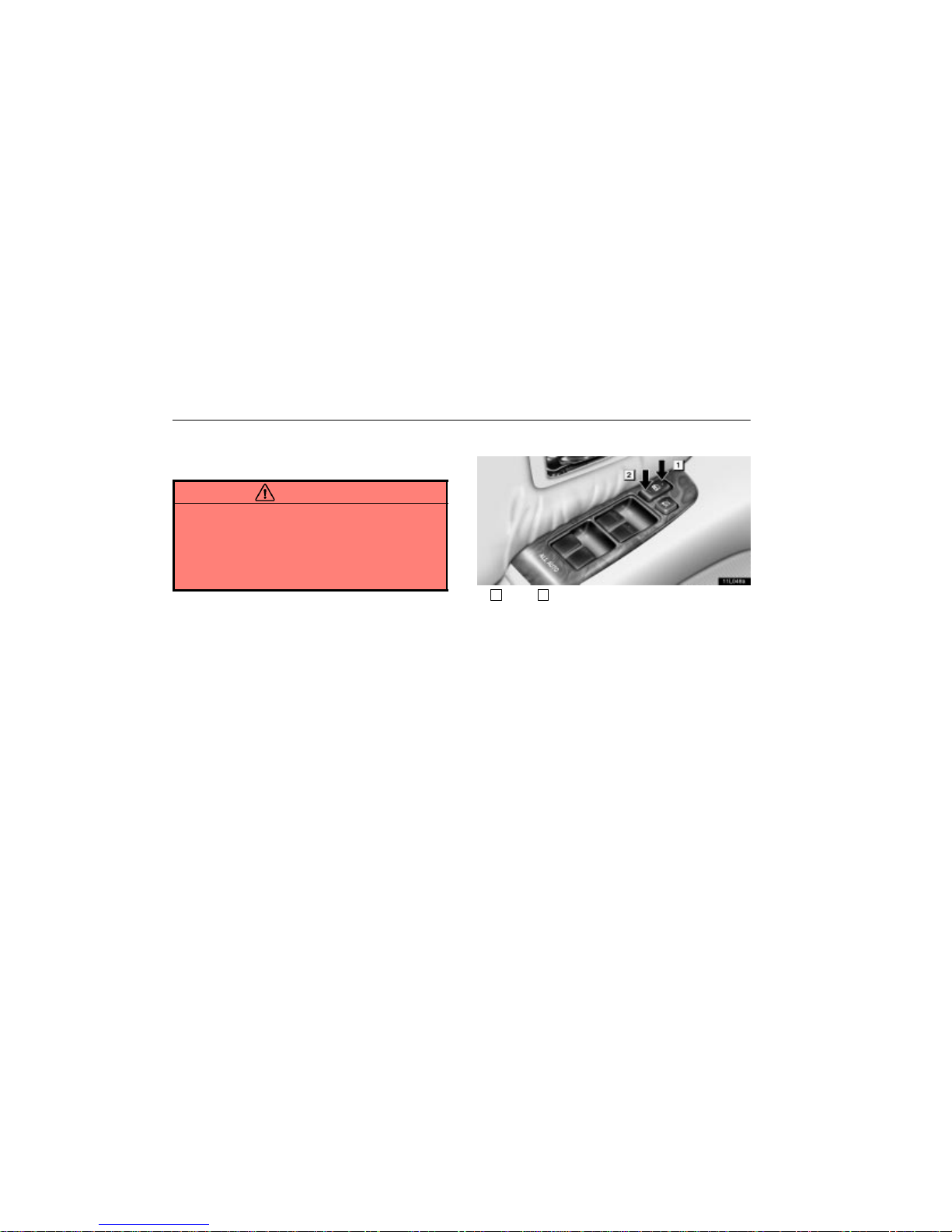

Power window switches 33. . . . . . . . . . . . . . . . . . . . . .

2

Shoulder anchor control switch 131. . . . . . . . . . . . . .

3

Driving position memory switch 172. . . . . . . . . . . . . .

4

Door lock switch 20. . . . . . . . . . . . . . . . . . . . . . . . . . . .

5

Window lock switch 34. . . . . . . . . . . . . . . . . . . . . . . . . .

6

Side vents 198. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

7

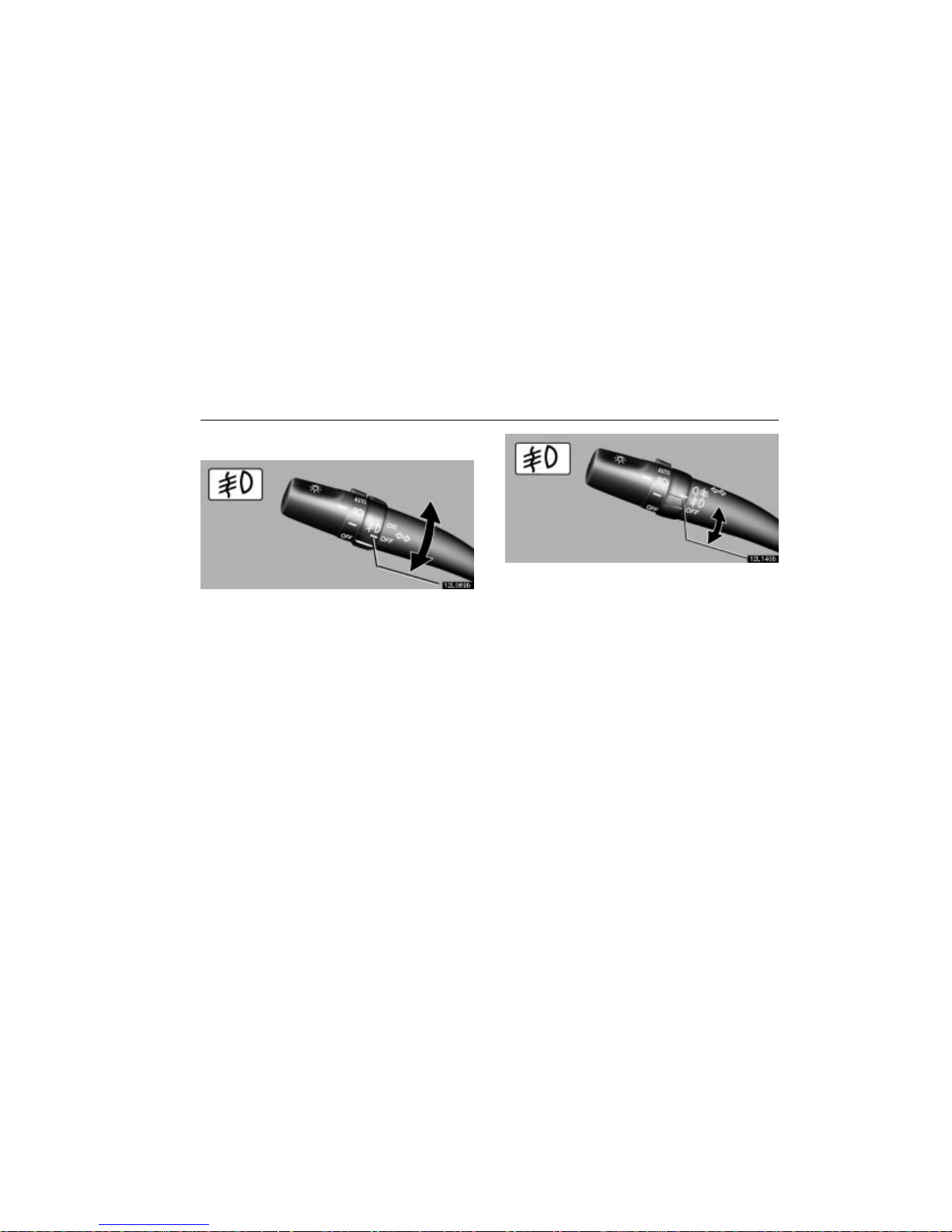

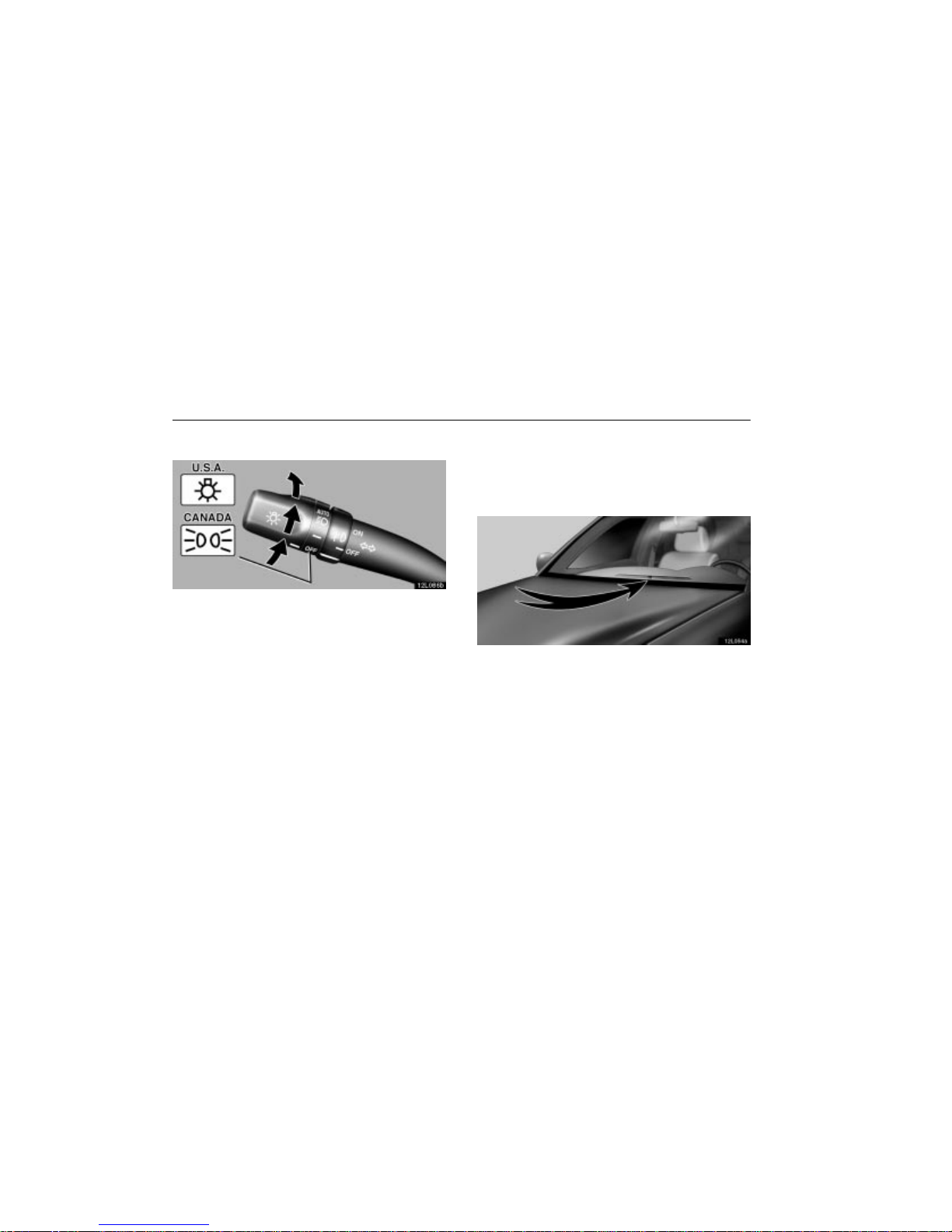

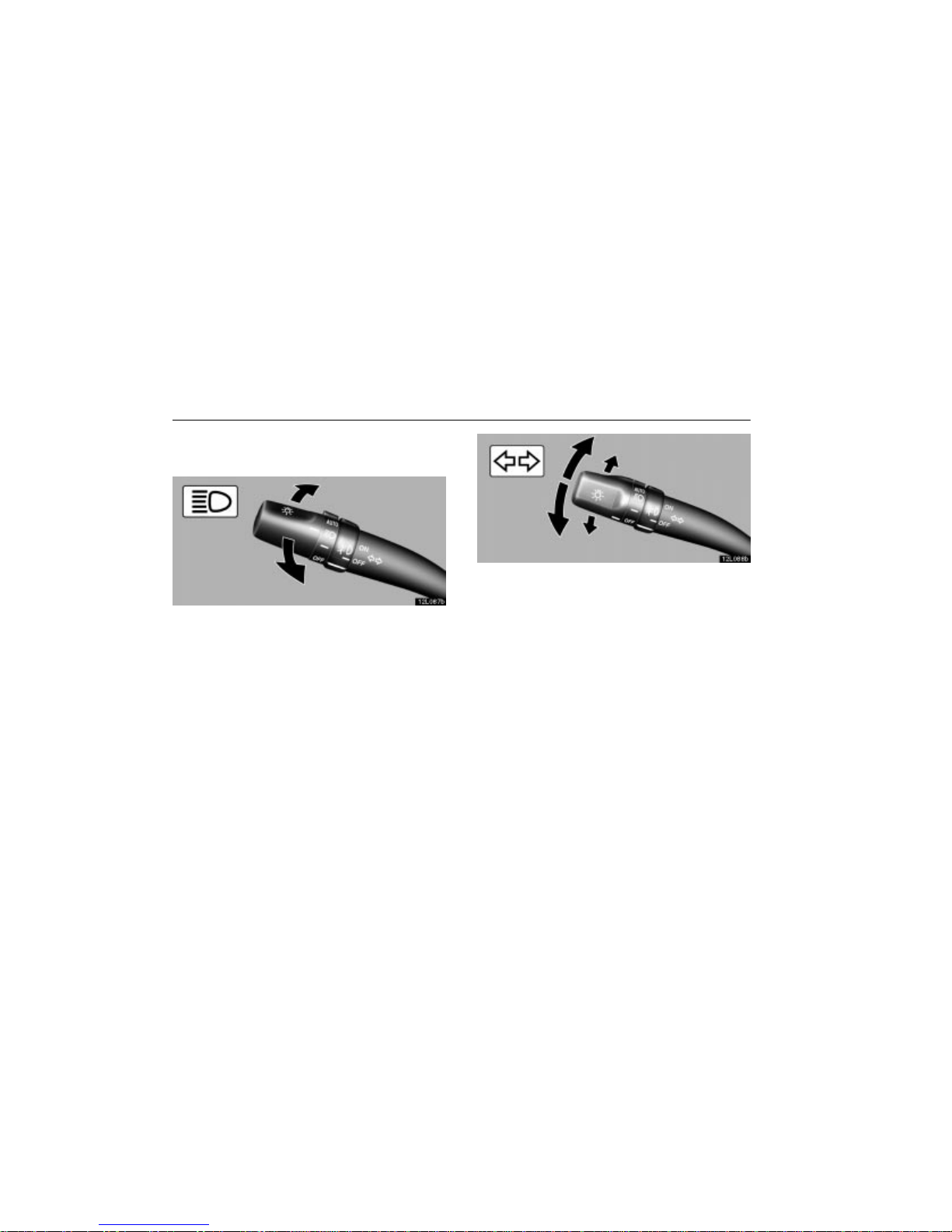

Headlight, turn signal and fog

light switch 24, 26, 27, 28. . . . . . . . . . . . . . . . . . . . . . . . .

8

Wiper and washer switch 28. . . . . . . . . . . . . . . . . . . . .

9

Automatic air conditioning controls 182, 185. . . . . .

10

Center vents 197. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

11

Clock 73. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

12

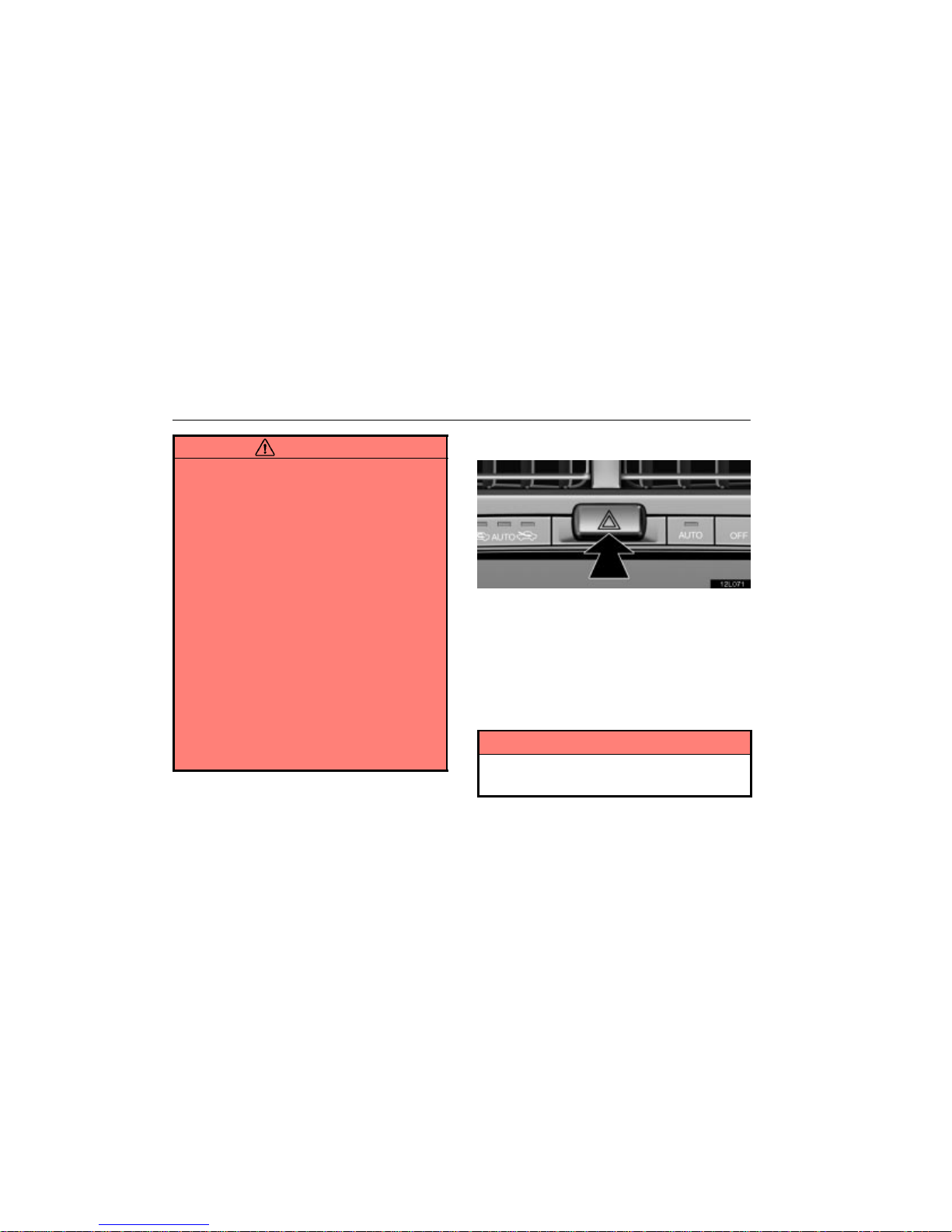

Emergency flasher switch 36. . . . . . . . . . . . . . . . . . . .

13

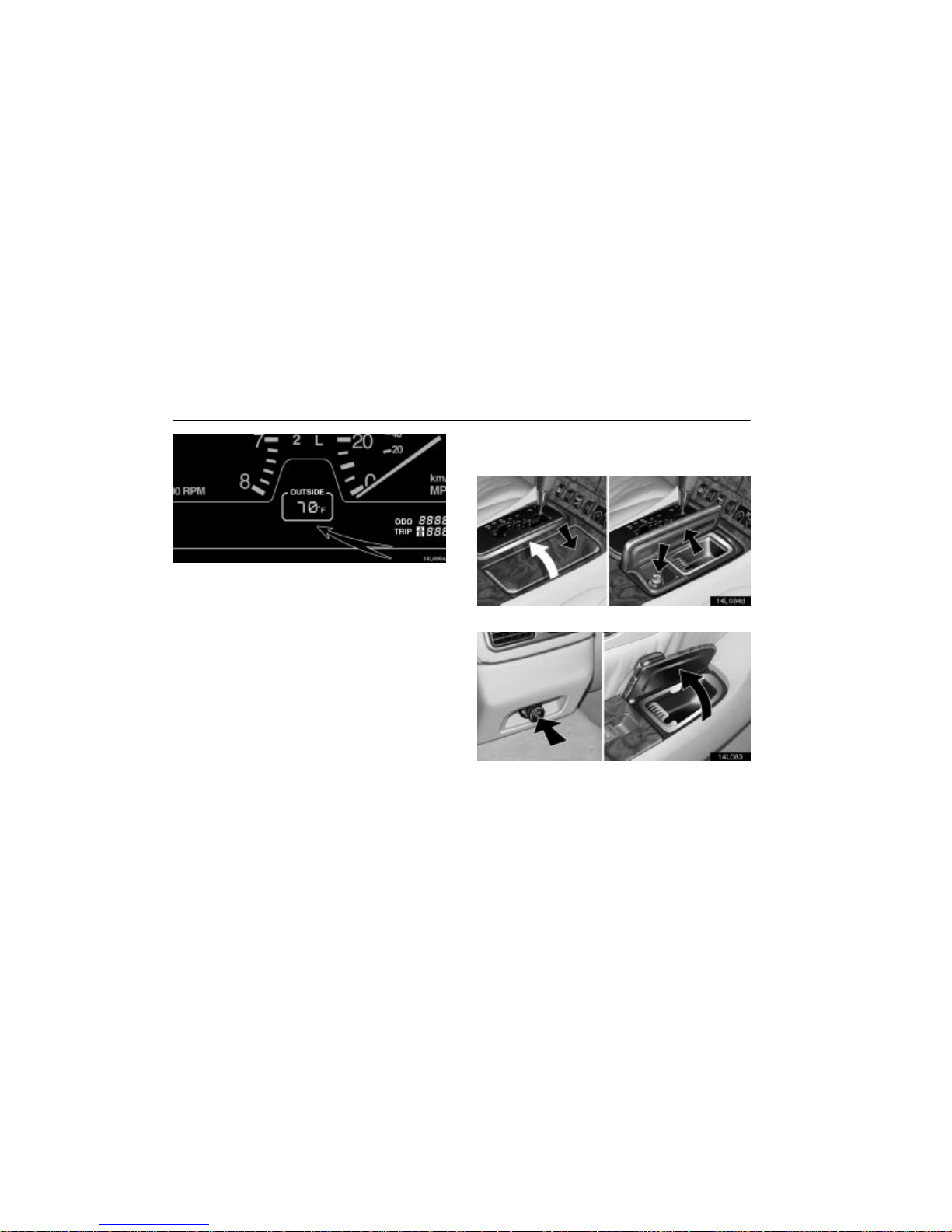

Outside temperature display 73. . . . . . . . . . . . . . . . . .

14

Front passenger’s seat belt reminder light 49. . . . .

15

Car audio 203. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

16

Glove box 77. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

17

Driving pattern selector switch 236. . . . . . . . . . . . . . .

18

Auxiliary box 84. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

19

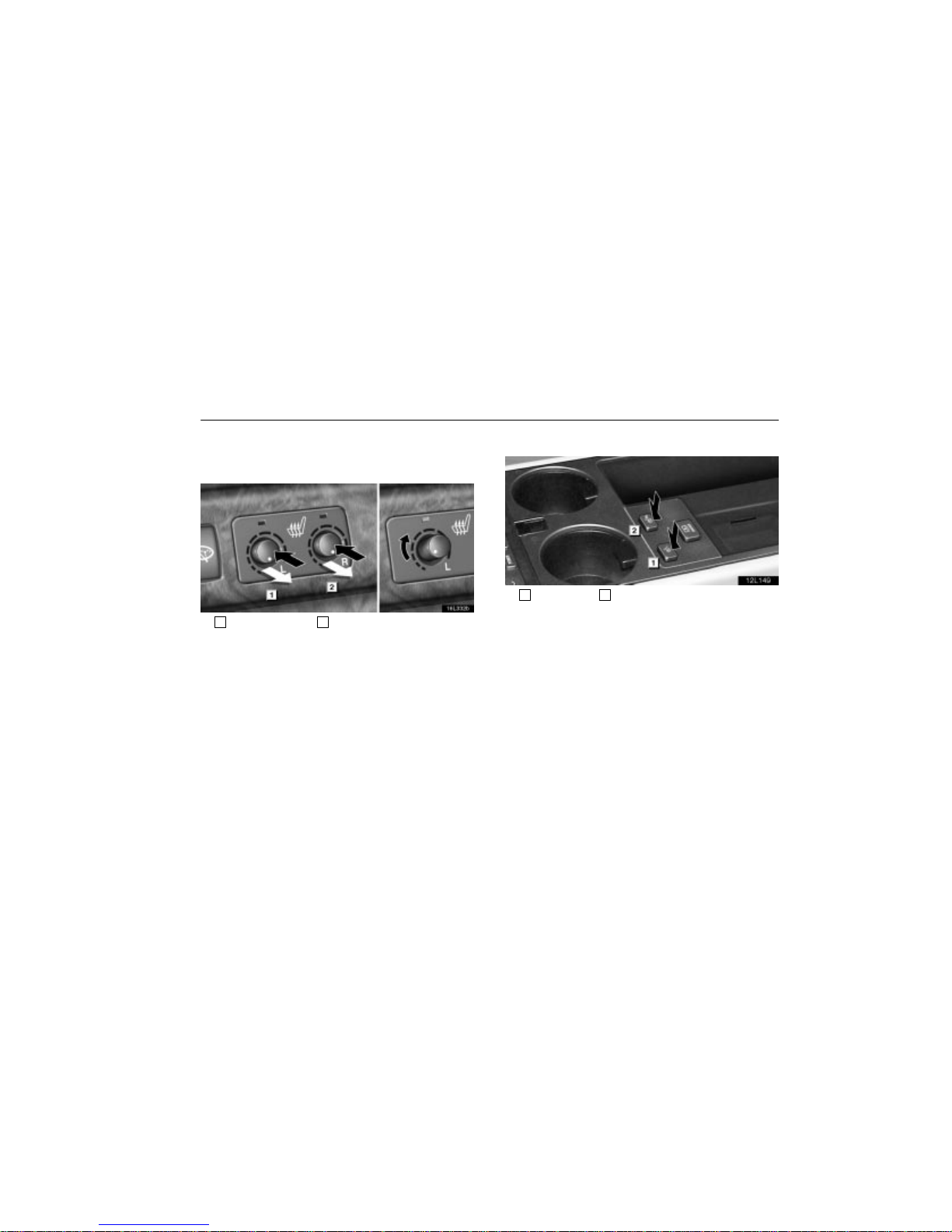

Seat heater switches/

Climate control seat switches 37/38. . . . . . . . . . . . . . .

20

Power outlet 75. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

21

Auxiliary box if power outlet is selected/

Ashtray if cigarette lighter is selected 84/74. . . . . . .

Page

22

Cigarette lighter 74. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

23

Headlight cleaner switch 31. . . . . . . . . . . . . . . . . . . . .

24

Rear seat and rear head restraints

return switch 117. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

25

Vehicle skid control system off switch 279. . . . . . . .

26

Rear electric sunshade switch 91. . . . . . . . . . . . . . . .

27

CD automatic changer 216. . . . . . . . . . . . . . . . . . . . . . .

28

Height control switch 275. . . . . . . . . . . . . . . . . . . . . . .

29

Damping mode select switch 277. . . . . . . . . . . . . . . .

30

Automatic transmission selector lever 236. . . . . . . .

31

Ignition switch 233. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

32

Cruise control switch/Dynamic laser cruise

control switch 249/252. . . . . . . . . . . . . . . . . . . . . . . . . .

33

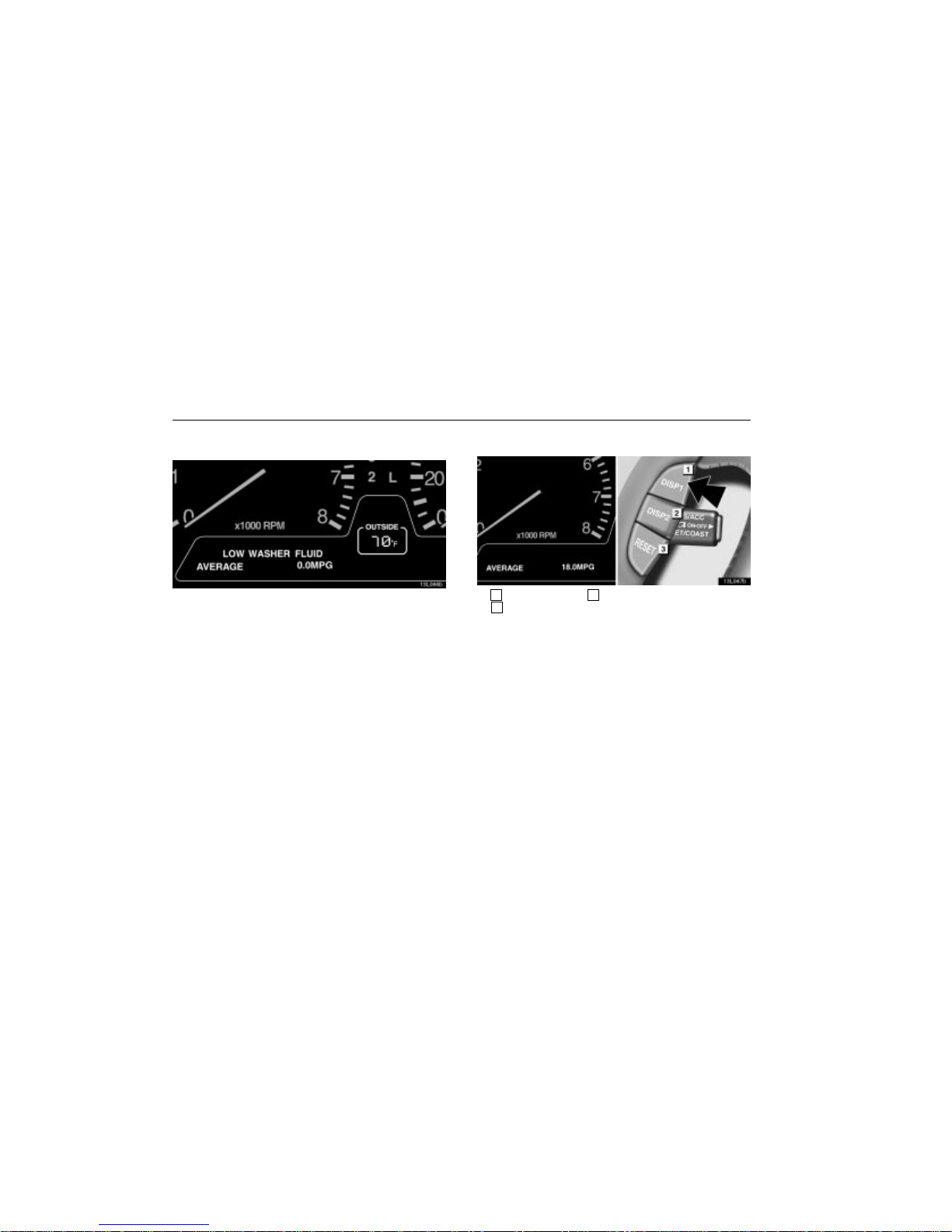

Multi–information display control switch 54. . . . . . .

34

Rear view mirror folding switch 125. . . . . . . . . . . . . .

35

Steering pad switches 223. . . . . . . . . . . . . . . . . . . . . . .

36

Trunk lid opener 100. . . . . . . . . . . . . . . . . . . . . . . . . . . .

37

Parking brake 234. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

38

Hood opener 98. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

39

Lexus park assist system switch 244. . . . . . . . . . . . .

40

Parking brake release lever 234. . . . . . . . . . . . . . . . . .

41

Fuel filler door opener 102. . . . . . . . . . . . . . . . . . . . . . .

42

Coin box 83. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

43

Power rear view mirror control switches 123. . . . . .

PICTORIAL INDEX

vii

INSTRUMENT CLUSTER (Vehicles sold in U. S. A.)

00L085f

For detailed information, refer to the description given in each section.

PICTORIAL INDEX

viii

Page

1

Engine coolant temperature gauge 44. . . . . . . . . . . .

2

Slip indicator light 277, 278. . . . . . . . . . . . . . . . . . . . . .

3

Master warning light 51. . . . . . . . . . . . . . . . . . . . . . . . .

4

Tachometer 45. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5

Turn signal indicator light 26. . . . . . . . . . . . . . . . . . . .

6

Fog light indicator light 27. . . . . . . . . . . . . . . . . . . . . . .

7

Headlight indicator light 24. . . . . . . . . . . . . . . . . . . . . .

8

Headlight high beam indicator light 26. . . . . . . . . . .

9

Automatic transmission indicator lights 236. . . . . .

10

Fuel filler door indicator 102. . . . . . . . . . . . . . . . . . . . .

11

Fuel gauge 44. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

12

Low fuel level warning light 52. . . . . . . . . . . . . . . . . . .

13

Damping mode indicator light 277. . . . . . . . . . . . . . . .

14

Open door warning light 52. . . . . . . . . . . . . . . . . . . . . .

15

Brake system warning light 48. . . . . . . . . . . . . . . . . . .

Page

16

SRS warning light 49. . . . . . . . . . . . . . . . . . . . . . . . . . . .

17

ODO/TRIP RESET button 46. . . . . . . . . . . . . . . . . . . . .

18

Discharge warning light 50. . . . . . . . . . . . . . . . . . . . . .

19

Driver’s seat belt reminder light 49. . . . . . . . . . . . . . .

20

Odometer and trip meter 46. . . . . . . . . . . . . . . . . . . . .

21

Multi– information display 54. . . . . . . . . . . . . . . . . . . .

22

Anti–lock brake system warning light 51. . . . . . . . . .

23

Vehicle skid control system OFF

indicator light 279. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

24

Snow mode indicator light 243. . . . . . . . . . . . . . . . . . .

25

Instrument panel light control 67. . . . . . . . . . . . . . . . .

26

Security indicator light 178. . . . . . . . . . . . . . . . . . . . . .

27

Power mode indicator light 243. . . . . . . . . . . . . . . . . .

28

Malfunction indicator lamp 50. . . . . . . . . . . . . . . . . . .

29

Cruise control indicator light 249. . . . . . . . . . . . . . . .

PICTORIAL INDEX

ix

INSTRUMENT CLUSTER (Vehicles sold in Canada)

00L086e

For detailed information, refer to the description given in each section.

PICTORIAL INDEX

x

Page

1

Engine coolant temperature gauge 44. . . . . . . . . . . .

2

Slip indicator light 277, 278. . . . . . . . . . . . . . . . . . . . . .

3

Master warning light 51. . . . . . . . . . . . . . . . . . . . . . . . .

4

Tachometer 45. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5

Turn signal indicator light 26. . . . . . . . . . . . . . . . . . . .

6

Front fog light indicator light 27. . . . . . . . . . . . . . . . .

7

Tail indicator light 24. . . . . . . . . . . . . . . . . . . . . . . . . . . .

8

Automatic transmission indicator lights 236. . . . . .

9

Headlight high beam indicator light 26. . . . . . . . . . .

10

Rear fog light indicator light 28. . . . . . . . . . . . . . . . . .

11

Fuel filler door indicator 102. . . . . . . . . . . . . . . . . . . .

12

Fuel gauge 44. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

13

Low fuel level warning light 52. . . . . . . . . . . . . . . . . . .

14

Damping mode indicator light 277. . . . . . . . . . . . . . . .

15

Open door warning light 52. . . . . . . . . . . . . . . . . . . . . .

16

Brake system warning light 48. . . . . . . . . . . . . . . . . . .

Page

17

SRS warning light 49. . . . . . . . . . . . . . . . . . . . . . . . . . . .

18

ODO/TRIP RESET button 46. . . . . . . . . . . . . . . . . . . . .

19

Discharge warning light 50. . . . . . . . . . . . . . . . . . . . . .

20

Driver’s seat belt reminder light 49. . . . . . . . . . . . . . .

21

Odometer and trip meter 46. . . . . . . . . . . . . . . . . . . . .

22

Multi–information display 54. . . . . . . . . . . . . . . . . . . . .

23

Anti–lock brake system warning light 51. . . . . . . . . .

24

Vehicle skid control system OFF

indicator light 279. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

25

Snow mode indicator light 243. . . . . . . . . . . . . . . . . . .

26

Instrument panel light control 67. . . . . . . . . . . . . . . . .

27

Security indicator light 178. . . . . . . . . . . . . . . . . . . . . .

28

Power mode indicator light 243. . . . . . . . . . . . . . . . . .

29

Malfunction indicator lamp 50. . . . . . . . . . . . . . . . . . .

30

Cruise control indicator light 249. . . . . . . . . . . . . . . .

PICTORIAL INDEX

xi

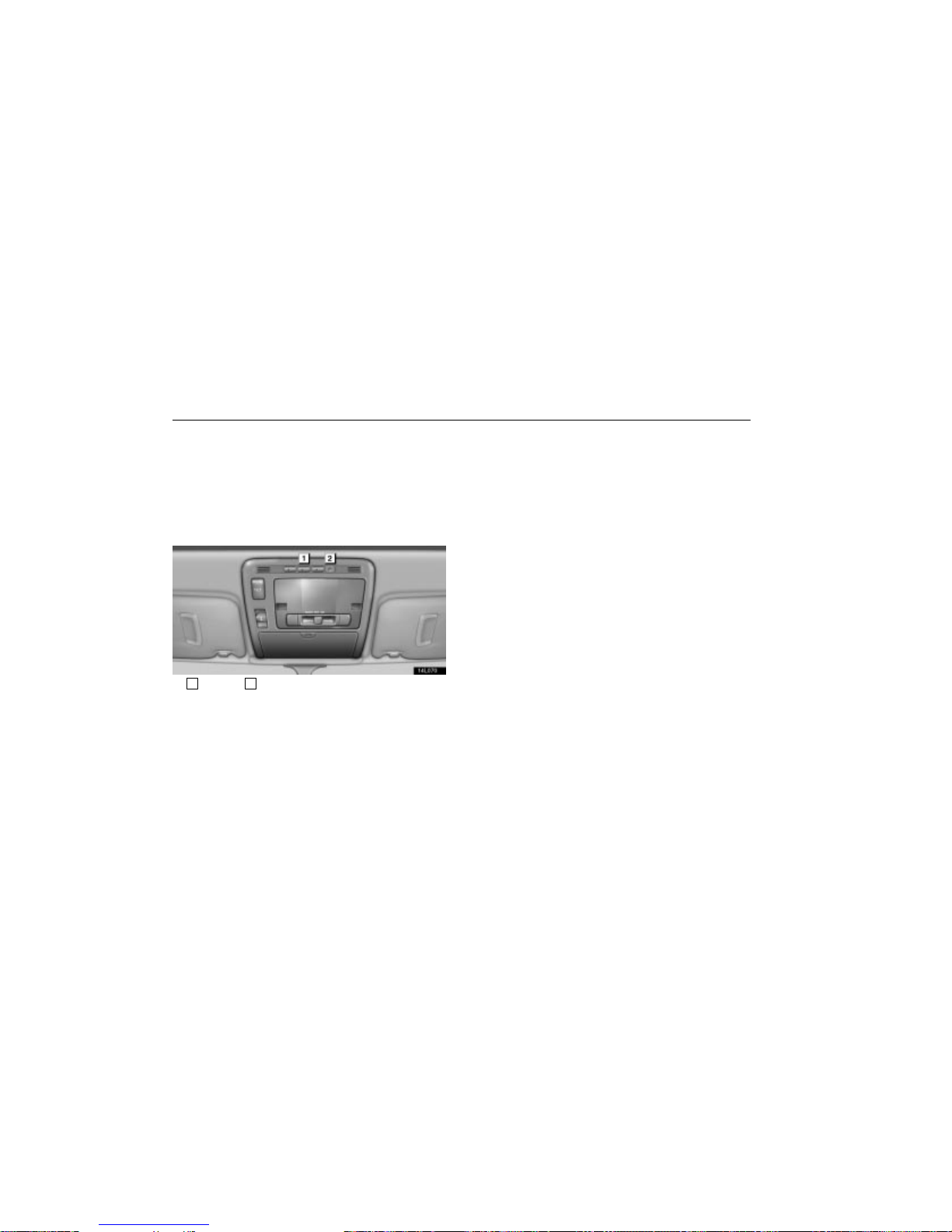

OVERHEAD CONSOLE

00L109

Page

1

Moon roof switches 104. . . . . . . . . . . . . . . . . . . . . . . . .

2

Garage door opener switches 78. . . . . . . . . . . . . . . . .

3

Lexus Link System switches 321. . . . . . . . . . . . . . . . .

REAR ARMREST

00L110b

Page

1

Rear seat control switches 116. . . . . . . . . . . . . . . . . .

2

Refreshing rear seat switches 41. . . . . . . . . . . . . . . .

3

Rear air conditioning control switches 199. . . . . . . .

4

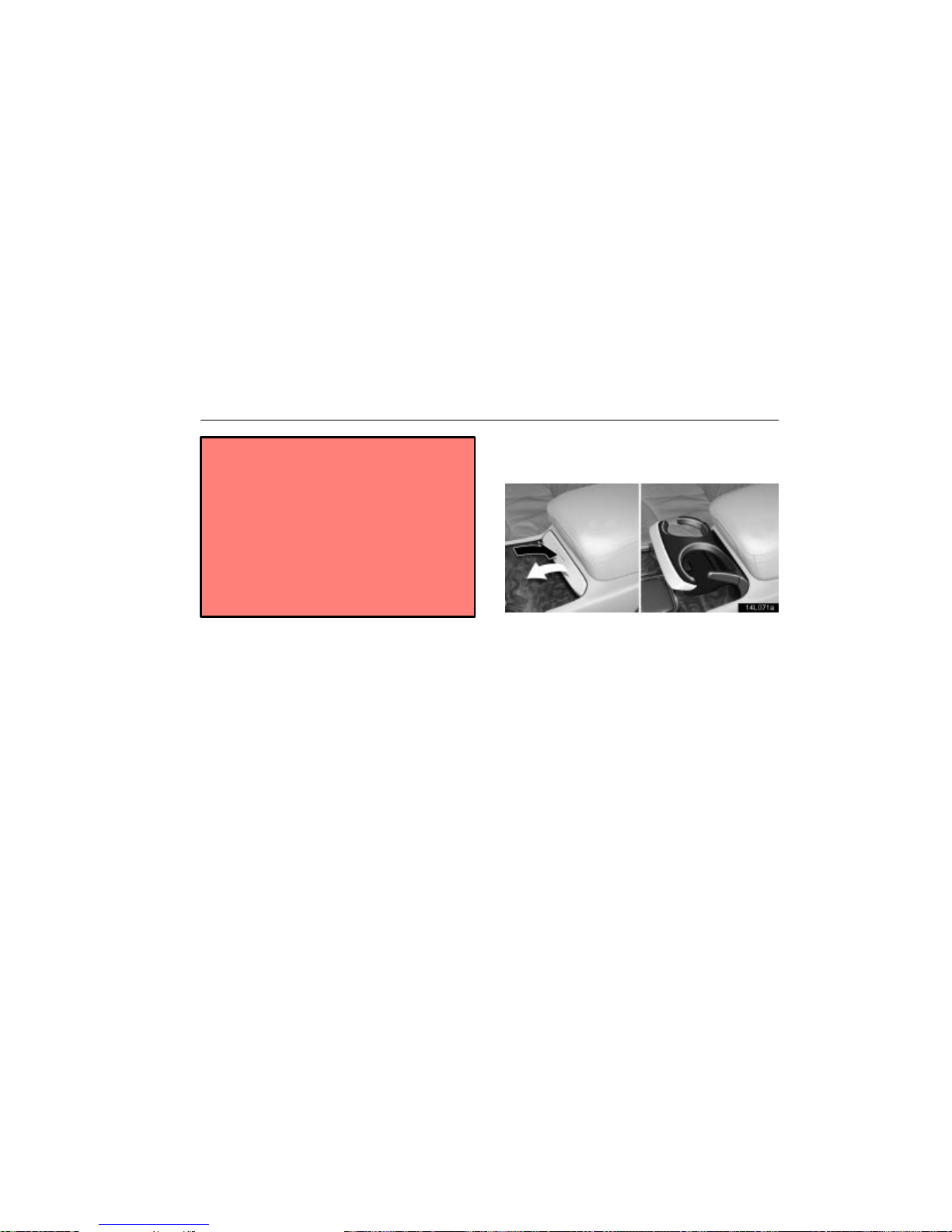

Cup holders 81. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5

Rear electric sunshade switch 91. . . . . . . . . . . . . . . .

6

Rear seat heater switches 37. . . . . . . . . . . . . . . . . . . .

7

Audio rear control switches 221. . . . . . . . . . . . . . . . .

00L079a

PICTORIAL INDEX

xii

SEAT AND STEERING WHEEL

Page

1

Tilt and telescopic steering

adjustment switch 121. . . . . . . . . . . . .

2

Seat cushion length

control switch 111. . . . . . . . . . . . . . . . . .

3

Seat position, seat cushion
angle and height control

switch 111, 113. . . . . . . . . . . . . . . . . . . .

4

Seatback angle and head

restraint control switch 112, 118. . . .

5

Lumbar support control

switches 113. . . . . . . . . . . . . . . . . . . . . .

For detailed information, refer to the
description given in each section.

00L107d

PICTORIAL INDEX

xiii

EXTERIOR VIEW

Page

1

Fuel filler door 102. . . . . . . . . . . . . . . .

2

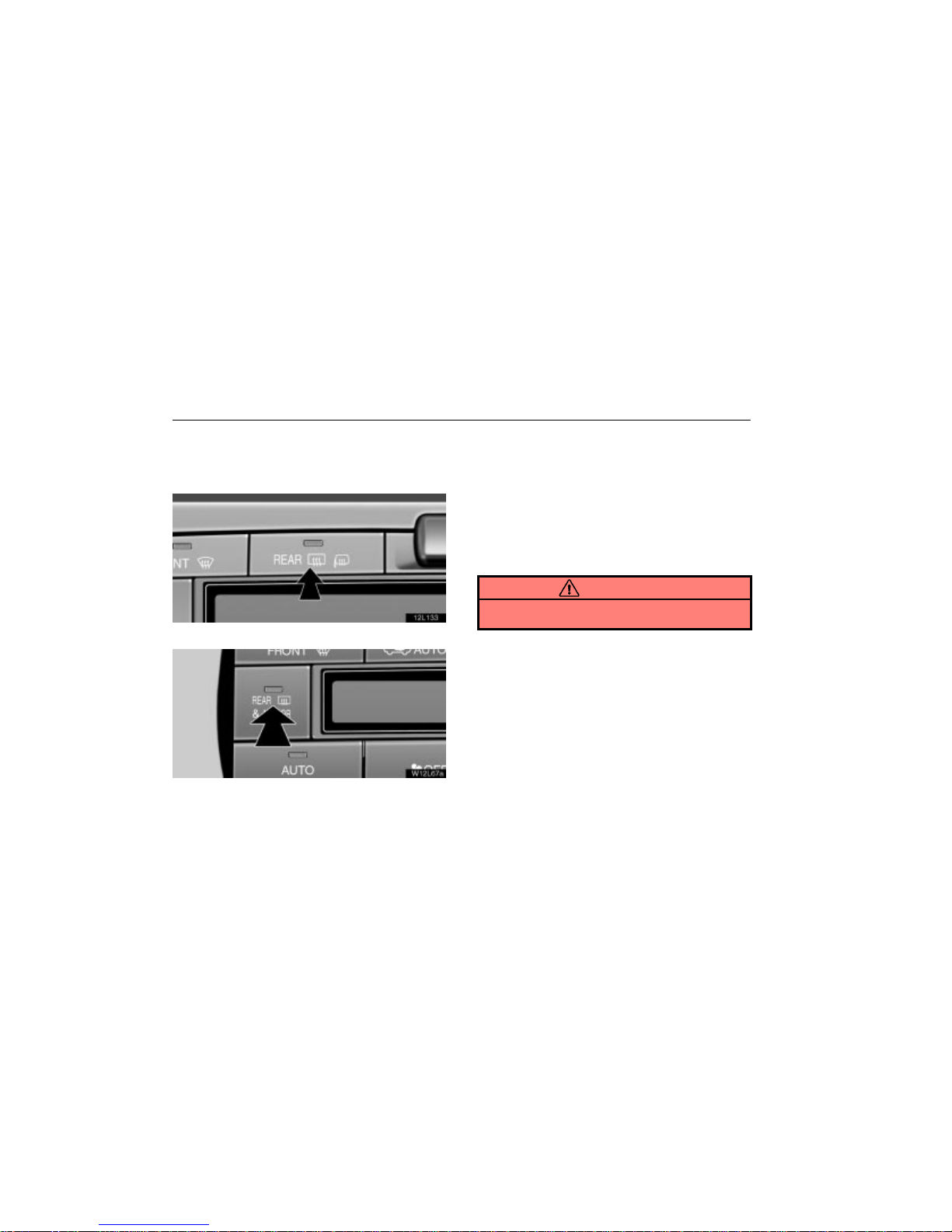

Rear window defogger 32. . . . . . . . . .

3

Trunk lid 99. . . . . . . . . . . . . . . . . . . . . . .

4

Moon roof 104. . . . . . . . . . . . . . . . . . . .

5

Wiper and washer 28, 396. . . . . . . . . .

6

Outside rear view mirror 122. . . . . . .

7

Door 19. . . . . . . . . . . . . . . . . . . . . . . . . .

8

Tire and wheel 373. . . . . . . . . . . . . . . .

9

Headlight 24, 398. . . . . . . . . . . . . . . . . .

10

Hood 98. . . . . . . . . . . . . . . . . . . . . . . . . .

For detailed information, refer to the
description given in each section.

BASIC OPERATION

1

QUICK REFERENCE

Driver’s seat 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Steering wheel 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Automatic transmission 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Headlight and turn signal switch 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Wiper switch 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

00L139

Seat adjustment

Seat

position

Seat cushion

angle

Seat cushion

height

Head restraint

height

Seatback

angle

Upper lumbar

support

Head restraint

angle

Lower lumbar

support

Seat cushion

length

QUICK REFERENCE

2

1. DRIVER’S SEAT

QUICK REFERENCE

3

2. STEERING WHEEL

 TILT STEERING WHEEL

00L081b

To tilt the steering wheel up or down to the desired angle,
push the control switch in the required direction and
release the button when the steering wheel reaches the
desired angle.

 TELESCOPIC STEERING WHEEL

00L082b

T o move the steering wheel to the desired position, push
the control switch away from you or pull it toward you until
the steering wheel reaches the desired position.

00L083

00L084

 Shift while pressing the brake pedal. (Ignition

switch must be in the ”ON” position.)

*When the cruise control is being used, even if you downshift from ”D” to ”4”, engine braking will not be enabled because
the cruise control is not cancelled. For the operation to decrease the vehicle speed, see page 251.

OPERATION OF SELECTOR LEVER

SELECTOR LEVER POSITION

P: Parking, engine starting and key removal

position

R: Reverse position
N: Neutral position
D: Normal driving position (Shifting into over-

drive possible)

4: Position for engine braking (Shifting into

overdrive not possible)*

3, 2: Position for more powerful engine braking

L: Position for maximum engine braking

QUICK REFERENCE

4

3. AUTOMATIC TRANSMISSION

00L100a

00L101a

Parking, tail, license plate,
side marker and instrument
panel lights turn on.

Headlights also turn on
at full intensity.

Automatic light control

Parking, tail, license plate,
side marker and instrument
panel lights turn on.

Headlights also turn on.

Automatic light control

00L103a

00L102a

Right or left turn

Lane change
(Right or left)

High beam

Headlight flasher

QUICK REFERENCE

5

4. HEADLIGHT AND TURN SIGNAL

SWITCH

 HEADLIGHT SWITCH

With the ignition OFF

With the engine started and parking brake
released

 TURN SIGNAL SWITCH

Intermittent operation type

Mist wiper operation

Intermittent operation

Low speed operation

High speed operation

Washer on

Mist wiper operation

Automatic operation

Low speed operation

High speed operation

Washer on

Raindrop detection type

QUICK REFERENCE

6

5. WIPER SWITCH

SECTION 1 –

1

7

INSTRUMENTS AND CONTROLS

Keys and doors

Keys 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Engine immobiliser system 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Wireless remote control 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Doors 19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

KEYS AND DOORS

8

KEYS

11L025c

1

Master keys (black) – These master keys work for
every lock. For your Lexus dealer to make a new key
with built–in transponder chip, your dealer will need
one of them.

2

Sub key (gray) – The sub key will not open the trunk,
trunk main switch, the glove box and trunk storage
extension door.

3

Key number plate – Keep the plate in a safe place
such as your wallet, not in the vehicle.

A transponder chip for the engine immobiliser system has
been placed in the head of the master and sub keys. These
chips are required for the system to function correctly, so be
careful not to lose these keys. If you make your own duplicate
key, you will not be able to cancel the system or start the
engine.

To protect items locked in the trunk or glove box when using
valet parking, leave the sub key with the attendant.

Since the doors and trunk lid can be locked without a key, you
should always carry a spare master key in case you
accidentally lock your keys inside the vehicle.

If you should lose your keys or if you need additional keys,
duplicates can be made by a Lexus dealer using the key
number.

We recommend writing down the key number and storing it in
a safe place.

KEYS AND DOORS

9

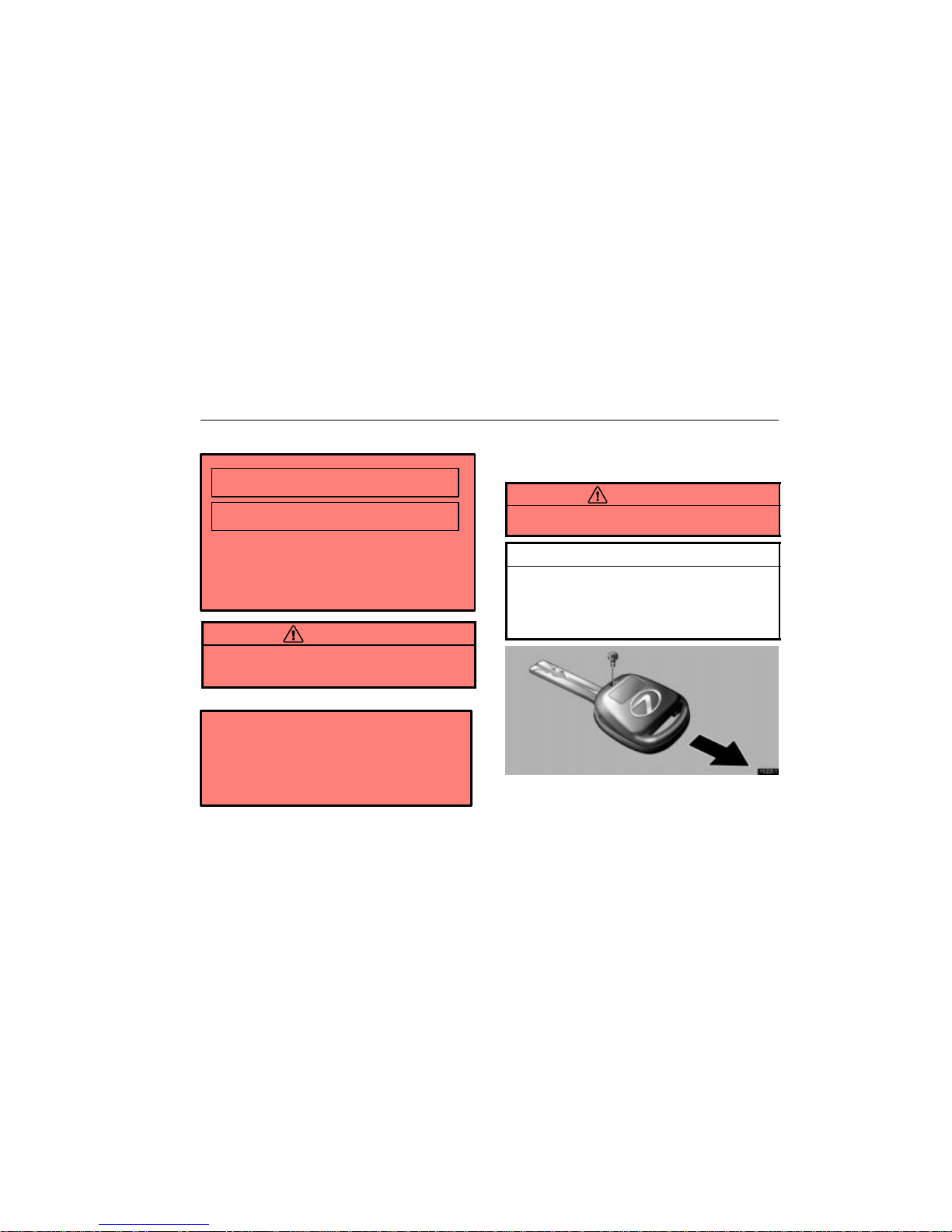

Flat key

11g039c

As a transponder chip is built in its key case, you can start
the engine with this key.

The flat key works in every lock.

A transponder chip for the engine immobiliser system has
been placed in the key case of the flat key. This chip is required
for the system to function correctly, so be careful not to lose this
key. If you make your own duplicate key, you will not be able
to cancel the system or start the engine.

Insert your key plate in its key case as shown. We recommend
that you always carry this with you for emergency use. Do not
leave it in your vehicle.

Starting the engine using a flat key

11L050a

1. Remove the key plate from the key case.

2. Insert the key plate into the ignition switch. The security
indicator light keeps flashing.

3. Bring the key case closer to the ignition switch within 10
seconds as indicated by the arrow head. The indicator light
goes out. This means the engine immobiliser system is
automatically canceled. (For details, see “Engine immobiliser
system” on page 1 1.) You can put the key case away then. You
cannot cancel the engine immobiliser system if 10 seconds
have passed after you inserted the key plate. You need to
remove the key plate from the ignition switch and try it again
from the step 2.

4. Start the engine within 20 seconds after the security
indicator light goes out. You cannot start the engine if 20
seconds have passed after the security indicator went off. You
need to remove the key plate from the ignition switch and try
it again from the step 2.

KEYS AND DOORS

10

NOTICE



Do not let the key case become bent as the key plate
may fall out or become bent also.



The flat key is designed for emergency use only, so
do not use it regularly instead of the other master
keys.

11L021-2

When using a key containing a transponder chip,
observe the following precautions:



When starting the engine, do not use the key with a
key ring resting on the key grip and do not press the
key ring against the key grip. Doing so may prevent
the engine from starting, or may cause the engine to
stop soon after it starts.

11R055



When starting the engine, do not use the key in
proximity with other transponder keys (including the
flat key and keys of other vehicles), and do not press
other key plates against the key grip. Doing so may
prevent the engine from starting, or may cause the
engine to stop soon after it starts. If this happens,
remove the key once and then insert it again after
taking off other transponder keys (including the flat
key and keys of other vehicles) from the ring or while
gripping or covering them with your hand to start the
engine.

KEYS AND DOORS

11

11G035c



Do not bend the key grip or flat key.



Do not cover the key grip or flat key with any material
that cuts off electromagnetic waves.



Do not knock the key or flat key hard against other
objects.



Do not leave the key or flat key exposed to high
temperatures for a long period, such as on the
dashboard or hood under direct sunlight.



Do not put the key or flat key in water or wash it in an
ultrasonic washer.



Do not use the key or flat key with electromagnetic
materials.

ENGINE IMMOBILISER SYSTEM

11L042

The engine immobiliser system is a theft prevention
system. When you insert the key in the ignition switch, the
transponder chip in the key’s head transmits an electronic
code to the vehicle. The engine will start only when the
electronic code in the chip corresponds to the registered
ID code for the vehicle.

The system is automatically set when the key is removed from
the ignition switch. At this time, the security indicator light
flashes. When you insert the key in the ignition switch, the
security indicator light goes out and the system is canceled
automatically, which enables the engine to start.

The transponder chip of the flat key is in its key case. You can
cancel the engine immobiliser system using the flat key. (For
details, see “Flat key” on page 9.)

KEYS AND DOORS

12

For your Lexus dealer to make you a new key with built–in
transponder chip, your dealer will need your key number and
master key or the flat key. However, there is a limit to the
number of additional keys your Lexus dealer can make for you.

If you make your own duplicate key, you will not be able
to cancel the system or start the engine.

For vehicles sold in U.S.A.

FCC ID: NI4RI–16BTY

MADE IN JAPAN

This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.

CAUTION

Changes or modifications not expressly approved by
the party responsible for compliance could void the
user’s authority to operate the equipment.

For vehicles sold in Canada

This device complies with RSS–210 of Industry
Canada.
Operation is subject to the following two conditions:
(1) This device may not cause interference, and (2)
this device must accept any interference, including
interference that may cause undesired operation of the
device.

KEYS AND DOORS

13

WIRELESS REMOTE CONTROL*

11L027c

1

Locking the doors and sounding an alarm

2

Unlocking the doors, and opening the windows and
moon roof

3

Indicator light

4

Unlocking the trunk lid

NOTE: *This feature can be deactivated as vehicle theft
deterrent measure in case of the loss of the wireless remote
control key. Ask your Lexus dealer for details.

When you operate any button on the key, push it slowly and
surely. At this time, the indicator light on the key grip flashes
once.

The operational range of the wireless remote control is
approximately 1 m (3 ft.). The effective range may vary with
different conditions. To activate the wireless remote control
without fail, do it approximately 1 m (3 ft.) from your Lexus.

In the following cases, the battery in the key may be
discharged. If this is the case, replace it using a special
screwdriver.

 The remote control does not work.
 The operational range of wireless remote control becomes

extremely short.

 The indicator light on the key is dimmed or does not come

on.

For the replacement of the battery, see ”Replacing the battery”
on page 17. You can also have the battery of the key replaced
by your Lexus dealer.

If you lose the wireless key, contact your Lexus dealer as soon
as possible to avoid the possibility of theft, or an accident.

You can use up to 4 master keys and 3 sub keys for the same
vehicle. Contact your Lexus dealer for detailed information.

The wireless remote control key is an electronic
component. Observe the following instructions in order
not to cause damage to the key.

 Do not leave the wireless remote control key on places

where the temperature becomes high such as on the
dashboard.

 Do not disassemble it.
 Avoid knocking it hard against other objects or dropping it.
 Avoid putting it in water.

KEYS AND DOORS

14

Locking/Unlocking the doors

When you push the ”LOCK” button on the key briefly, all
the doors can be locked from outside the vehicle.

At this time, you can hear one beep and turn signal lights flash
once.* However, when you push the ”LOCK” button with any
door not closed securely, the buzzer sounds for 10 seconds.**
To stop the buzzer, close all the doors securely or push the
”UNLOCK” button. If the key is in the ignition switch, locking
cannot be done.

NOTE: *The turn signal lights can be set not to flash. **The
buzzer can be set not to sound if a door is not closed
securely. Ask your Lexus dealer for details.

If outer foot lights are illuminated, you can turn off the lights by
pushing the “LOCK” button on the key . (For details, see “Outer
foot lights” on page 125.)

NOTICE

Do not push the ”LOCK” button any longer than 2 to 3
seconds. Pushing the button longer activates an alarm.
For details, see page 16.

When you push the ”UNLOCK” button, the driver’s door
is unlocked and outer foot lights come on. Pushing the
“UNLOCK” button once again within 3 seconds will
unlock all other doors.*

NOTE: *The 2–step unlocking function can be changed.
Ask your Lexus dealer for details.

At this time, two beeps sound and turn signal lights flash twice.*
Together with the activation of unlocking, the interior light
comes on for 15 seconds if the interior light switch is in ”DOOR”
position.** However, this function does not work when the
ignition switch is in the “ACC” or “ON” position. For further
information, see ”Interior lights” on page 71.

For outer foot lights, see “Outer foot lights” on page 125.
You have 30 seconds to open a door after using the wireless

remote unlock feature.*** If a door is not opened by then, all
the doors will be automatically locked again.

NOTE: *The turn signal lights can be set not to flash. **The
interior light can be set not to come on or the duration of
lighting can be changed. ***The time before automatic
re–locking can be changed. Ask your Lexus dealer for
details.

Even if the ”LOCK” or ”UNLOCK” button is kept pressed in, the
locking or unlocking operation is not repeated. Release the
button and then push again.

KEYS AND DOORS

15

Adjusting beep volume

11L165

You can adjust the volume of the beeps which confirm the
locking or unlocking the doors or remind you when the
doors are not completely closed.

Turn the knob counterclockwise to increase the volume or
clockwise to decrease it. The beep sound is completely
deactivated when you turn the knob clockwise until you hear
a click.

Unlocking the trunk lid

11L043g

When you keep the button pushed for about 1 second, you
can unlock the trunk lid.* One beep sounds.

This function does not work when the ignition switch is in the
”ON” position.

NOTE: *The operation method can be changed. Ask your
Lexus dealer for details.

KEYS AND DOORS

16

Sounding an alarm*

11L044b

When you keep the ”PANIC” button pushed for about 2 t o
3 seconds, an alarm sounds to deter any person trying to
break into or damage your vehicle.

If you want to stop the alarm, push any button.
This function does not work when the ignition switch is in the

”ON” position.

NOTE: *The alarm can be set not to sound. Ask your Lexus
dealer for details.

Operating the windows and moon roof

The windows and moon roof can be operated using a
wireless remote control key from outside the vehicle.*

NOTE: *The windows can be deactivated. The moon roof
can be set to slide open or tilt up or deactivated. Ask your
Lexus dealer for details.

11L054g

Push the ”UNLOCK” button until the windows and moon roof
start to move. At this time one beep sounds. When you
release the button, the windows and moon roof stop operating.

This function will work even with the window lock switch
pressed in.

KEYS AND DOORS

17

For vehicles sold in U.S.A.

FCC ID: NI412BBB

MADE IN JAPAN

FCC ID: NI4B11UE

MADE IN JAPAN

This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.

CAUTION

Changes or modifications not expressly approved by
the party responsible for compliance could void the
user’s authority to operate the equipment.

For vehicles sold in Canada

This device complies with RSS–210 of Industry
Canada.
Operation is subject to the following two conditions:
(1) This device may not cause interference, and (2)
this device must accept any interference, including
interference that may cause undesired operation of the
device.

Replacing the battery

When you replace the battery, prepare a lithium battery
CR1616 or equivalent and a special screwdriver.

CAUTION

Special care should be taken that small children do not
swallow the removed battery or components.

NOTICE



When replacing the b a t t er y, be careful not to lose the
components, screws and O–ring.



Replace only with the same or equivalent type
recommended by a Lexus dealer.



Dispose of used batteries according to the local laws.

11L028–1

1. Remove the screw, and then the cover while pushing it in the
arrow direction.

KEYS AND DOORS

18

11L029–1

2. Remove the module from the key frame.

11L030–1

3. Remove the 2 screws to take out the lid of the module.

4. Take out the discharged battery and put a new battery with
the positive side up.

NOTICE



Make sure the positive side and negative side of the
battery should be faced correctly.



Do not replace the battery with wet hands. Water may
cause unexpected rust.



Do not touch or move any components inside the
transmitter, or it may interfere with proper operation.



Be careful not to bend the electrode of the battery
insertion and that dust or oils do not adhere to the
inside of the module.



Take care not to lose the screws and O–ring.

5. Install the lid with the 2 screws.

NOTICE

Take care not to damage or bend the O–ring when
installing.

6. Install the module into the key frame and secure the cover
with the screw.

7. When pushing any switch on the wireless key, make sure
the indicator light comes on.

KEYS AND DOORS

19

DOORS

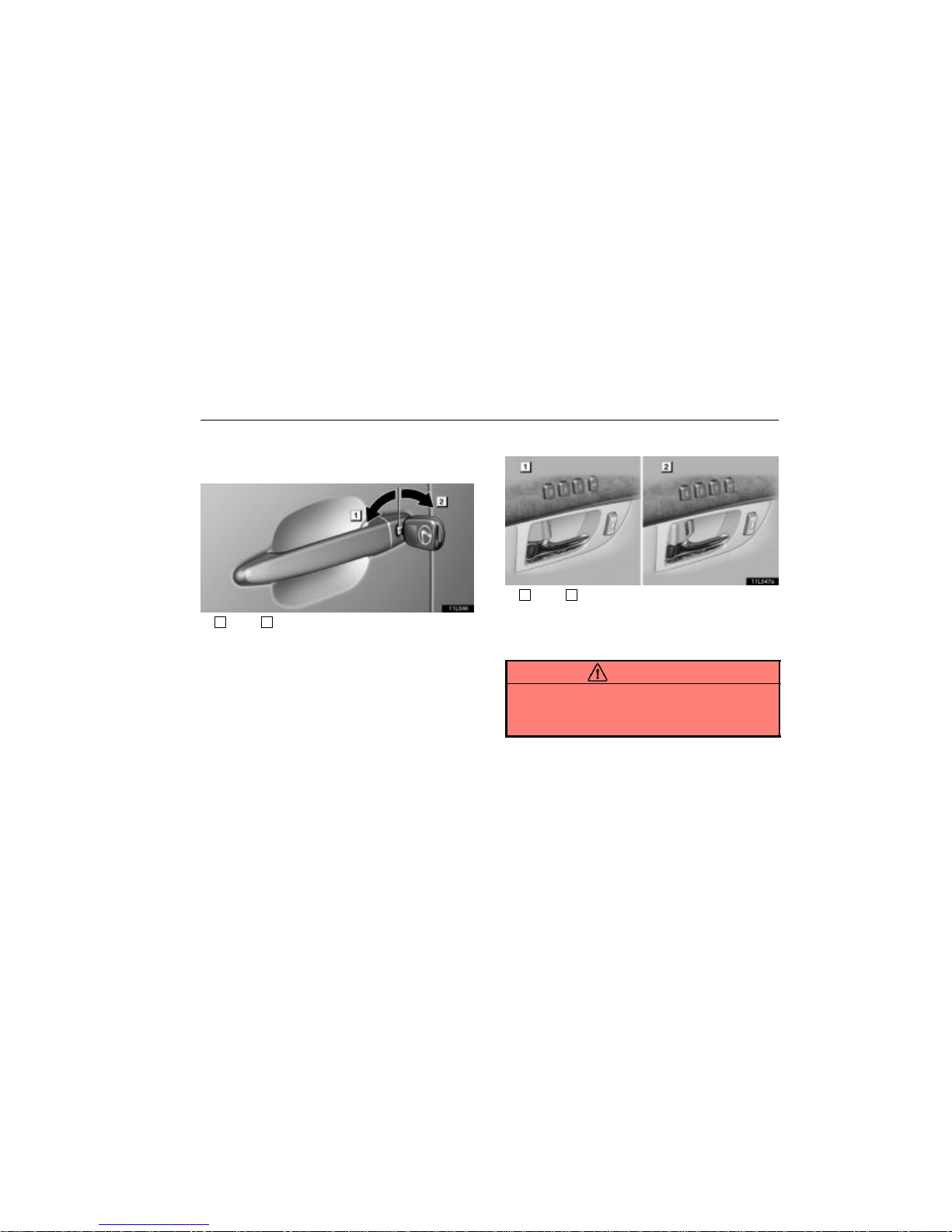

Locking with key

11L046



1

Lock 2Unlock

Turn the key towards the front of the vehicle to lock and
towards the back to unlock.

The doors lock and unlock simultaneously with driver’s door.
Turning the key once will unlock the driver’s door and twice in
succession will unlock all doors simultaneously.*

NOTE: *The 2–step unlocking function can be changed.
Ask your Lexus dealer for details.

If a wrong key is used, the key cylinder rotates freely to isolate
inside mechanism. So, door locking is protected from thieves.

The windows and moon roof can be opened and closed from
outside the vehicle using the key. For details, see “Power
window switches” on page 33 and “Moon roof” on page 104.

Locking with inside lock button

11L047a



1

Lock 2Unlock

Push in the lock button to lock and unlock the door.

The front doors can be opened by pulling the inside handles
even if the lock buttons are in the locked position.

CAUTION

Do not pull the inside handle of the front doors while
driving. The doors will open and an accident may occur.
Lexus strongly recommends that all children be placed
in the rear seat of the vehicle.

Closing the door with the lock button pushed in will also lock
the door. Be careful not to lock your keys in the vehicle. Doors
cannot be locked when either front door is open and the key is
in the ignition.

KEYS AND DOORS

20

If the vehicle is subjected to a severe frontal, rear or side
impact with the ignition switch turned to the “ON” position, all
doors will unlock automatically after a few seconds.

CAUTION

Before driving, make sure the doors are closed and
locked, especially when small children are in the
vehicle. Along with the proper use of seat belts, locking
the doors helps prevent the driver and passengers from
being thrown out from the vehicle during an accident.
It also helps prevent the doors from being opened
unintentionally.

Locking with power door lock switch

11L048a



1

Lock 2Unlock

To lock all the doors simultaneously, push the power door
lock switch down on the front side. Pushing down on the
rear side will unlock them.

When you push the power door lock switch on the rear side to
unlock the doors to allow a passenger to get in, the outer foot
lights come on. To turn off the lights, push the power door lock
switch on the front side. (For details, see “Outer foot lights” on
page 125.)

The same switch is also found on the front passenger’s side.
However, pushing this switch will neither turn on nor off the
outer foot lights.

KEYS AND DOORS

21

Auto door locking function*: All th e doo rs w ill l ock
automatically when the selector lever is moved out of “P”
position. This auto door locking function is operable if any
doors are unlocked while the ignition switch is in the “ON”
position.

NOTE: *This setting can be changed as in the following:



All the doors are locked automatically at 20 km/h (12
mph) or higher vehicle speed. However, if any door is
unlocked during driving, this auto locking function does
not operate until the unlocked door is once opened.



When the selector lever is moved out of “P” position and
the brake pedal is held off your foot, this function is
enabled.

Ask your Lexus dealer for details.

Door closer (some models)

If any door is closed but does not latch shut, it
automatically closes completely. This system is equipped
on all the doors and will activate regardless of the ignition
switch position.

Pulling the door handle will cancel the door closer, allowing you
to open the door which is about to close. However, pulling the
door handle of the rear door which is locked with the child
protector will not cancel the door closer.

CAUTION

 Careful attention is needed so as not to get your

fingers trapped as the door automatically closes
when the door has not been fully closed.

 Never allow a child to operate the door.

KEYS AND DOORS

22

Locking with rear door child–protector

11L049c



1

Lock 2Unlock

Whenever small children are in the vehicle, lock the rear
door so that it does not open from the inside. To do this,
move the knob to the ”LOCK” position as shown and then
close the door.

SECTION 1 –

2

23

INSTRUMENTS AND CONTROLS

Switches

Headlight switch 24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Headlight dimmer and turn signal switch 26. . . . . . . . . . . . . . . . . . . . .

Front fog light switch 27. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rear fog light switch 28. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Windshield wiper and washer switch 28. . . . . . . . . . . . . . . . . . . . . . . . .

Headlight cleaner switch 31. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rear window and outside rear view mirror defogger switch 32. . . . .

Power window switches 33. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Emergency flasher switch 36. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Seat heater switches 37. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Climate control seat switches 38. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Refreshing rear seat switches 41. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SWITCHES

24

HEADLIGHT SWITCH

12L086b

To turn the lights on, twist the knob on the end of the lever.

FIRST CLICKSTOP: Only the parking, tail, license plate, side
marker and instrument panel lights turn on.

SECOND CLICKSTOP: Headlights also turn on.
THIRD CLICKSTOP (”AUTO”): The headlights and all other

lights automatically turn on depending on the darkness of the
surroundings.*

Vehicles sold in U.S.A.: When the headlights are on, the
headlight indicator lights up in the instrument cluster.

Vehicles sold in Canada: When the tail lights are on, the tail
light indicator lights up in the instrument cluster.

Manually twist the knob to the second clickstop to turn on
the headlights if they are needed immediately when
entering a dark tunnel, parking structure, etc.

When the headlight switch is turned to the first or second
clickstop, the brightness of the instrument cluster will be
reduced slightly unless the instrument panel light control knob
is turned fully on.

NOTE: *The operating condition or sensitivity can be
changed. Ask your Lexus dealer for details.

12L054a

The automatic light control sensor is on the top center of the
instrument panel.

Do not place anything on the instrument panel, and/or do not
affix anything on the windshield to block this sensor.

SWITCHES

25

When you turn on the headlights, the lights automatically turn
off about 30 seconds after any of the doors is opened and
closed with the ignition switch turned to the ”ACC” or ”LOCK”
position.* To turn them on again, turn the ignition switch to the
”ON” position, or turn the headlight switch off and then twist the
knob until the first or second clickstop. If you are going to park
for over one week, make sure the headlight switch is off.

When the headlight switch is on with all the doors locked and
the trunk closed, pushing the ”LOCK” button on the wireless
remote control key turns off the headlights.

NOTE: *The time before turning off the lights can be
changed. Ask your Lexus dealer for details.

Daytime Running Light System

The headlights turn on at reduced intensity when the parking
brake is released with the engine started, even with the light
switch in the ”OFF” position. They will not go off until the
ignition switch is turned off.

T o turn on the other exterior lights and instrument panel lights,
twist the knob to the first clickstop.

Twist the knob to the second clickstop to turn on the headlights
to full intensity for driving at night.

When setting the knob to the third clickstop (”AUTO”), the
headlights will automatically adjust to full intensity and/or turn
on the other lights depending on the darkness of the
surroundings. Likewise, as the surroundings become brighter,
the headlights will turn to reduced intensity, ultimately turning
off the other lights.

NOTICE

To prevent the battery from being discharged, do not
leave the lights on longer than necessary when the
engine is not running.

Automatic headlight leveling system

The headlight beam level is always maintained automatically
at the proper level in all loading conditions so that your
headlights do not dazzle other road users.

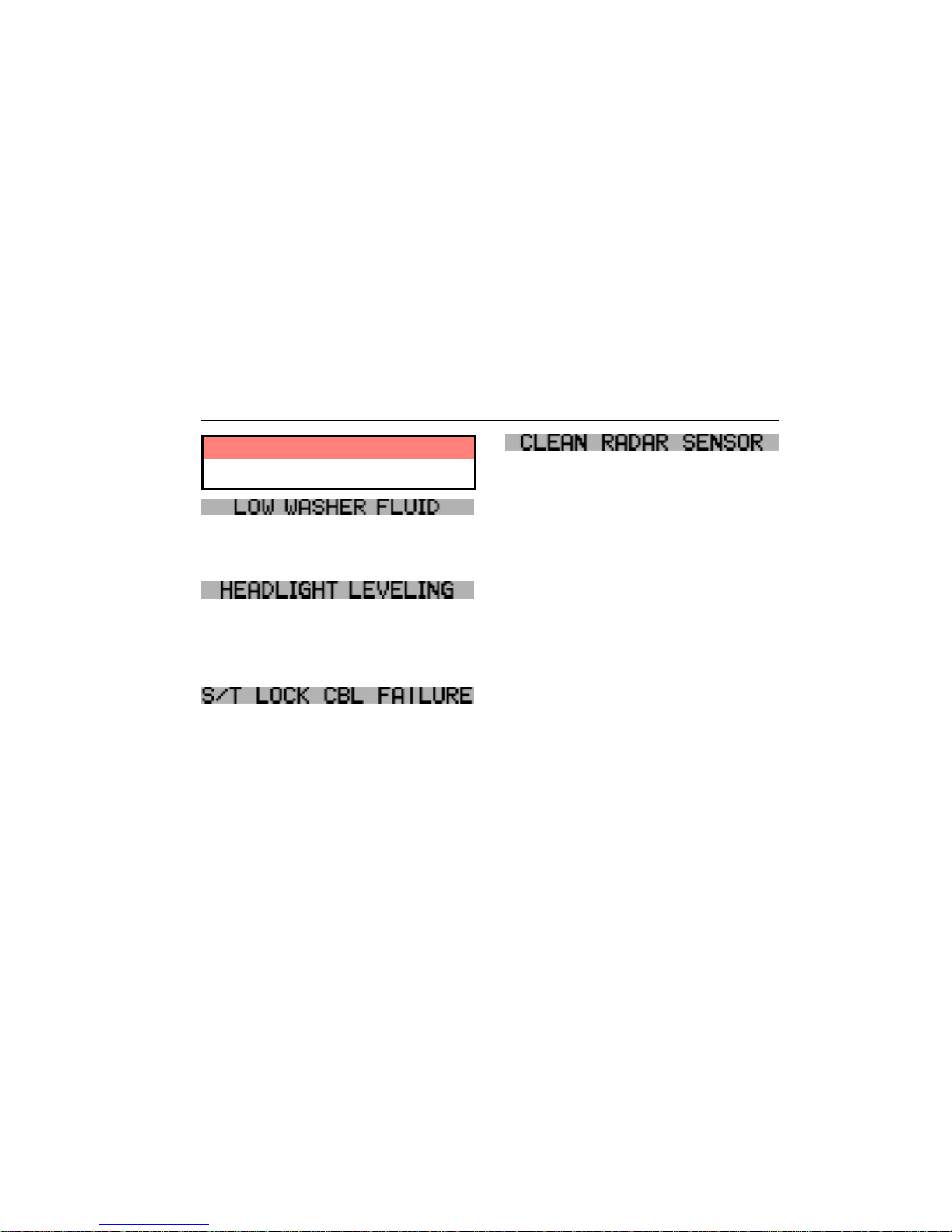

If this system fails, the multi–information display shows a
message ”HEADLIGHT LEVELING”. If this occurs, have your
vehicle checked by Lexus dealer. See page 61 for additional
information.

SWITCHES

26

HEADLIGHT DIMMER AND TURN

SIGNAL SWITCH

12L087b

For high beam, push the lever forward. Pull it back for low
beam. For the headlight flasher, pull it further back.

A blue light in the instrument cluster indicates high beam or
headlight flasher is on.

The headlight flasher works even when the headlight switch is
off.

12L088b

For signaling turns, move the lever up or down in the
conventional manner.

The ignition switch must be in the ”ON” position.
The turn signal is self–cancelling after a turn, but after a lane

change, you may have to cancel it by hand. You can also signal
a lane change by moving the turn signal lever partway and
holding it there.

If the green light in the instrument cluster flashes faster than
normal, it indicates that the front or rear turn signal bulb has
burned out. If this indicator light does not come on, the fuse
or the indicator light itself has probably failed.

SWITCHES

27

FRONT FOG LIGHT SWITCH

12L089b



Vehicles sold in U.S.A.

To turn on the front fog lights, turn the switch to the “ON”
position. They will come on only when the headlights are
on low beam.

When the front fog lights are on, the indicator lights up in the
instrument cluster.

12L140b



Vehicles sold in Canada

To turn on the front fog lights, turn the switch to the fog
light mark. They will come on only when the tail lights are
turned on.

When the front fog lights are on, the indicator lights up in the
instrument cluster.

SWITCHES

28

REAR FOG LIGHT SWITCH

(Canada only)

12L147a

To turn on the rear fog lights, turn the switch to the rear fog
light mark. They will come on when the headlights are
turned on.

To turn of f the lights, turn the switch from the rear fog light mark.
They will go out when the headlight switch is turned to the
”OFF” position.

When the rear fog lights are on, the indicator lights up in the
instrument cluster.

After the headlight switch is turned off, the rear fog lights do not
come on even if you turn on the headlight switch again.

To turn on the rear fog lights, turn the switch to the rear fog light
mark again under the condition stated above.

WINDSHIELD WIPER AND WASHER

SWITCH

Intermittent operation type

12L120a



1

Interval adjuster 2Washer on

To turn the wipers on, move the lever down until you reach
the desired speed setting.

The ignition switch must be in the ”ON” position.

There are 3 settings:
”INT” position: Intermittent operation
”LO” position: Low speed operation
”HI” position: High speed operation
Twist the interval adjuster upward to increase the wiping

time interval between sweeps, and downward to decrease
it.

SWITCHES

29

The wiper lever must be in the ”INT” position.
The time interval between sweeps is shortened when the

vehicle speed increases. When the vehicle speed reaches
more than about 20 km/h (12 mph) with the interval adjuster in
”F” position, the time interval becomes the shortest 1.5
seconds.

If you stop the vehicle with the wiper switch in the ”LO” position,
the wiper speed automatically changes from low speed to
intermittent operation speed.* This function does not work
when the interval adjuster is in the ”F” position.

NOTE: *This feature can be deactivated. Ask your Lexus
dealer for details.

For mist wiper operations (a single wipe), pull the lever
toward you and release it.

To make the washer squirt, push the button on the end of
the lever.

If the wiper lever is in the ”OFF” position, the wipers will
automatically make 3 wipes and then a single wipe later to
sweep the windshield completely.* The interval between the
3 wipes and the last wipe will depend on the vehicle speed.
The last sweep does not happen if the vehicle speed exceeds
about 170 km/h (106 mph).

NOTE: *The last single wipe can be deactivated. Ask your
Lexus dealer for details.

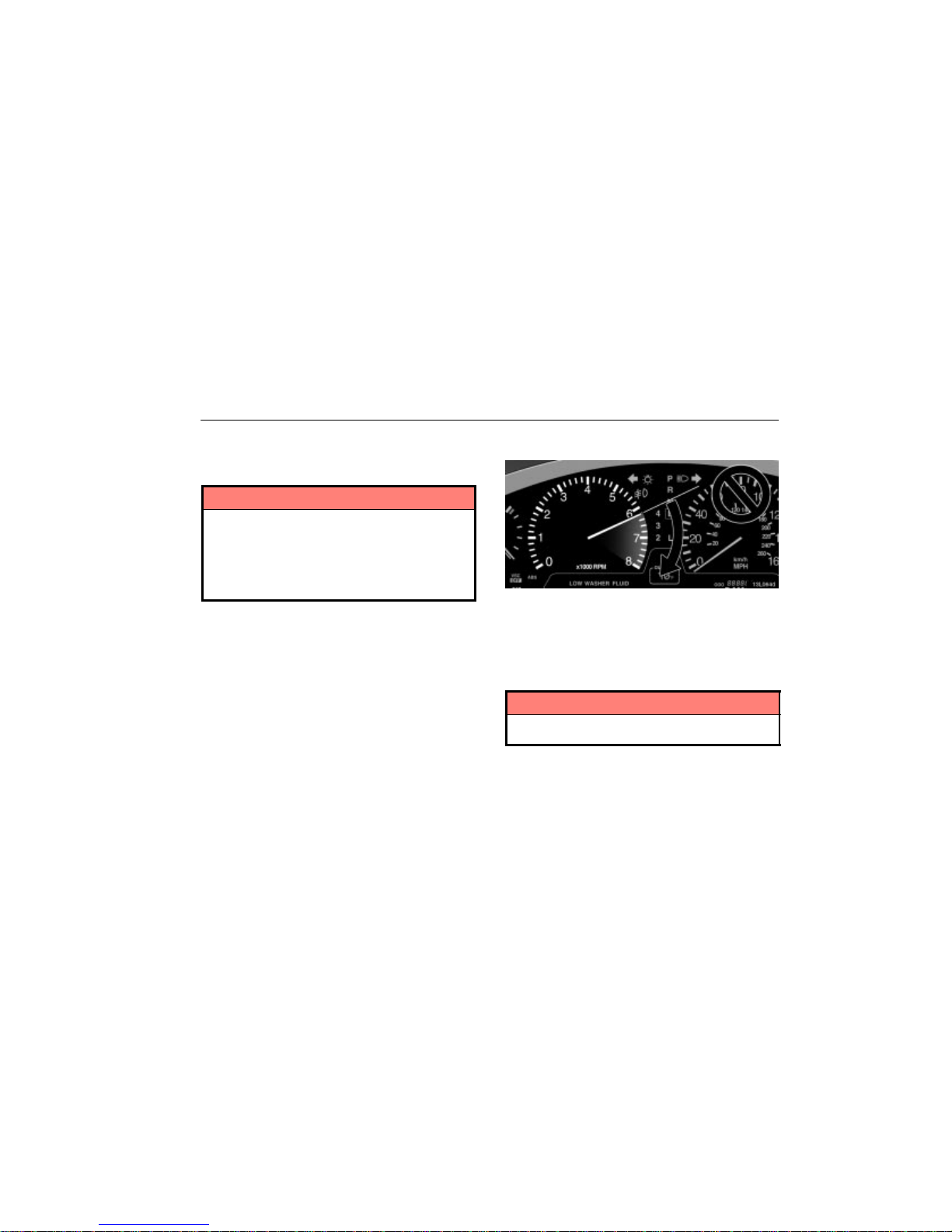

The warning message ”LOW WASHER FLUID” is displayed in
the multi–information display when the fluid level in the tank
becomes very low. For information on adding washer fluid, see
”Adding washer fluid” on page 396.

In cold weather, warm the windshield with the defroster before
using the washer. This will help prevent icing, which could
block your vision.

The rear window and outside rear view mirror defogger
automatically turns on when you operate the wipers.

NOTICE

Do not operate the wipers if the windshield is dry. It m ay
scratch the glass.

SWITCHES

30

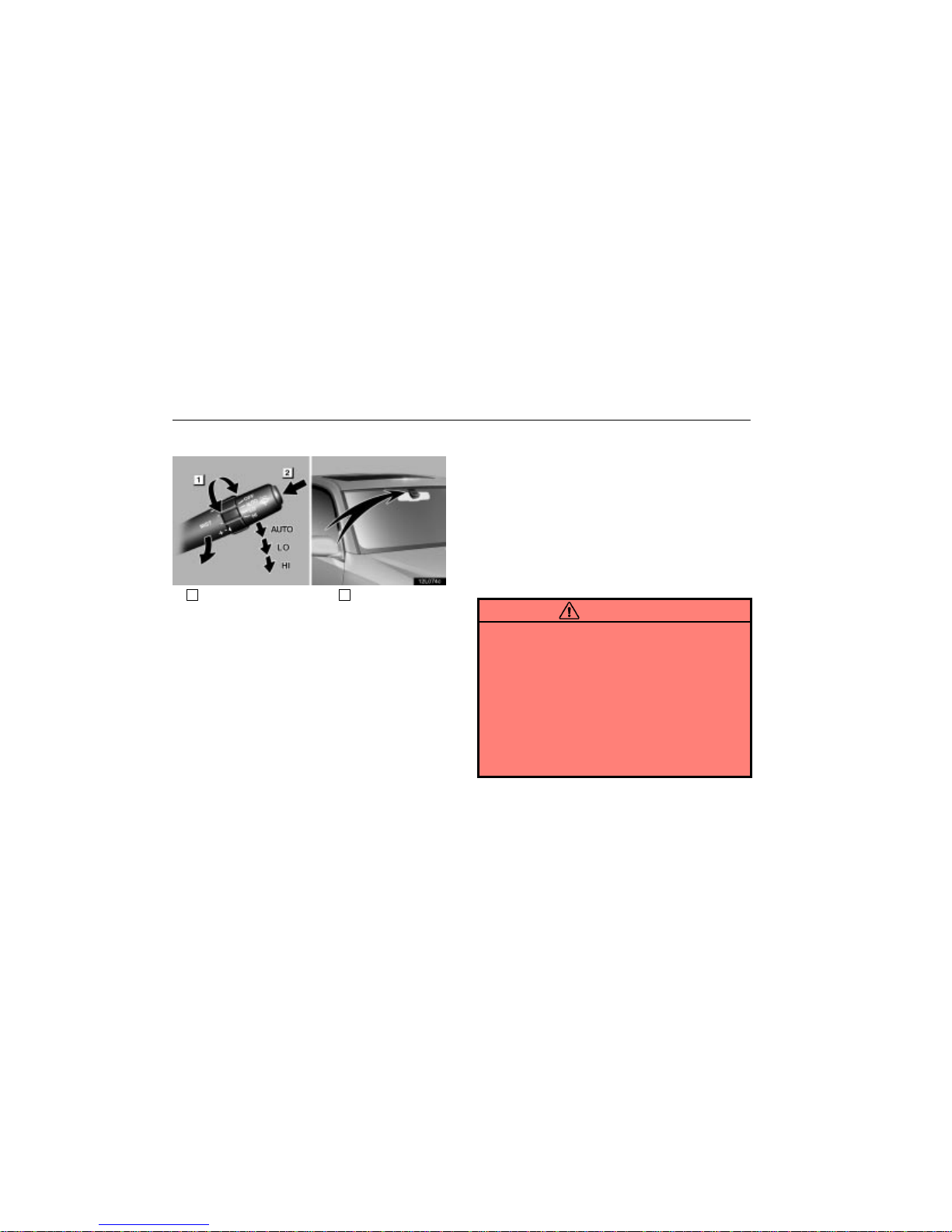

Raindrop detection type

12L074c



1

Automatic control adjuster 2Washer on

To turn the wipers on, move the lever down until you reach
the desired speed setting.

The ignition switch must be in the “ON” position.

There are 3 settings:
“AUTO” position: Automatic operation

The wiper speed is determined by the amount of raindrops and
sunlight detected by the windshield sensor (shown in the
illustration), and the vehicle speed.

“LO” position: Low speed operation
“HI” position: High speed operation
Twist th e a u t omatic control adjuster in the “–” direction to

lower the sensitivity, and the “+” direction to boost the
sensitivity.

With the ignition switch turned off, if the windshield sensor is
touched by reason of cleaning the windshield or for any other
reason, either of the following operations may cause automatic
wiper activation.

 Turning the ignition switch on with the wiper lever in the

“AUTO” position.

 Turning the ignition switch on and move the wiper lever

down in the “AUTO” position.

Even with the wiper lever in the “AUTO” position, the system
will switch to intermittent operations if the system malfunctions.
The system will turn off if the windshield gets extremely hot (at
more than 80C or 176F) or cold (at less than –10C or 14F).

CAUTION

Be careful not to get your fingers caught between the
wipers and windshield.

When the wiper lever is in the “AUTO” position with the
ignition switch on, the wipers could operate
automatically in the following cases:

 If you touch the upper center of the windshield

adjacent to the sensor.

 If you wipe the upper center of the windshield

(adjacent to which the sensor is located) with a towel.

 If the windshield vibrates.
 If you touch the sensor.

SWITCHES

31

For mist wiper operations (a single wipe), pull the lever
toward you and release it.

To make the washer squirt, push the button on the end of
the lever.

If the wiper lever is in the ”OFF” position, the wipers will
automatically make 3 wipes and then a single wipe later to
sweep the windshield completely.* The interval between the
3 wipes and the last wipe will depend on the vehicle speed.
The last sweep does not happen if the vehicle speed exceeds
about 170 km/h (106 mph).

NOTE: *The last single wipe can be deactivated. Ask your
Lexus dealer for details.

The warning message ”LOW WASHER FLUID” is displayed in
the multi–information display when the fluid level in the tank
becomes very low. For information on adding washer fluid, see
”Adding washer fluid” on page 396.

In cold weather, warm the windshield with the defroster before
using the washer. This will help prevent icing, which could
block your vision.

The rear window and outside rear view mirror defogger
automatically turns on when you operate the wipers.

NOTICE

Do not operate the wipers if the windshield is dry. It m ay
scratch the glass.

HEADLIGHT CLEANER SWITCH

12L066b

To spray fluid on the headlights, push the switch while the
headlights are on.

The ignition switch must be in the ”ON” position.
The warning message ”LOW WASHER FLUID” is displayed in

the multi–information display when the fluid level in the tank
becomes very low. For information on adding washer fluid, see
”Adding washer fluid” on page 396.

NOTICE

Do not turn the headlight cleaner on with the washer
fluid tank empty. It may cause the cleaner motor to
overheat.

SWITCHES

32

REAR WINDOW AND OUTSIDE

REAR VIEW MIRROR DEFOGGER

SWITCH

12L133



Without rear air conditioning and air purifier

12L067a



With rear air conditioning and air purifier

To turn the electric rear window defogger on, push the
switch.

The ignition switch must be in the ”ON” position.
The thin heater wires on the inside of the rear window and the

heater panels in the outside rear view mirrors will quickly clear
the surface. Keep your hands off the mirror faces when the
switch is on. An indicator light is on when the defogger is
operating.

The system will automatically shut off when the defogger has
operated about 15 minutes.

CAUTION

Since the mirror surfaces can get hot, do not touch them
when the switch is on.

If further defrosting or defogging is desired, simply actuate the
switch again. When the surface has cleared, push the switch
once again to turn the defogger off. Continuous use may cause
the battery to discharge, especially during stop–and–go
driving. The defogger is not designed to dry rain water or to
melt snow.

If the outside rear view mirrors are heavily coated with ice, use
a spray de–icer before operating the switch.

SWITCHES

33

NOTICE



When cleaning the inside of the rear window, be
careful not to scratch or damage the heater wires or
connectors.



To prevent the battery from being discharged, turn
the switch off when the engine is not running.

POWER WINDOW SWITCHES

12L061a



1

For driver’s window

2

For front passenger’s window

3

For left rear window

4

For right rear window

To raise or lower the windows, use the switch on each
door. The passengers’ windows can also be controlled by
the switches on the driver’s door.

The power windows work when the ignition switch is in the
”ON” position.

Key off operation: Even if the ignition switch is turned to the
”ACC” or ”LOCK” position, the window can be operated until
any of the doors is opened (or for about 45 seconds).

SWITCHES

34

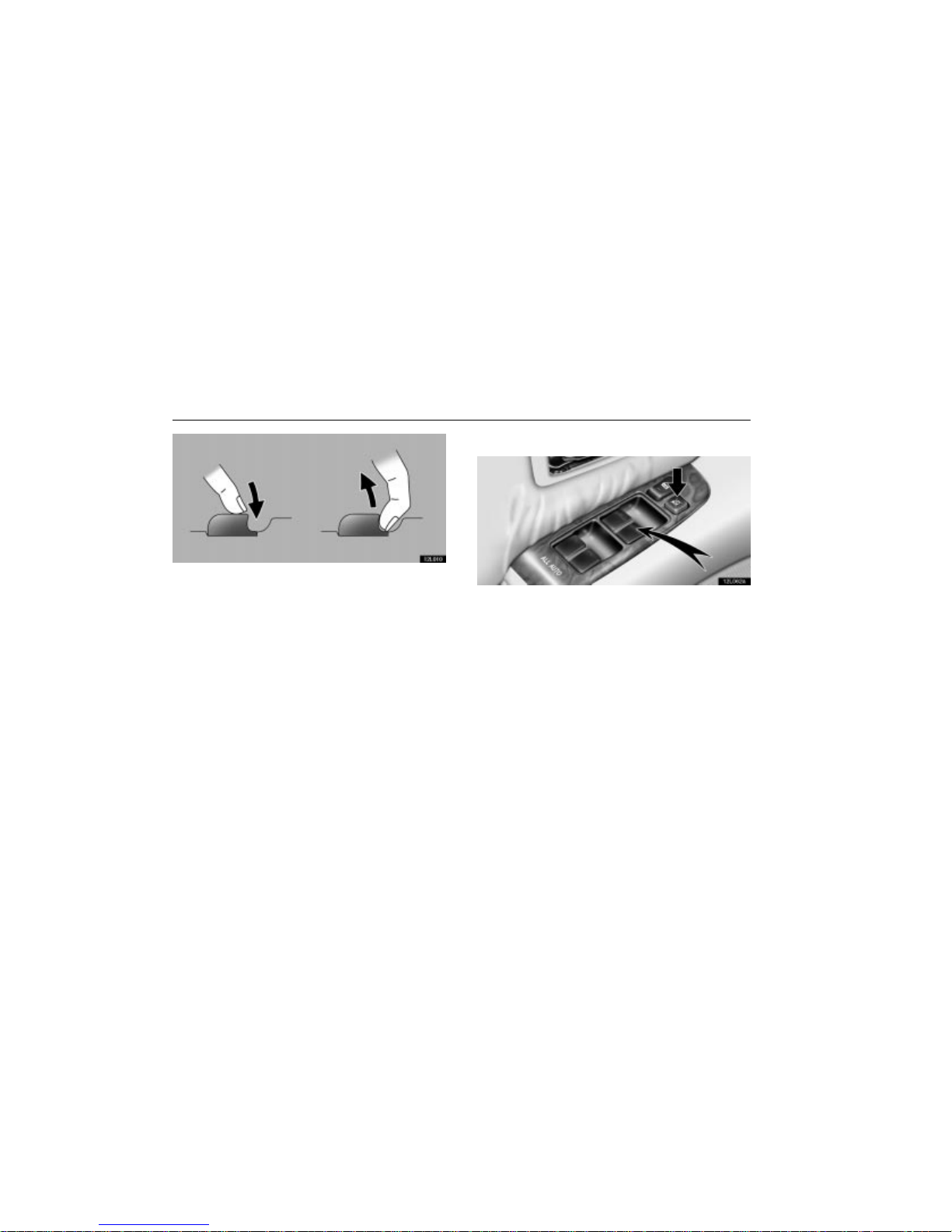

12L010

Operating the switches

To raise or lower the window, pull the switch halfway up
or push it halfway down.

Automatic operation: To fully raise or lower the window

automatically, pull the switch fully up or push it fully down.
To stop the window partway, lightly push or pull the switch in

the opposite direction and then release it.

Operating the window lock switch

12L062a



Indicator light

With the window lock switch pressed in, only the driver’s
window can be raised or lowered.

The indicator lights on the switch tell you which of the switches
can be operated.

Even with the window lock switch pressed in, the windows will
be opened from outside the vehicle using an ignition key or
wireless remote control.

SWITCHES

35

Operating the windows from outside the
vehicle

The windows can be operated using an ignition key.*

NOTE: *This feature can be deactivated. Ask your Lexus
dealer for details.

12L070

Insert the ignition key into the keyhole on the driver’s side.
To close the windows: Turn the key in the locking direction

and hold it.
After the door is locked, the windows begin to close. To stop

in the middle, return the key.
To open the windows: Turn the key in the unlocking direction

and hold it.
After the door is unlocked, the windows begin to open. To stop

in the middle, return the key.
This function will work even with the window lock switch

pressed in.

Jam protection function

During automatic raising operation, key off raising operation or
raising operation using the ignition key from the outside, the
window stops and is lowered if something gets caught between
the window and window frame.

If the window receives a strong impact, this function may work
even if nothing is caught.

SWITCHES

36

CAUTION

To avoid serious personal injury, you must do the
following.

 Before you close the power windows, always make

sure there is nobody around the power windows. You
must also make sure the heads, hands and other
parts of the bodies of all occupants are kept
completely inside the vehicle. If someone’s neck,
head or hands get caught in a closing window, it
could result in a serious injury. When anyone closes
the power windows, make sure he or she operates the
windows safely.

 When small children are in the vehicle, never let them

use the power window switches without supervision.
Use the window lock switch to prevent them from
making unexpected use of the switches.

 Never leave small children alone in the vehicle,

especially with the ignition key still inserted. They
could use the power window switches and get
trapped in a window. Unattended children can be
involved in serious accidents.

 Never try jamming any part of your body to make the

jam protection function work intentionally.

 The jam protection function may not work if

something gets caught just before the window fully
closed.

EMERGENCY FLASHER SWITCH

12L071

To turn on the emergency flashers, push the switch.

All the turn signal lights will flash. The emergency flashers will
work with the engine running or off and with or without the
ignition key.

Turn on the emergency flashers to warn other drivers if you
must stop your vehicle where it might be a traffic hazard.

Always pull your vehicle as far off the road as possible.
The turn signal light switch will not work when the emergency

flashers are in operation.

NOTICE

To prevent the battery from being discharged, do not
leave the switch on longer than necessary when the
engine is not running.

SWITCHES

37

SEAT HEATER SWITCHES

Front seat heater

12L332b



1

For driver’s seat 2For front passenger’s seat

The front seat heater has two switches: one marked ”L”
(for the left seat) and the other marked ”R” (for the right
seat).

The ignition switch must be in the “ON” position.
To use the seat heater:

1. Push the knob to pop it out.

2. Turn the knob clockwise. The indicator light turns on.

3. Adjust the knob to the desired temperature.
To turn off the seat heater, turn the knob counterclockwise until

it stops.
Push the knob into the recessed position when not in use.

Rear seat heater

12L149



1

For left seat 2For right seat

The rear seat heater has two switches: one marked ”L”
(for the left seat) and the other marked ”R” (for the right
seat). Push these switches to turn the respective seat
heaters on, and push the switches again to turn them off.

The ignition switch must be in the ”ON” position.
The indicator light turns on when the seat heater is operating.

SWITCHES

38

CAUTION

Occupants must use caution when operating the seat
heater because they may experience minor burns even
at low temperatures. Use extra caution for;

 Babies, small children, elderly persons, sick persons

or handicapped persons

 Persons who have delicate skin
 Persons who are exhausted
 Persons who have taken alcohol or drugs which

induce sleep (sleeping drug, cold remedy, etc.).

To prevent the seat from overheating, do not use the
seat heater with a blanket, cushion, or other insulating
objects which cover the seat.

NOTICE



Do not put unevenly weighted objects on the seat and
do not stick sharp objects (needles, nails, etc.) into
the seat.



When cleaning the seats, do not use organic
substances (paint thinner, benzine, alcohol,
gasoline, etc.). They may damage the heater and seat
surface.



To prevent the battery from being discharged, turn
the switches off when the engine is not running.

CLIMATE CONTROL SEAT

SWITCHES

The climate control seat feeds air at the temperature you
desire from the seat surface, for the comfort of the
occupants.

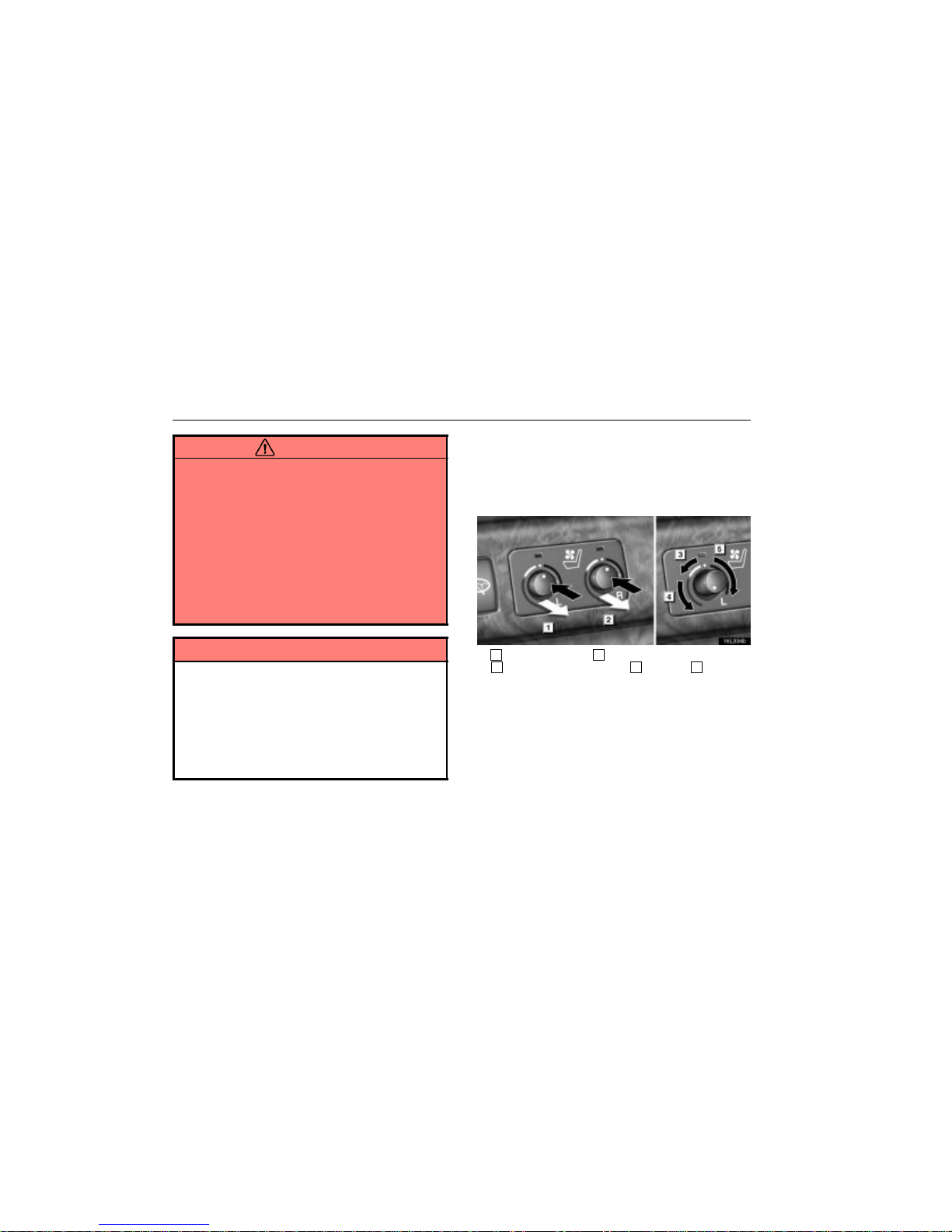

16L334b



1

For driver’s seat 2For front passenger’s seat

3

Air at room temperature 4Cool air 5Warm air

The climate control seat has two switches: one marked
”L” (for the left seat) and the other marked ”R” (for the
right seat).

The ignition switch must be in the “ON” position.

The climate control seat has three modes: air at room
temperature, cool air and warm air.

To use the seat climate control, push the knob into pop it
out and then turn the knob. The indicator light comes on.

SWITCHES

39

To feed air at room temperature, turn the knob to the gray
zone.

To feed cool air, turn the knob counterclockwise and set the
knob in the blue zone. Three setting levels are available.

To feed warm air , turn the knob clockwise and set the knob in
the red zone. Three setting levels are available.

After the switch is turned on, it takes several minutes until you
feel warm or cool.

To disable this function, turn the knob to the center position (the
gray dot). The indicator light goes off.

Push the knob into the recessed position when not in use.

CAUTION

Use caution when operating the climate control seat.
The occupants listed below may experience minor
burns even at low temperatures from warm air.

 Babies, small children, elderly persons, sick persons

or handicapped persons

 Persons who have delicate skin
 Persons who are exhausted
 Persons who have taken alcohol or drugs which

induce sleep (such as sleeping drugs or cold
remedies).

To prevent the seat from overheating, do not use the
climate control seat if a blanket, cushion, or other
insulating object covers the seat. Use also caution not
to overuse this feature, which may cool down the
occupants excessively.

NOTICE



Do not put unevenly weighted objects on the seat .
Do not stick sharp objects (such as needles or nails)
into the seat.



When cleaning the seats, do not use harsh cleaning
substances (such as paint thinner, benzine, alcohol
or gasoline). They may damage the climate control
seat and seat surface.



Clean the seats using a towel wrung out of water.
Entering water in the seats may cause the
malfunction of the climate control seats.



To prevent the battery from being discharged, turn
the switches off when the engine is not running.

SWITCHES

40

Replacing the air filters

The air filters may clog after the long use of the climate control
seats which will reduce the air flow. However, you can inspect
the filters easily.

When you replace the air filters, be sure to turn off the fans.

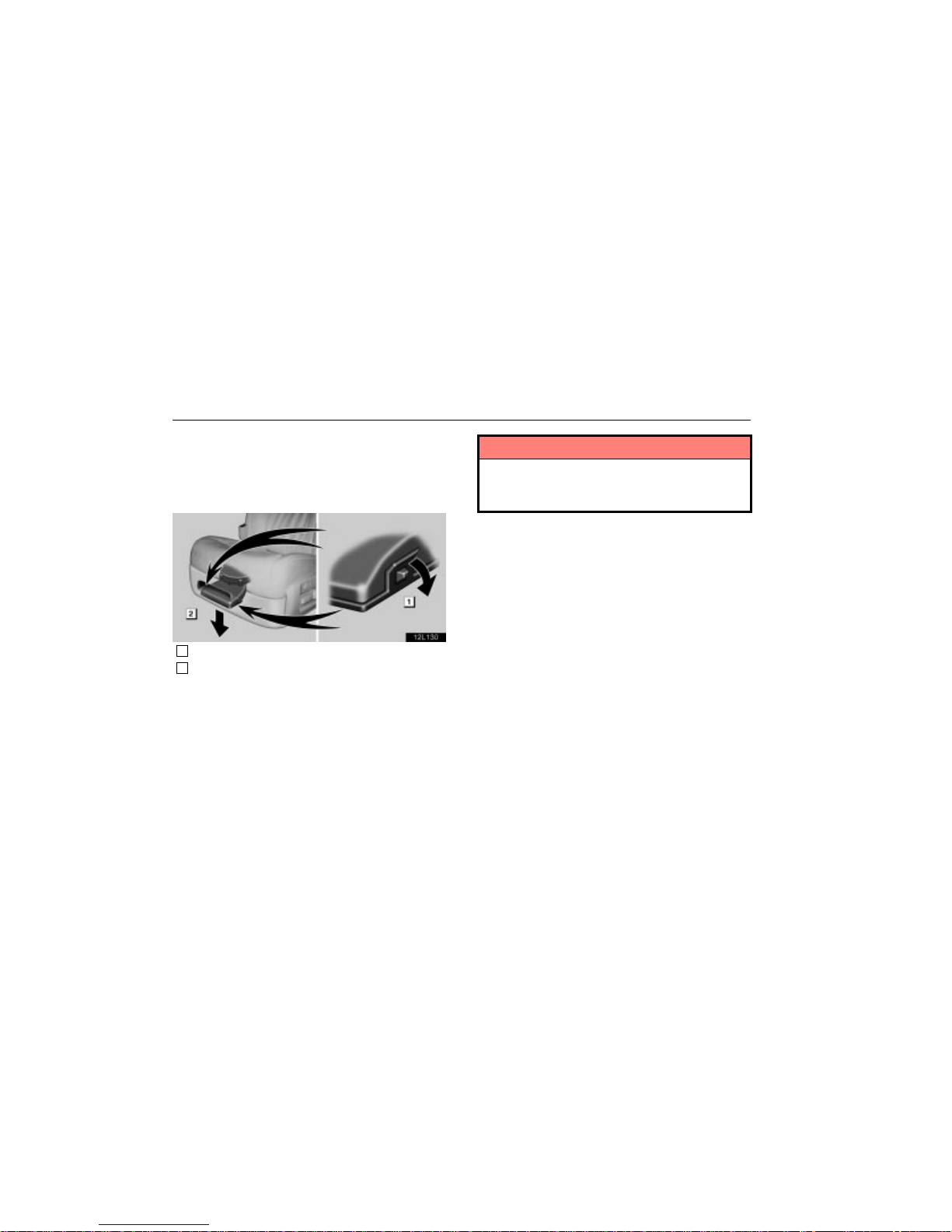

12L130

1

Remove the air filter locks.

2

Remove the air filter.

The climate control seat filters are located under the driver and
front passenger seats.

Replace the air filter when the performance of air flow becomes
low by the deterioration of filter.

NOTICE

The air filter should be installed properly in position.
The use of climate control seat with the air filter
removed may cause the malfunction of the climate
control seat.

SWITCHES

41

REFRESHING REAR SEAT

SWITCHES

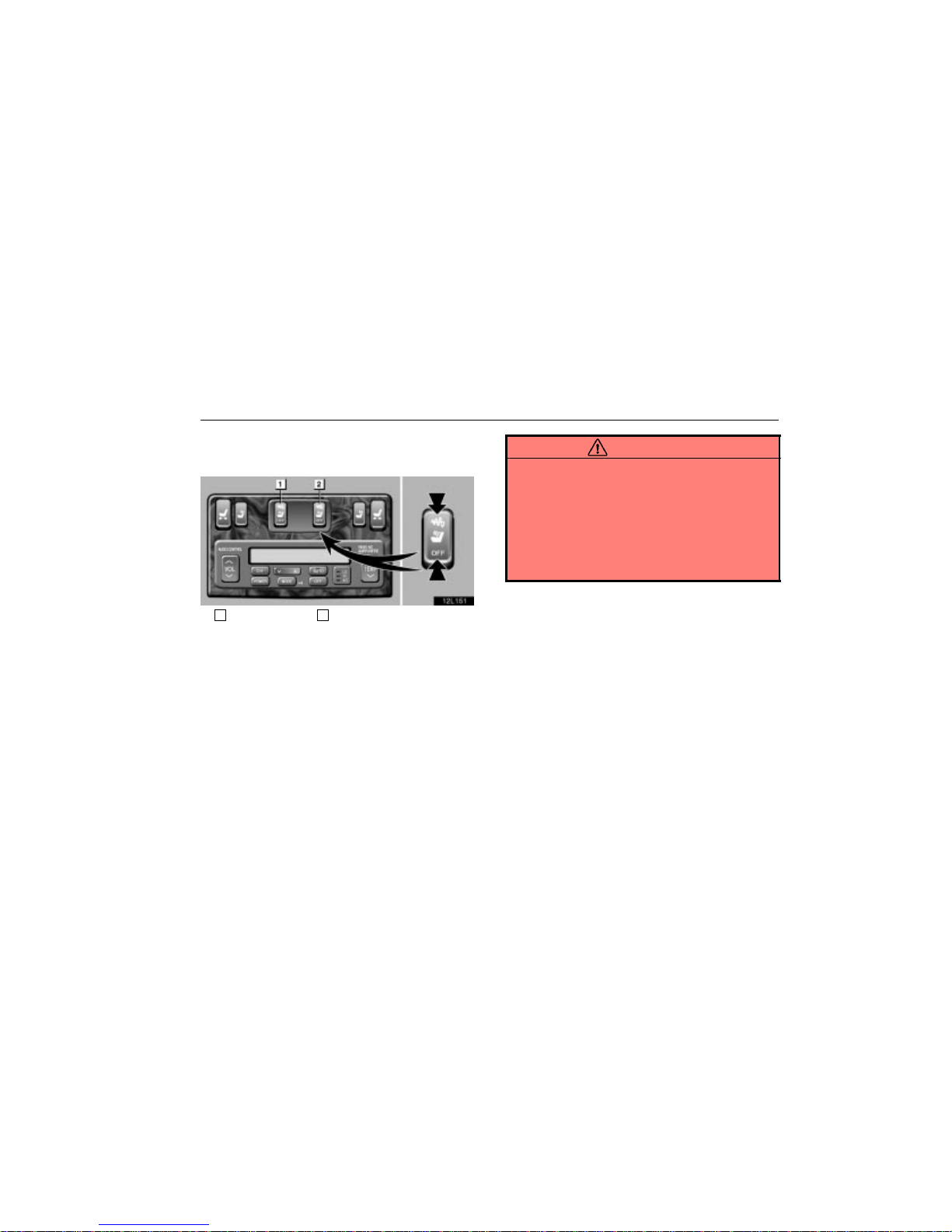

12L151



1

For left rear seat 2For right rear seat

The refreshing rear seat is designed to reduce lumbar
fatigue by means of a lumbar vibrator.

The ignition switch must be in the “ON” position.
To operate the lumbar vibrator, push the switch on the front

side. Keep pushing the switch down to change the vibration
speed.

To stop the vibrator, push the switch on the rear side.

CAUTION

 Those who are pregnant, have just given birth, or

suffer from heart disease and other ailments
requiring rest, should consult a doctor before using
the refreshing seat.

 Do not allow children to use the refreshing seat.
 Do not use the refreshing seat immediately after

meals or for extended periods.

 If you feel sick while using the refreshing seat,

immediately stop using it.

SWITCHES

42

SECTION 1 –

3

43

INSTRUMENTS AND CONTROLS

Gauges, meters and service reminder
indicators

Fuel gauge 44. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Engine coolant temperature gauge 44. . . . . . . . . . . . . . . . . . . . . . . . . .

Tachometer 45. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Odometer and trip meter 46. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Service reminder indicators and warning buzzers 46. . . . . . . . . . . . . .

Multi–information display 54. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

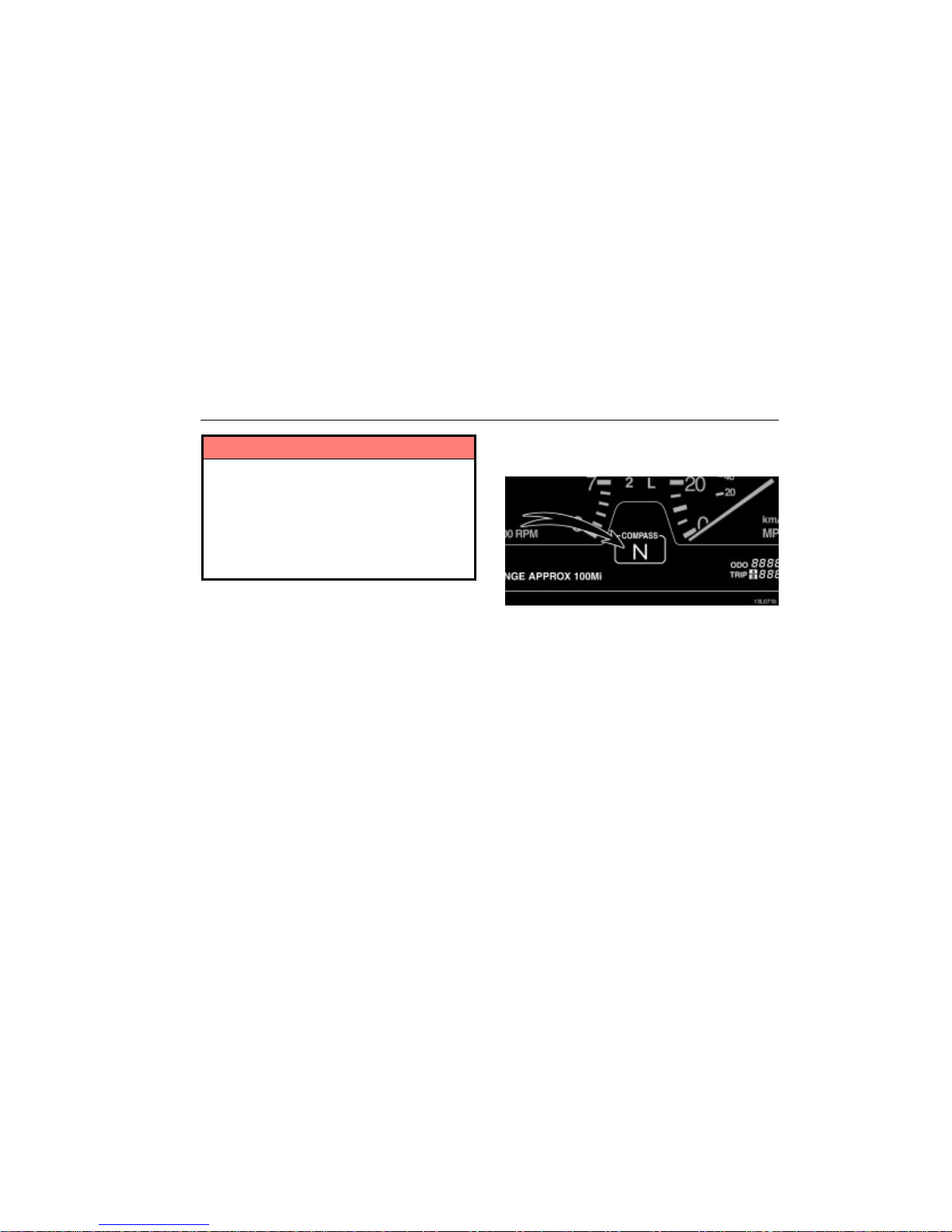

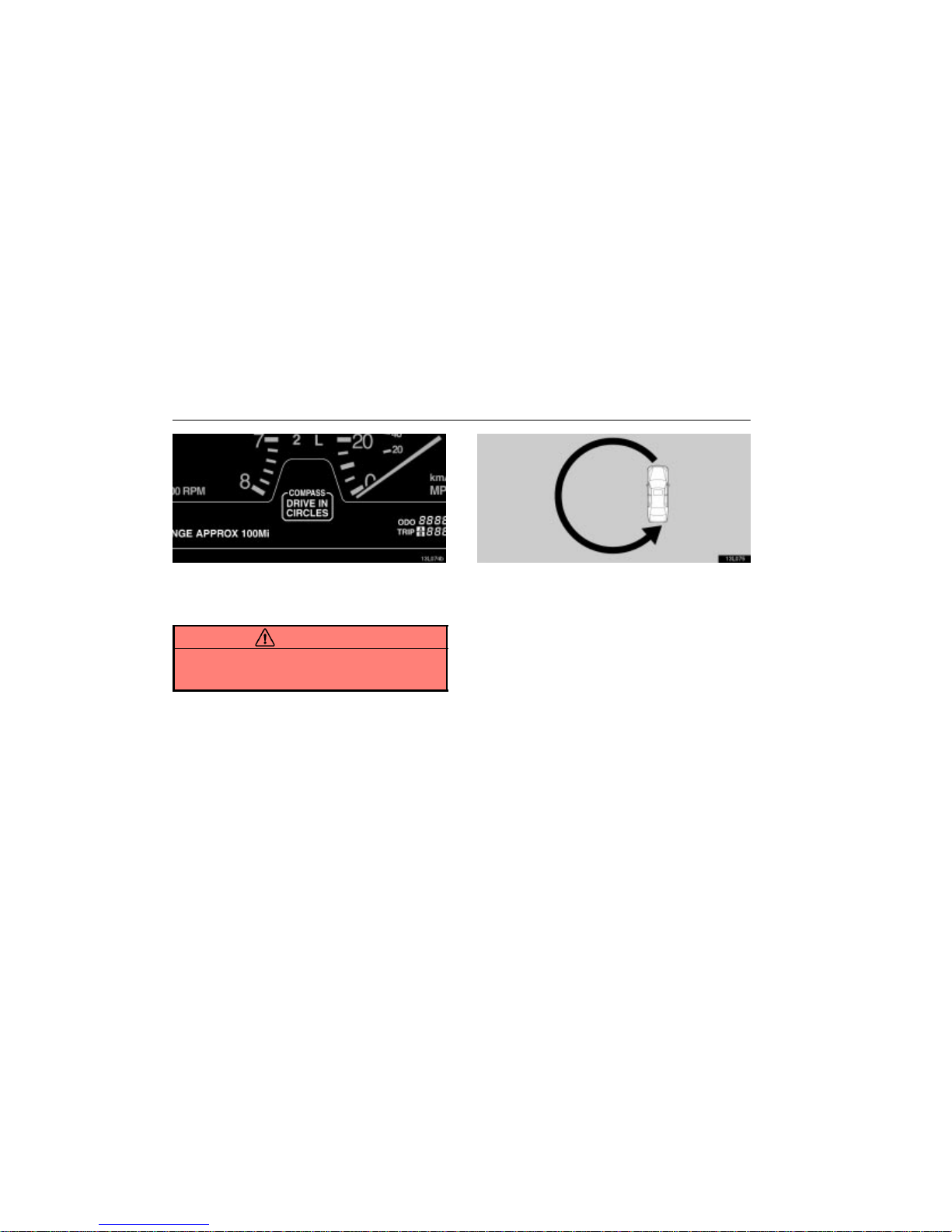

Compass 63. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Instrument panel light control 67. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

GAUGES, METERS AND SERVICE REMINDER INDICATORS

44

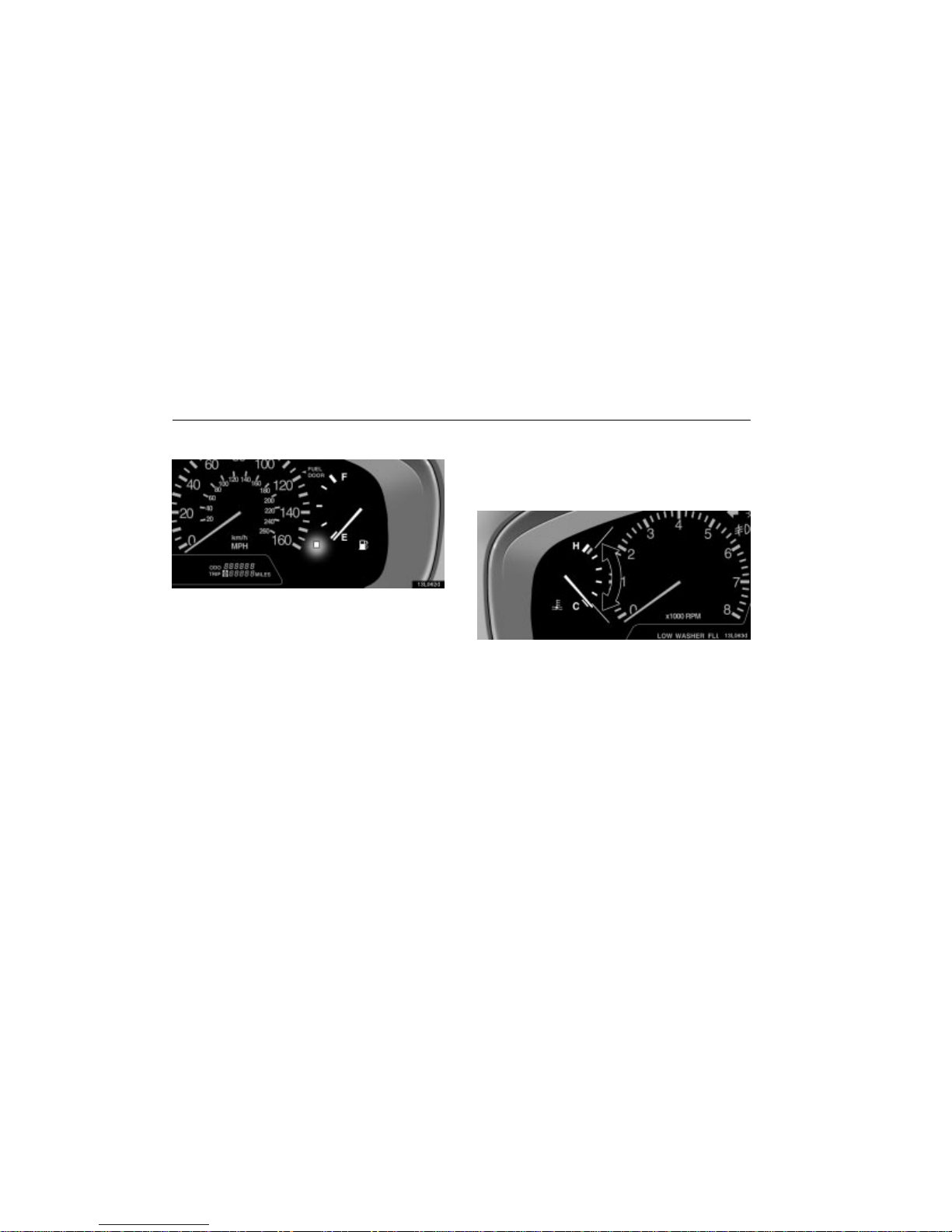

FUEL GAUGE

13L062d



Low fuel level warning light

The gauge indicates the approximate quantity of fuel
remaining in the tank when the ignition switch is on.

It is a good idea to keep the tank over 1/4 full.
If the fuel level approaches ”E” or the low fuel level warning light

comes on, fill the fuel tank as soon as possible.
On inclines or curves, due to the movement of fuel in the tank,

the fuel gauge needle may fluctuate or the low fuel level
warning light may come on earlier than usual.

If the fuel tank is completely empty, the malfunction indicator
lamp comes on. Fill the fuel tank immediately.

The indicator lamp goes off after driving several times. If the
indicator lamp does not go off, contact your Lexus dealer as
soon as possible.

See the inner back cover for fuel capacity and recommended
fuel selection.

ENGINE COOLANT

TEMPERATURE GAUGE

13L063d



Normal range

The gauge indicates the engine coolant temperature when
the ignition switch is on. The engine operating
temperature will vary with changes in weather and engine
load.

If the needle points to the red zone or higher, stop your vehicle
and allow the engine to cool.

Your vehicle may overheat during severe operating conditions,
such as:

 Driving up a long hill on a hot day.
 Reducing speed or stopping after high speed driving.

GAUGES, METERS AND SERVICE REMINDER INDICATORS

45

 Idling for a long period with the air conditioning on in

stop–and–go traffic.

 Towing a trailer.

NOTICE



Do not remove the thermostat in the engine cooling
system as this may cause the engine to overheat. The
thermostat is designed to control the flow of coolant
to keep the temperature of the engine within the
specified operating range.



Do not continue driving with an overheated engine.
See ”If your vehicle overheats” on page 303.

TACHOMETER

13L064d

The tachometer indicates engine speed in thousands of
rpm (revolutions per minute). Use it while driving to
prevent engine over–revving.

Driving with the engine running too fast causes excessive
engine wear and poor fuel economy. Remember, in most
cases the slower the engine speed, the greater the fuel
economy.

NOTICE

Do not let the indicator needle get into the red zone. This
may cause severe engine damage.

GAUGES, METERS AND SERVICE REMINDER INDICATORS

46

ODOMETER AND TRIP METER

13L065d

This meter displays the odometer and two trip meters. To
change the mode indication, push the ”ODO/TRIP”
button.

The odometer records the total distance the vehicle has
been driven. The twin trip meter records two different
distances independently.

For example, you can use one meter to calculate the fuel
economy and the other to measure the distance on each trip.

To change the trip meter indication from one trip to the
other, push the ”ODO/TRIP” button. To set the A trip meter
to zero, display the A meter reading, then push the
”RESET” button. The same applies for the B trip meter.

The data of trip meters will be cancelled if the electrical power
source is disconnected.

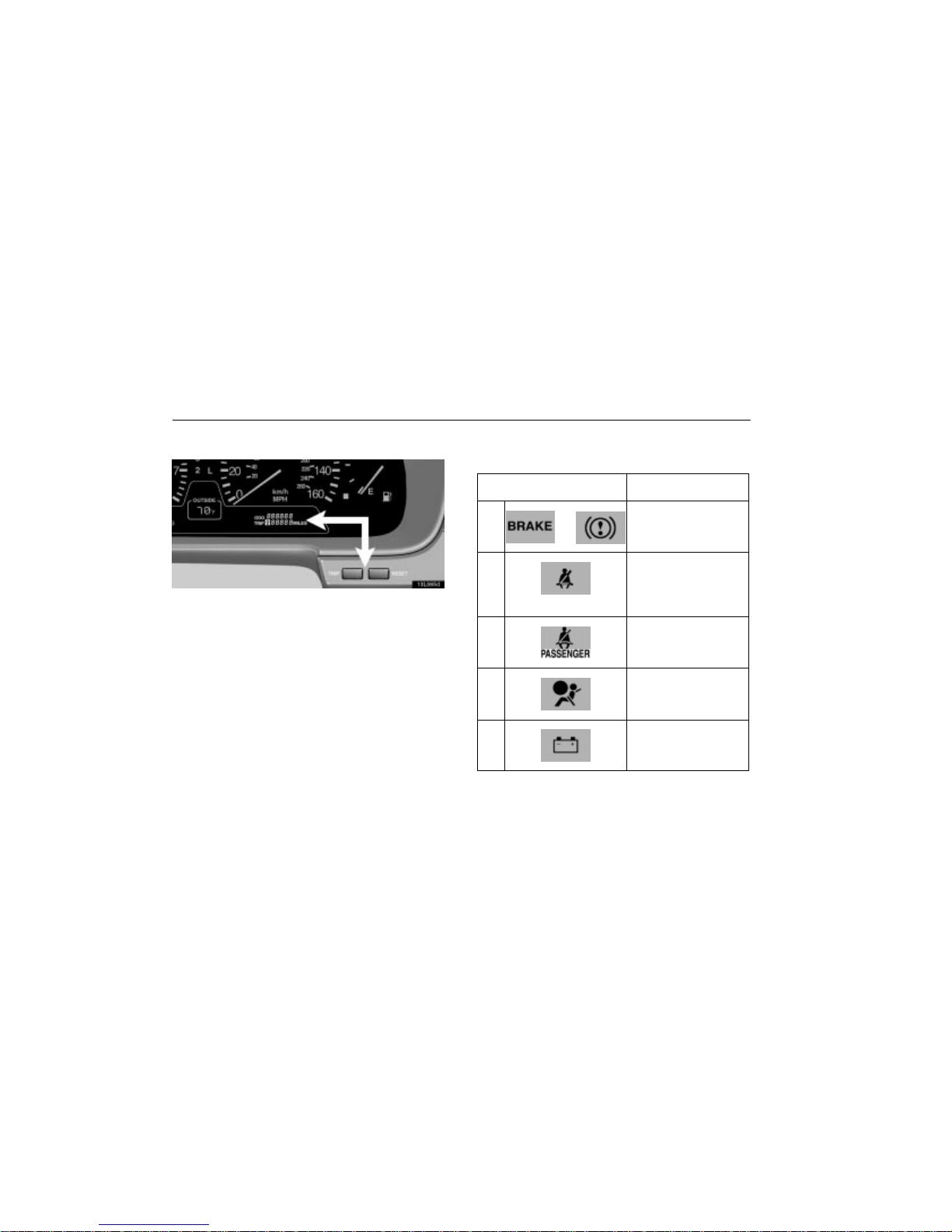

SERVICE REMINDER INDICATORS

AND WARNING BUZZERS

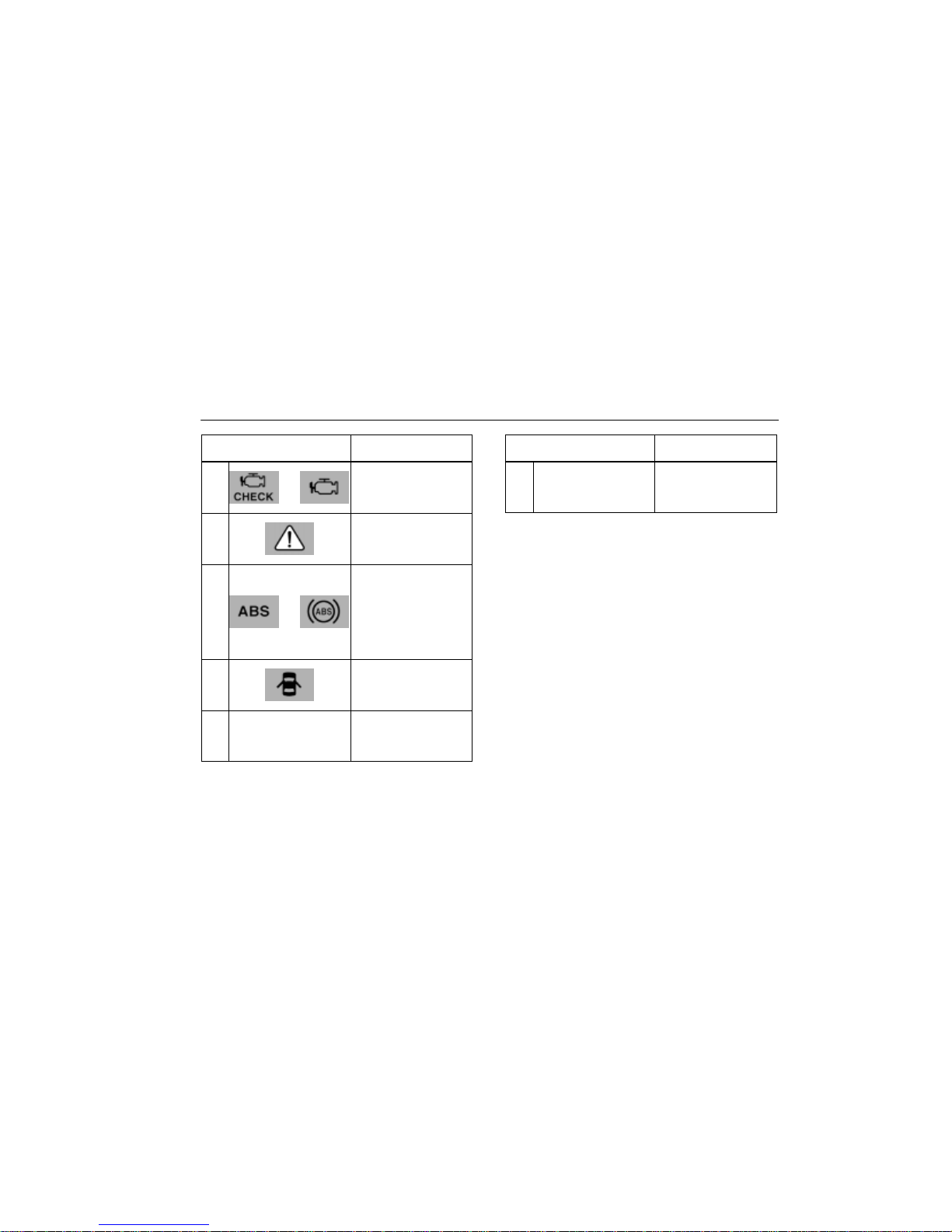

IF THIS INDICATOR OR

BUZZER COMES ON ...

DO THIS.

(a)

or

If parking brake is off,
stop immediately and
contact Lexus dealer.

(b)

(Indicator and buzzer)

Fasten driver’s seat
belt.

(c)

Fasten front
passenger’s seat belt.

(d)

Take vehicle to Lexus
dealer immediately.

(e)

Stop and check.

GAUGES, METERS AND SERVICE REMINDER INDICATORS

47

IF THIS INDICATOR OR
BUZZER COMES ON ...

DO THIS.

(f)

or

Take vehicle to Lexus
dealer.

(g)

See multi–information
display.

(h)

or

Take vehicle to Lexus
dealer.
If brake system
warning light is also
on, stop immediately
and contact Lexus
dealer

(i)

Close all doors.

(j)

Low fuel level
warning light

Fill up tank.

IF THIS INDICATOR OR

BUZZER COMES ON ...

DO THIS.

(k)

Key reminder
buzzer

Remove key.

GAUGES, METERS AND SERVICE REMINDER INDICATORS

48

(a) Brake System Warning Light

This light comes on in the following cases when the ignition
switch is in the “ON” position.

 When the parking brake is applied ...

This light comes on for a few seconds when the ignition switch
is turned to the “ON” position even after the parking brake is
released.

 When the brake fluid level is low ...

CAUTION

It is dangerous to continue driving normally when the
brake fluid level is low.

Have your vehicle checked at your Lexus dealer in the
following case:

 The light does not come on even if the parking brake is

applied when the ignition switch is in the “ON” position.

 The light does not come on even if the ignition key is turned

on with the parking brake released.

A warning light turning on briefly during operation does not
indicate a problem.

CAUTION

If either of the following conditions occurs, immediately
stop your vehicle at a safe place and contact your Lexus
dealer.

 The light does not turn off even after the parking

brake is released while the engine is running.
In this case, the brakes may not work properly and

your stopping distance will become longer. Depress
the brake pedal firmly and bring the vehicle to an
immediate stop.

 The brake system warning light remains on together

with the “ABS” warning light.
In this case, not only the anti–lock brake system will

fail but also the vehicle will become extremely
unstable during braking.

GAUGES, METERS AND SERVICE REMINDER INDICATORS

49

(b) Driver’s Seat Belt Reminder Light and

Buzzer

This light and buzzer remind you to buckle up the driver’s seat
belt.

Once the ignition switch is turned to ”ON” or ”START”, the
reminder light flashes and buzzer sounds if the driver’s seat
belt is not fastened. Unless the driver fastens the belt, the light
stays flashing and the buzzer stops after about 4 to 8 seconds.

(c) Front Passenger’s Seat Belt Reminder

Light

This light reminds you to buckle up the front passenger’s seat
belt.

Once the ignition switch is turned to ”ON” or ”START”, the
reminder light flashes if a passenger sits in the front passenger
seat and does not fasten the seat belt. Unless the front
passenger fastens the belt, the light stays flashing. However,
if a front passenger uses a seat cushion or the like, the
indicator may not flash even when the seat belt is not buckled
up.

If luggage load is placed on the front passenger seat,
depending on its weight and how it is placed on the seat, the
built–in sensor in the seat cushion may detect the pressure,
causing the reminder light to flash.

(d) SRS Warning Light

The indicators come on when the ignition switch is turned
to the ”ON” position. It goes off after about 6 seconds.
This means the SRS airbags and seat belt pretensioners
are operating properly.

The SRS warning light system monitors the airbag sensor
assembly, front airbag sensors, side and curtain shield airbag
sensors, occupant detection sensor, seat belt buckle switch,
seat belt pretensioner assemblies, inflators, warning light,
interconnecting wiring and power sources.

If either of the following conditions occurs, this indicates a
malfunction somewhere in the parts monitored by the warning
light system. Contact your Lexus dealer as soon as possible
to service the vehicle.

 When the ignition switch is turned to the “ON” position, the

light does not come on, remains on or flashes.
 The light comes on or starts flashing while driving.
If the light stays on, it indicates that the front airbags have a

problem. If the light flashes, the side and curtain shield airbags
and/or seat belt pretensioners have a problem.

GAUGES, METERS AND SERVICE REMINDER INDICATORS

50

(e) Discharge Warning Light

This light warns that the battery is being discharged.
If it comes on while you are driving, stop the vehicle, turn off the

engine, and check for the cause. Look first at the engine drive
belt.

 If it is loose or broken, the generator will not charge the

battery properly.

 If the belt is O.K., there is a problem somewhere in the

charging system.

The engine ignition will continue to operate, however, until the
battery is discharged. Turn off the air conditioning, blower,
radio, etc., and drive directly to the nearest Lexus dealer or
repair shop.

NOTICE

Do not continue driving if the engine drive belt is broken
or loose.

(f) Malfunction Indicator Lamp

This lamp comes on when the ignition switch is turned to
the “ON” position and goes off after the engine starts.
This means that the warning light system is operating
properly.

If the lamp remains on, or the lamp comes on while
driving, first check the following:

 Empty fuel tank

If the fuel tank is empty, refuel immediately.

 Loose fuel tank cap

If the fuel tank cap is loose, securely tighten it.

These cases are temporary malfunctions. The malfunction
indicator lamp will go off after taking several driving trips.

If the lamp will not go off even after several trips, contact your
Lexus dealer as soon as possible.

If the fuel tank is not empty or the fuel tank cap is not
loose...

 There is a problem somewhere in the engine, emission

control system, electronic throttle control system, automatic
transmission electrical system or warning light system itself.

Contact your Lexus dealer as soon as possible to service the
vehicle.

If this lamp comes on and the engine speed does not increase
with the accelerator pedal depressed, there may be a problem
somewhere in your electronic throttle control system.

GAUGES, METERS AND SERVICE REMINDER INDICATORS

51

At this time, vibration may occur. However, if you depress the
accelerator pedal more firmly and slowly, you can drive your
vehicle at low speeds. Have your Lexus checked by your
Lexus dealer as soon as possible.

Even if the abnormality of the electronic throttle control system
is corrected during low speed driving, the system may not be
recovered until the engine is stopped and the ignition switch is
turned to “ACC” or “LOCK” position.

Emissions inspection and maintenance (I/M) programs

Your vehicle may not pass a state emission inspection if the
malfunction indicator lamp remains on. Contact your Lexus
dealer to check your vehicle’s emission control system and
OBD (On–Board Diagnostics) system before taking your
vehicle for the inspection.

For details, see “Emissions inspection and maintenance (I/M)
programs” on page 340.

(g) Master Warning Light

If any system malfunctions, this warning light comes or flashes
together with a warning tone, and a warning message appears
in the multi–information display. When the cause of the
problem is eliminated, the warning tone and message on the
display will turn off.

(h) ”ABS” Warning Light

The light comes on when the ignition switch is turned to the
“ON” position. If the anti–lock brake system and the brake
assist system work properly, the light turns off after a few
seconds. Thereafter, if either of the systems malfunctions, the
light comes on again.

When the “ABS” warning light is on (and the brake system
warning light is off), the anti–lock brake system, the brake
assist system, the traction control system and/or the vehicle
skid control system do/does not operate, but the brake system
still operates conventionally.

When the “ABS” warning light is on (and the brake system
warning light is off), the anti–lock brake system does not
operate so that the wheels could lock up during a sudden
braking or braking on slippery road surfaces.

GAUGES, METERS AND SERVICE REMINDER INDICATORS

52

If either of the following conditions occurs, this indicates
a malfunction somewhere in the parts monitored by the
warning light system. Contact your Lexus dealer as soon
as possible to service the vehicle.

 The light does not come on when the ignition switch is

turned to the “ON” position, or remains on.
 The light comes on while you are driving.
A warning light turning on briefly during operation does not

indicate a problem.

CAUTION

If the “ABS” warning light remains on together with the
brake system warning light, immediately stop your
vehicle at a safe place and contact your Lexus dealer.

In this case, not only the anti–lock brake system will fail
but also the vehicle will become extremely unstable
during braking.

(i) Open Door Warning Light

This light remains on until all the doors are completely closed.

(j) Low Fuel Level Warning Light

This light comes on when the fuel level in the tank becomes
very low. Fill the tank as soon as possible.

On inclines or curves, due to the movement of fuel in the tank,
the low fuel level warning light may come on earlier than usual.

(k) Key Reminder Buzzer

This buzzer reminds you to remove the key when you open the
driver’s door with the ignition key in the ”ACC” or ”LOCK”
position.

GAUGES, METERS AND SERVICE REMINDER INDICATORS

53

How to check all the service reminder
indicators

(except the low fuel level warning light):

1. Apply the parking brake.

2. Open the door.
The following service reminder indicator should come on. It

goes off when you close the door completely.

3. Turn the ignition switch to ”ON”.
The following service reminder indicators should come on.

or

or

or

The following service reminder indicators go off after a few
seconds.

or

The following service reminder indicators go off after 6
seconds.

If any service reminder indicator or warning buzzer does not
function as described above, have it checked by your Lexus
dealer as soon as possible.

GAUGES, METERS AND SERVICE REMINDER INDICATORS

54

MULTI–INFORMATION DISPLAY

13L066b

The multi–information display provides various
information, including your vehicle’s driving condition,
outside temperature, and warning messages if your
vehicle is in trouble.

During ordinary driving, cruise information and graphic
information are displayed. However, if any problem
occurs in your vehicle, a warning message appears above
the cruise information.

(a) Cruise information

13L067b



1

“DISP1” button 2“DISP2” button

3

“RESET” button

The following information is shown with the ignition
switch turned on. Each time you push the ”DISP1” button,
the displayed information is changed.

 Available driving distance
 Average fuel consumption
 Current fuel consumption
 Average fuel consumption after being refueled
 Driving distance after being refueled
 Elapsed time
 Average vehicle speed
 Blank

GAUGES, METERS AND SERVICE REMINDER INDICATORS

55

The displayed cruise information values indicate the general
driving condition and may not always reflect precise and actual
conditions.

 Available driving distance

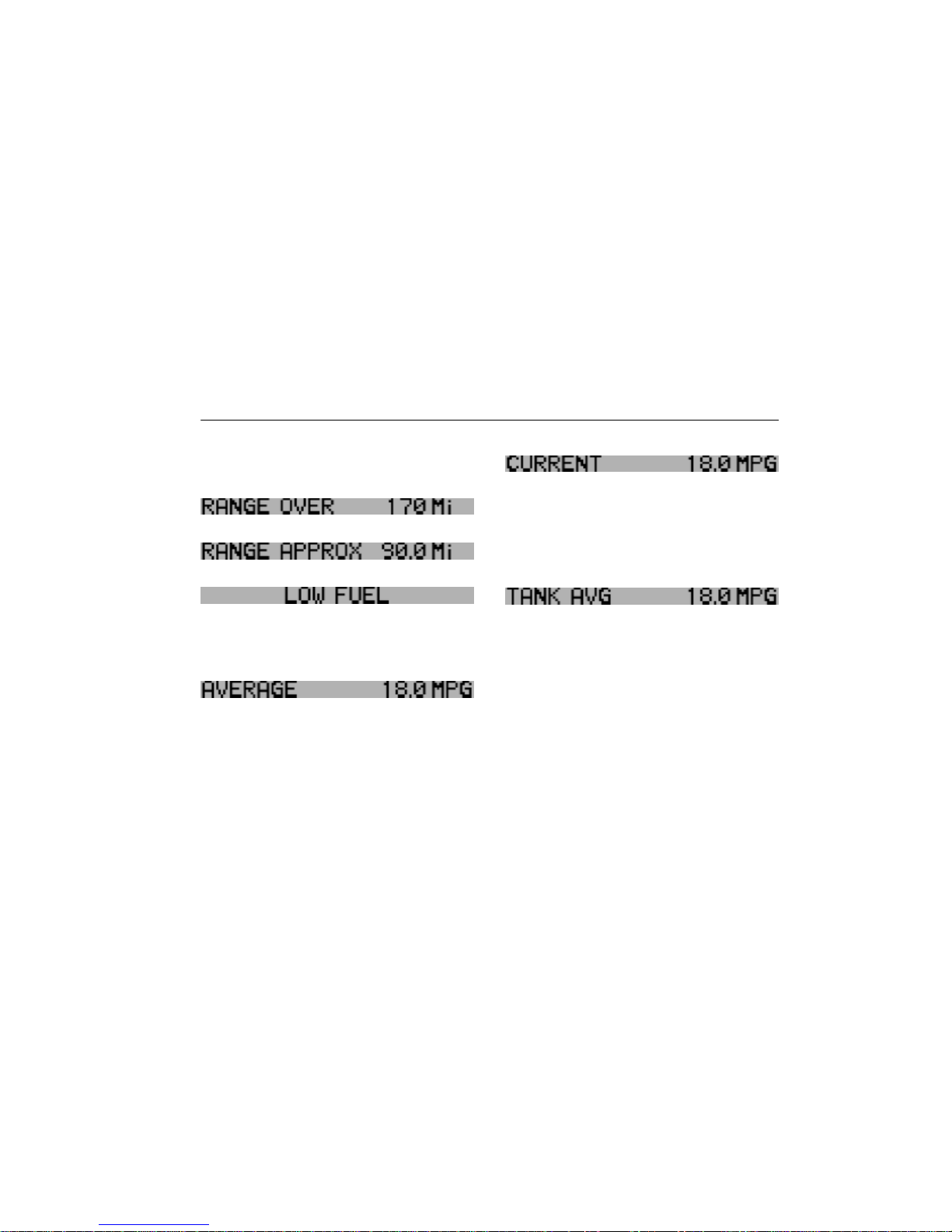

13L134



When the fuel gauge is close to ”F”

W2513L135



When the fuel gauge is close to middle

W26



When the fuel gauge is close to ”E”

The available driving distance is calculated and displayed
depending on the amount of remaining fuel.

 Average fuel consumption

W27W27

The average fuel consumption is calculated and displayed
based on the total driving distance and the total fuel
consumption with the engine running.

The value is updated every 10 seconds.
To begin recalculating, push the ”RESET” button for about 1 to

2 seconds.

 Current fuel consumption

W28W28

The current fuel consumption is calculated and displayed
based on the driving distance and the fuel consumption
per 2 second interval with the engine running.

The value is updated every 2 seconds.
If you are driving at low speeds just before stopping, the

accurate figure may not be shown.

 Average fuel consumption after refueling

W29W29

The average fuel consumption after refueling is
calculated and displayed based on the total driving
distance and the total fuel consumption after refueling.

The value is updated every 10 seconds.
When refueling, be sure to stop your vehicle and turn the

ignition switch off.
The average fuel consumption could not be calculated in either

of the following cases:
 Refueled by opening the fuel filler door using the manual

lever in the trunk
 Refueled with a small quantity of gasoline
To begin recalculating, push the ”RESET” button for about 1 to

2 seconds.

GAUGES, METERS AND SERVICE REMINDER INDICATORS

56

The multi–information display shows “–.– MPG” for a while
after refueling or pushing the “RESET” switch, and then shows
the previous average fuel consumption until you start the
vehicle.

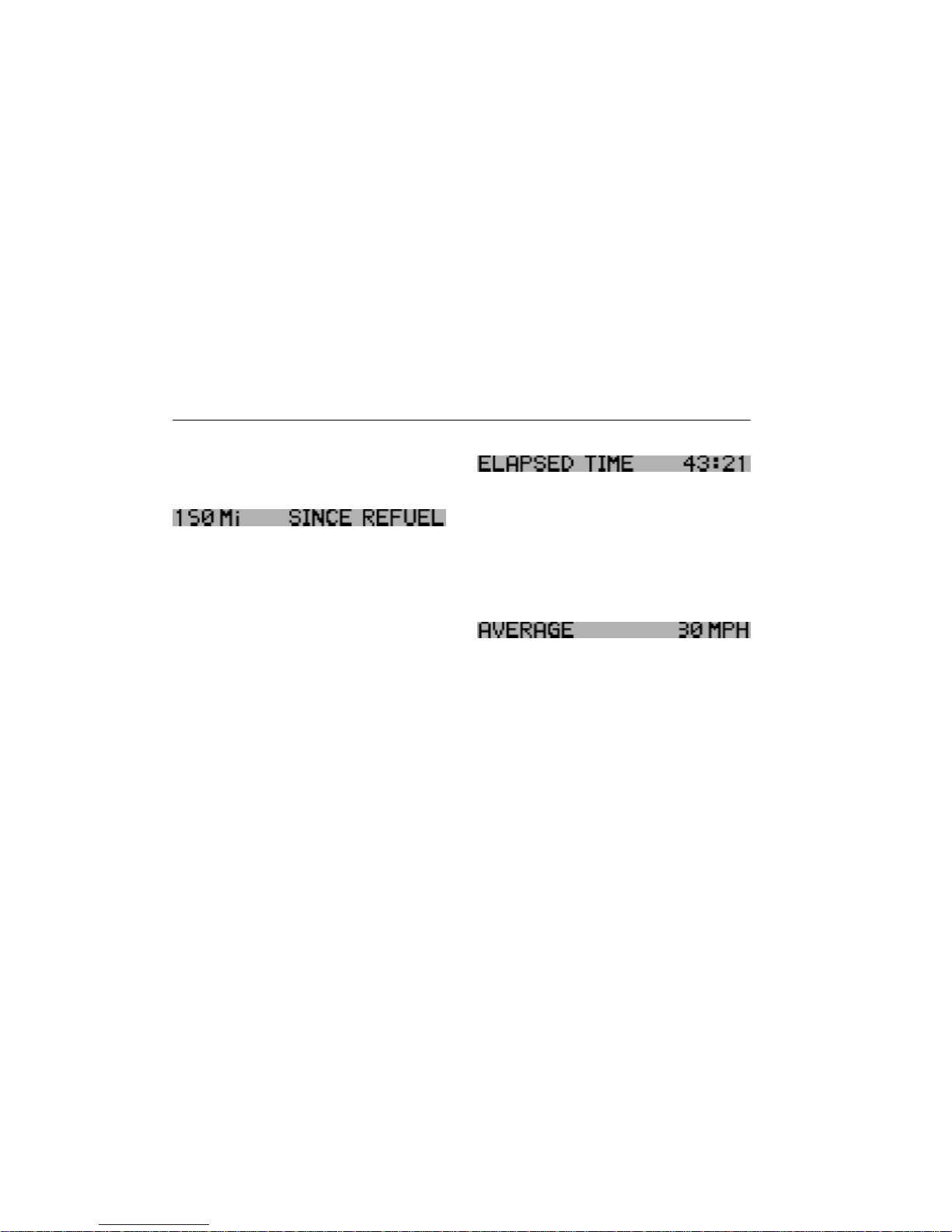

 Driving distance after refueling

13L136

The driving distance after refueling is displayed.

When refueling, be sure to stop your vehicle and turn the
ignition switch off.

The driving distance after refueling could not be calculated in
either of the following cases:

 Refueled by opening the fuel filler door using the manual

lever in the trunk
 Refueled with a small quantity of gasoline
To begin recalculating, push the ”RESET” button for about 1 to

2 seconds.

 Elapsed time

W31W31

The total time that the engine has been running is
displayed.

When the engine is started again after the ignition is off, the
driving time is added to the previous value. Up to 99 hours 59
minutes can be displayed. When the driving time exceeds 99
hours 59 minutes, the display returns to 0 and recounting
starts.

To begin recalculating, push the ”RESET” button for about 1 to
2 seconds.

 Average vehicle speed

13L137a

The average vehicle speed is calculated and displayed
based on the total driving distance and the total driving
time with the engine running.

The displayed value is updated every 10 seconds.
To begin recalculating, push the ”RESET” button for about 1 to

2 seconds.

GAUGES, METERS AND SERVICE REMINDER INDICATORS

57

(b) Graphic information

13L068b

The following graphic information is shown on the
display.

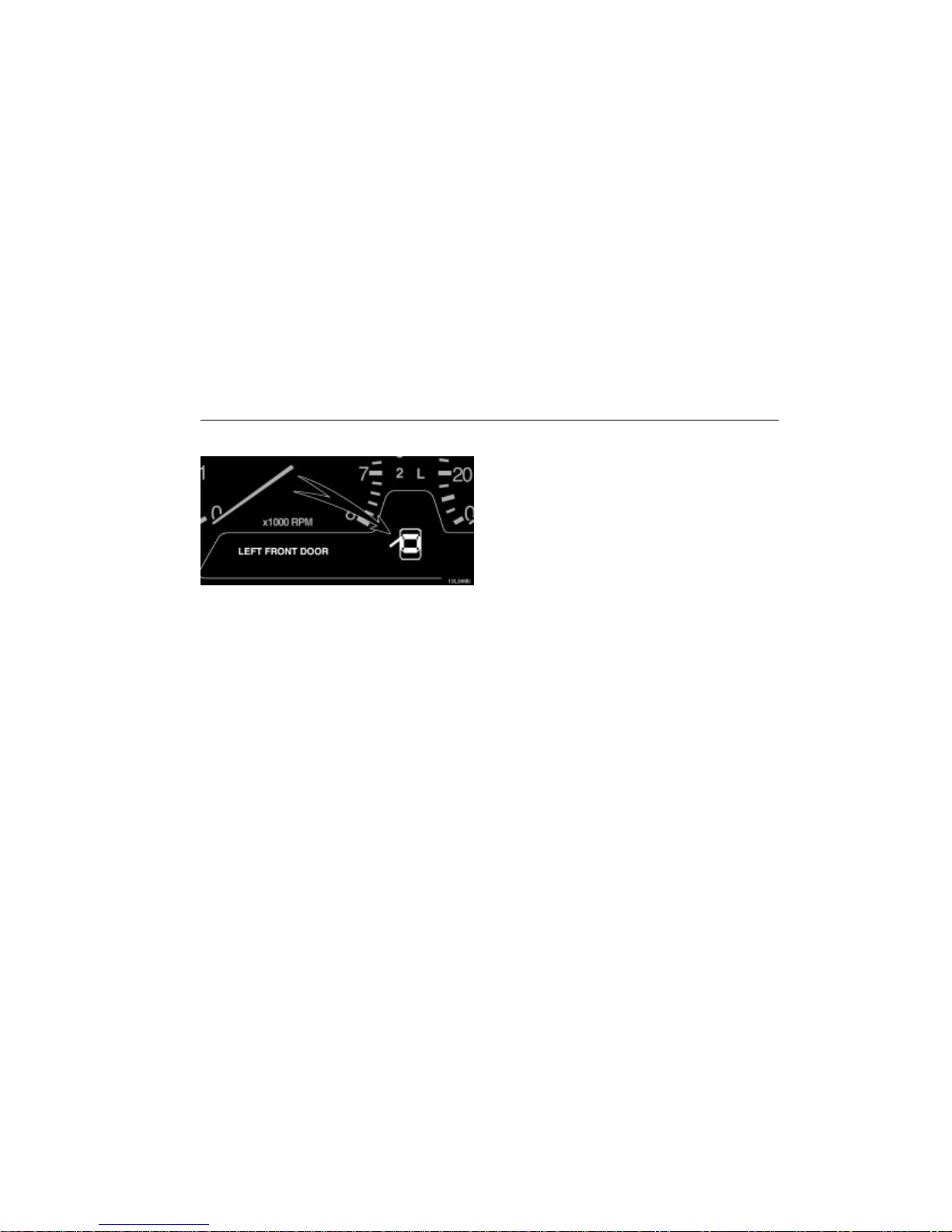

 Any door open
 Compass display (if equipped)
 Outside temperature display
 Lexus park assist system display (if equipped)
 Dynamic laser cruise control display (if equipped)
 Blank

If any door is opened, the warning message also reminds you
to close the door.

When the ignition is turned on, the previously selected display
appears. Each time you push the “DISP2” button for about 1
to 2 seconds, the display changes from compass (if the
compass is initially displayed) to outside temperature to blank
screen, then back to compass.

For the compass, see “Compass” on page 63. For the outside
temperature display, see “Outside temperature display” on
page 73.

If you push the main switch of the Lexus park assist system or
turn the ignition on with the main switch of the Lexus park assist
system on, the Lexus park assist system screen appears for
2 seconds and then the multi–information display returns to the
previous screen.

When you push the main switch of the dynamic laser cruise
control, the dynamic laser cruise control screen appears.
Each time you push the “DISP2” switch for 1 to 2 seconds, the
screen changes to compass, outside temperature display,
blank screen, and then back to the dynamic laser cruise control
screen. When the display shows a screen other than dynamic
laser cruise c o n trol, the multi–information display returns to the
dynamic laser cruise control screen after 6 seconds. For
details, see “Dynamic laser cruise control” on page 252.

GAUGES, METERS AND SERVICE REMINDER INDICATORS

58

(c) Warning messages

13L069d

W40W40

When the engine oil pressure becomes too low, the
master warning light comes on, the above message
appears and a warning tone sounds.

If this message appears while you are driving, pull off the road
to a safe place and stop the engine immediately. Call a Lexus
dealer or qualified repair shop for assistance.

The message may appear when the oil level is extremely low.
It is not designed to indicate low oil level, and the oil level must
be checked using the oil level dipstick.

NOTICE

Do not drive the vehicle while this warning message is
displayed – even for one block. It may ruin the engine.

W41W41

When your brake pads have worn down enough to require
replacement, the master warning light flashes and the
above message appears and the warning tone sounds.

If this message appears while you are driving, have the brake
pads checked and replaced by your Lexus dealer as soon as
possible.

GAUGES, METERS AND SERVICE REMINDER INDICATORS

59

W43W43
W42W42

W45–1

W44W44
W46W46

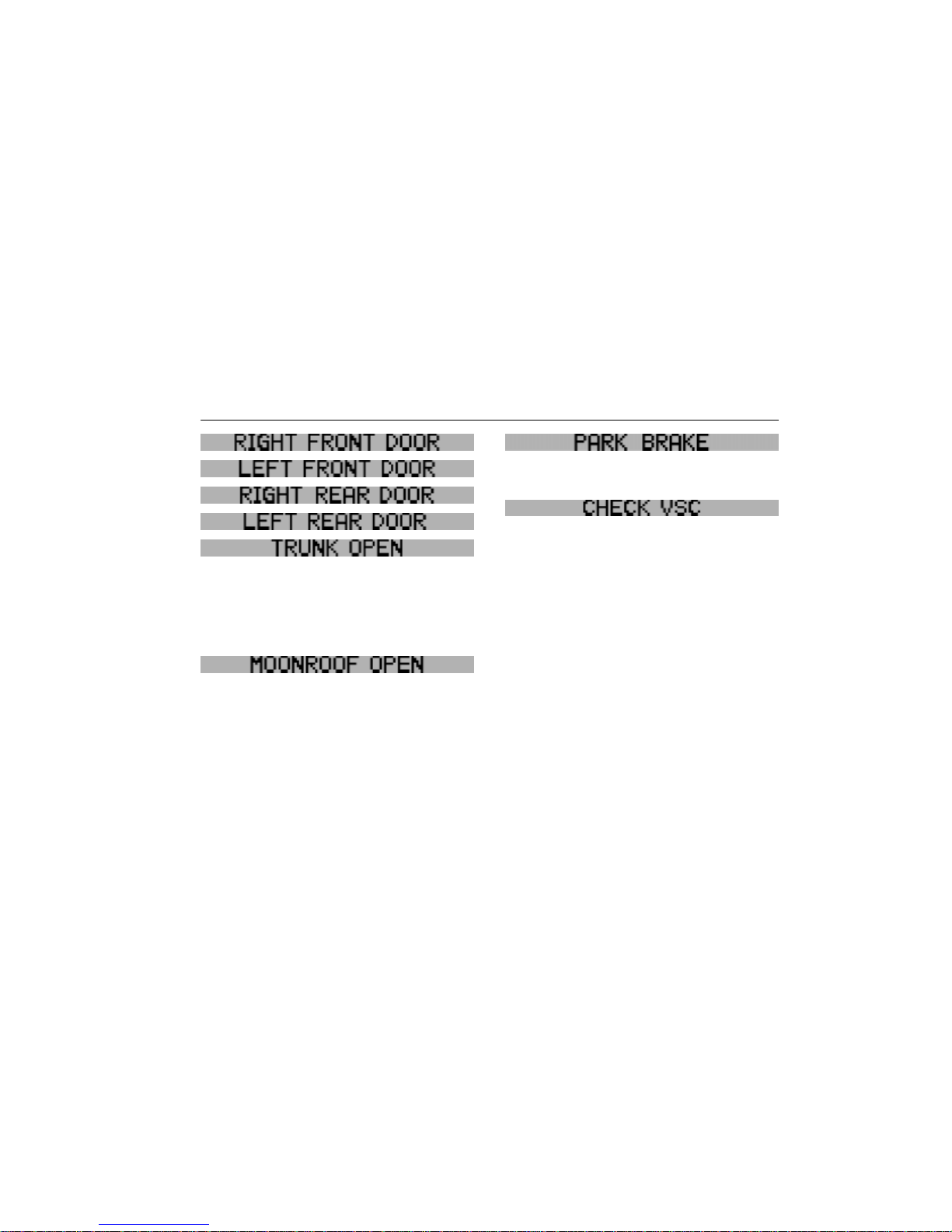

When any door or trunk is open with the ignition switch
turned on at 5 km/h (3 mph) or higher vehicle speed, the
master warning light flashes, a message indicating which
door or trunk is open appears, and a warning tone sounds.

If you continue driving with any door or trunk open, the warning
light starts flashing and a warning tone sounds to remind you
to close the door or trunk.

W52W52

If the driver’s door is opened with the ignition switch
turned off and the moon roof opened, the master warning
light flashes, the above message appears and a warning
tone sounds for 8 seconds.

w94

If you start driving with the parking brake applied, the
master warning light flashes, the above message appears
and a warning tone sounds.

W48W48

If the vehicle skid control system or the traction control
system malfunctions, the master warning light and “VSC
OFF” indicator light come on. At this time the warning
message appears in the multi–information display. And
the warning tone sounds.

If the message appears, the vehicle skid control system and
traction control system do not work. Although it is no problem
to continue driving, have your vehicle checked by Lexus dealer
as soon as possible.

GAUGES, METERS AND SERVICE REMINDER INDICATORS

60

w95

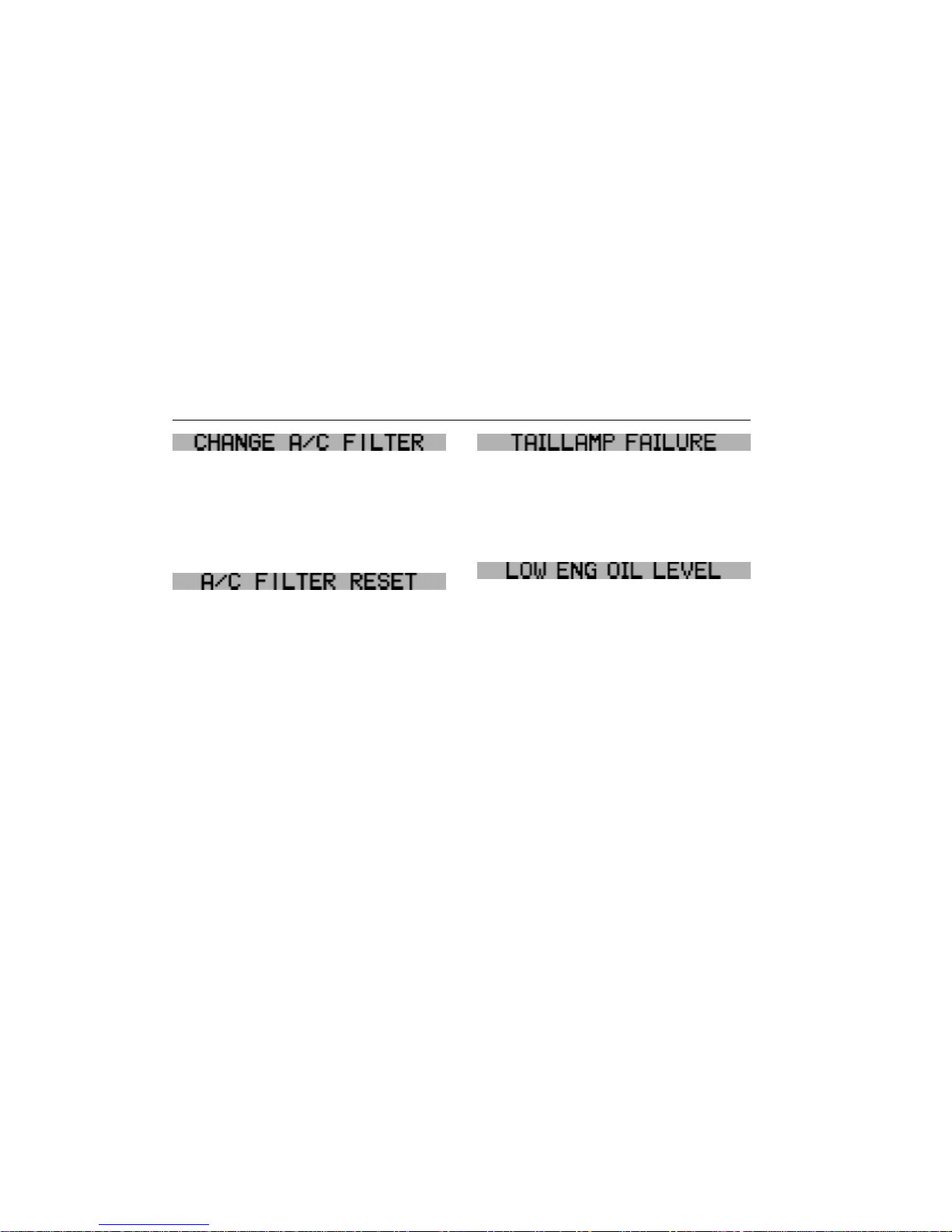

If the “CHANGE A/C FILTER” appears on the
multi–information display, change the air conditioning
filter as soon as possible because the air filter might have
clogged.

Replace the air conditioning filter in the glove box. After
replacing, push and hold the “OFF” button for the front air
conditioning for about more than 4 seconds to reset the
corresponding data. See “Air conditioning filter ” on page 194
for details.

w96

If you push the “OFF” button for the front air conditioning
for about more than 4 seconds after the replacement of the
air conditioning filters, the above message appears and
the attention tone sounds to inform you that the data has
been reset.

When you push the “OFF” button for the front air conditioning
for more than 4 seconds before “CHANGE A/C FILTER”
appears, the data will be cleared. Do not reset the data before
this message appears.

W49W49

In the following cases, the master warning light comes on,
the above message appears and a warning tone sounds.

 When the headlight switch is turned to the first or second

clickstop with one or more tail light bulbs burned out.

 When the brake pedal is held down with one or more stop

light bulbs burned out.

Have defective bulbs replaced as soon as possible.

W50W50

When the engine oil level is too low, the master warning
light flashes, the above message appears, and a warning
tone sounds.

Add oil as soon as possible. (For instructions, see ”Checking
the engine oil level” on page 359.)

While driving on steep inclines or rough roads which causes
the vehicle to substantially sway or on curves. This message
may appear due to the movement of engine oil in the engine.

In normal conditions, due to engine oil consumption, this
message may appear earlier than the specified service interval
of the scheduled maintenance. This is because the engine oil
is consumed to the low level within the scheduled maintenance
interval and does not indicate a problem. (For detailed
information, see “Facts about engine oil consumption” on page

357.)

GAUGES, METERS AND SERVICE REMINDER INDICATORS

61

NOTICE

Continued engine operation with low engine oil will
damage the engine.

W51W51

When the fluid level in the tank becomes very low, the
above message appears, the master warning light comes
on, and a warning tone sounds.

Fill the tank as soon as possible.

W53W53

When there is a problem somewhere in the automatic
headlight leveling system, the master warning light
comes on, the above message appears and a warning
tone sounds.

If this message appears, have your vehicle checked by your
Lexus dealer.

w105

If the interlock cable for steering lock is faulty, the above
message appears, the master warning light flashes, and
a warning tone sounds.

If the above message appears, contact your Lexus dealer as
soon as possible.

w203

If the system cannot easily measure the
vehicle–to–vehicle distance because of a dirty laser radar
sensor glass while the dynamic laser cruise control is on,
the master warning light comes on and the “CRUISE”
indicator light flashes, the above message appears and a
warning tone sounds.

If this message appears on the screen, clean the sensor glass
with a soft cloth and try setting the preset speed again. If the
dirt is removed without cleaning, the system will automatically
enter the “RADAR READY” mode. If the system does not enter
the “RADAR READY” mode even after cleaning or the
message remains on the display, the system might be
malfunctioning. Although it is no problem to continue driving,
contact your Lexus dealer.

GAUGES, METERS AND SERVICE REMINDER INDICATORS

62

The system will illuminate the following display:

w107

If the system cannot easily measure the
vehicle–to–vehicle distance because of the following
conditions while the dynamic laser cruise control is on,
the master warning light comes on and the “CRUISE”
indicator light flashes, the above message appears and a
warning tone sounds.

 The wipers are operated at high or low speeds
 Direct sunlight from the front
 The driving pattern selector switch is set to the “SNOW”

mode.
 It is determined that it is difficult to make a measurement

because of bad weather (such as rainy, foggy, or snowy

weather)

In the following cases, the dynamic laser cruise control
switches to the “RADAR READY” mode:

 The wipers are stopped or are switched to intermittent

operation. (Including intermittent and stopped wipers in the

“AUTO” position)

 No direct sunlight from the front
 The driving pattern selector switch is changed to the

“Normal” or “Power” position.

In the above conditions, press the control lever upward in the
“RES/ACC” direction and release it. The dynamic laser cruise
control will be restored, however, even after the weather
clears, if the setting operation cannot be performed or if the
warning message still appears, the system might have
malfunctioned.

Although it is no problem to continue driving, contact your
Lexus dealer.

w108

If a system malfunction is detected when dynamic laser
cruise control is in the “RADAR READY” mode or
operating, the master warning light comes on, the above
message appears and a warning tone sounds.

If this message appears, stop your vehicle in a safe place, turn
the ignition off, and then restart it to reset the system. If the
setting still cannot be made or the same message appears
again, the system might have malfunctioned. Although it is no
problem to continue driving, contact your Lexus dealer.

GAUGES, METERS AND SERVICE REMINDER INDICATORS

63

NOTICE

While you are cruising with the dynamic laser cruise
control on, if the master warning light comes on, the
cruise indicator light flashes, “CHECK CRUISE
SYSTEM” appears on the multi–information display and
the warning tone sounds, turn the ignition switch off
and then on again. If the function is cancelled again
after setting or if settings cannot be made, the dynamic
laser cruise control system may be malfunctioning.
Although it is no problem to continue driving, have your
vehicle checked by your Lexus dealer.

COMPASS

(Vehicles without Navigation System)

13L071b

When the ignition is turned on, the previously selected display
appears. If the compass is not displayed, push the “DISP2”
button several times for 1 to 2 seconds to display the compass.
However if you push the main switch of dynamic laser cruise
control to use dynamic laser cruise control, the dynamic laser
cruise control display appears. To change to the compass
display, push the “DISP2” button for longer than about 1
second.

The compass indicates the direction in which the vehicle
is heading. The illustration shown above indicates that the
vehicle is heading north.

GAUGES, METERS AND SERVICE REMINDER INDICATORS

64

Displays

Directions

N

NE

E

SE

S

SW

W

NW

North

Northeast

East

Southeast

South

Southwest

West

Northwest

The compass may not show the correct direction in the
following conditions:

 The vehicle is stopped immediately after turning.

The compass does not adjust while the vehicle is stopped.
 The ignition switch is turned off immediately after turning.

The compass does not adjust while the vehicle is stopped.

 The vehicle is on an inclined surface.
 The vehicle is in a place where the earth’s magnetic field is

subject to interference by artificial magnetic fields

(underground parking, under a steel tower, between

buildings, roof parking, near a crossing, near a large

vehicle, etc.).

 The vehicle is magnetized. (There is a magnet or a metal

object near the audio system.)
 The battery has been disconnected.
The compass works to calibrate the direction automatically

while the vehicle is in motion, if deviation is small.
For obtaining additional precision or for complete calibrating,

see the following “CALIBRATING THE COMPASS” on page

65.

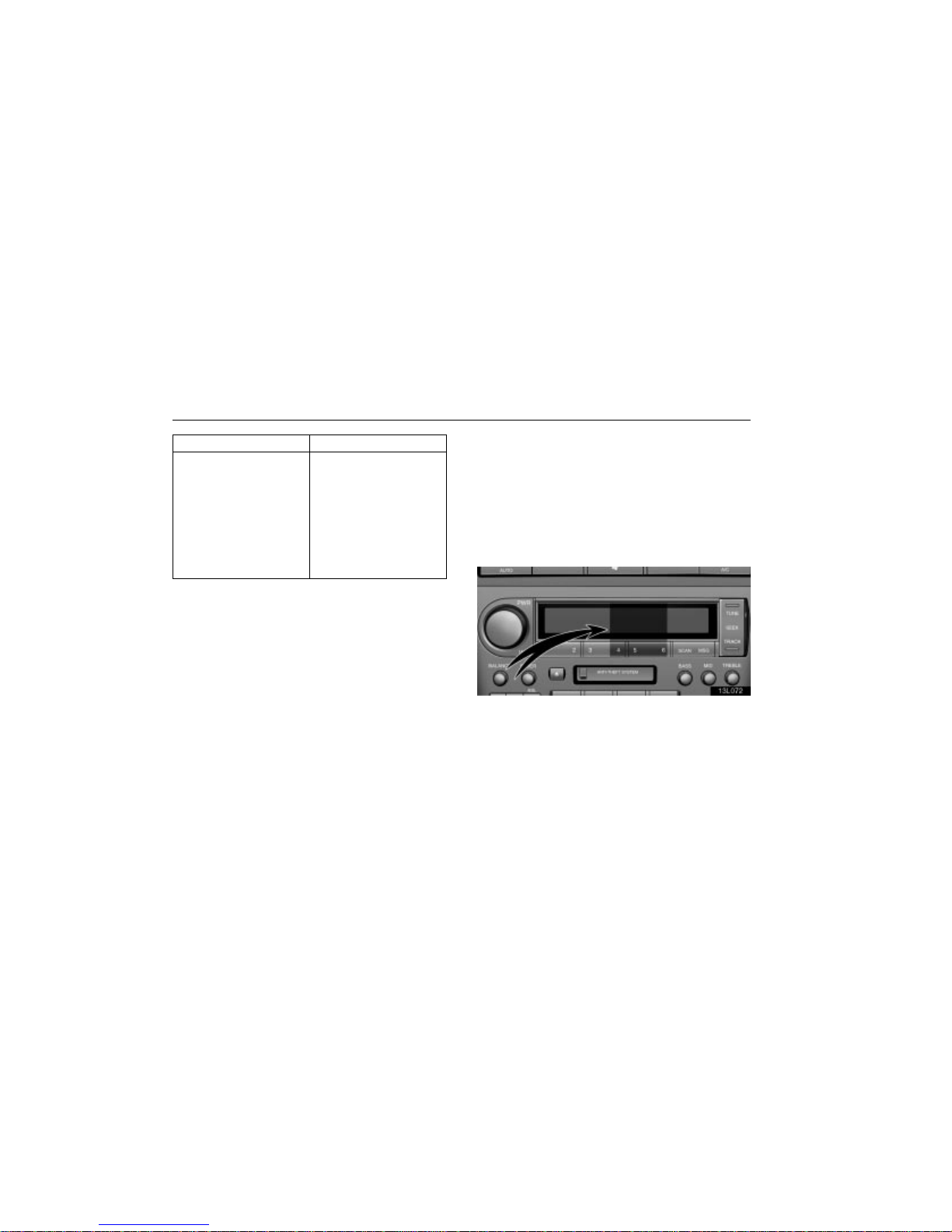

COMPASS SENSOR

13L072



Compass sensor

The compass sensor is located behind the audio system.

GAUGES, METERS AND SERVICE REMINDER INDICATORS

65

NOTICE

Do not put magnets or a metal object near the audio
system. Doing this may cause malfunction of the
compass sensor.

CALIBRATING THE COMPASS

The direction display on the compass deviates from the true
direction determined by the earth’s magnetic field. The
amount of deviation varies according to the geographic
position of the vehicle.

If you cross over the area divided as shown in the illustration,
the compass will deviate. If it is necessary to calibrate the
compass (deviation calibration), take your vehicle to your
Lexus dealer. Even if you do not cross over, the compass may
sometimes deviate. If this happens, perform “DRIVE IN
CIRCLES” calibration as shown on the next page.

13l073a

GAUGES, METERS AND SERVICE REMINDER INDICATORS

66

16l074b

To rectify the deviation, stop the vehicle, and push and hold the
“RESET” button on the steering pad for more than 6 seconds.
“DRIVE IN CIRCLES” appears on the display. Perform the
following calibration.

CAUTION

Do not adjust the display while the vehicle is moving.
Be sure to adjust the display only when the vehicle is
stopped.

16L075

Drive the vehicle slowly (at 8 km/h (5 mph) or lower) in a circle
until the direction is displayed. If there is not enough space to
drive in a circle, drive around the block until the direction is
displayed.

After driving in 1 to 3 circles in the above method, calibration
is complete with the direction shown on the display.

If calibration cannot be performed because the vehicle is
magnetized., take your vehicle to a Lexus dealer.

If you want to cancel the calibration before it is complete, push
and hold the “RESET” button on the steering pad more than 6
seconds. To calibrate the compass again, push and hold the
same butto n m o r e t han 6 seconds. After “DRIVE IN CIRCLES”
appears on the display, follow the calibration procedure above.

 Do not perform circling calibration of the compass in a place

where the ear t h ’s magnetic field is subject to interference by

artificial magnetic fields (underground parking, under a

steel tower, between buildings, roof parking, near a

crossing, near a large vehicle, etc.).

GAUGES, METERS AND SERVICE REMINDER INDICATORS

67

 During calibration, do not operate electric systems (moon

roof, power windows, etc.) as they may interfere with the
calibration.

CAUTION

 When doing the circling calibration, be sure to secure

a wide space, and watch out for people and vehicles
in the neighborhood. Do not violate any local traffic
rules while performing circling calibration.

 Do not adjust the display while the vehicle is moving.

Be sure to adjust the display only when the vehicle is
stopped.

INSTRUMENT PANEL LIGHT

CONTROL

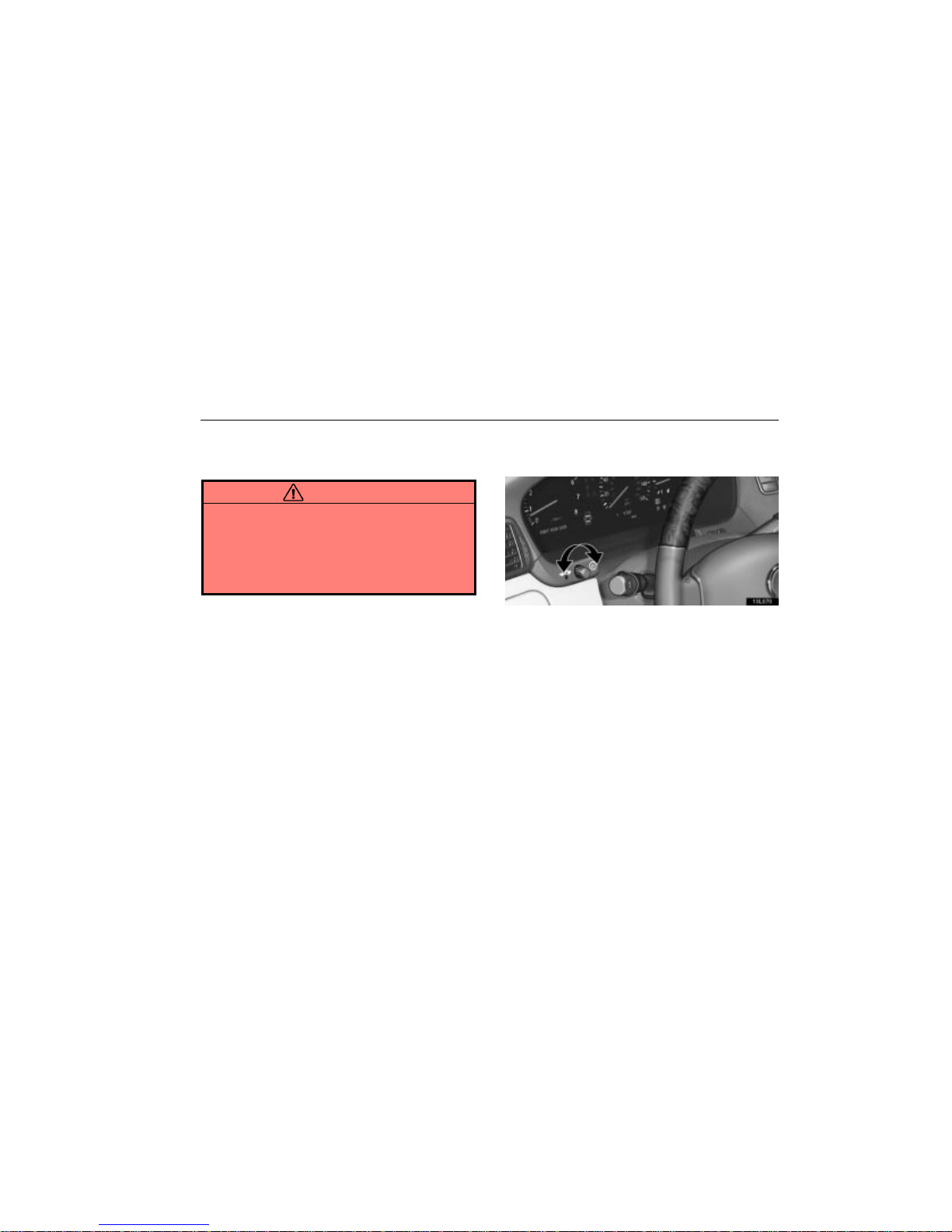

13L070

To adjust the brightness of the instrument panel lights,
turn the knob.

GAUGES, METERS AND SERVICE REMINDER INDICATORS

68

SECTION 1 –

4

69

INSTRUMENTS AND CONTROLS

Interior equipment

Vanity mirrors 70. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Interior lights 71. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Personal lights 72. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Ignition switch light 72. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Clock 73. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Outside temperature display 73. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Cigarette lighter and ashtray 74. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Power outlets 75. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rear console box 76. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Glove box 77. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Garage door opener 78. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Cup holder 81. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Coin box 83. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Overhead console box 83. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Auxiliary boxes 84. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Trunk storage extension 86. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Card holder 87. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Penlight 87. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Cool box 88. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Floor mat 89. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Coat hook 90. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Sunshades 91. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Luggage net 93. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

First–aid kit net 94. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Luggage stowage precautions 94. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

INTERIOR EQUIPMENT

70

VANITY MIRRORS

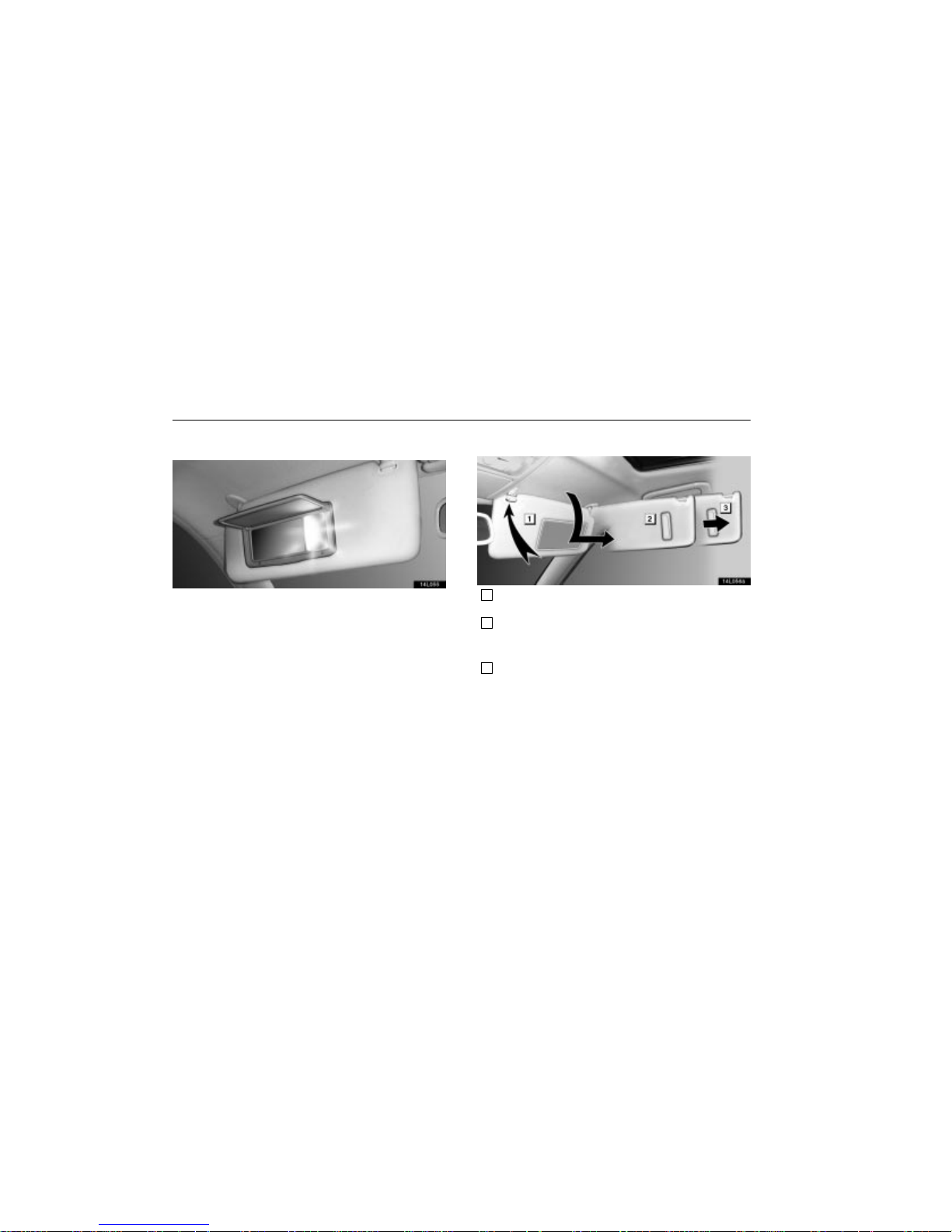

14L005

To use the vanity mirrors, swing the sun visor down and
open the cover.

The vanity light comes on when you open the cover. However
if the sun visor is not hooked securely, the light may not come
on.

Sun visors

14L056a

1

To block out glare from the front , swing the sun visor
down.

2

To block out glare from the side, remove the sun visor
from the hook and swing it to the side.

At this position, the vanity light may not come on.

3

To block out glare coming obliquely from behind you,
slide the visor backwards.

At this position, the vanity light does not come on.

INTERIOR EQUIPMENT

71

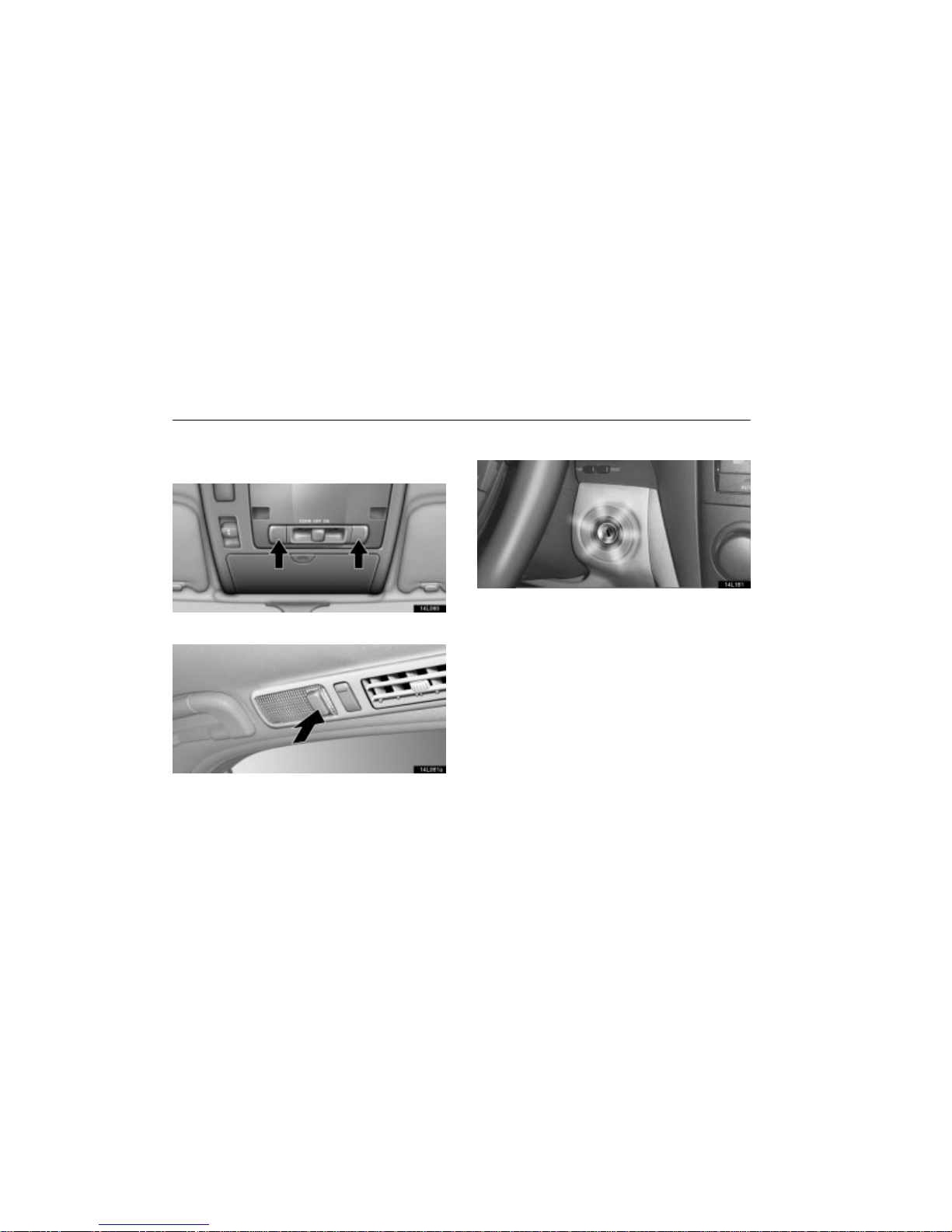

INTERIOR LIGHTS

Front

14L058

To turn on the interior light, slide the switch.

With the switch in the ”DOOR” position, the light comes on
when any of the doors are opened or when the ignition switch
is turned to “LOCK”. After all the doors are closed, the light
remains on for about 15 seconds and then goes out.*

However, in the following cases, the light goes out
immediately:

1. All the doors are closed when the ignition switch is in ”ACC”
or ”ON” position.

2. The ignition switch is turned to ”ACC” or ”ON” when the light
is still on.

3. All the doors are locked when the light is still on.

4. One door is closed with the lock button pushed in while the
other doors are locked.

NOTE: * The interior lights can be set not to come on or the
duration of lighting can be changed. Ask your Lexus dealer
for details.

Rear

14L059b

When you open the rear door, the light turns on. Closing
it turns off the light.

INTERIOR EQUIPMENT

72

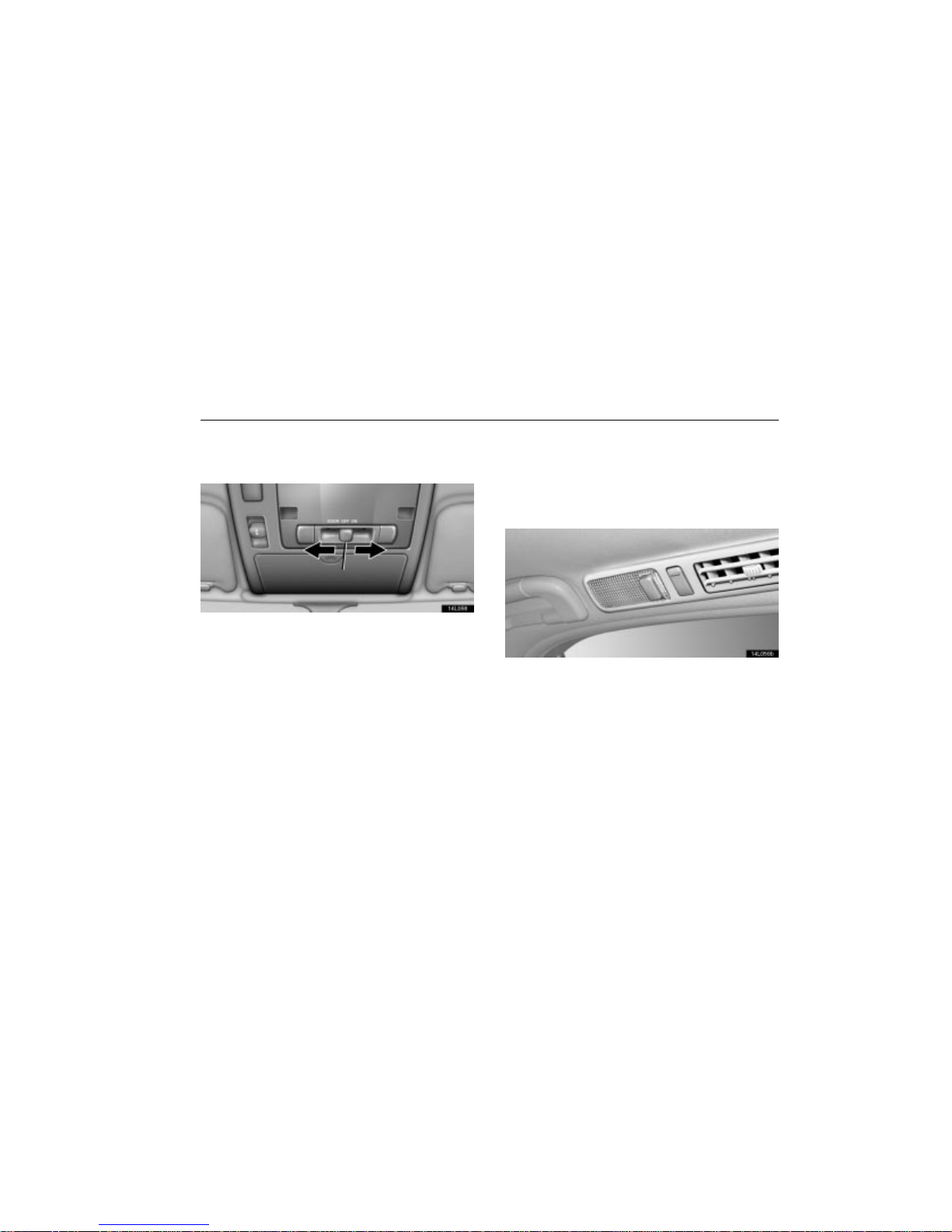

PERSONAL LIGHTS

Front

14L080

Rear

14L081a

To turn on the personal light, push the switch. To turn it
off, push the switch again.

IGNITION SWITCH LIGHT

14L181

For easy access to the ignition switch, the ignition switch
light comes on when any of the doors are opened.

The light remains on for about 15 seconds and goes out after
all the doors are closed. However, the light goes out
immediately when all the doors are locked or the ignition switch
is in the ”ACC” or ”ON” position.

INTERIOR EQUIPMENT

73

CLOCK

14L060

To reset the hour, press the ”H” button. To reset the
minutes, press the ”M” button. To adjust the time to the
nearest hour, press the ”:00” button.

For example, if the ”:00” button is pressed when the time is
between 9:30 – 9:59 or between 10:01 – 10:29, the time will
change to 10:00.

If the electrical power source has been disconnected from the
clock, the time display will automatically be set to 1:00 (one
o’clock).

For vehicles equipped with Navigation System, refer to
the separate “Navigation System Owner’s Manual”.

OUTSIDE TEMPERATURE DISPLAY

14L061b



On the instrument panel

This display shows the outside temperature when the
ignition switch is on.

The displayed temperature ranges from –30C (–22F) up to
50C (122F). If the temperature does not appear on the
display or it shows ”– – –”, take your vehicle to your Lexus
dealer.

INTERIOR EQUIPMENT

74

14L095a



Multi–information display

When you push the “DISP2” switch with the ignition switch on,
another outside temperature display appears on the
multi–information display. (For details, see “Multi–information
display” on page 54.)

The displayed temperature ranges from –30C (–22F) up to
50C (122F). If the temperature does not appear on the
display or it shows ”– –”, take your vehicle to your Lexus dealer.

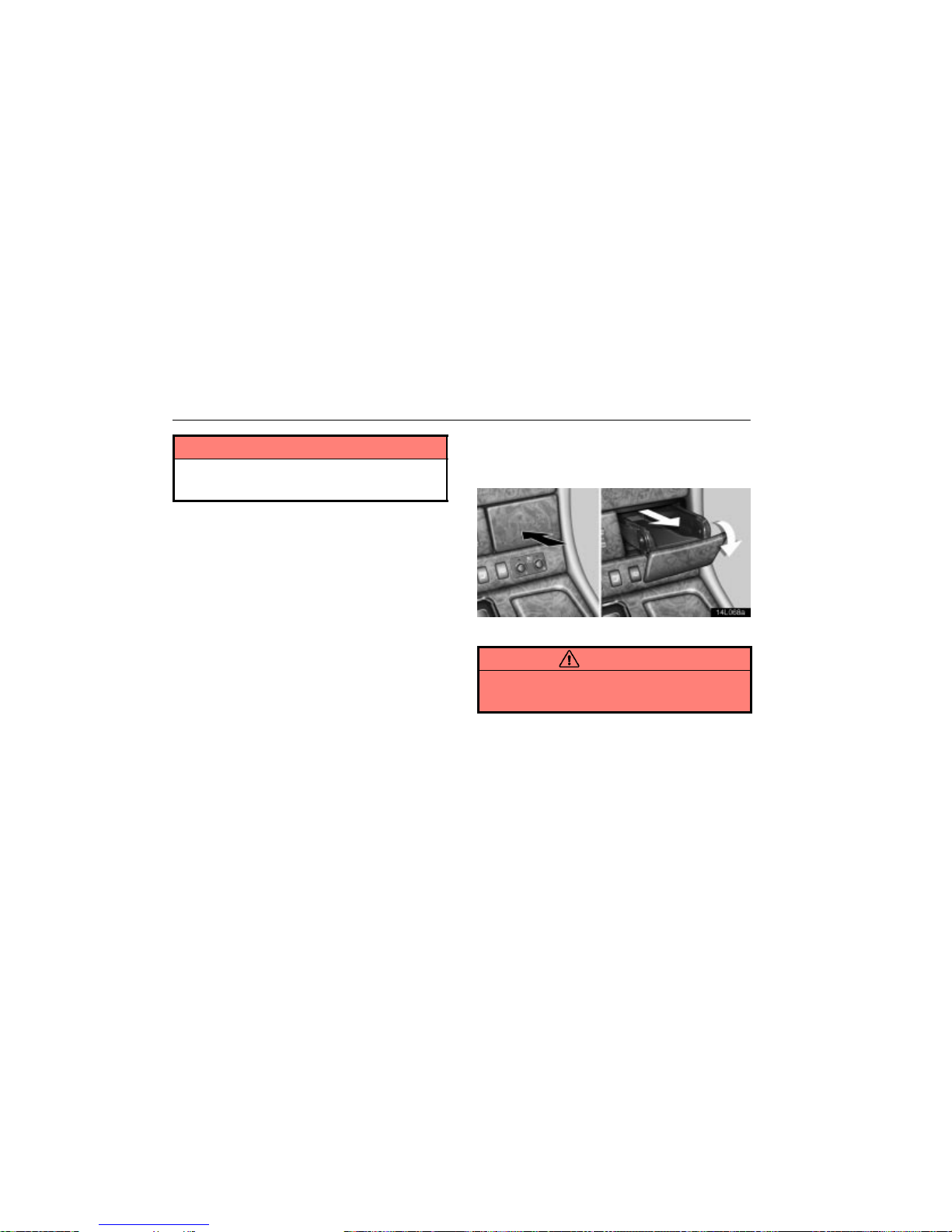

CIGARETTE LIGHTER AND

ASHTRAY

14L084d



Front cigarette lighter and ashtray (for some models)

14L083



Rear cigarette lighter and ashtray

INTERIOR EQUIPMENT

75

Open the ashtray cover. To use the cigarette lighter, press
in the cigarette lighter. After it finishes heating up, it
automatically pops out ready for use.

Do not hold the cigarette lighter pressed in.
If the engine is not running, the ignition switch must be in the

”ACC” position to use the lighter.
When finished with your cigarette, thoroughly extinguish it in

the ashtray to prevent other cigarette butts from catching fire.
After using the ashtray, push it back in or close the lid
completely.

To remove the ashtray, just pull it up.
Use a Lexus genuine cigarette lighter or equivalent for

replacement.

CAUTION

To reduce the chance of injury in case of an accident or
sudden stop while driving, always close the ashtray
completely after use.

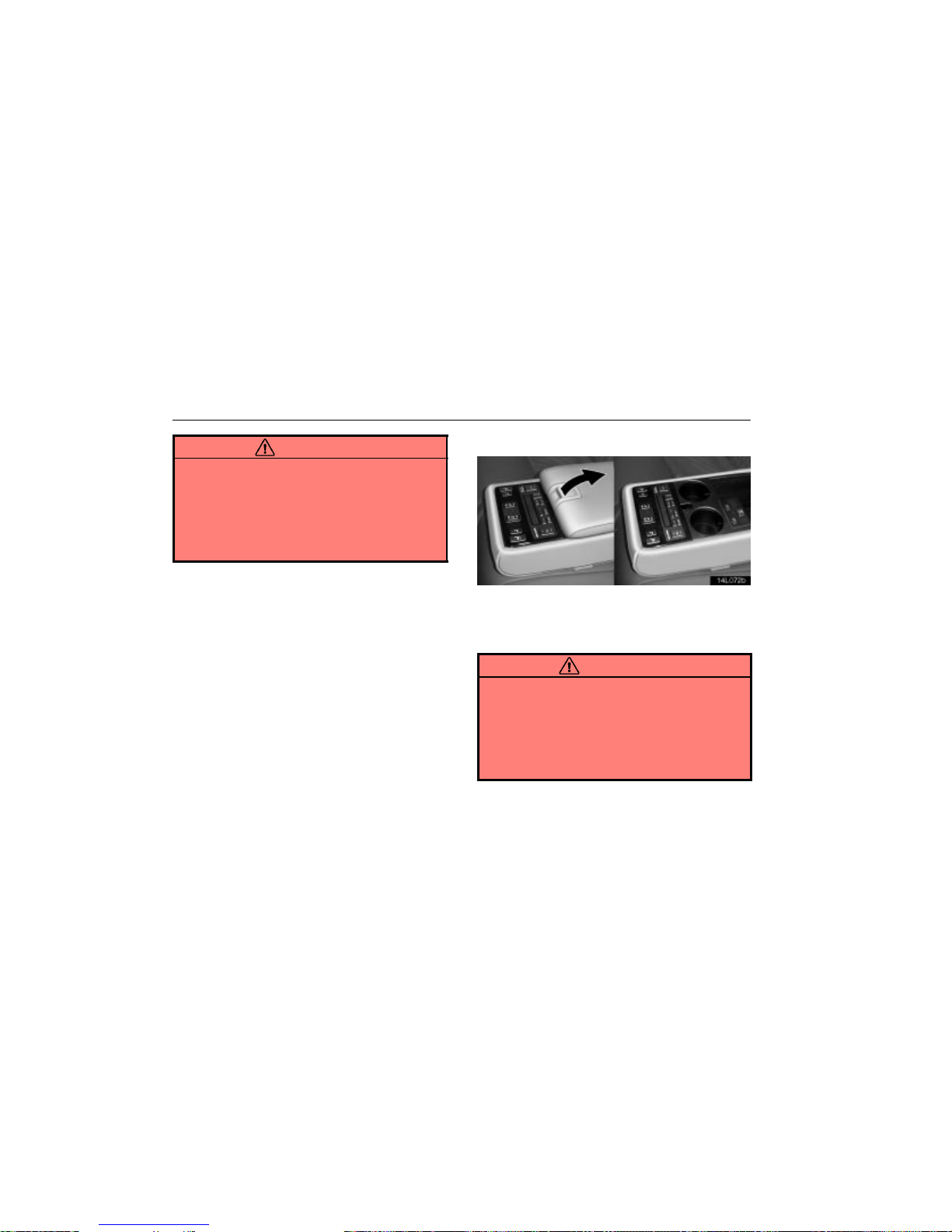

POWER OUTLETS

14L062



In the rear console box

14L063b



On the right side of the selector lever (for some models)

INTERIOR EQUIPMENT

76

The power outlets are designed for power supply for car
accessories.

The ignition switch must be in the ”ACC” or ”ON” position for
the power outlets to be used.

NOTICE



To prevent the fuse from being blown, do not use the
electricity over the total vehicle capacity of 10A/12V .



To prevent the battery from being discharged, do not
use the power outlets longer than necessary when
the engine is not running.



Close the power outlet lids when the power outlets
are not in use. Inserting a foreign object other than
the appropriate plug that fits the outlet, or allowing
any liquid into the outlet may cause electrical failure
or short circuits.

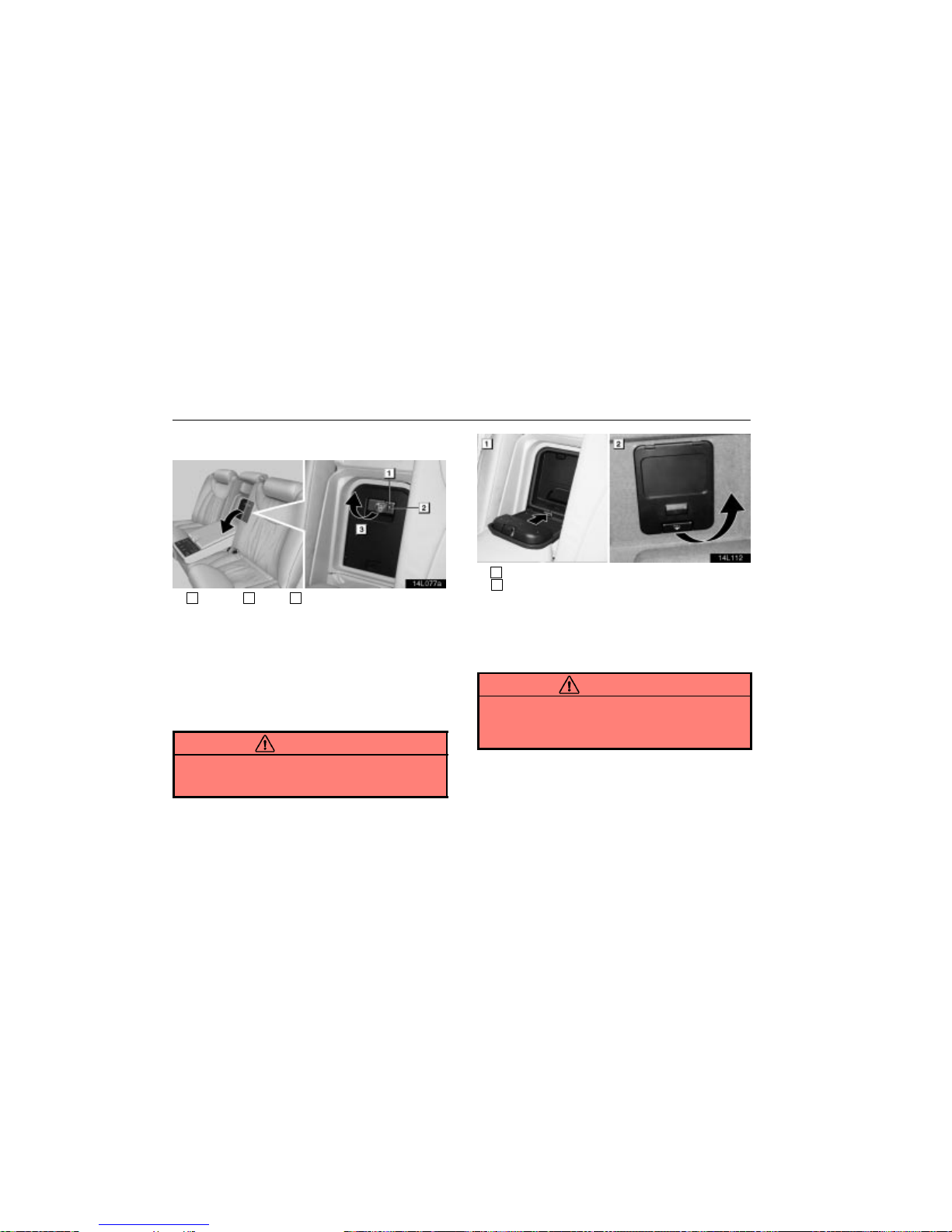

REAR CONSOLE BOX

14L064b



1

For the lower box 2For the upper tray

To use the rear console box, open as shown in the
illustration.

14L173a

Sliding a tray will make an accommodating space larger.

INTERIOR EQUIPMENT

77

The rear console box light for the lower box will come on with
the headlights on.

CAUTION

To reduce the chance of injury in case of an accident or
a sudden stop, always keep the console box lid closed
while driving.

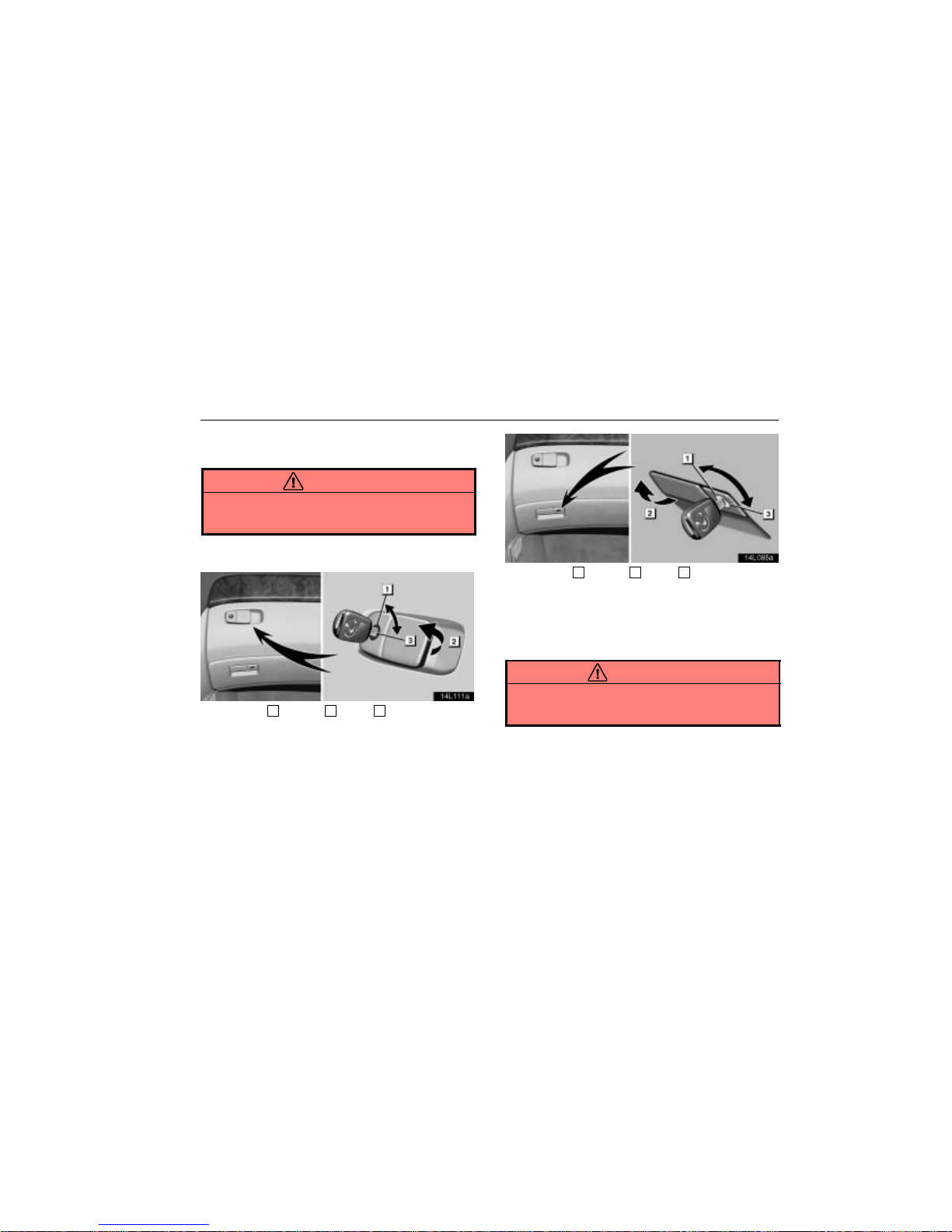

GLOVE BOX

14L111a



Upper box 1Unlock 2Open 3Lock

14L085a



Lower box 1Unlock 2Open 3Lock

To open the glove box door, pull the lever. To lock the
glove box door, insert the master key and turn it
clockwise.

With the tail lights on, the glove box light will come on when the
glove box door is open.

CAUTION

To reduce the chance of injury in case of an accident or
a sudden stop, always keep the glove box doors closed
while driving.

INTERIOR EQUIPMENT

78

GARAGE DOOR OPENER

The garage door opener (HomeLink



Universal
Transceiver) is manufactured under license from
HomeLink



and can be programmed to operate garage
doors, gates, entry doors, door locks, home lighting
systems, and security systems, etc.

(a) Programming the HomeLink



14L070



1

Buttons 2Indicator light

The HomeLink in your vehicle has 3 buttons and you can
store one program for each button.

To ensure correct programming into the HomeLink



, install a

new battery in the hand–held transmitter prior to programming.

The battery side of the hand–held transmitter must be pointed
away from the HomeLink



during the programming process.

For Canadian users, follow the procedure in “Programming an
entrance gate/Programming all devices in the Canadian
market”.

1. Decide which of 3 HomeLink



buttons you want to program.

2. Place your hand–held garage transmitter 25 to 75 mm (1 to
3 in.) away from the surface of the HomeLink



.

Keep the indicator light on the HomeLink in view while
programming.

3. Simultaneously press and hold the hand–held garage
transmitter button along with the selected HomeLink



button.

4. When the indicator light on the HomeLink changes from a
slow to a rapid flash after 20 seconds, you can release both
buttons.

5. Test the operation of the HomeLink



by pressing the newly
programmed button. If programming a garage door opener,
check to see if the garage door opens and closes.

INTERIOR EQUIPMENT

79

If the garage door does not operate, identify if your garage
transmitter is of the “Rolling Code” type. Press and hold the
programmed HomeLink



button. The garage door has the

rolling code feature if the indicator light (on the HomeLink



)
flashes rapidly and then remains lit after 2 seconds. If your
garage transmitter is the “Rolling Code” type, proceed to the
heading “Programming a rolling code system”.

6. Repeat steps 2 through 5 for each remaining HomeLink



button to program another device.

Programming a rolling code system

If your device is “Rolling Code” equipped, it is necessary
to follow steps 1 through 4 under the heading
“Programming the HomeLink



” before proceeding with

the steps listed below.

1. Locate the “training” button on the ceiling mounted garage
door opener motor. The exact location and color of the button
may vary by brand of garage door opener. Refer to the owner’s
guide supplied by the garage door opener manufacturer for the
location of this “training” button.

2. Press the “training” button on the ceiling mounted garage
door opener motor.

Following this step, you have 30 seconds in which to initiate
step 3 below.

3. Press and release the vehicle’s programmed HomeLink



button twice. The garage door may open. If the door does
open, the programming process is complete. If the door does
not open, press and release the button a third time. This third
press and release will complete the programming process by
opening the garage door.

The ceiling mounted garage door opener motor should now
recognize the HomeLink



unit and be able to activate the

garage door up/down.

4. Repeat steps 1 through 3 for each remaining HomeLink



button to program another rolling code system.

Programming an entrance gate /
Programming all devices in the Canadian
market

1. Decide which of the 3 HomeLink buttons you want to
program.

2. Place your hand–held gate/device transmitter 25 to 75 mm
(1 to 3 in.) away from the surface of the HomeLink.

Keep the indicator light on the HomeLink in view while
programming.

3. Press and hold the selected HomeLink



button.

4. Continuously press and release (cycle) the hand–held
gate/device transmitter button every two seconds until step 5
is complete.

5. When the indicator light on the HomeLink



changes from a
slow to a rapid flash after 20 seconds, you can release both
buttons.

INTERIOR EQUIPMENT

80

6. Test the operation of the HomeLink



by pressing the newly
programmed button. Check to see if the gate/device operates
correctly.

7. Repeat steps 1 through 6 for each remaining HomeLink



button to program another device.

Programming other devices

To program other devices such as home security systems,
home door locks or lighting, contact your authorized Lexus
dealer for assistance.

Reprogramming a button

Individual HomeLink



buttons cannot be erased, however, to
reprogram a single button, follow the procedure “Programming
the HomeLink



”.

(b) Operating the HomeLink



T o operate the HomeLink, press the appropriate HomeLink



button to activate the programmed device. The HomeLink



indicator light should come on. The HomeLink continues to
send the signal for up to 20 seconds as long as the button is
pressed.

(c) Erasing the entire HomeLink memory

(all three programs)

To erase all previously programmed codes at one time, press
and hold down the 2 outside buttons for 20 seconds until the
indicator light flashes.

If you sell your vehicle, be sure to erase the programs stored
in the HomeLink



memory.

CAUTION

 When programming the HomeLink Universal

Transceiver, you may be operating a garage door or
other device. Make sure people and objects are out
of the way of the garage door or other device to
prevent potential harm or damage.

 Do not use this HomeLink



Universal Transceiver
with any garage door opener that lacks the safety
stop and reverse feature as required by federal safety
standards. (This includes any garage door opener
model manufactured before April 1, 1982.) A garage
door opener which cannot detect an object
(signaling the door to stop and reverse), does not
meet current federal safety standards. Using a
garage door opener without these features increases
risk of serious injury or death.

INTERIOR EQUIPMENT

81

This device complies with Part 15 of the FCC Rules
and with RSS–210 of the Industry Canada. Operation
is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2)
this device must accept any interference received,
including interference that may cause undesired
operation.

WARNING: This transmitter has been tested and
complies with FCC and Industry Canada
DOC/MPAC rules. Changes or modifications not
expressly approved by the party responsible for
compliance could void the user’s authority to
operate the device.

CUP HOLDER

Front

14L071a

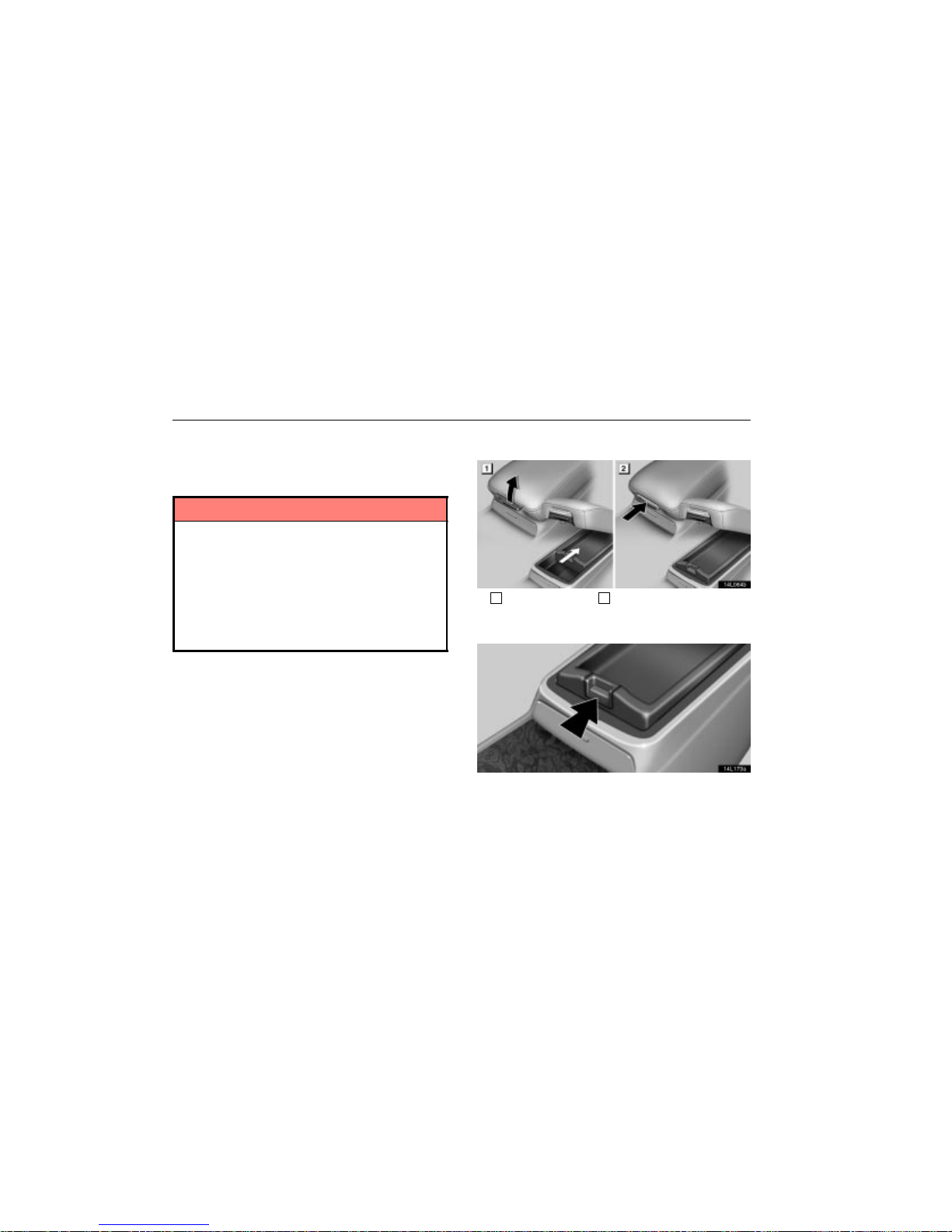

To use the cup holder, push the top of the cup holder
portion of the rear console box.

The cup holder is designed for holding cups or drink–cans
securely. When the cup holder is in use, keep the rear console
box closed.

INTERIOR EQUIPMENT

82

CAUTION

 Do not place anything else other than cups or

drink–cans in the cup holder, as such items may be
thrown about in the compartment and possibly injure
people in the vehicle during sudden braking or in an
accident.

 To reduce the chance of injury in case of an accident

or sudden stop while driving, keep the cup holder
closed when not in use.

Rear

14L072b

To use the cup holder, open the cup holder portion of the
center armrest in the rear seat.

The cup holder is designed for holding cups or drink–cans
securely.

CAUTION

 Do not place anything else other than cups or

drink–cans in the cup holder, as such items may be
thrown about in the compartment and possibly injure
people in the vehicle during sudden braking or in an
accident.

 To reduce the chance of injury in case of an accident

or sudden stop while driving, keep the cup holder
closed when not in use.

INTERIOR EQUIPMENT

83

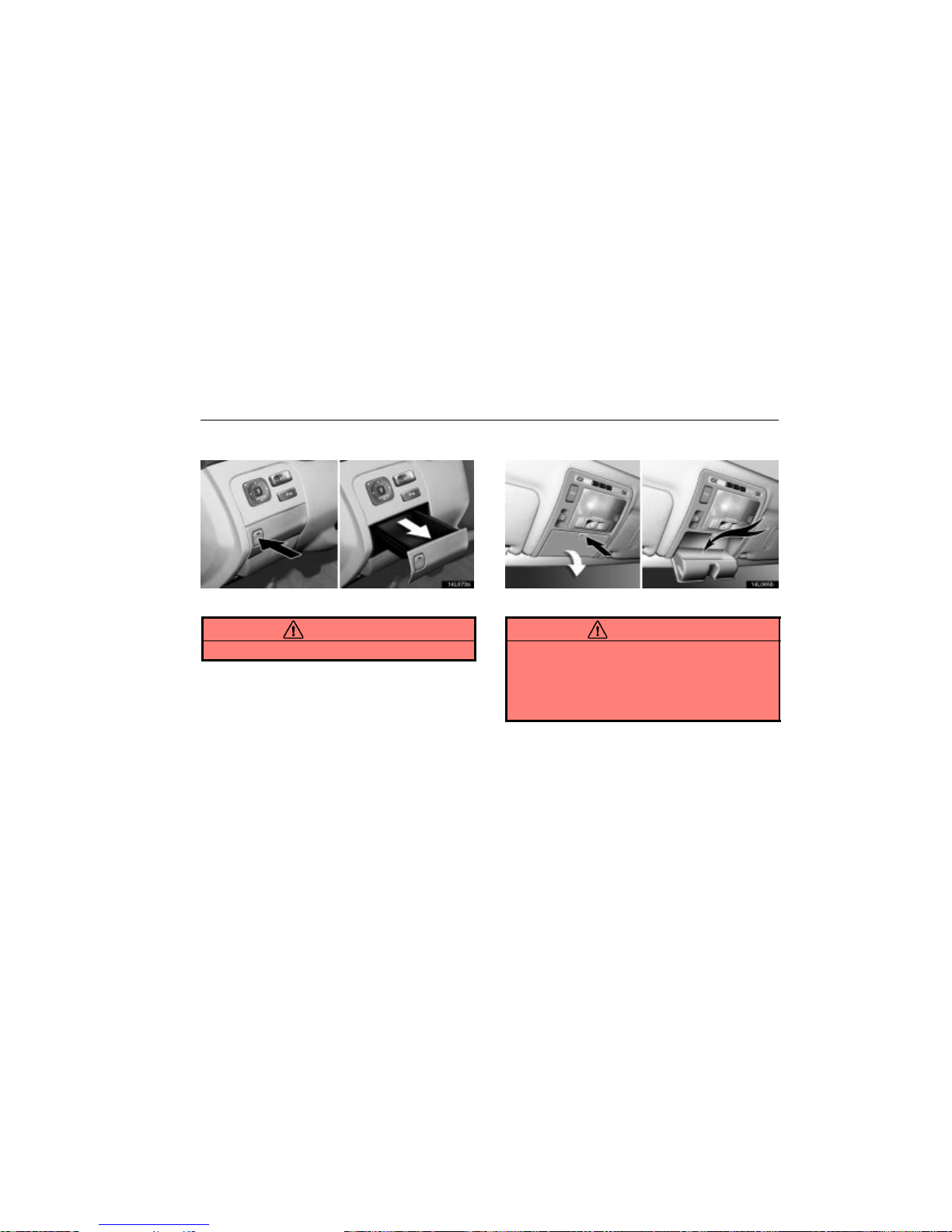

COIN BOX

14L073a

To use the coin box, push the coin box button.

CAUTION

Keep the coin box closed when not in use.

OVERHEAD CONSOLE BOX

14L065b

To use the overhead console box, push the button.

CAUTION

 To reduce the chance of injury in case of an accident

or a sudden stop, always keep the overhead console
box closed while driving.

 Do not place any object heavier than 100 g (0.22 lb.)

in it. Heavier objects may cause the box to open and
the contents to fly out resulting in injuries.

INTERIOR EQUIPMENT

84

NOTICE

During hot weather, the interior of the vehicle becomes
very hot. Do not leave anything flammable or
deformable such as a lighter, glasses, etc. inside.

AUXILIARY BOXES

Your vehicle has several types of auxiliary box. To use
them, open as shown in the following illustrations.

14L068a



On the instrument panel

CAUTION

As this box is designed for holding eyeglasses or
cellular phones, do not place any objects heavier than
300 g (0.44 lb.) in it.

INTERIOR EQUIPMENT

85

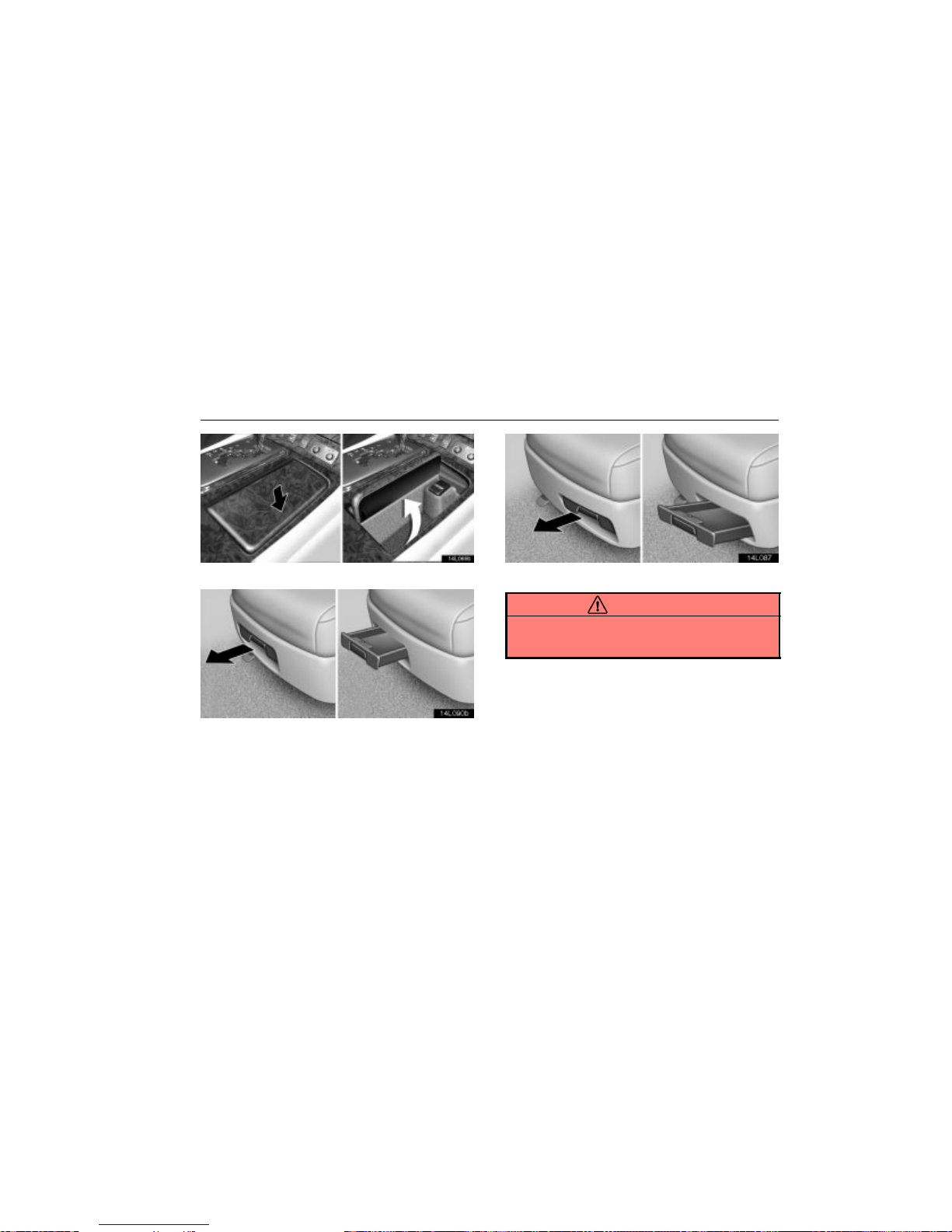

14L069b



On the right side of the selector lever (for some models)

14L090b



Under the driver’s seat

14L087



Under the front passenger’s seat

CAUTION

To reduce the chance of injury in case of an accident or
a sudden stop, always keep the auxiliary box closed
while driving.

INTERIOR EQUIPMENT

86

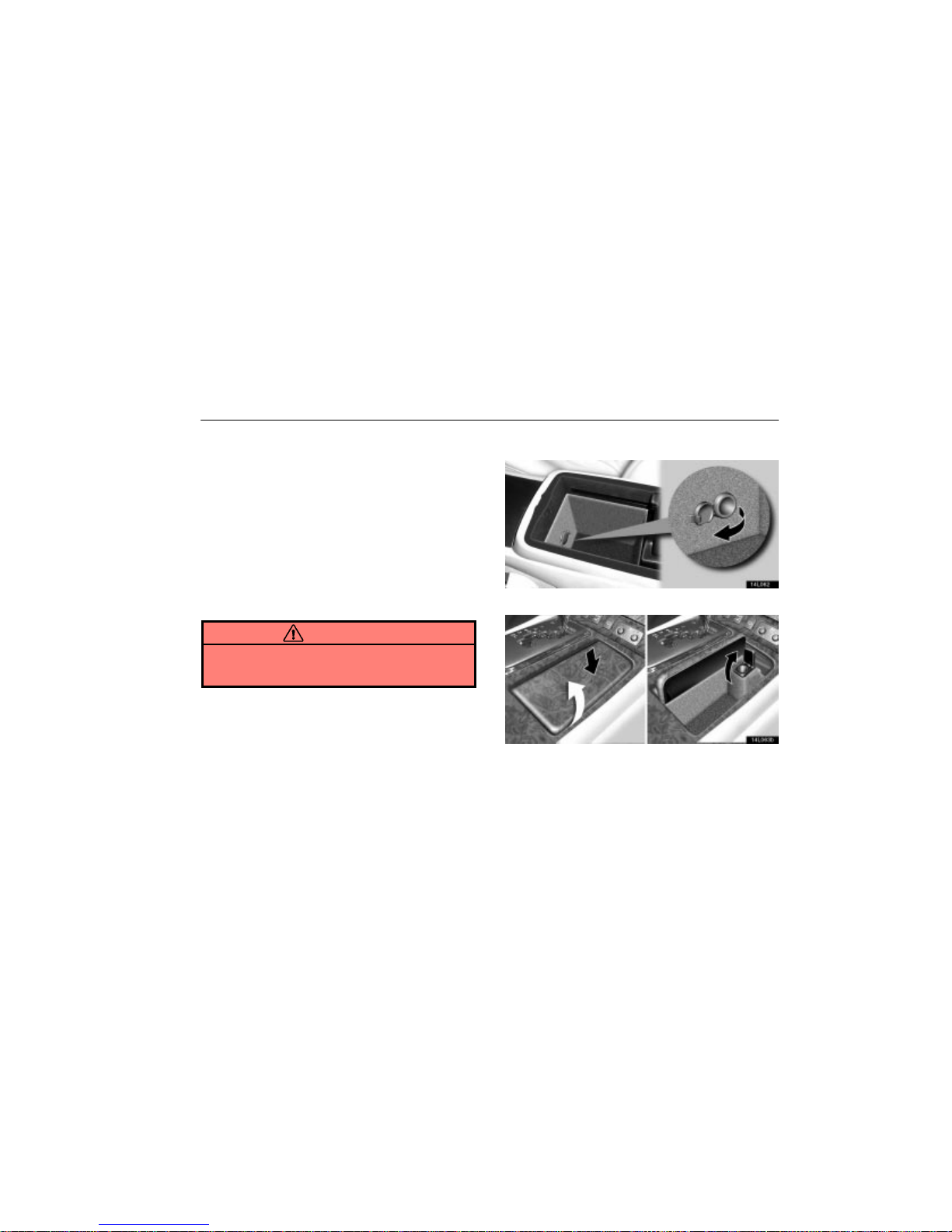

TRUNK STORAGE EXTENSION

14L077a



1

Unlock 2Lock 3Open

Pull down the center armrest in the rear seat. Pull the lever
and open the door.

Be sure to use “LEXUS Genuine Sports Gear, Bag” or carry
long objects (ski boards, poles, etc.) properly.

For installation and handling of the “LEXUS Genuine Sports
Gear”, follow the instructions provided with goods.

You can use a container as an accessory box. To lock the box,
insert the master key and turn it clockwise.

CAUTION

To reduce the chance of injury in case of an accident or
a sudden stop, always keep the auxiliary box closed
while driving.

14L112



1

From passenger compartment side

2

From trunk side

To extend a storage space, push the button on the door to
unlock and then push the door from the passenger side or pull
it from the trunk side.

See “Luggage stowage precautions” on page 94 for
precautions to observe in loading luggage.

CAUTION

Be sure to close the door when the trunk storage
extension is not in use. Luggage or cargo in the trunk
may be thrown into the passenger compartment in a
sudden stop or crash resulting in injury.
