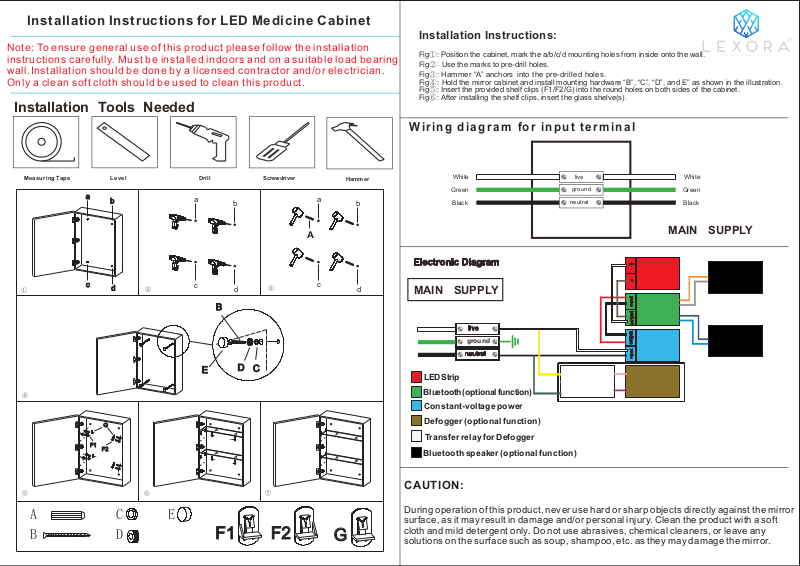

Installation Instructions for LED Medicine Cabinet
Installation Instructions:
Fig①: Position the cabinet, mark the a/b/c/d mounting holes from inside onto the wall.
Fig②: Use the marks to pre-drill holes.
Fig③: Hammer “A” anchors into the pre-drilled holes.
Fig④: Hold the mirror cabinet and install mounting hardware “B”, “C”, “D”, and E” as shown in the illustration.
Fig⑤: Insert the provided shelf clips (F1/F2/G) into the round holes on both sides of the cabinet.
Fig⑥: After installing the shelf clips, insert the glass shelve(s).
Note: To ensure general use of this product please follow the installation
instructions carefully. Must be installed indoors and on a suitable load bearing
wall.Installation should be done by a licensed contractor and/or electrician.
Only a clean soft cloth should be used to clean this product.
Installation Tools Needed
W irin g d ia g ra m fo r in p u t te rm in a l
Measu rin g Tape
①
④
Lev el
a
b
Drill Screwdriver
a
b
Hammer
a
b
White
Green
Black
live
groun d
neutral
A
c
d
②
c
d
③
c
d
MAIN SUPPLY
White
Green
Black
MAIN SUPPLY
B
ground
D
E
G
F1
F2
C
LED Strip
Bluetooth (optional function)
Constant-voltage power
Defogger (optional function)
Transfer relay for Defogger
Bluetooth speaker (optional function)
⑤
A
B
⑥
C
D
E
F1
⑦
F2
G
CAUTION:
During operation of this product, never use hard or sharp objects directly against the mirror
surface, as it may result in damage and/or personal injury. Clean the product with a soft
cloth and mild detergent only. Do not use abrasives, chemical cleaners, or leave any
solutions on the surface such as soup, shampoo, etc. as they may damage the mirror.
