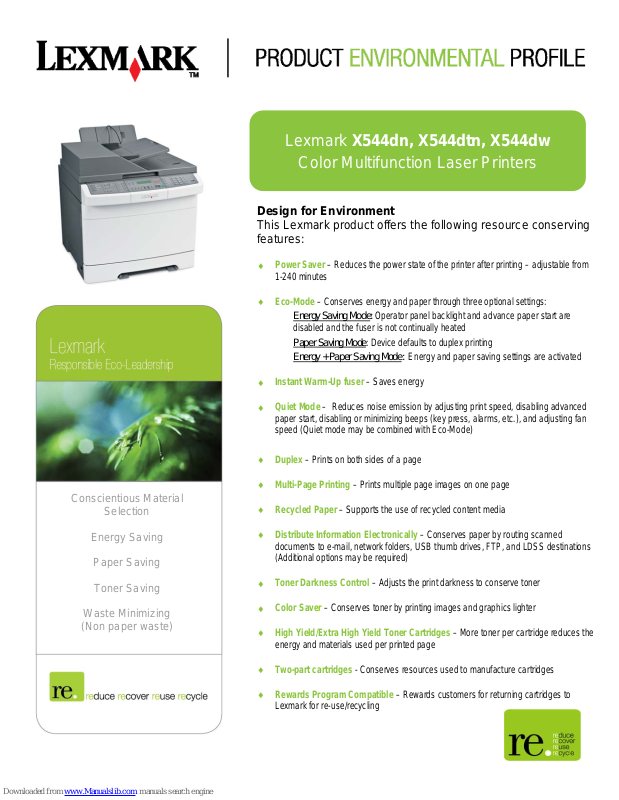

Page 1

Lexmark X544dn, X544dtn, X544dw

Color Multifunction Laser Printers

Design for Environment

This Lexmark product offers the following resource conserving features:

Power Saver – Reduces the power state of the printer after printing – adjustable from

♦

Conscientious Material

Selection

Energy Saving

Paper Saving Toner Saving

Waste Minimizing

(Non paper waste)

1-240 minutes

Eco-Mode – Conserves energy and paper through three optional settings:

♦

Energy Saving Mode

disabled and the fuser is not continually heated

Paper Saving Mode Energy + Paper Saving Mode

Instant Warm-Up fuser – Saves energy

♦

Quiet Mode – Reduces noise emission by adjusting print speed, disabling advanced

♦

paper start, disabling or minimizing beeps (key press, alarms, etc.), and adjusting fan speed (Quiet mode may be combined with Eco-Mode)

Duplex – Prints on both sides of a page

♦

Multi-Page Printing – Prints multiple page images on one page

♦

Recycled Paper – Supports the use of recycled content media

♦

Distribute Information Electronically – Conserves paper by routing scanned

♦

documents to e-mail, network folders, USB thumb drives, FTP, and LDSS destinations (Additional options may be required)

Toner Darkness Control – Adjusts the print darkness to conserve toner

♦

Color Saver – Conserves toner by printing images and graphics lighter

♦

High Yield/Extra High Yield Toner Cartridges – More toner per cartridge reduces the

♦

energy and materials used per printed page

Two-part cartridges - Conserves resources used to manufacture cartridges

♦

Rewards Program Compatible – Rewards customers for returning cartridges to

♦

Lexmark for re-use/recycling

: Operator panel backlight and advance paper start are

: Device defaults to duplex printing

: Energy and paper saving settings are activated

Page 2

Voluntary Environmental Certifications

This product conforms to the following environmental program criteria:

Recyclable Design

Mechanical plastic parts over 100g consist of one or more easily separable materials.

Use of non-separable connections between different materials, such as gluing or welding, has been avoided.

Product Description:

Measurements provided are for a non-packaged product.

Weight 26.80 kg | 59.08 lb (without cartridge) Width 440 mm | 17.32 in Depth 537 mm | 21.14 in Height 463 mm | 18.23 in

Due to printer weight this printer requires at least two people to lift it safely. For additional information consult the setup guide.

US EPA ENERGY STAR V 1.1

voluntary

Operational Data

Speed (Letter – ppm) Up to: 25 Speed (A4 - ppm) Up to: 23 Power (W) Printing 540

Ready 50 Power Saver 23 Off 0 Acoustic Noise Printing 47 dBA (simplex) Printing 50 dBA (duplex) Idle Inaudible

Chemical Emissions

Printer emissions testing is performed in accordance with the “Test method for the determination of emissions from hardcopy devices with respect to awarding the environmental label for office devices with printing function according to RAL-UZ 122, “ BAM April 2006.

Emitted Substance Ozone (mg/h) 0.096 1.5 Styrene (mg/h) 0.06 1.0 Benzene (mg/h) 0.012 <0.05 Dust (mg/h) 0.46 4.0 TVOC (mg/h) 2.11 10

Emitted Substance Ozone (mg/h) <LOD* 3 Styrene (mg/h) 0.12 1.8 Benzene (mg/h) 0.016 <0.05 Dust (mg/h) 0.25 4.0 TVOC (mg/h) 7.90 18

*LOD – Limit of Detection *Note: The print test is performed using genuine Lexmark supplies. Emissions may vary if using non-Lexmark supplies.

Product Measurement (Monochrome)

Product Measurement (Color)

Maximum according to Guideline (Mono)

Maximum according to Guideline (Color)

Product Restricted Materials

The reduction of materials harmful to persons or the environment is a significant part of Lexmark's commitment to continuously improving the environmental design of all our products and services. Lexmark has developed a multi-layered due diligence process to ensure that all materials going into Lexmark products are safe and compliant with global regulations regarding hazardous substances.

This product is compliant with the requirements of the European Union's Directive 2002/95/EC on the Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment (RoHS).

This product is compliant with the requirements of the European Union’s Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) regulation.

This product and its packaging are labeled as required by China’s “Management Methods for Controlling Pollution by Electronic Information Products.”

The product does not contain: Cadmium Hexavalent chromium Polybrominated biphenyls Polybrominated diphenyl ethers Asbestos Short chain chlorinated paraffins Polychlorinated phenols Polychlorinated terphenyls Ozone depleting chemicals (Chlorofluorocarbons (CFCs), halons, HCFCs, HBFCs, 1,1,1-trichlorethane, carbon tetrachloride, methyl bromide) Halogenated flame retardants in cover sets

Page 3

This product contains the following in limited quantities as allowed by regulations:

Lead (use is limited to small amounts for specific applications) Mercury (use is limited to small amount (<5 mg) in lamp)

Battery Usage

This product is compliant with the 2006/66/EC Battery Directive. The battery contained within this product does not contain cadmium,

mercury, or lead. Battery Type: Lithium Manganese Dioxide coin cell

Weight: ~ 0.23 g Customer removable: No

Packaging

Packaging Materials

Corrugated 3.548 kg Polyethylene foam 0.507 kg High Density Polyethylene (HDPE) 0.277 kg Polypropylene 0.065 kg

9 Please check the availability of municipal recycling programs in

your area that will accept these packaging materials.

9 Plastic packaging materials are marked according to DIN 6120,

ISO 11469 or ISO 1043.

9 Plastic packaging is free from halogen and ozone depleting

materials.

9 In order to comply with the local packaging take-back

requirements in Europe, Lexmark is a member of a packaging recovery scheme. The “Green Dot” symbol is printed on Lexmark packaging when applicable.

End-of-Life Management/Recycling

Lexmark offers customers an environmentally responsible choice for disposal of end-of-life printers- the Lexmark Equipment Collection

Program. Through this program, customers may return any end-of-life

Lexmark branded products, and Lexmark will recycle the equipment for free.

Lexmark also offers customers an environmentally responsible choice for disposal of used toner cartridges- the Lexmark Cartridge

Collection Program. The Lexmark Cartridge Collection Program

diverts millions of Lexmark cartridges from landfills annually by making it both easy and free for Lexmark customers to return used print cartridges to Lexmark for reuse or recycling. One hundred percent of the empty cartridges returned to Lexmark are either reused or demanufactured for recycling. Boxes used to return the cartridges are also recycled.

Visit www.lexmark.com/recycle for information specific to the recycling program offered in your geography.

Lexmark fully complies with the European Union’s Waste Electrical and Electronic Equipment (WEEE) Directive.

Product Safety

Material Safety Data Sheets are available for Lexmark Printer supplies at: http://www.lexmark.com

Additional safety information about this product is in the User’s Reference and at: http://www.lexmark.com

Longevity and upgrading

Standard Warranty 1 year Extended Warranty Optional

Spare parts and service is available for a minimum of 5 years. Information about upgrades is available online at

http://www.lexmark.com
