PARTS NOW!

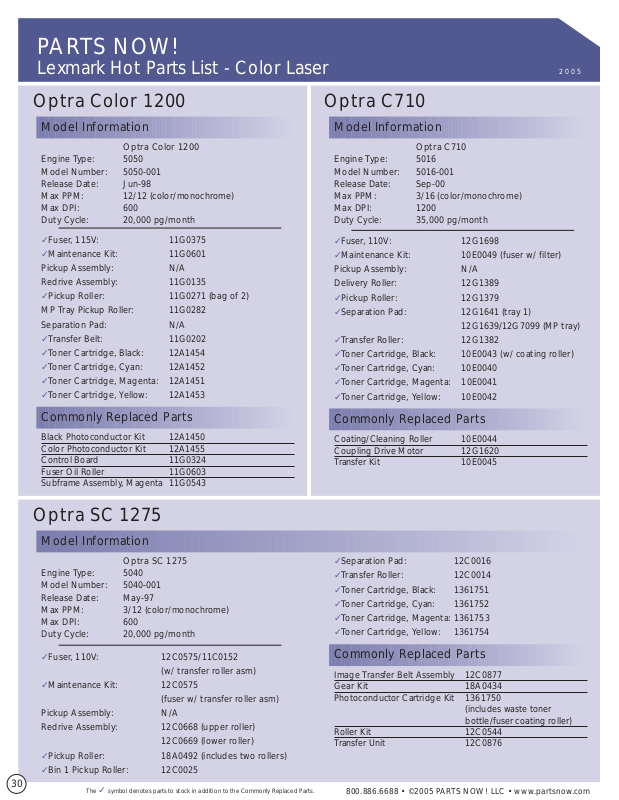

Lexmark Hot Parts List - Color Laser 2005

The ✓ symbol denotes partsto stock in addition to the Commonly Replaced Parts.

Optra Color 1200

Engine Type: 5050 Model Number: 5050-001 Release Date: Jun-98 Max PPM: 12/12 (color/monochrome) Max DPI: 600 Duty Cycle: 20,000 pg/month

Black Photoconductor Kit 12A1450 Color Photoconductor Kit 12A1455 Control Board 11G0324 Fuser Oil Roller 11G0603 Subframe Assembly, Magenta 11G0543

✓Fuser, 115V: 11G0375 ✓Maintenance Kit: 11G0601

Pickup Assembly: N/A Redrive Assembly: 11G0135

✓Pickup Roller: 11G0271 (bag of 2)

MP Tray Pickup Roller: 11G0282 Separation Pad: N/A

✓Transfer Belt: 11G0202 ✓Toner Cartridge, Black: 12A1454 ✓Toner Cartridge, Cyan: 12A1452 ✓Toner Cartridge, Magenta: 12A1451 ✓Toner Cartridge, Yellow: 12A1453

Optra C710

Engine Type: 5016 Model Number: 5016-001 Release Date: Sep-00 Max PPM: 3/16 (color/monochrome) Max DPI: 1200 Duty Cycle: 35,000 pg/month

Coating/Cleaning Roller 10E0044 Coupling Drive Motor 12G1620 Transfer Kit 10E0045

✓Fuser, 110V: 12G1698 ✓Maintenance Kit: 10E0049 (fuser w/ filter)

Pickup Assembly: N/A Delivery Roller: 12G1389

✓Pickup Roller: 12G1379 ✓Separation Pad: 12G1641 (tray 1)

12G1639/12G7099 (MP tray)

✓Transfer Roller: 12G1382 ✓Toner Cartridge, Black: 10E0043 (w/ coating roller) ✓Toner Cartridge, Cyan: 10E0040 ✓Toner Cartridge, Magenta: 10E0041 ✓Toner Cartridge, Yellow: 10E0042

Commonly Replaced Parts

Optra Color 1200 Optra C710

Commonly Replaced Parts

Model Information Model Information

Optra SC 1275

Engine Type: 5040 Model Number: 5040-001 Release Date: May-97 Max PPM: 3/12 (color/monochrome) Max DPI: 600 Duty Cycle: 20,000 pg/month

Image Transfer Belt Assembly 12C0877 Gear Kit 18A0434 Photoconductor Cartridge Kit 1361750

(includes waste toner

bottle/fuser coating roller) Roller Kit 12C0544 Transfer Unit 12C0876

✓Fuser, 110V: 12C0575/11C0152

(w/ transfer roller asm)

✓Maintenance Kit: 12C0575

(fuser w/ transfer roller asm) Pickup Assembly: N/A Redrive Assembly: 12C0668 (upper roller)

12C0669 (lower roller)

✓Pickup Roller: 18A0492 (includes two rollers) ✓Bin 1 Pickup Roller: 12C0025

Model Information

Commonly Replaced Parts

Optra SC 1275

✓Separation Pad: 12C0016 ✓Transfer Roller: 12C0014 ✓Toner Cartridge, Black: 1361751 ✓Toner Cartridge, Cyan: 1361752 ✓Toner Cartridge, Magenta: 1361753 ✓Toner Cartridge, Yellow: 1361754
