Page 1
MX71x, MX81x, XM51xx & XM71xx
Machine Type 7463-0xx, -2xx, -4xx, -6xx, -8xx
Service Manual
• Start diagnostics
• Maintenance
• Safety and notices
• Trademarks
• Index
August 27, 2014 www.lexmark.com
P/N 12G3100
Page 2
Product information
Product name:
Lexmark MX71x, MX81x, XM51xx & XM71xx
Machine type:
7463
Model(s):
03x, 23x, 436, 636, 836
7463
Edition notice
August 27, 2014
The following paragraph does not apply to any country where such provisions are inconsistent with local law: LEXMARK INTERNATIONAL,
INC., PROVIDES THIS PUBLICATION “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED
TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some states do not allow disclaimer of
express or implied warranties in certain transactions; therefore, this statement may not apply to you.
This publication could include technical inaccuracies or typographical errors. Changes are periodically made to the information herein; these
changes will be incorporated in later editions. Improvements or changes in the products or the programs described may be made at any
time.
References in this publication to products, programs, or services do not imply that the manufacturer intends to make these available in all
countries in which it operates. Any reference to a product, program, or service is not intended to state or imply that only that product,
program, or service may be used. Any functionally equivalent product, program, or service that does not infringe any existing intellectual
property right may be used instead. Evaluation and verification of operation in conjunction with other products, programs, or services,
except those expressly designated by the manufacturer, are the user’s responsibility.
Trademarks
Lexmark and Lexmark with diamond design are trademarks of Lexmark International, Inc., registered in the United States and/or other
countries.
PrintCryption is a trademark of Lexmark International, Inc.
Mac and the Mac logo are trademarks of Apple Inc., registered in the U.S. and other countries.
PCL® is a registered trademark of the Hewlett-Packard Company. PCL is Hewlett-Packard Company’s designation of a set of printer commands
(language) and functions included in its printer products. This printer is intended to be compatible with the PCL language. This means the
printer recognizes PCL commands used in various application programs, and that the printer emulates the functions corresponding to the
commands.
All other trademarks are the property of their respective owners.
© 2012 Lexmark International, Inc.
All rights reserved.
P/N 12G3100
Page 3
7463
Table of contents
Product information.....................................................................................2
Edition notice...............................................................................................2
Notices and safety information..................................................................29
Laser notices............................................................................................................................................29
Safety information...................................................................................................................................32
Preface.......................................................................................................37
Service manual conventions....................................................................................................................37
Change history.........................................................................................................................................37
General information...................................................................................47
Media guidelines.....................................................................................................................................47
Paper guidelines ............................................................................................................................................... 47
Paper characteristics ....................................................................................................................................47
Selecting paper............................................................................................................................................. 48
Selecting preprinted forms and letterhead .................................................................................................. 49
Storing paper................................................................................................................................................ 49
Using recycled paper and other office papers .................................................................................................. 49
Using specialty media ....................................................................................................................................... 51
Tips on using card stock ...............................................................................................................................51
Tips on using envelopes ............................................................................................................................... 51
Tips on using labels ......................................................................................................................................51
Tips on using letterhead ...............................................................................................................................52
Tips on using transparencies ................................................................................................... ..................... 52
Supported paper sizes, types, and weights ......................................................................................................53
Paper sizes supported by the printer ........................................................................................................... 53
Paper types and weights supported by the printer......................................................................................54
Paper sizes, types, and weights supported by the output options ..............................................................55
Data security notice.................................................................................................................................57
Tools required for service........................................................................................................................58
Diagnostic information...............................................................................59
Troubleshooting overview.......................................................................................................................59
Performing the initial troubleshooting check ...................................................................................................59
Power‑on Reset (POR) sequence ...................................................................................................................... 59
Using Safe Mode ...............................................................................................................................................60
Fixing print quality issues........................................................................................................................61
Table of contents
3
Page 4
7463
Initial print quality check ..................................................................................................................................61
Gray background check ....................................................................................................................................61
Horizontal voids check ...................................................................................................................................... 62

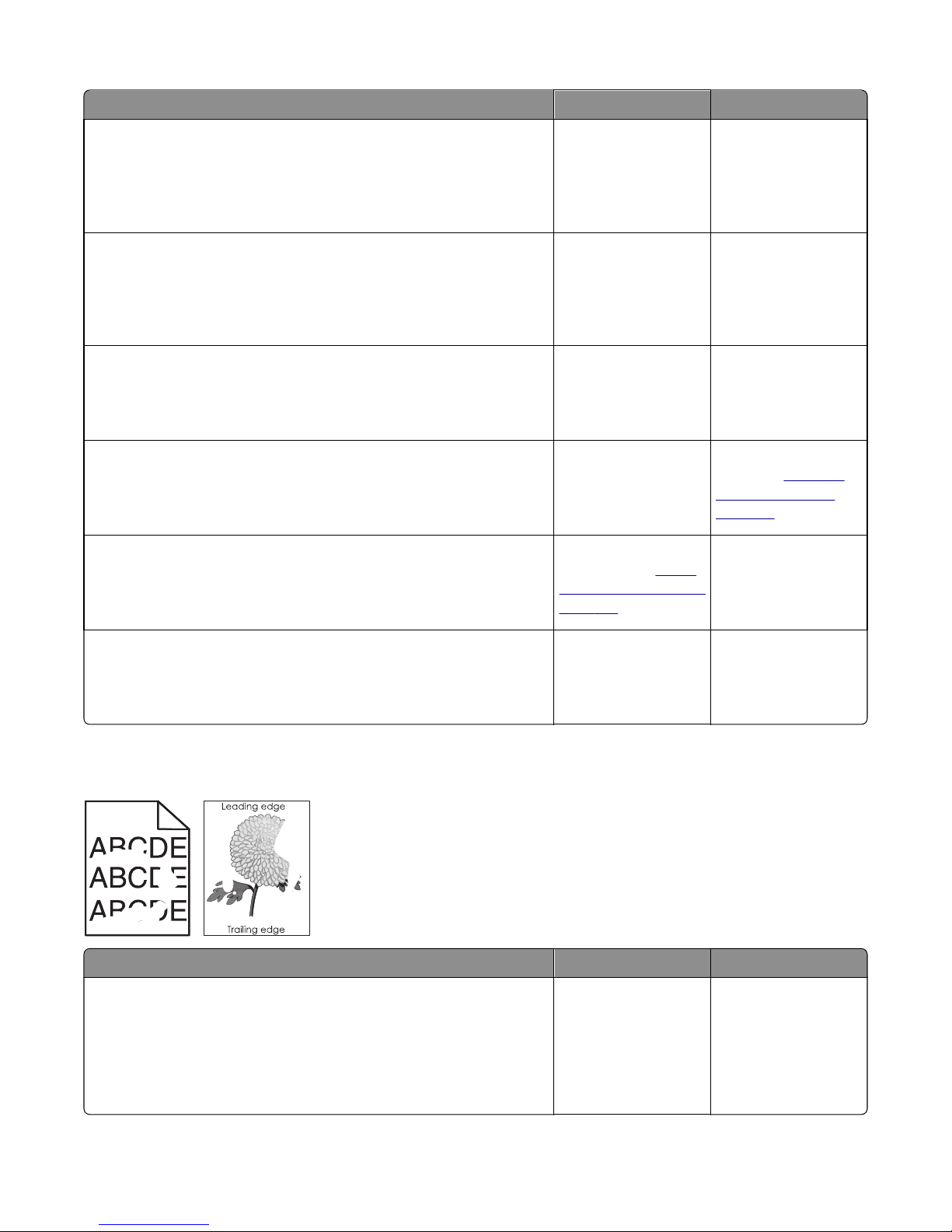

Print irregularities check ................................................................................................................................... 63
Blank pages check ............................................................................................................................................. 64

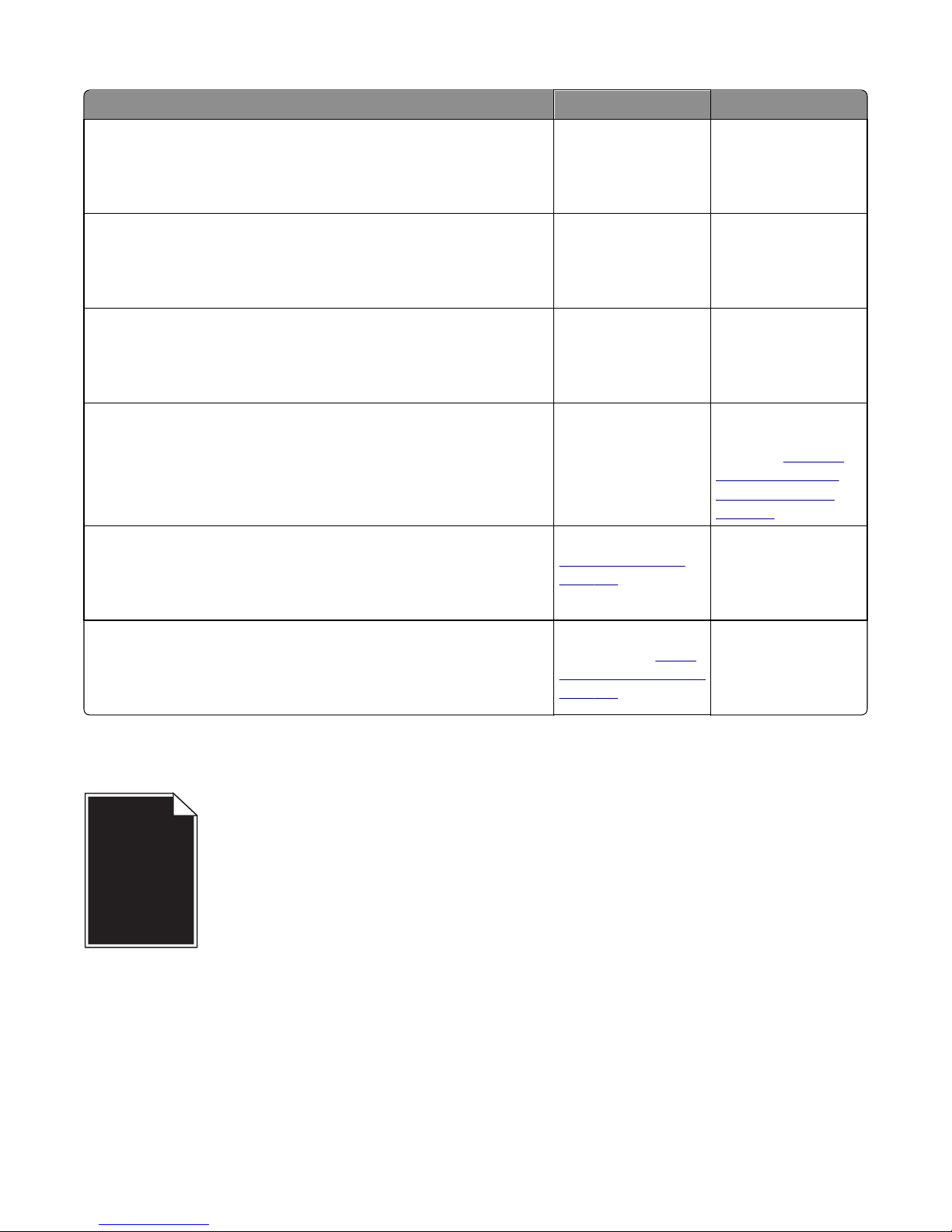

Solid black pages check.....................................................................................................................................65
Shadow images check ....................................................................................................................................... 66
Skewed print check ........................................................................................................................................... 67

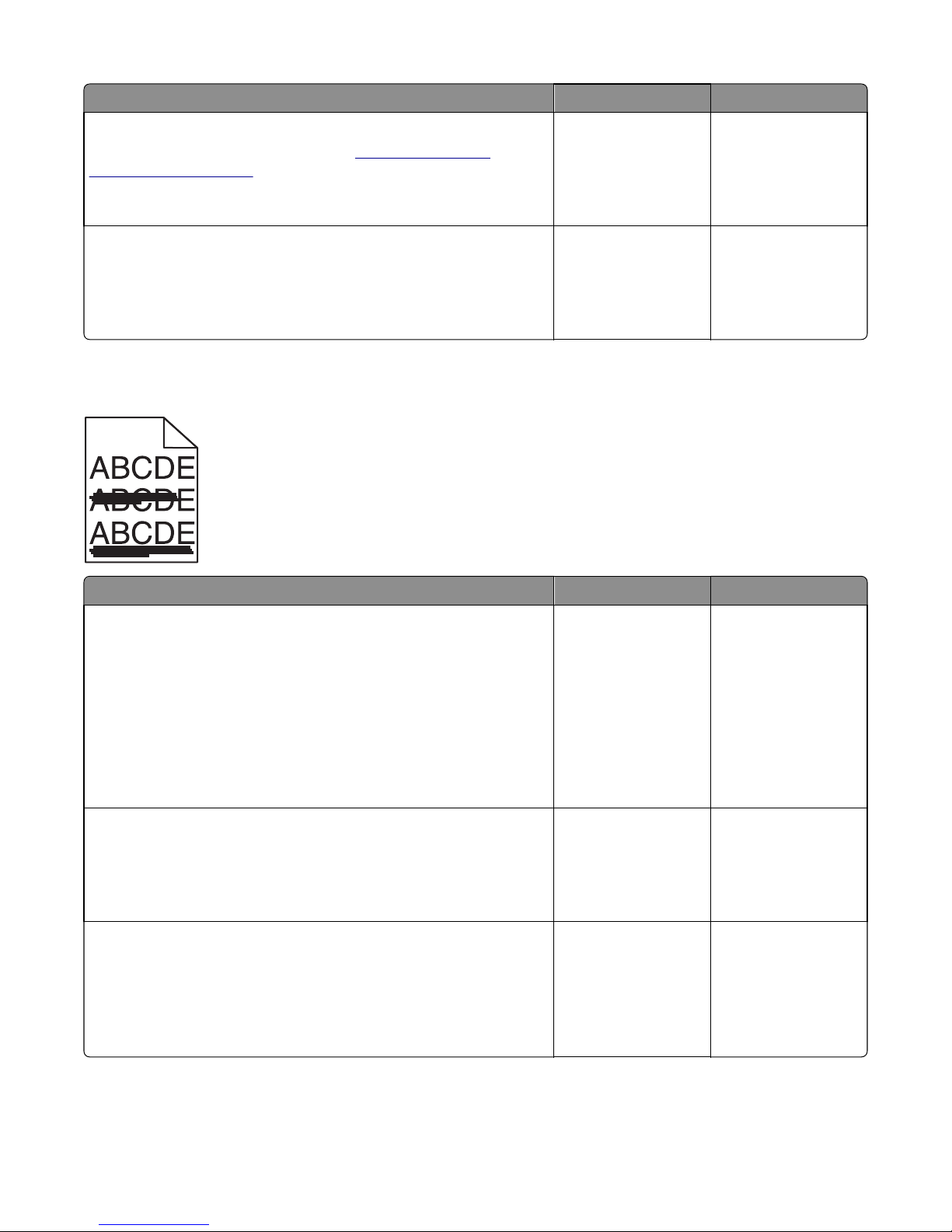

Streaked horizontal lines check ........................................................................................................................ 68

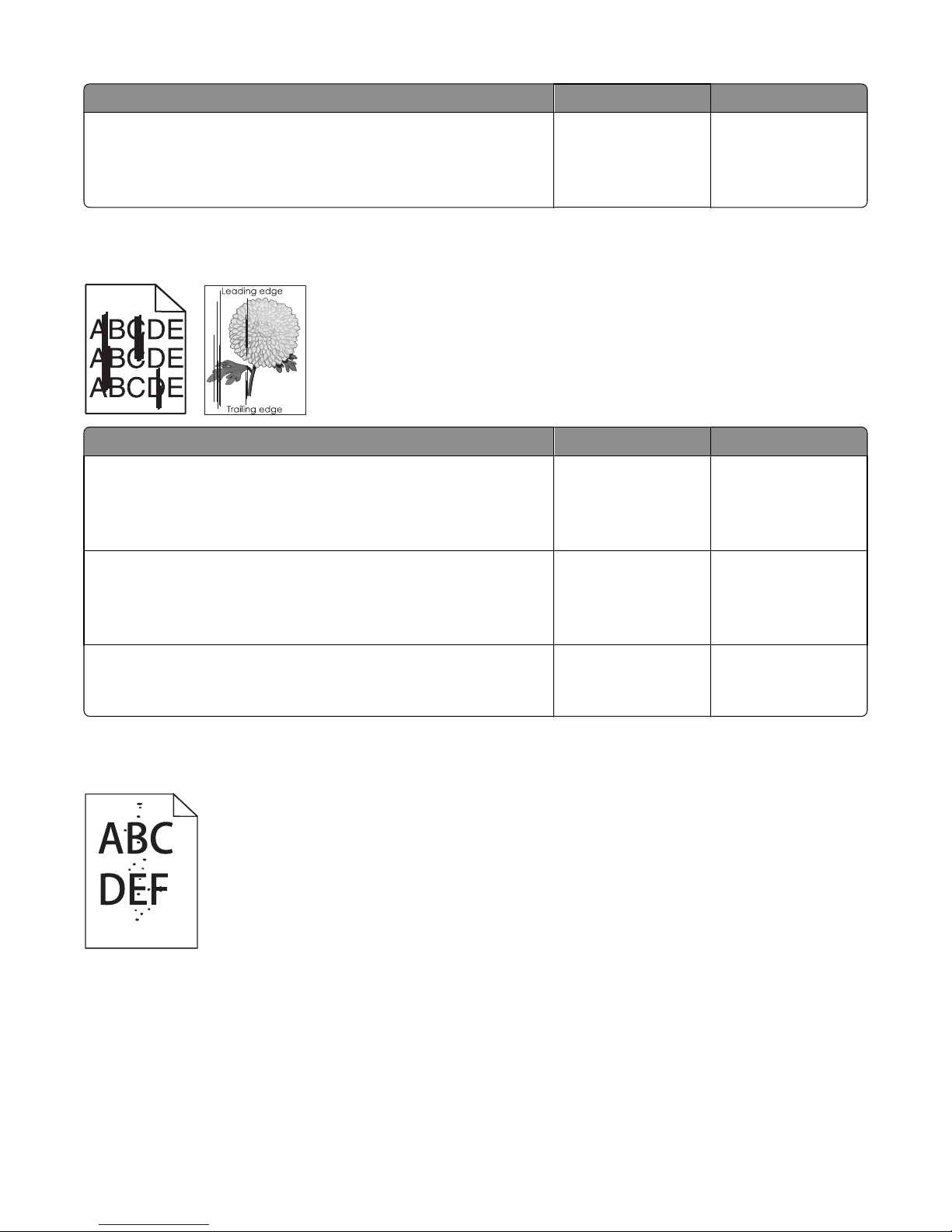

Streaked vertical lines check.............................................................................................................................70

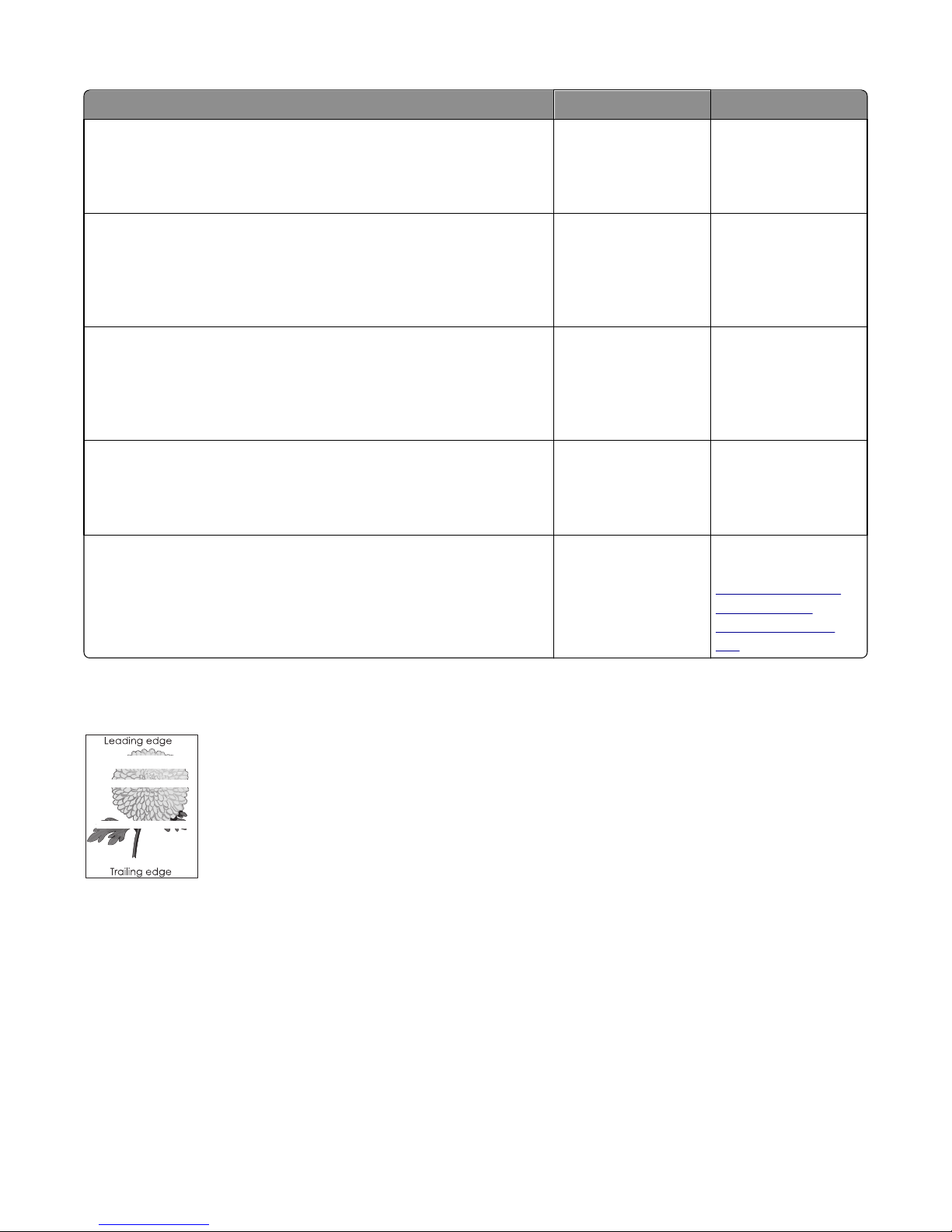

Toner specks check ...........................................................................................................................................70
Vertical voids check ..........................................................................................................................................71

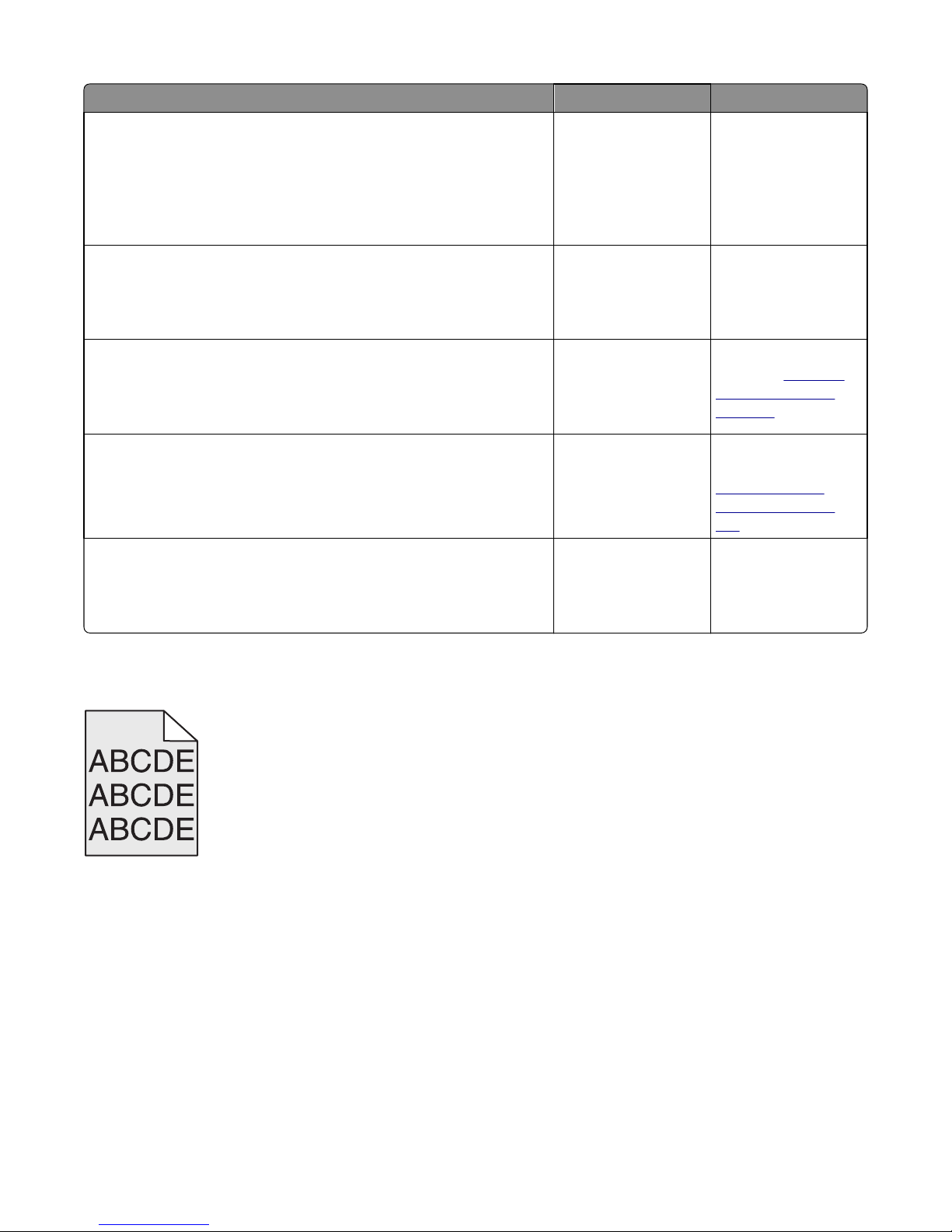

Toner fog or background shading check ........................................................................................................... 72

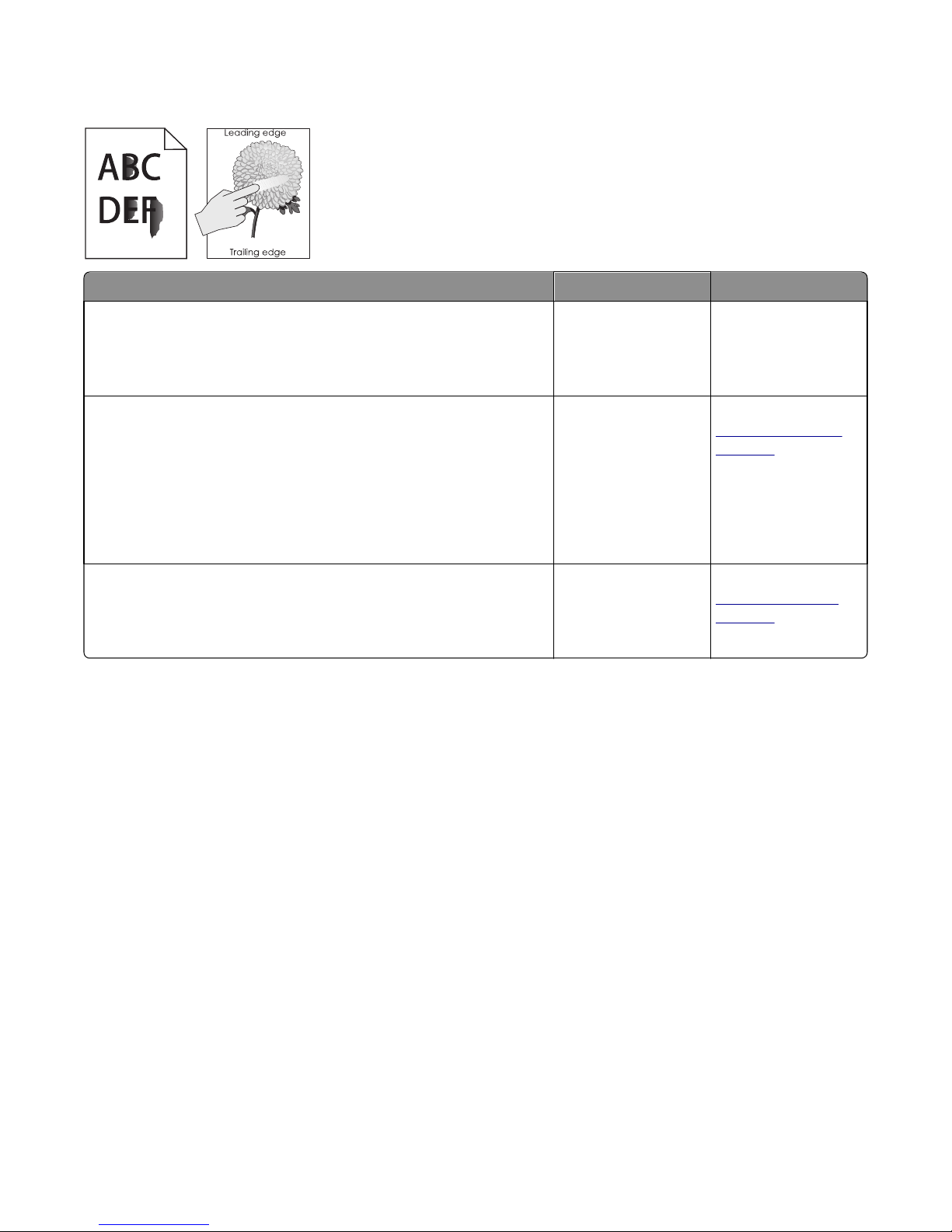

Toner smear check............................................................................................................................................ 74
Paper jams...............................................................................................................................................74
Avoiding jams....................................................................................................................................................74

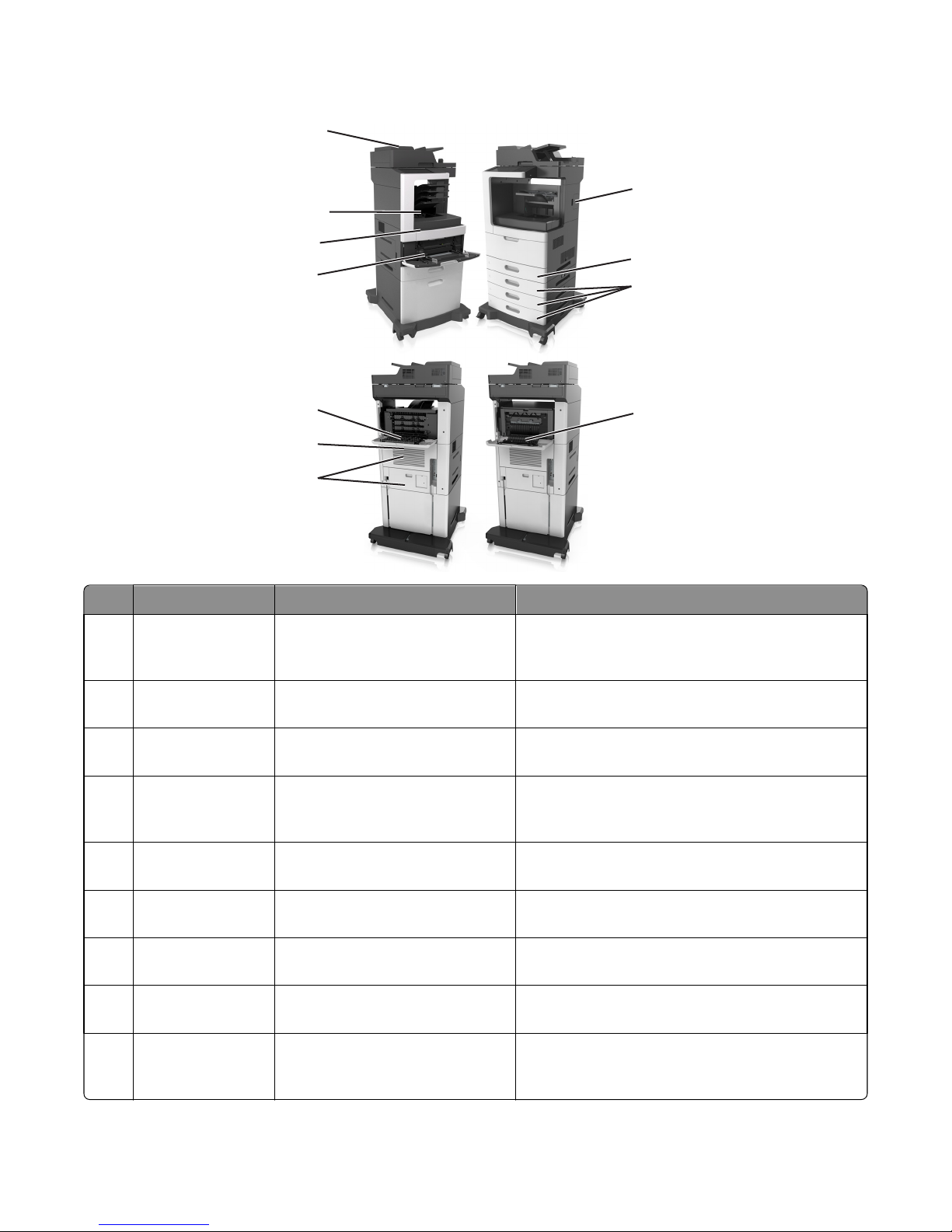

Understanding jam messages and locations..................................................................................................... 77
200–201 paper jams ......................................................................................................................................... 80

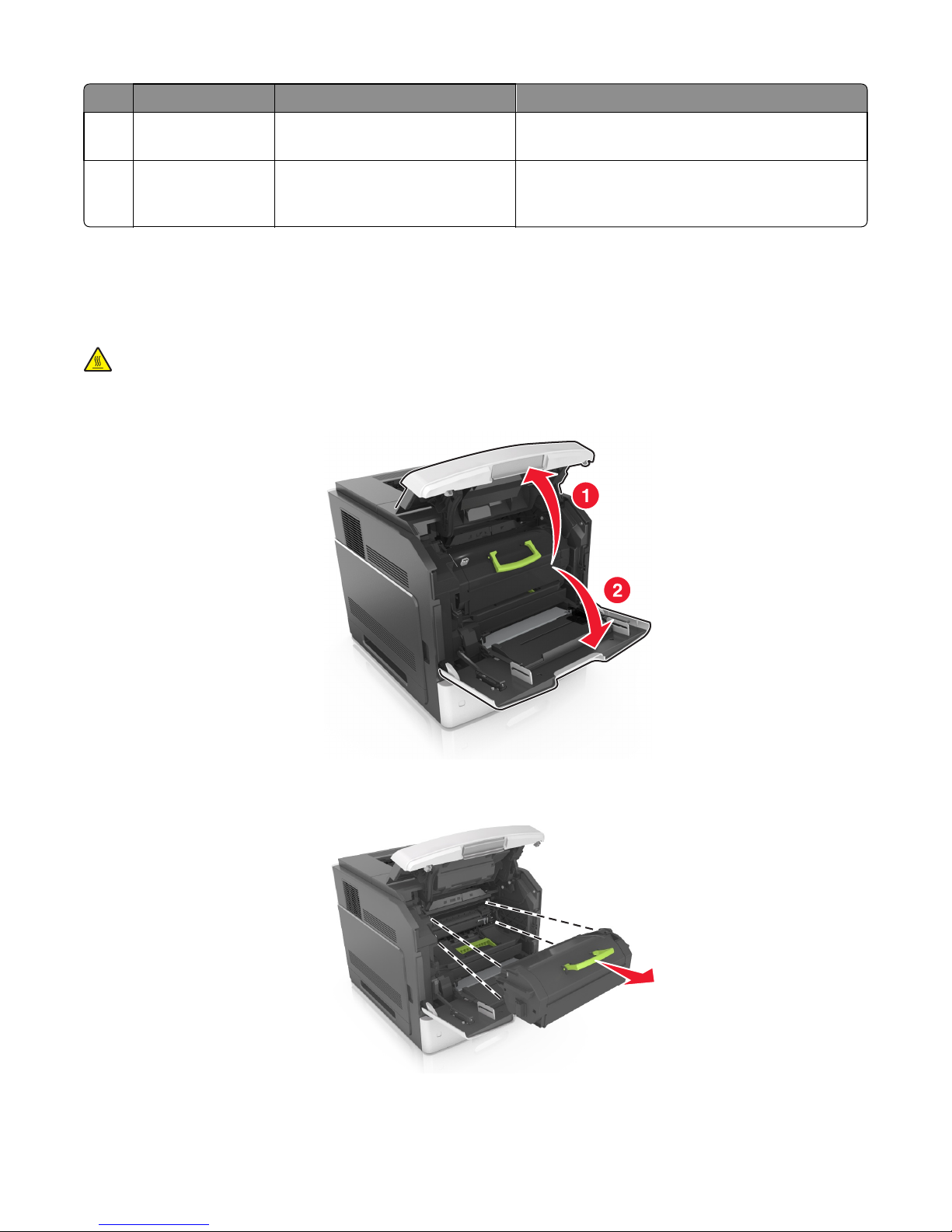

[x]‑page jam, lift front cover to remove cartridge. [200] ............................................................................. 80
200–201 paper jam messages ......................................................................................................................83
Sensor (input) static jam service check ........................................................................................................ 85
Sensor (input) early arriving jam service check ............................................................................................85
Sensor (input) never‑ or late‑arriving jam service check ............................................................................. 86
Sensor (input) late-leaving or did-not-clear jam service check ....................................................................88
Main drive motor control jam service check ................................................................................................90
Printhead motor control jam service check .................................................................................................90
Fuser drive motor control jam service check ...............................................................................................91
Sensor (input) miscellaneous jam 1 service check .......................................................................................92
Sensor (input) miscellaneous jam 2 service check .......................................................................................92
Sensor (input) miscellaneous jam 3 service check .......................................................................................93
202 paper jams .................................................................................................................................................93

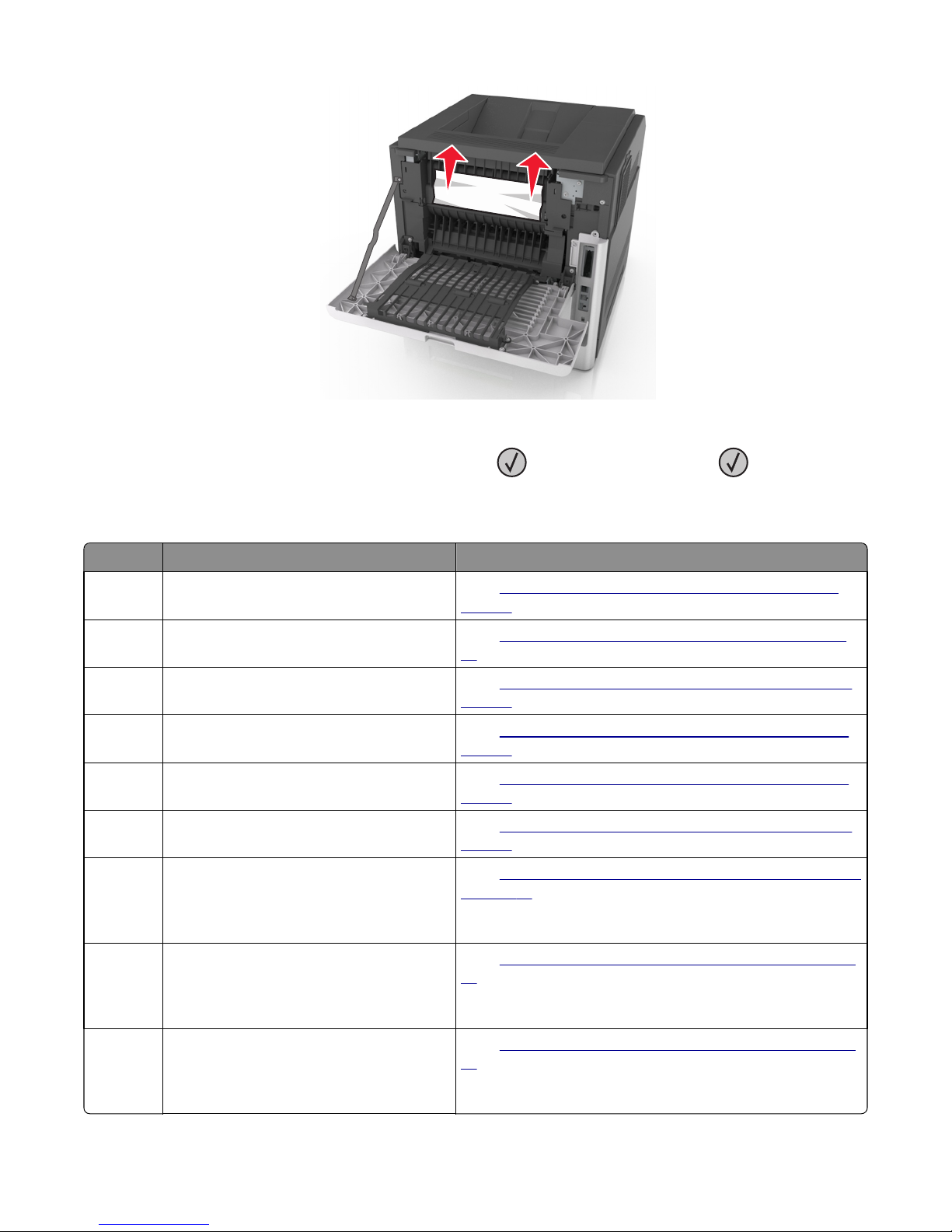

[x]‑page jam, open upper rear door. [202] ..................................................................................................93
202 paper jam messages .............................................................................................................................. 94
Sensor (fuser exit) static jam service check..................................................................................................95
Sensor (fuser exit) late-leaving jam service check........................................................................................ 96
Sensor (fuser exit) late-arriving jam service check ....................................................................................... 97
Sensor (narrow media) late arriving jam service check................................................................................ 98
Sensor (narrow media) static jam service check .......................................................................................... 99
Sensor (fuser exit) miscellaneous jam service check....................................................................................99
Fuser ID chip control jam service check .....................................................................................................100
203 paper jams ...............................................................................................................................................100
[x]‑page jam, remove standard bin jam. [203]........................................................................................... 100
203 paper jam messages ............................................................................................................................ 101
Upper redrive motor control jam service check......................................................................................... 101
23y paper jams ...............................................................................................................................................102
Table of contents
4
Page 5
7463

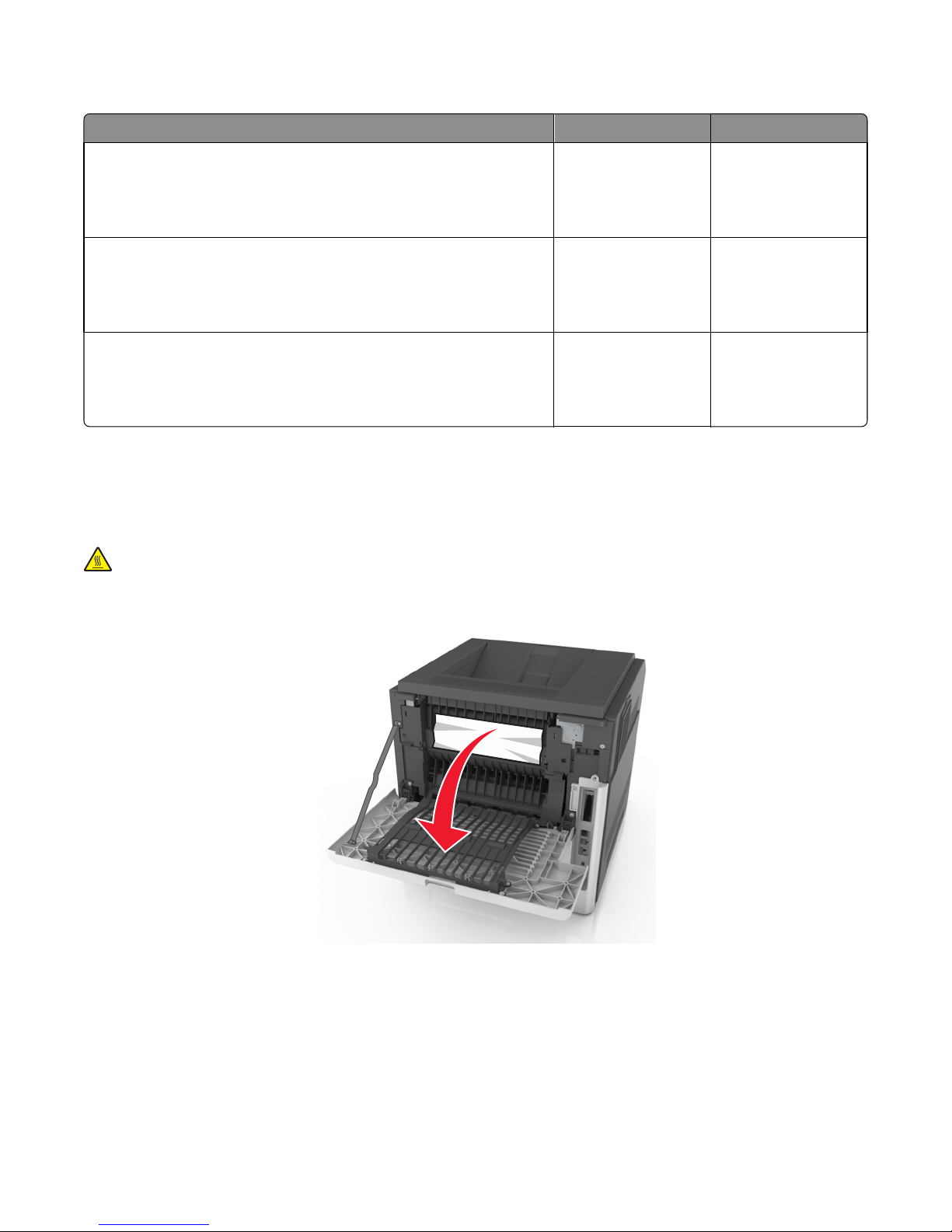

[x]‑page jam, open upper and lower rear door. [231–234] ....................................................................... 102
[x]‑page jam, remove tray 1 to clear duplex. [235–239]............................................................................ 104
23y paper jam messages ............................................................................................................................ 104
Sensor (duplex path) static jam service check............................................................................................ 105
Sensor (duplex path) never‑ or late‑arriving jam service check................................................................. 106
Sensor (duplex path) early arriving jam service check ............................................................................... 107
Sensor (duplex path) late leaving jam service check..................................................................................107
Duplex control jam service check............................................................................................................... 108
Sensor (duplex path) miscellaneous jam service check .............................................................................109
Sensor (input) never-arriving jam (exiting duplex) service check ..............................................................110
241 paper jams ...............................................................................................................................................111
[x]‑page jam, open tray [1]. [241] .............................................................................................................. 111
241 paper jam messages ............................................................................................................................ 112
Sensor (input) never-arriving jam from tray 1 service check .....................................................................113
Media tray 1 pulled jam service check ....................................................................................................... 114
Media feeder motor control service check ................................................................................................ 114
Media feeder motor tray lift error service check ....................................................................................... 115
242–245 paper jams ....................................................................................................................................... 116
[x]‑page jam, open tray [x]. [24y]............................................................................................................... 116
242 paper jam messages ............................................................................................................................ 117
243 paper jam messages ............................................................................................................................ 120
244 paper jam messages ............................................................................................................................ 123
245 paper jam messages ............................................................................................................................ 126
250/550-sheet media tray option jam service check .................................................................................129
HCIT jam service check ...............................................................................................................................132
HCIT source jam service check ................................................................................................................... 134
250 paper jams ...............................................................................................................................................136
[x]‑page jam, clear manual feeder. [250] ................................................................................................... 136
250 paper jam messages ............................................................................................................................ 137
Sensor (input) never-arriving jam from MPF media tray service check ..................................................... 138
28y paper jams ...............................................................................................................................................139
[x]‑page jam, open automatic feeder top cover. [28y.xx] .......................................................................... 139
28y paper jam messages ............................................................................................................................ 141
Sensor (ADF pick) static jam service check................................................................................................. 142
Sensor (ADF pick) never arriving or late arriving jam service check...........................................................142
Sensor (ADF pick) late leaving or not cleared jam service check ............................................................... 144
Sensor (ADF 1st scan) static jam service check .......................................................................................... 145
Sensor (ADF 1st scan) never arriving or late arriving jam service check ....................................................146
Sensor (ADF 1st scan) late leaving or not cleared jam ..........................................................................
.....148
Sensor (ADF 2nd scan) static jam ............................................................................................................... 149
Sensor (ADF 2nd scan) never arriving or late arriving jam service check ...................................................150
Sensor (ADF 2nd scan) late leaving or not cleared jam service check........................................................151
Sensor (ADF media exit) static jam service check ...................................................................................... 153
Sensor (ADF media exit) never arriving or late arriving jam service check ................................................ 153
Sensor (ADF media exit) late leaving or not cleared jam service check .....................................................155
Table of contents
5
Page 6
7463
29y paper jams ...............................................................................................................................................156
29y paper jam messages ............................................................................................................................ 156
ADF cover open jam ...................................................................................................................................156
Sensor (multifeed detect) detected multiple sheets service check ........................................................... 157
431 paper jams ...............................................................................................................................................158

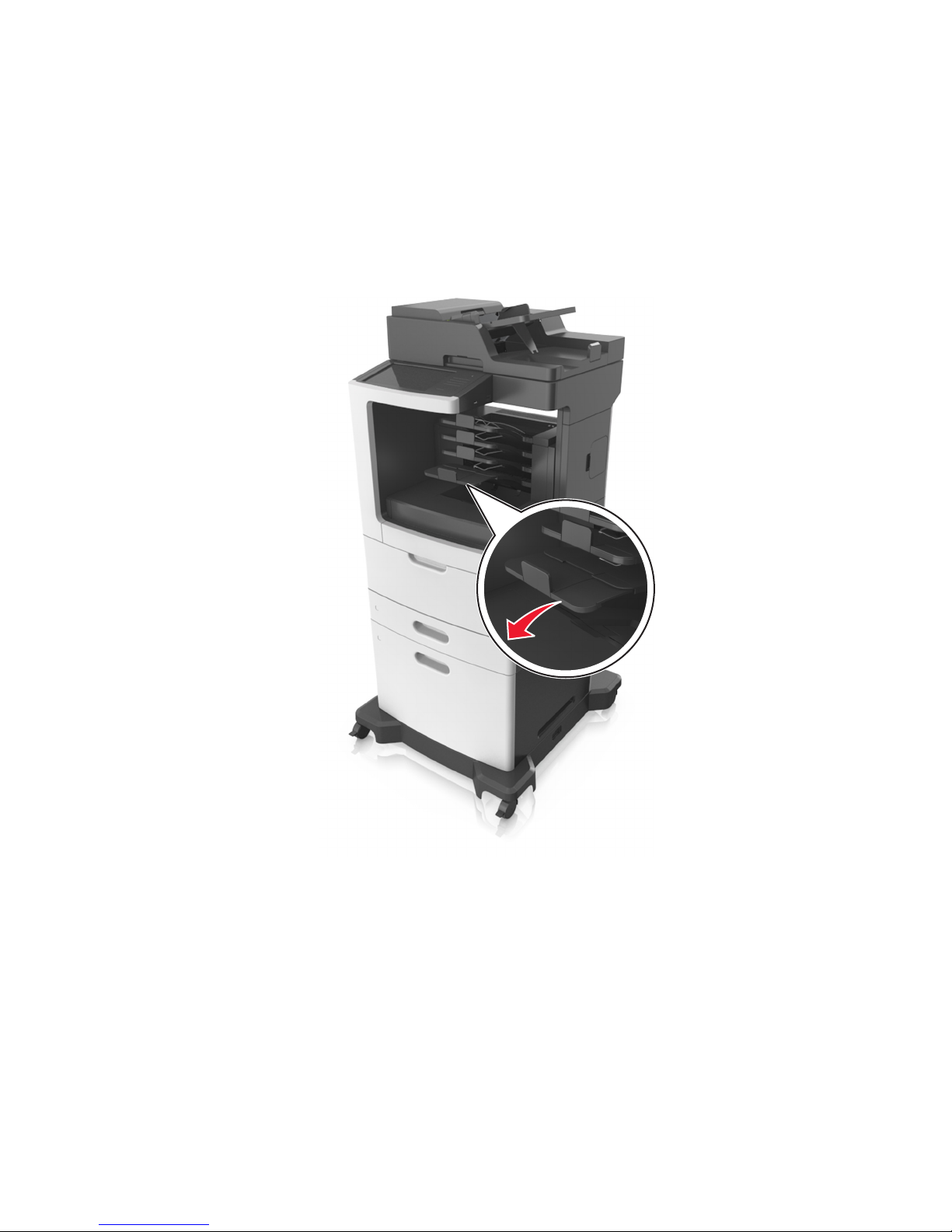

[x]‑page jam, open mailbox rear door. Leave paper in bin. [43y.xx].......................................................... 158
431 paper jam messages ............................................................................................................................ 159
Sensor (mailbox pass through) jam service check...................................................................................... 160
Mailbox main motor jam service check......................................................................................................162
Mailbox diverter jam service check............................................................................................................ 163
Mailbox diverter plunger jam service check ..............................................................................................166
45y paper jams ...............................................................................................................................................167
[x]‑page jam, remove paper, open finisher rear door. Leave paper in bin. [451] ......................................167
[x]‑page jam, remove paper, open stapler door. Leave paper in bin. [455–457]....................................... 168
451 paper jam messages ............................................................................................................................ 171
452 paper jam messages ............................................................................................................................ 172
453 paper jam messages ............................................................................................................................ 172
454 paper jam messages ............................................................................................................................ 173
455 paper jam messages ............................................................................................................................ 173
456 paper jam messages ............................................................................................................................ 174
457 paper jam messages ............................................................................................................................ 175
458 paper jam messages ............................................................................................................................ 176
459 paper jam messages ............................................................................................................................ 176
Sensor (finisher pass through) jam service check ......................................................................................177
Finisher main motor jam service check ...................................................................................................... 179
Finisher left tamper jam service check.......................................................................................................180
Finisher right tamper jam service check..................................................................................................... 182
Finisher ejector jam service check ............................................................................................................. 184
Finisher diverter jam service check ............................................................................................................185
Finisher paddle jam service check.............................................................................................................. 186
Finisher tray holder jam service check ....................................................................................................... 188
Sensor (throat media present) jam service check ......................................................................................189
Stapler carriage jam service check ............................................................................................................. 191
Sensor (HPU finisher pass through) jam service check ..............................................................................193
Finisher (HPU) main motor jam service check ...........................................................................................195
Finisher (HPU) left tamper jam service check ............................................................................................ 196
Finisher (HPU) right tamper jam service check ..........................................................................................198
Finisher (HPU) ejector jam service check ...................................................................................................200
Finisher (HPU) diverter jam service check.................................................................................................. 201
Finisher (HPU) paddle jam service check ................................................................................................... 202
Finisher (HPU) tray holder jam service check............................................................................................. 204
Sensor (HPU throat media present) jam service check ..............................................................................205
Stapler carriage (HPU) jam service check ...................................................................................................208
HPU motor jam service check .................................................................................................................... 209
HPU feed motor jam service check ............................................................................................................211
Table of contents
6
Page 7
7463
HPU communication error jam service check ............................................................................................212
Sensor (HPU media align) jam service check.............................................................................................. 213
Sensor (HPU trailing edge) jam service check ............................................................................................ 214
Sensor (HPU leading edge) jam service check ............................................................................................ 216
Understanding the printer messages....................................................................................................217
Cartridge low [88.xy].......................................................................................................... .............................217
Cartridge nearly low [88.xy]............................................................................................................................217
Cartridge very low, [x] estimated pages remain [88.xy] ................................................................................. 217
Change [paper source] to [custom string] load [orientation] .........................................................................217
Change [paper source] to [custom type name] load [orientation] ................................................................. 217
Change [paper source] to [paper size] load [orientation] ..............................................................................218
Change [paper source] to [paper type] [paper size] load [orientation].......................................................... 218
Check tray [x] connection ...............................................................................................................................218
Close door or insert cartridge ......................................................................................................................... 218
Close finisher rear door .................................................................................................................................. 219
Close flatbed cover and load originals if restarting job [2yy.xx] .....................................................................219
Close rear door ............................................................................................................................................... 219
Close top access cover .................................................................................................................................... 219
Complex page, some data may not have printed [39]....................................................................................219
Configuration change, some held jobs were not restored [57] ...................................................................... 219
Defective flash detected [51].......................................................................................................................... 220
Disk full [62] .................................................................................................................................................... 220
Disk full, scan job canceled ............................................................................................................................. 220
Disk must be formatted for use in this device ................................................................................................ 220
Disk near full. Securely clearing disk space.....................................................................................................220
Empty the hole punch box .............................................................................................................................. 220
Error reading USB drive. Remove USB. ...........................................................................................................220
Error reading USB hub. Remove hub. ............................................................................................................. 221
Fax memory full .............................................................................................................................................. 221
Fax partition inoperative. Contact system administrator. ..............................................................................221
Fax server 'To Format' not set up. Contact system administrator..................................................................221
Fax Station Name not set up. Contact system administrator. ........................................................................221
Fax Station Number not set up. Contact system administrator. ....................................................................221
Imaging unit low [84.xy] ................................................................................................................................. 221
Imaging unit nearly low [84.xy] ......................................................................................................................221
Imaging unit very low, [x] estimated pages remain [84.xy] ............................................................................222
Incompatible output bin [x] [59]..................................................................................................................... 222
Incompatible tray [x] [59] ...............................................................................................................................222
Incorrect paper size, open [paper source] [34] ..............................................................................................222
Insert hole punch box ..................................................................................................................................... 222
Insert staple cartridge.....................................................................................................................................222
Insert Tray [x].................................................................................................................................................. 223
Install bin [x] ...................................................................................................................................................223
Install duplex...................................................................................................................................................223
Install Tray [x] ............................................................................................................... .................................. 223
Table of contents
7
Page 8
7463
Insufficient memory for Flash Memory Defragment operation [37] ..............................................................224
Insufficient memory to collate job [37] .......................................................................................................... 224
Insufficient memory to support Resource Save feature [35].......................................................................... 224
Insufficient memory, some Held Jobs were deleted [37] ...............................................................................224
Insufficient memory, some held jobs will not be restored [37]...................................................................... 224
Load [paper source] with [custom string] [paper orientation] .......................................................................224
Load [paper source] with [custom type name] [paper orientation] ...............................................................225
Load [paper source] with [paper size] [paper orientation].............................................................................225
Load [paper source] with [paper type] [paper size] [paper orientation].......................................................225
Load Manual Feeder with [custom string] [paper orientation] ...................................................................... 225
Load Manual Feeder with [custom type name] [paper orientation] ..............................................................226
Load Manual Feeder with [paper size] [paper orientation] ............................................................................ 226
Load Manual Feeder with [paper type] [paper size] [paper orientation] ....................................................... 226
Load staples .................................................................................................................................................... 226
Maintenance kit low [80.xy] ........................................................................................................................... 226
Maintenance kit nearly low [80.xy] ................................................................................................................ 227
Maintenance kit very low, [x] estimated pages remain [80.xy]......................................................................227
Memory full [38] .............................................................................................................................................227
Memory full, cannot print faxes ..................................................................................................................... 227
Memory full, cannot send faxes ..................................................................................................................... 227
No analog phone line connected to modem, fax is disabled. ......................................................................... 227
Network [x] software error [54] ..................................................................................................................... 227
Non‑Lexmark [supply type], see User’s Guide [33.xy] .................................................................................... 228
Not enough free space in flash memory for resources [52] ........................................................................... 228
Paper changes needed.................................................................................................................................... 228
Parallel port [x] disabled [56]..........................................................................................................................228
Printer had to restart. Last job may be incomplete........................................................................................229
Reattach bin [x]............................................................................................................................................... 229
Reattach bins [x] – [y] ..................................................................................................................................... 229
Reinstall missing or unresponsive cartridge [31.xy] .......................................................................................230
Reinstall missing or unresponsive imaging unit [31.xy] .................................................................................. 230
Remove defective disk [61]............................................................................................................................. 230
Remove packaging material, [area name] ......................................................................................................230
Remove paper from all bins............................................................................................................................ 230
Remove paper from bin [x]............................................................................................................................. 230
Remove paper from [linked set bin name] .....................................................................................................230
Remove paper from standard output bin....................................................................................................... 230
Replace all originals if restarting job............................................................................................................... 231
Replace cartridge, 0 estimated pages remain [88.xy]..................................................................................... 231
Replace cartridge, printer region mismatch [42.xy] ....................................................................................... 231
Replace imaging unit, 0 estimated pages remain [84.xy] ............................................................................... 231
Replace jammed originals if restarting job ..................................................................................................... 232
Replace last scanned page and jammed originals if restarting job................................................................. 232
Replace maintenance kit, 0 estimated pages remain [80.xy] .........................................................................232
Replace missing fuser [80.xx]..........................................................................................................................232
Table of contents
8
Page 9
7463
Replace roller kit [81.xx] .................................................................................................................................232
Replace separator pad .................................................................................................................................... 232
Replace unsupported cartridge [32.xy] .......................................................................................................... 233
Replace unsupported imaging unit [32.xy] .....................................................................................................233
Replace wiper .................................................................................................................. ...............................233
Restore held jobs? .......................................................................................................................................... 233
Scan document too long .................................................................................................................................233
Scanner automatic feeder cover open ........................................................................................................... 233
Scanner disabled by admin [840.01]...............................................................................................................233
Scanner disabled. Contact system administrator if problem persists. [840.02] ............................................. 234
Scanner jam, remove all originals from the scanner [2yy.xx] .........................................................................234
Scanner jam, remove jammed originals from the scanner [2yy.xx] ............................................................... 234
Scanner maintenance required soon, use ADF Kit [80] ..................................................................................234
Serial option [x] error [54] .............................................................................................................................. 234
Serial port [x] disabled [56]............................................................................................................................. 234
Some held jobs were not restored ................................................................................................................. 234
Standard network software error [54]............................................................................................................ 235
Standard USB port disabled [56].....................................................................................................................235
Supply needed to complete job ...................................................................................................................... 235
Too many bins attached [58] ..........................................................................................................................235
Too many disks installed [58] ......................................................................................................................... 235
Too many flash options installed [58]............................................................................................................. 236
Too many trays attached [58].........................................................................................................................236
Tray [x] paper size unsupported ..................................................................................................................... 236
Unformatted flash detected [53].................................................................................................................... 236
Unsupported camera mode, unplug camera and change mode ....................................................................236
Unsupported disk............................................................................................................................................236
Unsupported option in slot [x] [55] ................................................................................................................ 236
USB port [x] disabled [56] ...............................................................................................................................237
Weblink server not set up. Contact system administrator. ............................................................................ 237
User attendance messages....................................................................................................................237
User attendance messages (0‑99.99) ............................................................................................................. 237
Toner level sensing error service check .......................................................................................................... 242
Toner cartridge smart chip error service check .............................................................................................. 242
Toner add error service check ........................................................................................................................ 243
Imaging unit smart chip service check ............................................................................................................244
Fuser unit smart chip service check ................................................................................................................245
Printer hardware errors........................................................................................................................246
111 errors .......................................................................................................................................................246
111 error messages ....................................................................................................................................246
Printhead service check........................................................................................................ ...................... 246
Printhead ID service check .........................................................................................................................247
120 errors .......................................................................................................................................................247
120 error messages ....................................................................................................................................247
Table of contents
9
Page 10
7463
Fuser drive motor service check................................................................................................................. 248
121 errors .......................................................................................................................................................248
121 error messages ....................................................................................................................................248
Fuser service check.....................................................................................................................................250
126 errors .......................................................................................................................................................250
126 error messages ....................................................................................................................................250
LVPS failure service check ..........................................................................................................................251
13y errors..................................................................................................................... ................................... 251
13y error messages ....................................................................................................................................251
Toner level sensing service check............................................................................................................... 252
14y errors..................................................................................................................... ................................... 252
14y error messages ....................................................................................................................................252
Main drive motor service check ................................................................................................................. 253
Media feeder service check........................................................................................................................ 253
Redrive motor service check ......................................................................................................................254
15y errors..................................................................................................................... ................................... 254
15y error messages ....................................................................................................................................254
Duplex motor service check ....................................................................................................................... 254
Toner add motor service check .................................................................................................. ................ 255
17y errors..................................................................................................................... ................................... 255
17y error messages ....................................................................................................................................255
Main cooling fan service check .................................................................................................................. 256
Cartridge cooling fan service check............................................................................................................ 257
Controller board cooling fan service check ................................................................................................257
Steps before starting the 9yy service checks .................................................................................................. 258
900 errors .......................................................................................................................................................259
900 error messages ....................................................................................................................................259
System software error service check .........................................................................................................259
912 errors .......................................................................................................................................................264
912 error messages ....................................................................................................................................264
94y errors..................................................................................................................... ................................... 264
94y error messages ....................................................................................................................................264
950–958 errors ............................................................................................................................................... 265
950–958 error messages ............................................................................................................................ 265
NVRAM mismatch failure service check.....................................................................................................265
ADF/scanner communication failure service check ...................................................................................267
959 errors .......................................................................................................................................................268
959 error messages ....................................................................................................................................268
96y errors..................................................................................................................... ................................... 269
96y error messages ....................................................................................................................................269
RAM memory error service check ..............................................................................................................270
Download emulation cyclic redundancy service check ..............................................................................270
97y errors..................................................................................................................... ................................... 270
97y error messages ....................................................................................................................................270
98y errors.....................................................................................................................
................................... 271
Table of contents
10
Page 11
7463
98y error messages ....................................................................................................................................271
99y errors..................................................................................................................... ................................... 271
99y error messages ....................................................................................................................................271
Base printer symptoms ................................................................................................................................... 271
Network service check .................................................................................................................................... 272
Dead machine service check ........................................................................................................................... 274
Blank display, five beeps service check...........................................................................................................275
ADF/Scanner hardware errors...............................................................................................................276
8yy error messages ......................................................................................................................................... 276
Flatbed scanner and ADF communications failure service check ................................................................... 276
Flatbed scanner home position error service check .......................................................................................277
ADF elevator tray home position error service check..................................................................................... 278
ADF elevator tray motor stalled error service check ...................................................................................... 279
ADF elevator tray motor time-out error service check ...................................................................................280
Flatbed scanner CCD initialization error service check................................................................................... 281
ADF scanner CCD initialization error service check ........................................................................................ 281
Scan/fax/copy symptoms ......................................................................................................... ...................... 281
ADF media present service check ................................................................................................................... 282
ADF not responding service check .................................................................................................................. 282
Input/output option hardware errors...................................................................................................283
3yy error messages ......................................................................................................................................... 283
321–345 errors ............................................................................................................................................... 287
321 error messages ....................................................................................................................................287
322 error messages ....................................................................................................................................287
324 error messages ....................................................................................................................................288
325 error messages ....................................................................................................................................288
331 error messages ....................................................................................................................................288
332 error messages ....................................................................................................................................289
334 error messages ....................................................................................................................................289
335 error messages ....................................................................................................................................289
341 error messages ....................................................................................................................................290
342 error messages ....................................................................................................................................290
344 error messages ....................................................................................................................................291
345 error messages ....................................................................................................................................291
250/550-sheet media feeder failure service check .................................................................................... 291
250/550-sheet transport motor failure service check ...............................................................................293
250/550-sheet controller board failure service check ............................................................................... 295
HCIT transport motor failure service check................................................................................................296
HCIT lift drive motor failure service check ................................................................................................. 298
HCIT lift plate failure service check ............................................................................................................299
377–381 errors ............................................................................................................................................... 301
377–379 error messages ............................................................................................................................ 301
381 error messages ....................................................................................................................................301
Mailbox failure service check .....................................................................................................................302
Table of contents
11
Page 12
7463
Option tray symptoms .................................................................................................................................... 304
250/550-sheet media type error service check ..............................................................................................305
250/550-sheet tray undetected service check ............................................................................................... 307
250/550-sheet option undetected service check ........................................................................................... 308
HCIT incorrect media error service check ....................................................................................................... 308
HCIT media type error service check .............................................................................................................. 310
HCIT undetected service check ....................................................................................................................... 312
HCIT media low undetected service check ..................................................................................................... 314
Mailbox incorrect bin exit service check.........................................................................................................316
Mailbox undetected service check ................................................................................................................. 317
Finisher side door error service check ............................................................................................................ 318
Finisher cartridge error service check ............................................................................................................319
Finisher undetected service check..................................................................................................................321
Finisher bin error service check ..................................................................................................................... 321
Finisher door undetected service check ........................................................................................................ 323
Stapler carriage failure service check ............................................................................................................. 324
Finisher bin media present error service check .............................................................................................. 325
Stuck media on hole puncher service check ................................................................................................... 326
Missing or misaligned hole punch service check ............................................................................................ 326
Hole punch box undetected service check ..................................................................................................... 328
Finisher door (HPU) undetected service check ............................................................................................... 329
Service menus..........................................................................................331
Understanding the printer control panel..............................................................................................331
Using the printer control panel.......................................................................................................................331
Understanding the colors of the Sleep button and indicator lights................................................................332
Understanding the home screen ....................................................................................................................333
Using the touch-screen buttons .....................................................................................................................334
Menus list..............................................................................................................................................336
Diagnostics menu..................................................................................................................................336
Entering the Diagnostics menu....................................................................................................................... 336
REGISTRATION ................................................................................................................................................ 337
Scanner calibration ......................................................................................................................................... 337
PRINT TESTS .................................................................................................................................................... 338
Print Quality Pages .....................................................................................................................................338
HARDWARE TESTS ..........................................................................................................................................339
Panel Test ...................................................................................................................................................339
Button Test................................................................................................................................................. 339
DRAM Test.................................................................................................................................................. 339
Serial Wrap Test ......................................................................................................................................... 340
USB HS Test Mode......................................................................................................................................341
Beacons Test .............................................................................................................................................. 341
DUPLEX TESTS ................................................................................................................................................. 341
Quick Test................................................................................................................................................... 341
Table of contents
12
Page 13
7463
Top Margin .................................................................................................................................................342
Sensor Test ................................................................................................................................................. 342
Motor Test..................................................................................................................... .............................343
Duplex Feed 1.............................................................................................................................................343
Duplex Feed 2.............................................................................................................................................343
INPUT TRAY TESTS .......................................................................................................................................... 344
Feed Tests ..................................................................................................................................................344
Sensor Tests ............................................................................................................................................... 344
OUTPUT BIN TESTS ......................................................................................................................................... 345
Feed Tests ..................................................................................................................................................345
Feed To All Bins .......................................................................................................................................... 345
Sensor Test ................................................................................................................................................. 345
Diverter Test...............................................................................................................................................346
FINISHER TESTS ................................................................................................................. ..............................346
Staple Test ..................................................................................................................................................346
Hole Punch Test.......................................................................................................................................... 346
Feed Test (finisher)..................................................................................................................................... 347
Finisher Sensor Test ...................................................................................................................................347
BASE SENSOR TEST.......................................................................................................................................... 347
DEVICE TESTS ................................................................................................................... ...............................348
Quick Disk Test ................................................................................................................ ...........................348
Disk Test/Clean................................................................................................................ ...........................348
Flash Test..................................................................................................................... ...............................349
PRINTER SETUP ...............................................................................................................................................349
Defaults ...................................................................................................................................................... 349
Printed Page Count.....................................................................................................................................350
Permanent Page Count (Perm page count)................................................................................................ 350
Processor ID................................................................................................................................................ 350
Engine Setting [x] ....................................................................................................................................... 350
Edge to Edge............................................................................................................................................... 350
Parallel Strobe Adjustment (Par 1 Strobe Adj) ...........................................................................................350
EP SETUP ......................................................................................................................................................... 351
EP Defaults .................................................................................................................... .............................351
Fuser Temperature (Fuser Temp)...............................................................................................................351
Fuser Page Count ....................................................................................................................................... 351
Warm Up Time ........................................................................................................................................... 351
Transfer ...................................................................................................................................................... 352
Print Contrast ............................................................................................................................................. 352
Charge Roll .................................................................................................................... .............................352
Gap Adjust ..................................................................................................................... .............................352
Automatic Darkness Adjust (Auto Dark Adj) .............................................................................................. 352
REPORTS ......................................................................................................................................................... 353
Menu Settings Page....................................................................................................................................353
Installed Licenses........................................................................................................................................ 353
EVENT LOG...................................................................................................................................................... 353
Table of contents
13
Page 14
7463
Display Log .................................................................................................................................................353
Print Log ..................................................................................................................................................... 354
Clear Log..................................................................................................................................................... 354
Print Log Summary ..................................................................................................................................... 354
Exit Diags......................................................................................................................................................... 354
SCANNER TESTS .............................................................................................................................................. 355
Back Side Scan Uniformity.......................................................................................................................... 355
ASIC Test.....................................................................................................................................................355
Motor Tests ................................................................................................................................................ 355
Feed Test .................................................................................................................................................... 355
Sensor Test ................................................................................................................................................. 356
Scanner Calibration Reset ..........................................................................................................................356
ADF Magnification and Flatbed Magnification ........................................................................................... 356
Configuration menu..............................................................................................................................356
Entering the Configuration menu ................................................................................................................... 356
Roller Kit Counter Value..................................................................................................................................357
Reset Roller Kit Counter.................................................................................................................................. 357
Reset Separator Roll and Pick Assembly Counter ........................................................................................... 357
USB Scan to Local............................................................................................................................................357
Print Quality Pages.......................................................................................................................................... 358
Reports ........................................................................................................................ ................................... 358
Menu Settings Page....................................................................................................................................358
Event Log ....................................................................................................................................................358
Size sensing ................................................................................................................... .................................. 359
Panel Menus ................................................................................................................................................... 359
PPDS Emulation .............................................................................................................................................. 359
Download Emuls ............................................................................................................................................. 359
Safe Mode....................................................................................................................................................... 360
Factory Defaults .............................................................................................................................................. 360
Energy Conserve ............................................................................................................................................. 360
Min copy memory...........................................................................................................................................361
Fax low power support ................................................................................................................................... 361
Num pad job assist............................................................................................................. .............................361
Format fax storage..........................................................................................................................................361
ADF edge erase ...............................................................................................................................................362
Scanner Manual Registration.................................................................................................... ...................... 362
Disable scanner ............................................................................................................................................... 362
Paper Prompts ................................................................................................................................................ 362
Envelope Prompts........................................................................................................................................... 363
Action for Prompts.......................................................................................................................................... 363
Jobs on Disk ................................................................................................................... ................................. 364
Disk Encryption ............................................................................................................................................... 364
Wipe All Settings ............................................................................................................................................. 364
Font Sharpening.............................................................................................................................................. 364
A4 Fuser ..........................................................................................................................................................365
Table of contents
14
Page 15
7463
Require Standby.............................................................................................................................................. 365
A5 Loading ......................................................................................................................................................365
UI Automation ................................................................................................................................................ 366
LES Applications .............................................................................................................................................. 366
Key Repeat Initial Delay .................................................................................................................................. 366
Key Repeat Rate.............................................................................................................................................. 367
Clear Supply Usage History .............................................................................................................................367
Clear Custom Status........................................................................................................................................367
USB Speed....................................................................................................................................................... 367
Automatically Display Error Screens ...............................................................................................................368
USB PnP ..........................................................................................................................................................368
Restore factory defaults .................................................................................................................................368
Restore Settings ......................................................................................................................................... 368
Erase Printer Memory ................................................................................................................................368
Erase Hard Disk........................................................................................................................................... 369
Entering invalid engine mode................................................................................................................369
Entering recovery mode........................................................................................................................369
Accessing the Network SE menu...........................................................................................................369
Service Engineer menu..........................................................................................................................370
Accessing the service engineer (SE) menu...................................................................................................... 370
Service engineer (SE) menu ............................................................................................................................ 370
Repair information...................................................................................371
Removal precautions.............................................................................................................................371
Data security notice ........................................................................................................................................ 371
Handling ESD‑sensitive parts ..........................................................................................................................372
Controller board/control panel replacement .................................................................................................372
Restoring the printer configuration after replacing the controller board ......................................................373
Restoring solutions, licenses, and configuration settings ............................................................................... 376
Updating the printer firmware ......................................................................................................................377
Backing up eSF solutions and settings ............................................................................................................378
Ribbon cable connectors ................................................................................................................................379
Zero Insertion Force (ZIF) connectors ........................................................................................................379
Horizontal top contact connector ..............................................................................................................380
Horizontal bottom contact connector........................................................................................................383
Vertical mount contact connector ............................................................................................................. 386
Horizontal sliding contact connector .........................................................................................................389
Low Insertion Force (LIF) connector ........................................................................................................... 392
Adjustments..........................................................................................................................................393
Media aligner roller adjustment .....................................................................................................................393
Polygon printhead mechanical registration adjustment ................................................................................ 394
ADF skew adjustments.................................................................................................................................... 397
ADF front side skew adjustment (First step) .............................................................................................. 397
Table of contents
15
Page 16
7463
ADF front side skew adjustment (Second step) ......................................................................................... 399
ADF back side skew adjustment................................................................................................................. 400
Media squareness check.................................................................................................................................401
Print skew correction......................................................................................................................................402
Copy skew correction .....................................................................................................................................404
Scanner calibration ......................................................................................................................................... 405
Regenerating high frequency defect data ..................................................................................................405
Registering the front ADF and back ADF ....................................................................................................406
Registering the flatbed and front ADF........................................................................................................ 408
Retuning the ADF magnification ................................................................................................................ 412
Retuning the flatbed magnification (code P132 or greater) ...................................................................... 413
Removal procedures.............................................................................................................................414
Left side removals.................................................................................................................................414
Column left front cover removal (MX81x) ...................................................................................................... 414
Column left outer cover removal (MX81x) .....................................................................................................415
Left cover removal (MX71x)............................................................................................................................ 416
Left cover removal (MX81x)............................................................................................................................ 418
Left inner cover removal................................................................................................................................. 420
Controller board removal ............................................................................................................................... 422
Controller board access cover removal ..........................................................................................................423
Controller board access shield removal.......................................................................................................... 424
Controller board cooling fan removal............................................................................................................. 424
Fuser drive motor removal .............................................................................................................................425
Main cooling fan removal ...............................................................................................................................427
Main drive motor removal.............................................................................................................................. 428
Media feeder removal ....................................................................................................................................429
Board housing removal ................................................................................................................................... 431
Sensor (control panel interlock) removal ....................................................................................................... 432
Sensor (pick roller position) removal ..............................................................................................................433
Toner add motor removal............................................................................................................................... 434
Right side removals...............................................................................................................................435
Column right inner cover removal ..................................................................................................................435
Column right outer cover removal.................................................................................................................. 437
Right cover removal (MX71x) ......................................................................................................................... 438
Right cover removal (MX81x) ......................................................................................................................... 439
Right inner cover removal (MX71x) ................................................................................................................ 440
Control panel speaker and speaker bracket removal (MX71x).......................................................................441
Cartridge cooling fan removal ........................................................................................................................442
Duplex cooling fan removal ............................................................................................................................ 443
HVPS removal ................................................................................................................................................. 444
LVPS removal .................................................................................................................................................. 445
Power switch removal ....................................................................................................................................448
Front side removals...............................................................................................................................451
Duplex exit diverter removal ..........................................................................................................................451
Table of contents
16
Page 17
7463
Front door removal......................................................................................................................................... 453
Inner guide deflector removal ........................................................................................................................455
Laser printhead removal ................................................................................................................................. 457
Media aligner roller removal ..........................................................................................................................460
Media turn guide removal ..............................................................................................................................462
Media vertical guide removal ......................................................................................................................... 463
MPF feeder lift plate removal .........................................................................................................................465
MPF pick roller removal ..................................................................................................................................468
MPF solenoid removal ....................................................................................................................................470
MPF tray removal ........................................................................................................................................... 472
Sensor (input) removal ................................................................................................................................... 473
Sensor (toner density) removal ...................................................................................................................... 475
Transfer roller left arm with cable removal ....................................................................................................476
Transfer roller right arm removal ................................................................................................................... 477
Transfer roller removal ................................................................................................................................... 480
10‑inch display (MX81x) removal ................................................................................................................... 483
10‑inch display (MX711) removal ................................................................................................................... 487
Control panel removal (MX71x)...................................................................................................................... 488
Control panel removal (MX81x)...................................................................................................................... 491
Control panel board removal (MX71x) ...........................................................................................................494
Control panel board and display removal (MX711) ........................................................................................496
Control panel board removal (MX81x) ...........................................................................................................498
Control panel board and display removal (MX81x) ........................................................................................502
Control panel front cover removal ................................................................................................................. 510
Control panel latch removal ........................................................................................................................... 512
Control panel left bezel removal (MX71x) ...................................................................................................... 513
Control panel right bezel removal (MX71x)....................................................................................................515
Left control panel hinge removal....................................................................................................................516
Right control panel hinge removal..................................................................................................................519
Tilting display removal (7‑inch and 10‑inch)................................................................................................... 522
Standard bin LED board removal ....................................................................................................................524
Control panel cover removal .......................................................................................................................... 525
Control panel buttons removal....................................................................................................................... 526
Control panel speaker removal (MX81x) ........................................................................................................527
USB cable removal .......................................................................................................................................... 528
Bottom side removals...........................................................................................................................528
Duplex (MX71x) removal ................................................................................................................................528
Duplex (MX81x) removal ................................................................................................................................530
Duplex front flap removal ...............................................................................................................................532
Duplex rear flap removal ................................................................................................................................ 533
Left frame extension removal (MX71x) ..........................................................................................................534
Left frame extension removal (MX81x) ..........................................................................................................536
Media tray removal ........................................................................................................................................ 538
Media size actuator removal .......................................................................................................................... 539
Pick roller assembly removal .......................................................................................................................... 541
Table of contents
17
Page 18
7463
Sensor (duplex path) removal......................................................................................................................... 542
Sensor (tray 1 media out) removal ................................................................................................................. 543
Separator roller assembly removal................................................................................................................. 545
Right frame extension (MX71x) ......................................................................................................................545
Right frame extension removal (MX81x) ........................................................................................................547
Rear side removals................................................................................................................................549
Rear door removal ..........................................................................................................................................549
Rear lower cover removal............................................................................................................................... 551
Rear lower door removal (MX81x) ................................................................................................................. 552
Duplex motor removal ....................................................................................................................................553
Fuser removal ................................................................................................................................................. 556
Fuser access door removal ............................................................................................................................. 557
Left frame pivot removal ................................................................................................................................ 558
Right frame pivot removal ..............................................................................................................................559
Sensor (rear door interlock) removal.............................................................................................................. 560
Top side removals.................................................................................................................................561
Top cover removal ..........................................................................................................................................561
Cartridge door removal ..................................................................................................................................561
Output bin sensor cover removal ...................................................................................................................564
Sensor (standard bin full) removal .................................................................................................................564
Standard bin cover removal (MX71x) ............................................................................................................. 565
Standard bin cover removal (MX81x) ............................................................................................................. 567
Upper redrive motor removal.........................................................................................................................569
Upper redrive removal....................................................................................................................................571
ADF/scanner removals..........................................................................................................................572
ADF/scanner assembly removal .....................................................................................................................572
ADF removals .................................................................................................................................................. 576
ADF assembly removal ............................................................................................................................... 576
ADF bottom door removal ......................................................................................................................... 577
ADF scanner CCD removal ..........................................................................................................................579
ADF controller card removal ......................................................................................................................582
ADF door removal ......................................................................................................................................583
ADF feed belt removal................................................................................................................................584
ADF float plate with springs removal ......................................................................................................... 585
ADF front cover removal ............................................................................................................................ 587
ADF front side drive parts pack removal ....................................................................................................588
ADF input tray removal ..............................................................................................................................589
ADF left hinge removal ............................................................................................................................... 591
ADF left lower cover removal .....................................................................................................................592
ADF lift tray removal ..................................................................................................................................594
ADF pick roller cover removal .................................................................................................................... 595
ADF pick roller removal ..............................................................................................................................596
ADF push button switch sensor removal.................................................................................................... 597
ADF rear cover removal.............................................................................................................................. 598
Table of contents
18
Page 19
7463
ADF rear side drive parts pack removal ..................................................................................................... 600
ADF right hinge removal............................................................................................................................. 600
ADF separation guide removal ................................................................................................................... 601
ADF separator roller removal.....................................................................................................................602
Sensor (ADF 1st scan) removal...................................................................................................................604
Sensor (ADF elevator tray home position) removal ................................................................................... 605
Sensor (ADF lower door interlock) removal ...............................................................................................606
Sensor (ADF top door interlock) removal ................................................................................................... 607
ADF tray lift drive removal ......................................................................................................................... 608
Bin extension removal.......................................................................................................... ...................... 612
Deskew idler shaft removal ........................................................................................................................ 612
First scan roll drive gear (40t) removal....................................................................................................... 613
Interrupt with flag sensor (ADF 2nd scan) removal ................................................................................... 614
Interrupt with flag sensor (ADF media exit) removal ................................................................................. 615
Magnetic clutch removal............................................................................................................................ 617
Multifeed sensor parts kit removal ............................................................................................................618
Sensor (ADF gap detect) removal............................................................................................................... 620
Sensor (ADF media present) removal......................................................................................................... 621
Sensor (ADF pick) removal ......................................................................................................................... 622
Sensor (ADF skew detect) removal ............................................................................................................ 623
Separation roll drive gear (29t) removal ....................................................................................................624
Flatbed scanner removals ...............................................................................................................................625
Scanner unit removal .................................................................................................................................625
Flatbed scanner assembly removal ............................................................................................................ 627
Flatbed scanner front cover removal .........................................................................................................630
Flatbed glass cushion removal ...................................................................................................................632
Flatbed scanner left cover removal topic...................................................................................................633
Flatbed scanner right cover removal.......................................................................................................... 634
Flatbed scanner CCD removal ....................................................................................................................634
Flatbed scanner drive parts kit removal..................................................................................................... 638
Flatbed scanner glass removal ...................................................................................................................641
Flatbed scanner board removal ................................................................................................................. 643
Flatbed tension pulley with belt removal................................................................................................... 644
250/550-sheet media tray option removals (MX710 and MX711).......................................................648
250/550-sheet media tray option removal.....................................................................................................648
Media tray separation roller removal............................................................................................................. 648
Media tray assembly removal.........................................................................................................................649
Media tray front cover removal......................................................................................................................649
Drawer pick roller removal ............................................................................................................................ 650
Sensor (pick roll position) removal ................................................................................................................ 650
Drawer assembly rear cover removal ............................................................................................................. 651
Drawer assembly left cover removal .............................................................................................................. 652
Drawer controller board removal ...................................................................................................................653
Drawer upper interface cable removal........................................................................................................... 654
Drawer lower interface cable removal ........................................................................................................... 655
Table of contents
19
Page 20
7463
Drawer media feeder removal .......................................................................................................................656
Drawer transport motor removal ................................................................................................................... 658
Sensor (drawer pass through) removal .......................................................................................................... 659
Sensor (pick) removal ..................................................................................................................................... 661
High capacity input tray option removals (MX710 and MX711)...........................................................664
High capacity input tray option removal ........................................................................................................ 664
HCIT removal .................................................................................................................................................. 665
HCIT drawer assembly removal ...................................................................................................................... 665
HCIT separator roller assembly removal......................................................................................................... 666
HCIT media guide removal .............................................................................................................................. 667
HCIT front cover removal................................................................................................................................ 668
HCIT pick roller assembly removal..................................................................................................................670
HCIT rear cover removal ................................................................................................................................. 671
HCIT left cover removal .................................................................................................................................. 672
HCIT right cover removal ....................................................................................................... .........................674
HCIT controller board removal .......................................................................................................................676
HCIT top cover assembly removal .................................................................................................................. 677
HCIT lift drive motor removal .........................................................................................................................679
HCIT interface cable removal .......................................................................................................................... 681
Sensor (HCIT media low) with flag removal....................................................................................................682
Sensor (HCIT pick roller position) removal ..................................................................................................... 683
Sensor (HCIT pick) removal............................................................................................................................. 685
HCIT media feeder removal ............................................................................................................................686
550-sheet media tray option removals (MX810, MX811, and MX812).................................................688
550-sheet media tray option removal ............................................................................................................ 688
Media tray separation roller removal............................................................................................................. 689
Media tray assembly removal.........................................................................................................................689
Media tray front cover removal......................................................................................................................689
Drawer pick roller removal ............................................................................................................................ 690
Sensor (pick roll position) removal ................................................................................................................ 690
Drawer assembly rear cover removal ............................................................................................................. 691
Drawer assembly left cover removal .............................................................................................................. 692
Drawer controller board removal ...................................................................................................................693
Drawer upper interface cable removal........................................................................................................... 694
Drawer lower interface cable removal ........................................................................................................... 695
Drawer media feeder removal .......................................................................................................................696
Drawer transport motor removal ................................................................................................................... 698
Sensor (drawer pass through) removal .......................................................................................................... 699
Sensor (pick) removal ..................................................................................................................................... 701
High capacity input tray option removals (MX810, MX811, and MX812).............................................704
High capacity input tray option removal ........................................................................................................ 704
HCIT removal .................................................................................................................................................. 705
HCIT drawer assembly removal ...................................................................................................................... 705
HCIT separator roll assembly removal ............................................................................................................706
Table of contents
20
Page 21
7463
HCIT media guide removal .............................................................................................................................. 706
HCIT front cover removal................................................................................................................................ 707
HCIT pick arm assembly removal ....................................................................................................................708
HCIT drawer assembly rear cover removal.....................................................................................................709
HCIT drawer assembly left cover removal ...................................................................................................... 709
HCIT drawer assembly right cover removal .................................................................................................... 710
HCIT controller board removal .......................................................................................................................711
HCIT top cover assembly removal .................................................................................................................. 712
HCIT lift drive motor removal .........................................................................................................................714
HCIT drawer assembly interface cable removal ............................................................................................. 716
Sensor (HCIT closed) with flag removal .......................................................................................................... 717
Sensor (pick roll position) removal .................................................................................................................718
Sensor (HCIT pick) removal............................................................................................................................. 720
HCIT media feeder removal ............................................................................................................................721
Staple finisher/offset stacker option removals.....................................................................................723
Staple finisher/offset stacker option removal ................................................................................................ 723
Stapler/offset stacker rear door removal .......................................................................................................724
Stapler/offset stacker left cover removal .......................................................................................................726
Stapler/offset stacker top cover removal ....................................................................................................... 728
Stapler/offset stacker spring with string removal .......................................................................................... 730
Stapler/offset stacker option latch removal ................................................................................................... 731
Stapler/offset stacker tray spring removal .....................................................................................................732
Stapler/offset stacker tray link assembly removal ......................................................................................... 733
Sensor (stapler/stacker rear door interlock) removal .................................................................................... 735
Sensor (paddle motor HP) removal ................................................................................................................ 736
Media stack flap (right) removal..................................................................................................................... 736
Media stack flap (left) removal.......................................................................................................................738
Sensor (right tamper motor HP) removal .......................................................................................................740
Sensor (left tamper motor HP) removal ......................................................................................................... 742
Standard output bin LED removal................................................................................................................... 745
Sensor (finisher/stacker bin media present) removal ....................................................................................746
Tamper assembly removal.............................................................................................................................. 747
Tamper motor (right) removal........................................................................................................................ 749
Tamper motor (left) removal ..........................................................................................................................749
Tamper drive belt removal .............................................................................................................................750
Stapler/offset stacker output bin LED removal .............................................................................................. 751
Paddle drive motor removal ...........................................................................................................................753
Stapler/offset stacker lower interface cable removal ....................................................................................754
Stapler/offset stacker controller board removal ............................................................................................ 756
Stapler/offset stacker main motor removal ................................................................................................... 757
Stapler/offset stacker diverter motor removal............................................................................................... 759
Stapler/offset stacker diverter plunger assembly removal ............................................................................760
Stapler/offset stacker drive gear assembly removal ...................................................................................... 761
Sensor (bin full send) removal ........................................................................................................................762
Sensor (bin full receive) removal .................................................................................................................... 763
Table of contents
21
Page 22
7463
Media pusher assembly removal....................................................................................................................765
Stapler/offset stacker feed roll removal......................................................................................................... 765
Stapler/offset stacker chute assembly removal ............................................................................................. 767
Sensor (stapler/stacker pass through) removal..............................................................................................770
Stapler/offset stacker ejector motor assembly removal ................................................................................ 771
Sensor (stapler/stacker ejector HP) removal .................................................................................................. 774
Sensor (media pusher HP) removal ................................................................................................................777
Sensor (stapler/stacker diverter plunger HP) removal ................................................................................... 779
Stapler-unique FRU removals ......................................................................................................................... 782
Stapler right cover removal........................................................................................................................782
Stapler cartridge access door removal .......................................................................................................784
Stapler carriage assembly removal ............................................................................................................785
Sensor (cartridge door interlock) removal ................................................................................................. 786
Stapler door close limit switch removal .....................................................................................................786
Sensor (throat media present) removal .....................................................................................................788
Mailbox option removals......................................................................................................................791
Mailbox option removal .................................................................................................................................791
Mailbox top cover removal.............................................................................................................................791
Mailbox rear door removal ............................................................................................................................. 791
Mailbox right cover removal........................................................................................................................... 793
Mailbox top bin cover with bail removal ........................................................................................................794
Mailbox spring with string removal ................................................................................................................795
Mailbox solenoid removal .............................................................................................................................. 796
Mailbox left cover removal .............................................................................................................................798
Mailbox option latch removal.........................................................................................................................799
Sensor (mailbox rear door interlock) removal ................................................................................................799
Mailbox main drive gear removal ................................................................................................................... 800
Mailbox main motor removal .........................................................................................................................804
Mailbox diverter plunger assembly removal ..................................................................................................805
Mailbox controller board removal .................................................................................................................. 809
Sensor (mailbox diverter plunger HP) removal............................................................................................... 810
Mailbox lower interface cable removal .......................................................................................................... 812
Mailbox upper interface cable removal.......................................................................................................... 814
Mailbox diverter motor removal .................................................................................................................... 814
Mailbox media bin full flag removal ............................................................................................................... 816
Sensor (mailbox bin full receive) removal ...................................................................................................... 817
Mailbox belt removal...................................................................................................................................... 820
Mailbox output bin LED assembly removal ........................................................................................ ............822
Mailbox top diverter removal.........................................................................................................................825
Mailbox middle diverter removal ................................................................................................................... 830
Mailbox top diverter spring removal .............................................................................................................. 831
Sensor (mailbox pass through) removal .........................................................................................................835
Staple, hole punch finisher option removals.........................................................................................840
Staple, hole punch finisher option removal.................................................................................................... 840
Table of contents
22
Page 23
7463
Stapler cartridge access door removal ...........................................................................................................841
Hole punch box removal ................................................................................................................................. 841
Staple, hole punch left cover removal ............................................................................................................842
Staple, hole punch right cover removal .......................................................................................................... 843
Sensor (cartridge door interlock) removal ...................................................................................................... 845
Stapler door close limit switch removal.......................................................................................................... 846
Stapler carriage assembly removal .................................................................................................................848
Sensor (throat media present) removal ......................................................................................................... 849
Staple, hole punch latch removal ................................................................................................................... 851
Stapler controller board removal ...................................................................................................................851
Stapler main motor removal..................................................................................................... ...................... 852
Stapler paddle motor removal........................................................................................................................853
Sensor (paddle motor HP) removal ................................................................................................................ 854
Stapler diverter motor removal ...................................................................................................................... 855
Stapler diverter plunger assembly removal....................................................................................................856
Stapler drive gear assembly removal..............................................................................................................857
Sensor (bin full send) removal ........................................................................................................................858
Sensor (bin full receive) removal .................................................................................................................... 859
Staple, hole punch lower interface cable removal .........................................................................................861
Media pusher assembly removal....................................................................................................................861
Standard output bin LED removal................................................................................................................... 862
Sensor (finisher bin media present) removal.................................................................................................. 863
Staple, hole punch top cover removal ............................................................................................................864
Sensor (right tamper motor HP) removal .......................................................................................................865
Sensor (left tamper motor HP) removal ......................................................................................................... 867
Stapler tamper assembly removal .................................................................................................................. 869
Tamper motor (right) removal........................................................................................................................ 871
Tamper motor (left) removal ..........................................................................................................................872
Tamper drive belt removal .............................................................................................................................873
Stapler output bin LED removal......................................................................................................................874
Staple, hole punch tray link tension spring removal.......................................................................................876
Sensor (hole punch box present) removal ...................................................................................................... 876
Staple, hole punch tray link removal .............................................................................................................. 877
Sensor (HPU rear door interlock) removal...................................................................................................... 878
Component locations...............................................................................881
Exterior locations..................................................................................................................................881
Front view ....................................................................................................................................................... 881
Rear view ........................................................................................................................................................ 885
Connectors............................................................................................................................................886
Controller board ............................................................................................................................................. 886
ADF controller board ...................................................................................................................................... 897
Flatbed controller board ................................................................................................................................. 899
Table of contents
23
Page 24
7463
Maintenance............................................................................................901
Inspection guide....................................................................................................................................901
Scheduled maintenance........................................................................................................................902
Fuser maintenance kits ...................................................................................................................................902
Replacing fuser maintenance kits ................................................................................................................... 904
Identifying the type of fuser used in the printer ............................................................................................ 904
Resetting the Roller Kit counter......................................................................................................................906
Preventive maintenance.......................................................................................................................907
Device‑specific preventive maintenance ........................................................................................................ 907
Lubrication specification.......................................................................................................................907
Cleaning the printer..............................................................................................................................907
Cleaning the exterior of the printer................................................................................................................ 907
Cleaning the scanner glass..............................................................................................................................907
Cleaning the printhead lenses ........................................................................................................................ 908
Parts catalog............................................................................................910
Legend...................................................................................................................................................910
Assembly 1: Covers (MX71x and XM51xx)............................................................................................911
Assembly 2: Covers (MX81x and XM71xx)............................................................................................913
Assembly 3: Paper path.........................................................................................................................917
Assembly 4: Fusers................................................................................................................................919
Assembly 5: Electronics.........................................................................................................................921
Assembly 6: Drive motors.....................................................................................................................925
Assembly 7: Duplex...............................................................................................................................927
Assembly 8: Frame................................................................................................................................929
Assembly 9: Control panel (MX710 and XM5163).................................................................................931
Assembly 10: Control panel (MX711 and XM5170)..............................................................................933
Assembly 11: Control panel 10‑inch display (MX81x and XM71xx)......................................................935
Assembly 12: Paper tray........................................................................................................................937
Assembly 13: ADF assembly..................................................................................................................939
Assembly 14: ADF covers.......................................................................................................................941
Assembly 15: ADF mechanical...............................................................................................................943
Assembly 16: ADF electronics...............................................................................................................945
Assembly 17: Flatbed scanner (MX71x and XM51xx)............................................................................949
Assembly 18: Flatbed scanner (MX81x and XM71xx)............................................................................953
Assembly 19: Input options (MX71x and XM51xx)................................................................................955
Assembly 20: Input options (MX81x and XM71xx)................................................................................957
Table of contents
24
Page 25
7463
Assembly 21: 250-sheet tray option (MX71x and XM51xx)..................................................................959
Assembly 22: 550-sheet tray option (MX71x and XM51xx)..................................................................961
Assembly 23: 550-sheet tray option (MX81x and XM71xx)..................................................................963
Assembly 24: High capacity input tray option 1 (MX71x and XM51xx).................................................965
Assembly 25: High capacity input tray option 2 (MX71x and XM51xx).................................................967
Assembly 26: High capacity input tray option 3 (MX81x and XM71xx).................................................969
Assembly 27: High capacity input tray option 4 (MX81x and XM71xx).................................................971
Assembly 28: Output options (MX81x and XM71xx).............................................................................973
Assembly 29: Staple finisher option 1...................................................................................................975
Assembly 30: Staple finisher option 2...................................................................................................977
Assembly 31: Staple finisher option 3...................................................................................................979
Assembly 32: Staple finisher option 4...................................................................................................981
Assembly 33: Mailbox option 1.............................................................................................................983
Assembly 34: Mailbox option 2.............................................................................................................985
Assembly 35: Mailbox option 3.............................................................................................................987
Assembly 36: Offset stacker option 1....................................................................................................989
Assembly 37: Offset stacker option 2....................................................................................................991
Assembly 38: Offset stacker option 3....................................................................................................993
Assembly 39: Offset stacker option 4....................................................................................................995
Assembly 40: Staple, hole punch finisher option 1...............................................................................997
Assembly 41: Staple, hole punch finisher option 2...............................................................................999
Assembly 42: Staple, hole punch finisher option 3.............................................................................1001
Assembly 43: Staple, hole punch finisher option 4.............................................................................1003
Assembly 44: Miscellaneous...............................................................................................................1005
Assembly 45: Power cords..................................................................................................................1007
Appendix A: Printer specifications..........................................................1009
Power specifications............................................................................................................................1009
Operating clearances...........................................................................................................................1009
Acoustics.............................................................................................................................................1010
Environment........................................................................................................................................1010
Processor.............................................................................................................................................1011
Security reset jumper..........................................................................................................................1011
Printer skew specifications..................................................................................................................1012
Appendix B: Options and features..........................................................1015
Available internal options...................................................................................................................1015
Table of contents
25
Page 26
7463
Input options supported.....................................................................................................................1015
Output options supported...................................................................................................................1015
Physical specifications (options)..........................................................................................................1015
Appendix C: Theory of operation............................................................1017
Models MX81x and MX71x paper path rollers and sensors................................................................1017
Models MX81x and MX71x sensors....................................................................................................1018
Functions of main components...........................................................................................................1018
Media tray..................................................................................................................................................... 1018
Rear media guide .......................................................................................................................................... 1019
Side media guide........................................................................................................................................... 1019
Media tray...........................................................................................................................................1019
Media feeder ................................................................................................................... .............................1019
Sensor (media size) ....................................................................................................................................... 1019
Sensor (pick roller position) .................................................................................................. ........................ 1019
Multi-purpose feeder (MPF)...............................................................................................................1020
MPF pick roller .............................................................................................................................................. 1020
MPF pick solenoid ......................................................................................................................................... 1020
Registration.........................................................................................................................................1021
Sensor (input) ............................................................................................................................................... 1021
Duplex.................................................................................................................................................1021
Sensor (duplex path).....................................................................................................................................1021
Transfer...............................................................................................................................................1022
Transfer roller ............................................................................................................................................... 1022
Printhead.............................................................................................................................................1023
Fuser components...............................................................................................................................1024
Heat belt (belt fuser).....................................................................................................................................1025
Pressure roll ..................................................................................................................................................1025
Thermistor ....................................................................................................................................................1025
Sensor (fuser exit) ......................................................................................................................................... 1026
Exit.......................................................................................................................................................1026
Sensor (standard bin full).............................................................................................................................. 1026
Drive....................................................................................................................................................1026
Main drive motor assembly .......................................................................................................................... 1026
Fuser drive motor assembly .........................................................................................................................1027
Toner add motor assembly....................................................................................................... .................... 1027
Redrive motor assembly ............................................................................................................................... 1027
Sensors................................................................................................................................................1028
Electrical components and controller.................................................................................................1029
Sensor (control panel door interlock) ........................................................................................................... 1029
Sensor (rear door interlock).......................................................................................................................... 1029
Table of contents
26
Page 27
7463
Main cooling fan ...........................................................................................................................................1029
Cartridge cooling fan.....................................................................................................................................1030
Duplex cooling fan ........................................................................................................................................ 1030
LVPS board assembly ............................................................................................................ ........................1030
HVPS board assembly ................................................................................................................................... 1030
Controller board ........................................................................................................................................... 1030
Xerographic and print cartridge components.....................................................................................1030
Document scanning at ADF.................................................................................................................1034
Document scanning at platen.............................................................................................................1035
Names and functions of components.................................................................................................1036
Flatbed scanner ............................................................................................................................................ 1036
ADF components .......................................................................................................................................... 1038
Output options theory.........................................................................................................................1041
Mailbox theory.............................................................................................................................................. 1041
Staple finisher theory....................................................................................................................................1042
Appendix D: Acronyms...........................................................................1045
Acronyms.............................................................................................................................................1045
Index......................................................................................................1047
Part number index..................................................................................1061
Part name index.....................................................................................1077
Table of contents
27
Page 28
7463
Table of contents
28
Page 29
7463
Notices and safety information
Laser notices
Laser notice
The printer is certified in the U.S. to conform to the requirements of DHHS 21 CFR, Chapter I, Subchapter J for Class I
(1) laser products, and elsewhere is certified as a Class I laser product conforming to the requirements of IEC 60825-1.
Class I laser products are not considered to be hazardous. The printer contains internally a Class IIIb (3b) laser that is
nominally a 10 milliwatt gallium arsenide laser operating in the wavelength of 787-800 nanometers. The laser system
and printer are designed so there is never any human access to laser radiation above a Class I level during normal
operation, user maintenance, or prescribed service condition.
Laser-Hinweis
Der Drucker wurde in den USA zertifiziert und entspricht den DHHS-Vorschriften 21 CFR, Kapitel I, Unterkapitel J für
Laserprodukte der Klasse I (1); andernorts ist er als Laserprodukt der Klasse I zertifiziert, das den IEC 60825-1Anforderungen entspricht.
Laserprodukte der Klasse I werden nicht als gefährlich eingestuft. Der Drucker enthält im Inneren einen Laser der
Klasse IIIb (3b), und zwar einen 10-Milliwatt-Gallium-Arsenid-Laser, der im Wellenlängenbereich von 787 bis 800
Nanometern arbeitet. Das Lasersystem und der Drucker sind so konstruiert, dass unter normalen Betriebsbedingungen,
bei der Wartung durch den Benutzer oder bei den vorgeschriebenen Wartungsbedingungen Menschen keiner
Laserstrahlung ausgesetzt sind, die die Werte für Klasse I überschreitet.
Avis relatif à l'utilisation du laser
L'imprimante est certifiée conforme aux exigences de la réglementation des Etats-Unis relative aux produits laser (DHHS
21 CFR, Chapter I, Subchapter J for Class I (1)). Pour les autres pays, elle est certifiée conforme aux exigences des normes
IEC 60825-1 relatives aux produits laser de classe I.
Les produits laser de Classe I ne sont pas considérés comme dangereux. L'imprimante contient un laser de classe IIIb
(3b), laser arséniure de gallium 10 milliwatts opérant sur une longueur d'onde de l'ordre de 787 à 800 nanomètres. Le
système laser ainsi que l'imprimante ont été conçus de manière à ce que personne ne soit exposé à des rayonnements
laser dépassant le niveau de classe I dans le cadre d'un fonctionnement normal, de l'entretien par l'utilisateur ou de la
maintenance.
Avvertenze sui prodotti laser
La stampante è certificata negli Stati Uniti come stampante conforme ai requisiti DHHS 21 CFR, Capitolo I, Sottocapitolo
J per i prodotti laser di Classe I (1), mentre in altri paesi è certificata come prodotto laser di Classe I conforme ai requisiti
IEC 60825-1.
I prodotti laser di Classe I non sono considerati pericolosi. La stampante contiene un laser di Classe IIIb (3b), che è
nominalmente un laser ad arseniuro di gallio a 10milliwatt funzionante a una lunghezza d'onda di 787-800 nanometri.
Il sistema laser e la stampante sono stati progettati in modo da impedire l'esposizione a radiazioni laser superiori al
livello previsto dalla Classe I durante le normali operazioni di stampa, manutenzione o assistenza.
Notices and safety information
29
Page 30
7463
Aviso de láser
Esta impresora se ha certificado en EE. UU. de conformidad con los requisitos de DHHS 21 CFR, capítulo I, subcapítulo
J, para los productos láser de Clase I (1), y en otros países está certificada como un producto láser de Clase I de acuerdo
con los requisitos de IEC 60825-1.
Los productos láser de Clase I no se consideran peligrosos. La impresora contiene un láser interno de Clase IIIb (3b) que
nominalmente es un láser de arseniuro de galio de 10 milivatios que funciona en una longitud de onda de 787-800
nanómetros. El sistema láser y la impresora se han diseñado para que ningún individuo acceda nunca a las radiaciones
láser por encima del nivel de Clase I durante su uso normal, ni en tareas de mantenimiento o intervenciones de servicio
técnico prescritas.
Aviso sobre laser
A impressora foi certificada nos EUA por estar em conformidade com os requisitos do DHHS 21 CFR, capítulo I,
subcapítulo J, para produtos a laser de Classe I (1) e, nos demais países, foi certificada como produto a laser de Classe
I em conformidade com os requisitos da IEC 60825-1.
Os produtos a laser de Classe I não são considerados perigosos. A impressora contém, internamente, um laser de Classe
IIIb (3b) que é um laser de arsenieto de gálio de 10 miliwatts operando no comprimento de onda de 787-800
nanômetros. O sistema do laser e a impressora foram projetados para que jamais haja acesso humano à radiação do
laser acima do nível da Classe I durante a operação normal ou a manutenção pelo usuário ou sob as condições de
manutenção prescritas.
Laserinformatie
Deze printer is in de Verenigde Staten gecertificeerd als een product dat voldoet aan de vereisten van DHHS 21 CFR,
hoofdstuk 1, paragraaf J voor laserproducten van klasse I (1). Elders is de printer gecertificeerd als een laserproduct
van klasse I dat voldoet aan de vereisten van IEC 60825-1.
Laserproducten van klasse I worden geacht geen gevaar op te leveren. De printer bevat intern een laser van klasse IIIb
(3b), een galliumarsenide laser met een nominaal vermogen van 10 milliwatt en een golflengtebereik van 787-800
nanometer. Het lasersysteem en de printer zijn zodanig ontworpen dat gebruikers nooit blootstaan aan laserstraling
die hoger is dan het toegestane niveau voor klasse I-apparaten, tijdens normaal gebruik, onderhoudswerkzaamheden
door de gebruiker of voorgeschreven servicewerkzaamheden.
Lasererklæring
Denne printer er certificeret i USA i henhold til kravene i DHHS 21 CFR, afsnit I, underafsnit J, for Klasse I-laserprodukter
(1) og certificeret andetsteds som et Klasse I-laserprodukt i henhold til kravene i IEC 60825-1.
Klasse I-laserprodukter anses ikke for at være farlige. Printeren indeholder internt en klasse IIIb (3b)-laser, der nominelt
er en 10 milliwatt galliumarsenid-laser, som fungerer i bølgelængdeområdet 787-800 nanometer. Lasersystemet og
printeren er udviklet på en sådan måde, at der ikke er en direkte laserstråling, der overskrider Klasse I-niveauet under
normal brug, brugers vedligeholdelse eller de foreskrevne servicebetingelser.
Laserilmoitus
Tämä tulostin on sertifioitu Yhdysvalloissa DHHS 21 CFR, Chapter I, Subchapter J -standardin mukaiseksi luokan I (1) lasertuotteeksi ja muualla IEC 60825-1 -standardin mukaiseksi luokan I lasertuotteeksi.
Notices and safety information
30
Page 31
7463
Luokan I lasertuotteita ei pidetä haitallisina. Tulostimen sisällä on luokan IIIb (3b) laser, joka on nimellisteholtaan 10
mW:n galliumarsenidilaser ja toimii 787–800 nanometrin aallonpituuksilla. Laserjärjestelmä ja tulostin ovat
rakenteeltaan sellaisia, että käyttäjä ei joudu alttiiksi luokkaa 1 suuremmalle säteilylle normaalin käytön, ylläpidon tai
huollon aikana.
Lasermeddelande
Skrivaren är certifierad i USA enligt kraven i DHHS 21 CFR, avsnitt I, underavsnitt J för laserprodukter av klass I (1) och
i andra länder är den certifierad som en laserprodukt av klass I som uppfyller kraven i IEC 60825-1.
Laserprodukter av klass I anses inte vara skadliga. Skrivaren innehåller en klass IIIb (3b)-laser, vilket är en 10 mW
galliumarseniklaser som arbetar inom en våglängd på 787–800 nm. Lasersystemet och skrivaren är utformade så att
människor aldrig utsätts för laserstrålning över klass I-nivå under normala förhållanden vid användning, underhåll eller
service.
Lasermerknad
Skriveren er sertifisert i USA for samsvar med kravene i DHHS 21 CFR, kapittel I, underkapittel J for laserprodukter av
klasse I (1), og er andre steder sertifisert som et laserprodukt av klasse I som samsvarer med kravene i IEC 60825-1.
Laserprodukter av klasse I anses ikke som helseskadelige. Skriveren inneholder en intern laser av klasse IIIb (3b) som
nominelt er en 10 milliwatt galliumarsenid-laser, og som opererer i bølgelengder på 787-800 nanometer. Lasersystemet
og skriveren er utformet slik at mennesker ikke utsettes for laserstråling utover nivået i klasse I under normal drift,
vedlikehold eller foreskrevet service.
Avís sobre el làser
Als EUA, la impressora està certificada de conformitat amb els requisits del capítol I, apartat J del CFR 21 del Departament
de Salut i Serveis Humans per a productes làser de classe I (1) i a la resta de països està certificada com a producte làser
de classe I d'acord amb els requisits de la norma IEC 60825-1.
Els productes làser de classe I no es consideren perillosos. A l'interior de la impressora hi ha un làser de classe IIIb (3b)
que nominalment es un arsenur de galió de 10 mil·liwatts que funciona a una longitud d'ona de 787-800 nanòmetres.
El sistema làser y la impressora s'han dissenyat amb l'objectiu d'impedir l'accés humà de la radiació làser superior al
nivell de classe I durant un funcionament normal, el manteniment per part de l'usuari o les condicions de servei
prescrites.
レーザーに関する通知
本機は、米国においてクラス I（1）レーザー製品に対する DHHS 21 CFR、Chapter I、Subchapter J の要件に準
拠し、その他の国では IEC 60825-1 の要件に準拠するクラス I レーザー製品として認可されています。
クラス I レーザー製品は、危険性がないとみなされています。 本機には、クラス IIIb（3b）レーザーが内蔵
されています。これは、787 ～ 800 ナノメートルの波長で動作する定格 7 ミリワットのガリウムヒ素レーザ
ーです。 レーザーシステムとプリンタは、通常の操作、ユーザーによるメンテナンス、または所定のサー
ビス条件の下で、ユーザーがクラス I レベルを超えるレーザー放射に絶対にさらされないように設計されて
います。
레이저 관련 공지
이 프린터는 미국에서 DHHS 21 CFR, Chapter I, Subchapter J 의 요구 사항을 준수하는 클래스 I(1) 레이저 제품으
로 승인되었으며 이외 지역에서 IEC 60825-1 의 요구 사항을 준수하는 클래스 I 레이저 제품으로 승인되었습니다.
Notices and safety information
31
Page 32
7463
Class I 레이저 제품은 위험한 제품으로 간주되지 않습니다. 프린터에는 655-675 나노미터의 파장 영역에서 작동
하는 공칭 7 밀리와트 갈륨 비소 레이저인 클래스 IIIb(3b) 레이저가 내부에 포함되어 있습니다. 레이저 시스템
과 프린터는 정상적인 작동, 사용자 유지 관리 또는 사전 설명된 서비스 조건에는 사람에게 클래스 I 수준 이상
의 레이저 방사가 노출되지 않도록 설계되었습니다.
激光注意事项
本打印机在美国认证合乎 DHHS 21 CFR Chapter I，Subchapter J 对分类 I（1）激光产品的标准，而在其他地区则
被认证是合乎 IEC 60825-1 的分类 I 激光产品。
一般认为分类 I 激光产品不具有危险性。本打印机内部含有分类 IIIb（3b）的激光，在操作过程中会产生额定
7 毫瓦的砷化镓激光，其波长范围在 787-800nm 之间。本激光系统及打印机的设计，在一般操作、使用者维护
或规定内的维修情况下，不会使人体接触分类 I 以上等级的辐射。
雷射聲明
本印表機係經過美國核可，符合 DHHS 21 CFR，Chapter I，Subchapter J 規定的 I (1) 級雷射產品激光注意事项；
在美國以外的地區，為符合 IEC 60825-1 規定的 I 級雷射產品。
根據 I 級雷射產品的規定，這類產品不會對人體造成傷害。本機所採用之 IIIb (3b) 級雷射只會產生 7 百萬分之
一瓦特 (milliwatt)、波長 787 至 800 億分之一米 (nanometer) 的鎵砷放射線 (gallium arsenide laser)。使用者只要
以正確的方法操作及維護保養，並依照先前所述之維修方式進行修護，此印表機與其雷射系統絕不會產生 I 級
以上的放射線，而對人體造成傷害。
Safety information
Safety information
• The safety of this product is based on testing and approvals of the original design and specific components. The
manufacturer is not responsible for safety in the event of use of unauthorized replacement parts.
• The maintenance information for this product has been prepared for use by a professional service person and is
not intended to be used by others.
• There may be an increased risk of electric shock and personal injury during disassembly and servicing of this product.
Professional service personnel should understand this and take necessary precautions.
CAUTION—POTENTIAL INJURY
The lithium battery in this product is not intended to be replaced. There is a danger of explosion if a lithium
battery is incorrectly replaced. Do not recharge, disassemble, or incinerate a lithium battery. Discard used
lithium batteries according to the manufacturer's instructions and local regulations.
Consignes de sécurité
• La sécurité de ce produit repose sur des tests et des agréations portant sur sa conception d'origine et sur des
composants particuliers. Le fabricant n'assume aucune responsabilité concernant la sécurité en cas d'utilisation de
pièces de rechange non agréées.
• Les consignes d'entretien et de réparation de ce produit s'adressent uniquement à un personnel de maintenance
qualifié.
• Le démontage et l'entretien de ce produit pouvant présenter certains risques électriques, le personnel d'entretien
qualifié devra prendre toutes les précautions nécessaires.
Notices and safety information
32
Page 33
7463
AVERTISSEMENT—RISQUE DE BLESSURE
La batterie lithium de ce produit n'est pas destinée à être remplacée. Il existe un risque d'explosion si une
batterie lithium est placée de façon incorrecte. Ne rechargez pas, ne démontez pas et n’incinérez pas une
batterie lithium. Mettez les batteries lithium usagées au rebut selon les instructions du fabricant et les
réglementations locales.
Norme di sicurezza
• La sicurezza del prodotto si basa sui test e sull'approvazione del progetto originale e dei componenti specifici. Il
produttore non è responsabile per la sicurezza in caso di sostituzione non autorizzata delle parti.
• Le informazioni riguardanti la manutenzione di questo prodotto sono indirizzate soltanto al personale di assistenza
autorizzato.
• Durante lo smontaggio e la manutenzione di questo prodotto, il rischio di subire scosse elettriche e danni alla
persona è più elevato. Il personale di assistenza autorizzato deve, quindi, adottare le precauzioni necessarie.
ATTENZIONE — PERICOLO DI LESIONI
La batteria al litio presente del prodotto non deve essere sostituita. In caso di sostituzione errata della
batteria al litio, potrebbe verificarsi un'esplosione. Non ricaricare, smontare o bruciare batterie al litio.
Smaltire le batterie al litio usate seguendo le istruzioni del produttore e le norme locali.
Sicherheitshinweise
• Die Sicherheit dieses Produkts basiert auf Tests und Zulassungen des ursprünglichen Modells und bestimmter
Bauteile. Bei Verwendung nicht genehmigter Ersatzteile wird vom Hersteller keine Verantwortung oder Haftung
für die Sicherheit übernommen.
• Die Wartungsinformationen für dieses Produkt sind ausschließlich für die Verwendung durch einen
Wartungsfachmann bestimmt.
• Während des Auseinandernehmens und der Wartung des Geräts besteht ein zusätzliches Risiko eines elektrischen
Schlags und körperlicher Verletzung. Das zuständige Fachpersonal sollte entsprechende Vorsichtsmaßnahmen
treffen.
VORSICHT - VERLETZUNGSGEFAHR
Die Lithiumbatterie in diesem Produkt darf nicht ausgetauscht werden. Wird eine Lithiumbatterie nicht
ordnungsgemäß ausgetauscht, besteht Explosionsgefahr. Lithiumbatterien dürfen auf keinen Fall wieder
aufgeladen, auseinander genommen oder verbrannt werden. Befolgen Sie zum Entsorgen verbrauchter
Lithiumbatterien die Anweisungen des Herstellers und die örtlichen Bestimmungen.
Pautas de Seguridad
• La seguridad de este producto se basa en pruebas y aprobaciones del diseño original y componentes específicos.
El fabricante no es responsable de la seguridad en caso de uso de piezas de repuesto no autorizadas.
• La información sobre el mantenimiento de este producto está dirigida exclusivamente al personal cualificado de
mantenimiento.
• Existe mayor riesgo de descarga eléctrica y de daños personales durante el desmontaje y la reparación de la máquina.
El personal cualificado debe ser consciente de este peligro y tomar las precauciones necesarias.
PRECAUCIÓN: POSIBLES DAÑOS PERSONALES
La batería de litio de este producto no debe reemplazarse. Existe riesgo de explosión si se sustituye
incorrectamente una batería de litio. No recargue, desmonte ni incinere una batería de litio. Deseche las
baterías de litio según las instrucciones del fabricante y las normativas locales.
Notices and safety information
33
Page 34
7463
Informações de Segurança
• A segurança deste produto baseia-se em testes e aprovações do modelo original e de componentes específicos. O
fabricante não é responsável pela segunrança, no caso de uso de peças de substituição não autorizadas.
• As informações de segurança relativas a este produto destinam-se a profissionais destes serviços e não devem ser
utilizadas por outras pessoas.
• Risco de choques eléctricos e ferimentos graves durante a desmontagem e manutenção deste produto. Os
profissionais destes serviços devem estar avisados deste facto e tomar os cuidados necessários.
ATENÇÃO — RISCO DE FERIMENTO
A bateria de lítio neste produto não deve ser substituída. Existe o risco de explosão se uma bateria de lítio
for substituída incorretamente. Não recarregue, desmonte ou incinere uma bateria de lítio. Descarte as
baterias de lítio usadas de acordo com as instruções do fabricante e regulamentos locais.
Informació de Seguretat
• La seguretat d'aquest producte es basa en l'avaluació i aprovació del disseny original i els components específics.
El fabricant no es fa responsable de les qüestions de seguretat si s'utilitzen peces de recanvi no autoritzades.
• La informació pel manteniment d’aquest producte està orientada exclusivament a professionals i no està destinada
a ningú que no ho sigui.
• El risc de xoc elèctric i de danys personals pot augmentar durant el procés de desmuntatge i de servei d’aquest
producte. El personal professional ha d’estar-ne assabentat i prendre les mesures convenients.
ATENCIÓ
La bateria de liti d'aquest producte no ha estat dissenyada perquè es substitueixi. Hi ha perill d’explosió si
no es substitueix correctament la bateria de liti. No recarregueu, desmunteu o incinereu una bateria de
liti. Desfeu-vos de les bateries de liti usades d’acord amb les instruccions del fabricant i les regulacions
locals.
안전 사항
• 본 제품은 원래 설계및특정 구성에 대한 테스트 결과로 안정 성이 입증된 것입니다. 따라서 무허가 교체부품
을 사용하는 경 우 에는 제조업체에서 안전에 대한 책임을 지지 않습니다.
• 본 제품에 관한 유지 보수 설명 서는 전문 서비스 기술자 용으로 작성된 것이므로, 비 전문가는 사용할 수 없
습니다.
• 본 제품을 해체하거나 정비할 경우, 전 기전 인 충 경 을 받거나 상 처를 입을 위험이 커집니다. 전문 서비스
기술자는 이 사실을 숙지하고, 필요한 예방조치를 취하도록 하십시오.
주의—부상 위험
이 제품에 들어 있는 리튬 배터리는 교체할 수 없습니다. 리튬 배터리를 잘못 교체하면 폭발할 위험
이 있습니다. 리튬 배터리를 재충전하거나, 분해하거나, 태우지 마십시오. 제조업체의 지침과 지역
규정에 따라 다 쓴 리튬 배터리를 폐기하십시오.
安全信息
• 本产品的安全性以原来设计和特定产品的测试结果和认证为基础。万一使用来经许可的替换部件，制造商
不对安全性负责。
• 本产品的维护信息仅供专业服务人员使用，并不打算证其他人使用。
• 本产品在拆卸、维修时，遭受电击或人员受伤的危险性会增高，专业服务人员对这点必须有所了触，并采
取必要的预防措施。
Notices and safety information
34
Page 35
7463
当心一可能的伤害
本产品中的锂电池不可更换。如果不正确更换锂电池，可能会有爆炸危险。不要再 充电、拆解或
焚烧锂电池。丢弃旧的锂电池时应按照制造商的指导及当地法规进行处理
：
。
Notices and safety information
35
Page 36
7463
36
Page 37
7463
Preface
This manual contains maintenance procedures for service personnel.
It is divided into the following chapters:
• General information contains a general description of the printer. Special tools and test equipment are discussed.
• Diagnostic information contains diagnostic aids you can use to isolate failing FRUs. These diagnostic aids include
error code tables, symptom tables, and service checks.
• Service menus contains descriptions of the printer interface, the user and service menus.
• Repair information provides instructions for making printer adjustments and removing and installing FRUs.
• Component locations uses illustrations to identify the basic printer parts.
• Maintenance contains the lubrication specifications and recommendations to prevent problems.
• Parts catalog contains illustrations and part numbers for individual FRUs.
• Appendix A: Printer specifications contains detailed specifications about the product.
• Appendix B: Options and features contains the available options and other features of the product.
• Appendix C: Theory of operation contains the theory of operation.
• Appendix D: Acronyms contains the list of acronyms in the manual and their meanings.
Service manual conventions
Note: A note provides additional information.
Warning—Potential Damage: A warning identifies something that may damage the product hardware or software.
This service manual uses several different types of caution statements:
CAUTION—POTENTIAL INJURY: A caution identifies something that may cause harm to the service technician.
CAUTION—SHOCK HAZARD: This type of caution indicates a danger from hazardous voltage in the area of the
product where you are working. Unplug the product before you start working, or use caution if the product
must receive power to perform the task.
CAUTION—HOT SURFACE: This type of caution indicates a hot surface.
CAUTION—TIPPING HAZARD: This type of caution indicates a tipping hazard.
Change history
August 27, 2014
• Main drive motor control jam service check was revised to include checking of the imaging unit.
• Fuser drive motor control jam service check was revised to include checking of the paper source, firmware version,
and power source.
Preface
37
Page 38
7463
August 13, 2014
• Blank display and noise (five beeps) symptoms were added. Blank display, five beeps service check topic was added
to address the symptoms.
• New error codes were added (126.06, 126.24, and 201.22).
• LVPS service check was revised.
• Controller board cooling fan service check was revised.
July 17, 2014
• Torque limiter was added to the ADF separator roller (40X7775) FRU.
• All instances of torque limiting clutch were renamed to torque limiter.
July 4, 2014
• The staple cartridge holder (40X7466) FRU was added to the Staple finisher option 2 and Staple, hole punch finisher
1 Parts catalog assemblies.
June 2, 2014
• Callout revisions were implemented for the Frame assembly table under Parts catalog.
June 2, 2014
• Callout revisions were implemented for the Frame assembly table under Parts catalog.
May 7, 2014
• A warning for turning off the printer prior to removal was added to the fuser removal topic.
February 28, 2014
• Added the Restoring solutions, licenses, and configuration settings topic under Removal precautions.
• Updated the Restoring the printer configuration after replacing the controller board topic.
• Changed PN 40X79653 to PN 40X9653 for the control panel in Assembly 9.
• Changed the title from eSF backup to Backing up eSF solutions and settings, and updated the topic.
• Updated the Controller board removal topic.
• Editorial changes
January 17, 2014
• Restore factory defaults topics were added to the service menus.
• Updating the printer firmware topics were added to the repair information.
• Updated the User attendance messages (0–99.99) table.
• Toner add error service check topic was added to the diagnostic information.
January 3, 2014
• Parts catalog FRU (40X9754—Transfer guide static brush) was added.
Preface
38
Page 39
December 18, 2013
• Added the following removal topics in the Repair information chapter:
– Control panel board and display removal (MX711)
– Control panel board and display removal (MX81x)
• Split the former Assembly 9: Control panel (MX71x and XM51xx) in the parts catalog into two assemblies:
– Control panel (MX710 and XM5163)
– Control panel (MX711 and XM5170)
• The following part numbers were changed in the parts catalog:
– 40X7860 to 40X9653 for the control panel (MX710)
– 40X7862 to 40X9236 for the control panel board (MX710)
– 40X7877 to 40X9246 for the control panel (MX711)
– 40X7771 to 40X9232 for the ADF controller card
– 40X7893 to 40X9233 for the controller board (MX710)
– 40X7936 to 40X9234 for the controller board (MX711, MX81x)
– 40X7882 to 40X9250 for the control panel assembly for MX81x
– 40X7765 to 40X9228 for the ADF assembly (MX710)
– 40X7799 to 40X9229 for the ADF assembly (MX711)
– 40X7748 to 40X9231 for the ADF assembly (MX81x)
• Added the following part numbers in the parts catalog:
– 40X9230 for the control panel board and display kit for MX711 (Wolrdwide except for European Union)
– 40X9245 for the control panel board and display kit for MX711 (European Union use only)
– 40X9238 for the control panel board and display kit for MX81x (Wolrdwide except for European Union)
– 40X9249 for the control panel board and display kit for MX81x (European Union use only)
7463
October 23, 2013
• The following FRU numbers were revised:
– 40X8803 (replaced with 40X7683—Internal duplex with cable)
– 40X8804 (replaced with 40X7668—Duplex rear flap)
August 30, 2013
• The list of sensors supported for the Base sensor test was updated.
• Parts catalog assembly (Covers (MX81x and XM71xx) was updated.
August 22, 2013
• Topic for restoring the printer configuration after replacing the controller board was added.
• Additional procedure added for the installation note for the controller board removal topic.
• The following Option FRUs were included in the parts catalog:
Staple finisher option FRUs
– 40X8740—Media pusher assembly
– 40X8721—Stapler option latch
– 40X8739—Stapler main motor
Preface
39
Page 40
– 40X8256—Stapler diverter motor
– 40X8722—Stapler diverter plunger assembly
– 40X8744—Stapler tray link assembly
– 40X7592—Sensor (stapler diverter plunger HP)
– 40X7592—Sensor (paddle motor HP)
– 40X8741—Stapler drive gear assembly
– 40X7592—Sensor (stapler rear door interlock)
– 40X8742—Stapler tray spring
– 40X8745—Sensor (stapler ejector HP)
– 40X7592—Sensor (media pusher HP)
– 40X8745—Sensor (throat media present)
– 40X8218—Stapler output bin LED
– 40X8743—Tamper assembly
– 40X7592—Sensor (left tamper motor HP)
– 40X7592—Sensor (right tamper motor HP)
– 40X8738—Stapler ejector motor assembly
– 40X8134—Sensor (stapler pass through)
– 40X8214—Stapler rear door
7463
Mailbox option FRUs
– 40X8739—Mailbox main motor
– 40X7592—Sensor (mailbox rear door interlock)
– 40X8721—Mailbox option latch
– 40X8726—Mailbox main drive gear
– 40X8722—Mailbox diverter plunger assembly
– 40X8196—Mailbox top cover
– 40X8720—Mailbox top bin cover with bail
– 40X8719—Sensor (mailbox pass through)
– 40X8725—Mailbox top diverter spring
– 40X8723—Mailbox top diverter
– 40X8724—Mailbox middle diverter
• Parts catalog FRU (40X8693—Relocation kit (MX810)) was added.
July 9, 2013
• Added new information to the Fuser maintenance kits topic
• The following Option‑related service checks were revised:
– Finisher diverter jam service check
– Finisher left tamper jam service check
– Finisher right tamper jam service check
– Finisher tray holder jam service check
– Finisher ejector jam service check
Preface
40
Page 41
– Sensor (throat media present) jam service check
– Finisher (HPU) diverter jam service check
– Finisher (HPU) left tamper jam service check
– Finisher (HPU) right tamper jam service check
– Finisher (HPU) tray holder jam service check
– Finisher (HPU) ejector jam service check
– Finisher (HPU) main motor jam service check
– Sensor (HPU finisher pass through) jam service check
June 28, 2013
• The following Option‑related topics were added:
Output option service checks
– Mailbox main motor jam service check
– Mailbox diverter jam service check
– Finisher main motor jam service check
– Finisher (HPU) main motor jam service check
– Finisher (HPU) ejector jam service check
– Sensor (HPU finisher pass through) jam service check
– Finisher (HPU) left tamper jam service check
– Finisher (HPU) right tamper jam service check
– Finisher (HPU) diverter jam service check
– Finisher (HPU) paddle jam service check
– Finisher (HPU) tray holder jam service check
– Sensor (HPU throat media present) jam service check
– Stapler carriage (HPU) jam service check
– HPU feed motor jam service check
– Sensor (HPU media align) jam service check
– Sensor (HPU trailing edge) jam service check
– Sensor (HPU leading edge) jam service check
– HPU motor jam service check
– HPU communication error jam service check
– Mailbox undetected service check
– Stuck media on hole puncher service check
– Missing or misaligned hole punch service check
– Hole punch box undetected service check
– Finisher door (HPU) undetected service check
7463
Output option removals
– Staple, hole punch finisher option removal
– Stapler cartridge access door removal
– Hole punch box removal
Preface
41
Page 42
– Staple, hole punch left cover removal
– Staple, hole punch right cover removal
– Sensor (cartridge door interlock) removal
– Stapler door close limit switch removal
– Stapler carriage assembly removal
– Sensor (throat media present) removal
– Staple, hole punch latch removal
– Stapler controller board removal
– Stapler main motor removal
– Stapler paddle motor removal
– Sensor (paddle motor HP) removal
– Stapler diverter motor removal
– Stapler diverter plunger assembly removal
– Stapler drive gear assembly removal
– Sensor (bin full send) removal
– Sensor (bin full receive) removal
– Staple, hole punch lower interface cable removal
– Media pusher assembly removal
– Standard output bin LED removal
– Sensor (finisher bin media present) removal
– Staple, hole punch top cover removal
– Sensor (right tamper motor HP) removal
– Sensor (left tamper motor HP) removal
– Stapler tamper assembly removal
– Tamper motor (right) removal
– Tamper motor (left) removal
– Tamper drive belt removal
– Stapler output bin LED removal
– Staple, hole punch tray link tension spring removal
– Staple, hole punch tray link removal
– Sensor (hole punch box present) removal
– Sensor (HPU rear door interlock) removal
7463
Staple, hole punch finisher parts catalog
– Staple, hole punch finisher option 1
– Staple, hole punch finisher option 2
– Staple, hole punch finisher option 3
– Staple, hole punch finisher option 4
• The following topics were revised:
– 3xx error messages (300-399.99)
– 4xx error messages (400-499.99)
Preface
42
Page 43
– Option tray symptoms
– Sensor (mailbox pass through) jam service check
– Mailbox diverter jam service check
– Sensor (finisher pass through) jam service check
– Finisher left tamper jam service check
– Finisher right tamper jam service check
– Finisher ejector jam service check
– Finisher diverter jam service check
– Finisher paddle jam service check
– Finisher tray holder jam service check
– Mailbox incorrect bin exit service check
– Finisher door undetected service check
– Stapler carriage failure service check
– Finisher bin media present error service check
– Output options
• Added Bin insert (40X8855) to Parts catalog Assembly 1 and 2.
7463
May 15, 2013
• Updated the Transfer roll removal procedure.
• Updated the ADF elevator tray motor stalled error service check.
• Added installation note to the ADF assembly and the ADF controller card removal procedures.
April 25, 2013
• Added 176—Controller board cooling fan failure error code.
• Added Controller board cooling fan service check.
• Changed Miscellaneous cooling fan service check to Fuser cooling fan service check.
• Added Scanner tests to the Diagnostic menu subgroup.
• Updated ADF separator roll removal procedure.
• Updated Japan power cord part number.
• Deleted part numbers 40X8399 and 40X8401.
• Deleted duplicate and inapplicable entries in Miscellaneous parts catalog assembly.
• The following Option‑related topics were added:
Staple finisher option removals
– Sensor (throat media present) removal
– Stapler/offset stacker option latch removal
– Stapler/offset stacker tray spring removal
– Stapler/offset stacker tray link assembly removal
– Sensor (stapler/stacker rear door interlock) removal
– Sensor (paddle motor HP) removal
– Sensor (right tamper motor HP) removal
Preface
43
Page 44
– Sensor (left tamper motor HP) removal
– Tamper assembly removal
– Stapler/offset stacker output bin LED removal
– Stapler/offset stacker main motor removal
– Stapler/offset stacker diverter motor removal
– Stapler/offset stacker diverter plunger assembly removal
– Stapler/offset stacker drive gear assembly removal
– Media pusher assembly removal
– Stapler/offset stacker feed roll removal
– Stapler/offset stacker chute assembly removal
– Sensor (stapler/stacker pass through) removal
– Stapler/offset stacker ejector motor assembly removal
– Sensor (stapler/stacker ejector HP) removal
– Sensor (media pusher HP) removal
Mailbox option removals
– Mailbox top bin cover with bail removal
– Mailbox option latch removal
– Sensor (mailbox rear door interlock) removal
– Sensor (mailbox diverter HP) removal
– Mailbox diverter plunger assembly removal
– Mailbox main drive gear removal
– Mailbox main motor removal
– Mailbox top diverter removal
– Mailbox middle diverter removal
– Mailbox top diverter spring removal
– Sensor (mailbox pass through) removal
7463
February 13, 2013
• Added 31.66 and 250.08 error code descriptions.
• Added MPF solenoid removal procedure.
February 8, 2013
• 10.xx and 24x.08 errors were added to the User attendance messages table.
• 24x.08 errors were added to the 24x paper jams and Input option jam error messages tables.
• Added Scanner Calibration topics in the Repair information chapter.
• Updated procedures under ADF skew adjustments.
• Added to the Service menus chapter: Updating the printer firmware
• Updated service check: Sensor (ADF 1st scan) late leaving or not cleared jam
• Updated model numbers on Cover and General information.
Preface
44
Page 45
December 20, 2012
• Changed "Adjusting skew" to "ADF skew adjustments"
• Updated the following topics:
– Sensor (input) never or late arriving jam service check
– 250/550-sheet media tray option jam service check
– HCIT jam service check
– ADF skew adjustment (front side)
– ADF skew adjustment (back side)
– ADF assembly removal
– ADF front side drive parts pack removal
– ADF left hinge removal
– ADF pick roller removal
– ADF right hinge removal
– Control panel front cover removal
– Interrupt with flag sensor (ADF 2nd scan) removal
– Interrupt with flag sensor (ADF media exit) removal
– Flatbed scanner assembly removal
– Laser printhead removal
– Control panel latch removal
– Assembly 2: Covers (MX81x)
– Assembly 8: Frame Assembly
– Assembly 9: Control panel (MX71x)
– Assembly 10: Control panel 10inch display (MX81x)
– Assembly 11: Paper tray
– Assembly 15: ADF electronics
– Assembly 16: Flatbed scanner (MX710 and MX711)
– Assembly 17: Flatbed scanner (MX810, MX811 and MX812)
– Assembly 20: 250-sheet tray option (MX710 and MX711)
– Assembly 21: 550-sheet tray option (MX710 and MX711)
– Assembly 22: 550-sheet tray option (MX810, MX811, MX812)
– Assembly 24: High capacity input tray option 3 (MX810, MX811, MX812)
– Assembly 34: Miscellaneous
• Updated the following topics:
– Sensor (input) never or late arriving jam service check
– 250/550-sheet media tray option jam service check
– HCIT jam service check
– ADF skew adjustment (front side)
– ADF skew adjustment (back side)
– ADF assembly removal
– ADF front side drive parts pack removal
7463
Preface
45
Page 46
– ADF left hinge removal
– ADF pick roller removal
– ADF right hinge removal
– Control panel front cover removal
– Interrupt with flag sensor (ADF 2nd scan) removal
– Interrupt with flag sensor (ADF media exit) removal
– Flatbed scanner assembly removal
– Laser printhead removal
– Control panel latch removal
– Assembly 2: Covers (MX81x)
– Assembly 8: Frame Assembly
– Assembly 9: Control panel (MX71x)
– Assembly 10: Control panel 10inch display (MX81x)
– Assembly 11: Paper tray
– Assembly 15: ADF electronics
– Assembly 16: Flatbed scanner (MX710 and MX711)
– Assembly 17: Flatbed scanner (MX810, MX811 and MX812)
– Assembly 20: 250-sheet tray option (MX710 and MX711)
– Assembly 21: 550-sheet tray option (MX710 and MX711)
– Assembly 22: 550-sheet tray option (MX810, MX811, MX812)
– Assembly 24: High capacity input tray option 3 (MX810, MX811, MX812)
– Assembly 34: Miscellaneous
• Added the following topics:
– Duplex removal (MX71x)
– Duplex removal (MX81x)
– Media size actuator removal
– Sensor (ADF elevator tray home position) removal
– Sensor (ADF lower door interlock) removal
– Sensor (ADF top door interlock) removal
– Sensor (ADF gap detect) removal
– Upper redrive motor removal
– Assembly 7: Duplex in parts catalog
7463
Preface
46
Page 47
7463
General information
The LexmarkTM MX71x and MX81x are network‑capable, multi‑function laser printers that print monochrome print
jobs. The operator panel is touch‑sensitive and lets the user adjust the viewing angle. All information in this service
manual pertains to all models unless explicitly noted.
The printers are available in the following models:
Model Configurations Machine type / model
MX710de 3 Laser Mono MFP Duplex, Network, Touch panel 7463‑032
XM5163 7463‑096
MX710de 4 Laser Mono MFP Duplex, Network, Modem, Touch panel 7463‑036
MX710dhe 4 Laser Mono MFP Duplex, Network, Modem, Touch panel,HD7463‑037
MX711de 3 Laser Mono MFP Duplex, Network, Touch panel 7463‑232
XM5170 7463‑296
MX711de 4 Laser Mono MFP Duplex, Network, Modem, Touch panel 7463‑236
MX711dhe 4 Laser Mono MFP Duplex, Network, Modem, Touch panel,HD7463‑237
MX810de Laser Mono MFP Duplex, Network, Modem, Touch panel,HD7463‑436
XM7155 7463‑496
MX811de Laser Mono MFP Duplex, Network, Modem, Touch panel,HD7463‑636
XM7163 7463‑696
MX812de Laser Mono MFP Duplex, Network, Modem, Touch panel,HD7463‑836
XM7170 7463‑896
The diagnostic information in this manual leads you to the correct field replaceable unit (FRU) or part. Use the error
code charts, symptom index, and service checks to determine the symptom and then repair the failure. After you
complete the repair, perform tests as needed to verify the repair.
To begin diagnosing a problem, go to
for information about removing and reinstalling parts. See
“Diagnostic information” on page 59. See “Repair information” on page 371
“Parts catalog” on page 910 to help identify parts.
Media guidelines
Additional information for printing on specialty media may be found in the Cardstock and Label Guide available at
http://support.lexmark.com.
Paper guidelines
Paper characteristics
The following paper characteristics affect print quality and reliability. Consider these factors before printing on them:
General information
47
Page 48
7463
Weight
The printer trays and multipurpose feeder can automatically feed paper weights between 60–176 g/m2 (16–47‑lb) grain
2
long paper. The 2100‑sheet tray can automatically feed paper weights up to 60–135 g/m
Paper lighter than 60 g/m
Note: Two‑sided printing is supported for 60–176 g/m
2
(16 lb) might not be stiff enough to feed properly, and may cause jams.
2
(16–47‑lb) paper.
(16–36‑lb) grain long paper.
Curl
Curl is the tendency for paper to curl at its edges. Excessive curl can cause paper feeding problems. Curl can occur after
the paper passes through the printer, where it is exposed to high temperatures. Storing paper unwrapped in hot, humid,
cold, or dry conditions, even in the trays, can contribute to paper curling prior to printing and can cause feeding
problems.
Smoothness
Paper smoothness directly affects print quality. If paper is too rough, toner cannot fuse to it properly. If paper is too
smooth, it can cause paper feeding or print quality issues. Always use paper between 100 and 300 Sheffield points;
smoothness between 150 and 250 Sheffield points produces the best print quality.
Moisture content
The amount of moisture in paper affects both print quality and the ability of the printer to feed the paper correctly.
Leave paper in its original wrapper until it is time to use it. This limits the exposure of paper to moisture changes that
can degrade its performance.
Store paper in its original wrapper in the same environment as the printer for 24 to 48 hours before printing. Extend
the time several days if the storage or transportation environment is very different from the printer environment. Thick
paper may also require a longer conditioning period.
Grain direction
Grain refers to the alignment of the paper fibers in a sheet of paper. Grain is either grain long, running the length of
the paper, or grain short, running the width of the paper.
2
For 60–176 g/m
(16–47‑lb) paper, grain long paper is recommended.
Fiber content
Most high‑quality xerographic paper is made from 100% chemically treated pulped wood. This content provides the
paper with a high degree of stability, resulting in fewer paper feeding problems and better print quality. Paper containing
fibers such as cotton can negatively affect paper handling.
Selecting paper
Using the appropriate paper prevents jams and helps ensure trouble‑free printing.
To help avoid paper jams and poor print quality:
• Always use new, undamaged paper.
• Before loading paper, know the recommended printable side of the paper. This information is usually indicated on
the paper package.
• Do not use paper that has been cut or trimmed by hand.
General information
48
Page 49
7463
• Do not mix paper sizes, types, or weights in the same tray; mixing results in jams.
• Do not use coated papers unless they are specifically designed for electrophotographic printing.
Selecting preprinted forms and letterhead
• Use grain long for 60–90‑g/m
• Use only forms and letterhead printed using an offset lithographic or engraved printing process.
• Avoid paper with rough or heavily textured surfaces.
• Use inks that are not affected by the resin in toner. Inks that are oxidation‑set or oil‑based generally meet these
requirements; latex inks might not.
• Print samples on preprinted forms and letterheads considered for use before buying large quantities. This
determines whether or not the ink in the preprinted form or letterhead will affect print quality.
• When in doubt, contact your paper supplier.
2
(16–24‑lb) paper.
Storing paper
Use these paper storage guidelines to help avoid jams and uneven print quality:
• For best results, store paper where the temperature is 21°C (70°F) and the relative humidity is 40 percent. Most
label manufacturers recommend printing in a temperature range of 18–24°C (65–75°F) with relative humidity
between 40 and 60 percent.
• Store paper in cartons, on a pallet or shelf, rather than on the floor.
• Store individual packages on a flat surface.
• Do not store anything on top of individual paper packages.
• Take paper out of the carton or wrapper only when you are ready to load it in the printer. The carton and wrapper
help keep the paper clean, dry, and flat.
Using recycled paper and other office papers
As an environmentally conscientious company, Lexmark supports the use of recycled paper produced specifically for
use in laser (electrophotographic) printers.
While no blanket statement can be made that all recycled paper will feed well, Lexmark consistently tests papers that
represent recycled cut size copier papers available on the global market. This scientific testing is conducted with rigor
and discipline. Many factors are taken into consideration both separately and as a whole, including the following:
• Amount of post-consumer waste (Lexmark tests up to 100% post-consumer waste content.)
• Temperature and humidity conditions (Testing chambers simulate climates from all over the world.)
• Moisture content (Business papers should have low moisture: 4–5%.)
• Bending resistance and proper stiffness means optimum feeding through the printer.
• Thickness (impacts how much can be loaded into a tray)
• Surface roughness (measured in Sheffield units, impacts print clarity and how well toner fuses to the paper)
• Surface friction (determines how easily sheets can be separated)
• Grain and formation (impacts curling, which also influences the mechanics of how the paper behaves as it moves
through the printer)
• Brightness and texture (look and feel)
General information
49
Page 50
7463
Recycled papers are better than ever; however, the amount of recycled content in a paper affects the degree of control
over foreign matter. And while recycled papers are one good path to printing in an environmentally responsible manner,
they are not perfect. The energy required to de-ink and deal with additives such as colorants and “glue” often generates
more carbon emissions than does normal paper production. However, using recycled papers enables better resource
management overall.
Lexmark concerns itself with the responsible use of paper in general based on life cycle assessments of its products. To
gain a better understanding of the impact of printers on the environment, the company commissioned a number of
life cycle assessments and found that paper was identified as the primary contributor (up to 80%) of carbon emissions
caused throughout the entire life of a device (from design to end-of-life). This is due to the energy-intensive
manufacturing processes required to make paper.
Thus, Lexmark seeks to educate customers and partners on minimizing the impact of paper. Using recycled paper is
one way. Eliminating excessive and unnecessary paper consumption is another. Lexmark is well-equipped to help
customers minimize printing and copying waste. In addition, the company encourages purchasing paper from suppliers
who demonstrate their commitment to sustainable forestry practices.
Lexmark does not endorse specific suppliers, although a converter’s product list for special applications is maintained.
However, the following paper choice guidelines will help alleviate the environmental impact of printing:
1 Minimize paper consumption.
2 Be selective about the origin of wood fiber. Buy from suppliers who carry certifications such as the Forestry
Stewardship Council (FSC) or The Program for the Endorsement of Forest Certification (PEFC). These certifications
guarantee that the paper manufacturer uses wood pulp from forestry operators that employ environmentally and
socially responsible forest management and restoration practices.
3 Choose the most appropriate paper for printing needs: normal 75 or 80 g/m
or recycled paper.
2
certified paper, lower weight paper,
Unacceptable paper examples
Test results indicate that the following paper types are at risk for use with laser printers:
• Chemically treated papers used to make copies without carbon paper, also known as carbonless papers
• Preprinted papers with chemicals that may contaminate the printer
• Preprinted papers that can be affected by the temperature in the printer fuser
• Preprinted papers that require a registration (the precise location on the page) greater than ± 2.3 mm (± 0.9 in.),
such as optical character recognition (OCR) forms. In some cases, registration can be adjusted with a software
application to successfully print on these forms.)
• Coated papers (erasable bond), synthetic papers, thermal papers
• Rough-edged, rough or heavily textured surface papers or curled papers
• Recycled papers that fail EN12281:2002 (European testing)
• Paper weighing less than 60 g/m
• Multiple part forms or documents
For more information about Lexmark, visit
at the Environmental Sustainability link.
2
(16 lb)
www.lexmark.com. General sustainability-related information can be found
General information
50
Page 51
7463
Using specialty media
Tips on using card stock
Card stock is heavy, single‑ply specialty media. Many of its variable characteristics, such as moisture content, thickness,
and texture, can significantly affect print quality.
• From the printer control panel, set the paper size, type, texture, and weight in the Paper menu to match the card
stock loaded in the tray.
• Print samples on the card stock being considered for use before buying large quantities.
• Specify the paper texture and weight from the tray settings to match the paper loaded in the tray.
• Preprinting, perforation, and creasing may significantly affect the print quality and cause jams or other paper feed
problems.
• Before loading the card stock on the tray, flex and fan the card stock to loosen them. Straighten the edges on a
level surface.
Tips on using envelopes
• From the printer control panel, set the paper size, type, texture, and weight in the Paper menu to match the
envelopes loaded in the tray.
• Print samples on the envelopes being considered for use before buying large quantities.
• Use envelopes designed specifically for laser printers.
• For best performance, use envelopes made from 90‑g/m
• Use only new envelopes from undamaged packages.
• To optimize performance and minimize jams, do not use envelopes that:
– Have excessive curl or twist.
– Are stuck together or damaged in any way.
– Have windows, holes, perforations, cutouts, or embossing.
– Have metal clasps, string ties, or folding bars.
– Have an interlocking design.
– Have postage stamps attached.
– Have any exposed adhesive when the flap is in the sealed or closed position.
– Have bent corners.
– Have rough, cockle, or laid finishes.
• Adjust the width guides to fit the width of the envelopes.
• Before loading the envelopes on the tray, flex the stack of envelopes back and forth to loosen them, and
then fan them. Straighten the edges on a level surface.
2
(24‑lb) paper or 25% cotton.
Note: A combination of high humidity (over 60%) and high printing temperature may wrinkle or seal envelopes.
Tips on using labels
• From the printer control panel, set the paper size, type, texture, and weight in the Paper menu to match the labels
loaded in the tray.
• Print samples on labels being considered for use before buying large quantities.
General information
51
Page 52
• For more information on label printing, characteristics, and design, see the Card Stock & Label Guide at
http://support.lexmark.com.
• Use labels designed specifically for laser printers.
• Do not use labels with slick backing material.
• Use full label sheets. Partial sheets may cause labels to peel off during printing, resulting in a jam. Partial sheets
also contaminate the printer and the cartridge with adhesive, and could void the printer and toner cartridge
warranties.
• Do not use labels with exposed adhesive.
• Before loading labels on the tray, flex and fan labels to loosen them. Straighten the edges on a level surface.
Tips on using letterhead
• Use letterhead designed specifically for laser printers.
• Print samples on the letterhead being considered for use before buying large quantities.
• Before loading letterhead, flex and fan the sheets to prevent them from sticking together.
• Page orientation is important when printing on letterhead.
Source Printing Printable side Paper orientation
7463
Trays One‑sided Facedown Load the sheet with the
top edge toward the front
of the tray.
Trays Two‑sided Faceup Load the sheet with the
bottom edge entering the
printer first.
Multipurpose feeder One‑sided Faceup Load the sheet with the
top edge entering the
printer first.
Multipurpose feeder Two‑sided Facedown Load the sheet with the
bottom edge entering the
printer first.
Note: Check with the manufacturer or vendor to determine whether the preprinted letterhead is acceptable for laser
printers.
Tips on using transparencies
• From the printer control panel, set the paper size, type, texture, and weight in the Paper menu to match the
transparencies loaded in the tray.
• Print a test page on the transparencies being considered for use before buying large quantities.
• Use transparencies designed specifically for laser printers.
• Avoid getting fingerprints on the transparencies to prevent print quality problems.
• Before loading transparencies, flex and fan the sheets to prevent them from sticking together.
• When printing on large volumes of transparencies, make sure to print by batches of only up to 20 with an interval
of at least three minutes between batches, to prevent the transparencies from sticking together in the bin. You can
also remove transparencies from the bin by batches of 20.
General information
52
Page 53
7463
Supported paper sizes, types, and weights
The following tables provide information on standard and optional paper sources and the sizes, types, and weights of
paper they support.
Note: For an unlisted paper size, select the closest larger listed size.
Paper sizes supported by the printer
Note: When printing on paper less than 210 mm (8.3 inches) wide, the printer may print at a reduced speed after a
period of time to ensure the best print performance.
Paper size
1
Dimensions 550‑sheet tray 2100‑sheet tray Multipurpose
A4 210 x 297 mm
(8.3 x 11.7 in.)
A5 148 x 210 mm
(5.8 x 8.3 in.)
A6 105 x 148 mm
(4.1 x 5.8 in.)
JIS B5 182 x 257 mm
(7.2 x 10.1 in.)
Letter 216 x 279 mm
(8.5 x 11 in.)
Legal 216 x 356 mm
(8.5 x 14 in.)
Executive 184 x 267 mm
(7.3 x 10.5 in.)
Oficio (México) 216 x 340 mm
(8.5 x 13.4 in.)
Folio 216 x 330 mm
(8.5 x 13 in.)
Duplex ADF Scanner
feeder
2
glass
X
X
X
Statement 140 x 216 mm
(5.5 x 8.5 in.)
1
If your preferred default paper size cannot be set in the printer control panel, then you may select common paper sizes
that correspond to the position of the length guide in the tray from the Paper Size/Type menu. If the paper size is not
available, then select Universal or turn off tray size sensing. For more information, contact customer support.
2
Paper is supported in long‑edge orientation.
3
Universal is supported in ADF only if the width is from 76 mm (3 in.) to 216 mm (8.5 in.), and the length is from 127 mm
(5 in.) to 356 mm (14 in.).
X
General information
53
Page 54
7463
Paper size
1
Dimensions 550‑sheet tray 2100‑sheet tray Multipurpose
Universal 105 x 148 mm to
216 x 356 mm
(4.13 x 5.83 in. to
8.5 x 14 in.)
70 x 127 mm to
216 x 356 mm
(2.76 x 5 in. to
8.5 x 14 in.)
7 3/4 Envelope
(Monarch)
98 x 191 mm
(3.9 x 7.5 in.)
9 Envelope 98 x 225 mm
(3.9 x 8.9 in.)
10 Envelope 105 x 241 mm
(4.1 x 9.5 in.)
DL Envelope 110 x 220 mm
(4.3 x 8.7 in.)
C5 Envelope 162 x 229 mm
(6.38 x 9.01 in.)
feeder
X
XX
X XX
X XX
X XX
X XX
X XX
Duplex ADF Scanner
glass
X
3
B5 Envelope 176 x 250 mm
(6.93 x 9.84 in.)
X XX
Other Envelope 98 x 162 mm
(3.9 x 6.4 in.) to
176 x 250 mm
X XX
(6.9 x 9.8 in.)
1
If your preferred default paper size cannot be set in the printer control panel, then you may select common paper sizes
that correspond to the position of the length guide in the tray from the Paper Size/Type menu. If the paper size is not
available, then select Universal or turn off tray size sensing. For more information, contact customer support.
2
Paper is supported in long‑edge orientation.
3
Universal is supported in ADF only if the width is from 76 mm (3 in.) to 216 mm (8.5 in.), and the length is from 127 mm
(5 in.) to 356 mm (14 in.).
Paper types and weights supported by the printer
The printer engine supports 60–176‑g/m2 (16–47‑lb) paper weights.
Note: Labels, transparencies, envelopes, and card stock always print at reduced speed.
Paper type 550‑sheet tray 2100‑sheet
tray
Paper
Multipurpose
feeder
Duplex ADF Scanner glass
Card Stock X X
* Print transparencies in batches of only up to 20 to prevent them from sticking together. For more information, see “Tips
on using transparencies” on page 52.
General information
54
Page 55
7463
Paper type 550‑sheet tray 2100‑sheet
tray
Plain Envelope
X XX
Multipurpose
feeder
Duplex ADF Scanner glass
Rough Envelope X XX
Paper Labels X X
Pharmacy Labels X
Transparencies* X X
* Print transparencies in batches of only up to 20 to prevent them from sticking together. For more information, see “Tips
on using transparencies” on page 52.
Paper sizes, types, and weights supported by the output options
Supported paper sizes
Paper size 4‑bin mailbox Offset stacker Staple finisher Staple, hole punch
finisher
A6
XXX
A5
JIS B5
Executive
1 1,3
2 2
2 2
Letter
A4
Legal
Folio
Oficio
Statement
Universal
1
The finisher staples the paper if it is loaded long edge first.
2
The finisher stacks the paper but does not staple or punch holes in it.
3
The finisher stacks and staples the paper but does not punch holes in it.
4
The finisher staples the paper if its width is from 210 mm (8.27 in.) to 217 mm (8.54 in.).
2 2
4 3,4
3
General information
55
Page 56
Supported paper types and weights
Paper type Paper weight 4‑bin mailbox Offset stacker Staple finisher Staple, hole punch
finisher
Plain paper
90–176 g/m
(24–47 lb bond)
60–90 g/m
(16–24 lb bond)
Card stock
163 g/m
(90 Ib index)
199 g/m
(110 Ib index)
Transparency
2
146 g/m
(39 Ib bond)
Recycled
90–176 g/m
(24–47 lb bond)
60–90 g/m
(16–24 lb bond)
Paper labels
180 g/m
(48 Ib bond)
Dual web and
Integrated
Bond
180 g/m
(48 Ib bond)
90–176 g/m
(24–47 lb bond)
60–90 g/m
(16–24 lb bond)
Envelope
105 g/m
(28 Ib bond)
Rough Envelope
105 g/m
(28 Ib bond)
Letterhead
90–176 g/m
(24–47 lb bond)
60–90 g/m
(16–24 lb bond)
1
The finisher stacks the paper but does not staple or punch holes in it.
2
Print transparencies in batches of only up to 20 to prevent them from sticking together. For more information, see “Tips
on using transparencies” on page 52.
2
XX X X
2
2
X
2
1 1
XX X X
2
X
2
1 1
XX X X
2
2
XX X X
2
XX X X
2
XX X X
2
2
XX X X
2
XX X X
2
XX X X
2
7463
General information
56
Page 57
7463
Paper type Paper weight 4‑bin mailbox Offset stacker Staple finisher Staple, hole punch
finisher
Preprinted
90–176 g/m
2
XX X X
(24–47 lb bond)
60–90 g/m
2
(16–24 lb bond)
Colored paper
90–176 g/m
2
XX X X
(24–47 lb bond)
60–90 g/m
2
(16–24 lb bond)
Light paper
90–176 g/m
2
XX X X
(24–47 lb bond)
60–90 g/m
2
(16–24 lb bond)
Heavy paper
90–176 g/m
2
XX X X
(24–47 lb bond)
60–90 g/m
2
(16–24 lb bond)
Rough/cotton
90–176 g/m
2
XX X X
(24–47 lb bond)
60–90 g/m
2
(16–24 lb bond)
Custom type [x]
90–176 g/m
2
XX X X
(24–47 lb bond)
60–90 g/m
2
(16–24 lb bond)
1
The finisher stacks the paper but does not staple or punch holes in it.
2
Print transparencies in batches of only up to 20 to prevent them from sticking together. For more information, see “Tips
on using transparencies” on page 52.
Data security notice
1 The printer contains various types of memory that store printer and network settings, information from embedded
solutions, and user data.
The following are the types of memory and data that they store.
• Volatile memory—The printer uses standard random access memory (RAM) to buffer user data temporarily
during simple print and copy jobs.
• Non-volatile memory—The printer may use two forms of non-volatile memory: EEPROM and NAND (flash
memory). Both types are used to store the operating system, printer settings, network information, scanner
and bookmark settings, and embedded solutions.
General information
57
Page 58
• Hard disk memory—The printer hard disk is designed for printer-specific functionality and cannot be used for
the long‑term storage of data that is not print-related. The hard disk can retain buffered user data from complex
print jobs, form data, and font data.
To erase volatile memory, turn off the printer.
To erase the non-volatile and printer hard disk memory, see
The following parts are capable of storing memory:
“Configuration menu” on page 356.
• Printer control panel
• User interface controller card (UICC)
• Controller board
• Optional hard disk
Note: The control panel and controller board contain NVRAM.
2 After removing the old part, return it to your next level of support.
Tools required for service
• Flat-blade screwdrivers, various sizes
7463
• #1 Phillips screwdriver, magnetic
• #2 Phillips screwdriver, magnetic
• #2 Phillips screwdriver, magnetic short-blade
• 7/32 inch (5.5 mm) open-end wrench
• 7.0 mm nut driver
• Needle‑nose pliers
• Diagonal side cutters
• Spring hook
• Feeler gauges
• Analog or digital multimeter
• Parallel wrap plug 1319128
• Twinax/serial debug cable 1381963
• Coax/serial debug cable 1381964
• Flashlight (optional)
• 3 mm hex wrench
• 5.5 mm hex wrench
General information
58
Page 59
Diagnostic information
CAUTION—SHOCK HAZARD: Remove the power cord from the electrical outlet before you connect or
disconnect any cable or electronic card or assembly for personal safety and to prevent damage to the printer.
Disconnect any connections between the printer and PCs/peripherals.
CAUTION—POTENTIAL INJURY: The printer weight is greater than 18 kg (40 lb) and requires two or more
trained personnel to lift it safely.
CAUTION—HOT SURFACE: The inside of the printer might be hot. To reduce the risk of injury from a hot
component, allow the surface to cool before touching.
Troubleshooting overview
Performing the initial troubleshooting check
Before you start the troubleshooting procedures, perform the following checks:
7463
• With the power cord unplugged from the electrical outlet, check that the cord is free from the breakage, short
circuits, disconnected wires, or incorrect connections.
• Make sure the printer is properly grounded. Check the power cord ground terminal.
• Make sure the power supply line voltage is within 10% of the rated line voltage.
• Make sure the machine is securely installed on a level surface in a well‑ventilated area.
• Make sure the room temperature is between 16 and 32°C (60 and 90°F) and that the relative humidity is between
20 and 80%.
• Avoid sites generating ammonia gas, high temperature, high humidity (near water faucets, kettles, humidifiers),
cold spaces, near open flames, and dusty areas.
• Avoid sites exposed to direct sunlight.
• Make sure the paper is the recommended paper for this printer.
• Make a trial print with paper from a newly opened package, and check the result.
Power‑on Reset (POR) sequence
When you turn on the printer, it performs a POR sequence.
Check for correct POR functioning of the base printer by observing the following:
1 The LED turns on.
2 The main fan turns on.
3 The operator panel turns on.
4 The fuser heater turns on. The fuser takes longer to warm up from a cold start than a warm start.
5 The operator panel LED starts blinking.
Diagnostic information
59
Page 60
7463
6 A splash screen appears on the display. The following errors or messages may appear:
• Close Door or Insert Cartridge appear if the front access door is open or the print cartridge is missing
• Cartridge errors, such as Defective Cartridge or Missing Cartridge
7 Ready appears on the display.
8 The main drive motor turns on.
9 The EP drive assembly drives the developer shaft located in the print cartridge.
10 The exit rollers turn.
11 The printer may begin calibration.
Using Safe Mode
Safe Mode lets the printer continue to operate in a special limited mode in which it attempts to continue offering as
much functionality as possible despite known issues.
Warning—Potential Damage: Safe Mode is intended as a short‑term workaround and should be used only in the
case of a non‑critical error when a print job must be completed before service can be arranged to repair the printer.
The printer must be returned to standard operating mode before diagnostics can be run or full‑function printing can
continue.
You can enter Safe Mode in one of the following ways:
• Enter Safe Mode from the Configuration menu, and then POR the printer. See “Safe Mode” on page 360.
• Press the 6 and 7 keys, and then POR the printer.
Return the printer to standard operating mode to service the printer and return to full‑function printing.
Safe Mode print behavior
The following table outlines the behavior for this printer model while in Safe Mode:
Safe Mode engine features Engine behavior Control panel behavior
Simplex printing only Reports that duplex printing is disabled. Duplex print option is not selectable.
Ignore duplex sensor
Ignore standard bin full sensor Standard bin full messages are not
reported.
Print at narrow media operating point Pages are printed slower. N/A
Ignore all input options Reports that only Tray 1 is installed. Only Tray 1 and the MPF are selectable.
Ignore all output options Does not any report installed finishing
options.
Ignore rear door sensor Rear door open messages are not
reported.
Standard bin full messages will not
occur.
No finishing options are selectable.
Rear door open messages do not occur.
Ignore rear lower door sensor (MX81x
only)
Reduce print speed Pages are printed slower. N/A
Reduce time to first print Slower time to first print. N/A
Rear lower door open messages are not
reported.
Diagnostic information
60
Rear lower door open messages do not
occur.
Page 61
7463
Fixing print quality issues
The symptoms described in this chapter might require replacement of one or more CRUs (Customer Replaceable Units)
designated as supplies or maintenance items, which are the responsibility of the customer. With the customer's
permission, you might need to install a developer (toner) cartridge.
Initial print quality check
Before troubleshooting specific print problems, complete the following initial print quality check:
• The printer must be in a location that follows the recommended operating environment specifications. See
“Environment” on page 1010.
• Check the life status of all supplies. Any supply that is low should be replaced.
• Load 20‑lb plain letter or A4 paper. Make sure the paper guides are properly set and locked. From the control
panel, set the paper size and type to match the paper loaded in the tray.
• Print a menu settings page. Be sure to keep the original menu settings page to restore the customer’s custom
settings if needed.
• Verify on the menu settings page if the following are set to their default values:
– Print resolution: 600 dpi
– Toner darkness: 8
• Check the transfer roll for damage. Replace if damaged.
• Check the toner cartridge and imaging unit for damage. Replace if damaged.
• Print the print quality pages to see if the problem remains. Use Tray 1 to test print quality problems.
• Print a print quality test page, and then look for variations in the print from what is expected. Verify if the settings
under EP Setup are set to their default values. See
“EP Defaults” on page 351.
• Check to ensure the correct printer driver for the installed software is being used. An incorrect printer driver for
the installed software can cause problems. Incorrect characters could print, and the copy may not fit the page
correctly.

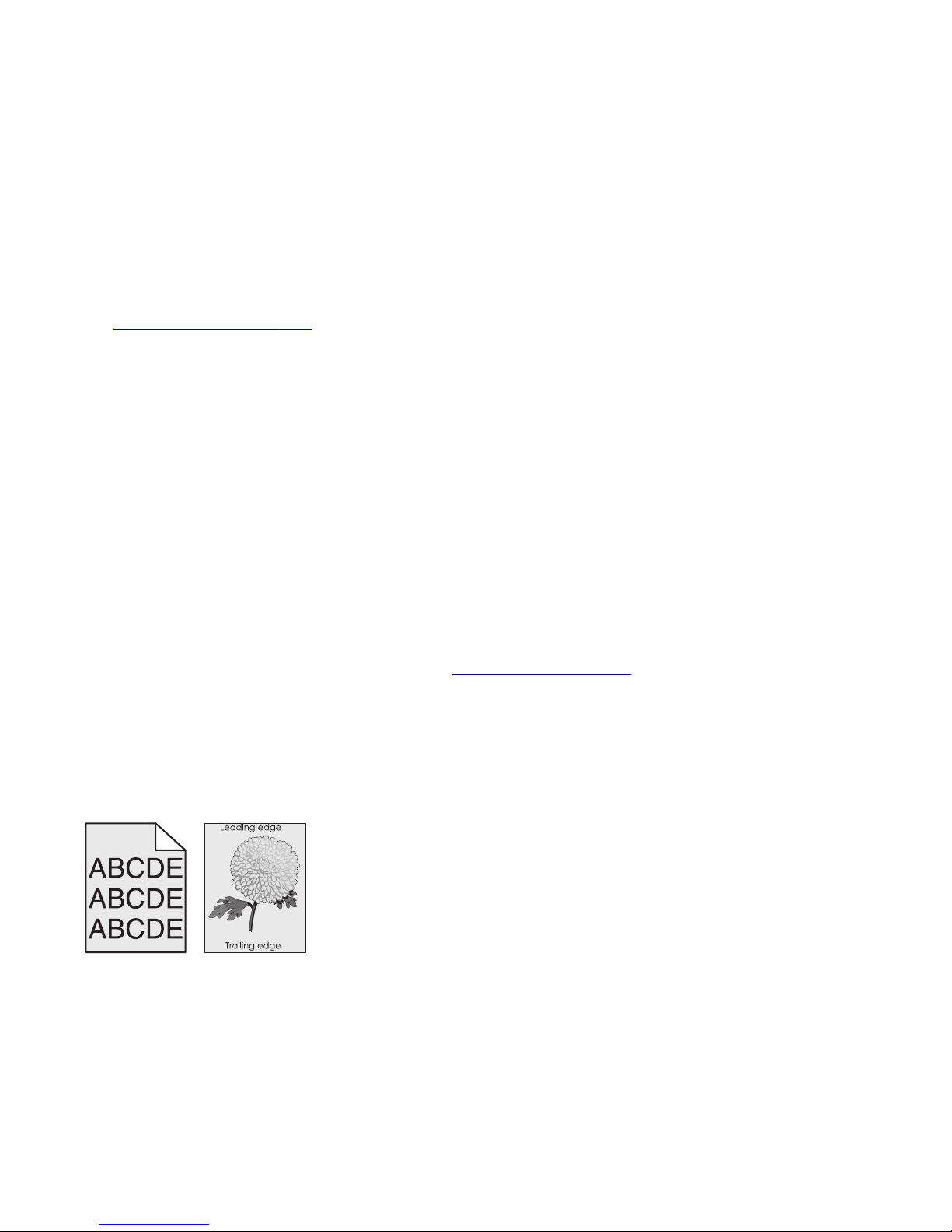

Gray background check
Diagnostic information
61
Page 62
Actions Yes No
7463
Step 1
Ensure the toner cartridge has sufficient toner.
Does the cartridge have sufficient toner?
Step 2
Remove any contamination from the CTLS contacts, located on the toner
level/imaging unit high voltage contact. Perform a print test.
Does the problem remain?
Step 3
Check the CTLS, located on the toner level/imaging unit high voltage
contact, for damage.
Is it free of damage?
Step 4
Check the transfer roller for surface contamination or excessive wear.
Is it free of contamination and wear?
Step 5
Check the transfer roller left contact spring, located on the transfer roller
left arm, for damage.
Is it free of damage?
Go to step 2. Replace the toner
cartridge.
Go to step 3. Problem is solved.
Go to step 4. Replace the toner
level/imaging unit high
voltage contact.
Go to step 5. Replace the transfer
roller.
Contact the next level
of support.
Replace the transfer
roller left arm. See
“Transfer roller left
arm with cable
removal” on page
476.
Horizontal voids check
Diagnostic information
62
Page 63
Action Yes No
7463
Step 1
Check the media condition, and load new dry, and recommended media.
Reprint the defective image.
Does the problem remain?
Step 2
Check the media transfer route and media path for contamination and
debris.
Are the paths free of contamination and debris?
Step 3
Check the toner level.
Is the toner level normal?
Step 4
Check the transfer roller for contamination and wear.
Is the component free of excess wear and contamination?
Step 5
Check the laser printhead for proper connection.
Is the component properly connected?
Go to step 2. The problem is solved.
Go to step 3. Remove debris or
contamination.
Go to step 4. Replace the print
cartridge.
Go to step 5. Replace the transfer
“Transfer
Replace the laser
printhead. See
printhead removal” on
page 457.
“Laser
roller. See
roller removal” on
page 480.
Replace the
connections.
Step 6
Perform a print test.
Does the problem remain?
Contact the next level
of support.
Print irregularities check
Action Yes No
Step 1
a Move the width and length guides in the tray to the correct positions
for the size of the paper loaded in the tray.
b Resend the print job.
Go to step 2. The problem is solved.
The problem is solved.
Do print irregularities still appear?
Diagnostic information
63
Page 64
Action Yes No
7463
Step 2
Check the media condition and load new dry, recommended media.
Reprint the defective image.
Does the problem remain?
Step 3
Check the toner level.
Is the toner level normal?
Step 4
Check the laser beam route. Check for debris between the printhead
assembly and the PC drum.
Is the laser beam route free of debris, and the glass window in the
printhead assembly free of contamination?
Step 5
Check the transfer roller for contamination and wear.
Is the component free of excess wear and contamination?
Step 6
Check the laser printhead installation.
Is the component properly installed?
Go to step 3. The problem is solved.
Go to step 4. Replace the print
cartridge.
Go to step 5. Remove debris or clean
the printhead
assembly window.
Go to step 6. Replace the transfer
roller. See
roller removal” on
page 480.
Go to step 7. Replace the laser
printhead removal. See
“Laser printhead
removal” on page
457.
“Transfer
Step 7
Perform a print test.
Does the problem remain?
Blank pages check
Contact the next level
of support.
The problem is solved.
Diagnostic information
64
Page 65
Actions Yes No
7463
Step 1
Check the toner cartridge level.
Is the toner level low?
Step 2
Check the imaging unit for wear or damage.
Is it free of wear or damage?
Step 3
Check the transfer roller for surface contamination or excessive wear.
Is it free of contamination and wear?
Step 4
Check the transfer roller left contact spring, located on the transfer roller
left arm, for damage.
Is it free of damage?
Step 5
Reseat the cables on the HVPS.
Replace the toner
cartridge.
Go to step 3. Replace the imaging
Go to step 4. Replace the transfer
Go to step 5. Replace the transfer
Replace the HVPS. See
“HVPS removal” on
page 444.
Go to step 2.
unit.
roller.
roller left arm with
cable. See
roller left arm with
cable removal” on
page 476.
The problem is solved.
“Transfer
Does the problem remain?
Step 6
Reseat the cables J101 (video) and "MIR MTR" on the controller board.
Does the problem remain?
Solid black pages check
Replace the laser
printhead. See
printhead removal” on
page 457.
“Laser
Contact the next level
of support.
Diagnostic information
65

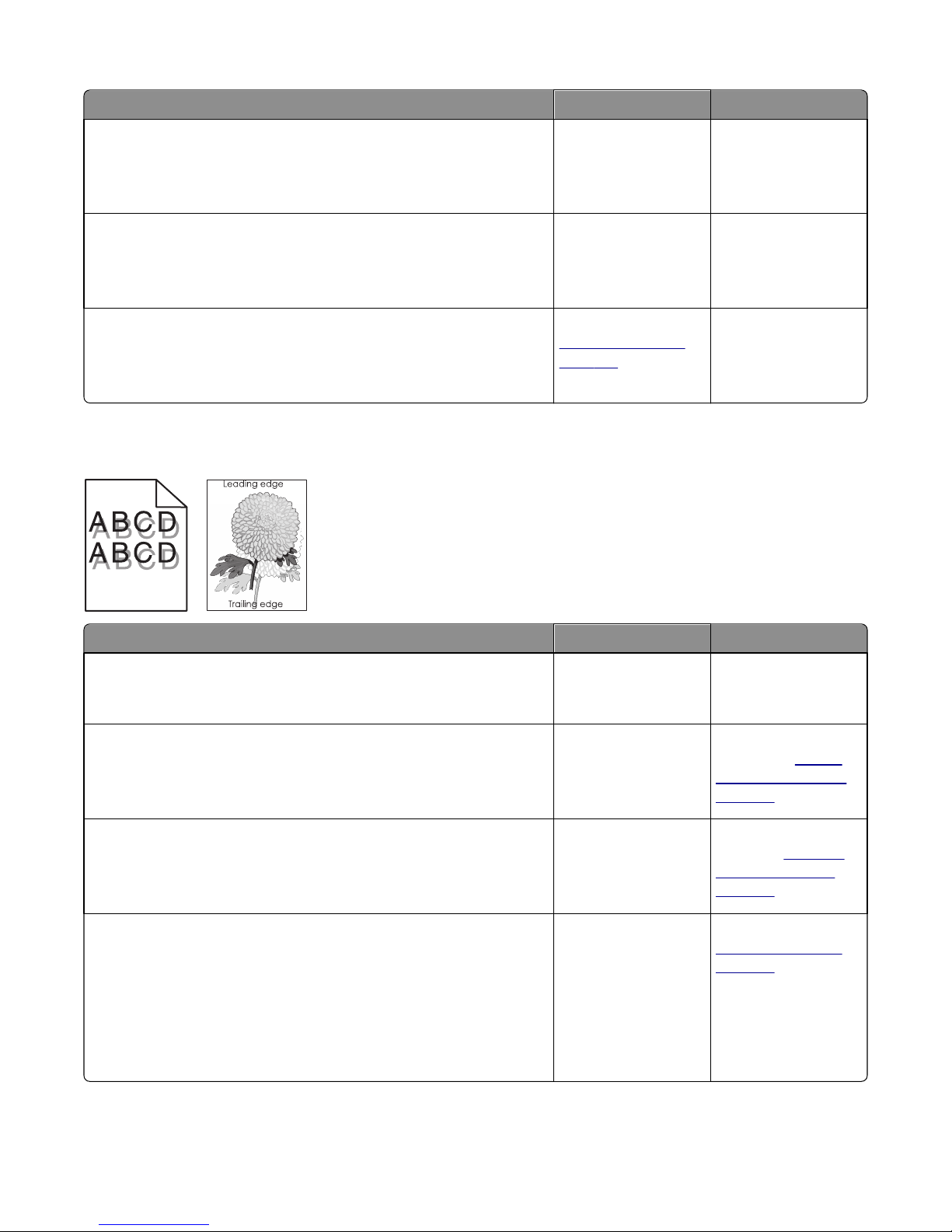

Page 66
Actions Yes No
7463
Step 1
Check the imaging unit for damage.
Is it free of damage?
Step 2
Remove any contamination from the imaging unit contacts.
Does the problem remain?
Step 3
Check the cables on the HVPS.
Are the above cables properly connected?
Shadow images check
Go to step 2. Replace the imaging
unit.
Go to step 3. The problem is solved.
Replace the HVPS. See
“HVPS removal” on
page 444.
Reconnect the cables.
Actions Yes No
Step 1
Does the shadow image appear every two pages?
Step 2
Check the upper redrive for wear or damage.
Is it free of wear or damage?
Step 3
Check the transfer roller for surface contamination or excessive wear.
Is it free of contamination and wear?
Step 4
Check the following fuser components for wear or damage:
• Gears
Go to step 2. Go to step 3.
Go to step 3. Replace the upper
redrive. See
redrive removal” on
page 571.
Go to step 4. Replace the transfer
roller. See
roller removal” on
page 480.
Go to step 5. Replace the fuser. See
“Fuser removal” on
page 556.
• Exit rollers
• Heat belt or hot roller
Are they free of damage?
“Upper
“Transfer
Diagnostic information
66

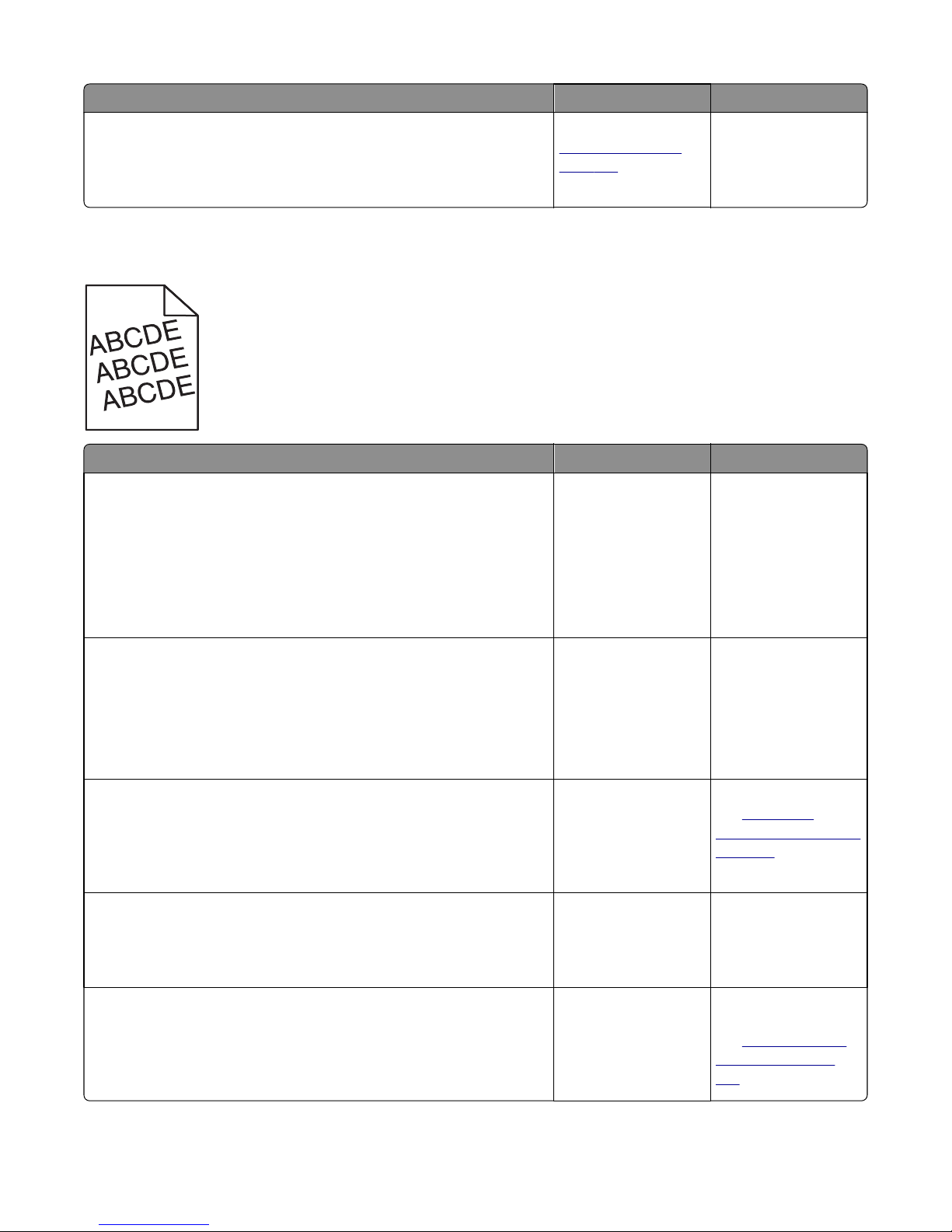

Page 67
Actions Yes No
7463
Step 5
Reseat the connections on the LVPS.
Does the problem remain?
Replace the LVPS. See
“LVPS removal” on
page 445.
Skewed print check
Actions Yes No
Step 1
a Perform a print test:
Diagnostics menu > PRINT TESTS > Tray 1
b Adjust the margins if necessary:
Diagnostics menu > REGISTRATION
Go to step 2. The problem is solved.
The problem is solved.
Does the error remain?
Step 2
a Check the media source.
b If the media is from tray 1, go to step 3.
If the media is from the MPF, go to step 5.
Is the media from tray 1?
Step 3
Make sure the pick roller tires are free of debris. Check for wear or
damage.
Are they free of wear or damage?
Step 4
Check the lift plate on the media tray for damage.
Is it free of damage?
Step 5
Make sure the MPF pick roller and separator pad are free of debris. Check
for wear or damage.
Are they free of wear or damage?
Go to step 3. If the media is from the
MPF, go to step 5.
Go to step 4. Replace the pick roller.
“Pick roller
See
assembly removal” on
page 541.
Go to step 8. Replace the media tray.
Go to step 6. Replace the MPF pick
roller/separator pad.
“MPF pick roller
See
removal” on page
468.
Diagnostic information
67
Page 68
Actions Yes No
7463
Step 6
Perform the media skew adjustment. See
adjustment” on page 393.
Does the problem remain?
Step 7
Make sure the input roller/deskew assembly is free of debris. Check for
wear or damage.
Are they free of wear or damage?
“Media aligner roller
Streaked horizontal lines check
Contact the next level
of support.
The problem is solved. Replace the printer.
The problem is solved.
Actions Yes No
Step 1
Select another tray or feeder and then resend the print job.
Specify the paper tray before sending the print job.
Go to step 2. The problem is solved.
• For Windows users, specify the type and weight from Print
Properties.
• For Macintosh users, specify the type and weight from the Print
dialog.
Does the problem remain?
Step 2
From the Paper menu on the printer control panel, check the paper type
and paper weight settings.
Do the paper type and paper weight settings match the paper in the tray?
Step 3
Load paper from a fresh package.
Paper absorbs moisture due to high humidity. Store paper in its
original wrapper until you use it.
Go to step 3. Change the paper type
and weight settings to
match the paper in the
tray.
Go to step 4. The problem is solved.
Does the problem remain?
Diagnostic information
68
Page 69
Actions Yes No
7463
Step 4
Make sure the imaging unit or toner cartridge is not damaged.
a Remove the print or toner cartridge.
Warning—Potential Damage: Be careful not to touch the
photoconductor drum or imaging unit. Doing so may affect the print
quality of future print jobs.
b Reinstall the print or toner cartridge.
Note: For some printer models, you may need to check all printer or
toner cartridges.
Does the problem remain?
Step 5
Replace the imaging unit or toner cartridge.
Does the problem remain?
Step 6
a Check the media condition.
b Load new, dry, recommended media.
c Reprint the defective image.
Go to step 5. The problem is solved.
Go to step 6. The problem is solved.
Go to step 7. The problem is solved.
Does the problem remain?
Step 7
a Check the media transfer route.
b Check the media route for contamination or obstacles.
Are there obstacles in the route?
Step 8
Check the imaging unit for proper installation.
Is the component properly installed?
Step 9
Check the transfer roller assembly for contamination and wear.
Is the component free of excess wear and contamination?
Step 10
a Check the heat belt and hot roller in the fuser.
b Remove the fuser unit assembly.
CAUTION—HOT SURFACE: The inside of the printer might be hot.
To reduce the risk of injury from a hot component, allow the surface to
cool before touching.
Go to step 8. Remove obstacles or
contamination.
Go to step 9. Inspect, clean, and
reinstall or replace the
imaging unit.
Go to step 10. Replace the transfer
“Transfer
Replace the fuser. See
“Fuser removal” on
page 556.
roller. See
roller removal” on
page 480.
Go to step 11.
Are there contaminations or cracks on the heat roll and/or pressure roll?
Diagnostic information
69
Page 70
Actions Yes No
7463
Step 11
Perform a print test.
Does the problem remain?
Contact the next level
of support.
Streaked vertical lines check
Actions Yes No
Step 1
Check the transfer roll for contamination or excessive wear.
Is it free of contamination or wear?
Step 2
Remove the fuser, and check for damage or debris on the rollers and belts.
Go to step 2. Replace the transfer
Go to step 3. Replace the fuser.
The problem is solved.
roll.
Is it free of damage and debris?
Step 3
Does the problem remain?
Toner specks check
Contact the next level
of support.
The problem is solved.
Diagnostic information
70

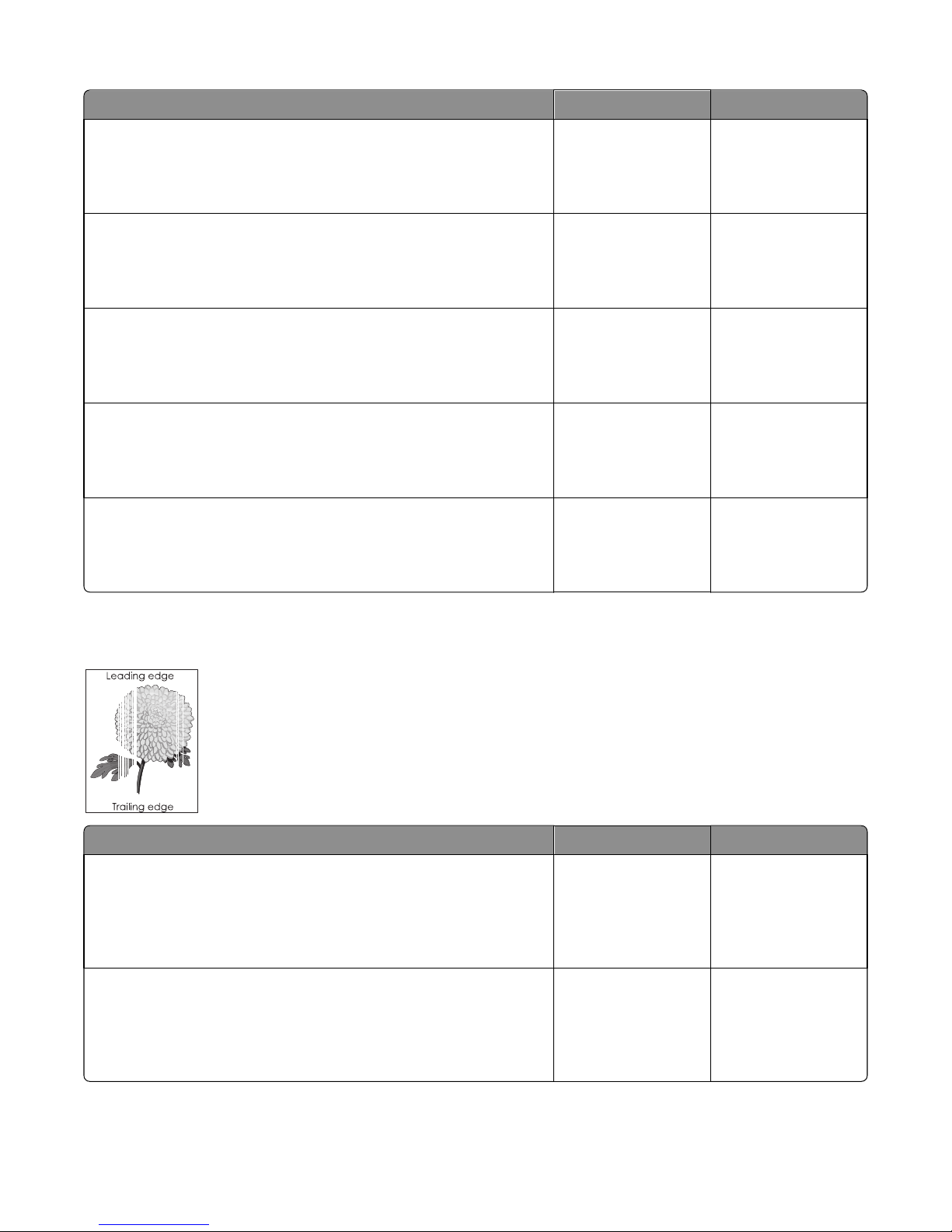

Page 71
Actions Yes No
7463
Step 1
Check the imaging unit for wear or damage.
Is it free of wear or damage?
Step 2
Make sure the paper path is free of debris or toner contamination.
Does the problem remain?
Step 3
Check the transfer roll for contamination or excessive wear.
Is it free of contamination or wear?
Step 4
Remove the fuser and check for damage or debris on the rollers and belts.
Is it free of damage and debris?
Step 5
Reseat the cables JVIDEO1 and JGLV on the controller board.
Does the problem remain?
Go to step 2. Replace the imaging
unit.
Go to step 3. The problem is solved.
Go to step 4. Replace the transfer
roll.
Go to step 5. Replace the fuser.
Replace the LSU. The problem is solved.
Vertical voids check
Action Yes No
Step 1
Check the media condition and load new dry, recommended media.
Reprint the defective image.
Does the problem remain?
Step 2
Check the media transfer route and media path for contamination and
debris.
Are the paths free of contamination and debris?
Go to step 2. The problem is solved.
Go to step 3. Remove debris or
contamination.
Diagnostic information
71
Page 72
Action Yes No
7463
Step 3
Check the laser beam route. Check for debris between the printhead
assembly and the PC drum.
Is the laser beam route free of debris, and the glass window in the
printhead assembly free of contamination?
Step 4
Check the print cartridge for proper installation.
Is the component properly installed?
Step 5
Check the transfer roller for contamination and wear.
Is the component free of excess wear and contamination?
Step 6
Check the laser printhead installation.
Is the component properly installed?
Step 7
Perform a print test.
Go to step 4. Remove debris or clean
the printhead
assembly window.
Go to step 5. Inspect, clean, and
replace the print
cartridge.
Go to step 6. Replace the transfer
roller. See
roller removal” on
page 480.
Go to step 7. Replace the laser
printhead removal. See
“Laser printhead
removal” on page
457.
Contact the next level
of support.
The problem is solved.
“Transfer
Does the problem remain?
Toner fog or background shading check
Diagnostic information
72
Page 73
Actions Yes No
7463
Step 1
Make sure the imaging unit or toner cartridge is not damaged.
Note: In some printer models, you may need to check all print or toner
cartridges.
a Remove the imaging unit or toner cartridge.
Warning—Potential Damage: Be careful not to touch the
photoconductor drum or imaging kit. Doing so may affect the print
quality of future print jobs.
b Reinstall the imaging unit or toner cartridge.
Does this solve the problem?
Step 2
Resend the print job:
Before sending the job to print, check to make sure that an off-white
background is not selected.
• For Windows users, check the Print properties.
• For Macintosh users, check the Print dialog.
Does this solve the problem?
Step 3
Replace the imaging unit or toner cartridge.
The problem is solved. Go to step 2.
The problem is solved. Go to step 3.
The problem is solved. Go to step 4.
Does this solve the problem?
Step 4
Replace the fuser.
Does this solve the problem?
Step 5
Replace the LVPS. See
Does this solve the problem?
Step 6
Replace the printhead. See
Does this solve the problem?
“LVPS removal” on page 445.
“Laser printhead removal” on page 457.
The problem is solved. Go to step 5.
The problem is solved. Go to step 6.
The problem is solved. Contact the next level
of support.
Diagnostic information
73
Page 74
Toner smear check
Actions Yes No
7463
Step 1
Check if the fuser screws are tightly fastened.
Are they tightly fastened?
Step 2
Check the following fuser components for wear or damage:
• Gears
• Exit rollers
• Heat belt or hot roller
Are they free of damage?
Step 3
Check the cables on the LVPS.
Are the connections on the above component properly connected?
Paper jams
Go to step 2. Reseat the fuser, and
tighten the screws.
Go to step 3. Replace the fuser. See
“Fuser removal” on
page 556.
Contact the next level
of support.
Replace the LVPS. See
“LVPS removal” on
page 445.
Avoiding jams
Load paper properly
•
Make sure paper lies flat in the tray.
Diagnostic information
74

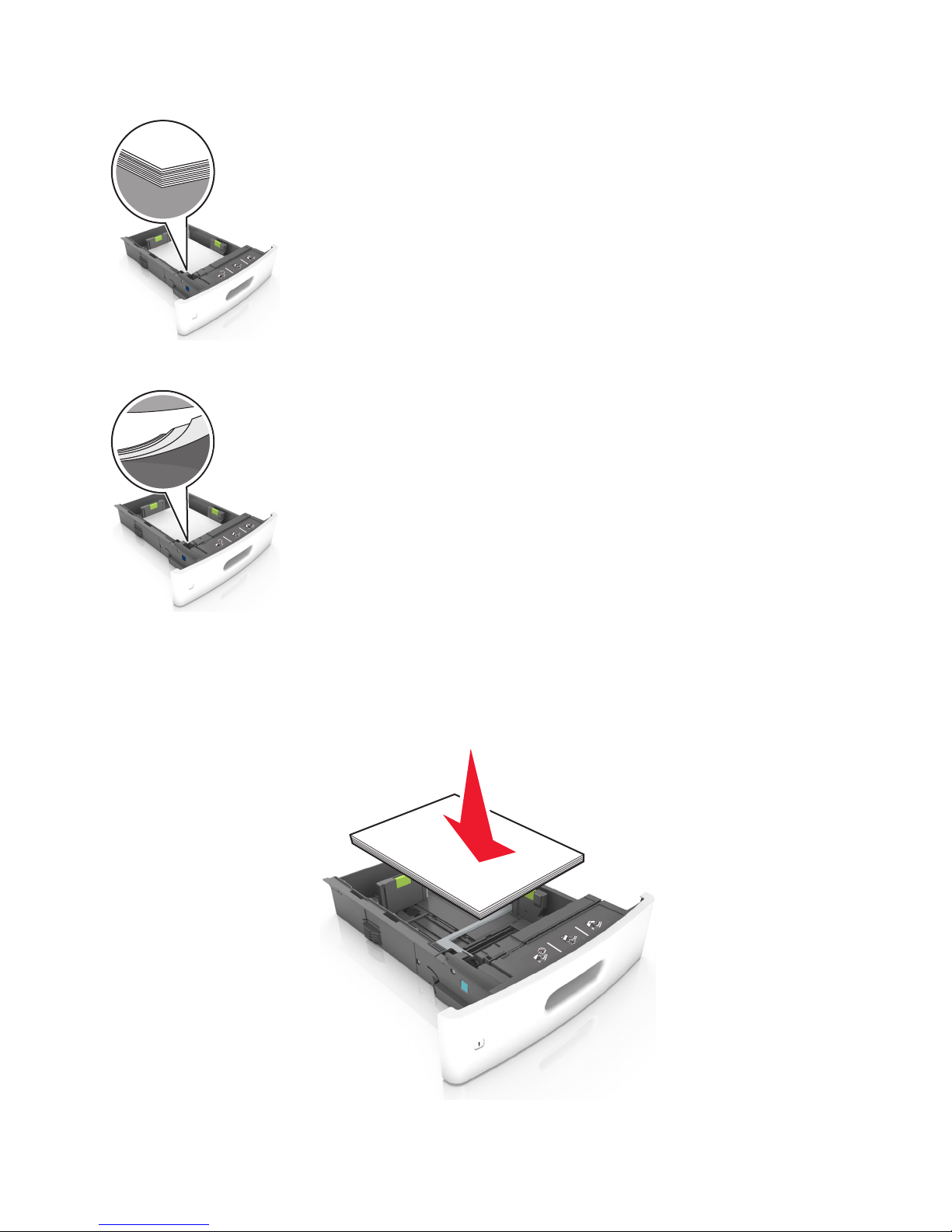

Page 75
Correct loading of paper
Incorrect loading of paper
7463
• Do not remove a tray while the printer is printing.
• Do not load a tray while the printer is printing. Load it before printing, or wait for a prompt to load it.
• Do not load too much paper. Make sure the stack height is below the maximum paper fill indicator.
• Do not slide the paper into the tray. Load paper as shown in the illustration.
Diagnostic information
75
Page 76
7463
• Make sure the guides in the tray or the multipurpose feeder are properly positioned and are not pressing tightly
against the paper or envelopes.
• Push the tray firmly into the printer after loading paper.
• If you are loading prepunched paper for use with the staple finisher, then make sure the holes on the long edge of
the paper are on the right side of the tray. For more information, see the “Loading paper and specialty media”
section of the User’s Guide.
Allow the paper to enter the optional mailbox bins properly (MX81x only)
•
Make sure to adjust the bin extender so that the paper size indicators match the size of the paper used.
Notes:
– If the bin extender is shorter than the size of the paper you are printing on, then the paper causes a jam in
the mailbox bin. For example, if you are printing on a legal-size paper and the bin extender is set to lettersize, then a jam occurs.
– If the bin extender is longer than the size of the paper you are printing on, then the edges become uneven
and the paper is not stacked properly. For example, if you are printing on a letter-size paper and the bin
extender is set to legal-size, then the paper does not stack properly.
Diagnostic information
76

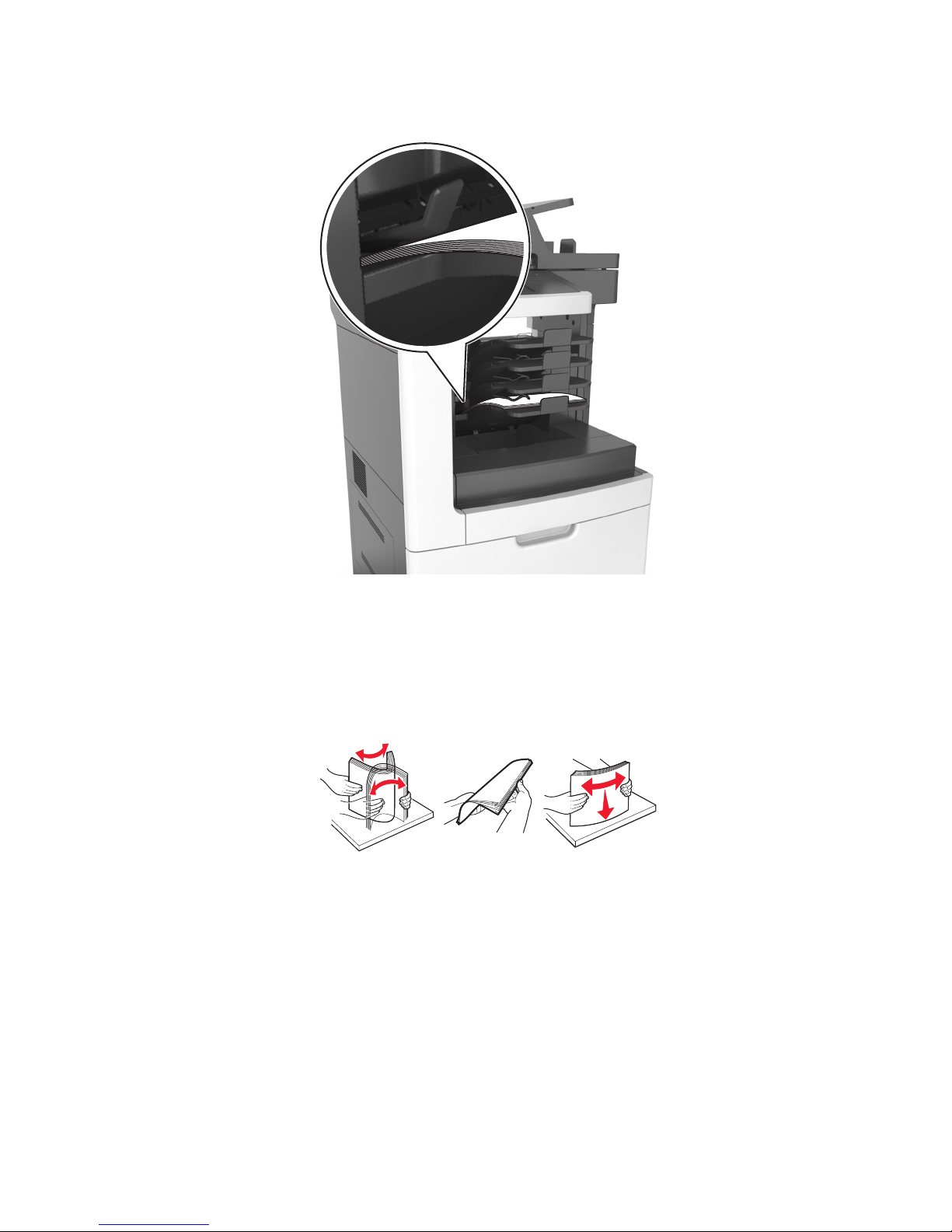

Page 77
7463
• If paper needs to be returned to the mailbox bin, then insert the paper under the bin arm, and then push the paper
all the way back.
Note: If the paper is not under the bin arm, then a jam occurs due to an overfilled bin.
Use recommended paper
•
Use only recommended paper or specialty media.
• Do not load wrinkled, creased, damp, bent, or curled paper.
• Flex, fan, and straighten paper or specialty media before loading it.
• Do not use paper that has been cut or trimmed by hand.
• Do not mix paper sizes, weights, or types in the same tray.
• Make sure the paper size and type are set correctly on the computer or printer control panel.
• Store paper per manufacturer recommendations.
Understanding jam messages and locations
When a jam occurs, a message indicating the jam location and information to clear the jam appears on the printer
display. Open the doors, covers, and trays indicated on the display to remove the jam.
Diagnostic information
77

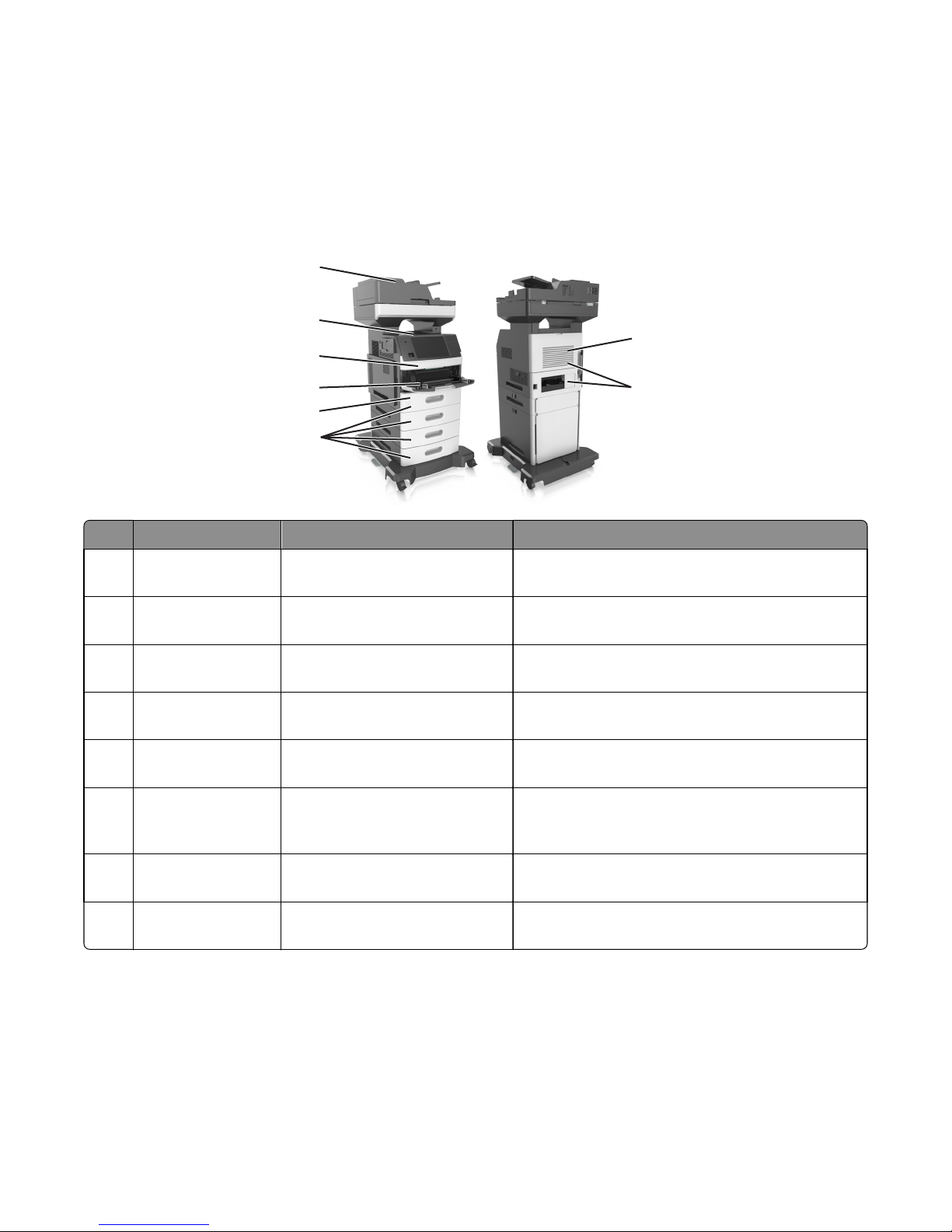

Page 78
Notes:
1
2
• When Jam Assist is set to On, the printer flushes blank pages or pages with partial prints to the standard bin
after a jammed page has been cleared. Check your printed output for blank pages.
• When Jam Recovery is set to On or Auto, the printer reprints jammed pages. However, the Auto setting reprints
jammed pages if adequate printer memory is available.
MX71x
8
7
6
5
4
3
7463
Area Area name Printer control panel message What to do
1 Upper rear door [x]‑page jam, open upper rear
door. [202]
2 Upper door and rear
duplex area
3 Trays [x]‑page jam, open tray [x]. [24x] Pull out the indicated tray, and then remove the
4 Duplex area [x]‑page jam, remove tray 1 to clear
5 Multipurpose feeder [x]‑page jam, clear manual
6 Inside the printer [x]‑page jam, lift front cover to
7 Standard bin [x]‑page jam, remove standard bin
8 Automatic document
feeder (ADF)
[x]‑page jam, open upper and lower
rear door. [231‑234]
duplex. [235–239]
feeder. [250]
remove cartridge. [200–201]
jam. [203]
[x]page jam, open automatic
feeder top cover. [28y.xx]
Open the rear door of the printer, and then remove the
jammed paper.
Open the rear door of the printer and the rear duplex
area, and then remove the jammed paper.
jammed paper.
Pull out tray 1 completely, then push the front duplex
flap down, and then remove the jammed paper.
Remove all paper from the multipurpose feeder, and
then remove the jammed paper.
Open the front cover and the multipurpose feeder,
then remove the toner cartridge and the imaging unit,
and then remove the jammed paper.
Remove all paper from the standard bin, and then
remove the jammed paper.
Remove all paper from the ADF tray, and then remove
the jammed paper.
Diagnostic information
78
Page 79
MX81x
11
10
9
8
7463
1
2
3
7
6
5
Area name Printer control panel message What to do
1 Stapler doors [x]‑page jam, remove paper, open
stapler door. Leave paper in
bin. [455–457]
2 Duplex area [x]‑page jam, remove tray 1 to clear
duplex. [235–239]
3 Trays [x]‑page jam, open tray [x]. [24x] Remove all paper from the standard bin, and then
4 Staple finisher rear
door
5 Upper door and rear
duplex area
[x]‑page jam, remove paper, open
finisher rear door. Leave paper in
bin. [451]
[x]‑page jam, open upper and lower
rear door. [231–234]
Remove paper from the stapler bin, and then open the
stapler outer and inner doors. Then remove the staple
cartridge, and then remove the jammed staples.
Pull out tray 1 completely, then push the front duplex
flap down, and then remove the jammed paper.
remove the jammed paper.
Open the rear door of the staple finisher, and then
remove the jammed paper.
Open the rear door of the printer and the rear duplex
area, and then remove the jammed paper.
4
6 Upper rear door [x]‑page jam, open upper rear
door. [202]
7 Mailbox [x]‑page jam, open mailbox rear
door. Leave paper in bin. [4yy.xx]
8 Multipurpose feeder [x]‑page jam, clear manual
feeder. [250]
9 Inside the printer [x]‑page jam, lift front cover to
remove cartridge. [200–201]
Open the upper rear door of the printer, and then
remove the jammed paper.
Open the rear door of the mailbox, and then remove
the jammed paper.
Remove all paper from the multipurpose feeder, and
then remove the jammed paper.
Open the front cover and the multipurpose feeder,
then remove the toner cartridge and the imaging unit,
and then remove the jammed paper.
Diagnostic information
79
Page 80
Area name Printer control panel message What to do
7463
10 Standard bin [x]‑page jam, remove standard bin
jam. [203]
11 Automatic
document feeder
(ADF)
[x]‑page jam, open automatic feeder
top cover. [28y.xx]
Remove all paper from the standard bin, and then
remove the jammed paper.
Remove all paper from the ADF tray, and then remove
the jammed paper.
200–201 paper jams
[x]‑page jam, lift front cover to remove cartridge. [200]
CAUTION—HOT SURFACE: The inside of the printer might be hot. To reduce the risk of injury from a hot
component, allow the surface to cool before touching.
1 Lift the front cover, and then pull down the multipurpose feeder door.
2 Lift the green handle, and then pull the toner cartridge out of the printer.
3 Place the cartridge aside.
Diagnostic information
80

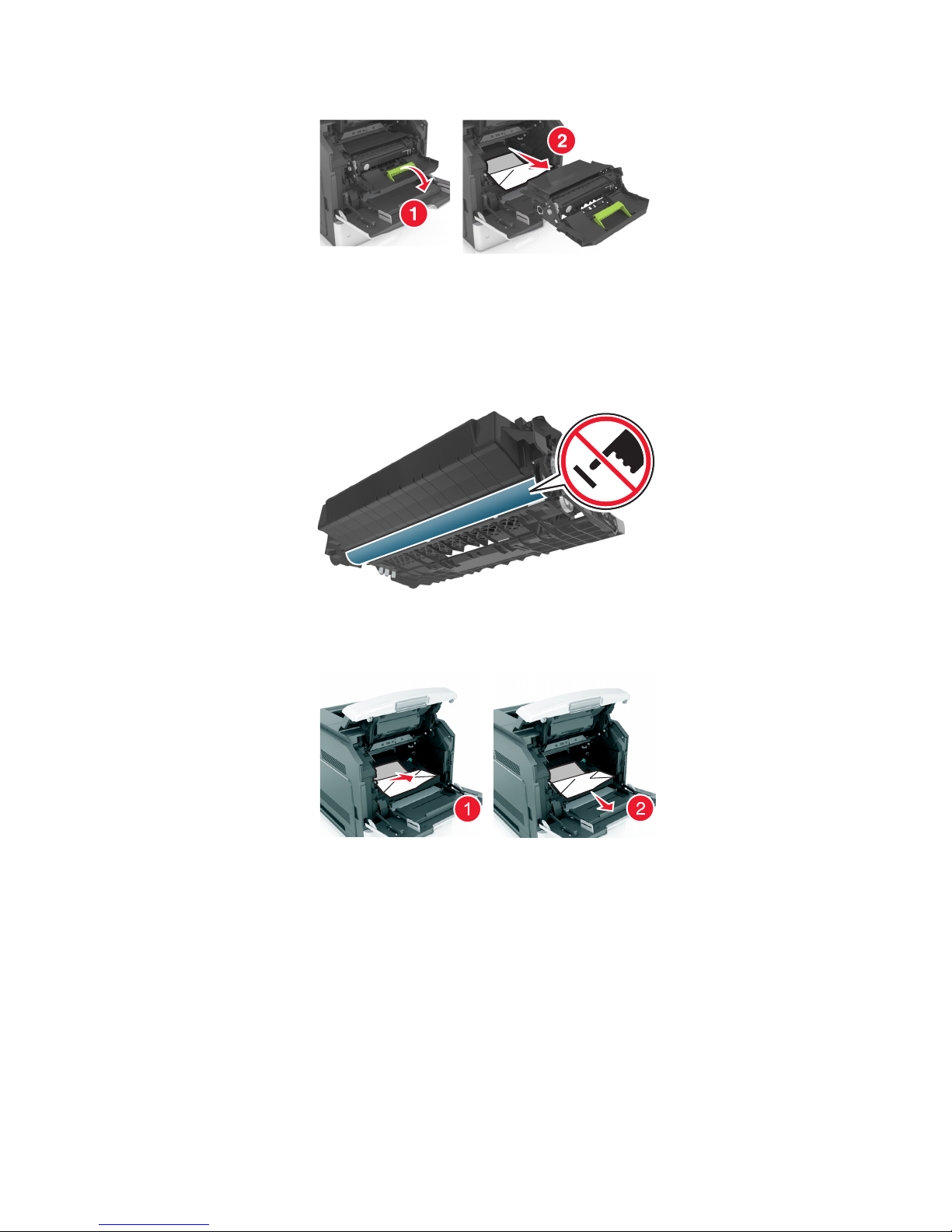

Page 81
4 Lift the green handle, and then pull the imaging unit out of the printer.
5 Place the imaging unit aside on a flat, smooth surface.
Warning—Potential Damage: Do not expose the imaging unit to direct light for more than 10 minutes.
Extended exposure to light may cause print quality problems.
Warning—Potential Damage: Do not touch the photoconductor drum. Doing so may affect the print quality of
future print jobs.
7463
6 Pull the jammed paper gently to the right, and then remove it from the printer.
Note: Make sure all paper fragments are removed.
Warning—Potential Damage: The jammed paper may be covered with toner, which can stain garments and
skin.
Diagnostic information
81
Page 82

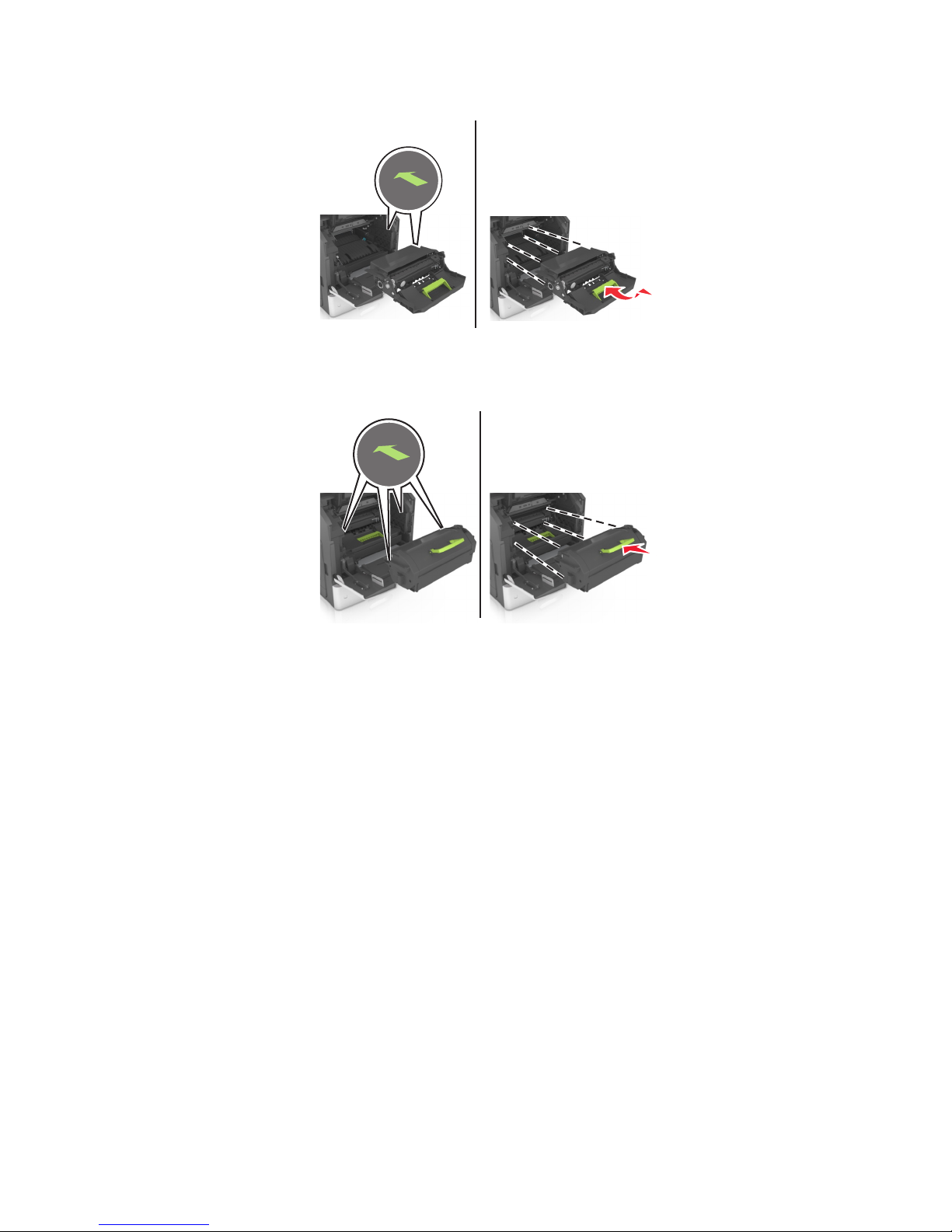

7 Install the imaging unit.
Note: Use the arrows on the side of the printer as a guide.
8 Insert the cartridge into the printer, and then push the green handle back into place.
7463
Notes:
• Align the arrows on the guides of the toner cartridge with the arrows in the printer.
• Make sure the cartridge is fully pushed in.
Diagnostic information
82
Page 83

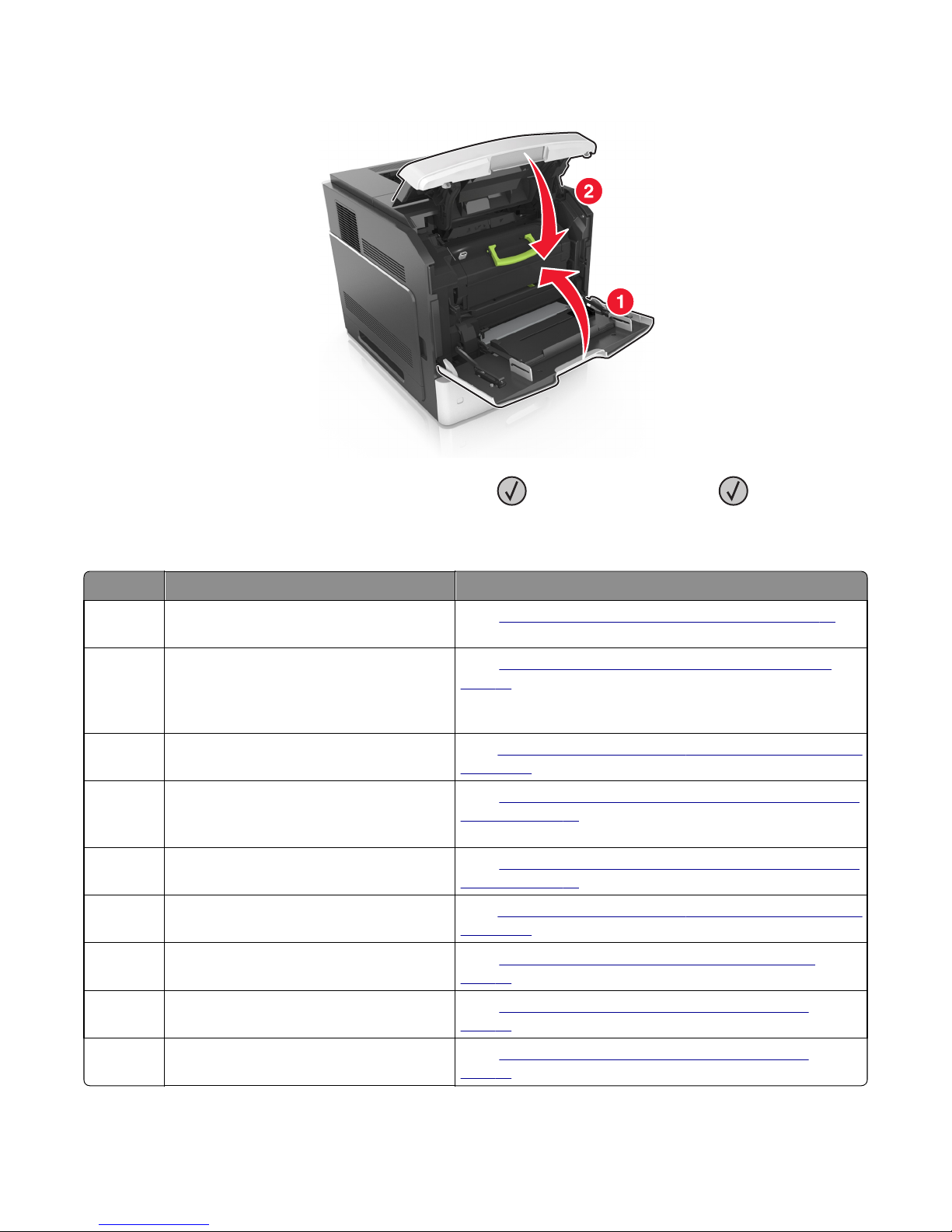

9 Close the multipurpose feeder door and the front cover.
7463
10 To clear the message and continue printing, select Next > > Clear the jam, press OK > .
200–201 paper jam messages
Error code Description Action
200.01 Media remains on the sensor (input) during
the warm‑up sequence.
200.02 Media reached the sensor (input) sooner
than the specified time. The wrong config ID
causes the engine to assume a 550 paper
path on a 250 model.
200.03 Media is late reaching the sensor (input)
within the specified time.
200.05 Media reached the sensor (input) but did not
clear it within the specified time. (Media
source = MPF tray)
200.07 Media reached the sensor (input) but did not
clear it within the specified time.
200.08 Media is late reaching the sensor (input)
within the specified time.
Go to
“Sensor (input) static jam service check” on page 85.
“Sensor (input) early arriving jam service check” on
Go to
page 85.
Go to
“Sensor (input) never‑ or late‑arriving jam service check”
on page 86.
“Sensor (input) late-leaving or did-not-clear jam service
Go to
check” on page 88.
“Sensor (input) late-leaving or did-not-clear jam service
Go to
check” on page 88.
Go to
“Sensor (input) never‑ or late‑arriving jam service check”
on page 86.
200.09 The proper main motor feedback to start
laser servo was not received.
200.10 Printhead motor was not locked when page
reached the sensor (input).
200.11 Printhead motor fell out of lock after the
page reached the sensor (input).
Go to
“Main drive motor control jam service check” on
page 90.
Go to
“Printhead motor control jam service check” on
page 90.
Go to
“Printhead motor control jam service check” on
page 90.
Diagnostic information
83
Page 84
Error code Description Action
7463
200.12 Printhead was not ready for the page when
the sensor (input) was reached.
200.13 The page at the sensor (input) is not the next
page to be imaged.
200.14 Proper main motor feedback to start laser
servo was not received.
200.15 Media reached the sensor (input) but did not
clear it within the specified time. (Media
source = Tray 1)
200.16 Main drive motor stalled. Go to
200.17 Fuser motor stalled. Go to
200.19 Paper never reached the sensor (input), but
it was successfully picked from the source.
200.25 Media reached the sensor (input) but did not
clear it within the specified time. (Media
source = Tray 2)
200.32 Detected sensor (control panel interlock)
bounce.
Go to
page 90.
Go to
page 92.
Go to
page 90.
Go to
check” on page 88.
page 90.
page 91.
Go to
page 92.
Go to
check” on page 88.
Go to
page 92.
“Printhead motor control jam service check” on
“Sensor (input) miscellaneous jam 1 service check” on
“Main drive motor control jam service check” on
“Sensor (input) late-leaving or did-not-clear jam service
“Main drive motor control jam service check” on
“Fuser drive motor control jam service check” on
“Sensor (input) miscellaneous jam 1 service check” on
“Sensor (input) late-leaving or did-not-clear jam service
“Sensor (input) miscellaneous jam 2 service check” on
200.33 Printhead was not ready for page when
sensor (input) was reached.
200.34 Short media detected. Go to
200.35 Media reached the sensor (input) but did not
clear it within the specified time. (Media
source = Tray 3)
200.45 Media reached the sensor (input), but did not
clear it within the specified time. (Media
source = Tray 4)
201.22 Toner add motor stalled. Go to
Go to
page 90.
page 93.
Go to
check” on page 88.
Go to
check” on page 88.
“Printhead motor control jam service check” on
“Sensor (input) miscellaneous jam 3 service check” on
“Sensor (input) late-leaving or did-not-clear jam service
“Sensor (input) late-leaving or did-not-clear jam service
“Toner add error service check” on page 243.
Diagnostic information
84
Page 85
Sensor (input) static jam service check
Action Yes No
7463
Step 1
Check the media path for partially fed or jammed media.
Is the media path free from partially fed or jammed media?
Step 2
Check the sensor (input) for proper operation.
a Enter the diagnostic mode.
b Select Base sensor test.
c Observe the line item input.
Does the display on the operator panel change every time the sensing
area of the sensor is interrupted or blocked?
Step 3
Check the sensor for proper connection.
Is the sensor connected properly?
Step 4
Perform a print test.
Go to step 2. Remove any pre-
staged or jammed
media.
Go to step 4. Go to step 3.
Replace the Sensor
(input). See
(input) removal” on
page 473.
Go to step 4.
Contact the next level
of support.
“Sensor
Reseat the connection.
Go to step 4.
The problem is solved.
Does the problem remain?
Sensor (input) early arriving jam service check
Action Yes No
Step 1
Check media origination.
Did the media originate from the MPF?
Step 2
Check the MPF pick roller.
Is the MPF pick roller free of excess wear and contamination?
Step 3
Perform a MPF print test and check the MPF pick solenoid for proper
operation.
Does the component operate properly?
Go to step 2. Go to step 5.
Go to step 3. Clean or replace the
Go to step 4. Replace the MPF pick
MPF pick roller. See
“MPF pick roller
removal” on page
468.
solenoid.
Diagnostic information
85
Page 86
Action Yes No
7463
Step 4
Check the MPF feeder lift plate assembly for damage.
Is the component free from damage?
Step 5
Check all the media trays for proper media installation.
Is the media properly installed in all the media trays?
Step 6
Check all of the media trays and the media path for partially fed media.
Are the media trays and the media path free from any partially fed pieces
of media?
Step 7
Check the sensor (input) for proper operation.
a Enter the diagnostic mode.
b Select Base sensor test.
c Observe the line item input.
Does the display on the operator panel change every time the sensing
area of the sensor is interrupted or blocked?
Go to step 5. Replace the MPF
feeder lift plate. See
“MPF feeder lift plate
removal” on page
465.
Go to step 6. Remove and properly
reinstall the media.
Go to step 7. Remove any pre-
staged or jammed
media.
Go to step 9. Go to step 8.
Step 8
Check the sensor (input) for proper connection.
Is the sensor connected properly?
Step 9
Perform a print test.
Does the problem remain?
Replace the Sensor
(input). See
(input) removal” on
page 473.
Go to step 9.
Contact the next level
of support.
“Sensor
Sensor (input) never‑ or late‑arriving jam service check
Action Yes No
Step 1
Check the media size setup and tray guides for all media trays.
Does the media size, in use, match the size set for all media trays?
Step 2
Check the media trays for overfilling.
Go to step 2. Replace the media, or
Remove any excess
new media.
Replace the
connection.
Go to step 9.
The problem is solved.
change the media size
setup.
Go to step 3.
Are any of the media trays overfilled?
Diagnostic information
86
Page 87
Action Yes No
7463
Step 3
Check the media condition in all media trays.
Is any of the media in any of the media trays crumpled or damaged?
Step 4
Check media origination.
Did the media originate from the MPF?
Step 5
Check the MPF pick roll assembly.
Is the component free of excess wear and contamination?
Step 6
Perform a MPF print test, and check the MPF pick solenoid for proper
operation.
Does the component operate properly?
Step 7
Check the pick roller assembly in the media tray being picked from.
Is the pick roller assembly free of excess wear and contamination?
Replace the damaged
media.
Go to step 5. Go to step 7.
Go to step 6. Clean or replace the
Go to step 9. Replace the MPF pick
Go to step 8. Clean or replace the
Go to step 4.
MPF pick roller. See
“MPF pick roller
removal” on page
468.
solenoid.
pick roller assembly.
“Pick roller
See
assembly removal” on
page 541.
Step 8
Check the pick roller assembly for proper installation. Fully press the pick
roller assembly toward the sensor to make sure the mounting latches are
properly engaging the slot in the shaft.
Does the problem remain?
Step 9
Check the aligner assembly for obstructions.
Is the component free from obstructions?
Step 10
Check the sensor (input) for proper operation.
a Enter the diagnostic mode.
b Select Base sensor test.
c Observe the line item input.
Does the display on the operator panel change every time the sensing
area of the sensor is interrupted or blocked?
Go to step 9. The problem is solved.
Go to step 10. Remove obstructions.
Go to step 12. Go to step 11.
Diagnostic information
87
Page 88
Action Yes No
7463
Step 11
Check the sensor for proper connection.
Is the sensor connected properly?
Step 12
Perform a print test, and check the appropriate media feeder.
Is the media properly picked and advanced out of the appropriate media
tray?
Step 13
Perform a print test, and check the main motor assembly.
Is the media properly transported and able to reach the sensor (input)?
Step 14
Perform a print test.
Does the problem remain?
Replace the Sensor
(input). See
(input) removal” on
page 473.
Go to step 13. Replace the
Go to step 14. Replace the main drive
Contact the next level
of support.
Sensor (input) late-leaving or did-not-clear jam service check
“Sensor
Replace the
connection.
appropriate media
feeder. See
feeder removal” on
page 429.
motor. See
motor removal” on
page 428.
The problem is solved.
“Media
“Main drive
Action Yes No
Step 1
Check the media size setup and tray guides for all media trays.
Does the media size, in use, match the size set for all media trays?
Step 2
Check the media trays for overfilling.
Are any of the media trays overfilled?
Step 3
Check the media condition in all media trays.
Is any of the media in any of the media trays crumpled or damaged?
Step 4
Check media origination.
Did the media originate from the MPF?
Step 5
Check the MPF pick roll assembly.
Is the component free of excess wear and contamination?
Go to step 2. Replace the media, or
change the media size
setup.
Remove any excess
new media.
Replace the damaged
media.
Go to step 5. Go to step 7.
Go to step 6. Clean or replace the
Go to step 3.
Go to step 4.
MPF pick roller. See
“MPF pick roller
removal” on page
468.
Diagnostic information
88
Page 89
Action Yes No
7463
Step 6
Perform a MPF print test, and check the MPF pick solenoid for proper
operation.
Does the component operate properly?
Step 7
Check the pick roller in the media tray being picked from.
Is the pick roller free of excess wear and contamination?
Step 8
Check the aligner assembly for obstructions.
Is the component free from obstructions?
Step 9
Check the sensor (input) for proper operation.
a Enter the diagnostic mode.
b Select Base sensor test.
c Observe the line item input.
Does the display on the control panel change every time the sensing area
of the sensor is interrupted or blocked?
Go to step 9. Replace the MPF pick
solenoid.
Go to step 8. Clean or replace the
pick roller. See
roller assembly
removal” on page
541.
Go to step 9. Remove obstructions.
Go to step 11. Go to step 10.
“Pick
Step 10
Check the sensor for proper connection.
Is the sensor connected properly?
Step 11
Perform a print test, and check the appropriate media feeder.
Is the media properly picked and advanced out of the appropriate media
tray?
Step 12
Perform a print test, and check the main motor assembly.
Is the media properly transported and able to reach the sensor (input)?
Step 13
Perform a print test.
Does the problem remain?
Replace the Sensor
(input). See
(input) removal” on
page 473.
Go to step 12. Replace the
Go to step 13. Replace the main drive
Contact the next level
of support.
“Sensor
Replace the
connection.
appropriate media
feeder. See
feeder removal” on
page 429.
motor. See
motor removal” on
page 428.
The problem is solved.
“Media
“Main drive
Diagnostic information
89
Page 90
Main drive motor control jam service check
Action Yes No
7463
Step 1
Reseat the imaging unit, and then perform a print test.
Does the error remain?
Step 2
Replace the imaging unit.
Does the error remain?
Step 3
Make sure that the main drive motor and the socket TRANSPORT MTR on
the controller board are properly connected.
Does the error remain?
Step 4
Reset the printer.
Does the error remain?
Printhead motor control jam service check
Go to step 2. The problem is solved.
Go to step 3. The problem is solved.
Replace the main drive
motor. See
motor removal” on
page 428.
Replace the controller
board. See
board removal” on
page 422.
“Main drive
“Controller
The problem is solved.
The problem is solved.
Action Yes No
Step 1
Ensure the cables for sockets “MIR MTR” and “VIDEO” on the controller
card are properly connected and not damaged.
Are the cables connected and undamaged?
Step 2
Reset the machine.
Does the error continue?
Step 3
Reset the machine.
Does the error continue?
Go to step 2. Reseat the
connections.
Go to step 2.
Replace the printhead.
“Laser printhead
See
removal” on page
457.
Replace the controller
board. See
board removal” on
page 422.
“Controller
Problem solved.
Problem solved.
Diagnostic information
90
Page 91
Fuser drive motor control jam service check
Action Yes No
7463
Step 1
Make sure that the paper is properly loaded to the tray. See
jams” on page 74.
“Avoiding
a Make sure that the paper is properly loaded to the tray. See “Avoiding
jams” on page 74.
b Perform a print test.
Does the error remain?
Step 2
Make sure that the firmware version is the latest, and update if necessary.
Does the error remain?
Step 3
Check if the voltage value at the power source is acceptable (>95% of rated
voltage when printer is in Ready State).
The following are the acceptable values for specific geographies:
• >109 VAC, US
• >218 VAC, HV geographies
• >95 VAC, Japan
Go to step 2. The problem is solved.
Go to step 3. The problem is solved.
Go to step 4. The problem is solved.
Does the error remain?
Step 4
Make sure that the fuser drive motor and the socket J24 on the controller
board are properly connected.
Does the error remain?
Step 5
Reset the printer.
Does the error remain?
Replace the fuser drive
motor. See
drive motor removal”
on page 425.
Go to step 5.
Contact the next level
of support.
“Fuser
The problem is solved.
The problem is solved.
Diagnostic information
91
Page 92
Sensor (input) miscellaneous jam 1 service check
Action Yes No
7463
Step 1
Check the appropriate media tray sensor (pass thro ugh) in the appropriate
input option for proper operation.
a Enter the diagnostic mode.
b Select Input tray tests.
c Select Sensor test.
d Select the appropriate input tray.
Observe the line item “pass through” for the appropriate media tray.
Does the display on the control panel change every time the sensing area
of the sensor is interrupted or blocked?
Step 2
Check the sensor for proper connection.
Is the sensor connected properly?
Step 3
Perform a print test using the appropriate input tray.
Does the error continue?
Go to step 3. Go to step 2.
Replace the sensor
(pass through). See
“Sensor (drawer pass
through) removal ” on
page 659.
Replace the input
option.
Reseat the connection.
The problem is solved.
Sensor (input) miscellaneous jam 2 service check
Action Yes No
Step 1
Check the sensor (control panel door interlock) for proper operation.
a Enter the diagnostic mode.
b Select Base sensor test.
c Observe the line item control panel door interlock.
Does the display on the control panel change every time the sensing area
of the sensor is interrupted or blocked?
Step 2
Check the sensor (control panel door interlock) for proper connection.
Is the sensor connected properly?
Step 3
Reset the machine.
Does the error continue?
Go to step 3. Go to step 2.
Replace the sensor
(control panel door
interlock).
Go to step 3.
Replace the controller
board. See
board removal” on
page 422.
“Controller
Replace the
connection.
Go to step 3.
The problem is solved.
Diagnostic information
92
Page 93
Sensor (input) miscellaneous jam 3 service check
Action Yes No
7463
Step 1
Check the media size setup and tray guides for all media trays.
Does the media size in use match the size set for all media trays?
Step 2
Check the media condition in all media trays.
Is any of the media in any of the media trays crumpled or damaged?
Step 3
Reset the machine.
Does the error continue?
Go to step 2. Replace the media, or
change the media size
setup.
Replace the damaged
media.
Contact the next level
of technical support.
Go to step 3.
Problem solved.
202 paper jams
[x]‑page jam, open upper rear door. [202]
CAUTION—HOT SURFACE: The inside of the printer might be hot. To reduce the risk of injury from a hot
component, allow the surface to cool before touching.
1 Pull down the rear door.
2 Firmly grasp the jammed paper on each side, and then gently pull it out.
Note: Make sure all paper fragments are removed.
Diagnostic information
93
Page 94
3 Close the rear door.
4 To clear the message and continue printing, select Next > > Clear the jam, press OK > .
7463
202 paper jam messages
Error code Description Action
202.01 Media remains on the sensor (narrow media)
during the warm‑up sequence (MS71x).
202.01 Media remains on the sensor (fuser exit)
during the warm‑up sequence.
202.03 The media is late reaching the sensor (fuser
exit) within the specified time.
202.05 The media reached the sensor (fuser exit) but
did not clear it within the specified time.
202.07 The media reached the sensor (fuser exit) but
did not clear it within the specified time.
202.13 The media is late reaching the sensor (fuser
exit) within the specified time.
202.14 Expected banner sheet (assumed wide) not
detected by narrow media sensor—possible
accordion jam, unsupported narrow banner
media, or missing signal.
202.16 Page at fuser nip before fuser started
ramping toward desired area. Indicates code
may be receiving more hall interrupts than
intended.
Go to
page 99.
Go to
95.
Go to
page 97.
Go to
page 96.
Go to
page 96.
Go to
page 97.
Go to
on page 98.
Go to
91.
“Sensor (narrow media) static jam service check” on
“Sensor (fuser exit) static jam service check” on page
“Sensor (fuser exit) late-arriving jam service check” on
“Sensor (fuser exit) late-leaving jam service check” on
“Sensor (fuser exit) late-leaving jam service check” on
“Sensor (fuser exit) late-arriving jam service check” on
“Sensor (narrow media) late arriving jam service check”
“Fuser drive motor control jam service check” on page
202.17 Page at fuser nip before fuser reached
acceptable operating temperature. Page
arrived at fuser earlier than expected, so it
was probably staged.
Go to
“Fuser drive motor control jam service check” on page
91.
Diagnostic information
94
Page 95
Error code Description Action
7463
202.22 Cartridge Motor—Motor under‑speed error.
Motor made it to closed loop at a steady
state, but then detected speed was below
threshold
202.28 The sensor (fuser exit) rebounded upon being
released by the trailing edge of the media.
202.31 Media remains on the sensor (narrow media)
during the warm‑up sequence.
202.32 The media reached the sensor (fuser exit) but
did not clear it within the specified time.
202.33 Expected wide page not detected by sensor
(narrow media), possible accordion jam or
missing signal.
202.43 The media is late reaching the sensor (fuser
exit) within the specified time.
202.45 Media remains on the sensor (fuser exit)
during the warm‑up sequence.
202.49 Fuser info chip error Go to
Go to
91.
Go to
page 99.
Go to
page 99.
Go to
page 96.
Go to
on page 98.
Go to
page 97.
Go to
95.
Sensor (fuser exit) static jam service check
“Fuser drive motor control jam service check” on page
“Sensor (fuser exit) miscellaneous jam service check” on
“Sensor (narrow media) static jam service check” on
“Sensor (fuser exit) late-leaving jam service check” on
“Sensor (narrow media) late arriving jam service check”
“Sensor (fuser exit) late-arriving jam service check” on
“Sensor (fuser exit) static jam service check” on page
“Fuser ID chip control jam service check” on page 100.
Action Yes No
Step 1
Check the media size setup and tray guides for all media trays.
Does the media size, in use, match the size set for all media trays?
Step 2
Check the media condition in all media trays.
Is any of the media in any of the media trays crumpled or damaged?
Step 3
Reset the machine.
Does the error continue?
Go to step 2. Replace the media, or
change the media size
setup.
Replace the damaged
media with new media.
Contact the next
highest level of
technical support.
Go to step 3.
Problem solved.
Diagnostic information
95
Page 96
Sensor (fuser exit) late-leaving jam service check
Action Yes No
7463
Step 1
Check the rear door.
Is the rear door free of damage and properly closed?
Step 2
Check the fuser unit assembly for damage and life expiration.
Is the component damaged or has it exceeded life?
Step 3
Check the sensor (fuser output) for proper operation.
a Enter the diagnostic mode.
b Select Base sensor tests.
c Observe the line item fuser exit.
Does the display on the control panel change every time the sensing area
of the sensor is interrupted or blocked?
Step 4
Check the sensor (fuser output) for proper connection.
Is the sensor connected properly?
Go to step 2. Close or replace the
rear door. See
door removal” on
page 549.
Replace the fuser. See
“Fuser removal” on
page 556.
Go to step 5. Go to step 4.
Replace the fuser. See
“Fuser removal” on
page 556.
Go to step 3.
Reseat the connection.
“Rear
Step 5
Check the upper redrive for damage.
Is the component free from damage?
Step 6
Perform a print test, and check the upper redrive motor for proper
operation.
Does the component operate properly?
Step 7
Perform a print test.
Does the problem remain?
Go to step 6. Replace the upper
redrive. See
redrive removal” on
page 571.
Go to step 7. Replace the upper
redrive motor. See
“Upper redrive motor
removal” on page
569.
Contact the next level
of support.
The problem is solved.
“Upper
Diagnostic information
96
Page 97
Sensor (fuser exit) late-arriving jam service check
Action Yes No
7463
Step 1
Check the fuser unit assembly for damage and life expiration.
Is the component damaged or has it exceeded life?
Step 2
Check the fuser unit assembly for obstructions.
Is the component free from obstructions?
Step 3
Check the sensor (fuser output) for proper operation.
a Enter the diagnostic mode.
b Select Base sensor tests.
c Observe the line item output.
Does the display on the control panel change every time the sensing area
of the sensor is interrupted or blocked?
Step 4
Check the sensor (fuser output) for proper connection.
Is the sensor connected properly?
Replace the fuser. See
“Fuser removal” on
page 556.
Go to step 3. Go to step 3.
Go to step 5. Go to step 4.
Replace the fuser. See
“Fuser removal” on
page 556.
Go to step 2.
Reseat the connection.
Step 5
Check the transfer roller for damage.
Is the component free from damage?
Step 6
Check the media aligner roller for damage.
Is the component free from damage?
Step 7
Perform a print test, and check the main motor assembly for proper
operation.
Is the media properly transported and able to reach the sensor (fuser
exit)?
Step 8
Perform a print test.
Does the problem remain?
Go to step 6. Replace the transfer
roller. See
roller removal” on
page 480.
Go to step 7. Replace the media
aligner roller. See
“Media aligner roller
removal” on page
460.
Go to step 8. Replace the upper
fuser drive motor. See
“Fuser drive motor
removal” on page
425.
Contact the next level
of support.
The problem is solved.
“Transfer
Diagnostic information
97
Page 98
Sensor (narrow media) late arriving jam service check
Action Yes No
7463
Step 1
Check the media size setup and tray guides for all media trays.
Does the media size, in use, match the size set for all media trays?
Step 2
Check all the media trays for proper media installation.
Is the media properly installed in all the media trays?
Step 3
Check the rear door.
Is the rear door free of damage and properly closed?
Step 4
Check the fuser unit assembly for damage and life expiration.
Is the component damaged, or has it exceeded life?
Step 5
Check the sensor (narrow media) for proper operation.
a Enter the diagnostic mode.
b Select Base sensor test.
c Observe the line item input.
Go to step 2. Replace the media, or
change the media size
setup.
Go to step 3. Remove and properly
reinstall the media.
Go to step 4. Close or replace the
rear door. See
door removal” on
page 549.
Replace the fuser. See
“Fuser removal” on
page 556.
Go to step 7. Go to step 6.
Go to step 5.
“Rear
Does the display on the operator panel change every time the sensing
area of the sensor is interrupted or blocked?
Step 6
Check the sensor (narrow media) for proper connection.
Is the sensor connected properly?
Step 7
Check the upper redrive for damage.
Is the component free from damage?
Step 8
Perform a print test, and check the upper redrive motor for proper
operation.
Does the component operate properly?
Step 9
Perform a print test.
Does the problem remain?
Replace the fuser. See
“Fuser removal” on
page 556.
Go to step 8. Replace the upper
Go to step 9. Replace the upper
Contact the next level
of support.
Reseat the connection.
redrive. See
redrive removal” on
page 571.
redrive motor. See
“Upper redrive motor
removal” on page
569.
The problem is solved.
“Upper
Diagnostic information
98
Page 99
Sensor (narrow media) static jam service check
Action Yes No
7463
Step 1
Check the fuser for jammed media.
Is the fuser path free from jammed media?
Step 2
Check the sensor (fuser exit) for proper operation.
a Enter the diagnostic mode.
b Select Base sensor test.
c Observe the line item fuser exit.
Does the display on the control panel change every time the sensing area
of the sensor is interrupted or blocked?
Step 3
Check the sensor (fuser exit) for proper connection.
Is the sensor connected properly?
Step 4
Perform a print test.
Does the problem remain?
Go to step 2. Remove any jammed
media.
Go to step 4. Go to step 3.
Replace the fuser. See
“Fuser removal” on
page 556.
Go to step 4.
Contact the next level
of support.
Reseat the connection.
Go to step 4.
The problem is solved.
Sensor (fuser exit) miscellaneous jam service check
Action Yes No
Step 1
Check the sensor (fuser exit) for proper operation.
a Enter the diagnostic mode.
b Select Base sensor test.
c Observe the line item fuser exit.
Does the display on the control panel change every time the sensing area
of the sensor is interrupted or blocked?
Step 2
Check the sensor (fuser exit) for proper connection.
Is the sensor connected properly?
Step 3
Perform a print test.
Does the problem remain?
Go to step 3. Go to step 2.
Replace the fuser. See
“Fuser removal” on
page 556.
Contact the next level
of support.
Reseat the connection.
The problem is solved.
Diagnostic information
99
Page 100

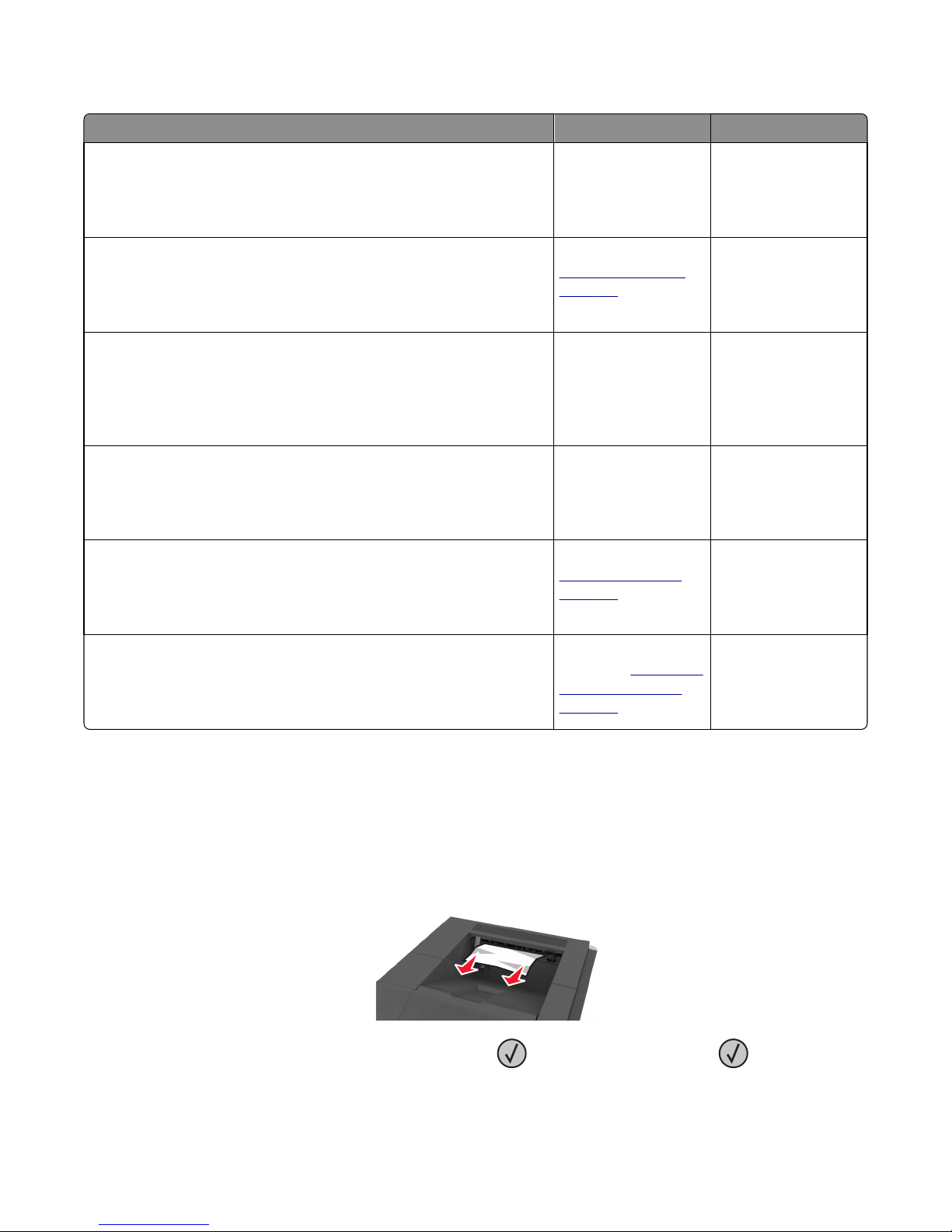

Fuser ID chip control jam service check
Action Yes No
7463
Step 1
Ensure the fuser is properly installed.
Is the fuser properly installed?
Step 2
Remove the existing fuser, and install a different fuser.
Does the error remain?
Step 3
Ensure the cable for socket J27 on the controller board is properly
connected.
Is the above connection properly connected?
Step 4
Ensure the LVPS connections are properly connected.
Are the above connections properly connected?
Step 5
Reset the machine.
Does the error continue?
Go to step 2. Reinstall the fuser.
Replace the fuser. See
“Fuser removal” on
page 556.
Go to step 3.
Go to step 4. Reseat the connection.
Go to step 5. Reseat the
Replace the LVPS. Go to
“LVPS removal” on
page 445.
Go to step 6.
Problem solved.
connections.
Problem solved.
Step 6
Reset the machine.
Does the error continue?
Replace the controller
board. See
board removal” on
page 422.
“Controller
Problem solved.
203 paper jams
[x]‑page jam, remove standard bin jam. [203]
1 Firmly grasp the jammed paper on each side, and then gently pull it out.
Note: Make sure all paper fragments are removed.
2 To clear the message and continue printing, select Next > > Clear the jam, press OK > .
