Lexmark MS410d, MS410dn, MS510dn, MS610dn, MS610de User guide

...

Download

MS410 Series

User's Guide

March 2014 www.lexmark.com

Machine type(s):

4514

Model(s):

420, 430

Contents 2

Safety information.......................................................................................5

Learning about the printer...........................................................................7

Finding information about the printer......................................................................................................7

Selecting a location for the printer............................................................................................................8

Printer configurations...............................................................................................................................9

Using the printer control panel...............................................................................................................11

Understanding the colors of the Sleep button and indicator lights........................................................12

Using the Embedded Web Server...........................................................................................................12

Using the Local Printer Settings Utility....................................................................................................13

Additional printer setup.............................................................................14

Installing internal options........................................................................................................................14

Installing hardware options.....................................................................................................................17

Attaching cables......................................................................................................................................18

Setting up the printer software...............................................................................................................19

Networking..............................................................................................................................................21

Verifying printer setup............................................................................................................................24

Loading paper and specialty media............................................................26

Setting the paper size and type...............................................................................................................26

Configuring Universal paper settings......................................................................................................26

Using the standard bin and paper stop...................................................................................................27

Loading trays...........................................................................................................................................27

Loading the multipurpose feeder............................................................................................................32

Linking and unlinking trays......................................................................................................................35

Paper and specialty media guide................................................................38

Using specialty media..............................................................................................................................38

Paper guidelines......................................................................................................................................40

Supported paper sizes, types, and weights.............................................................................................44

Printing......................................................................................................47

Printing a document................................................................................................................................47

Printing information pages......................................................................................................................48

Contents 3

Printing from a mobile device.................................................................................................................48

Canceling a print job................................................................................................................................48

Understanding the printer menus..............................................................50

Menus list................................................................................................................................................50

Paper menu.............................................................................................................................................50

Reports menu..........................................................................................................................................59

Network/Ports menu...............................................................................................................................60

Security menu.........................................................................................................................................67

Settings menu..........................................................................................................................................69

Saving money and the environment...........................................................81

Saving paper and toner...........................................................................................................................81

Saving energy..........................................................................................................................................82

Recycling..................................................................................................................................................84

Securing the printer...................................................................................86

Using the security lock feature................................................................................................................86

Statement of Volatility............................................................................................................................86

Erasing volatile memory..........................................................................................................................87

Erasing non‑volatile memory..................................................................................................................87

Finding printer security information.......................................................................................................87

Maintaining the printer..............................................................................88

Cleaning the printer................................................................................................................................88

Checking the status of parts and supplies...............................................................................................88

Estimated number of remaining pages...................................................................................................89

Ordering supplies....................................................................................................................................89

Storing supplies.......................................................................................................................................91

Replacing supplies...................................................................................................................................92

Moving the printer..................................................................................................................................95

Managing the printer.................................................................................97

Finding advanced networking and administrator information...............................................................97

Accessing the remote control panel........................................................................................................97

Viewing reports.......................................................................................................................................97

Configuring supply notifications from the Embedded Web Server.........................................................97

Copying printer settings to other printers...............................................................................................98

Contents 4

Restoring factory default settings...........................................................................................................99

Creating a printer control panel PIN.......................................................................................................99

Clearing jams............................................................................................101

Avoiding jams........................................................................................................................................101

Understanding jam messages and locations.........................................................................................102

Jam, front door [20y.xx]........................................................................................................................104

Jam, rear door [20y.xx]..........................................................................................................................107

Jam, standard bin [20y.xx].....................................................................................................................108

Jam, pull tray 1. Push down blue flap. [23y.xx].....................................................................................109

Jam, tray [x] [24y.xx].............................................................................................................................110

Jam, MP feeder [250.xx]........................................................................................................................111

Troubleshooting.......................................................................................112

Understanding the printer messages....................................................................................................112

Solving printer problems.......................................................................................................................121

Solving print problems..........................................................................................................................127

Embedded Web Server does not open.................................................................................................149

Contacting customer support................................................................................................................150

Notices.....................................................................................................152

Product information..............................................................................................................................152

Edition notice........................................................................................................................................152

Power consumption..............................................................................................................................156

Index........................................................................................................165

Safety information 5

Safety information

Connect the power cord directly to an appropriately rated and properly grounded electrical outlet that is near the product and easily accessible.

CAUTION—POTENTIAL INJURY: Do not use this product with extension cords, multioutlet power strips, multioutlet extenders, or other types of surge or UPS devices. The power rating capacity of these types of accessories can be easily overloaded by a laser printer and may result in poor printer performance, property damage, or potential fire.

Do not place or use this product near water or wet locations.

CAUTION—POTENTIAL INJURY: This product uses a laser. Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

This product uses a printing process that heats the print media, and the heat may cause the media to release emissions. You must understand the section in your operating instructions that discusses the guidelines for selecting print media to avoid the possibility of harmful emissions.

CAUTION—HOT SURFACE: The inside of the printer might be hot. To reduce the risk of injury from a hot component, allow the surface to cool before touching it.

CAUTION—POTENTIAL INJURY: The lithium battery in this product is not intended to be replaced. There is a danger of explosion if a lithium battery is incorrectly replaced. Do not recharge, disassemble, or incinerate a lithium battery. Discard used lithium batteries according to the manufacturer's instructions and local regulations.

CAUTION—POTENTIAL INJURY: Before moving the printer, follow these guidelines to avoid personal injury or printer damage:

• Turn the printer off using the power switch, and then unplug the power cord from the electrical outlet.

• Disconnect all cords and cables from the printer before moving it.

• If an optional tray is installed, then remove it from the printer. To remove the optional tray, slide the latch on the

right side of the tray toward the front of the tray until it clicks into place.

• Use the handholds located on both sides of the printer to lift it.

• Make sure your fingers are not under the printer when you set it down.

• Before setting up the printer, make sure there is adequate clearance around it.

Use only the power cord provided with this product or the manufacturer's authorized replacement.

CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or memory devices sometime after setting up the printer, then turn the printer off, and unplug the power cord from the electrical outlet before continuing. If you have any other devices attached to the printer, then turn them off as well, and unplug any cables going into the printer.

CAUTION—SHOCK HAZARD: Make sure that all external connections (such as Ethernet and telephone system connections) are properly installed in their marked plug-in ports.

This product is designed, tested, and approved to meet strict global safety standards with the use of specific manufacturer's components. The safety features of some parts may not always be obvious. The manufacturer is not responsible for the use of other replacement parts.

Safety information 6

CAUTION—POTENTIAL INJURY: Do not cut, twist, bind, crush, or place heavy objects on the power cord. Do not subject the power cord to abrasion or stress. Do not pinch the power cord between objects such as furniture and walls. If any of these things happen, a risk of fire or electrical shock results. Inspect the power cord regularly for signs of such problems. Remove the power cord from the electrical outlet before inspecting it.

Refer service or repairs, other than those described in the user documentation, to a service representative.

CAUTION—SHOCK HAZARD: To avoid the risk of electrical shock when cleaning the exterior of the printer, unplug the power cord from the electrical outlet and disconnect all cables from the printer before proceeding.

CAUTION—POTENTIAL INJURY: To reduce the risk of equipment instability, load each tray separately. Keep all other trays closed until needed.

CAUTION—SHOCK HAZARD: Do not set up this product or make any electrical or cabling connections, such as the fax feature, power cord, or telephone, during a lightning storm.

SAVE THESE INSTRUCTIONS.

Learning about the printer 7

Learning about the printer

Finding information about the printer

What are you looking for? Find it here

Initial setup instructions:

• Connecting the printer

• Installing the printer software

Additional setup and instructions for using the printer:

• Selecting and storing paper and specialty media

• Loading paper

• Configuring printer settings

• Viewing and printing documents and photos

• Setting up and using the printer software

• Configuring the printer on a network

• Caring for and maintaining the printer

• Troubleshooting and solving problems

Instructions for:

• Connecting the printer to an Ethernet network

• Troubleshooting printer connection problems

Help using the prin ter software Windows or Mac Help—Open a printer software program

Setup documentation—The setup documentation came with the printer and is also available at

http://support.lexmark.com.

User's Guide and Quick Reference Gu ide—The guides may be available on the Software and Documentation CD.

For more information, visit

http://support.lexmark.com.

Networking Guide—Open the Software and Documentation CD, and then navigate to:

Documentation > User’s Guide and other publications > Networking Guide

or application, and then click Help.

Click

to view context‑sensitive information.

Notes:

• Help is automatically installed with the printer

software.

• The printer software is located in the printer

program folder or on the desktop, depending on your operating system.

Learning about the printer 8

What are you looking for? Find it here

The latest supplemental information, updates, and customer support:

• Documentation

• Driver downloads

• Live chat support

• E‑mail support

• Voice support

Lexmark support Web site—

http://support.lexmark.com

Note: Select your country or region, and then select

your product to view the appropriate support site. Support telephone numbers and hours of operation for

your country or region can be found on the support Web site or on the printed warranty that came with your printer.

Record the following information (located on the store receipt and at the back of the printer), and have it ready when you contact customer support so that they may serve you faster:

• Machine Type number

• Serial number

• Date purchased

• Store where purchased

Warranty information Warranty information varies by country or region:

• In the U.S.—See the Statement of Limited Warranty

included with this printer, or at

http://support.lexmark.com.

• In other countries and regions—See the printed

warranty that came with your printer.

Selecting a location for the printer

When selecting a location for the printer, leave enough room to open trays, covers, and doors. If you plan to install any hardware options, then leave enough room for them also. It is important to:

• Set up the printer near a properly grounded and easily accessible electrical outlet.

• Make sure airflow in the room meets the latest revision of the ASHRAE 62 standard or the CEN Technical Committee

156 standard.

• Provide a flat, sturdy, and stable surface.

• Keep the printer: – Clean, dry, and free of dust. – Away from stray staples and paper clips. – Away from the direct airflow of air conditioners, heaters, or ventilators. – Free from direct sunlight and humidity extremes.

• Observe the recommended temperatures and avoid fluctuations.

Ambient temperature 16 to 32°C (60 to 90°F)

Storage temperature ‑20 to 40°C (‑4 to 104°F)

• Allow the following recommended amount of space around the printer for proper ventilation:

Learning about the printer 9

1 Right side 305 mm (12 in.)

2 Front 510 mm (20 in.)

3 Left side 205 mm (8 in.)

4 Rear 205 mm (8 in.)

5 Top 305 mm (12 in.)

Printer configurations

CAUTION—POTENTIAL INJURY: To reduce the risk of equipment instability, load each tray separately. Keep all

other trays closed until needed.

You can configure your printer by adding one optional 250‑ or 550‑sheet tray. For instructions on installing the optional tray, see

“Installing optional trays” on page 17.

Learning about the printer 10

1 Printer control panel

2 Paper stop

3 Standard bin

4 Front door release button

5 Controller board access door

6 Standard 250‑sheet tray

7 Optional 250‑ or 550‑sheet tray

8 50‑sheet multipurpose feeder

9 Front door

Learning about the printer 11

Using the printer control panel

Use the To

1 Menus button Open the menus.

Notes:

• The menus are available only when the printer is in the Ready state.

• Pressing the button while navigating within the menus returns the printer control panel

to the top‑level menu screen.

2 Display View printing options as well as status and error messages.

3 Sleep button Enable Sleep mode or Hibernate mode.

Notes:

• Pressing any hard button will cause the printer to wake from Sleep mode.

• Pressing the Sleep button or the power switch will cause the printer to wake from

Hibernate mode.

4 Stop button

• Exit the menus and return to the Ready state.

• Stop printer activities, such as printing or downloading fonts.

5 Right arrow button

• Scroll through menus or to move between screens and menu options.

• Scroll through settings or text. For menus with numeric values, press and hold an arrow

button to scroll through the settings. Release the button when the value you want appears.

6 Select button

• Open a menu.

• Display available values or settings for a menu. The current default setting is indicated by

an asterisk (*).

• Save the displayed value as the new user default setting.

7 Left arrow button

• Scroll through menus or to move between screens and menu options.

• Scroll through settings or text. For menus with numeric values, press and hold an arrow

button to scroll through the settings. Release the button when the value you want appears.

8 Back button Return to the previous screen.

Learning about the printer 12

Use the To

9 Indicator light Determine the status of the printer.

Understanding the colors of the Sleep button and indicator lights

The colors of the Sleep button and indicator lights on the control panel signify a printer status or condition.

Indicator light Printer status

Off The printer is off or in Hibernate mode.

Blinking green The printer is warming up, processing data, or printing.

Solid green The printer is on, but idle.

Blinking red The printer requires user intervention.

Sleep button light Printer status

Off The printer is off, idle, or in Ready state.

Solid amber The printer is in Sleep mode.

Blinking amber The printer is entering or waking from Hibernate mode.

Blinking amber for 0.1 second, then goes completely off for 1.9 seconds in a slow, pulsing pattern

The printer is in Hibernate mode.

Using the Embedded Web Server

Note: This feature is available only in network printers or printers connected to print servers.

If the printer is installed on a network, then you can use the Embedded Web Server to do the following:

• View the virtual display of the printer control panel.

• Check the status of the printer supplies.

• Configure supply notifications.

• Configure printer settings.

• Configure network settings.

• View reports.

To access the Embedded Web Server for your printer:

1 Obtain the printer IP address:

• From the TCP/IP section in the Network/Ports menu

• By printing a network setup page or menu settings page, and then finding the TCP/IP section

Notes:

– An IP address appears as four sets of numbers separated by periods, such as 123.123.123.123. – If you are using a proxy server, then temporarily disable it to load the Web page correctly.

Learning about the printer 13

2 Open a Web browser, and then type the printer IP address in the address field.

3 Press Enter.

The Embedded Web Server page appears.

Using the Local Printer Settings Utility

1 Access the Local Printer Settings Utility from the list of applications or the Start menu to adjust the printer settings.

2 Save the changes using the Actions menu.

Note: To distribute the settings to other printers, save the settings in a command file.

Additional printer setup 14

Additional printer setup

Installing internal options

CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or

memory devices sometime after setting up the printer, then turn the printer off, and unplug the power cord from the electrical outlet before continuing. If you have any other devices attached to the printer, then turn them off as well, and unplug any cables going into the printer.

Warning—Potential Damage: Controller board electronic components are easily damaged by static electricity. Touch a metal surface on the printer before touching any controller board electronic components or connectors.

Available internal options

• Flash memory – Fonts

Accessing the controller board

CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or

1 Open the controller board access door.

2 Locate the memory card connector.

Warning—Potential Damage: Controller board electronic components are easily damaged by static electricity.

Touch a metal surface on the printer before touching any controller board electronic components or connectors.

Additional printer setup 15

Installing an optional card

CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or

1 Access the controller board.

For more information, see

2 Unpack the optional card.

Warning—Potential Damage: Avoid touching the connection points along the edge of the card.

“Accessing the controller board” on page 14.

Additional printer setup 16

3 Holding the card by its sides, align the plastic pins (1) on the card with the holes (2) on the controller board.

4 Push the card firmly into place as shown in the illustration.

Additional printer setup 17

Warning—Potential Damage: Improper installation of the card may cause damage to the card and the controller board.

Note: The entire length of the connector on the card must touch and be flush against the controller board.

5 Close the controller board access door.

Note: When the printer software and any hardware options are installed, it may be necessary to manually add

the options in the printer driver to make them available for print jobs. For more information, see

available options in the print driver” on page 20.

“Adding

Installing hardware options

Installing optional trays

CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or

1 Turn off the printer using the power switch, and then unplug the power cord from the electrical outlet.

2 Unpack the tray, and then remove any packing material.

3 Remove the tray from the base.

4 Remove any packing material from inside the tray.

5 Insert the tray into the base.

Additional printer setup 18

6 Place the tray near the printer.

7 Align the printer with the tray, and then slowly lower the printer into place.

8 Connect the power cord to the printer, then to a properly grounded electrical outlet, and then turn on the printer.

Note: When the printer software and any hardware options are installed, it may be necessary to manually add the options in the printer driver to make them available for print jobs. For more information, see

available options in the print driver” on page 20.

“Adding

Attaching cables

Connect the printer to the computer using a USB or parallel cable, or to the network using an Ethernet cable.

Make sure to match the following:

• The USB symbol on the cable with the USB symbol on the printer

• The appropriate parallel cable with the parallel port

• The appropriate Ethernet cable with the Ethernet port

Additional printer setup 19

Warning—Potential Damage: Do not touch the USB cable, any network adapter, or the printer in the area shown while actively printing. Loss of data or a malfunction can occur.

Use the To

USB port

2 USB printer port Connect the printer to a computer.

Ethernet port

Parallel port

5 Power switch Turn on or turn off the printer.

6 Printer power cord socket Connect the printer to an electrical outlet.

7 Security slot Attach a lock that will secure the printer in place.

These ports are available only in select printer models.

Attach an optional wireless network adapter.

Connect the printer to a network.

Connect the printer to a computer.

Setting up the printer software

Installing the printer

1 Obtain a copy of the software installer package.

2 Run the installer, and then follow the instructions on the computer screen.

3 For Macintosh users, add the printer.

Note: Obtain the printer IP address from the TCP/IP section in the Network/Ports menu.

Additional printer setup 20

Installing the Local Printer Settings Utility

1 Visit http://support.lexmark.com, and then download the software.

2 Double‑click the software installer package.

3 Select an installation type, and then click Install.

4 Click Install to start the installation.

5 Click Agree to accept the license agreement.

6 Click Continue, and then follow the instructions on the computer screen.

Notes:

• Use the Local Printer Settings Utility to change the toner darkness, power saver, and paper size settings for all

print jobs. Use the printer software to change these settings for individual print jobs.

• This utility is supported only in select printer models.

Adding available options in the print driver

For Windows users

1 Open the printers folder.

In Windows 8

From the Search charm, type run, and then navigate to:

Run > type control printers > OK

In Windows 7 or earlier

a Click , or click Start and then click Run. b Type control printers. c Press Enter, or click OK.

2 Select the printer you want to update, and then do either of the following:

• For Windows 7 or later, select Printer properties.

• For earlier versions, select Properties.

3 Navigate to the Configuration tab, and then select Update Now ‑ Ask Printer.

4 Apply the changes.

For Macintosh users

1 From System Preferences in the Apple menu, navigate to your printer, and then select Options & Supplies.

2 Navigate to the list of hardware options, and then add any installed options.

3 Apply the changes.

Additional printer setup 21

Networking

Notes:

• Purchase a MarkNet

For information on installing the wireless network adapter, see the instruction sheet that came with the adapter.

N8352 wireless network adapter first before setting up the printer on a wireless network.

• A Service Set Identifier (SSID) is a name assigned to a wireless network. Wired Equivalent Privacy (WEP), Wi-Fi

Protected Access (WPA), WPA2, and 802.1X - RADIUS are types of security used on a network.

Preparing to set up the printer on an Ethernet network

To configure your printer to connect to an Ethernet network, organize the following information before you begin:

Note: If your network automatically assigns IP addresses to computers and printers, continue on to installing the printer.

• A valid, unique IP address for the printer to use on the network

• The network gateway

• The network mask

• A nickname for the printer (optional)

Note: A printer nickname can make it easier for you to identify your printer on the network. You can choose to use the default printer nickname, or assign a name that is easier for you to remember.

You will need an Ethernet cable to connect the printer to the network and an available port where the printer can physically connect to the network. Use a new network cable when possible to avoid potential problems caused by a damaged cable.

Preparing to set up the printer on a wireless network

Notes:

• Make sure your wireless network adapter is installed in your printer and working properly. For more

information, see the instruction sheet that came with the wireless network adapter.

• Make sure your access point (wireless router) is turned on and is working properly.

Make sure you have the following information before setting up the printer on a wireless network:

• SSID—The SSID is also referred to as the network name.

• Wireless Mode (or Network Mode)—The mode is either infrastructure or ad hoc.

• Channel (for ad hoc networks)—The channel defaults to automatic for infrastructure networks.

Some ad hoc networks will also require the automatic setting. Check with your system support person if you are not sure which channel to select.

Additional printer setup 22

• Security Method—There are four basic options for Security Method: – WEP key

If your network uses more than one WEP key, then enter up to four in the provided spaces. Select the key currently in use on the network by selecting the default WEP transmit key.

– WPA or WPA2 preshared key or passphrase

WPA includes encryption as an additional layer of security. The choices are AES or TKIP. Encryption must be set for the same type on the router and on the printer, or the printer will not be able to communicate on the network.

– 802.1X–RADIUS

If you are installing the printer on an 802.1X network, then you may need the following:

• Authentication type

• Inner authentication type

• 802.1X user name and password

• Certificates

– No security

If your wireless network does not use any type of security, then you will not have any security information.

Note: We do not recommend using an unsecured wireless network.

Notes:

– If you do not know the SSID of the network that your computer is connected to, then launch the wireless utility

of the computer network adapter, and then look for the network name. If you cannot find the SSID or the security information for your network, then see the documentation that came with the access point, or contact your system support person.

– To find the WPA/WPA2 preshared key or passphrase for the wireless network, see the documentation that

came with the access point, see the Embedded Web Server associated with the access point, or consult your system support person.

Connecting the printer to a wireless network using Wi‑Fi Protected Setup

Before connecting the printer to a wireless network, make sure that:

• The access point (wireless router) is Wi‑Fi Protected Setup (WPS) certified or WPS‑compatible. For more

information, see the documentation that came with your access point.

• A wireless network adapter installed in your printer is attached and working properly. For more information, see

the instruction sheet that came with the wireless network adapter.

Using the Push Button Configuration method

From the printer control panel, navigate to:

> Network/Ports > > Network [x] > > Network [x] Setup > > Wireless > > Wi‑Fi Protected

Setup >

> Start Push Button Method >

2 Follow the instructions on the printer display.

Additional printer setup 23

Using the Personal Identification Number (PIN) method

From the printer control panel, navigate to:

> Network/Ports > > Network [x] > > Network [x] Setup > > Wireless > > Wi‑Fi Protected

Setup >

> Start PIN Method >

2 Copy the eight‑digit WPS PIN.

3 Open a Web browser, and then type the IP address of your access point in the address field.

Notes:

• The IP address appears as four sets of numbers separated by periods, such as 123.123.123.123.

• If you are using a proxy server, then temporarily disable it to load the Web page correctly.

4 Access the WPS settings. For more information, see the documentation that came with your access point.

5 Enter the eight‑digit PIN, and then save the setting.

Connecting the printer to a wireless network using the printer software

Notes:

• Make sure your printer is turned on.

• Make sure a wireless network adapter installed in your printer is attached and working properly. For

information on installing the wireless network adapter, see the instruction sheet that came with the adapter.

Using the Wireless Setup Utility (Windows only)

1 Check if the printer software is already installed.

2 Use the search command on the Start menu to locate Printer Home.

3 Open Printer Home, and then click Settings > Wireless Setup Utility.

4 Follow the steps on the computer screen.

Using the Wireless Setup Assistant (Macintosh only)

The Wireless Setup Assistant lets you:

• Configure the printer to join an existing wireless network.

• Add a printer to an existing ad hoc network.

• Change the wireless settings after installation.

• Install the printer on additional network computers.

Installing the Wireless Setup Assistant

1 Go to the Lexmark Web site at http://support.lexmark.com.

2 Download the latest Wireless Setup Assistant application.

3 Double‑click the downloaded software installer package.

4 Follow the instructions on the computer screen.

Additional printer setup 24

Launching the Wireless Setup Assistant

Notes:

• Make sure the printer is turned on.

• Make sure a wireless network adapter installed in your printer is attached and working properly.

1 From the Finder, navigate to:

Applications > select your printer folder

2 Double‑click Wireless Setup Assistant, and then follow the instructions on the computer screen.

Note: If you encounter problems while running the application, then click

Connecting the printer to a wireless network using the Embedded Web Server

Before you begin, make sure that:

• Your printer is connected temporarily to an Ethernet network.

• A wireless network adapter is installed in your printer and working properly. For more information, see the

instruction sheet that came with the wireless network adapter.

1 Open a Web browser, and then type the printer IP address in the address field.

Notes:

• View the printer IP address on the printer control panel. The IP address appears as four sets of numbers

separated by periods, such as 123.123.123.123.

• If you are using a proxy server, then temporarily disable it to load the Web page correctly.

2 Click Settings > Network/Ports > Wireless.

3 Modify the settings to match the settings of your access point (wireless router).

Note: Make sure to enter the correct SSID, security method, preshared key or passphrase, network mode, and

channel.

4 Click Submit.

5 Turn off the printer, and then disconnect the Ethernet cable. Then wait for at least five seconds, and then turn the

printer back on.

6 To verify if your printer is connected to the network, print a network setup page. Then in the Network Card [x]

section, see if the status is Connected.

Verifying printer setup

Printing a menu settings page

Print a menu settings page to review the current menu settings and to verify if the printer options are installed correctly.

Note: If you have not changed any menu settings, then the menu settings page lists all the factory default settings. When you select and save other settings from the menus, they replace the factory default settings as user default settings. A user default setting remains in effect until you access the menu again, choose another value, and save it.

Additional printer setup 25

From the printer control panel, navigate to:

> Reports > > Menu Settings Page >

Printing a network setup page

If the printer is connected to a network, then print a network setup page to verify the network connection. This page also provides important information that aids network printing configuration.

1 From the printer control panel, navigate to:

> Reports > > Network Setup Page >

Note: If an optional print server is installed, then Print Network [x] Setup Page appears.

2 Check the first section of the network setup page and confirm that the status is Connected.

If the status is Not Connected, then the LAN drop may not be active, or the network cable may be malfunctioning. Consult your system support person for a solution, and then print another network setup page.

Loading paper and specialty media 26

Loading paper and specialty media

The selection and handling of paper and specialty media can affect how reliably documents print. For more information,

“Avoiding jams” on page 101 and “Storing paper” on page 43.

see

Setting the paper size and type

1 From the printer control panel, navigate to:

> Paper Menu > > Paper Size/Type >

2 Select Tray [x] Size or Tray [x] Type, and then press .

3 Change the paper size or type setting, and then press .

Notes:

• The paper size setting for the standard 250‑sheet tray (Tray 1), optional 250‑ or 550‑sheet tray (Tray 2), and the

multipurpose feeder must be set manually in the Paper Size menu.

• The factory default paper type for Tray 1 is Plain Paper.

• The factory default paper type for the multipurpose feeder is Custom Type 6.

• The paper type setting must be manually set for all trays.

Configuring Universal paper settings

The Universal paper size is a user‑defined setting that lets you print on paper sizes that are not preset in the printer menus.

Notes:

• The smallest Universal paper size is 76 x 127 mm (3 x 5 inches), and is supported only from the multipurpose

feeder.

• The largest Universal paper size is 216 x 355.6 mm (8.5 x 14 inches), and is supported from all paper sources.

From the control panel, navigate to:

> Paper Menu > > Universal Setup > > Units of Measure > > select the unit of measure >

Specify the paper height and width

1 From the control panel, navigate to:

> Paper Menu > > Universal Setup > > Units of Measure > > select the unit of measure >

2 Press the arrow buttons until Portrait Height or Portrait Width appears, and then press .

Loading paper and specialty media 27

3 Change the settings, and then press .

Using the standard bin and paper stop

The standard bin holds up to 150 sheets of 75‑g/m2 (20‑lb) paper. It collects prints facedown. The standard bin includes a paper stop that keeps paper from sliding out the front of the bin as it stacks.

To open the paper stop, pull it so that it flips forward.

Note: Close the paper stop when moving the printer to another location.

Loading trays

CAUTION—POTENTIAL INJURY: To reduce the risk of equipment instability, load each tray separately. Keep all

other trays closed until needed.

1 Pull out the tray completely.

Note: Do not remove trays while a job prints or while Busy appears on the printer display. Doing so may cause

a jam.

Loading paper and specialty media 28

2 Squeeze and then slide the width guide tab to the correct position for the size of the paper you are loading.

L G

Loading paper and specialty media 29

3 Squeeze and then slide the length guide tab to the correct position for the size of the paper you are loading.

LGL

EXEC

Notes:

• For some paper sizes like letter, legal, and A4, squeeze and slide the length guide tab backward to

accommodate their length.

• When loading legal‑size paper, the length guide extends beyond the base leaving the paper exposed to dust.

To protect the paper from dust, you can purchase a dust cover separately. For more information, contact customer support.

• If you are loading A6-size paper in the standard tray, then squeeze and then slide the length guide tab

toward the center of the tray to the A6‑size position.

• Make sure the width and length guides are aligned with the paper size indicators on the bottom of the tray.

Loading paper and specialty media 30

LTR/LGL

EXEC

E X

E C

4 Flex the sheets back and forth to loosen them, and then fan them. Do not fold or crease the paper. Straighten the

edges on a level surface.

5 Load the paper stack.

Notes:

• Load with the printable side facedown when using recycled or preprinted paper.

• Load prepunched paper with the holes on the top edge toward the front of the tray.

Loading paper and specialty media 31

• Load letterhead facedown, with the top edge of the sheet toward the front of the tray. For two‑sided

printing, load letterhead faceup with the bottom edge of the sheet toward the front of the tray.

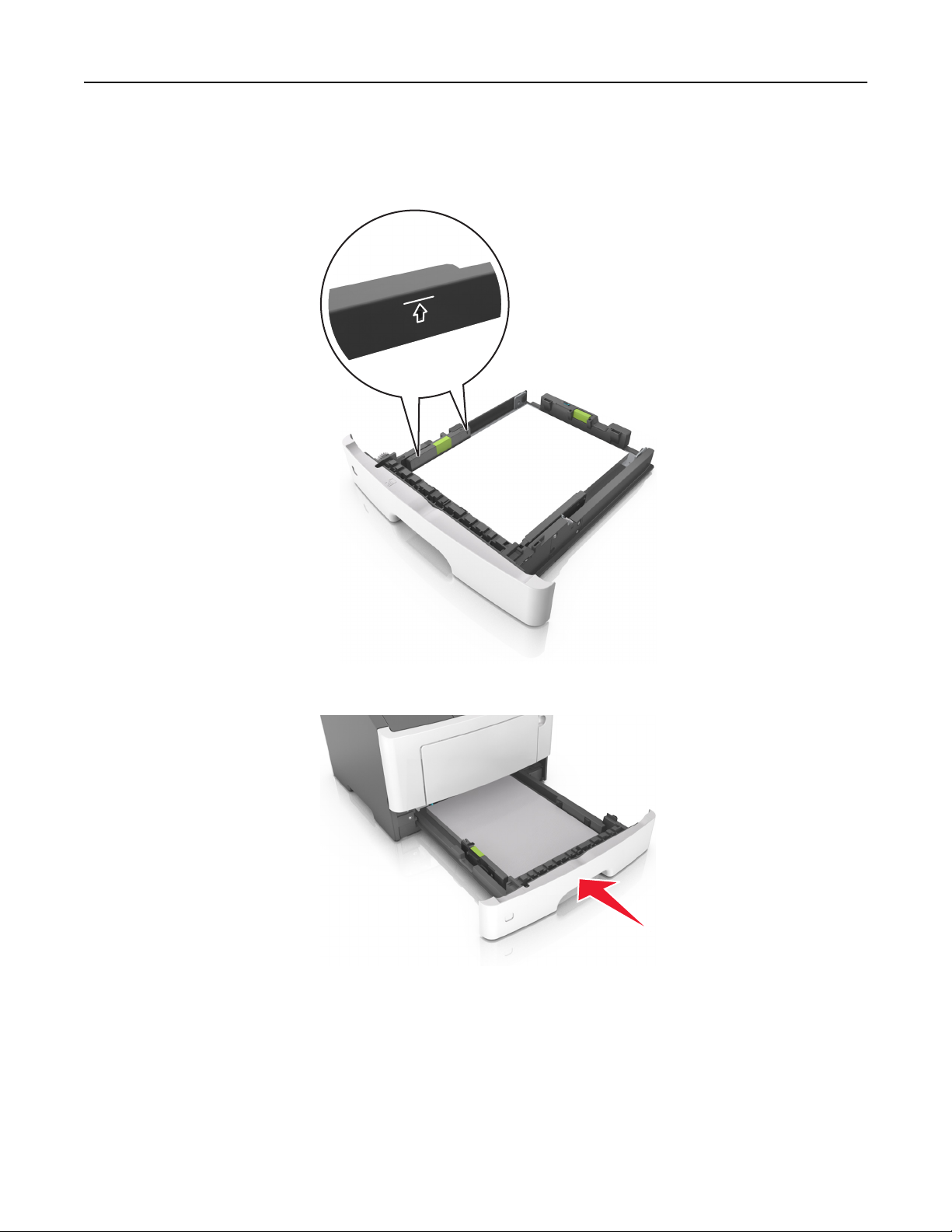

• Make sure the paper is below the maximum paper fill indicator located on the side of the width guide.

6 Insert the tray.

7 From the printer control panel, set the paper size and paper type in the Paper menu to match the paper loaded in

the tray.

Note: Set the correct paper size and type to avoid paper jams and print quality problems.

Loading paper and specialty media 32

Loading the multipurpose feeder

Use the multipurpose feeder when printing on different paper sizes and types or specialty media, such as card stock, transparencies, paper labels, and envelopes. You can also use it for single‑page print jobs on letterhead.

1 Open the multipurpose feeder.

a Pull the multipurpose feeder extender.

b Pull the extender gently so that the multipurpose feeder is fully extended and open.

Loading paper and specialty media 33

2 Squeeze the tab on the left width guide, and then move the guides for the paper you are loading.

3 Prepare the paper or specialty media for loading.

• Flex sheets of paper back and forth to loosen them, and then fan them. Do not fold or crease the paper. Straighten

the edges on a level surface.

• Hold transparencies by the edges. Flex the stack of transparencies back and forth to loosen them, and then fan

them. Straighten the edges on a level surface.

Note: Avoid touching the printable side of the transparencies. Be careful not to scratch them.

• Flex the stack of envelopes back and forth to loosen them, and then fan them. Straighten the edges on a level

surface.

4 Load the paper or specialty media.

Notes:

• Do not force paper or specialty media into the multipurpose feeder.

Loading paper and specialty media 34

• Make sure the paper or specialty media is below the maximum paper fill indicator located on the paper

guides. Overfilling may cause paper jams.

• Load paper, transparencies, and card stock with the recommended printable side faceup and the top edge

entering the printer first. For more information on loading transparencies, see the packaging that the transparencies came in.

Note: When loading A6‑size paper, make sure the multipurpose feeder extender rests lightly against the edge of the paper so that the last few sheets of paper remain in place.

Loading paper and specialty media 35

• Load letterhead faceup with the top edge entering the printer first. For two‑sided (duplex) printing, load

letterhead facedown with the bottom edge entering the printer first.

• Load envelopes with the flap on the left side facedown.

Warning—Potential Damage: Never use envelopes with stamps, clasps, snaps, windows, coated linings, or self‑stick adhesives. These envelopes may severely damage the printer.

5 From the printer control panel, set the paper size and paper type in the Paper menu to match the paper or specialty

media loaded in the multipurpose feeder.

Linking and unlinking trays

The printer links trays when the specified paper size and type are the same. When a linked tray becomes empty, paper feeds from the next linked tray. To prevent trays from linking, assign a unique custom paper type name.

Linking and unlinking trays

Using the Embedded Web Server

Open a Web browser, and then type the printer IP address in the address field.

Notes:

• View the printer IP address in the TCP/IP section in the Network/Ports menu. The IP address appears as four

sets of numbers separated by periods, such as 123.123.123.123.

• If you are using a proxy server, then temporarily disable it to load the Web page correctly.

2 Click Settings > Paper Menu.

Loading paper and specialty media 36

3 Change the tray settings to specify the paper size and type for the tray.

• To link trays, make sure the paper size and type for the tray match with that of the other tray.

• To unlink trays, make sure the paper size or type for the tray does not match with that of the other tray.

4 Click Submit.

Using the printer settings on the computer

Depending on your operating system, access the Paper menu using the Local Printer Settings Utility or Printer Settings.

Note: You can also specify the paper size and type for the tray using the printer control panel. For more information,

“Setting the paper size and type” on page 26.

see

Warning—Potential Damage: Paper loaded in the tray should match the paper type name assigned in the printer. The temperature of the fuser varies according to the specified paper type. Printing issues may occur if settings are not properly configured.

Configuring a custom paper type

Using the Embedded Web Server

Open a Web browser, and then type the printer IP address in the address field.

Notes:

• Print a network setup page or menu settings page, and then locate the IP address in TCP/IP section. The IP

address appears as four sets of numbers separated by periods, such as 123.123.123.123.

• If you are using a proxy server, then temporarily disable it to load the Web page correctly.

2 Click Settings > Paper Menu > Custom Types.

3 Select a custom paper type name, and then select a custom paper type.

Note: Plain Paper is the factory default paper type for all user‑defined custom names.

4 Click Submit.

Using the printer settings on the computer

Depending on your operating system, access the Custom menu using the Local Printer Settings Utility or Printer Settings.

Assigning a custom paper type

Using the Embedded Web Server

Open a Web browser, and then type the printer IP address in the address field.

Notes:

• Print a network setup page or menu settings page, and then locate the IP address in the TCP/IP section. The

IP address appears as four sets of numbers separated by periods, such as 123.123.123.123.

• If you are using a proxy server, then temporarily disable it to load the Web page correctly.

2 Click Settings > Paper Menu.

Loading paper and specialty media 37

3 From the Tray Configuration section, select a paper source, and then select a custom paper type under the paper

type column.

4 Click Submit.

Using the printer settings on the computer

Depending on your operating system, access the Paper menu using the Local Printer Settings Utility or Printer Settings.

Paper and specialty media guide 38

Paper and specialty media guide

Notes:

• Make sure that the paper size, type, and weight are set correctly on the computer or control panel.

• Flex, fan, and straighten specialty media before loading them.

• The printer may print at a reduced speed to prevent damage to the fuser.

• For more information on card stock and labels, see the Card Stock & Label Guide on the Lexmark support Web

http://support.lexmark.com.

site at

Using specialty media

Tips on using card stock

Card stock is heavy, single‑ply specialty media. Many of its variable characteristics, such as moisture content, thickness, and texture, can significantly impact print quality. Print samples on the card stock being considered for use before buying large quantities.

When printing on card stock:

• Make sure the Paper Type is Card Stock.

• Select the appropriate Paper Texture setting.

• Be aware that preprinting, perforation, and creasing may significantly affect the print quality and cause jams or

Tips on using envelopes

Print samples on the envelopes being considered for use before buying large quantities.

• Use envelopes designed specifically for laser printers. Check with the manufacturer or vendor to ensure that the

envelopes can withstand temperatures up to 230°C (446°F) without sealing, wrinkling, curling excessively, or releasing hazardous emissions.

• For best performance, use envelopes made from 90‑g/m

must not exceed 70‑g/m

(20‑lb bond) weight.

• Use only new envelopes from undamaged packages.

• To optimize performance and minimize jams, do not use envelopes that: – Have excessive curl or twist – Are stuck together or damaged in any way – Have windows, holes, perforations, cutouts, or embossing – Have metal clasps, string ties, or folding bars

(24‑lb bond) paper or 25% cotton. All‑cotton envelopes

Paper and specialty media guide 39

– Have an interlocking design – Have postage stamps attached – Have any exposed adhesive when the flap is in the sealed or closed position – Have bent corners – Have rough, cockle, or laid finishes

• Adjust the width guides to fit the width of the envelopes.

Note: A combination of high humidity (over 60%) and high printing temperature may wrinkle or seal envelopes.

Tips on using labels

Print samples on the labels being considered for use before buying large quantities.

Note: Use only paper label sheets. Vinyl, pharmacy, and two‑sided labels are not supported.

For more information on label printing, characteristics, and design, see the Card Stock & Label Guide available at

http://support.lexmark.com.

When printing on labels:

• Use labels designed specifically for laser printers. Check with the manufacturer or vendor to verify that: – The labels can withstand temperatures up to 240°C (464°F) without sealing, excessive curling, wrinkling, or

releasing hazardous emissions.

– Label adhesives , face sheet (printable stock) , and topcoats can withstand up to 172‑kPa (25‑psi) pressure without

delaminating, oozing around the edges, or releasing hazardous fumes.

• Do not use labels with slick backing material.

• Use full label sheets. Partial sheets may cause labels to peel off during printing, resulting in a jam. Partial sheets

also contaminate the printer and the cartridge with adhesive, and could void the printer and toner cartridge warranties.

• Do not use labels with exposed adhesive.

• Do not print within 1 mm (0.04 inch) of the edge of the label, of the perforations, or between die‑cuts of the label.

• Make sure the adhesive backing does not reach to the edge of the sheet. Zone coating of the adhesive should be

at least 1 mm (0.04 inch) away from edges. Adhesive material contaminates the printer and could void the warranty.

• If zone coating of the adhesive is not possible, then remove a 2‑mm (0.08‑inch) strip on the leading and driver edge,

and then use a non‑oozing adhesive.

• Portrait orientation is recommended, especially when printing bar codes.

Tips on using letterhead

• Use letterhead designed specifically for laser printers.

• Print samples on the letterhead being considered for use before buying large quantities.

• Before loading letterhead, flex, fan, and straighten the stack to prevent sheets from sticking together.

• Page orientation is important when printing on letterhead. For information on how to load letterhead, see: – “Loading trays” on page 27 – “Loading the multipurpose feeder” on page 32

Paper and specialty media guide 40

Tips on using transparencies

• Print a test page on the transparencies being considered for use before buying large quantities.

• Feed transparencies from the standard tray, or the multipurpose feeder.

• Use transparencies designed specifically for laser printers. Transparencies must be able to withstand temperatures

up to 185°C (365°F) without melting, discoloring, offsetting, or releasing hazardous emissions.

Note: If the transparency weight is set to Heavy and the transparency texture is set to Rough in the Paper menu, then transparencies can be printed at a temperature up to 195°C (383°F).

• Avoid getting fingerprints on the transparencies to prevent print quality problems.

• Before loading transparencies, flex, fan, and straighten the stack to prevent sheets from sticking together.

Paper guidelines

Paper characteristics

The following paper characteristics affect print quality and reliability. Consider these characteristics when evaluating new paper stock.

Weight

The printer trays can automatically feed paper weights up to 90‑g/m2 (24‑lb) bond grain long paper. The multipurpose feeder can automatically feed paper weights up to 163‑g/m 60 g/m bond grain long paper. For paper smaller than 182 x 257 mm (7.2 x 10.1 inches), we recommended to use 90 g/m (24 lb) or heavier paper.

Note: Two‑sided printing is supported only for 60–90‑g/m

(16 lb) might not be stiff enough to feed properly, causing jams. For best performance, use 75‑g/m2 (20‑lb)

(43‑lb) bond grain long paper. Paper lighter than

(16–24‑lb) bond paper.

Curl

Curl is the tendency for paper to curl at its edges. Excessive curl can cause paper feeding problems. Curl can occur after the paper passes through the printer, where it is exposed to high temperatures. Storing paper unwrapped in hot, humid, cold, or dry conditions, even in the trays, can contribute to paper curling prior to printing and can cause feeding problems.

Smoothness

Paper smoothness directly affects print quality. If paper is too rough, then toner cannot fuse to it properly. If paper is too smooth, then it can cause paper feeding or print quality issues. Always use paper between 100 and 300 Sheffield points; however, smoothness between 150 and 250 Sheffield points produces the best print quality.

Moisture content

The amount of moisture in paper affects both print quality and the ability of the printer to feed the paper correctly. Leave paper in its original wrapper until it is time to use it. This limits the exposure of paper to moisture changes that can degrade its performance.

Store paper in its original wrapper in the same environment as the printer for 24 to 48 hours before printing. Extend the time to several days if the storage or transportation environment is very different from the printer environment. Thick paper may also require a longer conditioning period.

Paper and specialty media guide 41

Grain direction

Grain refers to the alignment of the paper fibers in a sheet of paper. Grain is either grain long, running the length of the paper, or grain short, running the width of the paper.

For 60–90‑g/m

(16–24‑lb) bond paper, grain long paper is recommended.

Fiber content

Most high‑quality xerographic paper is made from 100% chemically treated pulped wood. This content provides the paper with a high degree of stability resulting in fewer paper feeding problems and better print quality. Paper containing fibers such as cotton can negatively affect paper handling.

Unacceptable paper

The following paper types are not recommended for use with the printer:

• Chemically treated papers used to make copies without carbon paper, also known as carbonless papers, carbonless

copy paper (CCP), or no carbon required (NCR) paper

• Preprinted papers with chemicals that may contaminate the printer

• Preprinted papers that can be affected by the temperature in the printer fuser

• Preprinted papers that require a registration (the precise print location on the page) less than ±2.5 mm (±0.10 inch),

such as optical character recognition (OCR) forms In some cases, registration can be adjusted with a software application to successfully print on these forms:

• Coated papers (erasable bond), synthetic papers, thermal papers

• Rough‑edged, rough or heavily textured surface papers, or curled papers

• Recycled papers that fail EN12281:2002 (European)

• Paper weighing less than 60 g/m

• Multiple‑part forms or documents

(16 lb)

Selecting paper

Using the appropriate paper prevents jams and helps ensure trouble‑free printing.

To help avoid paper jams and poor print quality:

• Always use new, undamaged paper.

• Before loading paper, know the recommended printable side of the paper. This information is usually indicated on

the paper package.

• Do not use paper that has been cut or trimmed by hand.

• Do not mix paper sizes, types, or weights in the same tray; mixing results in jams.

• Do not use coated papers unless they are specifically designed for electrophotographic printing.

Selecting preprinted forms and letterhead

Use these guidelines when selecting preprinted forms and letterhead:

• Use grain long for 60 to 90 g/m

• Use only forms and letterhead printed using an offset lithographic or engraved printing process.

(16 to 24 lb) weight paper.

Paper and specialty media guide 42

• Avoid papers with rough or heavily textured surfaces.

Use papers printed with heat‑resistant inks designed for use in xerographic copiers. The ink must be able to withstand temperatures up to 230°C (446°F) without melting or releasing hazardous emissions. Use inks that are not affected by the resin in toner. Inks that are oxidation‑set or oil‑based generally meet these requirements; latex inks might not. When in doubt, contact the paper supplier.

Preprinted papers such as letterhead must be able to withstand temperatures up to 230°C (446°F) without melting or releasing hazardous emissions.

Using recycled paper and other office papers

As an environmentally conscientious company, Lexmark supports the use of recycled paper produced specifically for use in laser (electrophotographic) printers.

While no blanket statement can be made that all recycled paper will feed well, Lexmark consistently tests papers that represent recycled cut size copier papers available on the global market. This scientific testing is conducted with rigor and discipline. Many factors are taken into consideration both separately and as a whole, including the following:

• Amount of post-consumer waste (Lexmark tests up to 100% post-consumer waste content.)

• Temperature and humidity conditions (Testing chambers simulate climates from all over the world.)

• Moisture content (Business papers should have low moisture: 4–5%.)

• Bending resistance and proper stiffness means optimum feeding through the printer.

• Thickness (impacts how much can be loaded into a tray)

• Surface roughness (measured in Sheffield units, impacts print clarity and how well toner fuses to the paper)

• Surface friction (determines how easily sheets can be separated)

• Grain and formation (impacts curling, which also influences the mechanics of how the paper behaves as it moves

through the printer)

• Brightness and texture (look and feel)

Recycled papers are better than ever; however, the amount of recycled content in a paper affects the degree of control over foreign matter. And while recycled papers are one good path to printing in an environmentally responsible manner, they are not perfect. The energy required to de-ink and deal with additives such as colorants and “glue” often generates more carbon emissions than does normal paper production. However, using recycled papers enables better resource management overall.

Lexmark concerns itself with the responsible use of paper in general based on life cycle assessments of its products. To gain a better understanding of the impact of printers on the environment, the company commissioned a number of life cycle assessments and found that paper was identified as the primary contributor (up to 80%) of carbon emissions caused throughout the entire life of a device (from design to end-of-life). This is due to the energy-intensive manufacturing processes required to make paper.

Thus, Lexmark seeks to educate customers and partners on minimizing the impact of paper. Using recycled paper is one way. Eliminating excessive and unnecessary paper consumption is another. Lexmark is well-equipped to help customers minimize printing and copying waste. In addition, the company encourages purchasing paper from suppliers who demonstrate their commitment to sustainable forestry practices.

Paper and specialty media guide 43

Lexmark does not endorse specific suppliers, although a converter’s product list for special applications is maintained. However, the following paper choice guidelines will help alleviate the environmental impact of printing:

1 Minimize paper consumption.

2 Be selective about the origin of wood fiber. Buy from suppliers who carry certifications such as the Forestry

Stewardship Council (FSC) or the Program for the Endorsement of Forest Certification (PEFC). These certifications guarantee that the paper manufacturer uses wood pulp from forestry operators that employ environmentally and socially responsible forest management and restoration practices.

3 Choose the most appropriate paper for printing needs: normal 75 or 80 g/m

or recycled paper.

certified paper, lower weight paper,

Unacceptable paper examples

Test results indicate that the following paper types are at risk for use with laser printers:

• Chemically treated papers used to make copies without carbon paper, also known as carbonless papers

• Preprinted papers with chemicals that may contaminate the printer

• Preprinted papers that can be affected by the temperature in the printer fuser

• Preprinted papers that require a registration (the precise location on the page) greater than ± 2.3 mm (± 0.9 in.),

such as optical character recognition (OCR) forms. In some cases, registration can be adjusted with a software application to successfully print on these forms.)

• Coated papers (erasable bond), synthetic papers, thermal papers

• Rough-edged, rough or heavily textured surface papers or curled papers

• Recycled papers that fail EN12281:2002 (European testing)

• Paper weighing less than 60 g/m

• Multiple part forms or documents

(16 lb)

For more information about Lexmark, visit at the Environmental Sustainability link.

www.lexmark.com. General sustainability-related information can be found

Storing paper

Use these paper storage guidelines to help avoid jams and uneven print quality:

• For best results, store paper where the temperature is 21°C (70°F) and the relative humidity is 40 percent. Most

label manufacturers recommend printing in a temperature range of 18–24°C (65–75°F) with relative humidity between 40 and 60 percent.

• Store paper in cartons, on a pallet or shelf, rather than on the floor.

• Store individual packages on a flat surface.

• Do not store anything on top of individual paper packages.

• Take paper out of the carton or wrapper only when you are ready to load it in the printer. The carton and wrapper

help keep the paper clean, dry, and flat.

Paper and specialty media guide 44

Supported paper sizes, types, and weights

The following tables provide information on standard and optional paper sources and the sizes, types, and weights of paper they support.

Note: For an unlisted paper size, select the closest larger listed size.

Supported paper sizes

Paper size Standard tray Optional 250‑ or

550‑sheet tray

210 x 297 mm (8.3 x 11.7 in.)

148 x 210 mm (5.8 x 8.3 in.)

105 x 148 mm (4.1 x 5.8 in.)

JIS B5

182 x 257 mm (7.2 x 10.1 in.)

Letter

216 x 279 mm (8.5 x 11 in.)

Legal

216 x 356 mm (8.5 x 14 in.)

Executive

184 x 267 mm (7.3 x 10.5 in.)

Oficio (Mexico)

216 x 340 mm (8.5 x 13.4 in.)

X X

Multipurpose feeder Duplex mode

Folio

216 x 330 mm (8.5 x 13 in.)

Statement

140 x 216 mm (5.5 x 8.5 in.)

Universal

76.2 x 127 mm (3 x 5 in.) up to 216 x 356 mm (8.5 x 14 in.)

7 3/4 Envelope (Monarch)

98 x 191 mm (3.9 x 7.5 in.)

This size setting formats the page for 216 x 356 mm (8.5 x 14 in.) unless the size is specified by the software application.

Universal is supported in the standard tray only if the paper size is at least 105 x 148 mm (4.1 x 5.8 in.). Universal is supported in the optional 250- or 550-sheet tray only if the paper size is at least 148 x 210 mm (5.8 x 8.3 in.). Universal is supported in duplex mode only if the width is at least 210 mm (8.3 in.) and the length is at least 279 mm (11 in.). The smallest supported Universal size is supported only in the multipurpose feeder.

1, 2

XX X

Paper and specialty media guide 45

Paper size Standard tray Optional 250‑ or

Multipurpose feeder Duplex mode

550‑sheet tray

9 Envelope

98 x 225 mm (3.9 x 8.9 in.)

10 Envelope

105 x 241 mm (4.1 x 9.5 in.)

DL Envelope

110 x 220 mm (4.3 x 8.7 in.)

C5 Envelope

162 x 229 mm (6.4 x 9 in.)

B5 Envelope

176 x 250 mm (6.9 x 9.8 in.)

Other Envelope

229 x 356 mm (9 x 14 in.)

This size setting formats the page for 216 x 356 mm (8.5 x 14 in.) unless the size is specified by the software application.

Supported paper types and weights

The standard tray supports 60–90‑g/m2 (16–24‑lb) paper weights. The optional tray supports 60–120‑g/m2 (16–32‑lb) paper weights. The multipurpose feeder supports 60–163‑g/m

Paper type 250‑ or 550‑sheet tray Multipurpose feeder Duplex mode

Plain paper

Card stock X X

Transparencies

Recycled

Glossy paper X X X

Paper labels

Vinyl labels X X X

Bond

Envelope X X

(16–43‑lb) paper weights.

Rough envelope X

Paper and specialty media guide 46

Paper type 250‑ or 550‑sheet tray Multipurpose feeder Duplex mode

Letterhead

Preprinted

Colored Paper

Light Paper

Heavy Paper

Rough/Cotton X

One‑sided paper labels designed for laser printers are supported for occasional use. It is recommended to print 20 or fewer pages of paper labels per month. Vinyl, pharmacy, and two‑sided labels are not supported.

Bond and Heavy Paper are supported in duplex mode up to 90‑g/m2 (24‑lb) paper weight.

Printing 47

Printing

Printing a document

1 From the Paper menu on the printer control panel, set the paper type and size to match the paper loaded.

2 Send the print job:

For Windows users

With a document open, click File > Print.

b Click Properties, Preferences, Options, or Setup.

c Adjust the settings, if necessary.

d Click OK > Print.

For Macintosh users

Customize the settings in the Page Setup dialog:

1 With a document open, choose File > Page Setup. 2 Choose a paper size or create a custom size to match the paper loaded. 3 Click OK.

b Customize the settings in the Print dialog:

1 With a document open, choose File > Print.

If necessary, click the disclosure triangle to see more options.

2 From the Print dialog and pop‑up menus, adjust the settings if necessary.

Note: To print on a specific paper type, adjust the paper type setting to match the paper loaded, or

select the appropriate tray or feeder.

3 Click Print.

Adjusting toner darkness

Using the Embedded Web Server

Open a Web browser, and then type the printer IP address in the address field.

Notes:

• View the printer IP address in the TCP/IP section in the Network/Ports menu. The IP address appears as four

sets of numbers separated by periods, such as 123.123.123.123.

• If you are using a proxy server, then temporarily disable it to load the Web page correctly.

2 Click Settings > Print Settings > Quality Menu > Toner Darkness.

3 Adjust the toner darkness setting.

4 Click Submit.

Printing 48

Using the printer settings on the computer

Depending on your operating system, adjust the toner darkness settings using the Local Printer Settings Utility or Printer Settings.

Using the printer control panel

From the printer control panel, navigate to:

> Settings > > Print Settings > > Quality Menu > > Toner Darkness >

2 Adjust the toner darkness.

3 Press .

Printing information pages

For more information on printing information pages, see “Printing a menu settings page” on page 24 and “Printing a

network setup page” on page 25.

Printing a font sample list

From the printer control panel, navigate to either of the following:

> Reports > > Print Fonts > > PCL Fonts >

> Reports > > Print Fonts > > PostScript Fonts >

Printing from a mobile device

To download a compatible mobile printing application, visit www.lexmark.com/mobile.

Note: Mobile printing applications may also be available from your mobile device manufacturer.

Canceling a print job

Canceling a print job from the printer control panel

From the printer control panel, press > .

Canceling a print job from the computer

For Windows users

1 Open the printers folder.

Printing 49

In Windows 8

From the Search charm, type run, and then navigate to:

Run > type control printers > OK

In Windows 7 or earlier

a Click , or click Start and then click Run.

b Type control printers.

c Press Enter, or click OK.

2 Double‑click the printer icon.

3 Select the print job you want to cancel.

4 Click Delete.

For Macintosh users

1 From System Preferences in the Apple menu, open the printers folder.

2 Open the print queue, select the print job you want to cancel, and then delete it.

Understanding the printer menus 50

Understanding the printer menus

Menus list

Paper Menu Reports Network/Ports

Default Source Paper Size/Type Configure MP Substitute Size Paper Texture Paper Weight Paper Loading Custom Types Universal Setup

Security Settings

Security Audit Log Set Date and Time

Depending on the printer setup, this menu item appears as Network Setup Page or Network [x] Setup Page.

Depending on the printer setup, this menu item appears as Standard Network or Network [x].

Menu Settings Page Device Statistics

Network Setup Page Print Fonts Print Directory Asset Report

General Settings Print Settings

Active NIC Standard Network

Standard USB Standard Parallel SMTP Setup

Paper menu

Default Source menu

Use To

Default Source

Tray [x] MP Feeder Manual Paper Manual Envelope

Set a default paper source for all print jobs.

Notes:

• Tray 1 (standard tray) is the factory default setting.

• From the Paper menu, set Configure MP to "Cassette" for MP Feeder to

appear as a menu setting.

• If two trays contain paper of the same size and type, and the trays have

the same settings, then the trays are automatically linked. When one tray is empty, the print job continues using the linked tray.

Understanding the printer menus 51

Paper Size/Type menu

Use To

Tray [x] Size

A4 A5 A6 JIS‑B5 Letter Legal Executive Oficio (Mexico) Folio Statement Universal

Tray [x] Type

Plain Paper Transparency Recycled Labels Bond Letterhead Preprinted Colored Paper Light Paper Heavy Paper Rough/Cotton Custom Type [x]

Specify the paper size loaded in each tray.

Notes:

• Letter is the U.S. factory default setting. A4 is the international factory

default setting.

• If two trays contain paper of the same size and type, and the trays have

the same settings, then the trays are automatically linked. When one tray is empty, the print job continues using the linked tray.

• The A6 paper size is supported only in Tray 1 and the multipurpose

feeder.

Specify the type of paper loaded in each tray.

Notes:

• Plain Paper is the factory default setting for Tray 1. Custom Type [x] is

the factory default setting for all other trays.

• If available, a user‑defined name will appear instead of Custom Type [x].

• Use this menu to configure automatic tray linking.

Note: Only installed trays and feeders are listed in this menu.

Understanding the printer menus 52

Use To

MP Feeder Size

A4 A5 A6 JIS B5 Letter Legal Executive Oficio (Mexico) Folio Statement Universal 7 3/4 Envelope 9 Envelope 10 Envelope DL Envelope C5 Envelope B5 Envelope Other Envelope

MP Feeder Type

Plain Paper Card Stock Transparency Recycled Labels Bond Envelope Rough Envelope Letterhead Preprinted Colored Paper Light Paper Heavy Paper Rough/Cotton Custom Type [x]

Specify the paper size loaded in the multipurpose feeder.

Notes:

• Letter is the U.S. factory default setting. A4 is the international factory

default setting.

• From the Paper menu, set Configure MP to “Cassette” for MP Feeder

Size to appear as a menu.

• The multipurpose feeder does not automatically detect paper size.

Make sure to set the paper size value.

Specify the type of paper loaded in the multipurpose feeder.

Notes:

• Custom Type [x] is the factory default setting.

• From the Paper menu, set Configure MP to “Cassette” for MP Feeder

Type to appear as a menu.

Note: Only installed trays and feeders are listed in this menu.

Understanding the printer menus 53

Use To

Manual Paper Size

A4 A5 A6 JIS B5 Letter Legal Executive Oficio (Mexico) Folio Statement Universal

Manual Paper Type

Plain Paper Card Stock Transparency Recycled Labels Bond Letterhead Preprinted Colored Paper Light Paper Heavy Paper Rough/Cotton Custom Type [x]

Specify the paper size being manually loaded. Note: Letter is the U.S. factory default setting. A4 is the international factory

default setting.

Specify the paper type being manually loaded.

Notes:

• Plain Paper is the factory default setting.

• From the Paper menu, set Configure MP to “Manual” for Manual Paper

Type to appear as a menu.

Manual Envelope Size

7 3/4 Envelope 9 Envelope 10 Envelope DL Envelope C5 Envelope B5 Envelope Other Envelope

Manual Envelope Type

Envelope Rough Envelope Custom Type [x]

Note: Only installed trays and feeders are listed in this menu.

Specify the envelope size being manually loaded. Note: 10 Envelope is the U.S. factory default setting. DL Envelope is the

international factory default setting.

Specify the envelope type being manually loaded. Note: Envelope is the factory default setting.

Understanding the printer menus 54

Configure MP menu

Use To

Configure MP

Cassette Manual First

Substitute Size menu

Use To

Substitute Size

Off Statement/A5 Letter/A4 All Listed

Determine when the printer selects paper from the multipurpose feeder.

Notes:

• Cassette is the factory default setting. Cassette configures the

multipurpose feeder as the default paper source.

• Manual sets the multipurpose feeder only for manual‑feed print jobs.

• First sets the multipurpose feeder as the primary paper source regardless

of settings.

Substitute a specified paper size if the requested paper size is not available.

Notes:

• All Listed is the factory default setting. All available substitutions are

allowed.

• Off indicates that no size substitutions are allowed.

• Setting a size substitution lets the print job continue without Change

Paper appearing.

Paper Texture menu

Use To

Plain Texture

Smooth Normal Rough

Card Stock Texture

Smooth Normal Rough

Transparency Texture

Smooth Normal Rough

Recycled Texture

Smooth Normal Rough

Specify the relative texture of the plain paper loaded. Note: Normal is the factory default setting.

Specify the relative texture of the card stock loaded.

Notes:

• Normal is the factory default setting.

• The options appear only if card stock is supported.

Specify the relative texture of the transparencies loaded. Note: Normal is the factory default setting.

Specify the relative texture of the recycled paper loaded. Note: Normal is the factory default setting.

Understanding the printer menus 55

Use To

Labels Texture

Smooth Normal Rough

Bond Texture

Smooth Normal Rough

Envelope Texture

Smooth Normal Rough

Rough Envelope Texture

Rough

Letterhead Texture

Smooth Normal Rough

Preprinted Texture

Smooth Normal Rough

Specify the relative texture of the labels loaded. Note: Normal is the factory default setting.

Specify the relative texture of the bond paper loaded. Note: Rough is the factory default setting.

Specify the relative texture of the envelopes loaded. Note: Normal is the factory default setting.

Specify the relative texture of the rough envelopes loaded.

Specify the relative texture of the letterhead loaded. Note: Normal is the factory default setting.

Specify the relative texture of the preprinted paper loaded.

Note: Normal is the factory default setting.

Colored Texture

Smooth Normal Rough

Light Texture

Smooth Normal Rough

Heavy Texture

Smooth Normal Rough

Rough/Cotton Texture

Rough

Custom [x] Texture

Smooth Normal Rough

Specify the relative texture of the colored paper loaded. Note: Normal is the factory default setting.

Specify the relative texture of the paper loaded. Note: Normal is the factory default setting.

Specify the relative texture of the cotton paper loaded.

Specify the relative texture of the custom paper loaded.

Notes:

• Normal is the factory default setting.

• The options appear only if the custom type is supported.

Understanding the printer menus 56

Paper Weight menu

Use To

Plain Weight

Light Normal Heavy

Card Stock Weight

Light Normal Heavy

Transparency Weight

Light Normal Heavy

Recycled Weight

Light Normal Heavy

Labels Weight

Light Normal Heavy

Specify the relative weight of the plain paper loaded. Note: Normal is the factory default setting.

Specify the relative weight of the card stock loaded. Note: Normal is the factory default setting.

Specify the relative weight of the transparencies loaded. Note: Normal is the factory default setting.

Specify the relative weight of the recycled paper loaded. Note: Normal is the factory default setting.

Specify the relative weight of the labels loaded.

Note: Normal is the factory default setting.

Bond Weight

Light Normal Heavy

Envelope Weight

Light Normal Heavy

Rough Envelope Weight

Light Normal Heavy

Letterhead Weight

Light Normal Heavy

Preprinted Weight

Light Normal Heavy

Specify the relative weight of the bond paper loaded. Note: Normal is the factory default setting.

Specify the relative weight of the envelope loaded. Note: Normal is the factory default setting.

Specify the relative weight of the rough envelope loaded. Note: Normal is the factory default setting.

Specify the relative weight of the letterhead loaded. Note: Normal is the factory default setting.

Specify the relative weight of the preprinted paper loaded. Note: Normal is the factory default setting.

Understanding the printer menus 57

Use To

Colored Weight

Light Normal Heavy

Light Weight

Light

Heavy Weight

Heavy

Rough/Cotton Weight

Light Normal Heavy

Custom [x] Weight

Light Normal Heavy

Paper Loading menu

Specify the relative weight of the colored paper loaded. Note: Normal is the factory default setting.

Specify that the weight of the paper loaded is light.

Specify that the weight of the paper loaded is heavy.

Specify the relative weight of the cotton or rough paper loaded. Note: Heavy is the factory default setting.

Specify the relative weight of the custom paper loaded.

Notes:

• Normal is the factory default setting.

• The options appear only when the custom type is supported.

Use To

Recycled Loading

Duplex Off

Bond Loading

Duplex Off

Letterhead Loading

Duplex Off

Preprinted Loading

Duplex Off

Colored Loading

Duplex Off

Notes:

Determine and set two‑sided printing for all print jobs that specify Recycled as the paper type.

Determine and set two‑sided printing for all print jobs that specify Bond as the paper type.

Determine and set two‑sided printing for all print jobs that specify Letterhead as the paper type.

Determine and set two‑sided printing for all print jobs that specify Preprinted as the paper type.

Determine and set two‑sided printing for all print jobs that specify Colored as the paper type.

• Duplex sets two‑sided printing as the default for all print jobs unless one‑sided printing is set from Printing

Preferences or Print dialog.

• If Duplex is selected, then all print jobs are sent through the duplex unit, including one‑sided jobs.

• Off is the factory default setting for all the menus.

Understanding the printer menus 58

Use To

Light Loading

Duplex Off

Heavy Loading

Duplex Off

Custom [x] Loading

Duplex Off

Notes:

Determine and set two‑sided printing for all print jobs that specify Light as the paper type.

Determine and set two‑sided printing for all print jobs that specify Heavy as the paper type.

Determine and set two‑sided printing for all print jobs that specify Custom [x] as the paper type.

Note: Custom [x] Loading is available only if the custom type is supported.

• Duplex sets two‑sided printing as the default for all print jobs unless one‑sided printing is set from Printing

Preferences or Print dialog.

• If Duplex is selected, then all print jobs are sent through the duplex unit, including one‑sided jobs.

• Off is the factory default setting for all the menus.

Custom Types menu

Use To

Custom Type [x]

Paper Card Stock Transparency Rough/Cotton Labels Envelope

Recycled

Paper Card Stock Transparency Rough/Cotton Labels Envelope Cotton

Associate a paper or specialty media type with a Custom Type [x] name.

Notes:

• Paper is the factory default setting for Custom Type [x].

• The specialty media type must be supported in the selected tray or

feeder in order to print from that source.

Specify a paper type when the Recycled setting is selected in other menus.

Notes:

• Paper is the factory default setting.

• The Recycled paper type must be supported in the selected tray or

feeder in order to print from that source.

Understanding the printer menus 59

Universal Setup menu

Use To

Units of Measure

Inches Millimeters

Portrait Width

3–8.5 inches 76–216 mm

Portrait Height

3–14.17 inches 76–360 mm

Identify the units of measure.

Notes:

• Inches is the US factory default setting.

• Millimeters is the international factory default setting.

Set the portrait width.

Notes:

• If the width exceeds the maximum, then the printer uses the

maximum width allowed.

• 8.5 inches is the US factory default setting. You can increase the

width in 0.01‑inch increments.

• 216 mm is the international factory default setting. You can increase

the width in 1‑mm increments.

Set the portrait height.

Notes:

• If the height exceeds the maximum, then the printer uses the

maximum height allowed.

• 14 inches is the US factory default setting. You can increase the

height in 0.01‑inch increments.

• 356 mm is the international factory default setting. You can increase

the height in 1‑mm increments.

Feed Direction

Short Edge Long Edge

Specify the feed direction if the paper can be loaded in either direction.

Notes:

• Short Edge is the factory default setting.

• Long Edge appears only when the longest edge is shorter than the

maximum width supported in the tray.

Reports menu

Use To

Menu Settings Page Print a report containing information about the paper loaded in trays, installed

memory, total page count, alarms, timeouts, control panel language, TCP/IP address, status of supplies, status of the network connection, and other information.

Device Statistics Print a report containing printer statistics, such as supply information and details

about printed pages.

Understanding the printer menus 60

Use To

Network Setup Page Print a report containing information about the network printer settings, such as

the TCP/IP address information. Note: This menu item appears only in network printers or in printers connected

to print servers.

Profiles List Print a list of profiles stored in the printer.

Note: This menu item appears only when LDSS is enabled.

Print Fonts

PCL Fonts PostScript Fonts

Print Directory Print a list of all the resources stored in an optional flash memory card.

Print a report of all the fonts available for the printer language currently set in the printer.

Note: A separate list is available for PCL and PostScript emulations.

Notes:

• Job Buffer Size must be set to 100%.

• Make sure the optional flash memory card is installed correctly and

working properly.

• This menu item appears only when an optional flash memory card is

installed.

Asset Report Print a report containing printer asset information, such as serial number and

model name.

Event Log Summary Print a report containing a summary of all logged events.

Network/Ports menu

The menus in this section only appear in network printers or printers connected to print servers.

Active NIC menu

Use To

Active NIC

Auto [list of available network cards]

Notes:

• Auto is the factory default setting.

• This menu item appears only when an optional network card is installed.

Standard Network or Network [x] menu

Note: Only active ports appear in this menu. All inactive ports are omitted.

Understanding the printer menus 61

Use To

PCL SmartSwitch

On Off

PS SmartSwitch

On Off

NPA Mode

Off Auto

Network Buffer

Disabled Auto 3KB to [maximum size allowed]

Set the printer to automatically switch to PCL emulation when a print job requires it, regardless of the default printer language.

Notes:

• On is the factory default setting.

• If PCL SmartSwitch is disabled, then the printer does not examine incoming

data and it uses the default printer language specified in the Setup menu.

Set the printer to automatically switch to PS emulation when a print job requires it, regardless of the default printer language.

Notes:

• On is the factory default setting.

• If PS SmartSwitch is disabled, then the printer does not examine incoming

data and it uses the default printer language specified in the Setup menu.

Set the printer to perform the special processing required for bidirectional communication following the conventions defined by the NPA protocol.

Notes:

• Auto is the factory default setting.

• Changing this setting from the control panel and then exiting the menus

causes the printer to restart. The menu selection is then updated.

Set the size of the network input buffer.

Notes:

• Auto is the factory default setting.

• The value can be changed in 1‑KB increments.

• The maximum size allowed depends on the amount of memory in the printer,

the size of the other link buffers, and whether Resource Save is set to On or Off.

• To increase the maximum size range for the Network Buffer, disable or

reduce the size of the parallel, serial, and USB buffers.

• Changing this setting from the control panel and then exiting the menus

causes the printer to restart. The menu selection is then updated.

Mac Binary PS

On Off Auto

Set the printer to process Macintosh binary PostScript print jobs.

Notes:

• Auto is the factory default setting.

• Off filters print jobs using the standard protocol.

• On processes raw binary PostScript print jobs.

Understanding the printer menus 62

Use To

Standard Network Setup OR Network [x] Setup

Reports Network Card TCP/IP IPv6 Wireless AppleTalk

Display and set the printer network settings. Note: The Wireless menu appears only when the printer is connected to a wireless

network.

Reports menu

To access the menu, navigate to either of the following:

• Network/Ports > Standard Network > Standard Network Setup > Reports

• Network/Ports > Network [x] > Network [x] Setup > Reports

Use To

Print Setup Page Print a report containing information about the network printer settings, such as the TCP/IP address.

Network Card menu

Use To

View Card Status

Connected Disconnected

View Card Speed View the speed of an active network card.

Network Address

UAA LAA

Job Timeout

0–255 seconds

View the connection status of the network card.

View the network addresses.

Set the amount of time it takes for a network print job to be canceled.

Notes:

• 90 seconds is the factory default setting.

• A setting value of 0 disables the timeout.

• If a value of 1–9 is selected, then the setting is saved as 10.

Banner Page

Off On

Enable banner pages.

Note: Off is the factory default setting

TCP/IP menu

Note: This menu is available only in network printers or printers connected to print servers.

Understanding the printer menus 63

Use To

Set Hostname Set the host name.

Notes:

• This setting can be changed only from the Embedded Web Server.

• The host name can be up to 15 characters and can be a US‑ASCII or

alphanumeric character, or hyphen.

IP Address View or change the current TCP/IP address.

Note: Manually setting the IP address sets the Enable DHCP and Enable Auto IP

settings to Off. It also sets Enable BOOTP and Enable RARP to Off on systems that support BOOTP and RARP.

Netmask View or change the current TCP/IP netmask.

Gateway View or change the current TCP/IP gateway.

Enable DHCP

On Off

Enable AutoIP

Yes No

Enable FTP/TFTP

Yes No

Enable HTTP Server

Yes No

WINS Server Address View or change the current WINS server address.

Enable DDNS

Yes No

Enable mDNS

Yes No

Specify the DHCP address and parameter assignment. Note: On is the factory default setting.

Specify the Zero Configuration Networking setting. Note: Yes is the factory default setting.

Enable the built-in FTP server, which lets you send files to the printer using File Transfer Protocol.

Note: Yes is the factory default setting.

Enable the built-in Web server (Embedded Web Server). When enabled, the printer can be monitored and managed remotely using a Web browser.

Note: Yes is the factory default setting.

View or change the current DDNS setting. Note: Yes is the factory default setting.

View or change the current mDNS setting.

Note: Yes is the factory default setting.

DNS Server Address View or change the current DNS server address.

Backup DNS Server Address View or change the backup DNS server addresses.

Backup DNS Server Address 2

Backup DNS Server Address 3

Enable HTTPS

Yes No

View or change the current HTTPS setting. Note: Yes is the factory default setting.

Understanding the printer menus 64

IPv6 menu

To access the menu, navigate to any of the following:

• Network/Ports > Standard Network > Standard Network Setup > IPv6

• Network/Ports > Network [x] > Network [x] Setup > IPv6

Note: This menu is available only in network printers or printers connected to print servers.

Use To

Enable IPv6

On Off

Auto Configuration

On Off

Set Hostname

View Address

View Router Address

Enable DHCPv6

On Off

These settings can be changed only from the Embedded Web Server.

Enable Internet Protocol Version Six (IPv6) in the printer. IPv6 uses bigger numbers to create IP addresses.

Note: On is the factory default setting.

Specify whether or not the network adapter accepts the automatic IPv6 address configuration entries provided by a router.

Note: On is the factory default setting.

Set the host name. Note: The host name is limited to 15 characters, and accepts US‑ASCII,

alphanumeric characters and hyphen only.

View the current IPv6 addresses.

View the current router address.

Enable DHCPv6 in the printer.

Note: On is the factory default setting.

Wireless menu

Note: This menu is available only in printers connected to a wireless network or printer models that have a wireless

network adapter.

To access the menu, navigate to any of the following:

• Network/Ports > Network [x] > Network [x] Setup > Wireless

Use To

Network Mode

Infrastructure Ad hoc

Specify the network mode.

Notes:

• Ad hoc is the factory default setting. This configures wireless

connection directly between the printer and a computer.

• Infrastructure lets the printer access a network using an access

point.

Compatibility

802.11b/g

802.11b/g/n

Choose Network Select an available network for the printer to use.

Specify the wireless standard for the wireless network. Note: The 802.11b/g/n is the factory default setting.

Understanding the printer menus 65

Use To

View Signal Quality View the quality of the wireless connection.

View Security Mode View the encryption method for the wireless network.

AppleTalk menu

Note: This menu is available only in printer models connected to a wired network or when an optional network card

is installed.

To access the menu, navigate to any of the following:

• Network/Ports > Standard Network > Standard Network Setup > AppleTalk

• Network/Ports > Network Setup [x] > AppleTalk

Use To

Activate

Yes No

View Name Show the assigned AppleTalk name.

View Address Show the assigned AppleTalk address.

Set Zone

[list of zones available on the network]

Enable or disable AppleTalk support.

Note: Yes is the factory default setting.

Note: The name can be changed only from the Embedded Web Server.

Note: The address can be changed only from the Embedded Web Server.

Provide a list of AppleTalk zones available on the network. Note: The factory default setting is the default zone for the network. If no

default zone exists, then the zone marked with an asterisk (*) is the default setting.

Standard USB menu

Use To

PCL SmartSwitch

On Off

Set the printer to automatically switch to PCL emulation when a print job received through a USB port requires it, regardless of the default printer language.

Notes:

• On is the factory default setting.

• When set to Off, the printer does not examine incoming data. The printer uses

PostScript emulation if the PS SmartSwitch is set to On. It uses the default printer language specified in the Setup menu if the PS SmartSwitch is set to Off.

Understanding the printer menus 66

Use To

PS SmartSwitch

On Off

NPA Mode

On Off Auto

USB Buffer

Disabled Auto 3K to [maximum size allowed]

Set the printer to automatically switch to PS emulation when a print job received through a USB port requires it, regardless of the default printer language.

Notes:

• On is the factory default setting.

• When set to Off, the printer does not examine incoming data. The printer uses

PCL emulation if the PCL SmartSwitch is set to On. It uses the default printer language specified in the Setup menu if the PCL SmartSwitch is set to Off.

Set the printer to perform the special processing required for bidirectional communication following the conventions defined by the NPA protocol.

Notes:

• Auto is the factory default setting. Auto sets the printer to examine data,

determine the format, and then process it appropriately.

• The printer automatically restarts when changing the setting from the printer

control panel. The menu selection is then updated.

Set the size of the USB input buffer.

Notes:

• Auto is the factory default setting.

• Disabled turns off job buffering.

• The USB buffer size value can be changed in 1-KB increments.

• The maximum size allowed depends on the amount of memory in the printer,

the size of the other link buffers, and whether Resource Save is set to On or Off.

• To increase the maximum size range for USB Buffer, disable or reduce the size

of the parallel, serial, and network buffers.

• The printer automatically restarts when the setting is changed from the printer

control panel. The menu selection is then updated.

Mac Binary PS

On Off Auto

ENA Address

yyy.yyy.yyy.yyy

ENA Netmask

yyy.yyy.yyy.yyy

ENA Gateway

yyy.yyy.yyy.yyy

Set the printer to process Macintosh binary PostScript print jobs.

Notes:

• Auto is the factory default setting.

• On processes raw binary PostScript print jobs.

• Off filters print jobs using the standard protocol.

Set the network address information for an external print server. Note: This menu is available only when the printer is attached to an external print

server through the USB port.

Set the netmask information for an external print server. Note: This menu is available only when the printer is attached to an external print

server through the USB port.

Set the gateway information for an external print server. Note: This menu is available only when the printer is attached to an external print

server through the USB port.

Understanding the printer menus 67

SMTP Setup menu

Use To

Primary SMTP Gateway Specify SMTP server gateway and port information.

Primary SMTP Gateway Port

Secondary SMTP Gateway

Secondary SMTP Gateway Port

Note: 25 is the default SMTP gateway port.

SMTP Timeout

5–30

Reply Address Specify a reply address of up to 128 characters in the e-mail sent by the

Use SSL

Disabled Negotiate Required

Specify the amount of time in seconds before the server stops trying to send an e‑mail.

Note: 30 seconds is the factory default setting.

printer.

Set the printer to use SSL for increased security when connecting to the SMTP server.

Notes:

• Disabled is the factory default setting.

• When the Negotiate setting is used, the SMTP server determines if

SSL will be used.

SMTP Server Authentication

No authentication required Login/Plain CRAM‑MD5 Digest‑MD5 NTLM Kerberos 5

Device‑Initiated E‑mail

None Use Device SMTP Credentials

Device Userid

Device Password

Specify the type of user authentication required for printing privileges. Note: “No authentication required” is the factory default setting.

Specify what credentials will be used when communicating to the SMTP server. Some SMTP servers require credentials to send an e-mail.

Notes:

• None is the factory default setting for Device‑Initiated E‑mail.

• Device Userid and Device Password are used to log in to the SMTP

server when Use Device SMTP Credentials is selected.

Security menu

Security Audit Log menu

Use To

Delete Log

Delete now Do not delete

Specify whether or not audit logs are deleted. Note: Delete now is the factory default setting.

Understanding the printer menus 68

Use To

Configure Log

Enable Audit

Yes No

Enable Remote Syslog

No Yes

Remote Syslog Facility

0–23

Severity of events to log

0–7

Specify how and whether or not audit logs are created.

Notes:

• Enable Audit determines if events are recorded in the secure audit log and

remote syslog. No is the factory default setting.

• Enable Remote Syslog determines if logs are sent to a remote server. No is the

factory default setting.

• Remote Syslog Facility determines the value used to send logs to the remote

syslog server. 4 is the factory default setting.

• If the security audit log is activated, then the severity value of each event is

recorded. 4 is the factory default setting.

Set Date and Time menu

Use To

Current Date and Time View the current date and time settings for the printer.

Note: The date and time are set in YYYY‑MM‑DD HH:MM format.

Manually Set Date and Time

[input date/time]

Enter the date and time. Note: Setting the date and time using this menu automatically sets Enable NTP to

Off.

Time Zone

[list of time zones]

Automatically observe DST

On Off

Enable NTP

On Off

Select the time zone. Note: GMT is the factory default setting.

Set the printer to use the applicable daylight saving time (DST) start and end times associated with the printer Time Zone setting.

Note: On is the factory default setting.

Enable Network Time Protocol, which synchronizes the clocks of devices on a network.

Notes:

• On is the factory default setting.

• Enable NTP is automatically set to Off if you manually set the date and time.

Understanding the printer menus 69

Settings menu

General Settings menu

Use To

Display Language

English Francais Deutsch Italiano Espanol Dansk Norsk Nederlands Svenska Portuguese Suomi Russian Polski Greek Magyar Turkce Cesky Simplified Chinese Traditional Chinese Korean Japanese

Set the language of the text appearing on the display. Note: Not all languages are available for all printers, and you may

need to install special hardware for those languages to appear.

Show Supply Estimates

Show estimates Do not show estimates

Eco-Mode

Off Energy Energy/Paper Paper

Quiet Mode

Off On

View the estimates of the supplies on the control panel, Embedded Web Server, menu settings, and the device statistics reports.

Minimize the use of energy, paper, or specialty media.

Notes:

• Off is the factory default setting. This resets the printer to its

factory default settings.

• Energy minimizes the power used by the printer.

• Energy/Paper minimizes the use of power and of paper and

specialty media.

• Paper minimizes the amount of paper and specialty media

needed for a print job.

Minimize the printer noise. Note: Off is the factory default setting.

Understanding the printer menus 70

Use To

Run Initial setup

Yes No

Paper Sizes

US Metric

Timeouts

Sleep Mode

Disabled 1–120 min

Run the setup wizard.

Notes:

• Yes is the factory default setting.

• After completing the setup wizard by selecting Done at the

country or region selection screen, the default becomes No.

Specify the unit of measurement for paper sizes.

Notes:

• US is the factory default setting.

• The initial setting is determined by your country or region

selection in the initial setup wizard.

Set the amount of time the printer waits after a job is printed before it goes into a reduced power state.

Notes:

• 30 min is the factory default setting.

• Disabled appears only when Energy Conserve is set to Off.

• The maximum amount of time is increased to 240 minutes

when Energy Conserve is set to Off.

• Lower settings conserve more energy, but may require

longer warm‑up times.

• Select a high setting if the printer is in constant use. Under

most circumstances, this keeps the printer ready to print with minimum warm‑up time.

Timeouts

Print with Display Off

Allow printing with display off Display on when printing

Timeouts

Hibernate Timeout

Disabled 1 hour 2 hours 3 hours 6 hours 1 day 2 days 3 days 1 week 2 weeks 1 month

Print a job while the display is off. Note: Display on when printing is the factory default setting.

Set the amount of time the printer waits before it enters Hibernate mode.

Note: 3 days is the factory default setting.

Understanding the printer menus 71

Use To

Timeouts

Hibernate Timeout on Connection

Hibernate Do Not Hibernate

Timeouts

Screen Timeout

15–300 sec

Timeouts

Print Timeout

Disabled 1–255 sec

Timeouts

Wait Timeout

Disabled 15–65535 sec

Set the printer to Hibernate mode even if there is an active Ethernet connection.

Note: Do Not Hibernate is the factory default setting.

Set the amount of time in seconds the printer waits before the it returns to a ready state.

Note: 30 sec is the factory default setting.

Set the amount of time in seconds the printer waits to receive an end‑of‑job message before canceling the remainder of the print job.

Notes:

• 90 sec is the factory default setting.

• When the timer expires, any partially printed page still in the

printer is printed, and then the printer checks to see if any new print jobs are waiting.

• Print Timeout is available only when using PCL emulation.

This setting has no effect on PostScript emulation print jobs.

Set the amount of time in seconds the printer waits for additional data before canceling a print job.

Note: 40 sec is the factory default setting.

Error Recovery

Auto Reboot

Reboot when idle Reboot always Reboot never

Max Auto Reboots

1–20

Print Recovery

Auto Continue

Disabled 5–255 sec

Set the printer to restart when an error is encountered.

Notes:

• Reboot always is the factory default setting for Auto Reboot.

• 2 is the factory default setting for Max Auto Reboots.

• If the printer performs the same number of automatic

reboots that is set in the printer within a certain amount of time, then the printer shows the applicable error instead of rebooting.

Let the printer automatically continue printing from certain offline situations when these are not resolved within the specified time period.

Note: Disabled is the factory default setting.

Understanding the printer menus 72

Use To

Print Recovery

Jam Recovery

On Off Auto

Print Recovery

Jam Assist

On Off

Print Recovery

Page Protect

Off On

Specify whether the printer reprints jammed pages.

Notes:

• Auto is the factory default setting. The printer reprints

jammed pages unless the memory required to hold the pages is needed for other printer tasks.

• On sets the printer to always reprint jammed pages.

• Off sets the printer to never reprint jammed pages.

Notes:

• On is the factory default setting. This sets the printer to

automatically dump blank pages or partially printed pages to the standard bin after a jammed page has been cleared.

• Off requires the user to remove all pages from all possible

jam locations.

Successfully print a page that may not have printed otherwise.

Notes:

• Off is the factory default setting. This prints a partial page

when there is not enough memory to print the whole page.

• On sets the printer to process the whole page so that the

entire page prints.

Press Sleep Button

Do nothing Sleep Hibernate

Press and Hold Sleep Button

Do nothing Sleep Hibernate

Factory Defaults

Do Not Restore Restore Now

Determine how the printer, while in idle state, reacts to a short press of the Sleep button.

Note: Sleep is the factory default setting.

Determine how the printer, while in idle state, reacts to a long press of the Sleep button.

Note: Do nothing is the factory default setting.

Use the printer factory default settings.

Notes:

• Do Not Restore is the factory default setting. This retains the

user‑defined settings.

• Restore Now sets all printer settings to the factory default

settings except Network/Ports menu settings. All downloads stored in the RAM are deleted. Downloads stored in the flash memory are not affected.

Understanding the printer menus 73

Use To

Custom Home Message

Off IP Address Hostname Contact Name Location Zero Configuration Name Custom Text 1

Print Settings

Setup menu

Use To

Printer Language

PCL Emulation PS Emulation

Select a custom home message that appears as an alternating display of the printer status.

Note: Off is the factory default setting.

Set the default printer language.

Notes:

• PCL Emulation is the factory default setting.

• PostScript emulation uses a PostScript interpreter for

processing print jobs.

• PCL Emulation uses a PCL interpreter for processing print

jobs.

• Setting a printer language default does not prevent a

software program from sending print jobs that use another printer language.

Print Area

Normal Whole Page

Download Target

RAM Flash

Set the logical and physical printable area.

Notes:

• Normal is the factory default setting. When attempting to

print data on the non‑printable area defined by the Normal setting, the printer clips the image at the boundary.

• Whole Page allows the image to be moved into the

non‑printable area defined by the Normal setting. This setting affects only pages printed using a PCL 5 interpreter and has no effect on pages printed using the PCL XL or PostScript interpreter.

Set the storage location for downloads.

Notes:

• RAM is the factory default setting. Storing downloads in the

RAM is temporary.

• Storing downloads in a flash memory places them in

permanent storage. Downloads remain in the flash memory even when the printer is turned off.

• This menu item appears only when an optional flash memory

is installed.

Understanding the printer menus 74

Use To

Resource Save

On Off

Finishing menu

Use To

Sides (Duplex)

1 sided 2 sided

Specify how the printer handles temporary downloads, such as fonts and macros stored in the RAM, when the printer receives a print job that requires more than the available memory.

Notes:

• Off is the factory default setting. Off sets the printer to retain

downloads only until memory is needed. Downloads are deleted in order to process print jobs.

• On sets the printer to retain downloads during language

changes and printer resets. If the printer runs out of memory, then Memory Full [38] appears on the printer display, but downloads are not deleted.

Specify whether two‑sided (duplex) printing is set as the default for all print jobs.

Notes:

• “1 sided” is the factory default setting.

• You can set two‑sided printing from the software program.

For Windows users:

1 Click File > Print. 2 Click Properties, Preferences, Options, or Setup.

For Macintosh users:

1 Choose File > Print. 2 Adjust the settings from the print dialog and pop‑up menus.

Duplex Binding

Long Edge Short Edge

Copies

1–999

Blank Pages

Do Not Print Print

Collate

(1,1,1) (2,2,2) (1,2,3) (1,2,3)

Define the way two‑sided pages are bound and printed.

Notes:

• Long Edge is the factory default setting. Long Edge binds pages along their long

edge (left edge for portrait and top edge for landscape).

• Short Edge binds pages along their short edge (top edge for portrait and left

edge for landscape).

Specify the default number of copies for each print job. Note: 1 is the factory default setting.

Specify whether to insert blank pages in a print job. Note: Do Not Print is the factory default setting.

Stack the pages of a print job in sequence when printing multiple copies. Note: “(1,2,3) (1,2,3)” is the factory default setting.

Understanding the printer menus 75

Use To

Separator Sheets

Off Between Copies Between Jobs Between Pages

Separator Source

Tray [x] Multi‑Purpose Feeder

Paper Saver

Off 2‑Up 3‑Up 4‑Up 6‑Up 9‑Up 12‑Up 16‑Up

Specify whether to insert blank separator sheets.

Notes:

• Off is the factory default setting.

• Between Copies inserts a blank sheet between each copy of a print job if

Collate is set to (1,1,1) (2,2,2). If Collate is set to (1,2,3) (1,2,3), then a blank page is inserted between each set of printed pages, such as after all page 2's and after all page 3's.

• Between Jobs inserts a blank sheet between print jobs.

• Between Pages inserts a blank sheet between each page of a print job. This

setting is useful when printing transparencies or when inserting blank pages in a document.

Specify the paper source for separator sheets. Note: Tray 1 (standard tray) is the factory default setting.

Print multiple‑page images on one side of a paper.

Notes:

• Off is the factory default setting.

• The number selected is the number of page images that will print per side.

Paper Saver Ordering

Horizontal Reverse Horizontal Reverse Vertical Vertical

Paper Saver Orientation

Auto Landscape Portrait

Paper Saver Border

None Solid

Specify the positioning of multiple‑page images when using Paper Saver.

Notes:

• Horizontal is the factory default setting.

• Positioning depends on the number of page images and whether they are in

portrait or landscape orientation.

Specify the orientation of a multiple‑page document. Note: Auto is the factory default setting. The printer chooses between portrait and

landscape.

Print a border when using Paper Saver. Note: None is the factory default setting.

Understanding the printer menus 76

Quality menu

Use To

Print Resolution

300 dpi 600 dpi 1200 dpi 1200 Image Q 2400 Image Q

Pixel Boost

Off Fonts Horizontally Vertically Both directions

Toner Darkness

1–10

Enhance Fine Lines

On Off

Specify the printed output resolution in dots per inch. Note: 600 dpi is the factory default setting.

Enable more pixels to print in clusters for clarity, in order to enhance images horizontally or vertically, or to enhance fonts.

Note: Off is the factory default setting.

Lighten or darken the printed output.

Notes:

• 8 is the factory default setting.

• Selecting a smaller number can help conserve toner.

Enable a print mode preferable for files such as architectural drawings, maps, electrical circuit diagrams, and flow charts.

Notes:

Gray Correction

Auto Off

Brightness

‑6 to 6

Contrast

0–5

• Off is the factory default setting.

• You can set this option from the printer software. For Windows users, click File >

Print, and then click Properties, Preferences, Options, or Setup. For Macintosh users, choose File > Print, and then adjust the settings from the Print dialog and context menus.

• To set this option using the Embedded Web Server, type the network printer IP

address in the Web browser address field.

Automatically adjust the contrast enhancement applied to images. Note: Auto is the factory default setting.

Adjust the printed output either by lightening or darkening it. You can conserve toner by lightening the output.

Note: 0 is the factory default setting.

Adjust the contrast of printed objects. Note: 0 is the factory default setting.

Understanding the printer menus 77

Utilities menu

Use To

Format Flash

Yes No

Format the flash memory. Warning—Potential Damage: Do not turn off the printer while the flash memory is

being formatted.

Notes:

• Flash memory refers to the memory added by installing a flash memory card in

the printer.

• Yes deletes all data stored in the flash memory.

• No cancels the format request.

• The flash memory option card must not be read/write‑ or write‑protected.

• This menu item appears only when a non‑defective flash memory card is

installed.

Activate Hex Trace Isolate the source of a print job problem.

Notes:

• When activated, all data sent to the printer is printed in hexadecimal and

character representation, and control codes are not executed.

• To exit or deactivate Hex Trace, restart the printer.

Coverage Estimator

Off On

Provide an estimate of the percentage coverage of toner on a page. The estimate is printed on a separate page at the end of each print job.

Note: Off is the factory default setting.

XPS menu

Use To

Print Error Pages

Off On

PostScript menu

Use To

Print PS Error

On Off

Lock PS Startup Mode

On Off

Print a page containing information on errors, including XML markup errors. Note: Off is the factory default setting.

Print a page containing the PostScript error. Note: Off is the factory default setting.

Disable the SysStart file. Note: Off is the factory default setting.

Understanding the printer menus 78

Use To

Font Priority

Resident Flash

PCL Emul menu

Use To

Font Source

Resident Download Flash All

Establish the font search order.

Notes:

• Resident is the factory default setting.

• This menu item is available only when a formatted flash memory card is

installed and operating properly.

• Make sure the flash memory card is not read/write‑, write‑, or

password‑protected.

• Job Buffer Size must not be set to 100%.

Specify the set of fonts used by the Font Name menu.

Notes:

• Resident is the factory default setting. This shows the factory default set

of fonts downloaded in the RAM.

• Download shows all the fonts downloaded in the RAM.

• Flash shows all fonts resident in that option. The optional flash memory

card must be properly formatted and cannot be read/write‑, write‑, or password‑protected.

• All shows the fonts available to any option.

Font Name

Courier 10

Symbol Set

10U PC‑8 12U PC‑850

PCL Emulation Settings

Point Size

1.00–1008.00

Identify a specific font and the option where it is stored. Note: Courier 10 is the factory default setting. This shows the font name, font

ID, and the storage location in the printer. The font source abbreviation is R for Resident, F for Flash, and D for Download.

Specify the symbol set for each font name.

Notes:

• 10U PC‑8 is the U.S. factory default setting. 12U PC‑850 is the

international factory default setting.

• A symbol set is a set of alphabetic and numeric characters, punctuation,

and special symbols. Symbol sets support the different languages or specific program, such as math symbols for scientific text. Only the supported symbol sets are shown.

Change the point size for scalable typographic fonts.

Notes:

• 12 is the factory default setting.

• Point size refers to the height of the characters in the font. One point

equals approximately 0.014 inch.

• Point sizes can be increased or decreased in 0.25‑point increments.

Understanding the printer menus 79

Use To

PCL Emulation Settings

Pitch

0.08–100

PCL Emulation Settings

Orientation

Portrait Landscape

PCL Emulation Settings

Lines per Page

1–255

Specify the font pitch for scalable monospaced fonts.

Notes:

• 10 is the factory default setting.

• Pitch refers to the number of fixed‑space characters per inch (cpi).

• Pitch can be increased or decreased in 0.01‑cpi increments.

• For nonscalable monospaced fonts, the pitch appears on the display but it

cannot be changed.

Specify the orientation of text and graphics on the page.

Notes:

• Portrait is the factory default setting. Portrait prints text and graphics

parallel to the short edge of the page.

• Landscape prints text and graphics parallel to the long edge of the page.

Specify the number of lines that print on each page.

Notes:

• 60 is the US factory default setting. 64 is the international default setting.

• The printer sets the amount of space between each line based on the

Lines per Page, Paper Size, and Orientation settings. Select the Paper Size and Orientation you want before setting Lines per Page.

PCL Emulation Settings

A4 Width

198 mm 203 mm

PCL Emulation Settings

Auto CR after LF

On Off

PCL Emulation Settings

Auto LF after CR

On Off

Set the printer to print on A4‑size paper.

Notes:

• 198 mm is the factory default setting.

• The 203‑mm setting sets the width of the page to allow printing of eighty

10‑pitch characters.

Specify whether the printer automatically performs a carriage return (CR) after a line feed (LF) control command.

Note: Off is the factory default setting.

Specify whether the printer automatically performs a line feed (LF) after a carriage return (CR) control command.

Note: Off is the factory default setting.

Understanding the printer menus 80

Use To

Tray Renumber

Assign MP Feeder

Off None 0–199

Assign Tray [x]

Off None 0–199

Assign Manual Paper

Off None 0–199

Assign Manual Envelope

Off None 0–199

Tray Renumber

View Factory Defaults

MPF Default = 8 T1 Default = 1 T1 Default = 4 T1 Default = 5 T1 Default = 20 T1 Default = 21 Env Default = 6 MPaper Default = 2 MEnv Default = 3

Configure the printer to work with printer software or programs that use different source assignments for trays and feeders.

Notes:

• Off is the factory default setting.

• None cannot be selected. It is only displayed when it is selected by the

PCL 5 interpreter. It also ignores the Select Paper Feed command.

• 0–199 allows a custom setting to be assigned.

Display the factory default setting assigned to each tray or feeder.

Tray Renumber

Restore Defaults

Yes No

Restore all tray and feeder assignments to their factory default settings.

Saving money and the environment 81

Saving money and the environment

Lexmark is committed to environmental sustainability and is continually improving its printers to reduce their impact on the environment. We design with the environment in mind, engineer our packaging to reduce materials, and provide collection and recycling programs. For more information, see:

• The Notices chapter

• The Environmental Sustainability section of the Lexmark Web site at www.lexmark.com/environment

• The Lexmark recycling program at www.lexmark.com/recycle

By selecting certain printer settings or tasks, you may be able to reduce your printer's impact even further. This chapter outlines the settings and tasks that may yield a greater environmental benefit.

Saving paper and toner

Studies show that as much as 80% of the carbon footprint of a printer is related to paper usage. You can significantly reduce your carbon footprint by using recycled paper and the following printing suggestions, such as printing on both sides of the paper and printing multiple pages on one side of a single sheet of paper.

Using recycled paper

As an environmentally conscious company, Lexmark supports the use of recycled office paper produced specifically for use in laser printers. For more information on recycled papers that work well with your printer, see

paper and other office papers” on page 42.

“Using recycled

Conserving supplies

Use both sides of the paper

If your printer model supports two‑sided printing, then you can control whether print appears on one or two sides of the paper.

Notes:

• Two-sided printing is the default setting in the print driver.

• For a complete list of supported products and countries, go to http://support.lexmark.com.

Place multiple pages on one sheet of paper

You can print up to 16 consecutive pages of a multiple‑page document onto one side of a single sheet of paper by setting multiple page printing (N‑Up) for the print job.

Check your first draft for accuracy

Before printing or making multiple copies of a document:

• Use the preview feature to see how the document looks like before you print it.

• Print one copy of the document to check its content and format for accuracy.

Saving money and the environment 82

Avoid paper jams

Correctly set the paper type and size to avoid paper jams. For more information, see “Avoiding jams” on page 101.

Saving energy

Using Eco‑Mode

Use Eco‑Mode to quickly select one or more ways to reduce your printer's environmental impact.

1 From the printer control panel, navigate to:

> Settings > > General Settings > > Eco‑Mode > > select the setting you want

Use To

Off Use the factory default settings for all settings associated with Eco‑Mode. This setting supports the

performance specifications for your printer.

Energy Reduce energy use, especially when the printer is idle.

• Printer engine motors do not start until a document is ready to print. You may notice a short delay

before the first page is printed.

• The printer enters Sleep mode after one minute of inactivity.

Energy/Paper Use all the settings associated with Energy and Paper modes.

Paper

• Enable the automatic two‑sided (duplex) printing feature.

• Turn off print log features.

2 Press .

Using Hibernate mode

Hibernate is an ultra‑low‑power saving mode.

Notes:

• Three days is the default amount of time before the printer enters Hibernate mode.

• Make sure to wake the printer from Hibernate mode before sending a print job. A hard reset or a long press of

the Sleep button wakes the printer from Hibernate mode.

• If the printer is in Hibernate mode, then the Embedded Web Server is disabled.

1 From the control panel, navigate to:

> Settings > > General Settings >

2 Press Press Sleep Button or Press and Hold Sleep Button, and then press .

3 Press Hibernate > .

Saving money and the environment 83

Adjusting Sleep mode

Using the Embedded Web Server

Open a Web browser, and then type the printer IP address in the address field.

Notes:

• Print a network setup page or menu settings page, and then locate the IP address in the TCP/IP section.

• If you are using a proxy server, then temporarily disable it to load the Web page correctly.

2 Click Settings > General Settings > Timeouts.

3 In the Sleep Mode field, enter the number of minutes you want the printer to wait before it enters Sleep Mode.

4 Click Submit.

Using the printer settings on the computer (Windows only)

•

Access the Setup menu using the Local Printer Settings Utility.

Setting Hibernate Timeout

Hibernate Timeout lets you set the amount of time the printer waits after a print job is processed before it goes into a reduced power state.

Using the Embedded Web Server

Open a Web browser, and then type the printer IP address in the address field.

Notes:

• Print a network setup page or menu settings page, and then locate the IP address in the TCP/IP section. The

IP address appears as four sets of numbers separated by periods, such as 123.123.123.123.

• If you are using a proxy server, then temporarily disable it to load the Web page correctly.

2 Click Settings > General Settings > Timeouts.

3 From the Hibernate Timeout menu, select the number of hours, days, weeks, or months you want for the printer

to wait before it goes into a reduced power state.

4 Click Submit.

Using the printer settings on the computer

Depending on your operating system, access the Hibernate Timeout menu using the Local Printer Settings Utility or Print Settings.

Using Schedule Power Modes

Schedule Power Modes lets the user schedule when the printer goes into a reduced power state or into the Ready state.

Using the Embedded Web Server

Open a Web browser, and then type the printer IP address in the address field.

Saving money and the environment 84

Notes:

• Print a network setup page or menu settings page, and then locate the IP address in the TCP/IP section. The

IP address appears as four sets of numbers separated by periods, such as 123.123.123.123.

• If you are using a proxy server, then temporarily disable it to load the Web page correctly.

2 Click Settings > General Settings > Schedule Power Modes.

3 From the Action menu, select the power mode.

4 From the Time menu, select the time.

5 From the Day(s) menu, select the day or days.

6 Click Add.

Using the printer settings on the computer (Windows only)

•

Access the Schedule Power Modes menu using the Local Printer Settings Utility.

Recycling

Lexmark provides collection programs and environmentally progressive approaches to recycling. For more information, see:

• The Notices chapter

• The Environmental Sustainability section of the Lexmark Web site at www.lexmark.com/environment

• The Lexmark recycling program at www.lexmark.com/recycle

Recycling Lexmark products

To return Lexmark products for recycling:

1 Go to www.lexmark.com/recycle.

2 Find the product type you want to recycle, and then select your country or region from the list.

3 Follow the instructions on the computer screen.

Note: Printer supplies and hardware not listed in the Lexmark collection program may be recycled through your local

recycling center. Contact your local recycling center to determine the items they accept.

Recycling Lexmark packaging

Lexmark continually strives to minimize packaging. Less packaging helps to ensure that Lexmark printers are transported in the most efficient and environmentally sensitive manner and that there is less packaging to dispose of. These efficiencies result in fewer greenhouse emissions, energy savings, and natural resource savings.

Lexmark cartons are 100% recyclable where corrugated recycling facilities exist. Facilities may not exist in your area.

The foam used in Lexmark packaging is recyclable where foam recycling facilities exist. Facilities may not exist in your area.

When you return a cartridge to Lexmark, you can reuse the box that the cartridge came in. Lexmark will recycle the box.

Saving money and the environment 85

Returning Lexmark cartridges for reuse or recycling

Lexmark Cartridge Collection Program diverts millions of Lexmark cartridges from landfills annually by making it both easy and free for Lexmark customers to return used cartridges to Lexmark for reuse or recycling. One hundred percent of the empty cartridges returned to Lexmark are either reused or demanufactured for recycling. Boxes used to return the cartridges are also recycled.

To return Lexmark cartridges for reuse or recycling, follow the instructions that came with your printer or cartridge and use the prepaid shipping label. You can also do the following:

1 Go to www.lexmark.com/recycle.

2 From the Toner Cartridges section, select your country or region.

3 Follow the instructions on the computer screen.

Securing the printer 86

Securing the printer

Using the security lock feature

The printer is equipped with a security lock feature. Attach a security lock compatible with most laptop computers in the location shown to secure the printer in place.

Statement of Volatility

Your printer contains various types of memory that can store device and network settings, and user data.

Type of memory Description

Volatile memory Your printer uses standard random access memory (RAM) to

temporarily buffer user data during simple print jobs.

Non-volatile memory Your printer may use two forms of non-volatile memory:

EEPROM and NAND (flash memory). Both types are used to store operating system, device settings, and network information.

Erase the content of any installed printer memory in the following circumstances:

• The printer is being decommissioned.

• The printer is being moved to a different department or location.

• The printer is being serviced by someone from outside your organization.

• The printer is being removed from your premises for service.

• The printer is being sold to another organization.

Securing the printer 87

Erasing volatile memory

The volatile memory (RAM) installed in your printer requires a power source to retain information. To erase the buffered data, simply turn off the printer.

Erasing non‑volatile memory

1 Turn off the printer.

2 From the printer control panel, hold down and the right arrow button while turning the printer on. Release

the buttons only when the Configuration menu appears.

3 Press the arrow buttons until Wipe All Settings appears, and then press .

The printer will restart several times during this process.

Note: Wipe All Settings securely removes device settings, solutions, jobs, and passwords from the printer memory.

4 Press the arrow buttons until Exit Config Menu appears, and then press .

The printer will perform a power‑on reset, and then return to normal operating mode.

Finding printer security information

In high-security environments, it may be necessary to take additional steps to make sure that confidential data stored in the printer cannot be accessed by unauthorized persons. For more information, go to the or see the Embedded Web Server—Security: Administrator’s Guide at

http://support.lexmark.com.

Lexmark security Web page

Maintaining the printer 88

Maintaining the printer

Warning—Potential Damage: Failure to maintain optimum printer performance, or to replace parts and supplies,

may cause damage to your printer.

Cleaning the printer

Note: You may need to perform this task after every few months.

Warning—Potential Damage: Damage to the printer caused by improper handling is not covered by the printer

warranty.

1 Make sure that the printer is turned off and unplugged from the electrical outlet.

CAUTION—SHOCK HAZARD: To avoid the risk of electrical shock when cleaning the exterior of the printer,

unplug the power cord from the electrical outlet and disconnect all cables from the printer before proceeding.

2 Remove paper from the standard bin and multipurpose feeder.

3 Remove any dust, lint, and pieces of paper around the printer using a soft brush or vacuum.

4 Dampen a clean, lint-free cloth with water, and use it to wipe the outside of the printer.

Warning—Potential Damage: Do not use household cleaners or detergents to prevent damage to the exterior

of the printer.

5 Make sure all areas of the printer are dry before sending a new print job.

Checking the status of parts and supplies

A message appears on the display when a replacement supply item is needed or when maintenance is required.

Checking the status of parts and supplies

Using the Embedded Web Server

Open a Web browser, and then type the printer IP address in the address field.

Notes:

• View the printer IP address in the TCP/IP section in the Network/Ports menu. The IP address appears as four

sets of numbers separated by periods, such as 123.123.123.123.

• If you are using a proxy server, then temporarily disable it to load the Web page correctly.

2 Click Device Status.

Maintaining the printer 89

Using the control panel

Depending on your printer model, navigate to either of the following:

• > Reports > > Device Statistics >

Note: You can view the status of parts and supplies in the “Supply Information” section of the pages

printed.

• > Status/Supplies > > View Supplies >

Estimated number of remaining pages

The estimated number of remaining pages is based on the recent printing history of the printer. Its accuracy may vary significantly and is dependent on many factors, such as actual document content, print quality settings, and other printer settings.

The accuracy of the estimated number of remaining pages may decrease when the actual printing consumption is different from the historical printing consumption. Consider the variable level of accuracy before purchasing or replacing supplies based on the estimate. Until an adequate print history is obtained on the printer, initial estimates assume future supplies consumption based on the International Organization for Standardization* test methods and page content.

* Average continuous black declared cartridge yield in accordance with ISO/IEC 19752.

Ordering supplies

To order parts and supplies in the U.S., contact Lexmark at 1-800-539-6275 for information about Lexmark Authorized Supplies Dealers in your area. In other countries or regions, go to purchased the printer.

Note: All life estimates for printer supplies assume printing on letter‑ or A4‑size plain paper.

Using genuine Lexmark parts and supplies

Your Lexmark printer is designed to function best with genuine Lexmark supplies and parts. Use of third-party supplies or parts may affect the performance, reliability, or life of the printer and its imaging components. Use of third-party supplies or parts can affect warranty coverage. Damage caused by the use of third-party supplies or parts is not covered by the warranty. All life indicators are designed to function with Lexmark supplies and parts, and may deliver unpredictable results if third-party supplies or parts are used. Imaging component usage beyond the intended life may damage your Lexmark printer or its associated components.

Ordering toner cartridges

www.lexmark.com or contact the place where you

Notes:

• The estimated cartridge yield is based on the ISO/IEC 19752 standard.

• Extremely low print coverage for extended periods of time may negatively affect actual yield.

Maintaining the printer 90

Item Return Program cartridge

For the United States and Canada

Toner Cartridge 501

High Yield Toner Cartridge 501H

Extra High Yield Toner Cartridge

Ultra High Yield Toner Cartridge

501X

501U

For the European Union, European Economic Area , and Switzerland

Toner Cartridge 502

High Yield Toner Cartridge 502H

Extra High Yield Toner Cartridge

Ultra High Yield Toner Cartridge

502X

502U

For the Asia Pacific Region (includes Australia and New Zealand)

Toner Cartridge 503

High Yield Toner Cartridge 503H

Extra High Yield Toner Cartridge

Ultra High Yield Toner Cartridge

503X

503U

For Latin America (includes Puerto Rico and Mexico)

Toner Cartridge 504

High Yield Toner Cartridge 504H

Extra High Yield Toner Cartridge

Ultra High Yield Toner Cartridge

504X

504U

For Africa, Middle East, Central Eastern Europe, and Commonwealth of Independent States

Toner Cartridge 505

High Yield Toner Cartridge 505H

Extra High Yield Toner Cartridge

Ultra High Yield Toner Cartridge

This cartridge is supported only in MS410d, MS410dn, MS510dn, MS610dn, and MS610de printer models.

This cartridge is supported only in MS510dn, MS610dn, and MS610de printer models. For more information on countries located in each region, visit

505X

505U

www.lexmark.com/regions.

Item Regular cartridge

Worldwide

High Yield Toner Cartridge

This cartridge is supported only in MS310d and MS310dn printer models.

This cartridge is supported only in MS410d and MS410dn printer models.

This cartridge is supported only in MS510dn, MS610dn, and MS610de printer models.

500HA

Maintaining the printer 91

Item Regular cartridge

Extra High Yield Toner Cartridge

Ultra High Yield Toner Cartridge

This cartridge is supported only in MS310d and MS310dn printer models.

This cartridge is supported only in MS410d and MS410dn printer models.

This cartridge is supported only in MS510dn, MS610dn, and MS610de printer models.

500XA

500UA

Ordering an imaging unit

Extremely low print coverage for extended periods of time may cause imaging unit parts to fail prior to exhaustion of toner from toner cartridge.

For more information on replacing the imaging unit, see the instruction sheet that came with the supply.

Part name Lexmark Return Program Regular

Imaging unit 500Z 500ZA

Storing supplies

Choose a cool, clean storage area for the printer supplies. Store supplies right side up in their original packing until you are ready to use them.

Do not expose supplies to:

• Direct sunlight

• Temperatures above 35°C (95°F)

• High humidity above 80%

• Salty air

• Corrosive gases

• Heavy dust

Maintaining the printer 92

Replacing supplies

Replacing the toner cartridge

1 Press the button on the right side of the printer, and then open the front door.

2 Pull the toner cartridge out using the handle.

3 Unpack the toner cartridge, and then remove all packing materials.

4 Shake the new cartridge to redistribute the toner.

5 Insert the toner cartridge into the printer by aligning the side rails of the cartridge with the arrows on the side rails

inside the printer.

Warning—Potential Damage: Do not expose the imaging unit to direct light for more than 10 minutes. Extended exposure to light may cause print quality problems.

Maintaining the printer 93

6 Close the front door.

Replacing the imaging unit

1 Press the button on the right side of the printer, and then open the front door.

2 Pull the toner cartridge out using the handle.

Maintaining the printer 94

3 Lift the green handle, and then pull the imaging unit out of the printer.

4 Unpack the new imaging unit, and then shake it.

5 Remove all packing materials from the imaging unit.

Warning—Potential Damage: Do not expose the imaging unit to direct light for more than 10 minutes.

Extended exposure to light may cause print quality problems.

Warning—Potential Damage: Do not touch the photoconductor drum. Doing so may affect the print quality of future print jobs.

Maintaining the printer 95

6 Insert the imaging unit into the printer by aligning the arrows on the side rails of the imaging unit with the arrows

on the side rails inside the printer.

7 Insert the toner cartridge into the printer by aligning the side rails of the cartridge with the arrows on the side rails

inside the printer.

8 Close the front door.

Moving the printer

Before moving the printer

CAUTION—POTENTIAL INJURY: Before moving the printer, follow these guidelines to avoid personal injury or

printer damage:

• Turn the printer off using the power switch, and then unplug the power cord from the electrical outlet.

• Disconnect all cords and cables from the printer before moving it.

Maintaining the printer 96

• If an optional tray is installed, then remove it from the printer. To remove the optional tray, slide the latch on the

right side of the tray toward the front of the tray until it clicks into place.

• Use the handholds located on both sides of the printer to lift it.

• Make sure your fingers are not under the printer when you set it down.

• Before setting up the printer, make sure there is adequate clearance around it.

Use only the power cord provided with this product or the manufacturer's authorized replacement.

Warning—Potential Damage: Damage to the printer caused by improper moving is not covered by the printer warranty.

Moving the printer to another location

The printer and its hardware options can be safely moved to another location by following these precautions:

• Any cart used to move the printer must have a surface able to support the full footprint of the printer.

• Any cart used to move the hardware options must have a surface able to support the dimensions of the hardware

options.

• Keep the printer in an upright position.

• Avoid severe jarring movements.

Shipping the printer

When shipping the printer, use the original packaging.

Managing the printer 97

Managing the printer

Finding advanced networking and administrator information

This chapter covers basic administrative support tasks using the Embedded Web Server. For more advanced system support tasks, see the Networking Guide on the Software and Documentation CD or the Embedded Web Server — Security: Administrator's Guide on the Lexmark support Web site at

Accessing the remote control panel

The remote control panel on your computer screen lets you interact with the printer control panel, even when you are not physically near the network printer. From your screen, you can view the printer status and do print-related tasks.

1 Open a Web browser, and then type the printer IP address in the address field.

Notes:

• Print a network setup page or menu settings page, and then locate the IP address in the TCP/IP section. The

IP address appears as four sets of numbers separated by periods, such as 123.123.123.123.

• If you are using a proxy server, then temporarily disable it to load the Web page correctly.

http://support.lexmark.com.

2 Press Enter to open the Web page of your printer.

3 Click Remote Operator Panel > Run Remote Panel.

Note: The remote control panel requires a Java plug‑in to launch.

Viewing reports

You can view some reports from the Embedded Web Server. These reports are useful for assessing the status of the printer, network, and supplies.

1 Open a Web browser, and then type the printer IP address in the address field.

Notes:

• View the printer IP address in the TCP/IP section in the Network/Ports menu. The IP address appears as four

sets of numbers separated by periods, such as 123.123.123.123.

• If you are using a proxy server, then temporarily disable it to load the Web page correctly.

2 Click Reports, and then click the type of report you want to view.

Configuring supply notifications from the Embedded Web Server

You can determine how you would like to be notified when supplies run nearly low, low, very low, or reach their end‑of‑life by setting the selectable alerts.

Managing the printer 98

Notes:

• Selectable alerts can be set on the toner cartridge and imaging unit.

• All selectable alerts can be set for nearly low, low, and very low supply conditions. Not all selectable alerts can

be set for the end‑of‑life supply condition. E‑mail selectable alert is available for all supply conditions.

• The percentage of estimated remaining supply that prompts the alert can be set on some supplies for some

supply conditions.

1 Open a Web browser, and then type the printer IP address in the address field.

Notes:

• View the printer IP address in the TCP/IP section in the Network/Ports menu. The IP address appears as four

sets of numbers separated by periods, such as 123.123.123.123.

• If you are using a proxy server, then temporarily disable it to load the Web page correctly.

2 Click Settings > Print Settings > Supply Notifications.

3 From the drop‑down menu for each supply, select one of the following notification options:

Notification Description

Off The normal printer behavior for all supplies occurs.

SNMP Only The printer generates a simple network management protocol (SNMP) alert when the supply

condition is reached. The status of the supply will appear on the menus page and status page.

E‑mail Only The printer generates an e-mail when the supply condition is reached. The status of the

supply will appear on the menus page and status page.

Warning The printer displays the warning message and generates an e‑mail about the status of the

supply. The printer does not stop when the supply condition is reached.

Continuable Stop

Non Continuable Stop

The printer generates an e-mail about the status of the supply when supply notification is enabled.

The printer stops when some supplies become empty to prevent damage.

The printer stops processing jobs when the supply condition is reached, and the user needs to press a button to continue printing.

1,2

The printer stops when the supply condition is reached. The supply must be replaced to continue printing.

4 Click Submit.

Copying printer settings to other printers

Note: This feature is available only in network printers.

1 Open a Web browser, and then type the printer IP address in the address field.

Notes:

• View the printer IP address in the TCP/IP section in the Network/Ports menu. The IP address appears as four

sets of numbers separated by periods, such as 123.123.123.123.

• If you are using a proxy server, then temporarily disable it to load the Web page correctly.

2 Click the Copy Printer Settings.

Managing the printer 99

3 To change the language, select a language from the drop-down menu, and then click Click here to submit language.

4 Click Printer Settings.

5 Type the IP addresses of the source and target printers in their appropriate fields.

Note: If you want to add or remove a target printer, then click Add Target IP or Remove Target IP.

6 Click Copy Printer Settings.

Restoring factory default settings

If you want to keep a list of the current menu settings for reference, then print a menu settings page before restoring the factory default settings. For more information, see

If you want a more comprehensive method of restoring the printer factory default settings, then perform the Wipe All Settings option. For more information, see

Warning—Potential Damage: Restoring factory defaults returns most printer settings to the original factory default settings. Exceptions include the display language, custom sizes and messages, and Network/Port menu settings. All downloads stored in the RAM are deleted.

“Erasing non‑volatile memory” on page 87.

“Printing a menu settings page” on page 24.

From the printer control panel, navigate to:

> Settings > > General Settings > > Factory Defaults > > Restore Now >

Creating a printer control panel PIN

The Panel PIN Protect menu lets you restrict access to the menus from the printer control panel. To restrict access to the menus, create a Personal Identification Number (PIN), and then assign the PIN to each menu.

1 Open a Web browser, and then type the printer IP address in the address field.

Notes:

• View the printer IP address in the TCP/IP section in the Network/Ports menu. The IP address appears as four

sets of numbers separated by periods, such as 123.123.123.123.

• If you are using a proxy server, then temporarily disable it to load the Web page correctly.

2 Click Settings > Security > Panel PIN Protect.

3 From the Create User PIN or Create Admin PIN sections, enter your PIN.

Note: Your can enter up to 16 digits for your PIN.

4 Click Modify.

5 From any menu in the Administrative Menus, Management, or Function Access sections, select User PIN

Protected or Admin PIN Protected or Admin PIN and User PIN Protected.

Note: Using an Admin PIN, you can still access a menu assigned with a User PIN.

6 Click Submit.

If you try to access a PIN‑protected menu from the printer control panel, the printer will require you to enter the PIN.

Managing the printer 100

Note: After you enter the last digit of the PIN, make sure to press on the printer control panel for more than three seconds.

Lexmark MS410d, MS410dn, MS510dn, MS610dn, MS610de User guide

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

Safety information

Learning about the printer
