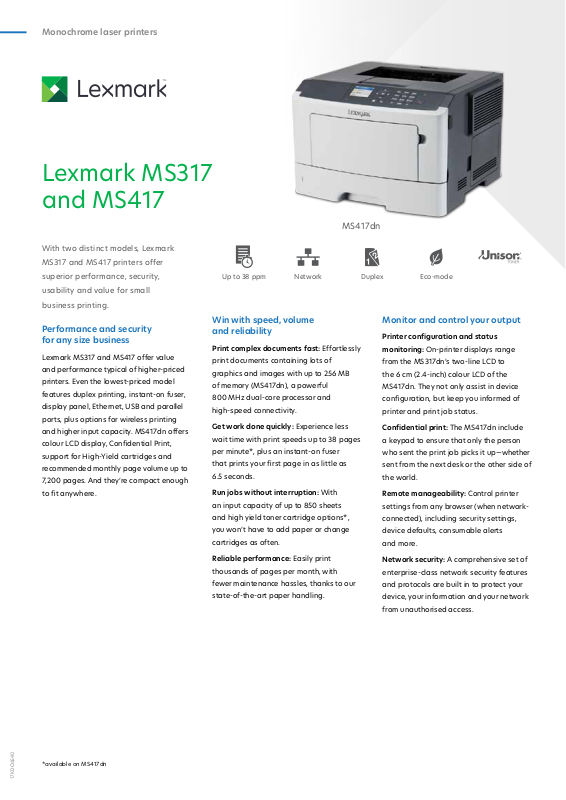

Lexmark MS317, MS417 Datasheet

Monochrome laserprinters

LexmarkMS317
andMS417

With two distinct models, Lexmark

MS317 and MS417 printers offer

superior performance, security,

usability and value for small

businessprinting.

Performance and security
for any sizebusiness

Lexmark MS317 and MS417 offer value
and performance typical of higher-priced
printers. Even the lowest -priced model
features duplex printing, instant-on fuser,
display panel, Ethernet, USB andparallel
ports, plus options for wireless printing
and higher input capacity. MS417dn offers
colour LCD display, Confidential Print,
support for High-Yield cartridges and
recommended monthly page volume up to
7,200 pages. And they’re compact enough
to fitanywhere.

MS417dn

Up to 38ppm Network Duplex Eco-mode

Win with speed, volume
andreliability

Print complex documents fast: Effortlessly

print documents containing lots of
graphics and images with up to 256MB
of memory (MS417dn), a powerful
800MHz dual-core processor and
high-speedconnectivity.

Get work done quickly: Experience less
wait time with print speeds up to 38pages
per minute*, plus an instant-on fuser
that prints your first page in as little as

6.5seconds.

Run jobs without interruption: With
an input capacity of up to 850 sheets
and high yield toner cartridge options*,
you won’t have to add paper or change
cartridges asoften.

Reliable performance: Easily print
thousands of pages per month, with
fewer maintenance hassles, thanks to our
state-of-the-art paperhandling.

Monitor and control youroutput

Printer configuration and status
monitoring: On-printer displays range

from the MS317dn’s two-line LCD to
the 6 cm (2.4-inch) colour LCD of the
MS417dn. They not only assist in device
configuration, but keep you informed of
printer and print jobstatus.

Confidential print: The MS417dn include
a keypad to ensure that only the person
who sent the print job picks it up—whether
sent from the next desk or the other side of
theworld.

Remote manageability: Control printer
settings from any browser (when network­connected), including security settings,
device defaults, consumable alerts
andmore.

Network security: A comprehensive set of
enterprise-class network security features
and protocols are built in to protect your
device, your information and your network
from unauthorisedaccess.

*available onMS417dn

17KDO6540

Monochrome laserprinters

Connect with yourworld

Connectivity: Gigabit Ethernet (10/100

Ethernet on the MS317dn) instantly
connects to standard networks, while USB

2.0 and parallel ports link to individual
device outputs. Optional wireless (802.11n)
connectivity supports flexible printer
placement on wirelessnetworks.

Protocols: The series supports nearly all
printing protocols, assuring seamless
output from any device or application with
printingcapabilities.

Mobile printing: With the MS417dn, you
can print from any iOS or Android device
with Lexmark MobilePrint.

Qualityoutput

High resolution output: With resolution

up to true 1200x1200 dpi, images and
graphics staycrisp.

Advanced toner: Lexmark’s Unison™ Toner
system optimises printer performance,
delivering rich blacks and smooth
grays from the first print to the last,
withoutfading.

Save resources, savemoney

Duplexing: Default-mode integrated two-

sided printing feature savespaper.

Energy-saving modes: Quiet, Hibernate
and Eco modes automatically minimise
noise, while saving paper andenergy.

Fast fuser: Instant-on fuser eliminates the
long warm-ups of oldertechnologies.

Economical printing: Separate toner­delivery and imaging units ensure
consistent print quality and save paper,
while the option for High-Yield toner
cartridge (MS417dn) minimises toner
replacement, user intervention and waste.
In addition, low-friction Unison™ Toner
flows better, minimises waste and reduces
wear on internalcomponents.

A helpful printpartner

With their easy set-up and full
compatibility with your operating systems
and network, the MS317 and MS417 will
have you up and running in minutes. Their
easy-to-use control panels, advanced
displays and remote web interface keep
you aware of device status and supply
levels. And the no-shake toner delivery
system, plus option for high-capacity toner
cartridges, minimises supplyhandling.

Peace of mindservice

Lexmark backs up the MS317 and MS417
to give you maximum uptime and reduce
service worries. Their standard one-year
guarantee includes multiple contact
options, including free 24-hour online
support and access to technical support
by phone during workinghours.

17KDO6540

lexmark.com

2

MS317 and MS417 printerfeatures

2.4-i nch (6 cm) colourLCD

50-sheet multipurposefeeder

250-sh eettray

250-sh eet tray / 550-s heettray

2-lineLCD

50-sheet multipurposefeeder

Standard

Optional

250-sh eettray

250-sh eet tray / 550-s heettray

Swivelcabinet

Adjusta ble printerst and

Product specifications Lexmark MS317dn Lexmark MS417dn

Print

Display
Print Speed: Up to

5

Time to First Page: As fast as
Print Resolution
Memory / Processor
Hard Disk
Recommended Monthly Page Volume
Maximum Monthly Duty Cycle: Up to

Supplies

Laser Cartridge Yields (up to)

7

1

Imaging Unit Estimated Yield: Up to
Cartridge(s) Shipping with Product

Paper Handling

Included Paper Handling
Optional Paper Handling
Paper Input Capacity: Up to
Paper Output Capacity: Up to
Media Types Supported
Media Sizes Supported

General Information

Standard Connectivity

Optional Network Ports

Noise Level: Operating
Specified Operating Environment
Product Guarantee
Size (mm - H x W x D) / Weight

4

2

3

6

1

2-line All Points Addressable (APA) monochrome LCD display 6 cm (2.4 inch) colour LCD display

Black: 33 ppm Black: 38 ppm

Black: 6.5 seconds

Black: 1200 Image Quality, 1200 x 1200 dpi, 2400 Image Quality, 600 x 600 dpi

Standard: 128 MB / Maximum: 128 MB / Dual Core, 800 MHz Standard: 256 MB / Maximum: 256 MB / Dual Core, 800 MHz

Not Available

500 - 2500 pages 750 - 7200 pages

50000 pages per month 100000 pages per month

2,500-page Cartridge 2,500-page Cartridge, 8,500-page High Yield Cartridge

60000 pages, based on 3 average letter/A4-size pages per print job and ~ 5% coverage

1,500-page Return Program Toner Cartridge 3,000-page Starter Return Program Toner Cartridge

250-Sheet Input, 50-Sheet Multipurpose Feeder, 150-Sheet Output Bin, Integrated Duplex

250-Sheet Tray, 550-Sheet Tray, 550-Sheet Lockable Tray

Standard: 300 pages 75 gsm bond / Maximum: 850 pages 75 gsm bond

Standard: 150 pages 75 gsm bond / Maximum: 150 pages 75 gsm bond

Card Stock, Envelopes, Paper Labels, Plain Paper, Transparencies, Refer to the Card Stock & Label Guide.

10 Envelope, 7 3/4 Envelope, 9 Envelope, A4, A5, DL Envelope, Executive, Folio, JIS-B5, Legal, Letter, Statement, Universal, Oficio, A6

Centronics IEEE 1284 Bidirectional Parallel, USB 2.0
Specification Hi-Speed Certified (Type B), Ethernet

10/100BaseTX (RJ-45), also works with 1000Base-T

External MarkNet™ N7020e Gigabit Ethernet,

MarkNet N8352 802.11b/g/n Wireless

Centronics IEEE 1284 Bidirectional Parallel, USB 2.0 Specification

Hi-Speed Certified (Type B), Gigabit Ethernet (10/100/1000)

MarkNet N8352 802.11b/g/n Wireless

Print: 53 dBA Print: 54 dBA

Temperature: 16 to 32°C (60 to 90°F), Humidity: 8 to 80% Relative Humidity, Altitude: 0 - 2896 Meters (9,500 Feet)

1-Year Exchange, Return-to-Base Service

263 x 399 x 382 mm / 14.0 kg 263 x 399 x 382 mm / 14.2 kg

1

Average standard page yield value declared in accordance with ISO/IEC 19752. 2”Recommended Monthly Page Volume” is a range of pages that helps customers evaluate Lexmark’s product
offerings based on the average number of pages customers plan to print on the device each month. Lexmark recommends that the number of pages per month be within the stated range
for optimum device performance, based on factors including: supplies replacement intervals, paper loading intervals, speed, and typical customer usage.
defined as the maximum number of pages a device could deliver in a month using a multishift operation. This metric provides a comparison of robustness in relation to other Lexmark printers
and MFPs.
24734 and ISO/IEC 24735 respectively (ESAT). For more information see: www.lexmark.com/ISOspeeds.
feed orientation, toner coverage, tray source, percentage of black-only printing and average print job complexity.
specific geographical region. See www.lexmark.com/regions for moredetails.

17KDO6540

4

Printers are sold subject to certain license/agreement conditions. See www.lexmark.com/printerlicense for details. 5Print and copy speeds measured in accordance with ISO/IEC

6

Actual Yield may vary based on other factors such as device speed, paper size and

7

Product functions only with replacement cartridges designed for use in a

lexmark.com

3

”Maximum Monthly Duty Cycle” is

3

www.lexmark.com

© 2017 Lexmark and the Lexmark logo are trademarks of Lexmark International, Inc., registered in the
United States and/or other countries. All other trademarks are the property of their respective owners.
ENERGY STAR® is a U.S. registeredmark.

17KDO6540
