M5163dn

User's Guide

December 2012 www.lexmark.com

Machine type(s):

4063

Model(s):

490

Contents 2

Safety information.......................................................................................5

Learning about the printer...........................................................................7

Finding information about the printer......................................................................................................7

Selecting a location for the printer............................................................................................................8

Printer configurations...............................................................................................................................9

Using the printer control panel...............................................................................................................11

Understanding the colors of the Sleep button and indicator lights........................................................12

Additional printer setup.............................................................................13

Installing internal options........................................................................................................................13

Installing hardware options.....................................................................................................................30

Attaching cables......................................................................................................................................34

Setting up the printer software...............................................................................................................36

Networking..............................................................................................................................................38

Verifying printer setup............................................................................................................................46

Loading paper and specialty media............................................................47

Setting the paper size and type...............................................................................................................47

Configuring Universal paper settings......................................................................................................47

Loading the 250‑ or 550‑sheet tray........................................................................................................47

Loading the 2100‑sheet tray...................................................................................................................54

Loading the multipurpose feeder............................................................................................................60

Linking and unlinking trays......................................................................................................................65

Paper and specialty media guide................................................................67

Using specialty media..............................................................................................................................67

Paper guidelines......................................................................................................................................68

Supported paper sizes, types, and weights.............................................................................................72

Printing......................................................................................................77

Printing a document................................................................................................................................77

Printing from a flash drive.......................................................................................................................78

Printing confidential and other held jobs................................................................................................80

Printing information pages......................................................................................................................81

Contents 3

Canceling a print job................................................................................................................................82

Understanding the printer menus..............................................................83

Menus list................................................................................................................................................83

Paper menu.............................................................................................................................................84

Reports menu..........................................................................................................................................95

Network/Ports menu...............................................................................................................................96

Security menu.......................................................................................................................................109

Settings menu........................................................................................................................................112

Help menu.............................................................................................................................................132

Saving money and the environment.........................................................133

Saving paper and toner.........................................................................................................................133

Saving energy........................................................................................................................................134

Recycling................................................................................................................................................137

Securing the printer..................................................................................139

Using the security lock feature..............................................................................................................139

Statement of Volatility..........................................................................................................................139

Erasing volatile memory........................................................................................................................140

Erasing non‑volatile memory................................................................................................................140

Erasing printer hard disk memory.........................................................................................................141

Configuring printer hard disk encryption..............................................................................................141

Finding printer security information.....................................................................................................142

Maintaining the printer............................................................................143

Cleaning the printer..............................................................................................................................143

Checking the status of parts and supplies.............................................................................................144

Ordering supplies..................................................................................................................................145

Storing supplies.....................................................................................................................................147

Replacing supplies.................................................................................................................................148

Moving the printer................................................................................................................................154

Managing the printer...............................................................................157

Finding advanced networking and administrator information.............................................................157

Checking the virtual display...................................................................................................................157

Modifying confidential print settings....................................................................................................157

Copying printer settings to other printers.............................................................................................157

Contents 4

Restoring factory default settings.........................................................................................................158

Clearing jams............................................................................................159

Avoiding jams........................................................................................................................................159

Understanding jam messages and locations.........................................................................................161

[x]‑page jam, lift front cover to remove cartridge [200–201]...............................................................163

[x]‑page jam, open upper rear door [202]............................................................................................166

[x]‑page jam, open upper and lower rear door [231–234]...................................................................167

[x]‑page jam, remove standard bin jam [203].......................................................................................169

[x]‑page jam, remove tray 1 to clear duplex [235–239]........................................................................170

[x]‑page jam, open tray [x] [24x]...........................................................................................................171

[x]‑page jam, clear manual feeder [250]...............................................................................................172

[x]‑page jam, remove paper, open stapler door. Leave paper in bin. [455–457]..................................173

[x]‑page jam, remove paper, open finisher rear door. Leave paper in bin. [451].................................176

[x]‑page jam, remove paper, open expander rear door. Leave paper in bin. [41y.xx]..........................177

[x]‑page jam, remove paper, open mailbox rear door. Leave paper in bin. [43y.xx]............................178

Troubleshooting.......................................................................................180

Understanding the printer messages....................................................................................................180

Solving printer problems.......................................................................................................................197

Solving home screen applications problems.........................................................................................205

Embedded Web Server does not open.................................................................................................206

Contacting customer support................................................................................................................206

Notices.....................................................................................................208

Product information..............................................................................................................................208

Edition notice........................................................................................................................................208

Power consumption..............................................................................................................................212

Index........................................................................................................221

Safety information 5

Safety information

Connect the power cord to a properly grounded electrical outlet that is near the product and easily accessible.

Do not place or use this product near water or wet locations.

CAUTION—POTENTIAL INJURY: This product uses a laser. Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

This product uses a printing process that heats the print media, and the heat may cause the media to release emissions. You must understand the section in your operating instructions that discusses the guidelines for selecting print media to avoid the possibility of harmful emissions.

CAUTION—POTENTIAL INJURY: The lithium battery in this product is not intended to be replaced. There is a danger of explosion if a lithium battery is incorrectly replaced. Do not recharge, disassemble, or incinerate a lithium battery. Discard used lithium batteries according to the manufacturer's instructions and local regulations.

CAUTION—HOT SURFACE: The inside of the printer might be hot. To reduce the risk of injury from a hot component, allow the surface to cool before touching.

CAUTION—POTENTIAL INJURY: To reduce the risk of equipment instability, load each tray separately. Keep all other trays closed until needed.

CAUTION—POTENTIAL INJURY: The printer weight is greater than 18 kg (40 lb) and requires two or more trained personnel to lift it safely.

CAUTION—POTENTIAL INJURY: Before moving the printer, follow these guidelines to avoid personal injury or printer damage:

• Turn off the printer, and then unplug the power cord from the electrical outlet.

• Disconnect all cords and cables from the printer.

• If two or more optional finishers are installed, then remove the finishers individually from the printer.

Notes:

– Make sure to remove the topmost finisher first.

– To remove the finisher, hold the finisher on both sides, and then lift the latches to unlock the finisher.

• If the printer does not have a caster base but is configured with optional trays, then remove the trays.

Note: Slide the latch on the right side of the optional tray toward the front of the tray until it clicks into place.

• Use the handholds located on both sides of the printer to lift it.

• Make sure your fingers are not under the printer when you set it down.

• Make sure there is adequate clearance around the printer.

• Use only the power cord provided with this product or the manufacturer's authorized replacement.

CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or memory devices sometime after setting up the printer, then turn the printer off, and unplug the power cord from the electrical outlet before continuing. If you have any other devices attached to the printer, then turn them off as well, and unplug any cables going into the printer.

CAUTION—SHOCK HAZARD: To avoid the risk of electrical shock when cleaning the exterior of the printer, unplug the power cord from the electrical outlet and disconnect all cables from the printer before proceeding.

Use only the power cord provided with this product or the manufacturer's authorized replacement.

Safety information 6

CAUTION—SHOCK HAZARD: Make sure that all external connections (such as Ethernet and telephone system connections) are properly installed in their marked plug-in ports.

This product is designed, tested, and approved to meet strict global safety standards with the use of specific manufacturer's components. The safety features of some parts may not always be obvious. The manufacturer is not responsible for the use of other replacement parts.

CAUTION—POTENTIAL INJURY: Do not cut, twist, bind, crush, or place heavy objects on the power cord. Do not subject the power cord to abrasion or stress. Do not pinch the power cord between objects such as furniture and walls. If any of these things happen, a risk of fire or electrical shock results. Inspect the power cord regularly for signs of such problems. Remove the power cord from the electrical outlet before inspecting it.

Refer service or repairs, other than those described in the user documentation, to a service representative.

CAUTION—SHOCK HAZARD: Do not set up this product or make any electrical or cabling connections, such as a power cord, a fax feature or USB cable, during a lightning storm.

CAUTION—TIPPING HAZARD: Floor-mounted configurations require additional furniture for stability. You must use either a printer stand or printer base if you are using multiple input options. If you purchased a printer with a similar configuration, then you may need additional furniture. For more information, see

www.lexmark.com/multifunctionprinters.

SAVE THESE INSTRUCTIONS.

Learning about the printer 7

Learning about the printer

Finding information about the printer

What are you looking for? Find it here

Initial setup instructions:

• Connecting the printer

• Installing the printer software

Additional setup and instructions for using the printer:

• Selecting and storing paper and specialty media

• Loading paper

• Configuring printer settings

• Viewing and printing documents and photos

• Setting up and using the printer software

• Configuring the printer on a network

• Caring for and maintaining the printer

• Troubleshooting and solving problems

Instructions for:

• Connecting the printer to an Ethernet network

• Troubleshooting printer connection problems

Help using the prin ter software Windows or Mac Help—Open a printer software program

Setup documentation—The setup documentation came with the printer and is also available at

http://support.lexmark.com.

User's Guide and Quick Reference Guide—The guides are available on the Documentation CD.

For more information, visit

http://support.lexmark.com.

Networking Guide—Open the Software CD, and then look for Printer and Software Documentation under the Pubs folder. From the list of publications, click the Networking Guide link.

or application, and then click Help.

Click

to view context‑sensitive information.

Notes:

• Help is automatically installed with the printer

software.

• The printer software is located in the printer

program folder or on the desktop, depending on your operating system.

Learning about the printer 8

What are you looking for? Find it here

The latest supplemental information, updates, and customer support:

• Documentation

• Driver downloads

• Live chat support

• E‑mail support

• Voice support

Lexmark Support Web site—

http://support.lexmark.com

Note: Select your country or region, and then select

your product to view the appropriate support site. Support telephone numbers and hours of operation for

your country or region can be found on the Support Web site or on the printed warranty that came with your printer.

Record the following information (located on the store receipt and at the back of the printer), and have it ready when you contact customer support so that they may serve you faster:

• Machine Type number

• Serial number

• Date purchased

• Store where purchased

Warranty information Warranty information varies by country or region:

• In the U.S.—See the Statement of Limited Warranty

included with this printer, or at

http://support.lexmark.com.

• In other countries and regions—See the printed

warranty that came with your printer.

Selecting a location for the printer

CAUTION—POTENTIAL INJURY: The printer weight is greater than 18 kg (40 lb) and requires two or more

trained personnel to lift it safely.

When selecting a location for the printer, leave enough room to open trays, covers, and doors. If you plan to install any options, then leave enough room for them also. It is important to:

• Set up the printer near a properly grounded and easily accessible electrical outlet.

• Make sure airflow in the room meets the latest revision of the ASHRAE 62 standard or the CEN Technical Committee

156 standard.

• Provide a flat, sturdy, and stable surface.

• Keep the printer: – Clean, dry, and free of dust. – Away from stray staples and paper clips. – Away from the direct airflow of air conditioners, heaters, or ventilators. – Free from direct sunlight and humidity extremes.

• Observe the recommended temperatures and avoid fluctuations:

Ambient temperature 15.6 to 32.2°C (60 to 90°F)

Storage temperature -40 to 43.3°C (-40 to 110°F)

• Allow the following recommended amount of space around the printer for proper ventilation:

Learning about the printer 9

1 Right side 152 mm (6 in.)

2 Front 508 mm (20 in.)

3 Left side 152 mm (6 in.)

4 Rear 152 mm (6 in.)

5 Top 115 mm (4.5 in.)

Printer configurations

Basic model

1 Standard bin

2 Printer control panel

3 Multipurpose feeder

4 Standard 550‑sheet tray (Tray 1)

Learning about the printer 10

Fully configured model

CAUTION—TIPPING HAZARD: Floor-mounted configurations require additional furniture for stability. You must

use either a printer stand or printer base if you are using multiple input options. If you purchased a printer with a similar configuration, then you may need additional furniture. For more information, see

www.lexmark.com/multifunctionprinters.

The following illustration shows the maximum number of optional finishers and trays that are supported by the printer. For more information on other configurations, visit

http://support.lexmark.com.

1 Staple finisher

Hardware option Alternative hardware option

• Output expander

• 4‑bin mailbox

2 4‑bin mailbox

• Output expander

• High‑capacity output expander

• Staple finisher

3 Caster base None

4 2100‑sheet tray None

5 550‑sheet tray 250‑sheet tray

6 250‑sheet tray 550‑sheet tray

7 4‑bin mailbox Output expander

8 Output expander 4‑bin mailbox

Learning about the printer 11

In a configuration with two or more optional finishers:

• The staple finisher must always be on top.

• The high‑capacity output expander must always be at the bottom.

• The output expander is the only finisher that can be placed on top of the high‑capacity output expander.

• The output expander and mailbox may be installed in any order.

When using optional trays:

• Always use a caster base when the printer is configured with a 2100‑sheet tray.

• The 2100‑sheet tray must always be at the bottom of a configuration.

• A maximum of four optional trays may be configured with the printer.

• The optional 250‑ and 550‑sheet trays may be installed in any order.

Using the printer control panel

Use the To

1 Display

• View the printer status.

• Set up and operate the printer.

2 Select button Submit changes made in the printer settings.

3 Arrow buttons Scroll up and down or left and right.

4 Keypad Enter numbers, letters, or symbols.

5 Sleep button Enable Sleep mode or Hibernate mode.

Do the following to wake the printer from Sleep mode:

• Press any hard button.

• Pull out Tray 1 or load paper in the multipurpose feeder.

• Open a door or cover.

• Send a print job from the computer.

• Perform a power‑on reset with the main power switch.

• Attach a device to the USB port on the printer.

6 Stop or Cancel button Stop all printer activity.

7 Back button Return to the previous screen.

Learning about the printer 12

Use the To

8 Home button Go to the home screen.

9 Indicator light Check the status of the printer.

10 USB port Connect a flash drive to the printer.

Note: Only the front USB port supports flash drives.

Understanding the colors of the Sleep button and indicator lights

The colors of the Sleep button and indicator l ights on the printer control panel signify a certain printer s tatus or condition.

Indicator light color and its corresponding printer status

Indicator light Printer status

Off The printer is off or in Hibernate mode.

Blinking green The printer is warming up, processing data, or printing.

Solid green The printer is on, but idle.

Blinking red The printer requires user intervention.

Sleep button light color and its corresponding printer status

Sleep button light Printer status

Off The printer is off, idle or in Ready state.

Solid amber The printer is in Sleep mode.

Blinking amber The printer is entering or waking from Hibernate mode.

Blinking amber for 0.1 second, then goes completely off for 1.9 seconds in a slow, pulsing pattern

The printer is in Hibernate mode.

Additional printer setup 13

Additional printer setup

Installing internal options

CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or

memory devices sometime after setting up the printer, then turn the printer off, and unplug the power cord from the electrical outlet before continuing. If you have any other devices attached to the printer, then turn them off as well, and unplug any cables going into the printer.

Available internal options

• Memory card – DDR3 DIMM – Flash memory

• Fonts

• Firmware cards – Forms and Bar Code – PRESCRIBE – IPDS

• Printer hard disk

• Lexmark – Parallel 1284-B interface – MarkNet – RS-232-C serial interface

Internal Solutions Ports (ISP)

N8350 802.11 b/g/n wireless printer server

Accessing the controller board

Note: This task requires a flat‑head screwdriver.

CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or

1 Remove the controller board access cover.

Additional printer setup 14

2 Using a screwdriver, loosen the screws on the controller board shield.

3 Remove the shield.

Additional printer setup 15

4 Use the following illustration to locate the appropriate connector:

Warning—Potential Damage: Controller board electronic components are easily damaged by static electricity.

Touch a metal surface on the printer first before touching any controller board electronic component or connector.

1 Lexmark Internal Solutions Port or printer hard disk connector

2 Option card connector

3 Memory card connector

5 Align the screws with the holes on the shield, and then reattach the shield.

Additional printer setup 16

6 Tighten the screws on the shield.

7 Reattach the access cover.

Installing a memory card

CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or

Warning—Potential Damage: Controller board electronic components are easily damaged by static electricity. Touch something metal on the printer first before touching any controller board electronic components or connectors.

Additional printer setup 17

An optional memory card can be purchased separately and attached to the controller board.

1 Access the controller board.

For more information, see “Accessing the controller board” on page 13.

2 Unpack the memory card.

Warning—Potential Damage: Do not touch the connection points along the edge of the card. Doing so may

cause damage.

3 Align the notch (1) on the memory card with the ridge (2) on the connector.

4 Push the memory card straight into the connector, and then push the card toward the controller board wall until

it clicks into place.

5 Reattach the controller board shield, and then the controller board access cover.

Additional printer setup 18

Installing an Internal Solutions Port

The controller board supports one optional Lexmark Internal Solutions Port (ISP).

Note: This task requires a flat‑head screwdriver.

CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or

1 Access the controller board.

For more information, see “Accessing the controller board” on page 13.

2 If an optional printer hard disk is installed, then remove the printer hard disk first.

For more information, see “Removing a printer hard disk” on page 28.

3 Unpack the ISP kit.

1 ISP solution

2 Screw for attaching the plastic bracket to the ISP

3 Screws for attaching the ISP mounting bracket to the controller board shield

4 Plastic bracket

Additional printer setup 19

4 Remove the metal cover from the ISP opening.

a Loosen the screw.

b Lift the metal cover, and then pull it out completely.

1 2 3

5 Align the posts of the plastic bracket with the holes on the controller board cage, and then press the plastic bracket

on the controller board cage until it clicks into place.

Note: Make sure that the plastic bracket has latched completely, and that the plastic bracket is seated firmly on the controller board cage.

Additional printer setup 20

6 Install the ISP on the plastic bracket.

Note: Hold the ISP at an angle over the plastic bracket so that any overhanging connectors will pass through the

ISP opening in the controller board cage.

7 Lower the ISP toward the plastic bracket until the ISP is seated between the guides of the plastic bracket.

Additional printer setup 21

8 Use the provided thumbscrew for the ISP to attach the plastic bracket to the ISP.

Note: Turn the screw clockwise, enough to hold the ISP in place, but do not tighten it yet.

9 Attach the two provided screws to secure the ISP mounting bracket to the controller board shield.

10 Tighten the thumbscrew that is attached to the ISP.

Warning—Potential Damage: Do not screw it on too tightly.

Additional printer setup 22

11 Connect the ISP solution interface cable into the receptacle of the controller board.

Note: The plugs and receptacles are color-coded.

Installing an optional card

CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or

memory devices sometime after setting up the printer, then turn the printer off, and unplug the power cord from the electrical outlet before continuing. If you have other devices attached to the printer, then turn them off as well, and unplug any cables going into the printer.

Warning—Potential Damage: Controller board electronic components are easily damaged by static electricity. Touch a metal surface on the printer before touching any controller board electronic components or connectors.

1 Access the controller board.

For more information, see “Accessing the controller board” on page 13.

2 Unpack the optional card.

Warning—Potential Damage: Avoid touching the connection points along the edge of the card.

Additional printer setup 23

3 Holding the card by its sides, align the plastic pins (1) on the card with the holes (2) on the controller board.

4 Push the card firmly into place as shown in the illustration.

Warning—Potential Damage: Improper installation of the card may cause damage to the card and the

controller board.

Note: The entire length of the connector on the card must touch and be flushed against the controller board.

5 Close the controller board access door.

Note: When the printer software and any hardware options are installed, it may be necessary to manually add

the options in the printer driver to make them available for print jobs. For more information, see “Updating available options in the printer driver” on page 37.

Additional printer setup 24

Installing a printer hard disk

Note: This task requires a flat‑head screwdriver.

CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or

1 Access the controller board.

For more information, see “Accessing the controller board” on page 13.

2 Unpack the printer hard disk.

3 Locate the appropriate connector on the controller board cage.

Note: If an optional ISP is currently installed, then the printer hard disk must be installed onto the ISP.

Additional printer setup 25

To install a printer hard disk onto the ISP:

a Remove the screws attached to the printer hard disk mounting bracket, and then remove the bracket.

b Align the standoffs of the printer hard disk to the holes in the ISP, and then press the printer hard disk down

until the standoffs are in place.

Installation warning: Hold only the edges of the printed circuit board assembly. Do not touch or press on the center of the printer hard disk. Doing so may cause damage.

c Insert the plug of the printer hard disk interface cable into the receptacle of the ISP.

Note: The plugs and receptacles are color‑coded.

Additional printer setup 26

To install a printer hard disk directly on the controller board cage:

a Align the standoffs of the printer hard disk to the holes in the controller board cage, and then press the printer

hard disk down until the standoffs are in place.

Installation warning: Hold only the edges of the printed circuit board assembly. Do not touch or press on the center of the printer hard disk. Doing so may cause damage.

Additional printer setup 27

b Use the two provided screws to attach the printer hard disk mounting bracket.

c Insert the plug of the printer hard disk interface cable into the receptacle of the controller board.

Note: The plugs and receptacles are color‑coded.

Additional printer setup 28

Removing a printer hard disk

Note: This task requires a flat‑head screwdriver.

CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or

1 Access the controller board.

For more information, see “Accessing the controller board” on page 13.

2 Unplug the printer hard disk interface cable from the controller board, leaving the cable attached to the printer

hard disk. To unplug the cable, squeeze the paddle at the plug of the interface cable to disengage the latch before pulling out the cable.

Additional printer setup 29

3 Remove the screws holding the printer hard disk in place.

4 Remove the printer hard disk.

5 Set aside the printer hard disk.

Additional printer setup 30

Installing hardware options

Order of installation

CAUTION—POTENTIAL INJURY: The printer weight is greater than 18 kg (40 lb) and requires two or more

trained personnel to lift it safely.

www.lexmark.com/multifunctionprinters.

Install the printer and any hardware options you have purchased in the following order:

• Caster base

• 2100‑sheet tray or spacer

• Optional 550‑ or 250‑sheet tray

• Printer

For more information on installing a caster base, optional 550‑ or 250‑sheet tray, spacer, or 2100‑sheet tray, see the setup sheet that came with the option.

Installing optional trays

CAUTION—POTENTIAL INJURY: The printer weight is greater than 18 kg (40 lb) and requires two or more

trained personnel to lift it safely.

www.lexmark.com/multifunctionprinters.

1 Turn off the printer using the power switch, and then unplug the power cord from the electrical outlet.

Additional printer setup 31

2 Unpack the optional tray, and then remove all packing material.

3 Pull out the tray completely from the base.

4 Remove any packing material from inside the tray.

5 Insert the tray into the base.

6 Place the tray near the printer.

7 Align the optional tray with the caster base.

Note: Make sure to lock the wheels of the caster base to secure the printer.

Additional printer setup 32

8 Align the printer with the tray, and then slowly lower the printer into place.

Note: Optional trays lock together when stacked.

Additional printer setup 33

9 Connect the power cord to the printer, then to a properly grounded electrical outlet, and then turn on the printer.

Additional printer setup 34

Note: When the printer software and any optional trays are installed, you may need to manually add the options in the printer driver to make them available for print jobs. For more information, see “Updating available options in the printer driver” on page 37.

To uninstall the optional trays, slide the latch on the right side of the printer toward the front of the printer until it clicks into place, and then remove stacked trays one at a time from the top to the bottom.

Attaching cables

CAUTION—POTENTIAL INJURY: Do not set up this product or make any electrical or cabling connections, such

as a power cord, a fax feature, or USB cable, during a lightning storm.

Connect the printer to the computer using a USB cable or Ethernet cable.

Make sure to match the following:

• The USB symbol on the cable with the USB symbol on the printer

• The appropriate Ethernet cable to the Ethernet port

• The appropriate parallel cable with the parallel port

Additional printer setup 35

Use the To

1 Parallel port Connect the printer to a computer.

Note: This can also be used in installing an optional Internal Solutions Port (ISP).

2 USB port Attach an optional wireless network adapter.

3 Ethernet port Connect the printer to a network.

4 USB printer port Connect the printer to a computer.

5 Security slot Attach a lock that will secure the controller board.

6 Printer power cord socket Connect the printer to a properly grounded electrical outlet.

Warning—Potential Damage: Do not touch the USB cable, any wireless network adapter, or the printer in the area

shown while actively printing. Loss of data or a malfunction can occur.

Organizing the cables

Note: This feature is available only if you purchase optional trays and a caster base.

After attaching the Ethernet cable and power cord, neatly tuck the cables in the channels at the back of the printer.

Additional printer setup 36

Setting up the printer software

Installing the printer software

Notes:

• If you installed the printer software on the computer before but need to reinstall the software, then uninstall

the current software first.

• Close all open software programs before installing the printer software.

• For Macintosh users, you may download all the drivers and utilities from our Web site.

1 Obtain a copy of the software installer package.

• From the Software CD that came with your printer

• From our Web site:

http://support.lexmark.com, and then navigate to:

Go to

SUPPORT & DOWNLOAD > select your printer > select your operating system

2 Double‑click the software installer package.

Wait for the installation dialog to appear. If you are using the Software CD and the installation dialog does not appear, then do the following:

Additional printer setup 37

In Windows 8

From the Search charm, type run, and then navigate to: Apps list > Run > type D:\setup.exe > OK.

In Windows 7 or earlier

Click or click Start, and then click Run.

b In the Start Search or Run dialog, type D:\setup.exe. c Press Enter, or click OK.

Note: D is the letter of your CD or DVD drive.

3 Click Install, and then follow the instructions on the computer screen.

Updating available options in the printer driver

When any hardware options are installed, you may need to manually add the options in the printer driver to make them available for use.

For Windows users

1 Open the printers folder.

In Windows 8

From the Search charm, type run, and then navigate to: Apps list > Run > type control printers > OK

In Windows 7 or earlier

a Click or click Start, and then click Run. b In the Start Search or Run dialog, type control printers. c Press Enter, or click OK.

2 Depending on your device, do either of the following:

• Press and hold the printer you want to update.

• Right‑click the printer you want to update.

3 From the menu that appears, do either of the following:

• For Windows 7 or later, select Printer properties.

• For earlier versions, select Properties.

4 Click the Configuration tab.

5 Do either of the following:

• Click Update Now ‑ Ask Printer.

• Under Configuration Options, manually add any installed hardware options.

6 Click Apply.

Additional printer setup 38

For Macintosh users

1 From the Apple menu, navigate to either of the following:

• System Preferences > Print & Scan > select your printer > Options & Supplies > Driver

• System Preferences > Print & Fax > select your printer > Options & Supplies > Driver

2 Add any installed hardware options, and then click OK.

Networking

Notes:

• Purchase a MarkNet N8350 wireless network adapter first before setting up the printer on a wireless network.

For information on installing the wireless network adapter, see the instruction sheet that came with the adapter.

• A Service Set Identifier (SSID) is a name assigned to a wireless network. Wired Equivalent Privacy (WEP), Wi-Fi

Protected Access (WPA), WPA2, and 802.1X-RADIUS are types of security used on a network.

Preparing to set up the printer on an Ethernet network

To configure your printer to connect to an Ethernet network, organize the following information before you begin:

Note: If your network automatically assigns IP addresses to computers and printers, continue on to installing the printer.

• A valid, unique IP address for the printer to use on the network

• The network gateway

• The network mask

• A nickname for the printer (optional)

Note: A printer nickname can make it easier for you to identify your printer on the network. You can choose to use the default printer nickname, or assign a name that is easier for you to remember.

You will need an Ethernet cable to connect the printer to the network and an available port where the printer can physically connect to the network. Use a new network cable when possible to avoid potential problems caused by a damaged cable.

Installing the printer on an Ethernet network

For Windows users

Obtain a copy of the software installer package.

• From the Software CD that came with your printer

• From our Web site:

http://support.lexmark.com, and then navigate to:

Go to

SUPPORT & DOWNLOAD > select your printer > select your operating system

2 Double‑click the software installer package.

Wait for the installation dialog to appear. If you are using the Software CD and the installation dialog does not appear, then do the following:

Additional printer setup 39

In Windows 8

From the Search charm, type run, and then navigate to: Apps list > Run > type D:\setup.exe > OK

In Windows 7 or earlier

a Click or click Start, and then click Run. b In the Start Search or Run dialog, type D:\setup.exe. c Press Enter, or click OK.

Note: D is the letter of your CD or DVD drive.

3 Click Install, and then follow the instructions on the computer screen.

4 Select Ethernet connection, and then click Continue.

5 Attach the Ethernet cable when instructed to do so.

6 Select the printer from the list, and then click Continue.

Note: If the configured printer does not appear in the list, then click Modify Search.

7 Follow the instructions on the computer screen.

For Macintosh users

Allow the network DHCP server to assign an IP address to the printer.

2 Obtain the printer IP address either:

• From the printer control panel

• From the TCP/IP section in the Network/Ports menu

• By printing a network setup page or menu settings page, and then finding the TCP/IP section

Note: You will need the IP address if you are configuring access for computers on a different subnet than the printer.

3 Install the printer driver on the computer.

a Download the driver at http://support.lexmark.com. b Double‑click the installer package for the printer, and then follow the instructions on the computer screen. c Select a destination, and then click Continue. d From the Easy Install screen, click Install. e Type the user password, and then click OK.

All the necessary applications are installed on the computer.

f Click Close when installation is complete.

4 Add the printer.

• For IP printing:

a From the Apple menu, navigate to either of the following:

– System Preferences > Print & Scan – System Preferences > Print & Fax

b Click +. c Click the IP tab. d Type the printer IP address in the address field, and then click Add.

Additional printer setup 40

• For AppleTalk printing:

Notes:

– Make sure AppleTalk is activated on your printer. – This feature is supported only in Mac OS X version 10.5.

a From the Apple menu, navigate to:

System Preferences > Print & Fax

b Click +, and then navigate to:

AppleTalk > select your printer > Add

Preparing to set up the printer on a wireless network

Notes:

• Make sure your wireless network adapter is installed in your printer and working properly. For more

information, see the instruction sheet that came with the wireless network adapter.

• Make sure your access point (wireless router) is turned on and is working properly.

Make sure you have the following information before setting up the printer on a wireless network:

• SSID—The SSID is also referred to as the network name.

• Wireless Mode (or Network Mode)—The mode is either infrastructure or ad hoc.

• Channel (for ad hoc networks)—The channel defaults to automatic for infrastructure networks.

Some ad hoc networks will also require the automatic setting. Check with your system support person if you are not sure which channel to select.

• Security Method—There are four basic options for Security Method: – WEP key

If your network uses more than one WEP key, then enter up to four in the provided spaces. Select the key currently in use on the network by selecting the default WEP transmit key.

– WPA or WPA2 preshared key or passphrase

WPA includes encryption as an additional layer of security. The choices are AES or TKIP. Encryption must be set for the same type on the router and on the printer, or the printer will not be able to communicate on the network.

– 802.1X–RADIUS

If you are installing the printer on an 802.1X network, then you may need the following:

• Authentication type

• Inner authentication type

• 802.1X user name and password

• Certificates

– No security

If your wireless network does not use any type of security, then you will not have any security information.

Note: We do not recommend using an unsecured wireless network.

Notes:

– If you do not know the SSID of the network that your computer is connected to, then launch the wireless utility

of the computer network adapter, and then look for the network name. If you cannot find the SSID or the

Additional printer setup 41

security information for your network, then see the documentation that came with the access point, or contact your system support person.

– To find the WPA/WPA2 preshared key or passphrase for the wireless network, see the documentation that

came with the access point, see the Embedded Web Server associated with the access point, or consult your system support person.

Connecting the printer using the Wireless Setup Wizard

Before you begin, make sure that:

• A wireless network adapter is installed in the printer and is working properly. For more information, see the

instruction sheet that came with the wireless network adapter.

• An Ethernet cable is disconnected from the printer.

• Active NIC is set to Auto. To set this to Auto, navigate to:

> Settings > > Network/Ports > > Active NIC > > Auto >

Note: Make sure to turn off the printer, then wait for at least five seconds, and then turn the printer back on.

1 From the printer control panel, navigate to:

> Settings > > Network/Ports > > Network [x] > > Network [x] Setup > > Wireless > >

Wireless Connection Setup >

2 Select a wireless connection setup.

Use To

Search for networks Show available wireless connections.

Note: This menu item shows all broadcast secured or unsecured SSIDs.

Enter a network name Manually type the SSID.

Note: Make sure to type the correct SSID.

Wi‑Fi Protected Setup Connect the printer to a wireless network using Wi‑Fi Protected Setup.

3 Press , and then follow the instructions on the printer display.

Additional printer setup 42

Connecting the printer to a wireless network using Wi-Fi Protected Setup

Before you begin, make sure that:

• The access point (wireless router) is Wi‑Fi Protected Setup (WPS) certified or WPS‑compatible. For more

information, see the documentation that came with your access point.

• A wireless network adapter is installed in the printer and is working properly. For more information, see the

instruction sheet that came with the wireless network adapter.

Using the Push Button Configuration (PBC) method

From the printer control panel, navigate to:

> Settings > >Network/Ports > > Network [x] > > Network [x] Setup > > Wireless > >

Wireless Connection Setup >

> Wi‑Fi Protected Setup > > Start Push Button Method >

2 Follow the instructions on the printer display.

Using the Personal Identification Number (PIN) method

From the printer control panel, navigate to:

> Settings > >Network/Ports > > Network [x] > > Network [x] Setup > > Wireless > >

Wireless Connection Setup >

> Wi‑Fi Protected Setup > > Start PIN Method >

2 Copy the eight‑digit WPS PIN.

3 Open a Web browser, and then type the IP address of your access point in the address bar.

Notes:

• The IP address appears as four sets of numbers separated by periods, such as 123.123.123.123.

• If you are using a proxy server, then temporarily disable it to load the Web page correctly.

4 Access the WPS settings. For more information, see the documentation that came with your access point.

5 Enter the eight‑digit PIN, and then save the setting.

Connecting the printer to a wireless network using the Embedded Web Server

Before you begin, make sure that:

• Your printer is connected temporarily to an Ethernet network.

• A wireless network adapter is installed in your printer and working properly. For more information, see the

instruction sheet that came with the wireless network adapter.

1 Open a Web browser, and then type the printer IP address in the address field.

Notes:

• View the printer IP address on the printer control panel. The IP address appears as four sets of numbers

separated by periods, such as 123.123.123.123.

• If you are using a proxy server, then temporarily disable it to load the Web page correctly.

2 Click Settings > Network/Ports > Wireless.

Additional printer setup 43

3 Modify the settings to match the settings of your access point (wireless router).

Note: Make sure to enter the correct SSID, security method, preshared key or passphrase, network mode, and

channel.

4 Click Submit.

5 Turn off the printer, and then disconnect the Ethernet cable. Then wait for at least five seconds, and then turn the

printer back on.

6 To verify if your printer is connected to the network, print a network setup page. Then in the Network Card [x]

section, see if the status is Connected.

Changing port settings after installing a new network Internal Solutions Port

When a new Lexmark Internal Solutions Port (ISP) is installed in the printer, the printer configurations on computers that access the printer must be updated since the printer will be assigned a new IP address. All computers that access the printer must be updated with this new IP address.

Notes:

• If the printer has a static IP address, then you do not need to make any changes to the computer configurations.

• If the computers are configured to use the network name, instead of an IP address, then you do not need to

make any changes to your computer configurations.

• If you are adding a wireless ISP to a printer previously configured for an Ethernet connection, then make sure

the printer is disconnected from the Ethernet network when you configure the printer to operate wirelessly. If the printer is connected to the Ethernet network, then the wireless configuration completes, but the wireless ISP is inactive. To activate the wireless ISP, disconnect the printer from the Ethernet network, turn off the printer, and then turn it back on.

• Only one network connection is active at a time. To switch between Ethernet and wireless connection types,

turn off the printer, connect the cable (to switch to an Ethernet connection) or disconnect the cable (to switch to a wireless connection), and then turn the printer back on.

For Windows users

Open a Web browser, and then type the printer IP address in the address field.

Notes:

• View the printer IP address on the printer control panel. The IP address appears as four sets of numbers

separated by periods, such as 123.123.123.123.

• If you are using a proxy server, then temporarily disable it to load the Web page correctly.

2 Open the printers folder.

In Windows 8

From the Search charm, type Run and then navigate to: Apps list > Run > type control printers > OK

In Windows 7 or earlier

a Click , or click Start and then click Run. b In the Start Search or Run dialog, type control printers.

Additional printer setup 44

c Press Enter, or click OK.

3 To select the printer that has changed, do either of the following:

• Press and hold the printer, and then select Printer properties.

• Right‑click the printer, and then select Printer properties (Windows 7 or later) or Properties (earlier versions).

Note: If there is more than one copy of the printer, then update all of them with the new IP address.

4 Click the Ports tab.

5 Select the port from the list, and then click Configure Port.

6 Type the new IP address in the “Printer Name or IP Address” field.

7 Click OK > Close.

For Macintosh users

Open a Web browser, and then type the printer IP address in the address field.

Notes:

• View the printer IP address on the printer control panel. The IP address appears as four sets of numbers

separated by periods, such as 123.123.123.123.

• If you are using a proxy server, then temporarily disable it to load the Web page correctly.

2 Add the printer.

• For IP printing:

a From the Apple menu, navigate to either of the following:

– System Preferences > Print & Scan – System Preferences > Print & Fax

b Click +. c Click the IP tab. d Type the printer IP address in the address field, and then click Add.

• For AppleTalk printing:

Notes:

– Make sure AppleTalk is activated on your printer. – This feature is supported only in Mac OS X version 10.5.

a From the Apple menu, navigate to:

System Preferences > Print & Fax

b Click +, and then navigate to:

AppleTalk > select the printer > Add

Setting up serial printing

Use serial printing to print when the computer is far from the printer or to print at a reduced speed.

Additional printer setup 45

After installing the serial or communication (COM) port, configure the printer and the computer. Make sure you have connected the serial cable to the COM port on your printer.

1 Set the parameters in the printer.

a From the printer control panel, navigate to the menu for the port settings. b Locate the menu for the serial port settings, and then adjust the settings, if necessary. c Save the modified settings, and then print a menu settings page.

2 Install the printer driver.

a Obtain a copy of the software installer package.

• From the Software CD that came with your printer

• From our Web site:

Go to

http://support.lexmark.com, and then navigate to:

SUPPORT & DOWNLOAD > select your printer > select your operating system

b Double‑click the software installer package.

Wait for the installation dialog to appear. If you are using the Software CD and the installation dialog does not appear, then do the following:

In Windows 8

From the Search charm type run, and then navigate to: Apps list > Run > type D:\setup.exe > OK

In Windows 7 or earlier

Click or click Start, and then click Run.

2 In the Start Search or Run dialog, type D:\setup.exe. 3 Press Enter or click OK.

Note: D is the letter of your CD or DVD drive.

c Click Install. d Follow the instructions on the computer screen. e Select Advanced, and then click Continue.

f From the Configure Printer Connection dialog, select a port.

g If the port is not in the list, then click Refresh or navigate to:

Add port > select a port type > enter the necessary information > OK

h Click Continue > Finish.

3 Set the COM port parameters.

After installing the printer driver, set the serial parameters in the COM port assigned to the printer driver.

Note: Make sure the serial parameters in the COM port match the serial parameters you set in the printer.

a Open Device Manager.

In Windows 8

From the Search charm type run, and then navigate to: Apps list > Run > type devmgmt.msc > OK

Additional printer setup 46

In Windows 7 or earlier

Click or click Start, and then click Run.

2 In the Start Search or Run dialog, type devmgmt.msc.

3 Press Enter or click OK. b Double‑click Ports (COM & LPT) to expand the list of available ports. c Do either of the following:

• Press and hold the COM port where you attached the serial cable to your computer (example: COM1).

• Right‑click the COM port where you attached the serial cable to your computer (example: COM1).

d Click Properties. e On the Port Settings tab, set the serial parameters to the same serial parameters set in the printer.

Check the serial heading of the menu settings page for the printer settings.

f Click OK, and then close all the dialogs.

g Print a test page to verify printer installation.

Verifying printer setup

Printing a menu settings page

Print a menu settings page to review the current menu settings and to verify if the printer options are installed correctly.

Note: If you have not changed any menu settings, then the menu settings page lists all the factory default settings. When you select and save other settings from the menus, they replace the factory default settings as user default settings. A user default setting remains in effect until you access the menu again, choose another value, and save it.

From the printer control panel, navigate to:

> Settings > >Reports > > Menu Settings Page >

Printing a network setup page

If the printer is attached to a network, then print a network setup page to verify the network connection. This page also provides important information that aids network printing configuration.

1 From the printer control panel, navigate to:

> Settings > > Reports > > Network Setup Page >

2 Check the first section of the network setup page, and then confirm that the status is Connected.

If the status is Not Connected, then the LAN drop may not be active, or the network cable may be malfunctioning. Consult your system support person for a solution, and then print another network setup page.

Loading paper and specialty media 47

Loading paper and specialty media

The selection and handling of paper and specialty media can affect how reliably documents print. For more information, see “Avoiding jams” on page 159 and “Storing paper” on page 71.

Setting the paper size and type

1 From the printer control panel, navigate to:

> Settings > > Paper Menu > > Paper Size/Type >

2 Press the up or down arrow button to select the tray or feeder, and then press .

3 Press the up or down arrow button to select the paper size, and then press .

4 Press the up or down arrow button to select the paper type, and then press to change the settings.

Configuring Universal paper settings

The Universal paper size is a user‑defined setting that lets you print on paper sizes that are not preset in the printer menus.

Notes:

• The smallest supported Universal size is 70 x 127 mm (2.76 x 5 inches) for one‑sided printing and

105 x 148 mm (4.13 x 5.83 inches) for two‑sided (duplex) printing.

• The largest supported Universal size is 216 x 356 mm (8.5 x 14 inches) for one‑sided and two‑sided printing.

• When printing on paper less than 210 mm (8.3 inches) wide, the printer may print at a reduced speed after a

period of time to ensure the best print performance.

• If you regularly print large jobs on narrow paper, then you may use the MS710 Series printer models, which

print batches of 10 or more pages of narrow paper at a faster speed. For more information on the MS710 Series printer models, contact your Lexmark sales representative.

From the printer control panel, navigate to:

> Settings > > Paper Menu > > Universal Setup > > Units of Measure > > select unit of

measure >

Loading the 250‑ or 550‑sheet tray

CAUTION—POTENTIAL INJURY: To reduce the risk of equipment instability, load each tray separately. Keep all

other trays closed until needed.

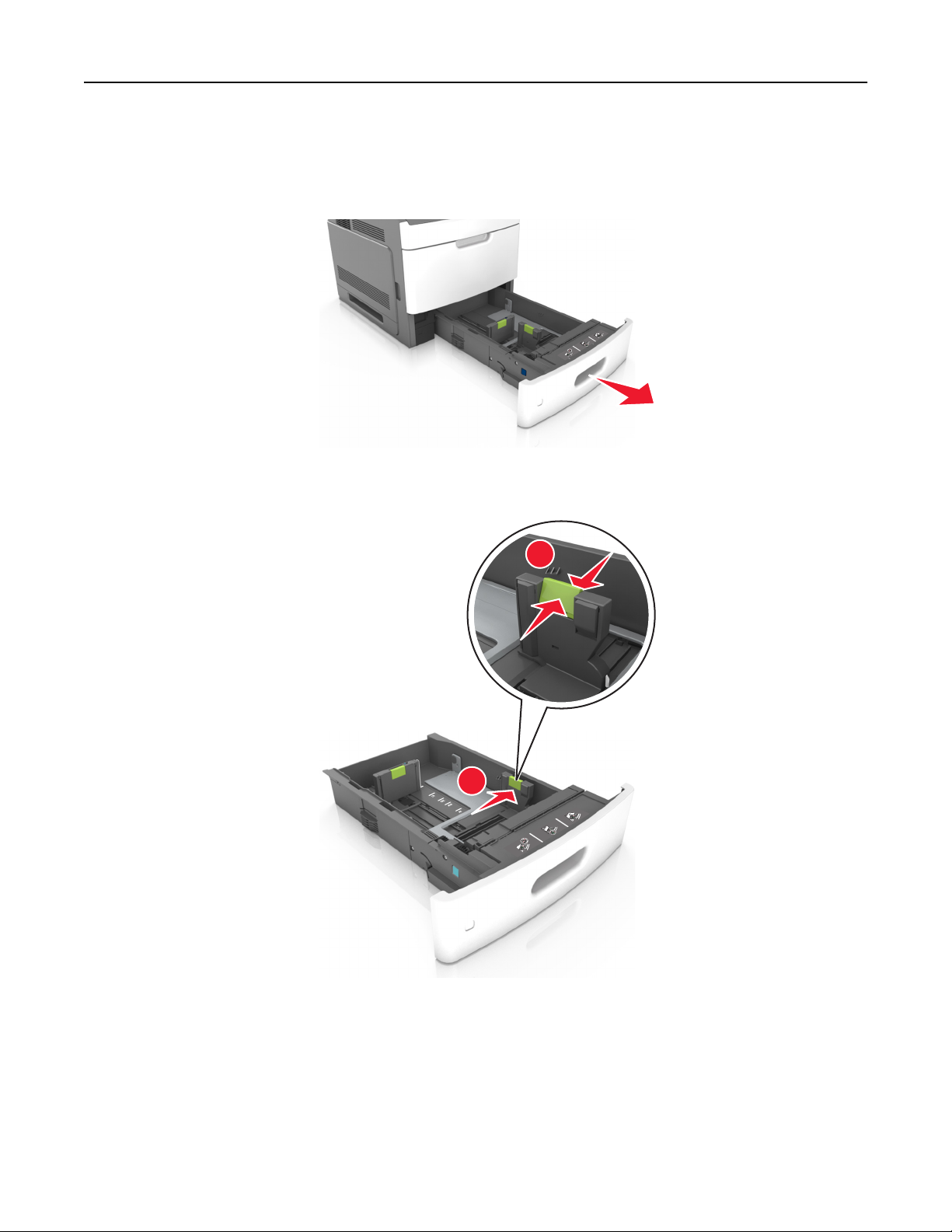

1 Pull out the tray.

Loading paper and specialty media 48

Notes:

• When loading folio‑, legal‑, or Oficio‑size paper, lift the tray slightly and pull it out completely.

• Avoid removing trays while a job prints or while Busy appears on the display. Doing so may cause a jam.

2 Squeeze and slide the width guide to the correct position for the size of the paper being loaded until it clicks into

place.

Note: Use the paper size indicators at the bottom of the tray to help position the guides.

Loading paper and specialty media 49

3 Unlock the length guide, and then squeeze and slide the guide to the correct position for the size of the paper being

loaded.

Notes:

• Lock the length guide for all paper sizes.

• Use the paper size indicators at the bottom of the tray to help position the guides.

Loading paper and specialty media 50

4 Flex the sheets back and forth to loosen them, and then fan them. Do not fold or crease the paper. Straighten the

edges on a level surface.

5 Load the paper stack with the printable side facedown.

Note: Make sure the paper or envelope is loaded properly.

• There are different ways of loading letterhead depending on whether an optional staple finisher is installed or

not.

Without an optional staple finisher With an optional staple finisher

ABC

One‑sided printing One‑sided printing

Loading paper and specialty media 51

Without an optional staple finisher With an optional staple finisher

ABC

Two‑sided printing

ABC

• If you are loading prepunched paper for use with the staple finisher, then make sure the holes on the long edge

of the paper are on the right side of the tray.

One‑sided printing Two‑sided printing

ABC

Note: If the holes on the long edge of the paper are on the left side of the tray, then a jam may occur.

• Do not slide the paper into the tray. Load paper as shown in the illustration.

Loading paper and specialty media 52

• If you are loading envelopes, then make sure that the flap side is facing up and the envelopes are on the left

side of the tray.

• Make sure the paper is below the solid line, which is the maximum paper fill indicator.

Warning—Potential Damage: Overfilling the tray can cause paper jams.

Loading paper and specialty media 53

• When using card stock, labels, or other types of specialty media, make sure the paper is below the dashed line,

which is the alternate paper fill indicator.

6 For custom‑ or Universal‑size paper, adjust the paper guides to lightly touch the sides of the stack, and then lock

the length guide.

7 Insert the tray.

8 From the printer control panel, set the paper size and paper type in the Paper menu to match the paper loaded in

the tray.

Note: Set the correct paper size and type to avoid paper jams and print quality problems.

Loading paper and specialty media 54

Loading the 2100‑sheet tray

CAUTION—POTENTIAL INJURY: To reduce the risk of equipment instability, load each tray separately. Keep all

other trays closed until needed.

1 Pull out the tray.

2 Adjust the width and length guides.

Loading A5‑size paper

a Pull up and slide the width guide to the position for A5.

L G L

C F

L O F

5 A

L G L

O I

L O F R LT

4 A 5 A

L G L

C F

L O F

4 A

Loading paper and specialty media 55

b Squeeze and slide the length guide to the position for A5 until it clicks into place.

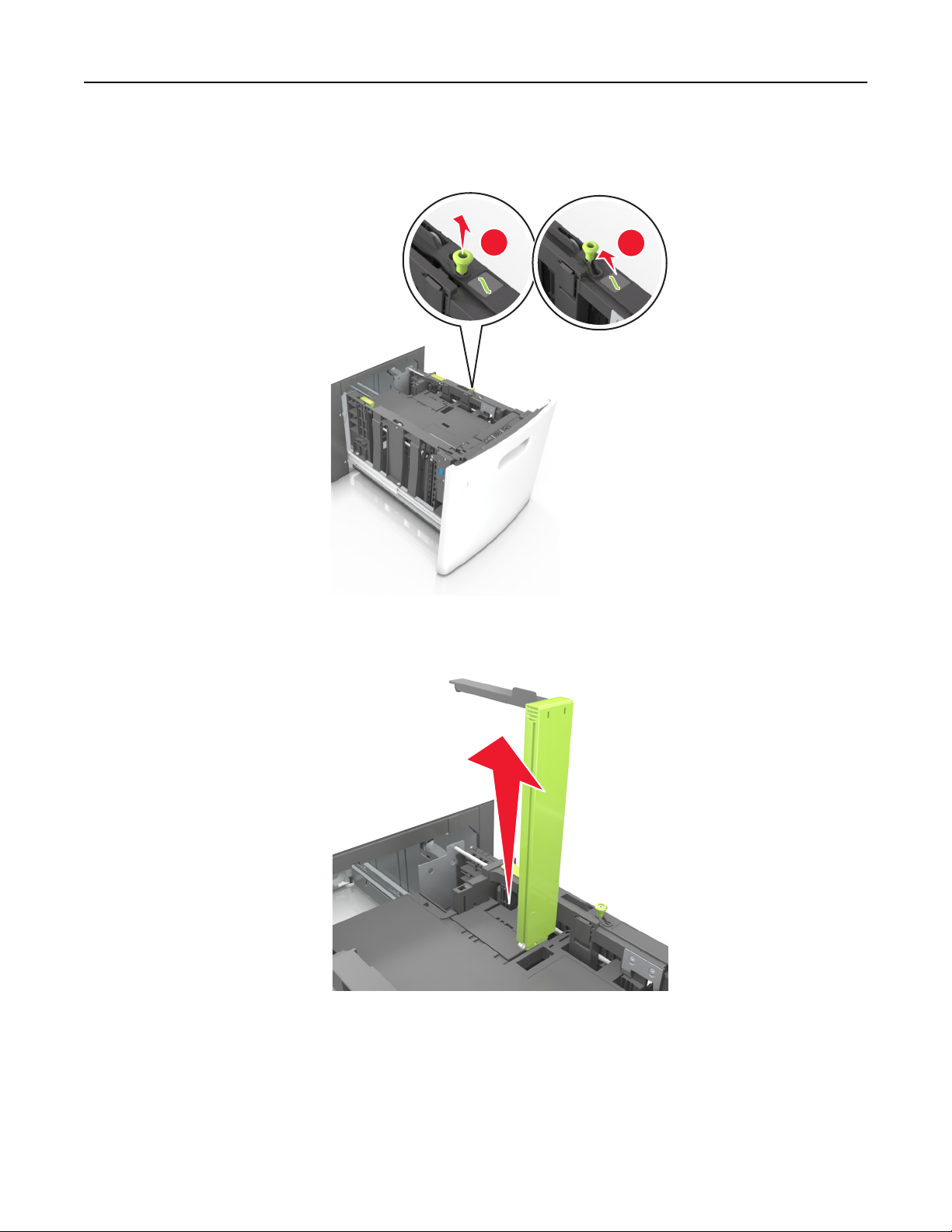

c Remove the A5 length guide from its holder.

d Insert the A5 length guide into its designated slot.

Note: Press the A5 length guide until it clicks into place.

Loading paper and specialty media 56

Loading A4‑, letter‑, legal‑, oficio‑, and folio‑size paper

a Pull up and slide the width guide to the correct position for the size of the paper being loaded.

LGL

OFC

FOLIO

LTR

5 A

L G L C F

O I

L O

R T L

4 A 5 A

LGL

OFC

FOLIO

LTR

b If the A5 length guide is still attached to the length guide, then remove it from its place. If the A5 length guide

is not attached, then proceed to step d.

Loading paper and specialty media 57

c Put the A5 length guide in its holder.

d Squeeze the length guide and slide it to the correct position for the size of the paper being loaded until it clicks

into place.

L G L

O I

L O F R LT

4 A 5 A

Loading paper and specialty media 58

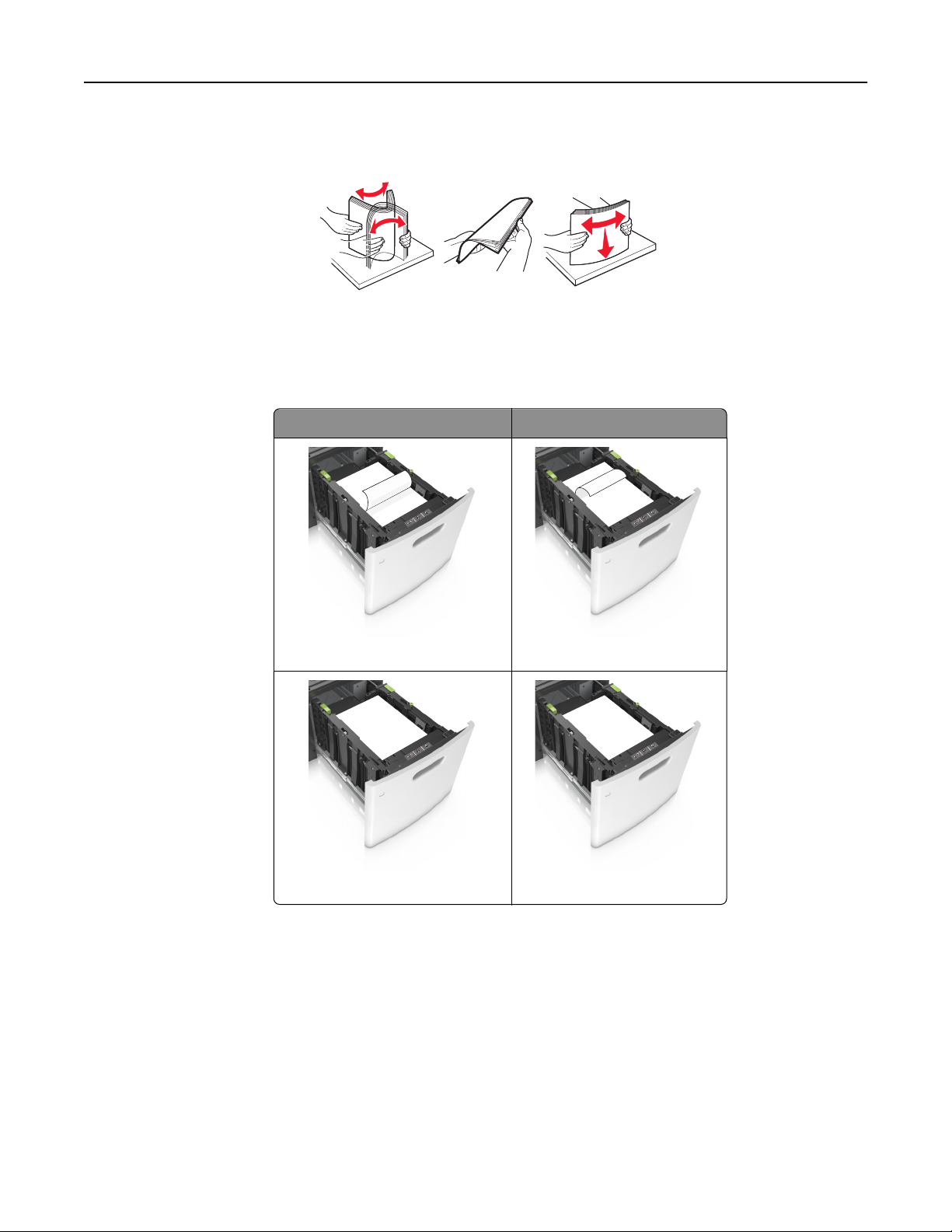

3 Flex and fan the sheets to loosen them, and then fan them. Do not fold or crease the paper. Straighten the edges

on a level surface.

4 Load the paper stack with the printable side facedown.

Note: Make sure the paper is loaded properly.

• There are different ways for loading letterhead depending on whether an optional staple finisher is installed or

not.

Without an optional staple finisher With an optional staple finisher

ABC

One‑sided printing

ABC

Two‑sided printing

One‑sided printing

ABC

Two‑sided printing

• If you are loading prepunched paper for use with the staple finisher, then make sure the holes on the long edge

of the paper are on the right side of the tray.

Loading paper and specialty media 59

One‑sided printing Two‑sided printing

ABC

Note: If the holes on the long edge of the paper are on the left side of the tray, then a jam may occur.

• Make sure the paper is below the maximum paper fill indicator.

Warning—Potential Damage: Overfilling the tray can cause paper jams.

5 Insert the tray.

Note: Press the paper stack down while inserting the tray.

Loading paper and specialty media 60

L LG FC O

IO L FO LTR

4 A

6 From the printer control panel, set the size and type in the Paper menu to match the paper loaded in the tray.

Note: Set the correct paper size and type to avoid paper jams and print quality problems.

Loading the multipurpose feeder

1 Pull down the multipurpose feeder door.

Note: Do not load or close the multipurpose feeder while a job is printing.

Loading paper and specialty media 61

2 Pull the multipurpose feeder extender.

C E

Note: Guide the extender gently so that the multipurpose feeder is fully extended and open.

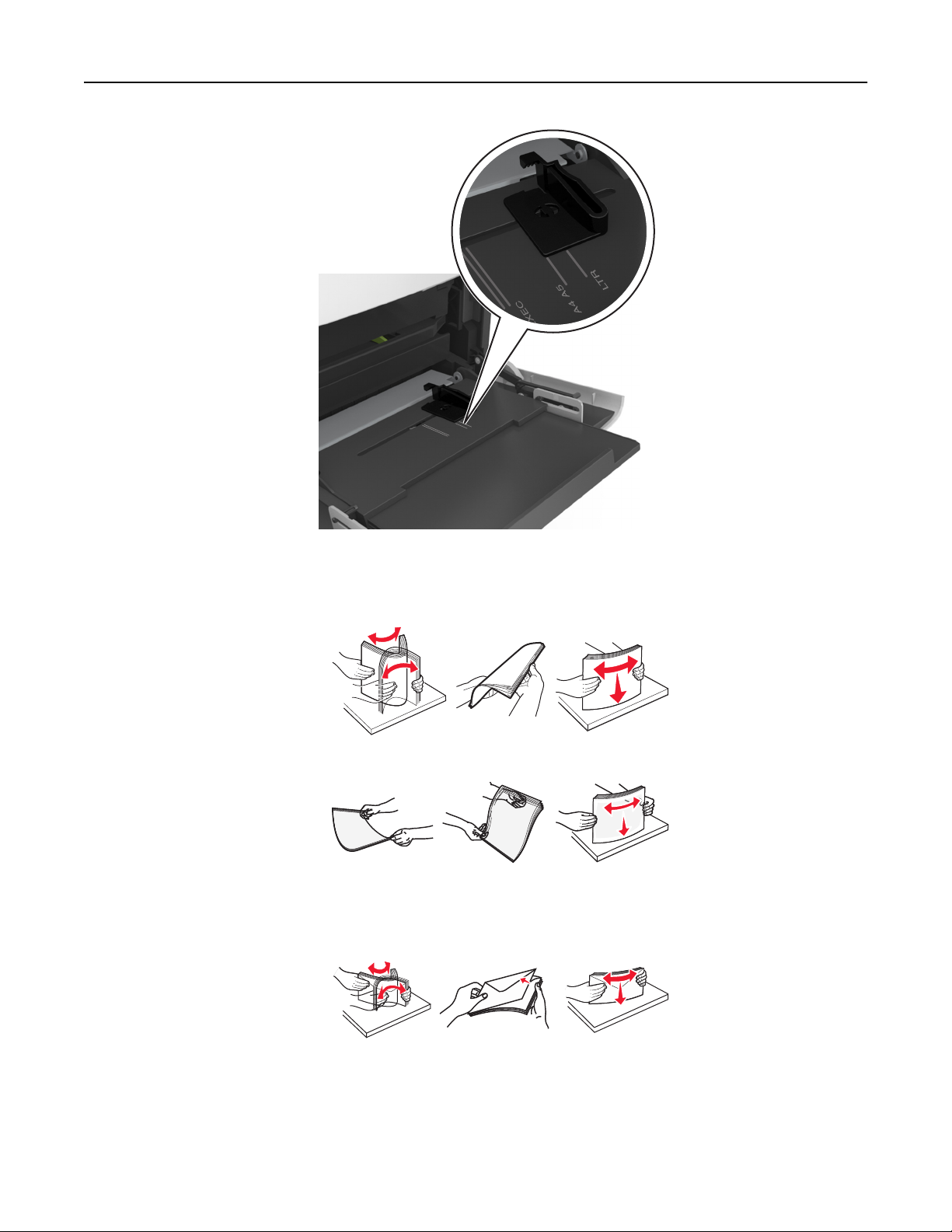

3 Slide the width guide to the correct position for the size of the paper being loaded.

LTR

EXEC

Note: Use the paper size indicators on the bottom of tray to help position the guides.

Loading paper and specialty media 62

4 Prepare the paper or specialty media for loading.

• Flex sheets of paper back and forth to loosen them, and then fan them. Do not fold or crease the paper. Straighten

the edges on a level surface.

• Hold transparencies by the edges, and then fan them. Straighten the edges on a level surface.

Note: Avoid touching the printable side of the transparencies. Be careful not to scratch them.

• Flex the stack of envelopes back and forth to loosen them, and then fan them. Straighten the edges on a level

surface.

5 Load the paper or specialty media.

Note: Slide the stack gently into the multipurpose feeder until it comes to a stop.

• Load only one size and type of paper or specialty media at a time.

• Make sure the paper fits loosely in the multipurpose feeder, lies flat, and is not bent or wrinkled.

Loading paper and specialty media 63

• There are different ways of loading letterhead depending on whether an optional staple finisher is installed or

not.

Without an optional staple finisher With an optional staple finisher

ABC

One‑sided printing

ABC

Two‑sided printing

One‑sided printing

Two‑sided printing

ABC

• If you are loading prepunched paper for use with the staple finisher, then make sure the holes on the long edge

of the paper are on the right side of the tray.

One‑sided printing Two‑sided printing

ABC

Note: If the holes on the long edge of the paper are on the left side of the tray, then a jam may occur.

Loading paper and specialty media 64

• Load envelopes with the flap side down and on the left of the multipurpose feeder.

A4 A5

XEC

Warning—Potential Damage: Never use envelopes with stamps, clasps, snaps, windows, coated linings, or self‑stick adhesives. These envelopes may severely damage the printer.

• Make sure the paper or specialty media is below the maximum paper fill indicator.

Warning—Potential Damage: Overfilling the feeder can cause paper jams.

6 For custom- or Universal-size paper, adjust the width guides to lightly touch the sides of the stack.

7 From the Paper menu on the printer control panel, set the paper size and type in the Paper menu to match the

paper loaded in the tray.

Note: Set the correct paper size and type to avoid paper jams and print quality problems.

Loading paper and specialty media 65

Linking and unlinking trays

1 Open a Web browser, and then type the printer IP address in the address field.

Notes:

• View the printer IP address on the printer control panel in the TCP/IP section under the Network/Ports

menu. The IP address appears as four sets of numbers separated by periods, such as 123.123.123.123.

• If you are using a proxy server, then temporarily disable it to load the Web page correctly.

2 Click Settings > Paper Menu.

3 Change the paper size and type settings for the trays you are linking.

• To link trays, make sure the paper size and type for the tray match that of the other tray.

• To unlink trays, make sure the paper size or type for the tray does not match that of the other tray.

4 Click Submit.

Note: You can also change the paper size and type settings using the printer control panel. For more information,

see “Setting the paper size and type” on page 47.

Warning—Potential Damage: Paper loaded in the tray should match the paper type name assigned in the printer. The temperature of the fuser varies according to the specified paper type. Printing issues may occur if settings are not properly configured.

Creating a custom name for a paper type

Using the Embedded Web Server

Open a Web browser, and then type the printer IP address in the address field.

Notes:

• View the printer IP address in the TCP/IP section in the Network/Ports menu. The IP address appears as four

sets of numbers separated by periods, such as 123.123.123.123.

• If you are using a proxy server, then temporarily disable it to load the Web page correctly.

2 Click Settings > Paper Menu > Custom Names.

3 Select a custom name, and then type a new custom paper type name.

4 Click Submit.

5 Click Custom Types, and then verify if the new custom paper type name has replaced the custom name.

Using the printer control panel

From the printer control panel, navigate to:

> Settings > > Paper Menu > > Custom Names

2 Select a custom name, and then type a new custom paper type name.

Loading paper and specialty media 66

3 Press .

4 Press Custom Types, and then verify if the new custom paper type name has replaced the custom name.

Assigning a custom paper type

Using the Embedded Web Server

Open a Web browser, and then type the printer IP address in the address field.

Notes:

• View the printer IP address in the TCP/IP section in the Network/Ports menu. The IP address appears as four

sets of numbers separated by periods, such as 123.123.123.123.

• If you are using a proxy server, then temporarily disable it to load the Web page correctly.

2 Click Settings > Paper Menu > Custom Types.

3 Select a custom paper type name, and then select a paper type.

Note: Paper is the factory default paper type for all user‑defined custom names.

4 Click Submit.

Using the printer control panel

From the printer control panel, navigate to:

> Settings > > Paper Menu > > Custom Types

2 Select a custom paper type name, and then select a paper type.

Note: Paper is the factory default paper type for all user‑defined custom names.

3 Press .

Paper and specialty media guide 67

Paper and specialty media guide

Notes:

• Make sure the paper size, type, and weight are set correctly on the computer or printer control panel.

• Flex, fan and straighten specialty media before loading it.

• The printer may print at a reduced speed to prevent damage to the fuser.

• For more information on card stock and labels, see the Card Stock & Label Guide on the Lexmark Web site at

http://support.lexmark.com.

Using specialty media

Tips on using card stock

Card stock is heavy, single‑ply specialty media. Many of its variable characteristics, such as moisture content, thickness, and texture, can significantly affect print quality.

• From the printer control panel, set the paper size, type, texture, and weight in the Paper menu to match the card

stock loaded in the tray.

• Print samples on the card stock being considered for use before buying large quantities.

• Specify the paper texture and weight from the tray settings to match the paper loaded in the tray.

• Preprinting, perforation, and creasing may significantly affect the print quality and cause jams or other paper feed

problems.

• Before loading the card stock on the tray, flex and fan the card stock to loosen them. Straighten the edges on a

level surface.

Tips on using envelopes

• From the printer control panel, set the paper size, type, texture, and weight in the Paper menu to match the

envelopes loaded in the tray.

• Print samples on the envelopes being considered for use before buying large quantities.

• Use envelopes designed specifically for laser printers.

• For best performance, use envelopes made from 90‑g/m

• Use only new envelopes from undamaged packages.

• To optimize performance and minimize jams, do not use envelopes that: – Have excessive curl or twist. – Are stuck together or damaged in any way. – Have windows, holes, perforations, cutouts, or embossing. – Have metal clasps, string ties, or folding bars. – Have an interlocking design. – Have postage stamps attached. – Have any exposed adhesive when the flap is in the sealed or closed position.

(24‑lb) paper or 25% cotton.

Paper and specialty media guide 68

– Have bent corners. – Have rough, cockle, or laid finishes.

• Adjust the width guides to fit the width of the envelopes.

• Before loading the envelopes on the tray, flex the stack of envelopes back and forth to loosen them, and

then fan them. Straighten the edges on a level surface.

Note: A combination of high humidity (over 60%) and high printing temperature may wrinkle or seal envelopes.

Tips on using labels

• From the printer control panel, set the paper size, type, texture, and weight in the Paper menu to match the labels

loaded in the tray.

• Print samples on labels being considered for use before buying large quantities.

• For more information on label printing, characteristics, and design, see the Card Stock & Label Guide on the Lexmark

Web site at

• Use labels designed specifically for laser printers.

• Do not use labels with slick backing material.

• Do not use labels with exposed adhesive.

• Use full label sheets. Partial sheets may cause labels to peel off during printing, resulting in a jam. Partial sheets

also contaminate the printer and the cartridge with adhesive, and could void the printer and toner cartridge warranties.

• Before loading labels on the tray, flex and fan labels to loosen them. Straighten the edges on a level surface.

http://support.lexmark.com.

Note: Vinyl and polyester labels are supported only in the MS710 Series printer models.

Tips on using transparencies

• From the printer control panel, set the paper size, type, texture, and weight in the Paper menu to match the

transparencies loaded in the tray.

• Print a test page on the transparencies being considered for use before buying large quantities.

• Use transparencies designed specifically for laser printers.

• Avoid getting fingerprints on the transparencies to prevent print quality problems.

• Before loading transparencies, flex and fan the sheets to prevent them from sticking together.

• When printing on large volumes of transparencies, make sure to print by batches of only up to 20 with an interval

of at least three minutes between batches, to prevent the transparencies from sticking together in the bin. You can also remove transparencies from the bin by batches of 20.

Paper guidelines

Paper characteristics

The following paper characteristics affect print quality and reliability. Consider these factors before printing on them:

Paper and specialty media guide 69

Weight

The printer trays and multipurpose feeder can automatically feed paper weights between 60–176 g/m2 (16–47‑lb) grain long paper. The 2100‑sheet tray can automatically feed paper weights up to 60–135 g/m Paper lighter than 60 g/m

Note: Two‑sided printing is supported for 60–176 g/m

(16 lb) might not be stiff enough to feed properly, and may cause jams.

(16–47‑lb) paper.

(16–36‑lb) grain long paper.

Curl

Curl is the tendency for paper to curl at its edges. Excessive curl can cause paper feeding problems. Curl can occur after the paper passes through the printer, where it is exposed to high temperatures. Storing paper unwrapped in hot, humid, cold, or dry conditions, even in the trays, can contribute to paper curling prior to printing and can cause feeding problems.

Smoothness

Paper smoothness directly affects print quality. If paper is too rough, toner cannot fuse to it properly. If paper is too smooth, it can cause paper feeding or print quality issues. Always use paper between 100 and 300 Sheffield points; smoothness between 150 and 250 Sheffield points produces the best print quality.

Moisture content

The amount of moisture in paper affects both print quality and the ability of the printer to feed the paper correctly. Leave paper in its original wrapper until it is time to use it. This limits the exposure of paper to moisture changes that can degrade its performance.

Store paper in its original wrapper in the same environment as the printer for 24 to 48 hours before printing. Extend the time several days if the storage or transportation environment is very different from the printer environment. Thick paper may also require a longer conditioning period.

Grain direction

Grain refers to the alignment of the paper fibers in a sheet of paper. Grain is either grain long, running the length of the paper, or grain short, running the width of the paper.

For 60–176 g/m

(16–47‑lb) paper, grain long paper is recommended.

Fiber content

Most high‑quality xerographic paper is made from 100% chemically treated pulped wood. This content provides the paper with a high degree of stability, resulting in fewer paper feeding problems and better print quality. Paper containing fibers such as cotton can negatively affect paper handling.

Selecting paper

Using the appropriate paper prevents jams and helps ensure trouble‑free printing.

To help avoid paper jams and poor print quality:

• Always use new, undamaged paper.

• Before loading paper, know the recommended printable side of the paper. This information is usually indicated on

the paper package.

• Do not use paper that has been cut or trimmed by hand.

Paper and specialty media guide 70

• Do not mix paper sizes, types, or weights in the same tray; mixing results in jams.

• Do not use coated papers unless they are specifically designed for electrophotographic printing.

Selecting preprinted forms and letterhead

• Use grain long for 60–90‑g/m

• Use only forms and letterhead printed using an offset lithographic or engraved printing process.

• Avoid paper with rough or heavily textured surfaces.

• Use inks that are not affected by the resin in toner. Inks that are oxidation‑set or oil‑based generally meet these

requirements; latex inks might not.

• Print samples on preprinted forms and letterheads considered for use before buying large quantities. This

determines whether or not the ink in the preprinted form or letterhead will affect print quality.

• When in doubt, contact your paper supplier.

(16–24‑lb) paper.

Using recycled paper and other office papers

As an environmentally conscientious company, Lexmark supports the use of recycled paper produced specifically for use in laser (electrophotographic) printers.

While no blanket statement can be made that all recycled paper will feed well, Lexmark consistently tests papers that represent recycled cut size copier papers available on the global market. This scientific testing is conducted with rigor and discipline. Many factors are taken into consideration both separately and as a whole, including the following:

• Amount of post-consumer waste (Lexmark tests up to 100% post-consumer waste content.)

• Temperature and humidity conditions (Testing chambers simulate climates from all over the world.)

• Moisture content (Business papers should have low moisture: 4–5%.)

• Bending resistance and proper stiffness means optimum feeding through the printer.

• Thickness (impacts how much can be loaded into a tray)

• Surface roughness (measured in Sheffield units, impacts print clarity and how well toner fuses to the paper)

• Surface friction (determines how easily sheets can be separated)

• Grain and formation (impacts curling, which also influences the mechanics of how the paper behaves as it moves

through the printer)

• Brightness and texture (look and feel)

Recycled papers are better than ever; however, the amount of recycled content in a paper affects the degree of control over foreign matter. And while recycled papers are one good path to printing in an environmentally responsible manner, they are not perfect. The energy required to de-ink and deal with additives such as colorants and “glue” often generates more carbon emissions than does normal paper production. However, using recycled papers enables better resource management overall.

Lexmark concerns itself with the responsible use of paper in general based on life cycle assessments of its products. To gain a better understanding of the impact of printers on the environment, the company commissioned a number of life cycle assessments and found that paper was identified as the primary contributor (up to 80%) of carbon emissions caused throughout the entire life of a device (from design to end-of-life). This is due to the energy-intensive manufacturing processes required to make paper.

Thus, Lexmark seeks to educate customers and partners on minimizing the impact of paper. Using recycled paper is one way. Eliminating excessive and unnecessary paper consumption is another. Lexmark is well-equipped to help

Paper and specialty media guide 71

customers minimize printing and copying waste. In addition, the company encourages purchasing paper from suppliers who demonstrate their commitment to sustainable forestry practices.

Lexmark does not endorse specific suppliers, although a converter’s product list for special applications is maintained. However, the following paper choice guidelines will help alleviate the environmental impact of printing:

1 Minimize paper consumption.

2 Be selective about the origin of wood fiber. Buy from suppliers who carry certifications such as the Forestry

Stewardship Council (FSC) or The Program for the Endorsement of Forest Certification (PEFC). These certifications guarantee that the paper manufacturer uses wood pulp from forestry operators that employ environmentally and socially responsible forest management and restoration practices.

3 Choose the most appropriate paper for printing needs: normal 75 or 80 g/m

or recycled paper.

certified paper, lower weight paper,

Unacceptable paper examples

Test results indicate that the following paper types are at risk for use with laser printers:

• Chemically treated papers used to make copies without carbon paper, also known as carbonless papers

• Preprinted papers with chemicals that may contaminate the printer

• Preprinted papers that can be affected by the temperature in the printer fuser

• Preprinted papers that require a registration (the precise location on the page) greater than ± 2.3 mm (± 0.9 in.),

such as optical character recognition (OCR) forms. In some cases, registration can be adjusted with a software application to successfully print on these forms.)

• Coated papers (erasable bond), synthetic papers, thermal papers

• Rough-edged, rough or heavily textured surface papers or curled papers

• Recycled papers that fail EN12281:2002 (European testing)

• Paper weighing less than 60 g/m

• Multiple part forms or documents

(16 lb)

For more information about Lexmark, visit at the Environmental Sustainability link.

www.lexmark.com. General sustainability-related information can be found

Storing paper

Use these paper storage guidelines to help avoid jams and uneven print quality:

• For best results, store paper where the temperature is 21°C (70°F) and the relative humidity is 40 percent. Most

label manufacturers recommend printing in a temperature range of 18–24°C (65–75°F) with relative humidity between 40 and 60 percent.

• Store paper in cartons, on a pallet or shelf, rather than on the floor.

• Store individual packages on a flat surface.

• Do not store anything on top of individual paper packages.

• Take paper out of the carton or wrapper only when you are ready to load it in the printer. The carton and wrapper

help keep the paper clean, dry, and flat.

Paper and specialty media guide 72

Supported paper sizes, types, and weights

The following tables provide information on standard and optional paper sources and the types of paper they support.

Note: For an unlisted paper size, select the closest larger listed size.

Paper types and weights supported by the printer

The printer engine supports 60–176‑g/m2 (16–47‑lb) paper weights.

Paper type 250‑ or 550‑sheet

trays

Paper

Card stock X

Plain Envelope X X

Rough Envelope

Paper labels

Pharmacy labels

Transparencies* X X

* Print on transparencies by batches of only up to 20 to prevent them from sticking together. For more information, see “Tips on using transparencies” on page 68.

2100‑sheet tray Multipurpose feeder Duplex

X X

Paper sizes supported by the printer

Note: When printing on paper less than 210 mm (8.3 inches) wide, the printer may print at a reduced speed after a

period of time to ensure the best print performance.

Paper size

A4 210 x 297 mm

A5 148 x 210 mm

A6 105 x 148 mm

If your preferred default paper size cannot be set in the printer control panel, then you may select common paper sizes that correspond to the position of the length guide in the tray from the Paper Size/Type menu. If the paper size is not available, then select Universal or turn off tray size sensing. For more information, contact customer support.

Paper is supported in long‑edge orientation.

Universal is supported in duplex mode only if the width is from 105 mm (4.13 in.) to 216 mm (8.5 in.), and the length is from 148 mm (5.83 in.) to 356 mm (14 in.).

Dimensions Standard or

optional 250‑ or 550‑sheet tray

(8.3 x 11.7 in.)

(5.8 x 8.3 in.)

(4.1 x 5.8 in.)

Optional 2100‑sheet tray

Multipurpose feeder

Duplex

Paper and specialty media guide 73

Paper size

Dimensions Standard or

JIS B5 182 x 257 mm

(7.2 x 10.1 in.)

Letter 216 x 279 mm

(8.5 x 11 in.)

Legal 216 x 356 mm

(8.5 x 14 in.)

Executive 184 x 267 mm

(7.3 x 10.5 in.)

Oficio 216 x 340 mm

(8.5 x 13.4 in.)

Folio 216 x 330 mm

(8.5 x 13 in.)

Statement 140 x 216 mm

(5.5 x 8.5 in.)

Universal

105 x 148 mm to 216 x 356 mm (4.13 x 5.83 in. to

8.5 x 14 in.)

optional 250‑ or 550‑sheet tray

Optional 2100‑sheet tray

Multipurpose feeder

Duplex

70 x 127 mm to

XX X

216 x 356 mm (2.76 x 5 to

8.5 x 14 in.)

7 3/4 Envelope (Monarch)

98 x 191 mm (3.9 x 7.5 in.)

9 Envelope 98 x 225 mm

X X

(3.9 x 8.9 in.)

10 Envelope 105 x 241 mm

X X

(4.1 x 9.5 in.)

DL Envelope 110 x 220 mm

X X

(4.3 x 8.7 in.)

C5 Envelope 162 x 229 mm

X X

(6.38 x 9.01 in.)

B5 Envelope 176 x 250 mm

X X

(6.93 x 9.84 in.)

Paper is supported in long‑edge orientation.

Universal is supported in duplex mode only if the width is from 105 mm (4.13 in.) to 216 mm (8.5 in.), and the length is from 148 mm (5.83 in.) to 356 mm (14 in.).

Paper and specialty media guide 74

Paper size

Dimensions Standard or

optional 250‑ or

Optional 2100‑sheet tray

Multipurpose feeder

Duplex

550‑sheet tray

Other Envelope 98 x 162 mm

X X

(3.9 x 6.4 in.) to 176 x 250 mm (6.9 x 9.8 in.)

Paper is supported in long‑edge orientation.

Universal is supported in duplex mode only if the width is from 105 mm (4.13 in.) to 216 mm (8.5 in.), and the length is from 148 mm (5.83 in.) to 356 mm (14 in.).

Paper sizes, types, and weights supported by the finishers

Supported paper sizes

Paper size 4‑bin mailbox Output expander and

high‑capacity output

expander

Staple finisher Staple, hole punch

finisher

JIS B5

Executive

Letter

Legal

Folio

Oficio

Statement

Universal

Envelopes

The finisher stacks the paper but does not staple or punch holes in it.

The finisher staples the paper if it is loaded long edge first.

The finisher staples the paper if its width is between 8.27 and 8.54 inches but does not punch holes in it.

1 1

3 3

Paper and specialty media guide 75

Supported paper types and weights

Paper type Paper weight 4‑bin mailbox Output expander

and high‑capacity

Staple finisher Staple, hole punch

finisher

output expander

Plain Paper

90–176 g/m

(24–47 lb)

60–90 g/m

(16–24 lb)

(90 Ib)

Card Stock

163 g/m

199 g/m

(110 Ib)

Transparency

Recycled

146 g/m

90–176 g/m

(39 Ib)

(24–47 lb)

60–90 g/m

(16–24 lb)

Paper labels

180 g/m

(48 Ib)

Dual web and Integrated

Bond

180 g/m

90–176 g/m

(24–47 lb)

60–90 g/m

(16–24 lb)

Envelope

105 g/m

(28 Ib)

Letterhead

90–176 g/m

(24–47 lb)

60–90 g/m

(16–24 lb)

Preprinted

90–176 g/m

(24–47 lb)

60–90 g/m

(16–24 lb)

The finisher stacks the paper but does not staple or punch holes in it.

Print on transparencies by batches of only up to 20 to prevent them from sticking together. For more information, see “Tips on using transparencies” on page 68.

Paper and specialty media guide 76

Paper type Paper weight 4‑bin mailbox Output expander

and high‑capacity

Staple finisher Staple, hole punch

finisher

output expander

Colored Paper

90–176 g/m

(24–47 lb)

60–90 g/m

(16–24 lb)

The finisher stacks the paper but does not staple or punch holes in it.

Print on transparencies by batches of only up to 20 to prevent them from sticking together. For more information, see “Tips on using transparencies” on page 68.

Printing 77

Printing

Printing a document

1 From the Paper menu on the printer control panel, set the paper type and size to match the paper loaded.

2 Send the print job:

For Windows users

With a document open, click File > Print.

b Click Properties, Preferences, Options, or Setup. c Adjust the settings, if necessary. d Click OK > Print.

For Macintosh users

Customize the settings in the Page Setup dialog if necessary:

1 With a document open, choose File > Page Setup. 2 Choose a paper size or create a custom size to match the paper loaded. 3 Click OK.

b Customize the settings in the Page Setup dialog if necessary:

1 With a document open, choose File > Print.

If necessary, click the disclosure triangle to see more options.

2 From the Print dialog and pop‑up menus adjust the settings if necessary.

Note: To print on a specific paper type, adjust the paper type setting to match the paper loaded, or

select the appropriate tray or feeder.

3 Click Print.

Adjusting toner darkness

Using the Embedded Web Server

Open a Web browser, and then type the IP address of the printer in the address field.

Notes:

• View the printer IP address in the TCP/IP section in the Network/Ports menu. The IP address appears as four

sets of numbers separated by periods, such as 123.123.123.123.

• If you are using a proxy server, then temporarily disable it to load the Web page correctly.

2 Click Settings > Print Settings > Quality Menu > Toner Darkness.

3 Adjust the toner darkness, and then click Submit.

Printing 78

Using the printer control panel

From the printer control panel, navigate to:

> Settings > > Print Settings > > Quality Menu > > Toner Darkness

2 Adjust the toner darkness, and then press .

Printing from a flash drive

Supported flash drives and file types

Notes:

• High‑speed USB flash drives must support the full‑speed standard. Low-speed USB devices are not supported.

• USB flash drives must support the File Allocation Table (FAT) system. Devices formatted with New Technology

File System (NTFS) or any other file system are not supported.

Recommended flash drives File type

• Lexar JumpDrive FireFly (512MB and 1GB)

• SanDisk Cruzer Micro (512MB and 1GB)

• Sony Micro Vault Classic (512MB and 1GB)

Documents:

• .pdf

• .xps

Images:

• .dcx

• .gif

• .jpeg or .jpg

• .bmp

• .pcx

• .tiff or .tif

• .png

• .fls

Printing 79

Printing from a flash drive

Notes:

• Before printing an encrypted PDF file, you will be prompted to enter the file password from the printer control

panel.

• You cannot print files for which you do not have printing permissions.

1 Insert a flash drive into the USB port.

Notes:

• A flash drive icon appears on the printer control panel and in the held jobs icon when a flash drive is

installed.

• If you insert the flash drive when the printer requires attention, such as when a jam has occurred, then the

printer ignores the flash drive.

• If you insert the flash drive while the printer is processing other print jobs, then Busy appears. After these

print jobs are processed, you may need to view the held jobs list to print documents from the flash drive.

Warning—Potential Damage: Do not touch the printer or the flash drive in the area shown while actively printing, reading, or writing from the memory device. Loss of data can occur.

2 From the printer control panel, select the document you want to print.

Printing 80

3 Press the left or right arrow button to specify the number of copies for printing, and then press .

Notes:

• Do not remove the flash drive from the USB port until the document has finished printing.

• If you leave the flash drive in the printer after leaving the initial USB menu screen, then access held jobs

from the printer control panel to print files from the flash drive.

Printing confidential and other held jobs

Storing print jobs in the printer

1 From the printer control panel, navigate to:

> Settings > > Security > > Confidential Print > select the print job type

Print job type Description

Max Invalid PIN Limits the number of times an invalid PIN can be entered.

Note: When the limit is reached, the print jobs for that user name and PIN are deleted.

Confidential Job Expiration Lets you hold print jobs in the computer until you enter the PIN from the printer

control panel. Note: The PIN is set from the computer. It must be four digits, using the

numbers 0–9.

Repeat Job Expiration Lets you print and store print jobs in the printer memory for reprinting.

Verify Job Expiration Lets you print one copy of a print job while the printer holds the remaining

copies. It allows you to examine if the first copy is satisfactory. The print job is automatically deleted from the printer memory once all copies are printed.

Reserve Job Expiration Lets you store print jobs for printing at a later time. The print jobs are held until

deleted from the Held Jobs menu.

Notes:

• Confidential, Verify, Reserve, and Repeat print jobs may be deleted if the printer requires extra memory to

process additional held jobs.

• You can set the printer to store print jobs in the printer memory until you start the print job from the printer

control panel.

• All print jobs that can be initiated by the user at the printer are called held jobs.

2 Press .

Printing 81

Printing confidential and other held jobs

Note: Confidential and Verify print jobs are automatically deleted from memory after printing. Repeat and Reserve

jobs are held in the printer until you choose to delete them.

For Windows users

With a document open, click File > Print.

2 Click Properties, Preferences, Options, or Setup.

3 Click Print and Hold.

4 Select the print job type (Confidential, Repeat, Reserve, or Verify), and then assign a user name. For a confidential

print job, also enter a four‑digit PIN.

5 Click OK or Print.

6 From the printer control panel, release the print job.

• For confidential print jobs, navigate to:

Held jobs > select your user name > Confidential Jobs > enter the PIN > select the print job > specify the number of copies > Print

• For other print jobs, navigate to:

Held jobs > select your user name > select the print job > specify the number of copies > Print

For Macintosh users

With a document open, choose File > Print. If necessary, click the disclosure triangle to see more options.

2 From the print options or Copies & Pages pop‑up menu, choose Job Routing.

3 Select the print job type (Confidential, Repeat, Reserve, or Verify), and then assign a user name. For a confidential

print job, also enter a four‑digit PIN.

4 Click OK or Print.

5 From the printer control panel, release the print job:

• For confidential print jobs, navigate to:

Held jobs > select your user name > Confidential Jobs > enter the PIN > select the print job > specify the number of copies > Print

• For other print jobs, navigate to:

Held jobs > select your user name > select the print job > specify the number of copies > Print

Printing information pages

Printing a font sample list

1 From the printer control panel, navigate to:

> Settings > > Reports > > Print Fonts

2 Press the up or down arrow button to select the font setting.

Printing 82

3 Press .

Note: The PPDS fonts appear only when the PPDS data stream is activated.

Printing a directory list

From the printer control panel, navigate to:

> Settings > Reports > > Print Directory >

Note: The Print Directory menu item appears only when an optional flash memory or printer hard disk is installed.

Canceling a print job

Canceling a print job from the printer control panel

From the printer control panel, press > .

Canceling a print job from the computer

For Windows users

1 Open the printers folder.

In Windows 8

From the Search charm, type Run, and then navigate to: Apps list > Run > type control printers > OK

In Windows 7 or earlier

a Click , or click Start and then click Run. b In the Start Search or Run dialog, type control printers. c Press Enter, or click OK.

2 Double‑click the printer icon.

3 Select the print job you want to cancel.

4 Click Delete.

For Macintosh users

1 From the Apple menu, navigate to either of the following:

• System Preferences > Print & Scan > select your printer > Open Print Queue

• System Preferences > Print & Fax > select your printer > Open Print Queue

2 From the printer window, select the print job you want to cancel, and then delete it.

Understanding the printer menus 83

Understanding the printer menus

Menus list

Paper Menu Reports Network/Ports

Default Source Paper Size/Type Configure MP Substitute Size Paper Texture Paper Weight Paper Loading Custom Types Universal Setup Bin Setup

Security Settings Help

Confidential Print Disk Wiping Security Audit Log Set Date and Time

Depending on the printer setup, this menu item appears as Network Setup Page or Network [x] Setup Page.

Depending on the printer setup, this menu item appears as Standard Network or Network [x].

Menu Settings Page Device Statistics Stapler Test

Network Setup Page Profiles List Print Fonts Print Directory Asset Report

General Settings Flash Drive Menu Print Settings

Active NIC Standard Network

Standard USB Parallel [x] Serial [x] SMTP Setup

Print All Guides Print Quality Printing Guide Media Guide Print Defects Guide Menu Map Information Guide Connection Guide Moving Guide Supplies Guide

Understanding the printer menus 84

Paper menu

Default Source menu

Use To

Default Source

Tray [x] Multipurpose Feeder Manual Paper Manual Envelope

Set a default paper source for all print jobs.

Notes:

Paper Size/Type menu

Use To

Tray [x] Size

A4 A5 A6 JIS‑B5 Letter Legal Executive Oficio (Mexico) Folio Statement Universal 7 3/4 Envelope 9 Envelope 10 Envelope DL Envelope C5 Envelope B5 Envelope Other Envelope

• Tray 1 (standard tray) is the factory default setting.

• From the Paper menu, set Configure MP to "Cassette" for Multipurpose

Feeder to appear as a menu setting.

• If two trays contain paper of the same size and type, and the trays have

the same settings, then the trays are automatically linked. When one tray is empty, the print job continues using the linked tray.

Specify the paper size loaded in each tray.

Notes:

• Letter is the US factory default setting. A4 is the international factory

default setting.

• If two trays contain paper of the same size and type, and the trays have

the same settings, then the trays are automatically linked. The multipurpose feeder may also be linked. When one tray is empty, the print job continues using the linked tray.

• The A6 paper size is supported only in Tray 1 and the multipurpose

feeder.

Note: Only installed trays and feeders are listed in this menu.

Understanding the printer menus 85

Use To

Tray [x] Type

Plain Paper Card Stock Transparency Recycled Labels Vinyl Labels Bond Envelope Rough Envelope Letterhead Preprinted Colored Paper Light Paper Heavy Paper Rough/Cotton Custom Type [x]

MP Feeder Size

A4 A5 A6 JIS B5 Letter Legal Executive Oficio (Mexico) Folio Statement Universal 7 3/4 Envelope 9 Envelope 10 Envelope DL Envelope C5 Envelope B5 Envelope Other Envelope

Specify the type of paper loaded in each tray.

Notes:

• Plain Paper is the factory default setting for Tray 1. Custom Type [x] is

the factory default setting for all other trays.

• If available, a user‑defined name will appear instead of Custom Type [x].

• Use this menu to configure automatic tray linking.

Specify the paper size loaded in the multipurpose feeder.

Notes:

• Letter is the US factory default setting. A4 is the international factory

default setting.

• From the Paper menu, set Configure MP to “Cassette” for MP Feeder

Size to appear as a menu.

• The multipurpose feeder does not automatically detect paper size.

Make sure to set the paper size value.

Note: Only installed trays and feeders are listed in this menu.

Understanding the printer menus 86

Use To

MP Feeder Type

Plain Paper Card Stock Transparency Recycled Labels Vinyl Labels Bond Envelope Rough Envelope Letterhead Preprinted Colored Paper Light Paper Heavy Paper Rough/Cotton Custom Type [x]

Manual Paper Size

A4 A5 A6 JIS B5 Letter Legal Executive Oficio (Mexico) Folio Statement Universal

Specify the paper type loaded in the multipurpose feeder.

Notes:

• Plain Paper is the factory default setting.

• From the Paper menu, set Configure to “Cassette” for MP Feeder Type

to appear as a menu.

Specify the size of the paper being manually loaded. Note: Letter is the US factory default setting. A4 is the international factory

default setting.

Note: Only installed trays and feeders are listed in this menu.

Understanding the printer menus 87

Use To

Manual Paper Type

Plain Paper Card Stock Transparency Recycled Labels Vinyl Labels Bond Letterhead Preprinted Colored Paper Light Paper Heavy Paper Rough/Cotton Custom Type [x]

Manual Envelope Size

7 3/4 Envelope 9 Envelope 10 Envelope DL Envelope C5 Envelope B5 Envelope Other Envelope

Specify the paper type being manually loaded.

Notes:

• Plain Paper is the factory default setting.

• From the Paper menu, set Configure MP to “Manual” for Manual Paper

Type to appear as a menu.

Specify the envelope size being manually loaded. Note: 10 Envelope is the US factory default setting. DL Envelope is the

international factory default setting.

Manual Envelope Type

Envelope Rough Envelope Custom Type [x]

Note: Only installed trays and feeders are listed in this menu.

Specify the envelope type being manually loaded.

Note: Envelope is the factory default setting.

Configure MP menu

Use To

Configure MP

Cassette Manual First

Determine when the printer selects paper from the multipurpose feeder.

Notes:

• Cassette is the factory default setting. Cassette configures the

multipurpose feeder as the automatic paper source.

• Manual sets the multipurpose feeder only for manual‑feed print jobs.

• First configures the multipurpose feeder as the primary paper source.

Understanding the printer menus 88

Substitute Size menu

Use To

Substitute Size

Off Statement/A5 Letter/A4 All Listed

Paper Texture menu

Use To

Plain Texture

Smooth Normal Rough

Card Stock Texture

Smooth Normal Rough

Substitute a specified paper size if the requested paper size is not available.

Notes:

• All Listed is the factory default setting. All available substitutions are

allowed.

• Off indicates that no size substitutions are allowed.

• Setting a size substitution lets the print job continue without Change

Paper appearing.

Specify the relative texture of the plain paper loaded in a specific tray. Note: Normal is the factory default setting.

Specify the relative texture of the card stock loaded in a specific tray.

Notes:

• Normal is the factory default setting.

• These options appear only if card stock is supported.

Transparency Texture

Smooth Normal Rough

Recycled Texture

Smooth Normal Rough

Labels Texture

Smooth Normal Rough

Vinyl Labels Texture

Smooth Normal Rough

Bond Texture

Smooth Normal Rough

Specify the relative texture of the transparencies loaded in a specific tray. Note: Normal is the factory default setting.

Specify the relative texture of the recycled paper loaded in a specific tray. Note: Normal is the factory default setting.

Specify the relative texture of the labels loaded in a specific tray. Note: Normal is the factory default setting.

Specify the relative texture of the vinyl labels loaded in a specific tray. Note: Normal is the factory default setting.

Specify the relative texture of the bond paper loaded in a specific tray. Note: Rough is the factory default setting.

Understanding the printer menus 89

Use To

Envelope Texture

Smooth Normal Rough

Rough Envelope Texture

Rough

Letterhead Texture

Smooth Normal Rough

Preprinted Texture

Smooth Normal Rough

Colored Texture

Smooth Normal Rough

Light Texture

Smooth Normal Rough

Specify the relative texture of the envelopes loaded in a specific tray. Note: Normal is the factory default setting.

Specify the relative texture of the rough envelopes loaded in a specific tray. Note: Rough is the factory default setting.

Specify the relative texture of the letterhead loaded in a specific tray. Note: Normal is the factory default setting.

Specify the relative texture of the preprinted paper loaded in a specific tray. Note: Normal is the factory default setting.

Specify the relative texture of the colored paper loaded in a specific tray. Note: Normal is the factory default setting.

Specify the relative texture of the light paper loaded in a specific tray.

Note: Normal is the factory default setting.

Heavy Texture

Smooth Normal Rough

Rough/Cotton Texture

Rough

Custom [x] Texture

Smooth Normal Rough

Specify the relative texture of the heavy paper loaded in a specific tray. Note: Normal is the factory default setting.

Specify the relative texture of the rough or cotton paper loaded in a specific tray. Note: Rough is the factory default setting.

Specify the relative texture of the custom paper loaded in a specific tray.

Note: Normal is the factory default setting.

Paper Weight menu

Use To

Plain Weight

Light Normal Heavy

Specify the relative weight of the plain paper loaded. Note: Normal is the factory default setting.

Understanding the printer menus 90

Use To

Card Stock Weight

Light Normal Heavy

Transparency Weight

Light Normal Heavy

Recycled Weight

Light Normal Heavy

Labels Weight

Light Normal Heavy

Vinyl Labels Weight

Light Normal Heavy

Specify the relative weight of the card stock loaded. Note: Normal is the factory default setting.

Specify the relative weight of the transparencies loaded. Note: Normal is the factory default setting.

Specify the relative weight of the recycled paper loaded. Note: Normal is the factory default setting.

Specify the relative weight of the labels loaded. Note: Normal is the factory default setting.

Specify the relative weight of the vinyl labels loaded.

Note: Normal is the factory default setting.

Bond Weight

Light Normal Heavy

Envelope Weight

Light Normal Heavy

Rough Envelope Weight

Light Normal Heavy

Letterhead Weight

Light Normal Heavy

Preprinted Weight

Light Normal Heavy

Specify the relative weight of the bond paper loaded. Note: Normal is the factory default setting.

Specify the relative weight of the envelope loaded. Note: Normal is the factory default setting.

Specify the relative weight of the rough envelope loaded. Note: Normal is the factory default setting.

Specify the relative weight of the letterhead loaded. Note: Normal is the factory default setting.

Specify the relative weight of the preprinted paper loaded. Note: Normal is the factory default setting.

Understanding the printer menus 91

Use To

Colored Weight

Light Normal Heavy

Light Weight

Light

Heavy Weight

Heavy

Rough/Cotton Weight

Light Normal Heavy

Custom [x] Weight

Light Normal Heavy

Paper Loading menu

Specify the relative weight of the colored paper loaded. Note: Normal is the factory default setting.

Specify that the weight of the paper loaded is light.

Specify that the weight of the paper loaded is heavy.

Specify the relative weight of the cotton or rough paper loaded. Note: Normal is the factory default setting.

Specify the relative weight of the custom paper loaded.

Notes:

• Normal is the factory default setting.

• The options appear only when the custom type is supported.

Use To

Card Stock Loading

Duplex Off

Recycled Loading

Duplex Off

Labels Loading

Duplex Off

Vinyl Labels Loading

Duplex Off

Bond Loading

Duplex Off

Notes:

Determine and set two-sided printing for all print jobs with Card Stock as the paper type.

Determine and set two-sided printing for all print jobs with Recycled as the paper type.

Determine and set two-sided printing for all print jobs with Labels as the paper type.

Determine and set two-sided printing for all print jobs with Vinyl Labels as the paper type.

Determine and set two-sided printing for all print jobs with Bond as the paper type.

• Off is the factory default setting for all Paper Loading menu selections.

• Duplex sets the printer default to two‑sided printing for every print job unless one‑sided printing is selected from

Print Properties or the print dialog, depending on your operating system.

Understanding the printer menus 92

Use To

Letterhead Loading

Duplex Off

Preprinted Loading

Duplex Off

Colored Loading

Duplex Off

Light Loading

Duplex Off

Heavy Loading

Duplex Off

Rough/Cotton Loading

Duplex Off

Custom [x] Loading

Duplex Off

Determine and set two-sided printing for all pr int jobs with Letterhead as the paper type.

Determine and set two-sided printing for all print jobs with Preprinted as the paper type.

Determine and set two-sided printing for all print jobs with Colored as the paper type.

Determine and set two-sided printing for all print jobs with Light as the paper type.

Determine and set two-sided printing for all print jobs with Heavy as the paper type.

Determine and set two-sided printing for all print jobs with Rough or Cotton as the paper type.

Determine and set two-sided printing for all print jobs with Custom [x] as the paper type.

Note: Custom [x] Loading is available only when the custom type is supported.

Notes:

• Off is the factory default setting for all Paper Loading menu selections.

• Duplex sets the printer default to two‑sided printing for every print job unless one‑sided printing is selected from

Print Properties or the print dialog, depending on your operating system.

Custom Types menu

Use To

Custom Type [x]

Paper Card Stock Transparency Rough/Cotton Labels Vinyl Labels Envelope

Associate a paper or specialty media type with a factory default custom type name or a user‑defined custom name created from the Embedded Web Server

or from MarkVision

Notes:

Professional.

• Paper is the factory default setting.

• The custom media type must be supported by the selected tray or

multipurpose feeder in order to print from that source.

Understanding the printer menus 93

Use To

Recycled

Paper Card Stock Transparency Rough/Cotton Labels Vinyl Labels Envelope

Specify a paper type when Recycled is selected in other menus.

Notes:

• Paper is the factory default setting.

• The custom media type must be supported by the selected tray or

Universal Setup menu

Use To

Units of Measure

Inches Millimeters

Portrait Width

3–8.5 inches 76–216 mm

multipurpose feeder in order to print from that source.

Identify the units of measure.

Notes:

• Inches is the US factory default setting.

• Millimeters is the international factory default setting.

Set the portrait width.

Notes:

• If the width exceeds the maximum, then the printer uses the

maximum width allowed.

• 8.5 inches is the US factory default setting. You can increase the

width in 0.01‑inch increments.

• 216 mm is the international factory default setting. You can increase

the width in 1‑mm increments.

Portrait Height

3–14.17 inches 76–360 mm

Feed Direction

Short Edge Long Edge

Set the portrait height.

Notes:

• If the height exceeds the maximum, then the printer uses the

maximum height allowed.

• 14 inches is the US factory default setting. You can increase the

height in 0.01‑inch increments.

• 356 mm is the international factory default setting. You can increase

the height in 1‑mm increments.

Specify the feed direction if the paper can be loaded in either direction.

Notes:

• Short Edge is the factory default setting.

• Long Edge appears only when the longest edge is shorter than the

maximum width supported in the tray.

Understanding the printer menus 94

Bin Setup menu

Use To

Output Bin

Standard Bin Bin [x]

Configure Bins

Mailbox Link Mail Overflow Link Optional Type Assignment

Specify the default bin.

Notes:

• If multiple bins are assigned the same name, then the

name appears only once in the menu.

• Standard Bin is the factory default setting.

Specify configuration options for bins.

Notes:

• Mailbox is the factory default setting. This setting

treats each bin as a separate mailbox.

• Link configures all available bins as one large bin.

• Mail Overflow configures each bin as a separate

mailbox.

• Link Optional links all available bins except the

standard bin and only appears when at least two optional bins are installed.

• Type Assignment assigns each paper type to a bin or

linked bin set.

• Bins assigned the same name are automatically

linked unless Link Optional is selected.

Overflow Bin

Standard Bin Bin [x]

Specify an alternative bin when a designated bin is full.

Notes:

• Standard Bin is the factory default setting.

• If multiple bins are assigned the same name, then the

name only appears once in the bin list.

• [x] can be any number between 1 and 12 if the

appropriate optional bins are installed.

Understanding the printer menus 95

Use To

Assign Type/Bin

Plain Paper Bin Card Stock Bin Transparency Bin Recycled Bin Labels Bin Vinyl Labels Bin Bond Bin Envelope Bin Rough Envelope Bin Letterhead Bin Preprinted Bin Colored Bin Light Paper Bin Heavy Paper Bin Rough/Cotton Bin Custom [x] Bin

Reports menu

Select a bin for each supported paper type. For each type, select the following options:

Disabled Standard Bin Bin [x]

Notes:

• Disabled is the factory default setting.

• [x] can be any number between 1 and 12 if the

appropriate optional bins are installed.

• If multiple bins are assigned the same name, then the

name only appears once in the bin list.

Reports menu

Use To

Menu Settings Page Print a report containing information about the paper loaded in trays, installed

memory, total page count, alarms, timeouts, printer control panel language, TCP/IP address, status of supplies, status of the network connection, and other information.

Device Statistics Print a report containing printer statistics such as supply information and details

about printed pages.

Stapler Test Print a report that confirms that the staple finisher is functioning properly.

Note: This menu appears only if an optional staple finisher is installed.

Network Setup Page Print a report containing information about the network printer settings, such as

the TCP/IP address information. Note: This menu item appears only in network printers or in printers connected

to print servers.

Network [x] Setup Page Print a report containing information about the network printer settings, such as

the TCP/IP address information.

Notes:

• This menu item is available only when more than one network option is

installed.

• This menu item appears only in network printers or in printers connected

to print servers.

Understanding the printer menus 96

Use To

Profiles List Print a list of profiles stored in the printer.

Note: This menu item appears only when LDSS is enabled.

Print Fonts

PCL Fonts PostScript Fonts

Print Directory Print a list of all the resources stored in an optional flash memory card or printer

Print a report of all the fonts available for the printer language currently set in the printer.

Note: A separate list is available for PCL and PostScript emulations.

hard disk.

Notes:

• Job Buffer Size must be set to 100%.

• Make sure the optional flash memory or printer hard disk is installed

correctly and working properly.

• This menu item appears only when an optional flash drive or printer hard

disk is installed.

Asset Report Print a report containing printer asset information, such as serial number and

model name.

Network/Ports menu

Active NIC menu

Use To

Active NIC

Auto [list of available network cards]

Allow the printer to connect to a network.

Notes:

• Auto is the factory default setting.

• This menu item appears only if an optional network adapter is installed.

Standard Network or Network [x] menu

Note: Only active ports appear in this menu. All inactive ports are omitted.

Use To

PCL SmartSwitch

On Off

Set the printer to automatically switch to PCL emulation when a print job requires it, regardless of the default printer language.

Notes:

• On is the factory default setting.

• If PCL SmartSwitch is disabled, then the printer does not examine incoming

data and it uses the default printer language specified in the Setup menu.

Understanding the printer menus 97

Use To

PS SmartSwitch

On Off

NPA Mode

Off Auto

Network Buffer

Auto 3KB to [maximum size allowed]

Set the printer to automatically switch to PS emulation when a print job requires it, regardless of the default printer language.

Notes:

• On is the factory default setting.

• If PS SmartSwitch is disabled, then the printer does not examine incoming

data and it uses the default printer language specified in the Setup menu.

Set the printer to perform the special processing required for bidirectional communication following the conventions defined by the NPA protocol.

Notes:

• Auto is the factory default setting.

• Changing this setting from the printer control panel, and then exiting the

menus causes the printer to restart. The menu selection is then updated.

Set the size of the network input buffer.

Notes:

• Auto is the factory default setting.

• The value can be changed in 1KB increments.

• The maximum size allowed depends on the amount of memory in the printer,

the size of the other link buffers, and whether Resource Save is set to On or Off.

• To increase the maximum size range for the Network Buffer, disable or

reduce the size of the parallel, serial, and USB buffers.

• Changing this setting from the printer control panel and then exiting the

menus causes the printer to restart. The menu selection is then updated.

Job Buffering

Off On Auto

Mac Binary PS

On Off Auto

Temporarily store print jobs in the printer hard disk before printing. This menu only appears when a formatted disk is installed.

Notes:

• Off is the factory default setting.

• On buffers print jobs on the printer hard disk.

• Auto buffers print jobs only when the printer is busy processing data from

another input port.

• Changing this setting from the printer control panel, and then exiting the

menus causes the printer to restart. The menu selection is then updated.

Set the printer to process Macintosh binary PostScript print jobs.

Notes:

• Auto is the factory default setting.

• Off filters print jobs using the standard protocol.

• On processes raw binary PostScript print jobs.

Understanding the printer menus 98

Use To

Standard Network Setup OR Network [x] Setup

Reports Network Card TCP/IP IPv6 Wireless AppleTalk

Show and set the printer network settings. Note: The Wireless menu appears only when the printer is connected to a wireless

network.

Reports menu

To access the menu, navigate to either of the following:

• Network/Ports > Standard Network > Standard Network Setup > Reports

• Network/Ports > Network [x] > Network [x] Setup > Reports

Use To

Print Setup Page Print a report containing information about the network printer settings, such as the TCP/IP address.

Network Card menu

To access the menu, navigate to either of the following:

• Network/Ports > Standard Network > Standard Network Setup > Network Card

• Network/Ports > Network [x] > Network [x] Setup > Network Card

Use To

View Card Status

Connected Disconnected

View Card Speed View the speed of an active wireless network adapter.

Network Address

UAA LAA

Job Timeout

0, 10–225 seconds

View the connection status of the wireless network adapter.

View the network addresses.

Set the amount of time it takes for a network print job to be canceled.

Notes:

• “90 seconds” is the factory default setting.

• A setting value of 0 disables the timeout.

• If a value between 1 and 9 is selected, then Invalid appears on the

display, and the value is not saved.

Banner Page

Off On

Allow the printer to print a banner page. Note: Off is the factory default setting.

Understanding the printer menus 99

TCP/IP menu

To access the menu, navigate to either of the following:

• Network/Ports > Standard Network > Standard Network Setup > TCP/IP

• Network/Ports > Network [x] > Network [x] Setup > TCP/IP

Note: This menu is available only in network printers or printers attached to print servers.

Use To

Set Hostname Set the current TCP/IP host name.

Note: This can be changed only from the Embedded Web Server.

IP Address View or change the current TCP/IP address.

Note: Manually setting the IP address sets the Enable DHCP and Enable Auto IP

settings to Off. It also sets Enable BOOTP and Enable RARP to Off on systems that support BOOTP and RARP.

Netmask View or change the current TCP/IP netmask.

Gateway View or change the current TCP/IP gateway.

Enable DHCP

On Off

Enable RARP

On Off

Enable BOOTP

On Off

Enable AutoIP

Yes No

Enable FTP/TFTP

Yes No

Enable HTTP Server

Yes No

WINS Server Address View or change the current WINS server address.

Specify the DHCP address and parameter assignment. Note: On is the factory default setting.

Specify the RARP address assignment setting. Note: Off is the factory default setting.

Specify the BOOTP address assignment setting. Note: On is the factory default setting.

Specify the Zero Configuration Networking setting. Note: Yes is the factory default setting.

Enable the built-in FTP server, which lets you send files to the printer using File Transfer Protocol.

Note: Yes is the factory default setting.

Enable the built-in Web server (Embedded Web Server). When enabled, the printer can be monitored and managed remotely using a Web browser.

Note: Yes is the factory default setting.

Enable DDNS

Yes No

Enable mDNS

Yes No

DNS Server Address View or change the current DNS server address.

View or change the current DDNS setting. Note: Yes is the factory default setting.

View or change the current mDNS setting. Note: Yes is the factory default setting.

Understanding the printer menus 100

Use To

Backup DNS Server Address View or change the backup DNS server addresses.

Backup DNS Server Address 2

Backup DNS Server Address 3

Enable HTTPS

Yes No

View or change the current HTTPS setting.

Note: Yes is the factory default setting.

IPv6 menu

To access the menu, navigate to either of the following:

• Network/Ports > Standard Network > Standard Network Setup > IPv6

• Network/Ports > Network [x] > Network [x] Setup > IPv6

Note: This menu is available only in network printers or printers that are attached to print servers.

Use To

Enable IPv6

On Off

Auto Configuration

On Off

View Hostname Set the host name.

View Address

View Router Address

Enable IPv6 in the printer. Note: On is the factory default setting.

Specify whether or not the wireless network adapter accepts the automatic IPv6 address configuration entries provided by a router.

Note: On is the factory default setting.

Note: These settings can be changed only from the Embedded Web

Server.

Enable DHCPv6

On Off

Enable DHCPv6 in the printer.

Note: On is the factory default setting.

Wireless menu

Note: This menu is available only in printers connected to a wireless network or printer models that have a wireless

network adapter.

To access the menu, navigate to:

Network/Ports > Network [x] > Network [x] Setup > Wireless

Lexmark M5163DN User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

Safety information

Learning about the printer

Finding information about the printer

Selecting a location for the printer

Printer configurations

Using the printer control panel

Understanding the colors of the Sleep button and indicator lights

Additional printer setup

Installing internal options

Available internal options

Accessing the controller board

Installing a memory card

Installing an Internal Solutions Port

Installing an optional card

Installing a printer hard disk

Removing a printer hard disk

Installing hardware options

Order of installation

Installing optional trays

Attaching cables

Setting up the printer software

Installing the printer software

Updating available options in the printer driver

Networking

Preparing to set up the printer on an Ethernet network

Installing the printer on an Ethernet network

Preparing to set up the printer on a wireless network

Connecting the printer using the Wireless Setup Wizard

Connecting the printer to a wireless network using Wi-Fi Protected Setup

Connecting the printer to a wireless network using the Embedded Web Server

Changing port settings after installing a new network Internal Solutions Port

Setting up serial printing

Verifying printer setup

Printing a menu settings page

Printing a network setup page

Loading paper and specialty media

Setting the paper size and type

Configuring Universal paper settings

Loading the multipurpose feeder

Linking and unlinking trays

Linking and unlinking trays

Creating a custom name for a paper type

Assigning a custom paper type

Paper and specialty media guide

Using specialty media

Tips on using card stock

Tips on using envelopes

Tips on using labels

Tips on using transparencies

Paper guidelines

Paper characteristics

Selecting paper

Selecting preprinted forms and letterhead

Using recycled paper and other office papers

Storing paper

Supported paper sizes, types, and weights

Paper types and weights supported by the printer

Paper sizes supported by the printer

Paper sizes, types, and weights supported by the finishers

Printing

Printing a document

Printing a document

Adjusting toner darkness

Printing from a flash drive

Supported flash drives and file types

Printing from a flash drive

Printing confidential and other held jobs

Storing print jobs in the printer

Printing confidential and other held jobs

Printing information pages

Printing a font sample list

Printing a directory list

Canceling a print job

Canceling a print job from the printer control panel

Canceling a print job from the computer
