Lexmark M3150 User's Guide

Download

M1100 and M3100 Series

User's Guide

Important: Click here before using this guide.

September 2012 www.lexmark.com

Machine type(s):

4514

Model(s):

639, 649

Contents 2

Safety information.......................................................................................6

Overview.....................................................................................................8

Using this guide.........................................................................................................................................8

Finding information about the printer......................................................................................................8

Selecting a location for the printer.............................................................10

Additional printer setup.............................................................................12

Installing internal options........................................................................................................................12

Available internal options.................................................................................................................................12

Accessing the controller board .........................................................................................................................12

Installing an optional card ................................................................................................................................ 13

Installing a memory card ..................................................................................................................................14

Installing an Internal Solutions Port..................................................................................................................16

Installing a printer hard disk ............................................................................................................................. 22

Removing a printer hard disk............................................................................................................................25

Installing hardware options.....................................................................................................................26

Installing optional trays ....................................................................................................................................26

Setting up the printer software...............................................................................................................27

Installing the printer software ..........................................................................................................................27

Updating available options in the printer driver ..............................................................................................28

Networking..............................................................................................................................................29

Preparing to set up the printer on an Ethernet network..................................................................................29

Installing the printer on an Ethernet network..................................................................................................30

Preparing to set up the printer on a wireless network.....................................................................................31

Connecting the printer using the Wireless Setup Wizard.................................................................................32

Connecting the printer to a wireless network using Wi‑Fi Protected Setup ....................................................33

Connecting the printer to a wireless network using the Embedded Web Server.............................................33

Verifying printer setup...................................................................................................................................... 34

Using M1145..............................................................................................35

Learning about the printer......................................................................................................................35

Printer configurations ....................................................................................................................................... 35

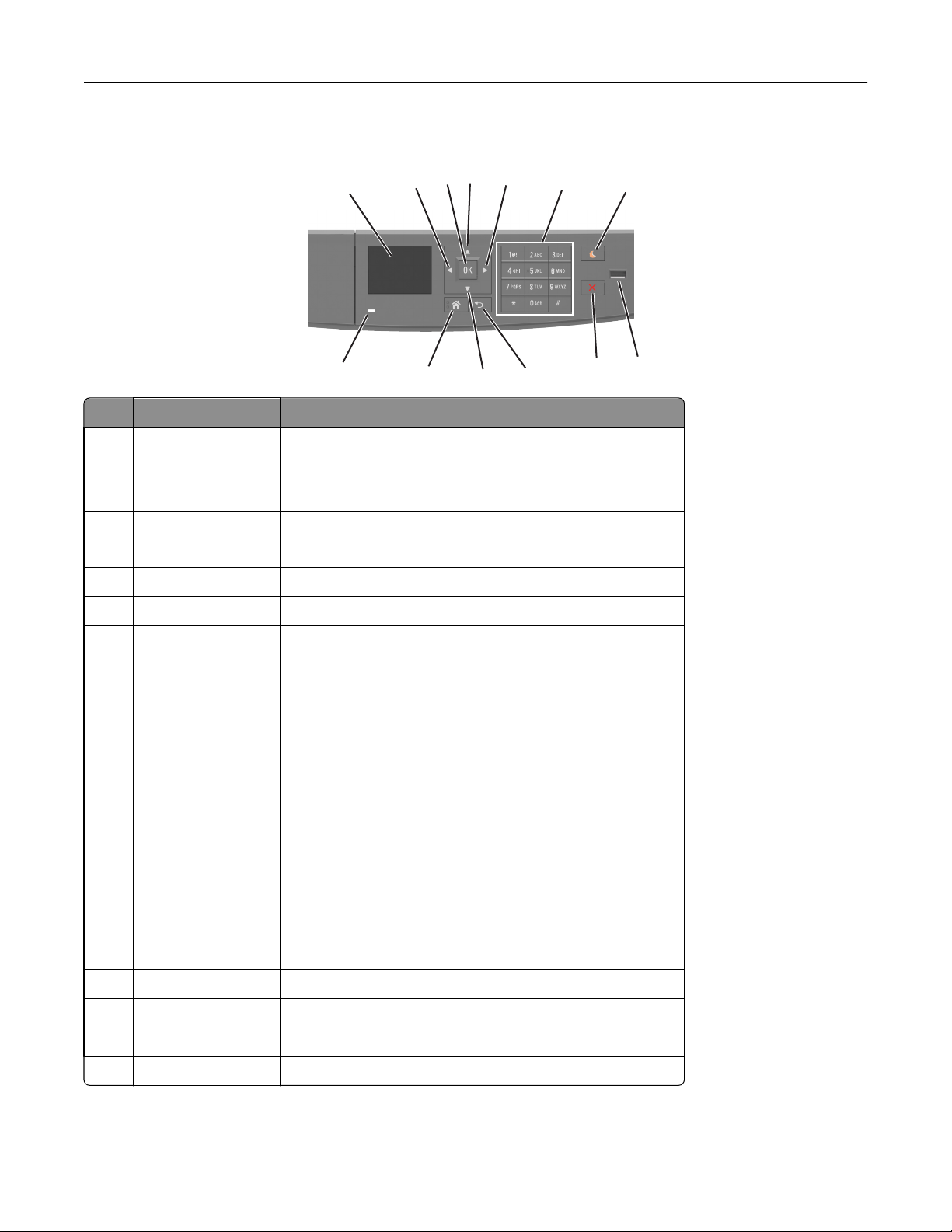

Using the printer control panel.........................................................................................................................36

Understanding the colors of the Sleep button and indicator lights..................................................................37

Attaching cables................................................................................................................................................37

Accessing the controller board .........................................................................................................................39

Loading paper and specialty media.........................................................................................................40

Contents 3

Setting the paper size and type ........................................................................................................................ 40

Configuring Universal paper settings................................................................................................................40

Using the standard bin and paper stop ............................................................................................................40

Loading trays..................................................................................................................................................... 41

Loading the multipurpose feeder ..................................................................................................................... 45

Linking and unlinking trays ...............................................................................................................................49

Printing....................................................................................................................................................51

Printing a document .........................................................................................................................................51

Printing from a mobile device...........................................................................................................................52

Printing confidential and other held jobs .........................................................................................................52

Printing information pages ............................................................................................................................... 54

Canceling a print job .........................................................................................................................................54

Managing the printer..............................................................................................................................55

Checking the virtual display..............................................................................................................................55

Configuring supply notifications from the Embedded Web Server .................................................................. 55

Modifying confidential print settings................................................................................................................56

Copying printer settings to other printers ........................................................................................................57

Creating a printer control panel PIN .................................................................................................................57

Printing a menu settings page ..........................................................................................................................58

Printing a network setup page..........................................................................................................................58

Checking the status of parts and supplies ........................................................................................................58

Saving energy.................................................................................................................................................... 59

Restoring factory default settings..................................................................................................................... 63

Securing the printer ..........................................................................................................................................63

Using M3150..............................................................................................66

Learning about the printer......................................................................................................................66

Printer configurations ....................................................................................................................................... 66

Using the printer control panel.........................................................................................................................67

Understanding the colors of the Sleep button and indicator lights..................................................................67

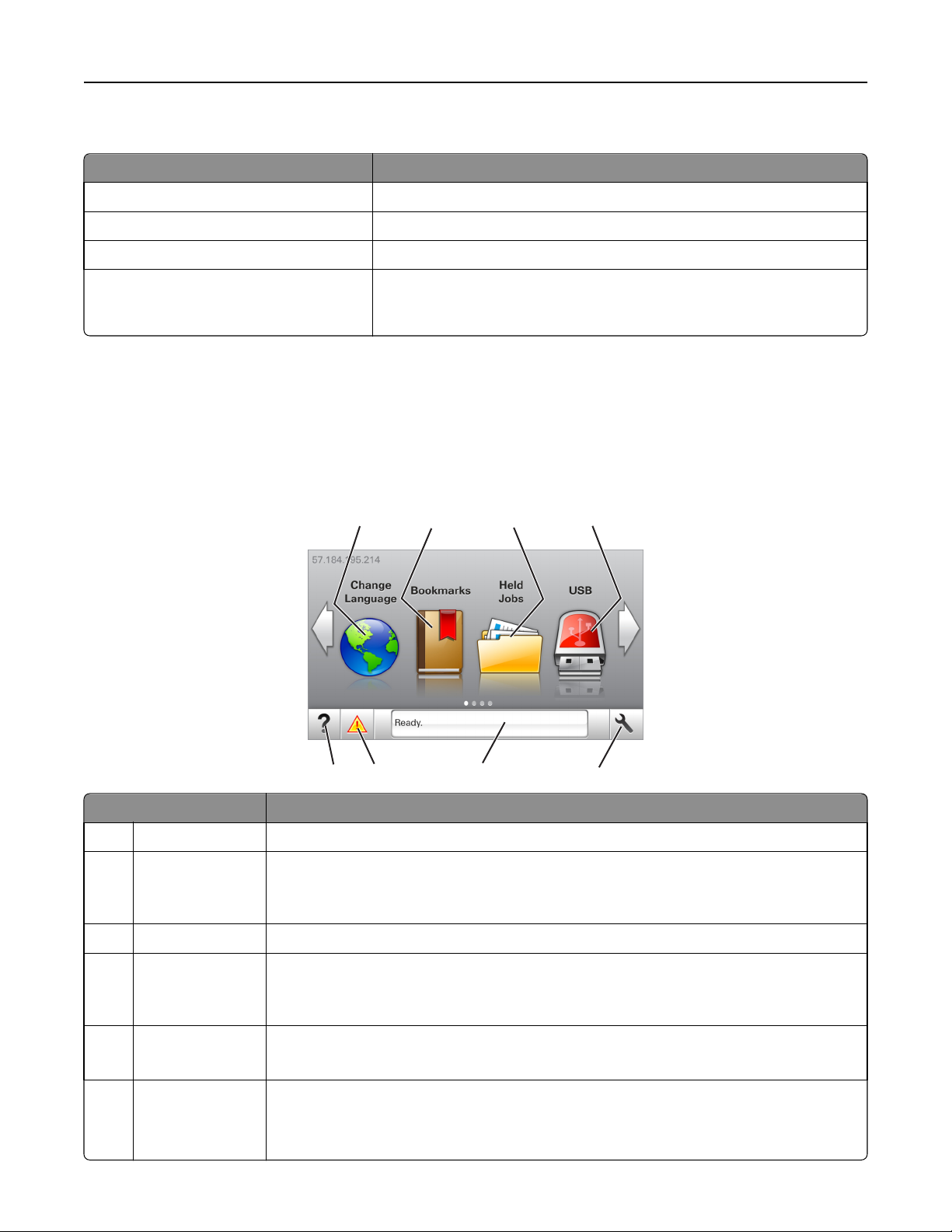

Understanding the home screen ......................................................................................................................68

Using the touch-screen buttons .......................................................................................................................69

Attaching cables................................................................................................................................................70

Accessing the controller board .........................................................................................................................72

Setting up and using the home screen applications................................................................................74

Finding the IP address of the computer............................................................................................................74

Finding the IP address of the printer ................................................................................................................75

Accessing the Embedded Web Server ..............................................................................................................75

Customizing the home screen ..........................................................................................................................75

Activating the home screen applications..........................................................................................................76

Exporting and importing a configuration..........................................................................................................78

Loading paper and specialty media.........................................................................................................78

Setting the paper size and type ........................................................................................................................ 78

Contents 4

Configuring Universal paper settings................................................................................................................78

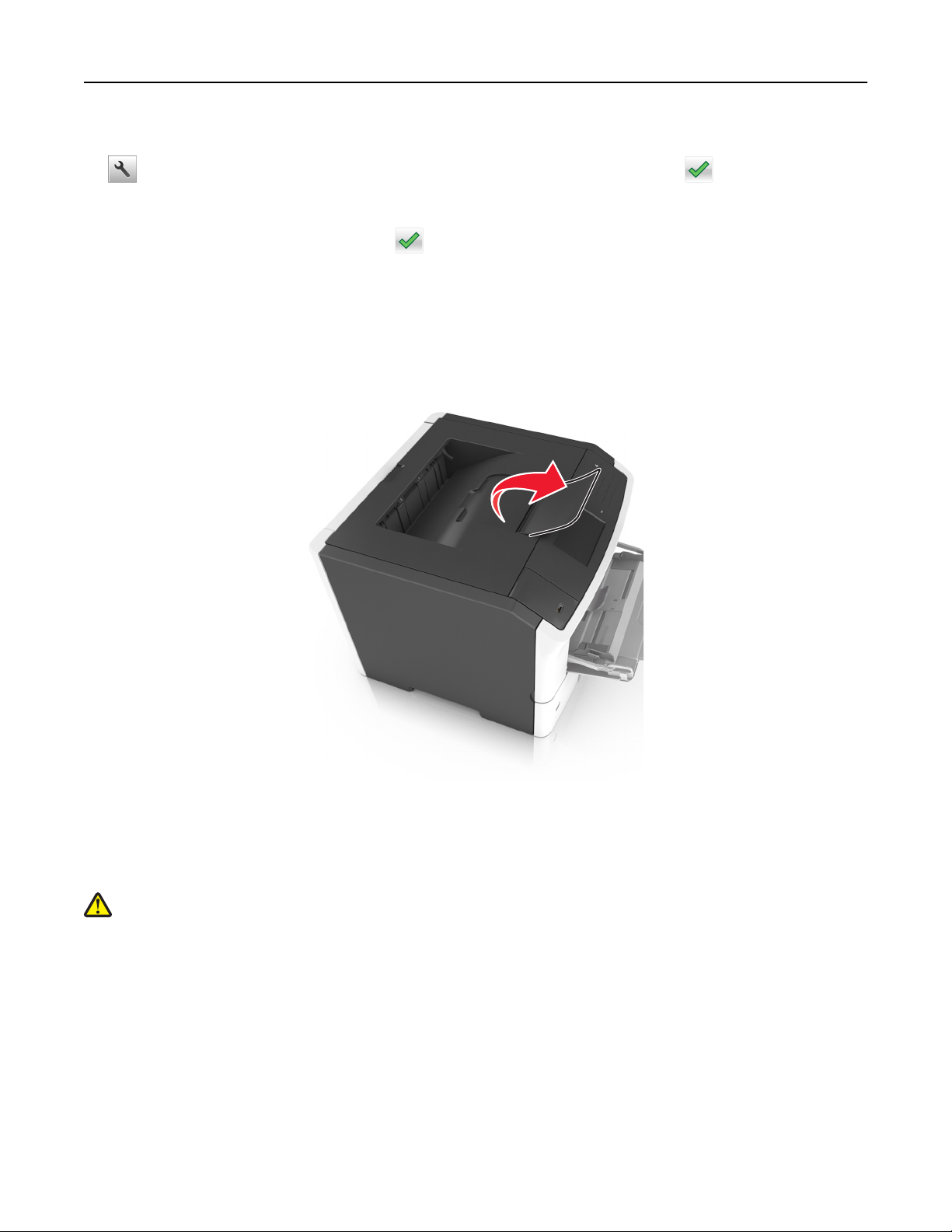

Using the standard bin and paper stop ............................................................................................................79

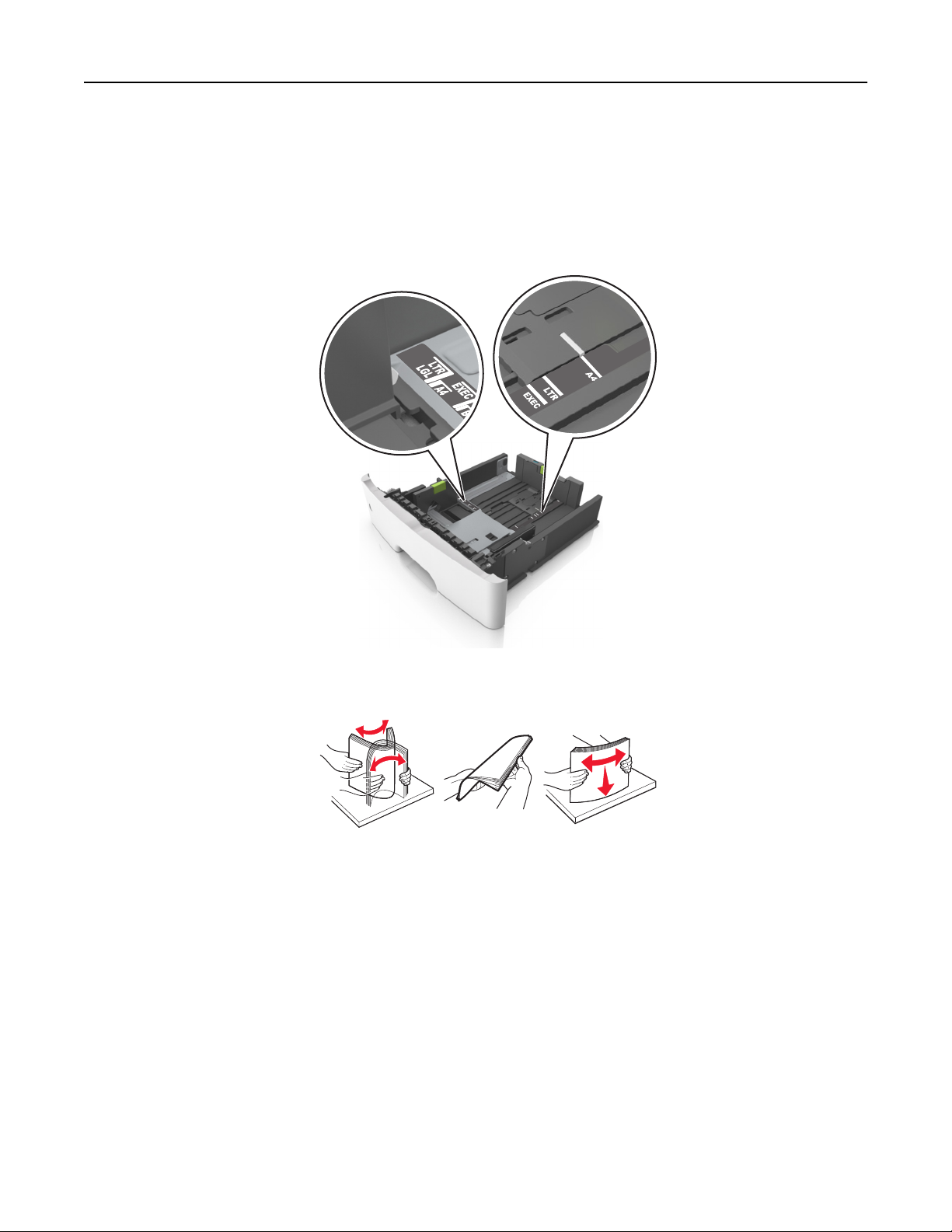

Loading trays..................................................................................................................................................... 79

Loading the multipurpose feeder ..................................................................................................................... 84

Linking and unlinking trays ...............................................................................................................................87

Printing....................................................................................................................................................89

Printing forms ...................................................................................................................................................89

Printing a document .........................................................................................................................................89

Printing from a mobile device...........................................................................................................................90

Printing from a flash drive ................................................................................................................................91

Printing confidential and other held jobs .........................................................................................................92

Printing information pages ............................................................................................................................... 94

Canceling a print job .........................................................................................................................................94

Managing the printer..............................................................................................................................95

Setting up serial printing...................................................................................................................................95

Changing port settings after installing a new network Internal Solutions Port................................................97

Finding advanced networking and administrator information .........................................................................98

Checking the virtual display..............................................................................................................................98

Configuring supply notifications from the Embedded Web Server .................................................................. 99

Modifying confidential print settings................................................................................................................99

Copying printer settings to other printers ......................................................................................................100

Creating a printer control panel PIN ...............................................................................................................100

Printing a menu settings page ........................................................................................................................101

Printing a network setup page........................................................................................................................101

Checking the status of parts and supplies ......................................................................................................101

Saving energy.................................................................................................................................................. 102

Restoring factory default settings................................................................................................................... 106

Securing the printer ........................................................................................................................................ 107

Paper and specialty media guide..............................................................111

Using specialty media............................................................................................................................111

Paper guidelines....................................................................................................................................113

Supported paper sizes, types, and weights...........................................................................................116

Understanding the printer menus............................................................119

Menus list..............................................................................................................................................119

Paper menu...........................................................................................................................................120

Reports menu........................................................................................................................................128

Network/Ports menu.............................................................................................................................129

Security menu.......................................................................................................................................140

Settings menu........................................................................................................................................144

Help menu.............................................................................................................................................165

Contents 5

Saving money and the environment.........................................................167

Saving paper and toner.........................................................................................................................167

Recycling................................................................................................................................................167

Maintaining the printer............................................................................169

Cleaning the printer..............................................................................................................................169

Ordering supplies..................................................................................................................................169

Estimated number of remaining pages.................................................................................................171

Storing supplies.....................................................................................................................................171

Replacing supplies.................................................................................................................................171

Moving the printer................................................................................................................................175

Clearing jams............................................................................................177

Avoiding jams........................................................................................................................................177

Understanding jam messages and locations.........................................................................................178

[x]‑page jam, open front door. [20y.xx]................................................................................................180

[x]‑page jam, open rear door. [20y.xx]..................................................................................................183

[x]‑page jam, clear standard bin. [20y.xx].............................................................................................184

[x]‑page jam, remove tray 1 to clear duplex. [23y.xx]...........................................................................185

[x]‑page jam, open tray [x]. [24y.xx].....................................................................................................186

[x]‑page jam, clear manual feeder. [25y.xx]..........................................................................................187

Troubleshooting.......................................................................................189

Understanding the printer messages....................................................................................................189

Solving printer problems.......................................................................................................................200

Solving print problems..........................................................................................................................207

Solving home screen applications problems.........................................................................................232

Embedded Web Server does not open.................................................................................................232

Contacting customer support................................................................................................................234

Notices.....................................................................................................235

Product information..............................................................................................................................235

Edition notice........................................................................................................................................235

Power consumption..............................................................................................................................240

Index........................................................................................................249

Safety information 6

Safety information

Connect the power cord to a properly grounded electrical outlet that is near the product and easily accessible.

Do not place or use this product near water or wet locations.

CAUTION—POTENTIAL INJURY: This product uses a laser. Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

This product uses a printing process that heats the print media, and the heat may cause the media to release emissions. You must understand the section in your operating instructions that discusses the guidelines for selecting print media to avoid the possibility of harmful emissions.

CAUTION—POTENTIAL INJURY: The lithium battery in this product is not intended to be replaced. There is a danger of explosion if a lithium battery is incorrectly replaced. Do not recharge, disassemble, or incinerate a lithium battery. Discard used lithium batteries according to the manufacturer's instructions and local regulations.

CAUTION—POTENTIAL INJURY: Before moving the printer, follow these guidelines to avoid personal injury or printer damage:

• Turn the printer off using the power switch, and then unplug the power cord from the electrical outlet.

• Disconnect all cords and cables from the printer before moving it.

• If an optional tray is installed, then remove it from the printer. To remove the optional tray, slide the latch on the

right side of the tray toward the front of the tray until it clicks into place.

• Use the handholds located on both sides of the printer to lift it.

• Make sure your fingers are not under the printer when you set it down.

• Before setting up the printer, make sure there is adequate clearance around it.

Use only the power cord provided with this product or the manufacturer's authorized replacement.

CAUTION—HOT SURFACE: The inside of the printer might be hot. To reduce the risk of injury from a hot component, allow the surface to cool before touching.

CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or memory devices sometime after setting up the printer, then turn the printer off, and unplug the power cord from the electrical outlet before continuing. If you have any other devices attached to the printer, then turn them off as well, and unplug any cables going into the printer.

CAUTION—SHOCK HAZARD: Make sure that all external connections (such as Ethernet and telephone system connections) are properly installed in their marked plug-in ports.

This product is designed, tested, and approved to meet strict global safety standards with the use of specific manufacturer's components. The safety features of some parts may not always be obvious. The manufacturer is not responsible for the use of other replacement parts.

CAUTION—POTENTIAL INJURY: Do not cut, twist, bind, crush, or place heavy objects on the power cord. Do not subject the power cord to abrasion or stress. Do not pinch the power cord between objects such as furniture and walls. If any of these things happen, a risk of fire or electrical shock results. Inspect the power cord regularly for signs of such problems. Remove the power cord from the electrical outlet before inspecting it.

Refer service or repairs, other than those described in the user documentation, to a service representative.

CAUTION—SHOCK HAZARD: To avoid the risk of electrical shock when cleaning the exterior of the printer, unplug the power cord from the electrical outlet and disconnect all cables from the printer before proceeding.

Safety information 7

CAUTION—POTENTIAL INJURY: To reduce the risk of equipment instability, load each tray separately. Keep all other trays closed until needed.

CAUTION—SHOCK HAZARD: Do not set up this product or make any electrical or cabling connections, such as the fax feature, power cord, or telephone, during a lightning storm.

SAVE THESE INSTRUCTIONS.

Overview 8

Overview

Using this guide

This User’s Guide provides general and specific information on using the printer models that are listed on the cover page.

The following chapters contain information applicable to all printer models:

• Selecting a location for the printer

• Additional printer setup

• Paper and specialty media guide

• Understanding printer menus

• Saving money and the environment

• Maintaining the printer

• Clearing jams

• Troubleshooting

To find instructions for your printer:

• Use the table of contents.

• Use the Search function or the Find toolbar of your application to search for page content.

Finding information about the printer

What are you looking for? Find it here

Initial setup instructions:

• Connecting the printer

• Installing the printer software

Additional setup and instructions for using the printer:

• Selecting and storing paper and specialty media

• Loading paper

• Configuring printer settings

• Viewing and printing documents and photos

• Setting up and using the printer software

• Configuring the printer on a network

• Caring for and maintaining the printer

• Troubleshooting and solving problems

Setup documentation—The setup documentation came with the printer and is also available at

http://support.lexmark.com.

User's Guide and Quick Reference Guide—The guides are available on the Documentation CD.

For more information, visit

http://support.lexmark.com.

Instructions for:

• Connecting the printer to an Ethernet network

• Troubleshooting printer connection problems

Networking Guide—Open the Software CD, and then look for Printer and Software Documentation under the Pubs folder. From the list of publications, click the Networking Guide link.

Overview 9

What are you looking for? Find it here

Help using the prin ter software Windows or Mac Help—Open a printer software program

or application, and then click Help.

Click

Notes:

to view context‑sensitive information.

• Help is automatically installed with the printer

software.

• The printer software is located in the printer

program folder or on the desktop, depending on your operating system.

The latest supplemental information, updates, and customer support:

• Documentation

• Driver downloads

• Live chat support

• E‑mail support

• Voice support

Lexmark Support Web site—

http://support.lexmark.com

Note: Select your country or region, and then select

your product to view the appropriate support site. Support telephone numbers and hours of operation for

your country or region can be found on the Support Web site or on the printed warranty that came with your printer.

Record the following information (located on the store receipt and at the back of the printer), and have it ready when you contact customer support so that they may serve you faster:

• Machine Type number

• Serial number

• Date purchased

• Store where purchased

Warranty information Warranty information varies by country or region:

• In the U.S.—See the Statement of Limited Warranty

included with this printer, or at

http://support.lexmark.com.

• In other countries and regions—See the printed

warranty that came with your printer.

Selecting a location for the printer 10

Selecting a location for the printer

When selecting a location for the printer, leave enough room to open trays, covers, and doors. If you plan to install any options, then leave enough room for them also. It is important to:

• Set up the printer near a properly grounded and easily accessible electrical outlet.

• Make sure airflow in the room meets the latest revision of the ASHRAE 62 standard or the CEN Technical Committee

156 standard.

• Provide a flat, sturdy, and stable surface.

• Keep the printer: – Clean, dry, and free of dust. – Away from stray staples and paper clips. – Away from the direct airflow of air conditioners, heaters, or ventilators. – Free from direct sunlight and humidity extremes.

• Observe the recommended temperatures and avoid fluctuations.

Ambient temperature 16 to 32°C (60 to 90°F)

Storage temperature ‑20 to 40°C (‑4 to 104°F)

1 Right side 30 cm (12 in.)

2 Front 51 cm (20 in.)

3 Left side 20 cm (8 in.)

4 Rear 20 cm (8 in.)

5 Top 30 cm (12 in.)

Selecting a location for the printer 11

1 Right side 30 cm (12 in.)

2 Front 51 cm (20 in.)

3 Left side 20 cm (8 in.)

4 Rear 20 cm (8 in.)

5 Top 30 cm (12 in.)

Additional printer setup 12

Additional printer setup

Installing internal options

CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or

memory devices sometime after setting up the printer, then turn the printer off, and unplug the power cord from the electrical outlet before continuing. If you have other devices attached to the printer, then turn them off as well, and unplug any cables going into the printer.

Warning—Potential Damage: Controller board electronic components are easily damaged by static electricity. Touch a metal surface on the printer before touching any controller board electronic components or connectors.

Available internal options

• DDR3 DIMM

• Flash memory – Fonts – Firmware

• Forms Barcode

• Prescribe

• IPDS

• Printcryption

• Hard disk

• Internal Solutions Ports (ISP) – Parallel 1284‑B interface – MarkNet N8130 10/100 fiber interface – RS‑232‑C serial interface

This internal option is available only in the M3150de printer model.

Accessing the controller board

Access the controller board to install internal options.

For M1145, see “Accessing the controller board” on page 39. For M3150, see “Accessing the controller board” on page 72.

Additional printer setup 13

Installing an optional card

CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or

1 Access the controller board.

For the M1145 printer models, see “Accessing the controller board” on page 39. For the M3150de printer model, see “Accessing the controller board” on page 72.

2 Unpack the optional card.

Warning—Potential Damage: Avoid touching the connection points along the edge of the card.

3 Holding the card by its sides, align the plastic pins (1) on the card with the holes (2) on the controller board.

Additional printer setup 14

4 Push the card firmly into place as shown in the illustration.

Warning—Potential Damage: Improper installation of the card may cause damage to the card and the

controller board.

Note: The entire length of the connector on the card must touch and be flushed against the controller board.

5 For the M1145 printer models, close the controller board access door.

For the M3150de printer model, close the controller board shield, and then close the access door.

Note: When the printer software and any hardware options are installed, you may need to manually add the options in the printer driver to make them available for print jobs. For more information, see “Updating available options in the printer driver” on page 28.

Installing a memory card

CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or

memory devices sometime after setting up the printer, then turn the printer off, and unplug the power cord from the electrical outlet before continuing. If you have any other devices attached to the printer, then turn them off as well, and unplug any cables going into the printer.

Additional printer setup 15

An optional memory card can be purchased separately and attached to the controller board.

1 Access the controller board.

For the M1145 printer models, see “Accessing the controller board” on page 39. For the M3150de printer model, see “Accessing the controller board” on page 72.

2 Unpack the memory card.

Warning—Potential Damage: Do not touch the connection points along the edge of the card. Doing so may

cause damage.

3 Align the notch (1) on the memory card with the ridge (2) on the connector.

Additional printer setup 16

4 Push the memory card straight into the connector and forward into the controller board wall until it clicks into

place.

5 For the M1145 printer models, close the controller board access door.

For the M3150de printer model, close the controller board shield, and then close the access door.

Installing an Internal Solutions Port

The controller board supports one optional LexmarkTM Internal Solutions Port (ISP). This option is supported only in the M3150de printer model.

Note: This task requires a flat‑head screwdriver.

CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or

1 Open the controller board access door.

Additional printer setup 17

2 Lightly press the stop on the left side of the access door, and then slide the access door to remove.

3 Unpack the ISP kit.

Note: Make sure to remove and discard the small cable attached to the white connector.

1 ISP solution

2 Screw to attach the ISP solution to the plastic bracket

3 ISP exterior cover

4 Screws to attach the ISP solution to the ISP exterior cover

5 Plastic bracket

6 Long ISP cable

Additional printer setup 18

4 Place the plastic bracket inside the ISP exterior cover until it clicks into place.

5 Slide and push the ISP solution into the plastic bracket.

6 Secure the ISP solution to the plastic bracket using the long screw.

Additional printer setup 19

7 Tighten the two screws on the end of the ISP solution.

8 Attach the white plug of the ISP solution interface cable into the white receptacle on the ISP.

Additional printer setup 20

9 Slightly close the ISP exterior cover up to 65 degrees, and then slide the cover to attach.

10 Run the ISP cable through the controller board shield door.

Additional printer setup 21

11 Open the shield using the green handle.

12 Attach the blue plug of the ISP solution interface cable into the blue receptacle on the controller board.

Note: If you have installed a printer hard disk, then you need to remove it. For more information, see

“Removing a printer hard disk” on page 25. To reinstall the printer hard disk, see “Installing a printer hard disk” on page 22.

Additional printer setup 22

13 Close the shield.

14 Close the ISP exterior cover.

Note: When the printer software and any hardware options are installed, you may need to manually add the options

in the printer driver to make them available for print jobs. For more information, see “Updating available options in the printer driver” on page 28.

Installing a printer hard disk

Note: This option is available only in the M3150de printer model.

CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or

1 Access the controller board.

For more information, see “Accessing the controller board” on page 72

Note: This task requires a flat‑head screwdriver.

2 Unpack the printer hard disk.

3 Install the printer hard disk on the controller board:

Warning—Potential Damage: Hold only the edges of the printed circuit board assembly. Do not touch or press

on the center of the printer hard disk. Doing so may cause damage.

Additional printer setup 23

a Using a flat‑head screwdriver, loosen the screws.

b Align the screws on the printer hard disk to the slots on the controller board bracket, and then slide the printer

hard disk onto the brackets.

Additional printer setup 24

c Tighten the two screws.

d Insert the plug of the printer hard disk interface cable into the receptacle of the controller board.

Note: The plug and the receptacle are color‑coded blue.

4 Close the controller board shield, and then close the access door.

Note: When the printer software and any hardware options are installed, you may need to manually add the options

in the printer driver to make them available for print jobs. For more information, see “Updating available options in the printer driver” on page 28.

Additional printer setup 25

Removing a printer hard disk

Note: This option is supported only in the M3150de printer model.

Warning—Potential Damage: Controller board electronic components are easily damaged by static electricity.

Touch a metal surface on the printer before touching any controller board electronic components or connectors.

1 Access the controller board.

For more information, see “Accessing the controller board” on page 72.

Note: This task requires a flat‑head screwdriver.

2 Loosen the screws that connect the printer hard disk to the controller board bracket.

3 Unplug the printer hard disk interface cable from the receptacle in the controller board, leaving the cable attached

to the printer hard disk. To unplug the cable, squeeze the paddle at the plug of the interface cable to disengage the latch before pulling the cable out.

4 Hold the printer hard disk by the edges, and then remove it from the printer.

5 Close the controller board shield, and then close the access door.

Additional printer setup 26

Installing hardware options

Installing optional trays

CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or

1 Turn off the printer using the power switch, and then unplug the power cord from the electrical outlet.

2 Unpack the tray, and then remove all packing materials.

3 Pull the tray completely out of the base.

4 Remove any packing material from inside the tray.

5 Insert the tray into the base.

6 Place the tray near the printer.

7 Align the printer with the tray, and then lower the printer into place.

Note: Optional trays lock together when stacked.

Additional printer setup 27

8 Connect the power cord to the printer, then to a properly grounded electrical outlet, and then turn on the printer.

To uninstall the optional trays, slide the latch on the right side of the printer toward the front of the printer until it clicks into place, and then remove stacked trays one at a time from the top to the bottom.

Setting up the printer software

Installing the printer software

Notes:

• If you installed the printer software on the computer before but need to reinstall the software, then uninstall

the current software first.

Additional printer setup 28

• Close all open software programs before installing the printer software.

• For Macintosh users, you may download all the drivers and utilities from our Web site.

1 Obtain a copy of the software installer package.

• From the Software CD that came with your printer

• From our Web site:

Go to

http://support.lexmark.com, and then navigate to:

SUPPORT & DOWNLOAD > select your printer > select your operating system

2 Double‑click the software installer package.

Wait for the installation dialog to appear. If you are using the Software CD and the installation dialog does not appear, then do the following:

In Windows 8

From the Search charm, type run, and then navigate to: Apps list > Run > type D:\setup.exe > OK.

In Windows 7 or earlier

Click or click Start, and then click Run.

b In the Start Search or Run dialog, type D:\setup.exe. c Press Enter, or click OK.

Note: D is the letter of your CD or DVD drive.

3 Click Install, and then follow the instructions on the computer screen.

Updating available options in the printer driver

When any hardware options are installed, you may need to manually add the options in the printer driver to make them available for use.

For Windows users

1 Open the printers folder.

In Windows 8

From the Search charm, type run, and then navigate to: Apps list > Run > type control printers > OK

In Windows 7 or earlier

a Click or click Start, and then click Run. b In the Start Search or Run dialog, type control printers. c Press Enter, or click OK.

2 Depending on your device, do either of the following:

• Press and hold the printer you want to update.

• Right‑click the printer you want to update.

Additional printer setup 29

3 From the menu that appears, do either of the following:

• For Windows 7 or later, select Printer properties.

• For earlier versions, select Properties.

4 Click the Configuration tab.

5 Do either of the following:

• Click Update Now ‑ Ask Printer.

• Under Configuration Options, manually add any installed hardware options.

6 Click Apply.

For Macintosh users

1 From the Apple menu, navigate to either of the following:

• System Preferences > Print & Scan > select your printer > Options & Supplies > Driver

• System Preferences > Print & Fax > select your printer > Options & Supplies > Driver

2 Add any installed hardware options, and then click OK.

Networking

Notes:

• Purchase a MarkNet

For information on installing the wireless network adapter, see the instruction sheet that came with the adapter.

• A Service Set Identifier (SSID) is a name assigned to a wireless network. Wired Equivalent Privacy (WEP), Wi-Fi

Protected Access (WPA), WPA2, and 802.1X - RADIUS are types of security used on a network.

Preparing to set up the printer on an Ethernet network

To configure your printer to connect to an Ethernet network, organize the following information before you begin:

Note: If your network automatically assigns IP addresses to computers and printers, continue on to installing the printer.

• A valid, unique IP address for the printer to use on the network

• The network gateway

• The network mask

• A nickname for the printer (optional)

Note: A printer nickname can make it easier for you to identify your printer on the network. You can choose to use the default printer nickname, or assign a name that is easier for you to remember.

N8352 wireless network adapter first before setting up the printer on a wireless network.

You will need an Ethernet cable to connect the printer to the network and an available port where the printer can physically connect to the network. Use a new network cable when possible to avoid potential problems caused by a damaged cable.

Additional printer setup 30

Installing the printer on an Ethernet network

For Windows users

Obtain a copy of the software installer package.

• From the Software CD that came with your printer

• From our Web site:

Go to

http://support.lexmark.com, and then navigate to:

SUPPORT & DOWNLOAD > select your printer > select your operating system

2 Double‑click the software installer package.

Wait for the installation dialog to appear. If you are using the Software CD and the installation dialog does not appear, then do the following:

In Windows 8

From the Search charm, type run, and then navigate to: Apps list > Run > type D:\setup.exe > OK

In Windows 7 or earlier

a Click or click Start, and then click Run. b In the Start Search or Run dialog, type D:\setup.exe. c Press Enter, or click OK.

Note: D is the letter of your CD or DVD drive.

3 Click Install, and then follow the instructions on the computer screen.

4 Select Ethernet connection, and then click Continue.

5 Attach the Ethernet cable when instructed to do so.

6 Select the printer from the list, and then click Continue.

Note: If the configured printer does not appear in the list, then click Modify Search.

7 Follow the instructions on the computer screen.

For Macintosh users

Allow the network DHCP server to assign an IP address to the printer.

2 Obtain the printer IP address either:

• From the printer control panel

• From the TCP/IP section in the Network/Ports menu

• By printing a network setup page or menu settings page, and then finding the TCP/IP section

Note: You will need the IP address if you are configuring access for computers on a different subnet than the printer.

3 Install the printer driver on the computer.

a Download the driver at http://support.lexmark.com. b Double‑click the installer package for the printer, and then follow the instructions on the computer screen. c Select a destination, and then click Continue.

Additional printer setup 31

d From the Easy Install screen, click Install. e Type the user password, and then click OK.

All the necessary applications are installed on the computer.

f Click Close when installation is complete.

4 Add the printer.

• For IP printing:

a From the Apple menu, navigate to either of the following:

– System Preferences > Print & Scan – System Preferences > Print & Fax

b Click +. c Click the IP tab. d Type the printer IP address in the address field, and then click Add.

• For AppleTalk printing:

Notes:

– Make sure AppleTalk is activated on your printer. – This feature is supported only in Mac OS X version 10.5.

a From the Apple menu, navigate to:

System Preferences > Print & Fax

b Click +, and then navigate to:

AppleTalk > select your printer > Add

Preparing to set up the printer on a wireless network

Notes:

• Make sure your wireless network adapter is installed in your printer and working properly. For more

information, see the instruction sheet that came with the wireless network adapter.

• Make sure your access point (wireless router) is turned on and is working properly.

Make sure you have the following information before setting up the printer on a wireless network:

• SSID—The SSID is also referred to as the network name.

• Wireless Mode (or Network Mode)—The mode is either infrastructure or ad hoc.

• Channel (for ad hoc networks)—The channel defaults to automatic for infrastructure networks.

Some ad hoc networks will also require the automatic setting. Check with your system support person if you are not sure which channel to select.

• Security Method—There are four basic options for Security Method: – WEP key

If your network uses more than one WEP key, then enter up to four in the provided spaces. Select the key currently in use on the network by selecting the default WEP transmit key.

– WPA or WPA2 preshared key or passphrase

WPA includes encryption as an additional layer of security. The choices are AES or TKIP. Encryption must be set for the same type on the router and on the printer, or the printer will not be able to communicate on the network.

– 802.1X–RADIUS

Additional printer setup 32

If you are installing the printer on an 802.1X network, then you may need the following:

• Authentication type

• Inner authentication type

• 802.1X user name and password

• Certificates

– No security

If your wireless network does not use any type of security, then you will not have any security information.

Note: We do not recommend using an unsecured wireless network.

Notes:

– If you do not know the SSID of the network that your computer is connected to, then launch the wireless utility

of the computer network adapter, and then look for the network name. If you cannot find the SSID or the security information for your network, then see the documentation that came with the access point, or contact your system support person.

– To find the WPA/WPA2 preshared key or passphrase for the wireless network, see the documentation that

came with the access point, see the Embedded Web Server associated with the access point, or consult your system support person.

Connecting the printer using the Wireless Setup Wizard

Before you begin, make sure that:

• A wireless network adapter is installed in the printer and is working properly. For more information, see the

instruction sheet that came with the wireless network adapter.

• The Ethernet cable is disconnected from the printer.

• Active NIC is set to Auto. To set this to Auto, navigate to either of the following:

– > Settings > > Network/Ports > > Active NIC > > Auto >

– > Network/Ports > Active NIC > Auto

Note: Make sure to turn off the printer, then wait for at least five seconds, and then turn the printer back on.

1 Depending on your printer model, navigate to either of the following:

• > Settings > > Network/Ports > > Network [x] > > Network [x] Setup > > Wireless >

> Wireless Connection Setup >

• > Network/Ports > Network [x] > Network [x] Setup > Wireless > Wireless Connection Setup

2 Select a wireless connection setup.

Use To

Search for networks Show available wireless connections.

Note: This menu item shows all broadcast secured or unsecured SSIDs.

Enter a network name Manually type the SSID.

Note: Make sure to type the correct SSID.

Wi‑Fi Protected Setup Connect the printer to a wireless network using Wi‑Fi Protected Setup.

Additional printer setup 33

3 Follow the instructions on the printer display.

Connecting the printer to a wireless network using Wi‑Fi Protected Setup

Before connecting the printer to a wireless network, make sure that:

• The access point (wireless router) is Wi‑Fi Protected Setup (WPS) certified or WPS‑compatible. For more

information, see the documentation that came with your access point.

• A wireless network adapter is installed in your printer and is working properly. For more information, see the

instruction sheet that came with the wireless network adapter.

Using the Push Button Configuration Method

Depending on your printer model, navigate to either of the following:

• > Settings > > Networks/Ports > > Network [x] > > Network [x] Setup > > Wireless >

> Wireless Connection Setup > > Wi‑Fi Protected Setup > > Start Push Button Method >

• > Network/Ports > Network [x] > Network [x] Setup > Wireless > Wireless Connection Setup > Wi‑Fi

Protected Setup > Start Push Button Method

2 Follow the instructions on the printer display.

Using the Personal Identification Number (PIN) Method

Depending on your printer model, navigate to either of the following:

• > Settings > > Networks/Ports > > Network [x] > > Network [x] Setup > > Wireless >

> Wireless Connection Setup > > Wi‑Fi Protected Setup > > Start PIN Method >

• > Network/Ports > Network [x] > Network [x] Setup > Wireless > Wireless Connection Setup > Wi‑Fi

Protected Setup > Start PIN Method

2 Copy the eight‑digit WPS PIN.

3 Open a Web browser, and then type the IP address of your access point in the address field.

Notes:

• The IP address appears as four sets of numbers separated by periods, such as 123.123.123.123.

• If you are accessing a proxy server, then temporarily disable it to load the Web page correctly.

4 Access the WPS settings. For more information, see the documentation that came with your access point.

5 Enter the eight‑digit PIN, and then save the setting.

Connecting the printer to a wireless network using the Embedded Web Server

Before you begin, make sure that:

• Your printer is connected temporarily to an Ethernet network.

• A wireless network adapter is installed in your printer and working properly. For more information, see the

instruction sheet that came with the wireless network adapter.

1 Open a Web browser, and then type the printer IP address in the address field.

Additional printer setup 34

Notes:

• View the printer IP address on the printer control panel. The IP address appears as four sets of numbers

separated by periods, such as 123.123.123.123.

• If you are using a proxy server, then temporarily disable it to load the Web page correctly.

2 Click Settings > Network/Ports > Wireless.

3 Modify the settings to match the settings of your access point (wireless router).

Note: Make sure to enter the correct SSID, security method, preshared key or passphrase, network mode, and

channel.

4 Click Submit.

5 Turn off the printer, and then disconnect the Ethernet cable. Then wait for at least five seconds, and then turn the

printer back on.

6 To verify if your printer is connected to the network, print a network setup page. Then in the Network Card [x]

section, see if the status is Connected.

Verifying printer setup

When all hardware and software options are installed and the printer is turned on, verify that the printer is set up correctly by printing the following:

• Menu settings page—Use this page to verify that all printer options are installed correctly. A list of installed options

appears toward the bottom of the page. If an option you installed is not listed, then it is not installed correctly. Remove the option, and then install it again. For more information, see “Printing a menu settings page” on page 58 for non‑touch‑screen printer models, or “Printing a menu settings page” on page 101 for touch‑screen printer models.

• Network setup page—If your printer has Ethernet or wireless capability and is attached to a network, then print a

network setup page to verify the network connection. This page also provides important information that aids network printing configuration. For more information, see “Printing a network setup page” on page 58 for non‑touch screen printer models, or “Printing a network setup page” on page 101 for touch‑screen printer models.

Using M1145 35

Using M1145

Learning about the printer

Printer configurations

CAUTION—POTENTIAL INJURY: To reduce the risk of equipment instability, load each tray separately. Keep all

other trays closed until needed.

M1145dn printer model

1 Printer control panel

2 Paper stop

3 Standard bin

4 Front door release button

5 Controller board access door

6 100‑sheet multipurpose feeder

7 Standard 250‑sheet tray

8 Optional 250‑ or 550‑sheet trays

Using M1145 36

Using the printer control panel

Use the To

1 Display

• View the printer status and messages.

• Set up and operate the printer.

2 Left arrow button Scroll to the left.

3 Select button

• Select menu options.

• Save settings.

4 Up arrow button Scroll up.

5 Right arrow button Scroll to the right.

6 Keypad Enter numbers, letters, or symbols.

7 Sleep button Enable Sleep mode or Hibernate mode.

The following actions wake the printer from Sleep mode:

• Pressing any hard button

• Opening a tray or the front door

• Sending a print job from the computer

• Performing a power‑on reset using the main power switch

• Attaching a device to the USB port

8 USB port Connect a flash drive to the printer.

Notes:

• Only the front USB port supports flash drives.

• This feature is available only in select printer models.

9 Stop or cancel button Stop all printer activity.

10 Back button Return to the previous screen.

11 Down arrow button Scroll down.

12 Home button Go to the home screen.

13 Indicator light Check the status of the printer.

Using M1145 37

Understanding the colors of the Sleep button and indicator lights

The colors of the Sleep button and indicator l ights on the printer control panel signify a certain printer s tatus or condition.

Indicator light color and its corresponding printer status

Indicator light Printer status

Off The printer is off or in Hibernate mode.

Blinking green The printer is warming up, processing data, or printing.

Solid green The printer is on, but idle.

Blinking red The printer requires user intervention.

Sleep button light color and its corresponding printer status

Sleep button light Printer status

Off The printer is off, idle or in Ready state.

Solid amber The printer is in Sleep mode.

Blinking amber The printer is entering or waking from Hibernate mode.

Blinking amber for 0.1 second, then goes completely off for 1.9 seconds in a slow, pulsing pattern

The printer is in Hibernate mode.

Attaching cables

Connect the printer to the computer using a USB or parallel cable, or to the network using an Ethernet cable.

Make sure to match the following:

• The USB symbol on the cable with the USB symbol on the printer

• The appropriate parallel cable with the parallel port

• The appropriate Ethernet cable with the Ethernet port

Warning—Potential Damage: Do not touch the USB cable, any network adapter, or the printer in the area shown while actively printing. Loss of data or a malfunction can occur.

Using M1145 38

Use the To

1 USB port Attach an optional wireless network adapter.

2 USB printer port Connect the printer to a computer.

3 Ethernet port Connect the printer to an Ethernet network.

4 Parallel port

Note: This port is available only in select printer models.

5 Power switch Turn on or turn off the printer.

6 Printer power cord socket Connect the printer to an electrical outlet.

7 Security slot Attach a lock that will secure the printer in place.

Connect the printer to a computer.

Using M1145 39

Accessing the controller board

CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or

1 Open the controller board access door.

2 Use the following illustration to locate the appropriate connector.

Warning—Potential Damage: Controller board electronic components are easily damaged by static electricity.

Touch a metal surface on the printer before touching any controller board electronic components or connectors.

1 Memory card connector

2 Option card connector

Using M1145 40

Loading paper and specialty media

The selection and handling of paper and specialty media can affect how reliably documents print. For more information, see “Avoiding jams” on page 177 and “Storing paper” on page 116.

Setting the paper size and type

1 From the printer control panel, navigate to:

> Settings > > Paper Menu > > Paper Size/Type >

2 Press the up or down arrow button to select the tray or feeder, and then press .

3 Press the up or down arrow button to select the paper size, and then press .

4 Press the up or down arrow button to select the paper type, and then press to change the settings.

Configuring Universal paper settings

The Universal paper size is a user‑defined setting that lets you print on paper sizes that are not preset in the printer menus.

Notes:

• The smallest Universal paper size is 6 x 127 mm (3 x 5 inches), and is supported only from the multipurpose

feeder.

• The largest Universal paper size is 216 x 355.6 mm (8.5 x 14 inches), and is supported from all paper sources.

1 From the printer control panel, navigate to:

> Settings > > Paper Menu > > Universal Setup > > Units of Measure > > select a unit of

measure >

2 Select Portrait Width or Portrait Height, and then press .

3 Press the left or right arrow button to change the setting, and then press .

Using the standard bin and paper stop

The standard bin holds up to 150 sheets of 20‑lb paper. It collects prints facedown. The standard bin includes a paper stop that keeps paper from sliding out the front of the bin as it stacks.

Using M1145 41

To open the paper stop, pull it so that it flips forward.

Note: Close the paper stop when moving the printer to another location.

Loading trays

CAUTION—POTENTIAL INJURY: To reduce the risk of equipment instability, load each tray separately. Keep all

other trays closed until needed.

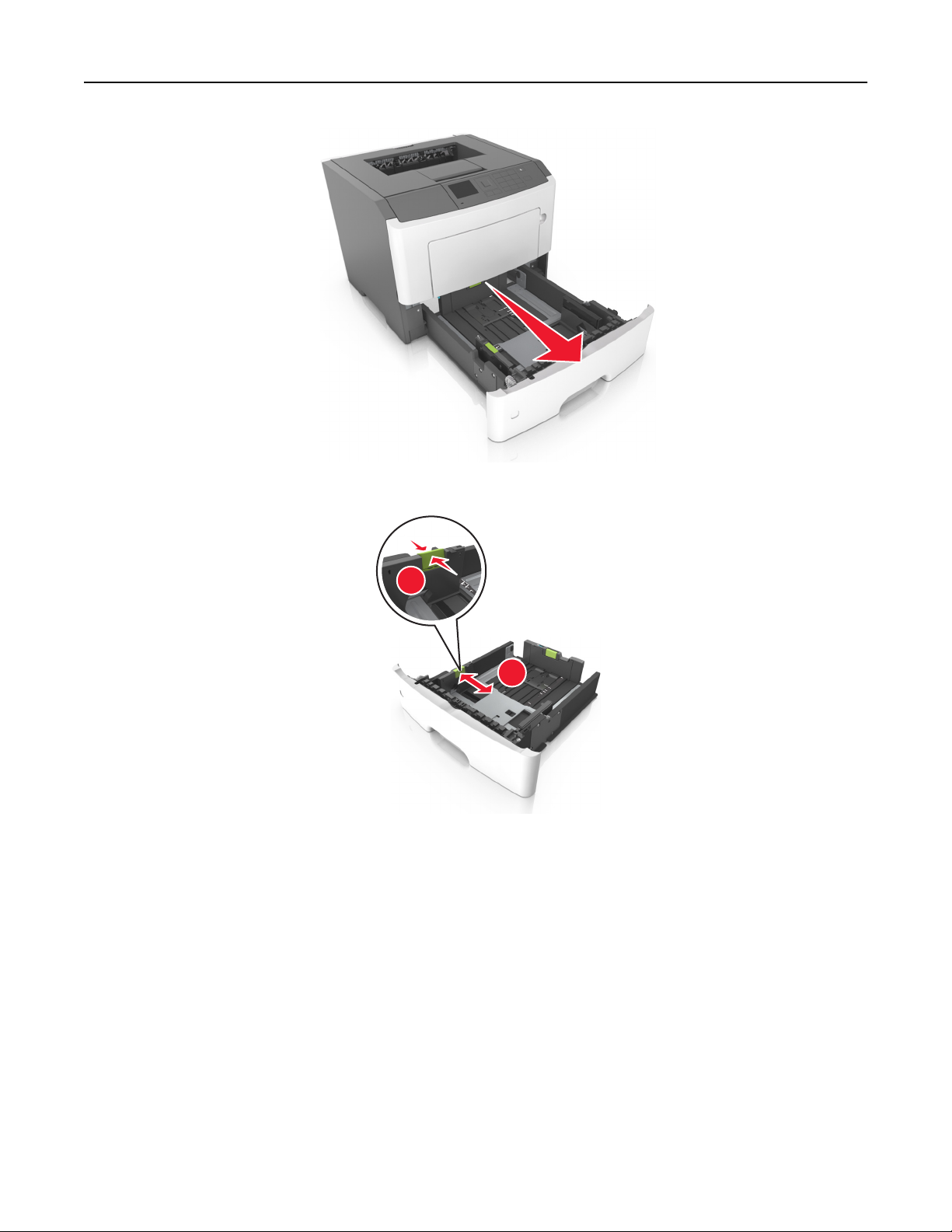

1 Pull out the tray completely.

Note: Do not remove trays while a job prints or while Busy appears on the printer display. Doing so may cause

a jam.

4 A

EXEC

5 B

5 A

6 A

Using M1145 42

2 Squeeze and then slide the width guide tab to the correct position for the size of the paper you are loading.

E X

A 5

A 4

LT R

E X E

B 5

A 5

3 Squeeze and then slide the length guide tab to the correct position for the size of the paper you are loading.

X E

B 5

A 5

A 6

A 4

LTR

E X

E C

B 5

Notes:

• For some paper sizes like letter, legal, and A4, squeeze and slide the length guide tab backward to

accommodate their length.

Using M1145 43

• When loading legal‑size paper, the length guide extends beyond the base leaving the paper exposed to dust.

To protect the paper from dust, you can purchase a dust cover separately. For more information, contact customer support.

• If you are loading A6-size paper in the standard tray, then squeeze and then slide the length guide tab

toward the center of the tray to the A6‑size position.

• Make sure the width and length guides are aligned with the paper size indicators on the bottom of the tray.

E X E

B 5

A 5

A 6

A 4

LTR

E X

E C

4 Flex the sheets back and forth to loosen them, and then fan them. Do not fold or crease the paper. Straighten the

edges on a level surface.

Using M1145 44

5 Load the paper stack.

Notes:

• Load with the printable side facedown when using recycled or preprinted paper.

• Load prepunched paper with the holes on the top edge toward the front of the tray.

• Load letterhead facedown, with the top edge of the sheet toward the front of the tray. For two‑sided

printing, load letterhead faceup with the bottom edge of the sheet toward the front of the tray.

• Make sure the paper is below the maximum paper fill indicator located on the side of the width guide.

R LG L

E X

B 5

A 5

A 6

LT R

X E

Using M1145 45

6 Insert the tray.

7 From the printer control panel, set the paper size and paper type in the Paper menu to match the paper loaded in

the tray.

Note: Set the correct paper size and type to avoid paper jams and print quality problems.

Loading the multipurpose feeder

Use the multipurpose feeder when printing on different paper sizes and types or specialty media, such as card stock, transparencies, paper labels, and envelopes. You can also use it for single‑page print jobs on letterhead.

1 Open the multipurpose feeder.

Using M1145 46

a Pull the multipurpose feeder extender.

b Pull the extender gently so that the multipurpose feeder is fully extended and open.

2 Squeeze the tab on the left width guide, and then move the guides for the paper you are loading.

Using M1145 47

3 Prepare the paper or specialty media for loading.

• Flex sheets of paper back and forth to loosen them, and then fan them. Do not fold or crease the paper. Straighten

the edges on a level surface.

• Hold transparencies by the edges. Flex the stack of transparencies back and forth to loosen them, and then fan

them. Straighten the edges on a level surface.

Note: Avoid touching the printable side of the transparencies. Be careful not to scratch them.

• Flex the stack of envelopes back and forth to loosen them, and then fan them. Straighten the edges on a level

surface.

4 Load the paper or specialty media.

Notes:

• Do not force paper or specialty media into the multipurpose feeder.

• Make sure the paper or specialty media is below the maximum paper fill indicator located on the paper

guides. Overfilling may cause paper jams.

Using M1145 48

• Load paper, transparencies, and card stock with the recommended printable side faceup and the top edge

entering the printer first. For more information on loading transparencies, see the packaging that the transparencies came in.

Note: When loading A6‑size paper, make sure the multipurpose feeder extender rests lightly against the edge of the paper so that the last few sheets of paper remain in place.

Using M1145 49

• Load letterhead faceup with the top edge entering the printer first. For two‑sided (duplex) printing, load

letterhead facedown with the bottom edge entering the printer first.

• Load envelopes with the flap on the left side facedown.

Warning—Potential Damage: Never use envelopes with stamps, clasps, snaps, windows, coated linings, or self‑stick adhesives. These envelopes may severely damage the printer.

5 From the printer control panel, set the paper size and paper type in the Paper menu to match the paper or specialty

media loaded in the multipurpose feeder.

Linking and unlinking trays

1 Open a Web browser, and then type the printer IP address in the address field.

Notes:

• View the printer IP address on the printer control panel in the TCP/IP section under the Network/Ports

menu. The IP address appears as four sets of numbers separated by periods, such as 123.123.123.123.

• If you are using a proxy server, then temporarily disable it to load the Web page correctly.

2 Click Settings > Paper Menu.

Using M1145 50

3 Change the paper size and type settings for the trays you are linking.

• To link trays, make sure the paper size and type for the tray match that of the other tray.

• To unlink trays, make sure the paper size or type for the tray does not match that of the other tray.

4 Click Submit.

Note: You can also change the paper size and type settings using the printer control panel. For more information,

see “Setting the paper size and type” on page 40.

Warning—Potential Damage: Paper loaded in the tray should match the paper type name assigned in the printer. The temperature of the fuser varies according to the specified paper type. Printing issues may occur if settings are not properly configured.

Creating a custom name for a paper type

Using the Embedded Web Server

1 Open a Web browser, and then type the printer IP address in the address field.

Notes:

• View the printer IP address in the TCP/IP section in the Network/Ports menu. The IP address appears as four

sets of numbers separated by periods, such as 123.123.123.123.

• If you are using a proxy server, then temporarily disable it to load the Web page correctly.

2 Click Settings > Paper Menu > Custom Names.

3 Select a custom name, and then type a new custom paper type name.

4 Click Submit.

5 Click Custom Types, and then verify if the new custom paper type name has replaced the custom name.

Using the printer control panel

1 From the printer control panel, navigate to:

> Settings > > Paper Menu > > Custom Names

2 Select a custom name, and then type a new custom paper type name.

3 Press .

4 Press Custom Types, and then verify if the new custom paper type name has replaced the custom name.

Assigning a custom paper type

Using the Embedded Web Server

1 Open a Web browser, and then type the printer IP address in the address field.

Notes:

• View the printer IP address in the TCP/IP section in the Network/Ports menu. The IP address appears as four

sets of numbers separated by periods, such as 123.123.123.123.

Using M1145 51

• If you are using a proxy server, then temporarily disable it to load the Web page correctly.

2 Click Settings > Paper Menu > Custom Types.

3 Select a custom paper type name, and then select a paper type.

Note: Paper is the factory default paper type for all user‑defined custom names.

4 Click Submit.

Using the printer control panel

1 From the printer control panel, navigate to:

> Settings > > Paper Menu > > Custom Types

2 Select a custom paper type name, and then select a paper type.

Note: Paper is the factory default paper type for all user‑defined custom names.

3 Press .

Printing

Printing a document

1 From the Paper menu on the printer control panel, set the paper type and size to match the paper loaded.

2 Send the print job:

For Windows users

a With a document open, click File > Print. b Click Properties, Preferences, Options, or Setup. c Adjust the settings, if necessary. d Click OK > Print.

For Macintosh users

a Customize the settings in the Page Setup dialog if necessary:

1 With a document open, choose File > Page Setup. 2 Choose a paper size or create a custom size to match the paper loaded. 3 Click OK.

b Customize the settings in the Page Setup dialog if necessary:

1 With a document open, choose File > Print.

If necessary, click the disclosure triangle to see more options.

2 From the Print dialog and pop‑up menus adjust the settings if necessary.

Note: To print on a specific paper type, adjust the paper type setting to match the paper loaded, or

select the appropriate tray or feeder.

Using M1145 52

3 Click Print.

Adjusting toner darkness

Using the Embedded Web Server

1 Open a Web browser, and then type the IP address of the printer in the address field.

Notes:

• View the printer IP address in the TCP/IP section in the Network/Ports menu. The IP address appears as four

sets of numbers separated by periods, such as 123.123.123.123.

• If you are using a proxy server, then temporarily disable it to load the Web page correctly.

2 Click Settings > Print Settings > Quality Menu > Toner Darkness.

3 Adjust the toner darkness, and then click Submit.

Using the printer control panel

1 From the printer control panel, navigate to:

> Settings > > Print Settings > > Quality Menu > > Toner Darkness

2 Adjust the toner darkness, and then press .

Printing from a mobile device

For the list of supported mobile devices and to download a compatible mobile printing application, visit

http://lexmark.com/mobile.

Note: Mobile printing applications may also be available from your mobile device manufacturer.

Printing confidential and other held jobs

Storing print jobs in the printer

1 From the printer control panel, navigate to:

> Security > Confidential Print

2 Select a print job type.

Using M1145 53

Use To

Confidential Job Expiration Hold print jobs in the computer until you enter the PIN from the printer control

panel. Note: The PIN is set from the computer. It must be four digits, using the

numbers 0–9.

Max Invalid PIN Limit the number of times an invalid PIN can be entered.

Note: When the limit is reached, the print jobs for that user name and PIN are deleted.

Repeat Job Expiration Print and store print jobs in the printer memory.

Reserve Job Expiration Store print jobs for printing at a later time.

Note: The print jobs are held until deleted from the Held Jobs menu.

Verify Job Expiration Print one copy of a print job and hold the remaining copies. It lets you examine

if the first copy is satisfactory. Note: The print job is automatically deleted from the printer memory once

all copies are printed.

Notes:

• Confidential, Verify, Reserve, and Repeat print jobs may be deleted if the printer requires extra memory to

process additional held jobs.

• You can set the printer to store print jobs in the printer memory until you start the print job from the printer

control panel.

• All print jobs that can be initiated by the user at the printer are called held jobs.

3 Press .

Printing confidential and other held jobs

Note: Confidential and Verify print jobs are automatically deleted from memory after printing. Repeat and Reserve

jobs are held in the printer until you choose to delete them.

For Windows users

1 With a document open, click File > Print.

2 Click Properties, Preferences, Options, or Setup.

3 Click Print and Hold.

4 Select the print job type (Confidential, Repeat, Reserve, or Verify), and then assign a user name. For a confidential

print job, also enter a four‑digit PIN.

5 Click OK or Print.

6 From the printer control panel, release the print job.

• For confidential print jobs, navigate to:

Held jobs > select your user name > Confidential Jobs > enter the PIN > select the print job > specify the number of copies > Print

• For other print jobs, navigate to:

Held jobs > select your user name > select the print job > specify the number of copies > Print

Using M1145 54

For Macintosh users

1 With a document open, choose File > Print.

If necessary, click the disclosure triangle to see more options.

2 From the print options or Copies & Pages pop‑up menu, choose Job Routing.

3 Select the print job type (Confidential, Repeat, Reserve, or Verify), and then assign a user name. For a confidential

print job, also enter a four‑digit PIN.

4 Click OK or Print.

5 From the printer control panel, release the print job:

• For confidential print jobs, navigate to:

Held jobs > select your user name > Confidential Jobs > enter the PIN > select the print job > specify the number of copies > Print

• For other print jobs, navigate to:

Held jobs > select your user name > select the print job > specify the number of copies > Print

Printing information pages

Printing a font sample list

1 From the printer control panel, navigate to:

> Settings > > Reports > > Print Fonts

2 Press the up or down arrow button to select the font setting.

3 Press .

Note: The PPDS fonts appear only when the PPDS data stream is activated.

Printing a directory list

From the printer control panel, navigate to:

> Settings > Reports > > Print Directory >

Note: The Print Directory menu item appears only when an optional flash memory or printer hard disk is installed.

Canceling a print job

Canceling a print job from the printer control panel

From the printer control panel, press > .

Using M1145 55

Canceling a print job from the computer

For Windows users

Open the printers folder.

In Windows 8

From the Search charm, type Run, and then navigate to: Apps list > Run > type control printers > OK

In Windows 7 or earlier

a Click , or click Start and then click Run. b In the Start Search or Run dialog, type control printers. c Press Enter, or click OK.

2 Double‑click the printer icon.

3 Select the print job you want to cancel.

4 Click Delete.

For Macintosh users

From the Apple menu, navigate to either of the following:

• System Preferences > Print & Scan > select your printer > Open Print Queue

• System Preferences > Print & Fax > select your printer > Open Print Queue

2 From the printer window, select the print job you want to cancel, and then delete it.

Managing the printer

Checking the virtual display

1 Open a Web browser, and then type the printer IP address in the address field.

Notes:

• View the printer IP address in the TCP/IP section in the Network/Ports menu. The IP address appears as four

sets of numbers separated by periods, such as 123.123.123.123.

• If you are using a proxy server, then temporarily disable it to load the Web page correctly.

2 Check the virtual display that appears at the top left corner of the screen.

The virtual display works as an actual display would work on a printer control panel.

Configuring supply notifications from the Embedded Web Server

You can determine how you would like to be notified when supplies run nearly low, low, very low, or reach their end‑of‑life by setting the selectable alerts.

Using M1145 56

Notes:

• Selectable alerts can be set on the toner cartridge, imaging unit, and maintenance kit.

• All selectable alerts can be set for nearly low, low, and very low supply conditions. Not all selectable alerts can

be set for the end‑of‑life supply condition. E‑mail selectable alert is available for all supply conditions.

• The percentage of estimated remaining supply that prompts the alert can be set on some supplies for some

supply conditions.

1 Open a Web browser, and then type the printer IP address in the address field.

Notes:

• View the printer IP address in the TCP/IP section in the Network/Ports menu. The IP address appears as four

sets of numbers separated by periods, such as 123.123.123.123.

• If you are using a proxy server, then temporarily disable it to load the Web page correctly.

2 Click Settings > Print Settings > Supply Notifications.

3 From the drop‑down menu for each supply, select one of the following notification options:

Notification Description

Off The normal printer behavior for all supplies occurs.

E‑mail Only The printer generates an e-mail when the supply condition is reached. The status of the

supply will appear on the menus page and status page.

Warning The printer displays the warning message and generates an email about the status of the

supply. The printer does not stop when the supply condition is reached.

Continuable Stop

Non Continuable Stop

The printer generates an e-mail about the status of the supply when supply notification is enabled.

The printer stops when some supplies become empty to prevent damage.

The printer stops processing jobs when the supply condition is reached, and the user needs to press a button to continue printing.

1,2

The printer stops when the supply condition is reached. The supply must be replaced to continue printing.

4 Click Submit.

Modifying confidential print settings

Note: This feature is available only in network printers or printers connected to print servers.

1 Open a Web browser, and then type the printer IP address in the address field.

Notes:

• View the printer IP address in the TCP/IP section in the Network/Ports menu. The IP address appears as four

sets of numbers separated by periods, such as 123.123.123.123.

• If you are using a proxy server, then temporarily disable it to load the Web page correctly.

2 Click Configuration > Other Settings tab > Security > Confidential Print Setup.

Using M1145 57

3 Modify the settings:

• Set a maximum number of PIN entry attempts. When a user exceeds a specific number of PIN entry attempts,

all of the jobs for that user are deleted.

• Set an expiration time for confidential print jobs. When a user has not printed the jobs within the specified time,

all of the jobs for that user are deleted.

4 Save the modified settings.

Copying printer settings to other printers

Note: This feature is available only in network printers.

1 Open a Web browser, and then type the printer IP address in the address field.

Notes:

• View the printer IP address in the TCP/IP section in the Network/Ports menu. The IP address appears as four

sets of numbers separated by periods, such as 123.123.123.123.

• If you are using a proxy server, then temporarily disable it to load the Web page correctly.

2 Click the Copy Printer Settings.

3 To change the language, select a language from the drop-down menu, and then click Click here to submit language.

4 Click Printer Settings.

5 Type the IP addresses of the source and target printers in their appropriate fields.

Note: If you want to add or remove a target printer, then click Add Target IP or Remove Target IP.

6 Click Copy Printer Settings.

Creating a printer control panel PIN

The Panel PIN Protect menu lets you restrict access to the menus from the printer control panel. To restrict access to the menus, create a Personal Identification Number (PIN), and then assign the PIN to each menu.

1 Open a Web browser, and then type the printer IP address in the address field.

Notes:

• View the printer IP address in the TCP/IP section in the Network/Ports menu. The IP address appears as four

sets of numbers separated by periods, such as 123.123.123.123.

• If you are using a proxy server, then temporarily disable it to load the Web page correctly.

2 Click Settings > Security > Panel PIN Protect.

3 From the Create User PIN or Create Admin PIN sections, enter your PIN.

Note: Your can enter up to 16 digits for your PIN.

4 Click Modify.

Using M1145 58

5 From any menu in the Administrative Menus, Management, or Function Access sections, select User PIN

Protected or Admin PIN Protected or Admin PIN and User PIN Protected.

Note: Using an Admin PIN, you can still access a menu assigned with a User PIN.

6 Click Submit.

If you try to access a PIN‑protected menu from the printer control panel, the printer will require you to enter the PIN.

Note: After you enter the last digit of the PIN, make sure to press three seconds.

on the printer control panel for more than

Printing a menu settings page

Print a menu settings page to view the current menu settings and to verify if the printer options are installed correctly.

From the printer control panel, navigate to:

> Settings > Reports > > Menu Settings Page >

Note: If you have not changed any menu settings, then the menu settings page lists all the factory default settings. Settings saved from the menus replace the factory default settings as user default settings. A user default setting remains in effect until you access the menu again, select another value, and save it.

Printing a network setup page

If the printer is attached to a network, then print a network setup page to verify the network connection. This page also provides important information that aids network printing configuration.

1 From the printer control panel, navigate to:

> Settings > Reports > > Network Setup Page >

Note: If an optional internal print server is installed, then Print Network [x] Setup Page appears.

2 Check the first section of the network setup page, and confirm that the status is Connected.

If the status is Not Connected, then the LAN drop may not be active, or the network cable may be malfunctioning. Consult your system support person for a solution, and then print another network setup page.

Checking the status of parts and supplies

A message appears on the printer display when a replacement supply item is needed or when maintenance is required.

Checking the status of parts and supplies on the printer control panel

From the printer control panel, navigate to:

> Status/Supplies > View Supplies >

Checking the status of parts and supplies from the Embedded Web Server

Note: Make sure the computer and printer are connected to the same network.

Using M1145 59

1 Open a Web browser, and then type the printer IP address in the address field.

Notes:

• View the printer IP address in the TCP/IP section in the Network/Ports menu. The IP address appears as four

sets of numbers separated by periods, such as 123.123.123.123.

• If you are using a proxy server, then temporarily disable it to load the Web page correctly.

2 Click Device Status > More Details.

Saving energy

Using Eco‑mode

Use Eco‑Mode to quickly select one or more ways to reduce your printer's environmental impact.

1 From the printer control panel, navigate to:

> Settings > Settings > > General Settings > > Eco‑Mode > > select the setting you want

Use To

Off Use the factory default settings for all settings associated with Eco‑Mode. This setting supports the

performance specifications for your printer.

Energy Reduce energy use, especially when the printer is idle.

• Printer engine motors do not start until a job is ready to print. You may notice a short delay before

the first page is printed.

• The printer enters Sleep mode after one minute of inactivity.

Energy/Paper Use all the settings associated with Energy and Paper modes.

Plain Paper

• Enable the automatic two‑sided (duplex) feature.

• Turn off print log features.

2 Press .

Reducing printer noise

Use Quiet mode to reduce the printer noise.

1 From the printer control panel, navigate to:

> Settings > Settings > > General Settings > > Quiet Mode >

2 Select a setting you want.

Using M1145 60

Use To

On Reduce printer noise.

Notes:

• Print jobs will process at a reduced speed.

• Printer engine motors do not start until a document

is ready to print. There is a short delay before the first page is printed.

Off Use factory default settings.

Note: This setting supports the performance specifications of the printer.

3 Press .

Adjusting Sleep mode

To save energy, decrease the number of minutes before the printer enters Sleep mode. Select from 1 to 120. The factory default setting is 30 minutes.

Note: The printer still accepts print jobs when in Sleep mode.

Using the Embedded Web Server

1 Open a Web browser, and then type the printer IP address in the address field.

Notes:

• View the printer IP address in the TCP/IP section in the Network/Ports menu. The IP address appears as four

sets of numbers separated by periods, such as 123.123.123.123.

• If you are using a proxy server, then temporarily disable it to load the Web page correctly.

2 Navigate to:

Settings > General Settings > Timeouts

3 In the Sleep Mode field, enter the number of minutes you want the printer to wait before it enters Sleep mode.

4 Click Submit.

Using the printer control panel

1 From the printer control panel, navigate to:

> Settings > > Settings > > General Settings > > Timeouts > > Sleep Mode >

2 In the Sleep Mode field, select the number of minutes you want the printer to wait before it enters Sleep mode.

3 Press .

Using M1145 61

Using Hibernate mode

Hibernate is an ultra‑low‑power operating mode. When operating in Hibernate mode, all other systems and devices are powered down safely.

Notes:

• Make sure to wake the printer from Hibernate mode before sending a print job. A hard reset or a long press of

the Sleep button wakes the printer from Hibernate mode.

• The Hibernate mode can be scheduled. For more information, see “Using Schedule Power Modes” on page 62.

• If the printer is in Hibernate mode, the Embedded Web Server is disabled.

Using the Embedded Web Server

1 Open a Web browser, and then type the printer IP address in the address field.

Notes:

• View the printer IP address in the TCP/IP section in the Network/Ports menu. The IP address appears as four

sets of numbers separated by periods, such as 123.123.123.123.

• If your are using a proxy server, then temporarily disable it to load the Web page correctly.

2 Click Settings > General Settings > Sleep Button Settings.

3 From the “Press Sleep Button” or “Press and Hold Sleep Button” drop‑down menu, select Hibernate.

4 Click Submit.

Using the printer control panel

1 From the printer control panel, navigate to:

> Settings > > Settings > > General Settings >

2 Press the arrow buttons until Press Sleep Button or Press and Hold Sleep Button appears, and

then press

3 Press the arrow buttons until Hibernate appears, and then press .

Notes:

• When Press Sleep Button is set to Hibernate, a short press of the Sleep button sets the printer to Hibernate

mode.

• When Press and Hold Sleep Button is set to Hibernate, a long press of the Sleep button sets the printer to

Hibernate mode.

Setting Hibernate Timeout

Hibernate Timeout lets you set the amount of time the printer waits after a print job is processed before it goes into a reduced power state.

Using the Embedded Web Server

1 Open a Web browser, and then type the printer IP address in the address field.

Using M1145 62

Notes:

• View the printer IP address in the TCP/IP section in the Network/Ports menu. The IP address appears as four

sets of numbers separated by periods, such as 123.123.123.123.

• If you are using a proxy server, then temporarily disable it to load the Web page correctly.

2 Click Settings > General Settings > Timeouts.

3 From the Hibernate Timeout menu, select the number of hours, days, weeks, or months you want for the printer

to wait before it goes into a reduced power state.

4 Click Submit.

Using the printer control panel

1 From the printer control panel, navigate to:

> Settings > > Settings > > General Settings > > Timeouts > > Hibernate Timeout >

2 Select the amount of time the printer waits after a print job is processed before it enters Hibernate mode.

3 Press .

Using Schedule Power Modes

Schedule Power Modes lets you schedule when the printer goes into a reduced power state or into the Ready state.

Note: This feature is available only in network printers or printers connected to print servers.

Using the Embedded Web Server

1 Open a Web browser, and then type the printer IP address in the address field.

Notes:

• View the printer IP address in the TCP/IP section in the Network/Ports menu. The IP address appears as four

sets of numbers separated by periods, such as 123.123.123.123.

• If you are using a proxy server, then temporarily disable it to load the Web page correctly.

2 Click Settings > General Settings > Schedule Power Modes.

3 From the Action menu, select the power mode.

4 From the Time menu, select the time.

5 From the Day(s) menu, select the day or days.

6 Click Add.

Adjusting the brightness of the printer display

To save energy, or if you have trouble reading the display, adjust its brightness settings.

Using the Embedded Web Server

1 Open a Web browser, and then type the printer IP address in the address field.

Using M1145 63

Notes:

• View the printer IP address in the TCP/IP section in the Network/Ports menu. The IP address appears as four

sets of numbers separated by periods, such as 123.123.123.123.

• If you are using a proxy server, then temporarily disable it to load the Web page correctly.

2 Click Settings > General Settings.

3 In the Screen Brightness field, enter the brightness percentage you want for the display.

4 Click Submit.

Restoring factory default settings

If you want to keep a list of the current menu settings for reference, then print a menu settings page before restoring the factory default settings. For more information, see “Printing a menu settings page” on page 58.

If you want a more comprehensive method of restoring the printer factory default settings, then perform the Wipe All Settings option. For more information, see “Erasing non‑volatile memory” on page 64.

Warning—Potential Damage: Restoring factory defaults returns most printer settings to the original factory default settings. Exceptions include the display language, custom sizes and messages, and network/port menu settings. All downloads stored in the RAM are deleted. Downloads stored in the flash memory or in printer hard disk are not affected.

From the printer control panel, navigate to:

> Settings > Settings > > General Settings > > Factory Defaults > > Restore Now >

Securing the printer

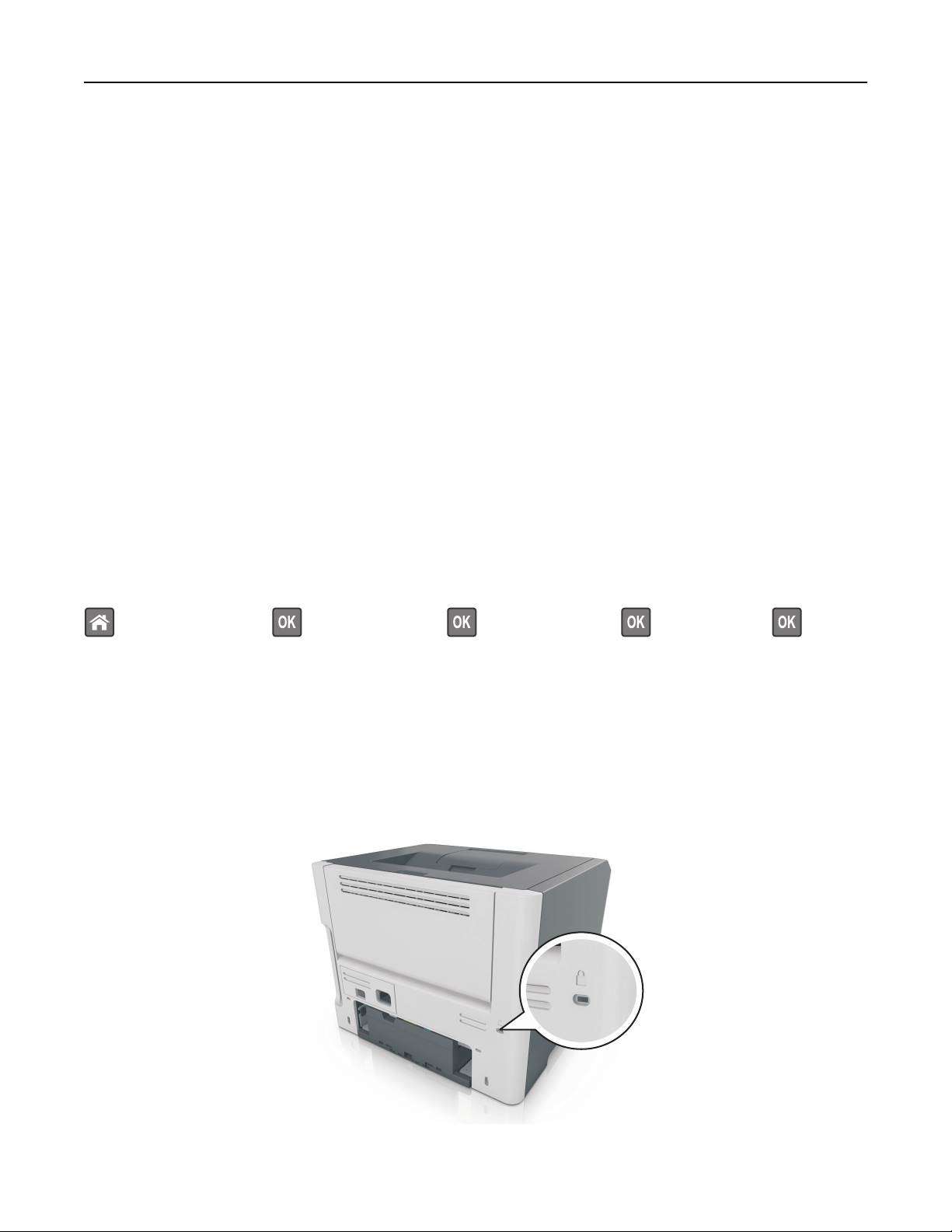

Using the security lock feature

The printer is equipped with a security lock feature. Attach a security lock compatible with most laptop computers in the location shown to secure the printer in place.

Using M1145 64

Statement of Volatility

Your printer contains various types of memory that can store device and network settings, and user data.

Type of memory Description

Volatile memory Your printer uses standard random access memory (RAM) to

temporarily buffer user data during simple print jobs.

Non-volatile memory Your printer may use two forms of non-volatile memory:

EEPROM and NAND (flash memory). Both types are used to store operating system, device settings, and network information.

Erase the content of any installed printer memory in the following circumstances:

• The printer is being decommissioned.

• The printer is being moved to a different department or location.

• The printer is being serviced by someone from outside your organization.

• The printer is being removed from your premises for service.

• The printer is being sold to another organization.

Erasing volatile memory

The volatile memory (RAM) installed in your printer requires a power source to retain information. To erase the buffered data, turn off the printer.

Erasing non‑volatile memory

Erase individual settings, device and network settings, security settings, and embedded solutions by following these steps:

1 Turn off the printer.

2 Hold down 2 and 6 on the keypad while turning the printer on. Release the buttons only when the screen with the

progress bar appears. The printer performs a power-on sequence, and then the Configuration menu appears. When the printer is fully

turned on, a list of functions appears on the printer display.

3 Press the up or down arrow button until Wipe All Settings appears.

The printer will restart several times during this process.

Note: Wipe All Settings securely removes device settings, solutions, jobs, and passwords from the printer memory.

4 Navigate to:

Back > Exit Config Menu

The printer will perform a power‑on reset, and then return to normal operating mode.

Using M1145 65

Finding printer security information

In high-security environments, it may be necessary to take additional steps to make sure that confidential data stored in the printer cannot be accessed by unauthorized persons. For more information, visit the

Lexmark security Web page.

You can also see the Embedded Web Server Administrator’s Guide for additional information:

1 Go to http://support.lexmark.com, and then navigate to Software and Solutions > Other Applications.

2 Click the Manuals tab, and then select the Embedded Web Server Administrator’s Guide.

Using M3150 66

Using M3150

Learning about the printer

Printer configurations

CAUTION—POTENTIAL INJURY: To reduce the risk of equipment instability, load each tray separately. Keep all

other trays closed until needed.

Basic and configured models

1 Printer control panel

2 Paper stop

3 Standard bin

4 Front door release button

5 Controller board access door

6 100‑sheet multipurpose feeder

7 Standard 550‑sheet tray

8 Optional 250‑ or 550‑sheet tray

Using M3150 67

Using the printer control panel

Use the To

1 Display

• View the printer status and messages.

• Set up and operate the printer.

2 Home button Go to the home screen.

3 Keypad Enter numbers, letters, or symbols.

4 Sleep button Enable Sleep mode or Hibernate mode.

The following actions wake the printer from Sleep mode:

• Touching the screen

• Pressing any hard button

• Opening a tray or the front door

• Sending a print job from the computer

• Performing a power‑on reset using the main power switch

• Attaching a device to the USB port

5 Stop or cancel button Stop all printer activity.

6 Indicator light Check the status of the printer.

7 USB port Connect a flash drive to the printer.

Note: Only the front USB port supports flash drives.

Understanding the colors of the Sleep button and indicator lights

The colors of the Sleep button and indicator l ights on the printer control panel signify a certain printer s tatus or condition.

Indicator light color and its corresponding printer status

Indicator light Printer status

Off The printer is off or in Hibernate mode.

Blinking green The printer is warming up, processing data, or printing.

Solid green The printer is on, but idle.

Blinking red The printer requires user intervention.

Using M3150 68

Sleep button light color and its corresponding printer status

Sleep button light Printer status

Off The printer is off, idle or in Ready state.

Solid amber The printer is in Sleep mode.

Blinking amber The printer is entering or waking from Hibernate mode.

Blinking amber for 0.1 second, then goes completely off for 1.9 seconds in a slow, pulsing pattern

The printer is in Hibernate mode.

Understanding the home screen

When the printer is turned on, the display shows a basic screen, referred to as the home screen. Use the home screen buttons and icons to initiate an action.

Note: Your home screen may vary depending on your home screen customization settings, administrative setup, and active embedded solutions.

Touch To

1 Change Language Change the primary language of the printer.

2 Bookmarks Create, organize, and save a set of bookmarks (URLs) into a tree view of folders and file links.

Note: The tree view does not include bookmarks created within Forms and Favorites, and

the ones in the tree are not usable in Forms and Favorites.

3 Held Jobs Display all current held jobs.

4 USB View, select, or print photos and documents from a flash drive.

Note: This icon appears only when you return to the home screen while a memory card or

flash drive is connected to the printer.

5 Menus Access printer menus.

Note: These menus are available only when the printer is in ready state.

6 Status message bar

• Show the current printer status such as Ready or Busy.

• Show printer conditions such as Imaging unit low or Cartridge Low.

• Show intervention messages and the instructions on how to clear them.

Using M3150 69

Touch To

7 Status/Supplies

• Show a printer warning or error message whenever the printer requires intervention to

continue processing.

• View more information on the printer warning or message, and on how to clear it.

8 Tips View a context‑sensitive help information.

This may also appear on the home screen:

Touch To

Search Held Jobs Search current held jobs.

Jobs by user Access print jobs saved by user.

Profiles and Solutions Access profiles and solutions.

Features

Feature Description

Attendance message alert

Warning

If an attendance message affects a function, then this icon appears and the red indicator light blinks.

If an error condition occurs, then this icon appears.

Printer IP address Example: 123.123.123.123

The IP address of your printer is located at the top left corner of the home screen and appears as four sets of numbers separated by periods. You can use the IP address when accessing the Embedded Web Server to view and remotely configure printer settings even when you are not physically near the printer.

Using the touch-screen buttons

Note: Your home screen may vary, depending on your home screen customization settings, administrative setup,

and active embedded solutions.

Using M3150 70

Touch the To

1 Radio button Select or clear an item.

2 Up arrow Scroll up.

3 Down arrow Scroll down.

4 Accept button Save a setting.

5 Cancel button

• Cancel an action or a selection.

• Return to the previous screen.

Other touch-screen buttons

Touch To

Return to the home screen.

Open a context-sensitive Help dialog on the printer control panel.

Scroll to the left.

Scroll to the right.

Attaching cables

Connect the printer to the computer using a USB cable or parallel cable, or to the network using an Ethernet cable.

Using M3150 71

Make sure to match the following:

• The USB symbol on the cable with the USB symbol on the printer

• The appropriate parallel cable with the parallel port

Note: The parallel port is available only when an Internal Solutions Port is installed.

• The appropriate Ethernet cable with the Ethernet port

Warning—Potential Damage: Do not touch the USB cable, any network adapter, or the printer in the area shown while actively printing. Loss of data or a malfunction can occur.

Use the To

1 Security slot Attach a lock that will secure the controller board.

2 USB printer port Connect the printer to a computer.

3 USB port Connect a flash drive to the printer.

4 USB port Attach an optional wireless network adapter.

5 Ethernet port Connect the printer to an Ethernet network.

6 Power switch Turn on or off the printer.

7 Printer power cord socket Connect the printer to an electrical outlet.

Using M3150 72

Accessing the controller board

CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or

1 Open the controller board access door.

2 Open the controller board shield using the green handle.

Using M3150 73

3 Use the following illustration to locate the appropriate connector.

Warning—Potential Damage: Controller board electronic components are easily damaged by static electricity.

Touch a metal surface on the printer before touching any controller board electronic components or connectors.

1 Memory card connector

2 Option card connector

3 Printer hard disk connector

4 Internal Solutions Port connector

4 Close the controller board shield, and then close the controller board access door.

Using M3150 74

Setting up and using the home screen applications

Notes:

• Your home screen may vary depending on your home screen customization settings, administrative setup, and

active embedded applications. Some applications are supported only in select printer models.

• There may be additional solutions and applications available for purchase. For more information, visit

www.lexmark.com or inquire at your point of purchase.

Finding the IP address of the computer

Note: Make sure that you know how your printer and computer are connected to the network (Ethernet or

wireless).

The computer IP address is required when setting up home screen applications, such as:

• Forms and Favorites

• Multi Send

• Scan to Network

For Windows users

Open the command window.

In Windows 8

From the Search charm, type run, and then navigate to: Apps list > Run > type cmd > OK

In Windows 7 or earlier

a Click or click Start, and then click Run. b In the Start Search or Run dialog, type cmd. c Press Enter, or click OK.

2 Type ipconfig, and then click Go or press Enter.

Note: Type ipconfig /all to see additional useful information.

3 Look for IP Address.

The IP address appears as four sets of numbers separated by periods, such as 123.123.123.123.

For Macintosh users

Note: This is applicable only in Mac OS X version 10.5 or later.

1 From the Apple menu, navigate to:

System Preferences > Network

2 Click Ethernet, Wi‑Fi, or AirPort.

3 Click Advanced > TCP/IP.

4 Look for IPv4 Address.

Using M3150 75

Finding the IP address of the printer

Note: Make sure your printer is connected to a network or to a print server.

You can find the printer IP address:

• From the top left corner of the printer home screen.

• From the TCP/IP section in the Network/Ports menu.

• By printing a network setup page or menu settings page, and then finding the TCP/IP section.

Note: An IP address appears as four sets of numbers separated by periods, such as 123.123.123.123.

Accessing the Embedded Web Server

The Embedded Web Server is the printer Web page that lets you view and remotely configure printer settings even when you are not physically near the printer.

1 Obtain the printer IP address:

• From the printer control panel home screen

• From the TCP/IP section in the Network/Ports menu

• By printing a network setup page or menu settings page, and then finding the TCP/IP section

Note: An IP address appears as four sets of numbers separated by periods, such as 123.123.123.123.

2 Open a Web browser, and then type the printer IP address in the address field.

3 Press Enter.

Note: If you are using a proxy server, then temporarily disable it to load the Web page correctly.

Customizing the home screen

1 Open a Web browser, and then type the printer IP address in the address field.

Note: View the printer IP address on the printer home screen. The IP address appears as four sets of numbers

separated by periods, such as 123.123.123.123.

2 Do one or more of the following:

• Show or hide the icons of basic printer functions.

a Click Settings > General Settings > Home screen customization. b Select the check boxes to specify which icons appear on the home screen.

Note: If you clear a check box beside an icon, then the icon does not appear on the home screen.

c Click Submit.

• Customize the icon for an application. For more information, see “Finding information about the home screen

applications” on page 76 or see the documentation that came with the application.

Using M3150 76

Activating the home screen applications

Finding information about the home screen applications

Your printer comes with preinstalled home screen applications. Before you can use these applications, you must first activate and set up these applications using the Embedded Web Server. For more information on accessing the Embedded Web Server, see “Accessing the Embedded Web Server” on page 75.

For more information on configuring and using the home screen applications, do the following:

1 Go to http://support.lexmark.com, and then do either of the following:

• Click Business Solutions, and then select the name of the application.

• Click Software and Solutions, and then select either of the following: – Scan to Network—Find information about the Scan to Network application. – Other Applications—Find information about the other applications.

2 Click the Manuals tab, and then select the document for the home screen application.

Using Background and Idle Screen

Icon Description

The application lets you customize the background and idle screen of your printer home screen.

1 From the home screen, navigate to:

Change Background > select background to use

2 Touch .

Setting up Forms and Favorites

Icon Description

The application helps you simplify and streamline work processes by letting you quickly find and print frequently used online forms directly from the printer home screen.

Note: The printer must have permission to access the network folder, FTP site, or Web site where the bookmark is stored. From the computer where the bookmark is stored, use sharing, security, and firewall settings to allow the printer at least a read access. For help, see the documentation that came with your operating system.

Using M3150 77

1 Open a Web browser, and then type the printer IP address in the address field.

Note: View the printer IP address on the printer home screen. The IP address appears as four sets of numbers

separated by periods, such as 123.123.123.123.

2 Click Settings > Apps > Apps Management > Forms and Favorites.

3 Define the bookmarks, and then customize the settings.

4 Click Apply.

To use the application, touch Forms and Favorites on the printer home screen, and then navigate through form categories, or search for forms based on a form number, name, or description.

Understanding Eco‑Settings

Icon Description

The application lets you easily manage energy consumption, noise, toner, and paper usage settings to help reduce the environmental impact of your printer.

Setting up Remote Operator Panel

This application shows the printer control panel on your computer screen and lets you interact with the printer control panel, even when you are not physically near the network printer. From your computer screen, you can view the printer status, release held print jobs, create bookmarks, and do other print-related tasks you might normally do while standing at the network printer.

1 Open a Web browser, and then type the printer IP address in the address field.

Note: View the printer IP address on the printer home screen. The IP address appears as four sets of numbers

separated by periods, such as 123.123.123.123.

2 Click Settings > Remote Operator Panel Settings.

3 Select the Enabled check box, and then customize the settings.

4 Click Submit.

To use the application, click Remote Operator Panel > Launch VNC Applet.

Using M3150 78

Exporting and importing a configuration

You can export configuration settings into a text file, and then import the file to apply the settings to other printers.

1 Open a Web browser, and then type the printer IP address in the address field.

Note: View the printer IP address on the printer home screen. The IP address appears as four sets of numbers

separated by periods, such as 123.123.123.123.

2 Click Settings > Apps > Apps Management.

3 From the list of installed applications, click the name of the application you want to configure.

4 Click Configure, and then do one of the following:

• To export a configuration to a file, click Export, and then follow the instructions on the computer screen to save

the configuration file.

Notes:

– When saving the configuration file, you can type a unique file name or use the default name. – If a "JVM Out of Memory” error occurs, then repeat the export process until the configuration file is

saved.

• To import a configuration from a file, click Import, and then browse to the saved configuration file that was

exported from a previously configured printer.

Notes:

– Before importing the configuration file, you can choose to preview it first or load it directly. – If a timeout occurs and a blank screen appears, then refresh the Web browser, and then click Apply.

Loading paper and specialty media

The selection and handling of paper and specialty media can affect how reliably documents print. For more information, see “Avoiding jams” on page 177 and “Storing paper” on page 116.

Setting the paper size and type

From the home screen navigate to:

> Paper Menu > Paper Size/Type > select a tray > select the paper size or type >

Configuring Universal paper settings

The Universal paper size is a user‑defined setting that lets you print on paper sizes that are not preset in the printer menus.

Notes:

• The smallest Universal paper size is 6 x 127 mm (3 x 5 inches), and is supported only from the multipurpose

feeder.

• The largest Universal paper size is 216 x 355.6 mm (8.5 x 14 inches), and is supported from all paper sources.

Using M3150 79

1 From the printer control panel, navigate to:

> Paper Menu > Universal Setup > Units of Measure > select a unit of measure >

2 Touch Portrait Width or Portrait Height.

3 Select the width or height, and then touch .

Using the standard bin and paper stop

The standard bin holds up to 150 sheets of 20‑lb paper. It collects prints facedown. The standard bin includes a paper stop that keeps paper from sliding out the front of the bin as it stacks.

To open the paper stop, pull it so that it flips forward.

Note: When moving the printer to another location, make sure the paper stop is closed.

Loading trays

CAUTION—POTENTIAL INJURY: To reduce the risk of equipment instability, load each tray separately. Keep all

other trays closed until needed.

1 Pull out the tray completely.

Note: Do not remove trays while a job prints or while Busy appears on the printer display. Doing so may cause

a jam.

Using M3150 80

4 A

5 B

5 A

6 A

2 Squeeze and then slide the width guide tab to the correct position for the size of the paper you are loading.

E X

A 5

A 4

LT R

E X E

B 5

A 5

Using M3150 81

3 Squeeze and then slide the length guide tab to the correct position for the size of the paper you are loading.

X E

B 5

A 5

A 6

A 4

LTR

E X

E C

B 5

Notes:

• For some paper sizes like letter, legal, and A4, squeeze and slide the length guide tab backward to

accommodate their length.

• When loading legal‑size paper, the length guide extends beyond the base leaving the paper exposed to dust.

To protect the paper from dust, you can purchase a dust cover separately. For more information, contact customer support.

• If you are loading A6-size paper in the standard tray, then squeeze and then slide the length guide tab

toward the center of the tray to the A6‑size position.

• Make sure the width and length guides are aligned with the paper size indicators on the bottom of the tray.

Using M3150 82

E X E

B 5

A 5

A 6

LTR

E X

E C

4 Flex the sheets back and forth to loosen them, and then fan them. Do not fold or crease the paper. Straighten the

edges on a level surface.

5 Load the paper stack.

Using M3150 83

Notes:

• Load with the printable side facedown when using recycled or preprinted paper.

• Load prepunched paper with the holes on the top edge toward the front of the tray.

• Load letterhead facedown, with the top edge of the sheet toward the front of the tray. For two‑sided

printing, load letterhead faceup with the bottom edge of the sheet toward the front of the tray.

• Make sure the paper is below the maximum paper fill indicator located on the side of the width guide.

6 Insert the tray.

R LG L

E X

B 5

A 5

A 6

LT R

X E

7 From the printer control panel, set the paper size and paper type in the Paper menu to match the paper loaded in

the tray.

Note: Set the correct paper size and paper type to avoid paper jams and print quality problems.

Using M3150 84

Loading the multipurpose feeder

1 Open the multipurpose feeder.

a Pull the multipurpose feeder extender.

b Pull the extender gently so that the multipurpose feeder is fully extended and open.

Using M3150 85

2 Squeeze the tab on the left width guide, and then move the guides for the paper you are loading.

3 Prepare the paper or specialty media for loading.

• Flex sheets of paper back and forth to loosen them, and then fan them. Do not fold or crease the paper. Straighten

the edges on a level surface.

• Hold transparencies by the edges. Flex the stack of transparencies back and forth to loosen them, and then fan

them. Straighten the edges on a level surface.

Note: Avoid touching the printable side of the transparencies. Be careful not to scratch them.

• Flex the stack of envelopes back and forth to loosen them, and then fan them. Straighten the edges on a level

surface.

4 Load the paper or specialty media.

Notes:

• Do not force paper or specialty media into the multipurpose feeder.

Using M3150 86

• Make sure the paper or specialty media is below the maximum paper fill indicator located on the paper

guides. Overfilling may cause paper jams.

• Load paper, transparencies, and card stock with the recommended printable side faceup and the top edge

entering the printer first. For more information on loading transparencies, see the packaging that the transparencies came in.

Note: When loading A6‑size paper, make sure the multipurpose feeder extender rests lightly against the edge of the paper so that the last few sheets of paper remain in place.

Using M3150 87

• Load letterhead faceup with the top edge entering the printer first. For two‑sided (duplex) printing, load

letterhead facedown with the bottom edge entering the printer first.

• Load envelopes with the flap on the left side facedown.

Warning—Potential Damage: Never use envelopes with stamps, clasps, snaps, windows, coated linings, or self‑stick adhesives. These envelopes may severely damage the printer.

5 From the printer control panel, set the paper size and paper type in the Paper menu to match the paper or specialty

media loaded in the multipurpose feeder.

Linking and unlinking trays

1 Open a Web browser, and then type the printer IP address in the address field.

Notes:

• View the printer IP address on the printer home screen. The IP address appears as four sets of numbers

separated by periods, such as 123.123.123.123.

• If you are using a proxy server, then temporarily disable it to load the Web page correctly.

2 Click Settings > Paper Menu.

Using M3150 88

3 Change the paper size and type settings for the trays you are linking.

• To link trays, make sure the paper size and type for the tray match that of the other tray.

• To unlink trays, make sure the paper size or type for the tray does not match that of the other tray.

4 Click Submit.

Note: You can also change the paper size and type settings using the printer control panel. For more information,

see “Setting the paper size and type” on page 78.

Creating a custom name for a paper type

Using the Embedded Web Server

1 Open a Web browser, and then type the printer IP address in the address field.

Notes:

• View the printer IP address on the printer home screen. The IP address appears as four sets of numbers

separated by periods, such as 123.123.123.123.

• If you are using a proxy server, then temporarily disable it to load the Web page correctly.

2 Click Settings > Paper Menu > Custom Names.

3 Select a custom name, and then type a custom paper type name.

4 Click Submit.

5 Click Custom Types, and then verify if the new custom paper type name has replaced the custom name.

Using the printer control panel

1 From the home screen, navigate to:

> Paper Menu > Custom Names

2 Select a custom name, and then type a custom paper type name.

3 Touch .

4 Touch Custom Types, and then verify that the new custom paper type name has replaced the custom name.

Assigning a custom paper type

Using the Embedded Web Server

Assign a custom paper type name to a tray when linking or unlinking trays.

1 Open a Web browser, and then type the printer IP address in the address field.

Notes:

• View the printer IP address on the printer home screen. The IP address appears as four sets of numbers

separated by periods, such as 123.123.123.123.

Using M3150 89

• If you are using a proxy server, then temporarily disable it to load the Web page correctly.

2 Click Settings > Paper Menu > Custom Types.

3 Select a custom paper type name, and then select a paper type

Note: Paper is the factory default paper type for all user‑defined custom names.

4 Click Submit.

Using the printer control panel

1 From the home screen, navigate to:

> Paper Menu > Custom Types

2 Select a custom paper type name, and then select a paper type

Note: Paper is the factory default paper type for all user‑defined custom names.

3 Touch .

Printing

Printing forms

Use the Forms and Favorites application to quickly and easily access frequently used forms or other information that is regularly printed. Before you can use this application, first set it up on the printer. For more information, see “Setting up Forms and Favorites” on page 76.

1 From the printer home screen, navigate to:

Forms and Favorites > select the form from the list > enter the number of copies > adjust other settings

2 Depending on your printer model, touch , , or Submit.

Printing a document

1 From the Paper menu on the printer control panel, set the paper type and size to match the paper loaded.

2 Send the print job:

For Windows users

a With a document open, click File > Print. b Click Properties, Preferences, Options, or Setup. c Adjust the settings, if necessary. d Click OK > Print.

Using M3150 90

For Macintosh users

a Customize the settings in the Page Setup dialog:

1 With a document open, choose File > Page Setup. 2 Choose a paper size or create a custom size to match the paper loaded. 3 Click OK.

b Customize the settings in the Print dialog:

1 With a document open, choose File > Print.

If necessary, click the disclosure triangle to see more options.

2 From the Print dialog and pop‑up menus, adjust the settings if necessary.

Note: To print on a specific paper type, adjust the paper type setting to match the paper loaded, or

select the appropriate tray or feeder.

3 Click Print.

Adjusting toner darkness

Using the Embedded Web Server

1 Open a Web browser, and then type the printer IP address in the address field.

Notes:

• View the printer IP address on the printer home screen. The IP address appears as four sets of numbers

separated by periods, such as 123.123.123.123.

• If you are using a proxy server, then temporarily disable it to load the Web page correctly.

2 Click Settings > Print Settings > Quality Menu > Toner Darkness.

3 Adjust the setting, and then click Submit.

Using the printer control panel

1 From the home screen, navigate to:

> Settings > Print Settings > Quality Menu > Toner Darkness

2 Adjust the setting, and then touch .

Printing from a mobile device

For the list of supported mobile devices and to download a compatible mobile printing application, visit

http://lexmark.com/mobile.

Note: Mobile printing applications may also be available from your mobile device manufacturer.

Using M3150 91

Printing from a flash drive

Notes:

• Before printing an encrypted PDF file, you will be prompted to type the file password from the printer control

panel.

• You cannot print files for which you do not have printing permissions.

1 Insert a flash drive into the USB port.

Notes:

• A flash drive icon appears on the printer home screen when a flash drive is inserted.

• If you insert the flash drive when the printer requires attention, such as when a jam has occurred, then the

printer ignores the flash drive.

• If you insert the flash drive while the printer is processing other print jobs, then Busy appears. After these

print jobs are processed, you may need to view the held jobs list to print documents from the flash drive.

Warning—Potential Damage: Do not touch the printer or the flash drive in the area shown while actively printing, reading, or writing from the memory device. Loss of data can occur.

Using M3150 92

2 From the printer control panel, touch the document you want to print.

3 Touch the arrows to specify the number of copies for printing, and then touch Print.

Notes:

• Do not remove the flash drive from the USB port until the document has finished printing.

• If you leave the flash drive in the printer after leaving the initial USB menu screen, then touch Held Jobs on

the home screen to print files from the flash drive.

Supported flash drives and file types

Flash drive File type

• Lexar JumpDrive 2.0 Pro (256MB, 512MB, or 1GB sizes)

• SanDisk Cruzer Mini (256MB, 512MB, or 1GB sizes)

Notes:

• High‑speed USB flash drives must support the fullspeed standard. Low-speed USB devices

are not supported.

• USB flash drives must support the File Allocation Table (FAT) system. Devices formatted

with New Technology File System (NTFS) or any other file system are not supported.

Documents:

• .pdf

• .xps

Images:

• .dcx

• .gif

• .jpeg or .jpg

• .bmp

• .pcx

• .tiff or .tif

• .png

• .fls

Printing confidential and other held jobs

Storing print jobs in the printer

1 From the home screen, navigate to:

Using M3150 93

> Security > Confidential Print > select a print job type

Use To

Max Invalid PIN Limit the number of times an invalid PIN can be entered.

Note: When the limit is reached, the print jobs for that user name and PIN are deleted.

Confidential Job Expiration Hold print jobs in the computer until you enter the PIN from the printer control

panel. Note: The PIN is set from the computer. It must be four digits, using the

numbers 0–9.

Repeat Job Expiration Print and store print jobs in the printer memory.

Verify Job Expiration Print one copy of a print job and hold the remaining copies. It lets you examine

if the first copy is satisfactory or not. The print job is automatically deleted from the printer memory when all copies are printed.

Reserve Job Expiration Store print jobs for printing at a later time.

Note: The print jobs are held until deleted from the Held Jobs menu.

Notes:

• Confidential, Verify, Reserve, and Repeat print jobs may be deleted if the printer requires extra memory to

process additional held jobs.

• You can set the printer to store print jobs in the printer memory until you start the print job from the printer

control panel.

• All print jobs that can be initiated by the user at the printer are called held jobs.

2 Touch .

Printing confidential and other held jobs

Note: Confidential and Verify print jobs are automatically deleted from memory after printing. Repeat and Reserve

jobs are held in the printer until you delete them.

For Windows users

1 With a document open, click File > Print.

2 Click Properties, Preferences, Options, or Setup.

3 Click Print and Hold.

4 Select the print job type (Confidential, Repeat, Reserve, or Verify), and then assign a user name. For a confidential

print job, also enter a four‑digit PIN.

5 Click OK or Print.

6 From the printer home screen, release the print job.

• For confidential print jobs, navigate to:

Held jobs > select your user name > Confidential Jobs > enter the PIN > Print

• For other print jobs, navigate to:

Held jobs > select your user name > select the print job > specify the number of copies > Print

Using M3150 94

For Macintosh users

1 With a document open, choose File > Print.

If necessary, click the disclosure triangle to see more options.

2 From the print options or Copies & Pages pop‑up menu, choose Job Routing.

3 Select the print job type (Confidential, Repeat, Reserve, or Verify), and then assign a user name. For a confidential

print job, also enter a four‑digit PIN.

4 Click OK or Print.

5 From the printer home screen, release the print job.

• For confidential print jobs, navigate to:

Held jobs > select your user name > Confidential Jobs > enter the PIN > Print

• For other print jobs, navigate to:

Held jobs > select your user name > select the print job > specify the number of copies > Print

Printing information pages

Printing a font sample list

1 From the home screen, navigate to:

> Reports > Print Fonts

2 Touch PCL Fonts or PostScript Fonts.

Printing a directory list

A directory list shows the resources stored in a flash memory or on the printer hard disk.

From the home screen, navigate to:

> Reports > Print Directory

Canceling a print job

Canceling a print job from the printer control panel

1 Touch Cancel Jobs on the touch screen, or press on the keypad.

2 Touch the job you want to cancel, and then touch Delete Selected Jobs.

Canceling a print job from the computer

For Windows users

Open the printers folder.

Using M3150 95

In Windows 8

From the Search charm, type run, and then navigate to: Apps list > Run > type control printers > OK

In Windows 7 or earlier

a Click or click Start, and then click Run. b In the Start Search or Run dialog, type control printers. c Press Enter, or click OK.

2 Double‑click the printer icon.

3 Select the print job you want to cancel.

4 Click Delete.

For Macintosh users

From the Apple menu, navigate to either of the following:

• System Preferences > Print & Scan > select your printer > Open Print Queue

• System Preferences > Print & Fax > select your printer > Open Print Queue

2 From the printer window, select the print job you want to cancel, and then delete it.

Managing the printer

Setting up serial printing

Use serial printing to print even when the computer is far from the printer, or to print at a reduced speed.

After installing the serial or communication (COM) port, configure the printer and the computer. Make sure you have connected the serial cable to the COM port on your printer.

1 Set the parameters in the printer.

a From the printer control panel, navigate to the menu for the port settings. b Locate the menu for the serial port settings, and then adjust the settings, if necessary. c Save the modified settings, and then print a menu settings page.

2 Install the printer driver.

a Obtain a copy of the software installer package.

• From the Software CD that came with your printer

• From our Web site:

Go to

http://support.lexmark.com, and then navigate to:

SUPPORT & DOWNLOAD > select your printer > select your operating system

b Double‑click the software installer package.

Wait for the installation dialog to appear. If the your are using the Software CD and the installation dialog does not appear, then do the following:

Using M3150 96

In Windows 8

From the Search charm, type run and then navigate to: Apps list > Run > type D:\setup.exe > OK

In Windows 7 or earlier

Click , or click Start and then click Run.

2 In the Start Search or Run dialog, type D:\setup.exe. 3 Press Enter, or click OK.

Note: D is the letter of your CD or DVD drive.

c Click Install. d Follow the instructions on the computer screen. e Select Advanced, and then click Continue.

f From the Configure Printer Connection dialog, select a port.

g If the port is not in the list, then click Refresh, or navigate to:

Add port > select a port type > enter the necessary information > OK

h Click Continue > Finish.

3 Set the COM port parameters.

After installing the printer driver, set the serial parameters in the COM port assigned to the printer driver.

Note: Make sure the serial parameters in the COM port match the serial parameters you set in the printer.

a Open Device Manager.

In Windows 8

From the Search charm, type run and then navigate to: Apps list > Run > type devmgmt.msc > OK

In Windows 7 or earlier

Click , or click Start and then click Run.

2 In the Start Search or Run dialog, type devmgmt.msc.

3 Press Enter, or click OK. b Double‑click Ports (COM & LPT) to expand the list of available ports. c Do either of the following:

• Press and hold the COM port where you attached the serial cable to your computer (example: COM1).

• Right‑click the COM port where you attached the serial cable to your computer (example: COM1).

d Click Properties. e On the Port Settings tab, set the serial parameters to the same serial parameters set in the printer.

Check the serial heading of the menu settings page for the printer settings.

f Click OK, and then close all the dialogs.

g Print a test page to verify printer installation.

Using M3150 97

Changing port settings after installing a new network Internal Solutions Port

When a new Lexmark Internal Solutions Port (ISP) is installed in the printer, the printer configurations on computers that access the printer must be updated since the printer will be assigned a new IP address. All computers that access the printer must be updated with this new IP address.

Notes:

• If the printer has a static IP address, then you do not need to make any changes to the computer configurations.

• If the computers are configured to use the network name, instead of an IP address, then you do not need to

make any changes to your computer configurations.

• If you are adding a wireless ISP to a printer previously configured for an Ethernet connection, then make sure

the printer is disconnected from the Ethernet network when you configure the printer to operate wirelessly. If the printer is connected to the Ethernet network, then the wireless configuration completes, but the wireless ISP is inactive. To activate the wireless ISP, disconnect the printer from the Ethernet network, turn off the printer, and then turn it back on.

• Only one network connection is active at a time. To switch between Ethernet and wireless connection types,

turn off the printer, connect the cable (to switch to an Ethernet connection) or disconnect the cable (to switch to a wireless connection), and then turn the printer back on.

For Windows users

Open a Web browser, and then type the printer IP address in the address field.

Notes:

• View the printer IP address on the printer control panel. The IP address appears as four sets of numbers

separated by periods, such as 123.123.123.123.

• If you are using a proxy server, then temporarily disable it to load the Web page correctly.

2 Open the printers folder.

In Windows 8

From the Search charm, type Run and then navigate to: Apps list > Run > type control printers > OK

In Windows 7 or earlier

a Click , or click Start and then click Run. b In the Start Search or Run dialog, type control printers. c Press Enter, or click OK.

3 To select the printer that has changed, do either of the following:

• Press and hold the printer, and then select Printer properties.

• Right‑click the printer, and then select Printer properties (Windows 7 or later) or Properties (earlier versions).

Note: If there is more than one copy of the printer, then update all of them with the new IP address.

4 Click the Ports tab.

5 Select the port from the list, and then click Configure Port.

Using M3150 98

6 Type the new IP address in the “Printer Name or IP Address” field.

7 Click OK > Close.

For Macintosh users

Open a Web browser, and then type the printer IP address in the address field.

Notes:

• View the printer IP address on the printer control panel. The IP address appears as four sets of numbers

separated by periods, such as 123.123.123.123.

• If you are using a proxy server, then temporarily disable it to load the Web page correctly.

2 Add the printer.

• For IP printing:

a From the Apple menu, navigate to either of the following:

– System Preferences > Print & Scan – System Preferences > Print & Fax

b Click +. c Click the IP tab. d Type the printer IP address in the address field, and then click Add.

• For AppleTalk printing:

Notes:

– Make sure AppleTalk is activated on your printer. – This feature is supported only in Mac OS X version 10.5.

a From the Apple menu, navigate to:

System Preferences > Print & Fax

b Click +, and then navigate to:

AppleTalk > select the printer > Add

Finding advanced networking and administrator information

This chapter covers basic administrative support tasks using the Embedded Web Server. For more advanced system support tasks, see the Networking Guide on the Software CD or the Embedded Web Server Administrator's Guide at

http://support.lexmark.com.

Checking the virtual display

1 Open a Web browser, and then type the printer IP address in the address field.

Notes:

• View the printer IP address on the printer home screen. The IP address appears as four sets of numbers

separated by periods, such as 123.123.123.123.

• If you are using a proxy server, then temporarily disable it to load the Web page correctly.

2 Check the virtual display that appears at the top left corner of the screen.

The virtual display works as an actual display would work on a printer control panel.

Using M3150 99

Configuring supply notifications from the Embedded Web Server

You can determine how you would like to be notified when supplies run nearly low, low, very low, or reach their end‑of‑life by setting the selectable alerts.

Notes:

• Selectable alerts can be set on the toner cartridge, imaging unit, and maintenance kit.

• All selectable alerts can be set for nearly low, low, and very low supply conditions. Not all selectable alerts can

be set for the end‑of‑life supply condition. E‑mail selectable alert is available for all supply conditions.

• The percentage of estimated remaining supply that prompts the alert can be set on some supplies for some

supply conditions.

1 Open a Web browser, and then type the printer IP address in the address field.

Notes:

• View the printer IP address on the printer home screen. The IP address appears as four sets of numbers

separated by periods, such as 123.123.123.123.

• If you are using a proxy server, then temporarily disable it to load the Web page correctly.

2 Click Settings > Print Settings > Supply Notifications.

3 From the drop‑down menu for each supply, select one of the following notification options:

Notification Description

Off The normal printer behavior for all supplies occurs.

E‑mail Only The printer generates an e‑mail when the supply condition is reached. The status of the

supply appears on the menus page and status page.

Warning The printer displays the warning message and generates an e‑mail about the status of the

supply. The printer does not stop when the supply condition is reached.

Continuable Stop

Non Continuable Stop

The printer generates an e-mail about the status of the supply when supply notification is enabled.

The printer stops when some supplies become empty to prevent damage.

The printer stops processing jobs when the supply condition is reached, and the user needs to press a button to continue printing.

1,2

The printer stops processing jobs when the supply condition is reached. The supply must be replaced to continue printing.

4 Click Submit.

Modifying confidential print settings

Note: This feature is available only in network printers or printers connected to print servers.

1 Open a Web browser, and then type the printer IP address in the address field.

Notes:

• View the printer IP address on the printer home screen. The IP address appears as four sets of numbers

separated by periods, such as 123.123.123.123.

Using M3150 100

• If you are using a proxy server, then temporarily disable it to load the Web page correctly.

2 Click Configuration > Other Settings tab > Security > Confidential Print Setup.

3 Modify the settings:

• Set a maximum number of PIN entry attempts. When a user exceeds that number, all of the jobs for that user

are deleted.

• Set an expiration time for confidential print jobs. When a user has not printed the jobs within that time, all of

the jobs for that user are deleted.

4 Save the modified settings.

Copying printer settings to other printers

Note: This feature is available only in network printers.

1 Open a Web browser, and then type the printer IP address in the address field.

Notes:

• View the printer IP address on the printer home screen. The IP address appears as four sets of numbers

separated by periods, such as 123.123.123.123.

• If you are using a proxy server, then temporarily disable it to load the Web page correctly.

2 Click Copy Printer Settings.

3 To change the language, select a language from the drop‑down menu, and then click Click here to submit language.

4 Click Printer Settings.

5 Type the IP addresses of the source and target printers.

Note: If you want to add or remove target printers, then click Add Target IP or Remove Target IP.

6 Click Copy Printer Settings.

Creating a printer control panel PIN

1 Open a Web browser, and then type the printer IP address in the address field.

Notes:

• View the printer IP address in the TCP/IP section in the Network/Ports menu. The IP address appears as four

sets of numbers separated by periods, such as 123.123.123.123.

• If you are using a proxy server, then temporarily disable it to load the Web page correctly.

2 Click Settings > Security > Panel PIN Protect.

3 From the Create User PIN or Create Admin PIN section, enter your PIN.

Note: Your can enter up to 16 digits for your PIN.

4 Click Modify.

Lexmark M3150 User's Guide

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

Safety information

Overview

Using this guide

Finding information about the printer

Selecting a location for the printer

Additional printer setup

Installing internal options

Available internal options

Accessing the controller board

Installing an optional card

Installing a memory card

Installing an Internal Solutions Port

Installing a printer hard disk

Removing a printer hard disk

Installing hardware options

Installing optional trays

Setting up the printer software

Installing the printer software

Updating available options in the printer driver

Networking

Preparing to set up the printer on an Ethernet network

Installing the printer on an Ethernet network

Preparing to set up the printer on a wireless network

Connecting the printer using the Wireless Setup Wizard

Connecting the printer to a wireless network using the Embedded Web Server

Verifying printer setup

Using M1145

Learning about the printer

Printer configurations

Using the printer control panel

Understanding the colors of the Sleep button and indicator lights

Attaching cables

Accessing the controller board

Loading paper and specialty media

Setting the paper size and type

Configuring Universal paper settings

Using the standard bin and paper stop

Loading trays

Loading the multipurpose feeder

Linking and unlinking trays

Linking and unlinking trays

Creating a custom name for a paper type

Assigning a custom paper type

Printing

Printing a document

Printing a document

Adjusting toner darkness

Printing from a mobile device

Printing confidential and other held jobs

Storing print jobs in the printer

Printing confidential and other held jobs

Printing information pages

Printing a font sample list

Printing a directory list

Canceling a print job

Canceling a print job from the printer control panel

Canceling a print job from the computer

Managing the printer

Checking the virtual display

Configuring supply notifications from the Embedded Web Server

Modifying confidential print settings

Copying printer settings to other printers

Creating a printer control panel PIN

Printing a menu settings page

Printing a network setup page

Checking the status of parts and supplies

Checking the status of parts and supplies on the printer control panel

Checking the status of parts and supplies from the Embedded Web Server

Saving energy

Reducing printer noise

Adjusting Sleep mode

Using Hibernate mode

Setting Hibernate Timeout

Using Schedule Power Modes

Adjusting the brightness of the printer display
