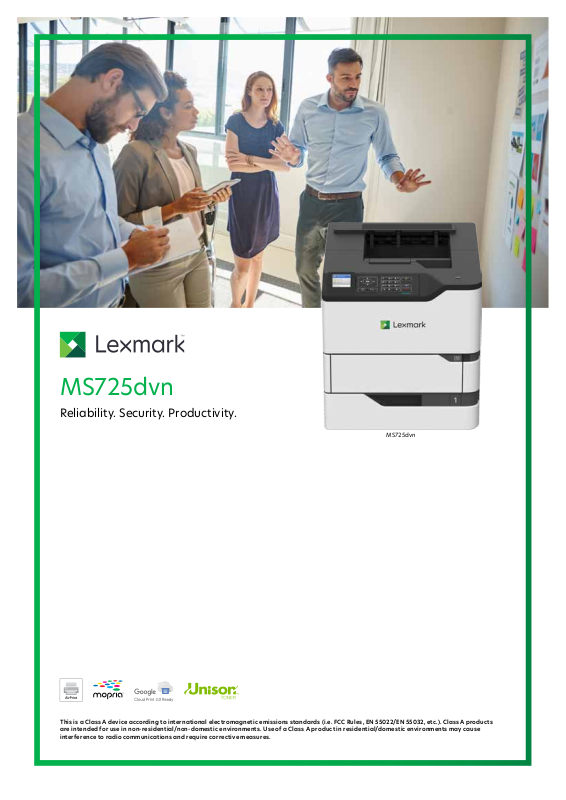

Page 1
MS725dvn
Reliability. Security. Productivity.
MS725dvn
This is a Class A device according to international electromagnetic emissions standards (i.e. FCC Rules, EN 55022/EN 55032, etc .). Class A products
are intended for use in non-residential/non-domestic environments. Use of a Class A product in residential/domestic environments may cause
interference to radio communications and require corrective measures.
Page 2
Lexmark MS725dvn
The Lexmark MS725dvn reliably prints in a wide range of sizes on diverse materials, from small, narrow-format papers to vinyl
outdoor media. Its ease of use, robust media handling and full-spectrum security all complement its comprehensive connectivity
options and up-to 52-page-per-minuteoutput*.
Ready when you are
} Long-life fuser and imaging components extend uptime.
} Unison™ Toner replacement cartridges deliver up to
55,000 pages** of high-quality printing.
} Steel frame and durable design stands up to heavy use
and harsh environments.
Full-spectrum security
} Lexmark’s full-spectrum security architecture helps keep
Get more done
} Take advantage of a wide range of sizes and diverse
materials—from small, narrow-format papers to vinyl
outdoor media.
your information safe—in the document, on the device and
over the network.
} Powerful 1-GHz dual-core processor and 512 MB memory
drives printing at up to 52 ppm.*
} Robust paper handling includes reliable feeding of a wide
range of media types and sizes, up to 4400 sheets of
standard input and optional nishing
} Connect via Ethernet, USB, or simple mobile
printing options.
Interact with ease
} 6 cm colour LCD lets you congure, interact and monitor
vital system information.
} Front access to the paper path and power button means
you’ll virtually never have to access the back of the
device, allowing placement in or on cabinets.
} Innovative serviceability features, starting with single-
door access to parts and supplies, help you resolve
problems quickly.
Built for planet earth
} Energy management features reduce power consumption
in active use or sleep mode.
} Standard two-sided printing saves paper.
} Recycle cartridges through the award-winning Lexmark
Cartridge Collection Programme (LCCP).
*Print and copy speeds measured in accordance with ISO/IEC 2473 4 and ISO/IEC 24735 respectively (ESAT). For more information see: ww w.lexmark.com/ISOspeeds.
**Average standard page yield value declared in accordance with ISO/IEC 19752.
lexmark.com
2
Page 3
Lexmark MS725dvn
1 MS725dvn with 6 cm display
445 x 428 x 510 mm
2 100-sheet multipurpose feeder
Dimensions included as part of base model
3 550-sheet tray
Dimensions included as part of base model
4 550-sheet tray
110 x 428 x 510 mm
5 2100-sheet tray
350 x 428 x 510 mm
6 Caster base
126 x 521 x 693 mm
7 Staple, hole punch nisher
263 x 462 x 507 mm
8 Staple nisher
246 x 435 x 414 mm
9 Output expander
165 x 421 x 380 mm
10 4-Bin mailbox 272 x 421 x 384 mm
11 High capacity output expander
310 x 421 x 335 mm
12 250-sheet tray
80 x 428 x 510 mm
13 550-sheet lockable tray
110 x 428 x 510 mm
14 250-sheet lockable tray
80 x 428 x 510 mm
15 Swivel cabinet
263 x 476 x 600 mm
16 Adjustable printer stand
584.2 x 596.9 x 596.9 mm
17 Spacer to add additional height
110 x 428 x 510 mm
Standard
Optional
Note 1: Support s up to 4 optional trays. For maximum paper input capacity, instal 3 optional 550-sheet trays and one optional 2100-sheet tray. When a 2100-sheet tray is
installed, it must be the bottom tray, and a caster base isrequired.
Note 2: Supports many output congurations, including: any combination of up to three output expanders and 4-bin mailboxes; OR staple nisher with 4-bin mailb ox; OR
staple nisher with output expander; OR output expander with high capacity output expander; OR the staple, hole punch nisher; OR any single output option by itself.
When installing the optional stapler, it must always be on top. When in stalling the optional high capacity output expander, it must always be on the bottom.
Note 3: All measurements are shown as height x width x depth. For more information about supporte d congurations, refer to the Printer, Option and Stand Compatibility
Guide athttp://www.lexmark.com/publications/furniture_safety/
© 2018 Lexmark. All rights reser ved.
Lexmark, the Lexmark logo and Unison are trademarks of Lexmark International, Inc., registered in the United States and/or other countries. AirPrint® and the AirPrint Logo
are trademarks of Apple, Inc. ENERGY STAR® is a U.S. registered mark. Google Cloud Print™ is a trademark of Google, Inc. MOPRIA®, the Mopria® Logo™ and the Mopria®
Alliance logos are trademarks, service marks, and certication marks of Mopria Alliance, In c. in the United States and other countries. All oth er trademark s are the proper ty
of their respective own ers.
This product includes software developed by the OpenSSL Project for use in the Open SSL Toolkit (http://www.openssl.org/).
lexmark.com
®
3
Page 4
Product specications Lexmark MS725dvn
Printing
Display
Print Speed: Up to
Time to First Page: As fast as
Print Resolution
Memory / Processor
Hard Disk
Recommended Monthly Page Volume
Maximum Monthly Duty Cycle: Up to
Supplies
Laser Cartridge Yields (up to)
Imaging Unit Estimated Yield: Up to
Cartridge(s) Shipping with Product
5
1
2
6
Paper Handling
Included Paper Handling
Optional Paper Handling
Paper Input Capacity: Up to
Paper Output Capacity: Up to
Media Types Supported
Media Sizes Supported
General Information
Standard Ports
Optional Network Ports / Optional Local Ports
Noise Level: Operating
Specied Operating Environment
Product Guarantee
Size (mm - H x W x D) / Weight
3
Black: 1200 Image Quality, 2400 Image Quality, 600 x 600 dpi
Standard: 512 MB / Maximum: 4608 MB / Dual Core, 1000 MHz
7,500-page Cartridge, 15,000-page High Yield Cartridge, 35,000-page Extra High Yield Cartridge, 55,000-page Ultra
High Yield Cartridge, Average continuous cartridge yield is stated number of standard pages as listed. Declared yield
150000 pages, based on 3 average letter/A4-size pages per print job and ~ 5% coverage
550-Sheet Input, 100-Sheet Multipurpose Feeder, 550-Sheet Output Bin, Integrated Duplex
250-Sheet Tray, 550-Sheet Tray, 2100-Sheet Tray, 250-Sheet Lockable Tray, 550-Sheet Lockable Tray, 4-Bin Mailbox,
Staple Finisher, Staple Punch Finisher, High Capacity Output Expander, Output Expander
Standard: 650 pages 75 gsm bond / Maximum: 4400 pages 75 gsm bond
Standard: 550 pages 75 gsm bond / Maximum: 2450 pages 75 gsm bond
Card Stock, Dual Web Labels, Integrated Labels, Paper Labels, Plain Paper, Polyester Labels, Transparencies, Vinyl
A4, A5, Executive, Folio, JIS-B5, Legal, Letter, Statement, Universal, Ocio, A6
One Internal Card Slot, USB 2.0 Specication Hi-Speed Certied (Type B), Gigabit Ethernet (10/100/1000), Front USB 2.0
Marknet N8370 WiFi Option, MarkNet N8230 Fiber Ethernet Print Server / Internal RS-232C serial, Internal 1284-B
Humidity: 8 to 80% Relative Humidity, Temperature: 10 to 32°C (50 to 90°F), Altitude: 0 - 2896 Meters (9,500 Feet)
2.4-inch (60 mm) Color LCD display
Black: 52 ppm
Black: 8 seconds
Not Available
5000 - 75000 pages
300000 pages per month
value in accordance with ISO/IEC 19798.
11,000-page Starter Return Program Toner Cartridge
Labels, Refer to the Card Stock & Label Guide.
Specication Hi-Speed Certied port (Type A)
Bidirectional Parallel
Print: 56 dBA
1-Year Onsite Repair, Next Business Day
445 x 428 x 510 mm / 25.4 kg
All information in this brochure is subject to change without notice. Lexmark is not liable for any errors or omissions.
This is a Class A device according to international electromagnetic emissions standards (i.e. FCC Rules, EN 55022/EN 55032,
etc.). Class A products are intended for use in non-residential/non-domestic environments. Use of a Class A product in
residential/domestic environments may cause interference to radio communications and require corrective measures.
1
”Recommende d Monthly Page Volume” is a range of pages that helps customers evaluate Lexmark’s produc t offerings based on the average number of pages customers
plan to print on the device each month. Lexmark recommends that the number of pages per month be within the stated range for optimum device per formance, based on
factors including: supplies replacement intervals, paper loading intervals, speed, and typical customer usage.
number of pages a device could deliver in a month using a multishift operation. This metric provides a comparison of robustness in relation to other Lexmark printers and
3
Printers are sold subject to cer tain license/agreement conditions. See www.lexmark.com/printerlicense for details. 4Actual Yield may vary based on other factors
MFPs.
such as device speed, paper size and feed orientation, toner coverage, tray source, percentage of black-only printing and average print job complexity.
speeds measured in accordance with ISO/IEC 24734 and ISO/IEC 24735 respec tively (ESAT). For more information see: www.lexmark.com/ISOspeeds.
with replacement cartridges designed for use in a specic geographical region. See www.lexmark.com/regions for more details.
2
”Maximum Monthly Dut y Cycle” is dened as the maximum
5
Print and copy
6
Product func tions only
lexmark.com
4
