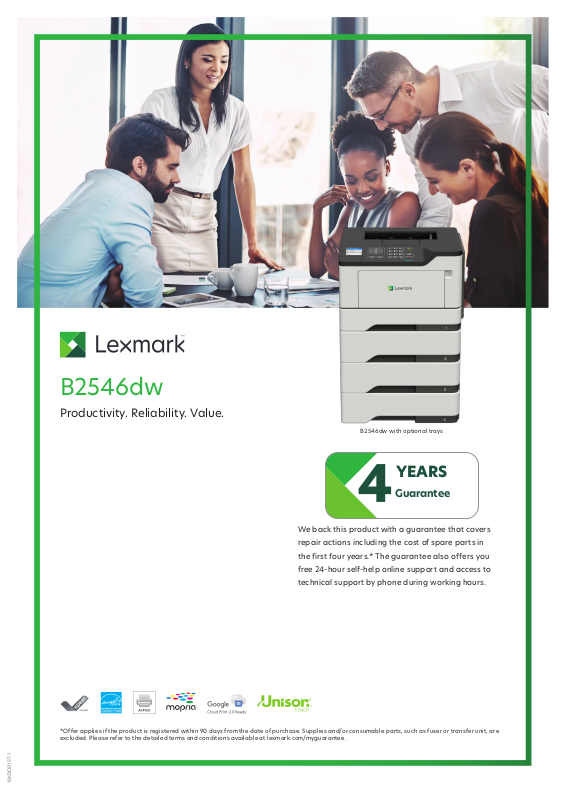

Page 1
B2546dw
Productivity. Reliability. Value.
B2546dw with optional trays
YEARS
Guarantee
We back this product with a guarantee that covers
repair actions including the cost of spare parts in
the first four years.* The guarantee also offers you
free 24-hour self-help online support and access to
technical support by phone during working hours.
*Offer applies if the product is registered within 90 days from the date of purchase. Supplies and/or consumable parts, such as fuser or transfer unit, are
excluded. Please refer to the detailed terms and conditions available at lexmark.com/myguarantee.
18KDO8197-1
Page 2
Lexmark B2546dw
A dual-core processor, 512 MB of memory and a print speed of up to 44 pages per minute*, means the Lexmark B2546dw delivers
solid performance. An Input of 350 sheets expands to 2,000 sheets, whilst superior print quality, enhanced security and built-in
durability are just part of what makes it such a greatvalue.
Robust, built-in security
} Lexmark’s full-spectrum security architecture helps keep
your information safe - on the document, the device, over
the network, and everywhere in between.
} A range of embedded features harden the device
against attacks.
} Standard Confidential Print feature helps ensure output
Get more done
} Tackle your printing workload with the power of a 1-GHz
dual-core processor and 512 MB of memory.
} Get up to 44-page-per-minute printing.
} Easily configure and monitor vital system information via
the 6 cm colour LCD.
security via simple PIN.
} Keypoint Intelligence - Buyers Lab honoured Lexmark
with a prestigious BLI PaceSetter award for Document
Imaging Security***.
} Use media sizes from A6 to legal via the paper tray,
plus smaller media and envelopes via the 100-sheet
multipurpose feeder.
Ready when you are
} Long-life fuser and imaging components extend uptime.
} Unison™ Toner replacement cartridges deliver up to
10,000 pages** of high-quality printing.
} A maximum input capacity of 2,000 pages means
fewer interruptions.
} The durable metal frame is designed for longevity.
Built for planet earth
} Energy management features reduce power consumption
in active use or sleep mode.
} Standard two-sided printing saves paper.
} Use of post-consumer recycled content in manufacturing
saves natural resources.
} Device is rated EPEAT® Silver and ENERGY STAR® certified.
} Recycle cartridges through the award-winning Lexmark
Cartridge Collection Programme (LCCP).
*Print and copy speeds m easured in accordance with ISO/IEC 24734 and ISO/IEC 24735 respectively (ESAT). For more information see: www.lexmark.com/ISOspeeds.
**Average standard page yield value declared in accordance with ISO/IEC 19752.
***Award based on Western Europe data
lexmark.co.uk
18KDO8197-1
2
Page 3
Lexmark B2546dw
1 B2546dw with 6 cm colour display
10.2 x 15.7 x 14.7 inches
260 x 399 x 374 mm
2 550-sheet tray
5 x 15.7 x 14.7 inches
126 x 389 x 374 mm
3 250-sheet tray
3.7 x 15.7 x 14.7 inches
95 x 389 x 374 mm
Standard
Optional
Supports up to three optionaltrays.
© 2018 Lexmark. All rights reserve d.
Lexmark, the Lexmark logo and Unison are trademarks of Lexmark International, Inc., registered in the United States and/or other countries. AirPrint and the AirPrint Logo
are trademarks of Apple, Inc. ENERGY STAR® is a U.S. registered mark. EPEAT® is a trademark of EPEAT, Inc. in the United States and other countries. Google Cloud Print is a
trademark of Google, Inc. MOPRIA®, the Mopria® Lo go™ and the Mopria® Alliance logos are trademarks, service mark s, and certification marks of Mopria Alliance, Inc. in
the United States andother countries. All other trademarks are the proper ty of their respective owners.
This product includes software developed by the OpenSSL Project for use in the Open SSL Toolkit (http:// ww.openssl.org/).
lexmark.co.uk
18KDO8197-1
3
Page 4
Product specifications Lexmark B2546dw
Printing
Display
Print Speed: Up to
Time to First Page: As fast as
Print Resolution
Memory
Hard Disk
Recommended Monthly Page Volume
Maximum Monthly Duty Cycle: Up to
Supplies
Laser Cartridge Yields (up to)
Imaging Unit Estimated Yield: Up to
Cartridge(s) Shipping with Product
6
7
1
Paper Handling
Included Paper Handling
Optional Paper Handling
Paper Input Capacity: Up to
Paper Output Capacity: Up to
Media Types Supported
Media Sizes Supported
General Information
Standard Ports
Noise Level: Operating
Specified Operating Environment
Product Guarantee
Size (mm - H x W x D) / Weight
Part Number
4
8
Black: 1200 Image Quality, 1200 x 1200 dpi, 2400 Image Quality, 300 x 300 dpi, 600 x 600 dpi
2
3
3,000-page Cartridge, 6,000-page High Yield Cartridge, 10,000-page Extra High Yield Cartridge
60,000 pages, based on 3 average letter/A4-size pages per print job and ~ 5% coverage
1
3,000-page Starter Return Programme Toner Cartridge
250-Sheet Input, 100-Sheet Multipurpose Feeder, 150-Sheet Output Bin, Integrated Duplex
250-Sheet Tray, 550-Sheet Tray, 550-Sheet Lockable Tray
Standard: 350 pages 75 gsm bond / Maximum: 2,000 pages 75 gsm bond
Standard: 150 pages 75 gsm bond / Maximum: 150 pages 75 gsm bond
Card Stock, Envelopes, Paper Labels, Plain Paper, Transparencies, Refer to the Paper & Speciality Media Guide
10 Envelope, 7 3/4 Envelope, 9 Envelope, A4, A5, DL Envelope, Executive, Folio, JIS-B5, Legal, Letter, Statement, Universal,
USB 2.0 Specification Hi-Speed Certified (Type B), Gigabit Ethernet (10/100/1000), 802.11b/g/n Wireless
Temperature: 16 to 32°C (60 to 90°F), Humidity: 8 to 80% Relative Humidity, Altitude: 0 - 5,000 Metres (16,404 Feet)
6 cm (2.4-inch) Colour LCD display
Black: 44 ppm
Black: 6.0 seconds
standard: 512 MB / maximum: 512 MB
Not Available
2,000 - 15,000 Pages
120,000 pages per month
Oficio, A6
Print: 56 dBA
4-year guarantee (upon registration)
260 x 399 x 374 mm / 14.1 kg
36SC549
All information in this brochure is subject to change without notice. Lexmark is not liable for any errors or omissions.
1
Average standard page yield value declared in accordance with ISO/IEC 19752. 2”Recommended Monthly Page Volume” is a range of pages that helps customers evaluate
Lexmark’s product offerings based on the average number of pages customers plan to print on the device each month. Lexmark recommends that the number of pages per
month be within the stated range for optimum device performance, based on factors including: supplies replacement intervals, paper loading intervals, speed, and typical
customer usage. 3”Maximum Monthly Duty Cycle” is defined as the maximum number of pages a device could deliver in a month using a multishift operation. This metric
provides a comparison of robustness in relation to other Lexmark printers and MFPs. 4Printers are sold subject to certain license/agreement conditions. See www.lexmark.
com/printerlicense for details. 5Actual Yield may var y based on other factors such as device speed, paper size and feed orientation, toner coverage, tray source, percentage
of black-only printing and average print job complexity. 6Print and copy speeds measured in accordance with ISO/IEC 24734 and ISO/IEC 24735 respectively (ESAT). For more
information see: www.lexmark.com/ISOspeeds. 7Product functions only with replacement cartridges designed for use in a specific geographical region. See www.lexmark.
com/regions for more details. 8Offer applies if the product is registered within 90 days from the date of purchase. Supplies and/or consumable parts , such as fuser or
transfer unit, are excluded. Please refer to the detailed terms and conditions available at lexmark.com/myguarantee.
lexmark.co.uk
18KDO8197-1
