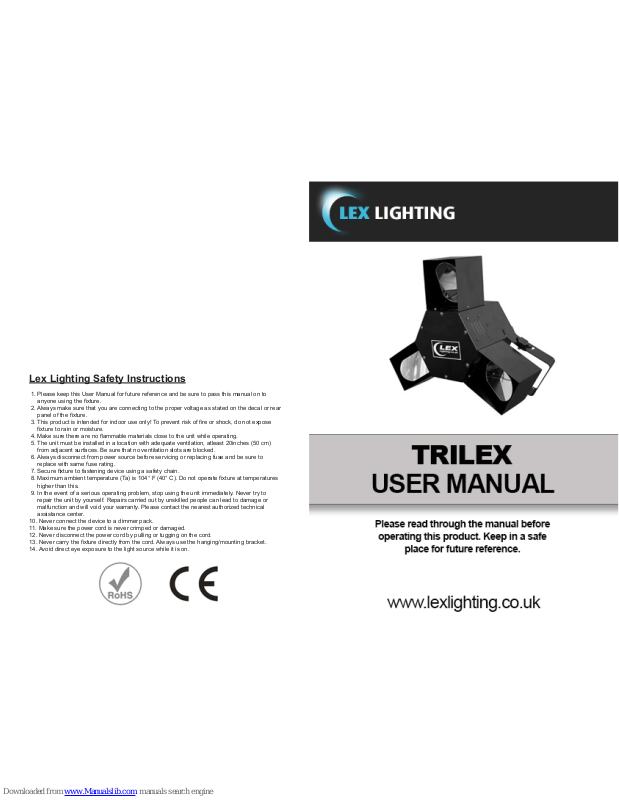

LEX Lighting Trilex User Manual

Lex Lighting Safety Instructions

1. Please keep this User Manual for future reference and be sure to pass this manual on to

anyone using the xture.

2. Always make sure that you are connecting to the proper voltage as stated on the decal or rear

panel of the xture.

3. This product is intended for indoor use only! To prevent risk of re or shock, do not expose
xture to rain or moisture.

4. Make sure there are no ammable materials close to the unit while operating.

5. The unit must be installed in a location with adequate ventilation, atleast 20inches (50 cm)

from adjacent surfaces. Be sure that no ventilation slots are blocked.

6. Always disconnect from power source before servicing or replacing fuse and be sure to
replace with same fuse rating.

7. Secure xture to fastening device using a safety chain.

8. Maximum ambient temperature (Ta) is 104° F (40° C). Do not operate xture at temperatures

higher than this.

9. In the event of a serious operating problem, stop using the unit immediately. Never try to

repair the unit by yourself. Repairs carried out by unskilled people can lead to damage or
malfunction and will void your warranty. Please contact the nearest authorized technical
assistance center.

10. Never connect the device to a dimmer pack.

11. Make sure the power cord is never crimped or damaged.

12. Never disconnect the power cord by pulling or tugging on the cord.

13. Never carry the xture directly from the cord. Always use the hanging/mounting bracket.

14. Avoid direct eye exposure to the light source while it is on.

Congratulations on purchasing your new lighting effect

from Lexlighting. Reading through this manual will ensure

trouble free and long life operation of the unit.

Features:

- 120 High Brightness LED’s (Red, Green & Blue)

- Sound To Light (Inbuilt Microphone)

- Auto Run Mode

- Full DMX 512 (8 Channels)

- 3 Scanner Mirrors for Room Filling Coverage

- Package Spec: L420 W380 H225mm

- Package Weight: 4.3kg Approx

Contents:

- Light Unit Trilex

- Hanging Bracket and Nuts/Washers

- User Manual

Sound to Light Mode (Music Trigger)

To operate your xture so it responds to the music, please select:

Dip Switches 9 to the ON Position (as shown below)

The xture will now go through all its built in patterns one by one by

picking up sound via its built in microphone. The mirrors will also
move to the beat of the music. Use the sensitivity dial on the rear to
adjust the units sensitivity to sound.

1 2 3 4

5

6

7

8 9 10

on

o

Auto Play Mode

Auto Play mode is where the light will go through its inbuilt programs

one by one, regardless of any sound input. The mirrors will also

move at random. Please Observe below.

To put your xture into Auto-Play Mode, please select:

Dip Switches to the OFF Position

1 2 3 4 567

8 9 10

on

o

DMX Mode

DMX (Digital Multiplex) is a universal protocol used as a form of
communication between intelligent xtures and controllers. A DMX
controller sends DMX data instructions from the controller to the
xture. DMX data is sent as serial data that travels from xture to
xture via the DATA “IN” and DATA “OUT” XLR terminals located on
all DMX xtures.
The Trilex is a DMX enabled xture and the DMX mode and DMX
address settings are controlled via the Dip Switches. It also carries
the standard 3-pin XLR connections for DMX use.

To set your xture for use with a universal DMX controller:

Dip Switches 10 to the ON position

1 2 3 4 567

8 9 10

o

on

With Dip switche 10 set to ON position now means your xture is
now in DMX mode and is awaiting for you to assign a DMX Fixture
address. Address settings are obtained by using dip switches 1 - 9.
See example below:

Light 1 in the (01)DMX Universe - Dip 1 to ON
Light 2 in the (17)DMX Universe - Dip 1 & 5 to ON

Light 3 in the (34)DMX Universe - Dip 2 & 6 to ON
