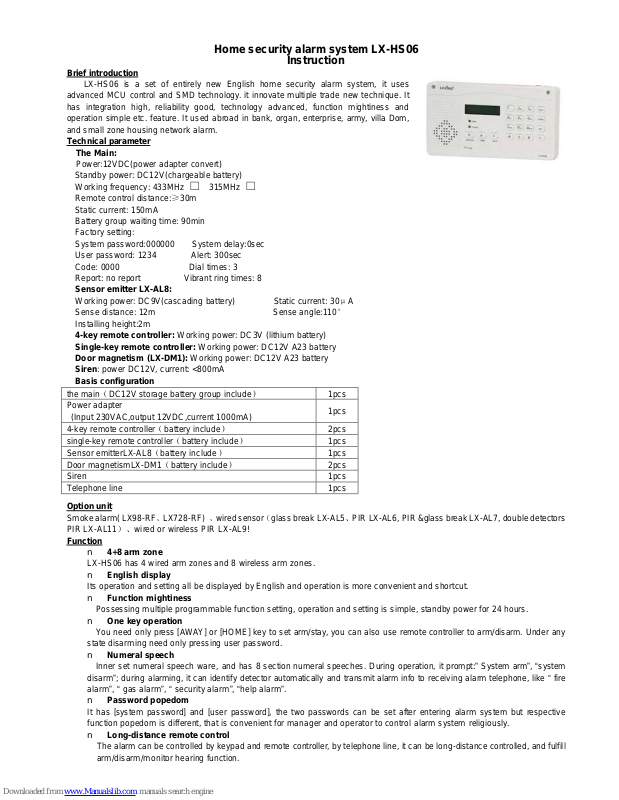

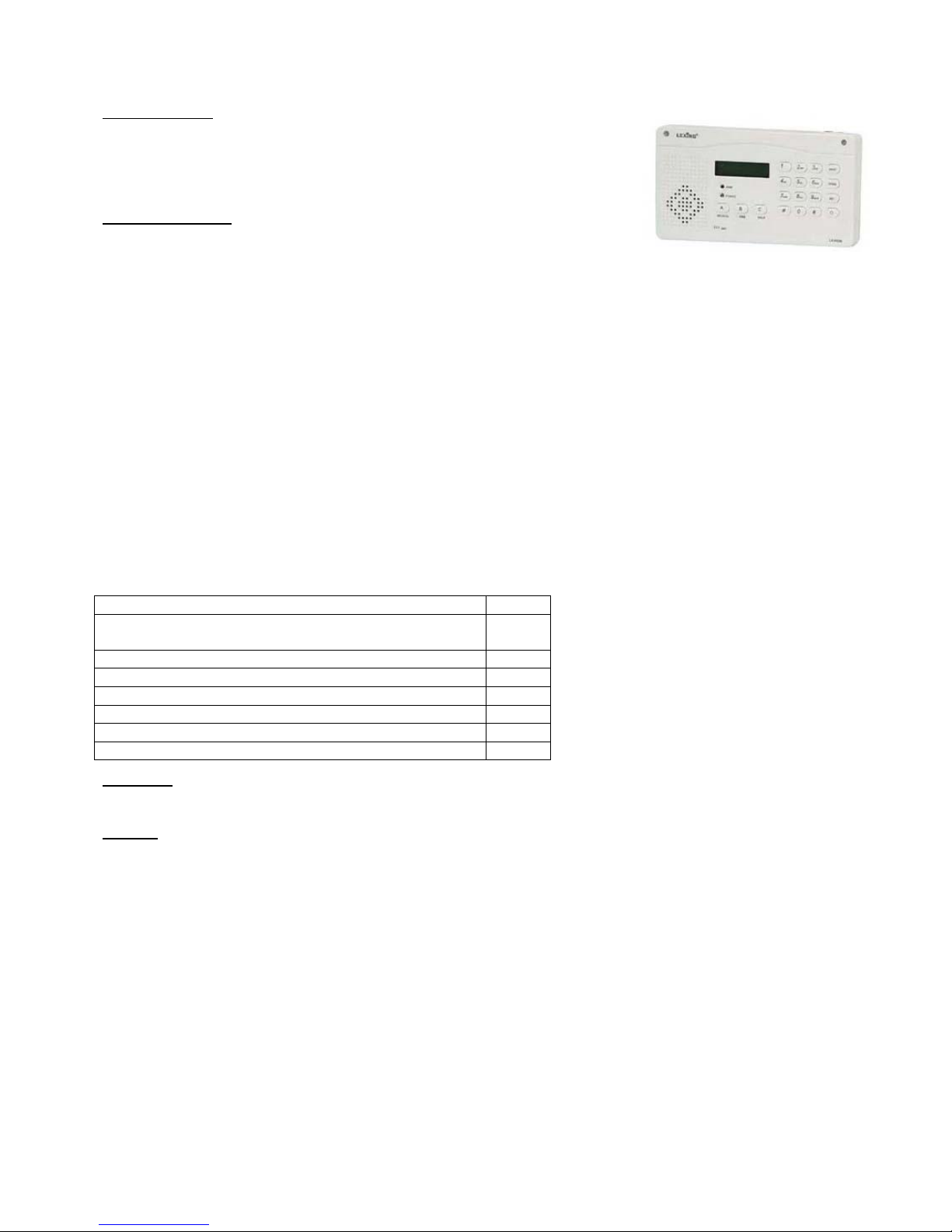

Home security alarm system LX-HS06

Instruction

Brief introduction

LX-HS06 is a set of entirely new English home security alarm system, it uses advanced MCU control and SMD technology. it innovate multiple trade new technique. It has integration high, reliability good, technology advanced, function mightiness and operation simple etc. feature. It used abroad in bank, organ, enterprise, army, villa Dom, and small zone housing network alarm.

Technical parameter

The Main:

Power:12VDC(power adapter convert) Standby power: DC12V(chargeable battery) Working frequency: 433MHz □ 315MHz □ Remote control distance:≥30m Static current: 150mA Battery group waiting time: 90min Factory setting: System password:000000 System delay:0sec User password: 1234 Alert: 300sec Code: 0000 Dial times: 3 Report: no report Vibrant ring times: 8

Sensor emitter LX-AL8:

Working power: DC9V(cascading battery) Static current: 30μA Sense distance: 12m Sense angle:110° Installing height:2m

4-key remote controller: Working power: DC3V (lithium battery) Single-key remote controller: Working power: DC12V A23 battery Door magnetism (LX-DM1): Working power: DC12V A23 battery Siren: power DC12V, current: <800mA

Basis configuration

Option unit

Smoke alarm( LX98-RF、LX728-RF) 、wired sensor（glass break LX-AL5、PIR LX-AL6, PIR &glass break LX-AL7, double detectors PIR LX-AL11）、wired or wireless PIR LX-AL9!

Function

n 4+8 arm zone

LX-HS06 has 4 wired arm zones and 8 wireless arm zones.

n English display

Its operation and setting all be displayed by English and operation is more convenient and shortcut.

n Function mightiness

Possessing multiple programmable function setting, operation and setting is simple, standby power for 24 hours.

n One key operation

You need only press [AWAY] or [HOME] key to set arm/stay, you can also use remote controller to arm/disarm. Under any

state disarming need only pressing user password.

n Numeral speech

Inner set numeral speech ware, and has 8 section numeral speeches. During operation, it prompt:” System arm”, “system disarm”; during alarming, it can identify detector automatically and transmit alarm info to receiving alarm telephone, like “ fire alarm”, “ gas alarm”, “ security alarm”, “help alarm”.

n Password popedom

It has [system password] and [user password], the two passwords can be set after entering alarm system but respective function popedom is different, that is convenient for manager and operator to control alarm system religiously.

n Long-distance remote control

The alarm can be controlled by keypad and remote controller, by telephone line, it can be long-distance controlled, and fulfill arm/disarm/monitor hearing function.

the main（DC12V storage battery group include） 1pcs Power adapter (Input 230VAC,output 12VDC,current 1000mA)

1pcs

4-key remote controller（battery include） 2pcs single-key remote controller（battery include） 1pcs Sensor emitterLX-AL8（battery include） 1pcs Door magnetismLX-DM1（battery include） 2pcs Siren 1pcs Telephone line 1pcs

Page 2

n Intelligent study.

Wireless detector study is very simple. The study time need no 1sec.

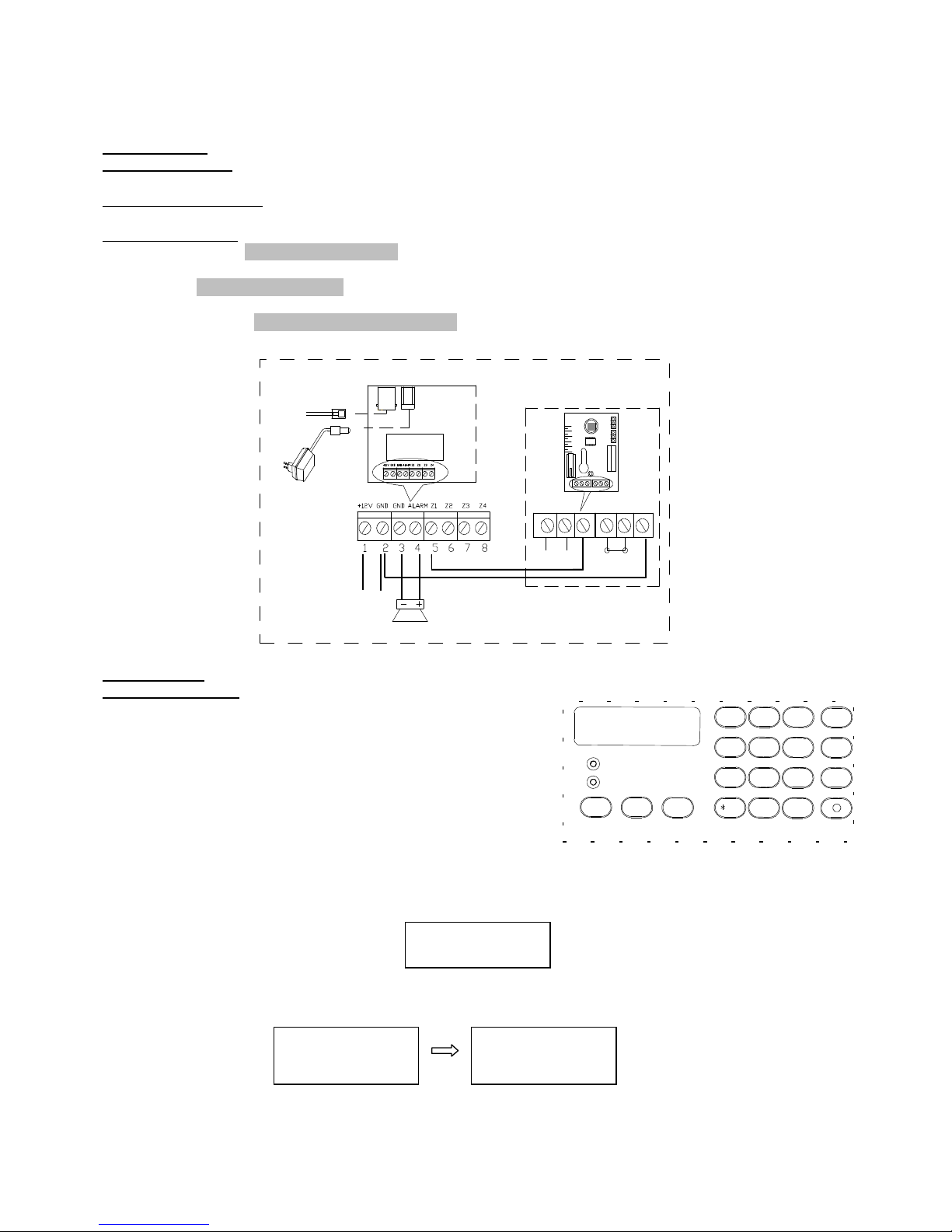

Connection line

1. connect phone line: connect the main to workable phone path. NOTE: if not connect phone line, the main will give"path trouble"prompt.

2. Connect power adapter: the adapter requires: input 230VAC, output 12VDC, and current 1000mA. During AC power is on, standby battery will be charged automatically. When AC power cut off, the product works by standby battery entirely.

3. conncetion terminal:

·power output terminal[terminal 1（+）、2（-）] output DC12V power, can power supply for LX-AL6.

·siren terminal[terminal 3（-）、 4 （ + ） ] siren power:DC12V, current:800mA

·detector signal terminal[terminal5（6，7，8）、 GND(2,3)]

the main has ４wired arm zone:［５－GND］is 01 zone ；［６－GND］is02 zone；［７－GND］is 03 zone；［８－GND］is 04 zone.

Function setting

enter programming

The main’s system password is [000000], all settings and modifying

of the main must be done via system password. The user password is [1234].

Attention: the system password is the highest grade; only via it you

can modify the user password and all specification of the main. So when you modify the system password, you must remember the new password firmly.

After connection line right, switch on power, the POWER led light;

when the main is in arm state or guard st, the ARM led light. LCD display the main’s state(“Arm St” or “Guard St” or “Disarm St” )，that indicate it is normal.

Attention: when LCD display “Arm St” or “Guard St”, if you need to program, you need to input user password to disarm the

main, when LCD display “Disarm St”, you can start to program.

When the main is in disarm state (disarm st), press the SET key on keypad, LCD display <input level> and remind you input

the system password, press # key to enter the main menu.

POWER

ARM

A B C

0 #

8TUV 9WXYZ

4GHI

5JKL 6MNO

3DEF2ABC1

AWAY

HOME

SET

MEDICAL FIRE HELP

7PQRS

Disarm St

Input level

******

1.Sys 2.Zone

3.Setup 4.Study

siren

controller inner PCB

phone line

13ON P ULS E

LE D

OF F

-4

-6

0 4

-2

TAMPER

RELAY

LX-AL6 inner PCB

12VDC+

power output

power adapter

TAMPER

RELAY

Page 3

1.Level

2.Code

3.Report

4.Delay

02 03 04 05

… 12

1. Instant

2. Delay (zone)

3. 24 HR

4.Bypass

1. Alert

2. Home

3. Call

4. Del home

1. Tele 1

2. Tele 2

3. Tele 3

4. Tele 4

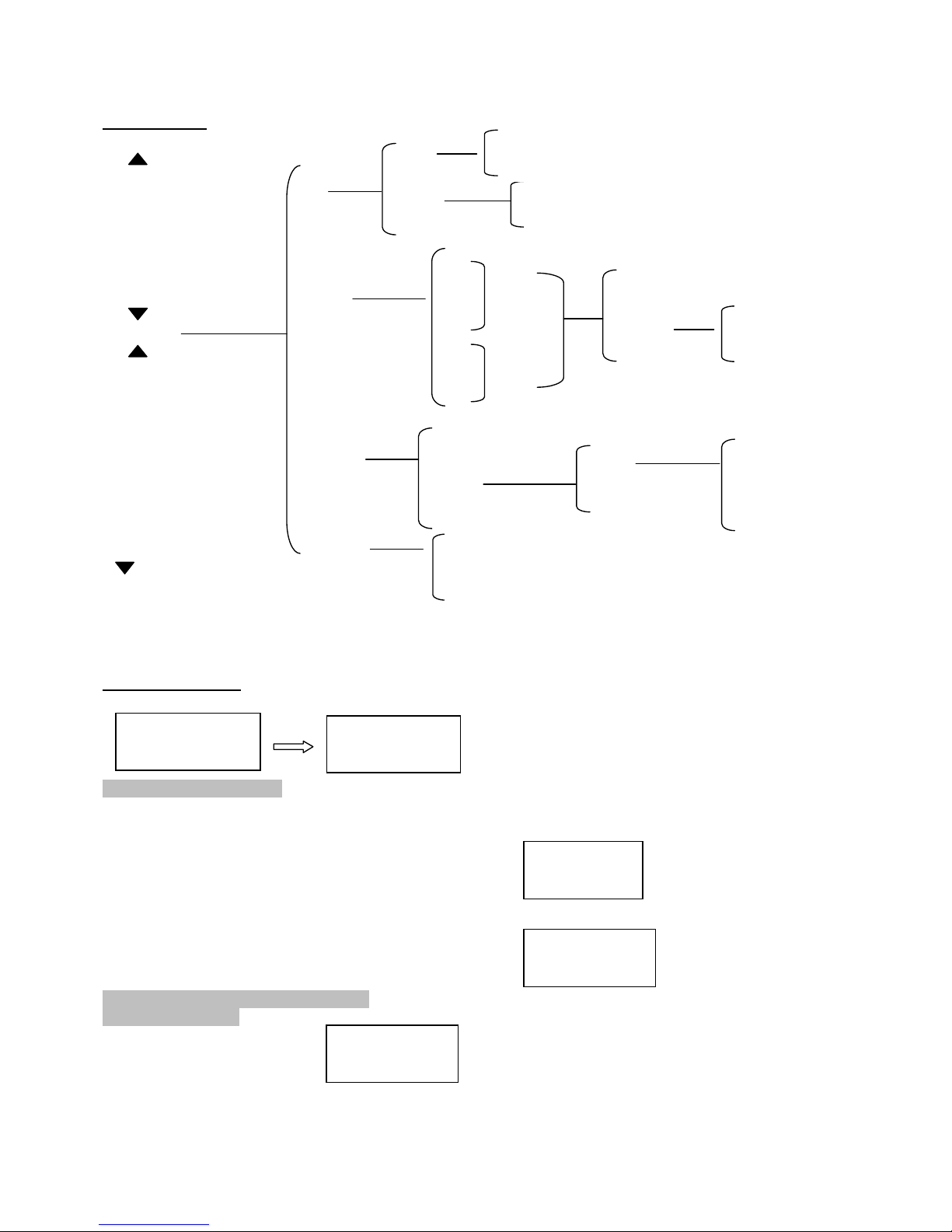

function menu

Arm state

1. Sys

2. Zone

Disarm state

3. Setup

4. Study

Guard state

NOTE: when programming, the [*] key is for returning to previous menu, and [#] key is for confirming.

•

system setting1.sys

—Password modifying 1. level 1> modify system password<sys level>

enter menu 1.level→1.sys level→LCD display “input sys level”, input 6-bit password and press # key to confirm. The system save

only the last password, please remember new password firmly!

2> modify user password<user level>

enter menu 1.level→2. user level→LCD display “input user level”, input 4-bit password and press # key to confirm. The system

save only the last password, please remember new password firmly!

—code setting<center network code> 2. code no the setting temporarily. —report setting3.report

Enter menu 3. report→LCD display:

Selecting 1 is report to center, selecting 2 is no report. Attention: when need saving telephone expense or the alarm needn’t be network, you can not set it.

1.Arm report

2.No report

1.Smoke

2.Gas

3.Panic

1.Tel

2.Dial

3.Vibrant ring

1.Remote

2.Arm zone

3.Del

Wired

Wireless

1.Sys level

2.User level

Input sys level

******

Input user level

****

1． Arm report

2． No report

1.level 2. code

3.report 4.delay

1.Sys 2.Zone

3.Setup 4.Study

Press 1

Page 4

—delay <system delay> 4.delay Enter menu 4. relay→LCD display:

After inputting press # key to confirm.** is delay time for away home when arming, it can set to 00~99sec.

arm zone setting 2.zone

Enter menu 2. zone→LCD display:

** is 01~12 arm zone, after inputting press # key to confirm, and then according to your need select [instant], [delay], [24 hours],

[bypass] arm zone type.

When select [1.instant]，after it receive signal, the main will dial immediately, and the corresponding alarm information is “security

alarm”;

When select [2.delay]，after it receive signal, the main dial after some time, and the corresponding alarm information is “security

alarm”;

after select[ 3.24Hr], according to your need select [1.smoke]，[2.gas]，[3.panic]，the corresponding alarm information are"fire alarm

″，"gas alarm″，"help alarm″separately.

When select [ 4.bypass], the arm zone do not work.

setting 3.setup

—siren alarm time setting1. alert enter menu 1.alert→LCD display:

After inputting press # key to confirm,*** is siren’s alarm delay, can set to 000~999sec, factory set to 300sec. —guard setting2. home enter menu 2.home→LCD display:

After inputting press # key to confirm,** is the arm zone NO. guarded. When host is at home, after home arm, the system will

ignore the guarded detector (for example: PIR sensor). So host can move freely indoor and not arising alarming. —telephone setting enter menu3.call→1.tel→LCD display:

1 group is network center number, when no network, you can not set the number; 2,3,4 group is speech alarm telephone number. If you need to delete the number, only set the number to [0]. select the telephone group No.(1-4),LCD display:

*************is telephone number, it can set to 3~13 bits telephone number.

Input delay

Input arm zone:

1.instant 2.delay

3.24Hr 4.bypass

1.Smoke 2.gas

3. Panic

Set alarm time

***

Set arm zone NO.

1.tel 2.tel

3.tel 4.tel

Input tel NO. *************

1.Sys 2.Zone

3.Setup 4.Study

Press 2

2.Zone

1.Sys 2.Zone

3.Setup 4.Study

Press 3

1.alert 2.home

3.call 4.del home

Page 5

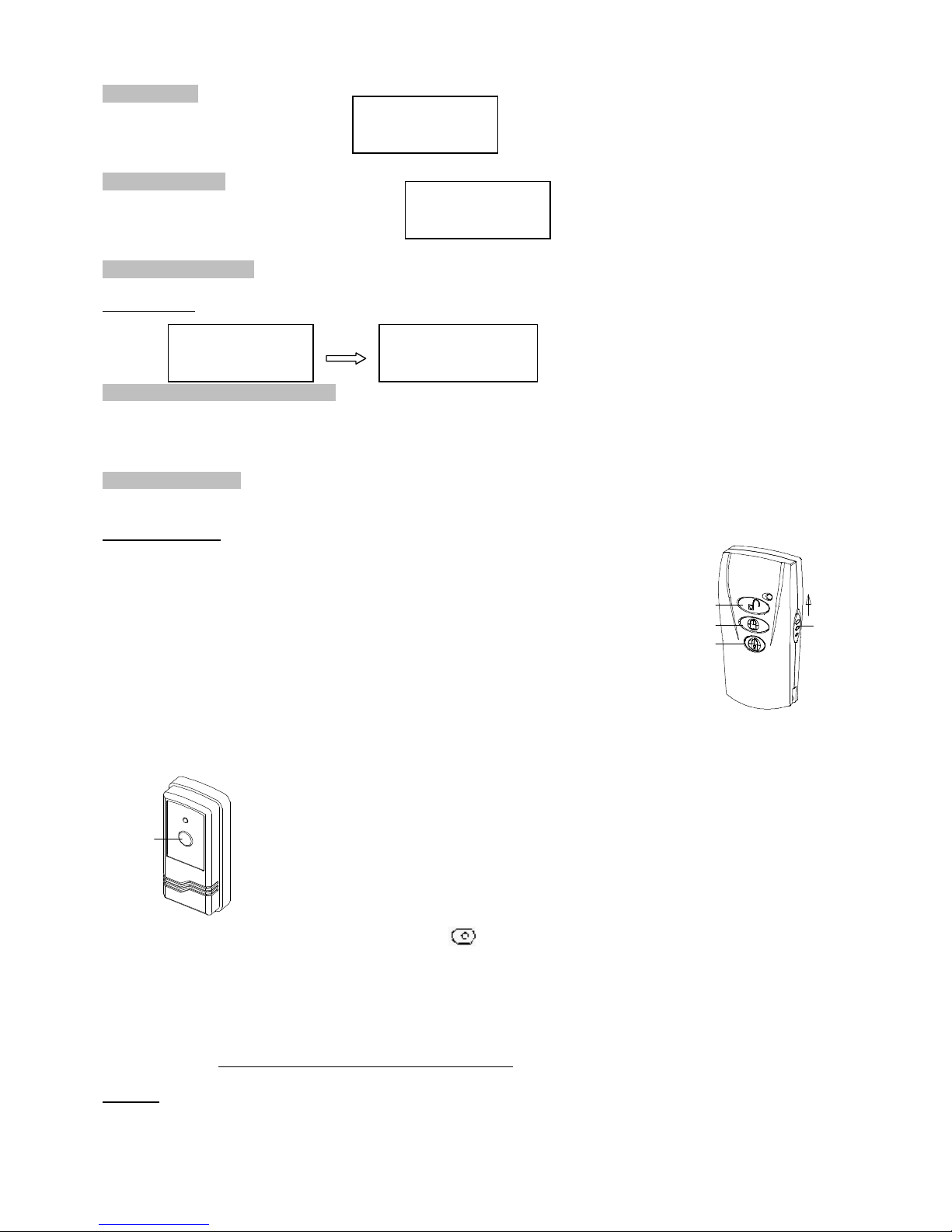

—dialing setting enter menu3.call→2.dial→LCD display:

press # key to confirm ,** is dial times. Factory set is 3 times; network center is not limited by it until center telephone receiving alarm. —vibrant ring setting enter menu3.call→3. vibrant ring →LCD display:

press # key to confirm , ** is long-distance controlling vibrant ring times, can set to 01~99 times, factory set is 8 times. —delete home4.del home Delete guarded arm zone, if use the stay function next time, you need reset it.

• study 4.study

—study wireless(1.remote, 2.arm zone)

Setting: ** + # Attention: ** is remote controller NO. or arm zone NO., remote controller [1~4], and arm zone [05~12]. Select the remote controller NO. Or arm zone NO. needing study, and press # key to confirm, when LCD display“be studying”,trigger remote controller or detector once, and then study next one. —delete wireless(3.del) Delete wireless remote controller or wireless detectors.

Function operation

• 4-key remote control coding

This remote control adapts free coding. The coding method: tighten off the base screw and

open it, press and hold any emission key and then install battery, here the LED flash indicating it is coding. The coding is confirmed when you loosen the key.( if you find remote controllers have repeat codlings, you can re-code according above method).

• arm, disarm

Arm: press the [Away arm] key or the [AWAY] key on keypad, the main give “system arm”

prompt sound and LCD displays “arm st”; Disarm: press the [Disarm] key or press user password on keypad, the main give “system disarm” prompt sound and LCD displays “disarm st”; Home Arm: press the [Home arm] or press [HOME] key on keypad, the main give “system arm” prompt sound and LCD displays “guard st”.

• help alarm

Remote control: press the [help alarm] key on remote controller, the main dial and then the siren alarm, the main give “help alarm” alarm info. Keypad operation: press and hold MEDICAL/FIRE/HELP key for 3sec( “DI-DIDI” prompt sound will be heard), the main dial and then the siren alarm, the main separately give” medical alarm, “ fire alarm” “ help alarm” alarm info.

• keypad operation

AWAY: AWAY arm key HOME: HOME arm key SET: programming setting, [*]: return to the previous menu when programming. [#]: Programming confirm key. Key is useless.

• speech receiving alarm

When alarm telephone is called, pick up telephone hear alarm info. And then press “#” key to confirm and ring off, the main stop dialing the telephone number; Otherwise it dial alarm telephone according to dial times pre-set.

• long-distance control

By long-distance telephone or hand call dial the telephone connected with the main. After vibrant ring for the times preset and telephone prompt “ input password, press 1 to arm, press 2 to disarm”, input operation password, press # key, enter long-distance control: press 1 to arm, press 2 to disarm, press 3 to monitor hearing, press 4 to ring off.

Installing

1． Untighten the screw to open the unit (see fig.1); 2． Pull in wires through the out-line hole on bottom cover and then connect wire to terminals on PCB according to connection line

diagram.

3． Fixing the bottom cover on needed position( see fig.2)

Set dial times

Input ring times

1.Sys 2.Zone

3.Setup 4.Study

1.remote 2.arm zone

3.del

Press 4

help alarm

away arm

home arm

disarm

push up

Page 6

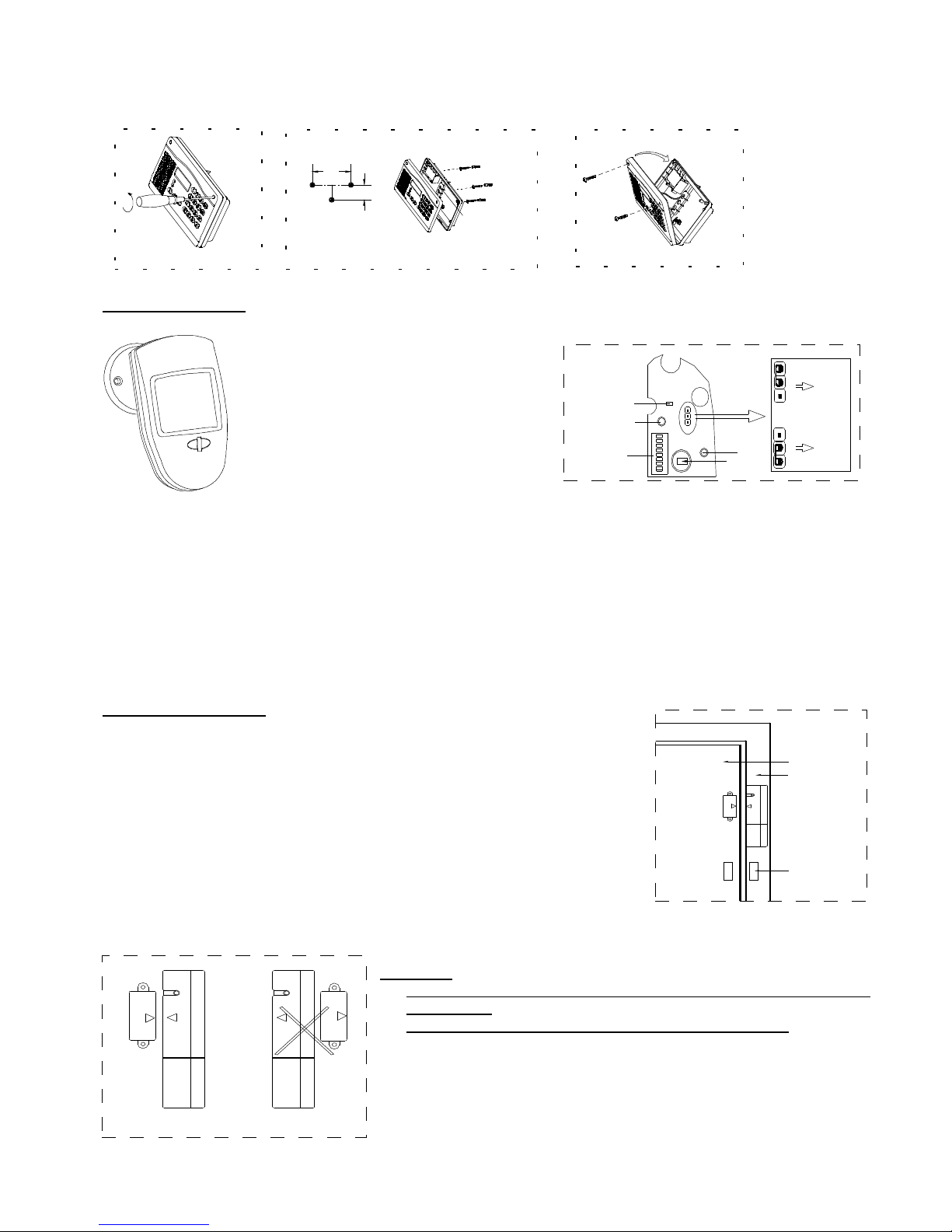

4． Link up front cover and tighten the screws(see fig.3)

Sensor emitter LX-AL8

—Jumper setting (like right figure)

·Sense once to emit: after sensing once, the sensor emit signal

·Sense twice to emit: after sensing twice, the sensor emit signal , This setting enhance its

preventing false-alarm and preventing-pet function.

Note: the emit interval time is at least 15sec.that means: sense to make it emit, after at least 15sec sense it again, it will emit again.

—Test

·press the arm key of remote controller or the main, set the main to arm.

·set the jumper on needed position;

·switch on 9V battery, after 60s the sensor enter stable working state;

·according to the studying wireless method select study arm zone(2.arm zone) to study LX-AL8;

·move along the tangent of the lens, the sense LED light and then it emit signal to the main, the emission LED light. the siren give

alarm and the main dial.

—Attention

· Low-battery LED: When battery energy is below 7V, the low-battery LED will flash once a second and remind you replace battery.

· Avoid installing the unit on metal base;

· Avoid installing the unit where sun shine or temperature change obviously, for example: air conditioning, heater etc.

Door magnetism LX-DM1

· Install magnetism and emitter on upright position of door lock, the distance between them

is 3mm~5mm and triangle on emitter aim at triangle on magnetism(like right figure);

·install DC12V battery into emitter and then close the battery lid;

·according to the studying wireless method select study arm zone(2.arm zone) to study

LX-DM1;

·press the arm key of remote controller or the main, set the main to arm.

·Open door, the emitter is triggered and its LED light, then emit signal to the main, the siren

alarm and the main dial；

·tamper design: Under the condition that the triangle on emitter aim at triangle on magnetism,

when the battery lid is removed, it will emit signal to the main.

·Attention:

1． Avoid installing the unit on metal base; 2． The magnetism should be on the left of the emitter (like following figure)

Warnning:

1. No slide all numerals of the DIP switch to ON position simultaneously when coding!

2. you should not use numeral “1” on DIP switch when coding.

Incorrect position

Correct position

Door Door frame

Door lock

Fig. 1

Fig. 2

Fig. 3

out-line hole

160

AUTO

DIP switch

Sense LED

PIR

Jumper

AU TO / 1

AUTO / 1

Emit LED

Sense

once to

emit

Sense twice to emit

Low-battery LED
