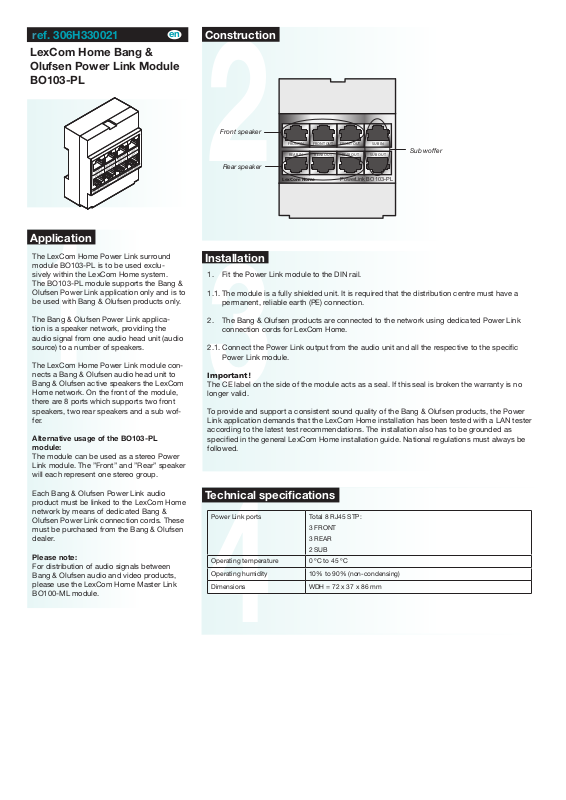

LexCom Home Bang &
Olufsen Power Link Module
BO103-PL
Application
en

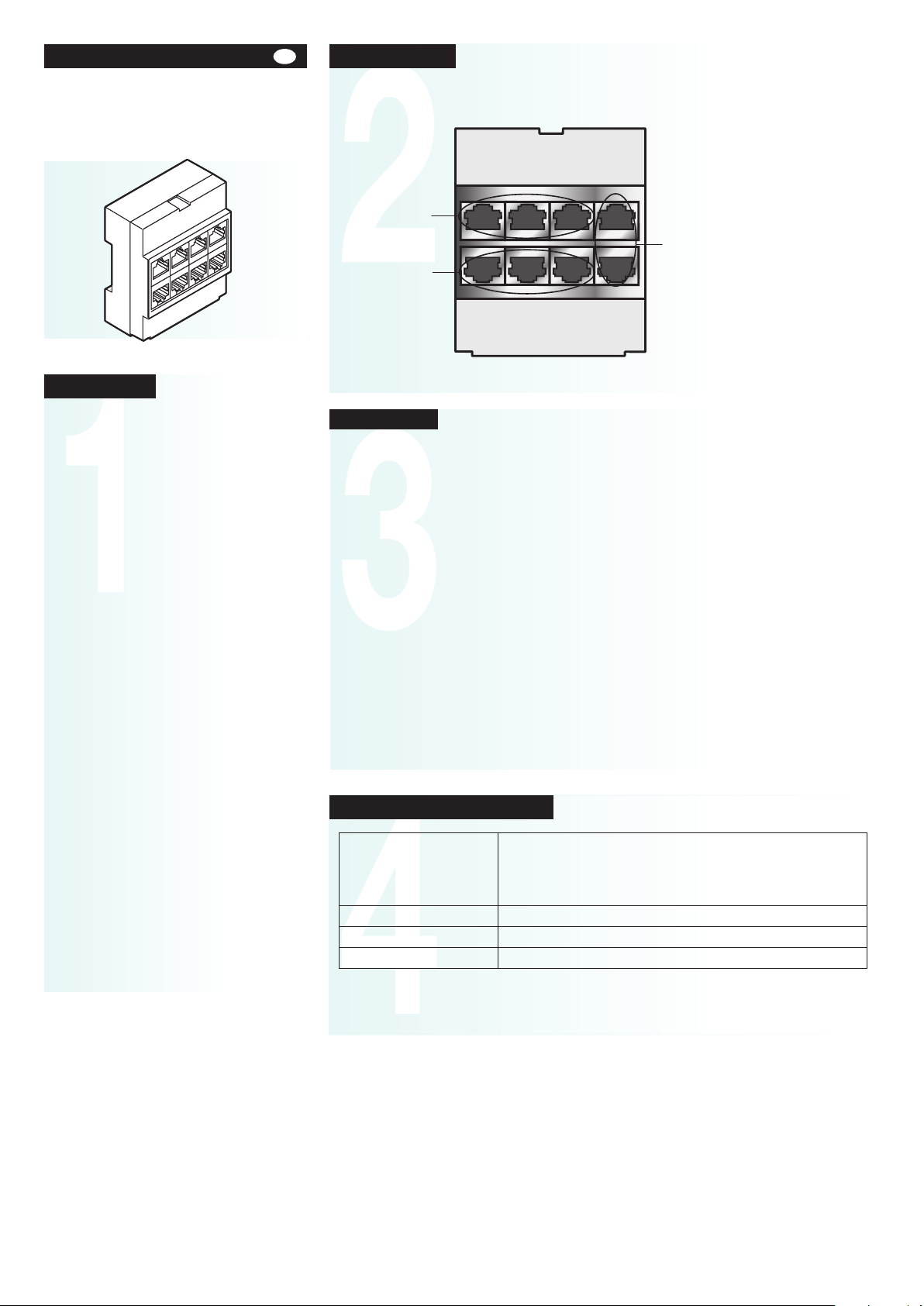

Construction
Front speaker
Sub woffer
Rear speaker
The LexCom Home Power Link surround
module BO103-PL is to be used exclu
sively within the LexCom Home system.
The BO103-PL module supports the Bang &
Olufsen Power Link application only and is to
be used with Bang & Olufsen products only.
The Bang & Olufsen Power Link application is a speaker network, providing the
audio signal from one audio head unit (audio
source) to a number of speakers.
The LexCom Home Power Link module con
nects a Bang & Olufsen audio head unit to
Bang & Olufsen active speakers the LexCom
Home network. On the front of the module,
there are 8 ports which supports two front
speakers, two rear speakers and a sub woffer.
Alternative usage of the BO103-PL
module:
The module can be used as a stereo Power
Link module. The ”Front” and ”Rear” speaker
will each represent one stereo group.
Each Bang & Olufsen Power Link audio
product must be linked to the LexCom Home
network by means of dedicated Bang &
Olufsen Power Link connection cords. These
must be purchased from the Bang & Olufsen
dealer.
Please note:
For distribution of audio signals between
Bang & Olufsen audio and video products,
please use the LexCom Home Master Link
BO100-ML module.
-
Installation
1. Fit the Power Link module to the DIN rail.
1.1. The module is a fully shielded unit. It is required that the distribution centre must have a
permanent, reliable earth (PE) connection.
2. The Bang & Olufsen products are connected to the network using dedicated Power Link
connection cords for LexCom Home.
2.1. Connect the Power Link output from the audio unit and all the respective to the specific
Power Link module.
-
Important!
The CE label on the side of the module acts as a seal. If this seal is broken the warranty is no
longer valid.
To provide and support a consistent sound quality of the Bang & Olufsen products, the Power
Link application demands that the LexCom Home installation has been tested with a LAN tester
according to the latest test recommendations. The installation also has to be grounded as
specified in the general LexCom Home installation guide. National regulations must always be
followed.
Technical specifications
Power Link ports Total 8 RJ45 STP:
3 FRONT
3 REAR
2 SUB
Operating temperature 0 ºC to 45 ºC
Operating humidity 10% to 90% (non-condensing)
Dimensions WDH = 72 x 37 x 86 mm
Page 2
5
PowerLink BO 103-PL
LexCom Home
FRONT IN
REAR IN
FRONT OUT FRONT OUT SUB IN
REAR OUT REAR OUT SUB OUT
FRONT OUT
FRONT OUT
REAR OUT
REAR OUT
SUB OUT
REAR IN
FRONT IN
SUB IN
019D877499_01 © Schneider Electric 11/2006

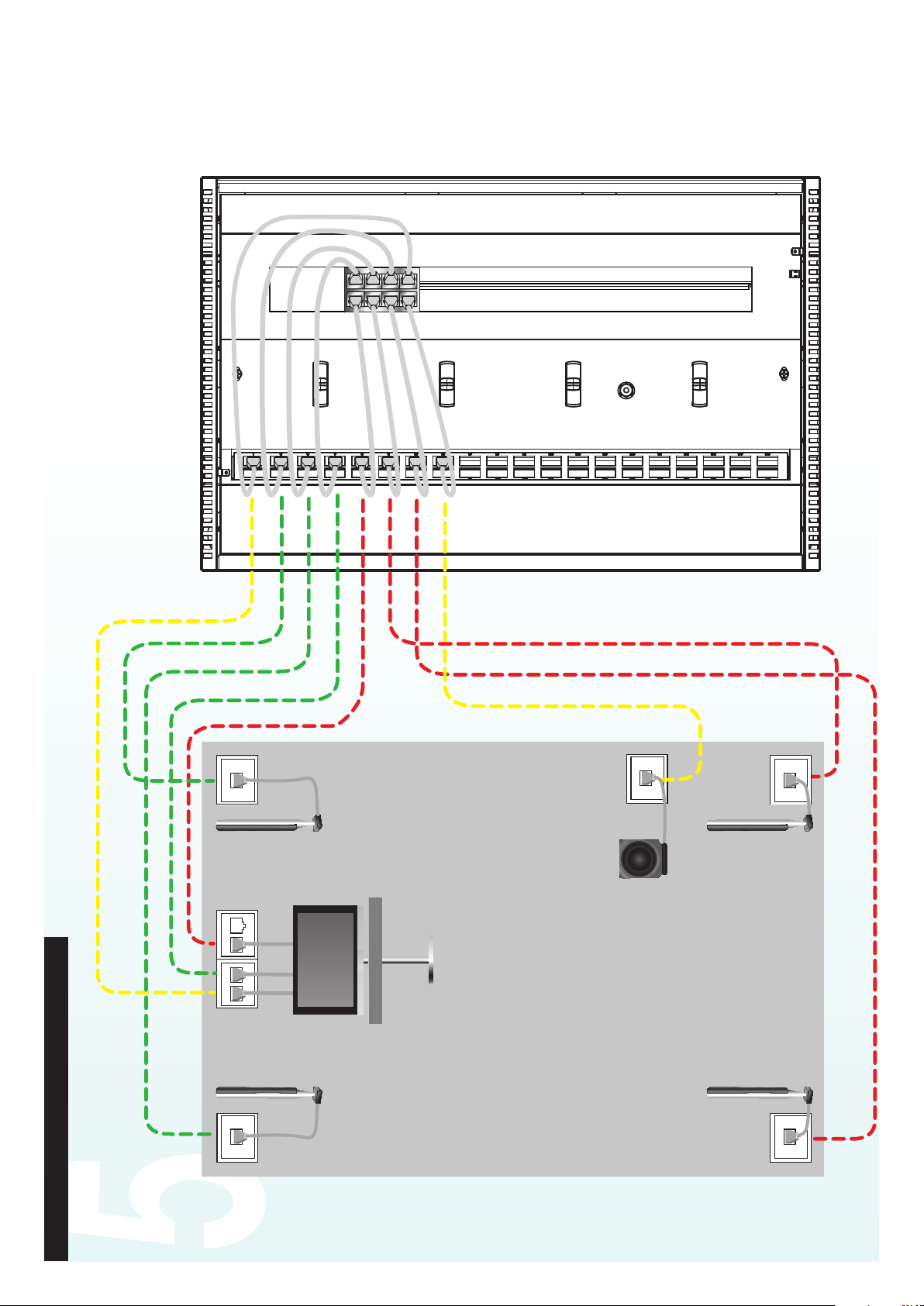

Power Link Surround configuration
