Thank you that you have opted for a LEWITT product. In this operating manual you will learn more about your LEWITT microphone, its handling
and its proper usage.
Music professionals know that it’s often the smallest details that make all the difference in vocal and instrumental recordings.
With our MTP series, we aim to exceed artists’ and audio engineers’ expectations of reproduction accuracy and isolation of the main sound
source. The new flagships among LEWITT's performance microphones – the MTP 840 DM and the 940 CM are true milestones of audio
technology.
All MTP microphones are professional-quality handheld dynamic and condenser performance microphones have been developed specifically
for the authentic, crystal-clear reproduction of vocals and are also well-suited for instrumental applications.
Customized frequency responses, a rugged construction, high gain before feedback and extremely low handling noise make all models of the
MTP series the perfect fit for any application, any performance and any setting.
Introduction
LEWITT wishes you a lot of fun and success with this product!
02
Page 3
MTP 340 CM / CMs
Our MTP 340 CM and MTP 340 CMs are quality condenser vocal microphones with a thin diaphragm
back-electret capsule which brings a high level of sonic detail to demanding vocal applications. No
matter whether on stage or in the studio, the models’ tailored frequency response always allows for
maximum precision and unsurpassed clarity, taking professional vocal tracking to the next level.
The uniform cardioid pickup pattern ensures noise-free transmission, with essential sound sources
being effectively isolated while unwanted feedback and background noise are eliminated. These
microphones’ rugged construction and hardened steel-mesh grille ensure trouble-free handling on stage
and in the studio.
The product
MTP 3 40 CM
MTP 3 40 CMs
03
Page 4
MTP 340 CM / CMs
Features
·Frequency response shaped specifically for vocal applications
·Uniform cardioid pickup pattern for minimum off-axis coloration
·High gain before feedback
·Easily withstands high sound pressure levels
·Effective integrated acoustic pop and windshield offers excellent protection against plosives and sibilance
·Highly durable, black all-metal construction, optimized for rough daily touring routine
·Minimally affected by varying load impedance
·The MTP 340 CMs features a convenient, recessed on/off slide switch
·Corrosion-resistant gold-plated 3-pin XLR output connector
·Comes in a cardboard box including MTP 40 MCs shock mount and DTP 40 Lb artificial leather bag
Top applications
·Lead and background vocals
·Live and studio applications
Features / Top applications
04
Page 5
MTP 340 CM / CMs

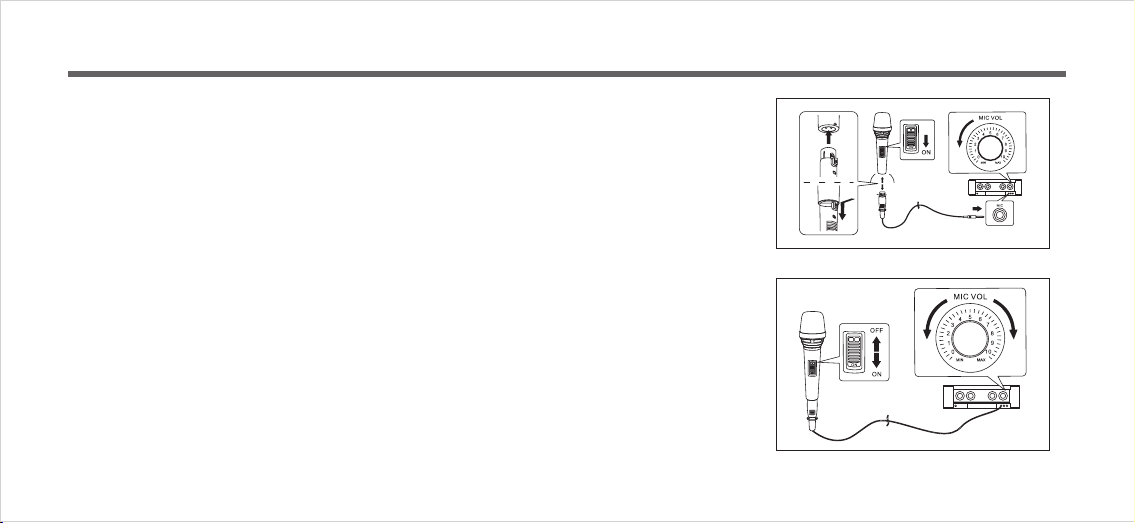

Connecting and Disconnecting the Microphone Cable
·Before establishing connection, make sure that the microphone and the component
(e.g. amplifier) are switched off.
·Lower the volume of the component (e.g. amplifier) before connecting the microphone.
·Insert the connector into the microphone socket. Align the key on the connector with
the groove in the microphone, and then push the connector into the microphone until
it clicks.
·To disconnect the cable from the microphone, pull the connector away from the
microphone while depressing the latch lock.
How to Use
·Set the switch to ON when using the microphone, set it to OFF when it is not in use (only
applicable if your microphone has an ON/OFF switch).
·When using the microphone, do not cover any part of the grille with your hand to ensure
best sound quality and accurate directivity characteristic.
Using the mic
05
Page 6
MTP 340 CM / CMs
Hints
.
1 In order to prevent feedback (howling):
·Lower the volume.
·Place the microphone so that it is not pointed
to the speaker and that there is a sufficient
distance between the microphone and the
speaker.
·Do not cover the lower part of the grille with
your hand.
.
2 Positioning the microphone close to the
sound source causes the so-called proximity
effect (a boost in the low frequency response). This phenomenon can be used to create a
richer and warmer bass sound.
Using the mic / Tech data

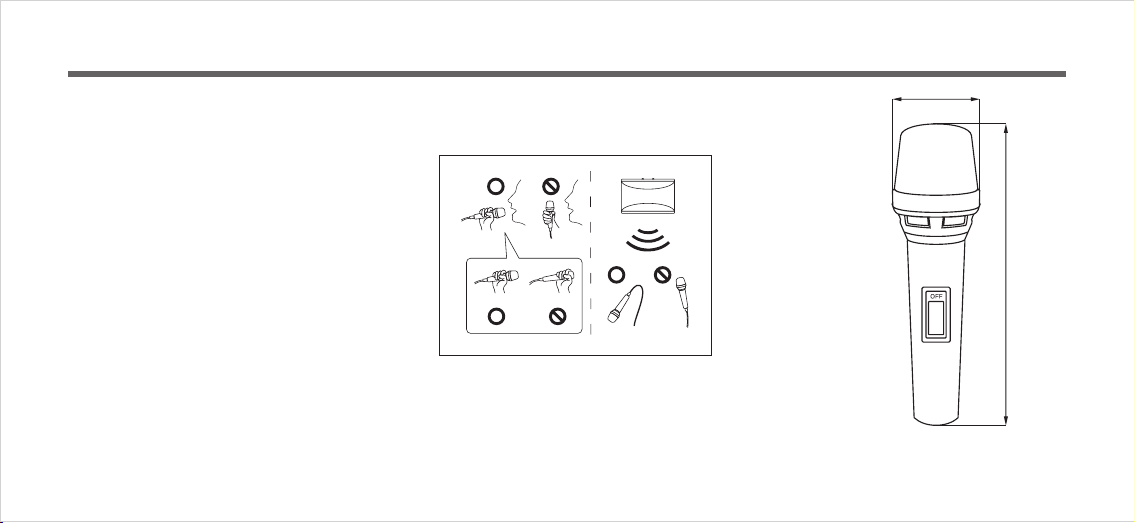

49.7
Dimensions
175
06
Page 7
MTP 340 CM / CMs
5 dB uni t /
dB ref 1V Pa . /

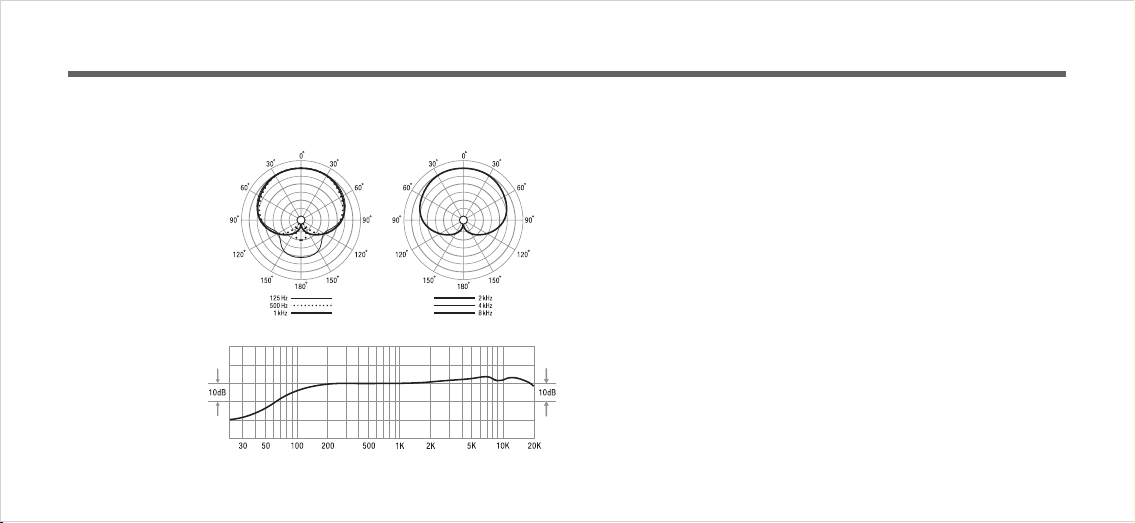

Tech dataTech graph
·Acoustical operating principle:
·Directional pattern:
·Frequency range:
·Sensitivity:
·Equivalent noise level:
·Maximum SPL:
·Rated impedance:
·Rated load impedance:
·Supply voltage:
·Current consumption:
·Connector:
·Dimensions:
·Net weight:
Tech data
pressure gradient
transducer, permanently
polarized
cardioid
90 ... 20.000 Hz
3,1 mV / Pa (-50 dBV)
25 dB-A (IEC 61672-1)
141 dB, 1 % THD
150 dB, 3 % THD
< 200 ohms
> 1.000 ohms
48 V +/- 4 V (IEC 61938)
5,3 mA (IEC 61938)
gold plated 3-pin XLR
49 dia. x 175 mm
1,9 dia. x 6,9 inch
330 g
11,6 oz.
07
Page 8
MTP 340 CM / CMs

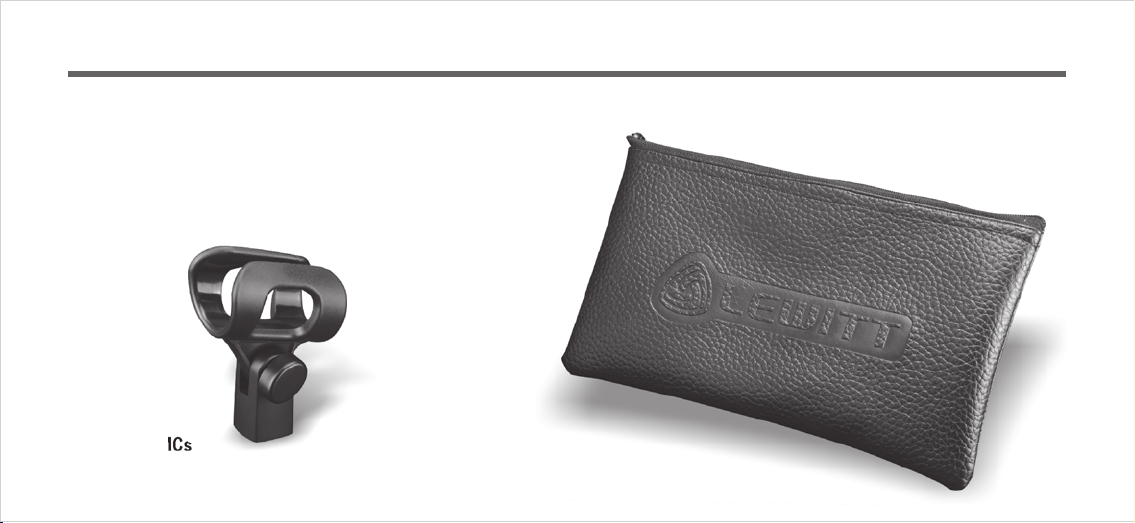

Accessories
Accessories
MTP 40 MCs
DTP 40 Lb
08
Page 9
MTP 340 CM / CMs
Cautions
The capsule is a sensitive, high precision component. Make sure you do not drop it from high heights and avoid strong mechanical stress
·
and force.
·To ensure high sensitivity and best sound reproduction of the microphone, avoid exposing it to moisture, dust or extreme temperatures.
·Keep this product out of the reach of children.
·Do not use force on the switch or cable of the microphone.
·When disconnecting the microphone cable, grasp the connector and do not pull the cable.
·Do not attempt to modify or fix it. Contact qualified service personnel in case any service is needed. Please do not disassemble or modify
the microphone for any reasons as this will void users warranty.
·The casing of the microphone can be cleaned easily using a wet cloth, never use alcohol or another solvent for cleaning. If necessary the
foam wind stopper can be washed with soap water. Please wait till it is dry before using it again.
·Also please refer to the owner’s manual of the component to be connected to the microphone.
