Lewitt DTP-BEAT-KIT-PRO-7 Specifications

www.lewitt-au di o. co m

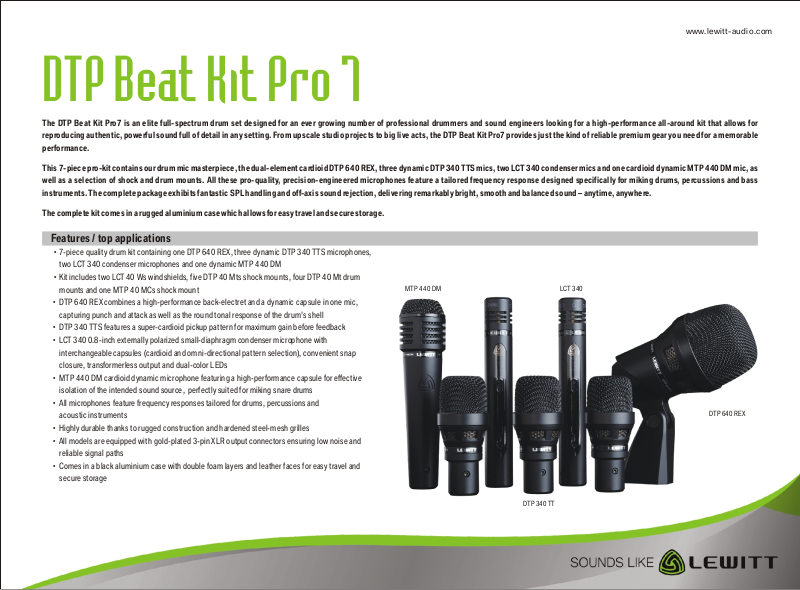

DTP Beat Kit Pro 7

The DTP Beat Kit Pro7 is an elite full-sp ectrum drum set designed for an ever growing number of professional drumme rs and sound engineers lookin g for a hig h-performan ce all -around kit tha t allows for
reproducing au thentic, p owerful sound ful l of detail in any setting. From upscale studio proj ects to big live acts , the DTP Beat Kit Pro7 provid es just the kind of reli able premium gear you need for a memorable
perform ance.

This 7- piece pro-kit contains o ur drum mi c masterpiece, the dua l-element cardi oid DTP 640 REX, three dynamic DTP 340 TTS mi cs, two LCT 340 condens er mics an d one cardioid dy namic MTP 440 D M mic, as
well as a selecti on of shock and dru m mount s. All these pro-qualit y, prec ision-engi neered mi crophones feature a tailored frequency response designe d speci fically fo r miking drums, percussio ns and bass
instruments . The comp lete package ex hibits fantast ic SPL handlin g and off-axis sou nd rejection, d elivering rema rkably bright , smooth and bal anced sound – any time, anywhe re.

The complete kit comes in a ru gged alumini um case which al lows for easy travel and se cure storage.

Features / top applications

·7-piece quality drum kit containing one DTP 640 REX, three dynami c DTP 340 TTS microphone s,
two LCT 340 condenser m icrophones and one dynamic MTP 440 D M

·Kit in cludes two LCT 40 Ws windshields, five DTP 40 Mts shock mounts, four DTP 40 Mt drum
mounts and one MTP 40 MCs shock mount

·DTP 640 REX combines a high-per formance back-electret and a dynamic cap sule in one mic,
capturing pu nch and attack as well as the round tonal response of the drum’s shell

·DTP 340 T TS features a super-cardioid pickup pattern for maximum gain be fore feedback

·LCT 340 0.8-inch externally polarized small-di aphragm condenser mic rophone with

interchangeable capsules (cardioid and omni-directional pattern selection), convenient snap
closure, transformerless output and dual-color LEDs

·MTP 440 DM ca rdioid dynamic microphone featuring a high-performance capsule for effective
isolation of the inten ded sound source, perfectly su ited for mi king snare drums

·All microphones feature frequency responses tailored for drums , percussions and
acoustic ins truments

·Highly durable thanks to rugged construction and hardened steel-mesh grilles

·All models are equipped with gold-plated 3-pin XL R output connectors ensuring low noise and
reli able sign al paths

·Comes in a black aluminium case with do uble foam layers and leather faces for e asy travel and

secure storage

LCT 340MTP 4 40 DM

DTP 640 REX

DTP 340 T T

DTP 340 TT

MTP 440 DM

Tech data

·Acoustical operating principle:

·Directi onal patte rn:

·Frequen cy range:

·Sensitivity:

·Rated impedance:

·Connector:

·Dimension:

·Net we ight:

Tech graph

dynamic, moving coil
super-cardioid
40 ... 16,000 Hz

1.4 mV / Pa (-57 dBV)
< 500 ohms
gold plated 3- pin XLR
41 dia. x 94 mm

1.6 dia. x 3.7 inch
153 g

5.4 oz.

5 dB / uni t

dB ref. 1 V / Pa

Tech data

·Acoustical operating principle:

·Directi onal patte rn:

·Frequen cy range:

·Sensitivity:

·Rated impedance:

·Connector:

·Dimension:

·Net we ight:

Tech graph

dynamic, moving coil
cardioid
60 ... 16,000 Hz

2.5 mV / Pa (-52 dBV)
< 500 ohms
gold plated 3- pin XLR
39 dia. x 159 mm

1.53 dia. x 6.25 inch
248 g

8.74 oz.

5 dB / uni t

dB ref. 1 V / Pa

DTP 640 REX

Tech data

·Acoustical operating principle:

·Transducer Ø (dynamic):

·Transducer Ø (condenser):

·Directi onal patte rn:

·Frequen cy range:

·Sensitivity:

·Equivalent noise level:

·Dynamic ran ge of mic . amp.:

·Max. SPL for 0.5% THD:

·Preattenuation pa d:

·Bass cut filter slope:

·Rated impedance:

·Supply voltage:

·Current consumption:

·Connector:

·Cable:

·Dimensions:

·Net we ight:

dynamic, moving coil
condenser, permanently polarized

31.7 mm

1.25 inch

22.4 mm

0.88 inch
cardioid (condenser & dynamic)
20 ... 16,000 Hz, dynamic
20 ... 20,000 Hz, cond enser

2.5 mV / Pa (-52 dBV), dynami c

6.3 mV / Pa (-44 dBV), conden ser
26 dB-A (IEC 61672-1), condenser
122 dB-A, condenser
148 dB, 0 dB preattenuat ion
158 dB, 10 dB preattenua tion
168 dB, 20 dB preattenua tion
10 dB, 20 dB switchable
12 dB / octave at 40 Hz
6 dB / octave at 300 Hz
< 500 ohms, d ynamic
< 200 ohms, c ondenser
48 V +/- 4 V (IEC 61938)
2 mA (IEC 61938)
gold plated 3- pin and 5-pin X LR
4 m (13.2’) dual shielded Y-cable,
5-pin X LR into two 3 -pin XLRs
71 dia. x 158 mm

2.8 dia. x 6.2 inch
725 g

25.5 oz.

Tech graph

5 dB / uni t

Dynamic

dB ref. 1 V / Pa

5 dB / uni t

Condenser

dB ref. 1 V / Pa

LCT 340

Tech data

·Acoustical operating principle:

·Transducer Ø:

·Directi onal patte rn:

·Frequen cy range:

·Sensitivity:

·Signal/noise ratio:

·Equivalent noise level:

·Dynamic ran ge of mic . amp.:

·Max. SPL for 0.5% THD:

·Preattenuation pa d:

·Bass cut filter slope:

·Rated impedance:

·Rated load impe dance:

·Supply voltage:

·Current consumption:

·Connector:

·Dimension:

·Net we ight:

pressure & pressure gradient
transducers, externall y pol arized

20.32 mm

0.8 inch
cardioid
omni
20 ... 20,000 Hz
14 mV / Pa (-37 dBV ), cardioid
14 mV / Pa (-37 dBV ), omni
80 dB-A
14 dB-A, cardioid (IEC 61672-1)
14 dB-A, omni (IEC 616 72-1)
124 dB-A
138 dB, 0 dB preattenuat ion
144 dB, 6 dB preattenuat ion
150 dB, 12 dB preattenua tion
156 dB, 18 dB preattenua tion
6 dB, 12 dB, 18 dB switchable
12 dB / octave at 40 Hz
6 dB / octave at 150 Hz
6 dB / octave at 300 Hz
< 150 ohms
> 1,000 ohms
48 V +/- 4 V (IEC 61938)

6.6 mA (IEC 6 1938)
gold plated 3- pin XLR
24 dia. x 160 mm

0.94 dia. x 6.3 inch
200 g

7.05 oz.

Tech graph

3 dB / uni t

Omni

dB ref. 1 V / Pa

3 dB / uni t

Cardioid

dB ref. 1 V / Pa
