Page 2
MTP 940 CM
Thank you that you have opted for a LEWITT product. In this operating manual you will learn more about your LEWITT microphone, its handling
and its proper usage.
Music professionals know that it’s often the smallest details that make all the difference in vocal and instrumental recordings.
With our MTP series, we aim to exceed artists’ and audio engineers’ expectations of reproduction accuracy and isolation of the main sound
source. The new flagships among LEWITT's performance microphones – the MTP 840 DM and the 940 CM are true milestones of audio
technology.
All MTP microphones are professional-quality handheld dynamic and condenser performance microphones have been developed specifically
for the authentic, crystal-clear reproduction of vocals and are also well-suited for instrumental applications.
Customized frequency responses, a rugged construction, high gain before feedback and extremely low handling noise make all models of the
MTP series the perfect fit for any application, any performance and any setting.
LEWITT wishes you a lot of fun and success with this product!
Introduction
02
Page 3
MTP 940 CM
The product
Real studio performance onstage at present, this can only be found in the top model of LEWITT’s MTP Performance
Series. Meeting the highest standards onstage and in the studio requires no less than the world’s most technically
advanced, most innovative and most full-featured handheld condenser microphone: the new MTP 940 CM a milestone
of audio technology.
The externally biased large-diaphragm capsule of the MTP 940 CM lends the lead voice the necessary presence in an
infinitely subtle, detailed and authentic way. The source comes through clearly and authentically, processed with
impressive feedback resistance and with undesired breath, popping and handling noise efficiently reduced to a
minimum.
The MTP 940 CM boasts a 135 dB dynamic range the widest ever achieved in a live microphone due to its high
headroom and LEWITT’s own Direct Coupling circuit design, which makes possible an unbeatably low self-noise level of
just 9 dB. This means that the MTP 940 CM is also ideal for use in the studio, whenever the goal is to create a live
atmosphere with the highest degree of acoustic precision.
The MTP 940’s comprehensive features and settings outshine those of more than a few purebred studio microphones.
Three switchable polar patterns wide cardioid, cardioid and supercardioid ease recording of the most diverse
sources; from lead vocals to choirs and on to classic unplugged situations with a singer and an acoustic instrument. A
three-step high-pass filter makes it possible to directly influence the proximity effect, adapting it in the best-possible way
to the sound source. And the three-position switchable preattenuation pad guarantees use even in extreme SPL
environments. LEDs that can be switched off if desired, mean that checking settings quick and easy a boon in dark
environments and helpful in ensuring a fast and trouble-free setup process. The mic’s extremely stable and rugged
construction can take even the roughest everyday touring knocks with no problem.
For everyone who’s always dreamed of taking their studio mic into their hands and onstage, or of recreating a live
atmosphere in the studio at an uncompromising level of quality, the MTP 940 CM is the only right choice. With the
optimal synergy between versatility, innovation and superior sound characteristics, it sets a new benchmark in the world
of high-end microphones.
–
–
– –
– –
–
03
Page 4
MTP 940 CM
Features / Top applications
Features
■
1-inch externally biased, dual-system capsule with ultra-thin, gold-layered low-mass diaphragms ensure accurate transient response
for nuanced and authentic sound
■
Flat frequency response for natural sound
■
Three consistent directional characteristics cardioid, wide cardioid, supercardioid for maximum flexibility in a variety of live and
– –
recording applications
■
Superior dynamic range of 135 dB-A and exceptionally low self-noise of 9 dB-A thanks to innovative direct coupling technology
(patent pending) for ear-catching realism and distortion-free sonic depth
■
3-position switchable pre-attenuation pad (0 dB, 6 dB, and 12 dB) for handling extremely high sound pressure levels
■
3-position switchable high-pass filter for direct adjustment of proximity effect according to application and artist
■
Illuminated indication of microphone settings for quick and easy handling even in dark environments
■
Recessed slide switches prevent unintended change of settings
■
Effective integrated acoustic pop and windshield offers excellent protection without compromising high-frequency clarity
■
Rock-solid full-metal, die-cast body for rough daily touring routine
■
Hardened steel mesh grille to prevent wear and abuse
■
Minimally affected by varying load impedance
■
Corrosion-resistant gold-plated 3-pin XLR output connector
■
Comes in a cardboard box including MTP 40 MCs shock mount and DTP 40 Lb artificial leather bag
Top applications
■
Lead and background vocals
■
Demanding live and studio applications
04
Page 5
MTP 940 CM

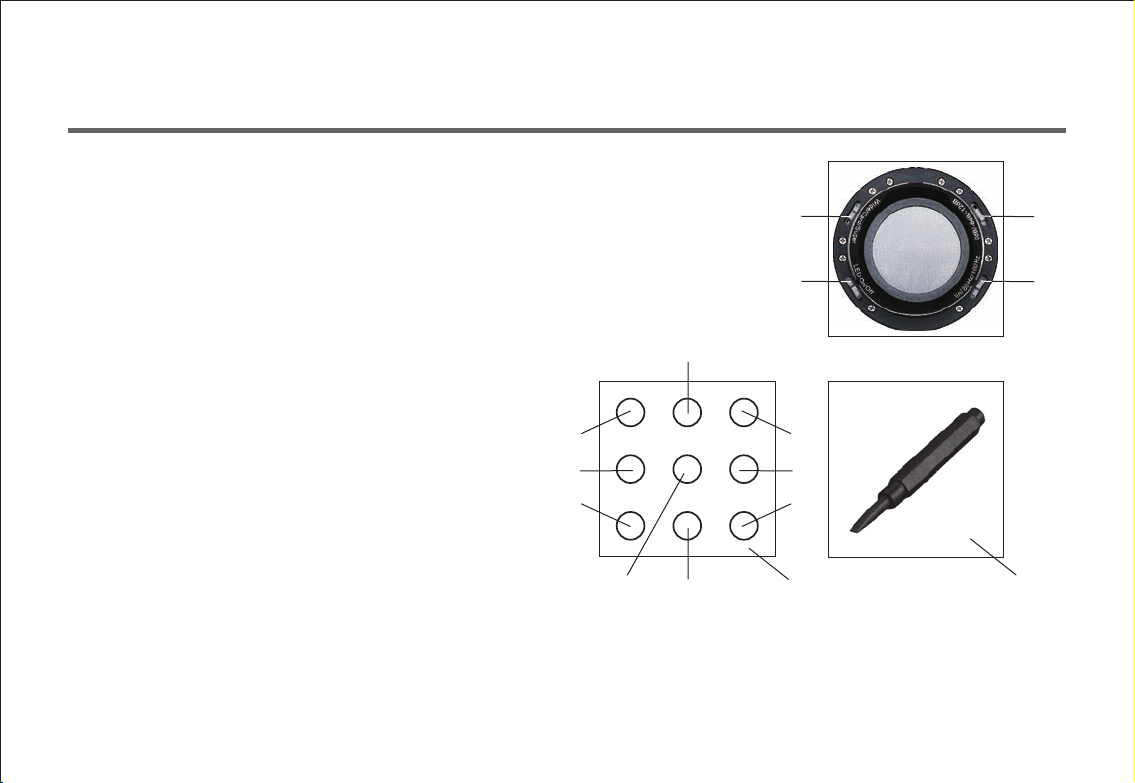

User-interface
① LED Display
② Polar pattern slide switch
LED Display ①
■
A1: wide cardioid polar pattern
■
A2: cardioid polar pattern
■
A3: supercardioid polar pattern
Setting th e polar pattern
■
Three different directivity ch aracteristics – wide cardioid, cardioid,
superca rdioid – can be selected by adjusting the polar pattern slide
switch .
②
Setting an attenuation level
■
Attenuation levels can be selected by adjusting the attenuation
slide switch ③. Attenuation levels are: off, -6 dB and -12 dB.
Attenuation is used in extremely high SPL environments in order
to prevent clipping of the microphone, mixer and other audio
equipment.
Setting an high-pa ss filter
■
A high-pass filter can be selected by adjusting the high-pass
④
filter slide switch . Settings are: off, 12 dB / octave at 80 Hz
and 12 dB / octave at 160 Hz. High-pass filters eliminate
low-frequency sounds and balance the proximity effect.
③ Attenuation slide switch
④ High-pass filter slide switch
■
B1: no high-pass filter active
■
B2: 12 dB / octave at 80 Hz
■
B3: 12 dB / octave at 160 Hz
Using the mic
⑤ LED slide switch
⑥ Switch tool
■
C1: no attenuation active
■
C2: -6 dB attenuation
■
C3: -12 dB attenuation
A2
A1
B1
C1
B2
C2
Turn the LED display on or off
■
The LED display ca n be act ivated and deactivated by setting the
LED slide switch .
⑤
②
⑤
A3
B3
C3
①
③
④
⑥
05
Page 6
MTP 940 CM
Connecting and Disconnecting the Microphone Cable
■
Before establishing connection, make sure that the microphone and the component
(e.g. amplifier) are switched off.
■
Lower the volume of the component (e.g. amplifier) before connecting the microphone.
■
Insert the connector into the microphone socket. Align the key on the connector with
the groove in the microphone, and then push the connector into the microphone until
it clicks.
■
To disconnect the cable from the microphone, pull the connector away from the
microphone while depressing the latch lock.
How to Use
■
Set the switch to ON when using the microphone, set it to OFF when it is not in use (only
applicable if your microphone has an ON/OFF switch).
■
When using the microphone, do not cover any part of the grille with your hand to ensure
best sound quality and accurate directivity characteristic.
Using the mic
06
Page 7
MTP 940 CM
Using the mic / Tech data

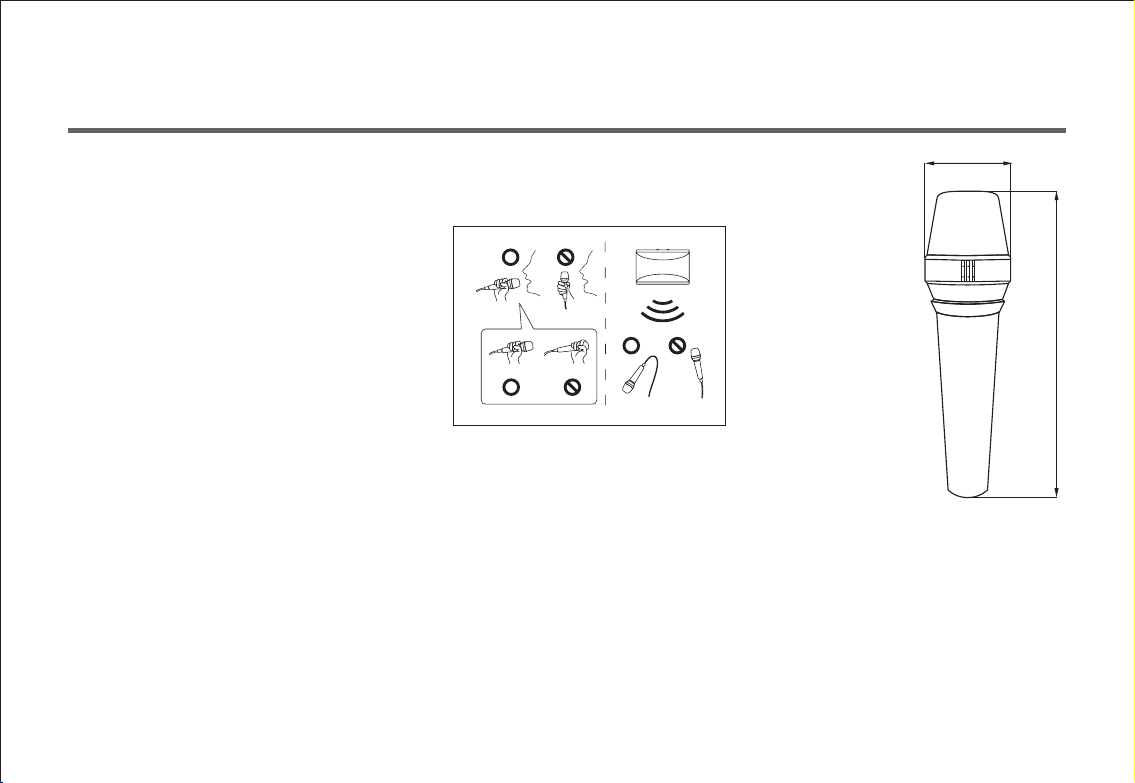

Hints
■
In order to prevent feedback (howling):
.
1 Lower the volume.
.
2 Place the microphone so that it is not pointed
to the speaker and that there is a sufficient
distance between the microphone and the
speaker.
.
3 Do not cover the lower part of the grille with
your hand.
■
Positioning the microphone close to the
sound source causes the so-called proximity
effect (a boost in the low frequency response). This phenomenon can be used to create a
richer and warmer bass sound.
Dimensions
51
183
MTP 940 CM
06
Page 8
MTP 940 CM
Tech graph
wide cardioid
Tech graph
5 dB / unit
dB ref. 1 V / Pa
cardioid
super-cardioid
125Hz
250Hz
500Hz
1kHz
2kHz
4kHz
8kHz
16kHz
3 dB / unit
dB ref. 1 V / Pa
125Hz
250Hz
500Hz
1kHz
2kHz
4kHz
8kHz
16kHz
5 dB / unit
dB ref. 1 V / Pa
125Hz
250Hz
500Hz
1kHz
2kHz
4kHz
8kHz
16kHz
07
Page 9
MTP 940 CM
Tech data
Tech data
■
Acoustical operating principle:
■
Transducer Ø:
■
Directional pattern:
■
Frequency range:
■
Sensitivity:
■
Signal / noise ratio:
■
Equivalent noise level:
■
Dynamic range of mic. amp.:
■
Max. SPL for 0,5 % THD:
Pressure gradient transducer,
externally polarized
25,4 mm
1 inch
wide cardioid
cardioid
super-cardioid
20 to 20.000 Hz
10 mV / Pa (-40 dBV), cardioid
85 dB-A
9 dB-A, cardioid (IEC 61672-1)
135 dB-A
144 dB, 0 dB pre-attenuation
150 dB, 6 dB pre-attenuation
156 dB, 12 dB pre-attenuation
■
Pre- attenuation pad:
■
Bass cut filter slope:
■
Rated impedance:
■
Rated load impedance:
■
Supply voltage:
■
Current consumption:
■
Connector:
■
Dimensions:
■
Net weight:
6 dB, 12 dB, switchable
12 dB / octave at 80 Hz
12 dB / octave at 160 Hz
< 150 ohms
> 1.000 ohms
48 V +/- 4 V (IEC 61938)
5,5 mA (IEC 61938)
Gold plated 3-pin XLR
51 dia. x 183 mm
2 dia. x 7,2 inch
332 g
11,71 oz
08
Page 10
MTP 940 CM

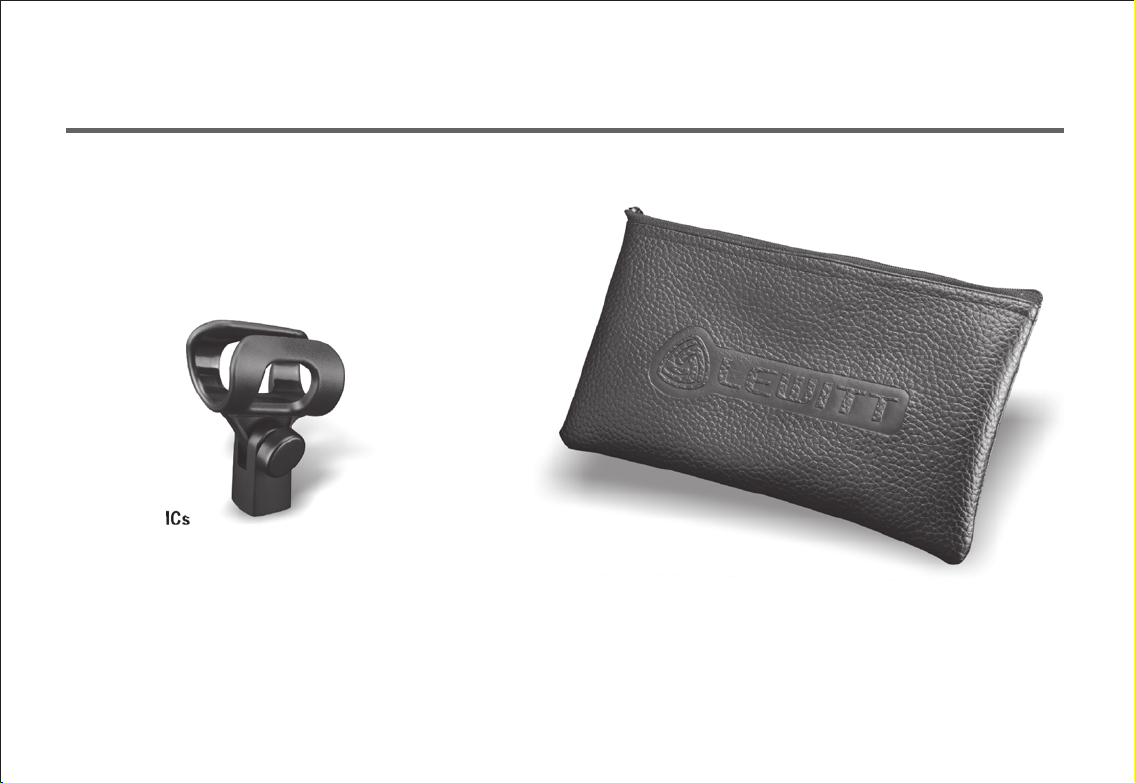

Accessories
Accessories
MTP 40 MCs
DTP 40 Lb
09
Page 11
MTP 940 CM
Cautions
Cautions
■
The capsule is a sensitive, high precision component. Make sure you do not drop it from high places and avoid strong mechanical stress and force.
■
To ensure high sensitivity and best sound reproduction of the microphone, avoid exposing it to moisture, dust or extreme temperatures.
■
Keep this product out of the reach of children.
■
Do not use force on the switch or cable of the microphone.
■
When disconnecting the microphone cable, grasp the connector and do not pull the cable.
■
Since the microphone consists of precise parts, do not attempt to modify or fix it. Contact qualified service personnel in case any service
is needed. Do not disassemble or modify the microphone for any reasons as this will void users warranty.
■
The casing of the microphone can be cleaned easily using a wet cloth, never use alcohol or another solvent for cleaning.
If necessary the foam wind stopper can be washed with soap water. Please wait till it is dry before using it again.
■
Also please refer to the owner’s manual of the component to be connected to the microphone.
10
Page 12
MTP 940 CM
Warranty
Warranty
All products manufactured by LEWITT GmbH feature a limited two-year warranty. This two-year warranty is specific to the date of purchase as
shown on your purchase receipt.
LEWITT GmbH shall satisfy the warranty obligations by remedying any material or manufacturing faults free of charge at LEWITT’s discretion
either by repair or by exchanging individual parts or the entire appliance. Any defective parts removed from a product during the course of a
warranty claim shall become the property of LEWITT GmbH.
While under warranty period, defective products may be returned to the authorized LEWITT dealer together with original proof of purchase. To
avoid any damages in transit, please use the original packaging if available. Please do not send your product to LEWITT GmbH directly as it will
not be serviced. Freight charges have to be covered by the owner of the product.
For further information please visit www.lewitt-audio.com or check your warranty card.
11
Page 13
MTP 940 CM
Regulatory information
LEWIT T GmbH declares under its sole resp onsibility that M
complies w ith the European directive 2004/108 /EC. The pro duct has b een
tested according to harmon ized Europe an standards:
EN 55013:2 001+A1:200 3+A2:2006
EN 55020:2 007
EN 61000-3 -2:2006
EN 61000-3 -3:1995+A1 :2001+A2:2 005
Product testing wa s carried out by TIMCO Engineer ing Inc., notified body
number 1177 .
LEWIT T GmbH hereby dec lares unde r its sole res ponsibilit y that MTP 940 CM
has been tested and conforms to the fol lowing FCC and ANS I standards :
FCC Part 15:2 008 Secti on 15.109
ANSI C63.4:2003
Product testing wa s carried out by SE M.Test Compliance Se rvice Co. , Ltd.
TP 940 CM
WEEE note: Ele ctronic was te has to be colle cted separately. Pl ease brin g
this device to a local recycling center at t he end o f its life tim e.
Manufacturers signature:
Date: 25th July 2013 DI Roman Persch on
Place: Vien na, AUSTRIA CEO – Le witt GmbH
Declaration of conform ity can b e downloa ded at www.lewi tt-audi o.com or
obtain ed from in fo@lewitt-audi o.com.
