MTP 840 DM
Page 2
MTP 840 DM
Thank you that you have opted for a LEWITT product. In this operating manual you will learn more about your LEWITT microphone, its handling
and its proper usage.
Music professionals know that it’s often the smallest details that make all the difference in vocal and instrumental recordings.
With our MTP series, we aim to exceed artists’ and audio engineers’ expectations of reproduction accuracy and isolation of the main sound
source. The new flagships among LEWITT's performance microphones - the MTP 840 DM and the 940 CM are true milestones of audio
technology.
All MTP microphones are professional-quality handheld dynamic and condenser performance microphones have been developed specifically
for the authentic, crystal-clear reproduction of vocals and are also well-suited for instrumental applications.
Customized frequency responses, a rugged construction, high gain before feedback and extremely low handling noise make all models of the
MTP series the perfect fit for any application, any performance and any setting.
LEWITT wishes you a lot of fun and success with this product!
Introduction
02
Page 3
MTP 840 DM
With the dynamic performance microphone MTP 840 DM, LEWITT puts true studio performance onstage. Universally
usable thanks to switchable sensitivity and a multi-step high-pass filter, infinitely durable and optimally equipped for
punishing touring conditions without compromising on sound – this is what the MTP 840 DM stands for.
Excellent transient response, refined electronics and superior capsule design make the MTP 840 DM a unique tool for
onstage use. Innovative circuitry design and the highest-quality components make for exceptionally low self-noise and a
maximum of dynamic range when in active mode; the frequency curve, which is specially tailored for vocal recordings,
provides the ultimate in sound quality.
Numerous useful features make the MTP 840 DM incomparably versatile onstage and in the studio. A three-step highpass filter directly influences the proximity effect, allowing adaptation of the mic to an individual artist’s requirements.
The built-in three-position switchable amplifier, is specially adapted to the MTP 840’s components, allowing lossless
recording of even far-off sources. The LEDs on the MTP 840 DM, which can be turned off, make checking the mic’s
numerous settings a direct and easy matter even in the dark.
The new dynamic flagship MTP 840 DM transports the artist’s voice in a natural and powerful way, lending his or her
voice the necessary presence without falsifying its individual character. Consistent directionality across the entire
frequency spectrum makes for maximum protection against feedback, with the flexibly suspended capsule reducing
structure-borne noise to a minimum.
The product
03
Page 4
MTP 840 DM
Features / Top applications
Features
■
Proprietary dynamic capsule tuned specifically for demanding vocal applications, with brightened midrange and extended low end
■
Uniform supercardioid pickup pattern for maximum isolation of the main sound source
■
Optional active mode provides superior dynamic range of 121 dB-A and extremely low self-noise of 19 dB-A for ear-catching realism
and distortion-free sonic depth
■
Optional 3-position switchable amplification (0 dB, 6 dB, and 12 dB) for unrivalled signal quality in demanding environments
■
3-position switchable high-pass filter for direct adjustment of proximity effect according to application and artist
■
Illuminated indication of microphone settings for quick and easy handling even in dark environments
■
Recessed slide switches prevent unintended change of settings
■
Effective integrated acoustic pop and windshield offers excellent protection without compromising high-frequency clarity
■
Rock-solid full metal, die-cast body for rough daily touring routine
■
Hardened steel mesh grille to prevent wear and abuse
■
Minimally affected by varying load impedance
■
Corrosion-resistant gold-plated 3-pin XLR output connector
■
Comes in a cardboard box including MTP 40 MCs shock mount and DTP 40 Lb artificial leather bag
Top applications
■
Lead and background vocals
■
Demanding live and studio applications
04
Page 5
MTP 840 DM
User-interface
① LED Display
② Operating mode slide switch
③ Gain slide switch
④ High-pass filter slide switch
⑤ Switch tool
Using the mic
④
LED Display ①
■
A1: no high-pass filter active
■
A2: 12 dB / octave at 150 Hz
■
A3: 12 dB / octave at 250 Hz
■
B
1: passive mode, no gain
■
B
2: active mode, +6 dB gain
■
B
3: active mode, +12 dB gain
Setting th e operation mo de
Various operating modes can be selected by adjusting the operating
mode slide switch ②. Operating modes are:
■
P48: passive mode, no phantom power
■
P48: active mode, 48V phantom power available,
LED Display is off
■
P48 : active mode, 48V phantom power available,
LED Display is on
Setting a gain level
■
Gain levels can be selected by adjusting the gain switch ③.
Gain levels are: 0 dB (passive mode), 6 dB and 12 dB.
③
A2
A1
A3
B3B1
B2
①
Setting an high-pa ss filter
■
A high-pass filter can be selected by adjusting the high-pass
filter slide switch ④. Settings are: off, 12 dB / octave at 150 Hz
and 12 dB / octave at 250 Hz. High-pass filters eliminate
low-frequency sounds and balance the proximity effect.
②
⑤
05
Page 6
MTP 840 DM

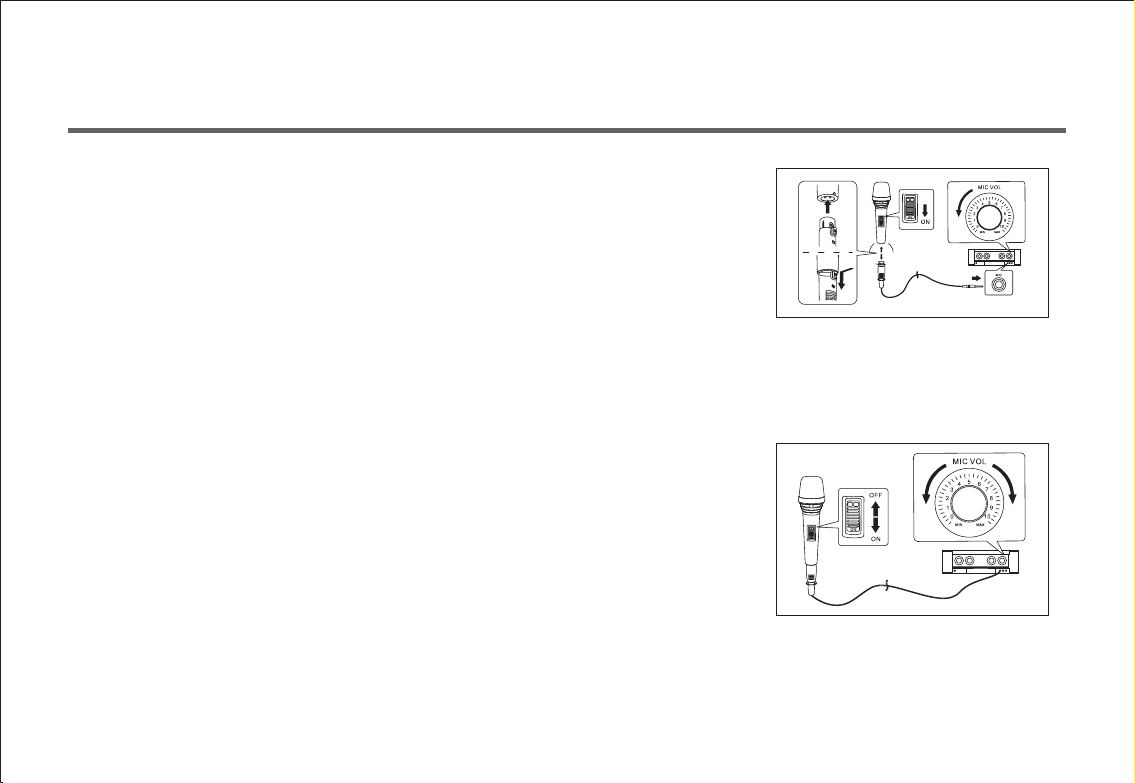

Connecting and Disconnecting the Microphone Cable
■
Before establishing connection, make sure that the microphone and the component
(e.g. amplifier) are switched off.
■
Lower the volume of the component (e.g. amplifier) before connecting the microphone.
■
Insert the connector into the microphone socket. Align the key on the connector with
the groove in the microphone, and then push the connector into the microphone until
it clicks.
■
To disconnect the cable from the microphone, pull the connector away from the
microphone while depressing the latch lock.
How to Use
■
Set the switch to ON when using the microphone, set it to OFF when it is not in use (only
applicable if your microphone has an ON/OFF switch).
■
When using the microphone, do not cover any part of the grille with your hand to ensure
best sound quality and accurate directivity characteristic.
Using the mic
06
Page 7
MTP 840 DM
Using the mic / Tech data

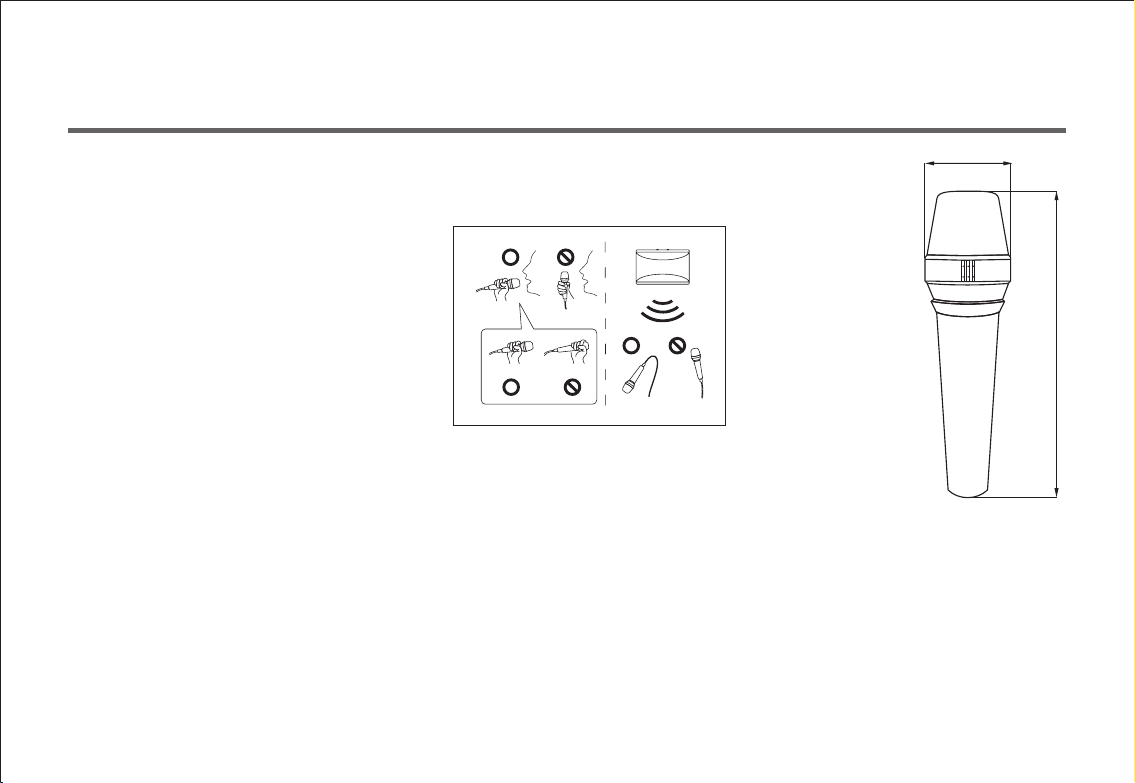

Hints
■
In order to prevent feedback (howling):
1.
Lower the volume.
.
2 Place the microphone so that it is not pointed
to the speaker and that there is a sufficient
distance between the microphone and the
speaker.
.
3 Do not cover the lower part of the grille with
your hand.
■
Positioning the microphone close to the
sound source causes the so-called proximity
effect (a boost in the low frequency response). This phenomenon can be used to create a
richer and warmer bass sound.
Dimensions
51
183
MTP 840 DM
07
Page 8
MTP 840 DM

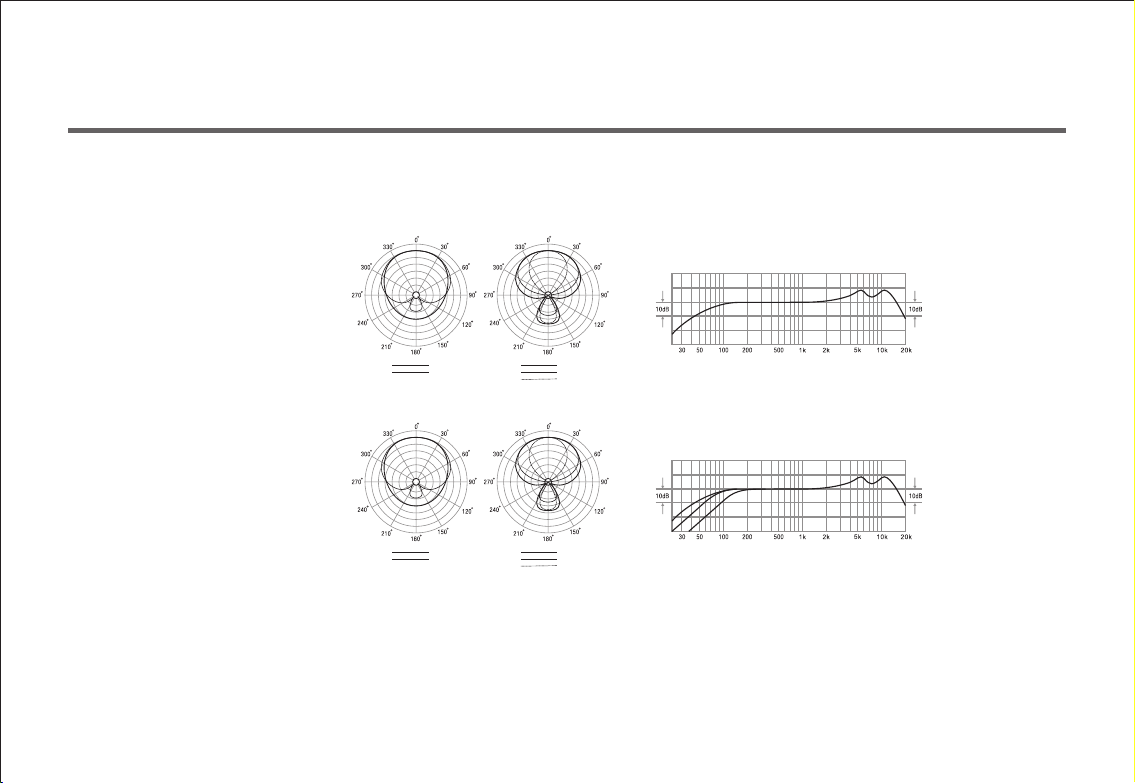

Tech graphTech graph
Passive mode
Tech graph
3 / dB uni t
dB ref. 1 V / Pa
Active mode
125Hz
250Hz
3 / dB uni t
125Hz
250Hz
500Hz
8kHz
16kHz
dB ref. 1 V / Pa
500Hz
8kHz
16kHz
08
Page 9
MTP 840 DM
Tech data
■
Acoustical operating principle:
■
Directional pattern:
■
Frequency range:
■
Sensitivity:
■
Signal / noise ratio:
■
Equivalent noise level:
■
Dynamic range, passive mode:
■
Dynamic range, active mode:
■
Max. SPL for 0,5 % THD,
active mode:
Dynamic, moving coil
Super-cardioid
40 to 18.000 Hz
3,5 mV / Pa (-49 dBV), passive mode
7 mV / Pa (-43 dBV), active mode
14 mV / Pa (-37 dBV), active mode
75 dB-A
19 dB-A, Super-cardioid (IEC 61672-1)
135 dB-A
121 dB-A, 0 dB gain
115 dB-A, 6 dB gain
109 dB-A, 12 dB gain
140 dB, 0 dB gain
134 dB, 6 dB gain
128 dB, 12 dB gain
■
Gain settings, active mode:
■
Bass cut filter slope:
■
Rated impedance:
■
Rated load impedance:
■
Supply voltage:
■
Current consumption:
■
Connector:
■
Dimensions:
■
Net weight:
Tech data
0 dB, 6 dB, 12 dB, switchable
12 dB / octave at 150 Hz
12 dB / octave at 250 Hz
< 600 ohms
> 1.000 ohms
48 V +/- 4 V (IEC 61938)
5,5 mA (IEC 61938)
Gold plated 3-pin XLR
51 dia. x 183 mm
2 dia. x 7,2 inch
336 g
11.85 oz
09
Page 10
MTP 840 DM

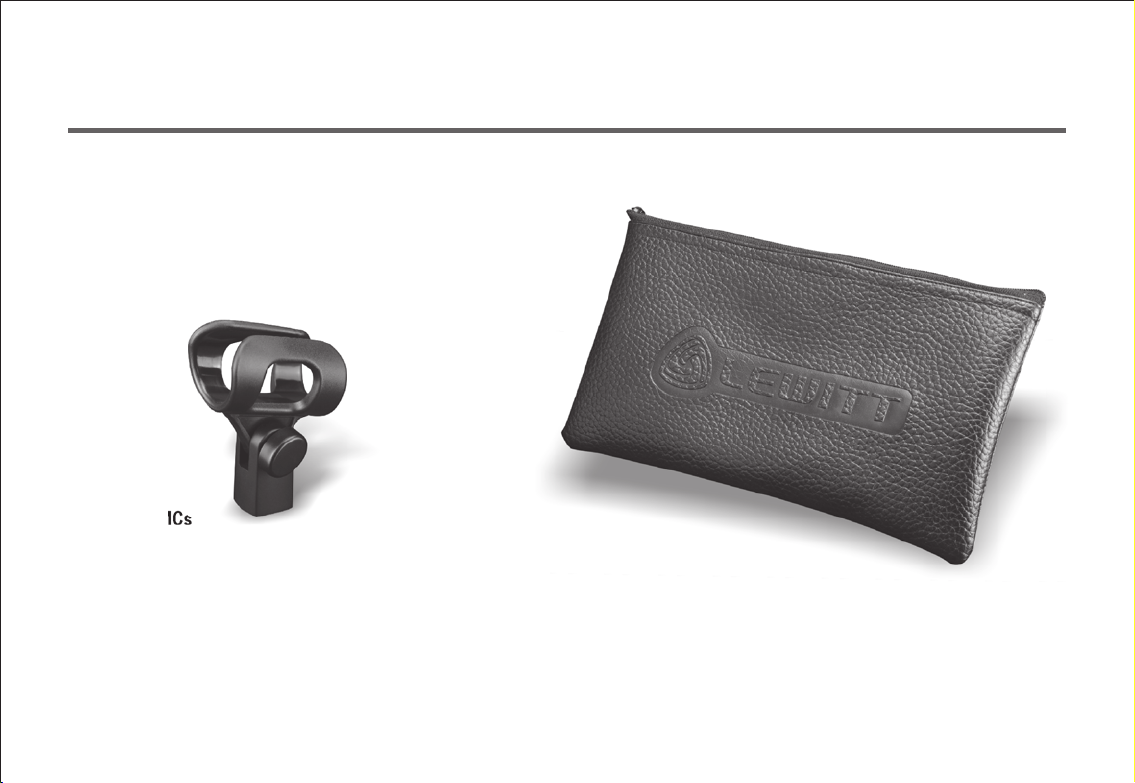

Accessories
Accessories
MTP 40 MCs
DTP 40 Lb
10
Page 11
MTP 840 DM
Cautions
Cautions
■
The capsule is a sensitive, high precision component. Make sure you do not drop it from high places and avoid strong mechanical stress and force.
■
To ensure high sensitivity and best sound reproduction of the microphone, avoid exposing it to moisture, dust or extreme temperatures.
■
Keep this product out of the reach of children.
■
Do not use force on the switch or cable of the microphone.
■
When disconnecting the microphone cable, grasp the connector and do not pull the cable.
■
Since the microphone consists of precise parts, do not attempt to modify or fix it. Contact qualified service personnel in case any service
is needed. Do not disassemble or modify the microphone for any reasons as this will void users warranty.
■
The casing of the microphone can be cleaned easily using a wet cloth, never use alcohol or another solvent for cleaning.
If necessary the foam wind stopper can be washed with soap water. Please wait till it is dry before using it again.
■
Also please refer to the owner’s manual of the component to be connected to the microphone.
11
Page 12
MTP 840 DM
Warranty
Warranty
All products manufactured by LEWITT GmbH feature a limited two-year warranty. This two-year warranty is specific to the date of purchase as
shown on your purchase receipt.
LEWITT GmbH shall satisfy the warranty obligations by remedying any material or manufacturing faults free of charge at LEWITT’s discretion
either by repair or by exchanging individual parts or the entire appliance. Any defective parts removed from a product during the course of a
warranty claim shall become the property of LEWITT GmbH.
While under warranty period, defective products may be returned to the authorized LEWITT dealer together with original proof of purchase. To
avoid any damages in transit, please use the original packaging if available. Please do not send your product to LEWITT GmbH directly as it will
not be serviced. Freight charges have to be covered by the owner of the product.
For further information please visit www.lewitt-audio.com or check your warranty card.
12
Page 13
MTP 840 DM
Regulatory information
LEWIT T GmbH declares under its sole responsibi lity that
complies w ith the European directive 2004/108 /EC. The pro duct has b een
tested according to harmon ized Europe an standards:
EN 55013:2 001+A1:200 3+A2:2006
EN 55020:2 007
EN 61000-3 -2:2006
EN 61000-3 -3:1995+A1 :2001+A2:2 005
Product testing wa s carried out by TIMCO Engineer ing Inc., notified body
number 1177 .
LEWIT T GmbH hereby declares under its sole respo nsibility that MTP 840 D M
has been tested and conforms to the fol lowing FCC and ANS I standards :
FCC Part 15:2 008 Secti on 15.109
ANSI C63.4:2003
Product testing wa s carried out by SE M.Test Comp liance Service Co., Ltd .
MTP 840 D M
WEEE note: Ele ctronic was te has to be colle cted separately. Pl ease brin g
this device to a local recycling center at t he end o f its life time .
Manufacturers signature:
Date: 25th July 2013 DI Roman Persch on
Place: Vien na, AUSTRIA CEO – Le witt GmbH
Declaration of conform ity can b e downloa ded at www.lewi tt-audio.com or
obtain ed from in fo@lewitt-audi o.com.
