Levolor P1FD-L, P1FD-R User Manual

How to Measure French Door with Cutout

Outside Mount — 4-sided L Frame on Top or Around the Molding

Measure Width (A)

If If no molding present — Measure outside of the glass in three places

(top, middle, and bottom) and record the measurements to the nearest 1⁄8 in.

Mounting on top of molding or around molding — Measure the outside width, including
the molding, in three places (top, middle, and bottom) and record the measurements
to the nearest 1⁄8 in. If measuring on top of molding, the molding must be at least 1 3⁄8 in.
wide. If measuring around the molding, please make note of that, and the factory will make
necessary adjustments.

B

Measure Height (B)

If no molding present — Measure outside of the glass in three places

(top, middle, and bottom) and record the measurements to the nearest 1⁄8 in.

Mounting on top of molding or around molding — Measure the outside width, including
the molding, in three places (top, middle, and bottom) and record the measurements
to the nearest 1⁄8 in. If measuring on top of molding, the molding must be at least 1 3⁄8 in.
wide. If measuring around the molding, please make note of that, and the factory will make
necessary adjustments.

Cut Out Height (C or D)

Measure from the bottom of the molding to the middle of the desired cutout location.

The cutout can be centered on the door handle (“C”) or centered between the door handle and the deadbolt (“D”).

Add 1 3⁄8 in for the L frame at the bottom of the shutter.

An optional divider rail may be ordered, and will be centered on the location of the cutout.

The divider rail will be positioned on center of the cutout.

NOTE: Shutter height may be

ordered longer than molding
to molding measurements.

This allows the shutter to be
moved up or down in order to
center the cutout as needed.

C

A

D

Frame Extensions

Depending on the louver size, tilt mechanism and whether or not there is molding around the glass that protrudes
into the room, we will add the necessary frame extensions.

Choose Your French Door Configuration

French Door with Cutout (No divider rail)

2-1⁄2" Louver 3-1⁄2" Louver 4-1⁄2" Louver

Minimum Width 18" 18" 18"

Maximum Width 36" 36" 36"

Minimum Height 36" 38" 40"

Maximum Height 96" 96" 96"

Maximum Square ft. 15 sq ft 15 sq ft 15 sq ft

3

Minimum Cutout Height 17

• 4-sided L frame only.

• Cutout size is always 15 inches.

• Minimum cutout height location is measured from bottom of shutter frame.

Phone [phone]
Fax [phone]

⁄4" 18 3⁄4" 19 3⁄4"

1

LEVOLOR.com

P1FD-L P1FD-R

Left Right

Cutout

or

Stainless Steel

Color Coordinated

or

No

Yes

DIVIDER RAIL HINGES

CUSTOMER

ADDRESS

FRENCH DOOR ORDER FORM

PHONE NUMBER

1110 12 13 14 15 16

# OF

C or D

CUTOUT HEIGHT

CUTOUT

FRENCH DOOR

DEPTH

MOLDING

MOLDING

PROTRUDING

SIDES

FRAME

TYPE

FRAME

Tilt=Tilt Bar

COLOR CONTROL TYPE

Distance

Yes

around glass, as

Depth of molding

or

Yes

4

L Frame

Closure

GS=Gear

Ivory

White

See back page for instructions.

Up in inches

Remote Type Remote Quantity

applicable

No

System

M=Motorization

Vanilla

1 2 3 4 5 6 7 8 9

Phone [phone]
Fax [phone]

SIZE

LOUVER

LINE ROOM TYPE HINGE STYLE* WIDTH X HEIGHT

⁄2-in.

⁄2-in.

⁄2-in.

1

1

1

2-

3-

4-

X L Frame 4 Yes

Outside Mount =

Largest Opening Size

hinges

(L) Left Hinge

opposite of

*Note: Cutout

will be located

(R) Right Hinge

PIDF

X L Frame 4 Yes

X L Frame 4 Yes

X L Frame 4 Yes

REMOTE TYPE & QUANTITY (Motorized Tilt only)

Specify remote type and quantity or 0 (zero) if not needed

Remote (type and quantity) on this form will be in addition to

17

any remote quantity ordered with any other shutter order.

Special Instructions

18

D

C

Kitchen

Example:

1

2

3

4

B

NOTE: Submit French Door Form and Shutter Order Form together.

19

2

LEVOLOR.com

10

NUMBER OF FRAME SIDES

11

4 sided is the only option for cutout.

PROTRUDING MOLDING

Mark YES, if there is molding around the glass that

SHUTTER ORDER FORM TOGETHER

12

impacts the depth clearance of the louvers.

MOLDING DEPTH

Measure the depth of molding around glass,

13

as applicable.

FRENCH DOOR CUTOUT

All French Doors include a cutout.

14

CUTOUT HEIGHT

Enter the distance up in inches from bottom of frame

to center of where the cutout will be located.

⁄8 in.

1

15

DIVIDER RAIL

Select YES, to include a divider rail (divider rails will

⁄8 in.

1

be centered to the cutout).

16

HINGES

⁄2 in.

1

⁄2 in., and 4

1

⁄2 in., 3

1

Available in color coordinating or stainless steel.

Stainless steel is recommended for high moisture

17

environments.

REMOTE TYPE & QUANTITY (Motorized Tilt Only)

Specify type and quantity (3-channel or 6-channel) or

0 (zero) if not needed.

Remote quantity on this form will be in addition to any

18

remote quantity ordered with any other shutter order.

SPECIAL INSTRUCTIONS

Enter the special instructions that need to be added

19

specific to the order.

SUBMIT FRENCH DOOR FORM AND

GUIDELINES FOR FILLING OUT THE FRENCH DOOR CUTOUT ORDER FORM

1

LINE

The line number is shown on all product labels to

2

make installation easier.

ROOM

Room location where product is being installed.

Phone [phone]
Fax [phone]

3

FRENCH DOOR TYPE

4

French Doors can be specified as an “FD” (P1FD).

HINGE STYLE

(Hinge left-cutout right or Hinge right-cutout left).

5

WIDTH & HEIGHT

Measure the width in inches to the

36 in. wide maximum panel width.

Measure the height in inches to the

Select the desired hinge configuration

6

120 in maximum panel height.

LOUVER SIZE

3 sizes are offered 2

7

COLOR

Choose between white, ivory, and vanilla.

8

CONTROL TYPE

Select between Tilt Bar, Gear Closure System

and Motorized Tilt.

NOTE: Motorized Tilt can be ordered with or

without a tilt bar for aesthetics. If tilt bar is

desired please note in special instructions. If

not, the motorized default option is no tilt bar.

9

FRAME TYPE

All French Doors come with a standard L frame.

3

LEVOLOR.com

How to Measure By-Pass

•

Inside mount must have a minimum jamb depth of 2 in.

•

Outside mount standard by-pass will project 6 5⁄8 in from the wall.

Inside Mount

•

Measure window width and height in three places (top, middle,
and bottom) and record the smallest measurement to the
nearest 1⁄8 in.

• Check for window squareness by measuring both diagonals
from corner to corner. If the difference between the diagonals
is more than ½ in., an outside mount is recommended

•

Do not make any deductions, allowances or additions.

.

Outside Mount

If Mounting On Wall without trim, take width and height measurements

outside the window opening in three places (top, middle, and bottom),
measurements. Ensure that you have at least 2 1⁄4 in of clearance above
and on each side of your window opening.

If Mounting On Trim, take width and height measurements from the
outside edges of your trim in three places (top, middle, and bottom), and
record the largest measurements. You will need at least 2 1⁄4 in of flat trim
for the Shutter frame to mount onto.

If Mounting Outside Trim, take width and height measurements from
the outside edges of your trim in three places (top, middle, and bottom),
and record the largest measurements.

Only If Divider Rail is Being Used

A

B

A

A

INSIDE MEASUREMENTS

SQUARENESS CHECK

BB

•

The measurement recorded is determined from the bottom of the
floor or sill to the middle of where the divider rail is to be located.

•

One divider rail is required for panels over 66 in with a maximum
50 in between the middle of the divider rail and either top or

bottom rail.

•

Two divider rails are required for panels over 90 inches in height

with a maximum 50 in between any two rails.

Choice of Panel Configuration

Determine from pages 5-7.

Order Valance

Choose between the 3 1⁄2 in standard valance or 5 in crown valance and
select the appropriate valance returns at time of order.

3 1⁄2 in By-Pass Standard Valance

5 in By-Pass Crown Valance

Phone [phone]
Fax [phone]

4

LEVOLOR.com

Choose Your By-Pass Panel Configurations

P2BP-L
P2BP-R

Both panels will operate allowing
access to the window or door.

Minimum Width: 24''
Maximum Width: 72'
Minimum Height: 20''
Maximum Height: 120''

P3BP-LCR

Center panel opens
over left or right panel.

Minimum Width: 36''
Maximum Width: 108''
Minimum Height: 20''
Maximum Height: 120''

Phone [phone]
Fax [phone]

5

LEVOLOR.com

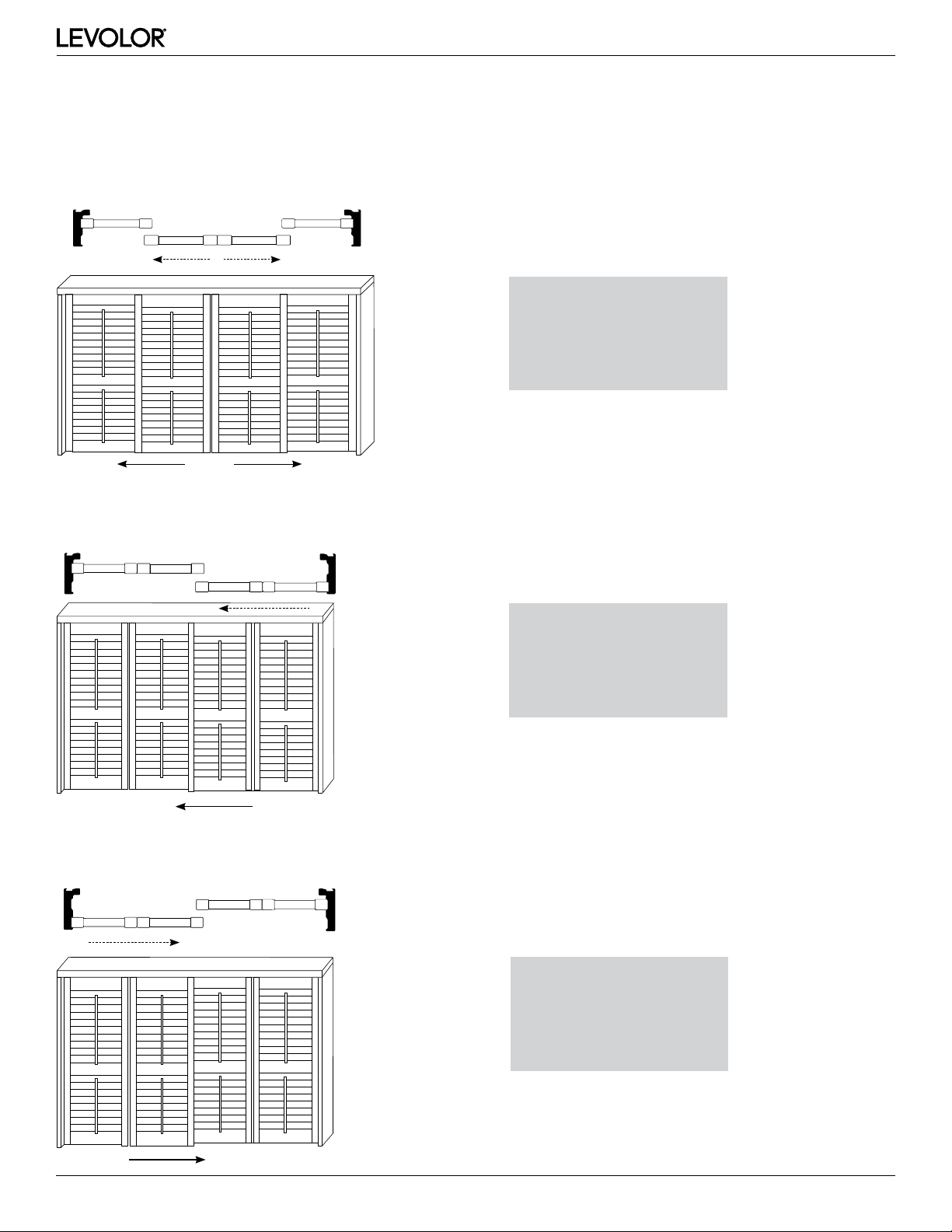

Choose Your By-Pass Panel Configurations

P4BP-LCCR

Left center panel opens over left panel,
Right center panel opens over right panel.

Minimum Width: 48''
Maximum Width: 144''
Minimum Height: 20''
Maximum Height: 120''

P4BP-2L2R

Two right panels open over two left panels.

P4BP-2R2L

Two left panels open over two right panels.

Minimum Width: 48''
Maximum Width: 144''
Minimum Height: 20''
Maximum Height: 120''

Minimum Width: 48''
Maximum Width: 144''
Minimum Height: 20''
Maximum Height: 120''

Phone [phone]
Fax [phone]

6

LEVOLOR.com

Choose Your By-Pass Panel Configurations

P6BP-2L2C2R

Two center panels, open over either two left
or two right panels.

Minimum Width: 72''
Maximum Width: 180"
Minimum Height: 20''
Maximum Height: 120''

P6BP-2LCC2R

Two center panels, not joined, open either
two left or two right panels.

Minimum Width: 72''
Maximum Width: 180''
Minimum Height: 20''
Maximum Height: 120''

Phone [phone]
Fax [phone]

7

LEVOLOR.com

RETURNS

Standard

Square Cut

*Louvers cannot be opened when stacked

CUSTOMER

ADDRESS

BY-PASS TRACK SYSTEM ORDER FORM

VALANCE

PHONE NUMBER

1110 12 13 14

FRAME

# OF

CONTROL

LOUVER

TYPE

DIVIDER RAIL

0

EXTENSIONS

SIDES

FRAME

MOUNT

TYPE

Tilt=Tilt Bar

COLOR

SIZE

5-in Crown

⁄2-in Standard

1

3-

Distance

Up in Inches

or

Yes

1

3

Mount

IM=Inside

Closure

GS=Gear

Ivory

White

⁄2-in.

⁄2-in.

1

1

2-

3-

2

OM=Outside

System

1

None

No

Mount

Vanilla

⁄2-in.
4-

See back page for instructions.

3

M=Motorization

Remote Type Remote Quantity

Phone [phone]
Fax [phone]

X 3

Inside Mount =

Outside Mount =

Largest Opening Size

Smallest Opening Size

L/R

LCR

2R2L

2L2R

LCCR

2L/2R

P2BP

1 2 3 4 5 6 7 8 9

LINE ROOM TYPE PANEL STYLE WIDTH X HEIGHT

P3BP

Example:

P4BP

Kitchen

2L2C2R

2LCC2R

P6BP

1 X 3

2 X 3

3

X 3

4

X 3

5

X 3

REMOTE TYPE & QUANTITY (Motorized Tilt only)

Specify remote type and quantity or 0 (zero) if not needed

Remote (type and quantity) on this form will be in addition to

any remote quantity ordered with any other shutter order.

6

15

SPECIAL INSTRUCTIONS

16

8

LEVOLOR.com

GUIDELINES FOR FILLING OUT THE BY-PASS TRACK SYSTEM ORDER FORM

⁄4 in. Enter the

3

10

NUMBER OF FRAME SIDES

1

LINE

11

No selection needed.

FRAME EXTENSIONS

The line number is shown on all product labels

to make installation easier.

number of frame extensions required, to gain the

Extends the frame into the room for an outside mount

2

ROOM

proper amount of depth clearance based on the louver

only. The track frame extension is

3

Room location where product is being installed.

TYPE

⁄2 in. Standard Valance is the default for By-pass

1

⁄8 in.

Measure width and height to the nearest

1

13

VALANCE TYPE

3

6

LOUVER SIZE

14

track systems. A 5-in Crown Valance is optional.

VALANCE RETURN

Valance returns can be “Square” cut if the frame and

⁄2 in.

1

⁄2 in., and 4

1

⁄2 in., 3

1

7

COLOR

3 sizes are offered 2

Choose between white, ivory, and vanilla.

valance are mounted inside the opening. Standard

returns for outside mounts are cut so they are in line

8

CONTROL TYPE

15

with the back of the frame.

REMOTE TYPE & QUANTITY (Motorized Tilt Only)

Specify type and quantity (3-Channel or 6-Channel)

or 0 (zero) if not needed

Remote quantity on this form will be in addition to any

Select between Tilt Bar, Gear Closure System,

and Motorized Tilt.

NOTE: Motorized Tilt can be ordered with or

without a tilt bar for aesthetics. If tilt bar is

desired please note in special instructions.

16

remote quantity ordered with any other shutter order.

SPECIAL INSTRUCTIONS

Enter the special instructions that need to be added

specific to the order.

9

If not, the motorized default option is no tilt bar.

MOUNT

IM indicates an inside mount that can be within

the opening, fully or partially recessed.

12

size and tilt option. 0-3 extensions are available.

DIVIDER RAIL

A divider rail adds support to the panel to prevent

sagging. A divider rail is required on any shutter over

66-inches in height. A second divider rail is required

for heights 90-inches or greater.

4

Choose the applicable shutter type.

PANEL CONFIGURATION

Choose the panel configuration and copy on

5

to the order form.

WIDTH AND HEIGHT

are stacked in front of one another.

** IMPORTANT! Shutter louvers cannot open when panels

OM indicates an outside mount in which the

frame is attached to the face of the wall or trim.

Phone [phone]
Fax [phone]

9

LEVOLOR.com
