Levoit LV-PUR131S User Manual

Download

Page 1

USER MANUAL

Smart True HEPA Air Puriﬁer

Model: LV-PUR131S

Questions or Concerns?

Please contact us Mon–Fri, 9:00 am–5:00 pm PST/PDT at [email protected] or at (888) 726-8520.

Page 2

Thank you for purchasing the

SMART TRUE HEPA AIR PURIFIER BY LEVOIT.

If you have any questions or concerns, please reach out to us at [email protected]. We hope you enjoy your new air puriﬁer!

Find Us Online

Search for @LevoitLifestyle • #LevoitLove • #LevoitLifestyle on social

media for tips, special deals, giveaways, inspiration, and more.

Page 3

Table of Contents

Package Contents

Speciﬁcations

Safety Information Getting to Know Your Air Puriﬁer Controls Getting Started VeSync App Setup Using Your Puriﬁer About the Filters Care & Maintenance Troubleshooting VeSync App Troubleshooting Warranty Information Customer Support

3 3 4 5 6 7 8 9

11 14 16 17 18

1 x Smart Air Puriﬁer 1 x Activated Carbon Filter (Pre-Installed) 1 x Preliminary/True HEPA Combination Filter

(Pre-Installed)

1 x User Manual

Specifications

Power Supply AC 120V, 60Hz

Rated Power 40W

Eective Range ≤ 360 ft² / 33 m²

Operating Conditions

Noise Level 27–52dB

Clean Air Delivery Rate (CADR)

Standby Power < 0.8W

Dimensions 14.6 x 7.2 x 18.5 in /

Weight 11.49 lb / 5.21 kg

14°–104°F / -10°–40°C

135 CFM / 230 m³/h

37.1 x 18.3 x 47 cm

Note: Your air puriﬁer is compatible with the VeSync app for performing many smart home functions. For full details on using the VeSync app with your air puriﬁer, scan the QR code to see the extended digital manual.

You can also type the following link into a web browser:

www.levoit.com/lvpur131s/downloads

Page 4

SAFETY INFORMATION

To reduce the risk of ﬁre, electric shock, or other injury, follow all instructions and safety guidelines.

General Safety

• Only use your air puriﬁer as described

in this manual.

• Do not use your air puriﬁer outdoors.

• Keep your air puriﬁer away from water,

and wet or damp areas. Never place in water or liquid.

• Keep your air puriﬁer away from heat

sources.

• Do not use where combustible gases,

vapors, metallic dust, aerosol (spray) products, or fumes from industrial oil are present.

• Keep 5 ft / 1.5 m away from where

oxygen is being administered.

• Supervise children when they are near

the air puriﬁer.

• Do not place anything into any opening

on the air puriﬁer, unless directed by the manual.

• Do not sit or place heavy objects on the

air puriﬁer.

• Keep the inside of the air puriﬁer dry.

To prevent moisture buildup, avoid placing in rooms with major temperature changes or underneath air conditioners.

• Always unplug your air puriﬁer before

servicing (such as when changing

ﬁlters).

• Do not use your air puriﬁer if it is

damaged or not working correctly, or if the cord or plug is damaged. Do not try to repair it yourself. Contact Customer

Support (see page 19).

• WARNING: Do not use this air puriﬁer

with solid-state speed controls (such as a dimmer switch).

• Not for commercial use. Household use

only.

Power and Cord

• Keep air puriﬁer near the outlet it is

plugged into.

• Never place the cord near any heat

source.

• Do not cover the cord with a rug,

carpet, or other covering. Do not place the cord under furniture or appliances.

• Keep the cord out of areas where

people walk often. Place the cord where it will not be tripped over.

• Your air puriﬁer has a polarized plug

(one prong is wider than the other),

which ﬁts into a polarized outlet only

one way. This is a safety feature to reduce the risk of electric shock. If the

plug does not ﬁt, reverse the plug. If it still does not ﬁt, do not use the plug in

that outlet. Do not bypass this safety feature.

READ AND SAVE THESE

INSTRUCTIONS

Page 5

GETTING TO KNOW YOUR AIR PURIFIER

A. LED Display B. Touch-Control Panel C. Dust Sensor Lens D. Dust Sensor Cover

E. Button Vent F. Filter Indicator Reset Button G. Housing H. Safety Switch

I. Activated Carbon Filter J. Fine Preliminary Filter K. True HEPA Filter L. Back Cover

LED DISPLAY

A. On/O Indicator B. WiFi Indicator C. Check Filter Indicator D. Timer Display E. Air Quality Indicator F. Auto Mode G. Sleep Mode H. Fan Speed

Page 6

CONTROLS

On/O Button

• Turns the air puriﬁer on

or o.

• Press and hold to conﬁgure

your air puriﬁer. See extended digital manual (QR code on page 3).

Display O Button

• Turns the display o.

• Press any button (except

) to turn the display

back on.

Sleep Mode Button

• Turns Sleep Mode on or

o (see page 9).

Auto Button

• Turns Auto Mode on or o

(see page 9).

Air Quality Indicator

• Displays air quality using the automatic

sensor inside the air puriﬁer.

• The air puriﬁer may take up to 1 minute

to detect air quality.

Air Quality Indicator Chart

Color Air Quality

Bad

Moderate

Good

Very Good

Fan Speed Button

• Cycles through fan

speeds: low, medium, and high.

• The fan speed cannot be

changed during Auto or Sleep Modes.

Timer Button

• Sets or cancels a timer

(see page 9).

Page 7

GETTING STARTED

1. Open the back cover of the air puriﬁer

and remove both ﬁlters from their plastic

packaging. [Figure 1.1]

2. First, place the Activated Carbon Filter

back into the air puriﬁer. Then, place the Preliminary/True HEPA Combination Filter. Make sure the pull tabs on both

ﬁlters are facing out. [Figure 1.2]

3. Replace the back cover by lining up the

cover’s feet with the matching slots on the bottom of the housing. Make sure that the triangular piece at the bottom of the cover is touching the safety switch.

[Figure 1.3]

4. Push the cover closed.

5. Place the air puriﬁer on a hard,

ﬂat surface. Leave 15 in / 38 cm of clearance on all sides of the air puriﬁer.

[Figure 1.4]

Note: Do not remove the foam piece attached to the dust sensor cover unless instructed by Customer

Support. [Figure 1.5]

Tabs facing

outward

Figure 1.2

Safety switch

Figure 1.3

Figure 1.1

15 in /

38 cm 15 in / 38 cm

Figure 1.4

Figure 1.5

Page 8

VESYNC APP SETUP

1. To download the VeSync app, scan

the QR code or search “VeSync” in the Apple App Store® or Google Play™ Store. [Figure 2.1]

2. Open the VeSync app. If you already

have an account, tap Log In. To create a new account, tap Sign Up.

3. Follow the in-app instructions to ﬁnish

setting up your air puriﬁer. For more information, see the extended digital manual (QR code on page 3).

Note: You can use the VeSync app to connect your air puriﬁer to Amazon® Alexa™ or Google Assistant™.

Available on the

App Store

Figure 2.1

GET IT ON

Google Play

Page 9

USING YOUR PURIFIER

General Operation

1. Press to turn the air puriﬁer on/

o. The air puriﬁer fan will start

automatically at low speed.

2. Optionally, press to increase fan

speed. You can also select Auto or Sleep Mode, or set a timer.

Note:

• For best results, run the air puriﬁer

at maximum speed for 15-20 minutes before using a lower speed or Auto Mode.

• To eectively clean air, keep

windows closed while the air puriﬁer is operating.

Sleep Mode

Sleep Mode uses the lowest possible fan speed to create a quiet environment.

• Press to turn Sleep Mode on/o.

• Pressing or will also exit Sleep

Mode.

Auto Mode

Auto Mode uses the sensor inside the air

puriﬁer to adjust the fan speed automatically

based on air quality. For example, if the air quality is bad, the fan will automatically be set to high speed. See chart.

• Press to turn Auto Mode on/o.

• Pressing or will also exit Auto

Mode.

Auto Mode Chart

Color Air Quality Fan Speed

Bad High

Moderate Medium

Good Low

Very Good Sleep Mode

Memory Function

Timer

You can set a timer between 1 and 12 hours.

• Press repeatedly to choose a time

in increments of 1 hour. When you stop pressing and the timer will start.

• The air puriﬁer will automatically power o

once the timer is ﬁnished.

• To cancel a timer, press repeatedly

until the display reads “-:--” and ﬂashes 3 times.

, the display will ﬂash 3 times

When the air puriﬁer is plugged in, it will

remember its programmed settings when turned o, and will resume these settings when turned back on.

Automatic Shutoff

As a safety feature, the air puriﬁer will automatically turn o if the back cover is

removed.

Page 10

ABOUT THE FILTERS

This air puriﬁer uses a 3-stage ﬁltration system to purify air.

A. Fine Preliminary Filter

• Captures large particles such as

dust, lint, ﬁbers, hair, and pet fur.

• Maximizes the life of the True

HEPA Filter by protecting it.

B. True HEPA Filter

• Removes at least 99.97% of

airborne particles as small as 0.3 micrometers (µm) in diameter.

• Traps fine partiles such as dust

mites,pet dander,mold spores and pollen.

Levoit air purifiers reduce

Note：

airborne particles 0.3 microns or larger and make no claims to help reduce COVID-19 viruses.

C. High-Eciency Activated Carbon Filter

• Physically adsorbs smoke, odors,

and fumes.

• Filters compounds such as

formaldehyde, benzene, ammonia, hydrogen sulﬁde, and volatile organic compounds (VOCs).

Page 11

CARE & MAINTENANCE

Cleaning the Air Purifier

Wipe the outside of the air puriﬁer with a dry

cloth.

Do not clean with water or any other

liquid, to avoid risk of electric shock.

Check Filter Indicator

The Check Filter Indicator will light up as a

reminder to check the ﬁlters. Depending on how often you use the air puriﬁer, the indicator

should turn on within 6–8 months. You may not

need to change your ﬁlters yet, but you should

check them when the indicator light turns on.

The Check Filter Indicator is only intended as a reminder. When your air puriﬁer is set up with the VeSync app, you can also check the app to see your remaining ﬁlter life. This will provide a more accurate estimate for your remaining ﬁlter life than the Check Filter Indicator. For full instructions, see the extended digital manual (QR code on page 3).

Reset the Check Filter Indicator by pressing the black reset button inside the vent on the side of

the air puriﬁer (see page 13).

Replacing the Filters

1. Unplug the air puriﬁer and remove the

back cover.

2. Remove the old ﬁlters and properly

dispose of them.

3. Unwrap the new ﬁlters. Place the

Activated Carbon Filter inside the housing. Make sure the pull tabs are facing out.

4. Install the Preliminary/True HEPA

Combination Filter into the housing. Make sure the pull tabs are facing out.

5. Replace the back cover. The air puriﬁer

will not power on unless the back cover is replaced correctly.

6. Press the Filter Indicator Reset Button

inside the vent (see page 13).

Cleaning the Filters

A. The Fine Preliminary Filter should be

cleaned once a month to increase

eciency and extend the life of your ﬁlter. Clean the Fine Preliminary Filter

using a brush or vacuum hose to remove hair, dust, and large particles.

B. Do not clean the True HEPA Filter. Fine

dust or bacteria may be released back into the air if cleaning is attempted. Only clean the Fine Preliminary Filter.

C. The Activated Carbon Filter does not

require cleaning.

A B

Page 12

KEEPING THINGS CLEAN (CONT.)

When Should I Replace the Filters?

Check the VeSync app to see your remaining

ﬁlter life. If the app shows that the ﬁlter’s life is less than 5%, then the ﬁlters should be

replaced. For full instructions, see the extended digital manual (QR code on page 3).

The ﬁlters should be replaced every 6–8

months. You may need to replace your ﬁlters sooner or later depending on how often you

use your air puriﬁer. Using your air puriﬁer in an

environment with relatively high pollution may

mean you will need to change the ﬁlters more

often.

You may need to replace your ﬁlters if you notice:

• Increased noise when the air puriﬁer is on

• Decreased airﬂow

• Unusual odors

• Visibly clogged ﬁlters

Note: To maintain the performance of your air puriﬁer, only use ocial Levoit ﬁlters. To buy replacement ﬁlters, visit Levoit’s online store. Go to levoit.com for more information.

Cleaning the Dust Sensor Lens

1. Turn o and unplug the air puriﬁer.

2. Open the dust sensor cover. [Figure 2.1]

3. Use a cotton swab, dipped in water, to

clean the dust sensor lens. [Figure 2.2]

4. Wipe the lens dry with a dry cotton

swab.

Note: Do not remove the foam piece attached to the dust sensor cover unless instructed by Customer

Support. [Figure 2.3]

Figure 2.1

Figure 2.2Figure 2.3

Page 13

KEEPING THINGS CLEAN (CONT.)

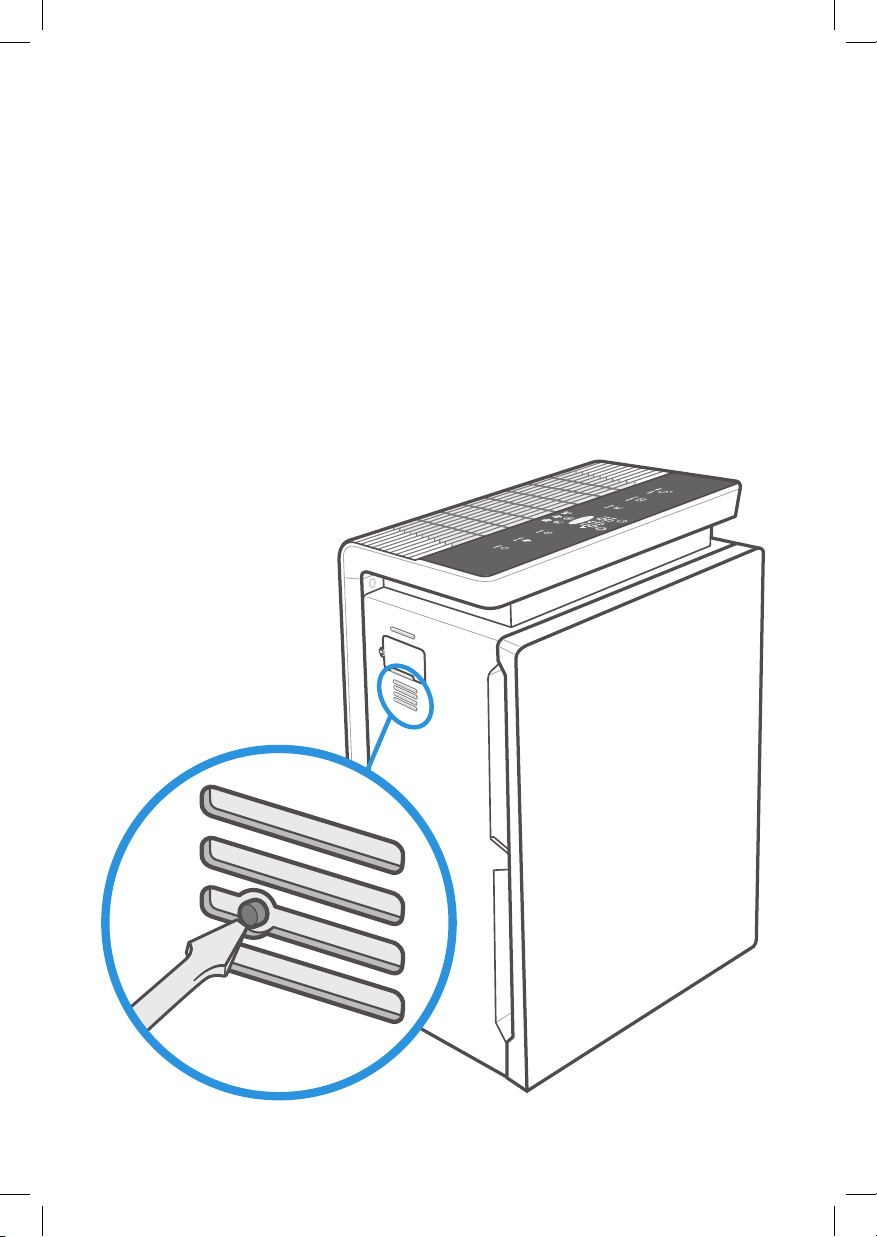

Resetting the Check Filter Indicator

Reset the Check Filter Indicator after

changing the ﬁlters.

1. Plug in the air puriﬁer and turn it on.

2. Locate the button vent on the side of

the air puriﬁer. [Figure 3.1]

3. Use a paperclip, small ﬂathead

screwdriver, or other small object to press the black Filter Indicator Reset Button inside the vent. [Figure 3.1]

4. The Check Filter Indicator will turn o,

indicating that the reset is complete.

Storage

If not using the air puriﬁer for an extended period of time, wrap the ﬁlter in plastic packaging and store in a dry place to avoid moisture damage.

Figure 3.1

Page 14

TROUBLESHOOTING

Problem Possible Solution

Air puriﬁer will not turn on or respond to button controls.

Plug in the air puriﬁer.

Check to see if the power cord is damaged. If so, stop using the

air puriﬁer and contact Customer Support (see page 19).

Properly place the ﬁlter cover on the air puriﬁer, so that the safety

switch is activated (see page 7).

Plug the air puriﬁer into a dierent outlet.

Air puriﬁer is malfunctioning. Contact Customer Support (see

page 19).

The air quality indicator always stays red, and the air puriﬁer is running on high speed.

The air quality indicator always stays blue, even though air quality is poor.

Air puriﬁer makes an unusual noise while the fan is on.

Airﬂow is signiﬁcantly reduced.

Check Filter Indicator is still on after replacing the air ﬁlters.

Clean the dust sensor lens (see page 12).

Make sure the ﬁlters are removed from their packaging and properly in place (see page 7).

Replace the ﬁlters (see page 11).

The air puriﬁer may be damaged, or a foreign object may be

inside. Stop using the air puriﬁer and contact Customer Support (see page 19). Do not try to repair the air puriﬁer.

Make sure the ﬁlters are removed from their packaging.

Press

Leave 15 in / 38 cm of clearance on all sides of the air puriﬁer.

Replace the ﬁlters (see page 11).

Reset the Check Filter Indicator (see page 13).

to increase the fan speed.

Page 15

TROUBLESHOOTING (CONT.)

Problem Possible Solution

Poor air puriﬁcation quality.

Press

Make sure no objects are blocking the top or sides of the air

puriﬁer (the inlet or outlet).

Make sure the ﬁlters are removed from their packaging and properly in place (see page 7).

Close doors and windows while running the air puriﬁer.

Make sure the room is smaller than 360 ft² / 33 m². The air

puriﬁer may not be as eective in larger rooms.

Clean the dust sensor lens (see page 12).

Replace the ﬁlters (see page 11).

to increase the fan speed.

The Check Filter Indicator has not turned on within 8 months.

The Check Filter Indicator turned on before 6 months.

Air puriﬁer randomly turns o.

The Check Filter Indicator is a reminder for you to check the

ﬁlters and will light up based on how long the air puriﬁer has

been used (see page 12). If you don’t use your air puriﬁer often, the indicator will take longer to turn on.

The Check Filter Indicator is a reminder for you to check the

ﬁlters and will light up based on how long the air puriﬁer has been used (see page 12). If you run your air puriﬁer frequently,

the indicator will turn on sooner.

Air puriﬁer is malfunctioning. Stop using the air puriﬁer and

contact Customer Support (see page 19).

If your problem is not listed, please contact Customer Support (see page 19).

Page 16

VESYNC APP TROUBLESHOOTING

Why isn’t my air puriﬁer connecting to the VeSync app?

• During the setup process, you must be on a secure 2.4GHz WiFi network. Conﬁrm that the

network is working correctly.

• Make sure the WiFi password you entered is correct.

• There should be no spaces at the beginning or end of the password.

• Test the password by connecting a dierent electronic device to the router.

• If you’re manually typing in the SSID and password, double check that both are entered

correctly.

• Try moving your air puriﬁer closer to the router. Your phone should be as close as possible

to your air puriﬁer.

• Your router may need to be at a higher location.

• Make sure your air puriﬁer and router are away from appliances (such as microwave ovens,

refrigerators, electronic devices, etc.) to avoid signal interference.

• If you’re using a VPN, make sure it’s turned o while setting up your air puriﬁer.

• Disable portal authentication for your WiFi network. If portal authentication is enabled, the air

puriﬁer will not be able to access your WiFi network, and setup will fail.

Note: Portal authentication means that you need to sign on to your WiFi network through a web page before you can use the Internet.

For more VeSync app troubleshooting, see the extended digital manual (QR code on page page 3).

Page 17

FCC STATEMENT

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause

undesired operation.

Any changes or modiﬁcations not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment

o and on, the user is encouraged to try to correct the interference by one of the following

measures:

• Reorient or relocate the receiving antenna.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is

connected.

• Increase the separation between the equipment and receiver.

• Consult the dealer or an experienced radio/TV technician for help.

FCC RADIATION EXPOSURE STATEMENT

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the speciﬁc operating instructions for satisfying RF exposure compliance. To maintain compliance with FCC RF exposure compliance requirements, please follow operation instructions as documented in this manual. This transmitter must not be colocated or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body. The availability of some speciﬁc channels and/or operational frequency bands are country

dependent and are ﬁrmware programmed at the factory to match the intended destination. The ﬁrmware setting is not accessible by the end user.

Page 18

WARRANTY INFORMATION

Product Name Smart True HEPA Air Puriﬁer

Model LV-PUR131S

Default Warranty

For your own reference, we strongly recommend

that you record your order ID and date of

Date of Purchase

Order ID

1 year

Period

purchase.

Terms & Policy

Arovast Corporation warrants all products to be of the highest quality in material, craftsmanship, and service, eective from the date of purchase to the end of the warranty period.

Arovast Corporation will replace any product

found to be defective due to manufacturer ﬂaws

based on eligibility. Refunds are available within the ﬁrst 30 days of purchase. Refunds are only available to the original purchaser of the product. This warranty extends only to personal use and does not extend to any product that has been used for commercial, rental, or any other use for which the product is not intended. There are no warranties other than the warranties expressly set forth with each product.

This warranty is non-transferrable. Arovast Corporation is not responsible in any way for any damages, losses, or inconveniences caused by equipment failure by user negligence, abuse, or use noncompliant with the user manual or any additional safety, use, or warnings included in the product packaging and manual.

Arovast Corporation and its subsidiaries assume no liability for damage caused by the use of the product other than for its intended use or as instructed in the user manual. Some states do not allow this exclusion or limitation of incidental or consequential losses so the foregoing disclaimer may not apply to you. This warranty gives you

speciﬁc legal rights and you may also have other

rights which may vary from state to state.

ALL EXPRESSED AND IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY.

Additional 1-Year Warranty

You can extend your 1-year warranty by an additional year. Log onto www.levoit.com/warranty to register your new product for the extended warranty.

Please ﬁll out all required ﬁelds and include your

order ID, place of purchase, and purchase date, if applicable.

Defective Products & Returns

If you discover your product is defective within the

speciﬁed warranty period, please contact Customer

Support via [email protected] with a copy of your invoice and order ID. DO NOT dispose of your product before contacting us. Once our Customer Support Team has approved your request, please return the product with a copy of the invoice and order ID.

This warranty does not apply to the following:

• Damage due to abuse, accident, alteration,

misuse, tampering, or vandalism.

• Improper or inadequate maintenance.

• Damage in return transit.

• Unsupervised use by children under 18 years

of age.

Page 19

CUSTOMER SUPPORT

If you have any questions or concerns about your new product, please contact our helpful Customer Support Team.

Arovast Corporation

1202 N. Miller St., Suite A Anaheim, CA 92806

Email: [email protected] Toll-Free: (888) 726-8520

Support Hours

Mon–Fri, 9:00 am–5:00 pm PST/PDT

*Please have your order invoice and order ID ready before contacting Customer Support.

Page 20

levoit.com

Connect with us @LevoitLifestyle

JJ1019MC-M1.3_0419LV-PUR131S
