Model: LV-H132
Compact HEPA Air Purifier
Questions or Concerns?
Please contact us Monday - Friday 9:00 am - 5:00 pm PST at support@levoit.com or at (888) 726-8520.
T H A N K YO U F O R P U R C H A S I N G T H E LV- H 1 3 2 C O M PAC T H E PA A I R P U R I F I E R BY L E VO I T.
Should you have any questions or concerns regarding your new product, please contact us at support@levoit.com. We hope you enjoy your new product!
G E T ST Y L E I N S P I R AT I O N
Find @LevoitLifestyle on social media for wellness + style inspiration. We make every space mindful and chic.
@LevoitLifestyle
#LevoitLove • #LevoitLifestyle
TA B L E O F C O N T E N T S
Package Contents |
3 |
Specifications |
3 |
Safety Information |
4 |
Getting to Know Your Air Purifier |
6 |
Getting Started |
7 |
Operation |
10 |
··General Operation |
10 |
··Button Controls |
11 |
Keeping Things Clean |
12 |
··General Maintenance |
12 |
··Checking the Air Filters |
12 |
··When Should I Replace the |
|
Air Filters? |
12 |
··Replacing the Air Filters |
13 |
··Resetting the Air Purifier |
15 |
Troubleshooting |
16 |
Warranty Information |
18 |
Customer Support |
18 |
PAC K AG E C O N T E N T S
1 x LV-H132 Compact HEPA Air Purifier
1 x Activated Carbon & HEPA Filter (Pre-installed) 1 x Pre-filter (Pre-installed)
1 x User Manual
S P E C I F I C AT I O N S
Power Supply |
AC 120V / 60Hz |
|
|
Rated Power |
28W |
|
|
Effective Range |
129 ft² (12 m²) |
|
|
Operating Conditions |
Temperature: 14°F~104°F |
|
(-10°C~40°C) |
Noise Level |
≤ 50dB |
|
|
Standby Power |
< 0.8W |
|
|
3
S A F E T Y I N F O R M AT I O N
IMPORTANT: Please read and comply with all of the instructions and warnings provided in this manual before using the product. Failure to comply with the instructions and warnings provided herein may result in inaccurate results and/or damage to the product itself.
General Safety
Only use this air purifier as described in this manual.
•Ensure the plug fits properly into a polarized power oulet.
•When not being used, turn the air purifier off and disconnect it from its power source by removing the plug from the electrical outlet.
•DO NOT operate the unit if cord or plug is damaged. Doing so may result in injury or damage to the unit.
•DO NOT handle the unit with wet hands. Thoroughly dry your hands before handling any part of the air purifier.
•DO NOT immerse air purifier in water or liquids. Doing so may result in damage to the appliance, electric shock, or fire.
•DO NOT use the air purifier in wet or humid environments.
•DO NOT use the air purifier outdoors. This appliance is designed for indoor use only.
•DO NOT use the purifier in a room with major indoor temperature changes as this may cause condensation to build up inside the appliance.
•DO NOT use the air purifier in an enclosed space where flammable, combustible or explosive gases are present.
•DO NOT use in an area where toxic vapors, flammable dust or oxygen tanks are present.
•It is important to keep all objects away from the air intake grill.
•DO NOT insert fingers or objects into the air outlet.
•Child supervision is required while the air purifier is on. Do not allow children to play on or near the air purifier.
•CAUTION: This appliance does not remove carbon monoxide (CO) or radon (Rn). It cannot be used as a safety device to prevent or clean up accidents with combustion processes and hazardous chemicals.
Use & Care
•Always make sure to place the air purifier on a flat, level surface before operation.

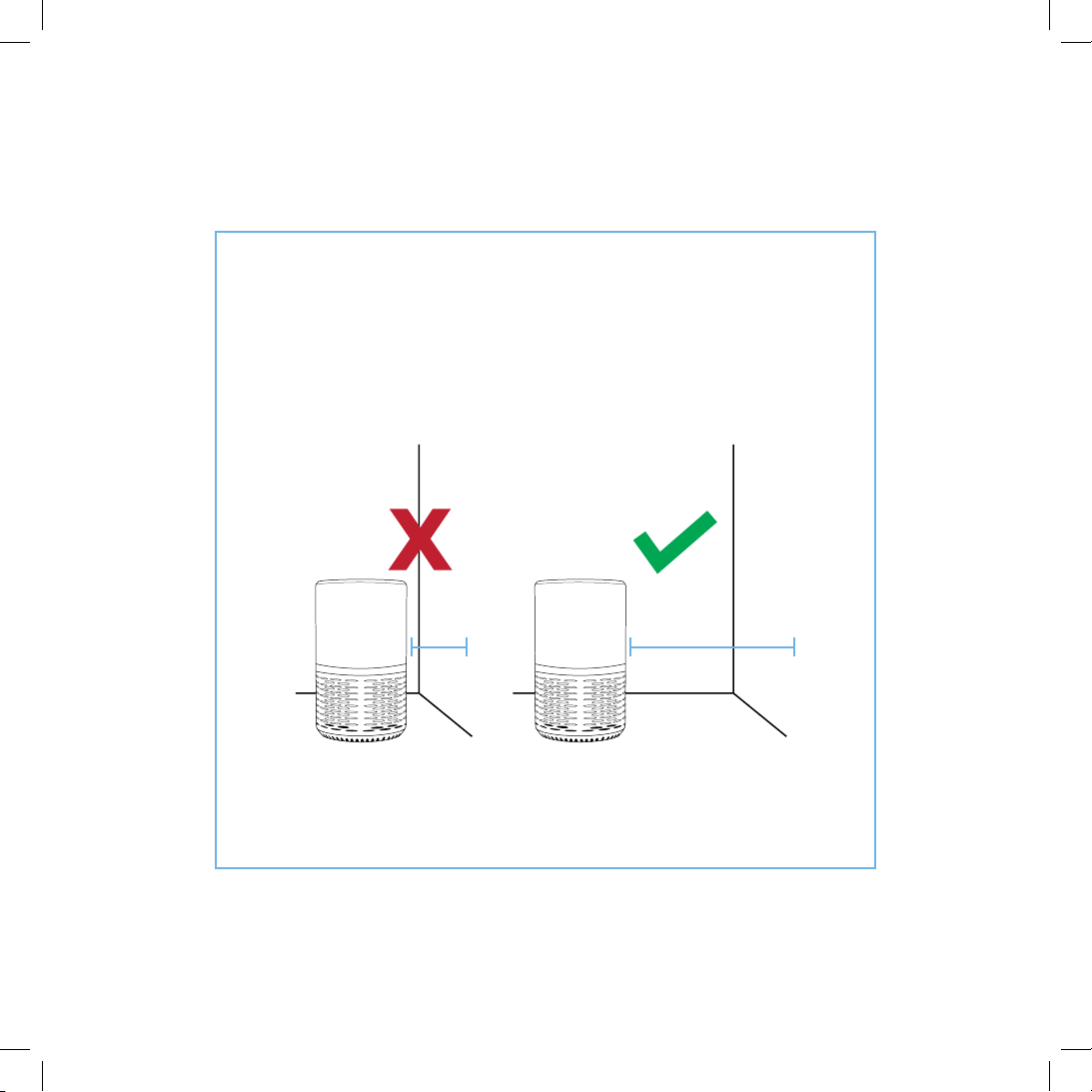

•Always allow 15 inches (38 cm) of clearance on all sides of the purifier.
•WARNING: To reduce the risk of fire or electric shock, do not use the appliance with any solid-state speed control device.
•Place the air purifier so that the power cord easily reaches a standard electrical outlet for a polarized plug.
•DO NOT run the power cord under carpeting. Do not cover cord with throw rugs, runners or similar coverings.
DO NOT ROUTE CORD UNDER FURNITURE OR APPLIANCES. Place the power cord away from hightraffic areas.
•DO NOT use an extension cord with this unit.
•Never place the unit on soft surfaces such as a bed or sofa.
•This air purifier should not be used as a substitute for kitchen or bathroom ventilation or vacuum cleaning.
•DO NOT sit on or place anything on top of the purifier
•DO NOT place the purifier directly below an air conditioner to prevent any moisture from getting into the purifier.
•DO NOT place the air purifier near sources of heat, such as stove tops, ovens, radiators or computers.
•DO NOT place open flames, including candles, directly in front of the air purifier.
•DO NOT use this appliance with indoor smoke-type insect repellents or in places with oily residues, burning incense, or chemical fumes.
•This appliance should only be used in rooms with temperatures between 14°F and 104°F.
•Always unplug the appliance from the power supply before servicing.
4
•This unit should be inspected frequently. Dirt that has collected should be removed regularly to prevent excessive accumulation that may result in flashover or fire.
•DO NOT clean the appliance with water or any other liquid to avoid electric shock and/or electrical fires.
•Only use Levoit LV-H132-RF replacement filters for this unit. Do not attempt to use other filters with this appliance.
•If you experience any problems while operating the air purifier, refer to the Troubleshooting section on page 16. If you are still having problems with your air purifier, contact Customer Support on page 18.
•If the unit is damaged or is not functioning properly, immediately discontinue use and contact Customer Support (page 18).
•DO NOT attempt to repair this device in any way or use any replacement components or parts to modify the
air purifier. Doing so will void your warranty. Contact Customer Support immediately if your appliance is no longer working.
S AV E T H E S E I N ST R U C T I O N S
5
G E T T I N G TO K N OW YO U R A I R P U R I F I E R
9
2
Top
3 2 1
4 5 6 7
10
|
|
|
|
Top view of filter |
||
|
Bottom |
|
12 |
|
|
11 |
|
|
|
|
|
|
|
|
|
|
13 |
|
|
|
|
|
|
|
Bottom view of filter |
||
|
|
1 |
|
|
|
|
Side |
|
|
|
|
|
|
|
|
8 |
1. |
Housing |
8. |
Power Cord |
|
|
2. |
Air Outlet |
9. |
Pre-Filter |
|
|
|
|
||||
|
|
|
3. |
Air Inlet |
10. |
HEPA Filter |
|
|
|
4. |
Power Button |
11. |
Activated Carbon Filter |
|
|
|
5. |
Night Light Button |
12. |
Filter Cover |
3 |
|
|
6. |
Filter Reset Button |
13. |
Anti-Skid Pads |
|
|
|
7. |
Fan Speed Button |
|
|
6
