Levoit LV455CH User Manual

Questions or Concerns?

Please contact us Mon-Fri 9:00AM-5:00PM PST
at [phone] or email [e-mail]

Ultrasonic Cool Mist Humidifier

Model No.: LV455CH

Questions or Concerns?

Please contact us Monday - Friday 9:00 am - 5:00 pm PT
at [email protected] or at (888)-726-8520.

Should you have any questions or concerns regarding your

new humidier, please contact us at [email protected].
We hope you enjoy your new humidier!

THANK YOU FOR
PURCHASING THE
LV455CH ULTRASONIC
COOL MIST HUMIDIFIER
BY LEVOIT.

GET STYLE INSPIRATION

Find @LevoitLifestyle on social media for wellness + style
inspiration. We make every space mindful and chic.

@LevoitLifestyle

#LevoitLove • #LevoitLifestyle

3

Specications
Package Contents
Safety Information
Getting to Know Your Humidier

Display
Getting Started
Operation

ɧ General Operation

Using the Aroma Box

Preventing Water Leaks
Keeping Things Clean

ɧ General Cleaning
ɧ Cleaning the Aroma Pad
ɧ Disinfecting the Humidifier

Troubleshooting

Warranty Information
Customer Support

4
4
5
7
8
10
12
12
13
15
17
17
18
18
19
21
22

TABLE OF CONTENTS

4

Voltage:
Rated Power:

Eective Range:
Water Tank Capacity:

Moisture Output:

ɧ Mode 1:
ɧ Mode 2:
ɧ Mode 3:
ɧ Mode 4:

Operation Times:

ɧ Mode 1:
ɧ Mode 2:
ɧ Mode 3:
ɧ Mode 4:

AC 120V, 60Hz

30W

430.5 - 538.2 ft² (40 - 50 m²)

1.1 gal (4.5 L)

100 mL/h
150 mL/h
200 mL/h
250 mL/h

40 hours
25 hours
20 hours
15 hours

1 x Ultrasonic Cool Mist Humidier
1 x Cleaning Brush (Attached)
3 x Aroma Pads (1 Pre-Installed)

1 x User Manual

SPECIFICATIONS

PACKAGE CONTENTS

5

SAFETY INFORMATION

To reduce the risk of re, electric shock, or other injury, follow all instructions and safety

guidelines.

Only use this humidier as described in this manual.

• Place the humidier and cord so that the humidier will not be knocked over.

• Ensure that the plug ts properly into a polarized power socket.

• When not in use, turn the machine o and disconnect from a power source by removing
the plug from the outlet.

• Do not overll the water tank as it may cause electric shock.

• Do not handle the power cord or plug with wet hands. Keep the power cord and plug
away from liquids.

• Do not use this humidier in wet environments.

• Keep the humidier out of reach from children.

• Do not open the base or remove the water level sensor for self-servicing. Doing so will
void your warranty and may increase the risk of electric shock, injury, or damage to the
humidier.

• Always unplug your humidier from the power outlet before cleaning your humidier or
detaching the water tank from the humidier base.

General Safety

• Direct the nozzle so that the mist is at least 40 inches (102 cm) from walls.

• Only ll the water tank with clean water. Never ll the water tank with any other liquids.

• Do not place the humidier near sources of heat, such as stovetops, ovens, or radiators.

• Do not place the humidier directly on oors, carpets, or rugs.

• Do not cover the nozzle while the humidier is on. Doing so may damage the humidier.

Use & Care

6

Do not shake

the humidier.

Do not place

humidier on an
inclined surface.

Do not place

humidier directly
against walls.

Always make sure there
is a 10-inch (25 cm)
clearance from walls.

IMPORTANT

• If the relative humidity in your room exceeds 68%, turn o the device or use the low mist
setting.

• Remove the water tank from the base before moving the humidier.

• Do not immerse the humidier base, power cord, or plug in water.

• Always clean the humidier as instructed in this manual (see Keeping Things Clean,
page 16).

• If the humidier is damaged or is not functioning properly, stop using it and contact

Customer Support immediately (page 22).

READ AND SAVE THESE

INSTRUCTIONS

7

GETTING TO KNOW YOUR HUMIDIFIER

1. Nozzle

2. Top Cover

3. Water Tank

Handle

4. Mist Tube

5. Water Tank

6. Water Tank

Window

7. Water Tank Cap

8. Cleaning Brush

9. Cleaning Brush

Storage

10. Base

11. Inner Chamber

12. Air Vent

13. Transducer

14. Water Level

Sensor

15. Blue Night Light

16. Display &
Control Panel

17. Aroma Box

18. Aroma Pad

19. Power Cord

1

2
3

5

4

6

7

8

9

17

18

19

13

12

14

15

10

16

11

8

GETTING STARTED

1. Remove the top cover from the water
tank and set it aside. [Figure 1.1] Carefully
lift the water tank handle to detach the
water tank from the base.

2. Flip the water tank over and twist open
the water tank cap. [Figure 1.2]

NOTE:

• Fill the water tank with at least 2 cups of distilled water.

• Do not fill the water tank with hot water.

• Do not add water through the nozzle or mist tube.

• Do not lift the entire humidifier by the water tank handle.

3. Fill the water tank with cold or room
temperature water. You can check
the water level in the tank by looking
through the water tank window. The
maximum capacity of the water tank is 1.1
gallons (4.5 L). [Figure 1.3]

Figure 1.1

Figure 1.2 Figure 1.3

9

4. Once you have lled the water tank,
replace the cap, and secure it tightly.
[Figure 1.4]

5. Carefully place the water tank back onto
the base, aligning the water tank cap
with the inner chamber. [Figure 1.5]

Figure 1.4

Figure 1.5

10

1. Place the humidier on a level surface
that is elevated, such as a table and a
nightstand. Make sure the room is well­ventilated.

2. Plug the humidier into an electrical
outlet.

3. Tap once to turn on the humidier.
a. If there is no water in the tank,

will light up. Unplug the humidier
and rell the water tank. See Getting
Started (page 10).

b. If the last humidity setting is lower

than the humidity level of the
environment, it will release mist for a
few seconds and then stop misting.

4. Tap and hold and for 3 seconds
clear all previous settings.

5. When the water level is low, your
humidier will stop misting.

OPERATION

General Operation

NOTE:

• The nozzle can rotate 360° to diuse mist in
any direction.

• The night light will remain on if the humidifier
shuts o due to low water level.

• The humidifier will stop misting if the water tank
is detached from the base.

• When turned on, if there is water in the tank,
the humidifier has a memory function that will
recall the last setting used before it was turned
o or unplugged.

• If this is the first use, the default mist setting is
mode 4 ( ).

NOTE: Make sure to position the humidifier at least 10 inches away from walls, and direct the nozzle so
that the produced mist is at least 40 inches away from walls.

11

Lights up when Auto Mode is selected.
The humidier will produce mist as

needed to maintain the relative humidity

(RH) at a comfortable level.

Lights up when humidity mode is being
changed.

DISPLAY

Lights up dimly when the display is
turned o.

The time will count down every hour

when the timer has been set.

Shows the humidity percentage.

Lights up when the water tank needs to
be relled.

Shows the mist level

12

ON/OFF

• Tap to turn your humidier on or o.

TIMER – You can set a timer between 1 and 12 hours.

• Tap repeatedly to choose a time.

• When you stop pressing , the display will ash 3 times and the timer will start.

• The humidier will automatically power o once the timer is nished. Press and hold
for 2 seconds or tap repeatedly until it shows “-H” to exit the timer function.

HUMIDITY – You can set the humidity level between 30% and 80%.

• Tap repeatedly to change the humidity level, which increases by 5% each tap.

• Once the humidity level of the environment reaches the set humidity level, the mist will
automatically turn o.

• To cancel the humidity function, tap repeatedly until “Co” appears on the display or
press and hold for 2 seconds. The humidier will enter auto mode after cancellation.

MIST LEVEL – You can choose between mist levels 1 through 4 or auto mode.

• Tap repeatedly to choose
mist level.

LIGHT

• Tap to turn the water tank night light on or o.

• Tap and hold for 2 seconds to turn o the display. The will be dimly lit when the
display is o.

13

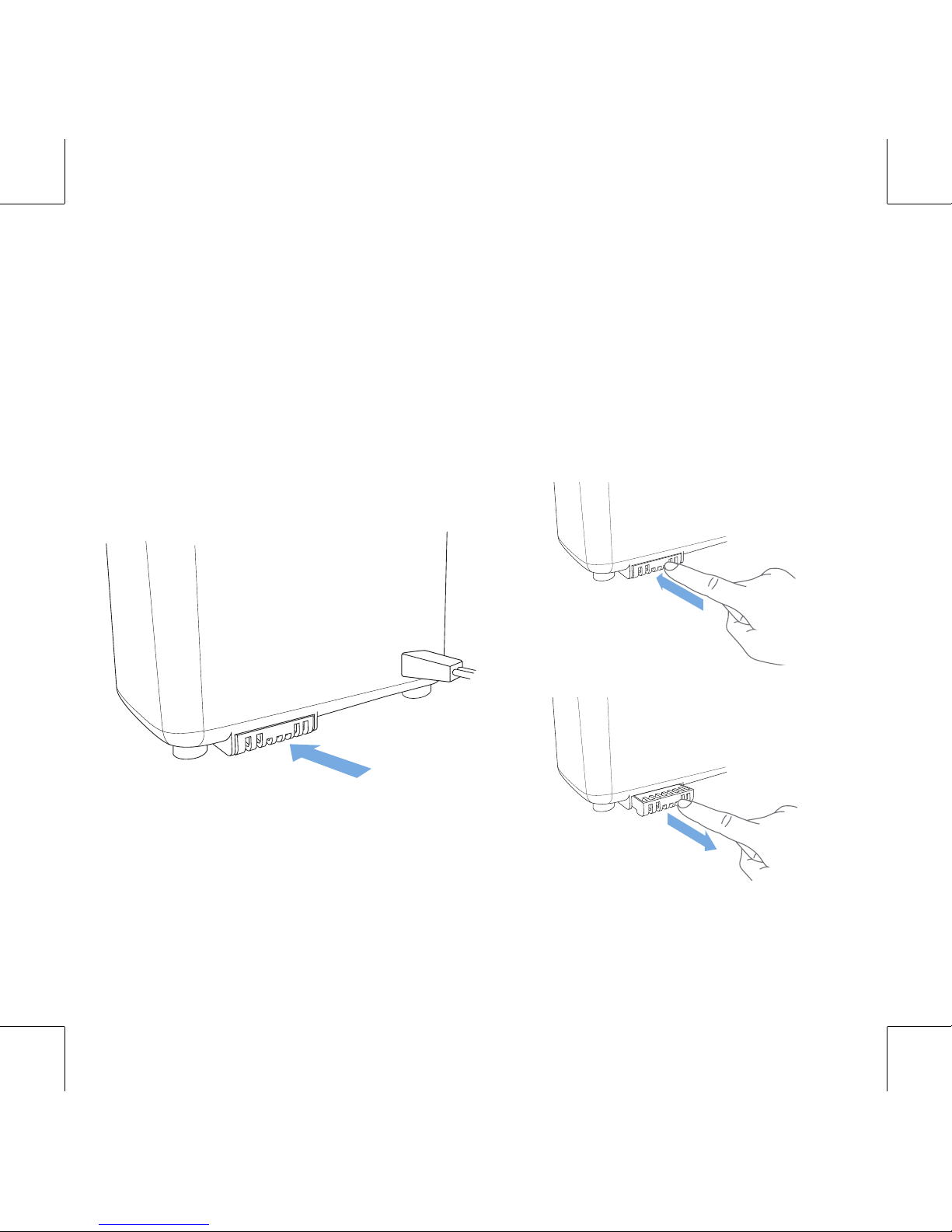

USING THE AROMA BOX

Your humidier can be used as an aroma diuser to provide added comfort in your home.

1. Turn o and unplug the humidier.

2. Locate the aroma box at the back of the
base. [Figure 3.1]

3. Push the aroma box to release it from
the base, then pull it out.
[Figures 3.2 & 3.3]

Figure 3.1

Figure 3.2

Figure 3.3

14

4. Put 2-3 drops of essential oil on the
aroma pad. [Figure 3.4]

5. Replace the aroma box. Fill the water
tank with water and place it back on the
base (see Getting Started, page 10).
[Figure 3.5]

6. Plug in and turn on the humidier.

Figure 3.4

Figure 3.5

NOTE:

• You can also add medicated vaporizing steam liquid to the aroma pad.

• The aroma pad can be cleaned and reused after diusing essential oils (see page 18).

15

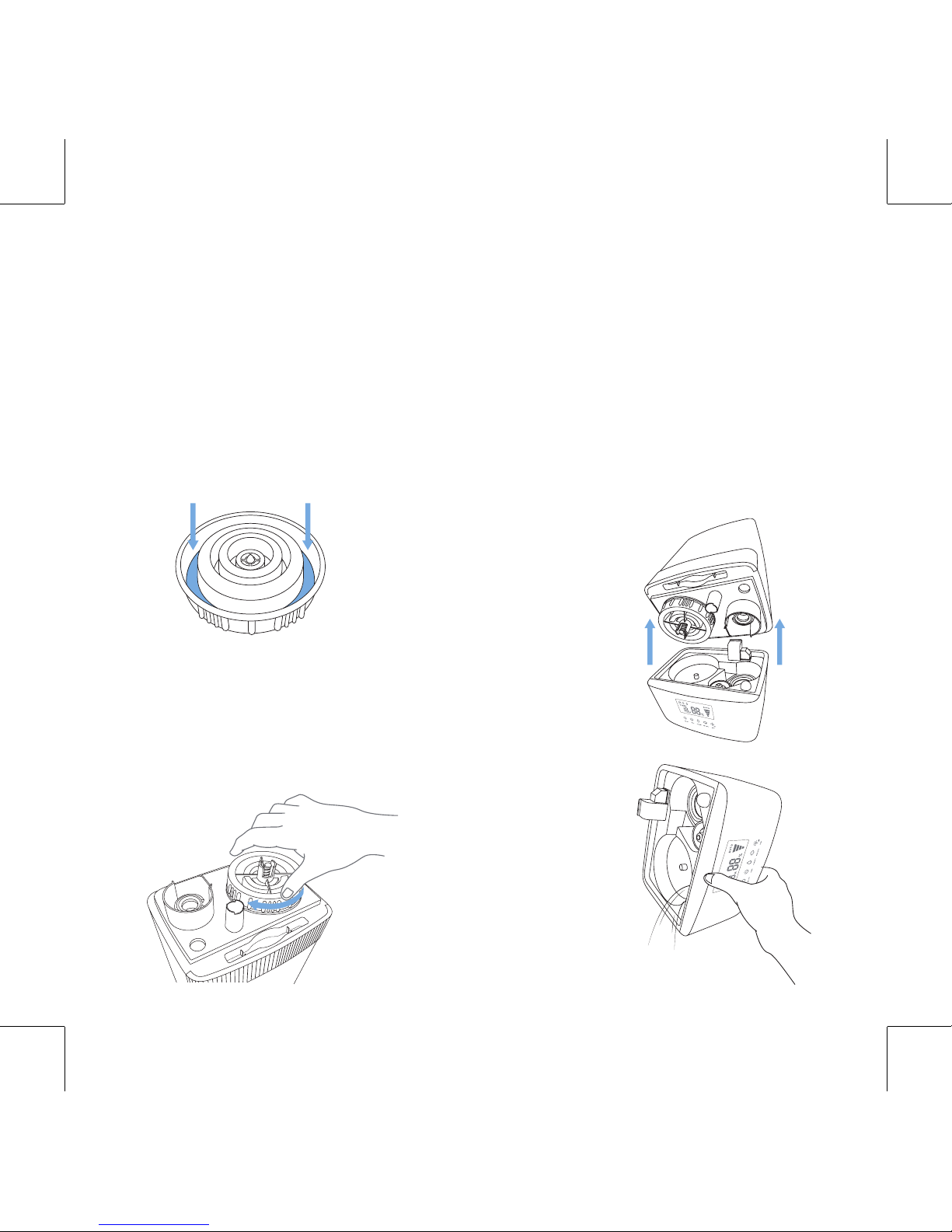

PREVENTING WATER LEAKS

If not placed properly, the water tank on your humidier may leak. The following tips will
ensure that your humidier operates smoothly.

1. Make sure the blue silicone ring around
the water tank cap is secured at all
times. [Figure 4.1]

Inside of water tank cap

2. Twist and secure the cap tightly onto the
water tank. [Figure 4.2]

3. Before moving the humidier, remove
the tank from the base and empty any
excess water inside the inner chamber.
[Figures 4.3 & 4.4]

Figure 4.1

Figure 4.2

Figure 4.3

Figure 4.4

NOTE: A small gap between the cap and the
tank is normal.

16

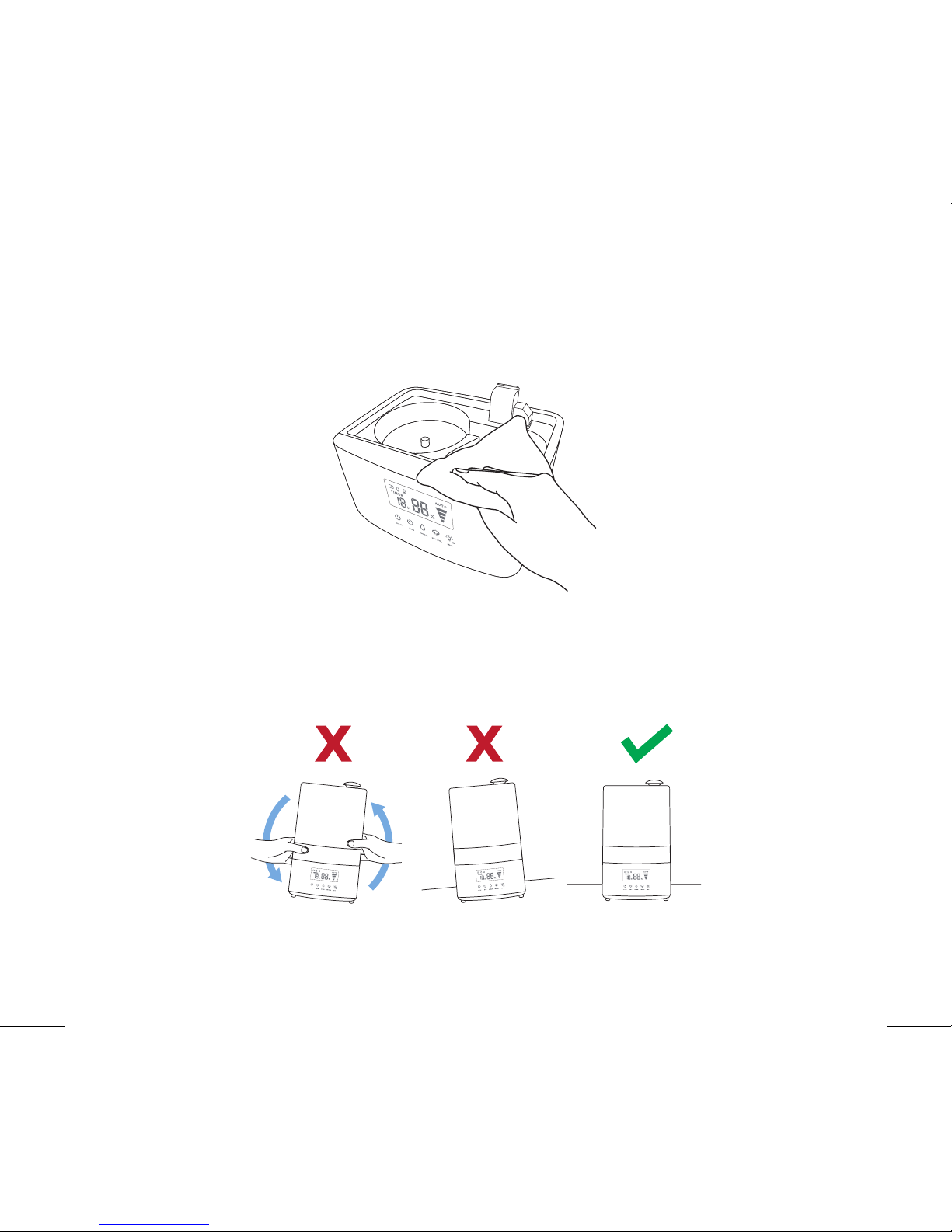

4. Wipe o any excess water on the top and bottom of the base. [Figure 4.5]

5. Do not shake the humidier or place it on an inclined surface. Make sure to place the
humidier on a at, level surface. [Figure 4.6]

Figure 4.5

Figure 4.6

17

KEEPING THINGS CLEAN

General Cleaning

CAUTION:

• Always make sure the humidier is unplugged from any power source
when cleaning.

• The water in the inner chamber near the transducer may still be warm
after turning o the humidier. Use caution when pouring out the water.

1. Unplug the humidier.

2. Remove the top cover from the water tank.
Rinse the nozzle and the cover under
clean, running water. Then set it aside to
air dry.

3. Remove the water tank from the base and
pour out any excess water. Fill the tank
with 2 cups of distilled white vinegar and 2
cups of water. Replace the cap and gently
shake to coat all sides of the water tank.

4. Fill the inner chamber with 1 cup of distilled
vinegar. [Figure 5.1]

5. Allow the vinegar to soak inside both
the water tank and inner chamber for 30
minutes.

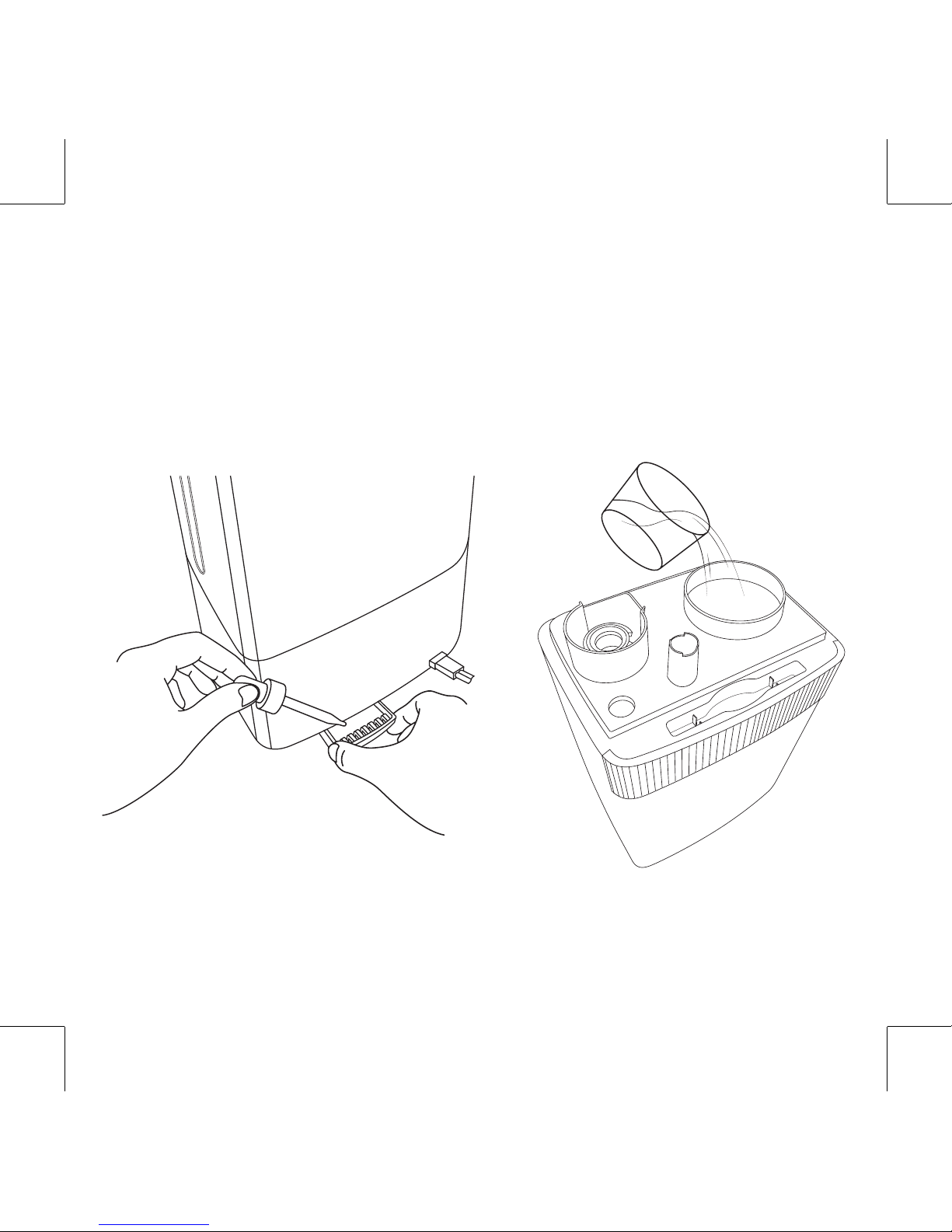

6. Use the included cleaning brush to remove
any scale buildup inside the water tank or
in the inner chamber. [Figure 5.2]

7. Pour out the vinegar from both parts of the
humidier and thoroughly rinse with warm
water.

8. Dry all parts with a clean, dry cloth.
Make sure all parts of the humidier are
completely dry before reassembling or
storing.

Figure 5.1 Figure 5.2

Inner
chamber

18

Cleaning the Aroma Pad Disinfecting the Humidier

1. Press the aroma box to release it from
the base, then pull it out.

2. Remove the aroma pad from the aroma
box.

3. Rinse the pad under warm, running
water.

4. Dry with a clean cloth and place it back
into the aroma box.

NOTE: .

• Do not pour liquid cleaners or detergents into

the aroma box.

• Do not use liquid cleaners or detergents to

wash the aroma pad.

1. Clean the water tank (see General
Cleaning, page 17).

2. Fill the water tank with 1 teaspoon of
bleach along with 1 gallon of clean
water. Reseal the water tank, then gently
shake the water tank to ensure all of the
sides are coated with the mixture.

3. Add ¼ teaspoon of bleach along with 1
cup of clean water into the base.

4. Allow the solutions in both parts to sit
for 30 minutes.

5. Pour out the mixtures from both the
water tank and base. Rinse both parts
thoroughly under clean, running water.

6. Allow the water tank and base to
completely air dry before reassembling
the humidier.

NOTE:

• Always wear gloves to protect your hands

while using bleach.

• A 3% hydrogen peroxide solution may also be

used to disinfect the humidifier.

• Do not use the humidifier immediately after

disinfecting, doing so may pose a potential
health hazard.

Disinfect the water tank before or after
storing the humidier for long periods of
time. You should also disinfect if there is any
mold buildup inside the water tank.

19

TROUBLESHOOTING

Problem Cause Solution

No mist coming out

of nozzle.

Humider is not plugged in.

Plug the humidier into a powered
electrical outlet.

Humider is not turned on.

Tap the power button to turn on the

humider.

No water in tank.

Add at least 2 cups of clean water into
the water tank.

Water level is low.

Humidier produces
an unusual smell.

Humider is new.

Rinse the water tank and allow the
humidier to air dry.

Residual smell from diusing
essential oil on the aroma pad.

Clean the water tank (see Keeping
Things Clean, page 17).

Water has been in tank for too long.

Humidier makes

a loud or unusual

noise.

Water tank does not t properly.

Align the water tank cap with its

respective port inside the inner

chamber.

Water level is low.

Add at least two cups of clean water
into the water tank.

Humider is not level. Place humider on a at, level surface.

Humider is malfunctioning.

Turn o and unplug the humidier.

Discontinue use and contact Customer
Support (page 22).

20

Problem Cause Solution

White dust appears

around the humidier
after operation.

Water being used has a high mineral

content.

Use distilled, puried, or ltered water
with the humidier. Remember to clean
your water tank at least once a month.

Puddle of water
forms below the
base.

Mist setting is too high.

Switch the humidier to a lower mist
setting.

Room is not well-ventilated.

Open a window to ensure proper

airow for your humidier, or move the
humidier to a more well-ventilated
room.

Excess water that has spilled from
lling the water tank or replacing the
water tank back onto the base.

Wipe o excess water from the top and
bottom of the base before replacing the
water tank.

Humidier base is leaking.

Unplug the humidier immediately and
stop using it (see Preventing Water
Leaks, page 14) before using it again. If
your humidier continues to leak, contact
Customer Support (page 22).

Some of the buttons
are unresponsive.

Humidier is malfunctioning. Contact Customer Support (page 22).

21

WARRANTY INFORMATION

TERMS & POLICY

Levoit warrants all products to be of the highest quality in
material, craftsmanship, and service, eective from the date
of purchase to the end of the warranty period.

Levoit will replace any product found to be defective due
to manufacturer aws based on eligibility. Refunds are
available within the rst 30 days of purchase. Refunds
are only available to the original purchaser of the
product. This warranty extends only to personal use and
does not extend to any product that has been used for
commercial, rental, or any other use in which the product
is not intended for. There are no warranties other than the
warranties expressly set forth with each product.

This warranty is non-transferrable. Levoit is not responsible
in any way for any damages, losses, or inconveniences
caused by equipment failure by user negligence, abuse, or

use noncompliant with the user manual or any additional

safety, use, or warnings included in the product packaging
and manual.

This warranty does not apply to the following:

• Damage due to abuse, accident, alteration, misuse,

tampering or vandalism.

• Improper or inadequate maintenance.

• Damage in return transit.

• Unsupervised use by children under 18 years of age.

Levoit and its subsidiaries assume no liability for damage
caused by the use of the product other than for its
intended use or as instructed in the user manual. Some
states do not allow this exclusion or limitation of incidental
or consequential losses so the foregoing disclaimer may
not apply to you. This warranty gives you specic legal

rights and you may also have other rights which may vary

from state to state.

ALL EXPRESSED AND IMPLIED WARRANTIES,

INCLUDING THE WARRANTY OF MERCHANTABILITY,

ARE LIMITED TO THE PERIOD OF THE

LIMITED WARRANTY.

Additional 1-Year Warranty

You can extend your 1-year warranty by an additional year.
Log onto www.levoit.com/warranty and enter your order
number (for example, from Amazon or Houzz) to register
your new product for the extended warranty.

If you are unable to provide the order number for your
product, please type a short note in the order number eld
along with the date you received your product.

Defective Products & Returns

If your product proves defective within the specied
warranty period, please contact Customer Support via
[email protected] with your order number. Do not
dispose of your product before contacting us. Once
Customer Support has approved your request, please
return the unit with a copy of the invoice or your order
number.

Product Name Ultrasonic Cool Mist Humidier

Model Number LV455CH

Default Warranty Period 1 year

For your own reference, we strongly recommend that you

record your order number and date of purchase.

Date of Purchase

Order Number

22

CUSTOMER SUPPORT

If you encounter any issues or have any questions regarding your new product, feel free to
contact our helpful Customer Support Team. Your satisfaction is our goal!

Customer Support

Arovast Corporation
1202 N. Miller St., Suite A
Anaheim, CA 92806

Email: [email protected]

Toll-Free: [phone]

Support Hours

Monday - Friday 9:00 am - 5:00 pm PT

*Please have your invoice and order number ready before contacting Customer Support.

23

Connect with us @LevoitLifestyle

Levoit.com
