Page 1

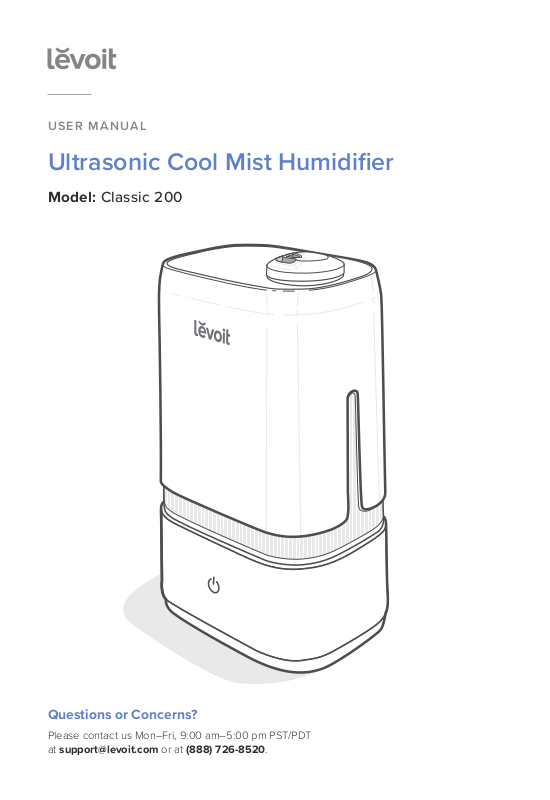

USER MANUAL

Ultrasonic Cool Mist Humidiﬁer

Model: Classic 200

Questions or Concerns?

Please contact us Mon–Fri, 9:00 am–5:00 pm PST/PDT at [email protected] or at (888) 726-8520.

Page 2

Thank you for purchasing the

CLASSIC 200 ULTRASONIC COOL MIST HUMIDIFIER BY LEVOIT.

If you have any questions or concerns, please reach out to us at [email protected]. We hope you enjoy your new humidiﬁer!

Share the Levoit Love

Find @LevoitLifestyle on social media for wellness + style inspiration. We make every space mindful and chic.

@LevoitLifestyle

#LevoitLove • #LevoitLifestyle

Page 3

Table of Contents

Package Contents

Package Contents Speciﬁcations Safety Information Getting to Know Your Humidiﬁer Getting Started Using Your Humidiﬁer Keeping Things Clean Troubleshooting Warranty Information Customer Support

10 12 14 15

3 3 4 6 7 8

1 x Ultrasonic Humidiﬁer 3 x Aroma Pads (1 Pre-Installed) 1 x Cleaning Brush (Stored) 1 x User Manual 1 x Quick Start Guide

Specifications

Power Supply AC 120V, 60Hz

Rated Power 30W

Water Tank Capacity

Max Run Time

Noise Level ≤ 30dB

Eective Range

Dimensions 14 x 8 x 6 in /

Weight 3.5 lb / 1.6 kg

1.05 gal / 4 L

Up to 40 hours

Note: The humidiﬁer will be able to run for a longer or shorter time depending on the environmental temperature and humidity.

285–376 ft² / 24–35 m²

35.4 x 20.2 x 15.2 cm

Page 4

SAFETY INFORMATION

To reduce the risk of ﬁre, electric shock, or other injury, follow all instructions and safety guidelines.

General Safety

• Only use the humidiﬁer as described in

this manual.

• Place the humidiﬁer and cord so that it

will not be knocked over. Do not place near large pieces of furniture or in hightrac areas.

• When not in use, turn the humidiﬁer

o and disconnect from power by removing the plug from the outlet.

• Do not use the humidiﬁer in wet

environments.

• Keep the humidiﬁer out of reach from

children.

• Do not open the base or remove the

water level sensor for self-servicing.

• Always unplug your humidiﬁer from

the power outlet before cleaning your humidiﬁer or detaching the water tank from the humidiﬁer base.

• Always make sure to place the

humidiﬁer on a ﬂat, level surface before operation.

• Only ﬁll the water tank with clean water.

Never ﬁll the water tank with any other

liquids.

• Do not place the humidiﬁer near

sources of heat, such as stovetops, ovens, or radiators.

• Do not place the humidiﬁer directly on

ﬂoors, carpets, or rugs.

• Do not use other items as replacement

parts for this product.

• Do not cover the nozzles while the

humidiﬁer is on. Doing so may damage the humidiﬁer.

• Remove the water tank from the base

before moving the humidiﬁer.

• Do not immerse the humidiﬁer base,

power cord, or plug in water.

• If the humidiﬁer is damaged or is not

functioning properly, stop using it and contact Customer Support immediately (see page 15).

• Not for commercial use.

Household use only.

Plug and Cord

• Ensure that the plug ﬁts properly into

a polarized socket.

• Do not handle the power cord or

plug with wet hands. Keep the plug and power cord away from liquids.

• Your humidiﬁer has a polarized plug

(one prong is wider than the other), which ﬁts into a polarized outlet only one way. This is a safety feature to reduce the risk of electric shock. If the plug does not ﬁt, reverse the plug. If it still does not ﬁt, do not use the plug in that outlet. Do not bypass this safety feature.

Page 5

SAFETY INFORMATION (CONT.)

Caution: Risk of Leaks and

Electric Shock

• Do not add essential oils,

supplemental water treatment liquids, or water ﬁlters into the water tank or base. This will damage the humidiﬁer and cause leaks. Only add essential oils to the aroma pad.

READ AND

SAVE THESE

INSTRUCTIONS

Page 6

GETTING TO KNOW YOUR HUMIDIFIER

A. Nozzles B. Nozzle Cap C. Water Tank Handle D. Mist Outlet E. Water Tank F. Cleaning Brush G. Cleaning Brush Storage H. Base

C D

I. Control Button J. Insulation Ring K. Transducer L. Float Housing M. Float N. Mist Tube O. Water Tank Windows P. Air Outlet

Q. Inner Chamber R. Power Cord S. Water Tank Cap T. Silicone Sealing Ring U. Water Valve V. Noise Silencer W. Aroma Pad X. Aroma Box

U V

Water tank, upside down

Back

Page 7

GETTING STARTED

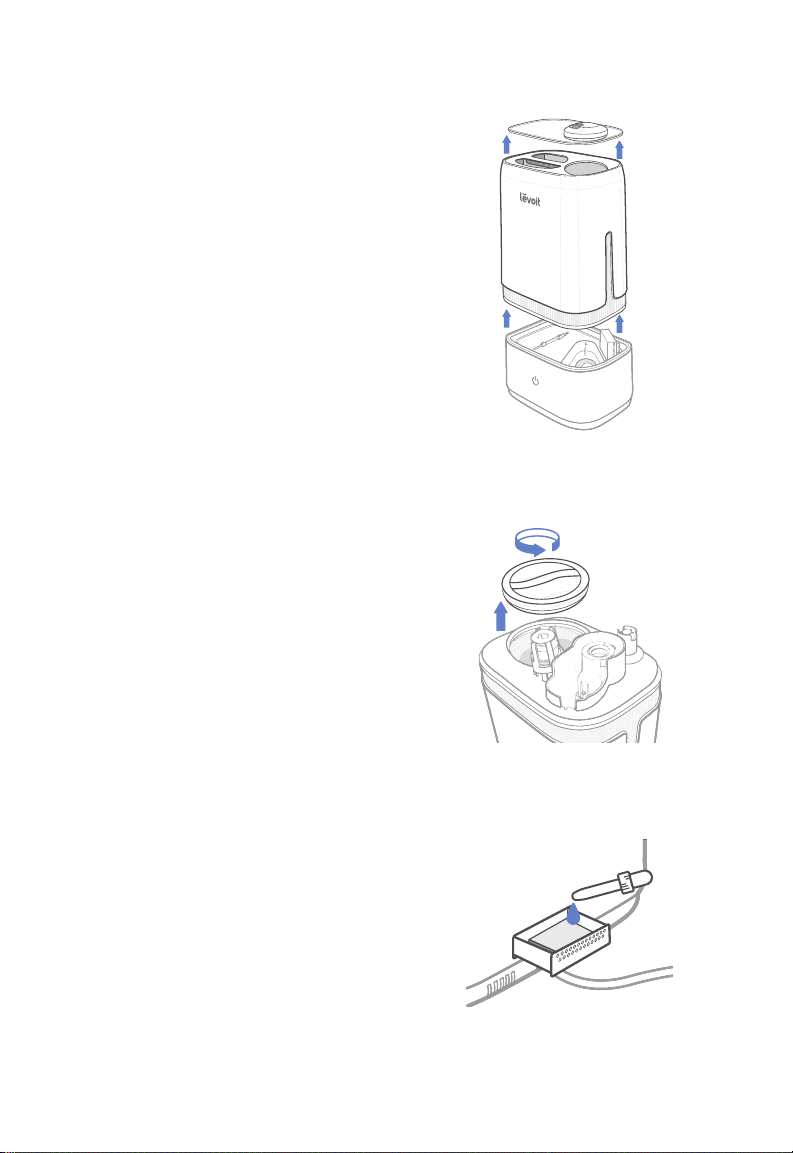

1. Remove the nozzle cap from the water

tank. Use the handle to lift the water tank from the base. [Figure 1.1]

2. Flip the water tank over and twist open

the water tank cap. [Figure 1.2]

3. Fill the water tank with at least 2 cups

/ 475 mL of cold or room temperature water. The maximum capacity is

1.05 gal / 4 L.

Note:

• We recommend using puriﬁed or

distilled water to ﬁll the tank.

• Do not ﬁll the water tank with hot

water.

• Only add water through the water

tank cap. Do not add water through the nozzles, mist tube, or into the inner chamber.

• Do not lift the entire humidiﬁer by the

water tank handle.

• Do not add essential oils to the water

tank or base. Only add essential oils onto the aroma pad. [Figure 1.3]

• Do not let water inside the air outlet.

• If water gets inside the air outlet,

unplug the humidiﬁer and pour out all water. Let the humidiﬁer rest in a wellventilated area for 24 hours. Do not use again until completely dry.

Figure 1.1

Figure 1.2

4. Replace the water tank cap and

carefully place the water tank back onto the base. Align the water tank cap with the inner chamber.

5. Place the nozzle cap back on top of the

water tank.

Figure 1.3

Page 8

USING YOUR HUMIDIFIER

General Operation

1. Place the humidiﬁer on a level, elevated,

and water-resistant surface, such as a table or nightstand. Make sure the room is well-ventilated.

Note:

• Position the humidiﬁer at least

12 in / 30 cm away from walls and appliances to prevent them from getting wet. [Figure 2.1]

• Do not place the humidiﬁer directly on

ﬂoors, carpets, or rugs.

• Direct the nozzles away from any

furniture to prevent your furniture from getting wet.

2. Plug in the humidiﬁer. will light up red

for 2 seconds then turn o.

3. Tap to turn your humidiﬁer on. Tap

repeatedly to change the mist setting.

12 in /

30 cm

12 in / 30 cm

Figure 2.1

Control Button Color

Button Color Function

Blue Low mist setting is

selected

Orange Medium mist setting is

selected

Purple High mist setting is

selected

Blinking Red No water in tank or

tank not on base

No Color Humidiﬁer is o

Humidiﬁer has been misting for more than 30 seconds

Note:

• Low mist is the default setting when

the humidiﬁer is ﬁrst turned on.

• The power light will automatically

turn o after 30 seconds while the humidiﬁer is on. To check the current mist setting, tap once. Tap again to change the mist setting.

• Excessive humidity can cause health

issues and mold growth. If the relative humidity in your room is over 60%, use the low mist setting or turn o the humidiﬁer.

• If there is no water in the tank or the

tank is removed, the transducer will turn o, the fan will turn o after 5

seconds, and will blink red before turning o.

Page 9

USING YOUR HUMIDIFIER (CONT.)

Using the Aroma Box

Your humidiﬁer can be used as an aroma diuser.

1. Turn o the humidiﬁer.

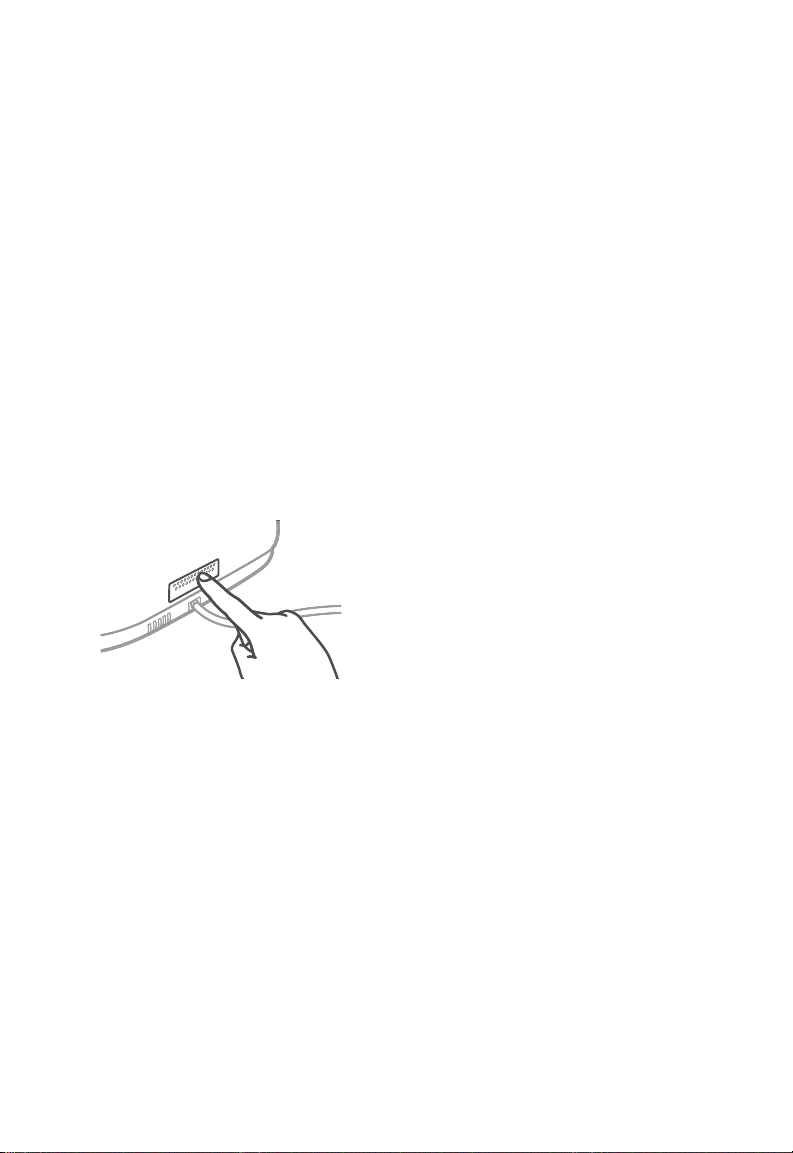

2. Push the aroma box at the back of the

base and pull it out. [Figure 3.1]

3. Put 2–3 drops of essential oil on the

aroma pad.

4. Replace the aroma box into the

humidiﬁer. Fill the water tank with water and place it back on the base (see

Getting Started, page 7).

5. Plug in and turn on the humidiﬁer.

Figure 3.1

Preventing Water Leaks

The water tank on your humidiﬁer may leak if not placed properly.

• Make sure the silicone sealing ring

around the water tank cap is secured at all times.

• Twist and secure the cap tightly onto

the water tank.

Note: A small gap between the cap and the tank is normal.

• Wipe o any excess water on the top

and bottom of the base.

• Do not shake the humidiﬁer.

• Make sure to place the humidiﬁer on a

ﬂat, level surface.

Page 10

KEEPING THINGS CLEAN

Caution:

• Always make sure the humidiﬁer is

unplugged before cleaning.

• The water in the inner chamber near the

transducer may still be warm after turning o the humidiﬁer. Use caution when pouring out the water.

• Do not use liquid detergents.

• We recommend using puriﬁed or distilled

water instead of tap water to prevent hard water buildup.

• Do not submerge the base in water.

General Cleaning

You should clean your humidiﬁer every 3 days. Change the water every day or every other day to avoid bacteria growth.

1. Unplug the humidiﬁer.

2. Remove the nozzle cap from the water

tank and rinse under clean, running water. Set it aside to air dry.

3. Remove the water tank from the base

and pour out any water from the inner chamber. Fill the tank with 3 cups / 710 mL of distilled white vinegar. Replace the cap and gently shake to coat all sides of the water tank. Allow it to sit for at least 1 hour.

6. Pour out the vinegar from the water tank

and the inner chamber and thoroughly rinse with warm water.

Note: Do not submerge the base in water.

7. Dry all parts with a clean, dry cloth.

Make sure all parts of the humidiﬁer are completely dry before reassembling or storing.

8. Do not use the humidiﬁer immediately

after disinfecting. This may be a health hazard.

Note: A 3% hydrogen peroxide solution may also be used instead of vinegar to disinfect the humidiﬁer. Do not mix hydrogen peroxide and vinegar.

Figure 4.1

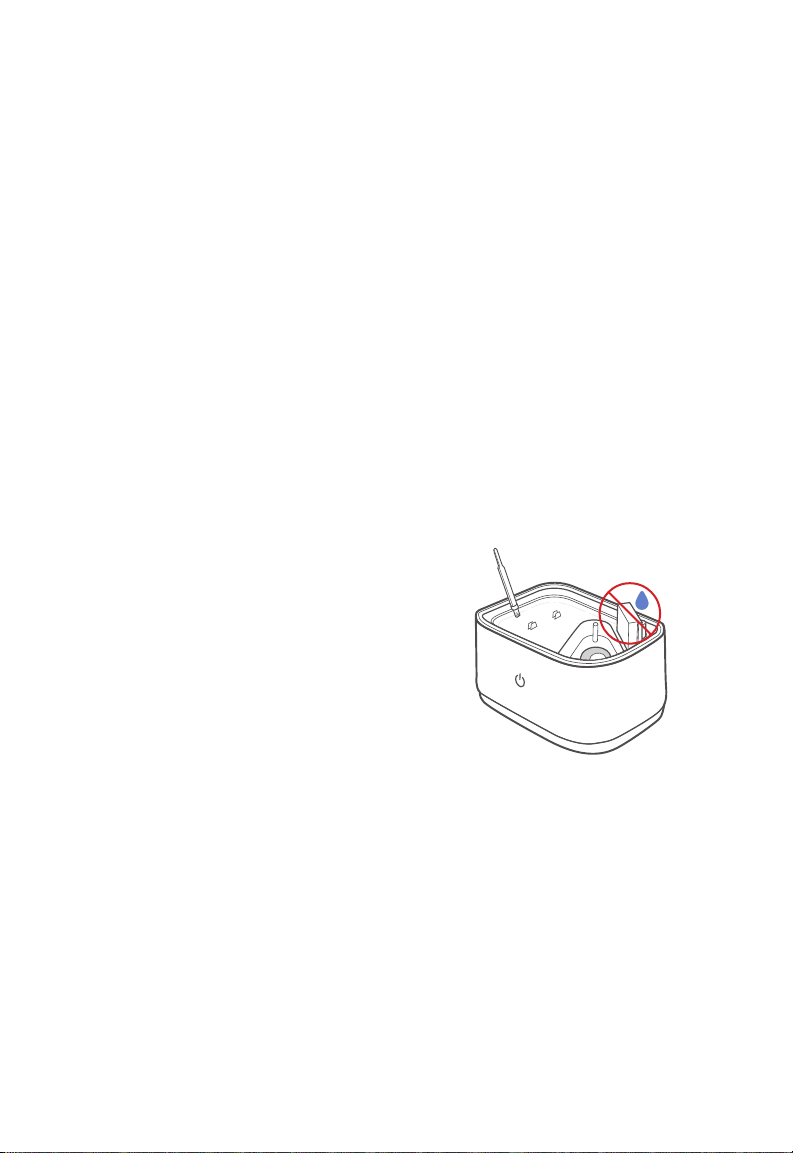

Note: Do not allow water inside or around the air outlet to prevent damage to the humidiﬁer. [Figure 4.1]

4. Add 1 cup / 238 mL of distilled white

vinegar to the inner chamber and soak for 1 hour.

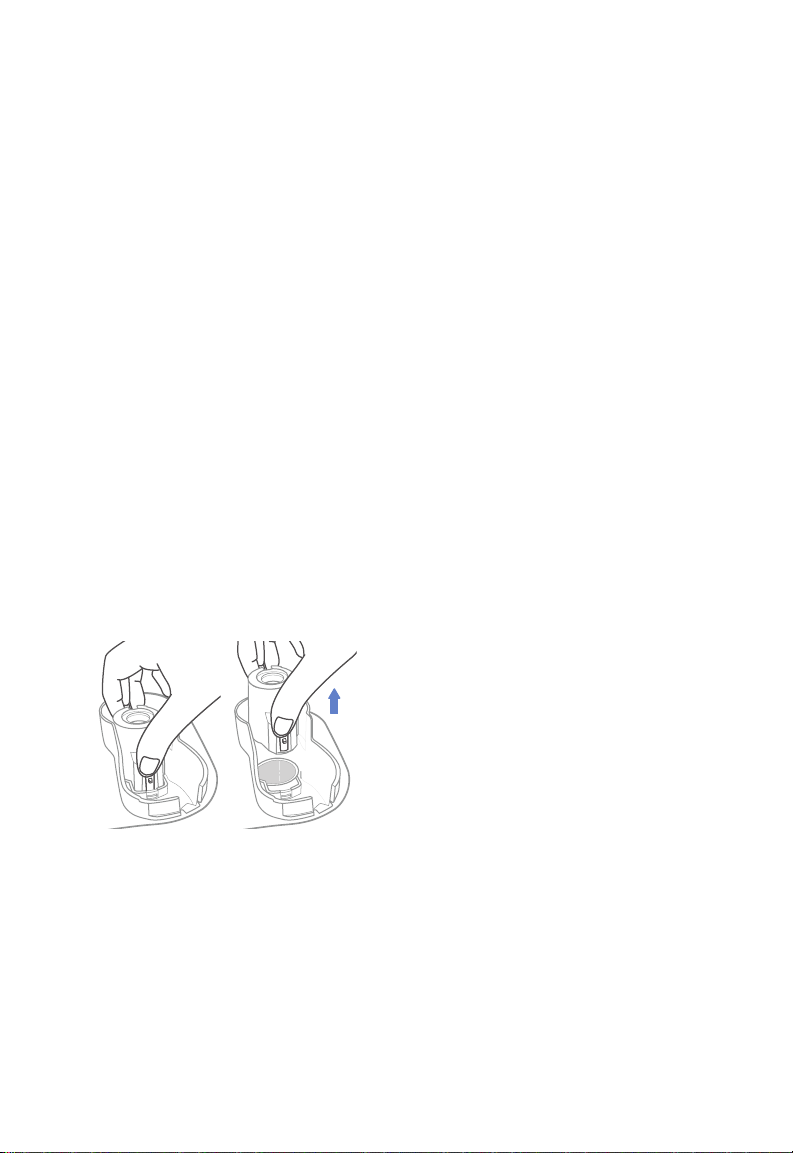

5. Use the included cleaning brush to

remove any scale buildup inside the water tank or inner chamber. [Figure 4.1]

Page 11

KEEPING THINGS CLEAN (CONT.)

Cleaning the Aroma Pad

1. Press the aroma box to release it from

the base, and pull it out.

2. Remove the aroma pad and rinse under

warm, running water.

3. Dry with a clean cloth and place it back

into the aroma box.

Note: Do not pour liquid cleaners or detergents into the aroma pad or box.

Cleaning the Noise Silencer

1. Press the release tab and gently pull

away from the humidiﬁer. [Figure 5.1]

2. Rinse under clean, running water.

3. Dry with a clean, dry cloth before

replacing it.

Deep Cleaning the Humidifier

Deep clean the water tank every 2 weeks and before and after storing the humidiﬁer for a long period of time. You should also disinfect if there is any mold buildup inside the water tank or inner chamber.

Note: Only use vinegar and water to deep clean your humidiﬁer.

1. Fill the water tank with 1 cup / 238 mL of

vinegar along with 1 gal / 3.8 L of water.

2. Place the humidiﬁer outdoors and allow

it to run for 1 hour.

3. Pour out the mixture and reﬁll with

water. Then, run the humidiﬁer for another hour outdoors.

4. Rinse the water tank and inner chamber

thoroughly under clean, running water.

Note: Do not submerge the base in water.

5. If storing, allow the water tank and

base to completely air dry before reassembling.

Figure 5.1

Page 12

TROUBLESHOOTING

Problem Possible Solution

No mist comes out of the nozzles.

Only a small amount of mist comes out of the nozzles.

Humidiﬁer runs out of water too quickly.

Humidiﬁer produces an unusual smell.

Humidiﬁer makes a loud or unusual noise.

Plug in the humidiﬁer and turn it on.

Add at least 2 cups / 475 mL of puriﬁed or distilled water to the water tank.

Clean the humidiﬁer (see Keeping Things Clean, page 10).

Water may be in the air outlet. Take the water tank o of the base and allow the outlet to fully air dry before using again.

Clean the humidiﬁer, especially the nozzles, air outlet, and transducer (see Keeping Things Clean, page 10).

The humidiﬁer uses up water based on the environmental temperature and humidity. If your environment is cold and/or dry, the humidiﬁer will run out of water faster.

If the humidiﬁer is new, remove the water cap, and place the water tank in a cool, dry place for 12 hours.

If essential oils were diused on the aroma pad, rinse the pad under clean water, and allow it to dry.

Clean the humidiﬁer (see Keeping Things Clean, page 10).

Make sure the water tank is properly in place (see Getting

Started, page 7).

Place humidiﬁer on a ﬂat, level surface.

Mist comes out from the base.

White dust appears around the humidiﬁer.

Add at least 2 cups / 475 mL of puriﬁed or distilled water into the water tank.

The humidiﬁer may be malfunctioning. Stop using the humidiﬁer and contact Customer Support (see page 15).

Make sure the water tank is properly in place (see Getting

Started, page 7).

We recommend using puriﬁed or distilled water to ﬁll the humidiﬁer. Avoid using water with high mineral content.

Clean the humidiﬁer (see Keeping Things Clean, page 10).

Page 13

TROUBLESHOOTING (CONT.)

Problem Possible Solution

Water visibly leaks from the humidiﬁer.

Stop using the humidiﬁer and see Preventing Water Leaks (page 9) before using again. If the humidiﬁer continues leaking, contact Customer Support (see page 15).

Make sure the silicone sealing ring around the water tank cap is secure.

A puddle of water

Run the humidiﬁer on a lower mist setting.

forms around the humidiﬁer.

Mold grows inside the humidiﬁer.

If your problem is not listed, please contact Customer Support (see page 15).

Open a window to ensure proper airﬂow for your humidiﬁer, or move the humidiﬁer to a more well-ventilated room.

Make sure the water tank is properly in place (see Getting

Started, page 7).

Make sure the silicone sealing ring around the water tank cap is secure.

When replacing the water tank, wipe o excess water from the water tank and base.

Stop using the humidiﬁer and see Preventing Water Leaks (page

9) before using again. If the humidiﬁer still leaks, contact

Customer Support (see page 15).

Clean the water tank and inner chamber regularly (see Keeping

Things Clean, page 10).

Page 14

WARRANTY INFORMATION

Product Ultrasonic Cool Mist

Default Warranty

For your own reference, we strongly recommend

that you record your order ID and date

Humidiﬁer

Model Classic 200

1 year

Period

of purchase.

Terms & Policy

Arovast Corporation warrants all products to be of the highest quality in material, craftsmanship, and service, eective from the date of purchase to the end of the warranty period.

Arovast Corporation will replace any product found to be defective due to manufacturer ﬂaws based on eligibility. Refunds are available within the ﬁrst 30 days of purchase. Refunds are only available to the original purchaser of the product. This warranty extends only to personal use and does not extend to any product that has been used for commercial, rental, or any other use in which the product is not intended for. There are no warranties other than the warranties expressly set forth with each product.

This warranty is non-transferrable. Arovast Corporation is not responsible in any way for any damages, losses, or inconveniences caused by equipment failure by user negligence, abuse, or use noncompliant with the user manual or any additional safety, use, or warnings included in the product packaging and manual.

This warranty does not apply to the following:

• Damage due to abuse, accident, alteration, misuse, tampering, or vandalism.

• Improper or inadequate maintenance.

• Damage in return transit.

• Unsupervised use by children under 18 years of age.

Arovast Corporation and its subsidiaries assume no liability for damage caused by the use of the product other than for its intended use or as instructed in the user manual. Some states do not allow this exclusion or limitation of incidental or consequential losses so the foregoing disclaimer may not apply to you. This warranty gives you speciﬁc legal rights and you may also have other rights which may vary from state to state.

ALL EXPRESSED AND IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY.

Additional 1-Year Warranty

You can extend your 1-year warranty by an additional year. Log onto www.levoit.com/warranty to register your new product for the extended warranty.

Please ﬁll out all required ﬁelds and include your order ID, place of purchase, and purchase date, if applicable.

Defective Products & Returns

If your product proves defective within the speciﬁed warranty period, please contact Customer Support via [email protected] with your order ID. Do not dispose of your product before contacting us. Once Customer Support has approved your request, please return the unit with a copy of the invoice or your order ID.

Page 15

CUSTOMER SUPPORT

If you encounter any issues or have any questions regarding your new product, feel free to contact our helpful Customer Support Team.

Customer Support

Arovast Corporation

1202 N. Miller St., Suite A Anaheim, CA 92806

Email: [email protected] Toll-Free: (888) 726-8520

Support Hours

Mon–Fri, 9:00 am–5:00 pm PST/PDT

*Please have your order invoice and order ID ready before contacting Customer Support.

Page 16

levoit.com

Connect with us @LevoitLifestyle

AU0719MC-M1.1_0719Classic200
