Page 1

Getting Started Guide

WEB VERSION

DIMMER

Cat. No. DG6HD

Page 2

WEB VERSION

Page 3

Welcome to the

WEB VERSION

Decora Smart™ family of Zigbee® enabled devices

See the complete line of Zigbee enabled

dimmers, switches and plug-ins

leviton.com/decorasmart

Page 4

Welcome

WEB VERSION

We are here to help

The Decora Smart™ Dimmer with Zigbee® technology is designed for use with Zigbee hubs. Using mesh networking technology Zigbee provides quick, reliable, secure communication to a wide variety of smart products.

Add your dimmer to a Zigbee hub to control it with your smartphone or a voice interface.

CALL

1-80 0-824-3 0 0 5 (USA) 1-80 0- 4 0 5 -5320 ( C anada)

ONLINE

leviton.com/decorasmart

CHAT

leviton.com

dssupport@leviton.com

Page 5

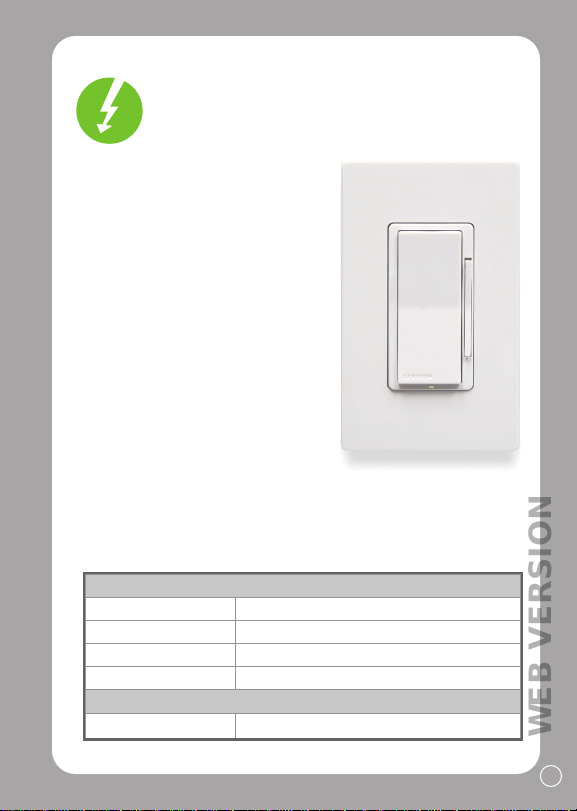

Your dimmer works with:

WEB VERSION

Your Decora Smart dimmer with Zigbee technology is compatible with dimmable LED, dimmable CFL, and incandescent bulbs.

Your dimmer should not be used with electronic low voltage, motor loads or aluminum wire. To ensure proper communication do not use metal wallplates. For LED compatibility recommendations, go to leviton.com/LED.

Note: When two or more dimmers are installed next to each other the incandescent load rating becomes 500W for each dimmer. No reduction is necessary if the load is LED or CFL.

RATINGS

LED / CFL 300W - 120VAC, 60Hz

Incandes

cent 600W - 120VAC, 60Hz

Operating Temp 0°C - 40°C (32°F - 104°F)

Operating Humidity 0-90% non-condensing

NETWORK

Zigbee Zigbee 3.0 Certiﬁed

Page 6

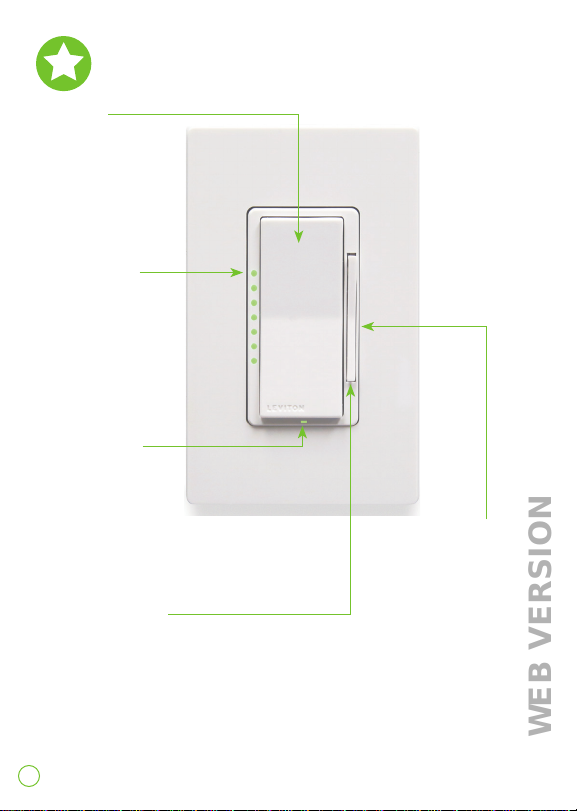

Features

WEB VERSION

Rocker

Manually turn light on. The bottom of the paddle turns the light off.

Brightness indicator lights

Displays light level when adjusting brightness.

Status light

Illuminates when load is off.

Dim / bright bar

Manually adjust

light levels.

Air gap switch

This feature will stop power to the lights to replace a bulb. After servicing is complete, press the dim bright bar back into place for normal operation. Engage the air-gap switch by gently pulling the bottom of the dim/bright bar until the bottom lifts completely out of the frame and a click is heard. The dimmer brightness indicator lights and any connected lights will turn off.

Page 7

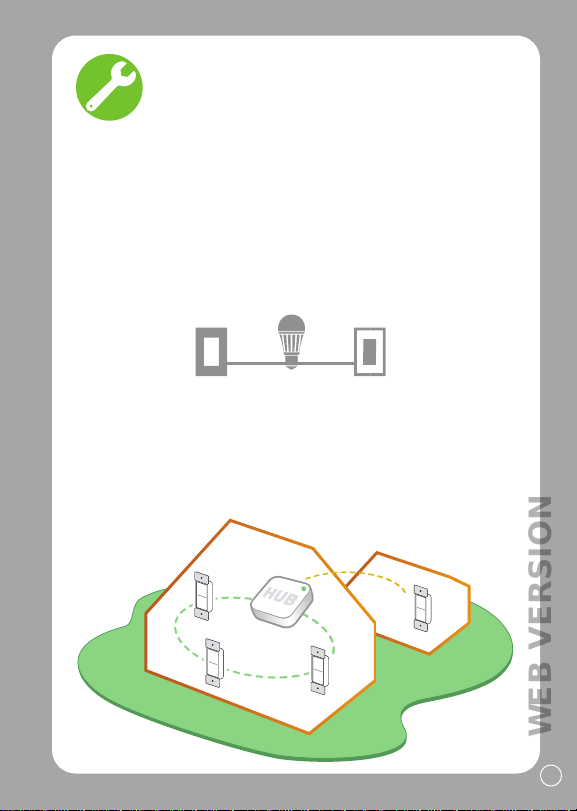

Before you install

WEB VERSION

Things to consider:

• If light(s) are controlled from more than one location,

you will need a DD00R remote. See the DD00R installation instructions for wiring instructions.

• Zigbee is a mesh network. It must be installed within

30 ft of hub or another Zigbee 3.0 compliant device.

NOTE: Communicat ion throug h exterior surfaces will likely reduce transmission distances.

Page 8

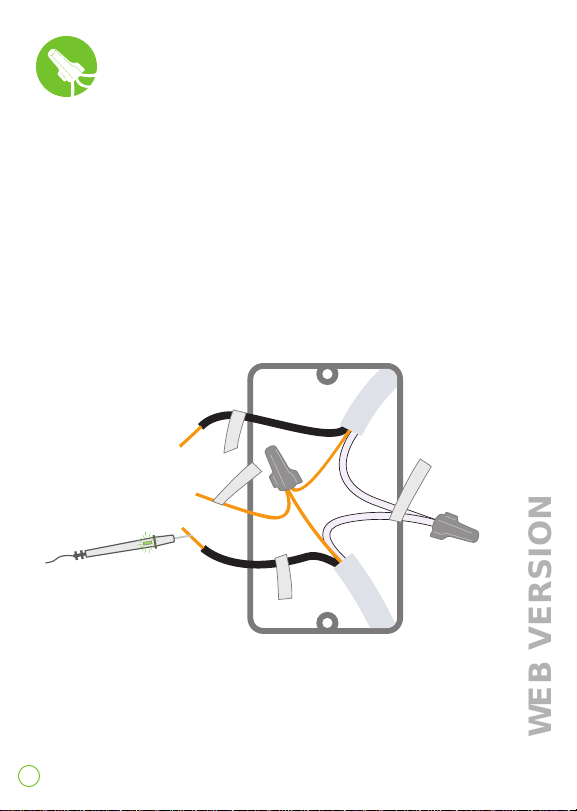

Identify your wires

WEB VERSION

Check your wall box:

WARNING: TO AVOID FIRE, SHOCK OR DEATH, turn off power at the circuit breaker.

1. Remove wallplate and disconnect switch.

2. Ensure disconnected wires are not touching.

3. Restore power. Carefully test wires with voltage tester to ﬁnd

the hot wire.

4. Turn off power at the circuit breaker.

5. Mark the following wires:

a load wire

a copper ground

a hot (line) wire

(ﬁnd with voltage tester)

If your wall box looks different,

LOAD

GROUND

LINE

consult an electrician.

two or

more white

(neutral) wires

NEUTRAL

Page 9

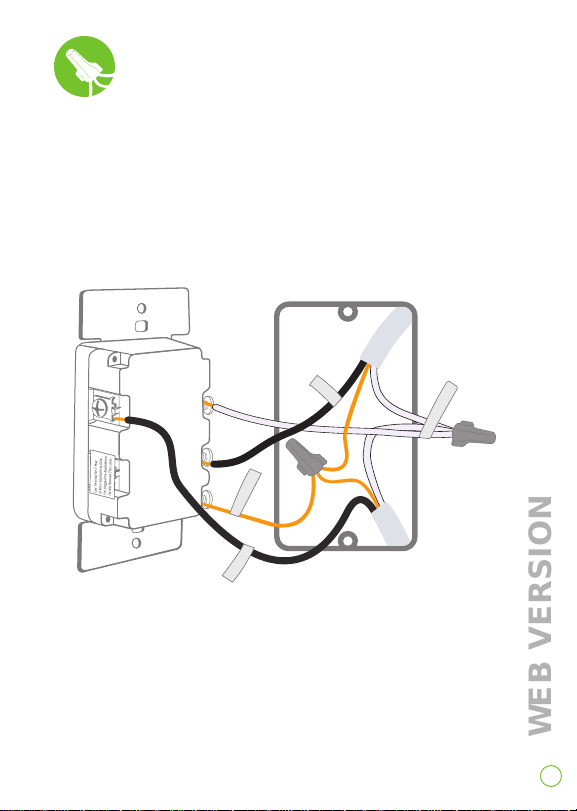

Wire your dimmer

WEB VERSION

1. Work on only one connection at a time.

2. Connect wires as shown.

3. Secure wire connections with an electrical connector.

LOAD

YL/RD

GROUND

HOT

NEUTRAL

If your wall box looks different,

consult an electrician.

Page 10

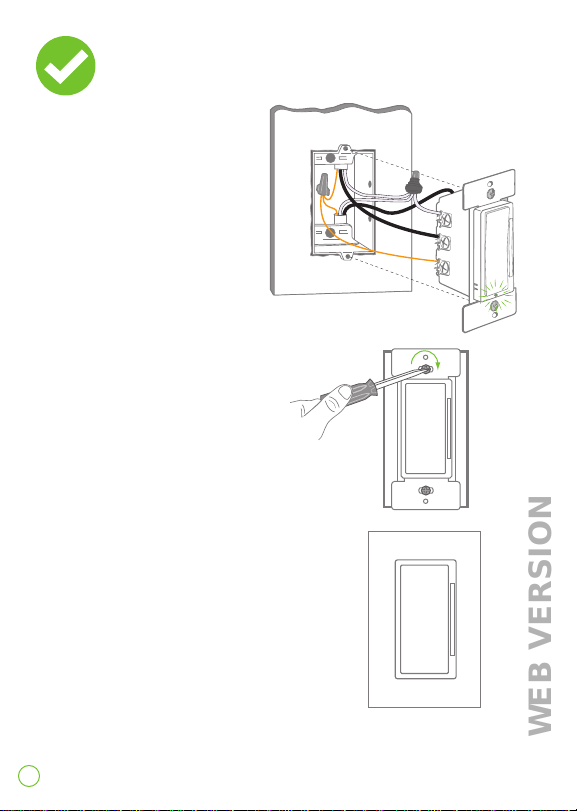

Test and install

WEB VERSION

1. Restore power. Status

light should ﬂash green indicating your dimmer is ready to join the network.

Turn off power at circuit breaker before completing the dimmer installation.

2. Gently push wires into wall box.

Screw dimmer to box.

3. Install screwless wallplate base

and snap on Decora wallplate. Restore power.

is ready to control your light(s).

Congratulations!

Your Decora Smart dimmer

Page 11

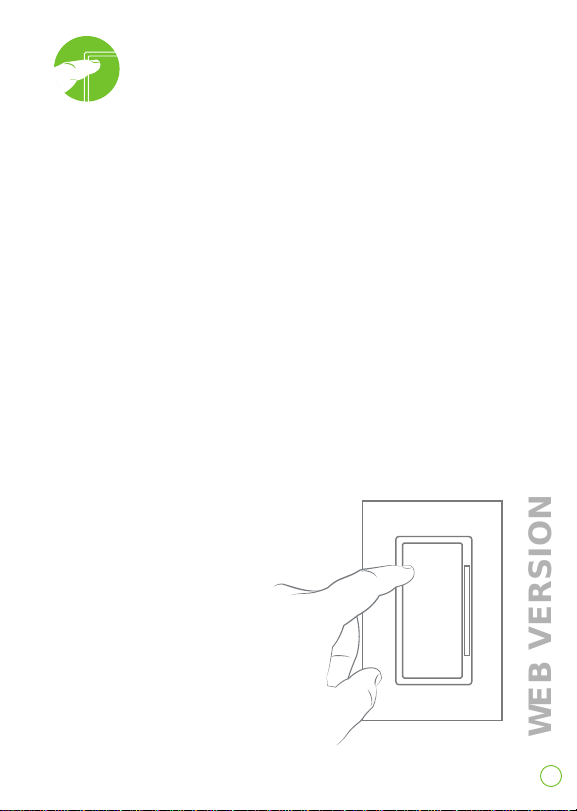

Operate and program

WEB VERSION

1. Manually control light levels with rocker or dimmer bar.

2. Program your dimmer.

Set your dimmer’s load type for proper operation.

1. Enter programming mode by holding the top of the paddle

for 7 seconds.

- Status light will turn amber.

2. Tap the top of the paddle 4 times.

- Status light will quickly ﬂash green/amber.

3. Tap the top of the paddle to choose your load type.

Tap: If your light is:

4 times = incandescent load 5 times = LED load 6 times = CFL load

- Status light will quickly ﬂash green/amber 3 times.

Page 12

Minimum dim level

WEB VERSION

The default dimmer settings work well with most lighting ﬁxtures. If you are not experiencing full rage dimming, please adjust the minimum dim level.

1. Enter programming mode by holding the top of the paddle

for 7 seconds.

- Status light will turn amber.

2. Tap the top of the paddle 5 times.

- Status light will quickly ﬂash red/amber.

3. Tap the top of the paddle once.

- Status light will ﬂash amber.

4. Use the dim/bright bar to adjust

the minimum dim level.

5. Hold the top of the paddle to exit.

Add your dimmer to a hub

To control your dimmer with your phone, add it to a compatible Zigbee hub. Use the hub's app and follow the instructions for adding a dimmer. When you power up your dimmer it immediately enters inclusion mode (some hubs may use the term connect, join or pair).

When joining multiple devices, the air gap can be used to ensure only one active device is enrolled.

If the hub uses older inclusion processes contact technical services for speciﬁc product instructions.

Page 13

Factory default

WEB VERSION

To reset dimmer to factory settings and place into joining mode:

1. Hold the top of the paddle for a total of 14 seconds.

2. After the ﬁrst 7 seconds the light turns amber. Continue

to hold.

3. After a total of 14 seconds, the status light will quickly ﬂash

red/amber.

4. Release the top of the paddle and the dimmer will reset.

Manually start/stop joining

When you ﬁrst power on your dimmer or perform a factory reset the green status light will automatically ﬂash. This indicates the dimmer is in joining mode. It will remain in this state for 30 minutes or until the dimmer is added to a network. To manually start or stop joining mode, perform the following steps:

1. Hold the top of the paddle for 7 seconds. Status light will

turn amber.

2a. To start joining mode tap the top of the paddle 1 time.

The status light will ﬂash green rapidly to indicate it is in joining mode.

2b. To stop joining mode tap the top of the paddle 1 time. The

dimmer will leave joining mode. NOTE: the device can still be operated manually even if not joined to a hub.

Page 14

Safety ﬁrst

WEB VERSION

WARNING: TO AVOID FIRE, PERSONAL INJURY OR DEATH DO NOT USE the dimmer for the control of hi gh power heating appliances such as portable heaters. There can be unexpected consequences if not used with care. For example, an empty coffee pot can be remotely turned on. If that should happen, your coffee pot could be damaged from overheating. If an electric heater is turned on by remote control while clothing is draped over it, a ﬁre could result. This module will not control light ing that is used with electronic low-voltage and hi gh frequency power supply transformers, nor high pressure discharge lamps (HID lighting). This includes mercury-vapor, sodium vapor and metal halide lamps.

WARNINGS:

• To reduce the risk of overheating and possible damage to other

equipment do not install to control a motor-operated appliance, ﬂuorescent lighting ﬁxture, or a transformer supplied appliance.

• This product is to be installed and/or used in accordance with elec trical

codes and regulations.

• Indoor use only.

• If you are unsure about any part of these instructions, consult

an electrician.

• Turn off power at the circuit breaker when servicing.

• Save this instruction sheet. It contains important technical data along

with testing and troubleshooting information which will be useful after installation is complete.

Page 15

Limited 5 year warranty

WEB VERSION

For Levit on’s limited pro duct warra nty, go to www.leviton.com. For a pri nted copy of the w arranty, call 1-800-824-300 5.

FOR CANADA ONLY

For warra nty inform ation and/or prod uct returns , residents of C anada should c ontact Lev iton in writ ing at Leviton Ma nufactur ing of Canada Ltd t o the attent ion of the Qualit y Assuranc e Departm ent, 165 Hymus Blv d, Pointe-Cl aire (Quebec), Can ada H9R 1E9 or by teleph one at 1-800-405-5320.

FCC COMPLIANCE STATEMENT

The encl osed device c omplies wit h Part 15 of the FCC Ru les. Operat ion is subjec t to the follow ing two con ditions: (i.) Th is device may no t cause harmf ul interfer ence (ii.) This dev ice must acc ept any inter ference receiv ed, includi ng interfere nce that may cau se undesir ed operation . Any changes or modiﬁ cations not ex pressly app roved by Leviton c ould void the us er’s author ity to operate t his equip ment. This eq uipment ha s been tested a nd found to compl y with the lim its for a Class B d igital device , pursuant to pa rt 15 of the FCC Rule s. These limi ts are desig ned to provid e reasonable p rotection agains t harmful in terference i n a residenti al install ation. This e quipment gen erates uses an d can radiate r adio frequen cy energy an d, if not instal led and used i n accordance w ith the ins tructio ns, may cause ha rmful inter ference to rad io communica tions. Howev er, there is no guar antee that int erference will no t occur in a par ticular i nstallat ion. If this equ ipment does c ause harmf ul interfere nce to radio or telev ision recept ion, which c an be determin ed by turning t he equipme nt off and on, t he user is encour aged to try to c orrect the i nterferen ce by one or more of t he followin g measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC CAUTIO N

Any chan ges or modiﬁca tions not expr essly approve d by Leviton Man ufacturi ng Co., Inc., could v oid the user’s a uthorit y to operate the e quipment.

FCC SUPPL IER’S DECLA RATION OF CONFO RMITY:

Model DG6 HD – Dimmer is m anufactur ed by Leviton Man ufacturi ng Co., Inc., www.leviton.com.

This dev ice complies w ith part 15 of t he FCC Rules. Op eration is sub ject to the fol lowing two c onditions : (1) This devic e may not cause h armful inter ference, and (2) th is device mu st accept any in terference receive d, includin g interferen ce that may caus e undesired o peration.

IC S TATEM ENT

This dev ice complies w ith Indust ry Canada li cense-exem pt RSS standa rd(s). Operation is s ubject to the follow ing two cond itions: (1) this dev ice may not caus e interfere nce, and (2) this dev ice must acc ept any inter ference, incl uding inter ference that m ay cause unde sired operat ion of the dev ice.

RF EXPOSURE AND CO-LOCATION:

To comply wit h FCC OET Bullet in 65 and ISED RF ex posure limit s for general pop ulation and u ncontroll ed exposu re, this devi ce shall be ins talled and op erated with a m inimum dis tance of 7.9 inches (20 cm) betwe en the radiato r and your body. Al so, must not be c o-located or o perated in con junction w ith any other a ntenna or tran smitter.

The Leviton logo and Decora Smart are trademarks of Leviton Manufacturing Co., Inc. Zigbee is a U.S. registered trademark of Zigbee Alliance. Use herein of other third party trademarks, service marks, trade names, brand names and/or product names are for informational purposes only, are/may be the trademarks of their respective owners; such use is not meant to imply afﬁliation, sponsorship, or endorsement. No part of this document may be reproduced, transmitted or transcribed without the express written permission of Leviton Manufacturing Co., Inc.

Page 16

If you need help...

WEB VERSION

CALL

1-800-824-3005 (USA) 1-800-405-5320 (Canada)

ONLINE

leviton.com/decorasmart

CHAT

leviton.com

dssupport@leviton.com

Leviton Manufacturing Co., Inc. 201 North Service Road, Melville, NY 11747 Tel ephone: 1-8 00-82 4 -300 5

Speciﬁcations subject to change at any time without notice.

DI-000-DG6HD-02A
