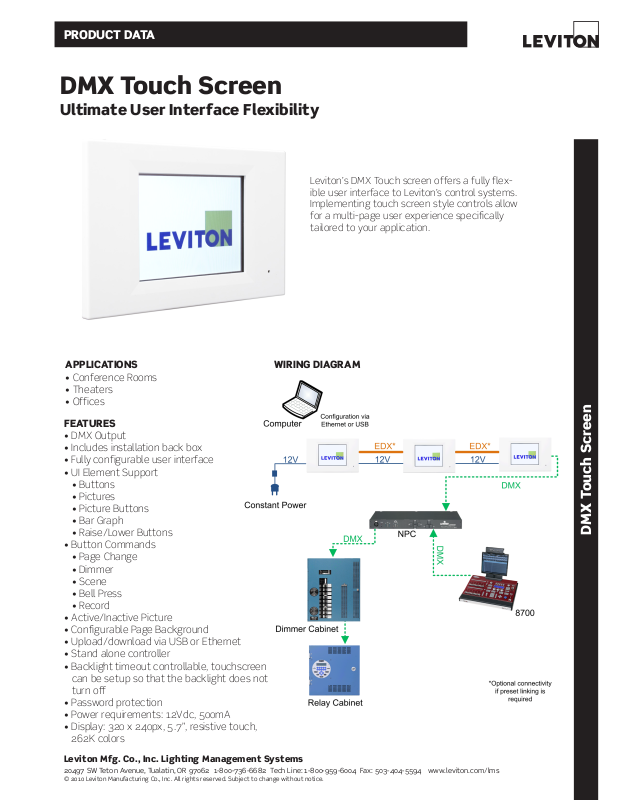

Page 1
PRODUCT DATA
DMX Touch Screen
Ultimate User Interface Flexibility
Leviton’s DMX Touch screen offers a fully flexible user interface to Leviton’s control systems.
Implementing touch screen style controls allow
for a multi-page user experience specifically
tailored to your application.
APPLICATIONS
• Conference Rooms
• Theaters
• Offices
FEATURES
• DMX Output
• Includes installation back box
• Fully configurable user interface
• UI Element Support
• Buttons
• Pictures
• Picture Buttons
• Bar Graph
• Raise/Lower Buttons
• Button Commands
• Page Change
• Dimmer
• Scene
• Bell Press
• Record
• Active/Inactive Picture
• Configurable Page Background
• Upload/download via USB or Ethernet
• Stand alone controller
• Backlight timeout controllable, touchscreen
can be setup so that the backlight does not
turn off
• Password protection
• Power requirements: 12Vdc, 500mA
• Display: 320 x 240px, 5.7”, resistive touch,
262K colors
WIRING DIAGRAM
DMX Touch Screen
Leviton Mfg. Co., Inc. Lighting Management Systems
20497 SW Teton Avenue, Tualatin, OR 97062 1-800-736-6682 Tech Line: 1-800-959-6004 Fax: 503-404-5594 www.leviton.com/lms
© 2010 Leviton Manufacturing Co., Inc. All rights reserved. Subject to change without notice.
Page 2
PRODUCT DATA
Master Raise/Lower
Zone
DIMENSIONAL DIAGRAM
8.3”
210.8mm
Channel
Control
Installation
Backbox
inclued
Home
Screen
Functions
Clocks
Bar Graph
Level Display
Zone
Raise/Lower
Preset
Recall
Zone
Master Raise/Lower
1.54”
39mm
5.35”
135.8mm
DMX Touch Screen
Sidebar Title Goes Here
ORDERING INFORMATION
CAT. NO. DESCRIPTION
TS005-DI5 5.7” DMX Touch Screen, 0.7 lbs/320g
LEVITON SPECIFICATION SUBMITTAL
JOB NAME: CATALOG NUMBERS:
JOB NUMBER:
Leviton Manufacturing Co., Inc. Lighting Management Systems
20497 SW Teton Avenue, Portland, OR 97062
Telephone: 1-800-736-6682 • FAX: 503-404-5594 • Tech Line (6:00AM-4:00PM P.S.T. Monday-Friday): 1-800-959-6004
Leviton Manufacturing of Canada, Ltd.
165 Hymus Boulevard, Pointe Claire, Quebec H9R 1E9 • Telephone: 1-800-469-7890 • FAX: 1-800-563-1853
Leviton S. de R.L. de C.V.
Lago Tana 43, Mexico DF, Mexico CP 11290 • Tel. (+52) 55-5082-1040 • FAX: (+52) 5386-1797 • www.leviton.com.mx
Visit our Website at: www.leviton.com/lms
2010
© 2008 Leviton Manufacturing Co., Inc. All rights reserved. Subject to change without notice.
Multiple Buttons
Per Page
X-xxxxX/B8-ak
