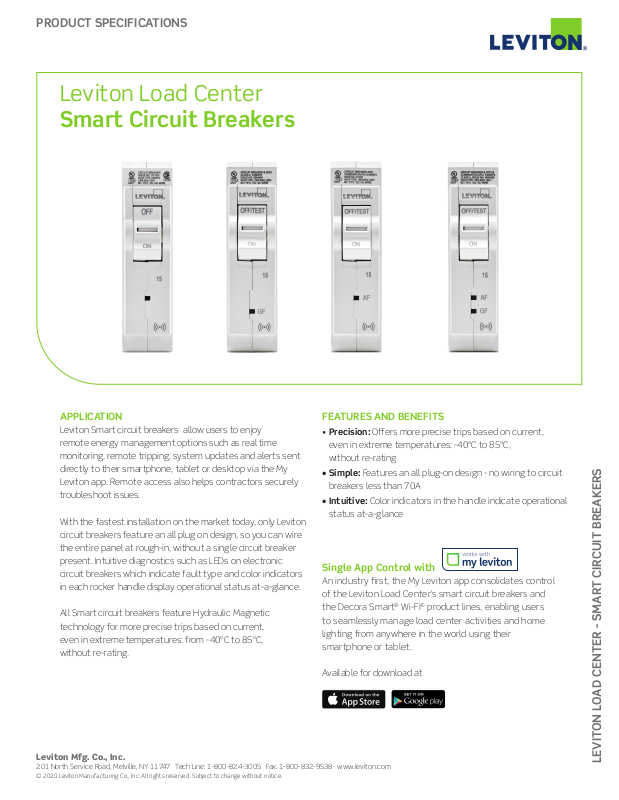

Page 1
PRODUCT SPECIFICATIONS
Leviton Load Center
Smart Circuit Breakers
APPLICATION
Leviton Smart circuit breakers allow users to enjoy
remote energy management options such as real time
monitoring, remote tripping, system updates and alerts sent
directly to their smartphone, tablet or desktop via the My
Leviton app. Remote access also helps contractors securely
troubleshoot issues.
With the fastest installation on the market today, only Leviton
circuit breakers feature an all plug on design, so you can wire
the entire panel at rough-in, without a single circuit breaker
present. Intuitive diagnostics such as LEDs on electronic
circuit breakers which indicate fault type and color indicators
in each rocker handle display operational status at-a-glance.
All Smart circuit breakers feature Hydraulic Magnetic
technology for more precise trips based on current,
even in extreme temperatures: from -40ºC to 85ºC,
without re-rating.
FEATURES AND BENEFITS
• Precision: Oers more precise trips based on current,
even in extreme temperatures: -40ºC to 85ºC,
without re-rating
• Simple: Features an all plug-on design - no wiring to circuit
breakers less than 70A
• Intuitive: Color indicators in the handle indicate operational
status at-a-glance
Single App Control with
An industry first, the My Leviton app consolidates control
of the Leviton Load Center’s smart circuit breakers and
the Decora Smart® Wi-Fi® product lines, enabling users
to seamlessly manage load center activities and home
lighting from anywhere in the world using their
smartphone or tablet.
Available for download at
Leviton Mfg. Co., Inc.
201 North Service Road, Melville, NY 11747 Tech Line: 1-800-824-3005 Fax: 1-800-832-9538 www.leviton.com
© 2020 Leviton Manufacturing Co., Inc. All rights reserved. Subject to change without notice.
LEVITON LOAD CENTER - SMART CIRCUIT BREAKERS
Page 2
PRODUCT SPECIFICATIONS
PRODUCT FEATURES
Dimensions:
Single Pole 3.9'' H x 1.0'' W x 3.1'' D
Double Pole 3.9'' H x 2.0'' W x 3.1'' D
Warranty: 10-Year Limited, 2-Year for electronic components
Weight: Single Pole 0.42 lbs.
Double Pole 0.85 lbs.
Wiring: All Plug-on
ORDERING INFORMATION
Smart Standard
Amp Rating 1-Pole 2-Pole
15 LB115-S LB215-S
20 LB120-S LB220-S
25 LB125-S LB225-S
30 LB130-S LB230-S
35 - LB235-S
40 - LB240-S
45 - LB245-S
50 - LB250-S
60 - LB260-S
70 - 125 - LSBMA
Electrical Specifications
Amperage: Refer to catalog number tables
Breaker Technology: Hydraulic Magnetic
Short Circuit Current Rating: 10 KA, Series Rated 22KA with Leviton
Main Breaker; see Series Ratings Tables for additional Ratings
Type: Available in Standard, AFCI, GFCI, AFCI/GFCI, GFPE
Standards & Certifications
CSA-C22.2 No. 5-02
EMC Compatible
FCC
RoHS
UL 489, HACR rated
UL 943 (GFCI), where applicable
UL 1699 (AFCI), where applicable
Smart GFCI - 5 mA Ground-Fault
Protection of Personnel
Amp Rating 1-Pole 2-Pole
15 LB115-GS LB215-GS
20 LB120-GS LB220-GS
25 LB125-GS LB225-GS
30 LB130-GS LB230-GS
40 - LB240-GS
50 - LB250-GS
60 - LB260-GS
Smart AFCI
Amp Rating 1-Pole
15 LB115-AS
20 LB120-AS
Smart AFCI/GFCI - Dual Function
Amp Rating 1-Pole
15 LB115-DS
20 LB120-DS
Smart GFPE - 30 mA Ground-Fault
Protection of Equipment
Amp Rating 1-Pole 2-Pole
15 LB115-ES LB215-ES
20 LB120-ES LB220-ES
25 LB125-ES LB225-ES
30 LB130-ES LB230-ES
40 - LB240-ES
50 - LB250-ES
60 - LB260-ES
Page 3

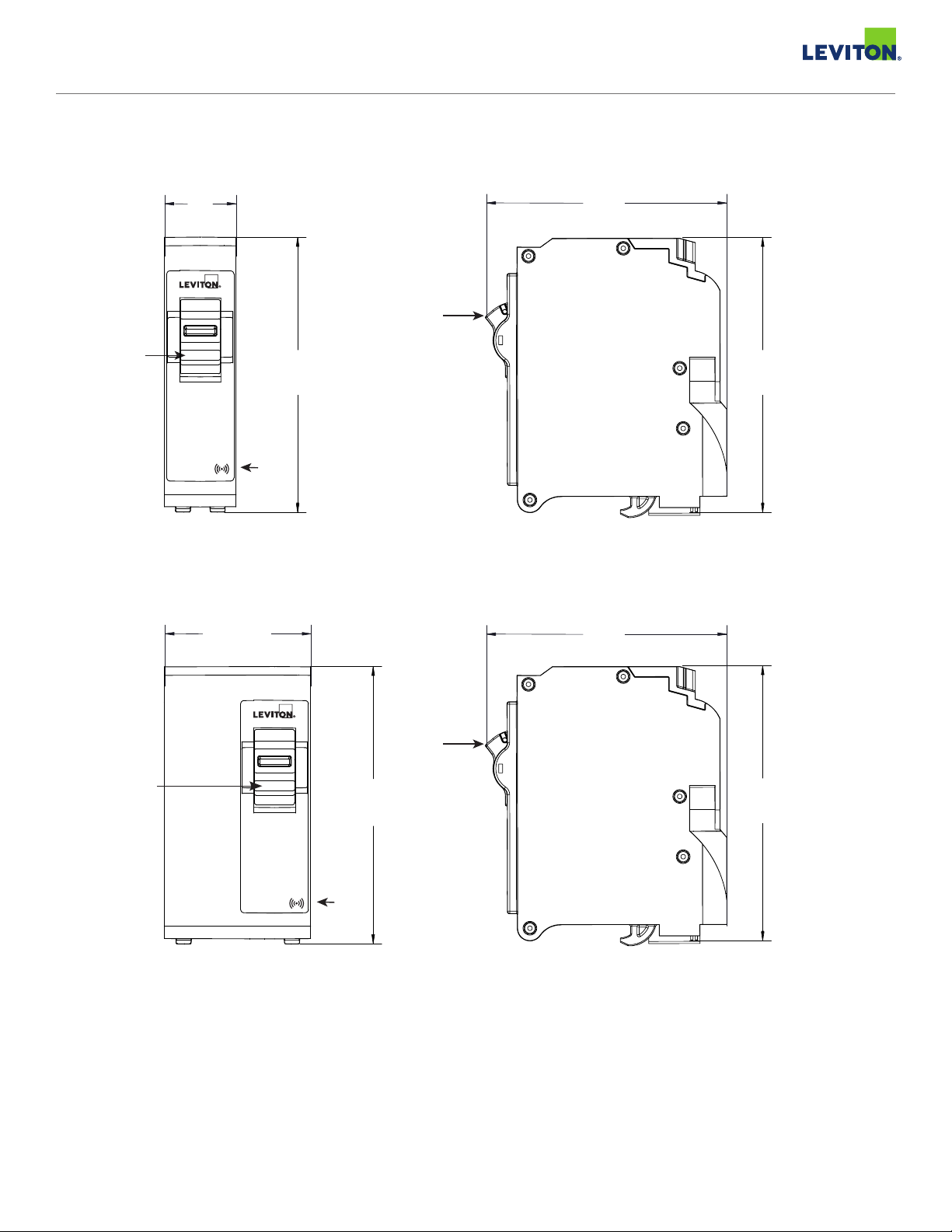

DIMENSIONAL DRAWINGS
ON
1.0"
OFF / TEST
ON
2.0"
3.1"
3.9" 3.9"
HANDLE ON
Smart Icon
Single Pole
3.1"
ON
OFF / TEST
ON
3.9"
Smart Icon
Double Pole
HANDLE ON
3.9"
LEVITON LOAD CENTER - SMART CIRCUIT BREAKERS
Page 4
HANDLE OPERATION AND LED DIAGNOSTICS
Handle
Window
“AF” LED “GF” LED Device Status
GREEN OFF OFF ON
RED OFF OFF Overload or short-circuit trip
RED ON (solid) OFF Series arc-fault trip
RED OFF ON (solid) Ground-fault trip or Parallel arc-fault to Ground
RED ON (blinking) OFF 0.5 sec. delay -Parallel arc-fault trip
RED OFF ON (blinking) 3 sec. delay - Neutral Miswired
RED ON (blinking) ON (blinking)
0.1 sec. delay -Electronics self-test failure
(breaker will be locked out and must be replaced)
WHITE OFF OFF Manual OFF
Leviton Manufacturing Co., Inc.
201 North Service Road, Melville, NY 11747-3138
Telephone: 1-800-323-8920 • FAX: 1-800-832-9538
Tech Line: 1-800-824-3005
Mon-Fri 8am-10pm EST, Saturday 9am-7pm EST
Visit our Website at: www.leviton.com/loadcenter
© 2020 Leviton Manufacturing Co., Inc. All rights reserved.
TS-032020D-tp
