QuickPort

®

Field-Configurable Connector Housings

Component
Specifications

3880-DIN

QuickPort®Field-Configurable Connector Housings

Part Numbers
41087-xxP

2222 – 222nd St. SE • Bothell, WA 98021 USA • Tel: [phone] • Fax: [phone] • Int'l Fax: [phone] • GSA# GS-35F-4785G

For Applications Engineering Support – Call 1-425-485-4288; in USA call 1-800-722-2082
Spec sheets and updates are also available at www.levitonvoicedata.com.

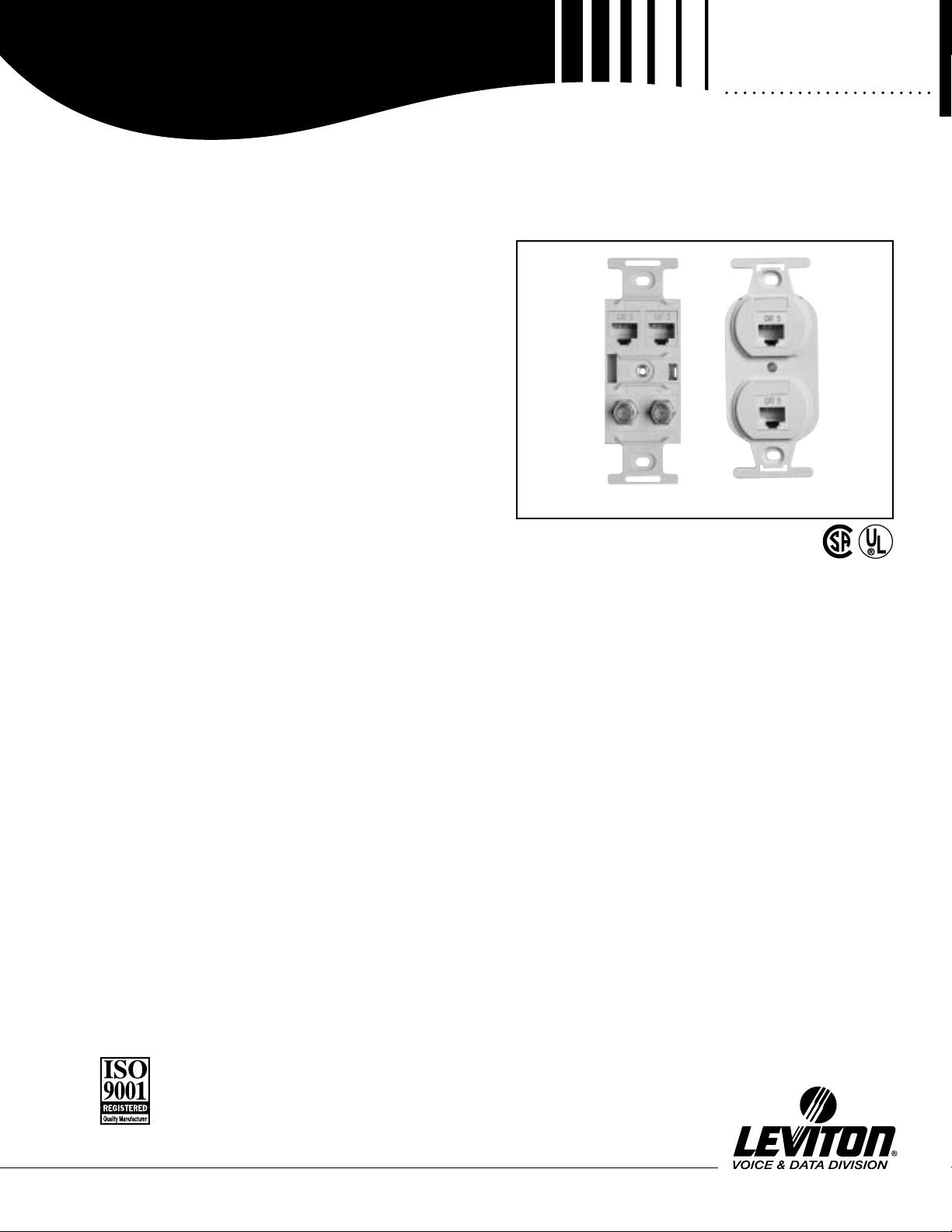

NEMA-Style Housings

Field-configurable housings in several NEMA styles that accept all
individual QuickPort

®

snap-in modules. Use to support multime­dia applications where a flush-mount electrical-wallplate look is
desired, or where there will be multiple devices—or a combina­tion of electrical and voice/data devices—under a multi-gang
wallplate.

APPLICATION

• Use where an electrical-outlet look & flush-mounting are impor-

tant.

• Fits most locations where NEMA duplex opening exists (includ-

ing floor monuments, access floor boxes, power poles, poke­through fixtures, etc.).

• Gangable in single or multiple gangs.

• If ganged with electrical devices, a barrier box must be used.

• The TR Plus accommodates IEEE 802.5 token ring connectors.

• Put blanks (41084-B*B) in unused ports for future expansion.

• Specify port identification method (colored modules, designa-

tion labels, and custom silkscreening are available). To ID ports,
use different colored jacks for each application (full selection of
TIA/ EIA-606 compatible colors—13 available), or Leviton's pre­printed Port Designation Labels. (Part #: 41080 LXB)

UNIQUE FEATURES

• Four color choices (Ivory, White, Gray, Black).

• Fits within minimum NEMA openings.

• Compatible with all individual QuickPort modules.

• Brass threaded insert for wallplate screw facilitates installation.

• The TR Plus version accommodates IEEE 802.5 token ring
connectors in a NEMA-style housing.

• Narrow module width allows high port density in a small area.

• The Quad 106 features a built-in termination station.

DESIGN CONSIDERATIONS

Meets or exceeds all applicable standards: UL Listed; CSA
Certified; Complies with NEC

®

Article 800 and TIA/EIA-568-A;

and meets FCC Part 68.

STANDARDS COMPLIANCE

PHYSICAL SPECIFICATIONS

Capacity:

Materials:
Dimensions:

Quad 106: 1-4 ports. Duplex 106: 1-2 ports
TR Plus: 1-2 ports w/token ring connector capability
High-impact, fire-retardant plastic rated UL 94V-0
Quad 106: 1.3"W x 4.1"H x 1.178" D (loaded)
Duplex 106: 1.5"W x 4.1"H x 1.2" D (loaded)
TR Plus 106: 1.5"W x 4.1"H x 1.2" D (loaded)

TYPICAL SPECIFICATION

The workstation jack/connector housing shall be a field-configurable
NEMA-style housing that mounts flush in standard NEMA openings,
and under standard duplex electrical wallplates in single or multiple
gangs. It should provide ports which are field-configurable with a vari­ety of simplex snap-in jacks/modules. Must be constructed of high­impact, fire-retardant plastic rated UL 94V-0, and be UL Listed, CSA
Certified, and compliant with FCC Part 68 and TIA/EIA-568-A specifi­cations. Colors, configurations and related wallplates to be specified
per schedule on plan. The manufacturer shall provide a one-year
limited product warranty and 15 year product performance guaran­tee. The manufacturer shall provide a lifetime warranty against
defects in material and workmanship and an application guarantee
when installed as part of a certified system.

INSTALLATION NOTES

• Terminate jacks/modules, then snap them into housing from
the rear; housing screws to box, and NEMA plate screws to the
housing.

• Detailed installation instructions are included in the carton.

• Break off "T" arms for floor monument installation.

• The Quad 106 “Termination Station” (built-in termination aid)
stabilizes jacks during punchdown.

WARRANTY INFORMATION

• One-year limited product warranty and 15-year performance
guarantee are standard.

• Product and performance warranties are extended to a Lifetime
as part of Leviton’s Certified Cabling System.

See ELECTRONIC FILES for CAD files (.DXF, .DWG, MS-DOS.EPS) on disk

For ELECTRONIC Typical Specs see (.TXT) file on disk.

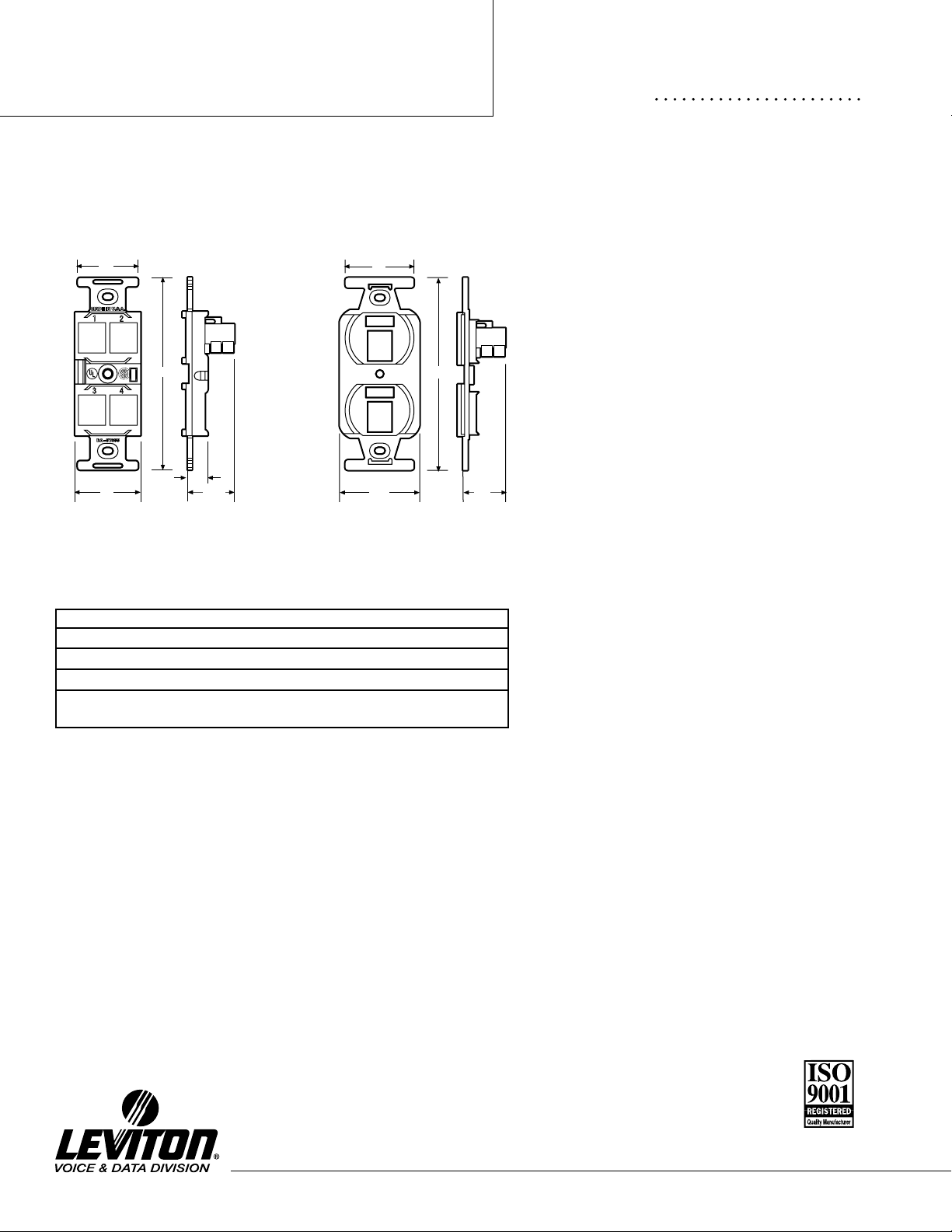

Quad 106

Duplex 106

Front View Side View

1.5"

1.75"

4.1"

1.2"

Front View Side View

1.3"

1.4" 1.2”

.45"

4.1"

G-6057/C1-5M/jc

© 2001 Leviton Manufacturing Co., Inc. All Rights Reserved

QuickPort®Field-Configurable

Connector Housings

Part Numbers

41087-xxP

2222 – 222nd St. SE • Bothell, WA 98021 USA • Tel: [phone] • Fax: [phone] • Int'l Fax: [phone] • GSA# GS-35F-4785G

For Applications Engineering Support – Call 1-425-485-4288; in USA call 1-800-722-2082.
Spec sheets and updates are also available at www.levitonvoicedata.com.

DIMENSIONAL LINE ART

See ELECTRONIC FILES for CAD images
(.DXF, .DWG, MS-DOS.EPS)

PART NUMBER

41087-Q*P

41087-2*P

41070-*

Quad 106
Duplex 106
TR Plus

QuickPort 12-Port Surface Mount Housing

Part No.

Note: QuickPort®snap-in modules (jacks and bulkhead connectors and cou­plings), Decora

®

wallplates and Decora Plus®wallplates are sold separately.
Please refer to the QuickPort ® module spec sheets and the Leviton catalog
for ordering information.

Available in these colors:
Ivory (I), White (W), Grey (G), Black (E).

* = color

QuickPort®Quad 106

Flush Mount Jack

QuickPort®Duplex

Flush Mount Jack
