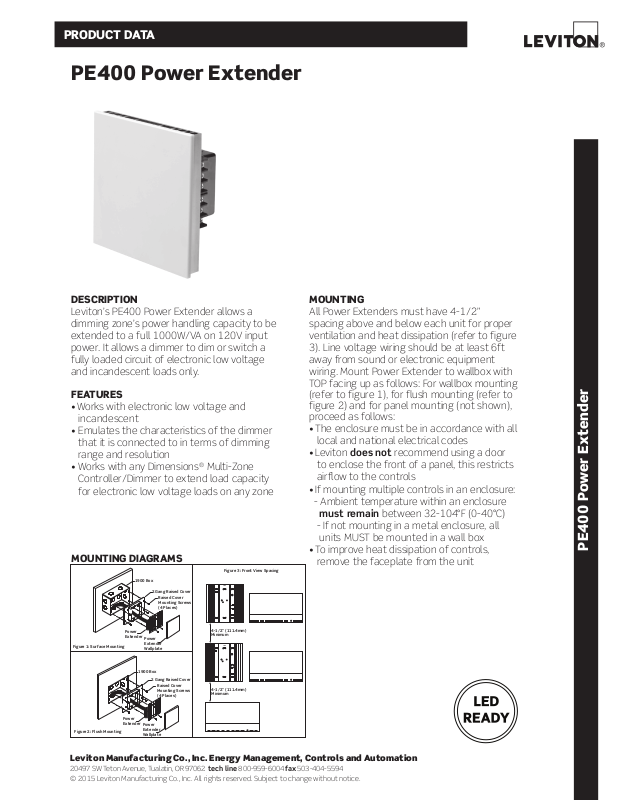

Page 1
PRODUCT DATA
PE400 Power Extender
DESCRIPTION
Leviton’s PE400 Power Extender allows a
dimming zone’s power handling capacity to be
extended to a full 1000W/VA on 120V input
power. It allows a dimmer to dim or switch a
fully loaded circuit of electronic low voltage
and incandescent loads only.
FEATURES
• Works with electronic low voltage and
incandescent
• Emulates the characteristics of the dimmer
that it is connected to in terms of dimming
range and resolution
• Works with any Dimensions® Multi-Zone
Controller/Dimmer to extend load capacity
for electronic low voltage loads on any zone
MOUNTING DIAGRAMS
Figure 3: Front View Spacing
TOP
4-1/2" (111.4mm)
Minimum
TOP
Figure 1: Surface Mounting
Power
Extender
1900 Box
Power
Extender
Wallplate
2 Gang Raised Cover
Raised Cover
Mounting Screws
(4 Places)
TOP
MOUNTING
All Power Extenders must have 4-1/2”
spacing above and below each unit for proper
ventilation and heat dissipation (refer to figure
3). Line voltage wiring should be at least 6ft
away from sound or electronic equipment
wiring. Mount Power Extender to wallbox with
TOP facing up as follows: For wallbox mounting
(refer to figure 1), for flush mounting (refer to
figure 2) and for panel mounting (not shown),
proceed as follows:
• The enclosure must be in accordance with all
local and national electrical codes
• Leviton does not recommend using a door
to enclose the front of a panel, this restricts
airflow to the controls
• If mounting multiple controls in an enclosure:
- Ambient temperature within an enclosure
must remain between 32-104°F (0-40°C)
- If not mounting in a metal enclosure, all
units MUST be mounted in a wall box
• To improve heat dissipation of controls,
remove the faceplate from the unit
PE400 Power Extender
1900 Box
2 Gang Raised Cover
Figure 2: Flush Mounting
Power
Extender
Power
Extender
Wallplate
Raised Cover
Mounting Screws
(4 Places)
P
O
T
4-1/2" (111.4mm)
Minimum
Leviton Manufacturing Co., Inc. Energy Management, Controls and Automation
20497 SW Teton Avenue, Tualatin, O R 97062 tech line 800-959-6004 fax 503-4 04-5594
© 2015 Leviton Manufacturing Co., Inc. All rights reserved. Subject to change without notice.
Page 2
PRODUCT DATA
Used if Dimmer/Switch has Neutral connection (
Power
Extender
Dimensions D4000
Controller/Dimmer
Hot (Black)
(Load)
Neutral (White)
(120VAC)
Green
Ground
LOAD
INPUT
OUTPUT
Neutral
Load
Load
Line
Line
NEUTRAL
NEUTRAL
LOAD
HOT
SWITCH
HOT
CONTROL
ELECTRONIC
LOW VOLTAGE
BALLAST
Black
OR
White
Dimmer
Green
Ground
)
Used if Dimmer/Switch has Neutral connection (
Power
Extender
Hot (Black)
Hot (Black)
(Load)
Neutral 2 (White)
Neutral 1 (White)
Line 1 (120VAC)
Line 2 (120VAC)
Green
Ground
LOAD
ELECTRONIC
LOW VOLTAGE
BALLAST
Black
White
Neutral
Load
Line
OR
Dimmer
Green
Ground
)
Neutral
Load
Line
NEUTRAL
NEUTRAL
LOAD
HOT
SWITCH
HOT
CONTROL
INPUT
OUTPUT
Single Feed Wiring
Line Hot can be
controlled by one
circuit breaker as long
as the total load does
not exceed the rating
of the circuit breaker.
Dual Feed Wiring
The Input control
circuit and the Output
load circuit can be
supplied by two circuit
breakers on a single
phase or by two
separate
phases.
Wiring Diagram 1A
120V Dual Feed Wiring Application w/Low Voltage Ballast
Wiring Diagram 1A
120V Single Feed Wiring Application w/Low Voltage Ballast
Power
Extender
Hot (Black)
Hot (Black)
(Load)
(Load)
Neutral (White)
Neutral (White)
Neutral (White)
Line (120VAC)
Line 1 (120VAC)
Hot (Black)
Line 2 (120VAC)
Green
Ground
LOAD 2
ELECTRONIC
LOW-VOLTAGE
BALLAST
Neutral
Black
Black
White
White
Load
Line
NEUTRAL
NEUTRAL
LOAD
HOT
SWITCH
HOT
CONTROL
Power
Extender
NEUTRAL
NEUTRAL
LOAD
HOT
SWITCH
HOT
CONTROL
LOAD 1
ELECTRONIC
LOW-VOLTAGE
BALLAST
Wiring Diagram 2A
120V Dual Feed w/Controller and Two Power Extenders
Dual Feed Wiring
The Input control
circuit and the Output
load circuit can be
supplied by two circuit
breakers on a single
phase or by two
separate
phases.
Neutral
Dimensions D4000
Controller/Dimmer
Dimensions D4000
Controller/Dimmer
WIRING DIAGRAMS
PE400 Power Extender
Page 3
COMPATIBILITY
• For box-mounted dimmers: use 120V, 600W
magnetic low voltage versions
• For dimmers that include a neutral wire (such as
some scene-capable dimmers): the dimmer neutral
wire must be connected
• For architectural systems: works with all product
families
•Compatible with Dimensions Multi-Zone Controllers
SPECIFICATIONS
ELECTRICAL
Input Voltage 120V, 50/60 Hz
Load Rating
Load Output Power
500VA LED,
1000W/VA Incandescent
Phase independent of control
device
Dimmer Input 120V 50/60 Hz
DIMENSIONS
2.06”
(52.3 mm)
LOAD
N/C
N/C
HOT
2.80”
(71.1 mm)
NEUTRAL
HOT
4.72”
(119.9 mm)
4.50”
(114.3 mm)
TOP
POWER EXTENDER
PEAUX
1920W/VA
220 VAC/VCA 60Hz
ENVIRONMENTAL
Operating
Temperature Range
Storage
Temperature Range
32-104°F (0-40°C)
14-185°F (-10-85°C)
Relative Humidity 20-90% non-condensing
PHYSICAL
Size
4.72”L x 4.5”W x 0.5”H
(120mm x 114mm x 12.7mm)
Aluminium clear anodized
Color
extruded heat sink with
snap-on molded white cover
OTHER
Listings
UL listed CSA certified,
FCC Part 15
Warranty Limited 2-year warranty
ORDERING INFORMATION
CAT. NO. DESCRIPTION:
PE400-10W Power Extender, 120V, 1000W/VA, Electronic Low Voltage
PE400 Power Extender
