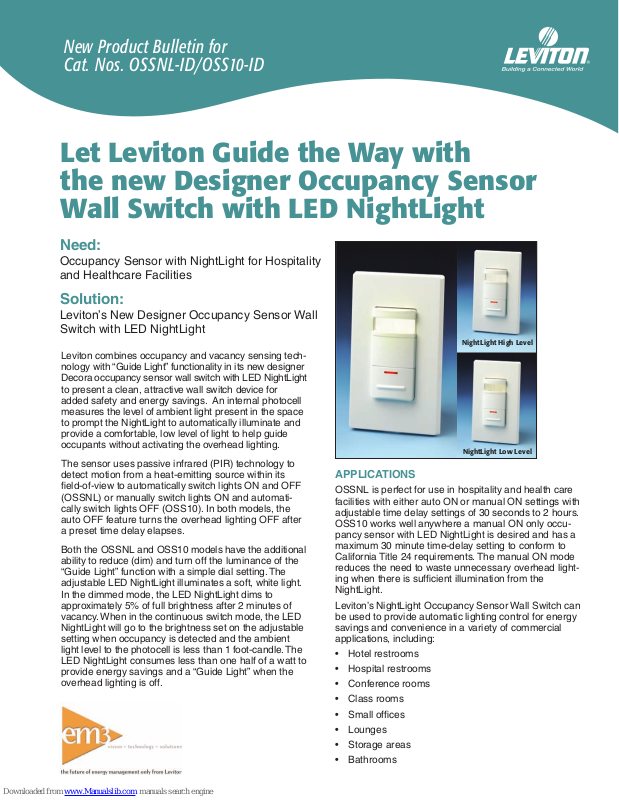

New Product Bulletin for
Cat. Nos. OSSNL-ID/OSS10-ID
Let Leviton Guide the Way with
the new Designer Occupancy Sensor
Wall Switch with LED NightLight
Need:
Occupancy Sensor with NightLight for Hospitality
and Healthcare Facilities
Solution:
Leviton’s New Designer Occupancy Sensor Wall
Switch with LED NightLight
ightLight High Level
N
Leviton combines occupancy and vacancy sensing technology with “Guide Light” functionality in its new designer
Decora occupancy sensor wall switch with LED NightLight
to present a clean, attractive wall switch device for
added safety and energy savings. An internal photocell
measures the level of ambient light present in the space
to prompt the NightLight to automatically illuminate and
provide a comfortable, low level of light to help guide
occupants without activating the overhead lighting.
The sensor uses passive infrared (PIR) technology to
detect motion from a heat-emitting source within its
field-of-view to automatically switch lights ON and OFF
(OSSNL) or manually switch lights ON and automatically switch lights OFF (OSS10). In both models, the
auto OFF feature turns the overhead lighting OFF after
a preset time delay elapses.
oth the OSSNL and
B
ability to reduce (dim) and turn off the luminance of the
“Guide Light” function with a simple dial setting.
adjustable LED NightLight illuminates a soft, white light.
In the dimmed mode, the LED NightLight dims to
approximately 5% of full brightness after 2 minutes of
When in the continuous switch mode, the LED
acancy
v
NightLight will go to the brightness set on the adjustable
setting when occupancy is detected and the ambient
light le
LED NightLight consumes less than one half of a watt to
pro
o
.
vel to the photocell is less than 1 foot-candle. The
vide energy sa
erhead lighting is off
v
OSS10 models have the additional
The
vings and a “Guide Light” when the
.
APPLICATIONS
OSSNL is perfect for use in hospitality and health care
facilities with either auto ON or manual ON settings with
adjustable time delay settings of 30 seconds to 2 hours.
OSS10 works well anywhere a manual ON only occupancy sensor with LED NightLight is desired and has a
um 30 minute time-delay setting to conform to
maxim
California Title 24 requirements. The manual ON mode
reduces the need to waste unnecessary overhead lighting when there is suffi
NightLight.
Leviton’s NightLight Occupancy Sensor Wall Switch can
be used to provide automatic lighting control for energy
vings and con
sa
applications, including:
• Hotel restrooms
• Hospital restrooms
• Conference rooms
• Class rooms
• Small offices
• Lounges
• Storage areas
• Bathrooms
cient illumination from the
enience in a variety of commercial
v
NightLight Low Level
Page 2
FEATURES AND BENEFITS
20 ft (6.1 m)
small motion
30 ft (9.1 m)
20 ft (6.1 m)
small motion
40 ft
(12.2 m)
• OSSNL features Auto-ON/Auto-OFF or ManualN/Auto-OFF for application adaptability
O
OSS10 features Manual-ON/Auto-OFF to maximize
•
energy savings and comply with CEC Title 24
• Push-button provides manual ON/OFF light switching
at any time for convenience
• LED NightLight offers “Guide Light” functionality for
safety
• LED NightLight has adjustable white light output to
meet the needs of the space and can be set for continuous mode or dimmed mode which will automati-
AGENCY STANDARDS AND COMPLIANCE
OSSNL-ID/OSS10-ID
• UL and cUL Listed
• NOM
• CEC Title 24 Compliant
• Backed by Limited Five-Year Warranty
cally dim to 5% of full brightness after 2 minutes of
no occupancy for user comfort and energy savings.
• Proprietary segmented Fresnel lens provides optium sensitivity and performance
m
• 180° horizontal field-of-view may be adjusted
etween 180° and 32° of arc by using integral blind-
b
rs located on either side of the lens for increased
e
sensing accuracy
• Zero-crossing circuitry enhances reliability and long-
life operation
• Fits in standard wallbox to replace a single-pole wall
switch - gangable with other units for added versatility
SPECIFICATIONS
Electrical
Input Voltage: 120/277VAC @ 60Hz
Operational Frequencies: 60Hz
Load Rating:
Fluorescent – 1200VA @ 120V, 2700VA @ 277V
Incandescent – 800W @ 120V, Motor – 1/8 HP @ 120V
Wire Designation: Line-Black, Load-Blue, Ground-Green, Neutral-White
Environmental
Operating Temperature Range: 0°C to 40°C
Storage T
emperature Range: -10°C to 85°C
Relative Humidity: 20% to 90% non-condensing
Physical
Case: High impact plastic
Size: 4.06” H x 1.75” W x 1.85” D (103.2mm x 44.4mm x 47.2mm)
Color: White, Ivory, Grey, Almond, Light Almond
ORDERING INFORMATION
Cat. No. Description
OSSNL-IDx Occupancy Sensor Wall Switch with NightLight
OSS10-IDx CEC Title 24 Compliant Vacancy Sensor Wall Switch with NightLight
, G=Grey, A=Almond, T=Light Almond
y
or
, I=Iv
viton Man
Le
Box 2210, Tualatin, OR 97062
.
.O
P
Telephone: 1-503-404-5500 • FAX: 1-503-404-5600
Tech Line (8:00AM–5:00PM Pacific Time Monday–Friday): 1-503-404-5500
Visit Leviton’s Web site at www.lms.leviton.com
ufacturing Co.,
Inc.
Replace x with
©2006 Leviton Manufacturing Co., Inc. All rights reserved.
W=White

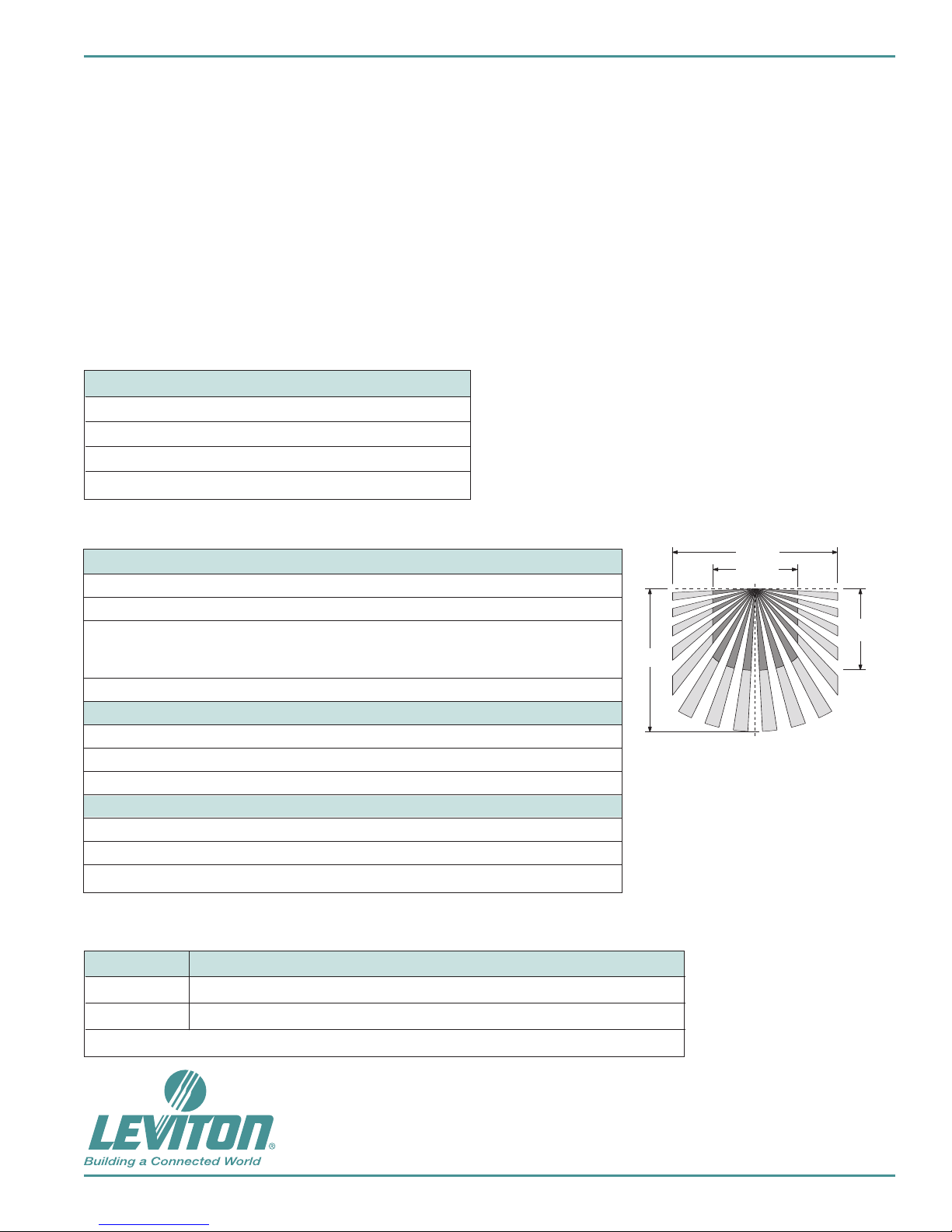

FIELD OF VIEW
