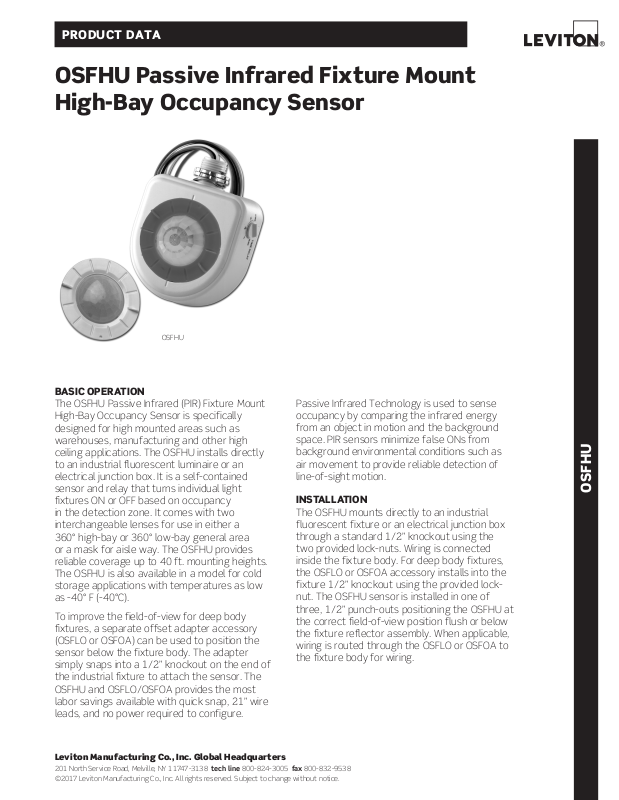

Page 1
PRODUCT DATA
OSFHU Passive Infrared Fixture Mount
High-Bay Occupancy Sensor
OSFHU
BASIC OPERATION
The OSFHU Passive Infrared (PIR) Fixture Mount
High-Bay Occupancy Sensor is specifically
designed for high mounted areas such as
warehouses, manufacturing and other high
ceiling applications. The OSFHU installs directly
to an industrial fluorescent luminaire or an
electrical junction box. It is a self-contained
sensor and relay that turns individual light
fixtures ON or OFF based on occupancy
in the detection zone. It comes with two
interchangeable lenses for use in either a
360° high-bay or 360° low-bay general area
or a mask for aisle way. The OSFHU provides
reliable coverage up to 40 ft. mounting heights.
The OSFHU is also available in a model for cold
storage applications with temperatures as low
as -40° F (-40°C).
To improve the field-of-view for deep body
fixtures, a separate offset adapter accessory
(OSFLO or OSFOA) can be used to position the
sensor below the fixture body. The adapter
simply snaps into a 1/2” knockout on the end of
the industrial fixture to attach the sensor. The
OSFHU and OSFLO/OSFOA provides the most
labor savings available with quick snap, 21” wire
leads, and no power required to configure.
Passive Infrared Technology is used to sense
occupancy by comparing the infrared energy
from an object in motion and the background
space. PIR sensors minimize false ONs from
background environmental conditions such as
air movement to provide reliable detection of
line-of-sight motion.
OSFHU
INSTALLATION
The OSFHU mounts directly to an industrial
fluorescent fixture or an electrical junction box
through a standard 1/2” knockout using the
two provided lock-nuts. Wiring is connected
inside the fixture body. For deep body fixtures,
the OSFLO or OSFOA accessory installs into the
fixture 1/2” knockout using the provided locknut. The OSFHU sensor is installed in one of
three, 1/2” punch-outs positioning the OSFHU at
the correct field-of-view position flush or below
the fixture reflector assembly. When applicable,
wiring is routed through the OSFLO or OSFOA to
the fixture body for wiring.
Leviton Manufacturing Co., Inc. Global Headquarters
201 North Service Road, Melville, NY 11747-3138 tech line 800-824-3005 fax 800-832-9538
©2017 Leviton Manufacturing Co., Inc. All rights reserved. Subject to change without notice.
Page 2
PRODUCT DATA
9.1m (30 ft)
9.1m
(30 ft)
9.1m
(30 ft)
9.1m (30 ft)
9.1m (30 ft)
12.2m (40 ft)
6.1m (20 ft)
6.1m
(20 ft)
6.1m
(20 ft )
6.1m (20 ft)
6.1m (20 ft)
3m (10 ft)
3m (10 ft)
3m
(10 ft)
3m
(10 ft)
0
0
0
High-Bay
360°
Top View
Side View
9.1m (30 ft)
9.1m
(30 ft)
9.1m
(30 ft)
9.1m (30 ft)
9.1m (30 ft)
12.2m (40 ft)
6.1m (20 ft)
6.1m
(20 ft)
6.1m
(20 ft )
6.1m (20 ft)
6.1m (20 ft)
3m (10 ft)
3m (10 ft)
3m
(10 ft)
3m
(10 ft)
0
0
0
9.1m (30 ft)
9.1m (30 ft)
6.1m (20 ft)
6.1m (20 ft)
3.0m (10 ft)
3.0m (10 ft)
0
9.1m
(30 ft)
9.1m
(30 ft)
6.1m (20 ft)
7.6m (25 ft)
6.1m
(20 ft)
6.1m
(20 ft)
2.4m (8 ft)
3.0m
(10 ft)
3.0m
(10 ft)
0
0
High-Bay
360°
Top View
Side View
Low-Bay
360°
Top View
Side View
FEATURES
• Quicksnap: built into the 1/2” nipple, this
locking mechanism allows for the fastest and
easiest mounting not requiring a threaded locknut
• Reduce time and materials: easily reach the
ballast at either end of the fixture without
requiring more wire or connectors with the
included 21” wire leads
• Fast, easy time delay setting: can be set at
any time without requiring power to the sensor;
time delay is variable from 30s-20m
• Instantly verify fixture operation and
wiring
fires lamps in under 5 seconds
• High Inrush Stability (H.I.S. Technology):
- Zero crossing circuitry optimizes relay
operation for reliable, long-life operation
- Robust mechanical latching relay is durable for
all load types
connections: “instant ON” closing relay
OSFHU
• Auto temperature calibration: automatically
adjusts the PIR sensitivity as ambient
temperature rises to increase detection of heat
movement through the field-of-view
• Return to last state: for safety and energy
savings,
that in the event power is lost to the device, the
device will return to the last known state of the
relay
• False detection intelligence: for increased
energy savings and to mitigate nuisance
tripping, the super bright LED indicates
advanced detection has been activated and the
the OSFHU contains a latching relay so
lights will only turn ON when true occupancy has
been determined

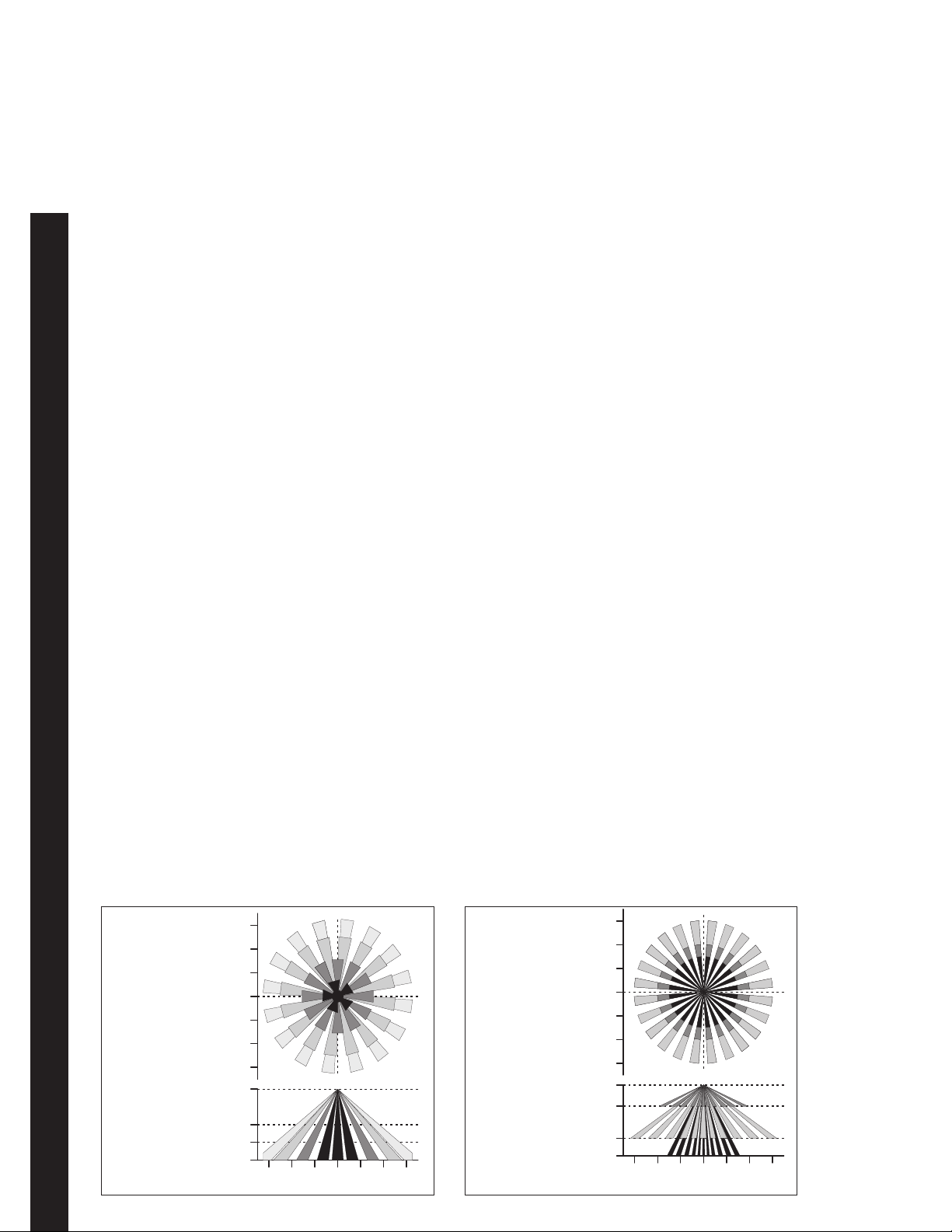

FIELD-OF-VIEW
Page 3
50/60H
240/480
Line
240/480V
50/60 HZ
Hot (Black)
Hot (Black)
Black
Black
Sensor
Red
Red
Load
0.75”

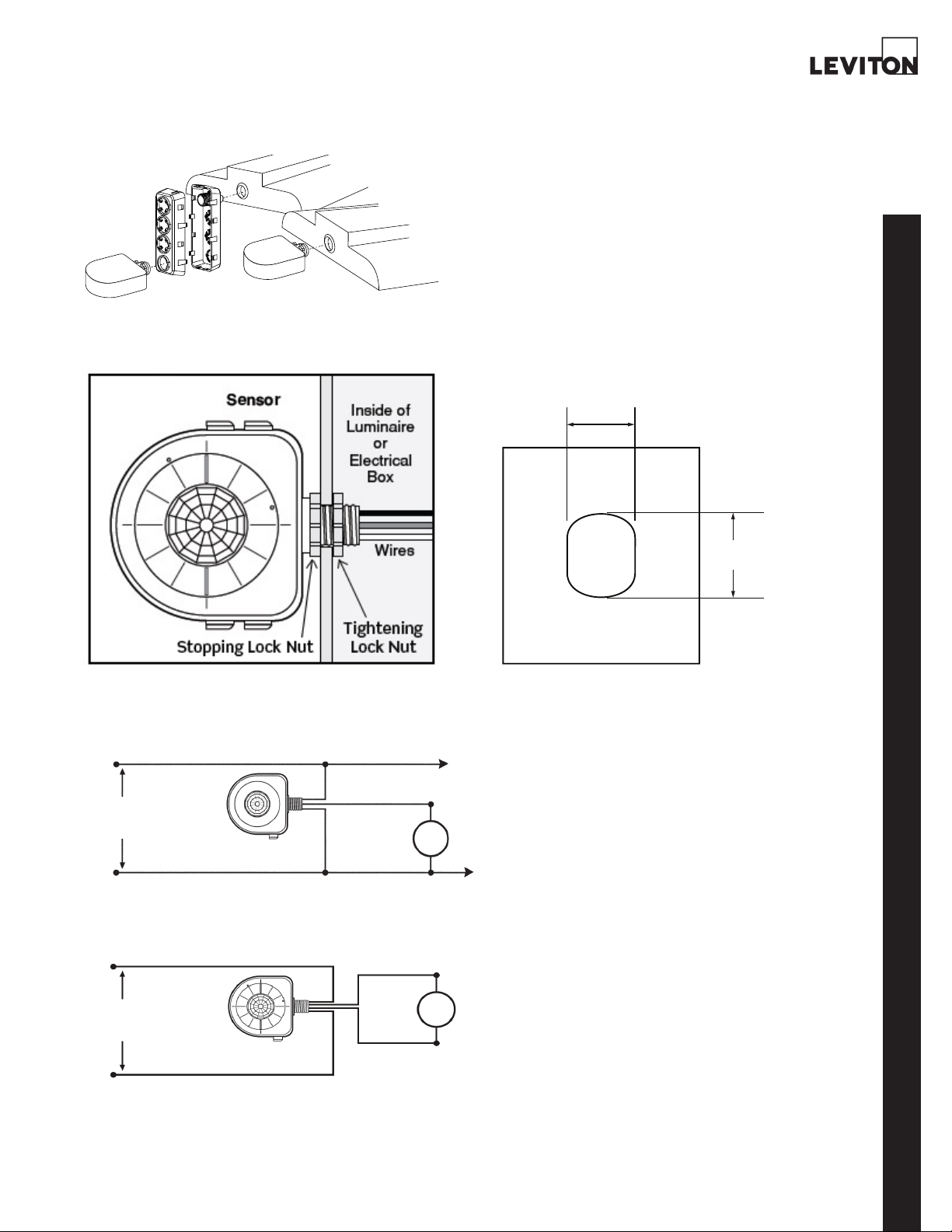

INSTALLATION
OSFOA
Sheet Metal* Punch Dimensions
for Optional Snap-In Installation
(19.05mm)
0.87”
(22.09mm)
OSFHU Wiring Diagram
Hot (Black)
Black
Line
50/60Hz
Neutral (White)
AC
Sensor
White
Red
Black
Load
White
OSFHU (480V) Wiring Diagram
Leviton Manufacturing Co., Inc. Global Headquarters
201 North Service Road, Melville, NY 11747-3138 tech line 800-824-3005 fax 800-832-9538
©2017 Leviton Manufacturing Co., Inc. All rights reserved. Subject to change without notice.
*18-22 Gauge Steel
OSFHU
Page 4
PRODUCT DATA
SPECIFICATIONS
ELECTRICAL
Input Voltage
Torque
Operational
Frequencies
Load Rating
Standby Power
Consumption
Time Delay
Wire Designation
ENVIRONMENTAL
Operating
Temperature Range
Cold Storage
Operating
Temperature Range
Storage
Temperature Range
Relative Humidity 20% to 90% non-condensing
PHYSICAL
Dimensions
Construction High-impact, injection molded plastic housing
Color White
OSFHU
OTHER
Agency Listings
Warranty Limited 5-Year
120-230-277-347VAC;
240/480VAC (-I4W models)
TIGHTEN to 4 ft-lbs of torque
NEVER USE MORE THAN 5 ft-lbs of torque
50/60 Hz
800VA @ 120VAC Ballast
1200VA @ 277VAC Ballast
1500VA @ 347VAC Ballast
2000VA @ 480VAC Ballast
Motor: 1/4 HP Load @ 120V
120V – 130mW – .13W
277V – 450mW – .45W
347V – 460mW – .46W
30 seconds-20 minutes (factory set to 30 sec– no
power required to set)
-ITW/-CTW models:
Line-Black, Load-Red, Neutral-White
-I4W/-C4W models:
Line-Black, Load-Red, Load-Red
14-160° F (-10-71° C)
-40-160° F (-40-71° C)
-14-160° F (-25-71° C)
OSFHU: 3.50” H x 3.50” W x 1.25” D
OSFOA: 5.50” H x 2.00” W x 2.00” D
OSFLO: 4.325” H x 2.00” W x 2.00” D
UL and CUL Listed (OSFHU models), can be used
to comply with 2016 Title 24, Part 6 occupancy
sensing requirements
ORDERING INFORMATION
CAT. NO. DESCRIPTION
OSFHU-ITW PIR Fixture Mount High Bay Sensor with 2 Interchangeable Lenses and Aisle Mask, White
OSFHU-CTW PIR Fixture Mount High Bay Sensor with 2 Interchangeable Lenses and Aisle Mask for Cold Storage, White
OSFHU-I4W PIR Fixture Mount High Bay Sensor with 2 Interchangeable Lenses and Aisle Mask, 480V, No Neutral, White
OSFHU-C4W PIR Fixture Mount High Bay Sensor with 2 Interchangeable Lenses and Aisle Mask for Cold Storage, 480V, No Neutral, White
OSFOA-00W Oset Adapter Accessory for OSFHU, 3 Position, White
OSFLO -00W Oset Adapter Accessory for OSFHU, 1 Position, White
OSFCG -00W Protective Cage for Fixture Mounted Sensors
NAFTA models available.
Leviton Manufacturing Co., Inc. Global Headquarters
201 North Service Road, Melville, NY 11747-3138 tel 800-323-8920 fax 800-832-9538 tech line (8:30AM-7:00PM ET Mon-Fri) 800-824-3005
Leviton Manufacturing Co., Inc. Energy Management, Controls and Automation
20497 SW Teton Avenue, Tualatin, O R 97062 tel 800-736-6682 fax 503-404-559 4 tech line (6:00AM-4:00PM PT Mon-Fri) 800-959-6004
Visit our Website at: www.leviton.com/sensors
©2017 Leviton Man ufacturing Co., Inc. Al l rights reserved. Subject to cha nge without n otice.
G-7366I/K17-aa
REV NOV 2017
