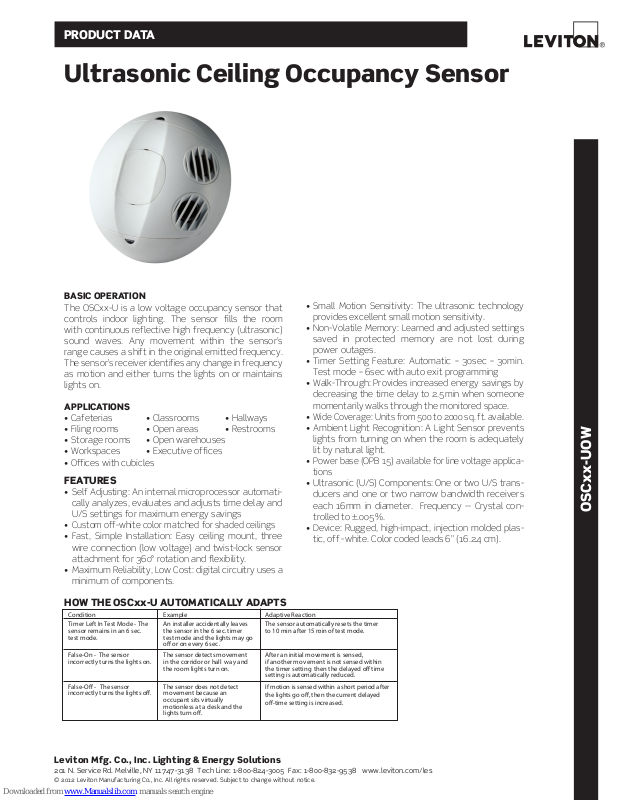

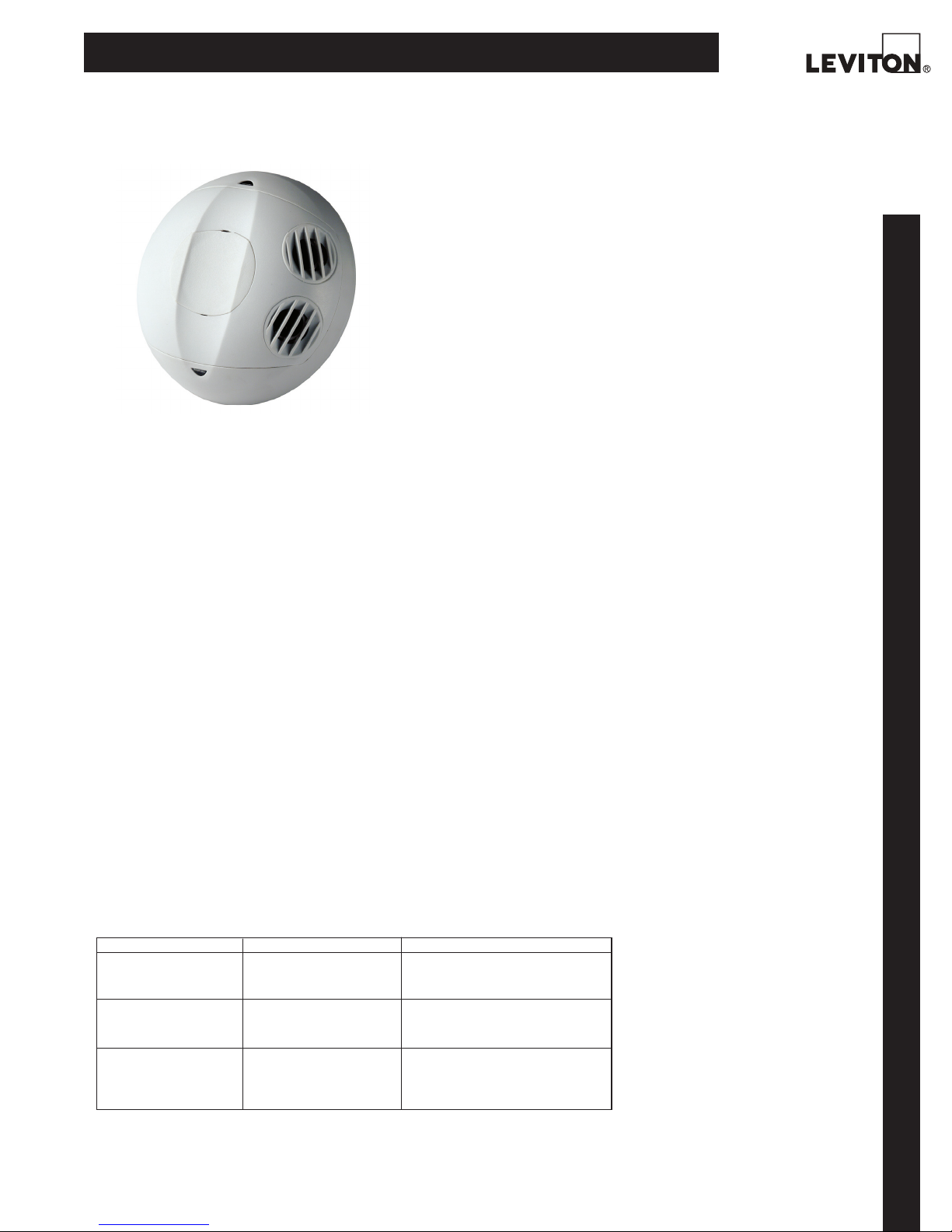

Page 1
PRODUCT DATA
Ultrasonic Ceiling Occupancy Sensor
BASIC OPERATION
The OSCxx-U is a low voltage occupancy sensor that
controls indoor lighting. The sensor fills the room
with continuous reflective high frequency (ultrasonic)
sound waves. Any movement within the sensor’s
range causes a shift in the original emitted frequency.
T
he sensor’s receiver identifies any change in frequency
as motion and either turns the lights on or maintains
lights on.
APPLICATIONS
• Cafeterias • Classrooms • Hallways
• Filing rooms • Open areas • Restrooms
• Storage rooms • Open warehouses
• Workspaces • Executive offices
• Offices with cubicles
FEATURES
• Self Adjusting: An internal microprocessor automati-
cally analyzes, evaluates and adjusts time delay and
U/S settings for maximum energy savings
• Custom off-white color matched for shaded ceilings
• Fast, Simple In stal la tion: Easy ceiling mount, three
wire con nec tion (low voltage) and twist-lock sensor
attachment for 360° rotation and flexibility.
• Maximum Reliability, Low Cost: digital circuitry uses a
minimum of components.
• Small Motion Sensitivity: The ultrasonic tech nol o gy
provides excellent small motion sensitivity.
• Non-Volatile Memory: Learned and adjusted settings
saved in protected memory are not lost during
power outages.
•
Timer Setting Feature: Automatic – 30sec – 30min.
Test mode – 6sec with auto exit programming
• Walk-Through: Provides increased energy savings by
decreasing the time delay to 2.5min when someone
momentarily walks through the monitored space.
• Wide Coverage: Units from 500 to 2000 sq. ft. available.
• Ambient Light Recognition: A Light Sensor prevents
lights from turning on when the room is adequately
lit by natural light.
• Power base (OPB 15) available for line voltage applica-
tions
• Ultrasonic (U/S) Components: One or two U/S transducers and one or two narrow bandwidth receivers
each 16mm in diameter. Frequency -- Crystal con-
trolled to ±.005%.
• Device: Rug ged, high-im pact, in jec tion molded plastic, off -white. Col or coded leads 6” (16.24 cm).
OSCxx-UOW
HOW THE OSCxx-U AUTOMATICALLY ADAPTS
Condition Example Adaptive Reaction
Timer Left In Test Mode - The
sensor remains in an 6 sec.
test mode.
False-On - The sensor
incorrectly turns the lights on.
False-O - The sensor
incorrectly turns the lights o.
Leviton Mfg. Co., Inc. Lighting & Energy Solutions
201 N. Service Rd. Melville, NY 11747-3138 Tech Line: 1-800-824-3005 Fax: 1-800-832-9538 www.leviton.com/les
© 2012 Leviton Manufacturing Co., Inc. All rights reserved. Subject to change without notice.
An installer accidentally leaves
the sensor in the 6 sec. timer
test mode and the lights may go
o or on every 6 sec.
The sensor detects movement
in the corridor or hall way and
the room lights turn on.
The sensor does not detect
movement because an
occupant sits virtually
motionless at a desk and the
lights turn o.
The sensor automatically resets the timer
to 10 min . after 15 min of test mode..
After an initial movement is sensed,
if another mov ement is not sensed within
the timer setting then the delayed o time
setting is automatically reduced.
If motion is sensed within a short period after
the lights go o, then the current delayed
o-time setting is increased.

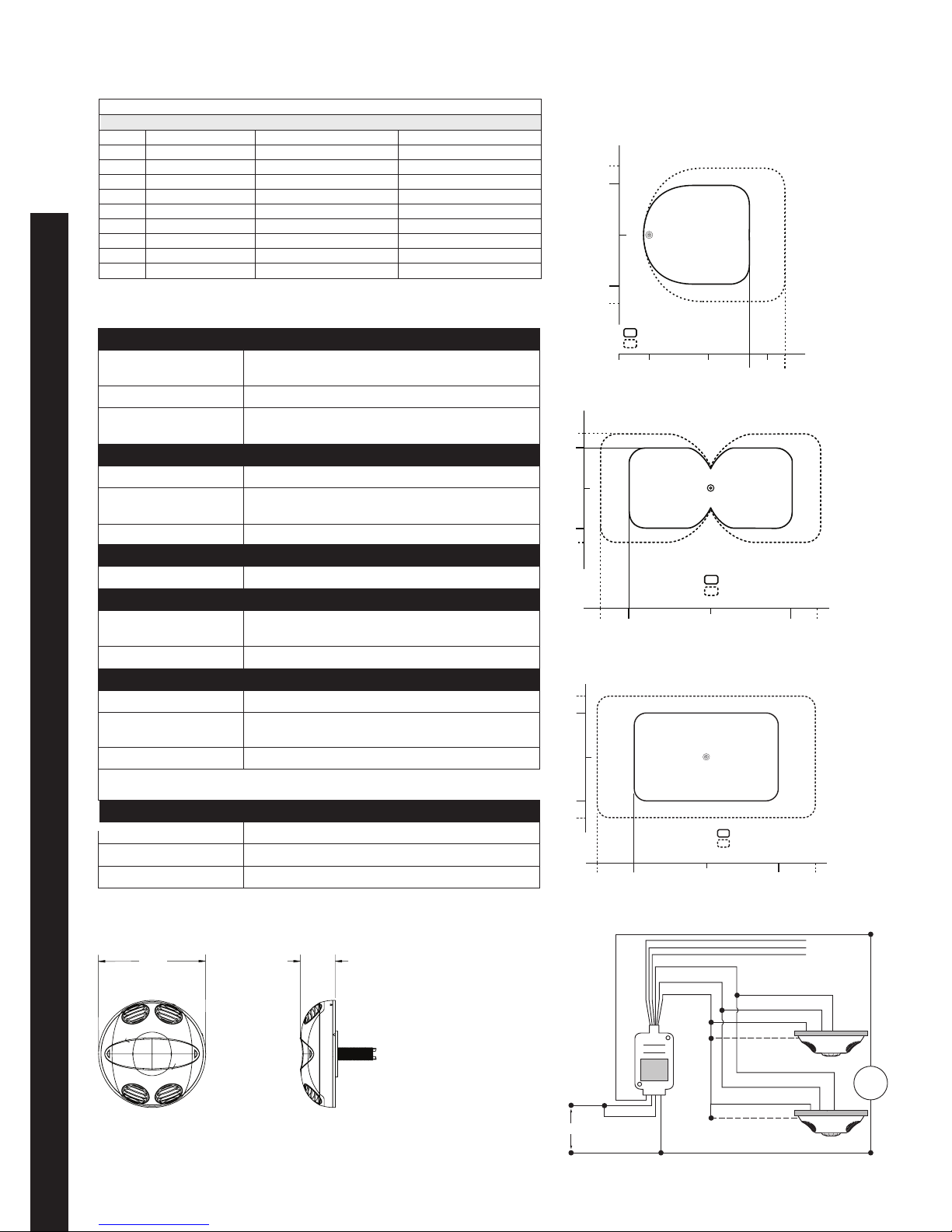

Page 2
PRODUCT DATA
TOP VIEW
DIP SWITCH SETTINGS
SWITCH SWITCH FUNCTIONS SWITCH SETTINGS
BANK A OFF ON
A1 N/A
A2 N/A
A3 Manual Mode Auto Adapting Enabled Auto Adapting Disabled
A4 Walk-Thru Disable Walk-Thru Enabled Walk-Thru Disabled
BANK B
B1 Override to On Auto Mode Lights forced On
B2 Override to Off Auto Mode Lights forced Off
B3 Test Mode OFF’ON’OFF Enter/Exit Test Mode
B4 LED Disable LEDs Enabled LEDs Disabled
*Bold items are factory defaults
SPECIFICATIONS
ELECTRICAL
Power Requirements 24 VDC, from OSPxx Power Pack or OPB15 Power
Power Consumption OSC05: 25mA, OSC10: 35mA, OSC20: 30mA
Output 24 VDC active high logic control signal with short
CONTROLS
Ultrasonic Sensitivity 0-100%; green knob (factory setting: 50%)
Light Sensor 20 to 3,000 Lux; factory set at 100% (*grey wire
Time Delay 30sec-30min; black knob (factory setting: 10min)
INDICATORS
Green LED U/S motion technology
ENVIRONMENTAL
Operating
Temperature Range
Relative Humidity 0% to 95% non-condensing, for indoor use only
OTHER
Mouting Height 8-12 feet
Listings CUL/US Certified, meets ASHRAE Standard 90.1
Warranty Limited Five-Year Warranty
OSCxx-UOW
ORDERING INFORMATION
CAT NO. DESCRIPTION
OSC05-U0W Ultrasonic Ceiling Sensor, 500 sq. feet of coverage
OSC10-U0W Ultrasonic Ceiling Sensor, 1000 sq. feet of coverage
OSC20-U0W Ultrasonic Ceiling Sensor, 2000 sq feet of coverage
Base
circuit protection
required)
32°F to 104°F (o°C to 40°C)
and CEC Title 24 requirements
FIELD-OF-VIEW
OSC05-U0W
11.5
8.5
0
8.5
11.5
Minor Motion, Ultrasonic
Major Motion, Ultrasonic
05 10 20
OSC10-U0W
11.5
8.5
0
8.5
11.5
OSC20-U0W
16
11.5
0
11.5
16
32 3222.5 22.5
TOP VIEW
TOP VIEW
0
Minor Motion, Ultrasonic
Major Motion, Ultrasonic
0
Minor Motion, Ultrasonic
Major Motion, Ultrasonic
2317
2323 1717
NAFTA compliant and Made in USA models available
DIMENSIONS
4.200 1.373
Leviton Mfg. Co., Inc. Lighting & Energy Solutions
201 N. Service Rd. Melville, NY 11747-3138 Tech Line: 1-800-824-3005 Fax: 1-800-832-9538 www.leviton.com/les
© 2012 Leviton Manufacturing Co., Inc. All rights reserved. Subject to change without notice.
PHYSICAL WIRING
OSPxx Series
Power Pack
Hot
Blue
Black
Blue
Black
120-277-347
Line
VAC60Hz
Neutral (White)
Red (24VDC)
Black
Blue
(control)
White
Red
Black
Blue*
(occupancy)
Gray*
(photocell
+ occupancy)
Red
Black
(occupancy)
Blue*
Gray*
(photocell
+ occupancy)
NC-Brown
Common-Green
NO-Brown/White
To HVAC System
Sensor
G-8356/H12-tb
Black White
Load
