Leviton NDS12-1S0 User Manual

Modular Rack Dimmers

Leviton Mfg. Co., Inc. P. O. Box 2210, Tualatin, OR 97062 Phone: [phone] • Fax: [phone]

Copyright © 1995, 2001, 2002, Leviton Mfg. Co., Inc.

DS Series

Dimmers

Leviton-NSI DS dimmer systems feature high power
capacities in an easy to service compact and modular
design.

The DS digital dimmer systems combine convenient
mobility with a rugged design and high caliber
performance for a variety of lighting application
demands. Our innovative modular design concept
provides easy front panel access for control and dimmer
module replacement even while the systems are rack
mounted. This friendly feature is especially important
for touring groups and also permanently installed
systems where complete pack removal is difficult or
impossible. The DS digital dimmer systems include a

sixteen character liquid crystal display and front panel
keypad for intuitive access to features like backup
presets with fade time, soft patch of DMX and NSI
Micro-Plex control signals, O-IOVDC analog input
control, and dimmer module temperature monitoring.
LED's on the front panel also provide status to a host
of functions like dimmer control level, active power
sources, active DMX512 and NSI Micro-Plex control
signals, and over temperature warning. A DMX512
termination switch is also provided on the front panel.
All of these performance features combined with the
highest power density on the market make this dimmer
an unbeatable value. Patents pending.

DS Modular Rack Dimmers

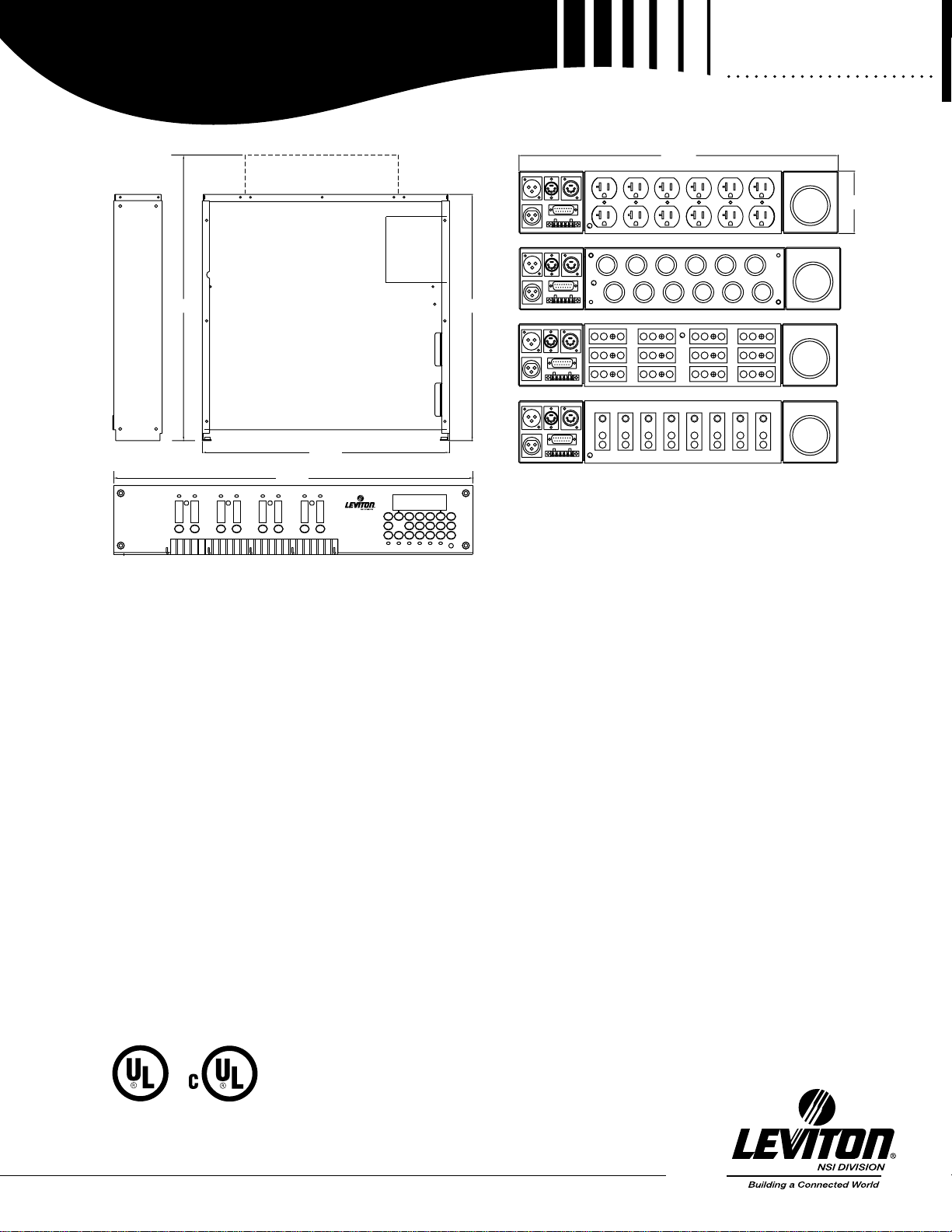

Dimensional Data

– in.[cm] lbs.[kg]

DS8-12 DS8-24 DS12-12 DS12-24

Width (chassis) 17.20 [43.69] 17.20 [43.69] 17.20 [43.69] 17.20 [43.69]
Total Width 19.00 [48.3] 19.00 [48.3] 19.00 [48.3] 19.00 [48.3]
Depth* 17.15 [43.56] 17.15 [43.56] 17.15 [43.56] 17.15 [43.56]
Height 3.50 [8.89] 3.50 [8.89] 3.50 [8.89] 3.50 [8.89]
19” Rack Spaces 2 2 2 2
Shipping Weight** 40.00 [18.1] 40.00 [18.1] 48.00 [21.8] 48.00 [21.8]

*K/O Version is 20” [50.8] deep

**Add 2 lbs. for Stage Pin models

DS 8 SHOWN

K/O VERSION 20.00" DEEP

FAN

17.15"20.00"

17.20"

UL Listed

3

1

2

19.00"

5

6

8

4

7

DS 8

Digital Dimming System

DIMMER

DMX #

MICRO
PLEX #

0 A

F2

F1

0

0 B

PRESET

9

8

7

FULL

AT

5

6

4

CLEAR

ENTER

3

1

2

DMX

0 C

DMX

OVER

MICRO

TEMP

PLEX

TERM

17.20"

50/60HZ OR 125A MAX, 120/240V, 1O, 3WIRE, 50/60HZ

12345678

LOAD PER CIRCUIT 120VAC

- AMPACITY ON CIRCUIT
BREAKER

135911 7

24

LOAD PER CIRCUIT 120VAC

BREAKER

- AMPACITY ON CIRCUIT

LOAD PER CIRCUIT 120VAC

CO-ORDINATE DS12 INPUT TYPE WITH TERMINATION

LABEL INSIDE

DS12 INPUT: 80A MAX, 120/208V, 3O, 4WIRE,

/

/

BREAKER

SHORT CIRCUIT CURRENT RATING: 10,000 RMS

SYM. AT 240VAC MAX

- AMPACITY ON CIRCUIT

50/60HZ OR 125A MAX, 120/240V, 1O, 3WIRE, 50/60HZ

CO-ORDINATE DS12 INPUT TYPE WITH TERMINATION

LABEL INSIDE

DS12 INPUT: 80A MAX, 120/208V, 3O, 4WIRE,

/

/

SHORT CIRCUIT CURRENT RATING: 10,000 RMS

SYM. AT 240VAC MAX

50/60HZ OR 125A MAX, 120/240V, 1O, 3WIRE, 50/60HZ

CO-ORDINATE DS12 INPUT TYPE WITH TERMINATION

LABEL INSIDE

DS12 INPUT: 80A MAX, 120/208V, 3O, 4WIRE,

/

/

SHORT CIRCUIT CURRENT RATING: 10,000 RMS

SYM. AT 240VAC MAX

50/60HZ OR 125A MAX, 120/240V, 1O, 3WIRE, 50/60HZ

CO-ORDINATE DS12 INPUT TYPE WITH TERMINATION

LABEL INSIDE

DS12 INPUT: 80A MAX, 120/208V, 3O, 4WIRE,

/

/

SHORT CIRCUIT CURRENT RATING: 10,000 RMS

SYM. AT 240VAC MAX

DS8 INPUT: 80A MAX, 120/240V, 1O,

3WIRE, 50/60HZ

3.43"

/

DS8 INPUT: 80A MAX, 120/240V, 1O,

3WIRE, 50/60HZ

/

DS8 INPUT: 80A MAX, 120/240V, 1O,

3WIRE, 50/60HZ

/

DS8 INPUT: 80A MAX, 120/240V, 1O,

3WIRE, 50/60HZ

/

CLASS 2 CONTROL

MPX IN

MPX OUT

CLASS 2 CONTROL

MPX IN

MPX OUT

CLASS 2 CONTROL

MPX IN

MPX OUT

MPX IN

MPX OUT

PATENT PENDING

2

1

1

1

2

2

3

3

3

DMX OUT

DMX IN

1

2

0-10 VDC IN

3

2

1

3

1

2

3

2

1

3

1

2

3

2

1

3

1

2

3

PATENT PENDING

1

DMX IN

PATENT PENDING

1
2

DMX IN

PATENT PENDINGCLASS 2 CONTROL

1
2

DMX IN

LISTED

U

L

R

C

US

IND. CONT. EQ.

LUMANET

2J80

1

2

2

3

3

DMX OUT

LISTED

U

L

R

CUS

IND. CONT. EQ.

2J80

0-10 VDC IN

LUMANET

1
2

3

3

DMX OUT

0-10 VDC IN

LUMANET

1
2

3

3

DMX OUT

0-10 VDC IN

LISTED

U

L

R

CUS

IND. CONT. EQ.

LUMANET

2J80

1012

TYPE 1 ENCLOSURE AC LIGHTING LOADS ONLY

TYPE 1 ENCLOSURE AC LIGHTING LOADS ONLY NSI CORP., TUALATIN, OR. MADE IN U.S.A.

7

10

NSI CORP., TUALATIN, OR.

8

11

9

12

TYPE 1 ENCLOSURE. AC LIGHTING LOADS ONLY NSI CORP., TUALATIN, OR. MADE IN U.S.A.

8

PB12

KO12

LISTED

U

L

R

USC

IND. CONT. EQ.

2J80

SP12

BREAKER

- AMPACITY ON CIRCUIT

LOAD PER CIRCUIT 120VAC

SP8

AC LIGHTING LOADS ONLYTYPE 1 ENCLOSURE

MADE IN U.S.A.

6

NSI CORP., TUALATIN, OR. MADE IN U.S.A.

1

4

2

5

3

6

Literature # 007-MKNSI-000 G6619

P.O. Box 2210 • Tualatin, Oregon 97062 Phone: [phone] • Fax: [phone]

Copyright © 1995, 2001, 2002 Leviton Mfg. Co. Inc.

Modular Rack Dimmers

DS Series

Dimmers

............................

Description Cat. No.

DS 8-12 Edison
(NEMA 5-20R) FGP-08008-0

DS 8-12
KO/Terminal Strip FGP-08008-1

DS 8-12 Stage Pin (20A) FGP-08008-3

DS 12-12 Edison
(NEMA 5-20R) FGP-08012-0

DS 12-12
KO/Terminal Strip FGP-08012-1

DS 12-12 Stage Pin (20A) FGP-08012-3

DS 8-24 Edison
(NEMA 5-20R) FGP-09008-0

DS 8-24
KO/Terminal Strip FGP-09008-1

DS 8-24 Stage Pin (20A) FGP-09008-3

DS 12-24 Edison
(NEMA 5-20R) FGP-09012-0

DS 12-24
KO/Terminal Strip FGP-09012-1

DS 12-24 Stage Pin (20A) FGP-09012-3

Accessories

DS Control Module OPT-00220-0

DS 1200W
Dimmer Module OPT-000220-1

DS 2400W
Dimmer Module OPT-000220-2

DS Rack Mount
Rear Support Kit OPT-00230-0

Specifications subject to change without notice

Features

• 20 button function keypad

• Liquid crystal display (backlit 16 character
x 2 line)

• 400 programmable time fade presets

• Non-volatile EEPROM preset and
softpatch storage

• Valid DMX signal indicator

• Valid NSI Micro-Plex signal indicator

• Line power indicator LED's

• Individual dimmer load LED indicators

• Temperature status LED

• Front panel accessible DMX512
termination switch

• 120V input power

• 15V RMS preheat range

• Adjustable level test switches can be
set to bump or latch action

• Over voltage and over temperature
protection

Dimming

• Individual dimmer test/
lamp focus buttons

• 10,000 AIC branch rated fully magnetic
circuit breakers

• Rugged dual SCR dimmer design

• Automatic line regulation/compensation
for power fluctuations

• 8 channel/single phase power operation

• 12 channel/single or three phase power
operation

• Available in Edison/U-ground, stage pin
or hardwired versions

• 1 output per dimmer

• Available in 1.2kW and 2.4kW versions

• Programmable maximum and minimum
levels for each dimmer

• Pre-programmed dimming curve for
Advance Mark X™ fluorescent dimming
ballast

• Dimmer feedback via LCD screen
including current temperature, control
level and type of control signal

Mechanical

• Unique modular dimmer design

• Unique modular control electronics
design

• Modules are front panel accessible and
plug-able for easy service

• Highest power density on the market,
requiring only 2 EIA 19" rack spaces

• Internal variable speed cooling fan

• Recommended minimum of two rack
spaces between packs to maintain
adequate cooling

Control

• DMX512 in/out (5 pin XLR male and
female)

• NSI Micro-Plex in/out (3 pin XLR male
and female)

• NSI Luma-Net

®

architectural (plug-able

6 screw terminal block type)

• O-10VDC analog control Inputs (15 pin
D-Sub, male)

DS 8-12

• 8-1200 watt dimmer/relay channels

• 9,600 watts maximum power capability

• 2 pole 40 amp power feed

• 400 microsecond toroidal filtering

DS 8-24

• 8-2400 watt dimmer/relay channels

• 19,200 watts maximum power capability

• 2 pole 80 amp power feed

• 400 microsecond toroidal filtering

DS 12-12

• 12-1200 watt dimmer/relay channels

• 14,400 watts maximum power capability

• 2 pole 60 amp/3 pole 40 amp power
feed

• 400 microsecond toroidal filtering

DS 12-24

• 12-2400 watt dimmer/relay channels

• 28,800 watts maximum power capability

• Single/three phase power operation

• 2 pole 120 amp/3 pole 80 amp power
feed

• 400 microsecond toroidal filtering
