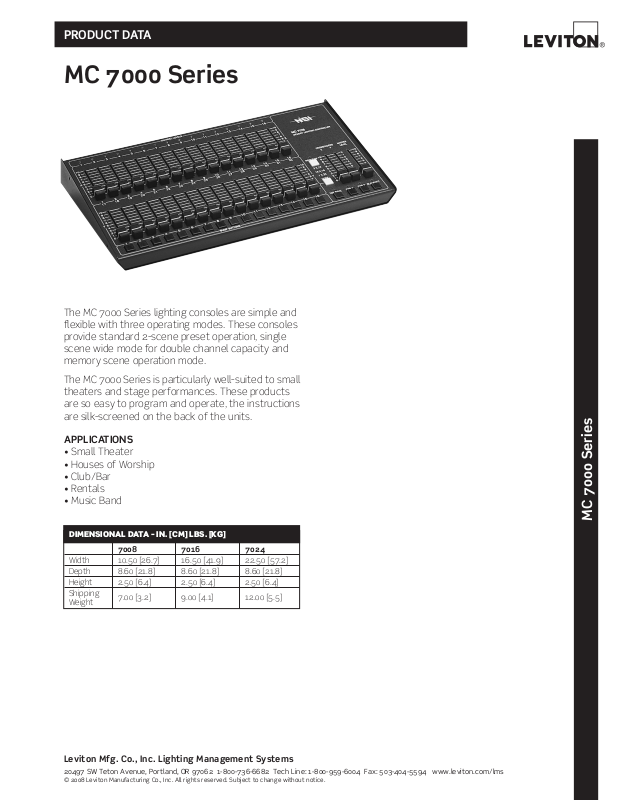

PRODUCT DATA

MC 7000 Series

The MC 7000 Series lighting consoles are simple and flexible with three operating modes. These consoles provide standard 2-scene preset operation, single scene wide mode for double channel capacity and memory scene operation mode.

The MC 7000 Series is particularly well-suited to small theaters and stage performances. These products are so easy to program and operate, the instructions are silk-screened on the back of the units.

APPLICATIONS

• Small Theater

• Houses of Worship

• Club/Bar

• Rentals

• Music Band

Dimensional Data – in. [cm] lbs. [kg]

7008 7016 7024

Width 10.50 [26.7] 16.50 [41.9] 22.50 [57.2] Depth 8.60 [21.8] 8.60 [21.8] 8.60 [21.8] Height 2.50 [6.4] 2.50 [6.4] 2.50 [6.4] Shipping

Weight

7.00 [3.2] 9.00 [4.1] 12.00 [5.5]

MC 7000 Series

Leviton Mfg. Co., Inc. Lighting Management Systems

20497 SW Teton Avenue, Portland, OR 97062 1-800-736-6682 Tech Line: 1-800-959-6004 Fax: 503-404-5594 www.leviton.com/lms

Page 2

PRODUCT DATA

FEATURES

• Two user programmable 32 step chase patterns

• Tap sync button allows chase rate to be adjusted “on the fly”

• Dual split dipless cross faders allow even fades from scene to scene

• Channel bump buttons can be used to raise an individual control channel level to full or in wide mode can act as a flash memory scene

• Master level slider used to proportionally vary the intensity of the console’s current output levels

• Blackout button

• Optional DMX512 protocol kit

PORTS

• NSI 128 channel Micro-Plex (3-pin XLR male and female)

• DMX512 (optional) digital control (5-pin XLR female)

• Auxiliary power connector +15VDC

cat. no. Description

N7008-000 8/16 Channel Console, 2 Manual Presets, 8 Memory Scenes, 2 Chases, NSI Micro-Plex N7008-D00 8/16 Channel Console, 2 Manual Presets, 8 Memory Scenes, 2 Chases, NSI DMX Installed N7016-000 16/32 Channel Console, 2 Manual Presets, 16 Memory Scenes, 2 Chases, NSI Micro-Plex N7016-D00 16/32 Channel Console, 2 Manual Presets, 16 Memory Scenes, 2 Chases, NSI DMX Installed N7024-000 24/48 Channel Console, 2 Manual Presets, 24 Memory Scenes, 2 Chases, NSI Micro-Plex N7024-D00 24/48 Channel Console, 2 Manual Presets, 24 Memory Scenes, 2 Chases, NSI DMX Installed

MC 7008

• 8 x 8 individual control channels in two scene mode

• 16 individual control channels and 8 flash memory scenes in wide mode

• 8 individual control channels and 8 user programmable memory scenes in memory mode

MC 7016

• 16 x 16 individual control channels in two scene

• 32 individual control channels and 16 flash memory scenes in wide mode

• 16 individual control channels and 16 user programmable memory scenes in memory mode

MC 7024

• 24 x 24 individual control channels in two scene

• 48 individual control channels and 24 flash memory scenes in wide mode

• 24 individual control channels and 24 user programmable memory scenes in memory mode

accessories

OPT-00015-0 +12VDC Power Supply, 120V OPT-00540-0 19” EIA Rack Mount Kit for MC 7016 Only A7512-001 DMX 512 Kit

MC 7000 Series

leviton specification submittal

JOB NAME: CATALOG NUMBERS: JOB NUMBER:
