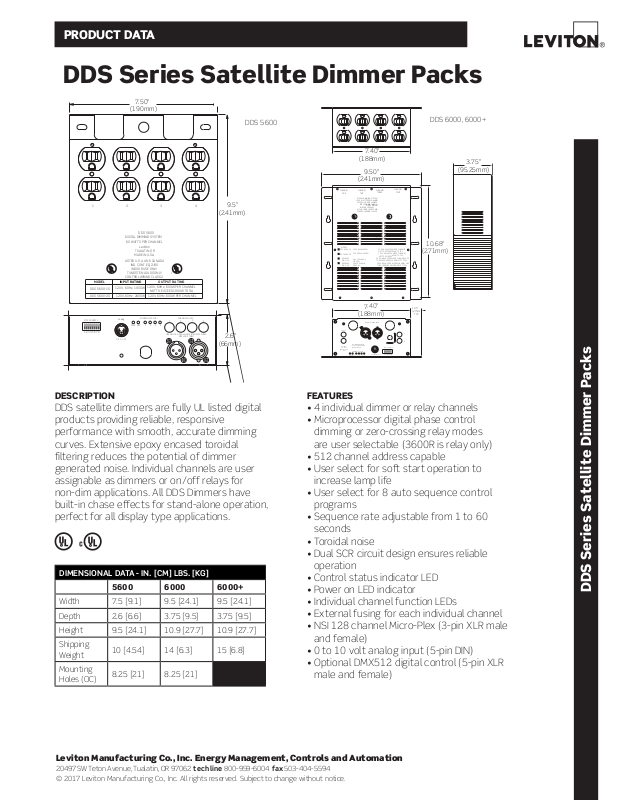

Page 1
PRODUCT DATA
DDS Series Satellite Dimmer Packs
7.50”
(190mm)
(271mm)
1.05”
(27mm)
TYP
3
4
DDS 6000, 6000+
3.75”
(95.25mm)
10.68”
1
MODEL
DDS 5600-15
DDS 5600-20 120V, 60Hz, 2400W 120V, 60Hz, 600W PER CHANNEL
MPX ADDRESS
67812345
2
DIGITAL DIMMING SYSTEM
60 WATTS PER CHANNEL
TUALATIN, OR
MADE IN U.S.A.
LISTED U.S.A. AND CANADA
IND. CONT. EQ 2J80
INDOOR USE ONLY
TUNGSTEN LOADS ONLY
CONTROL WIRING CLASS 2
INPUT RATING
120V, 60Hz, 1800W
Analog
PWR
MPX
0-10 VDC
DDS 5600
Leviton
OUTPUT RATING
120V, 60Hz, 600W PER CHANNEL
NOT TO EXCEED 1800W TOTAL
- CONTROL STATUS -
1234
USE ONLY 6A, 250v NON-TIME DELAY FUSES
C
CHANNEL FUSES
2
MPX LOOP THRU
DDS 5600
7.40”
(188mm)
9.50”
(241mm)
CHANNEL
CHANNEL
ONE
TWO
DIGITAL DIMMING SYSTEM
1200 WATTS PER CHANNEL
LISTED U.S.A. AND CANADA
MODEL
DDS 6000-15
DDS 6000-20
DDS 6000
PLUS - 15
DDS 6000
PLUS - 20
FUSES
1
2
USE ONLY
12A, 250V.
NON-TIME-DELAY
FUSES
A/C LIGHTING LOADS ONLY
CONTROL WIRING CLASS 2
R
INPUT RATING
120V,60Hz,1900W
120V,60Hz,2400W
2@ 120v, 60Hz,
1800W
2@ 120v, 60Hz,
2400W
(188mm)
NSI CORPORATION
TUALATIN, OREGON
MADE IN U.S.A.
CONTROL STATUS
XPWR
P
M
1
IND. CONT. EQ. 2J80
INDOOR USE ONLY
7.40”
3
2
43
3
41
9.5”
(241mm)
2.6”
(66mm)
CHANNEL
THREE
DDS 6000
OUTPUT RATING
120V, 60Hz, 1200W PER CHANNEL NOT
TO EXCEED 1800W PER INPUT TOTAL
120V, 60Hz, 1200W PER CHANNEL NOT
TO EXCEED 1800W PER INPUT TOTAL
MULTIPLEX LOOP THRU
0-10VDC INPU
4
CHANNEL
FOUR
R
C
120V, 60Hz, 1200W PER CHANNEL
NOT TO EXCEED 1800W TOTAL
120V, 60Hz, 1200W PER CHANNEL
NOT TO EXCEED 2400W TOTAL
MPX ADDRESS
8
74
123 56
T
DESCRIPTION
DDS satellite dimmers are fully UL listed digital
products providing reliable, responsive
performance with smooth, accurate dimming
curves. Extensive epoxy encased toroidal
filtering reduces the potential of dimmer
generated noise. Individual channels are user
assignable as dimmers or on/off relays for
non-dim applications. All DDS Dimmers have
built-in chase effects for stand-alone operation,
perfect for all display type applications.
DIMENSIONAL DATA - IN. [CM] LBS. [KG]
5600 6000 6000+
Width 7.5 [9.1] 9.5 [24.1] 9.5 [24.1]
Depth 2.6 [6.6] 3.75 [9.5] 3.75 [9.5]
Height 9.5 [24.1] 10.9 [27.7] 10.9 [27.7]
Shipping
Weight
Mounting
Holes (OC)
10 [4.54] 14 [6.3] 15 [6.8]
8.25 [21] 8.25 [21]
FEATURES
• 4 individual dimmer or relay channels
• Microprocessor digital phase control
dimming or zero-crossing relay modes
are user selectable (3600R is relay only)
• 512 channel address capable
• User select for soft start operation to
increase lamp life
• User select for 8 auto sequence control
programs
• Sequence rate adjustable from 1 to 60
seconds
• Toroidal noise
• Dual SCR circuit design ensures reliable
operation
• Control status indicator LED
• Power on LED indicator
• Individual channel function LEDs
• External fusing for each individual channel
• NSI 128 channel Micro-Plex (3-pin XLR male
and female)
• 0 to 10 volt analog input (5-pin DIN)
• Optional DMX512 digital control (5-pin XLR
male and female)
DDS Series Satellite Dimmer Packs
Leviton Manufacturing Co., Inc. Energy Management, Controls and Automation
20497 SW Teton Avenue, Tualatin, O R 97062 tech line 800-959-6004 fax 503-4 04-5594
© 2017 Leviton Manufacturing Co., Inc. All rights reserved. Subject to change without notice.
Page 2
PRODUCT DATA
DDS 5600
• 4 channels @ 600 watts
• 15 amp/1800 watt model with NEMA 5-15 house hold power cord connector or 20 amp/2400 watt
model with NEMA 5-20 perpendicular blade power
cord connector available
• 2400 watts maximum output
• 160 micro-second toroidal
DDS 6000
• 4 channels @ 1200 watts
• 15 amp/1800 watt model with NEMA 5-15 house hold power cord connector or 20 amp/2400 watt
model with NEMA 5-20 perpendicular blade power
cord connector available
• 2400 watts maximum output
• 400 micro-second toroidal
• UL listed knockout version available for hardwired
permanent installation
• External circuit breaker for power cord protection
DDS 6000+ (DUAL POWER CORDS)
• 4 channels @ 1200 watts
• 15 amp/3600 watt model with NEMA 5-15 house hold power cord connector or 20 amp/4800 watt
model with NEMA 5-20 perpendicular blade power
cord connector available
• 4800 watts maximum output
• 400 micro-second toroidal filtering
• UL listed knockout version available for hardwired
permanent installation
CAT. NO. DESCRIPTION:
N5600-000 DDS 5600 4 Channel, 600 Watt / Channel Dimmer/Relay System, Micro-Plex And 0-10V Analog standard. 15 Amp Power Supply Cord, 120V, UL/C-UL Listed
N5600-D00 DDS 5600, 120V W/DMX - 4 Channel, 600 Watt / Channel Dimmer/Relay System, DMX installed, 15 Amp Power Supply Cord, 120V, UL/C-UL Listed
N5600-020 DDS 5600, 120V - 4 Channel, 600 Watt / Channel, Dimmer/Relay System, Micro-Plex and 0-10V Analog standard, 20 Amp Power Supply Cord, 120V, UL/C-UL Listed
N5600-D20 DDS 5600, 120V W/DMX - 4 Channel, 600 Watt /Channel, Dimmer/Relay System, DMX installed, 20Amp Power Supply Cord, 120V, UL/C-UL Listed
N5600-009 DDS 5600 4 Channel, 600 Watt / Channel, Dimmer/Relay System, Micro-Plex and 0-10V Analog standard, 15 Amp Power Supply Cord, 240V
N5600-D09 DDS 5600, 230V W/DMX - 4 Channel, 600 Watt /Channel, Dimmer/Relay System, DMX installed, 15 Amp Power Supply Cord, 240V
N6000-000
N6000-D00 DDS 6000 W/DMX - 4 Channel, 1200 Watt /Channel 1800 Watt Max, Dimmer/Relay System, DMX installed, 15 Amp Power Supply Cord, 120V, UL/C-UL Listed
N6000-020
N6000-D20 DDS 6000 W/DMX - 4 Channel, 1200 Watt /Channel 2400 Watt Max, Dimmer/Relay System, DMX installed, 20 Amp Power Supply Cord, 120V, UL/C-UL Listed
N6000-009
N600P-D09 DDS 6000 W/DMX, 240V - 4 Channel, 1200 Watt / Channel 2400 Watt Max, Dimmer/Relay System, DMX installed, 15 Amp Power Supply Cord, 240V
N600P-000
N600P-D00
N600P-020
N600P-02K DDS 6000+ KO - 4 Channel, 1200 Watt / Channel 4800 Watt Max, Dimmer/Relay System, Micro-Plex and 0-10V Analog standard, Knockout, 120V, UL/C-UL Listed
N600P-D20
N600P-D2K DDS 6000+ KO w/DMX - 4 Channel, 1200 Watt / Channel 4800 Watt Max, Dimmer/Relay System, DMX installed, Knockout, 120V, UL/C-UL Listed
DDS Series Satellite Dimmer Packs
N600P-009 DDS 6000 4 Channel, 1200 Watt / Channel 3600 Watt Max with Dual 15A Power Supply Cords, Dimmer/Relay System, Micro-Plex and 0-10V Analog standard, 240V
N600P-0K9 DDS 6000+ KO, 240V - 4 Channel, 1200 Watt / Channel 4800 Watt Max . Dimmer/Relay System, Micro-Plex And 0-10V Analog Is Standard, Knockout, 240V
N600P-D09 DDS 6000+, 4 x 1200W, 2400W Max, 240V w/ DMX
N600P-DK9 DDS 6000+, 4 x 1200W, 2400W Max, 240V w/ DMX & Knockouts
DDS 6000 4 Channel, 1200 Watt /Channel 1800 Watt Max, Dimmer/Relay System, Micro-Plex and 0-10V Analog standard, 15 Amp Power Supply Cord, 120V,
UL/C-UL Listed
DDS 6000, 120V - 4 Channel, 1200 Watt /Channel 2400 Watt Max, Dimmer/Relay System, Micro-Plex and 0-10V Analog standard, 20 Amp Power Supply Cord, 120V,
UL/C-UL Listed
DDS 6000 4 Channel, 1200 Watt /Channel 2400 Watt Max, Dimmer/Relay System, Micro-Plex and 0-10V Analog standard, 15 Amp Power Supply Cord, 120V
DDS 6000 4 Channel, 1200 Watt / Channel 3600 Watt Max with Dual 15A Power Supply Cords, Dimmer/Relay System, Micro-Plex and 0-10V Analog standard, 120V,
UL/C-UL Listed
DDS 6000+, 120V W/DMX - 4 Channel, 1200 Watt / Channel 3600 Watt Max with Dual 15A Power Supply Cords, Dimmer/Relay System, Micro-Plex and 0-10V
Analog standard, 120V, UL/C-UL Listed
DDS 6000+, 120V - 4 Channel, 1200 Watt / Channel 4800 Watt Max with Dual 20A Power Supply Cords, Dimmer/Relay System, Micro-Plex and 0-10V Analog
standard, 120V, UL/C-UL Listed
DDS 6000+ W/DMX - 4 Channel, 1200 Watt / Channel 4800 Watt Max with Dual 20A power supply cords, Dimmer/Relay System, DMX installed, 120V, UL/C-UL
Listed
Leviton Manufacturing Co., Inc. Energy Management, Controls and Automation
20497 SW Teton Avenue, Tualatin, O R 97062 tel 800-736-6682 fax 503-404-5 594 tech line (6:00AM-4:00PM PT Mon-Fri) 800-959-6004
Leviton Manufacturing Co., Inc. Global Headquarters
201 North Service Road, Melville, NY 11747-3138 tel 800-323-8920 fax 800-832-9538 tech line (8:30AM-7:00PM ET Mon-Fri) 800-824-3005
Visit our Website at: www.leviton.com/architecturalcontrols
©2017 Leviton Manufactur ing Co., Inc. All rights reserve d. Subject to change without n otice.
G-7946B/C17-aa
REV MAR 2017
