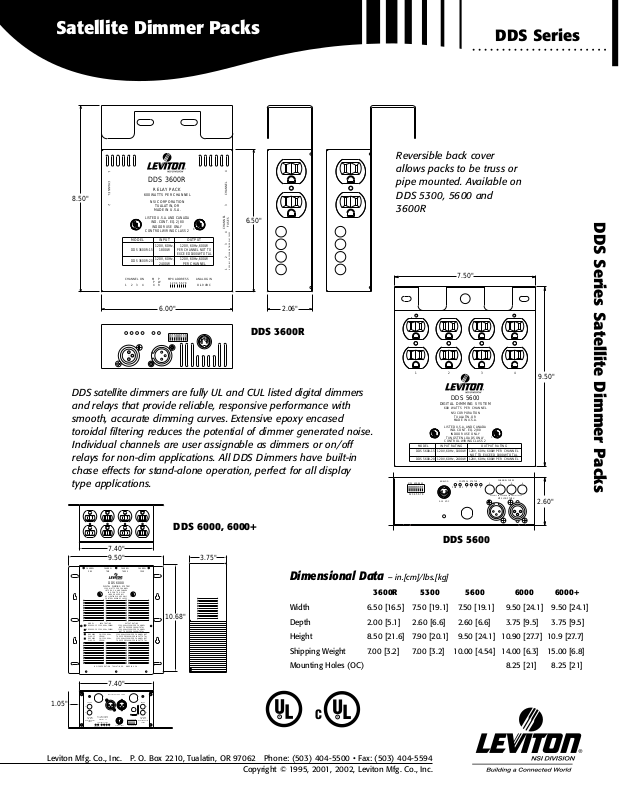

Leviton N600P-020, N600P-000 Specifications

Satellite Dimmer Packs

Leviton Mfg. Co., Inc. P. O. Box 2210, Tualatin, OR 97062 Phone: [phone] • Fax: [phone]

Copyright © 1995, 2001, 2002, Leviton Mfg. Co., Inc.

DDS Series

DDS Series Satellite Dimmer Packs

Dimensional Data

– in.[cm]/lbs.[kg]

3600R 5300 5600 6000 6000+

Width 6.50 [16.5] 7.50 [19.1] 7.50 [19.1] 9.50 [24.1] 9.50 [24.1]
Depth 2.00 [5.1] 2.60 [6.6] 2.60 [6.6] 3.75 [9.5] 3.75 [9.5]
Height 8.50 [21.6] 7.90 [20.1] 9.50 [24.1] 10.90 [27.7] 10.9 [27.7]
Shipping Weight 7.00 [3.2] 7.00 [3.2] 10.00 [4.54] 14.00 [6.3] 15.00 [6.8]
Mounting Holes (OC) 8.25 [21] 8.25 [21]

RR

DDS 3600R

DDS 5600

DDS satellite dimmers are fully UL and CUL listed digital dimmers
and relays that provide reliable, responsive performance with
smooth, accurate dimming curves. Extensive epoxy encased
toroidal filtering reduces the potential of dimmer generated noise.
Individual channels are user assignable as dimmers or on/off
relays for non-dim applications. All DDS Dimmers have built-in
chase effects for stand-alone operation, perfect for all display
type applications.

Reversible back cover
allows packs to be truss or
pipe mounted. Available on
DDS 5300, 5600 and
3600R

DDS 6000, 6000+

8.50"

12CHANNEL

600 WATTS PER CHANNEL

LISTED U.S.A. AND CANADA

R

CONTROL WIRING CLASS 2

MODEL

DDS 3600R-15

DDS 3600R-20

CHANNEL ON

4312

DDS 3600R

RELAY PACK

NSI CORPORATION

TUALATIN, OR

MADE IN U.S.A.

IND. CONT. EQ. 2J80

INDOOR USE ONLY

INPUT

120V, 60Hz,

PER CHANNEL NOT TO

1800W

EXCEED 1800W TOTAL

120V, 60Hz,

2400W

P

MPX ADDRESS

M

P

W

567

4

R

X

C

OUTPUT

120V, 60Hz, 600W

120V, 60Hz, 600W

PER CHANNEL

ANALOG IN

8213

R

O-10 VDC

43 CHANNEL

6.50"

FUSES

CHANNEL

4

312

USE ONLY 6A, 250V NON TIME-DELAY FUSES

7.50"

6.00"

2.06"

7.40"

9.50"

CHANNEL

CHANNEL

ONE

TWO

DDS 6000

DIGITAL DIMMING SYSTEM

1200 WATTS PER CHANNEL
LISTED U.S.A. AND CANADA

IND. CONT. EQ. 2J80

INDOOR USE ONLY

R

AC LIGHTING LOADS ONLY
CONTROL WIRING CLASS 2

INPUT RATING

MODEL

120V, 60Hz, 1800W

DDS 6000-15

120V, 60Hz, 2400WDDS 6000-20

2@ 120V, 60Hz,DDS 6000

PLUS - 15

1800W

DDS 6000

2@ 120V, 60Hz,

PLUS - 20

2400W

NSI CORPORATION TUALATIN, OR. MADE IN U.S.A.

CHANNEL

CHANNEL

THREE

R

R

C

OUTPUT RATING

120V, 60Hz, 1200W PER CHANNEL

NOT TO EXCEED 1800W TOTAL

120V, 60Hz, 1200W PER CHANNEL

NOT TO EXCEED 2400W TOTAL
120V, 60Hz, 1200W PER CHANNEL NOT
TO EXCEED 1800W PER INPUT TOTAL
120V, 60Hz, 1200W PER CHANNEL NOT
TO EXCEED 2400W PER INPUT TOTAL

FOUR

10.68"

3.75"

4321

9.50"

DDS 5600

DIGITAL DIMMING SYSTEM

600 WATTS PER CHANNEL

NSI CORPORATION

TUALATIN, OR

MADE IN U.S.A.

LISTED U.S.A. AND CANADA

IND. CONT. EQ. 2J80

INDOOR USE ONLY

TUNGSTEN LOADS ONLY

CONTROL WIRING CLASS 2

MODEL OUTPUT RATING

INPUT RATING

120V, 60Hz, 1800W

DDS 5600-15

120V, 60Hz, 2400W

DDS 5600-20

67812345

ANALOG -- CONTROL STATUS --

0-10 VDC

MPX ADDRESS

C

120V, 60Hz, 600W PER CHANNEL

NOT TO EXCEED 1800W TOTAL

120V, 60Hz, 600W PER CHANNEL

1234PWR MPX

CHANNEL FUSES

USE ONLY 6A, 250V NON TIME-DELAY FUSES

MPX LOOP THRU

4231

2.60"

7.40"

MULTIPLEX LOOP THRU

1.05"

1

2

USE ONLY
12A, 250V.

NON-TIME-DELAY

FUSES

NSI CORPORATION

TUALATIN, OREGON

MADE IN U.S.A.

FUSES

CONTROL STATUS

4231MPXPWR

MPX ADDRESS

FUSES

3

4

USE ONLY
12A, 250V.

NON-TIME-DELAY

FUSES

741235680-10VDC INPUT

Literature # 015-MKNSI-000 G-6619B

P.O. Box 2210 • Tualatin, Oregon 97062 Phone: [phone] • Fax: [phone]

Copyright © 1995, 2001, 2002 Leviton Mfg. Co. Inc.

Satellite Dimmer Packs

DDS Series

............................

Description Cat. No.

DDS 3600R120V, 15 Amp FGP-03600-0

DDS 3600R, 120V, 20 Amp FGP-03600-20

DDS 3600R, 240V, 20 Amp FGP-03600-9

DDS 5300, 120V, 15 Amp FGP-05300-0

DDS 5300, 120V, 20 Amp FGP-05300-20

DDS 5300, 240V, 20 Amp FGP-05300-9

DDS 5600, 120V, 15 Amp FGP-05600-0

DDS 5600, 120V, 20 Amp FGP-05600-20

DDS 5600, 240V, 20 Amp FGP-05600-9

DDS 6000, 120V, 15 Amp FGP-06000-0

DDS 6000, 120V, 20 Amp FGP-06000-2

DDS 6000, 240V, 20 Amp FGP-06000-9

DDS 6000+, 120V, 15 Amp FGP-06000-1

DDS 6000+, 120V, 20 Amp FGP-06000-21

DDS 6000+, 240V, 20 Amp FGP-06000-19

Optional DMX512 Kit OPT-05512-0

Optional, KO (Knockout)
for hardwire of 6000+ OPT-06000-1

Specifications subject to change without notice

Features

•

4 individual dimmer or relay channels

•

Microprocessor digital phase control

dimming or zero-crossing relay
modes are user selectable (3600R
is relay only)

•

512 channel address capable

•

User selectable soft start operation

to increase lamp life

•

User selectable 8 auto sequence

control programs

•

Sequence rate adjustable from 1 to

60 seconds

•

Toroidal noise filtering

•

Dual SCR circuit design ensures

reliable operation

•

Control status indicator LED

•

Power on LED indicator

•

Individual channel function LEDs

•

External fusing for each individual

channel

•

External front panel circuit breaker

(6000 and 6000+ only)

•

NSI 128 channel Micro-Plex (3-pin

XLR male and female)

•

0 to 10 volt analog input (5-pin DIN)

•

Optional DMX512 digital control

(5-pin XLR male and female)

DDS 3600R

(relay only pack)

• 4 channels @ 600 watts

• 15 amp/1800 watt model with
NEMA 5-15 household power cord
connector or 20 amp/2400 watt
model with NEMA 5-20 perpendicular
blade power cord connector available

• 2400 watts maximum output

DDS 5300

• 4 channels @ 300 watts

• 1200 watts maximum output

• Up to 100 micro-second toroidal
filtering

DDS 5600

• 4 channels @ 600 watts

• 15 amp/1800 watt model with
NEMA 5-15 household power cord
connector or 20 amp/2400 watt
model with NEMA 5-20 perpendicular
blade power cord connector available

• 2400 watts maximum output

• 160 micro-second toroidal filtering

DDS 6000

• 4 channels @ 1200 watts

• 15 amp/1800 watt model with NEMA
5-15 household power cord connector
or 20 amp/2400 watt model with
NEMA 5-20 perpendicular blade
power cord connector available

• 2400 watts maximum output

• 400 micro-second toroidal filtering

DDS 6000+

(dual power cords)

• 4 channels @ 1200 watts

• 15 amp/3600 watt model with two
NEMA 5-15 household power cord
connectors or 20 amp/4800 watt
model with two NEMA 5-20 perpen­dicular blade power cord connectors
available

• 4800 watts maximum output

• 400 micro-second toroidal filtering

• UL listed knockout version available
for hardwired permanent installation

DDS 5300

7.50"

1

DDS 5300

DIGITAL DIMMING SYSTEM

300 WATTS PER CHANNEL

NSI CORPORATION

WILSONVILLE, OR

MADE IN U.S.A.

LISTED U.S.A. AND CANADA

IND. CONT. EQ. 2J80

INDOOR USE ONLY

TUNGSTEN LOADS ONLY

CONTROL WIRING CLASS 2

INPUT RATING

ANALOG

0-10 VDC

OUTPUT RATING
120V, 60Hz, 300W

PER CHANNEL

-- CONTROL STATUS --

4231PWR MPX

USE ONLY 3A, 250V NON TIME-DELAY FUSES

120V, 60Hz, 1200W

MPX ADDRESS

83456712

C

RR

CHANNEL FUSES

MPX LOOP THRU

432

7.87"

4321

2.55"
