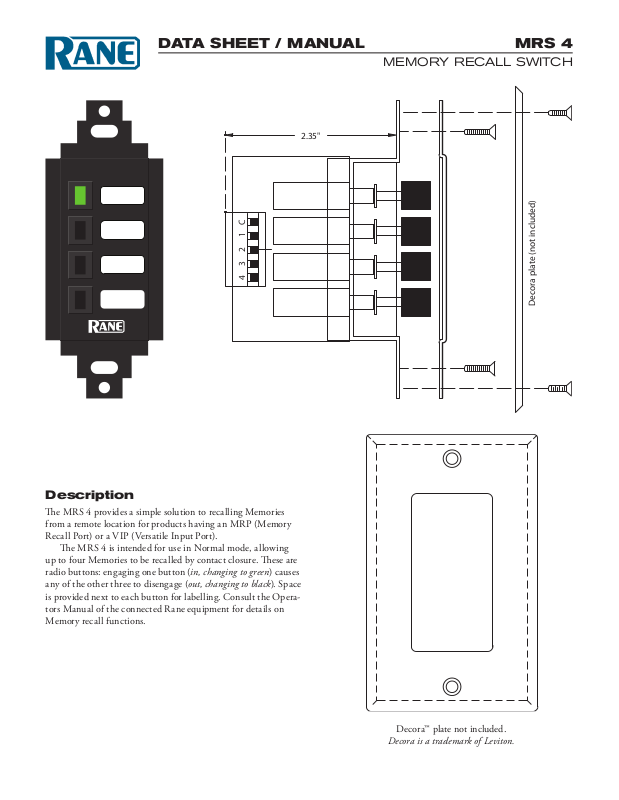

DATA SHEET / MANUAL MRS 4
2.35"
234 C1
Decora plate (not included)
MEMORY RECALL SWITCH
Description
e MRS 4 provides a simple solution to recalling Memories
from a remote location for products having an MRP (Memory
Recall Port) or a VIP (Versatile Input Port).
up to four Memories to be recalled by contact closure. ese are
radio buttons: engaging one button (in, changing to green) causes
any of the other three to disengage (out, changing to black). Space
is provided next to each button for labelling. Consult the Operators Manual of the connected Rane equipment for details on
Memory recall functions.
e MRS 4 is intended for use in Normal mode, allowing
Decora™ plate not included.
Decora is a trademark of Leviton.
Page 2
Remote Mounting and Wiring
1
2
3
4
C
1
2
3
4
e MRS 4 remote assembly mounts in a standard U.S. electrical
box with a minimum depth of 2.5".
Turn the power to the unit off until all connections are
made. It is important to ensure that the Remote Ports are not
subjected to sustained voltages outside the range of 0 to 5 volts
DC or high levels of static. Inputs are protected, however caution
is the better part of...you know. It is a good idea to install the
wiring, connect it to the Remote and then make the final connections at the unit.
When wiring to Euroblocks, a minimum wire gauge of 22
is preferred for reliability. If the ground or shield wire is left
shorter, it acts as a strain relief for the other wires. Cable with a
flexible jacket is easier to use and less likely to damage the connections. Be sure to note the wire color of each input in order
to facilitate correct wiring to the unit. Make sure wires are free
of nicks and that the cable jacket is stripped back sufficiently
to allow it to lie in the electrical box with the remote assembly
inserted. Connect each wire to the 5-pin connector by fully
inserting it in the correct socket and tightening the screw.
Use the flat head #6 screws supplied with the kit to mount
the remote assembly and silkscreened front panel to the electrical
box. Install the Decora plate of your choice (not included).
Wire Types
You may use 5-conductor unshielded remote control signal cable
for shorter runs (less than 200 ft.) or 4-conductor (2 pair) shielded remote control signal cable (use the shield as the GND return)
for longer runs (200 to 1000 ft.). e type of wire required is
influenced by your installation and local electrical codes.Variations in wire type do not greatly affect the performance of the
remote controls. Rane Corporation does not provide or source
cable. Please contact your local retail or wholesale outlet, not the
fac tor y.
e following is a short list of suitable cable types:
Block Diagram / Schematic
CONSOLIDATED ELECTRONIC WIRE AND CABLE
Plenum cable:
Unshielded remote control signal cable CAT. #9896
Shielded remote control signal cable CAT. #9877 or #9852
WEICO WIRE & CABLE INC.
Communication and control cable:
Multiconductor, unshielded CAT. #7606
ALPHA
Communication and control cable:
Multiconductor, unshielded CAT. #1175C
BELDEN
Unshielded remote control signal cable CAT. #88741
Shielded remote control signal cable CAT. #88723
©Rane Corporation 10802 47th Ave. W., Mukilteo WA 98275-5098 TEL 425-355-6000 FAX 425-347-7757 WEB www.rane.com
All features & specifications subject to change without notice. DOC 105183
