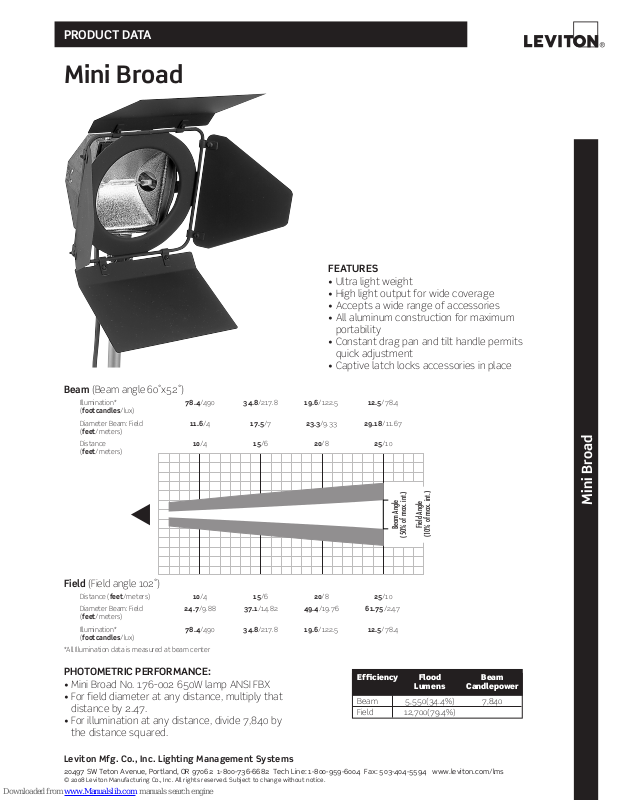

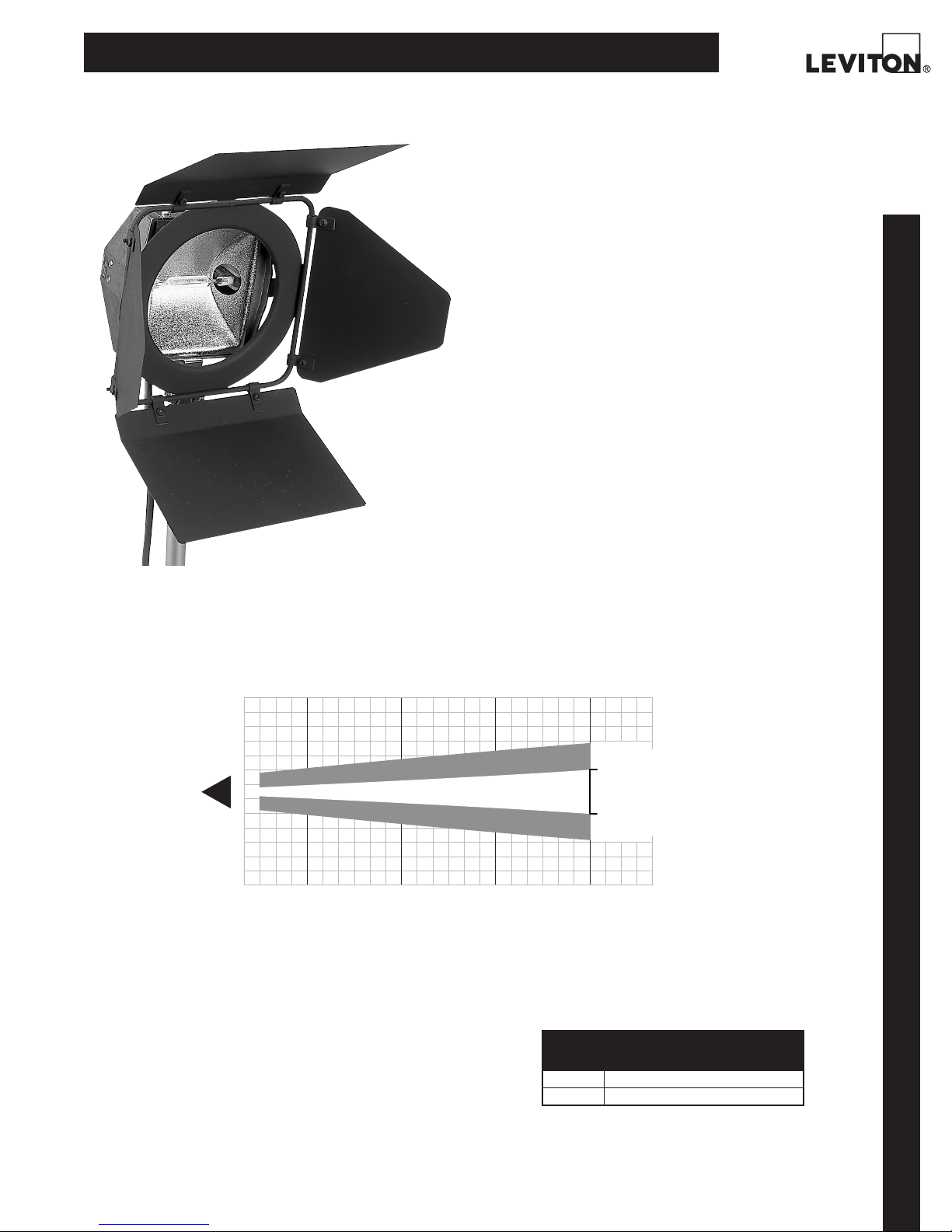

Leviton Mini Broad Product Data

PRODUCT DATA

Beam Angle

(50% of max. int.)

Field Angle

(10% of max. int.)

Mini Broad

FEATURES

• Ultra light weight

• High light output for wide coverage

• Accepts a wide range of accessories

• All aluminum construction for maximum
portability

• Constant drag pan and tilt handle permits
quick adjustment

• Captive latch locks accessories in place

Beam (Beam angle 60˚x52˚)

Illumination* 78.4/490 34.8/217.8 19.6/122.5 12.5/78.4
(footcandles/lux)

Diameter Beam: Field 11.6/4 17.5/7 23.3/9.33 29.18/11.67
(feet/meters)

Distance 10/4 15/6 20/8 25/10
(feet/meters)

Field (Field angle 102˚)

Distance (feet/meters) 10/4 15/6 20/8 25/10

Diameter Beam: Field 24.7/9.88 37.1/14.82 49.4/19.76 61.75/24.7
(feet/meters)

Illumination* 78.4/490 34.8/217.8 19.6/122.5 12.5/78.4
(footcandles/lux)

*All Illumination data is measured at beam center

PHOTOMETRIC PERFORMANCE:

• Mini Broad No. 176-002 650W lamp ANSI FBX

• For field diameter at any distance, multiply that
distance by 2.47.

• For illumination at any distance, divide 7,840 by
the distance squared.

Leviton Mfg. Co., Inc. Lighting Management Systems

20497 SW Teton Avenue, Portland, OR 97062 1-800-736-6682 Tech Line: 1-800-959-6004 Fax: [phone] www.leviton.com/lms

© 2008 Leviton Manufacturing Co., Inc. All rights reserved. Subject to change without notice.

Mini Broad

Efficiency Flood Beam
Lumens Candlepower

Beam 5,550(34.4%) 7,840
Field 12,700(79.4%)

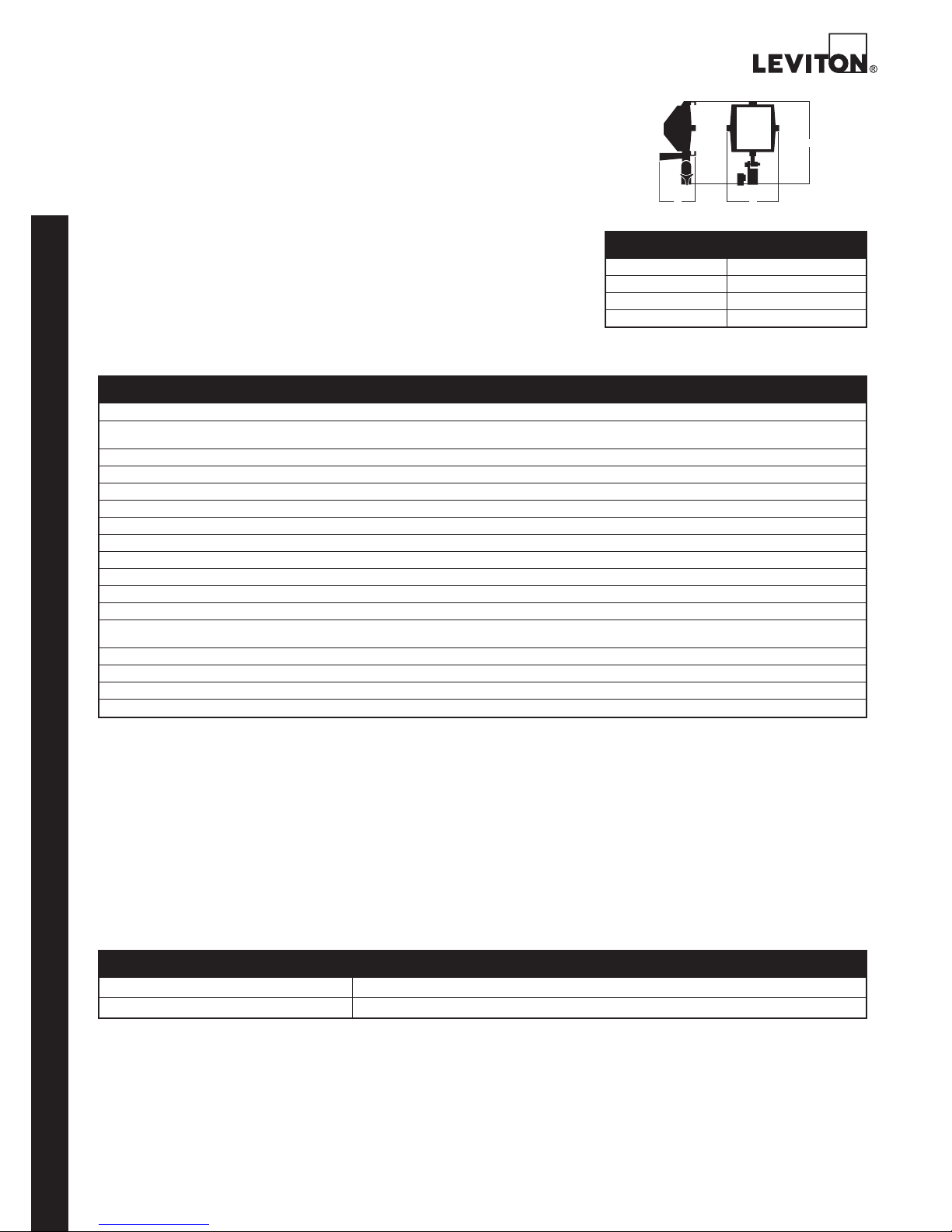

PRODUCT DATA

A

B

C

SPECIFICATIONS

• Housing shall be constructed of ventilated
aluminum with high temperature gray finish.

MECHANICAL

• Performance with catalog number 176-002
(ANSI code FBX) lamp

• Mounting steel yoke, fits 1/2” or 5/8” stud

• Cable 12’ 3-wire with parallel blade U-ground cap

• Voltage: 120/240 AC/DC

• Amperage:

5.4 at 120V with 650W lamp

3.3 at 240V with 800W lamp

• Switch in line

CAT. NO. DESCRIPTION

000MB-42B Mini-Broad w/9’ cable & Edison connector

ACCESSORIES

AMPBD-000 Four Leaf Barndoor, Mini-Pro
AMPDF-000 Dichroic Filter, Mini-Pro
AMPEC-000 Mini-Pro/Mini Broad Extension Cable, 25 ft. 3-way
AMPGG-000 Gaffer Grip w/ 1/2” and 5/8” Studs
AMPHA-000 Mini-Pro Handle
AMPMS-000 Mini-Stand 1/2” stud
AMPRC-000 Mini-Pro 120V Replacement Cable 9 ft.
AMPSS-SGL Scrim, Single (fits 5” diameter)
AMPSS-SET Set Single/Half Single Scrim - Mini-Pro, Mini-Broad (fits 5” diameter)
CT140-003 30V DC Cord - Mini-Pro

DIMENSIONAL DATA – IN. [CM] LBS. [KG]

A 5.37 [13.70]
B 8.25 [21.00]
C 3.25 [8.30]
Weight 1.75 [0.82]

LAMPS

L0FBX-000 FBX 650W 120V 3200K 125HR Frosted
L0FCA-000 FCA 650W 120V 3400K 30HR
L0EHR-000 EHR 400W 120V,3000K 2000HR
L0DXX-000 DXX 800W 220V 3200K 80HR

Mini Broad

LEVITON SPECIFICATION SUBMITTAL

JOB NAME: CATALOG NUMBERS:
JOB NUMBER:

Leviton Manufacturing Co., Inc. Lighting Management Systems

20497 SW Teton Avenue, Portland, OR 97062
Telephone: [phone] • FAX: [phone] • Tech Line (6:00AM-4:00PM P.S.T. Monday-Friday): 1-800-959-6004

Leviton Manufacturing of Canada, Ltd.

165 Hymus Boulevard, Pointe Claire, Quebec H9R 1E9 • Telephone: [phone] • FAX: [phone]

Leviton S. de R.L. de C.V.

Lago Tana 43, Mexico DF, Mexico CP 11290 • Tel. [phone] • FAX: [phone] • www.leviton.com.mx

Visit our Website at: www.leviton.com/lms

© 2008 Leviton Manufacturing Co., Inc. All rights reserved. Subject to change without notice.

G-7966/B8-ak
