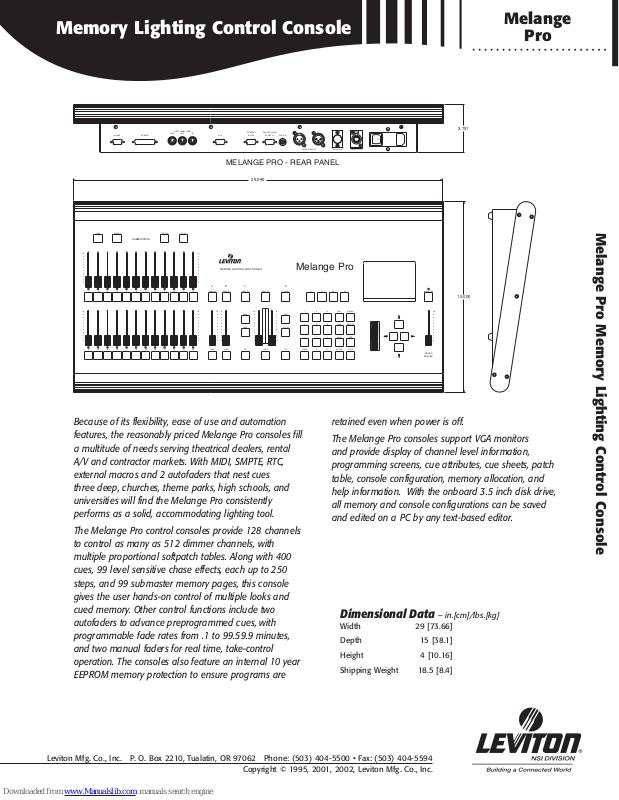

Memory Lighting Control Console
Leviton Mfg. Co., Inc. P. O. Box 2210, Tualatin, OR 97062 Phone: (503) 404-5500 • Fax: (503) 404-5594
Copyright © 1995, 2001, 2002, Leviton Mfg. Co., Inc.
Melange
Pro
Because of its flexibility, ease of use and automation
features, the reasonably priced Melange Pro consoles fill
a multitude of needs serving theatrical dealers, rental
A/V and contractor markets. With MIDI, SMPTE, RTC,
external macros and 2 autofaders that nest cues
three deep, churches, theme parks, high schools, and
universities will find the Melange Pro consistently
performs as a solid, accommodating lighting tool.
The Melange Pro control consoles provide 128 channels
to control as many as 512 dimmer channels, with
multiple proportional softpatch tables. Along with 400
cues, 99 level sensitive chase effects, each up to 250
steps, and 99 submaster memory pages, this console
gives the user hands-on control of multiple looks and
cued memory. Other control functions include two
autofaders to advance preprogrammed cues, with
programmable fade rates from .1 to 99.59.9 minutes,
and two manual faders for real time, take-control
operation. The consoles also feature an internal 10 year
EEPROM memory protection to ensure programs are
retained even when power is off.
The Melange Pro consoles support VGA monitors
and provide display of channel level information,
programming screens, cue attributes, cue sheets, patch
table, console configuration, memory allocation, and
help information. With the onboard 3.5 inch disk drive,
all memory and console configurations can be saved
and edited on a PC by any text-based editor.
Melange Pro Memory Lighting Control Console

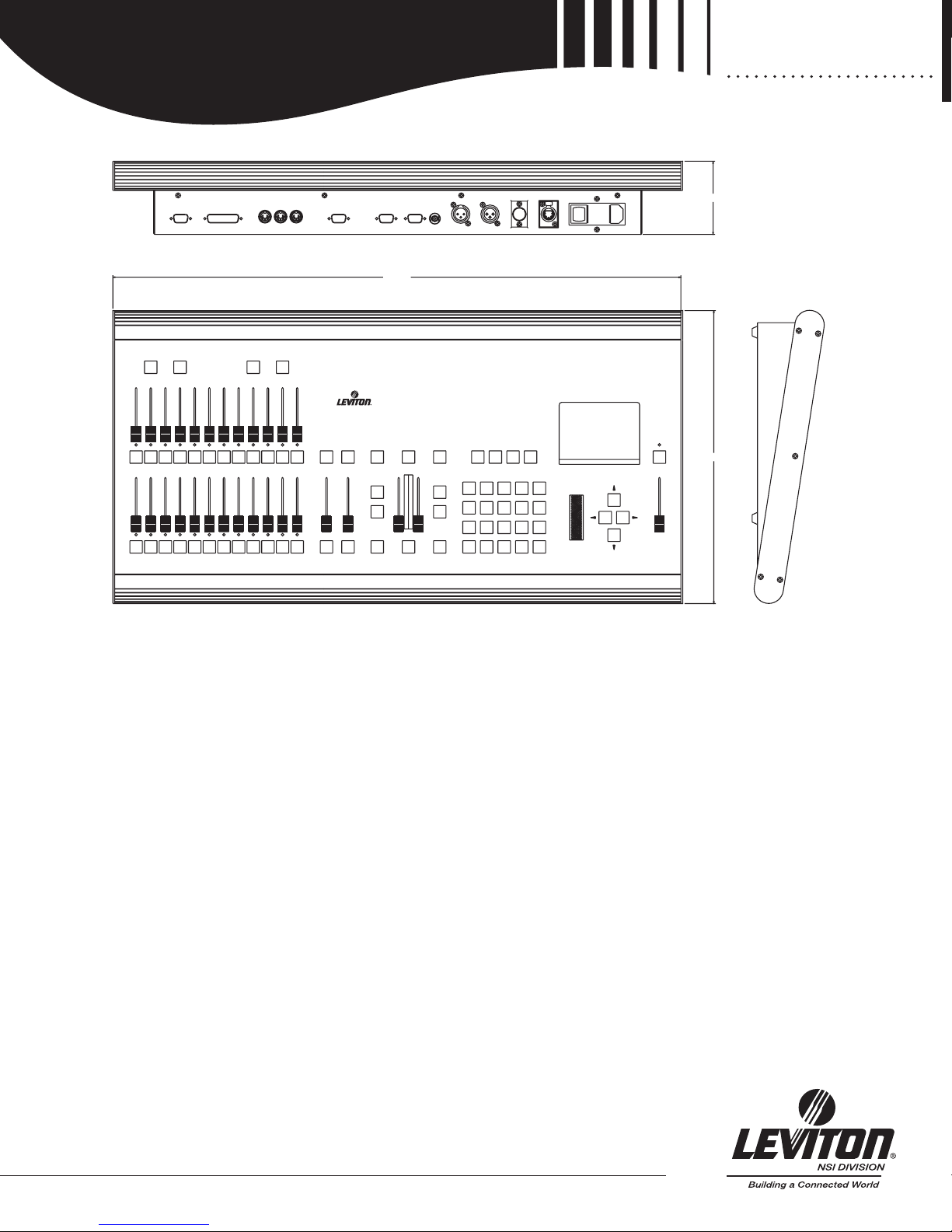

Dimensional Data
– in.[cm]/lbs.[kg]
Width 29 [73.66]
Depth 15 [38.1]
Height 4 [10.16]
Shipping Weight 18.5 [8.4]
MIDI CONNECTORS
MOUSE PRINTER
OUT INTHRU
VGA
MELANGE PRO - REAR PANEL
LOAD CANCEL
10
9
8
7
6
5
4
3
2
1
0
1
10
9
8
7
6
5
4
3
2
1
0
13 19 GO
SUBMASTERS
65423
18171614 15
SOLOTOGGLE
10
9
8
7
6
5
MEMORY LIGHTING CONTROLLER
4
3
2
1
0
B
A
11 1210978
CANCEL
CANCEL
01010
1
9
9
2
8
8
7
7
3
4
6
6
5
5
5
6
4
4
7
3
3
8
2
2
9
1
1
10
00
LOADLOAD23 24222120
EXTERNAL
INPUTS SERIAL I/O
29.090
C
CANCEL
BACK
9
8
7
6
5
HOLD
4
3
2
1
0
REMOTE FOCUS
AUDIO IN
D
CANCELSELECT F4
010
FAST
1
2
3
4
5
SLOW
6
7
8
9
10
GOLOAD
PUSH
_
O
DMX512 INMICROPLEX OUT
DMX512 OUT
3.751
ProMelange
F2 F3F1
FULL987
MACRO
THRU654
RECORD
AND321
EDIT
ENTERAT / .0CLEAR
HELP
BLACKOUT
GRAND
MASTER
15.000
10
9
8
7
6
5
4
3
2
1
0
Page 2
Literature # 011-MKNSI-000
P.O. Box 2210 • Tualatin, Oregon 97062 Phone: (503) 404-5500 • Fax: (503) 404-5594
Copyright © 1995, 2001, 2002 Leviton Mfg. Co. Inc.
Memory Lighting Control Console
Melange
Pro
............................
Description Cat. No.
Specifications subject to change without notice
Features
• 128 Channels
• 24 Submaster Controls with up to 99
Submaster Pages
• 512 Dimmer Proportional Softpatch
• Level Sensitive Chases
• 99 User Defined Macros
• Go
• Back
• Hold
• EEPROM Internal Memory Storage
• Control Function Indicators
• Manual Override/Crossfade
• Pile-On and Split Time Fades
• Submaster Bumps
• Black Out Control
• Grand Master
• Optional Wired Remote Focus
• 8 External Macros
• VGA Color Monitor
• SMPTE via MIDI Time Code
• MIDI In/Out/Thru
• NSI 128 Channel Micro-Plex (3-Pin
Interconnect)
• DMX512 Digital Control (Standard
5-Pin Connector)
Loading...
